Usearch: A Meta Search Engine based on a New Result Merging

Strategy

Tarek Alloui

, Imane Boussebough

, Allaoua Chaoui

, Ahmed Zakaria Nouar

and Mohamed Chaouki Chettah

MISC Laboratory, Department of Computer Science and its Applications, Faculty of NTIC,

University Constantine 2 Abdelhamid Mehri, Constantine, Algeria

LIRE Laboratory, Department of Software Technology and Information Systems, Faculty of NTIC,

University Constantine 2 Abdelhamid Mehri, Constantine, Algeria

Department of Computer Science and its Applications, Faculty of NTIC, University Constantine 2,

Abdelhamid Mehri, Constantine, Algeria

Keywords: Meta Search Engine, Ranking, Merging, Score Function, Web Information Retrieval.

Abstract: Meta Search Engines are finding tools developed for improving the search performance by submitting user

queries to multiple search engines and combining the different search results in a unified ranked list. The

effectiveness of a Meta search engine is closely related to the result merging strategy it employs. But

nowadays, the main issue in the conception of such systems is the merging strategy of the returned results.

With only the user query as relevant information about his information needs, it’s hard to use it to find the

best ranking of the merged results. We present in this paper a new strategy of merging multiple search

engine results using only the user query as a relevance criterion. We propose a new score function

combining the similarity between user query and retrieved results and the users’ satisfaction toward used

search engines. The proposed Meta search engine can be used for merging search results of any set of search

engines.

1 INTRODUCTION

Nowadays, the World Wide Web is considered as

the largest information source in the World. But the

challenge is to be able to find, from the huge amount

of documents available on the Web and in a timely

and cost-effective way, the documents that best

match user information needs.

For a fairly rich and relevant search results, a

search engine remains limited because it can’t index

all the web pages. This situation obliges the user to

move, for the same query, from a search engine to

another to find more relevant results to his needs.

To simplify the task to the user, it’s interesting to

offer him tools to invoke, with the same query,

multiple search engines simultaneously. These tools

are called Meta Search Engines (MSE). They

provide a uniform query interface for Internet users

to access multiple existing search engines (Meng,

2008). After the returned results from all used search

engines have been collected, the Meta search engine

merges them into a single ranked list. The major

advantages of MSEs are their abilities to combine

the coverage of multiple search engines and to reach

the deep Web.

Result merging is combining the search results

returned from multiple search engines into a single

ranked list. A straightforward way to perform results

merging is to download locally the retrieved

documents and then compute their similarities with

the user query using a global similarity function.

Then, the results will be ranked using the computed

scores (Renda and Straccia, 2003; Lu and al 2005).

The main advantage of this approach is that it

provides a uniform way to compute ranking scores.

But the main problem of this technique is a longer

response time due to documents’ downloading.

Another result merging technique is to use

scores, returned from each used search engine, in the

computation of new normalized scores to make them

more comparable. But not all search engines return

local ranking scores, and even if they can be

obtained, there is no information about how these

scores are computed by each search engine.

Alloui, T., Boussebough, I., Chaoui, A., Nouar, A. and Chettah, M..

Usearch: A Meta Search Engine based on a New Result Merging Strategy.

In Proceedings of the 7th International Joint Conference on Knowledge Discovery, Knowledge Engineering and Knowledge Management (IC3K 2015) - Volume 1: KDIR, pages 531-536

ISBN: 978-989-758-158-8

531

Also, when there are common results between

different search engines, they are ranked differently

since search engines use different ranking formulas

and term weighting techniques.

In this paper, a new result merging strategy is

introduced. In our approach, we combine two

techniques: computing a similarity score for each

retrieved result using title, description and snippets

instead of the full document; and including users’

satisfaction toward the used search engines in the

computation of the final ranking scores.

The main contribution of our proposed approach

is the score function that combines two important

parameters: the similarity score between the user

query and the retrieved document, and the users’

satisfaction to each search engine. This function

helps us to obtain our own ranking without

neglecting the results ranking of each search engine.

2 RELATED WORK

Nowadays, very few search engines report their

ranking scores, but many earlier approaches focused

on taking into consideration and using these ranking

scores (Aslam and Montague, 2001;

Callan

and al,

1995;

Gauch

and al 1996).

Another approach of merging results is to

download the full documents, analyzes them and

computes a similarity score between user query and

each document. Then, these scores are used to rank

the merged list (Renda and Straccia, 2003). The

drawback of this approach is a high time cost before

merged results can be displayed to the user.

Instead of downloading the full documents, most

of the current metasearch engines (Lu and al 2005;

Rasolofo

and al, 2003;

Jadidoleslamy

, 2012), use

representative information of the document such as

the URL, title, summary (snippets) and search

engine usefulness. Generally, a similarity between

the user query and the document title and snippet is

computed. The work reported in (

Rasolofo

and al,

2003) is the most likely similar to our work in the

use of the available information such as document

title, snippet, local rank and search engine

usefulness. But instead of search engine usefulness,

we chose to use users’ satisfaction toward the used

search engines.

3 THE PROPOSED APPROACH

In this section, we present a metasearch engine

based on a new result merging strategy. The main

objective of Usearch is to help any user getting more

relevant results from the Web. This is achieved by

querying multiple search engines simultaneously. So

the proposed system avoids the user moving from a

search engine to another by submitting his queries to

the different search engines, retrieving the results,

merging them using the proposed merging strategy

and presenting them to the user in a single ranked

list.

The proposed system functioning is distributed

on four important modules: Interface Module,

Querying and Retrieving Module, Pre-processing

Module and Merging Module (Figure 1). The

Merging Module implements the principle of our

merging strategy. To better understand the proposed

system, we will describe in the following the

principle and the functioning of each module.

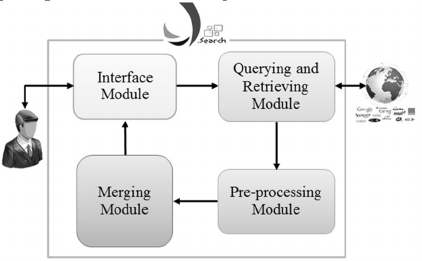

Figure 1: Architecture of the Metasearch engine Usearch.

3.1 Interface Module

This module allows users to express their queries in

a simple and intuitive way using their own keywords

without any specific search engine representation or

constraint.

It receives the user query as an input and sends it

to the Querying and Retrieving Module. After

retrieving the search engines results and merging

them in a single list by the Merging Module, they are

sent to the Interface Module to be displayed to the

user.

This module also allows the user to choose the

search engines he wants to invoke, to set for each

one his satisfaction, to activate and use advanced

search of all used search engines. Indeed, the user

can enter, like what is proposed in most search

engines, more specific information on his

information needs.

3.2 Querying and Retrieving Module

This module receives the user query, converts it into

a query specific to each search engine and

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

532

encapsulates it in the search engine URL. After

executing simultaneously all search engines URLs,

this module retrieves the returned results lists of all

search engines and sends them to the Pre-processing

Module.

3.3 Pre-Processing Module

This module has the following tasks:

─ Analyzing the retrieved results for title,

description (snippets) and URL extraction.

─ Identifying common and non-common results

between all search engines results.

First of all, each result list of each search engine

is analyzed to extract for each result the following

information:

• The result title,

• The result description,

• The result URL,

• The rank of the result in the corresponding

search engine.

Then, the module analyzes all the results lists of

all search engines, to identify the common and non-

common results. In addition to the previous

information, the module associates to each common

result its rank in each search list it appears.

After identifying the common and non-common

results, the module sends these two lists to the

Merging Module to compute the scores of all results

using the proposed score function and to merge them

into a single ranked list.

3.4 Merging Module

This module implements the proposed result

merging strategy. The two main tasks of this module

are:

─ Computing the scores of all results using the

information extracted by the Pre-processing

Module,

─ Merging and ranking the results using the

computed scores.

3.4.1 Score Function

The main contribution of this work is the proposed

score function. It relies on the information extracted

and sent by the Pre-processing Module to compute a

similarity score for each retrieved result. To do this,

we chose these following relevance criteria in the

design of the score function:

• Occurrence of the user query “as it is” in the

result description, noted “Query

Occ

”,

• Occurrence of query keywords in the result

description, noted “Keywords

Occ

”,

• Occurrence of query keywords in the result

title, noted “Title

Occ

”,

• Result rank in the corresponding search

engine, noted “Rank”.

The proposed score function is then as follows:















∗











∗













⁄









⁄

Where:

• i: the result,

• C

: query occurrence coefficient,

• C

: query keywords occurrence coefficient,

• N: the number of keywords in the user query,

• C

: engine ranking coefficient.

These coefficients are the weightings of the

different performance criteria we chose in our score

function. This score is computed for each result in

the common and non-common lists. For the common

results, if a result appears in m search engines

results, the system will compute m scores because

this result has a different “Rank” in the result list of

each search engine.

So, the final score of the common results is

computed using the following formula:











=



∗











Where:

• i: the result,

• m: the number of search engines where the

result “i” appears,

• CC

: contribution coefficient of the search

engine “j” in the final results,

• Score(j): the score of the result “i” using its

“Rank” in the search engine “j”.

As said before, we combine two techniques:

computing a similarity score for each retrieved result

using title, description and snippets instead of the

full document; and including users’ satisfaction

toward the used search engines in the computation

of the final ranking scores. The users’ satisfaction

toward search engines is combined in the final score

function of the common results. Indeed, each “CC

”

coefficient represents user satisfaction toward the

corresponding search engine. And the sum of these

Usearch: A Meta Search Engine based on a New Result Merging Strategy

533

coefficients satisfies the following condition:









3.4.2 Results Merging

Once results scores computed, the Merging Module

performs results merging and ranking according to

their scores in a descendant order. In the ranking

process, results with the same scores are treated

according to the following conflict resolution policy:

• Priority 0 is assigned to results in the common

list,

• If the result isn’t in the common list, then the

system will assign priority according to users’

satisfaction toward used search engines as

follows:

○ Priority 1 for the most satisfying

search engine,

○ Priority 2 for the second search

engine,

○ …

○ Priority m for the last search engine.

Once the results merged and ranked, the

Merging Module sends the final list to the Interface

Module to be displayed to the user.

4 EXPERIMENTAL RESULTS

AND DISCUSSION

To test the feasibility and effectiveness of our result

merging strategy, we implemented a prototype of the

proposed system. Since our Meta search engine

supports querying multiple search engines, we chose

in a first step to fix the number of search engine to

“3”. And we opted for the three most famous and

most used search engines: Google, Bing and Yahoo.

Also, instead of testing Usearch on a document

collection, we decided to test it directly on the Web.

Indeed, what can work well on a small collection

and gives very good results, can yield the worst

results when deploying it on a changing environment

such as the Web. So the large scale transition will

not always give the same results as on a small

collection like TREC collections, because there is a

lot of heterogeneous documents; websites born,

evolve and disappear; search engines always change

their search algorithm and update frequently their

indexes. Therefore it is more suitable to test a new

approach for the Web directly on this one to better

appreciate the contribution and the effectiveness of

the work.

So in a first testing step, we devised the used

queries into three sets as follows:

• A set of single keyword queries,

• A set of two keywords queries,

• A set of three keywords queries.

Each set contains 5 different queries for 5

different topics. Using these 3 queries sets, we

varied the score function coefficients as follows:

• Coefficient C

between 0.5 and 3,

• Coefficient C

between 0.5 and 3,

• Coefficient C

between 0.5 and 10.

According to the studies made every year by the

American Customer Satisfaction Index (

ACSI, 2014)

in 2014, Google is the most satisfying search engine,

followed by Bing and Msn, then Yahoo and finally

AOL. So, based on these studies, we fixed search

engines coefficients as follows:

• Google: coefficient CC

= 0.5,

• Bing: coefficient CC

= 0.3,

• Yahoo: coefficient CC

= 0.2.

The following statistics are made on the 20 first

results of the merged list using more than 15

coefficients variations for each query of the three

queries sets. Indeed, some studies were made on the

importance of the 20 first results and more precisely

on the 3 first ones. According to these studies

(Slingshot SEO, 2011;

Goodwin, 2013)

, users consult

mostly the 3 first results of the first results page, and

rarely those of the second page.

For the first test set (with single keyword

queries), Figure 2 represents, for each search engine,

the average position of its 3 first results in the top 20

of the merged list.

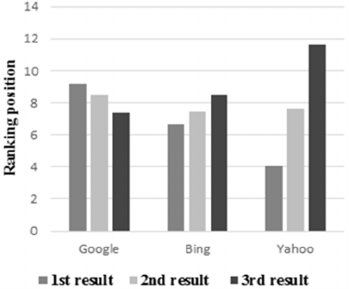

Figure 2: Average positions of the 3 first results of each

search engine in the merged list for the single keyword

queries set.

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

534

For the second test set (with two keywords

queries), Figure 3 represents, for each search engine,

the average position of its 3 first results in the top 20

of the merged list.

And for the third test set (with three keywords

queries), Figure 4 represents, for each search engine,

the average position of its 3 first results in the top 20

of the merged list.

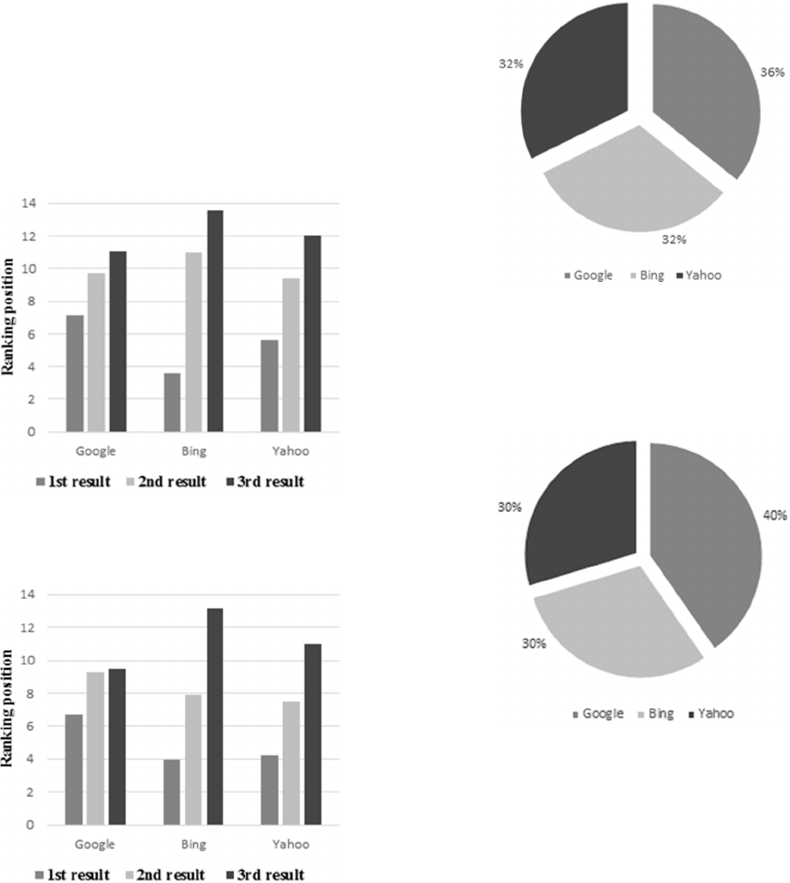

Figure 3: Average positions of the 3 first results of each

search engine in the merged list for the two keywords

queries set.

Figure 4: Average positions of the 3 first results of each

search engine in the merged list for the three keywords

queries set.

We can see from Figure 2, 3 and 4 that generally

the three first results of each search engine rank in

the top 20 of the merged list. We notice also, in the

three types of queries sets, that the first result of both

Bing and Yahoo is always better ranked than the first

result of Google. Even if we have prioritized Google

over Bing and Yahoo by giving him a coefficient of

0.5, we see that its first result is always less ranked

than the first result of the others. This is due to

Google's ranking strategy which generally privileged

commercial links over other links that are probably

more relevant to the user query.

Figure 5: Average proportion of search engines

participation in the top 3 of the merged list.

In Figure 5, we notice that generally each search

engine has at least one result ranked in the top 3 of

the merged list.

Figure 6: Average proportion of search engines

participation in the top 20 of the merged list.

As we can see in Figure 6, Google has mostly

40% results in the top 20 of the merged list.

However, Bing and Yahoo have equal proportions

(30%) of participation in the top 20 of the merged

list. Even if we have given Google the highest

coefficient “CC

” (i.e. 0.5), it obtained less than 50%

of the results in the merged list, and Bing and Yahoo

have obtained equal parts of results (30%) in the

merged list.

After testing different coefficients combinations,

we identified the combination that seems the most

suitable and that ranks the first result of each search

engine in the top 3 of the merged list (1

: Google,

: Bing and 3

: Yahoo):

• Coefficient C

= 1.5,

• Coefficient C

= 0.5,

• Coefficient C

= 9.

This is due to the coefficient C

that gives more

importance to the exact user query than the

Usearch: A Meta Search Engine based on a New Result Merging Strategy

535

keywords it contains and most search engines

employs this kind of strategy in ranking their results,

i.e., they usually look for the exact query occurrence

in the document before looking for the query

keywords occurrence.

5 CONCLUSION AND FUTURE

WORK

In this paper, we presented a novel approach of

result merging strategy that combines two

techniques: computing a similarity score for each

retrieved result using title, description and local rank

instead of the full document; and including users’

satisfaction toward the used search engines in the

computation of the final ranking scores.

According to the experimental results, we can

see that the system produces a well merged list

where the participation of the three used search

engines reflects well the users’ satisfaction we

introduced into the score function.

Also through the experimentations, we noticed

that the top 3 of each search engine are always

ranked in the top 20 of the merged list.

Even if the preliminary results we obtained are

satisfying, this work is a first proposition in multiple

search engines querying and needs some

improvements and further experimentations. Indeed,

as future work, we prospect to integrate in the score

computation more information about the user

information needs to have a ranking that best

matches his needs. This information can be taken

from a user profile or user interests for example.

We plan also to test our Metasearch engine on a

user community to obtain more exhaustive results.

This Meta Search engine will be part of a

personalized information retrieval system which

main goal is to get the most relevant documents to

the user information needs. First of all, the system

will build the user profile and then will use it to

reformulate user’s queries in order to get the most

relevant results to his needs. So, using the

metasearch engine, the system will be able to cover

a large proportion of documents from the Web and

thus will return more relevant documents to the user.

REFERENCES

Meng, W., 2008. Metasearch Engines, Department of

Computer Science, State University of New York at

Binghamton.

Renda, M. E., Straccia, U., 2003. Web Metasearch: Rank

vs. Score based Rank Aggregation Methods.

Lu, Y., Meng, W., Shu, L., Yu, C., Liu, K., 2005.

Evaluation of Result Merging Strategies for

Metasearch Engines In 6

International Conference

on Web Information Systems Engineering (WISE

Conference), New York.

Aslam, J., Montague, M., 2001. Models for Metasearch In

ACM SIGIR Conference, pp.276-284.

Callan, J., Lu, Z., Croft, 1995. W. Searching Distributed

Collections with Inference Networks In ACM SIGIR

Conference, pp. 21-28.

Gauch, S., Wang, G., Gomez, M., 1996. ProFusion:

Intelligent Fusion from Multiple, Distributed Search

Engines In Journal of Universal Computer Science,

2(9), pp.637-649.

Rasolofo, Hawking, Y. D., Savoy, J., 2003. Result

Merging Strategies for a Current News Metasearcher

In Inf. Process. Manage, 39(4), pp.581-609.

Jadidoleslamy, H., 2012. Search Result Merging and

Ranking Strategies in Meta-Search Engines: A Survey

In International Journal of Computer Science Issues,

Vol. 9, Issue 4, No 3, p. 239-251.

The American Customer Satisfaction Index (ACSI), http://

http://www.theacsi.org/the-american-customer-

satisfaction-index, (Accessed 15 June 2015).

Slingshot SEO, 2011. A Tale of Two Studies: Establishing

Google & Bing Click-Through Rates, Slingshot SEO,

http://www.slingshotseo.com/wp-

content/uploads/2011/10/Google-vs-Bing-CTR-Study-

2011.pdf, (Accessed 8 July 2014).

Goodwin, D., 2011. Top Google Results Gets 36.4% of

Clicks [Study], http://searchenginewatch.com/article/

2049695/Top-Google-Result-Gets-36.4-of-Clicks-

Study, (Accessed 24 October 2013).

KDIR 2015 - 7th International Conference on Knowledge Discovery and Information Retrieval

536
