A Flexible, Evolvable Data Broker

Sidney C. Bailin

and Theodora Bakker

Knowledge Evolution, Inc., 1748 Seaton Street NW, Washington DC 20009, U.S.A.

North Shore-LIJ Health System, 175 Fulton Ave # 200, Hempstead, NY 11550, U.S.A.

Keywords: Data Broker, Information Sharing, Data Integration, Linked Data, Semantic Web, ORCID.

Abstract: We describe a Data Broker application developed for New York University Langone Medical Center. The

Broker was designed to accommodate an evolving set of data sources and destinations with little or no

additional coding. A schema-less RDF database, currently implemented in OpenRDF but amenable to other

implementations, is a key to this flexibility. The independence from a database schema allows the Broker to

operate equally well in other institutions and in other applications. Thus, although it was built for one

specific purpose, it can be reused as a general-purpose tool.

1 INTRODUCTION

This paper describes a Data Broker application

developed for New York University Langone

Medical Center (NYULMC). The Broker integrates

several sources of data describing different aspects

of NYUMC researchers’ work. Data sources are

integrated with each other and with the Open

Researcher and Contributor ID system (ORCID,

2015).

The end-user of the Broker is the organization

that wishes to federate, combine, or warehouse

information from a variety of its databases. In

operates in the background, with a web-based

administrator interface for stopping, restarting, and

viewing the contents of the database.

The Broker was designed to accommodate an

evolving set of data sources and data destinations. In

particular, the design attempts to make the addition

of a data source or destination as simple as possible,

with little or no coding. For this reason, the Broker

will work in other institutions, and in other

applications besides the exchange of researcher

information.

2 REPOSITORY

The Broker stores its information in a repository.

The current implementation of this repository uses

the Sesame OpenRDF system (Sesame, 2015). We

decided to use an RDF triple store as the initial

implementation because it allows us to store

information without imposing a database schema

(Günes et al., 2015). Since we expect to learn

increasingly about the required data structures as

more data sources are identified and integrated, we

did not want to commit prematurely to a database

schema. This schema-less design also supports the

deployment of the Broker in very different

environments.

OpenRDF was chosen as the platform for the

RDF triple store because it is open and lightweight.

Currently, the Broker uses a native Sesame triple

store, meaning the database is provided by the

OpenRDF software itself. However, the Broker

accesses Sesame through the OpenRDF Storage and

Inference Layer (SAIL) application program

interface (API). Since there are many large-scale and

higher performance triple stores that implement the

SAIL API, should the scale of the Broker at some

point exceed what the native Sesame triple store can

support, one of these larger-scale systems can be

easily substituted for it, without any change to the

Broker code.

In implementing the repository, however, we

also recognized that some other form of database

management system (DBMS) might eventually be

desired. This might be a relational DBMS, or one of

the many no-SQL alternatives that are gaining

currency in the database world (NOSQL, 2015). For

this reason, the Broker’s repository is defined as an

abstract interface, of which the Sesame repository is

just one possible implementation. This design will

Bailin, S. and Bakker, T..

A Flexible, Evolvable Data Broker.

In Proceedings of the 6th International Workshop on Software Knowledge (SKY 2015), pages 41-45

ISBN: 978-989-758-162-5

facilitate the replacement of OpenRDF with another,

possibly non-RDF DBMS if that is desired at some

point. Of course, there is then a trade-off between

the flexibility provided by RDF and the possibly

more rigid commitments of an alternative DBMS.

3 CONFIGURING SOURCES AND

DESTINATIONS

The Broker converts data received from sources into

its own data structures, and converts its own data

structures into those expected by the destinations. In

this sense, the Broker plays a role analogous to the

well-known software mediator pattern (Gamma et

al., 1994). Unlike the mediator pattern, however, the

Broker is an application in its own right, mediating

between applications rather than objects within a

single software system.

There are three categories of data structures

managed by the Broker: 1) The Broker’s own

structures; 2) Data source structures; 3) Data

destination structures. Each source and destination is

defined to the Broker in terms of the data structures

the source or destination uses.

The Broker’s own structures are required in

order to provide a persistent store independent of the

sources and destinations. Since there is potentially a

lot of overlap between source and destination

information, simply aggregating them into a

persistent store would be highly redundant.

The Broker repository code does not, however,

reference the Broker structures explicitly. Instead, it

makes extensive use of Java reflection to reference

classes, methods, and fields anonymously, so that

the repository code need not change even if the

structures change (Oracle, 2015a). This combination

of Java reflection and schema-less RDF provides the

core flexibility of the tool. It is complemented by the

use of the Java-XML Binding (JAXB) to generate

Java classes automatically from XML Schema

documents specifying the source and destination

data structures (Oracle, 2015b). JAXB, reflection,

and RDF allow the Broker to evolve without

additional coding.

The Broker requires some basic information

about each source or destination:

 How information will be moved between the

Broker and the source or destination;

 How the source or destination data are

structured;

 How to map between the source and destination

data and the Broker’s own structures.

One provides this information through a set of

start-up parameters.

The question of how information will be moved

breaks down, in turn, to the following questions:

 What vehicle is used to communicate with the

source or destination? For example: web-based

communication using HTTP, or some form of

remote program call, or direct file or database

access;

 Which party is the active party in the exchange?

For a data source, the Broker can poll the source

periodically to check for updates, or it can let the

source contact the Broker with updates as they

occur. For a destination, the Broker can contact

the destination when there are updates, or it can

wait for the destination to request them.

These questions are answered by choosing a

software pattern for implementing the source or

destination. The patterns are implementations of the

Broker’s abstract interfaces IDataSource and

IDataDest, respectively. These interfaces are

analogous in purpose to those of the same name

found in other frameworks, such as .Net, but they

are otherwise unrelated. Here, for example, is

IDataSource:

public interface IDatasource<T_Struct,

T_IO> {

public String getSourceName();

public void setSourceName(String s);

public XMLGregorianCalendar

getLastUpdatedDate();

public void

setLastUpdatedDate(

XMLGregorianCalendar date);

public String dateForQuery();

public Lists acceptData();

public Lists acceptData(String d);

public T_IO readData();

public T_IO readData(String d);

public T_Struct unmarshall(

T_IO marshalledData);

public Lists transform(

T_Struct data);

public Lists transform(

T_Struct data,

String researcherId);

}

The Broker provides several default

implementations of these interfaces, sufficient for

most purposes.

Besides the source or destination’s data

structures, each source or destination requires that a

transformation be defined between its structures and

the Broker’s. The transformation enables the Broker

to transform a source’s structures into its own core

SKY 2015 - 6th International Workshop on Software Knowledge

structures, and to transform its own core structures

into a destination’s structures.

The transformation can be written directly in

Java, but for the majority of cases in which fields are

simply mapped to other fields, with minimal change,

the Broker supports a simple XML-based

specification of the mapping.

3.1 Generating Source and Destination

Structures from XSDs

The Broker’s classes representing a source or

destination can  and if possible, should  be

generated by the JAXB xjc tool from an XML

Schema Definition (XSD). This allows one to create

and modify sources and destinations without directly

writing Java code. Figure 1 illustrates the role of the

XSD in generating the Broker’s source and

destination structures, and the role of the XML

mapping file in mapping between those structures

and the Broker’s own structures.

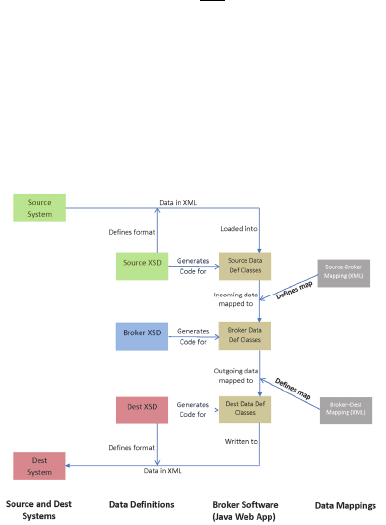

Figure 1: XSDs can be used to generate the Broker’s own

structures as well as those the Broker uses to represent

sources and destinations.

4 DATA EXCHANGE DYNAMICS

The Broker can interact with a source or destination

either actively or passively. The active approach

involves the Broker periodically polling the data

source for any updates, and for a destination,

periodically sending any updates. The passive

approach involves the Broker waiting to be called by

a data source with updated data, and for a

destination, waiting for a request for updated data.

Polling by the Broker is accomplished by two

threads that run in the background, one for sources

and one for destinations. Each poller is configured

with a “sleep interval,” which is the number of

milliseconds between poll attempts. The sleep

intervals are set by start-up properties.

If the source or destination plays an active role in

sending information to or requesting information

from the Broker, it addresses these requests to a

servlet interface provided by the Broker.

5 DATA MAPPING

The Broker supports a simple method of defining a

mapping from source data structures to the Broker’s

core structures, or from the Broker’s core structures

to a destination’s data structures. The mapping is

defined in an XML file whose path is given by a

start-up property.

The root element of the XML file must be called

<assignments>, and within this, the mapping is

defined by a series of <assignment> elements.

Each assignment element must contain a <from>

element and a <to> element. The <from> element is

a fully qualified path of a field in the data source’s

structures, starting from the top-level class. The top-

level class is the class with which the data source is

instantiated from one of the pattern classes.

The <to> element is, typically, a relative path,

whose context is taken from the mapping of the next

highest assignment.

The “to” path may contain a sequence of dot-

separated fields, so that the source field is mapped to

a Broker field at a lower level in the Broker

structure. Usually, the intermediate components

along the path should be single valued. There are

cases in which an intermediate component must be a

collection, but this should only be done with great

caution. When the Broker is mapping a “from” value

to a “to” value, it handles such cases by creating a

new instance for the intermediate component, and

adding it to the collection represented by that

intermediate field. The Broker has no way of

determining whether there is an existing element of

the collection that should be used instead. When the

Broker encounters a collection component inside a

“to” path, it issues a warning to this effect.

5.1 Data Mapping Mismatches

5.1.1 Single vs. Multi-valued Fields

If the “from” field is multi-valued (that is, it is an

instance of a Java Collection), then the “to” field

must also be multi-valued. It is, however, permitted

A Flexible, Evolvable Data Broker

to map a single-valued field to a multi-valued field.

In this case, the Broker will simply create an

element within the Collection to represent the

mapped value.

5.1.2 Structural Mismatch

There may be cases in which a field in the source is

not mapped to a field in the immediate mapped

context. That is, the mapping may have to move

certain fields around because of a mismatch in the

source and Broker data structures. To support such

cases, the Broker supports two additional notations.

A “..” tells the Broker to go up one level from

the mapped context. Any number of “../”

components may be used, followed by field

specifications starting down from the resulting

structure.

The second alternative notation allows one to

specify an absolute path. This can be useful if one

wants to avoid mapping upward through many levels

using “../” to reach the root level, but simply want to

start the path at the root level, proceeding down to

some other field in the target structure.

5.2 External Keys

A data source might not provide all of the relevant

information about a referenced structure, but only

some of it. To accommodate this fact, the mapping

notation allows one to identify a data source field to

use as a key to retrieve an entity from the Broker’s

repository.

For example, in the NYULMC-ORCID

application, the source structure may include a

description of a researcher’s grants. Each grant

description may include the name of the grant’s

funding agency, but it will not include all of the

funding agency’s Broker information. When we

update the researcher’s Broker information, we want

the Broker to identify the funding agency by name

and then use the actual Broker entity representing

the funding agency. To do this, we include a <key>

element inside the <assignment> element.

The <key> element can also be used in a

destination mapping file. In this case, it specifies a

field within the “to” destination structure that should

be set to the value of the broker field.

For mapping to a destination, there is another

optional element analogous to the <key> element for

source mapping. In this case, we want to map a

Broker structure to a scalar value within the

destination’s structures.

For example, if a grant’s funding agency should

be represented in the destination by just the name of

the agency, omitting all other information describing

the agency, one specifies this through a <uses>

element:

<from>Researcher.grants.agency</from>

<to>fundingAgency</to>

</assignment>

This tells the Broker that when mapping a grant’s

funding agency to the destination structure, it should

just use the funding agency’s name.

5.3 Special Cases

5.3.1 Explicit Conversion

If the default conversion provided by the Broker

does not suffice for a particular field, one can

provide a Java method for converting that field.

5.3.2 Annotation with a Fixed Value

Sometimes we need to specify that a sibling field of

the “to” field be assigned a fixed value, as a form of

annotation of the “to” field itself. For example, in

mapping a Grant to the ORCID Funding structure,

the grant number is included as an external

identifier. A sibling element, the external identifier

type, is used to specify that this identifier is, in fact,

a grant number. In the Broker mapping file, we

specify this by using a <set> element:

<from>Researcher.grants.number</from>

<to>externalIdentifierValue</to>

<set>

identifierType="grant_number"

</set>

</assignment>

6 RELATED WORK

The Data Broker roughly falls into the category of

an Extract, Transform, Load (ETL) system, and is

therefore closely related to the field of data

warehousing. It is distinguished from most ETL

systems in its use of schema-less RDF. Although

there have been efforts to provide ETL for RDF data

(Knap et al., 2014), that is not what the Broker does;

rather, the Broker uses RDF as a vehicle to mediate

between other data stores without committing to a

schema.

SKY 2015 - 6th International Workshop on Software Knowledge

7 CONCLUSION

The Data Broker design and implementation show

how declarative knowledge can be removed from

program code and into configuration files, resulting

in a highly reusable and evolvable software system.

As flexible as the current design is, however, we

believe we can go further. For example, the

representation of source and destination structures as

Java classes requires that the Broker be stopped by

the system administrator in order to add a source or

destination. The new or revised XML files are then

compiled into Java by xjc, and the system is

restarted. However, with appropriate dynamic class

compilation and loading, the requirement to stop the

Broker could be eliminated.

We would also like to consider eliminating the

native Broker structures entirely, allowing sources

and destinations alone to define the available

knowledge. This would closely reflect the schema-

less RDF representation, and move the system closer

to the notion of a semantic data bus (Rilee et al.,

2012).

REFERENCES

ORCID, 2015. http://orcid.org.

Sesame, 2015. http://rdf4j.org.

Gamma, E., Helm, R., Johnson, R., Vlissides, J. Design

Patterns: Elements of Reusable Object-Oriented

Software. Addison Wesley, 1994.

Güneş, A., Özsu, T., Daudjee, K., and Hartig, O.

Executing Queries over Schemaless RDF Databases.

Proceedings of 2015 IEEE 31st International

Conference on Data Engineering (ICDE).

Knap, T., Kukhar, M., Machac, B., Skoda, P., Tomes, J.,

Vojt, J. UnifiedViews: An ETL Framework for

Sustainable RDF Data Processing. 11

Extended

Semantic Web Conference, ESWC 2014.

NOSQL, 2015. http://nosql.org.

Oracle, 2015a. The Java Reflection API.

https://docs.oracle.com/javase/tutorial/reflect.

Oracle, 2015b. Java Architecture for XML Binding

(JAXB). http://www.oracle.com/technetwork/articles/

javase/index-140168.html.

Rilee, M., Curtis, S., Clark, P., and Bailin, S. Frontier, a

decision engine for designing stable adaptable

complex systems: Adaptive framework. Proceedings

of the 2012 IEEE Aerospace Conference, 3-10 March

2012.

A Flexible, Evolvable Data Broker
