Virtual Omnidirectional Video Synthesis with Multiple Cameras for

Sports Training

Mariko Isogawa, Dan Mikami, Kosuke Takahashi and Akira Kojima

NTT Media Intelligence Laboratories, 1-1 Hikarino-oka, Yokosuka, Kanagawa, Japan

Keywords:

Inpainting, Virtual Omnidirectional Video.

Abstract:

This paper proposes a new method to synthesize an omnidirectional video at a viewpoint inside a sports

ground, with the goal of sports training. If athletes could virtually experience real games from a player’s view-

point, they might possibly be able to exhibit higher performance in an actual game. A head mounted display,

which makes it possible to watch intuitive and interactive omnidirectional video from a 360-degree player’s

view, together with head direction tracking, leads to further enhanced effectiveness of training. However, it is

difﬁcult to put an omnidirectional camera on the ﬁeld during a real game. Therefore, techniques for synthesiz-

ing an omnidirectional video at a player’s viewpoint (virtual viewpoint) with the cameras outside the ﬁeld are

required. With this aim in mind, we propose a fast and stable omnidirectional video synthesis technique with

image inpainting, which removes unwanted occluders between the virtual viewpoint and the cameras.

1 INTRODUCTION

Many athletes adopt the approach of watching videos

as a type of scouting method for sports training. A

particularly effective approach is to watch videos of

an opponent one has never faced or one who could be

considered a “difﬁcult” opponent. The effectiveness

could be even further increased by using immersive

videos that would show instances in a game from a

player’s viewpoint, as if one were actually playing.

Watching omnidirectional video with a head

mounted display (HMD) is one of the easiest ways

to experience such video-based scouting. Displays

of this type give users a full 360-degree view based

on their head position. The higher immersion HMDs

provide enhances the effectiveness of training.

To obtain omnidirectional video from a player’s

viewpoint, a camera inside a ﬁeld is needed. How-

ever, it is difﬁcult to keep cameras in certain posi-

tions inside a stadium during an actual game. There-

fore, techniques are required for synthesizing an om-

nidirectional video from a player’s viewpoint (virtual

viewpoint) with the cameras outside the ﬁeld. In this

paper, we refer to an omnidirectional video from a vir-

tual viewpoint as a “virtual omnidirectional video”.

Because this technique is used for scouting as an ap-

proach to sports strategy, it must provide fast and ro-

bust synthesis that does not rely on captured scenes or

the positions and behavior of moving players.

Many studies have addressed these technical

requirements to synthesize virtual omnidirectional

video. However, with existing methods the synthe-

sis fails when the players are overlapped(Guillemaut

and Hilton, 2011), or else heavy calculation cost

is incurred(Inamoto and Saito, 2007), or else many

cameras are needed to obtain each and every light

ray(Levoy and Hanrahan, 1996).

One possible answer to these problems is an ap-

proach based on the work done by Levoy and Hanra-

han, which uses not only light rays passing through

a virtual viewpoint but neighboring light rays to re-

duce the amount of cameras. This is a fast and stable

method that does not depend on the scene and posi-

tions of players. However, the ﬁeld side’s appearance

from the virtual viewpoint may be shielded if players

are located between the virtual viewpoint and the out-

side cameras. Therefore it is impossible to correctly

synthesize the appearance at the virtual viewpoint.

The work described in this paper solves that prob-

lem by introducing the technique of image inpainting.

This technique removes and synthesizes unwanted

occluders from images/videos. With this technique,

even if the ﬁeld side’s appearance from a virtual view-

point is occluded as a consequence of the player’s po-

sition or other factors, it becomes possible to synthe-

size the desired appearance by removing the affected

area.

The remainder of this paper is structured as fol-

Isogawa, M., Mikami, D., Takahashi, K. and Kojima, A..

Virtual Omnidirectional Video Synthesis with Multiple Cameras for Sports Training.

In Proceedings of the 3rd International Congress on Sport Sciences Research and Technology Support (icSPORTS 2015), pages 271-275

ISBN: 978-989-758-159-5

271

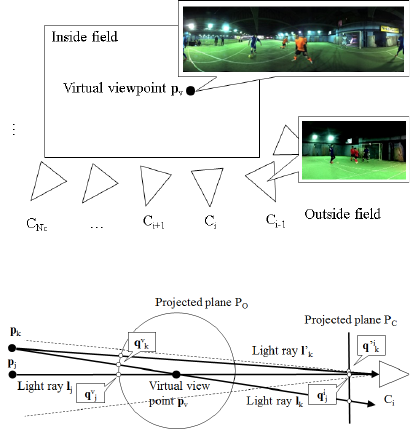

Figure 1: System conﬁguration.

Figure 2: Optical conﬁguration.

lows. Section 2 introduces existing methods to gen-

erate virtual omnidirectional video and completion

methods. Section 3 describes our proposed method,

a method to generate virtual omnidirectional video

that removes unwanted occluders by image inpaint-

ing. Section 4 shows synthesized results obtained

with the proposed method. Section 5 concludes the

paper with a summary and a mention of future work.

2 RELATED WORK

One of the common approaches to synthesizing a vir-

tual omnidirectional video is clipping and connecting

videos captured by multiple cameras whose appear-

ance is similar to that obtained from the virtual view-

point. This approach has signiﬁcant advantages: fast

rendering is achieved because of low calculation cost,

and robust synthesis is achieved that does not depend

on scenes or player’s positions. Thus, this technique

is quite suitable as a means to our goal, i.e., scouting

based on sports contents with omnidirectional video.

This section ﬁrst explains the pipeline of this com-

mon technique in 2.1. However, it is known that this

technique involves a problem, which is described in

2.2.

2.1 Common Approach to Synthesizing

a Virtual Omnidirectional Video

The conﬁguration of the system was use is shown

in Fig.1. Here, N

is the number of cameras placed

outside the ﬁeld to synthesize virtual omnidirectional

video at virtual viewpoint p

. The cameras C

are syn-

chronized and the videos they capture include p

The optical conﬁguration is shown in Fig.2. The

omnidirectional 3D plane at the center of virtual view-

point p

is denoted as projected plane P

. The 2D

plane the camera captures is denoted as P

. To gen-

erate virtual omnidirectional images, an appearance

obtained with l

, a light ray that passes through p

should be projected onto q

which is the crosspoint

between P

and p

. If light ray l

passes through the

optical center of C

, the appearance obtained with l

is projected at q

which is at P

and captured by C

The appearances of q

are the same as those of q

Thus, if every light rays passes through the p

cap-

tured by multiple cameras outside a ﬁeld, virtual om-

nidirectional video from a virtual viewpoint p

can

be synthesized. However, in order to obtain an ideal

omnidirectional image, the technique requires a large

amount of cameras, i.e., an amount equal to the num-

ber of pixels in the omnidirectional image. This is not

feasible from the standpoint of practicality.

On the other hand, there is a more practical tech-

nique that uses a light ray passing through the vicinity

of the virtual viewpoint. In the same way as for the

technique just described, light ray l

passing through

virtual viewpoint p

is captured with camera C

. In

addition, a neighboring light ray l

is denoted as l

which also passes through virtual viewpoint l

(see

Fig.2). Note that camera C

does not capture l

pass-

ing through p

, but captures l

passing through the

neighboring point of p

and projects it at the optical

center of camera C

. We approximate light ray l

. That is, we use the luminance value at q

as q

This approximation enables us to reduce the amount

of cameras by the number of approximated l

Fig.3 shows a pipeline of the technique. First, par-

tial region S

, which captures the information of light

ray l

and the neighboring light ray, is clipped. Then,

afﬁne transform with afﬁne matrix A

is performed to

to generate S

. Here, A

is an afﬁne matrix from

the C

coordinate to the omnidirectional image coor-

dinate. After that, S

is rendered to omnidirectional

image B. Finally, blending is performed to obscure

the boundaries of the pasted areas.

2.2 Technical Problem with Common

Approach to Synthesizing Virtual

Omnidirectional Video

This section describes a technical problem encoun-

tered with the approach described in 2.1. The tech-

nique’s main advantage is that fast and robust render-

ing is achieved regardless of the captured scene and

icSPORTS 2015 - International Congress on Sport Sciences Research and Technology Support

272

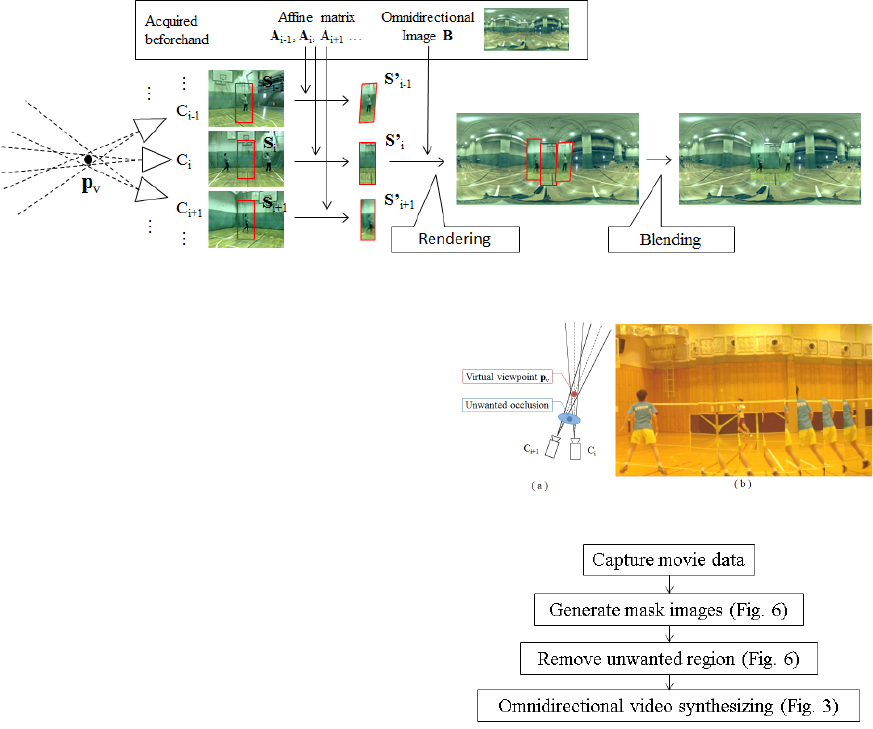

Figure 3: Pipeline with a common approach to synthesizing virtual omnidirectional video.

whether or not the players are moving. However, this

advantage is not realized if the ﬁeld side’s appear-

ance from the virtual viewpoint is occluded, e.g., by

players located between the viewpoint and outside the

cameras.

Fig.4(a) shows an image generated in the case

where there are unwanted objects, such as players

crossing between the virtual viewpoint and the cam-

era, an example of which is shown in Fig.4(b). In

this case, the ﬁeld side’s appearance from the virtual

viewpoint was not captured by the cameras and an un-

wanted occluder that should not be visible from the

virtual viewpoint was captured instead. As a result,

it became impossible to synthesize the correct visual

image of the virtual omnidirectional videos. This is

highly disadvantageous and thus there is a strong need

for a method that can solve this problem.

3 PROPOSED METHOD

We propose a new method to generate virtual omni-

directional videos with correct visuals even if there

are any occluders. To achieve this, we introduce im-

age inpainting, which removes unwanted occluders

between the virtual viewpoint and the cameras. In

3.1 we overview the method and in 3.2 we introduce

a way to synthesize omnidirectional video while re-

moving unwanted regions, which is the main contri-

bution of this paper.

3.1 Method Overview

The pipeline of the proposed method is shown in

Fig.5. Here, N

is the number of cameras C

set out-

side the ﬁeld, all of them synchronized. Mask regions

are manually generated to indicate unwanted re-

gions. Then, masked regions are removed by image

inpainting, We explain this in detail in 3.2.

Figure 4: Problem with method given in 2.1.

Figure 5: The pipeline of the proposed method.

As a synthesizing technique, we use the method

described in 2.1. First, partial region S

which cap-

tures the information of light ray l

and neighboring

light rays, is clipped from the inpainted images. Then,

afﬁne transform with afﬁne matrix A

is performed to

to generate S

. Here, A

is an afﬁne matrix from

the C

coordinate to the omnidirectional image coor-

dinate. After that, S

is rendered to omnidirectional

image B. Finally, blending is performed to obscure

the boundaries of the pasted areas.

3.2 Removing Unwanted Regions

Many image inpainting methods have been proposed

that remove unwanted regions(He and Sun, 2014;

Huang et al., 2014; Criminisi et al., 2004). With

our proposed method, however, image inpainting has

a unique conﬁguration problem, not the same as

that occurring with general inpainting methods. We

will therefore describe the inpainting procedure after

Virtual Omnidirectional Video Synthesis with Multiple Cameras for Sports Training

273

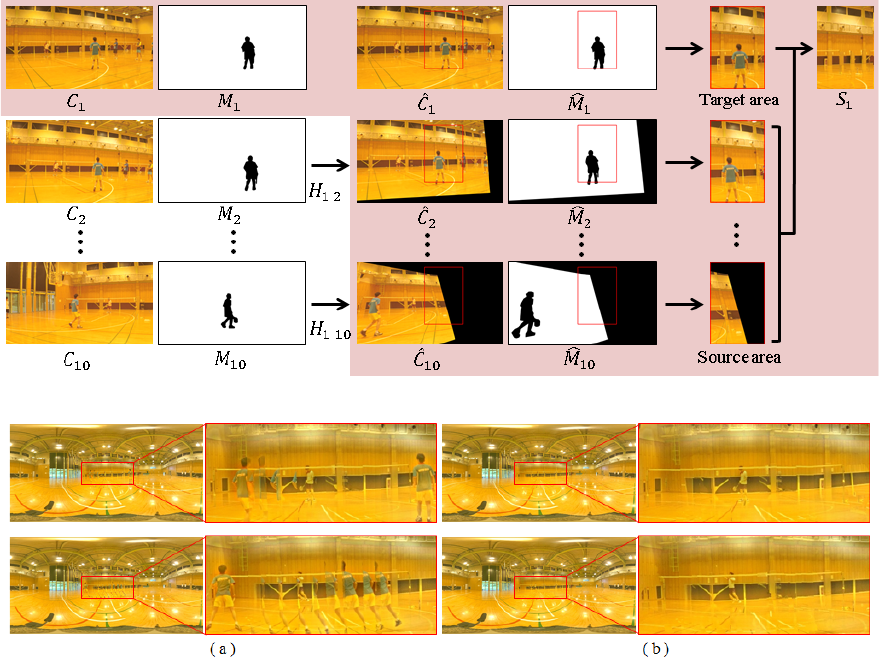

Figure 6: Inpainting procedure.

Figure 7: Synthesized virtual omnidirectional images generated by the method described in 2.1 (a) and the proposed method

(b).

ﬁrst describing the characteristics of the conﬁguration

problem.

With our conﬁguration, multiple cameras are lo-

cated side-by-side and synchronized with each other.

This means that even if the ﬁeld side’s appearance

from the virtual viewpoint is temporarily occluded in

one of the cameras, the other cameras might capture

the appearance. In that case, the occluded appearance

can be synthesized by using the information obtained

from the other cameras. However, the appearance will

change depending on the cameras’ positions, and thus

camera calibration is needed. Therefore, we ﬁrst gen-

erate the same viewpoint images by using homogra-

phy transformation based on the relative position of

each camera.

The inpainting procedure is shown in Fig.6. First,

masked images M

is manually annotated to indicate

unwanted regions. To generate inpainted partial re-

gion S

, homography transformation is performed for

each camera’s captured image C

and masked image

to generate

and

, with homography matrix

i j

. Here, H

i j

is a homography matrix from the C

co-

ordinate to the C

coordinate, with the latter acquired

beforehand. Then,

was cropped from each camera

excepting C

. These cropped regions were set as

the source area and S

was inpainted with the source

region.

4 EXPERIMENT

This section shows synthesized results we obtained

in an experiment with our proposed method. In the

experiment, we set 10 GoPro cameras (1920 × 1080

[pixels]) outside a badminton court to synthesize an

area with a 180

◦

horizontal angle. We used a Ri-

coh Theta camera (1920 × 960 [pixels]) to obtain the

background texture before the actual game. To per-

form the experiments we used a desktop PC of Intel

Core i7 3.40GHz CPU, 32GB memory.

The inpainting method, we used was that proposed

by He et al.’s, which is known to be fast and effec-

tive. Masked images were manually generated. Each

homography matrix to generate

and

was calcu-

lated from 30 corresponding points.

icSPORTS 2015 - International Congress on Sport Sciences Research and Technology Support

274

The resulting images generated by the method de-

scribed in 2.1 and the proposed method are respec-

tively shown in Fig.7(a) and (b). In (a) a badminton

player wearing a blue uniform is located between the

virtual viewpoint and the cameras, which as a result

produced an incorrect rendering. In contrast, in (b)

the player is removed from the scene and as a result

the proposed method synthesized visually correct om-

nidirectional images from the virtual viewpoint.

5 CONCLUSION

This paper presented a new method we propose to

synthesize virtual omnidirectional video even if the

ﬁeld side’s appearance from a virtual viewpoint is oc-

cluded as a consequence of the player’s position or

other factors. To remove unwanted occluders, we

used image inpainting with source regions from other

cameras located side-by-side. We conﬁrmed that the

proposed method works well with the contents cap-

tured in an actual sports scene.

However, it is known that there is a problem with

the proposed method. In cases where the positions

of captured subjects (such as players) are closer to or

farther from the camera than the calibrated position,

for which an afﬁne matrix was calculated, the subjects

may be rendered multiple times or simply disappear.

In future work, we will attempt to devise a synthetic

technique to address the problem. We also plan to

investigate how effective the virtual omnidirectional

videos the proposed technique produces are when ap-

plied to sports training.

REFERENCES

Criminisi, A., Perez, P., and Toyama, K. (2004). Region ﬁll-

ing and object removal by exemplar-based inpainting.

IEEE Transactions on Image Processing, 13(9):1200–

1212.

Guillemaut, J.-Y. and Hilton, A. (2011). Joint multi-layer

segmentation and reconstruction for free-viewpoint

video applications. International Journal of Computer

Vision (IJCV), 93(1):73–100.

He, K. and Sun, J. (2014). Image completion approaches

using the statistics of similar patches. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence

(TPAMI), 36(12):2423–2435.

Huang, J.-B., Kang, S. B., Ahuja, N., and Kopf, J. (2014).

Image completion using planar structure guidance.

ACM Transactions on Graphics (Proceedings of SIG-

GRAPH 2014), 33(4):129:1–129:10.

Inamoto, N. and Saito, H. (2007). Virtual viewpoint re-

play for a soccer match by view interpolation from

multiple cameras. IEEE Transactions on Multimedia,

9(6):1155–1166.

Levoy, M. and Hanrahan, P. (1996). Light ﬁeld rendering. In

Proceedings of the 23rd annual conference on Com-

puter graphics and interactive techniques, pages 31–

42. ACM.

Virtual Omnidirectional Video Synthesis with Multiple Cameras for Sports Training

275
