Web-enabled Neuron Model Hardware Implementation and Testing

Fearghal Morgan, Finn Krewer, Frank Callaly, Aedan Coffey and Brian Mc Ginley

College of Engineering and Informatics, National University of Ireland, Galway, Ireland

Keywords: Brain-inspired Computation, Biological Neural Networks, FPGA Hardware Neural Networks, Low Entropy

Model Specification (LEMS), VHDL, Web-enabled Neural Capture.

Abstract: This paper presents a prototype web-based Graphical User Interface (GUI) platform for integrating and testing

a system that can perform Low-Entropy Model Specification (LEMS) neural network description to Hardware

Description Language (VHDL) conversion, and automatic synthesis and neuron implementation and testing

on Field Programmable Gate Array (FPGA) testbed hardware. This system enables hardware implementation

of neuron components and their connection in a small neural network testbed. This system incorporates

functionality for automatic LEMS to synthesisable VHDL translation, automatic VHDL integration with

FPGA logic to enable data I/O, automatic FPGA bitfile generation using Xilinx PlanAhead, automated multi-

FPGA testbed configuration, neural network parameter configuration and flexible testing of FPGA based

neuron models. The prototype UI supports clock step control and real-time monitoring of internal signals.

References are provided to video demonstrations.

1 INTRODUCTION

In recent years, spiking Neural Networks (NNs) have

been implemented on a range of hardware platforms

including Field Programmable Analogue Arrays

(FPAAs) (Rocke et al., 2008; Rocke, 2007; Maher et

al. 2006), FPGAs (Cawley et al., 2011; Morgan et al.

2009; Carrillo et al, 2013; Glackin et al. 2005; Pande

et al., 2010) and multi-processor based systems such

as Spinnaker (Khan et al., 2008). However, to date,

many of these hardware systems do not model

biological neurons to a high-degree of accuracy.

The Low Entropy Model Specification (LEMS)

(Cannon et al., 2014) is a language used to

functionally describe neuron models and neural

networks. LEMS is a declarative language which is

accessible to persons not trained in electronic

engineering or computer science. A large library of

complex and diverse LEMS neuron models exists and

forms the basis of the NeuroML2 NN description

language. LEMS descriptions are often exported to

various software simulators such as NEURON and

BRIAN for optimised execution.

The research proposed in this paper captures

biologically realistic neuron models in the LEMS

neuron and neural network modelling language

before translating the models to synthesisable

Hardware Description Language (VHDL) and

implementing the neural network on a testbed

comprised of Field Programmable Gate Arrays

(FPGAs). The work is a contribution to the overall Si

elegans system (Blau et al. 2014).

This paper presents a prototype web-based

Graphical User Interface (GUI) platform for

integrating and testing a system that can perform

LEMS neural network description to VHDL language

conversion, automatic synthesis and neuron

implementation on FPGA hardware, and their

connection in a small neural network. This system

provides a working end-to-end system on which User

Interface (UI) neural networks may be prototyped and

tested in hardware. The system incorporates

automatic LEMS to VHDL translation, automatic

VHDL integration with FPGA logic to enable data

I/O, automatic FPGA bitfile generation using Xilinx

PlanAhead, automated multi-FPGA configuration,

neural parameter configuration and flexible testing of

FPGA based neuron models. The prototype UI

supports clock step control and real-time monitoring

of internal signals. This work is demonstrated at

Morgan et al, 2014.

The structure of this paper is as follows: Section 2

describes the neural network prototype high level

architecture. Section 3 overviews each of the UI

elements. Section 4 describes the Prototype Neuron

Model Capture UI. Section 5 outlines the Experiment

Control UI. Finally, section 6 concludes the paper.

138

Morgan, F., Krewer, F., Callaly, F., Coffey, A. and Ginley, B..

Web-enabled Neuron Model Hardware Implementation and Testing.

In Proceedings of the 3rd International Congress on Neurotechnology, Electronics and Informatics (NEUROTECHNIX 2015), pages 138-145

ISBN: 978-989-758-161-8

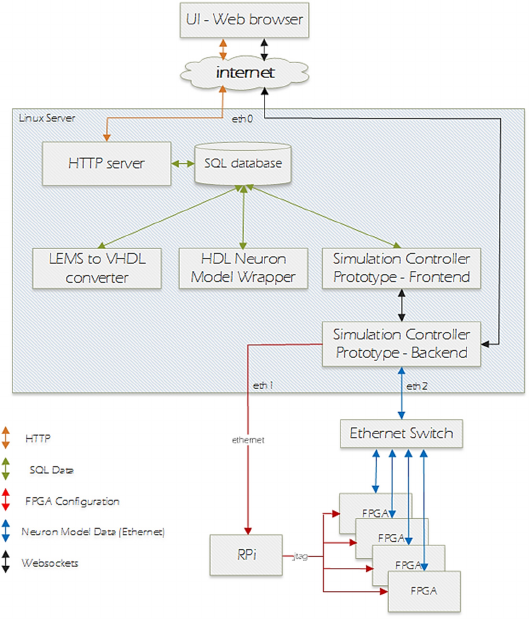

Figure 1: Prototype System Architecture.

2 PROTOTYPE SYSTEM HIGH

LEVEL ARCHITECTURE

This section outlines the high-level structure of the

prototype system (shown in Fig 1). An example user

usage scenario sequence for the prototype is as

follows:

1. Define neuron model in LEMS.

2. Upload model to the application server through a

web browser.

3. Define neuron model test through the web UI.

4. Request test execution on FPGA hardware.

5. View neuron model behaviour in the browser as

the test is running.

The current implementation of the prototype system

facilitates a single biologically plausible neuron

model to be used in each of 8 FPGAs to provide a

hardware neural network simulation. The system is

designed with the intention of future extension to

allow different neuron models to be used during a

simulation.

All user interaction with the system is through a web

browser running on the user’s local machine and

connecting to the prototype system over the internet.

All server-side software components are deployed on

a single server machine running the Ubuntu Linux

operating system. The server has three active Ethernet

interfaces, namely:

1. eth0 - server to internet.

2. eth1 - server to a Raspberry Pi (RPi) which

facilitates testbed FPGA configuration using

JTAG (Joint Test Action Group).

3. eth2 - server to Ethernet switch to which all

FPGAs are also connected. This third network

interface is used for all data transmission to/from

neuron models running on the FPGAs.

The following technologies are used in the prototype

system:

• All user interface elements are implemented in

HTML5, CSS and Javascript.

• Server-side web application processing uses the

Django web application framework for the Python

programming language.

• Data storage uses an sqlite database.

• The LEMS to VHDL converter (Krewer et al.,

2014) is implemented in Java with a thin Python

frontend. Communication between the Java and

Python components is over XML-RPC.

• The Java component of the LEMS to VHDL

Web-enabled Neuron Model Hardware Implementation and Testing

139

converter is implemented as a Java servlet

deployed in the Apache Tomcat container.

• The VHDL neuron model wrapper framework is

implemented as an XML-RPC service with a thin

frontend that provides database communications.

• The simulation controller prototype is

implemented as a service with a thin frontend that

provides database communications. Communi-

cation between the backend and frontend of the

simulation controller prototype uses the

websocket protocol.

• The websocket interface to the simulation

controller prototype backend is also used to allow

a web-browser to connect directly to the backend

of the simulation controller to retrieve real-time

data from an ongoing simulation.

• The server-side websocket interface uses the

Tornado framework for Python.

• The FPGAs used are Xilinx Spartan 6 FPGAs on

Digilent Nexys 3 development boards.

• Testbed FPGA configuration is performed

through a Raspberry Pi single board computer

with a JTAG connection to all FPGAs. The

Raspberry Pi uses the UrJTAG library to perform

FPGA configuration over JTAG.

The UI allows the user to add neuron models to the

model library, edit existing models, define FPGA

simulations, and configure and run simulations on

FPGA hardware. The elements of the UI are

described in section 3.

In response to user activity in the UI, the system

completes a selection of the following steps:

• LEMS neuron model to VHDL conversion and

model verification.

• Synthesis, FPGA place and route and generation

of FPGA configuration bitstream files, using

Xilinx Electronic Design Automation tools.

• Configuration of multi-FPGA hardware testbed

• Simulation using FPGA hardware.

The LEMS to VHDL converter (see Fig 1) monitors

the database for models that have been added in

LEMS format but have not yet been converted to

VHDL. On finding these models, the system extracts

the LEMS data and converts the model to VHDL.

3 USER INTERFACE ELEMENTS

The prototype system implements a web UI which

allows users to add neuron models to the system in

LEMS format. When a new model is uploaded or an

existing model is changed, the system automatically

builds an FPGA bitfile for the model. The system

allows users to define simulations which use the

uploaded models (as described in Section 4).

Simulations may be defined as a set of instructions

which may include Python-style control elements.

Simulations may also be defined graphically through

a simulation definition user interface. The simulation

definition UI (described in Section 5) provides the

following functionality:

• Users may specify the number of neurons they

would like in their simulation neural network.

• Users can set parameter values for each neuron in

the simulation.

• Users can specify which variables from each

neuron they would like recorded.

• Users can define stimulus spikes to be injected

into the NN. These spikes are sent from the server

into the FPGA NN during the simulation.

• Users can specify the number of neural network

timesteps that they would like the simulation to

run for.

4 PROTOTYPE NEURON MODEL

CAPTURE UI

The UI for uploading and managing neuron models

primarily consists of two screens, namely the Neuron

Model List UI and the Neuron Model Edit UI.

4.1 Neuron Model List UI

Neuron Model List UI, illustrated in Fig 2, shows a

list of all neuron models available to a user. An

uploaded neuron model is automatically processed by

the LEMS->VHDL->bitfile pipeline. The status field

in the model gives the user an indication of what stage

in the pipeline a model is currently at.

The LEMS column in the model list indicates

whether this model was uploaded as a LEMS model.

If this is set to ‘Yes’ then the word ‘Yes’ is a

hyperlink that lets a user download the original

LEMS data.

The VHDL column in the model list indicates

whether a VHDL version of this model is available on

the system. If this is set to ‘Yes’ then the word ‘Yes’

is a hyperlink that lets a user download a zip archive

containing the VHDL files for the model. A VHDL

version of the model is available if the model was

uploaded in LEMS format and the LEMS to VHDL

conversion has completed successfully.

The bitfile column in the model list indicates whether

an FPGA configuration bitfile is available on the

system for this model. A bitfile will be available for a

model if the FPGA synthesis has completed

successfully. If this field is set to ‘Yes’ then the model

status will be ‘READY’.

NeBICA 2015 - Symposium on Neuro-Bio-Inspired Computation and Architectures

140

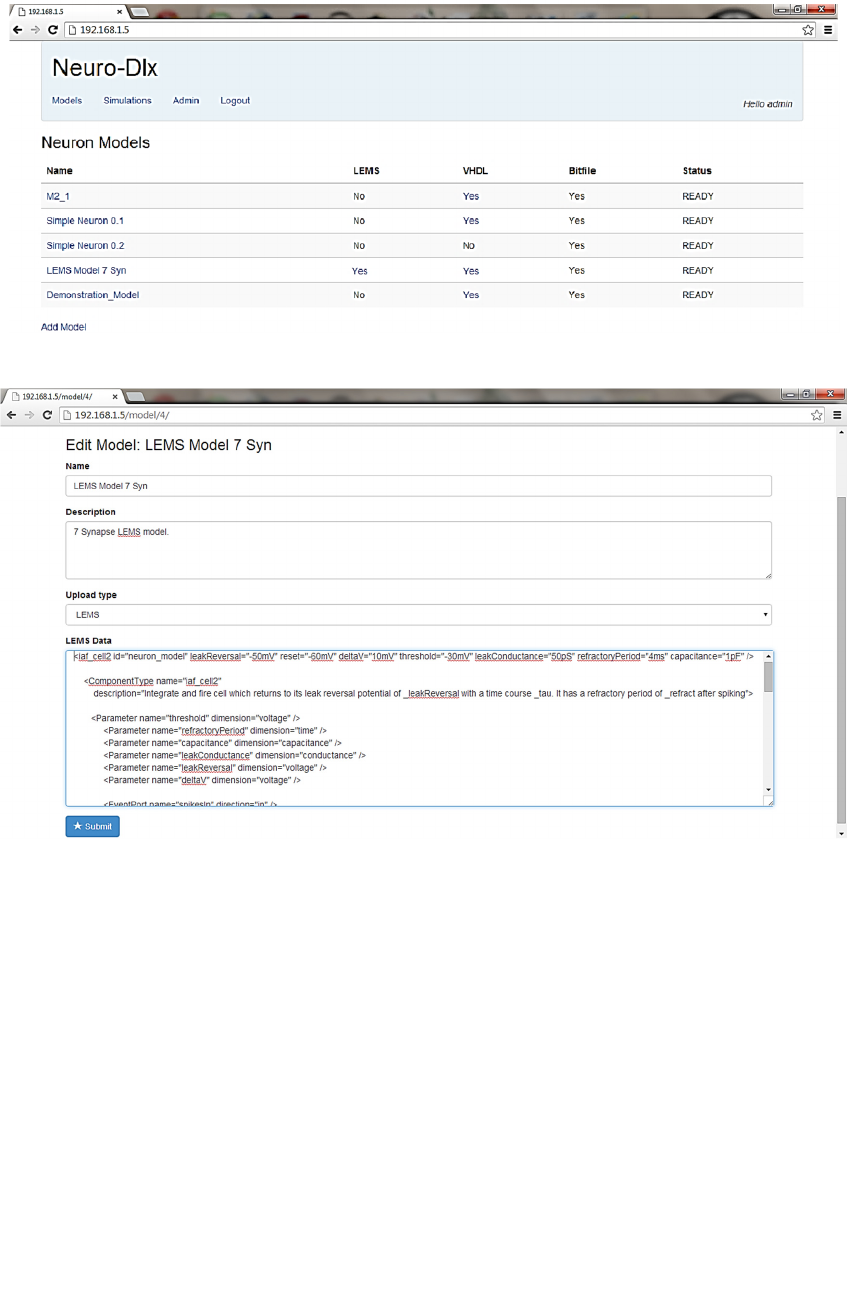

Figure 2: Neuron Model List UI.

Figure 3: Neuron Model Edit UI - LEMS Model.

The Model status field may be one of the following:

• RAW: Model has just been uploaded in LEMS

though is not yet processed by the system.

A model in this state has been queued for

processing by the LEMS to VHDL converter.

• CONVERTING: Model is currently being

processed by the LEMS to VHDL converter.

• CONVERT FAILED: LEMS to VHDL process

has failed. Detailed information about the cause of

the failure is stored in the database and is available

through the Admin interface.

• CONVERTED: VHDL for this model is available

on the system. A model in this state has been

queued for processing by the synthesis tool.

• WRAPPING: VHDL for the model is currently

being synthesised.

WRAPPING FAILED: VHDL Neuron Model

synthesis failed to synthesise the model. Detailed

information about the cause of the failure is stored

in the database and is available through the Admin

interface.

• READY: VHDL Neuron Model synthesis has

successfully processed the model and a bitfile is

now available for this model. This model may

now be used in the simulation definition UI.

4.2 Neuron Model Edit UI

A user may add a new model to the system or edit an

Web-enabled Neuron Model Hardware Implementation and Testing

141

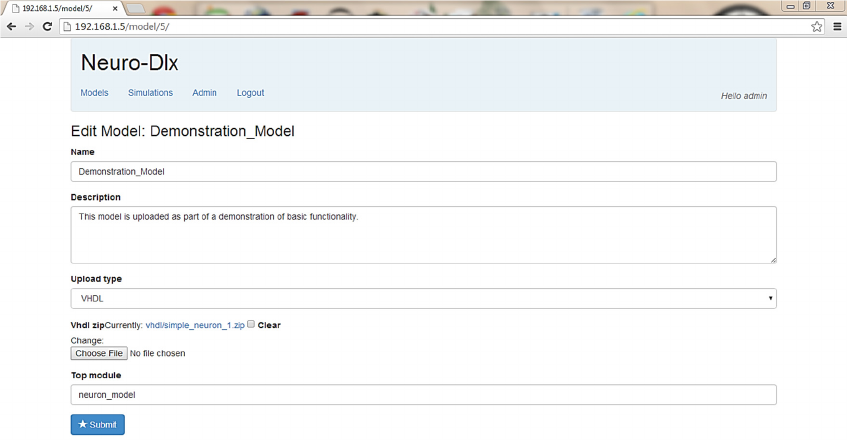

Figure 4: Neuron Model Edit UI - VHDL Model.

existing model through the Model Edit UI (Figs 3 and

4). The user can access this UI through the Neuron

Model List UI by clicking on a model name to edit an

existing model or by clicking the ‘Add Model’ link to

create a new model. If users wants to upload a LEMS

model, they will be prompted to enter the LEMS

description of the model into a resizable text area.

5 SIMULATION CONTROL UI

A simulation definition is a list of instructions that are

interpreted by the simulation controller prototype (see

Fig 1). These instructions can trigger the simulation

controller to load a particular bitfile onto the specified

FPGAs, to read and write to neuron model signals to

inject neural spikes into the network of FPGAs and to

increment the simulation time on the FPGAs.

The UI screens in this section allow users to create

and execute a simulation definition. This is done

through the following UI screens:

• Simulation definition and instance list screen (Fig 5).

• Raw simulation definition screen (Fig 6).

• Graphical simulation definition screen (Fig 7) .

Two methods are provided for defining a simulation.

• The raw simulation definition screen (Fig 6)

provides a low-level mechanism for maximum

flexibility in defining a simulation. This is

primarily intended for system testing and

debugging. This method requires the user to have

some understanding of the workings of the

system.

• The graphical simulation definition screen (Fig 7)

provides a high-level mechanism that requires no

prior knowledge of the workings of the system.

5.1 Simulation Definition

The Simulation Definition and Instance List UI

screen is shown in Fig 5. This screen displays a list of

simulation definitions available to the user. Each has

previously been defined either in the raw simulation

definition screen (Fig 6) or the graphical simulation

definition screen (Fig 7). When a simulation

definition has been added by a user, they can then

choose to either:

• Schedule the simulation to be run: this option is

selected by clicking the ‘Schedule Run’ link

beside the simulation definition. This queues the

simulation for running when the FPGA hardware

is next available. The results of the simulation are

added to the database when the simulation is

complete.

• Run the simulation immediately: this option is

selected by clicking the ‘Run Live’ link beside the

simulation definition. This option requests that the

simulation be run immediately on the FPGA

hardware. If another simulation is currently

running then the request is denied and a message

is displayed to the user in the web UI indicating

that the FPGA hardware is currently busy. If the

FPGA hardware is free then the simulation is

passed to the simulation controller and the

simulation results data is stored in the database

for later review.

NeBICA 2015 - Symposium on Neuro-Bio-Inspired Computation and Architectures

142

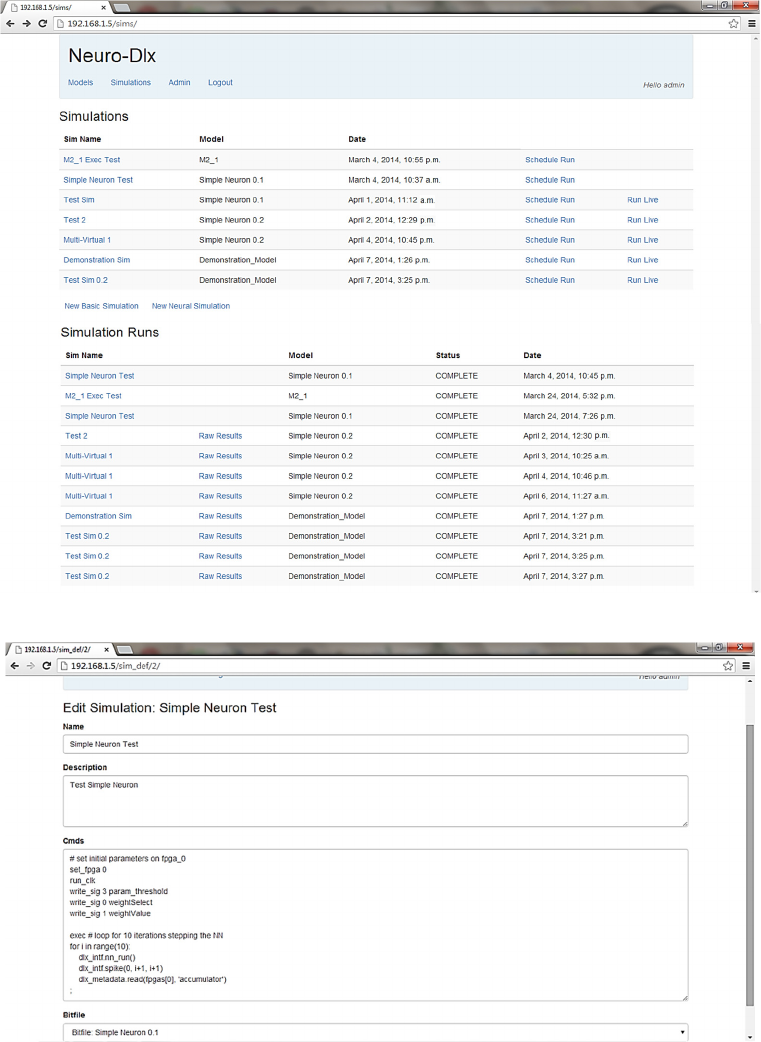

Figure 5: Simulation Definitions and Instances List UI.

Figure 6: Raw Simulation Definition UI.

If a simulation has been scheduled for running then

an instance of that simulation is added to the

simulation instances list. This list is displayed

underneath the simulation definitions list (Fig 5). The

status column is initially ‘SCHEDULED’. When a

simulation is running on the FPGA hardware its status

field is set to ‘RUNNING’. When a simulation has

finished its status field is set to ‘COMPLETE’.

5.2 Raw Simulation Definition

The Raw Simulation Definition UI screen is shown

Web-enabled Neuron Model Hardware Implementation and Testing

143

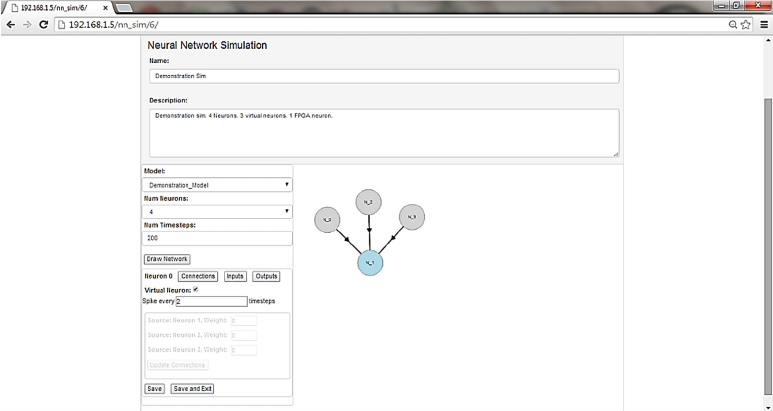

Figure 7: Graphical Simulation Definition UI.

in Fig 6. This screen allows a user to define a

simulation as a list of instructions to be sent to the

simulation controller prototype (see Fig 1). This

instruction set allows users to select specific FPGAs

for configuration, read from specific neuron model

variables on each FPGA, write to configure model

parameters on each FPGA, inject spike stimulus

patterns into the hardware neural network (to mimic

sensory input), and increment the neural network time

(by progressing by a time step).

5.3 Graphical Simulation Definition

The Graphical Simulation Definition UI screen is

shown in Fig 7. This screen allows a user to define a

simulation through the UI without knowledge of the

underlying instructions that are to be passed to the

simulation controller to execute the simulation.

Simulations defined through the Raw Simulation

Definition UI and the Graphical Simulation

Definition UI have the same functionality available to

them.

In this UI the user typically first adds a simulation

name and description, and then selects the neuron

model to be used in the simulation from the dropdown

box of neuron models. The user then specifies the

number of neurons to be used in the simulation and

clicks the ‘Draw Network’ button. This results in a

graphical representation of the requested number of

neurons on the right-hand side panel (Fig 7). The user

can drag these neurons within the panel to clearly

visualise the network used in the simulation.

The parameters from the neuron model that define

the synaptic weights are identified by the UI through

a naming convention shared between the LEMS to

VHDL converter and the UI. The user can set the

value to be used for any neuron parameter in any

specific neuron by clicking on the neuron in the right-

hand side visualisation window and then clicking the

‘Inputs’ button in the left-hand panel.

Any neuron can be marked as being a ‘Virtual

Neuron’ by selecting the neuron in the right-hand

window and then checking the ‘virtual neuron’

checkbox in the left-hand window. This is a

mechanism to allow spikes to be injected into the

neural network from the server as if they were coming

from a number of different neurons. Virtual neurons

model neuron behaviour only in so far as they

generate programmed patterns of spikes, which are

injected into the neural network by the Simulation

Controller during the simulation. The user can specify

the rate at which spikes are injected into the FPGA

neural network from virtual neurons during the

simulation. Spike rates are defined in terms of

simulation timesteps.

6 CONCLUSIONS

This paper has presented a prototype web-based GUI

platform for integrating and testing a system that can

perform Low-Entropy Model Specification (LEMS)

neural network description to VHDL language

conversion, automatic synthesis and neural network

implementation on FPGA hardware. This system

provides a working end-to-end system on which UI

components may be prototyped and tested, and

captured neural networks may be implemented in

hardware. The prototype UI supports clock step

NeBICA 2015 - Symposium on Neuro-Bio-Inspired Computation and Architectures

144

control and real-time monitoring of internal signals.

This work is demonstrated at (Morgan et al, 2014).

ACKNOWLEDGEMENTS

This work has been completed as part of the Si

elegans project funded under FP7 FET initiative

NBIS (ICT-2011.9.11). This work is also supported

by the Irish Research Council.

REFERENCES

Blau, A., Callaly, F., Cawley, S., Coffey, A., De Mauro, A.,

Epelde, G. & Wade, J. (2014, October). Exploring

neural principles with Si elegans, a neuromimetic

representation of the nematode Caenorhabditis elegans.

In Proceedings of the 2nd International Congress on

Neurotechnology, Electronics and Informatics

(NEUROTECHNIX) (pp. 189-194).

Cannon, R. C., Gleeson, P., Crook, S., Ganapathy, G.,

Marin, B., Piasini, E., & Silver, R. A. (2014). LEMS: a

language for expressing complex biological models in

concise and hierarchical form and its use in

underpinning NeuroML 2. Frontiers in

neuroinformatics, 8.

Carrillo, S., Harkin, J., McDaid, L. J., Morgan, F., Pande,

S., Cawley, S., & McGinley, B. (2013). Scalable

hierarchical network-on-chip architecture for spiking

neural network hardware implementations. Parallel and

Distributed Systems, IEEE Transactions on, 24(12),

2451-2461.

Cawley, S., Morgan, F., McGinley, B., Pande, S., McDaid,

L., Carrillo, S., & Harkin, J. (2011). Hardware spiking

neural network prototyping and application. Genetic

Programming and Evolvable Machines, 12(3), 257-

280.

Glackin, B., McGinnity, T. M., Maguire, L. P., Wu, Q. X.,

& Belatreche, A. (2005). A novel approach for the

implementation of large scale spiking neural networks

on FPGA hardware. In Computational Intelligence and

Bioinspired Systems (pp. 552-563). Springer Berlin.

Khan, M. M., Lester, D. R., Plana, L. A., Rast, A., Jin, X.,

Painkras, E., & Furber, S. B. (2008, June). SpiNNaker:

mapping neural networks onto a massively-parallel

chip multiprocessor. In Neural N, 2008. (IEEE World

Congress on Computational Intelligence). IEEE

International Joint Conference on (pp. 2849-2856).

Krewer F., Coffey A., Callaly F. and Morgan F. (2014).

Neuron Models in FPGA Hardware - A Route from

High Level Descriptions to Hardware Implementations.

In Proceedings of the 2nd International Congress on

Neurotechnology, Electronics and Informatics, (pp

177-183)

Maher, J., Ginley, B. M., Rocke, P., & Morgan, F. (2006,

April). Intrinsic hardware evolution of neural networks

in reconfigurable analogue and digital devices. In Field-

Programmable Custom Computing Machines, 2006.

FCCM'06. 14th Annual IEEE Symposium on (pp. 321-

322). IEEE.

Morgan, F., Cawley, S., McGinley, B., Pande, S., McDaid,

L. J., Glackin, B., Maher, J. & Harkin, J. (2009,

December). Exploring the evolution of NoC-based

spiking neural networks on FPGAs. In Field-

Programmable Technology, 2009. FPT 2009.

International Conference on (pp. 300-303). IEEE.

Morgan, F. et al., FPGA NN Prototype Demonstrator

Videos. http://tiny.cc/SielegansD51, 2014

Pande, S., Morgan, F., McCawley, S., Ginley, B., Carrillo,

S., Harkin, J., & McDaid, L. (2010, September).

EMBRACE-SysC for analysis of NoC-based spiking

neural network architectures. In International

Symposium on System-on-Chip. IEEE.

Rocke, P., McGinley, B., Maher, J., Morgan, F., & Harkin,

J. (2008). Investigating the suitability of FPAAs for

evolved hardware spiking neural networks. In

Evolvable Systems: From Biology to Hardware (pp.

118-129). Springer Berlin Heidelberg.

Rocke, P., McGinley, B., Morgan, F., & Maher, J. (2007).

Reconfigurable hardware evolution platform for a

spiking neural network robotics controller. In

Reconfigurable computing: Architectures, tools and

applications (pp. 373-378). Springer Berlin Heidelberg.

Web-enabled Neuron Model Hardware Implementation and Testing

145
