Increasing Fault Tolerance in Operational Centres using

Human Sensing Technologies: Approach and Initial

Results

Nelson Silva

1,2

, Volker Settgast

1,2

, Eva Eggeling

1,2

Torsten Ullrich

1,2

, Tobias Schreck

and Dieter Fellner

1,2,3

Fraunhofer Austria Research GmbH, Inffeldgasse 16c, 8010 Graz, Austria

Technische Universit

at Graz, ComputerGraphics and KnoweledgeVisualization (CGV) ,

Inffeldgasse 16c, 8010 Graz, Austria

GRIS, TU Darmstadt & Fraunhofer IGD, Darmstadt, Germany

nelson.silva@fraunhofer.at

Abstract. The analysis of users’ behaviours when working with user interfaces

is a complex task. It requires various sensing technologies and complex mod-

elling of input/response relationships. A huge amount of data is collected and

analysed today but there are multiple crucial factors that play an unknown role

in improving human decision processes. The development of new user interfaces

and the usage of suitable techniques to recognize interaction patterns, is crucial

for creating adaptive systems.

Our work is focused on fault tolerance of Human Machine Interfaces and we de-

velop systems that accept physical user measurements as additional inputs. This

can be applied to multiple domains such as Operational Control Centres. We have

conducted experiments with professional air trafﬁc controllers with the company

Frequentis AG and we present and discuss the results obtained in a project called

Sixth Sense. We also discuss limitations and extensions for future systems.

1 Introduction

The automatic analysis of users’ behaviours and personal choices when working with

a user interface is a complex task. It requires diversiﬁed sensing technologies to au-

tomatically capture users’ behaviours and actions. Also, it requires certain advanced

analysis approaches and sophisticated models to enable an automated inference of the

context. There is a huge amount of data that may be captured. This includes physical

observations like eye movements, facial expression, body poses, gestures, but also heart

rate readings, body temperature, and so on. While the amount of potentially available

readings is huge, it is not clear which of these measures can be used and for which pur-

pose. We could detect high-stress and high-workload situations. This can be achieved

by monitoring the heart rate variability or the eye activity, in terms of areas of interested

visited. Also we can use eye information to steer the interface. Therefore, keeping the

user focused during critical and monotonous situations. This data must be handled and

processed to accurately represent the complexity in the interdependence of all extra ac-

tivities. It is much more than just user interface selections and systems actions. There

Silva N.

Increasing Fault Tolerance in Operational Centres using Human Sensing Technologies: Approach and Initial Results.

DOI: 10.5220/0006164100250049

In European Project Space on Computer Vision, Graphics, Optics and Photonics (EPS Berlin 2015), pages 25-49

ISBN: 978-989-758-156-4

are environmental, sociological, psychological and physiological factors that play a pos-

sible relevant role in the human behaviour. These factors probably have a high impact

in the work being performed by the users. If correctly captured and pre-processed, they

are of vital importance to develop better automated systems, that understand, react and

adapt to unknown and unpredictable situations.

Our work is focused on improving the fault tolerance of human-machine-interfaces

and apply it to different domains, but we are targeting Operational Control Centres

(OCC) in general. Examples of this operational centres are: security in public spaces,

air trafﬁc control, tunnels and highways or other emergency operational centres. The

target is to create systems that accept and process overall user’s body measurements

as input. It is essential to introduce in operational centres, new approaches for sensor

usage at the workplace. This is done without changing the current established proce-

dures or work-ﬂows. A new sensor approach is desired to capture information about

the user’s movements, body postures, actions or eye scanning paths [7] in a continuous

and automatic way. Many institutions are demanded to go through a complex process

of certiﬁcation, if the established work-ﬂows are changed in any way. This has a high

impact in the assurance of the safety of the entire infrastructure. It has consequences

in terms of extra cognitive effort for the workers (the users will need to adapt to the

new working procedures or to new equipment and receive training). This results in high

impacts on stress levels, workload and situational awareness [14]. All this, ultimately,

translates into high ﬁnancial costs too. It is important then, to introduce a novel sensing

devices, that allow us to better understand human behaviour and decisions with minimal

disruptions for the users. Maybe minimal disruption is not possible in all situations, but

it is highly desirable. It is crucial for the success of projects that aim at a higher automa-

tion of the work place at operational centres. This is specially true, for centres which

deal with critical information and where human life is a big concern.

We have to properly learn about relevant sensing input that generate huge amounts

of data streams. So, it is crucial to dedicate research to novel approaches for analysis,

processing and visualization of large amounts of data. These raw data streams are gen-

erated by multiple sources. Examples are sensors, domain speciﬁc information events,

control messages (like alarms or acknowledgements). If possible, the study of users’ in-

teractions should be done at the time of a user evaluation or directly at the work place.

This allows the creation of safety-critical systems that can learn, adapt, foresee and

overcome human errors or mistakes [24]. With such a framework, the domain data can

be collected in real time for an automated processing and analysis. It can also be stored

and replayed later for a detailed review by supervisors or data experts. For example,

we can aggregate sensors, such as: eye-tracker, body pose sensors (e.g., Kinect), hand

gesture sensors (e.g., leap motion) or bio-sensors (e.g., heart rate, electroencephalo-

gram) into the real work context. Then it might be possible to correlate domain speciﬁc

information with data about the users’ behaviour, interactions, current mental or even

physiological and emotional status. Nowadays, the accuracy of these types of sensors

improved drastically and their price is much lower now, making these sensors very at-

tractive. Both the data analysts and the control centre supervisors can make use of such

a system. They can have a better understanding of current difﬁcult situations and use it

to augment the meaning of both historical and live operational data.

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

We present and discuss important research questions related with users’ interactions

and behaviours. They allow a better understanding of the different challenges. The ﬁnal

goal is the identiﬁcation of common decision making error patterns [39]. Until now,

the usage of interaction data required a tedious processing and analysis effort, specially

whenever there was the need of integrating several systems and sensing technologies.

In section 3 the project Sixth Sense [31] is introduced as a case study in the ﬁeld of

air trafﬁc management. This project was sponsored by EUROCONTROL and SESAR

[8][9], where together with Frequentis AG we did an evaluation on air trafﬁc con-

trollers’ behaviours. Our contribution is to the improvement and development of op-

timized adaptive user interfaces. We study correlated interaction patterns that are used

for creating real-time supportive systems. Section 4 discusses the development of a

framework prototype developed to capture and analyse behavioural data directly at the

work place. Section 5 describes air trafﬁc control experiments and the air trafﬁc con-

trollers’ evaluation. We conducted these studies together with professional air trafﬁc

controllers. Section 6 presents results of the project Sixth Sense. We discuss relevant

metrics and analysis techniques, and we report lessons learned and main ﬁndings.

2 Related Work

Until now, the design process of a user interface assumed that interfaces have the users’

full attention. User interfaces presume that the user is sitting, has two hands available

and can always look at the interface while operating it. This leads to an increase in the

number of errors [5][1] while the user operates these user interfaces. Today’s and fu-

ture’s interfaces should consider human attention as part of the design criteria [23]. An-

other important topic is related with the measurement of interaction costs. According to

Sauro et al. [28] and Lam [20] the calculation of interaction costs, e.g., physical-motion

costs (mouse, gestures), cognitive costs, visual-cluttering costs to perceive state, view-

change costs to interpret perception or state-change costs to evaluate interpretation, is

still typically not part of the development process of most interactive user experiences;

in particular in visualization design. These costs also affect the performance, situational

awareness and the workload, and it might even be the root basis for errors performed

by the users.

Events in a sequence of discrete events can be described using a proper stochastic

model. Usually, human-interaction tasks can be described as a sequence of discrete

events. Here parametrized variable length Markov chains (VLMC) can be used as a way

to reduce the number of contexts and their variance allowing an easier interpretation of

eye tracking or mouse data, allowing to show interpretable regularities in user-traces

[35]. Results suggest that ﬁxation durations for a given individual are very stable across

reading, line drawings, color photographs and full color renderings of 3D models of

scenes [26]. Also it appears that there is no signiﬁcant correlation between a user’s

saccade length or ﬁxation duration and long ﬁxation durations for one task, then the

ﬁxation duration will be also longer for other tasks performed by the same user [26].

User interfaces and in particular the eye-based ones present enormous potential

for efﬁcient human-computer interaction. However, these interfaces also have a great

difﬁculty in inferring intent from user eye movements. Fixation tracing using hidden

Increasing Fault Tolerance in Operational Centres using Human Sensing Technologies: Approach and Initial Results

Markov models to map user actions to the sequential predictions of a cognitive process

model, might give a help in this case [27]. Also it is important to investigate relations

between eye ﬁxations and mouse cursor alignments [15]. Previous work has shown

correlations in the user interactions or to explore the mouse movements to infer query

intent or to investigate relations between mouse cursor pauses and high workload peri-

ods [12]. Data stream oriented applications are used across different ﬁelds and it plays

an important role in sensors integration projects. There are several strategies that can

be employed for the analysis of streaming information, one of these strategies employs

Complex Event Processing Systems (CEP) [22]. CEP combines several existent events

to generate a new composite or derived event. These events contain new correlated in-

formation that allow the study of the underlying processes. Furthermore, CEP offers the

opportunity for an improved loose coupling between software components [6].

The recognition of patterns is an important part in analysing the decision-making

mechanisms, and it can be achieved applying advanced outlier detection and machine

learning techniques [3]. Recent research clariﬁes why the human brain makes mistakes

and how the decision-making mechanisms work in reality. The decision-making tasks

are now linked with sensory evidence delivered in randomly timed pulses where noise

is playing a key role as the source of variability and errors [4]. Decisions in real life

need to be made based on noisy and unreliable evidence. The accumulation of evi-

dence from a set of noisy observations made over time makes it possible to average

over different noise samples, thus improving the estimates of the signal. This is at the

basis of the inﬂuential class of “drift-diffusion” models. Also, accumulation involves

maintaining a memory of evidence and the ability to add new evidence to the memory.

Yet until now no test has distinguished between noise associated to these two compo-

nents. New models [3] are now presented, which estimate the cognitive performance at

each moment in time while forming a decision, this without inserting electrodes into

the brain. The models provide a better view into brain during the “mulling-over” period

of decision-making. The neuroscientists found that internal mental process is perfectly

noiseless and that all the imperfections came from noise in the sensory process and not

from cognition. There is a variety of controller errors involving perception, memory,

decision-making, communication and team resource management. The classiﬁcation of

errors is essential to record data for the detection of trends in incident occurrence. Iden-

tifying situations where systems can fail or identifying risky strategies taken by users,

makes error analysis a key component in safety management[30].

Human error is a major contributing negative factor in general and sometimes para-

doxically automation can often increase the complexity and importance and impact of

human error [36]. Shorrock and Kirwan [30] describe in detail a new approach to deter-

mine how human errors contribute to incidents. Also the authors review existing models

of human performance and taxonomies of human error. The ﬁeld of behavioural analyt-

ics is a subset of business analytics that focuses in analysing seemingly unrelated data

points to extrapolate, predict and determine errors and future trends. It takes a more gen-

eral and human view on the data. It can be used in different domains and applications

such as consumer habits analysis, marketing campaigns and decision analysis.

Today applications in all ﬁelds may beneﬁt from behavioural and neuroscience con-

tributions. There are multiple behavioural models that attempt to model human be-

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

haviour. In an overview on behavioural modelling [39] the author presents interesting

outlook on this topic. There are big challenges in the design of good visual analyt-

ics systems or solutions, the deﬁnition of interactive processes to explore and retrieve

useful knowledge has been actively discussed [19].

The topic of anomaly (outliers) detection and time series visualization are also im-

portant aspects for the analysis of time based data originated from users behaviour and

from sensors data streams [16][32][33]. Moreover, the projection of multidimensional

data to a lower-dimensional visual display is a common approach used to identify and

visualize patterns in data [25]. Strategies for dimensionality reduction are critical in

visual analytics [25]. Finally, the possibility of interactively search and explore large

collections of data is a strong capability in all visual analytics systems [2].

3 Case Study: Air Trafﬁc Management Domain

The domain of air trafﬁc management is a very challenging ﬁeld on what concerns sys-

tem complexity, systems interdependency and also concerning human factors. In this

ﬁeld there are several types of operational centres with different needs, that control

different areas or sectors. The en-route sector handles ongoing high altitude air traf-

ﬁc. The tower and approach sector (or remote tower control centres) handles landing

and departure air trafﬁc. There are even control centres just responsible for monitor-

ing and evaluating other control centre decisions. For example, they decide whether

to authorize or not a ﬂight cancellation. In this context, the project Sixth Sense [31]

was developed, with the support of the Single European Sky Air Trafﬁc Management

Research project (SESAR)(i.e., it targets productivity while keeping the humans in the

core of the continuous evolving systems), and the European Organization for the Safety

of Air Navigation (EUROCONTROL) [8][9]. In Sixth Sense we address EUROCON-

TROL’s innovative research topic of implementing full automation in the work place.

The goal is to contribute to the improvement of error detection systems through sensor

augmentation, while keeping the humans in the main decision loop of air trafﬁc control

(ATC). Our interest is to ﬁnd ways to improve fault tolerance and the collaboration of

humans and machines. We want to ease the workload and to handle complex decision-

making processes by studying the users’ interactions with Human Machine Interfaces

(HMI)[34][36].

In this project we are focused on a tower control scenario, however the project im-

plementations are suitable for other air trafﬁc control scenarios, for example, en-route

air trafﬁc control. This project had the duration of 24 months (a medium-size project

according to SESAR) and it ended on July 2015. For it’s development a consortium was

created that included: Fraunhofer Austria Research GmbH and Frequentis AG (special-

ized in developing software for air trafﬁc management and control centres in general,

e.g., tunnels remote control). The main goals of the project were the realization of eval-

uation experiments, to collect data about users’ behaviours and decisions coupled with

realistic air trafﬁc data. This data was originated from users’ interactions with an air

trafﬁc control simulator at a standard controller work position.

Sixth Sense, incorporates simulated air trafﬁc data, such as: ﬂight, runaway infor-

mation and data about user selections on the user interface. Other useful information is

Increasing Fault Tolerance in Operational Centres using Human Sensing Technologies: Approach and Initial Results

also considered, for example eye tracking data that we use to analyse areas of interest

focused by the air trafﬁc controllers. To collect data for the project, professional air

trafﬁc controllers performed their normal tasks, while using the tower simulator in a

pre-deﬁned and realistic ATC scenario.

Based on the obtained results, we have identiﬁed important predictors related with

good or bad decision making. The prototype aimed at augmenting the air trafﬁc con-

trollers working environment with extra sensors and to collect data about the user’s

body language, such as: arm movements, body positions, hand gestures.

The work of the controller was analysed by domain experts during the experiment

and afterwards. This was done by accurately replaying the recorded experiment to clas-

sify and label unusual situations or decisions. We developed a new data collection and

analysis framework and we were also able to correlate different sources of information

and calculate metrics focused on the current work performance of the user, presenting

results on a dashboard that could be monitored by the air trafﬁc control supervisor.

The work-ﬂows of ATC centres and control rooms represent the work process of

other known producing enterprises. The work-ﬂows deﬁne what needs to be done by

whom and when, especially in ATC centres this process is already deﬁned quite well.

In Sixth Sense we used inputs from another SESAR project, the ZeFMaP project [18],

where a detailed analysis of the tower process has been performed in the form of tasks

and respective value stream analysis. Additionally, we used inputs from earlier work

[11],[21], where the different roles and tasks of a tower control centre were described.

3.1 Monitoring Challenges in Air Trafﬁc Management

The work at an air trafﬁc control centre can be very demanding with high peeks of

workload, requiring high levels of attention. However, sometimes in airports (specially

during the night) there are low activity times, but even during these times it is also

important to keep the controllers focused and alert.

As an aircraft travels through an airspace sector, it is monitored by one or more air

trafﬁc controllers responsible for that sector. As an air plane leaves that airspace sector

and enters another, the air trafﬁc controller passes the air plane off to the controllers

responsible for the new airspace sector. An airport like Hamburg, Germany (our sim-

ulated scenario) deals with more than 15 million passengers annually. This translates

into around 154 thousand aircraft movements annually, 115 national and international

non-stop ﬂights and more than 60 airlines. In our tower control experiment the air traf-

ﬁc controllers had to handle around 58 aircraft landings and departures in one hour. We

have selected this airport for our scenario because it offers challenging situations, such

as, the handling of a cross runway where the air trafﬁc controllers have to put the air

planes on hold to allow other air planes to cross.

Consequently, the paramount goal is to improve human error detection through sen-

sor augmentation, while keeping the humans in the main decision loop of the control

work, considering that the disruption on the working environment procedures and phys-

ical space should be kept to a minimum. In Sixth Sense [31], the ﬁrst step to achieve

this goal was to record and analyse the users’ behaviours and decisions. We wanted

to use this information as a source of data to illustrate the current users mental map

(either by registering all decisions in a graph database or by visually representing the

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

current landing or departure work-ﬂow steps for each handle air-plane. We have anal-

ysed the users behaviours at the work place, which is referred in air trafﬁc management,

as the integrated controller work position (iCWP) [10]. To collect the data, we have in-

tegrated multiple sensors like eye-tracking, mouse data, Kinect, voice recognition, bio-

sensors, environmental sensors (e.g., temperature, humidity, light) with domain speciﬁc

information (e.g., ﬂight information, control messages), provided through an air traf-

ﬁc simulator (Fig. 1) developed by the company Frequentis AG. This sensor set was

chosen because, it was the most plausible and non intrusive way to automatically col-

lect behavioural and interaction information. The gathered information helps automated

systems in the identiﬁcation of moments of stress (or extreme relaxation), allowing it to

also constantly “observe” what happens while the users remain in those states.

We learned about where and what the user was looking at and we analysed the deci-

sions goals. The extra data provided by the sensors is then combined with information

available from different domain speciﬁc knowledge systems, such as the ﬂight strip

system, and with the user interface interactions. From these observations, correlation

analysis are performed based on high frequency time-stamped data streams. This al-

lows the system to infer about different probabilities of the user’s next interaction (also

linked to existent well deﬁned work-ﬂow processes) and also about aspects related with

the current cognitive workload.

3.2 Assumptions Considered

To understand which sensor data was potentially useful to explain the users’ behaviours,

we have prepared two experiments for data collection and for ﬁne tuning of our frame-

work. We considered the following main assumptions:

– It would not be feasible to introduce at once a large number of sensing technologies

(sensors like EEG or emotional frameworks for deeper cognitive inference). Also

these technologies, require most of the times a more invasive set-up, where users

have to wear special equipment. Due to the complexity involved in the detection of

human behaviour, we started by utilizing single sensors (e.g., eye-tracker, heart rate

monitor) to create a standard baseline dataset. In posterior work the researchers and

air trafﬁc experts following a similar set-up can easily compare if the introduction

of wearable devices have impact or not in the behaviour of the users.

– Regarding the discovery of common work-ﬂows, we have decided to focus on gen-

eral eye tracking and mouse sequence analyses (e.g., areas of interested visited and

time spent on areas of interest). We performed analysis on the air trafﬁc control

work-ﬂow step sequences but future experiments should also be focused on spe-

ciﬁc and smaller tasks. Our complex event processing was able to reconstruct these

complete work-ﬂow step sequences. Therefore in our data we captured the com-

plete work-ﬂow sequences with each main task and we are able to compute metrics

that tell us for example how many times an air plane was put on hold or how many

runway crosses there was or the total processing time of an air plane.

– Regarding the inclusion of recommendation and prediction capabilities, it was de-

cided that we would further explore and analyse the data with the domain experts

to help them on the ﬁnding of unusual decisions or behaviours that might be used

Increasing Fault Tolerance in Operational Centres using Human Sensing Technologies: Approach and Initial Results

as good predictors. This will allow us to start designing recommendation and pre-

diction models. In our prototype we already included the capability of using a graph

database (to capture all meaningful decisions and data relationships in a way that

can then be visually explored and for which state of the search and analysis algo-

rithms are proofed to be useful for behavioural analysis), and we have integrated a

prediction engine (so that in the future we are able to recommend actions or to send

warnings to the supervisors about unusual user behaviours). Nevertheless these im-

plementations were not the goal of the project (the goal was to perform data analysis

and labelling, uncover decision patterns and gather good data predictors) and topics

like error avoidance and behaviour prediction will be properly addressed in future

work.

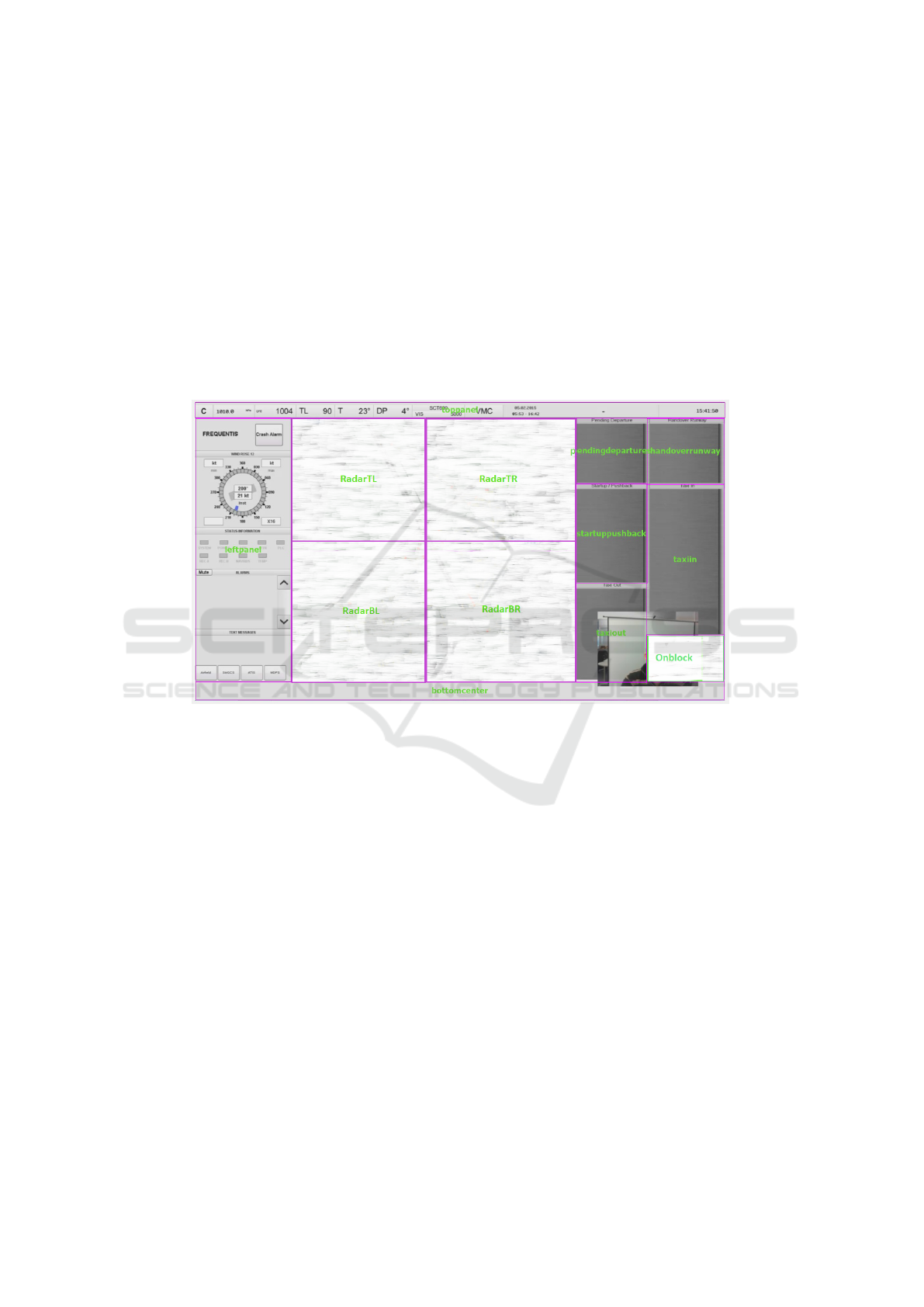

Fig. 1. Tower Air Trafﬁc Control Simulator. Different information is displayed: alarms on the left

side; the radar controls in the center area; and the different drag and drop ﬂight bays on the right.

– The automatic comparison between good and bad user decisions is done by using

metrics regarding task load, mental workload, attention and behaviour metrics de-

scribed in our work. These metrics were gathered with the help of psychologists

and air trafﬁc control experts and provide us hints about the detection of distracted

users or under high workload.

– We needed professional air trafﬁc controllers to be able to collect meaningful data.

To our knowledge this data was not (until now) freely available and therefore we

needed to set up evaluation experiments to collect it. The main reason was that we

needed to collect not only air trafﬁc data and data about the selection and choices

of the air trafﬁc controllers, but we needed to collect related sensor data using new

sensing devices like the MS Kinect, Voice Recording, bio-sensors or environmental

sensors. This combination of multi-modal data is not commonly available, making

these types of projects much more complex from the point of view of initial inte-

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

gration. At this stage we preferred to have less users on our experiments but we

were able to collect data from meaningful users, the air trafﬁc professionals.

– We needed air trafﬁc experts to monitor, supervise and classify the air trafﬁc con-

trollers’ decisions, choices and behaviours to better judge about the mental status,

situational awareness or workload but also to more correctly annotate the data col-

lected. The quality of the users decisions is accessed in different ways (classiﬁca-

tion, e.g. positive, negative and by ranking, e.g. 1 to 5 scale) and by different entities

(experts, experiment supervisors, experiment observers).

– It was assumed that we needed a very good integration with the existent air trafﬁc

control systems (voice recognition modules, ﬂight strip systems, radar). Only in

this way we would be able to collect enough realistic air trafﬁc data.

– This use case was focused in the collection of data and in the correlation between

different sources of data (sensors and air trafﬁc systems). It had the goal of gather-

ing realistic situations that could capture unusual situations due to high task work-

load, lack of situational awareness or high stress levels.

Our use case targeted safety and error avoidance, at this stage, not by predicting

unusual situations or making recommendations, but by accurately capturing these

abnormal situations. It allows the experts, to discuss, explore and visualize this type

of data. We can then prepare better models and study and experiment new concepts

and methods to create future autonomous systems that can adapt and react.

3.3 Research Questions

Operational centres have to handle domain speciﬁc information and communications

in very stressful and safety critical situations. Many times, not much information is

captured regarding the user’s behaviours. Even if this information is partially captured,

there is the lack of systems able to process and correlate the data to extract meaningful

knowledge about users’ behaviours or cognitive status. The “complex data” (i.e. time-

series, sensors, multivariate data) collected today is not enough for the analysis and

modelling of cognitive processes [37]. New sensing technologies are also needed to

provide a multi-modal view of the operational centres controllers work. There is also a

big challenge ahead in designing evaluation experiments that can capture the user’s in-

teractions and decisions with high ﬁdelity. This project was developed to tackle exactly

these questions and problems.

The main research question debated in this work is: “When working in a control

centre can the user’s body language and choices provide valuable cognitive informa-

tion, to uncover hidden patterns that allow us to distinguish between “good” and “bad”

(erroneous) inputs and interactions and avoid mistakes and bad decisions?”

We developed an integrated framework to capture additional information about the be-

haviour and the decisions taken by the users. But more importantly we developed a

better way to collect data. Not only we needed to collect raw data from sensors, but also

simple mechanisms that would allows us to visualize, explore and correlate sensor data

with the air trafﬁc information. It makes sense that a system that detects and separates

decisions and actions in an automatic way, has the potential to avoid the loss of situa-

tional awareness and to decrease the user’s stress level. It might signiﬁcantly improve

Increasing Fault Tolerance in Operational Centres using Human Sensing Technologies: Approach and Initial Results

the work of air trafﬁc controllers. Starting from this principle and counting with the

help of the experts we deﬁned general research questions, such as:

– How to improve the user interfaces usability?

– How to detect main causes that lead to mistakes (e.g., using air trafﬁc info, eye-

tracker, mouse, heart rate data, body pose)

– What are the hidden data signs that we can incorporate in an automated system

to detect and predict the users next actions or to predict when a user is in a high

workload situation or is about to make a mistake?

– What are the unknown factors that co ntribute to higher stress levels or to the lack

of situational awareness?

– Can air trafﬁc information be combined with sensor information to improve the

detection and classiﬁcation?

We then generated a list of partial research questions that allow us to guide our

analysis in the search for good predictors of the users’ behaviours (Table 1). These are

example questions created from a list of more than 43 research metrics, that is part of

the ﬁnal Sixth Sense report (SESAR project).

4 Software Architecture of the Prototype for Data Collection and

Analysis

The simulated air trafﬁc working environment and the descriptive technical documents

required for the preparation of our software framework (Fig. 2) were provided by

Frequentis AG, the company that developed the air trafﬁc tower simulator utilized in

our experiments. The sensor data is stored as queued messages (to avoid losing any

messages and because the sensors can provide data at a very high rate). These mes-

sages are stored in different modalities, e.g., air trafﬁc info, eye-tracker or heart rate

measurements. These are combined automatically into a new source of information,

i.e., eye-tracker data is combined with mouse data to form a single source of informa-

tion for analysis or data export purposes. These data topics are then pre-processed, and

analysed either using complex event ﬁlters or machine learning processes (a ﬁlter looks

much like an SQL statement, however we were able to also deﬁne, for example, time

window intervals for calculation and data aggregation, also the ﬁlters syntax is imple-

mented following well deﬁned variables and work-ﬂows in air trafﬁc management). The

evaluation of the data mining and machine learning components will be part of future

work, outside of the scope of the Sixth Sense [31] project.

The idea of the project was to partially make use of information about the users’

body information (eye movements, hand movements, posture, etc.). In this way, we

were able to correlate air trafﬁc information (departures, arrivals) with sensor infor-

mation (eye-tracker, heart rate measurements, kinect). For example the air trafﬁc con-

trollers might mismatch similar air plane call signs, e.g. LH357 and LH375, but by com-

bining voice recognition with eye tracking we could depict that the controller talked to

the air plane LH357 while watching LH375.

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

Table 1. Research Questions.

ID Research Question

1 Does the number of taxi-in air planes at a given time inﬂuences the stress level (higher

stress level)?

2 Pauses in the mouse movement activity are known to be linked to high workload. Is

there a correlation between errors and increases in the the eyes/mouse movements to

scan the user interface?

3 When the user is about to make an error is there an increase in the ﬁxation time on the

different areas of interest (AOI)?

4 When there is an increase in the number of Eye AOI ﬁxations, then there is also an

increase in the number of Mouse AOI ﬁxations, because there is a relation between eye

and mouse work?

5 The higher the task load the higher it will be the mental workload. How many de-

partures, arrivals per minute? Is this related with stress and changes in the heart rate

variability?

6 When the workload is higher then the occurrence of errors increases?

7 When the task load is higher then the occurrence of errors increases?

8 What is the eye and mouse scan path patterns of the users when they are about to make

mistakes? Are these distinctive enough?

9 Is the heart rate variability a good indicator for when the user is about to make a mis-

take? Can this information be combined with other sensor information?

10 Is there a possibility for error detection due to mismatches in the correlation between

eye-tracking and voice (call signs) information?

11 Is it possible to detect excessive demand based on number (or time spent) on areas of

interest?

12 Kinect Data - Is there a possibility for error detection due to the correlation between air

trafﬁc information and the body posture.

13 Is the number of clicks, mouse movements or AOIs related with the occurrence of er-

rors?

14 Can we report what are the users’ most preferred eye and mouse scanning sequences?

15 Can we show how fast the utterances were spoken? Can this metric be utilized to detect

periods with more negative observations?

The Sixth Sense Framework is Composed by Four Essential Functional Blocks:

– The air trafﬁc control tower simulator framework which is managing multiple graph-

ical user interfaces and it is distributing data via the network.

– The complex event processing (CEP) block incorporates an SQL database that is

used for logging and reconstructing events on the tower simulator and a NoSQL

graph database [17] which is to be used for further detailed actions investigation

and exploration.

– In the prediction block there is an Apache Hadoop and Mahout [29] recommenda-

tion engine.

– A data visualization block which features HTML5 chart visualizations, ﬁltering and

data exploration capabilities.

– All the available air trafﬁc information is collected into an ActiveMQ message

queue system (AMQ), in the form of XML messages separated using topic descrip-

tors. The same was achieved for all the different sensors, as an effort to incorporate

Increasing Fault Tolerance in Operational Centres using Human Sensing Technologies: Approach and Initial Results

the new sensors into existing legacy systems. With the goal of saving processing

time on repetitive lookups, we also aggregate speciﬁc air trafﬁc data with sensor

data, such as integration of air plane call signs with eye-tracking gaze position.

There are essential use case scenarios for the different sensors, based on the expected

usage in our context:

– Mouse, eye-tracker and voice recognition data - Error detection related with mis-

matches in the correlation between eye-tracking and voice (call-signs) information.

Detection of excessive demand based on number (or time spent) on areas of interest

(AOI). Detection of user tiredness based on longer times spent on each AOI.

– Kinect data - Possibility of error detection due to the correlation between air trafﬁc

information and the body posture. Detection of excessive demand based on body

and gesture tracking information (speed of gestures). Detection of user tiredness

based on body posture.

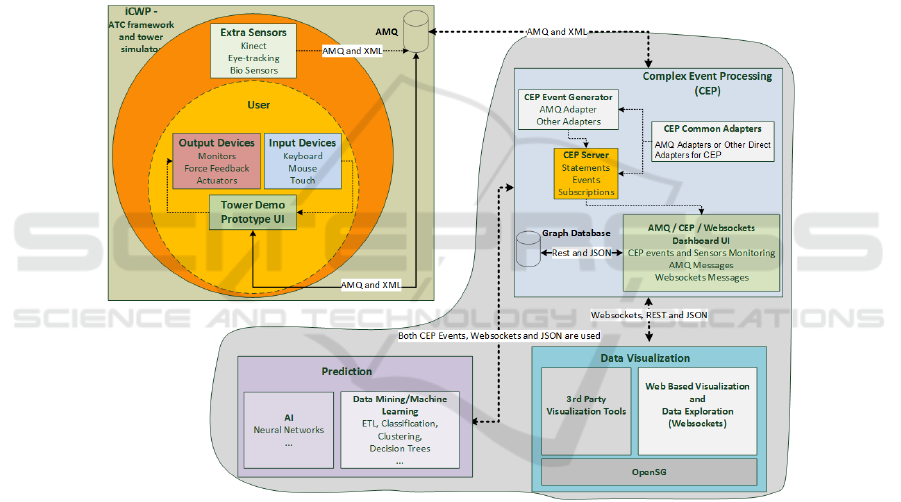

Fig. 2. The Sixth Sense Software Architecture.

The process starts with an “observe phase” and the collection of raw interaction

data (available as queue messages). The data is generated from user interactions when

using the ATC simulator system an it is augmented with sensor data. The messages

are immediately pre-processed and transformed into events through the complex event

processing platform, where we ﬁlter and correlate multiple different event sources.

4.1 Features of the Prototype Framework

The main features of the Sixth Sense [31] framework are:

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

– Replay of all information topics (on-line data analysis and replay)

– Graph database storage (e.g., storage: body posture, work-ﬂow step, AOI, action)

– Prediction engine training (e.g., give recommendations about possible next han-

dling steps for an air-plane)

– On-line complex event processing (CEP) and dynamic change of correlation ﬁlters

– Analysis and visualization of the air-planes arrival and departure work-ﬂow tasks

and times (showing any repetition loops)

– Real-time plot of Eye-tracking and mouse current positions

– Visualization of interaction metrics, e.g., current user pace (current effort)

– Awareness dashboard (Fig. 3) with thresholds for cumulated departures or arrivals

– Web observation platform using Web-sockets and D3.js

– Real-time representation in a time line of the supervisors, observers and experts

annotations (stress level report, negative and positive observations)

– Handling of voice recognition data from communications between pilots and air

trafﬁc controllers (similar to “think aloud protocol”)

– Export of datasets for analysis in other tools

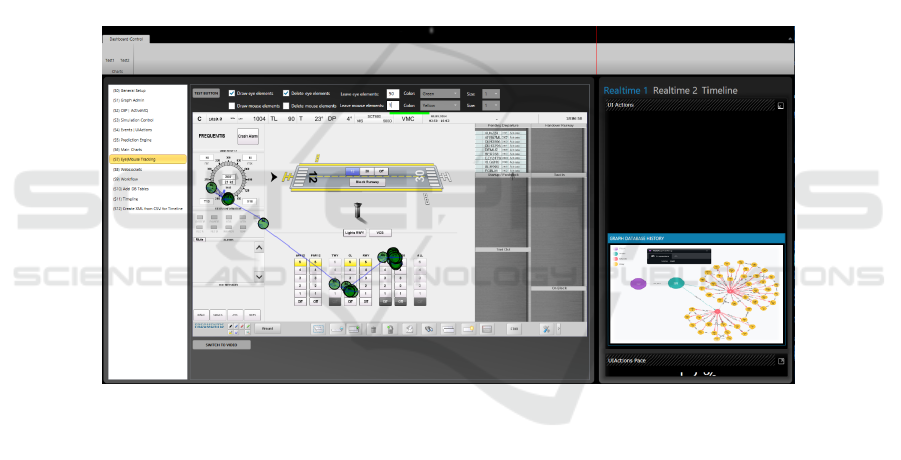

Fig. 3. Dashboard in Sixth Sense showing the plot of eye and mouse data and current links in

graph database.

5 Air Trafﬁc Control Experiments and Users’ Evaluation

To capture our baseline data we have designed two experiments. These experiments

took in consideration the feedback from the different experts in air trafﬁc control (air

trafﬁc controllers and supervisors, developer, psychologists with expertise in Human

Factors in the ﬁeld of aviation). Also our team received speciﬁc training at the ATM

EUROCONTROL Experimental Center (EEC) in Bretigny, where we could experience

in ﬁrst hand how it is like to be an air trafﬁc controller performing at different sectors

(en-route sector , middle sector and approach and landing).

In the context of operational centres and due to the diversity of tasks performed

Increasing Fault Tolerance in Operational Centres using Human Sensing Technologies: Approach and Initial Results

by the users (manual work, ui interactions, discussions, planning, visual observations,

high or low stress, high emotional and critical or emergency related actions, multitude

of systems), there are a multitude of challenges to the identiﬁcation of behaviours or

sequence of actions associated with errors or mistakes. This presented many difﬁculties

to the design of our two experiments in terms of sensor location and data analysis.

The tasks and decisions performed by air trafﬁc controllers and subjective information

on stress (self-rating) or overall physical workload in terms of UI actions (i.e. mouse

clicks, eye movements), are critical for grasping the complexity of ATC decisions [23].

They allow the understanding of the reasons behind the actions taken. The collected

data allowed us to identify interaction and workload patterns.

In the ﬁrst experiment we carefully collected and analysed data and we did direct

observation of the air trafﬁc controllers. For the experiments, we have used a realistic

simulator, provided by our partners (Frequentis AG). The overall set-up is similar to

an ATC work environment. It allowed us to collect meaningful data about the user’s

decisions and actions. These tests were necessary, since the performance of the track-

ing technologies depends on environmental constrains, the workplace layout, working

procedures and many other factors.

The experiment was designed to capture critical data on stress and workload levels

in a natural way. It was not necessary to use any artiﬁcial strategies, e.g. to induce in-

creases in the workload or effort of air trafﬁc controllers, besides a relative long duration

of each simulation (around 60 minutes maximum) and a proportional high air trafﬁc. In

the second experiment we have ﬁxed remaining problems with some sensors (kinect,

eye-tracking). Mostly, these problems were related with the capacity of the computers

to deal effectively with a high data streaming ﬂood coming out of the sensors.

5.1 Method

First, we observed how an expert uses the simulator, using a “Think Aloud Protocol”.

An experienced air trafﬁc controller performed the same experiment, while comment-

ing his decisions and working sequences. This allowed us to understand the problems

involved, ask questions and prepare the real experiments.

To analyse the behaviour and decisions of the air trafﬁc controllers, we have de-

signed an experiment which uses the Hamburg Airport Tower Control scenario as a

working base. In Fig. 4, we can see a representation of the experiment set-up. An initial

protocol was created for training of the users where we explained how to handle the UI

and it served as a test of the entire set-up to guarantee the quality of the data.

We have created a “Behavioural Observation Protocol” for the study of:

– Handling of pending departure air planes and pending taxi-in (arrival) air planes -

how the users work with these queue lists;

– Number of errors the criteria and indication for the report of an error is related to

the handling of air trafﬁc. This is given by the supervisor (the supervisor signals

the error, and the ATC acknowledges), and it is added to the dataset by the remote

observer. There are certain errors associated with the handling of the UI that can be

considered directly by the observer watching the remote video;

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

– Number of help requests - similar to the report of errors. The observer is alert, to any

help request by the ATC to the supervisor in the room through remote observation.

This dataset is now part of our base of expert reference datasets.

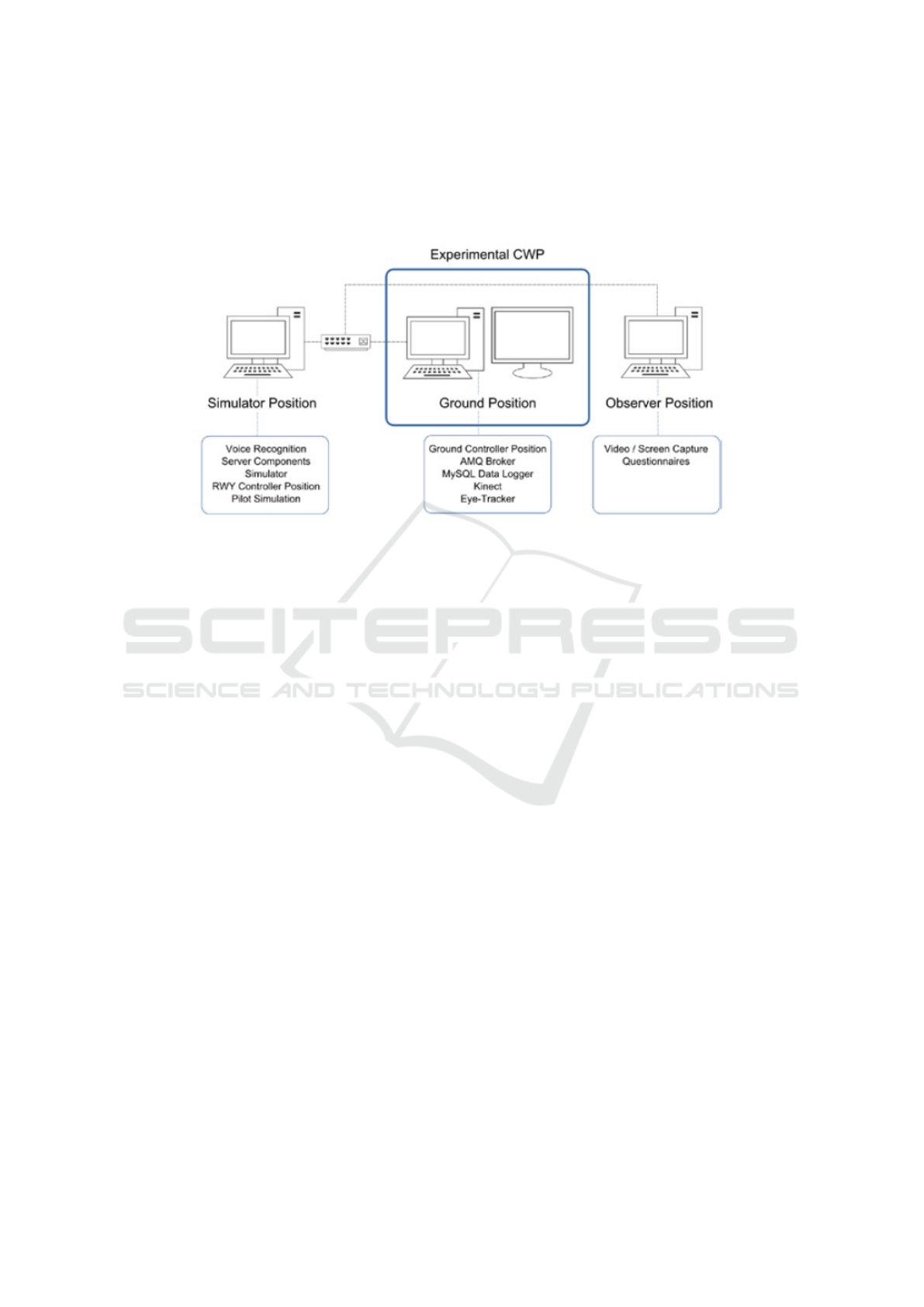

Fig. 4. Our Air Trafﬁc Control Experiment Setup.

Constraints Used During the Two Experiments:

– Simulation ran for approx. 45 min. (max. 60 min.) for each participant,

– Arrivals were automatically simulated until touchdown,

– Departures are controlled until take off and no runway change was simulated,

– Taxiway Routes could be selected by the operator.

General Conﬁgurations of the Experiment:

– Arrivals on runway 23 and departures on runway 33,

– Number of Arrivals: 31 ﬂights and Number of Departures: 27 ﬂights,

– Total number of ﬂights(airplanes): 58 airplanes,

– 8 different types of airplanes: A319, A320, A321, B738, C206, CRJ9, E190, F900,

Task Description

Every participant got a map of the Hamburg airport and was asked to assume the ex-

periment work place. The participants were informed that it was ok to ask questions

about the usage of the simulator user interface (to the air trafﬁc controller supervisor,

present in the room). When all questions were answered, the experiment started, and the

air trafﬁc information was loaded into the simulator. Every 10 minutes, the supervisor

asked, what was the current stress level experienced by the participant and registered

extra notes about his personal evaluation point of view of the current performance of

the participant. The experiment lasted for 45 minutes, but it could run for 60 minutes

maximum, depending on the current air trafﬁc situation. Each participant:

– Had to control landings and departures of the same number and types of air planes.

– Had around 45 min. (max. 60 min.) to perform in the entire experiment.

– Received a document about the experiment with map of the runways and a short

description of the simulation scenario.

Increasing Fault Tolerance in Operational Centres using Human Sensing Technologies: Approach and Initial Results

– Had the help of a person familiar with the UI (can ask questions about the UI).

– Each user had access to the same input devices (mouse and keyboard).

– The participant handles the same number and type of airplanes (same order).

Participants

All 8 participants currently work in the ﬁeld of air trafﬁc control, as air trafﬁc controllers

(1 En-route, 6 Ground, 1 trained as a ground controller but works only in simulations

experiments). The work experience of the air trafﬁc controllers varied from 20 to 2.

Gender: 4 males (50%) and 4 females (50%). Age: 3 participants were aged between

20-30, 3 were aged between 30-40 and 2 were aged between 40-50. One of the partici-

pants was wearing glasses.

Language

All communications between pilots and air trafﬁc controllers were handled in English.

Six of the participants had German as their mother language, 1 Romanian and 1 Span-

ish. The level of experience with the UI varied from less than 1 hour to 3 years or more.

Apparatus/Materials

– Scenario and Hamburg airport description, map of runways.

– Consent form, pre-questionnaire, post-questionnaire (SASHA [8] and NASA-TLX

[13]) and a debrieﬁng-questionnaire.

– Air Trafﬁc Simulation and Experience Control.

– ATC Tower Simulator (ground control info, voice recognition, MS Kinect, Tobii

X2-30 eye tracker, mouse and keyboard).

– Environmental sensors (temperature, humidity, light and noise), captured with the

Libelium Waspmote sensing platform.

– Heart rate monitoring watch and monitoring bands for each user (Polar Watch).

– ATC replay framework and analysis software prototype.

– Remote Video Recording and Observation Notes Registration.

Main Variables in Our Study

– Number of Total Errors Observed. This measure is manually taken by observation

using a remote video recording software, and complemented with written annota-

tions observed from the air-trafﬁc controller supervisor that is present during the

simulation in the evaluation room.

– Number of Total Help Requests. This measure is manually taken by manual obser-

vation using a remote video recording software.

– Every 10 Minutes Stress Level Check. This measure is manually recorded by the air

trafﬁc controller supervisor, by direct report from the participant, every 10 minutes,

during the evaluation, using a Likert scale from 1(lower) to 5 (higher).

– Number of Air Planes in Pending Departure. This measure is automatically regis-

tered by the system.

– Number of Air Planes in taxi in. This measure is automatically registered by the

system and manually by remote observation.

– Average Workload. This measure is automatically calculated by our analysis frame-

work, takes the entire simulation period and the number of UI actions (composed

by eye and mouse activity).

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

– Every Minute Workload. It is automatically calculated by our analysis framework, is

taken every 60 seconds and uses the number of UI actions (eye and mouse activity).

– Workload at Stress Level Report Time. It is automatically calculated by our analysis

framework. It takes the workload (eye and mouse activity) at the time the user

reported the stress level (every 10 minutes), and also the number of UI actions.

Procedure

When starting the experiment all participants came alone into the evaluation room. Be-

fore starting the experiment, the participants were informed that the evaluation was

going to be video recorded, including the user interface interactions, and were asked

to sign a consent form. They were informed that they could stop the experiment at

any time, if they wished so. The participant had to answer a pre-questionnaire which

included questions about their experiences as air trafﬁc controllers and about their pre-

vious experience with the simulator. The users were assisted in putting on the heart

rate monitor bands. We recorded 3 baseline heart rate measurements. In this way we

have the possibility to subdivide the users in groups, according to the heart beat rate

and heart beat variability. Some users may have a lower heart beat baseline than others.

During the experiment the participants were asked to report every 10 minutes about

their current experienced stress level. After the trial, the participants were asked to ﬁll

in a post-questionnaire (based on SASHA [8] and NASA-TLX [13]) and new heart

rate measures were taken. After 10 minutes of relaxing and rest, a debrieﬁng session

took place. A structured interview protocol was conducted, where difﬁcult situations

were reported and revised (video recordings) and a debrieﬁng-questionnaire was ﬁlled

by the participant. Questions regarding subjective experiences while working with the

simulator UI were also asked to each participant (debrieﬁng-questionnaire). We have

implemented a protocol for reporting problems or common questions and to avoid and

improve similar situations in the future. Also, we measured the relation between the

number of errors and help requests reported (through remote video observation and su-

pervisor feedback) and the number of pending departures and air planes in the taxi-in,

queue lists.

5.2 Experiments to Assess the Data Quality

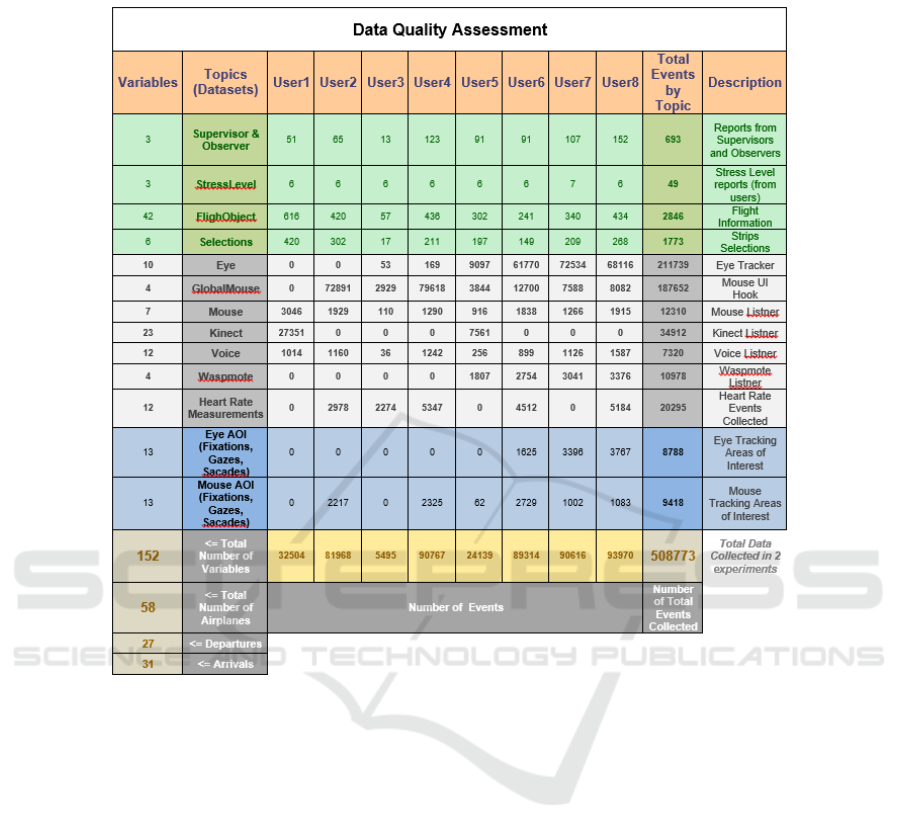

In our experiment the data quality (Fig. 5) was evaluated in distinct ways:

– Integration and collection of air trafﬁc related data through the usage of a message

queue system and a MySQL database (this dataset can be replayed and extracted to

csv ﬁles for posterior analysis using statistic tools).

– Storage of environmental data (e.g., temperature, light and humidity in the room)

and the heart rate of participants that authorized this procedure.

– Transformation of questionnaires and observations into text ﬁles (csv format) for

posterior treatment and analysis.

– Through the creation of complex event processing ﬁlters it is possible to generate in

our prototype, new datasets with new measuring variables. For example, regarding

the usability workload measure, we can implement a ﬁlter that simply returns new

updated results every 60 seconds instead of every 10 minutes.

Increasing Fault Tolerance in Operational Centres using Human Sensing Technologies: Approach and Initial Results

– We have performed ﬂight work-ﬂow task sequences identiﬁcation (this step was not

provided by the ATC systems that we used)

– We have used the well known statistic tools R and SPSS, for analysing correlations

between all the variables. After extracting the necessary datasets in a text ﬁle (csv

format), we import it and we make the necessary rearrangements on the meta data,

so that it can be analysed and charted in R and SPSS.

– The R analysis, revealed to be the right choice for the treatment of our data. We

call the scripts directly in our prototype and they allowed us to study correlations

on a big quantity of variables and data. For building the correlation matrices we

have used the default Pearson correlation method. Because of these correlation ta-

bles, we could direct our analysis in a much easier way, looking mainly at the most

important correlations. For building these matrices we have used the Pearson corre-

lation method. For our ﬁnal analysis we have used the M-Estimation method. This

method is a robust technique that helps in the identiﬁcation of data errors and other

problems (e.g. outliers).

– Creation of extra analysis datasets (errors, number of departures and landings be-

tween errors, several task related metrics).

– Heart Rate Variability Calculation

5.3 Data Analysis, Exploration and Visualization

Besides using our framework, we used other tools to analyse eye and mouse areas of

interest (AOI), to study of interaction sequences and to explore the data.

Firstly, for the analysis of mouse and eye-tracker data, we used the open source soft-

ware OGAMA (from TU Berlin). We deﬁned and calculated eye positions and AOI cor-

respondences. The eye-tracker data stream contained many rapid eye position changes.

The visual perception of the human needs time to realize elements of a graphical user

interface (in our case the ATC simulator). We were interested in eye gaze positions that

were actively realized by the user (ﬁxations). The calculation of eye ﬁxations automat-

ically takes the AOIs into account and connects the results. A similar process was for

the mouse “ﬁxations”, i.e., positions on which the mouse cursor rested for a certain

amount of time. The results were then exported to a comma separated ﬁle (CSV) for

visualization and correlation with other datasets in other tools (e.g., R). An off-screen

AOI for large time slots (>500 ms) between ﬁxations was added too.

Secondly, after obtaining these AOI, we studied the sequence patterns in a soft-

ware created by Fraunhofer FKIE, called Event Analyser [35], that is based on Markov

chains.

Thirdly, we performed data exploration sessions with the different experts (e.g.,

ATC experts, psychologists). We have followed a reduced matrix of metrics related to

task-load, mental workload, performance, attention and behaviour, where we tried to

combine ﬁrst the most obvious metrics (according to the experts in the different ﬁelds).

Finally, for users that authorized heart rate monitoring, we analysed the heart rate

variability (HRV) of each user. HRV is affected some factors like: aerobic ﬁtness, age,

genetics, body position, time of day, and health status. A low HRV indicates is associ-

ated with stress or over training. We used the HRV together with the experts classiﬁ-

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

Fig. 5. Data Collected and Quality Assessment for Different Datasets and Sensors.

cation of negative observations to check for correlations in the data, this allowed us

to discover predictors for negative events.

6 Results and Discussion

We present some of the results of the Sixth Sense [31] project as an example of what

can be achieved and of what can be the outcome of a behavioural analysis study. For a

more complete overview, the reader can have a look at the Sixth Sense project report at

the SESAR website or contact us.

– Research question 1. Interdependence between taxi-in air planes and higher stress

levels through time?

We have found indications for relations between the number of arrival and departure

air planes and the report of higher stress levels by the users.

– Research question 2. Pauses in the mouse movement activity are known to be linked

to high workload. Is there a correlation between errors and increases in the the

Increasing Fault Tolerance in Operational Centres using Human Sensing Technologies: Approach and Initial Results

eyes/mouse movements to scan the user interface?

There appears to be a relation between the occurrence of errors and the increase

of eye or mouse events. The data indicates that there is a possible link between

reductions in mouse movement and increases in the eye movements, coincident

with the occurrence of negative observations.

– Research question 9. Heart rate variability as a good detector of mistakes?

After the data analysis we concluded that the heart rate together with the reduc-

tion in mouse activity, the number of visual UI objects to be managed (e.g. ﬂight

strips) and the eye tracking AOI frequency and duration provide very good clues

for anticipating moments of stress, high workload and the occurrence of negative

observations.

– Research question 10. Possibility of error detection due to mismatches in the corre-

lation of eye tracking or mouse data and voice. There are direct relations between

an increase in the number of words utilized by the air trafﬁc controllers and the

occurrence of negative observations. This always follows the same pattern.

– Research question 12. Kinect Data - Possibility of error detection due to the corre-

lation between air trafﬁc information and the body posture

We have found the Head Coordinate State and the User in Range variables, very

promising for implementing a future error predictive system. We could account (in-

clude in the same time interval) at least 96% of all negative observations reported

by the experts, by ﬁltering data using these two variables.

6.1 Discussion

The goal of our current and future work is to study interaction issues and identify neg-

ative patterns (non-optimal user decisions). These behaviours affect the performance

of air trafﬁc controllers and exercises an unnecessary cognitive workload [37] burden

on the users. We are not working only around operational centres or air trafﬁc control

scenarios. We initiated projects in other ﬁelds where we use this results applied to other

domains, e.g., on the improvement of data search user interfaces or in the development

of better systems in car driving.

These studies have the potential of showing interaction problems linked to increases

on workload, stress levels and to situations that evoke a high demand of attention from

users. We seek to understand the reasons and to identify the data signals that lead to

users’ confusion or decreases in their normal response capability. There is space for

improving current user interfaces [1] used in all domains. This can be done also by

analysing correlations between experience levels (e.g., experience performing similar

work or using the same UI) and our framework measures (e.g., regarding task load,

mental workload, attention, behaviour, performance).

It is interesting to verify which speciﬁc decisions and actions contribute to the de-

crease in situational awareness (e.g., the number of visual elements to be handled at a

certain time by the user). Reasons that lead to signiﬁcant increases in the stress levels or

that answer why there is degradation throughout time are also investigated. Sometimes

this happens in a unclear way, that becomes only more evident after combining different

sources of information and by having a more complete view of the users actions and

behaviours.

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

We compared supervisor and observer annotations with other data collected, to de-

rive conclusions about the answers (negative or positive), actions and decisions taken.

We created an expert dataset that can be used as a comparison reference, after more data

is collected from non-expert users. After our data analysis we selected the most promi-

nent variables (among many), the ones that better represent the cognitive behaviour and

the decisions of the users. We have created a framework to allow a real time integra-

tion and processing of streamed data directly at the data generation time. These types

of frameworks are not usually available, making the investigative work of analysts and

experts very cumbersome when done manually. It is desirable that the experts supervis-

ing daily activities in operational centres, can be better supported through automated

anomalies detection, specially avoiding the necessity of drilling down big amounts of

data.

Studies like this one, are limited by the amount and diversity of data collected and by

the “noise” existent in the data, derived from the fact that it was not possible to capture

data without errors. We need models to classify and deﬁne what is exactly an error. In

our case, we worked with the domain experts. It was a manual process of labelling and

classifying relevant data events that paid off. In the speciﬁc case of human behaviour,

studies also must consider that certain aspects may not still be known and they might

not even be currently captured in the existent data.

Hence there is always the need to incorporate unknown data facts. This can be done

in our case by simply replaying the experiments to correlate new facts, already using

new labelled data. The order and time synchronization of data events, as wel as the

sample rate is very important. We have dedicated a great effort to make this step as

good as possible. For example, in the ATC use case, the capture of information related

with the radar area was challenging. The systems do not provide enough information

feedback about the visual user interface (aircraft labels and position) and eye tracking

ﬁxations do not correspond directly to an aircraft id. Instead we subdivided the radar

area into four sub areas (left high, right high, left lower and right lower parts). This

allowed us to know at which area the users were looking. Here the problem of having

dynamic areas of interest (e.g. a UI control the can be re-sized) might interfere with

the calculation and analysis of AOI. Sometimes, we do not know when a problem is

due to other unknown aspects. To have a better assurance we would need to carefully

design new experiments and use other sensing devices, e.g., brain waves, perspiration

or emotional expressions.

6.2 Contribution and Beneﬁts

The ability to pre-process and analyse streamed data directly at an evaluation study or

at the work place revealed to be a good option in our case because we could annotate

better our data by constantly observing all the remaining details that are not possible

to be captured by the sensors (e.g., user delay because of a dropped pencil). The focus

in the development of a more comprehensive framework for near real-time analysis,

reduces the burden in data interpretation and it is therefore self-justiﬁed. It means that

we can now feed on-line machine learning models that can be constantly trained and

adjusted to learn and adapt to new changes.

Increasing Fault Tolerance in Operational Centres using Human Sensing Technologies: Approach and Initial Results

The Sixth Sense project has laid important foundations for the creation of active

and supportive systems that can be of great value also for the supervisors in their daily

activities. Only a small part of all possible existent sensors could be analysed within

our project. This is a great starting point for adapting a system to the user.

As a major outcome of the project we expect to bring the supervisor and users in

general, much more into the core command of the overall operations by automating

certain tasks. In this manner, the sensors provided information about the intentions of

the user and the analysis can result in a recommendation or reaction from the system

that is beneﬁcial for the job. We are also working on ways to introduce a mechanism, to

make usage of ontologies as a hierarchy of user interface concepts, where we can take

advantage of the interrelationships of those concepts. It was challenging to get the data

we needed and in a timely manner. There were a high number of technical limitations

that we had to overcome. An example of this was the integration of sensing technologies

with the existent ATM system used for the simulation scenarios. Another example was

the need to aggregate knowledge about different sensors that work at different frame

rates. We discuss in more detail these challenges in our Sixth Sense project.

6.3 Conclusion

Control centres can be improved by monitoring the users’ actions and decisions. Our

system allows to record and collect the users’ direct inputs as well as behavioural data

from sensors, including body pose aggregated with the various status of the available

systems. It is possible to separate work-ﬂows into tasks and identify individual decisions

in an automatic way. Supervisors can rank the users’ decisions and available system

predictions.

By combining all this data, we expect to be able improve the performance and the

awareness of users at work. We are now able to continue working on ways to predict

the next choice of a user or on ways to infer if a user is moving or relaxed, by observing

the respective users’ movements. We want to automatically create a database of best

work-ﬂows that reﬂect different users and that is able to display recommendations about

optimal next actions.

This allows the creation of systems that are able to deal with unusual behaviour.

Several challenges are solved and we are ﬁne tuning some parts of the system. A

ﬁnal step of this type of project is to conﬁrm if the framework and overall prediction

concept is performing well in not know situations. We need to receive feedback from

supervisors regarding the results and advices given by such system. This also opens up

new possibilities to other research topics, leading for instance to the implementation of

more comprehensive cognitive models in many domains. This facilitates, for example,

the acceptance of this nature of intelligent systems by the users, or the integration of

more forthcoming sensing technologies in the near future.

Acknowledgements. This work was co-ﬁnanced by EUROCONTROL acting on be-

half of the SESAR Joint Undertaking (the SJU) and the EUROPEAN UNION as part

of Work Package E in the SESAR Programme. Opinions expressed in this work reﬂect

the authors’ views only and EUROCONTROL and/or the SJU shall not be considered

liable for them or for any use that may be made of the information contained herein.

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

We wish also to thank our Sixth Sense consortium partners and their staff mem-

bers: Theodor Zeh, Michael Poiger, Florian Grill and Baris Kalayci (Frequentis AG),

and to Carsten Winkelholz and Jessica Schwarz (Fraunhofer FKIE) for their invaluable

contributions and expertise in the ﬁelds of air trafﬁc control, evaluation methodologies,

psychology, data analysis.

References

1. Anne, I., Steven, T. S., Barry, K.: Human error in European air trafﬁc management: the

HERA project. Vol. 75. Reliability Engineering & System Safety, Elsevier (2002) 257-272

2. Bernard, J., Daberkow, D., Fellner, D., Fischer, K., Koepler, O., Kohlhammer, J., Runnwerth,

M., Ruppert, T., Schreck, T., Sens, I.: VisInfo: a digital library system for time series research

data based on exploratory search - a user-centered design approach. Vol. 16. Intern. Journal

on Digital Libraries (2015) 37-59

3. Bishop, C.: Pattern Recognition and Machine Learning. Springer (2006) 605-674

4. Brunton, B., Botvinick, M., Brody, C.: Rats and humans can optimally accumulate evidence

for decision-making. Vol. 340. Science AAAS, New York (2013) 1-108

5. Carayon, P.: Handbook of Human Factors and Ergonomics, Human Error. L. Erlbaum Asso-

ciates Inc. (2006) 708-760

6. Cugola, G., Margara, A.: Processing Flows of Information: From Data Stream to Complex

Event Processing. Vol. 44. ACM Comput. Surv. (2012) Art. no. 15

7. Duchowski, A.: Eye tracking methodology: Theory and practice. Vol. 373. Springer (2007)

3-179

8. EUROCONTROL: Recommendations for HMI Evaluation in the Context of CWP Develop-

ment: A Synthesis Of Relevant Literature. Core Requirements for ATM Working Positions,

Project HRS/HSP-006. EUROCONTROL (2003)

9. EUROCONTROL: The Development of Situation Awareness Measures in ATM Systems.

EATMP Method and Tool, Edition 1.0. EUROCONTROL (2003)

10. Frequentis, DFS: iCWP

 - Integrated Controller Working Position. SESAR (2012)

11. GAIN, Working Group B: Analytical Methods and Tools, Guide to Methods and Tools

for Safety Analysis in ATM, http:// ﬂightsafety.org/ ﬁles/ methods tools safety analysis.pdf.

GAIN (2003)

12. Guo, Q., Agichtein, E.: Exploring mouse movements for inferring query intent. Conference

on Research and Development in Information Retrieval. ACM SIGIR ’08, New York (2008)

707-708

13. Hart, S.G.: NASA-Task Load Index (NASA-TLX); 20 years later. NASA technical report,

http:// humansystems. arc. nasa.gov/ groups/ TLX/ tlxpublications.html. NASA (2006)

14. Hoang, T., Jung, Y. C., Holbrook, J. B., Malik, W. A.: Tower Controllers Assessment of

the Spot and Runway Departure Advisor (SARDA) Concept. Ninth USA/Europe Air Trafﬁc

Management Research and Development Seminar (2011)

15. Huang, J., White, R., Buscher, G.: User see, user point: gaze and cursor alignment in web

search. CHI’12 (2012) 1341-1350

16. Janetzko, H., Stoffel, F., Mittelstadt, S., Keim, D. A.: Anomaly detection for visual analytics

of power consumption data. Vol. 38. Computers & Graphics. Elsevier (2014) 27-37

17. Jouili, S., Vansteenberghe, V.: An Empirical Comparison of Graph Databases. International

Conference on Social Computing (SocialCom) (2013) 708-715

18. Karahasanovic, A., Andersen, B., Hansson, L., Langlo, J. A., Swengaard, H. E., Zeh, T.,

Grantz, V., Rubenser, R.: Zero Failure Management at Maximum Productivity in Safety

Critical Control Room. SID2011 (EUROCONTROL; ISBN 978-2-87497-024-5). SESAR;

Project N:10.10.02 (2011)

Increasing Fault Tolerance in Operational Centres using Human Sensing Technologies: Approach and Initial Results

19. Keim, D., Andrienko, G., Fekete, J., Gorg, C., Kohlhammer, J., Melancon, G.: Information

Visualization - Human-Centered Issues and Perspectives. Lecture Notes in Computer Sci-

ence. Springer (2008) 154-175

20. Lam, H.: A Framework of Interaction Costs in Information Visualization. Vol. 14. IEEE

Trans. Vis. Comput. Graph. (2008) 1149-1156

21. Langlo, J. A., Wegner, E., Karahasanovic, A., Hansson, L., Swengaard, H., Andersen, B.,

Zeh, T., Kind, S., Rokitansky, C., Gr

aupl, T.: Usefulness of FMECA for improvement of

productivity of TWR process. SID2012 (2012)

22. Lehmann, S., D

orner, R., Schwanecke, U., Haubner, N., Luderschmidt, J.: UTIL: Complex,

Post-WIMP Human Computer Interaction with Complex Event Processing Methods. Work-

shop ”Virtuelle und Erweiterte Realitt” der GI-Fachgruppe VR/AR, Aachen (2013) 109-120

23. Myers, B., Hudson, S. E., Pausch, R.: Past, Present, and Future of User Interface Software

Tools. Vol. 7. ACM Trans. Comput.-Hum. Interact. (2000) 3-28

24. Patern, F., Santoro, C.: User Interface Evaluation When User Errors May Have Safety-

Critical Effects. INTERACT 01, Tokyo (2001) 270-277

25. Perez, D., Zhang, L., Schaefer, M., Schreck, T., Keim, D., Diaz, I.: Interactive feature space

extension for multidimensional data projection. Vol. 150. Neurocomputing. Elsevier (2015)

611-626

26. Rayner, K., Li, X., Williams, C., Cave, K., Well, A.: Eye movements during information pro-

cessing tasks: Individual differences and cultural effects. Vol. 47. Vision Research. Elsevier

(2007) 2714-2726

27. Salvucci, D.: Inferring intent in eye-based interfaces: tracing eye movements with process

models. CHI’99 (1999) 254-261

28. Sauro, J., Lewis, j.: Quantifying the User Experience: Practical Statistics for User Research.

MK (2012) 19-157

29. Seminario, C., Wilson, D.: Case Study Evaluation of Mahout as a Recommender Platform.

Workshop on Recommendation Utility Evaluation: Beyond RMSE (2012) 45-50

30. Shorrock, S., Kirwan, B.: Development and application of a human error identiﬁcation tool

for air trafﬁc control. Applied Ergonomics (2002)

31. Silva, N., Eggeling, E., Settgast, V., Dieter, F.: Sixth sense - air trafﬁc control predic-

tion scenario augmented by sensors. i-KNOW ’14 Proceedings of the 14th International

Conference on Knowledge Technologies and Data-driven Business, Article no. 34. doi:

10.1145/2637748.2638441 (2014)

32. Steiger, M., Bernard, J., Mittelstadt, S., Lucke-Tieke, H., Keim, D., May, T., Kohlhammer,

J.: Visual Analysis of Time-Series Similarities for Anomaly Detection in Sensor Networks.

Computer Graphics Forum (2014) 401-410

33. Stoffel, F., Fischer, F., Keim, D.: Finding Anomalies in Time-series Using Visual Correlation

for Interactive Root Cause Analysis. VizSec. ACM (2013) 65-72

34. Tsonis, C.: An analysis of information complexity in air trafﬁc control human machine in-

teraction. HAL2006-04. MIT (2006)

35. Winkelholz, C., Schlick, C.: Statistical variable length Markov chains for the parameteriza-

tion of stochastic user models from sparse data. IEEE International Conference on Systems,

Man and Cybernetics (2004) 1770-1776

36. Xing, J., Manning A. C.: Complexity and Automation Displays of Air Trafﬁc Control: Litera-

ture Review and Analysis, Final Report, Civil Aerospace Medical Institute, Federal Aviation

Administration. Ofﬁce of Aerospace Medicine, Washington DC (2015)

37. Xu, F., Grifﬁths, T.: Probabilistic models of cognitive development: Towards a rational con-

structivist approach to the study of learning and development. Journal of Cognition. Elsevier

(2011) 299-301

38. Yampolskiy, R.V.: Behavioral Modeling: an Overview. Vol. 5. American Journal of Applied

Sciences (2008) 496-503

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

39. Zhang, J., Ren, J., Wu, C.: Modeling air trafﬁc controllers’ decision making processes with

relational complexity network. IEEE 17th International Conference on Intelligent Trans-

portation Systems (2014) 2663-2668

Increasing Fault Tolerance in Operational Centres using Human Sensing Technologies: Approach and Initial Results
