AColDSS: Robust Unsupervised Automatic Color

Segmentation System for Noisy Heterogeneous Document

Images

Louisa Kessi

1,2

, Frank Lebourgeois

1,2

and Christophe Garcia

1,2

Université de Lyon, CNRS, France

INSA-Lyon, LIRIS, UMR5205, F-69621, France

{louisa.kessi, franck.lebourgeois, christophe.garcia}@liis.cnrs.fr

Abstract. We present the first fully automatic color analysis system suited for

noisy heterogeneous documents. We developed a robust color segmentation

system adapted for business documents and old handwritten document with

significant color complexity and dithered background. We have developed the

first fully data-driven pixel-based approach that does not need a priori infor-

mation, training or manual assistance. The system achieves several operations

to segment automatically color images, separate text from noise and graphics

and provides color information about text color. The contribution of our work

is four-fold: Firstly, it does not require any connected component analysis and

simplifies the extraction of the layout and the recognition step undertaken by

the OCR. Secondly, it is the usage of color morphology to simultaneously seg-

ment both text and inverted text using conditional color dilation and erosion

even in cases where there are overlaps between the two. Thirdly, our system

removes efficiently noise and speckles from dithered background and automati-

cally suppresses graphical elements using geodesic measurements. Fourthly, we

develop a method to splits overlapped characters and separates characters from

graphics if they have different colors. The proposed Automatic Color Docu-

ment Processing System has archived 99 % of correctly segmented document

and has the potential to be adapted into different document images. The system

outperformed the classical approach that uses binarization of the grayscale image.

1 Introduction

Color document processing is an active research area with significant applications. In

recent years, there has been an increasing need for systems which are able to convert

pre-printed color documents into digital format automatically. Most of the time, the

color image is converted into a grayscale image. However, the performance decreases

when the segmentation fails. Nowadays, digitization systems can have to cope with

dithering documents, complex color background and linear color variations, which

amounts to not knowing if text is darker or lighter compared to the background, high-

lighting regions, corrective red overload on black text and not uniform color

text/graphics overlapping. Indeed, some dithered documents may not lead to a correct

automatic analysis. Smoothing most often permits to reduce dithering significantly

but can also seriously damage the text. Therefore, the color information is significant.

Then, a color-based segmentation could improve the process.

Lebourgeois F., Garcia C. and Kessi L.

AColDSS: Robust Unsupervised Automatic Color Segmentation System for Noisy Heterogeneous Document Images.

DOI: 10.5220/0006164200500063

In European Project Space on Computer Vision, Graphics, Optics and Photonics (EPS Berlin 2015), pages 50-63

ISBN: 978-989-758-156-4

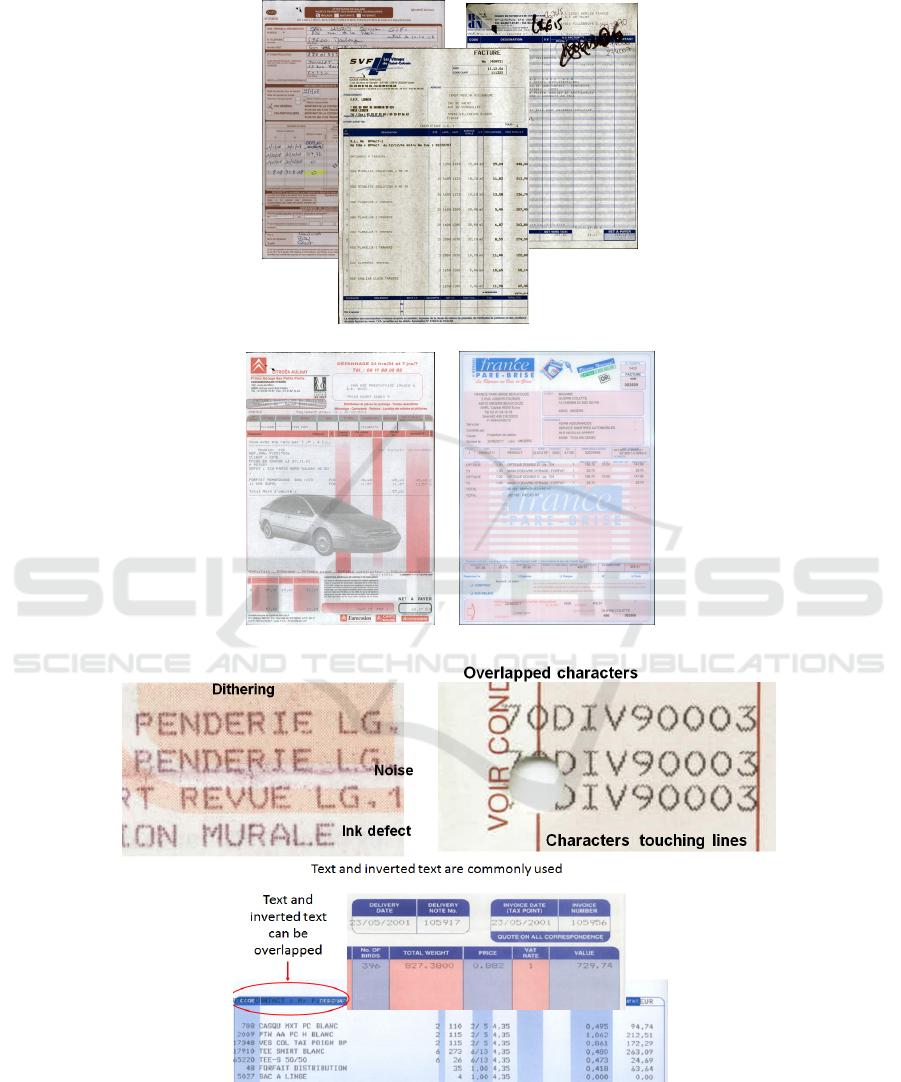

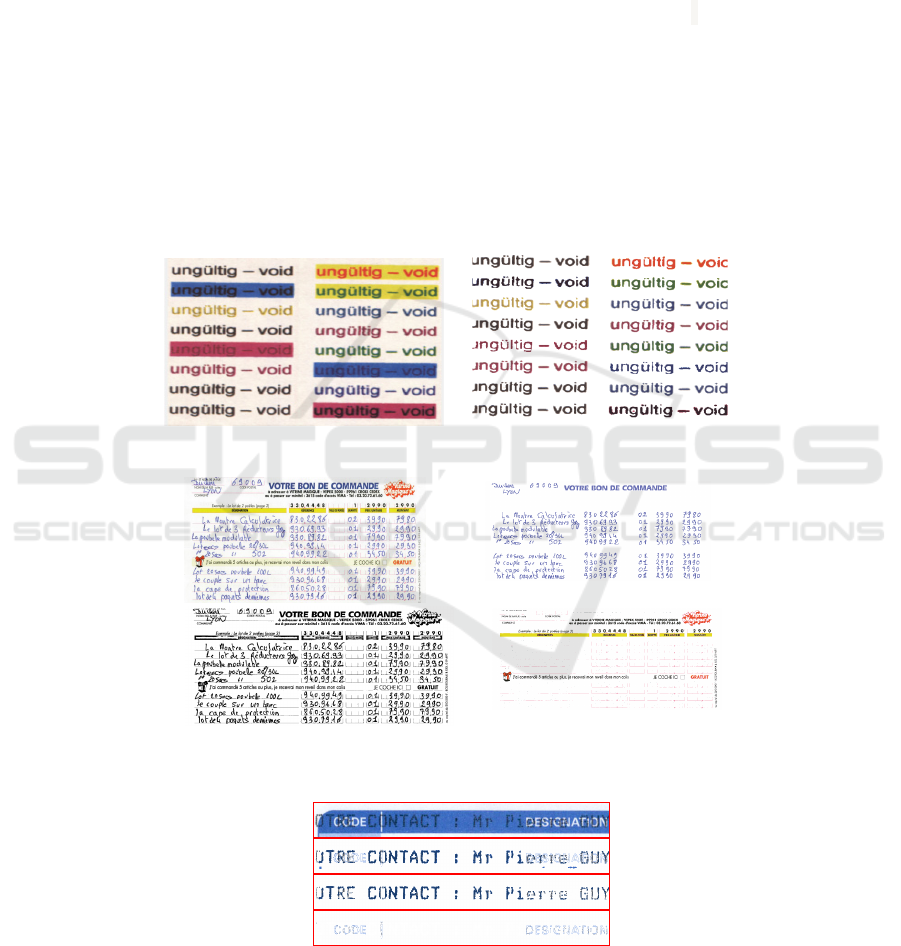

Text touching graphics

With complex background and color progressive change

Text and inverted text are commonly used

AColDSS: Robust Unsupervised Automatic Color Segmentation System for Noisy Heterogeneous Document Images

Clean to noisy image color image

As far as the authors know, there are only few works about the use of the color for

document analysis. The only referenced work for color documents come from [1] for

the DjVu compression. Most of the research on color documents focuses mostly on-

pixel classification approaches to reduce the number of colors found. The work of [2]

introduces a new pseudo-saturation measure to separate color layers and monochrome

layer. However, this global analysis of the image cannot make the difference be-

tween text colors and background color and works only for cleaned images. The au-

thors propose in [3] a hierarchical clustering based approach to extract dominant

color masks of administrative documents. Moreover, this approach requires user

interaction for setting threshold parameters order to decide what a dominant color is

or not. Our previous work [4] described the first robust Unsupervised Automatic

Color Document Processing pixel-based system suited for business documents. This

system achieved 99.25 % of correctly segmented document and is entirely based on

the morphology framework. We present the first fully unsupervised color segmenta-

tion system adapted for business documents and old handwritten document with sig-

nificant color complexity and dithered background. Our objective is achieved if all

color characters are correctly segmented from the background, using an automatic

procedure without any information provided by the user.

2 Our Proposition

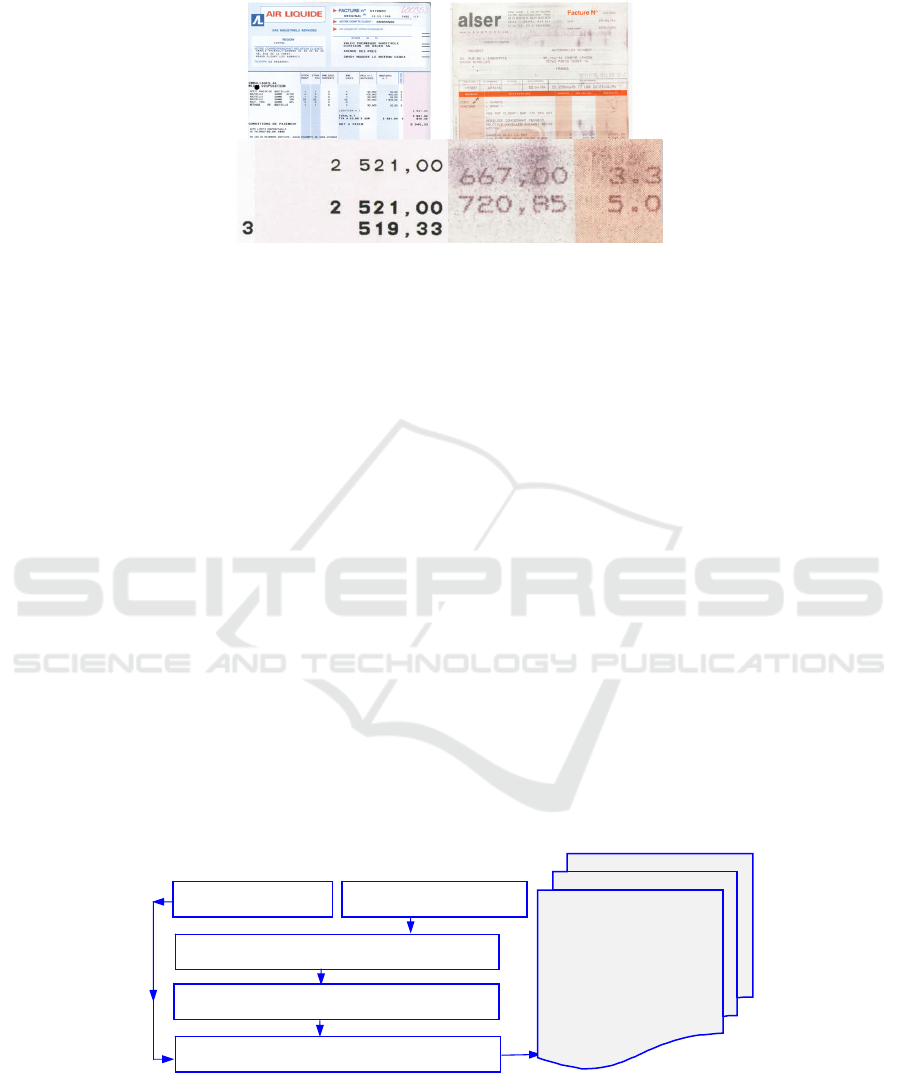

Figure 1 illustrates the main steps of the proposed system. Each step will be detailed

in the next sections following the organization of the paper.

Fig. 1. Illustrates the overall scheme of the proposed.

Color clustering

Color Morphology

Text graphic and noise separation

Separate text touching graphics

Colored texts segmentation

Several images containing

only characters having the

same color without noise and

overlapped graphics to send

to the OCR

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

3 Segmentation of thin Colored Objects by using Color Morphology

Our system is based on the use the color morphology which outperforms the classical

grayscale morphology because characters with different colors may have the same

luminance and cannot be separated in grayscale. We have decided to take benefit of

the scalar color morphology with interleaved bits order proposed by Chanussot in [7]

because it performs better than the color morphology using RGB vectors. He shows

that it removes false and aberrant colors in complex cases. Therefore, we reduce the

dissymmetry between color components by rotating the sequence of RGB (figure 2).

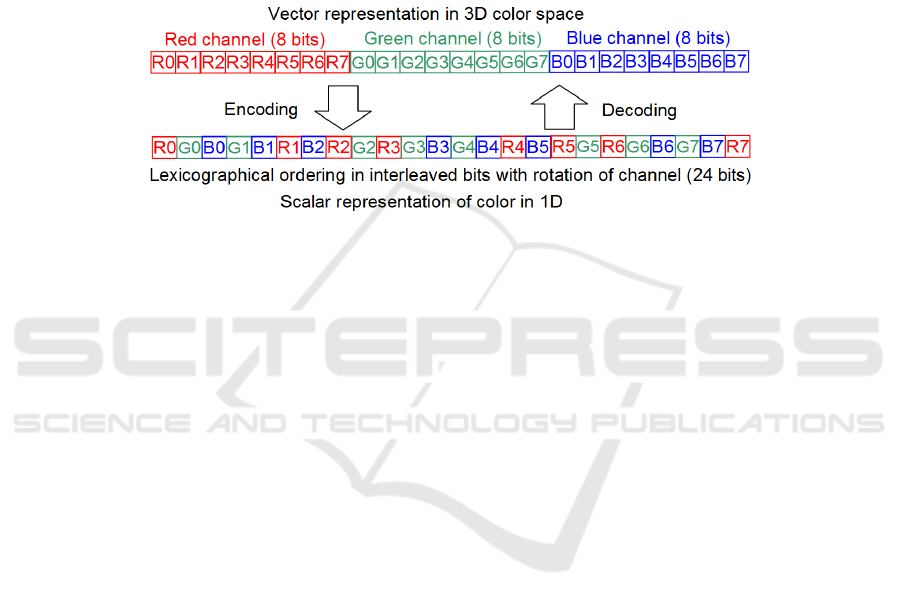

Fig. 2. Color coding in scalar by using interleaved bit and rotation of the sequence of RGB.

3.1 Thin Objects Segmentation

This step consists to generate a binary image of thin colored objects. We use the

mathematical morphology because it can extract objects according to geometrical

measures. In the great majority of documents, characters are darker than the back-

ground. A Black-Top-Hat (2) is efficient to extract all thin colored objects from any

colored background which are darker than the background in luminance.

Closing(I) = Erode

(Dilate

(I)) (1)

Black-Top-Hat(I) = Closing(I)-I (2)

3.2 Extract All Colored Characters

To extract all colored characters even with fading ink, we apply Sauvola thresholding

with variable adaptive windows which compute the best window size of the Sauvola

thresholding for each pixel by using integral images [6]. This is significant in our case

since we handle with dithered business documents or old deteriorated manuscripts.

3.3 Extract and Segment both Inverted and Non-Inverted Text

Unlike old manuscripts, business documents and forms show inverted printed text

having text colors brighter than the background. The inverted text is important for the

logical structure recognition, because it generally represents the labeling of a column

AColDSS: Robust Unsupervised Automatic Color Segmentation System for Noisy Heterogeneous Document Images

or a row in a table. To extract inverted text, we must apply a White-Top-Hat (4)

which is the dual operation of the Black-Top-Hat transform.

Opening(I) = Dilate

(Erode

(I))

(3)

White-Top-Hat(I) = I-Opening (I) (4)

However, we cannot combine the Black-Top-Hat and the White-Top-Hat results at

pixel-level. The local dominant colors bring a solution to segment simultaneously

inverted and non-inverted text by morphology. This operation allows to measure the

color of the background whether the text is inverted or not. To compute the dominant

color, we have chosen the median filtering (5) with a large radius since its complexity

has been seriously reduced and can be calculated in constant time [9] whatever the

size of the window. The window size of the median must be greater than the height of

the larger text. We fix a widow size of 30 to be sure to detect correctly the color

background. After that, we detect and segment separately both inverted and non-

inverted text by applying the conditional dilation CD

(Median(I)) (6) which is the

minimum of the dilation of the median image and the original image I and the condi-

tional erosion CE

(median(I)) (7) which is the maximum between the original image

I and the erosion of the median image. B is the structural elements which have a size

of the median filter.

DominantLocalColor(I)

≈

Median(I)

(5)

(Median(I))=min(Dilate(Median(I)) , I)

(6)

(Median(I))=max(Erode(Median(I)) , I)

(7)

(Median(I)) erases all not inverted texts which are darker in luminance

than the background (Figure 3c). Accordingly, CD

(Median (I)) deletes all

inverted texts which are brighter than the background (figure 3d). To extract

the non- inverted text, we define Positive (I) by taking the difference between

(Median(I)) and the original image I (8). Accordingly, to segment invert-

ed texts, we define Negative (I) by taking the difference between the original

image I and CD

(Median (I)) (9).

Positive(I)= CE

(Median(I)) – I

(8)

Negative(I)=I - CD

(Median(I)) (9)

The final segmentation of both normal and inverted texts and graphics is ob-

tained by taking the maximum of the positive and negative image. Figure 3e)

and 3f) show the positive and negative images represented in inverted lumi-

ance for a better appearance. The binary image is obtained by applying an

adaptative thresholding with variable window size describe in [6]. The extra

time of computation to process correctly the inverted texts for business docu-

ments can be avoided in the options when we process only ancient manu-

script

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

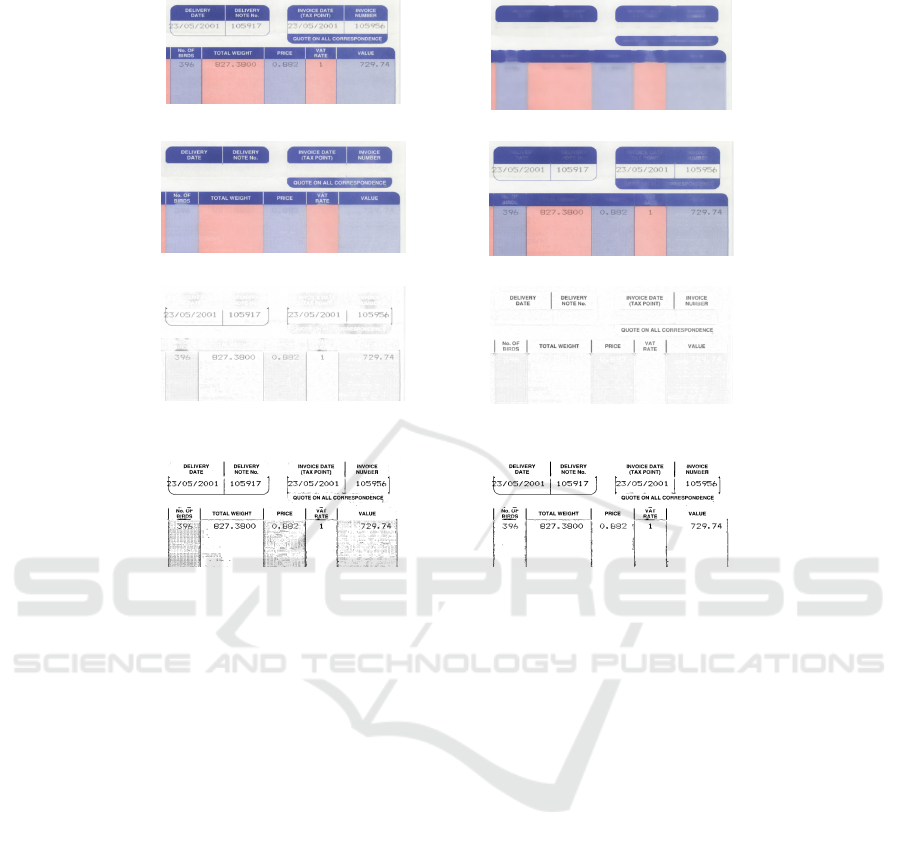

a) Original image I

b) Median(I) filtering in constant time [9]

c) CE

(Median(I))= max(Erode(Median(I)), I)

d) CE

(Median(I))=max(Erode(Median(I)), I)

e) Positive(I)= CE

(Median(I))-I shows

not inverted texts

f) Negative(I)= I - CD

(Median(I))

shows inverted texts

g) Max(Positive(I),Negative (I))

h) Final result after despeckle

Fig. 3. The succession of operations to binarize color images containing inverted and not in-

verted texts. e)..g) have been inverted.

4 Separation of Text from Graphics and Noise Removal

4.1 Despeckle

We apply a despeckle to quickly remove noise and dithered background. We apply a

two pass distance transform in the 8-connectivity neighborhood of the binary image

[10]. To propagate the maximal thickness value inside each object, we repeat until the

morphological convolution of dilation with a null mask. The despeckle consists of

erasing all objects having a maximal thickness of ThicknessMin threshold in one pass.

Figure 3h and figure 4d shows the despeckle effects with ThicknessMin=2.

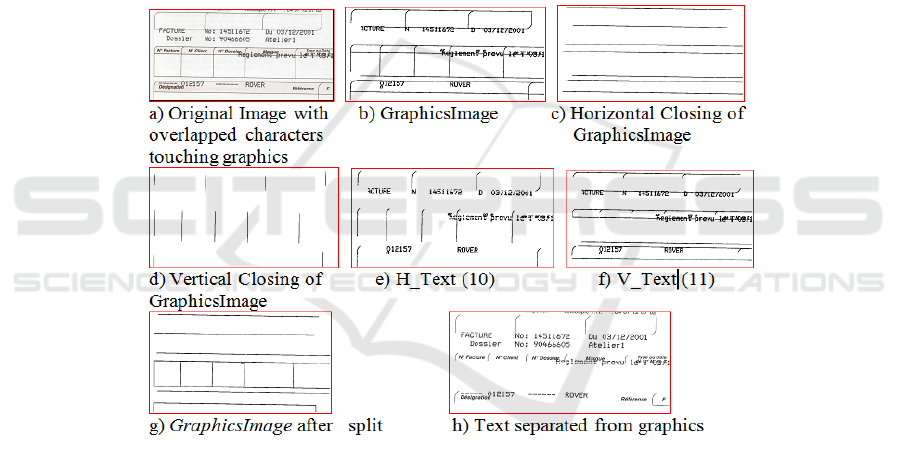

4.2 Separation between Graphics/Text/Dithered Parts

The extraction of several hundreds of thousands of connected components from K

color images for each text and graphic color including large dithering zones is com-

putationally too extensive. We propose a straightforward process without heuristics to

remove both large graphic objects and noise without connected components extrac-

AColDSS: Robust Unsupervised Automatic Color Segmentation System for Noisy Heterogeneous Document Images

tion by using morphological geodesic operations. Our separation is based on the geo-

desic width and height of binary objects calculated by morphological convolution [8].

We repeat until there is no change, the morphological convolution of dilation with the

Feret mask FERET90 and FERET0 for 90° and 0° direction on the binary image,

respectively. All objects from the binary image having a geodesic height and width

which lie in the intervals [HeightMin, HeightMax] and [WidthMin, WidthMax] re-

spectively are shifted in the image TextsImage because they have the size to be poten-

tial characters. All the other objects are classified into the image GraphicsImage if the

geodesic width or height exceeds WidthMax or HeightMax, respectively. They repre-

sent large objects that we consider as graphics (Algorithm 1). We design the system

to be sure that all the characters are correctly classified into the image TextsImage.

For that, we choose to set HeightMin and WidthMin to the value 3 in order to keep

and thin characters like 'I' or '1'.For printing documents, we set WidthMax and

HeightMax to value 64 for 300dpi images, because characters cannot exceed this size.

For ligatured manuscripts we set WidthMax and HeightMax to value 512 and 128

respectively, to shift correctly handwritten words in the image TextsImage. Charac-

ters connected to the graphical elements are shifted in the GraphicsImage. The next

step aims to separate characters connected to graphics.

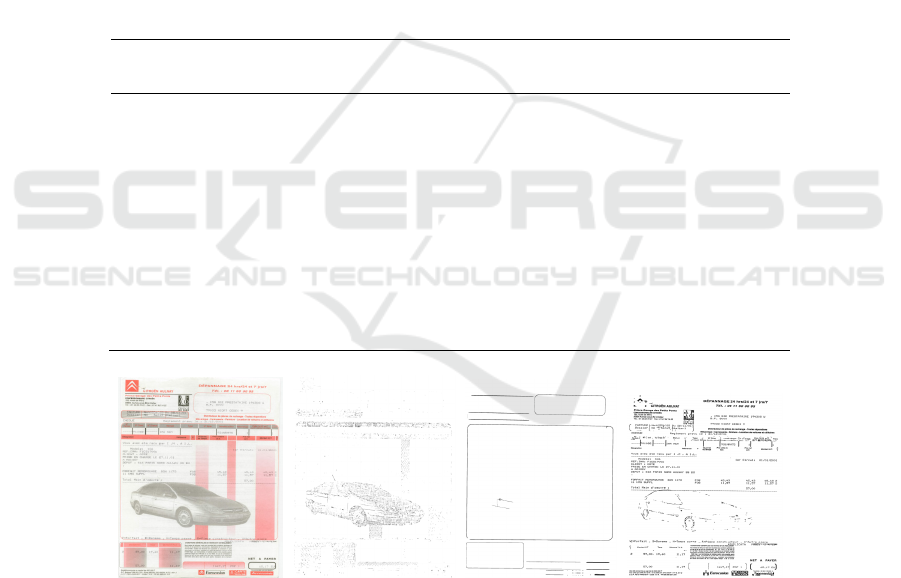

a) Original Image b) SpecklesImage c) GraphicsImage d) TextsImage

Fig. 4. Separation between noise/graphics/text, b) shows the large amount of speckles (noise

and dots from dithered areas) deleted from the binary image, c) displays the graphics elements

and large objects, d) provides the final binary image containing potentially all characters.

Algorithm 1. Separation between graphics/text/dithering.

if ((GeodesicHeight(x, y)>0) &&

(GeodesicWidth(x,y)>0))

{

if ((GeodesicHeight(x, y)<HeightMin)&&

(GeodesicWidth(x, y) <WidthMin))

Shift pixel(x, y) in SpecklesImage

else

if ((GeodesicHeight(x, y)<=HeightMax)&&

(GeodesicWidth(x, y) <=WidthMax))

Shift pixel(x, y) in TextsImage

else

Shift pixel(x,y) in GraphicsImage

}

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

5 Separation of Characters Connected to Graphics

When colors cannot separate characters and graphics, the image GraphicsImage con-

tains textual element which touch graphics (Figure 5b). To exceed this, we achieve a

coarse separation between characters and graphics by using elementary morphologi-

cal operation with the existing information provided by the system. The binary mor-

phological closing of GraphicsImage, with an horizontal/vertical element Bh /Bv

respectively, removes all characters that touch graphics both vertically / horizontally

(figure 6c, 6d). We determine H_Text (10) and V_Text (11) by the difference be-

tween the horizontal/vertical closing of GraphicsImage with the image Graphic-

sImage itself, respectively.

X=GraphicsImage

H_Text=HorizontalClosing

( X )

∩ X

(10)

V_Text=VerticalClosing

( X )

∩ X

(11)

Fig. 5. Separation of characters connected to graphics.

The reconstruction of characters after text/graphic separation is detailed in an addi-

tional submitted paper. Our proposed morphological operation works perfectly well

for text touching straight lines only, rounded shapes remains unchanged (figure 5h).

The geodesic measurement is tolerant to image skew.

6 Text Color Selection

This step consists to select automatically the right class of texts colors. We want all

AColDSS: Robust Unsupervised Automatic Color Segmentation System for Noisy Heterogeneous Document Images

characters having the same colors are segmented in the same layer. We combine the

color information from the MeanShift clustering and the color segmentation by mor-

phology to merge outlier color classes to the main color classes. We use the Fast

Integral MeanShift [5] that reduces the complexity of the original MeanShift from

O(N²) to O(N). We have developed a straightforward and robust merging and selec-

tion process which takes into account the spatial co-occurrence of colors classes in

the segmented image using the MeanShift. We use TextsImage In order to compute

statistics about the connectivity of colors classes found by the MeanShift. We only

focus on text color because the color of the background is useless for our application.

In the image TextsImage, we compute the 2D spatial co-occurrence H2D (i,j) equal to

the number of class color i connected spatially to class color j in all the inside charac-

ters of the image TextsImage. We use a 8-connectivity to count correctly in one pass

H2D(i,j). We compute H1D (i) the number of occurrence of the class color from

H2D(i,j). C(i,j)=H2D(i,j)/H1D(j) measures the degree of connectivity between the

class color i with the class color j. Color outliers share a high connectivity with the

main colors of characters (Algorithm 2).

It is important to mention that in order to keep the color coherency we merge small

classes to large classes but not the opposite. Algorithm 2 is repeated until there are no

more merging operation. This is necessary to merge successively layers of colors

around character contours. To select the right number of different text color, we set

the number of text colors in the middle of the larger gap between successive color

classes to limit the gap between two consecutive ranked color classes.

The time of the processing for a 300 dpi image 1640 x 2332 takes less than 3 sec.

for color clustering, 6 sec. for color image segmentation by morphology and colors

fusion and selection on one core without parallelization. The separation of text from

graphics, image noise and dithered background can take less than a second for simple

and clean image to several seconds for complex images with dithered background.

All the algorithms are sequential and can be easily parallelized.

Algorithm 2. Color Fusion.

for all pixel (x,y)

if (TextsImage(x,y)==0) // if character

{

i=ColorClass(x,y) // from MeanShift

if (TextsImage(x-1,y)==0) { j=ColorClass(x-1,y) H2D(i,j)++ }

if (TextsImage(x,y-1)==0) { j=ColorClass(x,y-1) H2D(i,j)++ }

if (TextsImage(x-1,y-1)==0) {j=ColorClass(x-1,y-1)H2D(i,j)++}

}

for color class i

for color class j > i

if C(i,j)>cmin

merge i to j if

{

* H1D(i)<H1D(j)

* C(i,j) is maximal

* H1D(j) is maximal

* ColorDistance(i,j) minimal

}

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

7 Results

7.1 Global Performances

As far as our knowledge, we do not find any previous research work in unsupervised

document color segmentation (and not binarization) to compare with. We demon-

strate the performances of our color automatic segmentation on a test image provided

by the private company Janich&Klass Computertechnik GmbH

which has developed

the software DpuScan, which is well-known to be the best tool to separate text colors

in business documents. But it is achieved manually by selecting each color back-

ground and text color. Figure 6 illustrates that our system finds text color automatical-

ly and achieve a good segmentation of this image. The thresholding of the luminance

image (figure 7b) make difficult the separation between handwritten text and the pre-

printed forms. After a color analysis, the added handwritten text can be easily seg-

mented.

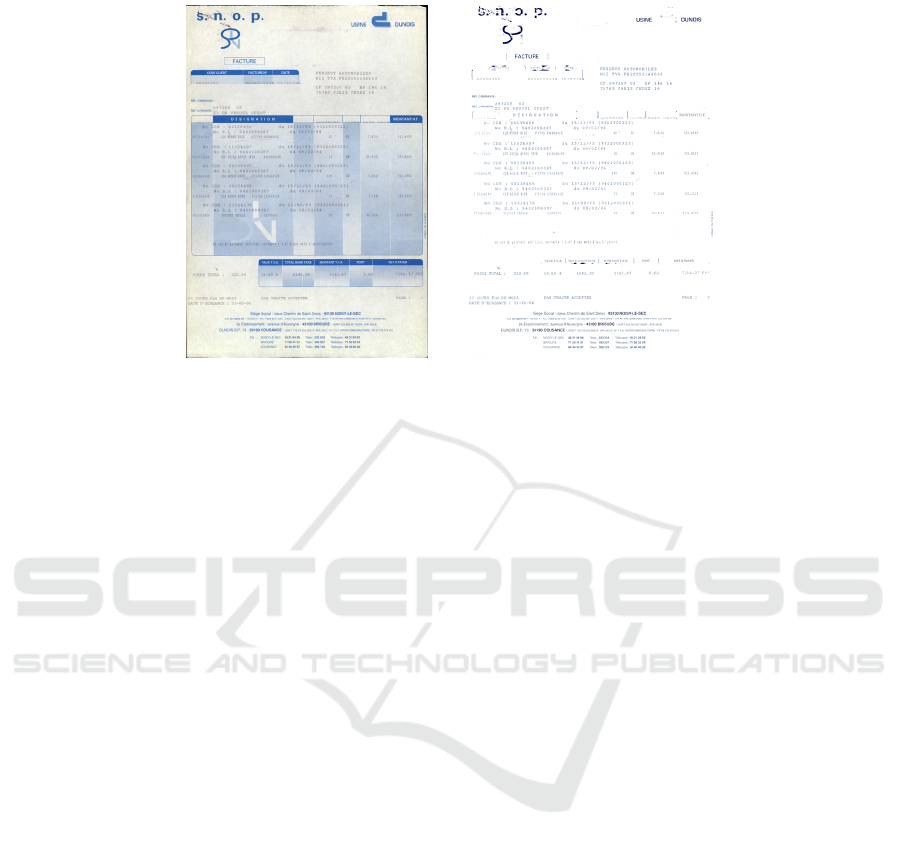

Fig. 6. Result of our system on DPUscan test image.

Fig. 7. Color segmentation outperforms the adaptative tresholding (Sauvola) of the lumiance

for character segmentation.

AColDSS: Robust Unsupervised Automatic Color Segmentation System for Noisy Heterogeneous Document Images

Fig. 8. Correct color separation with overlapped inverted and not inverted texts.

Figure 8 illustrates the color separation between overlapped texts in the worst case

when inverted text crosses non inverted text. Our system separates correctly color

handwritten text and the background even with highlighting regions (figure 9).

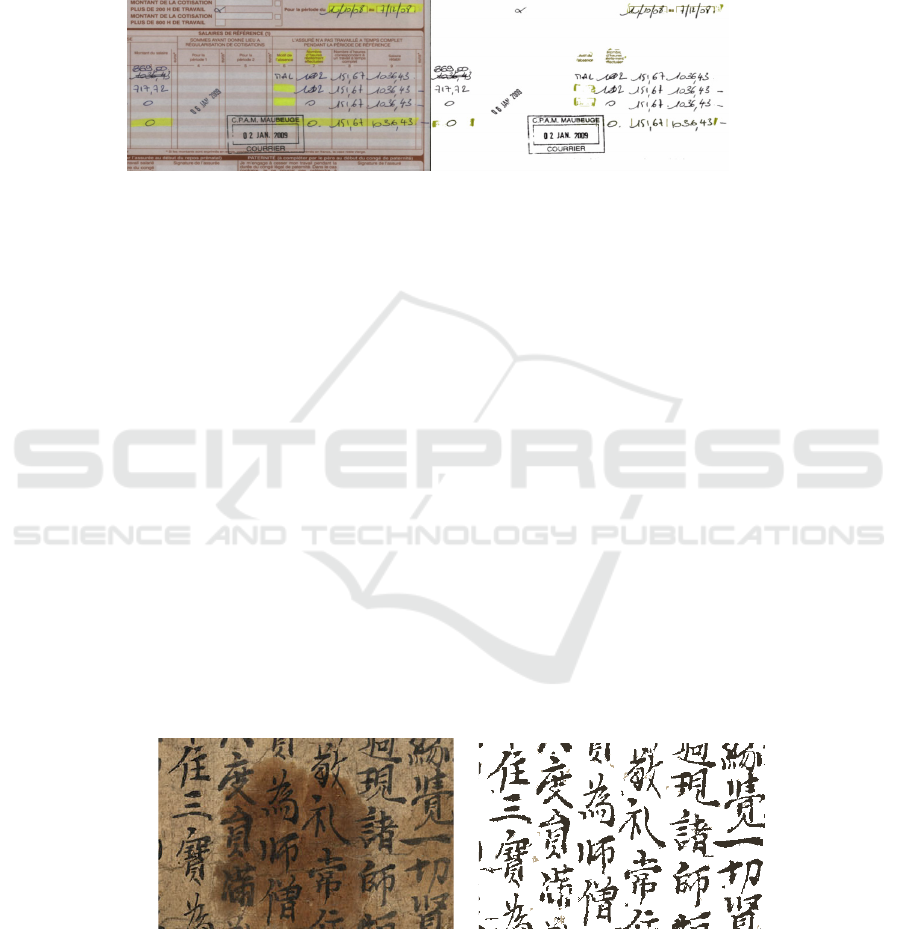

Fig. 9. Our system separate correctly color handwritten text and the background even with

highlighting regions.

7.2 Evaluation on the Database

Evaluation on Business Document Database

We have tested the proposed system on 929 color images of various invoices and

form in real situation. We achieve a qualitative evaluation, among 929 images we

found 5 images that present a change of text color, detected by the system, because of

the ink bleed trough of the color background to the characters of the foreground (Fig-

ure10). Most of errors can be explained by the quality of the document itself. We

have achieved 99.46 % of correctly segmented document.

Evaluation on Ancient Manuscripts Database

We have tested our system without the option of the inverted text detection on 250

color images of manuscripts from various digitization projects. The database contains

42 Latin manuscripts from projects with the IRHT, 20 Chinese manuscripts from

Guwenshibie ANR project, 208 Arabic ancient manuscripts from Timbuktu with the

digitization project Vecmas. Our system fails on 17 severely degraded manuscripts by

the ink bleed-through and 8 manuscripts showing problem of ink fading. The system

segment correctly 90% of the ancient manuscripts even degraded by stains in the

worst cases (figure 10).

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

AColDSS: Robust Unsupervised Automatic Color Segmentation System for Noisy Heterogeneous Document Images

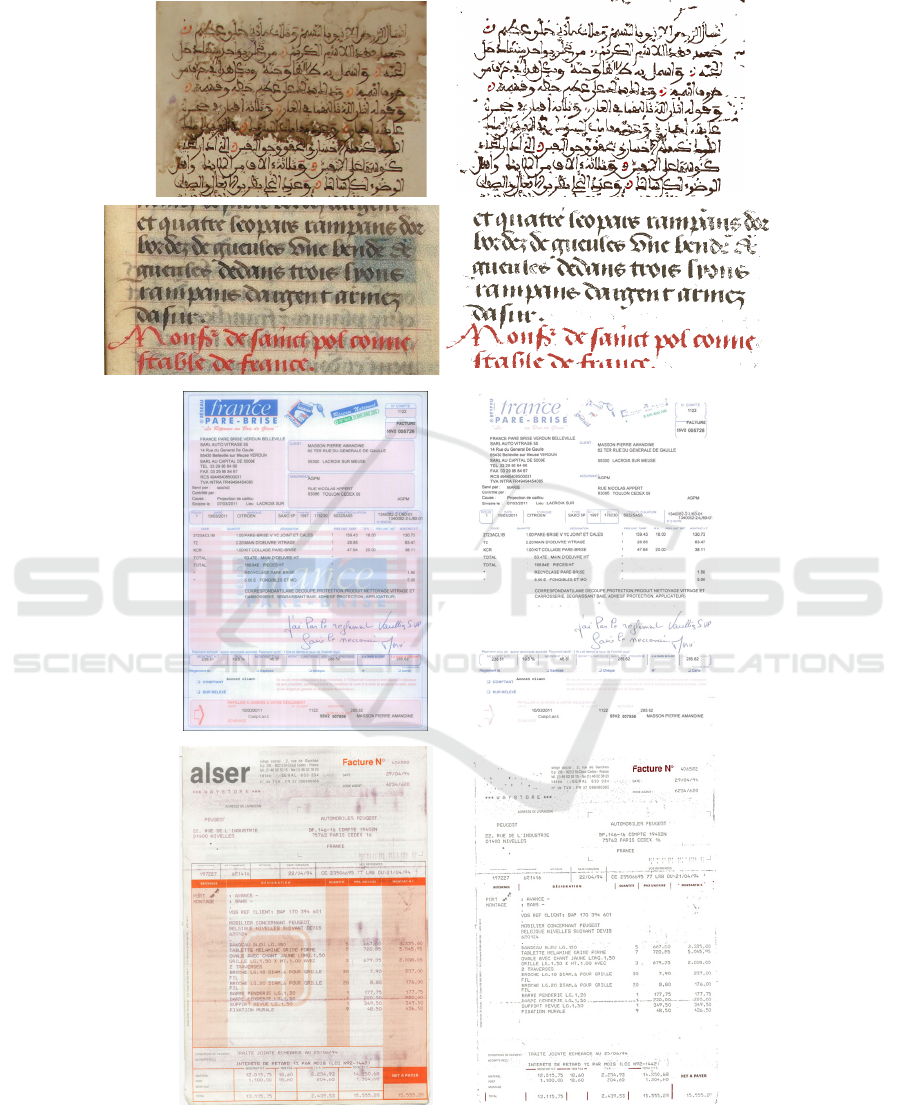

Fig. 10. Successes of our system on business and manuscripts. We display all color layers of

text in the same image with an artificial white background to save place.

8 Conclusion

In this paper we have presented the first unsupervised fully automatic system adapted

for color business document segmentation and old handwritten document with signif-

icant color complexity and dithered background. We have developed the first fully

data-driven pixel-based approach that does not need a priori information, training or

manual assistance. We have proved that color analysis outperforms binarization in the

case of color document images. This is due to the fact that color analysis process

provides K binary images, one for each color layer but binarization process provides

a single image. Color information is lost to achieve separation between overlapped

objects from different colors. Our developed system does not require heuristics and

has only a very reduced number of parameters which are easy to tune by default val-

ues (average size of characters, size of windows for color median, despeckle steps).

Each step of the system is independent from previous steps as the parameters are

optimal for a very large range of documents. The proposed method has the following

advantages: 1) It does not require any connected component analysis and simplifies

the extraction of the layout and the recognition step undertaken by the OCR; 2) it

processes inverted and non-inverted text automatically, using color morphology, even

in cases where there are overlaps between the two.; 3) Our system removes efficiently

noise and speckles from dithered background and automatically suppresses graphical

elements using geodesic measurements; 4) it splits overlapped characters and sepa-

rates characters from graphics if they have different colors. The proposed Automatic

Color Document Processing System outperformed the classical approach that uses

binarization of the grayscale image and has the potential to be adapted to various

document images.

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

References

1. L. Bottou,P. Haffner, PG. Howard, Y. LeCun, Djvu: analyzing and compressing scanned

documents for internet distribution. ICDAR.

2. A. Ouji, et al., Chromatic / achromatic separation in noisy document images, ICDAR 2011.

3. E. Carel et al., Dominant Color Segmentation of Administrative Document Images by

Hierarchical Clustering , DocEng 2013.

4. L.Kessi ,et al.. “AColDPS :Robust and Unsupervised Automatic Color Document Pro-

cessing System”, VISAPP’15 (to appear).

5. F.LeBourgeois, et al. Fast Integral MeanShift : Application to Color Segmentation of Doc-

ument Images. ICDAR 2013.

6. D. Gaceb et al. Adaptative Smart-Binarization Method for Images of Business Documents,

in 12

ICDAR 2013, pp. 118-122.

7. J. Chanussot et al., “Total ordering based on space filling curves for multivalued mor-

pholgy”,ISMM'98 Amsterdam, pp 51-58.

8. S. Bres, J.M. Jolion, F. Lebourgeois, in book Traitement et analyse des images numériques,

Hermes 2003, 412p.

9. S.Perreault et al, IEEE IP07, Median Filtering in Constant Time.

10. Chassery et al, Géométrie discrète en analyse d'images,Hermes 91, Paris,358p.

AColDSS: Robust Unsupervised Automatic Color Segmentation System for Noisy Heterogeneous Document Images
