GAME-ABLING: Platform of Games for

People with Cerebral Palsy

Jaume Verg´es-Llah´ı

, Hamed Habibi

, Fran Casino

and Dom`enec Puig

Ateknea Solutions Catalonia (ASC),

Victor Pradera, 45, ES-08940 Cornell de Llobregat, Barcelona, Spain

Universitat Rovira i Virgili (URV),

Campus Sescelades, Av. Pasos Catalans, 26, ES-43007 Tarragona, Spain

jaume.verges@ateknea.com,

{hamed.habibi, fran.casino, domenec.puig}@urv.cat

http://www.ateknea.com, http://www.urv.cat

Abstract. We present the FP7 European Project GAME-ABLING developed

from December 2012 to January 2015. This project aimed at the development

of a platform for the creation of games for patients with Cerebral Palsy (CP). A

key point of the platform is that the framework can be used by personal with no

speciﬁc skill in game creation, permitting caregivers and parents its utilization.

The system is composed of (i) a framework that encompasses the several tools

developed to run and control the games, (ii) the authoring tool to easily allows

the creation of new games, and (iii) the analyzing tool that generate statistics on

the impact of the games in CP patients. Due to motor and cognitive constraints of

CP patients, speciﬁc sets of games were developed. Also an extensive group of

peripherals can be employed beyond the usual game controllers, including color

and depth cameras, Nintendo Wiimote and balance boards. This article describes

the system elements and the results obtained during the evaluation of the games

with real patients. Special detail is given to the analysis of the movements of the

user’s head and hands that is employed to control the games.

1 Introduction

Cerebral Palsy (CP) is one of the most frequently conditions in childhood, with an

incidence of 2 per 1,000 live births. In the EU there is 1.3 out of 15 million persons

with CP in the world. This neurological disorder affects body movement, balance and

posture and almost always is accompanied by other cognitive or sensory impairments

like mental retardation, deafness and vision problems. The severity of these problems

varies widely, from very mild and subtle to very profound. These disabilities lead to an

inactive lifestyle which reduces the patients physical health, social participation, and

quality of life. Therapy costs (up to 45,000 by year) cannot be afforded by most of the

families. Playing Video games is a useful treatment that promotes and maintains more

active and healthful lifestyle in these persons. However accessibility to videogames is

hardly applied for them.

The FP7 Project GAME-ABLING has developed a software tool for creating in-

teractive video games in an intuitive manner in such a way that non-expert personnel

Puig D., VergÃl’s-LlahÃ J., Casino F. and Aghdam H.

GAME-ABLING: Platform of Games for People with Cerebral Palsy.

DOI: 10.5220/0006164300640087

In European Project Space on Computer Vision, Graphics, Optics and Photonics (EPS Berlin 2015), pages 64-87

ISBN: 978-989-758-156-4

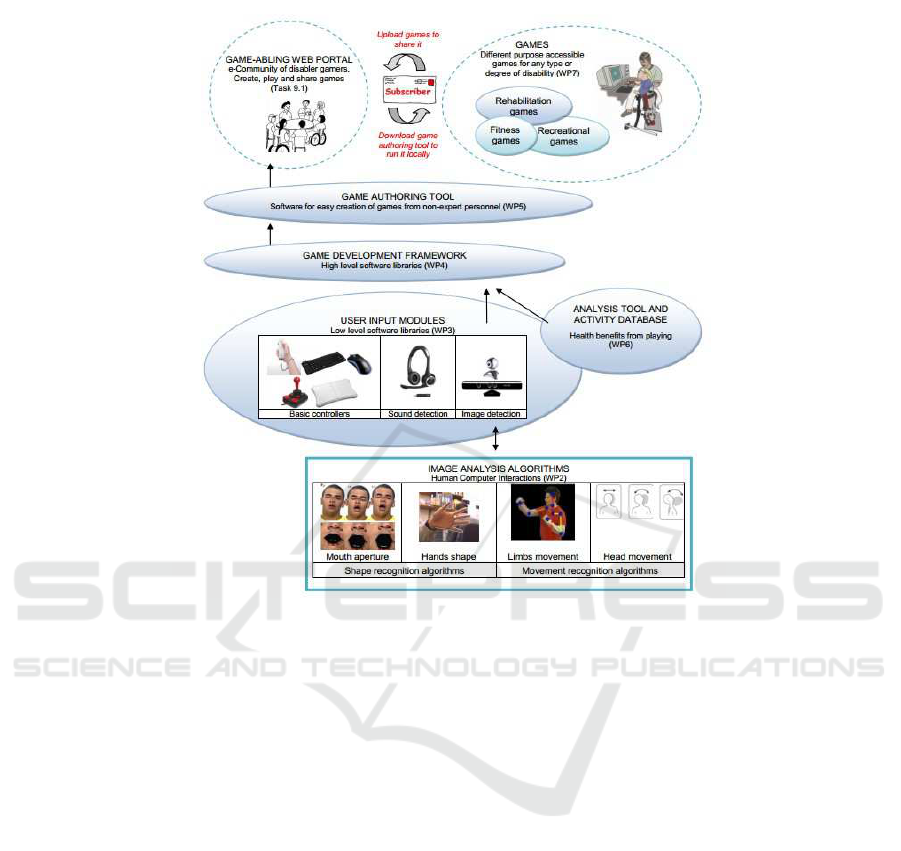

Fig.1. Different elements composing the GAME-ABLING system.

(caregivers and parents) can develop customized games. GAME-ABLING are acces-

sible games with the aim of improve physical activity of disabled people. This is a

different approach that beneﬁts both caregivers and therapists, who are able to design

and easily customize games for their patients, and also for disabled people, who are

able to play with the games developed by caregivers of therapist improving their ﬁtness

while playing.

Games created by GAME-ABLING can be controlled in a variety of ways, allowing

the use of body movements and voice. The images recorded by the webcam are pro-

cessed using computer vision techniques in order to track head, eyes, and hands as well

as to detect some basic gestures like hand shapes (open hand, closed ﬁst or hand pointer

shape) and face gestures (aperture of mouth and opening/closing the eyes). Voice tones

and all these movements and gestures are also translated into user actions that could be

used to control the videogames, similar to a joystick or a mouse.

GAME-ABLING also supports other type of standard input game controllers such

as mouse, keyboard, joystick, Wii controller, and balance board. According with the

type and severity of disability of patient, caregivers can decide which type of game

design and which type of game controller input can be used. Game performance and

player feedback is registered in a database and analyzed by caregivers or therapists to

determine the physical ﬁtness improvement.

GAME-ABLING: Platform of Games for People with Cerebral Palsy

It can be argued against the need of creating a new platform to create games without

taking into account other similar existing solutions such as SCRATCH. The reason to do

that is double folded. First, our approach aimed at a user segment that did not require

any speciﬁc training in the creation of games. Secondly, the speciﬁc requirements of

CP patients obliged to deal only with a limited family of games, which accordingly to

experts, were proven to have a usability within our sector.

The article is distributed as follows. First, In Section 2 a general overview of the

project and the system developed in the GAME-ABLING platform is presented. In

Sections 3 and 4 a more detailed description of the algorithms and techniques employed

to extract the motion corresponding to the user’s head and hands are taken into account.

Finally, the article ends with the Conclusions are in Section 5.

2 System Overview

The GAME-ABLING system is composed of the following elements from bottom to

top: (i) image analysis module, (ii) user input modules, (iii) game development frame-

work, (iv) game authoring tool, (v) analysis tool and activity database, and (vi) games.

The structure of the complete system can be seen in Fig. 1.

The idea of the whole system is to provide the tools to create, use, evaluate, and

share the games by a community of users with speciﬁc requirement (CP patients) and

non-expert programming skills (caregivers and parents). We are going to describe each

part in the following subsections.

2.1 Image Analysis Module

This module is able to capture movements of the different parts of the body, especially

focusing in the obtaining of head and hands movement. This module was developed

in four phases, namely, data collection, developing image analysis algorithms, code

optimization and testing. In addition, we carried out the analysis of head and hands in

parallel since they are two independent problems, and employed two different types of

camera, generalist RGB cameras and color and depth cameras, such as Kinect.

Data Collection. During the GAME-ABLING project, we have created a database

of videos recorded at gaming sessions in the facilities of one of our partners, the Asso-

ciaci´o Provincial de Par`alisi Cerebral (APPC) in Tarragona, Spain. This database allows

testing the algorithms using video sequences in similar conditions as those encountered

during the use of the games. Furthermore, we annotated the some images of this dataset

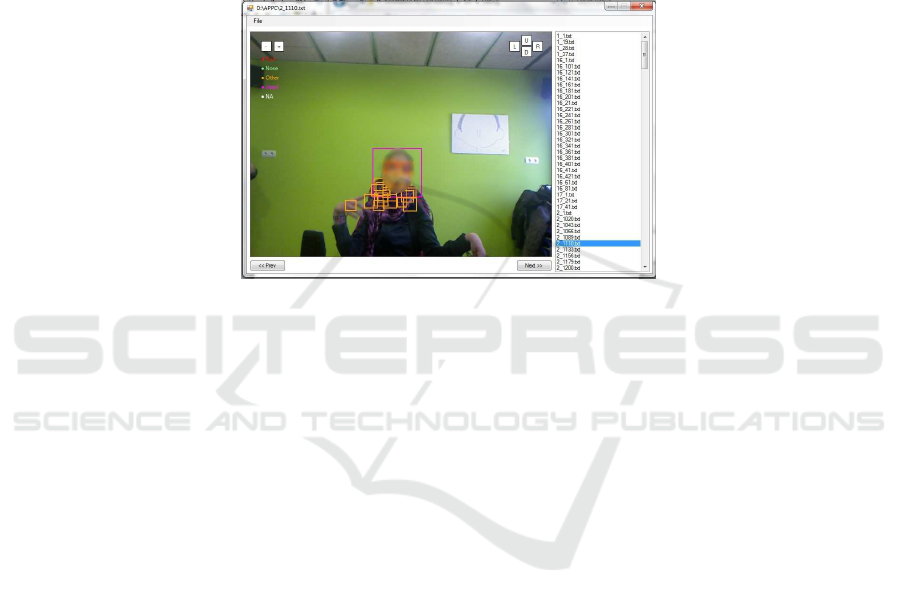

manually to train our head and body-part detectors. We also collected another dataset

in APPC and developed an annotation software and annotated them in URV. Later, we

used the database for reﬁning our classiﬁcation model. These databases were created

scrupulously following the ethical issues involved in the obtaining and processing of

such data from Cerebral Palsy patients for image analysis purposes.

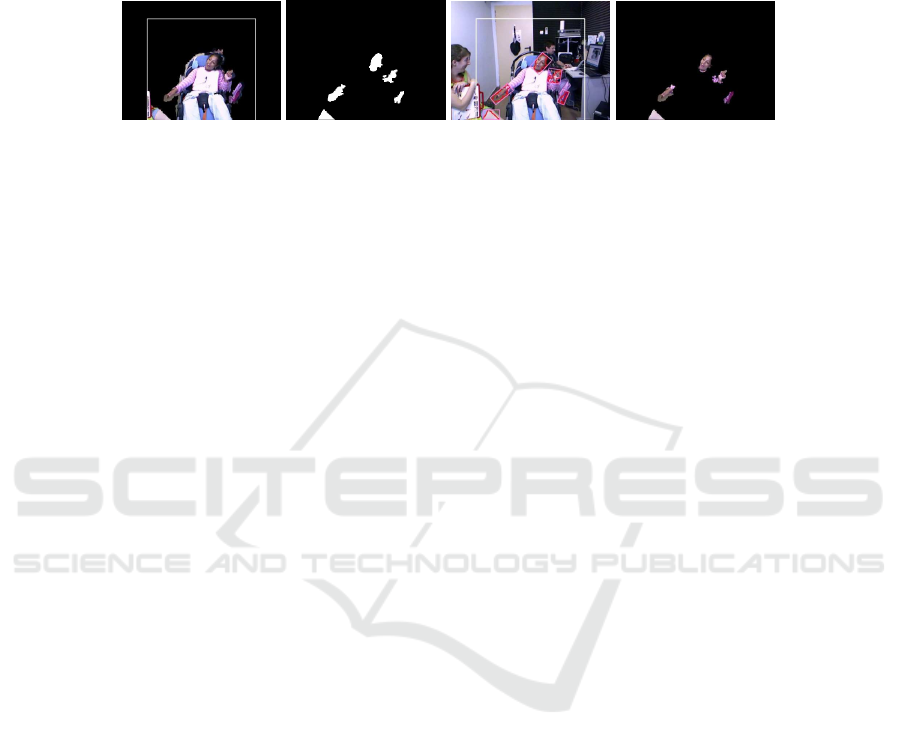

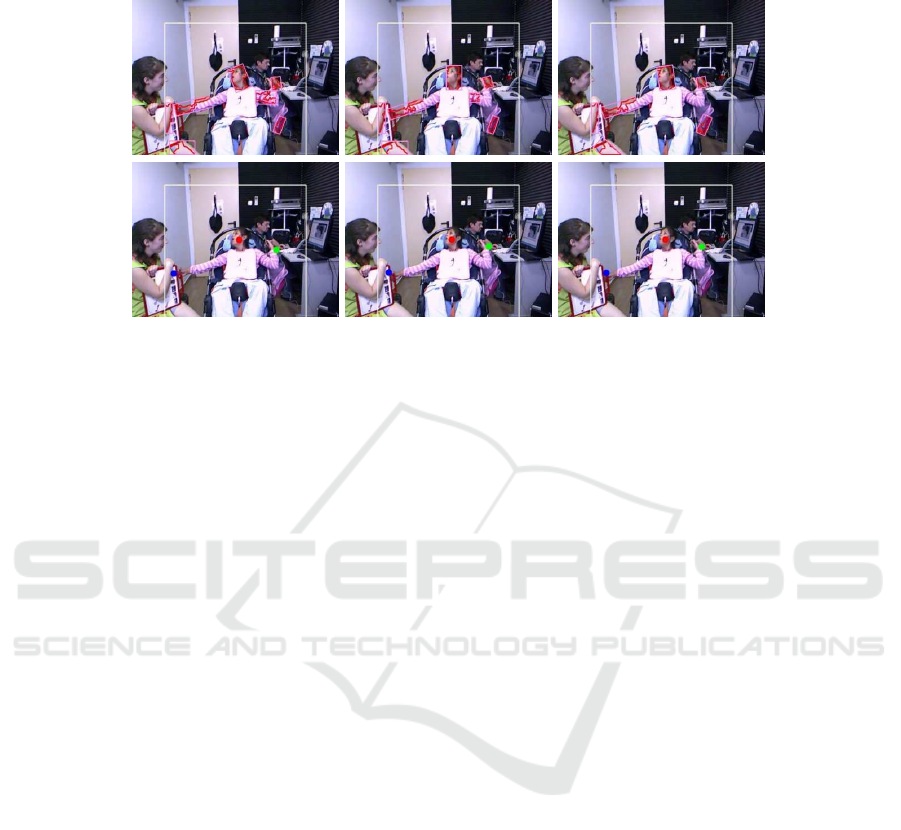

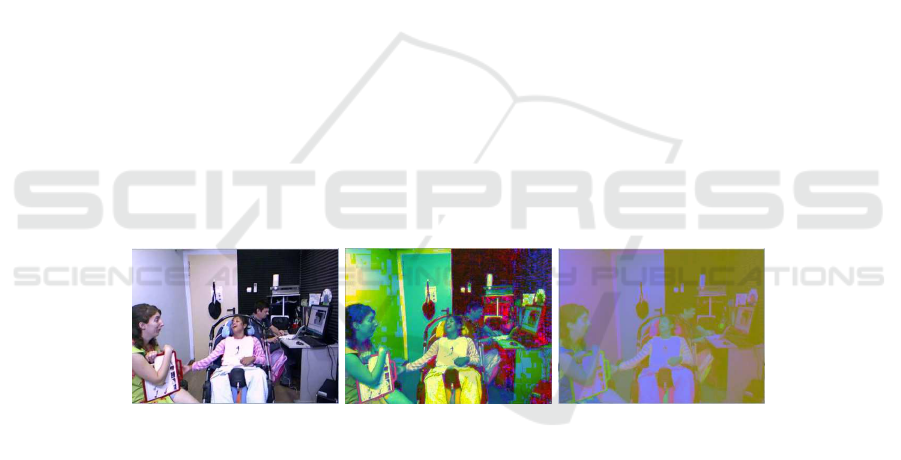

Image Analysis. A series of algorithms for analyzing and tracking the head move-

ments based on skin color segmentation and a state-of-art face detection method were

developed. These algorithms work with standard color webcams and the depth cam-

eras. Although the algorithms were accurate and fast with health people, there were

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

some practical challenges when tested in real scenarios on the patients with various

severity level. We observed that the algorithm worked accurately with level 1 patients,

which are those with the least level of impairment. Notwithstanding, level 4 and level 5

patients (the highest levels) were not able to control the games due to the fact that their

facial and body-part appearance as well as movements are much more different than the

patients with severity level 1 and 2.

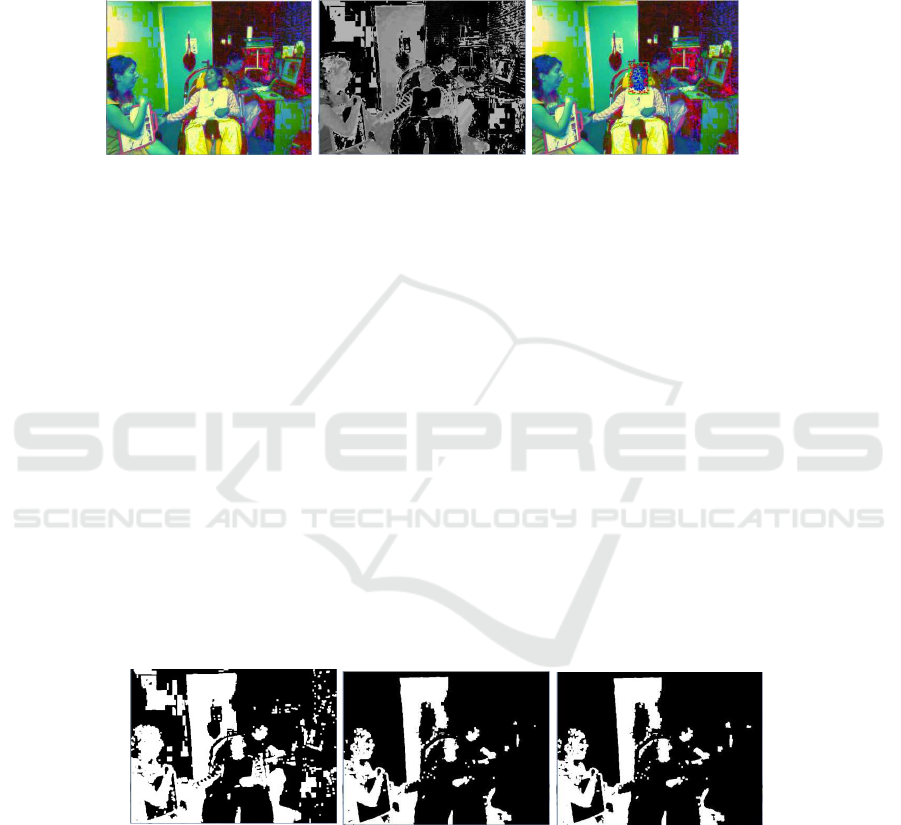

In order to solve such difﬁculties we also utilized the depth information for seg-

mentation purposes. By this way, we are able to increase the computational efﬁciency

and also make the algorithm more robust against illumination. We also make use of

the shape information to ﬁnd the head of the patients. This approach can deal with one

of the important challenges that we faced in the ﬁrst period: the fact that patients with

higher severity level are barely able to control their heads and hold it in a frontal or

near-frontal position. As the results, the state-of-are methods were not able to detect the

face and, consequently, the users were not able to control the games.

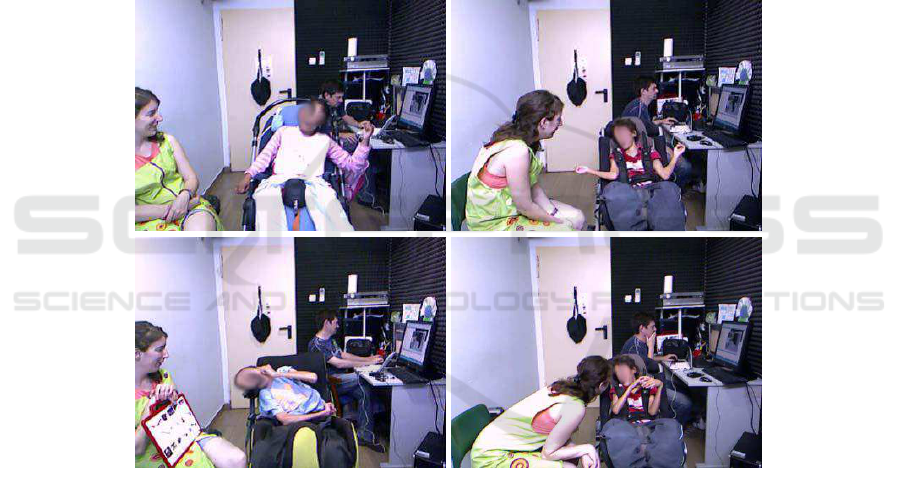

Fig.2. APPC patients playing during the database creation.

2.2 User Input Modules

A series of libraries were developed in the project to access different input devices to

control the game through a wide range of possibilities, i.e., direct motion controllers,

image-based controllers, and audio-based controller. These libraries allow an applica-

tion to read inputs from the following list of devices: Nintendo Balance board, usual

game controllers (joysticks, gamepads, and switch buttons), Nintendo Wiimote con-

troller, keyboard and mouse, color and depth cameras, and a microphone. The inputs

from these devices can now be read, adapted when necessary and used by games to

GAME-ABLING: Platform of Games for People with Cerebral Palsy

perform different game actions. As regards the audio devices, a simple method to cap-

ture and measure the intensity of the voice or blows into the microphone allowing the

device to control some game actions. The inclusion of cameras as game controllers was

accomplished as two modules for integrating Microsoft Kinect and color cameras.

2.3 Game Development Framework

The main core of the system consists of the common game framework. A conﬁgurable

launcher was created for two different kinds of games, the XY and the ”Spot-the-

difference” games. The launcher is capable of loading the game description and as-

sets, loading different input modules, displaying a control panel and ﬁnally allowing

the user to play the game. The work was focused on the development of a software

framework that assisted in the development of conﬁgurable games and the integration

of general purpose and specialized input devices in order to support a wide range of

patients/disabilities. The approach followed was to abstract user input and to decou-

ple devices from games, which facilitates the adaptation of games to future use cases.

Moreover, a modular architecture was designed to allow for the independent develop-

ment and deployment of base games and input modules. This is important as it helped

the development throughout the project lifetime but also facilitates future developments

and allows the introduction of a licensed development scheme; allows the commercial-

ization of modules; helps the deployment process when different platforms are involved

and when upgrading an existing installation. Finally, a central application is provided

that coordinates all existing modules and presents the user with a single environment

through which to conﬁgure and control game sessions

2.4 Game Authoring Tool

The main objective of this tool is to provide an intuitive, easy to use with no special

expertise required, authoring environment that combines conﬁgurable games and the

various game elements into complete ready to played - games. The approach followed

was the development of a web application, capable also to be executed ofﬂine and sup-

porting all major browsers and a step by step approach in developing the games. A

common look and feel was adapted across all base games, although the game play of

each base game is considerable different. The authoring tool allows to load user-created

assets, like avatars, sounds, backgrounds, and their position in the window.

A number of considerations were taken into account in the design of the authoring

tool: (i) usability: the solution is very easy to use and self-explanatory, (ii) deployment:

the solution is hassle-free of installation and OS considerations, and (iii) effectiveness:

The solution is effective in generating a wide range of games.

2.5 Analysis Tool and Activity Database

This module generates for each patient databases with data of the performance of the

patients during the gamming sessions and an activity report that visualizes it creating

graphs related with the patient performance. The relational database is capable of stor-

ing two set of information: conﬁguration of individual games/users and the actual data

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

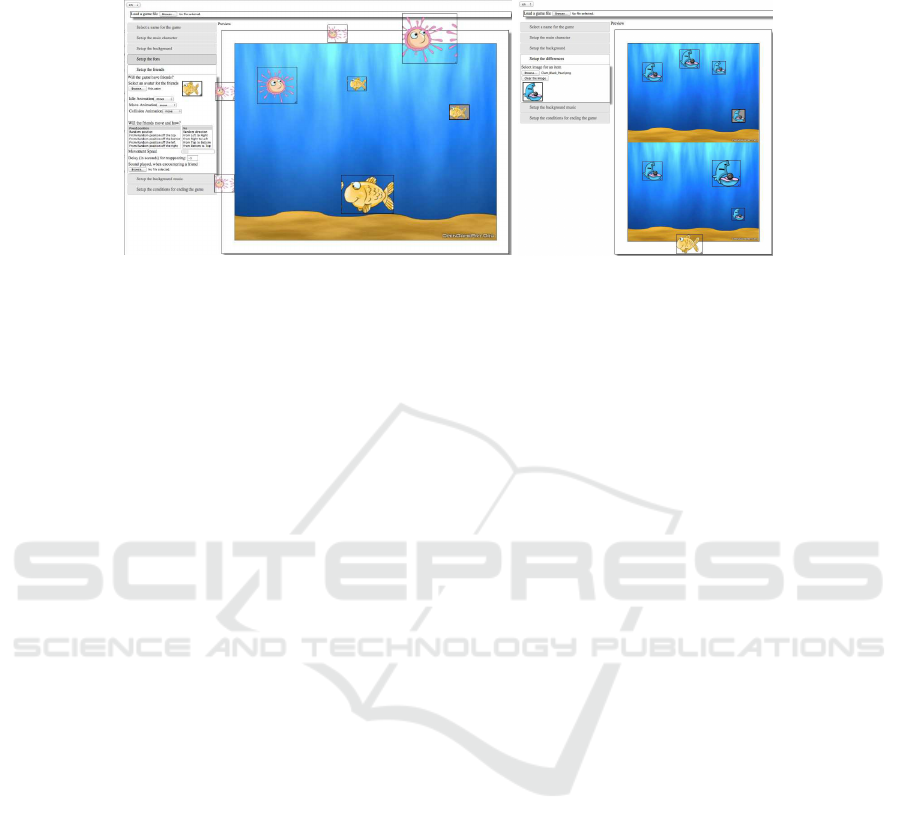

Fig.3. Snapshots of the Authoring Tool creating an XY game.

of the played games. The purpose of this database is to use data to analyze the develop-

ment of the patient. The analysis tool was developed in order to study the information

stored in the database. This tool allows to access, combine and visualize information

stored in the database according to criteria of specialized personnel (therapists, care-

givers, and psychologists), so they get the best possible proﬁt of the activity database.

It is a graphical web interface tool with diagrams and statistics, which inform the inter-

ested users of the evolution of each patient, and based on this information, they will be

able for further customization the games for each patient. The data generated during the

games is anonymized and follows the strict requirements of the Spanish Data Protection

Act (LOPD).

2.6 Implemented Games

Following the suggestions of the CP experts involved in the project, three main fami-

lies of game typologies were implemented in the project, namely, XY games, spot-the-

difference games, and memory games:

XY Games: these are games where an avatar is moving in one or two axes: vertical

and/or horizontal and the main goal of the player is to collect items (Friends) and

avoid enemies (foes). With each Friend collect it, he/she gains points and with each

foe hit he/she loses lives.

Spot-the-Difference Games: in these games the player needs to ﬁnd small differences

in two images that look identical.

Memory Game: Here the player is presented with a grid of images, where every image

exists twice. After few seconds all the images are hidden and the player needs to

select the same images sequentially.

Each one of these groups of games envisages to create an improvementin either mo-

tor or cognitive capabilities of the patients, such as coarse/ﬁne hand and limb dexterity,

cause/effect, or visual memory. A series of scored and game variables are recorded dur-

ing the gamming sessions in order to be analyzed by the caregivers or doctors later on

and objectively evaluate the effect and of the game on the patient.

GAME-ABLING: Platform of Games for People with Cerebral Palsy

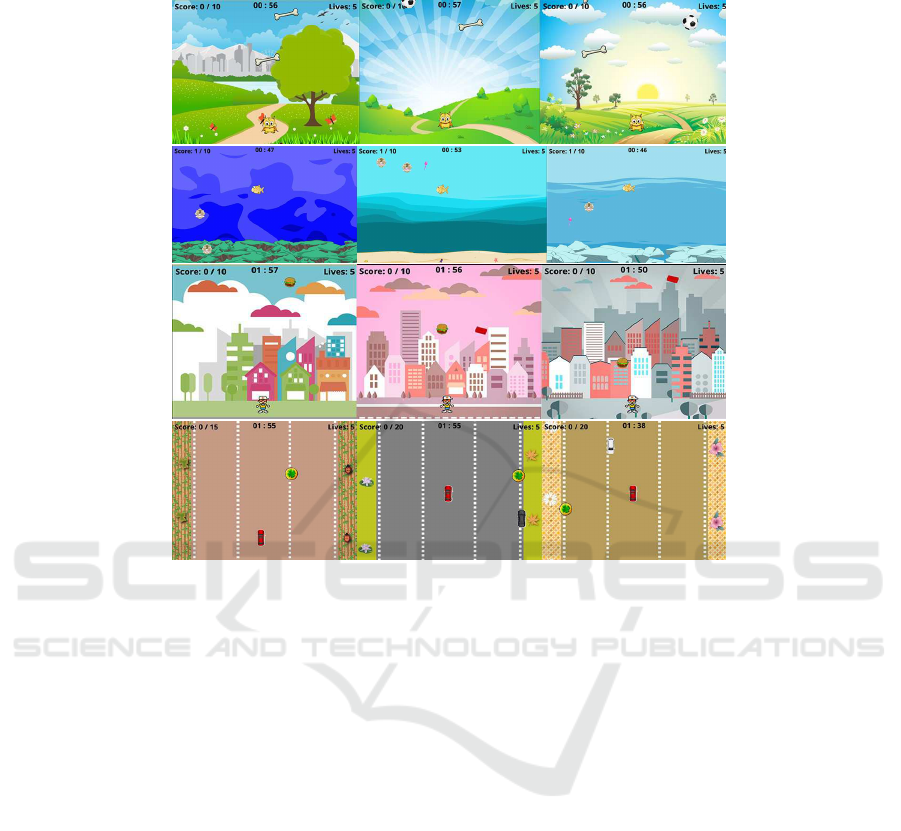

Fig.4. Snapshots of some of the games developed with the Authoring Tool.

2.7 Evalutation

Testing of the Game Authoring Tool (GAT) and Rehabilitation Games developed for

patients with Cerebral Palsy of different levels of motor impairment and age was done.

This wasdone by specialists from International Clinic of Rehabilitation (ICR) in Ukraine

and the Associaci Provincial de Parlisi Cerebral de Tarragona (APPC) in Span, both

partners of the project.

Evaluation of the GAT was done by the following procedure. Therapists were taught

how to use the GAT and supplied with the assets to develop games. They also learned

how to use games with different gaming hardware balance board, Kinect sensor, cam-

era, special goniometer joystick, and others. They developed their own games that were

checked by a supervisor.

Totally 12 games were selected for testing on patients with Cerebral Palsy. Thera-

pists ﬁlled out the questionnaire that was analyzed and conclusions about the GAT us-

ability have been made. Evaluation of the games was done on 32 patients with Cerebral

Palsy of different level of motor disability. Every patient participated in 6 to 8 gaming

sessions of 15-20 min duration under the supervision of the therapist. During train-

ing sessions different gaming hardware has been used Balance board, Kinect sensor,

camera, special goniometer-joystick and keyboard or mouse. After the sessions parents

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

were interviewed and ﬁlled out the questionnaire that was later analyzed. Parents and

therapists gave important suggestions for future development.

Analysis of the questionnaires indicates that the majority of the patients highly rated

rehabilitation games - 82% ranked the rehabilitation games as excellent and 18% as

good, and nobody stated that the games are of poor or average quality. Also the majority

of the parents liked graphical and sound effects of the games and stated that the game

difﬁculty was adjusted properly to the motor abilities of the child. Parents suggested

in their comments that there should be a larger collection of the games of different

difﬁculty levels with nice animated characters. They suggested that there also should be

games aimed at not only motor development but also at training of cognitive functions.

There were also suggestions to integrate the games into social networks for disabled

children.

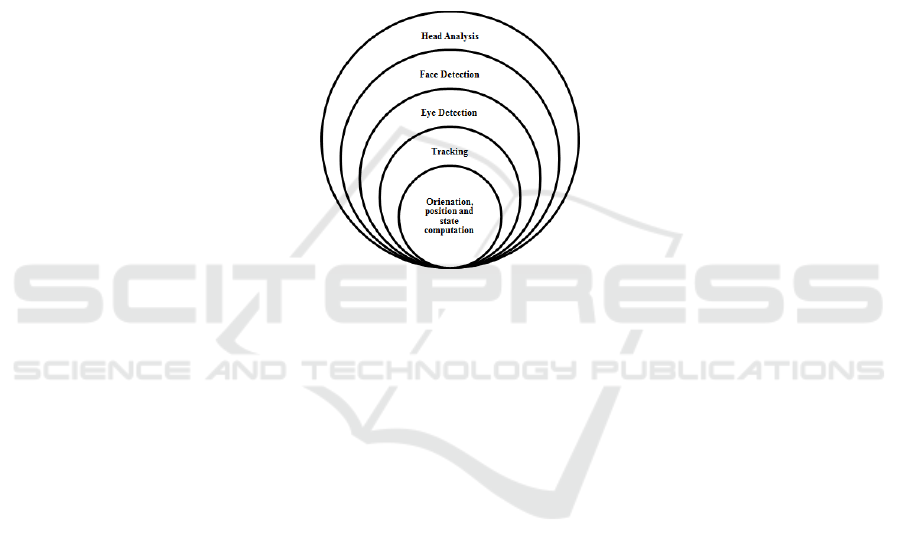

Fig.5. Head Analysis Problem in GAME-ABLING project.

3 Head Analysis

3.1 Problem Formulation

One of the machine vision tasks in the GAMEABLING project is to obtain information

in regards to the head. This information includes position and orientation of the head,

short-term and long-term tracking of the head and tracking the location and state of

eyes. Fig.5 shows the relationship between such different problems.

In this project, the Microsoft Kinect sensor was utilized for capturing the images.

One of the main reasons was that the use of depth information helped to solvehand anal-

ysis problem. Therefore, we also take advantage of such information in order to speed

up the processing and to calculate the pose (orientation and position) of the head in 3D

Cartesian space. Regardless of the type of the video stream, the developed algorithm

has some mandatory requirements which are depicted in Fig.6

According to this ﬁgure, the algorithm must be real-time. In other words, the de-

veloped algorithm must be able to analyze more than 15 frames per second. Moreover,

it should calculate the pose of the head accurately and track the facial components ro-

bustly. However, considering that CP patients are not capable of controlling their head

accurately and Kinect isa low-end camera (with considerable noise in the video stream),

we cannot expect the system to have 5 degree (or less) accuracy in orientation.

GAME-ABLING: Platform of Games for People with Cerebral Palsy

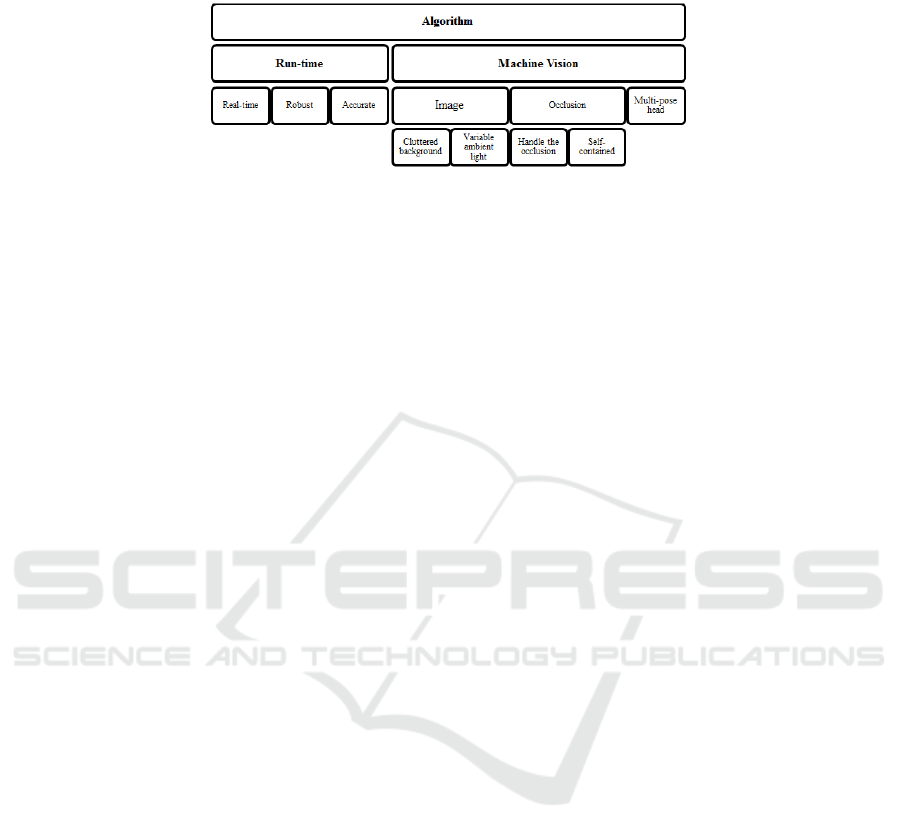

Fig.6. Head Analysis Problem in GAME-ABLING project.

Regarding the machine vision requirements, the algorithm must be able to cope

with cluttered background and variable ambient light. Also, it must be able to deal

with partial occlusion (e.g. moving the hand in front of the eye) which is a frequent

situation. Finally, the most critical assumption about the algorithm is the pose of the

head in relation to the camera.

3.2 Technical Review of the Algorithms

The ﬁrst step in estimating the head pose is to localize the face in the input image. One

of the most successful and most widely used algorithms for detecting the near- frontal

faces in the given image is the Viola-Jones detector [14]. This algorithm uses a bank

of Haar-like rectangular ﬁlters with a cascade classiﬁer to ﬁnd the faces in the image.

Although this algorithm works well with frontal faces and static images, it is impracti-

cal in the GAME-ABLING project. This is due to the fact that the depth of the cascade

classiﬁer is large and, hence, it is computationally intractable in real-time applications.

Moreover, it may produce false-negative outcomes in cluttered background. Notwith-

standing, there is a built-in function in OpenCV for face detection. According to our

experiments, this algorithm can run with the rate of 8-9 frames-per-second (fps). For

this reason, we developed our own face detection and tracking algorithm which utilizes

the depth information and achieves a real-time performance.

The next step for estimating the head pose is to localize the facial components such

as eye-corners on the face image. Vukadinobic and Pantic [15] proposed a method for

facial feature point detection based on bank of Gabor ﬁlters which is able to detect 20

facial feature points in neutral face images. They used 48 Gabor ﬁlters for extracting

features of a 1313 image patches. Their feature vector comprises from gray-level values

of the patch plus the results obtained by applying Gabor ﬁlters on the patch. This makes

a feature vector containing 8281 features. However,convolvingthe all Gabor ﬁlters with

the input image is a time consuming task. Moreover, the length of the feature vector is

too large that increases it computational cost dramatically.

In GAME-ABLING project we used local binary pattern (LBP) [16] for extracting

features of the image patches and localizing the facial components. LBP is a computa-

tionally efﬁcient algorithm for extracting texture features. In this method, for each pixel

in the image patch, we scan its surrounding pixels. If the pixel has greater value than

the central pixel it is replaced with 1 otherwise it is replaced with 0. After all pixels are

checked, an 8-bit binary number is produced which is converted to a decimal number.

Each pixel produces a decimal number. Histogram of these decimal numbers in the im-

age patch is called local binary pattern feature. It is clear that using 8bit number, the

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

LBP histogram will contain 256 bins. Later, this deﬁnition was reﬁned and another LBP

histogram called uniform local binary pattern was proposed [16]. Using 8-bit number,

the uniform LBP produces a histogram with 59-bins. In this project, we implemented a

highly optimized version of LBP algorithm which is computationally efﬁcient.

Having the face and facial component localized, the ﬁnal step is to estimate the head

pose. Efforts for solving this problem break down into 8 different classes [1]: template

based methods, detector arrays, nonlinear regression, nonlinear dimension reduction,

model based, geometry based, tracking methods and hybrid methods. As a template

based method, Baily and Milgram [2], ﬁrst, generated several images of a person in dif-

ferent poses. Estimating the head pose of an input image was done by matching it with

all images in database. There are several studies [3, 4] which have employed nonlinear

reduction techniques [5–7] for nonlinear mapping of high dimensional image onto a

low dimensional manifold. After mapping the training images onto the manifold, sys-

tem must learn how to embed the new input image onto the manifold. Erik and Mohan

[8] proposed a nonlinear regression technique. In this method, localized gradient orien-

tation histogram feature extraction method is applied on the input image. Then, using

this feature vector and three different support vector regressors head pose is estimated.

Baily et al [9] used Haar like rectangular ﬁlters for feature extraction and generalized

neural network for head pose estimation.

In addition, Tedora et al [10] utilized feed-forward neural network and facial fea-

ture points. Model based approachestries to learn a modelfor faceimage. Among object

modeling methods, active shape model [17] and active appearance model [11] are popu-

lar methods for modeling human face. After the model is learned using training images,

it is ﬁtted on input image. Then, we can use similar approach in [10] for head pose esti-

mation. For a complete survey on head pose estimation refer to [1]. Martins and Batista

[11,12] employs active appearance model for locating facial feature points. Then, they

mapped 2D facial feature points to specialized 3D rigid facial model. Finally, head pose

estimated using POSIT algorithm. This method cannot deal with non-rigid face motions

sine it does not ﬁt 3D model on 2D facial points. In order to estimate the head pose in

the GAME-ABLING project, we implemented our own algorithm which utilizes the

depth information to achieve its goal. The developed algorithm runs in real-time and it

is able to robustly estimate the head pose.

Table 1. Publicly available database for research.

Database No. of images Image size Landmarks Color

CIE-Biometrics 9951 2048×1536 30 Color

BioID 1521 384276 20 Grayscale

FDDB 28204 Variable NA Color

MUCT 3755 480640 76 Color

IMM 240 648480 58 Color/Grayscale

3.3 Databases

Before implementing an algorithm, we need a database to train our classiﬁers. There

are different public databases in Internet which can be used for this purpose. However,

GAME-ABLING: Platform of Games for People with Cerebral Palsy

there are a few databases that include the information about the landmarks of the faces.

The collected databases are listed in Table 1

The important issue about these databases is that only a few of them are useful

in GAME-ABLING project. To be more speciﬁc, FDDB is useful for training a RGB

based face detector. However, because our algorithm does not strongly rely on face

detection, we did not use this database in this project. The databases CIE-Biometrics,

MUCT and IMM are useful for research purposes. This is due to the fact that the im-

ages of these databases have been taken in controlled environment and in a neutral

facial expression. Notwithstanding, neutral expression of CP patients usually is differ-

ent from healthy people. For this reason, the geometry and the texture of the landmarks

is different from the images in this databases. Moreover, these databases have utilized

high-resolution cameras to capture the images. But, the quality of the images taken by

cheap RGB cameras and Kinect sensor are low and for this reason the texture of the

face will be different. Consequently, these databases were not used in this project.

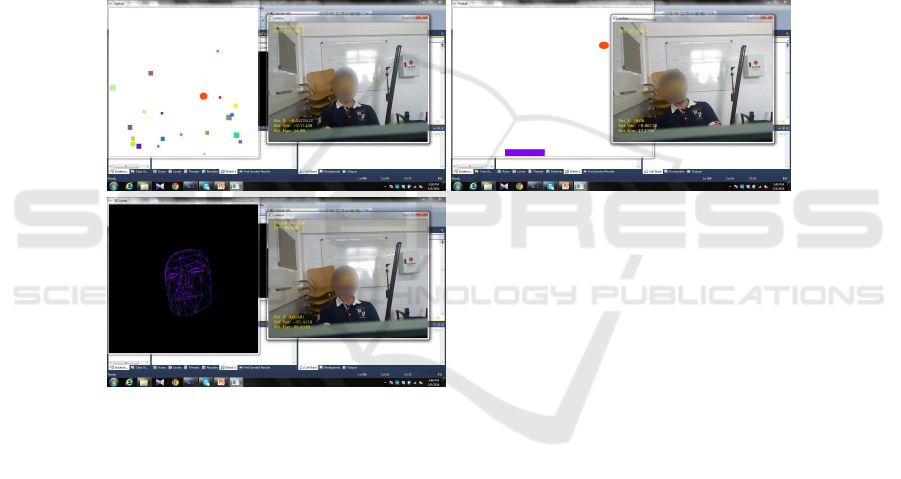

Fig.7. Screen shot of the developed games for collecting realistic data.

Instead, we collected our own database in APPC and URV. To this end, we devel-

oped three games in which the user can control the hero of the game using head motions

and head posture. Fig.7 illustrates the screen shot of the developed games. In the game

shown in the ﬁrst row the user controls the game character (red circle) to collect the

moving squares. The hero has four different motions namely up, down, left and right.

Also, the speed of the hero is controlled using the distance of the user from camera. The

movements of the hero are controlled using the head motions or head posture.

The second row shows a game in which there is a board in the bottom of the screen

that can move to left and right. The user controls the movement of the board using head

posture or moving his/her body to right or left. Finally, the third row is a 3D face mask

which is controlled by head posture and head position.

In all three cases we asked the patients to play the games. Then, the user interactions

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

were recorded while he/she was playing the games. Using this approach we were able

to collect the images in realistic conditions. We repeated the same procedure in our

laboratory and collected some data from ourselves by playing the same games.

After collecting the new images in APPC and URV, we developed another applica-

tion to annotate the images. The screen shot of the application is shown in Fig.8. Here,

we load the images and determine the location of the eyes, nose and the head manually.

In addition, we also annotate some regions to emphasize that these regions are not the

facial components or the face. Using this approach, we could collect some positive and

some negative data for reﬁning our mathematical models.

Fig.8. Screen shot of the annotation application.

3.4 Head Analysis Framework

Analyzing the head is a multi-stage process. There are different methodologies for es-

timating pose of the head. The simplest method is template matching in which some

templates are stored in the database and are compared with the input image to ﬁnd the

pose of the head. Clearly, this method is very limited since it is very sensitive to light-

ing and the persons identity. Another approach is to train different detectors from the

images collected in different poses. Although this method is simple to implement, it has

some serious problems. First, the few number of different poses which can be detected.

Second, there are cases in which more than one detector returns a positive result.

Other methods for solving this problem are manifold embedding approaches. In

these methods, the image of the face is mapped into a manifold with few dimensions.

Then, the pose of the head is estimated on this manifold. One of the most important

problems is the way that new images are going to be mapped on the manifold. Inaccu-

rate mapping causes inaccurate pose estimation. Nonlinear regression methods are also

a considerable approach to map the input image into the precise orientation along each

axis in the 3D Cartesian space. However, while the method is rational and admissible

from a theoretical perspective, in real applications we need a rich database containing

persons with varied races, genders and ages gathered from different poses in 3D space.

Therefore, the collection of this information is rather difﬁcult.

In order to ﬁnd the pose of the head, we may also use geometrical conﬁguration

of facial feature points. In this method, facial parts such as eyes, nose and mouth are

GAME-ABLING: Platform of Games for People with Cerebral Palsy

accurately localized on the input image. Then, using the conﬁguration of the parts it

is possible to deduce the head’s pose in 3D space. It is clear that this method requires

an accurate facial part localization algorithm. Moreover, mapping geometrical conﬁg-

uration into continuous pose values is very difﬁcult. In this project we have utilized

pictorial structures for localizing the head as well as the facial parts in the input image.

To achieve this goal, we developed the framework showed in Fig.9.

Fig.9. Overall framework developed in this project.

Our algorithm starts by reading the images from the camera stream. We use both

the depth and the RGB streams of the Kinect sensor. The raw image is preprocessed to

reduce the noise and transform it into gray scale color space. Then, we use the depth

information to segment out the image and generate a mask. This mask is used the ﬁnd

the region of interests (ROIs). The ROIs are processed to localize the face and then

localize the facial components.Finally, the geometrical conﬁgurationof the components

is validated and the head pose is estimated.

Camera Interface. Currently,there are differentRGB-D cameras in the market. Among

different brands, Kinect Xbox360, Kinect for Windows and Asus Xiton are three popu-

lar choices because of their reasonable price and accuracy.

In order to read the stream of data from these cameras, we have utilized OpenNI

and Kinect SDK drivers. OpenNI is platform independent and can be used in different

operating systems including Microsoft Windows and Linux. However, Kinect SDK is

only compatible with Microsoft Windows.

For the sake of compatibility and portability we have developed an interface which

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

is able to automatically ﬁnd the installed driver and open the data stream between the

software and the camera. After the camera streams are successfully opened, the RGB

and the depth image are captured iteratively to analyze the head motions.

Segmentation. It should be noted that using depth information helps us to have a

more robust segmentation which is independent of identity, gender, age and race of

the patient. Another segmentation technique is skin segmentation. Even though such

method is useful for RGB images, the outcomes highly depend on the lighting, race,

age and other physical factors. For this reason, when using skin segmentation the sys-

tem will require a calibration step before starting the game in order to model the skin

color more accurately, reducing the false-positive results. Notwithstanding, the depth

information in RGB-D cameras is obtained using structured infrared lights, being user-

independent. The only restriction is that RGB-D cameras can only work properly in

indoor environments. Another advantage of depth information over skin segmentation

is that depth segmentation is computationally efﬁcient, which makes it suitable for real-

time applications. In this project, any pixel out of an established operational range (i.e.

[80cm...170cm]) is discarded from processing pipeline. The result of the depth seg-

mentation stage is shown in Fig.9

ROI Generation. Segmented depth information is further processed to ﬁnd the most

probable location of the head. In this context, our deﬁnition of head is as follows: head

of the patient has a roundish shape and it is located near the center. To be more speciﬁc,

we extract the edges of the depth image taking into account the generated mask in

the previous step. Then, we trace the edge pixels and localize the face by calculating

the Chamfer distance between the edge pixels connected to the current pixel and our

template model. Based on this deﬁnition, we ﬁrst ﬁnd the candidate regions and select

the one which is closer to the camera.

Facial Component Detection. Two eyes and the tip of the nose make a triangle in 3D

space which has a small degree-of-freedom due to inﬂexibility of the nose. In addition,

while the state of the eye can be changed between open and close, the distance between

two eyes is invariant. Therefore, the triangle obtained from two eyes and the tip of the

nose can thought as a rigid object in space.

Having this assumption, if we can detect these three components in the image we

can also ﬁnd the pose of the head in 3D space. Moreover, the state of the eyes can be

detected in parallel without any need to compute the feature vectors and scan the image

again. Such efﬁcient detections are very relevant due to the real-time requirements.

To detect the facial components, the local binary pattern (LBP) feature extraction

method was used in this project. The reasons for using this method are its high dis-

criminative power and fast calculation. There is a simple implementation of LBP in

OpenCV. However, this implementation is not ﬂexible and it is not good for real-time

applications.

To havea more structured and well-implemented software, three basic LBP methods

were implemented. These methods include LBP, Uniform LBP and Rotation Invariant

Uniform LBP. In order to model the facial component we examined support vector

GAME-ABLING: Platform of Games for People with Cerebral Palsy

machines (SVM), Adaboost, Logitboost and RandomForest models. We found out that

SVM is not a good choice in this project since the number of supports vector was high

and for this reason the calculation speed was low. RandomForest had a good accuracy

and it was faster than SVM but because the number of the trees and their depth was too

high, hence, the computation speed was not high enough for our purpose. Adversely,

Adaboost and Logitboost had very close performances but the number of the linear

models in Adaboost was less than Logitboost. As the result, we used Adaboost as the

facial component detector models in this project.

The reason for selecting these classiﬁers is the fact that using their score it is pos-

sible to calculate the level of conﬁdence on the input feature vector. This measure is

useful to discard false negative results. To deal with different sizes of the facial com-

ponents, the detection algorithm is performed in a multi-scale iteration. The number

of scales and the reduction coefﬁcient is adjustable. After detection of the parts, their

conﬁguration is evaluated using simple geometry of the face.

Facial Part Validation. False-positive results are inevitable in real applications. We

also had some false-positive results in the facial detection stage. To ﬁnd out which

componentare true-positivewe analyze the geometrical conﬁguration between the three

facial components and select the most probable conﬁguration. Finally, the posture of the

head is estimated using the depth information and the location of the facial component.

Head Pose Estimation. After detecting the facial components, their corresponding 3D

information is calculated using the focal length of the Kinect and the depth information.

It should be noted that, although there is a stream in the Kinect pipeline which calcu-

lates the position of every pixel in 3D coordinate system, this calculation is very CPU

demanding and it affects the overall performance. For this reason, we only calculate the

3D coordinate of the left eye, the right eye and the nose (3 pixels in total).

Once the 3D coordinate of the points is estimated, the orientation of the head is

calculated using a non-linear numerical optimization method. The 3D coordinate of the

facial components are ﬁtted on this model using an optimization method. Although the

equation system is small and, hence, the total number of iterations is also small, the

algorithm is still accurate.

Tracking. Tracking is an essential step in this project. While it provides very useful

information for controlling the games, it can also be utilized to increase the robustness

Fig.10. Summary of the information produced by the URV and modiﬁed Kinect algorithms.

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

and computational efﬁciency of the image analysis algorithm. In this project, we im-

plemented a linear tracking model since it is computationally efﬁcient and it produces

good results because the occlusion of the face rarely happens during the game play.

We store the tracking information including the 3D posture, 2D location and 3D lo-

cation of the head as well as the 2D/3D optical ﬂow history of the face. This information

can be utilized to develop more advanced game control movements.

Head Optical Flow Estimation. In order to speed up the system and provide more

information that can be used in controlling the game, we also compute the optical ﬂow

the face region. If the mean optical ﬂow is less than some threshold, we use the analyze

information from the previous frame as the results of the current frame. Otherwise, we

analyze the image to estimate the posture. In addition, the optical ﬂow information can

be used to control the game. For example, it can be used to do the left, right, up and

down movements.

4 Hands Analysis

This section deals with the extraction of information from the video sequences related

to the position of hands in video streams. Despite hands are our main interest, the pro-

cedures described below do not limit their scope only to hands and are also capable of

producing data of other parts of the body, such arms or head.

The outline of this procedure consists in detecting areas in the image likely to con-

tain a hand based on color information and motion. We also use depth information in

case it is available from a RGB-D camera (Kinect-style camera). In the following sub-

sections we describe the methods employed.

Fig.11. Some color transformations: (a) original image, (b) HSV transformation, and (c) YCrCb

transformation.

4.1 Color Analysis

Despite a great amount of research was done so far to ﬁnd effective methods to detect

hands in a similar way as faces or objects, hands still suppose a great challenge due

to their variable shape and ﬁnger conﬁguration. This fact, together with the speed of

their movement and the small size in which they are usually viewed in conventional

video sequences, makes hand detection and tracking with low-cost color cameras a hard

problem. With the irruption of affordable depth cameras, such as Kinect, the analysis

of hands has certainly increased its precision and robustness. Nevertheless, this project

made use of conventional color cameras.

GAME-ABLING: Platform of Games for People with Cerebral Palsy

We handle the task of determining the movement of hands by ﬁrst ﬁnding image

regions that are likely to contain a hand based on their appearance and, by imposing

some constraints on the candidate regions, reducing to a small number of very plausible

candidates, which ﬁnally will be considered hands. The main feature to deﬁne such

regions is color and its similarity to skin color.

Fig.12. Resulting H channel image (b) generated from a HSL image (a) after removing from the

foreground those pixels with extreme values in the L channel. Image (c) shows the resulting pixels

from an automatic sampling within the green rectangle where blue dots represent foreground

samples and red dots are background.

Color Transformations. Color in images is usually coded by cameras as a series of

RGB values. This straightforward color codiﬁcation usually is not adequate to deal with

changes provokedby illumination. Moreover, single color objects, such as hands, do not

usually generate a simple region in the RGB color space but one which may be difﬁcult

to model instead. In order to reduce the complexity of the skin color region and increase

its compactness and invariability to illumination we tested several color transformations

Lab, Luv, HSV, HLS, and YCrCb as shown in Fig.11.

The best color transformations for our purposes are Perceptual color spaces HSV

or HLS. One of the advantages of these color spaces in skin detection is that they allow

to intuitively specify the boundary of the skin color class in terms of the hue and satu-

ration. As I, V or L give the brightness information, they are often dropped to reduce

illumination dependency of skin color. We use them to remove pixels that are either too

bright or too dark. The resulting image (Fig.12) is a gray-scaled image where hands

and other skin-colored parts of the body are quite distinguishable. These images will be

later used to automatically learn subject-dependent skin color models.

Fig.13. Binarization obtained using different procedures: (a) Thr+EM, (b) Thr+Knn, (c)

Thr+SVM. The data gathered by the previous methods is used later in the learning steps of clas-

siﬁcation methods like Support Vector Machines (SVM), Expectation-Maximization (EM), K-

Nearest Neighbors (KNN) that will be used in the following subsection to segment images based

on skin color.

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

Color Segmentation. Several methods were developed to segment the skin color con-

tent in video sequences. All the methods described hereafter proceed in the same way,

that is, ﬁrst an automatic sample of pixels is generated separating them into two cat-

egories, i.e., skin and background, according to a coarse separation of colors in pre-

established intervals. This sample is used for training a skin color model using a ma-

chine learning (ML) algorithm. Afterwards, a label is obtained for each pixel according

to the model learnt resulting in a binarized image of the scene. Several approaches to

compute the binarized image were attempted not only by varying the ML method, but

also modifying the process by which image pixels are labeled.

We employed the following ML methods to learn the skin-color models:

Support Vector Machines (SVM): it is originally a technique for building optimal 2-

class classiﬁers which was later extended to regressions and clustering problems.

SVM is a partial case of kernel-based methods which maps feature vectors into a

higher-dimensional space using a kernel and builds an optimal linear discriminant

function in this space and an optimal hyper-plane that ﬁts into the training data.

Expectation-Maximization (EM): it is an algorithm that estimates the parameters of

a multivariate probability density function in the form of a Gaussian Mixture dis-

tribution with a speciﬁc number of mixtures. One of the main problems of the EM

algorithm is a large number of parameters to estimate. We employ a small number

of mixtures and diagonal covariance matrices to speed up the learning process.

K-Nearest Neighbors (KNN): the algorithm caches all training samples and predicts

the response for the new sample by analyzing a certain number (K) of the nearest

neighbors of the samples using voting, calculating weighted sum, and so on. It

might be seen as learning by example because predictions are obtained by looking

for the feature vector with a known response that is closest to the given vector.

Once a certain model is learned, skin pixels in an image are segmented straight-

forward by computing the class to which the belong. This procedure can be quite time-

consumingand depends on the size of the image and the complexityof the class retrieval

stage for each of the above methods, which is different and can vary greatly.

Raster Processing: According to our experimentation, in the case of EM processing in

a raster manner is not adequate since it takes more than 1 second per frame. On the

other hand, SVM and KNN are far faster and they take around a tenth of a second

per frame.

Color Back-projection: To producefaster segmentationsour approach consists in com-

puting intervals in the color space and back-projecting their corresponding label

onto the image, which speed up the process of pixel labeling. Two routines were

implemented:

– Thresholding (Thr): We compute a set of interval limits for the foregroundclass

(skin) in the gray scale range image that represents the color component used

afterward as thresholds to segment the image. This approach is remarkably

faster and provides fairly similar segmentations to those obtained by pixel-by-

pixel labeling, preventing a performance bottleneck.

– Look-Up-Table (LUT): To cope with color regions which do not deﬁne a con-

nected interval, a Look-Up Table (LUT) is used to convert colors in the image

GAME-ABLING: Platform of Games for People with Cerebral Palsy

into labels. This approach also copes with multi-channel color images such raw

RGB or HSV. This approach is very efﬁciently in the case color is converted

into a single-channel image like hue (H) component.

Fig.14. Skin color segmentation results. Top left: original image after depth segmentation. Top

right: binarization result. Bottom left: resulting image of connected component analysis. Bottom

right: result image showing binarization on the original image

4.2 Motion Analysis

Users control games by waving hands in front of a camera. Despite motion alone is

not enough to detect the position of hands -they can be stopped for a period of time–,

motion still is a great source of information required to control games when combined

with appearance cues such as color. In the case of lacking depth information, motion is

a good alternative to locate the position of the user.

We attempted a series of algorithms for detecting motion in images. These algo-

rithms took advantage of the fact that the camera is static and there are no dramatic

changes either in the background or in the illumination. These algorithms ﬁrst detect

pixels in the image that suffered a change and use them to build a historic record of

the areas in the image that presented motion. The history allows the segmentation of

the regions in the image that for a certain period of time showed a moving part. The

historic record can be kept intact or forgotten after a while, so areas with no motion are

incorporated to the background. By varying the persistence we can select between long

and short range movements.

Motion Detection. Hereafter we brieﬂy review motion detection and history creation

procedures:

Frame Differentiation (FD): The most basic algorithm to detect changes in a video

stream consists in computing the difference. The nature of the video sequences

allows obtaining good motion detection since the background and the camera are

static. Another advantage is that it is no computational burden. Main drawback is

the detection of spurious motion due to light ﬂickering.

Background Subtraction (BGS): Based on the creation of a model representation of

the background updated through time to incorporate small variations provoked

by illumination and appearance/disappearance of objects in the background. We

tested the family of algorithms called Mixture of Gaussians (MOG), which build a

Gaussian Mixture Model (GMM) to represent the background. MOG is a very fast

method that also performs shadow detection and incorporates a number of Gaus-

sian components adapted pixel-wise. It recursively uses unsupervised learning for

computing a ﬁnite mixture of models.

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

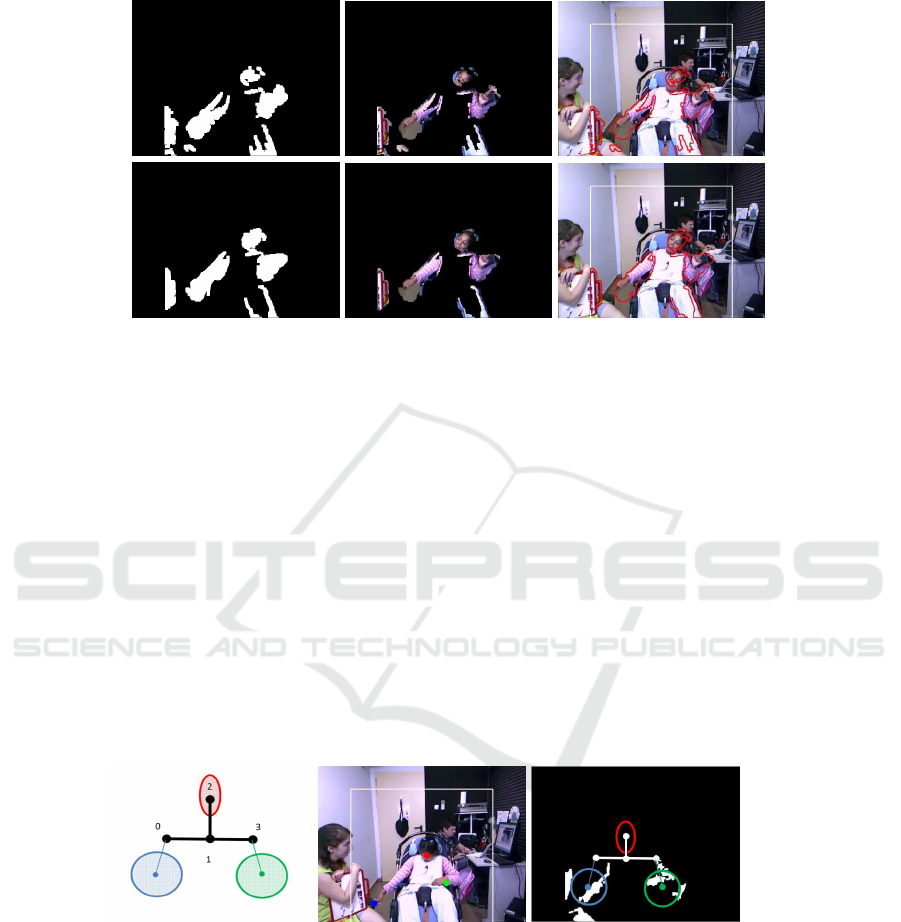

Fig.15. Motion detection: frame differentiation (top row). Mixture of Gaussians MOG (bottom

row).

Combining Cues. Previous methods generate segmented images using color and move-

ment as information cues. Each method provides an independent segmentation that has

some potentially useful information about the behavior of the user to control games.

The question is how these different cues can combined into making the whole process

more reliable and robust. We proceed by using motion segmentation as a way to anchor

the region where the user is located. Color and movement segmentations are then com-

bined in order to be more discriminative about the localization and tracking of body

parts (head and hands).

Some precautions must be taken since due to the nature of the patients it is possible

that the movement of these parts is not as ﬂuid as in other game users. Their hands

sometime move quite slowly according to their level of motor impairment. As a conse-

quence, hard discarding of image regions might end up losing some important regions,

like a hand that lags too much in a position. Therefore, we have combined color and

movement taking into account the verisimilitude of each cue, i.e., how much we can

trust color or motion per pixel based on a likelihood function.

Fig.16. Hand location and tracking. These images represent a sequence where detected regions

are corresponded to head (red), left (blue) and right (red) hands.

Hand Discrimination. The ﬁnal part of the process is to determine the identity of

each region detected in the video sequences. The goal is to detect and to track hands

to control the games, so these regions must be sorted out from the list of potential can-

didates obtained in the previous segmentation and connected component analysis. We

GAME-ABLING: Platform of Games for People with Cerebral Palsy

employed a heuristic method to speed up computations that imposes a given structure

of the body to ﬁt the set of candidate regions found in the image.

First approachis based on imposing a given simpliﬁed skeleton structure of the body

where a set of candidate regions are ﬁtted and anchored. Since the head has already

been found by a face detection algorithm, this structure is composed of four points -0:

left shoulder, 1: center point between left and right shoulders, 2: face midpoint, and

3: right shoulder-, and is updated at each step ( see Fig.16 ). The skeleton separates

candidate regions in groups (upper, left, right) according to geometrical restrictions.

These regions are later identiﬁed into right and left hands. The heuristics implemented

basically associate candidate regions inside circular inﬂuence areas near shoulder points

and selects the most representative to be the ﬁnal result.

The algorithm to select a body part region from a candidate list of works as follows.

Each region is approximated both by an ellipse and a convex hull, in addition to extract

its contour. This data is used to compute the extreme points for each region. The list of

such extreme points are divided into left/right groups. For each pair of extreme points,

a bounding box is computed and tested to be a body part. From the winning pair of

points, depending on the body part (head, right/left hands) one representative point is

selected. The movement of this point is later smoothed using a Kalman ﬁlter.

Moreover, the heuristic was improved employing tracking results from previous

frames. By limiting the likely position using ﬁltering techniques, the amount of false

positiveshas been greatly reduced and the candidates that ﬁnally are selected are likelier

to be correct one.

Additionally, since the capacity of movement of the patients is limited and it is

pretty frequent they stay still for some period of time, we have locked the position

of the body parts to the last known detected position, which is only updated when a

sufﬁcient important amount of movement is measured in the image.

As a result of the tests carried out at the APPC with patients and some suggestions

addressed by the caregivers there, the ﬁnal version of the hand tracking system is a

version of the previous algorithms that only follows one single region. The main reason

is that it is easier for the players only focus their attention in moving a single body part.

Consequently, it is not necessary to follow several parts of the body at the same time.

The heuristic to obtain the movement of a single body part consists in deﬁning a

region in the calibration stage and extracting the motion of the most important group

of connected components that deﬁne a moving region. This reduces substantially the

computational burden and increases the robustness of the algorithms, which facilitates

the use of the games by the patients, beneﬁting the playing experience.

Hand Tracking. For tracking the hands movements, that is, following their motion

through time ﬁltering out the errors in the localization, a Kalman ﬁlter with a constant

acceleration dynamical model is employed to predict the movement of the tracked coor-

dinates. In this model the state transition matrix controlling the dynamics of the moving

element is deﬁned as an identity matrix with another block formed by another identity

matrix half the size of the ﬁrst one and located in the upper-right side of the matrix.

Kalman ﬁlters are used to stabilize and track all the candidate regions found in the

image, described as rectangles containing a body part (hands) or points (head). Differ-

ent levels of ﬁltering were deﬁned corresponding to three types of velocities for the

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

Fig.17. Hand location and tracking. These images represent a sequence where detected regions

are corresponded to head (red), left (blue) and right (red) hands.

moving elements (slow, medium and high). In the case of tracking points, the number

of dimensions of the ﬁlter state and measurements are 4 and 2, respectively. New mea-

surements (x, y ) are fed into the ﬁlter to update the ﬁlter state and the state is composed

of potion and velocity coordinates (x, y, v

, v

). For tracking rectangles, the measure-

ment is performed on the coordinates that deﬁne the rectangle, (x, y, w, h), where the

point (x, y) corresponds to the upper left corner of the rectangle and (w, h) are width

and height dimensions. The state vector is deﬁned with this coordinates and the corre-

sponding velocities, that is, (x, y, w, h, v

, v

5 Conclusions

In this article we introduced the FP7 European project GAME-ABLING aiming to de-

velop a platform for creating games by non-expert users for people with Cerebral Palsy

(CP) disorder. The ultimate goal of the project is to increase the quality of life and

motor movements of CP patients through various games. The games are played by dif-

ferent devices such Nintendo Wii balance board, Wiimote, keyboard, mouse, joystick

and, more importantly, cameras. The idea behind using cameras is to control the games

using hand and head movements and, consequently, to increasingly and unawares en-

gage the patients in physical activities. CP patients have some speciﬁc characteristics

that make difﬁcult to use straightforwardly available game controls. Due to motor and

cognitive restrictions, CP patients have few control on their body movements and tend

to cover their face during the games. Taking this conditions into account, we developed

two different approaches for analyzing hand movements and head posture. The over-

all outcome of the project has been positive, with all the goals achieved. Speciﬁcally,

CP users can effectively control the games that are created by their caregivers. Also the

acceptation of the users that have played with this platform has been positive. Neverthe-

less, the creation of tools for the inclusion of groups with severe motion and cognitive

restrictions is still a work in progress that requires more attention by the research com-

munity.

GAME-ABLING: Platform of Games for People with Cerebral Palsy

Fig.18. GAME-ABLING logo and members of the consortium.

Acknowledgements. This project was funded by the EU FP7 Program within the gran

agreement for Research for the Beneﬁt of Speciﬁc Groups with grant number 315032.

We would also like to thank the work and help provided during the execution of this

project by the staff at the Associaci

o Provincial de Par

alisi Cerebral(APPC) in Tarrag-

ona, Spain.

References

1. Erik Murphy-Chutorian, Mohan Manubhai Trivedi, ”Head Pose Estimation in Computer Vi-

sion: A Survey”, IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 31,

No.4, 2009

2. Kevin Bailly, Maurice Milgram, ”Head Pose Determination Using Synthetic Images”, 10th

International Conference on Advanced Concepts for Intelligent Vision Systems, Springer,

2008

3. Vineeth Nallure Balasubramanian, Jieping Ye, ”Biased Manifold Embedding: A Framework

for Person-Independent Head Pose Estimation”, Conference on Computer Vision and Pattern

Recognition, IEEE, 2007

4. Bisser Raytchev, Ikushi Yoda, Katsuhiko Sakaue, ”Head Pose Estimation by Nonlinear Man-

ifold Learning ”, 17th International Conference on Pattern Recognition, IEEE, 2004

5. Mikhail Belkin, Partha Niyogi, ”Laplacian Eigenmaps for Dimensionality Reduction and

Data Representation”, Journal of Neural Computation, vol.15, 2003

6. Joshua B. Tenenbaum, Vin de Silva, John C. Langford, ”A Global Geometric Framework for

Nonlinear Dimensionality Reduction”, Journal of Science, vol.290, No.5500, 2000

7. Matthias Straka, Martin Urschler, Markus Storer, Horst Bischof, Josef A. Birchbauer, ”Per-

son Independent Head Pose Estimation by Non-Linear Regression and Manifold Embed-

ding”, 34th Workshop of the Austrian Association for Pattern Recognition, 2010

8. Erik Murphy-Chutorian, Mohan Manubhai Trivedi, ”Head Pose Estimation and Augmented

Reality Tracking: An Integrated System and Evaluation for Monitoring Driver Awareness”,

IEEE Transactions on Intelligent Transportation Systems, vol.11, No.2, 2010

9. Kevin Bailly, Maurice Milgram, Philippe Phothisane, ”Head Pose Estimation by a Stepwise

Nonlinear Regression”, 13th International Conference on Computer Analysis of Images and

Patterns, Springer, 2009

10. Teodora Vatahska , Maren Bennewitz , Sven Behnke, ”Feature- based Head Pose Estimation

from Images”, 7th IEEE-RAS International Conference on Humanoid Robots, IEEE, 2007

11. Pedro Martins, Jorge Batista, ”Accurate Single View Model-Based Head Pose Estimation”,

8th IEEE International Conference on Automatic Face and Gesture Recognition, IEEE, 2008

EPS Berlin 2015 2015 - European Project Space on Computer Vision, Graphics, Optics and Photonics

12. Pedro Martins, Jorge Batista, ”Monocular Head Pose Estimation”, 5th international confer-

ence on Image Analysis and Recognition, Springer, 2008

13. Jrgen Ahlberg, ”Candide3 An Updated Parameterized Face”, Deptartment of Electrical En-

gineering, Linkping University, 2001

14. Viola P., Jones M., ”Rapid Object Detection Using a Boosted Cascade of Simple Features”,

Conference on Computer Vision and Pattern Recognition, IEEE, 2001

15. Danijela Vukadinovic, Maja Pantic, ”Fully Automatic Facial Feature Point Detection Using

Gabor Feature Based Boosted Classiﬁers”, International Conference on Systems, Man and

Cybernetics, IEEE, 2005

16. Guoying Zhao, Matti Pietikainen, ”Dynamic Texture Recognition Using Local Binary Pat-

terns with an Application to Facial Expressions”, IEEE Transactions on Pattern Analysis and

Machine Intelligence, 2007

17. T.F. Cootes, C.J. Taylor, D.H. Cooper, J. Graham, ”Active shape modelstheir training and

application”, Journal on Computer Vision and Image Understanding, Elsevier Science, 1995

18. Marc CHAUMONT, Brice BEAUMESNIL, ”Robust and Real-Time 3D-Face Model Extrac-

tion”, International Conference on Image Processing, IEEE, 2005

19. Daniel F DeMenthon, Larry S Davis, ”Model Based Object Pose in 25 Lines of Code”,

International Journal of Computer Vision, vol.15, 1995

20. La Cascia, M., and Sclaroff, S., ”Fast, Reliable Head Tracking under Varying Illumination:

An Approach Based on Robust Registration of Texture-Mapped 3D Models”, IEEE Trans-

action on Pattern Analysis and Machine Intelligence, Vol. 22, No. 4, 2000,

21. M.F. Valstar, M. Pantic, Induced Disgust, Happiness and Surprise: an Addition to the MMI

Facial Expression Database, Proceedings of the International Language Resources and Eval-

uation Conference, Malta, May 2010

22. M. Pantic, M.F. Valstar, R. Rademaker and L. Maat, Web-based database for facial expres-

sion analysis, Proc. IEEE Int’l Conf. on Multimedia and Expo (ICME’05), Amsterdam, The

Netherlands, July 2005

23. Chang Chih-Chung, Lin Chih-Jen, ”A library for support vector machines”, ACM Transac-

tions on Intelligent Systems and Technology, vol.2, issue 3, 2011

24. Sukwon Choi, Daijin Kim, ”Robust head tracking using 3D ellipsoidal head model in particle

ﬁlter”, Pattern Recognition, vo.41, issue 9, Elsevier, 2008

GAME-ABLING: Platform of Games for People with Cerebral Palsy
