MOF-VM: Instantiation Revisited

Terje Gjøsæter, Andreas Prinz and Jan P. Nytun

Faculty of Engineering & Science, University of Agder, Grimstad, Norway

Keywords:

Model Driven Architecture, Meta-Modelling, Instantiation.

Abstract:

The Model-Driven Architecture (MDA) is based on an understanding of a hierarchy of levels that are placed

on top of each other and that are connected with instantiation. For practical MDA use, it is important to be

clear about the kinds of objects that reside on the different levels and the relations between them as well as

relations to objects outside of the MDA domain. This article aims at enhancing the understanding of these

objects and relations by relating them to a virtual MOF machine.

1 INTRODUCTION

Modelling and metamodelling are trendy, and there

are several tools supporting it. Everyone knows the

important concepts in this area. However, during dis-

cussions with practitioners of MDA it becomes clear

that in some circumstances, the details of the under-

standing can differ, even among experts. This is most

often caused by differences in the way the concepts

are related to each other and to real scenarios. This

article aims at clarifying the concepts and their con-

nections, with particular focus on instantiation.

OMG has put forward the idea of a model-driven

architecture (MDA). Both MOF and UML are con-

sidered the key languages of the MDA, but the gen-

eral MDA setup includes also other languages. MDA

is based on an understanding of a four-level hierar-

chy of abstractions. The lowest level, called M0, is

traditionally reserved for concrete objects. The next

level (M1) is devoted to the models that describe those

objects. On top of M1 there is a level describing

how models are formed, which is a meta-model level,

called M2. Finally, the architecture is closed with a

level M3 (meta-meta-model) that is supposed to de-

scribe M2 as well as describing itself.

The basic and important relation between levels

is instantiation, i.e., the lower level is an instance of

the upper level. The relation between M1 and M2 is

the same as the relation between M2 and M3. In the

same style, also the self-referencing relation between

M3 and M3 (where the second M3 is used in the place

of M4) is of the same nature. It appears that the rela-

tion between levels is essentially the well known type-

element pattern (also known as set-element pattern),

see also (Favre, 2004). This is the relation between

deﬁnition and use, which is also the classical “meta”-

relation as for example stated in (Bézivin and Gerbé,

2001). The v2.4.2 MOF speciﬁcation also emphasises

this in (Editor, 2014):

“Note that key modeling concepts are Clas-

siﬁer and Instance or Class and Object, and

the ability to navigate from an instance to its

metaobject (its classiﬁer). This fundamental

concept can be used to handle any number of

layers (sometimes referred to as metalevels).

The MOF 2 Reﬂection interfaces allow traver-

sal across any number of metalayers recur-

sively.”

From a tool developer’s perspective it may even be

beneﬁcial to treat all levels and level transitions the

same way and disregard their absolute numbering, as

proposed in (Mu et al., 2010).

1.1 Motivation

Although this architecture looks quite simple and

clear to start with, there is ongoing discussion to

change the architecture and its basic understanding, as

evidenced by (Atkinson, 1997; Atkinson and Kühne,

2000; Atkinson and Kühne, 2002; Atkinson and

Kühne, 2003; Atkinson and Kühne, 2005; Bézivin

and Gerbé, 2001; Eriksson et al., 2013; Favre, 2004;

Gitzel et al., 2007; Hesse, 2006; Kühne, 2006). From

this, the basics of meta-modelling and instantiation

appear far from clear. Beginners, casual users and ex-

perts of MDA and UML lack a common understand-

ing of the nature of the levels as well as their rela-

tion to each other in terms of instantiation. In particu-

lar, this is a problem when real objects are concerned.

Gjøsæter, T., Prinz, A. and Nytun, J.

MOF-VM: Instantiation Revisited.

DOI: 10.5220/0005606101370144

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 137-144

ISBN: 978-989-758-168-7

137

This leads to discussion about which level entities be-

long to, for example those of Fig. 1.

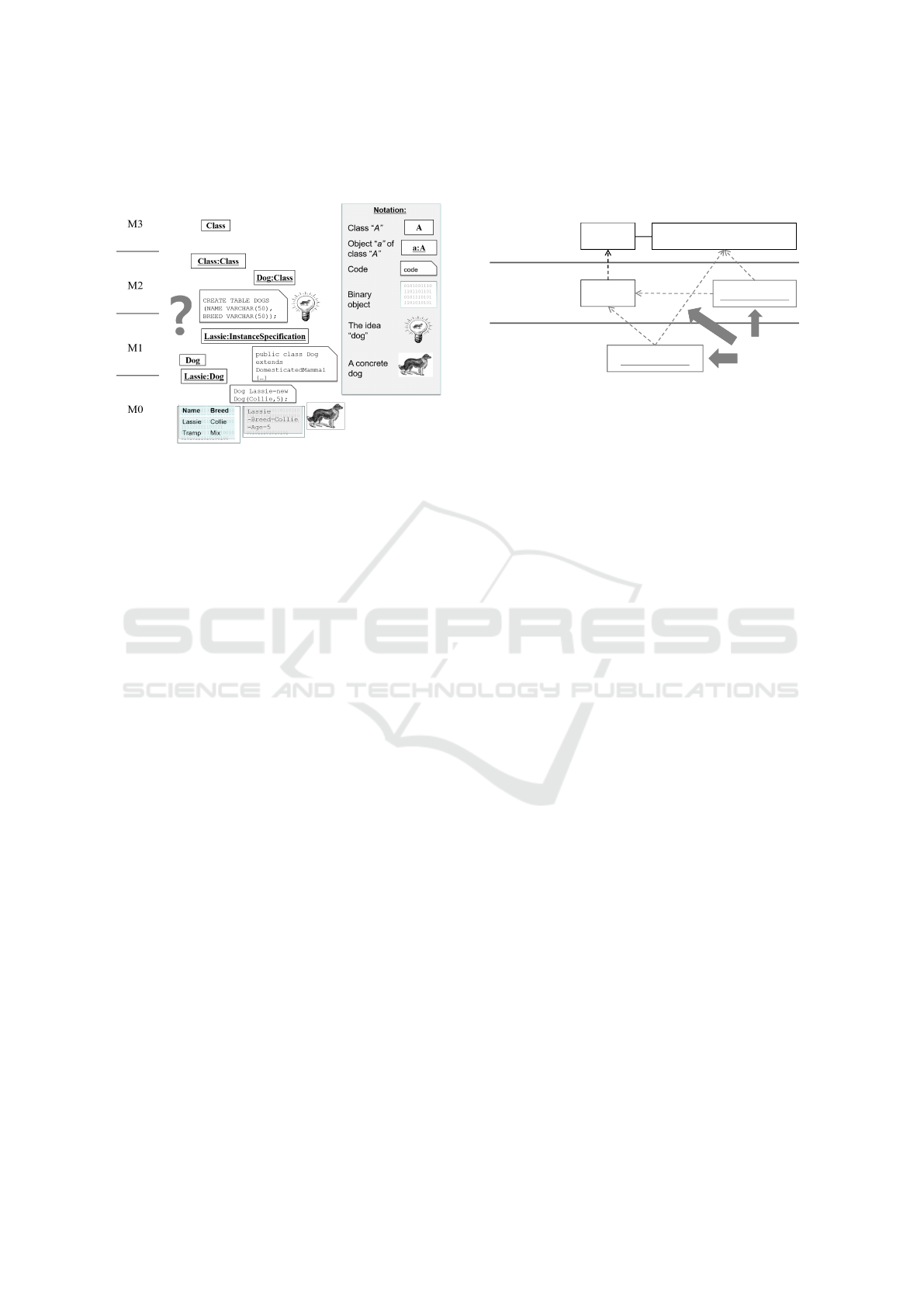

Figure 1: Where do the different entities belong?

Similar questions are easily answered for pro-

gramming languages, but are difﬁcult in a UML set-

ting when UML is used for sketching and documen-

tation in addition to code generation. Using UML

in such a descriptive style relates to the ﬁrst matu-

rity level (Kleppe and Warmer, 2003) of model-driven

technology. However, the current trend is to approach

higher maturity levels, such that models will be used

more and more prescriptively (modelling as program-

ming). This is also the basis for our approach.

1.2 Problem Statement

We use the following questions to clarify the issues

with instantiation and some of their implications.

1. How do UML instances relate to MDA instances?

2. How does reality relate to the modelling?

3. How do binary objects relate to the modelling?

4. What is the nature of M0?

5. How to formalise the semantics of the MDA?

6. How to deﬁne the semantics of instantiation?

The ﬁrst four questions are important for users of

UML and other MDA-based languages, while the last

two are more relevant for language developers. In the

following, we explain these questions in more detail.

How do UML instances relate to MDA instances?

UML allows to specify instances by using the

InstanceSpecification meta-class of its meta-

model, see also Fig. 2 for an example. Similarly, it

is possible to specify a class using UML’s meta-class

Class. Additionally, one may specify an instanceOf

relation between an instance and a class. Since we as-

sume that a UML speciﬁcation resides at one level

only, then this last mentioned instantiation contra-

dicts the idea of instantiation being a cross-level con-

cern. Fig. 2 visualises the dilemma where instance

10.08.2012

Class

Figure 2: problem.pdf

UML

InstanceSpecification

Person

UML Model

Ann:Person

Model Instance

New Version

Ann:Person

Figure 2: Problem with the OMG level architecture.

Ann:Person is an instance of class Person and con-

sequently placed on M0, but since Ann:Person is also

an instance of InstanceSpecification it should be

placed on M1.

It appears that we look at two kinds of instantia-

tion, one deﬁned in UML as a relation instanceOf and

one given by MDA as the level crossing instantiation

relation. Some authors (Eriksson et al., 2013; Hesse,

2006; Kühne, 2006) call the UML relation for onto-

logical instantiation while the MDA relation is called

linguistic instantiation.

How does reality relate to the modelling?

Models are normally related to a reality, and it is

not too obvious how this connection is done with the

MDA. One approach is to consider the level M0 to

hold the real objects, which makes this level incon-

sistent with the other levels. If, however, reality is

placed outside of the stack, the question remains how

the relation to reality is achieved.

How do binary objects relate to the modelling?

All entities that are handled by the MDA, and all

model elements given by the various models in the ar-

chitecture are abstract entities. In the computer they

normally appear as objects in some programming lan-

guage, or as some bits. But how do the model ele-

ments match with the realities in the computer?

What is the nature of M0?

M0 is special, since it is the lowest level and does

not enable further instantiation. How is M0 compat-

ible with the other levels? Does it contain model in-

stances, run time objects or real-world objects? Does

it have any practical purpose at all except as a theo-

retical concept?

How to formalise the semantics of the MDA?

With a powerful platform like MDA and powerful

languages like UML and MOF it is natural to think

of capturing the semantics of the platform itself us-

ing the MDA and its languages. However, such an

endevaour is tricky, since it is not clear what is being

deﬁned and what is being used.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

138

How to deﬁne the semantics of instantiation?

The MDA is about languages. MOF allows to de-

ﬁne the abstract syntax of languages; and with these

syntaxes, speciﬁcations and models can be created.

However, it is also important to make clear which

concepts of the language can be instantiated and how.

How can we specify that classes can be instantiated,

but packages cannot? How can a language designer

specify what the intended instantiation should be?

This problem is sometimes attempted solved with

multi-level instantiation (Atkinson and Kühne, 2001).

1.3 Structure of this Article

We continue this article with Section 2 containing

deﬁnitions of the relevant main concepts of meta-

modelling. In Section 3, we look at the issues given

in Section 1 and provide a solution to them. Finally,

we summarise in Section 4.

2 LEVELS AND INSTANTIATION

To better understand the questions, we will look at the

basic deﬁnition-use pattern behind instantiation. Af-

terwards, we look at the general understanding behind

the idea of modelling levels and ﬁnally we consider

relations between levels and realities inside and out-

side the computer. Note that we are concerned with

semantics of instantiation, semantics of runs is out-

side the scope of this article.

2.1 Deﬁnition and Use

Computer objects can be classiﬁed according to the

notion of modelling time (the time of deﬁnition) and

run time (the time of use). The modelling (descrip-

tion) time is when the model is created. At this time,

the model is changeable by tools.

A computer model deﬁnition is the description of

all possible structures that may exist during run time

of the model. After modelling time, the model is con-

sidered ﬁxed, and it may then be used at run time.

The things deﬁned in the model come to life. Use of

the model is the selection of one of the possible struc-

tures from the model, e.g. by taking a snapshot of the

running model.

Most often, there are tools between these two

phases, the most obvious one being a compiler. An

interpretive approach could open up for changes in

the deﬁnition at run time. Still, also in this case the

description has to be created before it can be used.

This deﬁnition-use pattern, also known as type-

element pattern, is a very basic pattern for program-

ming, forming the foundation for patterns such as

object-oriented programming (see Fig. 3).

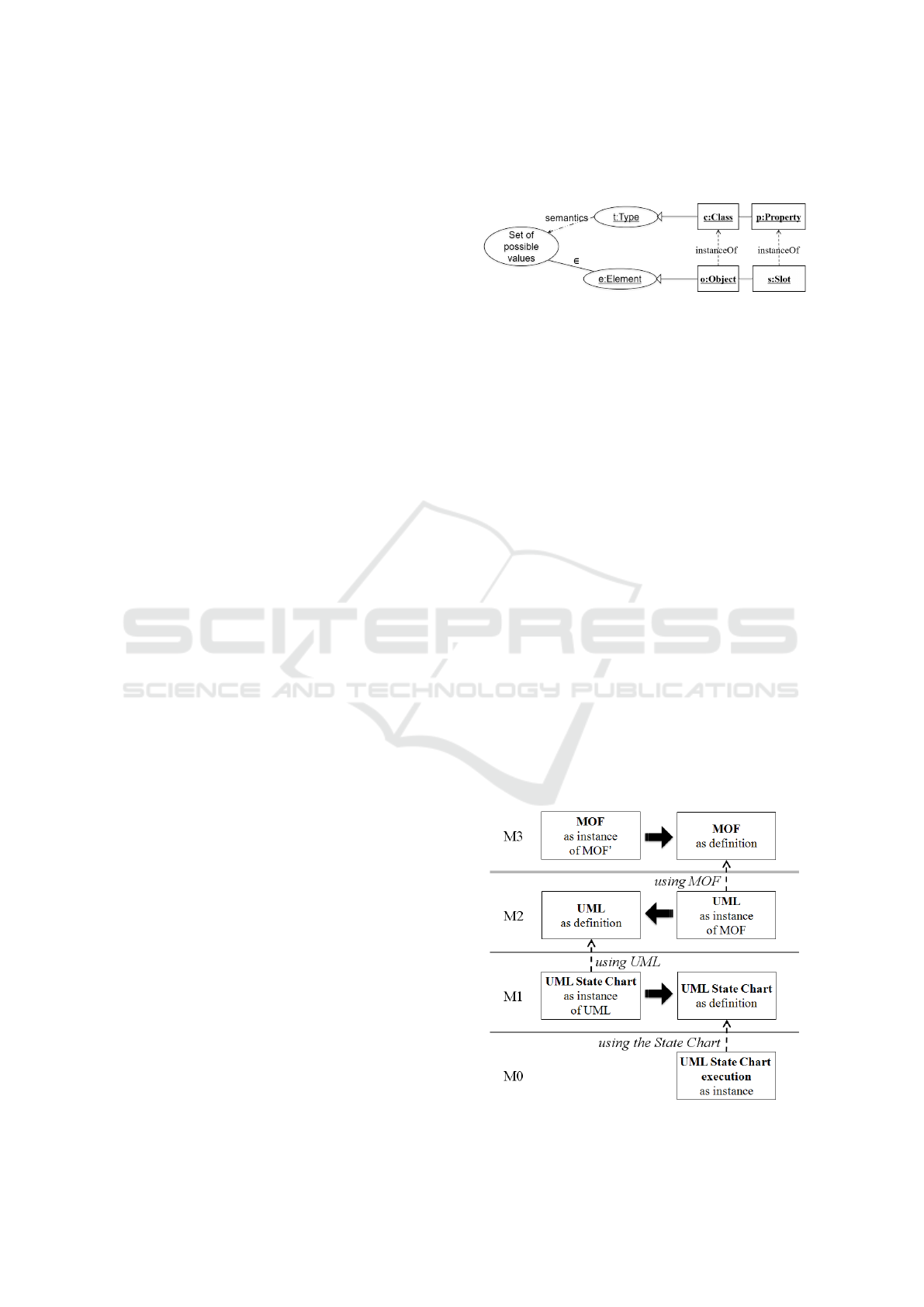

Figure 3: The type-element pattern and object-orientation.

The type-element pattern emerged already in the

very ﬁrst days of computers establishing a distinction

between a deﬁnition (the code) and the use of it on ob-

jects (data). In modern computers this is ﬁxed to the

extent that it is even manifest in operating systems:

There are codepages (read only), and data pages.

We want to highlight the following three points.

• Execution (use) of the model is a goal, and mod-

elling (deﬁnition) is a stage to make execution

possible. However, execution cannot be achieved

directly; a description to be executed is needed.

• The distinction between modelling time and run

time is not that sharp, since the deﬁnition has to

exist at use time in some form.

• The connection between deﬁnition and use is

given by a semantic function, associating the def-

inition with a set of possible uses. The semantics

of a deﬁnition (type) is a set, and a use (element)

is an element of this set (Fig. 3).

The same distinction is used in the OMG stack,

with one more extension. Here, deﬁnition as well

as use refer to roles, not to absolute properties. This

means that the same entity can be both use and deﬁ-

nition depending on context,

Figure 4: Deﬁnition and use related to modelling levels.

MOF-VM: Instantiation Revisited

139

as depicted in Fig. 4 by the solid arrows. The

relation between deﬁnition and use is the essence of

the relation between adjacent levels. The deﬁnition of

a program on M1 is related to a use (a run) on level

M0. The deﬁnition of a language on M2 is used for

(the deﬁnition of) a program on M1. Finally, the def-

inition of a meta-language on M3 is used on the level

M2. Please note that the elements on M2 and M1 are

used to deﬁne elements on the next lower level. This

is possible since they function as a deﬁnition in one

context and as a use in another context. When we

look at the different roles in the OMG stack (Fig. 4),

then it becomes obvious that the relation between two

adjacent levels is based on the deﬁnition-use pattern.

Often, it is also required that a level boundary is the

only place for the deﬁnition-use pattern, leading to a

property known as strict meta-modelling. Strict meta-

modelling deﬁnes linear meta-model hierarchies, see

(Atkinson and Kühne, 2002; Gitzel et al., 2007).

When dealing with meta-levels to deﬁne lan-

guages there is a double deﬁnition-use pattern of three

levels that has to be taken into account: the lan-

guage speciﬁcation (meta-model), the user speciﬁca-

tion (model), and objects of the model (instances).

This structure forms a pattern that can be applied

recursively to raise an arbitrary number of levels.

MOF is also subject to this 3-level-schema and in the

four-level meta-model hierarchy, MOF is commonly

referred to as a meta-meta-model, even though strictly

speaking it is a meta-model. So the underlying pat-

tern of the MDA is a repetition of this 3-level-schema:

M0-M1-M2, M1-M2-M3, M2-M3-M3.

2.2 MDA and the MOF-VM

A running MOF implementation has to represent

classes and objects at run time and preserve connec-

tions between them, allow creation of objects based

on class/type and provide information about model

elements on request. For a general discussion of im-

plementations of MOF and the MDA architecture in a

platform, we would like to introduce the concept of an

abstract MOF Virtual Machine (MOF-VM) as the core

of such a system. Just like a Java speciﬁcation comes

to life in a Java Virtual Machine, a MOF speciﬁca-

tion comes to life in the MOF-VM. Java classes are

mostly mapped 1:1 to corresponding JVM classes, but

they are not identical. The same is the case for MOF

classes versus classes in the MOF-VM. For deﬁning

a MOF class, we use the MOF language in an appro-

priate editor, but to execute it (e.g. instantiate it), we

need to use the corresponding class in the MOF-VM.

The essence of the level-crossing relation in MDA

is the instantiation, as given by the class-object rela-

tion and implemented in the MOF-VM. Fig. 3 shows

how this is a special case of the type-element pattern.

In (Rumbaugh et al., 2005) James Rumbaugh et al.

describe instantiation as the creation of new instances

of model elements, where the instances are the result

of primitive create action(s) or creation operation(s).

“Usually, each concrete class has one or more

class-scope (static) constructor operations, the

purpose of which is to create new objects of

the class. Underlying all the constructor oper-

ations is an implicit primitive operation that

creates a new raw instance that is then ini-

tialised by the constructor operation...”

This implicit primitive operation mentioned is

the core of MOF-VM, denoting the relation between

Class and Object considered as type and element, not

the UML or MOF classes and objects.

Instantiation spans a relation between something

instantiable and an instance. When the instance is es-

tablished, the speciﬁcation may be seen as a descrip-

tion of it, i.e., the instance ﬁts the description. The

term description is here used in a type-like fashion.

The instance may ﬁt many descriptions and the term

instanceOf can be used even if the description was

not used when the instance was created.

Since in MDA all objects are deﬁned using

classes, which again are objects themselves, the most

natural thing to do is to deﬁne a hierarchy of these

objects related to the MOF-VM instantiation.

2.3 MOF-VM Notation

After having deﬁned the object-oriented point of view

as reﬂected in the MOF-VM, we have also deﬁned the

boundaries of our world. The computer contains ob-

jects deﬁned by classes, and that’s all. Because of this

very simplifying view, we can now consider every-

thing in the computer as an object. That means that

we may do two things: ﬁrstly, we may represent (in-

ternally) all objects uniformly, and secondly we may

present (externally) all objects uniformly. Both are

possible with the introduction of the MOF-VM.

The object-oriented point of view of MOF-VM

does not have a concrete notation. It is just an ab-

stract meta-structure giving an understanding of the

world. The case of representing elements of an

object-oriented system or platform such as the MOF-

VM, has been handled in (Nytun, 2010).

A MOF-VM notation allows the MOF-VM to uni-

formly present classes and objects of arbitrary lan-

guages. The language UML provides a convenient

notation for both objects and classes as well as for

the relation between them. Because of this, it is of-

ten used as a MOF-VM notation. Like Java may be

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

140

used as a notation to present objects in the Java Vir-

tual Machine during run time, we may choose to use

UML to present elements of the MOF-VM during run

time too. It is essential to note that UML is outside

the four-level MDA architecture when it is used as a

MOF-VM notation.

2.4 Meaning and Realisation

We will now look at the meaning of the models. In

(Kühne, 2006) it is claimed that the meaning of class

Collie is the concept of collie, and the meaning of

Lassie is a particular dog. Of course, this is a com-

mon idea and not unusual in a UML context. How-

ever, deﬁning the meaning like that is not as easy as

it looks. As there are different ideas of the concept

collie, the meaning would not be ﬁxed in the sense

that we all agree on the meaning. The same is true

for Lassie, several dogs have played the role of being

Lassie – which of those is then the meaning of Lassie?

Both the concrete dog and the collie concept are just

possible meanings. Therefore, we prefer to use the

word interpretation, rather than meaning.

So we distinguish between an individual meaning

of a model element, which we call interpretation, and

a common meaning of a model element, called se-

mantics. The semantics is the intersection of all con-

sistent interpretations, such that each consistent inter-

pretation is a special case of the semantics. Another

way of formulating this is considering the semantics

to be the set of all consistent interpretations on an ap-

propriate level of abstraction.

While the semantics dimension is primarily con-

cerned with reality outside computers, the realisa-

tion dimension, as introduced by Jean-Marie Favre in

(Favre, 2003) is concerned with reality inside com-

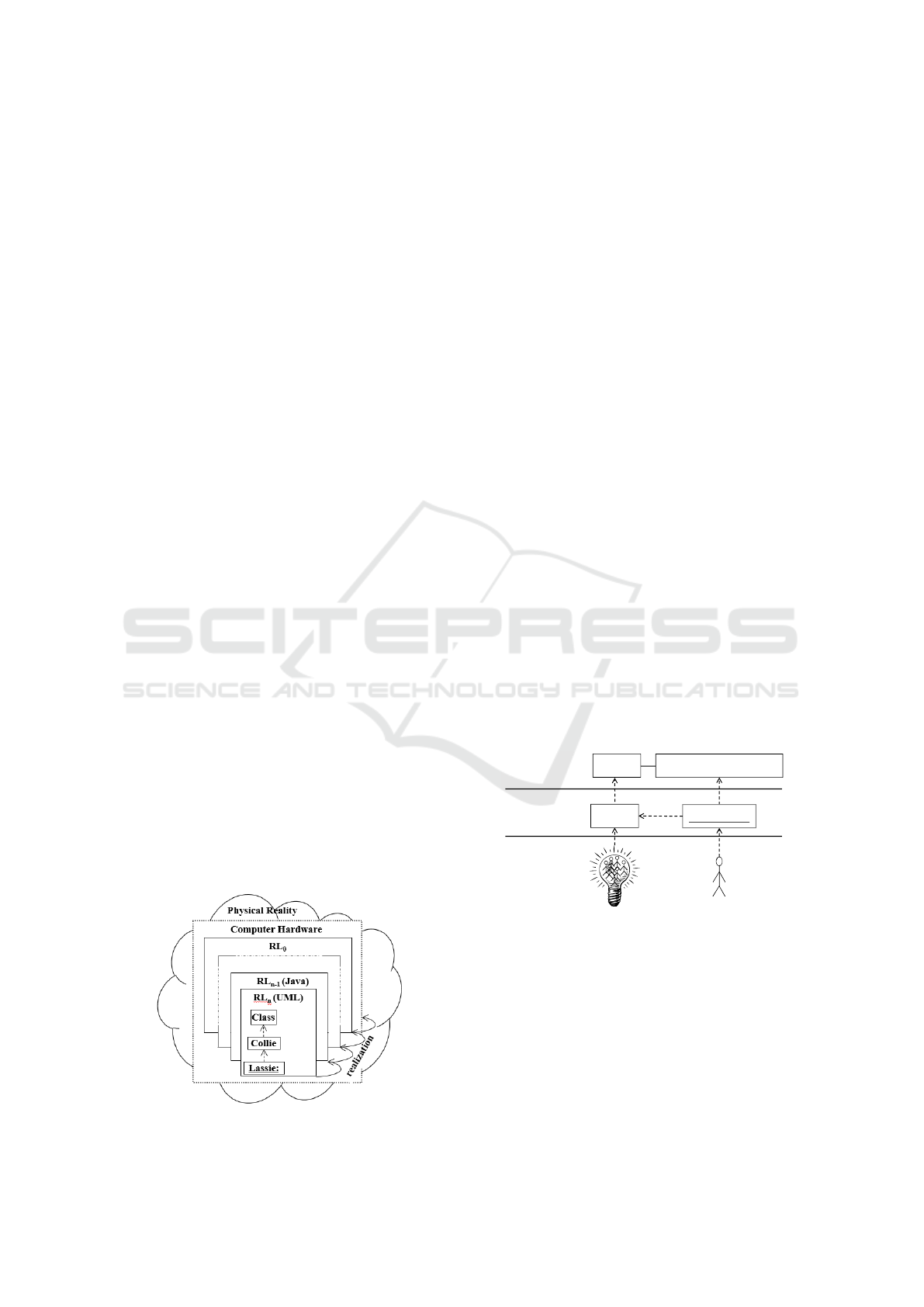

puters. In Fig. 5, we use a cloud to show the physical

reality. Abstractions are embedded as squares into it,

indicating realisation levels. There are several layers

of realisations, which represent different levels of ab-

Figure 5: Realisation levels.

straction of reality. For example, it is possible to un-

derstand a UML instance on the level of UML or on

the level of the implementation language Java or on

the level of Java byte-code, or as bits and so on. To

come from one realisation layer to the next it is usu-

ally necessary to perform a compilation or execution.

These processes continue until the physical reality is

met. While a ﬁnal compilation to machine code gives

direct execution by the physical processor (or proces-

sors), software interpreters may execute code given

on a higher level of abstraction.

3 SOLUTIONS

We will use the deﬁnitions of Section 2 to answer

each of the questions of Section 1, and in particular

the paradox related to InstanceSpecification and

M0. For each question, we will provide a short and

concise answer, and then discuss alternative views.

How do UML instances relate to MDA instances?

Concerning InstanceSpecification, they are

objects like any other, but showing an instanceOf re-

lation to a UML class. Concerning MOF-VM in-

stances, they are in a type-element relationship with

their corresponding MOF-VM class, shown with the

same notation.

The problem of Fig. 2 is a known problem, and

there have been several proposals to solve it. A com-

mon solution seems to be the one described in (Atkin-

son and Kühne, 2003), which is illustrated in Fig.

6. This solution basically moves the model elements

10.08.2012

Figure 3: solution.pdf

Class

InstanceSpecification

Person

Ann:Person

UML

UML Model

Model Instance

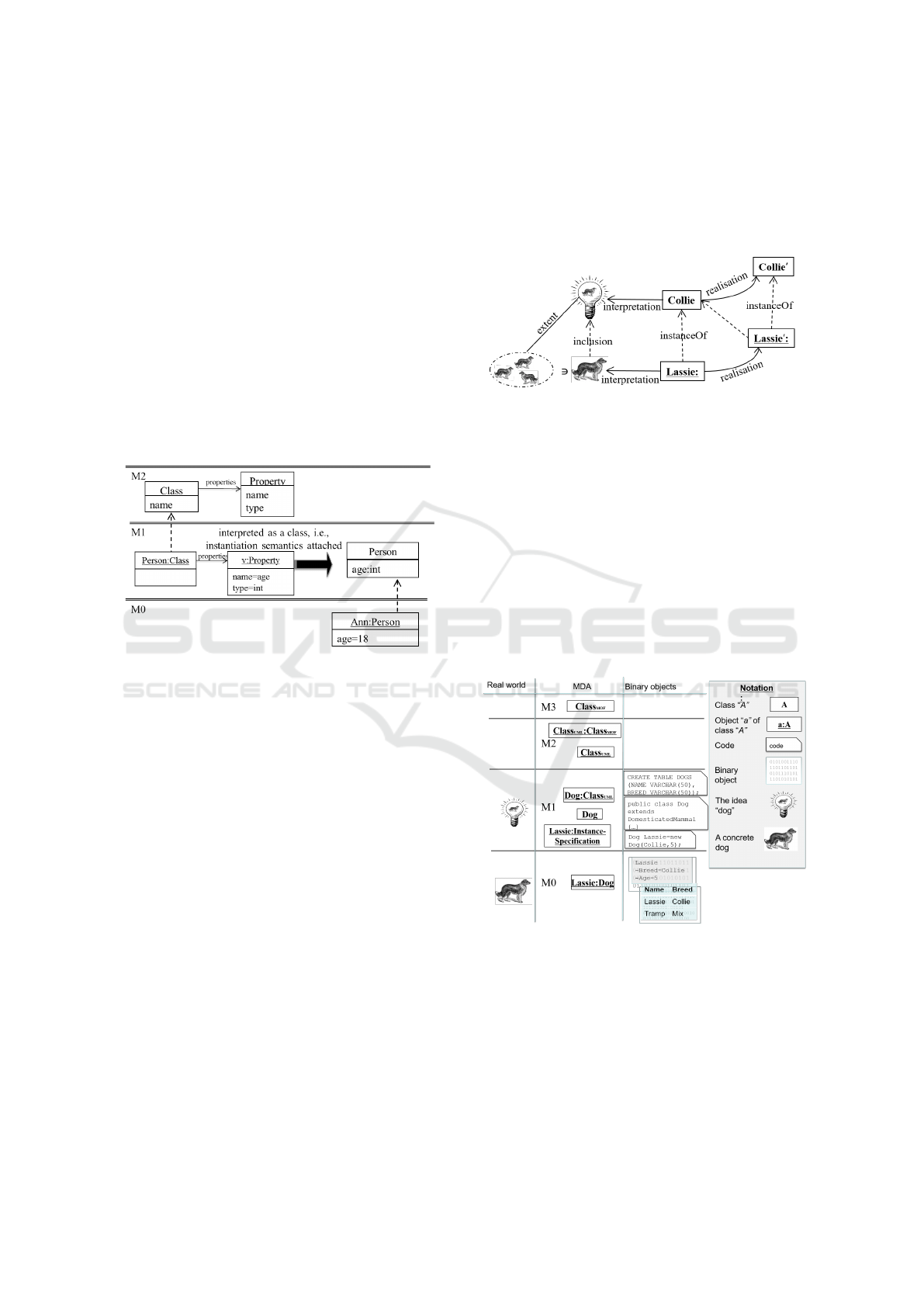

Figure 6: The UML 2.0 and MOF2.0 standards solution of

the problem according to (Atkinson and Kühne, 2003).

from M0 into M1 and sees M0 as composed of real

world objects and by this M0 has been removed from

the meta-model stack. In this view M1 is seen as com-

posed of two levels: One for user classes and one for

models of objects of these classes. This allows the in-

stanceOf -relation between user classes and their ob-

jects to be explicitly modelled at the M2 level and

then explicitly shown at the M1 level. This view is

also advocated in (Wikipedia, 2015).

MOF-VM: Instantiation Revisited

141

This solution solves the problem with the

InstanceSpecification, but it breaks the symme-

try and beauty of the original MDA approach, e.g., it

obscures seeing one level as description of sets with

corresponding elements of these sets at the next lower

level in the overall architecture. Moreover, it leads

to serious problems when one wants to use modelling

for languages (one level up).

An object on M0 could be presented by using

the same syntax as used when showing instances of

InstanceSpecification at M1 – this may confuse

some users since there could be two entities on two

different levels looking exactly the same. However,

such two entities are not the same, they are funda-

mentally different and only look the same because the

UML-based MOF-VM notation used for displaying

elements on M0 is similar to UML.

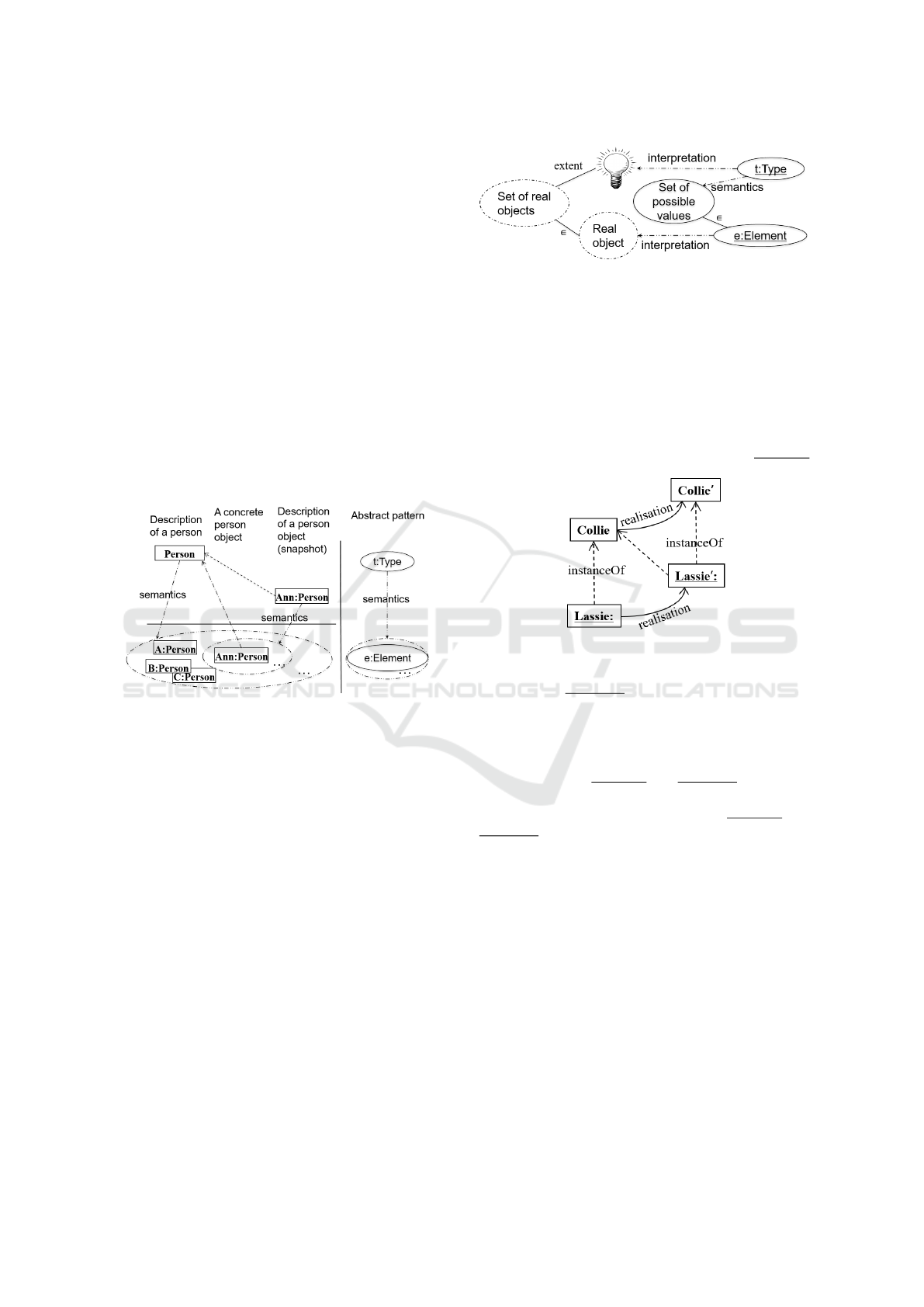

Fig. 7 illustrates our understanding of instantiation

as related to the MOF-VM. The semantics of class

Figure 7: Semantics - from element to set.

Person on M1 (in UML) is a set of Person objects.

On M0, the Ann:Person object (in MOF-VM nota-

tion) is an element in this set, and can be interpreted

as referring to one concrete person. The abstraction of

the concrete person would be the object on M0. On

the right, we see how this instantiation corresponds to

the abstract pattern of Type and Element. In MOF-

VM, types are classes with properties and elements

are objects with slots.

It is important to distinguish between two types of

instantiation: level-crossing (linguistic) instantiation

in the sense of the MOF-VM, and language-deﬁned

(ontological) instantiation as for example given in

UML using InstanceSpecification. Ontological

instances relate to their deﬁnition by means of an in-

terpretation, or semantics.

How does reality relate to the modelling?

Model and reality are related through interpreta-

tion, see Fig. 8.

Models cannot relate to reality through language

semantics, since language semantics is given on the

level of language and not for the speciﬁcation. It is

Figure 8: Interpretation and semantics.

also not possible that reality is in M0 via instanceOf,

see the discussion of the nature of M0.

How do binary objects relate to the modelling?

Realisation means to create a concrete instance of

the abstract MOF-VM. This belongs to the implemen-

tation dimension, and is not part of the MDA stack.

Fig. 9 shows the relation between realisation and

instantiation. Lassie, a real-world object of type Col-

lie is being modelled. The abstract instance Lassie:

Figure 9: Realisation and instantiation.

is realised as Lassie

: through compilation into ex-

ecutable form, and Collie is realised as Collie

Collie

may or may not be explicitly deﬁned. In

this sense, not realisation objects, but their abstrac-

tions are inside the MDA stack.

Conceptually, Lassie: and Lassie

: are located

on the same meta-level (Collie and Collie

are on

the same meta-level above). However, Lassie: and

Lassie

: are on different realisation levels.

What is the nature of M0?

M0 contains linguistic instances of M1 classes.

As discussed in Section 2, the relation between

M1 and M0 is the deﬁnition-use relation. However,

M0 is special since it may only contain terminal el-

ements – no further instantiation is possible and this

makes M0 the lowest level. This agrees with the ideas

in (Bézivin and Gerbé, 2001; Favre, 2003; OMG Ed-

itor, 2011; Tony Clark and Williams, 2004).

The real-world objects do not reside on level M0

as advocated by e.g. (Eriksson et al., 2013; Skene,

2007). Instead, an interpretation relates the instances

to the real objects.

How to formalise the semantics of the MDA?

The semantics of the MDA can be formalised by

speciﬁcation of the MOF-VM as semantics of MOF.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

142

The MOF speciﬁcation (Editor, 2014) speciﬁes a

“MOF-VM”. MOF and the MOF-VM are deﬁned us-

ing features that belong to UML. This facilitates a

possible misunderstanding that these features belong

to MOF and are re-used from MOF in UML.

The MDA stack cannot be deﬁned using MOF,

because the semantics of the multi-level MDA archi-

tecture has to be deﬁned by something existing out-

side the architecture itself. MOF as a language exists

within the levels of this architecture and is bound by

it. However, a UML-like notation may be used to de-

note elements of the architecture. Similarly, the MOF

semantics can be used to deﬁne the MDA semantics.

How to deﬁne the semantics of instantiation?

The semantics of instantiation is deﬁned by map-

ping language instances to MOF-VM classes in order

to use the built-in instantiation from MOF-VM.

Figure 10: Giving instantiation semantics.

The semantics (or meaning) of instantiation is es-

sentially the relation between deﬁnition and use. In

Fig. 10 this is shown in more detail than in Fig. 4.

Instantiating class Class gives an object; more gen-

erally, in this architecture instantiating a model gives

an object structure composed of objects with slots and

links between the objects. This instantiation is possi-

ble because class Class is instantiable. The instantia-

tion itself is given by MOF-VM.

To make instances of class Class also instantiable,

for example for the object Person:Class, a rela-

tion to MOF-VM instantiation has to be established.

In particular, Person:Class has to be marked as a

MOF-VM Class having its attributes as MOF-VM

Properties. This turns the object structure Person into

a MOF-VM type. After this relation is established,

Person has instantiation semantics, i.e., it can be in-

stantiated at the next lower level.

4 SUMMARY

In this article, we have taken some questions and is-

sues with a lack of a common understanding among

students and practitioners of the MDA. We have at-

tempted to clarify them and recommend beneﬁcial

approaches, based on careful examination of related

languages, relevant concepts, and related research in

meta-modelling. Fig. 11 shows the relation beween

Figure 11: Interpretation, realisation and instantiation.

the levels of the modelling domain, the real world and

the reality inside the computer as connected through

instantiation, interpretation and realisation, respec-

tively. M0 is a valid part of the MDA architecture,

containing instances of M1 elements, so Lassie: is

an M0 instance of Collie. The semantics of Collie

deﬁne the set of all possible instances of the class.

Fig. 12 revisits the elements of Fig. 1 and places

them in the proper place according to the discus-

sions above. A UML-based MOF-VM notation is

used for presenting elements of the MDA here. For

clarity, Class elements have been marked as either

MOFClass or UMLClass.

Figure 12: Correct placement of the different entities.

A (meta-)model is deﬁned on one level, and used

on the level below to deﬁne a new model. This sep-

aration of deﬁnition and use forms the fundamental

reason for the introduction of levels. The relation be-

tween M1 and M0 is not special. However, M0 is

special since it may only contain terminal elements –

no further instantiation is possible.

Formally, instantiation means taking an element

from the set formed by the semantics of a class on

MOF-VM: Instantiation Revisited

143

one level, and using it on the level below. The new

element may itself have semantics of a set of el-

ements, and can then be instantiated further. The

InstanceSpecification of UML does not spoil

this approach, it just deﬁnes a subset of the instances

of the classiﬁer specifying ﬁxed slot values together

with other constraints.

For simplicity of discussing platforms that support

the MDA, we have introduced the concept of an ab-

stracted MDA platform implementation that we call

the MOF-VM – a MOF virtual machine. MOF-VM

does not come with a native presentation language. It

is common to use UML notation. However, it is im-

portant to notice that UML is used as a notation for the

MOF-VM platform, not as an independent language.

The semantics of the MDA is formalised by a

speciﬁcation of the semantics of the MDA platform.

In the same way as the Java semantics may be for-

malised through a speciﬁcation of the Java VM, we

can think of the MOF-VM as an interpreter of MOF-

based models. Like Java is transformed into byte-

code for instantiation and execution in the Java-VM,

the instantiation semantics of MOF can be handled

with a mapping of model elements to MOF-VM

classes to use the built-in instantiation of MOF-VM.

We have pursued the language design perspective

here. If UML was used primarily as a notation, the se-

mantics could be disregarded and its role in the MDA

architecture might take different forms than what we

have described. This may lead to a different view

on the MDA which is based on a different perspec-

tive where semantics are less important. For language

modelling, however, a uniform instantiation seman-

tics between levels is essential.

REFERENCES

Atkinson, C. (1997). Meta-modeling for distributed ob-

ject environments. In In Enterprise Distributed Object

Computing, pages 90–101. Published by IEEE Com-

puter Society.

Atkinson, C. and Kühne, T. (2000). Meta-level indepen-

dent modelling. In International Workshop on Model

Engineering at 14th European Conference on Object-

Oriented Programming.

Atkinson, C. and Kühne, T. (2001). The essence of multi-

level metamodeling. In UML 2001-The Uniﬁed Mod-

eling Language. Modeling Languages, Concepts, and

Tools, pages 19–33. Springer Berlin Heidelberg.

Atkinson, C. and Kühne, T. (2002). Rearchitecting the

UML infrastructure. ACM Transactions on Computer

Systems (TOCS),, 12(4):290–321.

Atkinson, C. and Kühne, T. (2003). Model-driven develop-

ment: A metamodeling foundation. Software, IEEE.

Atkinson, C. and Kühne, T. (2005). Concepts for comparing

modeling tool architectures. In MoDELS, pages 398–

413.

Bézivin, J. and Gerbé, O. (2001). Towards a Precise Deﬁ-

nition of the OMG/MDA Framework. Proceedings of

ASE’01, Automated Software Engineering.

Editor, O. (2014). OMG Meta Object Facility (MOF) Core

Speciﬁcation Version 2.4.2. Technical report, Object

Management Group.

Eriksson, O., Henderson-Sellers, B., and Ågerfalk, P. J.

(2013). Ontological and linguistic metamodelling re-

visited: A language use approach. Information and

Software Technology.

Favre, J.-M. (2003). Meta-model and model co-evolution

within the 3D software space. In Proceedings of

ELISA 2003.

Favre, J.-M. (2004). Foundations of meta-pyramids: Lan-

guages vs. metamodels - episode ii: Story of thotus the

baboon1. In Language Engineering for Model-Driven

Software Development.

Gitzel, R., Ott, I., and Schader, M. (2007). Ontological Ex-

tension to the MOF Metamodel as a Basis for Code

Generation. Comput. J., 50(1):93–115.

Hesse, W. (2006). More matters on (meta-)modelling: re-

marks on Thomas Kühne matters. Software and Sys-

tems Modeling (SoSyM), 5(4):387–394.

Kleppe, A. and Warmer, J. (2003). MDA Explained.

Addison–Wesley.

Kühne, T. (2006). Matters of (meta-) modeling. Software

and Systems Modeling (SoSyM), 5(4):369–385.

Mu, L., Gjøsæter, T., Prinz, A., and Tveit, M. S. (2010).

Speciﬁcation of modelling languages in a ﬂexible

meta-model architecture. In Software Architecture,

4th European Conference, ECSA 2010, Copenhagen,

Denmark, August 23-26, 2010. Companion Volume,

pages 302–308.

Nytun, J. P. (2010). Consistency Modeling in a Multi-Model

Architecture. PhD thesis, University of Oslo.

OMG Editor (2011). Uniﬁed Modeling Language: Infras-

tructure version 2.4.1 (OMG Document formal/2011-

08-05). OMG Document. Published by Object Man-

agement Group, http://www.omg.org.

Rumbaugh, J., Jacobson, I., and Booch, G. (2005). The

Uniﬁed Model Language Reference Manual, second

Edition. Published by Pearson Education, Inc.

Skene, J. (2007). Language Support for Service-Level

Agreements for Application-Service Provision. PhD

thesis, University of London. Accessed January, 2015:

http://eprints.ucl.ac.uk/5607/1/5607.pdf.

Tony Clark, Andy Evans, P. S. and Williams, J. (2004).

Applied Metamodelling. A Foundation for Language

Driven Development. Xactium. Available at

http://www.xactium.com.

Wikipedia (2015). Meta-object facility — Wikipedia, the

free encyclopedia. [Online; accessed January 2015].

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

144
