Achieving Patient-Centered Fine-Grained Access Control in Hospital

Information Systems

Using Business Process Management Systems

Nahid AlThqafi, Hessah AlSalamah and Ahmad Daraiseh

College of Computer and Information Sciences, King Saud University, Riyadh, Saudi Arabia

Keywords: Access Control, Business Process Management (BPM), Electronic Medical Record (EMR), Hospital

Information System (HIS), Patient-Centric Fine-Grained Access Control (PCFGAC).

Abstract: Access Control to patients’ medical information in Hospital Information Systems (HIS) is a challenge in

modern Patient-Centered (PC) healthcare. Fine–Grained Access Control (FGAC) in particular has been

identified as one of the security requirements in these systems. In FGAC, only parts of medical information

that are relevant and required by healthcare providers are accessed at the point of care. This cannot be

achieved without a holistic view of a medical condition through a Patient-Centered Fine-Grained Access

Control (PCFGAC), in which patient-centricity is considered. This research proposes using Business

Process Management (BPM) to achieve PCFGAC in order to provide a real-time access control based on a

“need-to-know” principle. Through a prototype that uses BPM, security requirements of PCFGAC were

met. These include: authority control, informed decision support, fine-grained access control, and dynamic

policies support. Thus, a contribution to the knowledge and practice has been introduced.

1 INTRODUCTION

Hospital Information System (HIS) is the key to

improving healthcare quality (Wager et al., 2013,

Hovenga and Grain, 2013, Bodhani, 2013). It

provides healthcare specialists with instant access to

real-time information about their patients. This

information is found in Electronic Medical Records

(EMRs), which include comprehensive information

about medical services that were introduced to a

patient.

EMRs are at the center of any healthcare service;

its design and management have an enormous impact

on the healthcare industry. Patients' EMRs reflect

their mental illness, contagious diseases, sexual

behavior, and other confidential information

(Jingquan and Michael, 2010). Due to the

confidentiality of EMRs’ content, many privacy

legislations and standard policies have been

introduced in order to govern the use of medical

information (Abbas and Khan, 2014), for example, in

the USA there is the “Health Insurance Portability

and Accountability Act” (HIPAA) and the "Health

Information Technology for Economic and Clinical

Health" (HITECH). Both HIPAA and HITECH

introduce basic controls and safeguards to prevent

medical information attacks. These controls

addressed user and entity authentication, access

control, audit control, transmission security, and non-

repudiation. These controls are substantially needed

to handle integrity, availability, and confidentiality

issues of EMRs (Hui et al., 2014). Access controls, in

particular, are the most important safeguard against

unauthorized access since it defines the accessible

information for each user (Gajanayake et al., 2012).

Controlling access rights to different portions of data

is the key concept of Fine-Grained Access Control

(FGAC). FGAC governs the access to data by each

user of the system (Chatterjee et al., 2014, Harith and

Gábor, 2009, Jinyuan and Yuguang, 2010, Liu et al.,

2012, Yu et al., 2010, Rizvi et al., 2004) based on the

"need-to-know" principle. The lack of FGAC is an

open problem in HISs. Despite the large amount of

research dedicated for modeling the requirements of

EMR access control mechanisms, there are limited

results that focus on the development of an

implementation scheme to enforce access control in

HIS (Chen et al., 2010). This is because the

healthcare access control systems are naturally fine-

grained and dynamic (Chen et al., 2010). Thus, there

is a real need to enforce access control beyond the

AlThqaﬁ, N., AlSalamah, H. and Daraiseh, A.

Achieving Patient-Centered Fine-Grained Access Control in Hospital Information Systems - Using Business Process Management Systems.

DOI: 10.5220/0005630200390048

In Proceedings of the 9th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2016) - Volume 5: HEALTHINF, pages 39-48

ISBN: 978-989-758-170-0

functional-level to consider the content of the

accessed data.

Our perspective for Patient- Centered (PC)

healthcare is: "A collaborative effort… where

patients and the health care professionals collaborate

as a team, share knowledge and work toward the

common goals of optimum healing and recovery"

(Alsalamah et al., 2013). We believe that considering

the treatment flow and its different stages in addition

to the patient’s condition will improve both the

healthcare provision (AlSalamah et al., 2012) and the

protection of the patient’s privacy. Doing so will

provide ongoing monitoring and auditing through

each step of the treatment process as it is executed.

This enables Patient-Centered Fine-Grained Access

Control (PCFGAC) that respects both dynamic and

real-time requirements of HIS.

Moving HISs from the functional model into the

process-oriented model makes them more flexible

and adaptive to changes in real-time manner. This

emphasizes the value that process-oriented models,

such as Business Process Management (BPM), can

add to such systems. This is because using BPM

enables the management of each step of the process

by controlling its input, output, performer and rules

according to the condition of each individual case.

The adaption is required to provide an appropriate

PCFGAC that respects the dynamic nature of EMR

security requirements for each patient. In addition,

BPM can deal with the information repositories (such

as HIS databases) not only for storing and retrieving

information, but also for supporting different views

according to the treatment required for each

individual (Brucker and Hang, 2013); (Reddy and

Dourish, 2002).

This research aims to create an integrated

framework for modeling, analyzing and enforcing

security and privacy requirements. It uses BPM as

an Active Enforcement (AE) (Agrawal et al., 2007)

which will be implemented as an independent

middleware solution (see figure 1), that allows the

data-owners to protect their data from disclosure by

enforcing new policies in real-time.

These real-time policies build up as the patient

passes through the treatment stages in order to adapt

to emerging privacy and security needs according to

each patient's medical condition.

The policies take place between user interface and

HIS’s databases (as shown in figure 1) to ensure that

any access to patient information happens according

to the information-owner's preferences, and

applicable access control rules.

AE will help in managing access to data in a

secure manner to protect its privacy. BPM also

manages access at the cell level in the database,

rather than just at the row or the column level, which

facilitates the provision of PCFGAC.

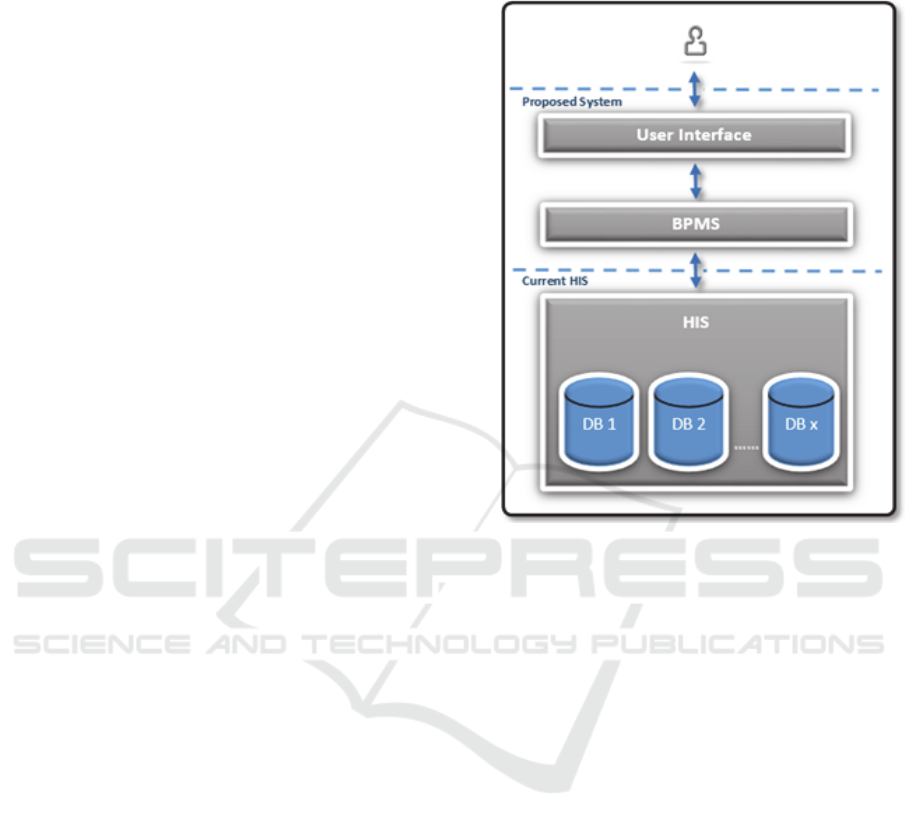

Figure 1: Proposed System Architecture.

So, utilizing BPM as an AE will provide the

following key strengths:

 A methodology capable of handling both system

policies and user's preferences (healthcare

provider or patient). These preferences are taken

according to the specific needs for each patient

separately.

 It will enforce system’s policies and user’s

preferences through BPM’s user interfaces based

on the context of the treatment.

 PCFGAC will be provided; by taking each case

condition into account in the enforcement of

FGAC.

The following section in this paper will present the

gap in the literature presenting previous studies that

address FGAC and uses of BPM. This will be

followed by the methodology used to conduct this

research. In the fourth section, the development of

proposed prototype will be introduced, and the

results will be discussed in section five. Finally,

section six discusses future work and concludes the

research.

HEALTHINF 2016 - 9th International Conference on Health Informatics

2 RELATED WORK

Patients require proper use of their health information

which cannot be achieved without implementing

FGAC (Jinyuan and Yuguang, 2010). Generally,

parts of the patient’s medical record are more

sensitive than others. While most access control

mechanisms look at privacy control of a record in

terms of a block of fields, patients may wish to keep

some fields more private than others in their medical

record(Samuel and Zaiane, 2012). Thus, achieving

FGAC was addressed in many studies. Most of the

studies in the literature achieve FGAC through Role-

Based Access Control (RBAC) with some

enhancements (Amato et al., 2013, Chen-Guang et

al., 2011, Steele and Kyongho, 2010). Steele and

Kyongho (Steele and Kyongho, 2010) enhanced the

traditional RBAC by identifying the sensitivity levels

that had been specified for each portion of the

accessed data. On the other hand Amato et al.

(Amato et al., 2013) coupled the traditional RBAC

mechanism with access control restrictions that are

defined as IF-then rules. Other researches enforce

FGAC on the database level instead of application

level, which provide access control on the row or

even cell level (Harith and Gábor, 2009). Chatterjee

et al. (Chatterjee et al., 2014) achieved FGAC by

defining users’ privileges based on logic expressions

for each object’s attribute. Hui et al., (2014)

introduced attribute access control by using attribute-

encryption in addition to privilege separations

mechanisms. These studies did not consider the

dynamic nature of accessed data at execution time.

Thus, these solutions provide a rigid system that deal

with all cases at active time in the same way. They

highly depend on fixed access rules constructed at

design time. A flexible access control that meets each

need of each individual is required in the healthcare

domain.

Improving the access control’s flexibility in HISs

had been addressed by many researchers. Chen-

Guang et al., (2011) enhanced RBAC by dividing the

inner structure of the user and by using the token

concept to provide an access control that meets the

dynamic access control demands. Hu (Hu and

Weaver, 2004) implemented dynamic and context-

aware access control in distributed healthcare

applications by applying the concept of “least

privilege” to ensure that any user is unable to access

more authorized rights than what he/she needs for

executing the requested service. They developed two

algorithms that can be dynamically invoked at

runtime to evaluate the context by using six

parameters (time, location, IP address, user ID, object

type, and object ID). Leyla and McCall (Leyla and

MacCaull, 2012) enhanced a Personal Access

Control (PAC) model, which allows patients to

control the access rights to their health records. They

used a workflow mechanism to build a prototypical

framework that captures patient permissions and

enforces PAC policies. Three aspects have been

addressed in their proposal: incorporation of a patient

permission with access control mechanism, “need-to-

know” principle, and delegations. Russello et al.

(2008) also introduced a workflow based access

control framework to produce a flexible access

control mechanism in e-health applications to adapt

access rights of the actual task. Their framework

integrated authorization model (policy language)

with a workflow management system (WFMS) to

provide fine-grained control. In our proposal, we

suggest the use of a Business Process Management

System (BPMS) instead as it can deal with loosely

structured processes in a dynamic environment such

as healthcare (Van Der Aalst et al., 2003).

BPMS enables flexibility to build dynamic access

controls since it manages and controls each case

separately. Some research focused on the feasibility

of BPMS to handle security issues. Long et al.,

(1999) addressed the dynamic access control

requirements by considering the workflow system

that enables the development of high-level policies

executed through system workflow. Liu et al., (2012)

considered the access context differently to reach a

mechanism that achieved context-aware FGAC.

Levina et al., (2010), exploited BPM as a tool to help

an information system’s analysts identify the

potential business rules. Ayoub et al., (2012)

proposed semantic means to model access control

explicitly in business process models. Brucker and

Hang (Brucker and Hang, 2013) proposed a business

process-driven system that created an integrated

framework for modeling, analyzing and enforcing

security, privacy and trust requirements. The

workflow technology benefits will be achieved since

"BPM is a subset of Workflow with more control

over processes, integration and optimization" (Al-

Salamah, 2011).

Although addressing security requirement using

BPMS has been presented in the literature, it is still

an open research area in the healthcare sector in

particular. However, the use of BPM has been

investigated in the healthcare domain for other

usages. Matic and Andrej (Matic and Andrej, 2010)

discussed the increasing adoption of BPM in the

healthcare domain and its challenges. They found

that the healthcare process is similar to the

manufacturing process, which encouraged the

Achieving Patient-Centered Fine-Grained Access Control in Hospital Information Systems - Using Business Process Management Systems

adoption of BPM. Nevertheless, they concluded that

there is a clear increase in the use of BPM in the

healthcare domain, especially for disease control and

clinical pathways processes. However, BPM

adoption in the healthcare domain is slower than

other domains because of its complexity and parallel

and high variation in healthcare processes. Based on

the thorough study of the literature, we believe that

utilizing BPM to achieve PCFGAC in HISs is still in

its infancy. BPMS can enforce access control at

runtime, which adopts the dynamic requirements of

each patient according to his/her specific condition.

Thus, BPMS facilitates monitoring and controlling

each stage of the treatment process during

implementation. This helps meet the privacy

requirements through controlling access rights of

each step based on the “need- to-know” principle.

That provides the needed PCFGAC in HIS.

3 METHODOLOGY

Design Science Research Methodology (DSRM) has

been followed to provide incorporate principles,

practices, and procedures required to carry out this

research. It also obtains a nominal process model and

a mental model for presenting and evaluating the

research. The DS process followed involved “six

steps: problem identification and motivation,

definition of the objectives for a solution, design and

development, demonstration, evaluation, and

communication” (Peffers et al., 2007).

After identifying the problem and motivation,

defining the objective and suggesting the solution in

the previous sections, the following sections will

cover the proceeding DS stages.

4 DESIGN & DEVELOPMENT

A proof-of-concept prototype was implemented to

show how different access controls could be enforced

by BPMS based on the medical condition. The heart

failure treatment pathway was mapped as an

exemplar with different possibilities of HIV test

results, representing patients with comorbidity. The

developed prototype was then evaluated, and results

were communicated.

Bizagi BPM (Bizagi, 2014) was used to build the

prototype. It required Microsoft SQL server to create

an internal database and Internet Information Service

(IIS Express) to provide a work portal used for both

users' interfaces interactions and administrator’s

maintenance. Both the Heart failure treatment

process and HIV test process were designed,

modeled and automated on Bizagi BPM. The

prototype provided a framework to manage patients'

medical information in a way that protects their

privacy while ensuring its availability to support

informed decisions by health providers involved

along the treatment journey. Each treatment stage on

the processes was controlled by limiting its access to

the involved user who retrieves only the relevant

information to act according to his assigned role in

the treatment process (“need to know” principle).

Different cases were handled differently,

representing unique medical conditions. This was

achieved in the process through numbers of business

rules that had been defined showing how the system

adapts to the needs of each condition.

4.1 Heart Failure Treatment Process

The heart failure treatment process modeled is based

on the treatment guidelines published by the UK,

Map of Medicine health-guides (MoM) (Map of

medicine, 2014).

These guidelines represent best practices and are

used as an up-to-date, quality standard and related

information that could be used as a recommendation

on any health matter. The prototype model includes

all activities that heart failure patients may pass

through during their visit to a hospital as a walk-in or

an outpatient. The model considered a hospital that is

large enough to hold Laboratory, Radiology, and

Pharmacy departments. Activities are shown in

Figure 2.

The process has two start points: either by the

receptionist as a default or by a cardiologist after

consultations. The receptionist retrieves all booked

appointments for the heart failure patients on a

specific date.

Then he/she submits the arrived patient to the

examination room where a nurse examines the

patient and inserts the examination data into the

system. Then, the patient’s case is submitted to the

cardiologist who can view a comprehensive medical

record about the patient (examination data, tests,

visits, medications), in addition to his/her

demographic data. Following this, according to the

patient’s history and his/her symptoms, the

cardiologist decides whether a BNP test is required

or not; also, he may request an Echocardiogram.

Four cases are taken into account as shown in

Figure 3.

HEALTHINF 2016 - 9th International Conference on Health Informatics

Figure 2: Heart Failure Pathway Process Executional Model.

No heart failure suspected, or Valid BNP Test is included within patient medical history

Case 1: Patient’s records show there is a valid BNP-test,

and an Echocardiogram is available (no need to

re-take the test). Also, the result of the valid BNP-

test that exists < 100 or no heart failure is

diagnosed.

Case 2: Patient’s record shows that a valid BNP-test is

available, but its result is greater or equal to >=

100. In this case, an Echocardiogram is required.

Heart failure is suspected; BNP test is needed, and no valid one exists

Case 3: Patient’s records show BNP or Echocardiogram

are not valid or available. In this case, both are

requested from a cardiologist. Or only a BNP and

its result is > 100, and an echocardiogram will be

requested.

Case 4: Only BNP is needed and its result <100

Figure 3: Paths of HF’s cases.

Achieving Patient-Centered Fine-Grained Access Control in Hospital Information Systems - Using Business Process Management Systems

4.2 HIV Test Process

HIV test process represents the pathway activities as

suggested by Map of Medicine (MoM) (Map of

medicine, 2014).

Three parties are involved in this process: the lab

specialist who performs the test and insert its result,

the HIV clinic assessor who assesses the patient’s

condition and provides therapy, and the Psychologist

who monitors and supports the psychological aspects

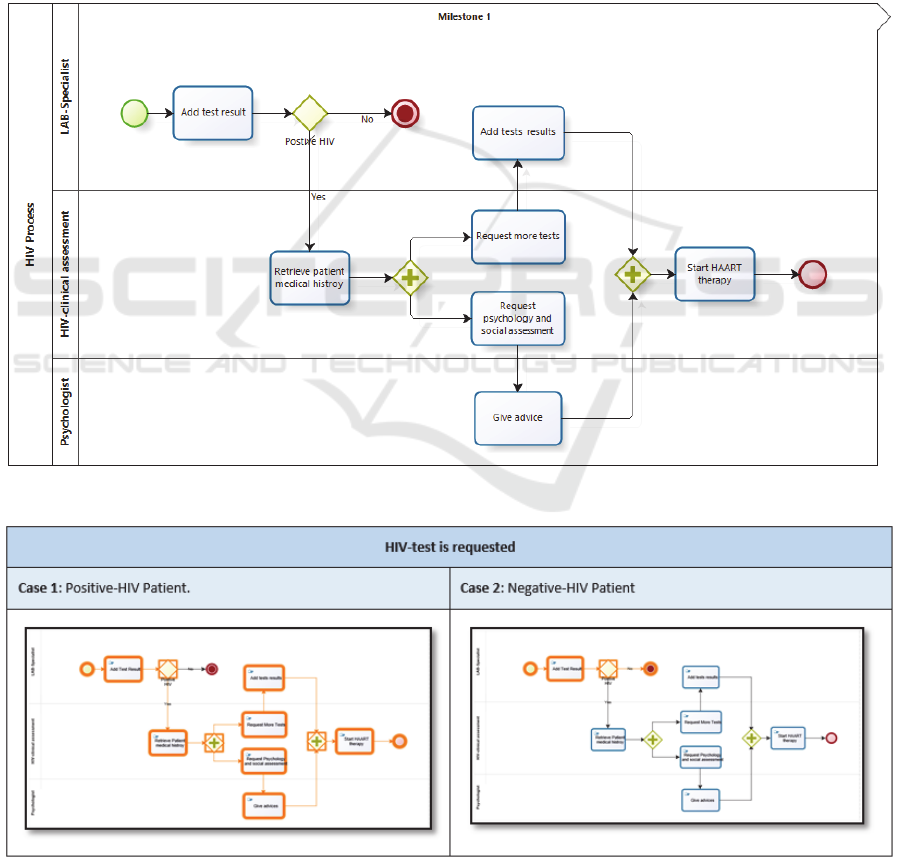

for the HIV patients. HIV test process activates are

shown in Figure 4.

HIV test process starts when the Lab specialist

receives an HIV test request, performs the test and

inserts its result into the system.

Two cases are taken into account in this process:

in cases where there is a positive HIV-test result, the

case will be transferred to the HIV clinical assessor

where more tests and psychological referral are

required. The psychologist’s role is to support the

patients psychologically to improve their quality of

life. Based on the output of performed tests and

psychologist assessment, the HIV clinic will start the

suitable Highly Active Antiretroviral Therapy

(HAART).

However, in cases where the result is negative,

the system will terminate the process. Figure 5 shows

different paths for the HIV test pathway.

Figure 4: HIV-test Pathway Process Executional Model.

Figure 5: Paths of HIV-test cases.

HEALTHINF 2016 - 9th International Conference on Health Informatics

4.3 The Effect of HIV-test Process on

Heart Failure Treatment Process

When patients are suffering from multiple diseases

(with comorbidity), the system adapts to the needs

considering all relevant issues.

In the model, when a patient goes through both

Heart Failure and HIV processes at the same time,

the information appearance in the Heart Failure

process will be affected by the result of the HIV-Test

process.

All of the patient’s personal information will be

hidden in the user's interfaces when a positive-HIV

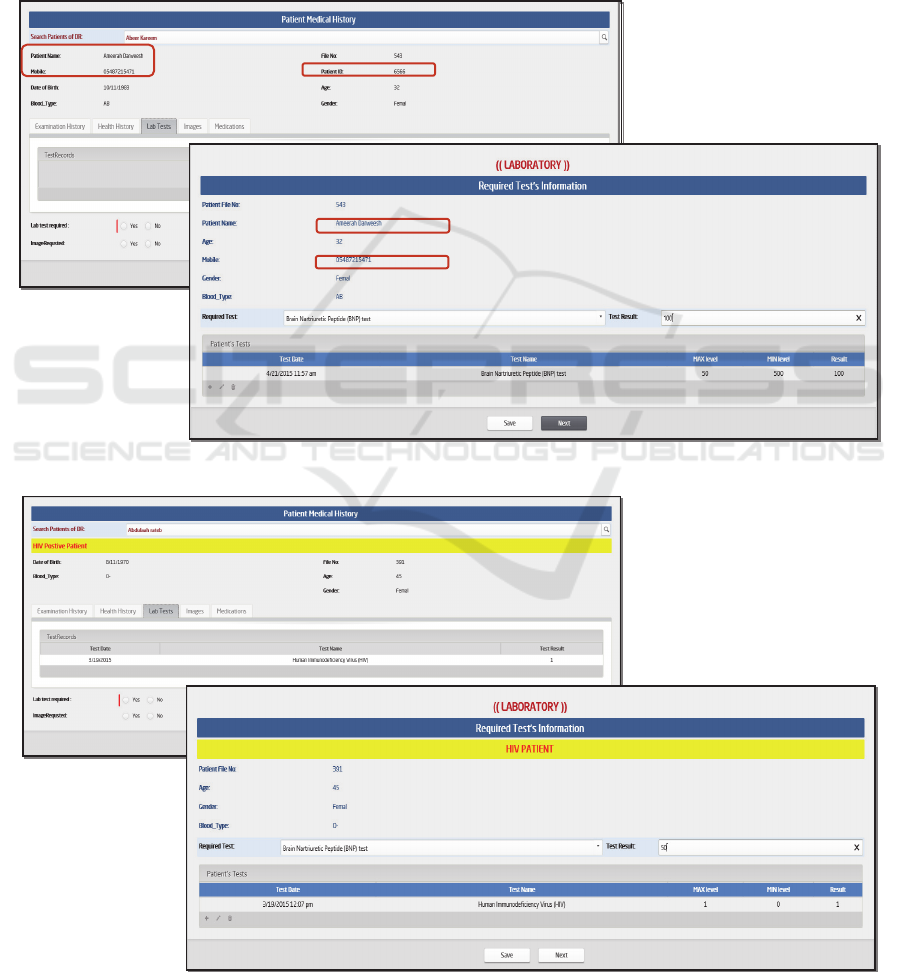

result is found. Figures 6 and 7 show the different

views that the cardiologist and lab-specialist can

obtain when a BNP-test is needed for a Heart Failure

patient. Figure 7 shows the medical record has been

anonymized and the relevant warning message has

been displayed.

Figure 6: Cardiologist/Lab-specialist view for Negative-HIV patient.

Figure 7: Cardiologist/Lab-specialist view for Postive-HIV patient.

Achieving Patient-Centered Fine-Grained Access Control in Hospital Information Systems - Using Business Process Management Systems

5 RESULTS AND DISCUSSION

The prototype showed that, the provision of

PCFGAC in HISs can be achieved using BPMS.

PCFGAC was achieved through the facilitated

features of BPMS, and these include:

5.1 Authority Control

Authority control facilitates through:

5.1.1 Role-based Access Control

Unauthorized access prevention is achieved by using

a classification scheme for both users and patients’

information. Users are classified into eight

domains/roles: Receptionist, Nurse, Doctor, Lab

specialist, Radiologist, Psychologist, HIV assessor

and Pharmacist. The permission granted to each user

is limited to his role to view, add or delete the related

information that is needed to perform their role in the

treatment process.

Data Structure is built based on the data’s nature.

It was divided into eight main tables: Demographic

Data, Appointments, Examination Data, Patient’s

Tests, Patient’s Images, Patient’s Medications,

Psychological date and Patient History (visits

details). The model maps each of its users to the

related table(s) that are necessary as a resource(s) to

perform his/her role in the treatment process.

Moreover, users with the same role have different

views according to the sensitivity of the process itself

(for example, HIV test process) or the contained

information (for example, patient with positive HIV).

Furthermore, accessing patient records is limited

only by an engaged cardiologist, which means other

cardiologists with the same role cannot view the

medical record.

5.1.2 One-time Access Control

Access is granted at execution time. Authorization is

permitted at the level of an exact action, and only to

the active task when a task representing a treatment

stage is reached. When a task is active, authorization

is allowed to the relevant user and only for a

specified duration. When the treatment stage is

accomplished, following this temporary period, the

task in the user inbox disappears.

5.2 Informed Decisions Support

Using BPMS supports the informed decisions that

should be taken by healthcare providers through

providing them with the following:

5.2.1 Real-time Information

The health information model supports health

providers to make informed decisions by providing

up-to-date real-time information. This is as

information is fetched from the original resources at

the treatment stage. E.g. a lab test result, when

needed, is accessed from the laboratory database

without waiting for these reports to be sent to

physicians.

5.2.2 Historical Information

Retrieving the medical history of a patient helps

make an informed decision based on a holistic view

of the condition. An example of a straightforward

benefit would be avoiding potential drug interactions

or contraindications. Other benefits include all

complications associated with comorbidity and

demographic details which make each patient’s

condition unique.

5.2.3 Relevant Information

A filter process is applied according to the guidelines

to ensure that relevant real-time and historical

information that

supports the treatment stage is

represented.

5.3 Fine-Grained Access Control

Access rules in the model shaped Fine-Grained

access control by deciding who can access which

data and when. This done for each step of the

processed case individually.

5.3.1 Patient-specific Access Control

Different paths are available in the model; each path

directs the case to the different user according to its

condition. Different views according to the accessed

data are also considered during user’s interfaces’

design.

5.3.2 BPMS Features

BPMS tool provides a wide range of features: the

information visibility, filters, mandatory and editable.

These add-on features help control the views and

accesses of the data fields in the user interface based

on the defined business rules.

5.3.3 Dynamic Security Policies Support

The context of each case leads to different access

decisions according to the access rules that respect

HEALTHINF 2016 - 9th International Conference on Health Informatics

both case condition and accessed data. For example,

an Echocardiogram request is based on three factors:

the value of BNP test’s result, unavailability of a

valid Echocardiogram in the patient’s images history,

and the cardiologist request to perform that test.

Moreover, BPMS provides a monitoring feature

in which users can track the process progression at

any stage. Furthermore, they may determine the

bottlenecks that may hinder or affect a successful

execution of the process, which can be used to

improve the whole process.

To sum up, BPMS grants that only the correct

user accesses the required information to make the

correct task/decision at the right time in a case-

specific matter.

6 FUTURE WORK &

CONCLUSION

The aim behind this study was to satisfy security

requirements in the healthcare domain. The focus

was on the PCFGAC and the advantages that could

be achieved using BPMS. The work here could be

extended to include an information privacy

classification scheme and information security

awareness support.

Inclusion of technology to enhance the outcome

could also be studied through a thorough study of the

benefits that could be achieved if we had the

PCFGAC model on the cloud. Other benefits that do

not directly feed the security needs could also extend

this work. This includes the independency of the AE

layer and the possibility to maintain and evolve the

model as the treatment guidelines or delivery are

updated.

In conclusion, PCFGAC model is a prototype that

proves that BPMS can represent a treatment pathway

with an acceptable degree of efficiency and

effectiveness. FGAC was achieved through the

classification of users’ and patient information in the

model. Also, PC requirements were met by using the

features that BPMS facilitated. These include:

authority control, informed decision support, fine-

grained access control, and dynamic security policies

support. Thus, a contribution to the knowledge and

practice has been introduced.

REFERENCES

Abbas, A. & Khan, S. U. 2014. A Review on the State-of-

the-Art Privacy-Preserving Approaches in the e-Health

Clouds. Biomedical and Health Informatics, IEEE

Journal of, 18, 1431-1441.

Agrawal, R., Grandison, T., Johnson, C. & Kiernan, J.

2007. Enabling the 21st century health care

information technology revolution. Communications

of the ACM, 50, 34-42.

Al-Salamah, H. 2011. Velindre Hospital Integrated Care

Pathway Gold Award: Medical and Healthcare

Nominated by Cardiff School of Computer Science

and Informatics, Cardiff University, UK. In: Swenson,

K. D., Palmer, N. & Silver, B. (eds.) Taming the

Unpredictable: Real World Adaptive Case

Management: Case Studies and Practical Guidance.

Future Strategies Inc.

Alsalamah, H., Gray, A. & Morrey, D. 2012. Mapping the

integrated care pathway into bpm for health case

management. S-BPM ONE-Education and Industrial

Developments. Springer.

Alsalamah, S., Gray, W. A., Hilton, J. & Alsalamah, H.

Information security requirements in patient-centred

healthcare support systems. MedInfo, 2013. 812-816.

Amato, F., Mazzocca, N., DE Pietro, G. & Esposito, M. A

System for Semantic-Based Access Control. P2P,

Parallel, Grid, Cloud and Internet Computing

(3PGCIC), 2013 Eighth International Conference on,

28-30 Oct. 2013 2013. 442-446.

Ayoub, M. F., Hassan, R. & Elmongui, H. G. ESAC-

BPM: Early Security Access Control in Business

Process Management. ICSEA 2012, The Seventh

International Conference on Software Engineering

Advances, 2012. 650-655.

Bizagi, 2014 [Online]. Available: http://www.bizagi.com.

Bodhani, A. 2013.Warding off fraud. Engineering

&Technology, 8, 36-39.

Brucker, A. D. & Hang, I. Secure and compliant

implementation of business process-driven systems.

Business Process Management Workshops, 2013.

Springer, 662-674.

Chatterjee, S., Gupta, A. K., Mahor, V. K. & Sarmah, T.

An efficient fine grained access control scheme based

on attributes for enterprise class applications. Signal

Propagation and Computer Technology (ICSPCT),

2014 International Conference on, 12-13 July 2014

2014. 273-278.

Chen-Guang, H., Cun-Zhang, C. & Shu-DI, B. An

Enhanced Role-Based Access Control Mechanism for

Hospital Information Systems. Computational

Intelligence and Security (CIS), 2011 Seventh

International Conference on, 3-4 Dec. 2011 2011.

1001-1005.

Chen, K., Chang, Y.-C. & Wang, D.-W. 2010. Aspect-

oriented design and implementation of adaptable

access control for Electronic Medical Records.

International journal of medical informatics, 79, 181-

203.

Gajanayake, R., Iannella, R. & Sahama, T. R. Privacy

oriented access control for electronic health records.

Data Usage Management on the Web Workshop at the

Worldwide Web Conference, 2012. ACM.

Achieving Patient-Centered Fine-Grained Access Control in Hospital Information Systems - Using Business Process Management Systems

Harith, I. & Gábor, H. 2009. Fine-Grained Data security in

Virtual Organizations. Database Technologies:

Concepts, Methodologies, Tools, and Applications.

Hershey, PA, USA: IGI Global.

Hovenga, E. J. S. & GRAIN, H. 2013. Health information

systems. Studies In Health Technology And

Informatics, 193, 120-140.

Hu, J. & Weaver, A. C. Dynamic, context-aware access

control for distributed healthcare applications.

Workshop on Privacy, Security, and Trust, 2004.

Hui, Z., Rong, H., Ximeng, L. & Hui, L. Spemr: A new

secure personal electronic medical record scheme with

privilege separation. Communications Workshops

(ICC), 2014 IEEE International Conference on, 10-14

June 2014 2014. 700-705.

Jingquan, L. & Michael, J. S. 2010. Electronic Medical

Records, HIPAA, and Patient Privacy. Health

Information Systems: Concepts, Methodologies, Tools,

and Applications. Hershey, PA, USA: IGI Global.

Jinyuan, S. & Yuguang, F. 2010. Cross-Domain Data

Sharing in Distributed Electronic Health Record

Systems. Parallel and Distributed Systems, IEEE

Transactions on, 21, 754-764.

Levina, O., Holschke, O. & Rake-Revelant, J. Extracting

business logic from business process models.

Information Management and Engineering (ICIME),

2010 The 2nd IEEE International Conference on, 16-

18 April 2010 2010. 289-293.

Leyla, N. & Maccaull, W. 2012. A Personalized Access

Control Framework for Workflow-Based Health Care

Information. Berlin, Heidelberg: Springer Berlin

Heidelberg.

Liu, H.-Y., Deng, M.-L. & Yang, W.-D. A Context-Aware

Fine-Grained Access Control Model. Computer

Science & Service System (CSSS), 2012 International

Conference on, 11-13 Aug. 2012 2012. 1099-1102.

Long, D. L., Baker, J. & Fung, F. A prototype secure

workflow server. Computer Security Applications

Conference, 1999. (ACSAC '99) Proceedings. 15th

Annual, 1999 1999. 129-133.

Map of medicine (MOM), 2014 [Online]. Available:

http://healthguides.mapofmedicine.com/choices/map/i

ndex.html.

Matic, M. & Andrej, B. 2010. Electronic Environments for

Integrated Care Management Case of Depression

Treatment. Ubiquitous Health and Medical

Informatics: The Ubiquity 2.0 Trend and Beyond.

Hershey, PA, USA: IGI Global.

Peffers, K., Tuunanen, T., Rothenberger, M. A. &

Chatterjee, S. 2007. A design science research

methodology for information systems research.

Journal of management information systems, 24, 45-

77.

Reddy, M. & Dourish, P. A finger on the pulse: temporal

rhythms and information seeking in medical work.

Proceedings of the 2002 ACM conference on

Computer supported cooperative work, 2002. ACM,

344-353.

Rizvi, S., Mendelzon, A., Sudarshan, S. & ROY, P.

Extending query rewriting techniques for fine-grained

access control. Proceedings of the 2004 ACM

SIGMOD international conference on Management of

data, 2004. ACM, 551-562.

Russello, G., Dong, C. & Dulay, N. A workflow-based

access control framework for e-health applications.

Advanced Information Networking and Applications-

Workshops, 2008. AINAW 2008. 22nd International

Conference on, 2008. IEEE, 111-120.

Samuel, H. W. & Zaiane, O. R. PSST… privacy,

safety, security, and trust in health information

websites. Biomedical and Health Informatics (BHI),

2012 IEEE-EMBS International Conference on, 5-7

Jan. 2012 2012. 584-587.

Steele, R. & Kyongho, M. HealthPass: Fine-Grained

Access Control to Portable Personal Health Records.

Advanced Information Networking and Applications

(AINA), 2010 24th IEEE International Conference on,

20-23 April 2010 2010. 1012-1019.

Van der Aalst, W. M., Ter Hofstede, A. H. & Weske, M.

2003. Business process management: A survey.

Business process management. Springer.

Wager, K. A., Lee, F. W. & Glaser, J. P. 2013. Health

Care Information Systems: A Practical Approach for

Health Care Management, Jossey-Bass.

Yu, S., Wang, C., Ren, K. & Lou, W. Achieving secure,

scalable, and fine-grained data access control in cloud

computing. INFOCOM, 2010 Proceedings IEEE,

2010. Ieee, 1-9.

HEALTHINF 2016 - 9th International Conference on Health Informatics
