An Image Impairment Assessment Procedure using

the Saliency Map Technique

Hayato Teranaka

and Minoru Nakayama

Mechanical and Control Engineering, Tokyo Institute of Technology, O-okayama, Meguro-ku, Tokyo, 152–8552 Japan

Human System Science, Tokyo Institute of Technology, O-okayama, Meguro-ku, Tokyo, 152–8552 Japan

Keywords:

Image Quality Assessment, Image Impairment, Image Processing, Saliency Map, Subjective Evaluation.

Abstract:

An automated mechanical assessment procedure is required to evaluate image quality and impairment. This

paper proposes a procedure for image impairment assessment using visual attention, such as saliency maps

of the impaired images. To evaluate the performance of this image assessment procedure, an experiment was

conducted to study viewer’s subjective evaluations of impaired images, and the relationships between viewer’s

ratings and a previously developed set of values were then analyzed. Also, the limitations of the procedure

which was developed were discussed in order to improve assessment performance. The use of image features

and frequency-domain representation values for the test images was proposed.

1 INTRODUCTION

Image quality assessment is based on the human vi-

sion system, as the level of quality of an image is de-

ﬁned by the subjective impressio of the viewer, who

compares various images by either viewing them di-

rectly or recalling them. As the cost to conduct an

evaluation of the subjective assessment of images is

high, various automated mechanical assessment pro-

cedures have been developed. Assessment is usually

based on certain features of images. Regarding this

approach, PSNR (Peak Signal to Noise Ratio) and

SSIM (Structural Similarity) are well known meth-

ods which are often used to assess image impairment

by comparing images to their originals (Tong et al.,

2006).

In order to develop an assessment procedure

which employs human visual processing, the mea-

surement of visual attention during the viewing of

objects by humans has often been considered (En-

gelke et al., 2011). Since visual attention affects

a viewer’s eye movements, the relationship between

image quality assessment and eye movement has

also been discussed (Engelke et al., 2011; Liu and

Heynderickx, 2011). One part of visual attention,

known as “bottom-up” information, can be used to

calculate various “saliency” (Itti et al., 1998; Guraya

et al., 2010; YuBing et al., 2011). Saliency informa-

tion, such as “saliency maps” is often used to pre-

dict the ﬁxation area of eye movement (Itti, 2005).

The saliency of an image can often be a signiﬁcant

source of information for image quality assessment

(Engelke et al., 2011; Liu and Heynderickx, 2011).

As techniques and metrics for image processing vary,

some hybrid visual attention assessment procedures

havebeen developed to assess image quality (Yu-Bing

et al., 2010; Jung, 2014).

Also, characteristics of image features such as

skewness and kurtosis can be metrics of image qual-

ity (Motoyoshi et al., 2007). A combination of image

features which includes information about frequency-

domain representation of the images can be a signiﬁ-

cant resource for assessing image quality.

This paper proposes a procedure for image im-

pairment assessment using saliency maps to compare

impaired images with originals. This procedure is

a modiﬁcation of the deﬁnition of PSNR calculation

procedure. Also, the limitations of the proposed pro-

cedure need to be discussed in order to improve as-

sessment performance.

2 IMAGE PROCESSING

PROCEDURES

2.1 Procedure using PSNR

A well known objective scale for image quality as-

sessment is PSNR (Peak Signal to Noise Ratio),

Teranaka, H. and Nakayama, M.

An Image Impairment Assessment Procedure using the Saliency Map Technique.

DOI: 10.5220/0005638600730078

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 4: VISAPP, pages 73-78

ISBN: 978-989-758-175-5

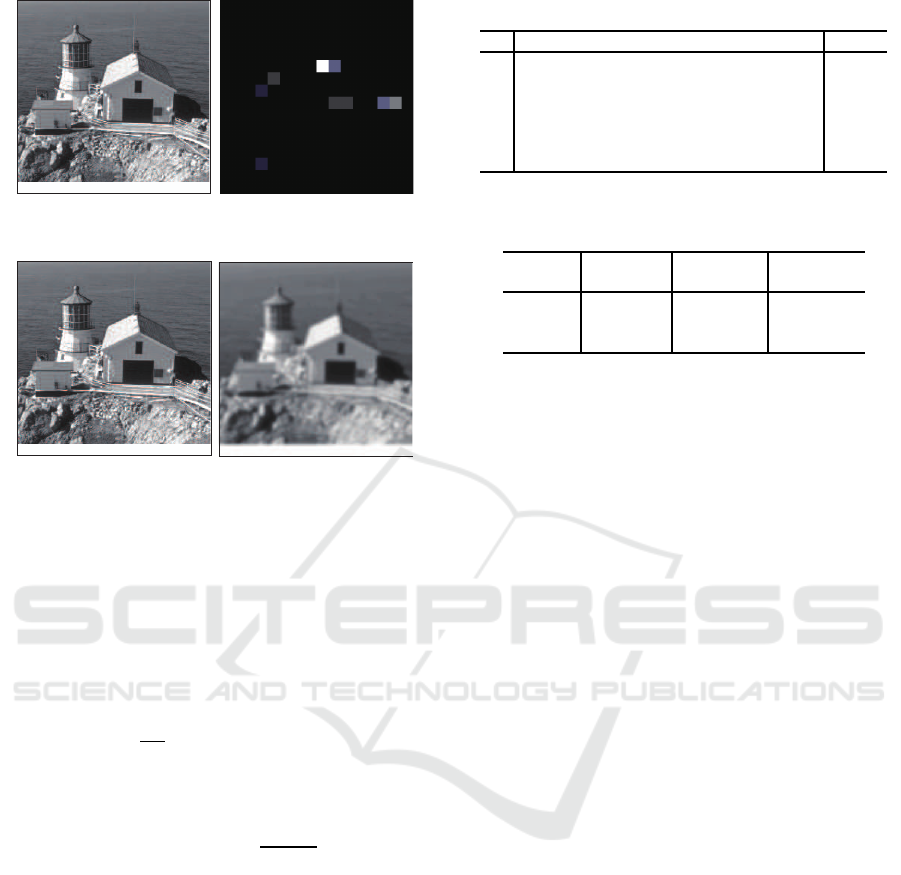

Figure 1: Original image (left) and Saliency map (right).

Figure 2: A pair of images presented for evaluation.

which measures the peak signal-to-noise ratio of im-

ages. The degree of image impairment can be calcu-

lated by summarizing the differences between each of

the pixels in the original and targeted images.

The following equation shows the mean square er-

ror of differences for each pixel of two monochrome

images I and K, where the image sizes of both are

m× n.

MSE =

∑

i=1

∑

j=1

[I(i, j) − K(i, j)]

(1)

PSNR is deﬁned using MSE.

PSNR = 10· log

MAX

MSE

(2)

Here, MAX

is the maximum brightness level of

the image. The value for an 8 bit monochrome image

is 255, for example. If two images are identical, the

PSNR is not deﬁned since the MSE is zero. Regard-

ing the deﬁnition of PSNR, a high value of PSNR in-

dicates low image impairment. However, sometimes

this index does not reﬂect the viewer’ssubjective eval-

uation of image quality.

To improve this phenomenon, new procedures

such as SSIM (Structural Similarity) have been devel-

oped. They too have not yet been perfected, because

optional parameters still need to be set by evaluators.

Therefore, development of an index of image qual-

ity assessment which accurately reﬂects the viewer’s

subjective evaluations, has become necessary.

Table 1: Question items and means of ratings.

Question statement mean

1 Sharpness of the targeted image 3.0

Deﬁnition degree 2.9

Level of noise 2.7

Degree of expression in texture 2.8

Clearness of image content 3.3

Overall evaluation of image impairment 2.8

rating scale: 5: imperceptible – 1: very annoying

Table 2: Processing of impaired images using 3 ﬁlters.

GaussianBlur GaussianNoise ImpulseNoise

[radius: pixel] [STD: σ] [frequency: %]

Level 1 0.5 0.5 5

Level 2

1 10 10

Level 3

2 20 20

2.2 Saliency Map

Saliency is a feature of images which is used to re-

ﬂect visual attention. This information indicates the

locality of an image.

Saliency is calculated using characteristics of im-

ages, such as color, brightness, and direction of edge,

which are summarized in a two-dimensional map

style that is known as a saliency map. The saliency

map of an image can be calculated using Saliency

ToolBox (Walter and Koch, 2006). An example of

a test image and a saliency map are shown in Figure

2.3 Objective Scales using Saliency

Maps (OSSM)

Since a saliency map indicates a viewer’s visual atten-

tion, in addition to the features of an image, an objec-

tive scale for image assessment which uses saliency

maps has been developed. In this paper, a simple as-

sessment procedure using saliency maps (OSSM: ob-

jective scales using saliency maps) for image impair-

ment evaluation is proposed, and its limitations are

discussed.

The calculation procedure uses a comparison of

an original image K and its impaired image I, where

both are monochrome images (size m× n). A saliency

map for the impaired image is created using Saliency

ToolBox (Walter and Koch, 2006). The map informa-

tion (salmap(i, j)) is converted into the same size of

image (m × n). The differential squre values se(i, j)

between I and K are given by the squre of pixel dif-

ference such as equation 3.

se(i, j) = [I(i, j) − K(i, j)]

(3)

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

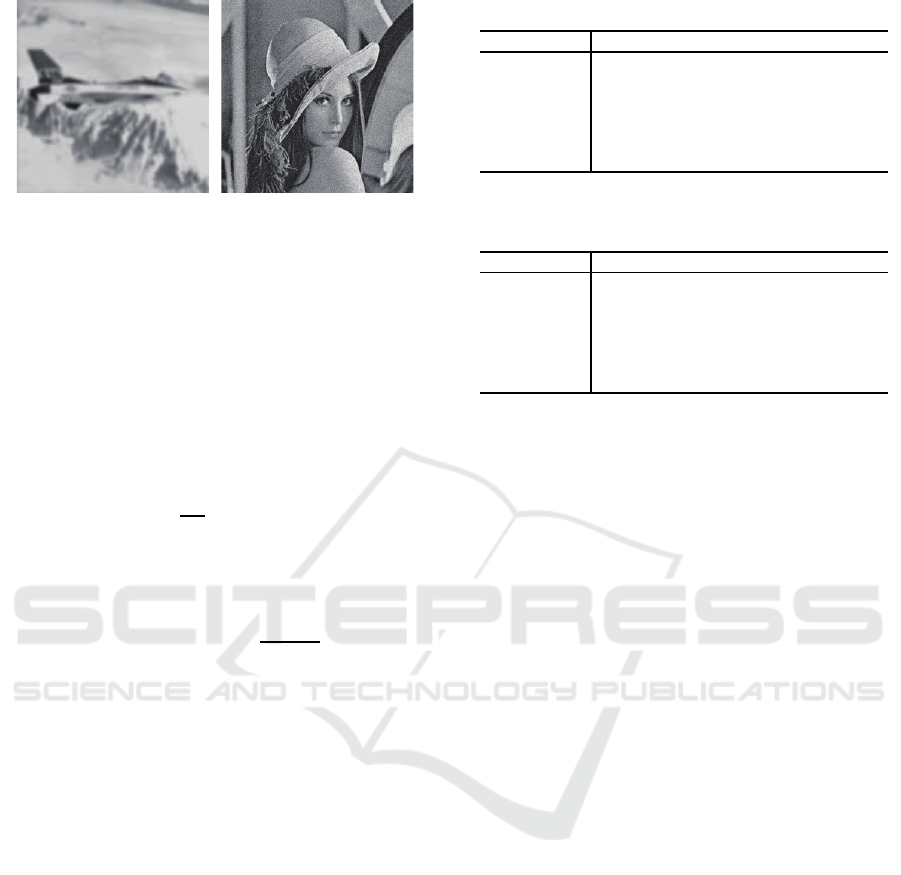

Figure 3: Examples of ﬁltered images (Left: Airplane with

Gaussian Blur level 3; Right: Lena with Gaussian Noise

level 2).

A Napier constant of a value in the saliency map

salmap( i, j)

is weighted for square errors, se

sal

(i, j) is

considered the saliency.

sal

(i, j) = se(i, j) · e

salmap( i, j)

(4)

Mean square errors (MSE) of the overall image

are deﬁned as a summation of the weighted square

errors equation 4.

MSE

sal

∑

i=1

∑

j=1

sal

(i, j) (5)

The OSSM values are calculated using the follow-

ing equation 6 as well as 2 for PSNR.

OSSM = 10· log

MAX

MSE

sal

(6)

3 EVALUATION EXPERIMENT

3.1 Experimental Procedure

To evaluate the performance of OSSM, an image im-

pairment assessment test was conducted using a sub-

jective rating scale. This test employed six standard

images as test images. A pair of images, consisting

of an original and an impaired image, were displayed

on a 23 inch LCD monitor during an image evaluation

experiment, as shown in Figure 2. Participants rated a

targeted impaired image using the 6 question items in

Table 1 and a 5 point-scale, where 5: imperceptible,

4: perceptible, but not annoying, 3: slightly annoying,

2: annoying, and 1: very annoying.

The seven participants viewed and rated 54 im-

ages two times during two sessions, with a short break

in between.

3.2 Test Images

The target images were common monochrome test

pictures used in image processing. The image size

Table 3: Features of test images (originals).

Test image Mean Var skewness kurtosis

Airplane 179.1 2116 -1.347 3.771

Boat

144.0 1122 -1.493 5.152

Cameraman

119.2 3887 -0.736 2.090

Lena

123.0 2293 -0.078 2.174

Lighthouse

132.3 3383 0.653 2.768

Text

97.49 5177 1.091 2.858

Table 4: Features of frequency-domain representation val-

ues of test images analyzed using FFT.

Test image Mean Var skewness kurtosis

Airplane 4509 4509 4509 4509

Boat

3023 3023 3023 3023

Cameraman

4853 4853 4853 4853

Lena

5641 5641 5641 5641

Lighthouse

3855 3855 3855 3855

Text

97 5177 1.091 2.858

was 256 × 256 pixels, and the size displayed on a

PC was 768 × 768 pixels. Examples of images are

shown in Figure 3. Three levels of image processing

were provided, using image impairment ﬁlters such as

Gaussian blur, Gaussian noise and randomized noise,

as shown in Table 2. The total number of images

presented was 54 (6 images × 3 ﬁlters × 3 levels).

Statistics such as the mean, variance (Var), skewness

and kurtosis (Motoyoshi et al., 2007) of pixels in each

picture were calculated.

The image was processed and frequency-domain

representation components were extracted using FFT

(Fast Fourier Transforms). The same statistics were

also calculated for the features. The statistics for the

original images are summarized in Table 3, and ones

for the images which are processed using FFT are

summarized in Table 4.

Assessment metrics were calculated for every im-

age. Deﬁnitions of PSNR, SSIM and the proposed

procedure (OSSM) were calculated for each. The

metrics for PSNR and OSSM were computed in dB,

and a maximum of 1 was set for the SSIM metric.

4 EXPERIMENTAL RESULTS

The mean responses to 6 question items for all im-

paired test images are summarized in Table 1. The

means deviate around the middle level (slightly an-

noying) of the 5 point-scale. The responses to ques-

tion items were analyzed using factor analysis to de-

termine whether the responses consisted of any of the

factors. The results of factor analysis of viewer’s

responses show that they consist of a single factor.

Therefore, the overall averages of responses to the 6

questions are deﬁned as subjective ratings.

An Image Impairment Assessment Procedure using the Saliency Map Technique

0 10 20 30 40 50

Subjective evaluation

Proposed method (OSSM) [dB]

r=0.89

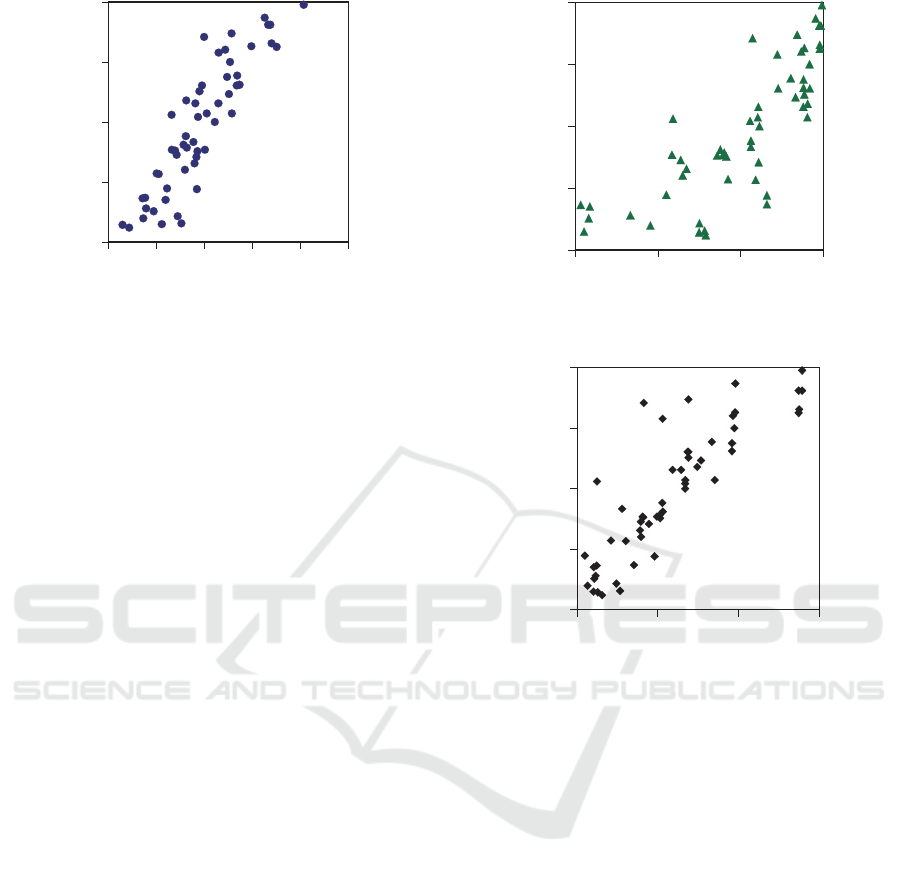

Figure 4: Relationship between the proposed procedure

(OSSM) and subjective evaluation scores.

The relationship between the viewer’s rates and

automated evaluation metrics are summarized in Fig-

ures 4, 5, and 6 using scattergrams. The relation-

ship to the proposed procedure (OSSM) is indicated

in Figure 4, SSIM in Figure 5, and PSNR in Figure

6. There are strong correlations between the met-

rics of the automated evaluations and the subjective

ratings, and some deviations are observed in both re-

garding PSNR and SSIM. To evaluate these relation-

ships, correlation coefﬁcients were calculated. The

coefﬁcient for the proposed procedure (OSSM) is the

highest (r = 0.89) followed by SSIM (r = 0.80) and

PSNR (r = 0.86). Though the magnitudes of the cor-

relation coefﬁcients are comparable among the three

procedures, the overall performance of the proposed

procedure (OSSM) is better than that of the other two.

Deviations in rating test images may inﬂuence the as-

sessment performance, and these differences are ana-

lyzed in the discussion section, in order to emphasize

the beneﬁts of the proposed procedure (OSSM).

5 DISCUSSION

5.1 Assessment Differences among Test

Images

Image quality assessment may depend on the features

of the images, and the relationships between viewer’s

responses and the above-mentioned features. These

were evaluated for each set of test images using a

correlation coefﬁcient, and are summarized in Table

5. Regarding the assessment metric deﬁnitions, high

coefﬁcients for PSNR and the proposed procedure

(OSSM) were observed. In the results, most coefﬁ-

cients for OSSM and PSNR are high, except for one

image set (Text), and are higher than the coefﬁcients

for SSIM.

0.4 0.6 0.8 1

SSIM [dB]

Subjective evaluation

r=0.80

Figure 5: Relationship between SSIM procedure and sub-

jective evaluation scores.

20 30 40 50

PSNR [dB]

Subjective evaluation

r=0.86

Figure 6: Relationship between PSNR procedure and sub-

jective evaluation scores.

In addition to calculating correlation coefﬁcients,

the prediction accuracy of the ratings is discussed.

Linear regression functions were calculated for each

evaluation procedure, in order to measure the devia-

tions in scattergrams between the results of mechan-

ical assessments and viewer’s ratings. To evaluate

the degree of ﬁtness using linear regression predic-

tion, RMSE (root mean squared error) was calculated

by comparing the prediction values with the functions

and viewer’s assessment ratings. The results are sum-

marized on the right hand side of Table 5. Means

of RMSE for images are also comparable between

OSSM and PSNR, and are smaller than the means for

SSIM. In particular, the RMSE means using OSSM

are slightly smaller than the means for PSNR, and are

indicated in Table 5 using underlining. These results

suggest that OSSM can produce a better index of im-

age impairment. Since assessment performance de-

pends on the test images, some speciﬁc features of

images may contribute to the index.

In Table 5, both coefﬁcients and means of RMSE

for test image ”Text” show signiﬁcantly different val-

ues when compared to other test images. A detailed

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

Table 5: Relationships between automated and viewer’s evaluations of all test images.

r RMSE

Test image OSSM SSIM PSNR OSSM SSIM PSNR

Airplane 0.96 0.75 0.97 0.79 3.87 0.61

Boat

0.96 0.81 0.97 0.68 2.84 0.51

Cameraman

0.98 0.78 0.97 0.39 3.84 0.53

Lena

0.98 0.78 0.98 0.29 2.32 0.32

Lighthouse

0.98 0.94 0.97 0.47 1.07 0.55

Text

0.81 0.80 0.82 2.91 3.08 2.79

OSSM: Objective scale using Saliency Map

analysis was conducted in order to reveal the cause of

this difference.

5.2 Relationship with Features of

Images

The features of images, consisting of the means, vari-

ances, skewness and kurtosis of both the pixel data

of the images and the frequency-domain representa-

tion values of FFT images, were employed to extract

the features. To examine the relationship between the

above mentioned RMSE and these features, correla-

tion coefﬁcients were calculated and summarized in

Tables 6 and 7. Most of the relationship coefﬁcients

of the FFT images are signiﬁcant. The absolute coef-

ﬁcients of skewness and kurtosis for FFT images are

higher than 0.7, and the signiﬁcant contributions of

skewness and kurtosis are conﬁrmed. These indices

are concerned with the assessment of image quality

in the previous study (Motoyoshi et al., 2007), and

the results of this research support the previous work.

As was mentioned above, image impairment as-

sessment performance depends on the test images.

The feature differences of the images were analyzed

using the statistics of the images, in particular using

the FFT images. Regarding the statistics in Tables

3 and 4, the proposed procedure (OSSM) shows the

best performance when the skewness of the FFT im-

ages is 185–215, and the kurtosis of the FFT images

is 42000–51000. However, PSNR shows a higher

level of performance, with the exception of the above-

mentioned condition.

6 CONCLUSION

This paper has proposed a procedure for image im-

pairment assessment using saliency maps to compare

impaired images to their originals. The performance

of this method was comparedto two conventionalpro-

cedures.

To evaluate image assessment performance, an

experiment was conducted using viewer’s subjective

Table 6: Coefﬁcients between RMSE and features of im-

ages.

Features of images

proc. Mean Var skewness kurtosis

OSSM -0.479 0.654 0.542 0.038

SSIM

0.219 0.025 -0.537 0.116

PSNR

-0.571 0.743 0.623 -0.078

Table 7: Coefﬁcients between RMSE and features of FFT

images.

Features of FFT images

proc. Mean Var skewness kurtosis

OSSM 0.357 -0.338 -0.728 -0.704

SSIM

0.217 0.425 -0.068 -0.070

PSNR

0.416 -0.433 -0.808 -0.787

evaluations of impaired images. The correlation coef-

ﬁcients for the evaluated scores of the proposed pro-

cedure (OSSM) are the highest all of the three of the

procedures. RMSEs between viewer’s ratings and the

predicted linear regression values were calculated as

an index of ﬁtness, and assessment performance was

then compared. For some test images, the OSSM

RMSEs are smaller than those for the other two pro-

cedures. The limitations of the proposed procedure

were discussed in regards to the deviations of correla-

tion coefﬁcients and RMSEs across test images.

The improvement of image assessment perfor-

mance and the development of an image quality as-

sessment procedure for single images will be subjects

of our further study.

REFERENCES

Engelke, U., Kaprykowsky, H., Zepernick, H., and Jdjiki-

Nya., P. (2011). Visual attention in quality assessment.

IEEE Signal Processing Magazine, 50.

Guraya, F. F. E., Cheikh, F. A., Tr´emeau, A., Tong, Y.,

and Konik, H. (2010). Predictive Saliency Maps for

Surveillance Videos. In Proc. of 2010 Ninth Inter-

national Symposium on Distributed Computing and

Applications to Business, Engineering and Science,

pages 508–513.

Itti, L. (2005). Quantifying the contribution of low-level

An Image Impairment Assessment Procedure using the Saliency Map Technique

saliency to human eye movements in dynamic scenes.

Visual Cognition, 12(6):1093–1123.

Itti, L., Koch, C., and Niebur, E. (1998). A model of

saliency-based visual attention for rapid scene anal-

ysis. IEEE Trans. Pattern Analysis and Machine In-

telligence, 20(11):1254–1259.

Jung, C. (2014). Hybrid integration of visual attention

model into image quality metric. IEICE Trans. INF.

& SYST., E97-D(11):2971–2973.

Liu, H. and Heynderickx, I. (2011). Visual attention in

objective image quality assessment: Based on eye-

tracking data. IEEE Trans. Circuits and Systems for

Video Technology, 21(7):971–982.

Motoyoshi, I., Nishida, S., Sharan, L., and Adelson, E. H.

(2007). Image statistics and the perception of surface

qualities. Nature, 447:206–209.

Tong, Y.-B., Chang, Q., and Zhang, Q.-S. (2006). Image

Quality Assessing by using NN and SVM. In Proc. of

Fifth International Conference on Machine Learning

and Cybernetics, pages 3987–3990.

Walter, D. and Koch, C. (2006). Modeling at-

tention to salient proto-objects. Neural Net-

works, 19:1395–1407.

Software available at

http://www.saliencytoolbox.net

Yu-Bing, T., Konik, H., Cheikh, F. A., and Tremeau,

A. (2010). Full reference image quality assessment

based on saliency map analysis. International Jounal

of Imaging Science and Technology, 54(3):030503–

030514.

YuBing, T., Cheikh, F. A., Guraya, F. F. E., Konik, H., and

Tr´emeau, A. (2011). A spatiotemporal saliency model

for video surveillance. Journal of Cognitive Comput-

ing, 3(1):241–263.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications
