Detecting Fine-grained Sitting Affordances with Fuzzy Sets

Viktor Seib, Malte Knauf and Dietrich Paulus

Active Vision Group (AGAS), University of Koblenz-Landau, Universit

atsstr. 1, 56070, Koblenz, Germany

Keywords:

Affordances, Fine-grained Affordances, Visual Affordance Detection, Object Classiﬁcation, Fuzzy Sets.

Abstract:

Recently, object affordances have moved into the focus of researchers in computer vision. Affordances de-

scribe how an object can be used by a speciﬁc agent. This additional information on the purpose of an object is

used to augment the classiﬁcation process. With the herein proposed approach we aim at bringing affordances

and object classiﬁcation closer together by proposing ﬁne-grained affordances. We present an algorithm that

detects ﬁne-grained sitting affordances in point clouds by iteratively transforming a human model into the

scene. This approach enables us to distinguish object functionality on a ﬁner-grained scale, thus more closely

resembling the different purposes of similar objects. For instance, traditional methods suggest that a stool,

chair and armchair all afford sitting. This is also true for our approach, but additionally we distinguish sitting

without backrest, with backrest and with armrests. This ﬁne-grained affordance deﬁnition closely resembles

individual types of sitting and better reﬂects the purposes of different chairs. We experimentally evaluate our

approach and provide ﬁne-grained affordance annotations in a dataset from our lab.

1 INTRODUCTION

Reasoning about an object’s purpose is an important

area in today’s research on robotics. While object

classiﬁcation is a widely studied topic no solution ex-

ists yet as how to reﬂect the multitude of different ob-

ject categories and relate them to possible actions of

a robot or a person. Indeed, object classiﬁcation ap-

proaches struggle with classes exhibiting large intra

class shape variations. On the other hand, objects be-

longing to the same class share a certain functionality.

At this point, affordances (Gibson, 1986) seem to pro-

vide a beneﬁcial solution. While shape features are

often acquired locally (i.e. around salient points) and

might therefore be misleading, detecting a function-

ality of an object facilitates categorization. Addition-

ally, recognizing affordances of objects instead of the

object classes, allows objects and tools to be applied

even without the precise knowledge of the class the

object belongs to. Even objects of different classes

can be applied according to a certain affordance re-

quired by the agent. For example, if an agent (e. g.

a robot) needs to hammer, it would pick a heavy ob-

ject providing enough space for grasping and a hard

surface to hit on another object. This works without

knowing the category hammer or having a hammer

available by e. g. using a stone instead.

Approaches to detect and learn affordances in

robotics often propose to infer affordance by imi-

tation from observing humans (Stark et al., 2008),

(Kjellstr

om et al., 2011), (Lopes et al., 2007), or

to learn affordances through interaction (Montesano

et al., 2008), (Ridge et al., 2009). Other approaches

focus on augmenting the performance of object recog-

nition methods by recognizing affordances (Hinkle

and Olson, 2013). In their approach, Castellini et

al. (Castellini et al., 2011) record kinematic features

of a hand while grasping objects. They show that

visual features together with kinematic information

help augmenting the object recognition. In contrast

to these approaches using interactive affordances we

do not record kinematic data of an agent, neither do

we detect affordances by interaction. In contrast, vi-

sual perception is mostly common in today’s robots

and it is thus plausible to rely on that data. Thus, the

approach proposed in this paper relies on visual data

only.

In our approach we employ the observer’s view on

affordances as introduced by S¸ahin et al. (S¸ahin et al.,

2007). While the environment is being observed by

a robot equipped with certain sensors, the system is

looking for affordances that afford actions to a prede-

ﬁned model. In our case this predeﬁned model is an

anthropomorphic agent representing a humanoid. In

recent work (Jiang and Saxena, 2013), (Grabner et al.,

2011) this observer’s view is often referred to as hal-

lucinating interactions.

In the proposed method we focus on the comple-

Seib, V., Knauf, M. and Paulus, D.

Detecting Fine-grained Sitting Affordances with Fuzzy Sets.

DOI: 10.5220/0005638802890298

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 4: VISAPP, pages 289-298

ISBN: 978-989-758-175-5

289

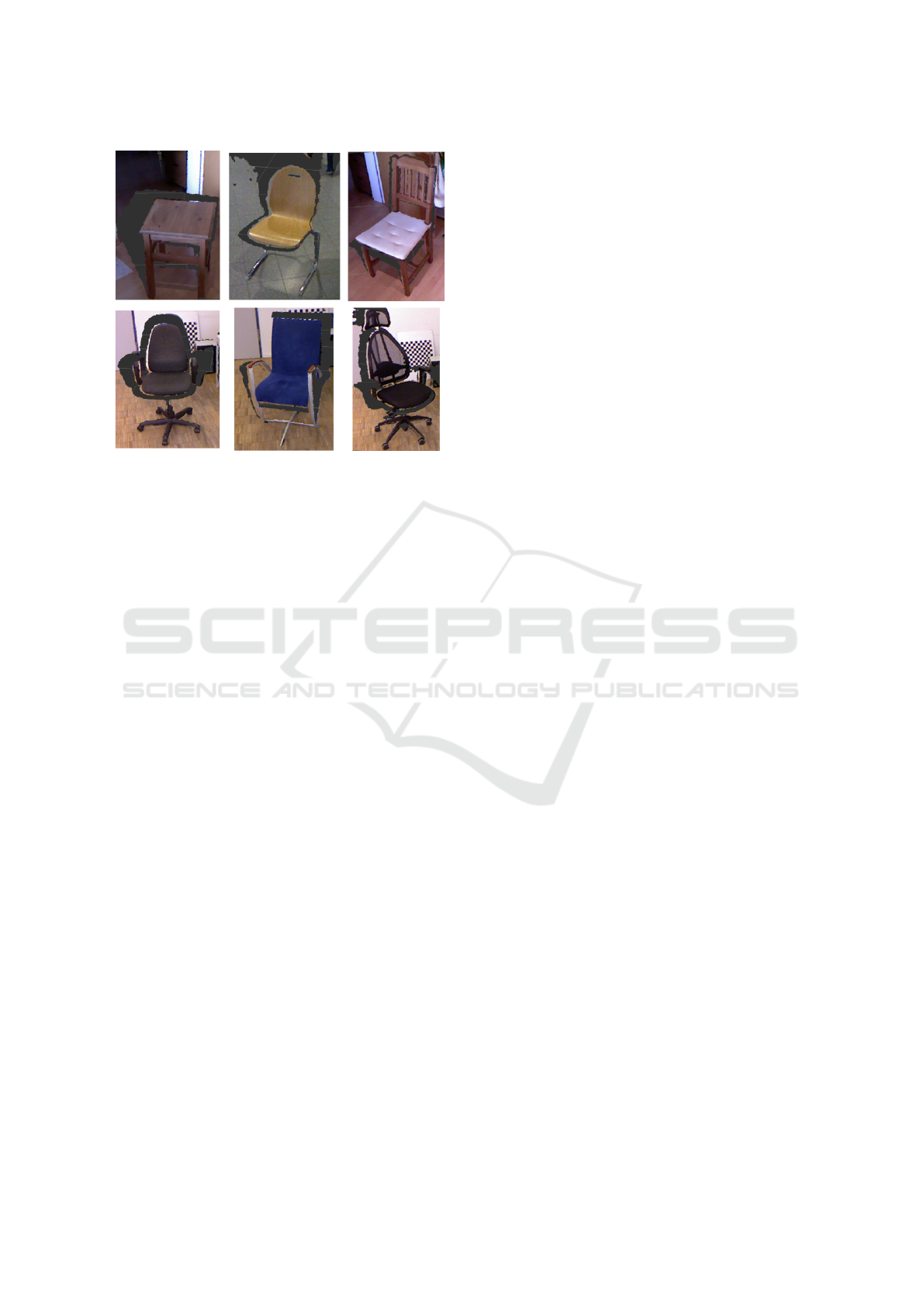

Figure 1: Example furniture objects corresponding to the

different ﬁne-grained affordances detected by the presented

approach. Top row: a stool representing the sitting without

backrest affordance and two chairs representing the sitting

with backrest affordance. Bottom row: three chairs rep-

resenting the sitting with backrest and sitting with armrest

affordances. Additionally, the rightmost chair also supports

the sitting with headrest affordance.

mentary nature of an agent and its environment. We

use indoor or home environments that are considered

as artiﬁcial environments speciﬁcally designed to suit

the needs of humans. Therefore, the complementary

agent to the investigated environment is an anthropo-

morphic, i. e. human, body. Thus, for the purpose of

this work affordances shall be informally deﬁned as

action possibilities that the environment offers to an

anthropomorphic agent.

Related approaches in the literature (Hinkle and

Olson, 2013), (Sun et al., 2010), (Hermans et al.,

2011) distinguish affordances on a coarse scale. The

considered affordances often include sitting (chairs),

support for objects (tables) and liquid containment

(cups). We propose looking closely at the individual

affordances and distinguishing their functional differ-

ences an a ﬁne-grained scale. We already introduced

the concept of ﬁne-grained affordances in (Seib et al.,

2015) to closely resemble the functional differences

of related objects. Although good results could be

obtained, our previous work was a proof-of-concept

with several limitations. The algorithm could be used

to distinguish only 2 ﬁne-grained affordances. Addi-

tionally, it relied on planes segmented from the scene

that had to be oriented in a certain way. Further, with-

out a fuzzy set formulation it relied on ﬁxed values

for important thresholds.

In the presented work, we concentrate on ﬁne-

grained affordances derived from the affordance sit-

ting. We present a new algorithm for ﬁne-grained af-

fordance detection that exploits fuzzy sets and differ-

entiates between 4 typical functionality characteris-

tics of the sitting affordance. We divide the coarse

affordance sitting into the ﬁne-grained affordances

sitting without backrest, sitting with backrest, sitting

with armrest and sitting with headrest, whenever the

sitting functionality is supported by additional envi-

ronmental properties that can be exploited by the con-

sidered agent. Further, the presented approach no

longer relies on features like segmented planes from

the environment, but rather uses the whole input data

for processing.

A system that is able to ﬁnd affordances either

encounters only those objects that were speciﬁcally

designed to support the affordance in question or

environmental constellations that afford the desired

action. Our algorithm takes point clouds from a

RGB-D camera as input. The input data is directly

searched for affordances (and thus functionalities)

without prior object segmentation. In the core of

the algorithm, the agent model is transformed and

checked for collisions with the environment. Speciﬁc

goal conﬁgurations of the agent model represent dif-

ferent types of ﬁne-grained affordances. The encoun-

tered affordances are segmented from the input point

cloud. This segmentation can serve as an initial seg-

mentation for a subsequent object classiﬁcation step

(not further explored in this work). Since the found

affordances (especially on a ﬁne-grained scale) pro-

vide many hints on the possible object class, cate-

gorization can be performed with fewer training ob-

jects or simpler object models. The presented ﬁne-

grained affordances correspond to objects such as a

stool, chair, armchair and a chair with head support

(Figure 1).

Speciﬁcally, an affordance-based categorization

system can be exploited as outlined in the following.

Affordances enable the detection of sittable objects

even without knowing object classes as stool, chair

or couch. Following the idea of ﬁne-grained affor-

dances, a stool standing close to a wall can even pro-

vide both affordances: sitting with and without back-

rest (in the former case the back is supported by the

wall). This intuitively corresponds to the way a hu-

man would utilize an object to obtain different func-

tionality.

The remainder of this work is structured as de-

scribed in the following. Related work on affordances

in robotics is presented in Section 2. Section 3 intro-

duces the model deﬁnitions applied in our algorithm

and Section 4 explains our approach for ﬁne-grained

affordance detection in detail. The proposed algo-

rithm is evaluated in Section 5. Finally, a discussion is

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

290

given in Section 6 and Section 7 concludes the paper

and gives an outlook to our future work.

2 RELATED WORK

Affordances provide a new way to look at objects.

Rather than determining the object’s category by

learning shapes of object classes, the visual informa-

tion is used to detect the object’s functionality. For

example, objects of the class chair have a large in-

tra class shape variation, imposing great challenges

for object recognition systems. At the same time, all

instances of class chair share the same functionality

offering opportunities to augment object recognition

systems.

Hinkle and Olson (Hinkle and Olson, 2013) use

physical simulation to predict object functionality.

The simulation consists of spheres falling onto an ob-

ject from above. A feature vector is extracted from

each object depending on where and how the spheres

come to rest. The objects are classiﬁed as cup-like,

table-like or sitable.

Research especially focusing on sitting affor-

dances has been conducted over the past years. Of-

ﬁce furniture recognition (chairs and tables) is pre-

sented by W

unstel and Moratz (W

unstel and Moratz,

2004). Affordances are used to derive the spatial ar-

rangement of the object’s components. Objects are

modeled as graphs, where nodes represent the object’s

parts and edges the spatial distances of those parts.

The 3D data is cut into three horizontal slices and

within each slice 2D segmentation is performed. The

segmentation results are classiﬁed as object parts and

matched to the object models. W

unstel and Moratz’

approach detects sitting possibilities also on objects

that do not belong to the class chair, but intuitively

would serve a human for sitting. Unlike the approach

of W

unstel and Moratz, we encode the spatial infor-

mation needed for affordance detection in an anthro-

pomorphic agent model and affordance models, rather

than creating explicit object models.

Approaches more similar to the one proposed in

this paper use simulated interaction of an agent and

the environment. Bar-Aviv and Rivlin (Bar-Aviv and

Rivlin, 2006) use an embodied agent to classify sit-

table objects. Starting with an initial agent pose, the

compatibility of different semi-functional agent poses

with the object is tested. For each object hypothesis

and agent pose a score is computed and most probable

poses are further reﬁned. The object is assigned the

label of the hypothesis with the highest score. Con-

trary to Bar-Aviv and Rivlin (Bar-Aviv and Rivlin,

2006) who also use an embodied agent, our method

operates directly on the whole input data. We do not

need to segment the object prior to affordance detec-

tion. In our case, the segmented part of the scene is a

result of the detected affordances on the input data.

Especially in design theory approaches of hier-

archical affordance modeling were proposed (Maier

et al., 2007), (Maier et al., 2009). Their goal is to

divide objects into different functional parts that rep-

resent different affordances. This allows a designer

to identify desired and undesired affordances in early

stages of product design. Note however that this hier-

archical affordance modeling is conceptually different

from the ﬁne-grained affordances applied in this pa-

per. We do not separate objects in different parts with

different affordances. Rather, our object independent

approach separates an affordance (in this case the sit-

ting affordance) into different sub-affordances on a

ﬁne-grained scale.

More recently, Grabner et al. (Grabner et al.,

2011) proposed a method that learns sitting poses of

a human agent to detect sitting affordances in scenes

to classify objects. For training, key poses of a sit-

ting person need to be placed manually on each exam-

ple training object. In detecting chairs, their approach

achieves superior results over methods that use shape

features only. However, as pointed out by Grabner et

al. their approach has difﬁculties in detecting stools,

since they were not present in the training data. Con-

sequently, the approach of Grabner et al. does not

allow to detect affordances per se, but rather affor-

dances of trained object class examples.

In the present paper we follow a different ap-

proach. Our goal is to directly detect sitting affor-

dances in input data, independently of any possibly

present object classes. Further, if a sitting affordance

is detected, it will be categorized on a ﬁne-grained

scale according to the characteristics of the input data

at the position where the affordance was found. Con-

sequently, our approach does not rely on examples

of sitting furniture, but only on the anthropomorphic

agent model encoding (in our case) comfortable sit-

ting positions. Our fuzzy function formulation en-

codes expert knowledge to connect the input data with

the desired functionality with respect to the given

agent model. Therefore, sitting affordances are de-

tected on the data as it is, independently of the pres-

ence of actual object classes. Additionally and similar

to Grabner et al., our approach suggests a pose how

the detected object can be used by the agent.

Note that our approach is ignorant of any object

categories. However, our ﬁne-grained affordance for-

mulation allows for a more precise object categoriza-

tion as a consequence of affordance detection. Due

to the ﬁne-grained scale on which affordances are de-

Detecting Fine-grained Sitting Affordances with Fuzzy Sets

291

tected, object categories can be easily linked to the

detection result (e.g. if a backrest could be detected or

not). Our approach thus suggest as which kind of ob-

ject the detected object exhibiting the affordance can

be used. However, in this paper we concentrate on

introducing the concept of ﬁne-grained affordances.

The detailed analysis of detected objects and their

classiﬁcation is left for future work.

3 MODEL DEFINITIONS

Usually, affordances are deﬁned as relations between

an agent and its environment (Gibson, 1986), (S¸ ahin

et al., 2007), (Chemero and Turvey, 2007). Since

these two entities are crucial for affordances, we start

with their deﬁnitions. Then, a deﬁnition of ﬁne-

grained affordances is provided.

3.1 Agent and Environment

Our anthropomorphic agent model is deﬁned as a di-

rected acyclic graph H representing a human body

(Figure 2). In this graph, nodes represent joints in a

human body and edges represent parameterized spa-

tial relations between these joints. The spatial rela-

tions correspond to average human body proportions.

The nodes contain information on how the joints can

be revolved while maintaining an anatomically plau-

sible state (i.e. without harming a real human if the

same state would be applied). When ﬁtting the agent

into the environment during affordance detection, the

edges of the graph are approximated by cylinders for

collision detection. Contrary to our previous work

(Seib et al., 2015), we do not need an explicit envi-

ronment model E. Rather, E is simply the point cloud

data of a scene where affordances should be detected.

3.2 Fine-grained Affordances

A ﬁne-grained affordance is a property of an affor-

dance that specializes the relation of an agent H and

its environment E. In the presented work, we take the

sitting affordance as an example. The affordance sit-

ting is a generalization of more precise relations that

an agent and its environment can take. In this paper,

we demonstrate our ideas by distinguishing between

the ﬁne-grained affordances sitting without backrest,

sitting with backrest, sitting with armrest and sitting

with headrest.

Note that some of these ﬁne-grained affordances

depend on others. For example, if the environment E

affords sitting with backrest to the agent H it must

(a) (b)

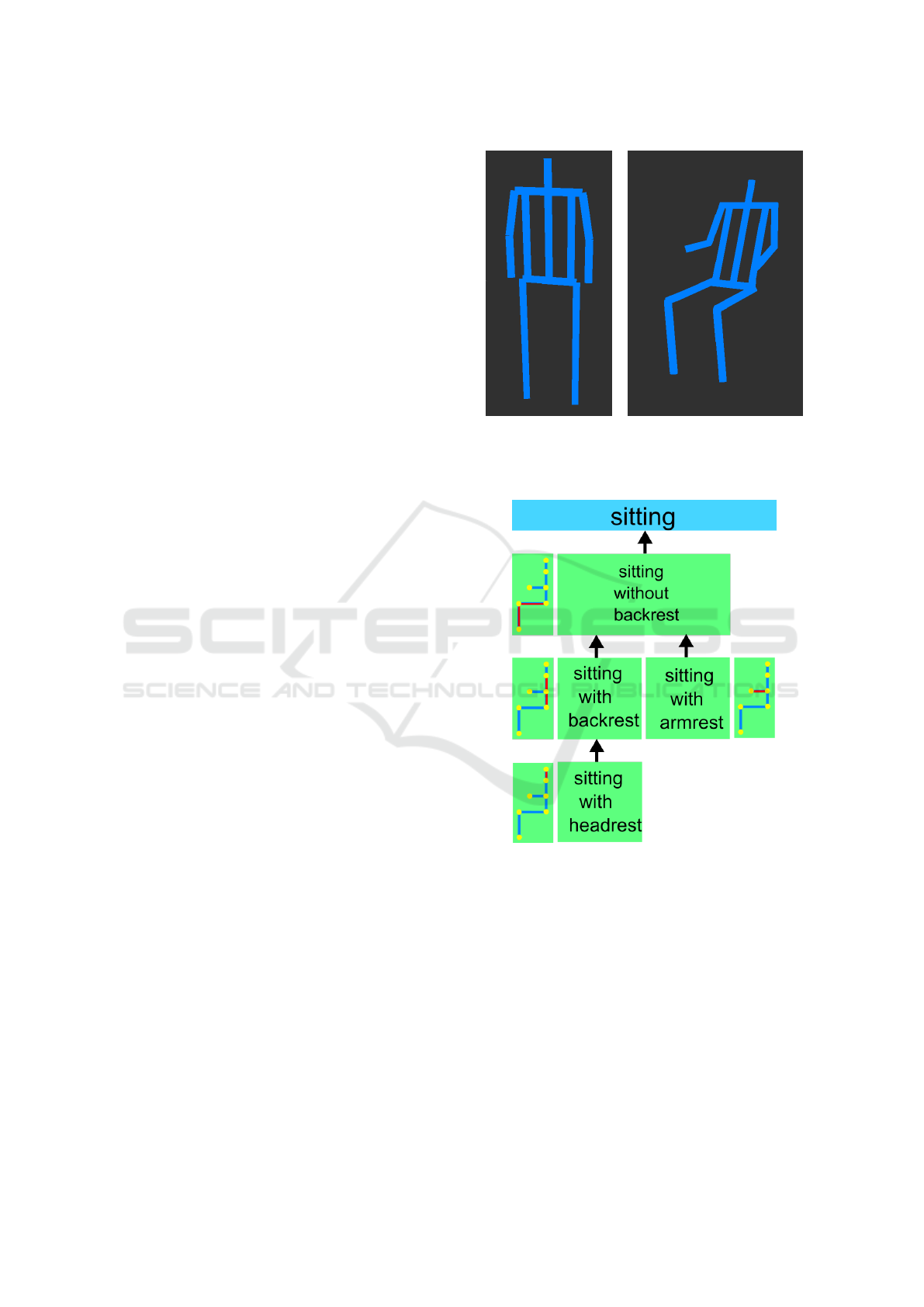

Figure 2: The humanoid model: in an upright standing pose

(a) and in a sitting pose as used in our experiments (b).

Figure 3: The presented affordance model specializes the

sitting affordance into ﬁne-grained affordances. The arrows

indicate the dependencies between the ﬁne-grained affor-

dances. An agent pose for each ﬁne-grained affordance is

displayed. The edges shown in red are used for collision

tests during detection.

necessarily afford sitting without backrest as well, be-

cause the agent can choose not to use the backrest

while seated. The dependencies as deﬁned in our

models are depicted in Figure 3.

For each affordance A, an initial pose of the agent

needs to be deﬁned (so far, we use only one affor-

dance, namely sitting). Thus, every ﬁne-grained af-

fordance F

specializing the same affordance A has

the same initial pose. The initial pose refers to the

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

292

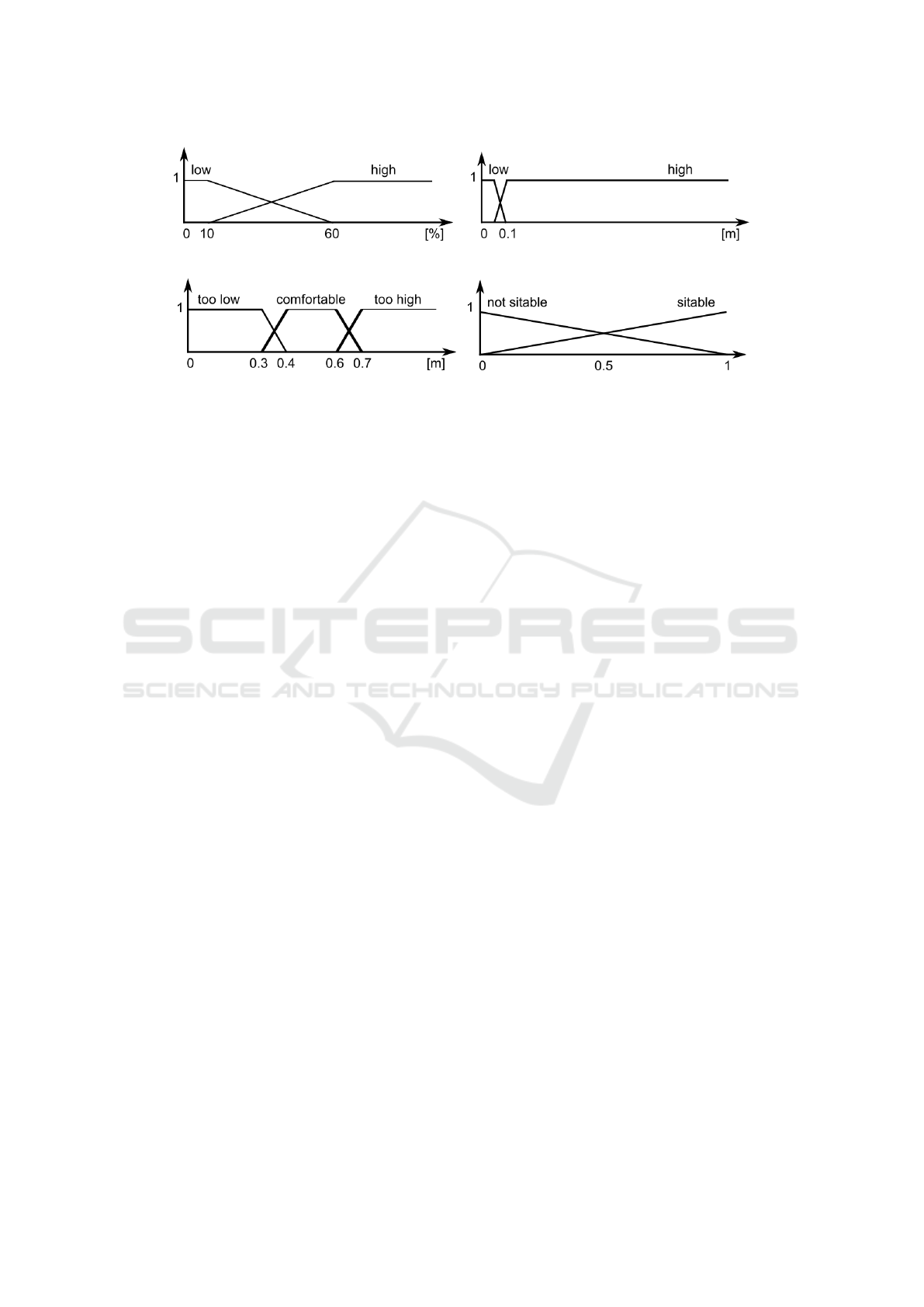

(a) discontinuity (b) roughness

Figure 4: Membership functions used to ﬁnd valid positions for sitting affordances. The functions in (a), (b) and (c) are used

to evaluate the rule, while the function in (d) is used for defuzzyﬁcation.

joint states of the simulated agent prior to any trans-

formations and collision tests. Further, each ﬁne-

grained affordance is deﬁned by a number of relevant

body parts of the agent (i.e. edges in the graph H ) that

are tested for collisions, as well as the corresponding

goal angles for transformation.

In the context of this paper we deﬁne an affor-

dance A as a set A = {F

. . . F

} of ﬁne-grained af-

fordances F

. The function Aff : H

× E × A →

{(F , P, H

)

} determines for a given environment E ,

affordance A and initial agent conﬁguration H

a set

of tuples. Each tuple contains F ⊆ A, a set of ﬁne-

grained affordances present at position P in the en-

vironment with a goal agent conﬁguration H

. The

algorithm presented in the next Section is an imple-

mentation of the above function Aff.

4 FINE-GRAINED DETECTION

OF SITTING-AFFORDANCES

The algorithm for ﬁne-grained affordance detection

is essentially based on dropping an agent model in its

initial pose into a point cloud at appropriate positions.

These positions need to be found beforehand. The

joints of the model are then transformed to achieve

maximum contact with the point cloud. Only joints

relevant for a certain affordance are considered. The

initial pose of the agent, as well as the joint trans-

formations are determined by the affordance mod-

els. Further, only the agent model and the affordance

models determine the current functionality of the de-

tected object. This means that the presented approach

also ﬁnds objects that might not have been designed

to fulﬁll a certain functionality. However, based on

visual information and their position in the scene they

afford the desired actions. We conﬁned the evalua-

tion to an agent representing an average human adult

and to ﬁne-grained affordances derived from the af-

fordance sitting. The algorithm is described in the

following. Additionally, it is outlined in Algorithm 1.

4.1 Extracting Positions of Interest

Before ﬁtting the agent into the scene, the search

space needs to be reduced to the most promising po-

sitions. We therefore create a height map of the scene

(Figure 5 (b)). The point cloud is subdivided into cells

of size c. In our experiments a size of c = 0.05 m pro-

vided a good balance between precision and calcula-

tion time. The highest point per cell determines the

cell height. We decided in favor of the highest point

instead of the average to avoid implausible values at

borders of objects, where a cell may contain parts of

the object and e.g. the ﬂoor.

Subsequently, a circular template, approximating

the agent’s torso, is moved over the height map to test

whether a cell is well suited for sitting. The diameter

of this template corresponds to the width of the agent

as deﬁned in the model. The decision for each cell

is based on fuzzy sets as introduced by Lotﬁ Zadeh

(Zadeh, 1965). We deﬁne 3 membership functions:

discontinuity, roughness and height (Figure 4). Dis-

continuity is a measure deﬁned in percent of invalid

cells or holes within the current position of the cir-

cular template. Roughness is the standard deviation

of the height of all cells within the circular template.

Finally, the membership function height is used to in-

clude only cells in a certain height that allow comfort-

able sitting with bent knees, while the feet still touch

the ground. However, this function can be disabled in

the algorithm conﬁguration to allow for valid sitting

positions on the ground or on higher planes like ta-

bles. One single rule is enough to decide whether a

Detecting Fine-grained Sitting Affordances with Fuzzy Sets

293

position is suited for affordance detection or not. We

use the intersection of these membership functions to

obtain the following rule: IF roughness is low AND

discontinuity is low AND height is comfortable THEN

the position is suited for sitting. Of course, with more

affordances, more rules will be needed. The fuzzy

value obtained from these functions is defuzzyﬁed on

the sitability function depicted in Figure 4 (d) using

the ﬁrst of maximum rule. The test is performed for

both fuzzy sets of this rule, obtaining a crisp value for

sittable and not sittable and deciding in favor of the

fuzzy set with the higher crisp value. The positions

obtained in this manner are used as possible sitting

positions in further algorithm steps (Figure 5 (c)).

4.2 Agent Fitting

On every extracted position,

360

◦

agent models in the

initial pose are dropped from a small height (we use a

height of 0.1 m). The total number depends on the pa-

rameter w determining the angular rotation difference

about the vertical axis between 2 subsequently tested

models. We test several models in this step since the

initial circular template was an approximation of the

agent’s torso, while in this step also the corresponding

rotation needs to be found to provide enough room for

the agent’s legs. Dropping the agents is simulated by

stepwise lowering the model until a collision is de-

tected. If a collision occurs before any lowering of

the model, the position is discarded. The affordance

model is applied to all remaining positions.

The relevant joints for the affordance are gradu-

ally transformed from their initial pose to maximum

allowed goal pose. The affordance is detected if a col-

lision with the scene is encountered during the trans-

formation. For instance, the ﬁne-grained affordance

sitting with backrest is detected during the transfor-

mation of the agent’s torso, comparable to the agent’s

movement of leaning backward against a backrest. If

a joint reaches its maximum goal pose without a colli-

sion the algorithms assumes that the affordance is not

present.

We use the open source library Flexible Collision

Library (FCL) (Pan et al., 2012) for collision detec-

tion. FCL detects collisions between 2 objects and

returns the exact position at which the collision oc-

curred. As input for FCL we convert the point cloud

of the scene to the OctoMap representation (Hornung

et al., 2013) and approximate the individual body

parts of the agent by cylinders. The scene and agent

are thus iteratively tested for collisions, by ﬁrst trans-

forming the corresponding joint and then performing

the collision test. This procedure is repeated until the

goal angle is reached or a collision occurs.

Note that in contrast to normal affordances, a ﬁne-

grained affordances might depend on the existence of

another ﬁne-grained affordance (Figure 3). In the pre-

sented work the sitting without backrest affordances

is checked ﬁrst, as other affordances depend on it.

Sitting with backrest and sitting with armrests are

Algorithm 1: Fine-grained Detection of Sitting-Affordances.

Require: Agent model H

, Point cloud (environ-

ment) E, Affordance models A = {F

. . . F

Ensure: List of tuples L = {(F , P, H

)

} with F ⊆

A, a set of ﬁne-grained affordances, the position

P in the environment and a goal agent conﬁgura-

tion H

{ﬁnd candidate positions}

H ← createHeightMap(E)

C ←

for all cells c ∈ H do

if roughness(c) is low and discontinuity(c) is

low and height(c) is comfortable then

5: C ← C ∪ c

end if

end for

{test whether sitting is possible}

L ←

F ←

10: for all c ∈ C and

360

orientations of H

place agent H

over cell c

if not collides(H

, E) then

lower H

until collision

F ← F ∪ F

15: P ← getPositionO f Cell(c)

← H

{check all ﬁne-grained affordances}

for all F

∈ A do

H ← H

while isNotInGoalPose(H ) do

20: trans f ormJoints(H )

if collides(H , E ) then

F ← F ∪ F

← H

end if

25: end while

end for

end if

{save results}

if F 6=

0 then

L ← L ∪ (F , P, H

)

30: end if

end for

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

294

(a) input scene (b) height map

Figure 5: Illustration of different algorithm steps. The input scene is shown in (a) and the corresponding height map in (b).

Image (c) shows the possible positions for sitting affordances found by our fuzzy set formulation. The length of the red arrows

corresponds to the defuzzyﬁed value from the sitability function. The ﬁnal agent pose as well as the object segmentation is

shown in (d) for the ﬁne-grained affordances sitting with backrest and sitting with armrest.

checked subsequently. The sitting with headrest af-

fordance is checked as the last one, since it depends

on the presence of a backrest. The output of this step

is the ﬁnal pose of the agent (position P and joint

states H

), as well as a set of detected ﬁne-grained

affordances F .

4.3 Pose Selection and Object

Segmentation

So far, we have obtained the position and the list of

detected ﬁne-grained affordances. However, we still

have several hypotheses per position, since the agent

was dropped at different rotations. To select the best

pose for each position we use an assessment func-

tion. It is based on the total number of collisions de-

tected for a pose. The assumption behind this is that

a higher number of collisions indicates a more com-

fortable pose (a person sitting comfortably on a chair

touches the chair at more points than a person sitting

on the edge of a chair). We thus select the pose with

the most collision points for each hypothesis position.

This collision based rule favors affordances that in-

volve a higher number of joints. However, this does

not limit the validity of the output since more spe-

cialized affordances (i.e. using more joints) depend

on other affordances which are also present at the de-

tected positions.

After obtaining the affordances and highest rated

poses, the partition of the scene exhibiting that affor-

dance is segmented. We use a region growing algo-

rithm where the position of the detected affordance

serves as seed point. Each point below a certain Eu-

clidean distance is added to the segmented scene part.

A low value is well suited to close small gaps in the

point cloud, but at the same time limit the segmenta-

Detecting Fine-grained Sitting Affordances with Fuzzy Sets

295

Figure 6: Example scenes without sitting affordances in the evaluation dataset.

tion result to one object. Further, points close to the

ﬂoor are ignored. The segmentation result is shown

in Figure 5 (d).

5 EVALUATION

We conducted our experiments on real-world data

that was acquired in our lab. Data acquisition was

performed with an RGB-D camera that was moved

around an object and roughly pointed at that object’s

center. In total, we acquired data from 17 different

chairs and 3 stools to represent the ﬁne-grained af-

fordances. From these data, we extracted 248 dif-

ferent views of the chairs and 47 different views of

the stools. Example views of these objects are shown

in Figure 1. Additionally, negative data (i.e. data

without the ﬁne-grained affordances) from 9 differ-

ent furniture objects was obtained and 109 views of

these objects extracted. Negative data includes ob-

jects like desks, tables, dressers and a heating ele-

ment. Example views of negative data are presented

in Figure 6. The whole evaluation dataset contains

404 scene views with 295 positive and 109 negative

data examples. The dataset was annotated with ex-

pected positions and rotations of the agent for the in-

dividual ﬁne-grained affordances. All this data is pro-

vided online

and is the ﬁrst publicly available dataset

with ﬁne-grained affordance annotations.

We applied our affordance detection to these data.

From each scene, the best scored affordance was ex-

tracted and compared to ground truth. If the detected

position was within 0.2 m and within a rotation of 20

◦

to the ground truth, a sitting affordance was correctly

found and is further analyzed for ﬁne-grained affor-

dances. Examples of correct affordance detections are

presented in Figure 7.

The results of the evaluation are shown in Table 1.

Our algorithm is able to ﬁnd almost all sitting pos-

sibilities, while making only little mistakes, as indi-

Test dataset available at https://dl.dropboxusercont

ent.com/u/6693658/affordance dataset.zip

Table 1: Evaluation results for each of the ﬁne-grained af-

fordances.

sitting precision recall f-score

affordance

w/o backrest 0.89 0.97 0.93

with backrest 0.89 0.83 0.86

with armrest 0.84 0.57 0.68

with headrest 0.98 0.39 0.58

cated by the results for the sitting without backrest af-

fordance. While the recall for the sitting with backrest

affordance is below the recall of the ﬁrst affordance,

it is still high at 83%. The ability of our algorithm

to detect these two specialized affordances at the pre-

sented high rates speaks in favor of the presented ap-

proach. Note that these results were achieved without

any training. All the knowledge required for detection

is encoded in the simple agent and affordance models.

The results for the ﬁne-grained affordances in-

volving an armrest and a headrest are below the afore-

mentioned ones. F-scores of 68% (armrests) and 58%

(headrest) indicate that our algorithm successfully

differentiates between closely related object function-

alities and is able to detect the corresponding ﬁne-

grained affordances in RGB-D data. However, the

lower values indicate that the agent model might need

more degrees of freedom during collision detection

to better ﬁnd differently shaped chairs. On average,

in its current state our algorithm takes 4.3 seconds to

process one scene (single thread execution).

6 DISCUSSION

The main idea of this paper is to introduce the concept

of ﬁne-grained affordances and overcome the limi-

tations of our previous approach (Seib et al., 2015)

that relied on plane segmentation and, thus, was not

general enough. Here we have shown that our algo-

rithm is able to differentiate affordances on a ﬁne-

grained scale without prior object or plane segmen-

tation. Thus, the presented approach is more general

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

296

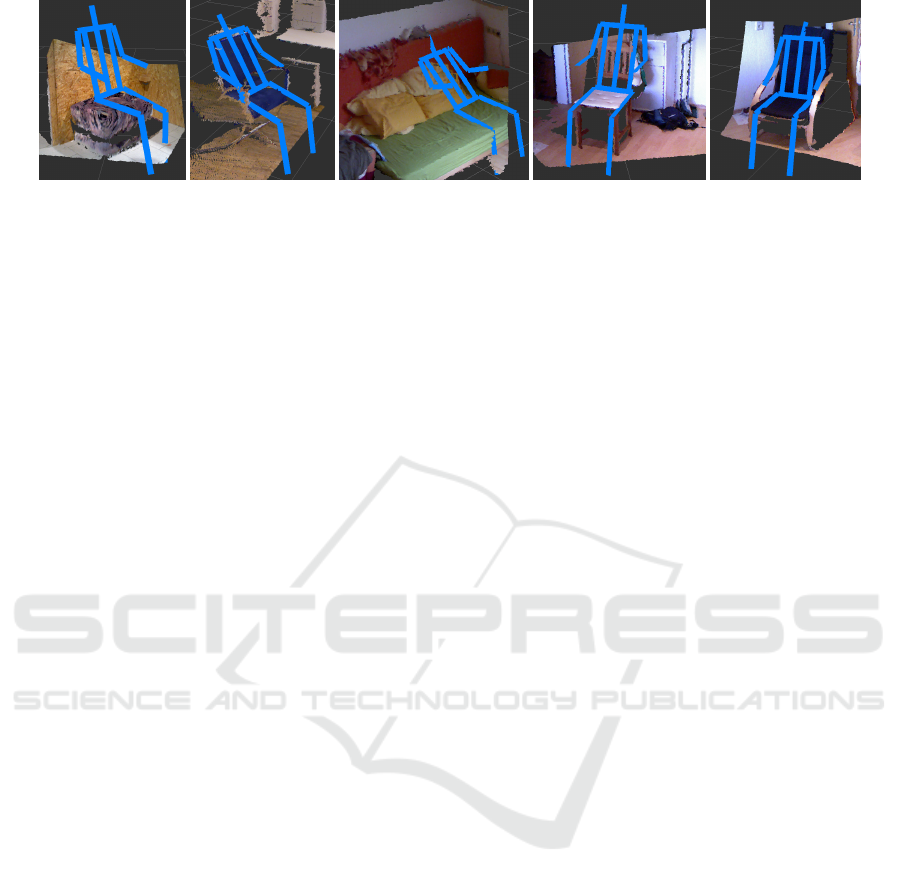

Figure 7: Resulting agent poses for some of the scenes in the evaluation dataset.

and can be applied to the input data directly.

To our best knowledge, no similar approaches ex-

ist in the literature that are able to differentiate affor-

dances on a ﬁne-grained scale. This makes it hard (if

not impossible) to assess the quality of our approach

and compare it to related work. We therefore want

to give a discussion on certain properties of our algo-

rithm and give a detailed outlook to our ongoing work

in that ﬁeld.

Apart from introducing the notion of ﬁne-grained

affordances the biggest difference to related work

such as the approach of Grabner et al. (Grabner et al.,

2011) is that we detect affordances directly. In con-

trast, Grabner et al. learn affordances as properties of

objects which allows them to augment the classiﬁca-

tion ability of their approach. However, our approach

is ignorant of any object categories.

While we believe that our approach will also ben-

eﬁt from machine-learning techniques (e.g. by learn-

ing the membership functions for the fuzzy sets), at

this point we have completely omitted the learning

step. This comes at the cost of manually deﬁning

“reasonable” values for the fuzzy sets (low effort)

and a deformable human model (medium effort). Ad-

ditionally, this raises the question on the extensibil-

ity of the approach. An initial agent pose needs to

be provided for any new affordance that is included.

However, if an agent model is already available (here

for sitting) new poses can be added by simply trans-

forming joint values in the corresponding conﬁgura-

tion ﬁle, as we have done for illustration in Figure 2

(a). As a second step, the joints of interest that are

involved in the new affordance description, need to

be provided with a minimum and maximum angle for

transformation.

A more complex extension of the algorithm would

be to include a different agent, e.g. a hand for grasp-

ing. While the hand itself can be modeled again as

an acyclic graph of joints, the initial hypotheses se-

lection step must be changed completely. Instead of

ﬁnding potential sitting positions in the height map,

for a hand a different hypotheses selection needs to

be applied (e.g. ﬁnding small salient point blobs).

However, as soon as these hypotheses are found, the

rest of the algorithm is the same: transform joints of

the agent and evaluate a cost function that reﬂects

the quality of affordance detection. We thus believe

that the presented approach is generalizable and well

suited for extension.

7 CONCLUSION AND OUTLOOK

In this paper we have further reﬁned the term ﬁne-

grained affordances to better distinguish similar ob-

ject functionalities. We presented a novel algorithm

that is based on fuzzy sets, to detect these affordances.

The algorithm has been evaluated on 4 specializations

of the sitting affordance and we have shown that the

presented approach is able to differentiate affordances

on a ﬁne-grained scale. For comparable state of the art

approaches, these 4 ﬁne-grained affordances would

all have been the same affordance: sitting.

Apart from the ability to distinguish similar ob-

ject functionalities, ﬁne-grained affordances can be

applied as a ﬁltering or preprocessing step for ob-

ject classiﬁcation. The segmented object that results

from the affordance detection is constrained to object

classes that provide the detected affordance. Thus, if

this object needs to be classiﬁed, it does not have to

be matched against the whole dataset, but only against

object classes exhibiting the found affordance.

The presented algorithm is ignorant of any object

classes, since our goal is to detect affordances. This

is evident from the leftmost image in Figure 7, where

the agent is sitting with a backrest although the object

it is sitting on does not have one. Clearly, here the en-

vironmental constellation (object and wall) provided

the detected affordance. This demonstrates a strength

of the concept of ﬁne-grained affordances that we will

further explore in our future work.

Further, we will investigate how an anthropomor-

phic agent model can be exploited to detect more ﬁne-

grained affordances from other body poses. As an ex-

ample for a lying body pose, the ﬁne-grained affor-

dances lying ﬂat and lying on a pillow can be distin-

guished. Fine-grained affordances can also be deﬁned

for other agents, e.g. a hand. In that case, grasping

Detecting Fine-grained Sitting Affordances with Fuzzy Sets

297

with the whole hand and grasping with two ﬁngers

could be distinguished, e.g. for grasp planning for

robotic arms. Additionally, ﬁne-grained affordances

for grasping actions can include drawers and doors

that can be pulled open or pulled open while rotat-

ing (about the hinge). We are currently looking for

more examples for ﬁne-grained affordances for differ-

ent agents, to generalize our approach of ﬁne-grained

affordances.

REFERENCES

Bar-Aviv, E. and Rivlin, E. (2006). Functional 3d object

classiﬁcation using simulation of embodied agent. In

BMVC, pages 307–316.

Castellini, C., Tommasi, T., Noceti, N., Odone, F., and Ca-

puto, B. (2011). Using object affordances to improve

object recognition. Autonomous Mental Development,

IEEE Transactions on, 3(3):207–215.

Chemero, A. and Turvey, M. T. (2007). Gibsonian affor-

dances for roboticists. Adaptive Behavior, 15(4):473–

480.

Gibson, J. J. (1986). The ecological approach to visual per-

ception. Routledge.

Grabner, H., Gall, J., and Van Gool, L. (2011). What

makes a chair a chair? In Computer Vision and Pat-

tern Recognition (CVPR), 2011 IEEE Conference on,

pages 1529–1536.

Hermans, T., Rehg, J. M., and Bobick, A. (2011). Affor-

dance prediction via learned object attributes. In In-

ternational Conference on Robotics and Automation:

Workshop on Semantic Perception, Mapping, and Ex-

ploration.

Hinkle, L. and Olson, E. (2013). Predicting object func-

tionality using physical simulations. In Intelligent

Robots and Systems (IROS), 2013 IEEE/RSJ Interna-

tional Conference on, pages 2784–2790. IEEE.

Hornung, A., Wurm, K. M., Bennewitz, M., Stachniss,

C., and Burgard, W. (2013). OctoMap: An efﬁ-

cient probabilistic 3D mapping framework based on

octrees. Autonomous Robots. Software available at

http://octomap.github.com.

Jiang, Y. and Saxena, A. (2013). Hallucinating humans for

learning robotic placement of objects. In Experimen-

tal Robotics, pages 921–937. Springer.

Kjellstr

om, H., Romero, J., and Kragi

c, D. (2011). Vi-

sual object-action recognition: Inferring object affor-

dances from human demonstration. Computer Vision

and Image Understanding, 115(1):81–90.

Lopes, M., Melo, F. S., and Montesano, L. (2007).

Affordance-based imitation learning in robots. In

Intelligent Robots and Systems, 2007. IROS 2007.

IEEE/RSJ International Conference on, pages 1015–

1021. IEEE.

Maier, J. R., Ezhilan, T., and Fadel, G. M. (2007). The af-

fordance structure matrix: a concept exploration and

attention directing tool for affordance based design. In

ASME 2007 International Design Engineering Tech-

nical Conferences and Computers and Information in

Engineering Conference, pages 277–287. American

Society of Mechanical Engineers.

Maier, J. R., Mocko, G., Fadel, G. M., et al. (2009). Hierar-

chical affordance modeling. In DS 58-5: Proceedings

of ICED 09, the 17th International Conference on En-

gineering Design, Vol. 5, Design Methods and Tools

(pt. 1), Palo Alto, CA, USA, 24.-27.08. 2009.

Montesano, L., Lopes, M., Bernardino, A., and Santos-

Victor, J. (2008). Learning object affordances: from

sensory–motor coordination to imitation. Robotics,

IEEE Transactions on, 24(1):15–26.

Pan, J., Chitta, S., and Manocha, D. (2012). Fcl: A general

purpose library for collision and proximity queries. In

Robotics and Automation (ICRA), 2012 IEEE Interna-

tional Conference on, pages 3859–3866.

Ridge, B., Skocaj, D., and Leonardis, A. (2009). Unsu-

pervised learning of basic object affordances from ob-

ject properties. In Computer Vision Winter Workshop,

pages 21–28.

S¸ahin, E., C¸ akmak, M., Do

gar, M. R., U

gur, E., and

Uc¸oluk,

G. (2007). To afford or not to afford: A new formal-

ization of affordances toward affordance-based robot

control. Adaptive Behavior, 15(4):447–472.

Seib, V., Wojke, N., Knauf, M., and Paulus, D. (2015). De-

tecting ﬁne-grained affordances with an anthropomor-

phic agent model. In Fleet, D., Pajdla, T., Schiele, B.,

and Tuytelaars, T., editors, Computer Vision - ECCV

2014 Workshops, volume II of LNCS, pages 413–419.

Springer International Publishing Switzerland.

Stark, M., Lies, P., Zillich, M., Wyatt, J., and Schiele, B.

(2008). Functional object class detection based on

learned affordance cues. In Computer Vision Systems,

pages 435–444. Springer.

Sun, J., Moore, J. L., Bobick, A., and Rehg, J. M. (2010).

Learning visual object categories for robot affordance

prediction. The International Journal of Robotics Re-

search, 29(2-3):174–197.

unstel, M. and Moratz, R. (2004). Automatic object

recognition within an ofﬁce environment. In CRV, vol-

ume 4, pages 104–109. Citeseer.

Zadeh, L. A. (1965). Fuzzy sets. Information and control,

8(3):338–353.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

298
