Improving Database Security in Web-based Environments

Francesco Di Tria, Ezio Lefons and Filippo Tangorra

Dipartimento di Informatica, Università degli Studi di Bari Aldo Moro, Via Orabona 4, 70125 Bari, Italy

Keywords: SQL Injection, Authentication, Authorization, Web Application, Architecture.

Abstract: In web applications, databases are generally used as data repositories, where a server-side program interacts

with a Database Management System (DBMS), retrieves content, and dynamically generates web pages.

This is known as a three-layer architecture, that is widely exposed to database threats. The attacks are

usually performed through the injection of SQL code in the forms of the web applications, exploiting the

dynamic construction of SQL statements. So, the database security relies on the quality of the code and the

controls done by the web developer in the application level. In this paper, we present a solution for the

improvement of security of databases accessed by web applications. The security is based on a user

modelling approach that completely relies on the authorization mechanism of DBMSs.

1 INTRODUCTION

In Web-based environments, a three-layer

architecture is commonly adopted, composed of a

back-end and a front-end. In the back-end, we find

two main servers: the web server and a database

server (or DBMS). Currently, the web server hosts

static web pages and/or scripts, which are server-

side programs interacting with a DBMS in order to

access the database and to provide dynamic and on-

demand content.

A server-side program (or web application)

needs to store a plain-text account to make

connections to the database. As a consequence,

anyone who has granted a physical access to the

server’s file system is able to view the password

used for the authentication to the DBMS. In this

sense, the account of a database user (even the

administrator, in some cases) is publicly accessible.

Furthermore, the account is usually formed of a

couple of username and password. This account is

used for all the connections to the database,

independently from the user profile. For the sake of

simplicity, it is the web application that accesses the

database, not the user. So, it is not possible for the

DBMS to know who is really using the web

application and to apply its own authorization

mechanism (Gertz and Jajodia, 2007).

For example, if two roles, namely manager and

employee, are defined in the web application, with

the policy that an employee cannot access the

financial data, then the DBMS is not able to know if

the current user that is querying the database

(through the web application) is logged in as a

manager or an employee. Therefore, the DBMS

cannot adopts its security model in the case of

attacks to the database coming from illegitimate

users (Bertino and Sandhu, 2005).

Clearly, in these environments, the database

security widely depends on the web developer’s

ability and the program code quality. The developer

has to bear all the controls necessary to protect the

database. If the application is not well-developed,

then the database is exposed to a class of attacks

known as SQL injection that exploits the possibility

to dynamically construct dangerous SQL statements

(Roy et al., 2011). Therefore, the threats to database

security are often attributable to the web developer’s

negligence or inexperience. To this reason, a web

application assessment is useful to detect

vulnerabilities (Huang et al., 2003; Xiang Fu et al.,

2007). Another possible solution is the adoption of

systems able to analyze the traffic towards a DBMS

and report anomalies (Pinzón et al., 2010; Rietta,

2006).

In this paper, we present an approach to improve

the database security where the security model does

not depend on the application level, but it is

incorporated in the DBMS level. In fact, DBMSs

always include strong authorization mechanisms

that, in web-based environments, are de facto

unutilized. The proposed security model is based on

Tria, F., Lefons, E. and Tangorra, F.

Improving Database Security in Web-based Environments.

DOI: 10.5220/0005646901930200

In Proceedings of the 2nd International Conference on Information Systems Security and Privacy (ICISSP 2016), pages 193-200

ISBN: 978-989-758-167-0

193

a mapping of web applications users, who access

resources like dynamic web pages, to database users,

who must be granted privileges to execute the views

that generates the contents of those web pages.

In the following, we refer to a typical WAMP

(Windows, Apache, MySQL, PHP) or LAMP

(Linux, Apache, MySQL, PHP) environment to

illustrate examples.

The paper is structured as follows. Section 2

introduces an overview of the threats to the database

security. Section 3 presents our approach based on a

mapping of web application users to corresponding

DBMS users. Then, Section 4 reports some real

scenarios and practical examples. Finally, Section 5

concludes the paper with our remarks.

2 OVERVIEW OF DATABASE

VULNERABILITY

The first issue is related to the user modelling.

DBMSs are provided with both an authentication

and an authorization mechanism. The authentication

deals with the identification of the user (who is the

user) and is usually based on passwords, that is, the

so-called something you know paradigm. The other

paradigms are something you are, such as biometrics

parameters, and something you have, like electronic

badges.

On the other hand, the authorization is devoted to

check whether an authenticated user is enabled to

access a given resource (what the user can do). The

authorization is usually done with privileges. So,

DBMSs have a profile of each registered user (see

Fig. 1) such that they are able to know the user

identity and the database objects (such as

procedures, views or tables) which he/she is allowed

to access.

Figure 1: DBMS user modelling.

For these reasons, when users interact with a

Web Application, the authentication and the

authorization mechanism of the DBMS might not be

applied.

In fact, such applications are configured with a

unique account that is used to access the system

database (see Fig. 2), which stores both data and

user profiles.

As a consequence, the Web Application knows

the user identity, but the DBMS does not (Ben

Natan, 2005). From the DBMS’s point of view, the

database user is always the web application itself,

usrWA in this example.

Figure 2: Web Application user modelling.

The second issue is related to the configuration

file. The account (that always includes a username

and a password of a database user) is used by the

application and it is stored as a plain text, that is, it is

not encrypted. Anyone, who has a physical (or a

remote) access to the computer where the

application resides, is able to read and copy the

configuration file. Storing a plain-text password is

the worst threat for any system.

The third important issue is related to dynamic

and embedded SQL. Web applications include and

create SQL instructions by concatenating text strings

and user inputs. This leads to several security issue,

known as SQL-injection attacks. According to this

kind of attack, malicious users can insert specific

sequences of characters when filling a form of a web

page, determining the generation of dangerous SQL

instructions (Boyd and Keromytis, 2004).

In (Halfond et al., 2006), the authors report a

complete list of the possible goals that can be

reached by malicious users performing SQL-

injection attacks.

Bypassing Authentication. Users performing this

kind of attack aim at bypassing the application

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

194

authentication mechanism, by obtaining access to

the system without providing a valid password.

This may happen when the web application

executes no user input validation or uses a weak

query like the following in order to authenticate the

users:

select * from users where

username=’$username’ and

password=’$password’

where $username and $password are the

variables containing the user login input. In fact, if

$username contains a malicious string like “’

or 1=1 #”, then the query that is dynamically

generated by the program is the following

select * from users where

username=’’ or 1=1 #and

password=’$password’.

(The # symbol is used to comment code). The last

SQL statement is a tautology and the user is

authenticated without any password.

Furthermore, a threat to the authentication may

be preceded by a port-scanning, a process devoted to

discover and exploit potentially vulnerable services

on a network host (Vasserman et al., 2009).

Extracting Data. This is the most common and the

most dangerous attack, as it allows the visualization

of (possible sensitive) data. Also this threat is based

on alterations of legitimate SQL statements, for

example adding union clause. As an example, if the

application generates a query like

select projectName, projectDescr

from projects where

projectResp=’$projectManager’

to extract the projects assigned to a given manager

and the manager’s name is a search parameter, then

a user who accesses the search page can insert the

string

union select username, password

from user

to view all the projects and the user accounts. This

threat can be mitigated using encrypted password

and, even better, using privileges: the user used to

query the database must not be granted of read

privilege on the users table (i.e., the table storing

user profiles).

To summarize, the web applications should be

configured with different database users having

different privileges. So, when querying the database,

the web application should connect to the DBMS

using the user with the lowest privileges. On the

other hand, when performing system maintenance,

the application may connect to the DBMS using a

user with higher privileges.

In the following, we focus on these two kinds of

attack, because are strictly related to dynamic and

embedded SQL statements.

To complete the overview about threats to web

applications, other security issues due to network

protocol or DBMS vulnerability are:

Performing Denial of Service. This attack is devoted

to destroy a service, preventing other legitimate

users to access the database (Jiangtao et al., 2009).

Performing Privilege Escalation. Users performing

this kind of attack aim at reaching database

administrator privileges (the so-called root

privileges) by exploiting bugs in the DBMS.

3 USER MODELLING

Our approach is based on a mapping of web

application users to database users, as shown in Fig.

3. So, when a new user is registered in the web

application, we do what follows.

 A new record in the users table is inserted. This

record stores the username chosen by the user. A

default role, the one with the minimum privilege,

is assigned to him/her. This information is

managed at application level. At this level no

password is necessary anymore.

 A new password-protected user is created in the

database, with the same username chosen for the

application level.

Figure 3: Web Application vs. DBMS users.

The security model at application level

Improving Database Security in Web-based Environments

195

establishes the resources accessible for each user on

the basis of his/her role. So, the username is used by

the application only to show the correct web pages

to a logged user.

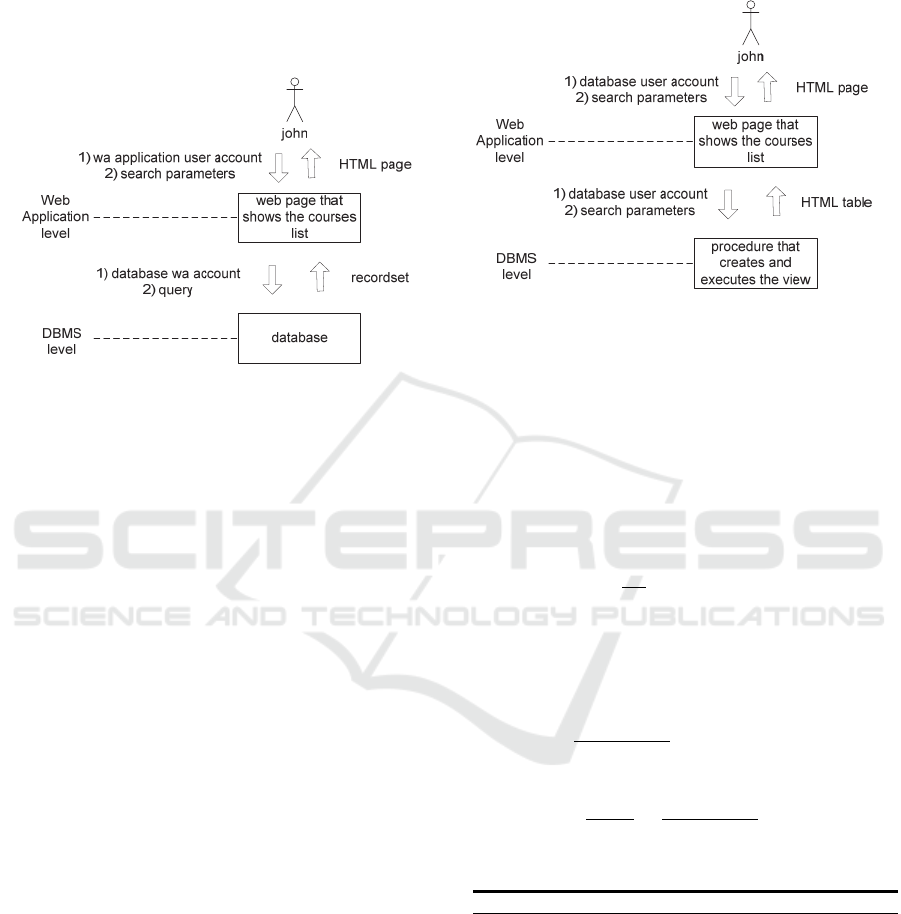

When a user requires a resource, by accessing a

web page, the application executes a call to a

procedure stored in the database. To make the

connection to the database, the application must use

the account provided by the user (and not the

predefined one, stored in the configuration file). Of

course, the user must provide username and

password only the first time he/she accesses a

resource, as the account can be temporarily stored in

session variables.

At this point, the procedure executes the query, if

the user has the correct privileges, and returns a

well-formed HTML object, as a table, for example.

So, this approach is also based on a mapping of

resources (web pages) at application level and

corresponding resources (procedures) at DBMS

level. The procedures dynamically create one or

more SQL statements and return HTML tables. The

main strategy is that a user who accesses a web page

showing data must be granted of the necessary

privileges by the database to read and/or modify

those data.

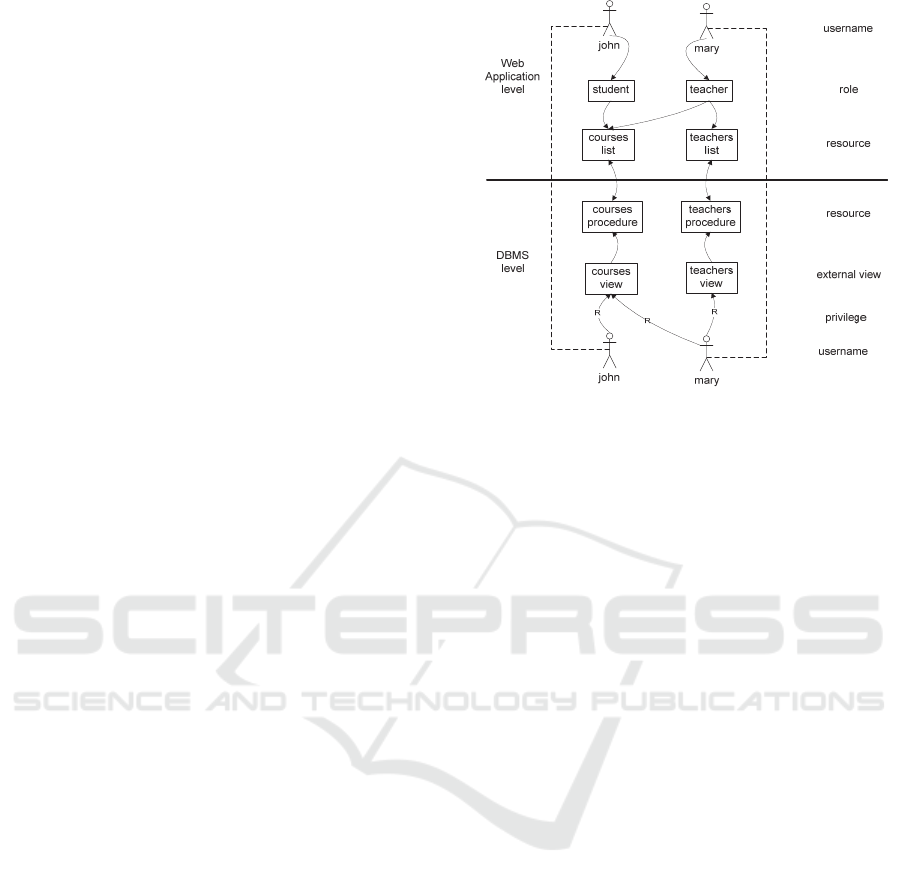

In Fig. 4, there is depicted an example of a web

application whose authorization model aims only at

visualizing the right resources for each user.

However, the database security is entrusted to the

DBMS’s authorization mechanism that is based on

privileges.

In the example, John and Mary, whose

usernames are, respectively, john and mary, are web

application users. John has the student role, while

Mary has the teacher role. On the basis of his/her

role, a user can access a predefined set of resources.

A student can access the courses list, while a teacher

can access both the courses and teachers lists. So,

the web application will show (the link for) the

courses list to John, and it will show both (the links

for) the courses and teachers lists to Mary.

In order to display the necessary data, the

resource (that is, the web page) needs to invoke a

procedure to retrieve the content. To do so, the

courses procedure has to generate and execute the

courses view. At this point, if John does not have the

read (R) privilege on the courses view, he will not

able to visualize the content. For the same reason,

Mary needs the read privilege on both the courses

and teachers views in order to display the data.

So, if a user, fraudulently or due to a web

developer’s error, succeeds in accessing a denied

resource (at application level), he/she will not able to

Figure 4: DBMS resources vs. application resources.

access the related data anyway, because he/she does

not have the necessary privileges on that view and/or

table.

The benefits of these approach are the following:

 the web application does not need to store any

plain-text password to access the database;

 for each connection to the database, the personal

database user account is used instead of a

common database account assigned to the

application;

 the web application must deal only with the

correct creation of the user interface (leading

only to the resources the users is allowed to

access according his/her role);

 no SQL injection is possible, as the query are

created at DBMS level by the procedures using

parameters and not at application level on the

basis of string concatenation;

 assuming to correctly assign privileges on

databases objects, users will never be able to

view sensitive data, even by performing union-

based SQL injection attacks or exploiting bugs in

the application;

 the web application does not need to know

anything about the logical schema of the

underlying database; so, a complete

independence of the application layer from the

data layer is ensured; and

 the web application invokes a database resource

(not a query) to retrieve the contents.

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

196

4 SCENARIO EXAMPLES

In this Section, we show some real scenarios

according to the data that are exchanged between the

two layers. Figure 5 illustrates the data that are

currently exchanged in web-based environments.

Figure 5: Traditional data flow.

Users performs authentication in the web

application (WA) providing both username and

password managed at application level. (The

authentication is usually performed in the login page

solely on the basis of the user profile stored in the

database, then the logged user identifier is stored in

session variables and used to access private pages).

In order to extract data, the web application uses

its own database account (wa account¸ in the figure)

to make a connection to the DBMS. When

connected, the application generates a dynamic

query, using the search parameters, and executes it

on the database. The database returns a recordset

that is fetched by the application and, as an example,

transformed in HTML tables.

In our approach, the two layers exchange data in

a different way, as shown in Fig. 6.

The user provides his/her account in the login

page of the web application. Nonetheless, the

application ignores the password and uses only the

username to display the right web pages to the user,

whereas each username is associated to a role and

each role can access one or more resources. The

complete account is stored in session variables, as

this must be passed to the DBMS when connecting

to execute queries.

To read data, the application calls a procedure

with a well-defined interface (specifying the input

and output parameters). The procedure eventually

generates a dynamic query (or uses predefined

views) and, if the provided user account has the

correct privileges on views and/or tables, it returns

an HTML table. To summarize, the application uses

the personal account provided by the user in order to

interact with the DBMS.

Figure 6: Proposed data flow.

4.1 Accessing Resources

In this subsection, we show an example of the login

phase performed using our approach. As an

example, this can be used to generate the home page

of the user, showing the correct resources he/she is

allowed to access.

We can assume the following relational schema

that manages users and the related resources.

 resources(id, resource,

description). The table storing the list of

resources (web pages) managed at application

level

 roles(id, description). The list of

roles defined for users.

 users(username, role,

registration_date). The table storing

user profiles, without passwords.

 access(role, resource). The table the

associates a user role to the allowed resources.

We report in Code 1 the server-side program.

Code 1. Access phase.

Input:

$username username,

$password password,

$db_host database IP address,

$db_name database name.

Output:

Web page with the list of the resources the user can

access

$db = mysqli_connect($db_host, $username,

$password, $db_name);

Improving Database Security in Web-based Environments

197

2. $query="call resources('$username',@b)";

3. $result = mysqli_query($db,$query);

4. $row = mysqli_fetch_array($result);

5. print $row['b'];

This program first reads the account provided by

the user in the login form, then uses it to connect to

the DBMS (lines 1), and invokes a procedure (lines

2-3) which returns a well-formed HTML tables. At

last, the HTML table is extracted just in a single

statement, i.e., without a do-while cycle (line 4), and

displayed (line 5).

Then, we report the procedure (see Procedure 1)

stored in the DBMS that retrieves the resources to

which a user can access on the basis of the role

associated to his/her username.

This procedure generates a query (line 5) and

uses a cursor to fetch the rows (lines 8-15). Each

row is inserted into a string containing HTML tags

(line 14). To this end, the MySQL concat function is

used to create a well-formed HTML table. However,

a different text format, such as XML or JSON, can

be used.

It is worth noting that in line 5 a dynamic query

is created without a string concatenation, but on the

basis of the parameters, username in this example.

To summarize, the first benefit of this approach

is that the authentication cannot be bypassed using

SQL-injection. Indeed, the web application does not

has to generate any SQL statement and it does not

manage any password neither.

Procedure 1. Access phase.

Input:

username nickname of the user at application and

database level,

Output:

b HTML table

CREATE PROCEDURE

`security`.`resources` (in username

varchar(50), out b text)

2. BEGIN

3. DECLARE no_more_rows BOOLEAN;

4. DECLARE a varchar(50);

DECLARE cur1 CURSOR FOR

select resources.resource

from resources inner join access on

resources.id=access.resource

inner join roles on

access.role=roles.id

inner join users on

roles.id=users.role

where users.username=username;

DECLARE CONTINUE HANDLER FOR

NOT FOUND

SET no_more_rows = TRUE;

7. set b := '<table border=1>';

8. OPEN cur1;

9. r: LOOP

10. FETCH cur1 INTO a;

11. IF no_more_rows THEN

12. LEAVE r;

13. END IF;

14.

select

concat(b,'<tr><td>',a,'</td></tr>')

into b;

15. END LOOP r;

16. select concat(b,'</table>') into b;

17. select b;

18. CLOSE cur1;

19. END

Of course, if the user provides a wrong username

and/or password, then a DBMS connection error will

be triggered.

Moreover, since the password is provided by the

user and is stored in session variables, it cannot be

stolen by anyone who may be able to access the web

directory (for example, using a brute force attack to

the FTP server).

4.2 Search Function

As another testing scenario, now we show that this

approach is also resistant to union-based SQL

injections executed by appending union-clauses in

fields of traditional search forms used for generating

reports.

The server-side code is similar to that illustrated

in Code 1. So, it is not shown again. For the same

reason, we do not report the whole procedure stored

in the DBMS, but only the dynamically generated

query.

If the user has the role necessary to access the

teaching courses list, then he/she will be able to

reach the web page that contains the search form,

which represents an application-level resource.

The only search parameter is year and this will

be sent to a procedure (see, Procedure 2) in order to

generate a query. In detail, the query aims at

retrieving the teaching courses available in a given

academic year (line 2).

To access data, the user needs also the privileges

on both courses and courses_year tables that are

DBMS-level resources.

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

198

Procedure 2. Search.

Input:

year year of the academic course,

Output:

b HTML table

CREATE PROCEDURE

`security`.`teaching` (in year varchar(100), out

b text)

…

select courses.name from

courses inner join courses_year on

courses.id=courses_year.id

where courses_year.year=year;

In case of an attempt of injecting malicious code

in the search field by the following statement

2015 union select username from

users

then the procedure will create a syntactically wrong

SQL instruction equivalent to the following

select courses.name from courses

inner join courses_year on

courses.id = courses_year.id

where courses_year.year =

‘2015 union select username

from users’.

Notice that the data type of the input parameter is

varchar in this ad hoc example (line 1). Had we

used the correct data type, that is year, we would

have obtained a data truncation error.

Moreover, assuming to create a syntactically

correct SQL instruction, the user will not be able to

view the data, because s/he does not have the

necessary privileges on the users table.

5 CONCLUSIONS

In this paper, we have presented an approach to

improve database security that is a current threat to

web-based environments. In fact, the system security

is always entrusted to web developers who must

implement all the necessary input validation in order

to ensure system invulnerability.

Our approach is based on a replication of user

accounts at DBMS level such that the personal

account of a given user is used to connect to the

DBMS instead of a common password, stored as

plain text. In this context, web resources, such as

web pages, are mapped to database resources, such

as procedures managing further resources that are

external views.

The assumption is that a user may pass the

application’s controls, but that user will never be

able to access data anyway, if he/she is not granted

the necessary privileges.

Future work is devoted to a benchmark between

the traditional data flow and our approach, as we

believe that the creation of an HTML object is faster

when using a cursor to scan a table at DBMS level

than fetching rows at application level.

REFERENCES

Ben Natan, R., 2005. Implementing Database Security and

Auditing. Elsevier Digital Press.

Bertino, E., and Sandhu, R., 2005. Database security -

Concepts, Approaches, and Challenges, IEEE

Transactions on Dependable and Secure Computing,

vol. 2, issue 1, pp. 2-19.

Boyd, S. W., and Keromytis, A. D., 2004. SQLrand:

Preventing SQL Injection Attacks, Applied

Cryptography and Network Security, Lecture Notes in

Computer Science, vol. 3089, pp. 292-302.

Gertz, M., and Jajodia, S., 2007. Handbook of Database

Security: Applications and Trends, Springer, 1 edition.

Halfond, W. G. J., Viegas, J., and Orso, A., 2006. A

Classification of SQL Injection Attacks and

Countermeasures, Proceedings of the IEEE

International Symposium on Secure Software

Engineering, Arlington, VA, USA.

Huang, Y-W, Huang, S-K., Lin, T-P., and Tsai, C-H.,

2003. Web Application Security Assessment by Fault

Injection and Behavior Monitoring, Proceedings of the

12th International Conference on World Wide Web,

Budapest, Hungary, pp. 148-159.

Jiangtao Li, Ninghui Li, XiaoFeng Wang, Ting Yu, 2009.

Denial of Service Attacks and Defenses in

Decentralized Trust Management, International

Journal of Information Security vol. 8, issue 2, pp.89-

101.

Pinzón, C., De Paz, J. F., Bajo, J., Herrero, A., and

Corchado, E., 2010. AIIDA-SQL: An Adaptive

Intelligent Intrusion Detector Agent for Detecting SQL

Injection Attacks, 10th International Conference on

Hybrid Intelligent Systems (HIS), pp. 73-78.

Rietta, F. S., 2006. Application Layer Intrusion Detection

for SQL Injection, Proceedings of the 44th Annual

Southeast Regional Conference, Melbourne, Florida,

pp. 531-536.

Roy, S., Kumar Singh, A., and Singh Sairam, A., 2011.

Analyzing SQL Meta Characters and Preventing SQL

Injection Attacks Using Meta Filter, 2011

International Conference on Information and

Electronics Engineering, IPCSIT vol. 6, pp. 167-170.

Vasserman, E. Y., Hopper, N., and Tyra, J., 2009.

SilentKnock: Practical, Provably Undetectable

Improving Database Security in Web-based Environments

199

Authentication, International Journal of Information

Security, vol. 8, pp. 121-135.

Xiang Fu, Xin Lu, Peltsverger, B., Shijun Chen, Kai Qian,

Lixin Tao, 2007. A Static Analysis Framework for

Detecting SQL Injection Vulnerabilities, 31st Annual

International Computer Software and Applications

Conference, Beijing, pp. 87-96.

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

200
