Bridging the Gap between Knowledge Representation

and Electronic Health Records

Roberto Gatta

, Mauro Vallati

, Carlo Cappelli

, Berardino De Bari

, Massimo Salvetti

Silvio Finardi

, Maria Lorenza Muiesan

, Vincenzo Valentini

and Maurizio Castellano

Department of Radiation Oncology, Universit

a Cattolica del Sacro Cuore, Rome, Italy

School of Computing and Engineering, University of Huddersﬁeld, Huddersﬁeld, U.K.

University of Brescia, Dept. of Clinical and Experimental Sciences, Brescia, Italy

Radiation Oncology Department, Centre Hospitalier Universitaire Vaudois, Lausanne, Switzerland

A.O. Spedali Civili di Brescia, Brescia, Italy

Keywords:

Decision Support System, Computer Interpretable Guidelines, Electronic Health Record.

Abstract:

Decision Support Systems (DSSs) are systems that supports decision-making activities. Their application in

medical domain needs to face the critical issue of retrieving information from heterogeneous existing data

sources, such as Electronic Health Records (EHRs). It is well-known that there exists a huge problem of

standardisation. In fact, EHRs can represent the same knowledge in many different ways. It is evident that

the applicability of DSSs strongly relies on the availability of homogeneous collections of data. On the other

hand, the gap between DSSs and different EHRs can be bridged by exploiting middleware technologies.

In this paper, we tested CSL, a technology designed for working as a middleware between DSS and EHRs,

which is able to combine data taken from different EHR sources and to provide abstract and homogeneous

data to DSSs. Moreover, CSL has been used for implementing three Clinical Guidelines, in order to test its

capability in representing complex work-ﬂows. The performed analysis highlight strengths and limitations of

the proposed approach.

1 INTRODUCTION

Decision Support Systems (DSS) are software sys-

tems designed to improve decision making. They are

widely exploited in a range of real-world domains,

such as business, military and economics. In the med-

ical domain, DSS are mainly used to support health-

care workers in one or more speciﬁc procedures, like

exams, investigation, diagnosis or therapies accord-

ing with the state-of-the-art of the speciﬁc domain of

practice. They are also commonly used for supporting

clinical research (i.e. clinical trials).

In order to provide support for a decision, a DSS

needs to match a reasoning work-ﬂow with a set

of information take from available and relevant data

sources. Information can be provided manually by

operators but, usually, data are automatically taken

from existing Electronic Health Records (EHR): this

in order to limit errors and double data entry.

Consensus, Clinical Guidelines (CGs) and Inter-

nal Protocols and Procedures (IPP) are usually the

most common decision work-ﬂows adopted in a clin-

ical environment. With the exception of the Con-

sensus, which normally are just a general agreement

about relevant clinical variables (and are not very de-

tailed from the procedural point of view), CG and

IPP are very similar and they describe the speciﬁc

best practice according to the clinical assessment of

the patient. Actually, they mainly differ from the le-

gal point of view: a physician tends to be more con-

strained to follow IPP rather than CG. This is because

IPP can be seen as a contextualisation of the more

general CG for the speciﬁc hospital. However, from a

mere Computer Science perspective, in the following

we will refer to both CG and IPP as Clinical Guide-

lines.

Clinical guidelines are usually written in natural

language with the exception of a few ﬂow charts.

Since the knowledge codiﬁed in natural (and semi-

structured) language cannot be accurately exploited

by any existing automatic approach, a translation into

a formal language is required. The result of the trans-

lation, that comes into the form of an algorithm, is

usually referred to as Computer Interpretable Guide-

Gatta, R., Vallati, M., Cappelli, C., Bari, B., Salvetti, M., Finardi, S., Muiesan, M., Valentini, V. and Castellano, M.

Bridging the Gap between Knowledge Representation and Electronic Health Records.

DOI: 10.5220/0005648801590165

In Proceedings of the 9th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2016) - Volume 5: HEALTHINF, pages 159-165

ISBN: 978-989-758-170-0

159

line (CIG). A well-known formal language used for

encoding CIGs, also adopted by the HL7 consortium,

one of the major standard in the world of Medical

Informatics, is the Arden Syntax (Hripcsak, 1994):

it is based on the ideas of composing CG as a clin-

ical work-ﬂow of several Medical Logic Modules

(MLMs). Arden Syntax, like other existing languages

designed for addressing similar issues (e.g., (Ohno-

Machado et al., 1998; Quaglini et al., 2001; Shahar

et al., 1998; Poikonen, 1997)), focuses on tasks that

need to be done. This in order to follow a pathway of

clinical procedure, and the control structures needed

to do it. A good comparison between existing lan-

guages is presented in (Peleg et al., 2003; Mulyar

et al., 2007).

Remarkably, in the context of the comparison it

has also been highlighted the problem of retrieving

existing patients from the different data sources. Due

to this reason, a complete system able to process CIGs

could need a large number of other technologies, in

order to get the required data stored in the different

data sources. Beside all the related issues, such as

differences in the granularity of stored information or

different encoding for the same sort of data, the adop-

tion of an intermediate software layer able to stan-

dardise the way for representing a speciﬁc clinical

meaning is required.

To standardize the knowledge representation in

the clinical domain, a major contribution (in partic-

ular for anatomical issues and their relationships, dis-

eases and relations between them or the anatomical

regions involved, etc..) comes from languages like

Resource Description Framework Schema (RDFS) or

Web Ontology Language (OWL). These approaches,

mainly derived from the work done on the Semantic

Web topic, have spawned the growth of many other

formalisms like query languages (e.g. SPARQL)

or languages for rule engines (e.g. OWL-S) (Ye

et al., 2009; Rold

an-Garc

ıa et al., 2009). However,

the aforementioned technologies are more oriented to

propose a way for representing the generic knowledge

of the medical domain rather than describe work-

ﬂows in an efﬁcient and compact manner.

At the state of the art, even though a number of

approaches have been proposed (Sordo et al., 2003;

Sujansky and Altman, 1996), retrieving data from ex-

isting EHRs in an automatic and affordable manner is

still considered a very complex task, due to the hetero-

geneity of EHR encodings. Moreover, existing EHRs

rely on different architectures in terms of Data Bases

(DBs), operating systems and servers. This represents

a critical barrier to the further diffusion of DSSs in

hospitals, because it forces the user to a double data

entry, which inevitably leads to mistakes and updating

issues, or to employ very expensive ad-hoc solutions.

One of the most interesting proposal is i2b2

but it

still has few applications and is more tailored to solve

problems of data acquisition and presentation for data

statistical analysis, rather than in the medical domain.

Nevertheless, i2b2 represents a promising ﬁrst pro-

posal in an emerging scenario.

In this paper we focus on CSide Language (CSL).

The project CSide, now closed, aimed at building a

monolitic, advanced, multi-centric EHR. Speciﬁcally,

CSL has been thought as a language for representing

CIGs. Differently from existing similar languages,

CSL uses a different perspective. It sacriﬁces the ex-

pressivity of the language –from the point of view of

the clinical work-ﬂows– in order to simplify the link

to available EHR and the real format of data. The

general idea of CSL relies on the fact that the most

interesting CGs are not those written between spe-

cialists of the same area, but guidelines written for

specialists of different areas (e.g., guidelines written

by cardiologists in order to be used by General Prac-

titioners). Evidently, due to the signiﬁcant gap of

knowledge, the suggested work-ﬂows are usually sim-

pler than those designed to be exploited by specialists

within the same topic, and the expressivity of the lan-

guage can therefore be reduced in order to make eas-

ier the access to the data.

In this paper we shortly introduce the CSL lan-

guage, and we propose a ﬁrst experimental investi-

gation of such technology. Speciﬁcally, we tested

CSL on three different CGs, with a medium level of

complexity and very different structure (workﬂows vs

truth tables vs time role in the guidelines) in the real

clinical context of the EHR in a medium-size center

for studying Thyroid diseases. Moreover, we tested

CSL on a different EHR, in use in the Cardiovascu-

lar Diagnostic Center (CDC) to build, from available

data, more abstract concepts, i.e. the Circumferential

and Systolic Stress (cESS).

The remainder of this paper is organised as fol-

lows. Firstly, we describe the CSL architecture. We

then provide the results of the performed analysis. Fi-

nally, discussions and conclusions are given.

2 CSL

The architecture of CSL includes two layers, which

exploit different languages. The two level structure

has been designed for de-coupling EHR and DSS in-

terfaces. In CSL it is possible to modify the EHR

i2b2, “Informatics for Integrating Biology and the Bed-

side,” [Online]. Available: https://www.i2b2.org/. [Ac-

cessed 07 02 2014]

HEALTHINF 2016 - 9th International Conference on Health Informatics

160

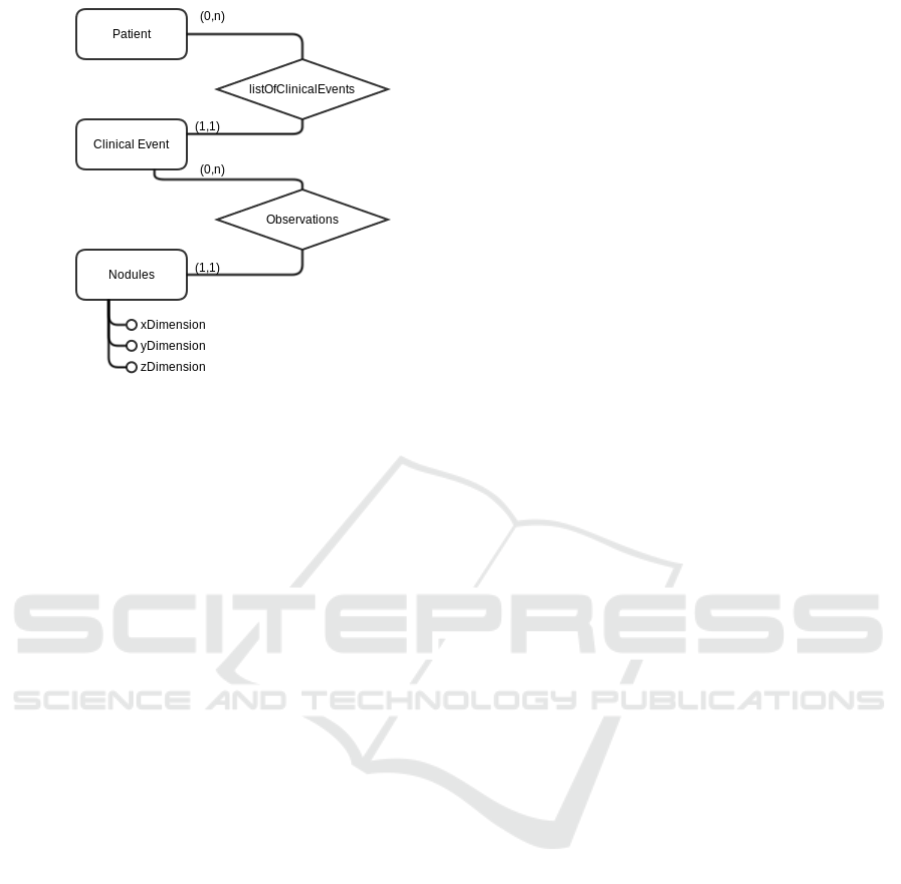

Figure 1: Example of a part of an ER schema.

or DSS structure (and interface) without changing all

the CSL code. The language used in the ﬁrst level

is the Lower Level Language (LLL). It allows to cre-

ate, given the structure of database (tables), some en-

tities and relations between them, according with the

Entity Relationship (ER) paradigm. This level works

as a logical driver with respect to the data repository:

it hides the complexity of the EHR database schema,

and presents to the upper level more abstract and man-

ageable knowledge, that is useful for executing algo-

rithms and retrieving information. From this point of

view, it share some similarities with (Sujansky and

Altman, 1996) and an ORM (Object-Relational Map-

ping) tool.

The language exploited in the second layer is the

High Level Language (HLL) and it is used for build-

ing concepts based on the knowledge described in the

lower level. In order to implement an Object Oriented

(OO) paradigm, the HLL language inherits structure

and deﬁnitions from what has been deﬁned in the

lower level using LLL. This can be done by inter-

preting the Entities as classes and the Relations as

methods. In the following sections we will present

a running example generated by using LLL and HLL

languages.

2.1 Lower Level Language

LLL uses simple primitives for building the entities,

and it works in a similar way as ORM languages does.

The deﬁnition of an entity can include one or more

tables and the relationships between them can be de-

ﬁned using a SQL-like syntax. At runtime, the SQL-

queries are built automatically by the LLL engine.

Figure 1 shows part of an entity-relation schema.

This is actually a subset of the EHR used in the ex-

amined Thyroid Research Center of the Brescia City

Hospital. The translation of the two main entities

shown in Figure 1, namely Patient and Clinical Event,

and their relation, using the LLL language is the fol-

lowing.

define entity Patient based on table A01_PAT as

firstName as #IL{field:A01_NAME};

lastName as #IL{field:A01_LASTNAME};

birthDate as #IL{field:A01_BIRTHDATE};

IdPatient as #IL{field:A01_PATIENTID};

sex as #IL{field:A01_SEX};

firstName as #IL{field:A01_NAME};

with IdPatient as primary key;

with source testDB;

enddefine

define entity clinicalEvt base on

table A02_CLINICALEVENT as

IdClinicalEvent as #IL{field:A02_CLIEVID};

IdPatient as #IL{field:A01_PATIENTID};

fromDate as #{field:A02_FROMDATA};

toDate as #{field:A02_TO_DATE};

with IdClinicalEvent as primary key;

with source testDB;

enddefine

define left relation listOfClinicalEvent;

between Patient and clinicalEvt

on Patient.IdPatient and

clinicalEvt.IdPatient;

with source testDB;

enddefine

It should be noted that, in the provided LLL ex-

ample, also ﬁelds are deﬁned. They are not shown in

Figure 1 for the sake of readability.

2.2 High Level Language

HLL has been designed with a strong focus on be-

ing “human readable”, even if it is a typed language.

There are two crucial points regarding HLL:

• a. Entities and relations deﬁned in LLL are en-

coded, respectively, as classes and methods in

HLL. Methods are typically assigned to the mas-

ter entity in the case of a 1:n relation in LLL. By

exploiting this deﬁnition of classes, it is possible

to refer to an instance of an object by using the

Primary Key deﬁned for the associated entity: the

CSL system automatically resolves the queries for

correctly handling the data on the Database.

• b. Using HLL it is possible to write complex algo-

rithms, called procedures, for managing methods

and attributes. The written procedure can then be-

come a new method for a chosen class. In this

way, starting from the few classes and methods

provided by LLL, through HLL it is possible to

Bridging the Gap between Knowledge Representation and Electronic Health Records

161

design and develop a more complex and abstract

set of methods. This allows to implement meth-

ods that do not suffer the high level of granularity

of the database, and that are closer to the abstract

semantic of the clinical domain.

An example of the HLL syntax is shown below. It

builds a method called ’BNAll’ for the class ’Patient’,

derived from the entity Patient previously described

in LLL, to calculate the biggest nodule’s dimension

measured in all the patients’ clinical events. To per-

form this task, it uses a method able of retrieving the

biggest dimension of the nodule described in a singu-

lar clinical event (the method ’BN’ working on class

’clinicalEvt’). It puts all the retrieved dimensions into

an array and returns the max value stored into the ar-

ray.

define procedure BNAll as method for entity

Patient on source testDB

set listToCheck = Patient.clinicalEvt

foreach listToCheck as PKclinEvent do

set nodDim = clinicalEvt(PKclinEvent).BN

put nodDim into array ArrayNodules;

endforeach

set values = Tools.getMaxArrayVal(diameters);

return(values);

enddefine

2.3 Features of CSL

For improving the usefulness of CSL, the following

features have been designed and implemented.

• Time: HLL offers several instructions to manage

temporal data and temporal relations, such as be-

tween, before and after.

• Domain: The domain can be applied both at the

LLL and at the HLL, and plays the same role of

the namespace in the weel-known XML language.

Speciﬁcally, it deﬁnes the scope where the enti-

ties, the relations or the procedures live.

• Type Declaration: HLL does not require an ex-

plicit type declaration for the variables. However,

HLL allows the developer to declare explicitly the

type, in order to avoid a wrong interpretation of its

content.

• Parameters: HLL can manage information from

various sources, and not only the considered

database. This is because, sometimes, not all the

relevant information are already stored within the

EHR; therefore, other input possibilities has to be

considered (external GUI, .csv ﬁle loading, ...). In

these situations HLL is able to receive input data

through command line parameters or other input

options.

3 METHODS

In this section we evaluate the CSL architecture us-

ing two real EHRs. The CSL has been used for im-

plementing three clinical guidelines regarding thyroid

diseases, and for building abstract data starting from

the available raw data.

3.1 The Testing Environment

A preliminary version of the CSL engine has been

made available. The engine for parsing and executing

scripts written in LLL and HLL has been developed

in PHP, and it exploits a MYSQL RDBMS for saving

concepts, entities, etc. This engine has been installed

on a Ubuntu 10.04-14+ server compiled with Sybase

driver and OCI driver, for giving the engine the ca-

pability of interact, respectively, also with SQLServer

and Oracle RDBMSs.

This preliminary experimental analysis is de-

signed for a ﬁrst evaluation of the effective capa-

bility of CSL to be used in a real clinical context

for building useful and abstract concepts like CGs.

For evaluating the adaptability of CSL, we have in-

volved the Thyroid Center (CST) of the Brescia City

Hospital (Italy), which has recruited nowadays more

than 9,600 patients, and the Cardiovascular Diagnos-

tic Center (CDC), which has data for 12,500 patients.

For evaluating the capability of CSL to generate ab-

stract concepts, we implemented three CGs with a

similar level of complexity, but that exploit different

representation, using information from the CST. The

ﬁrst CG is fully represented by a ﬂowchart and heav-

ily involves temporal aspects; the second one is half

represented by a ﬂowchart and half by a truth table,

and the third considered CG is only represented by a

truth table. The ﬁrst and the second CGs chosen have

the same level of complexity of the CGs considered

in (Peleg et al., 2003).

Data from the CDC has been used to implement

two new abstract data; starting from the raw data

available in the EHR, we implemented the Circum-

ferential and Systolic Stress (cESS) abstract notion,

and notion of the changing of the percentage in vol-

ume of the ejection fraction between the ﬁrst and

the last ultrasound examination. The CST database

includes more than 9,600 patients, and information

from more than 28,000 clinical events, 12,000 thyroid

ultrasound analysis and data describing more than

23,000 nodules are included; the CDC EHR includes

HEALTHINF 2016 - 9th International Conference on Health Informatics

162

Table 1: The considered EHR described in terms of ar-

chitecture, number of recruited patients, number of clinical

events and other biometric measures.

CG1 CG2 CG3

Branches 29 6 0

Truth table 0 1 1

Exits 28 12 ?

Importance of Time High High Low

more than 12,500 patients and considers data from

around 16,000 cardiac ultrasound investigations.

When using EHRs form the Thyroid Center, ac-

cording to the requests of the physicians, we built the

entities and the concepts about the indication for Fine

Needle Aspiration Cytology (FNAC) under the suspi-

cious of thyroidal carcinoma, the patients are classi-

ﬁed according to their pharmacological therapy and

on indications about the evolution of the follow up.

For evaluating the capability of CSL to implement

CIGs, we developed three procedures to check if a

patients clinical pathway agrees with three different

guidelines. Speciﬁcally:

• CG1. These CGs evaluate if a patient should re-

ceive a Fine Needle Aspiration Cytology proce-

dure to rule out thyroidal carcinoma (Pacini et al.,

2006);

• CG2: evaluate if follow up after 131I and/or

surgery treatment as indicated (Pacini et al.,

2006);

• CG3: suggest ablation versus surgical therapy for

the management of Thyroid nodules and Differ-

entiated Thyroid Cancer (Cooper et al., 2009).

Before the implementation in CSL, the three CGs

were translated in a semi-structured way (a ﬂow-chart

and/or a truth table) as described in the following ta-

ble. Figure 2 shows the mixed data-ﬂow/truth table

structure of CG2.

The data from the Cardiovascular Diagnostic Cen-

ter has been used for generating two more manageable

and abstract notions. In fact, their implementation us-

ing CSL was straightforward. This is because both of

the concepts derives from quite simple computations

that do not consider (or consider a very limited set

of) temporal aspects; the construct provided by CSL

made quite trivial their representation and computa-

tion. Nevertheless, CSL is capable of effectively sup-

port the implementation of such sort of notions, too.

3.2 Discussion

This section is devoted to discuss results and inter-

esting observations about the use of the CSL in our

testing scenarios.

Figure 2: Data-ﬂow/truth table of the CG2 (Pacini et al.,

2006). With bold-continuous borders, the suggested next

actions, in bold-dotted borders, the detected mismatch. In

this CG time plays an important role, and the single con-

cepts in the steps can be strongly abstracted with respect to

the granularity of EHR data.

3.2.1 CST

The process of encoding the Clinical Guidelines into

CIGs has been divided into two steps: ﬁrstly, CGs

were translated in a semi-structured language (i.e.

ﬂowchart or truth table), then the semi-structured CG

was translated in CSL structure. We noticed that the

ﬁrst step was the most complex. Even if the CG was

well-known and commonly adopted, different spe-

cialists suggested slightly different ﬂowcharts due to

the high level of ambiguity of the original guideline.

This would suggest to put more attention in writing

such CGs because a large part of knowledge is not ex-

plicitly given, but considered as implicitly known, and

the temporal aspects are often not considered (e.g., for

how long a AbTG exam could be considered valid,

and when should it be considered too obsolete for the

Bridging the Gap between Knowledge Representation and Electronic Health Records

163

computation?).

In general, the process of coding in CLS was quite

simple and, with the exception of few bugs due to

the prototype of the engine, it was immediately ex-

ploitable. We also observed that the code is easy to

read and understand: this is a pivotal element for al-

lowing and effective maintenance of the system. Nev-

ertheless, it is clear that CSL is still in a very prelim-

inary shape, and many improvements would be sug-

gested: for example a Graphical User Interface would

be very helpful for managing concepts. Also, the link

to the database it is not easy to be set and the domains

part should be better implemented.

We also identiﬁed potential improvements on the

time handling side of CSL even if, in general, the

available constructs was enough to solve our prob-

lems. A major improvement is required in the interac-

tion between CSL and other IT infrastructure, a point

that in the prototype is very weak because it forces

the user to program in PHP and eventually to write a

wrapper function to make CSL to be able to interact

via web services: we think that this interoperability

should be provided directly to the engine.

According to the observed results and to the ex-

perience gained, we believe that the proposed archi-

tecture can have very practical applications in com-

mercial EHRs. This is mainly due to the fact that

CSL merges the most diffused modelling and design

paradigms (ER schema, OOP) with the simplicity of

the script language. Moreover –but this will require

some language and engine improvements– CSL could

give an interesting contribution to face the well known

“curly braces” problem. However, this goal also re-

quires an industry-wide standardisation. Therefore,

this direction can be explored in association with ven-

dors, in order to allow a larger analysis.

3.2.2 CDC

CSL made the process of describing the abstract data

notions very easy and smooth. According to received

feedback, it is suitable to be used also for such pur-

poses. From this point of view, CSL could really

represent a valid middleware between the RDBMs

and more specialised software like DSSs and or CIGs

process environments. Nevertheless, further improve-

ments in the interaction process with other IT archi-

tecture should be provided and the engine should be

made more stable.

4 CONCLUSION

DSS are effectively and widely exploit in many do-

mains, but in the medical domain their diffusion and

exploitation is slowed by the very different technolo-

gies used by existing EHRs. In this paper we de-

scribed and tested CSL, a middleware system for

bridging the gap between DSSs and data sources in

the medical domain.

The proposed technology has been tested by using

data and involving experts of the Thyroid Research

Center and the Cardiovascular Diagnostic Center of

the Brescia City Hospital. The Thyroid Research

Center, in particular, has a complex EHR architecture

and different CIGs has been implemented: in this real

world environment CSL has shown a good aptitude

for handling data from SQL-like databases in order

to build, according with the knowledge expressed by

HLL scripts, abstract concepts and present to the up-

per level (i.e. to a DSS) an homogeneous view of the

data stored in the databases. CSL demonstrated to be

able to represent CIGs and to perform complex rea-

soning processes on the retrieved data. Despite this,

we still suggest to consider CSL as a technology for

retrieving data from different EHRs and presenting

them to DSSs; more tests are needed before consid-

ering CSL as a language for developing DSSs.

Future work include a thorough investigation of

the capabilities of CSL for handling complex reason-

ing on the extracted data, as well as a larger experi-

mental analysis on EHRs from different medical de-

partments. Finally, we plan to further improve the

usability of the CSL by exploiting feedback received

from medical experts.

REFERENCES

Cooper, D. S., Doherty, G. M., Haugen, B. R., Kloos, R. T.,

Lee, S. L., Mandel, S. J., Mazzaferri, E. L., McIver,

B., Pacini, F., Schlumberger, M., Sherman, S. I., Stew-

ard, D. L., and Tuttle, R. M. (2009). American thyroid

association (ata) guidelines taskforce on thyroid nod-

ules and differentiated thyroid cancer, revised amer-

ican thyroid association management guidelines for

patients with thyroid nodules and differentiated thy-

roid cancer. Thyroid, 19(11):1167–1214.

Hripcsak, G. (1994). Writing arden syntax medical

logic modules. Computers in biology and medicine,

24(5):331–363.

Mulyar, N., vanderAalst, W. M., and Peleg, M.

(2007). A pattern-based analysis of clinical computer-

interpretable guideline modeling languages. J Am

Med Inform Assoc, 14(6):781–787.

Ohno-Machado, L., Gennari, J. H., Murphy, S. N., Jain,

N. L., Tu, S. W., Oliver, D. E., Pattison-Gordon,

HEALTHINF 2016 - 9th International Conference on Health Informatics

164

E., Greenes, P. A., and E. H. Shortliffe, G. O. B.

(1998). The guideline interchange format: a model

for representing guidelines. J Am Med Inform Assoc.,

5(4):357–372.

Pacini, F., Schlumberger, M., Dralle, H., Elisei, R., Smit,

J. W., and Wiersinga, W. (2006). European consen-

sus for the management of patients with differenti-

ated thyroid carcinoma of the follicular epithelium.

european thyroid cancer taskforce. Eur J Endocrinol,

154(6):787–803.

Peleg, M., Tu, S., Bury, J., Ciccarese, P., Fox, J., Greenes,

R. A., Hall, R., Johnson, P. D., Jones, N., Kumar,

A., Miksch, S., Quaglini, S., Seyfang, A., Short-

liffe, E. H., and Stefanelli, M. (2003). Compar-

ing computer-interpretable guideline models: a case-

study approach. J Am Med Inform Assoc, 10(1):52–

68.

Poikonen, J. (1997). Arden syntax: the emerging standard

language for representing medical knowledge in com-

puter systems. Am J Health Syst Pharm, 54(3):281–

284.

Quaglini, S., Stefanelli, M., Lanzola, G., Caporusso, V., and

Panzarasa, S. (2001). Flexible guideline-based patient

careﬂow systems. Artif Intell Med, 22(1):65–80.

Rold

an-Garc

ıa, M., Navas-Delgado, I., Kerzazi, A.,

Chniber, O., Molina-Castro, J., and Aldana-Montes,

J. F. (2009). Ka-sb: from data integration to large scale

reasoning. BMC Bioinformatics, 1(10):10–S5.

Shahar, Y., Miksch, S., and Johnson, P. (1998). The asgaard

project: a task-speciﬁc framework for the application

and critiquing of time-oriented clinical guidelines. Ar-

tif Intell Med, 14(1-2):29–51.

Sordo, M., Ogunyemi, O., Boxwala, A. A., and Greenes,

R. A. (2003). Gello: an object-oriented query and ex-

pression language for clinical decision support. AMIA

Annu Symp Proc, page 1012.

Sujansky, W. and Altman, R. (1996). An evaluation of the

transfer model for sharing clinical decision-support

applications. Proc AMIA Annu Fall Symp, pages 498–

472, Washington, D.C., Hanley & Belfus.

Ye, Y., Jiang, Z., Diao, X., Yang, D., and Du, G. (2009). An

ontology-based hierarchical semantic modeling ap-

proach to clinical pathway workﬂows. Comput Biol

Med, 39(8):722–732.

Bridging the Gap between Knowledge Representation and Electronic Health Records

165
