Data Integration between Objectiver and DB-Main: A Case Study of a

Model-Driven Interoperability Bridge

Francisco Javier Berm

udez Ruiz

, Jes

us Joaqu

ın Garc

ıa Molina

and Oscar D

ıaz Garc

ıa

University of Murcia, Murcia, Spain

University of the Basque Country, San Sebasti

an, Spain

Keywords:

Tool Integration, Interoperability, Model-Driven Engineering, Data Engineering, Goal-oriented Requirements

Engineering.

Abstract:

In building software systems, the integration of tools with the purpose of exchanging data (i.e. tool inter-

operability) is common practice. Such an integration is one of the application scenarios of Model-Driven

Engineering (MDE), which is often called Model-Driven Interoperability (MDI). In the last few years, some

MDI approaches have been presented, and they have shown how MDE techniques are useful in bridging tools

in order to integrate data. However, the number of case studies is still limited and more practical experiences

of building MDI bridges should be published. In this article, we present an MDI bidirectional bridge that

integrates the Objectiver and DB-Main tools. DB-Main database schemas are obtained from Objectiver object

models, and they are kept consistent. Through this case study, we contrast the majority of techniques that can

be used to implement a MDI solution. We mainly focus on the level of automation offered by each alternative.

Some lessons learned are commented on.

1 INTRODUCTION

The development of software systems commonly in-

volves the need to integrate tools. A kind of integra-

tion is the exchange of data between tools (Thomas

and Nejmeh, 1992). Such an integration is called tool

interoperability and it is deﬁned as the ability of two

tools to exchange information so that the informa-

tion generated by one tool can be used by the other

(Geraci, 1991) (Thomas and Nejmeh, 1992). Because

the exchanged data are represented and interpreted in

a different way in each tool, building an interoperabil-

ity solution (commonly known as a bridge) normally

requires the implementation of syntactic and semantic

mapping. MDE techniques, especially metamodeling

and model transformation, are appropriate to imple-

ment such bridges, and Model-Driven Interoperability

(MDI) is one of the recognized application scenarios

of MDE (Brambilla et al., 2012).

Several approaches to building MDI bridges have

been presented in the last few years (Bruneliere et al.,

2010) (Sun et al., ) (Diallo et al., 2013), which are

based on (i) the use of metamodels to represent the

information exchanged by each tool, and (ii) the ap-

plication of a model transformation in order to align

the tools (i.e. a mapping between the metamodels),

so that the information exchanged can be used in

the target tool. Moreover, some examples of MDI

bridges between software tools have been described,

e.g. code clone detection textual reports to SVG

code (Sun et al., ) and Eclipse/EMF (Steinberg et al.,

2009) model/metamodels to Microsoft modeling tools

(Bruneliere et al., 2010). However, the number of

case studies and practical experiences reported is still

limited and the presented works have not faced the

choice between several implementation alternatives.

In this article we present an MDI bidirectional

bridge between the DB-Main and Objectiver tools.

DB-Main is a data engineering tool that assists de-

velopers in designing database schemas and tasks in-

volved in data reverse engineering, data evolution and

data maintenance. Objectiver is a requirement engi-

neering tool based on the KAOS methodology. The

bridge aims to obtain DB-Main database schemas

from KAOS object models created in Objectiver, as

well as the opposite transformation. Therefore, ob-

ject models and schemas are kept consistent by this

bridge. Since DB-Main offers three ways to interop-

erate (API, XML and grammar format), several MDE

techniques may be used to build the syntactic map-

ping (i.e. obtaining models from exchanged data and

vice versa). The different implementation strategies

Ruiz, F., Molina, J. and García, O.

Data Integration between Objectiver and DB-Main: A Case Study of a Model-Driven Interoperability Bridge.

DOI: 10.5220/0005653504770488

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 477-488

ISBN: 978-989-758-168-7

477

are described and contrasted. With regard to the se-

mantic mapping (i.e. establishing links between the

data used in each tool), we have explored the use of

QVT relational, and more speciﬁcally its capability to

write bidirectional model transformations and to keep

the source and target models synchronized. To our

knowledge this work is one of the ﬁrst reports on a

bidirectional MDI bridge that provides an assessment

of different implementation strategies.

The rest of this article is organized as follows.

The next section motivates the problem and Section 3

outlines the proposed approach. The implementation

of the approach is then described in detail. Firstly,

Section 4 introduces the pivot metamodels; Section 5

discusses several strategies to implement the syntac-

tic mapping and includes an assessment of them; and

Section 6 analyzes how the semantic mapping can be

implemented by means of a bidirectional model trans-

formation written in the QVT Relational language.

Section 7 shows the application of the described ap-

proach to an object model example. Finally, some

related works are commented on and some lessons

learned are indicated in the conclusions.

2 DEFINITION OF THE

PROBLEM

Building software systems involves using multiple

tools with different purposes, which cover all the

stages of the software development life-cycle. There-

fore, tool integration has always been a topic of great

interest for the software community (Thomas and Ne-

jmeh, 1992). We have tackled the integration of the

DB-Main database engineering tool

with the Ob-

jectiver requirement engineering tool

, as part of a

collaboration with the Precise research group, which

created DB-Main at 1993.

DB-Main is a mature and free tool with a rich

functionality for data engineering. To facilitate inte-

gration with other tools, DB-Main provides an API

Java named JIDBM (Java Interface for DB-Main)

which allows data and metadata of DB-Main projects

to be manipulated. The DB-Main project ﬁles (.lun

extension) offer an alternative to the use of this API;

they represent all the information involved in a DB-

Main project in a non-XML proprietary format (here-

after LUN format), which deﬁnes a complex structure

with which to save and load the DB-Main projects.

In addition, a plugin that exports historical data and

schemas in XML format is being developed, and an

http://www.db-main.be/

http://www.objectiver.com/

initial version of this plugin is supported in a beta ver-

sion (at this moment the tool does not yet support the

XML importation).

KAOS is a well-known goal-oriented requirement

engineering method (Dardenne et al., 1993). The ba-

sic concepts of this method are the following: (i) re-

quirements are described by means of a hierarchy of

goals (i.e. desired system properties); (ii) each goal

is assigned to the agent (or agents) responsible for

achieving it; (iii) goals involve domain entities (a.k.a.

objects) and relationships between them; and (iv) be-

havior that agents need to fulﬁll is expressed by means

of operations, which are triggered by events, and work

on objects. A requirement elicitation is therefore

expressed by means of four kinds of models: Goal

model, Responsibility model, Object model and Op-

eration model. Objectiver is a payment tool support-

ing KAOS methodology: it allows analysts to create

KAOS models and generates requirement documents

conforming to existing standards, among other func-

tionalities. This tool not only allows the export/import

of project data in XML format, but also as Ecore mod-

els (Steinberg et al., 2009). To achieve this, Objec-

tiver deﬁnes an Ecore metamodel which describes the

four kind of KAOS models. This feature promotes the

MDE interoperability of the tool as will be discussed

later.

The aim of our work has been to build an MDE

interoperability bridge between Objectiver and DB-

Main. More speciﬁcally, a bridge able to establish

a bidirectional mapping between Objectiver object

models and DB-Main logical schemas. Objectiver ob-

ject models (which represents the concepts of the ap-

plication domain in KAOS methodology) are used to

create a database schema in DB-Main. On the other

hand, the changes applied to database schemas in DB-

Main are propagated to the object model managed by

Objectiver. Therefore, the solution not only allows the

generation of a ﬁnal system’s software artifact (i.e. a

database schema) from a requirement model (i.e. the

object model), but the inverse transformation is also

possible. In this way, the object model and the schema

are kept synchronized.

3 OVERVIEW OF THE

APPROACH

Interoperability normally requires addressing both

syntactic and semantic mappings because each tool

or component to be integrated can represent the ex-

changed information in a different format and can also

give a different meaning to this information. MDE

facilitates the implementation of tool interoperability

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

478

model

Model A

metam

Metamodel A

format

Format A

file

Input A

metam

Metametamodel

inject

extract

model

Model B

metam

Metamodel B

extract

inject

format

Format B

file

Input B

transformation

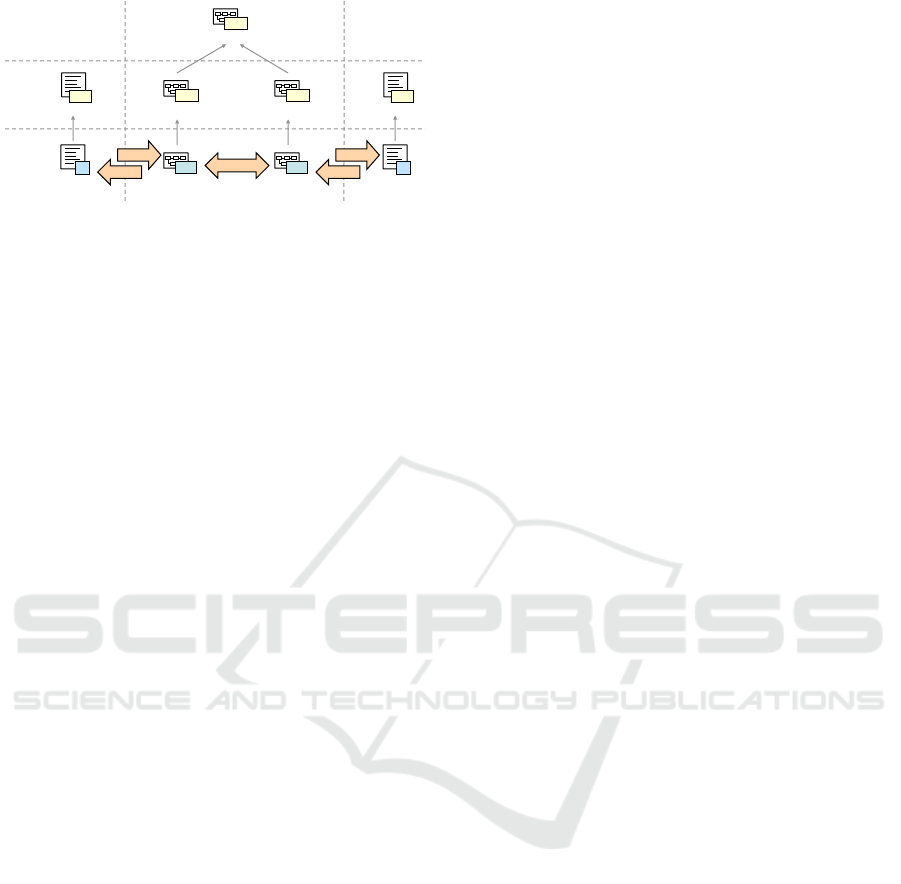

Figure 1: Using MDI techniques between two systems (ex-

tracted from (Brambilla et al., 2012)).

through the use of metamodeling and model trans-

formation. Models and metamodels provide a high-

level representation for the exchanged information,

and they act as a lingua franca between the tools

(Brambilla et al., 2012). Model transformations ease

the implementation of the necessary mappings. In ad-

dition, existing MDE tooling can automate some im-

plementation tasks.

Figure 1 shows the elements of a generic MDI

bridge for tools A and B (Brambilla et al., 2012), each

one using its own data format. Applying MDE in or-

der to build an interoperability bridge involves deﬁn-

ing a pivot metamodel for each tool, which represents

the concepts underlying to the information managed

by the tool. In Figure 1, metamodels A and B are

the pivot metamodels and both share the same meta-

metamodel (e.g. Ecore). Once the pivot metamod-

els are created, the syntax and semantic mappings can

then be implemented. A bidirectional transformation

between the pivot metamodels performs the semantic

mapping between both tools. If the bridge is bidi-

rectional then two model-to-model (M2M) transfor-

mations should be implemented, one for each direc-

tion, unless the M2M transformation language sup-

ports bidirectionality. Since each tool uses its own

format to represent data, the semantic mapping re-

quires a syntactic mapping which consists of two pro-

cesses: i) the injection process: the exchanged data by

the source tool must be converted into the input model

to the M2M transformation, and ii) the extraction pro-

cess: data to be used by the target tool are generated

from the model outputted by the M2M transforma-

tion. Therefore the building of an MDI bridge implies

the following four development tasks:

• Creating the Pivot Metamodel for each Tool.

These metamodels should not be created if the

two tools support exportation of the exchanged

information to a metamodel and both metamod-

els have been deﬁned with the same metamod-

eling language (e.g. Ecore). If the metamod-

els have been created with different metamodel-

ing languages then an interoperability at level of

meta-metamodel must be deﬁned. An approach to

bridge Ecore metamodels and metamodels created

with DSL Tools is described in (Bruneliere et al.,

2010). Actually, most existing tools do not sup-

port exportation to models, and those that export

some kind of information to models use Ecore

metamodels.

• Creating Injectors. An injector obtains a model,

which conforms to a metamodel, from data ex-

pressed in another technology (e.g. XML or

source code). In MDE interoperability, the in-

jectors are used to represent the source tool data

in the form of models that conform to the source

pivot metamodel. An injector performs two tasks.

Firstly, it parses the source information expressed

in the format used by the tool (e.g. a proprietary

format or XML). Then, it creates the model that

conforms to the source metamodel. How injec-

tors are built depends on the data format. Most

tools use a textual format to represent information

(e.g. XML or ﬁle format). Therefore, the injectors

must normally implement text-to-model transfor-

mations. Several strategies for building injectors

for different formats are analyzed in Section 5.

• Creating Semantic Mappers. If the bridge is

unidirectional any M2M transformation language

could be used. However, if the bridge is bidi-

rectional, a language supporting bidirectionality

should be used to write only one transformation

instead of writing one for each direction. QVT

Relational is a good option for this purpose, al-

though the bidirectionality is still an issue open in

QVT (Stevens, 2013).

• Creating Extractors. An extractor performs the

opposite operation to an injector. In MDE inter-

operability, the extractors are used to obtain data

usable by the target tool from a model that con-

forms to the target pivot metamodel. As indicated

above, most tools represent the information in tex-

tual format. Therefore extractors are normally im-

plemented by means of model-to-text transforma-

tions. Several strategies for building extractors for

different formats are analyzed in Section 5.

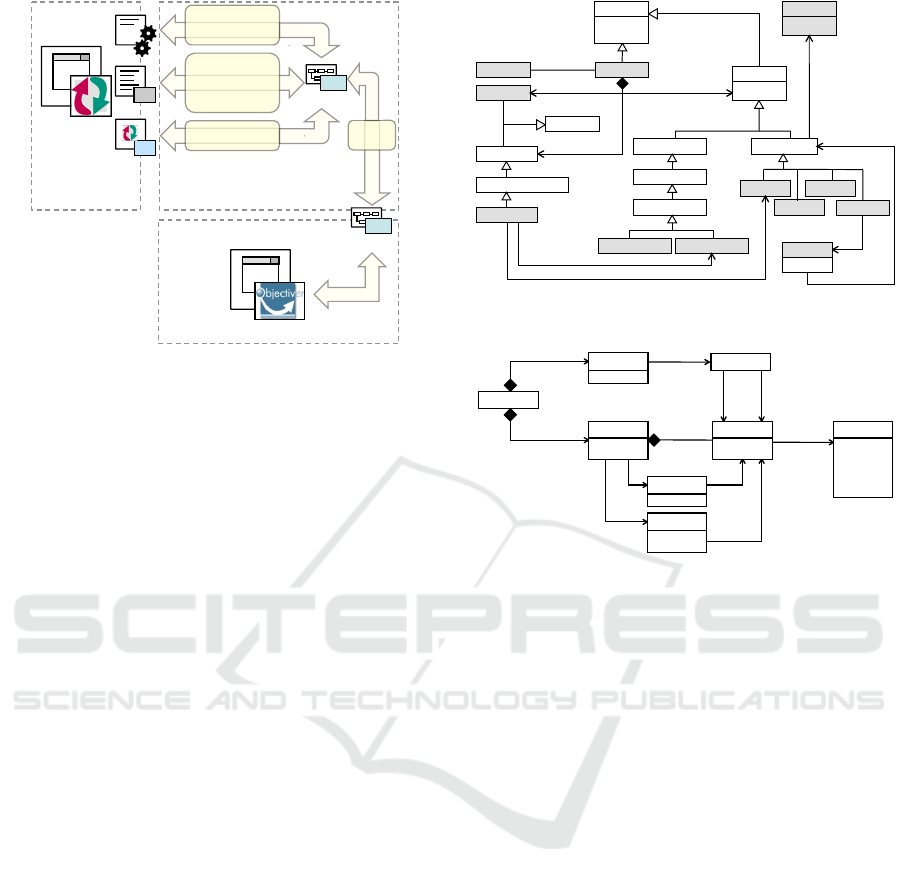

Figure 2 shows the Objectiver/DB-Main bridge

which has been built so as to achieve MDE inter-

operability between DB-Main and Objectiver, where

database schemas and KAOS object models is the

information to be exchanged. Since Objectiver im-

ports/exports KAOS models from/to an Ecore meta-

model, we have just deﬁned a pivot metamodel which

represents the database schemas in DB-Main. There-

fore, the creation of an injector and an extractor is not

needed for Objectiver. Instead, three kind of injectors

Data Integration between Objectiver and DB-Main: A Case Study of a Model-Driven Interoperability Bridge

479

DB-Main

Tool

Model

DB-Main

Model

XML

LUN

JIDBM

SAX or JAXB + Api EMF

EMF XML + m2m

QVT

Objectiver/DB-Main

Objectiver

Tool

Model

Objectiver

Model

Api JIDBM + Api EMF

Api2Mol

Gra2MoL + m2t

DSL workbench

Figure 2: Objectiver/DB-Main bridge.

have been created for DB-Main, taking into account

the three options provided by this tool which it uses

to access its information. As shown in Figure 2, for

each option two implementation strategies have been

considered. QVT Relational has been used to imple-

ment the semantic mapping.

4 PIVOT METAMODELS

In building a MDI bridge, the ﬁrst stage is the cre-

ation of the pivot metamodels. In the case of the

Objectiver/DB-Main bridge, only the pivot meta-

model for DB-Main must be created. Objectiver in-

cludes a KAOS metamodel that deﬁnes 44 elements,

but we have only considered those related to the ob-

ject model. Figure 3 shows this part of the KAOS

metamodel. An Objectiver model is represented by a

KModel and this is made up of one package (KPack-

age) named rootPackage. Packages are composed of

KAOS diagrams (KDiagram), KAOS entities (KEn-

tity) and KAOS relationships (KRelationship). KAOS

Diagrams provide graphical data in order to visual-

ize models. KAOS Relationships allow the deﬁnition

of responsibilities (Responsibility) between agents

(Agent) and requirements (Requirement). KAOS En-

tities are the basic elements of the Objectiver mod-

els. In addition to the requirements and expectations

properties (Expectation), the following abstract ob-

jects (AbstractObject) are deﬁned: (i) agents (Agent),

(ii) goals (Goal), (iii) entity objects (Entity) that rep-

resent the objects in the Object model, and (iv) re-

lationships (Relationship) which contain links (Link)

that deﬁne connections between abstract objects and

jects are characterized by attributes (Atribute) which

contain a name and a domain.

KModel KPackage

KConcept

KDiagram

KRelationship

KEntity

AbstractObject AbstractProperty

Objective

TerminalGoal

Expectation Requirement

Agent Goal

Entity

NamedResponsability

Responsibility

revision

openId

rootPackage 1

* diagrams entities *

* relationships

1 package

name

def

Attribute

name

domain

attributes *

requirement 1

responsible 1

KConcept

Relationship

* link

Link

multiplicity

1 linksTo

Figure 3: Excerpt of the Objectiver pivot metamodel.

column_type

Column Tabl e

Schema

ColumnType

tables

name

foreign_keys

columns

ForeignKey

minCard

maxCard

type

length

decimalNumber

defaultValue

Index

Identifier

isPrimary

name

* *

columns

identifiers

indexes

ColumnsFK

* *

source destination

columns

table

Figure 4: DB-Main pivot metamodel.

We have deﬁned the DB-Main metamodel shown

in Figure 4. This metamodel has been devised ac-

cording to the data structure used in DB-Main to rep-

resent database schemas. Thereby, the implementa-

tions of injectors/extractors to/from DB-Main are less

complex. A database schema (Schema) is composed

of a collection of tables (Table) and a collection of

foreign keys (ForeignKey). Each table is formed by

a collection of columns (Column), and references to

collections of indexes (Index) and identiﬁers (Identi-

ﬁer). Each column has a type (ColumnType) whose

attributes are: type which deﬁnes the domain of a col-

umn; minCard and maxCard which deﬁne the car-

dinality in case of the multivalued columns; length

which delimits the size in the case of a string type;

decimalNumber which delimits the precision of the

decimal part in the case of a number type; and default-

Value which establishes a default value for the type.

Schemas, tables and columns have a name. Each

identiﬁer has a boolean attribute isPrimary to indicate

if it is the primary key of the table that references it.

Foreign keys (ForeignKey) reference the source and

destination columns, which are stored in two ordered

sets of the same size. Given a position, a column in

the source set represents the foreign key column of a

table which references a column in the destination set

which represents the primary key column of another

table.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

480

5 SYNTACTIC MAPPING

Once the pivot metamodels are available, the injectors

and extractors must be created if the tool does not sup-

port the facilities to export/import data to/from Ecore

models. As indicated previously, we have only cre-

ated injectors/extractors for DB-Main, since they are

already included in the Objectiver tool.

Several MDE tools may be used in order to au-

tomate the creation of injectors and extractors. For

XML schemas, Eclipse/EMF provides a generic in-

jector/extractor to/from Ecore models. EMF requires

the XML Schema of the XML documents, and au-

tomatically generates a metamodel which represents

the information speciﬁed in the XML Schema. The

EMF injector transforms a XML document conform-

ing to the XML Schema in a model conforming to the

previously generated metamodel. The EMF extractor

performs the reverse process.

For a grammar format, DSL deﬁnition tools (a.k.a.

DSL workbenches), such as Xtext

and EMFText

can be used to automatically generate an injector and

extractor. The grammar is speciﬁed by means of the

notation provided by the workbench to express the

DSL grammar. Injectors can also be automatically

generated by means of a text-to-model transformation

language, such as Gra2MoL (C

anovas Izquierdo and

Garc

ıa Molina, 2014), which allows the expression of

mappings between grammars and metamodels.

The use of a Java API can be automated by means

of the API2MoL tool (Izquierdo et al., 2012), which

automates the creation of (i) the API metamodel, (ii)

the injector that obtains a model from API objects,

and (iii) the extractor that generates API objects from

models.

As indicated in Section 2, DB-Main provides three

alternatives for integrating data: the JIDBM API, and

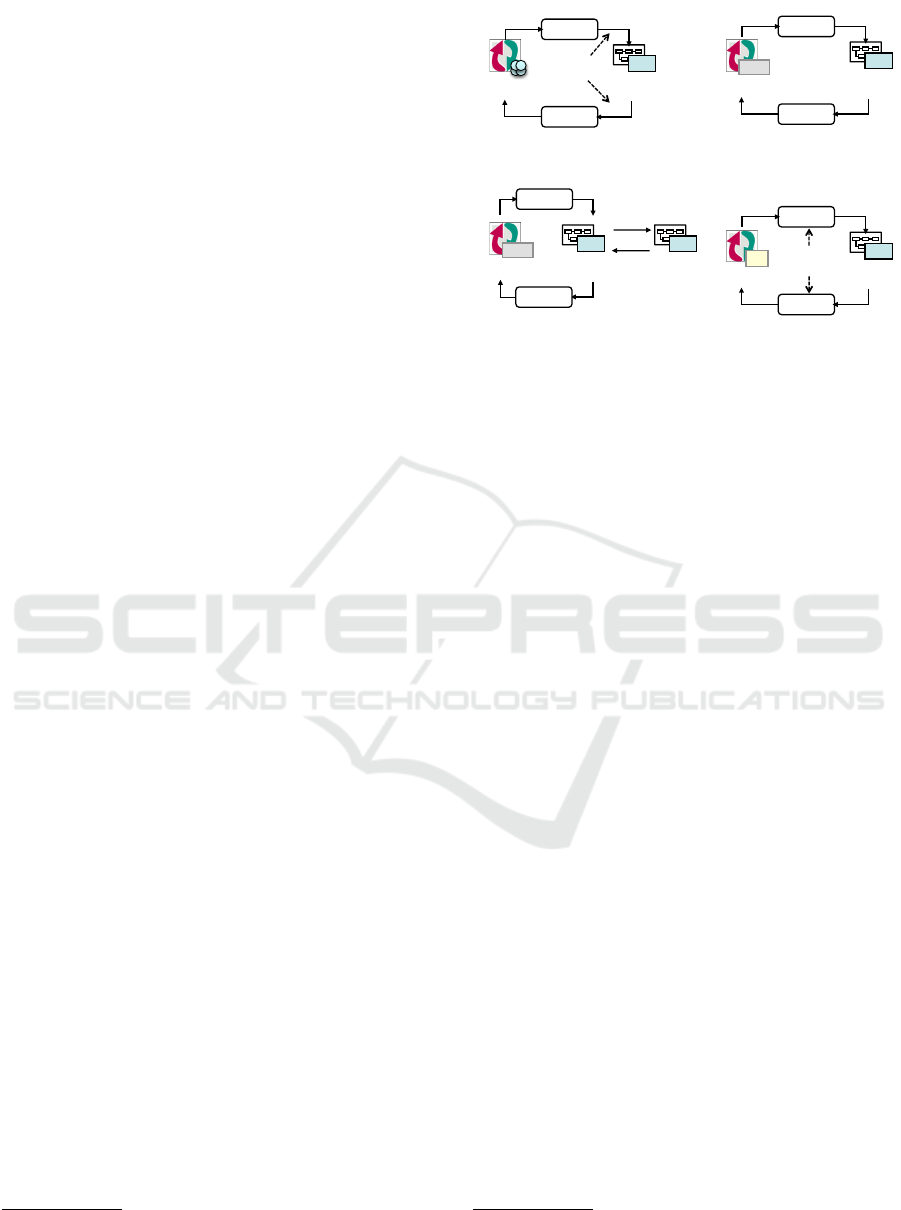

the LUN and XML formats. Figure 5 shows four di-

agrams which outline the injection/extraction strate-

gies that can be implemented for DB-Main, which are

explained below.

5.1 Strategies to Implement the

Injection

For the JIDBM API (see Figure 5(a)), we have con-

trasted the manual creation of a Java application with

the automated generation of the injector by means of

the API2MoL tool.

• Using the EMF API. A Java application uses

JIDBM to access the DB-Main data (it is not re-

http://www.eclipse.org/Xtext/

http://www.emftext.org/index.php/EMFText

Model

Pivot

Model

DB-Main

Objects

injector

extractor

JIDBM

JIDBM EMF

EMF

Generated by

Api2Mol

Model

Pivot

Model

injector

extractor

SAX/JAXB

DOM/JAXB EMF

EMF

XML

DB-Main

< XML >

XML Serializer

In EMF

Model

XML

Model

EMF Parser

DB-Main

XML file

< XML >

Model

Pivot

Model

m2m

Model

Pivot

Model

injector

extractor

m2t: Xpand, Acceleo

DB-Main

Project file

LUN

t2m: Gra2Mol

(a) (b)

(c)

(d)

injector

extractor

EMFText

Xtext

Figure 5: Injectors and extractors for DB-Main.

quired that the tool was in execution) and the re-

ﬂective EMF API to create the DB-Main model

which represents the database schema. The per-

sistence service of EMF is used to store the model.

• Using API2MoL. API2MoL automatically gen-

erates the JIDBM metamodel and the injec-

tor/extractor for this metamodel. The API2MoL

input should be a Java program using the API.

For the bridge proposed here, the program

uses JIDBM to recover all the data of a DB-

Main project. Regarding the previous solution,

API2MoL avoids implementing the manual task

of creating the model by using the EMF API.

In our case, the generated API metamodel is

slightly different to the deﬁned DB-Main meta-

model. Hence an additional M2M transformation

is needed, although it could also have been used

as the pivot metamodel.

For the XML format (see Figures 5(b) and (c)), we

have contrasted the manual creation of a Java applica-

tion with the automated generation of the injector by

means of the EMF generic injector.

• Using the EMF API. The EMF API can be used

to create a model from either the data produced in

an XML parsing or the Java objects obtained in a

XML-to-Java mapping. We have created a XML

parser using the SAX parser included in JAXP

Although JAXP also provides a DOM parser that

loads all the data contained in the XML document

in memory at once, the restrictions in the queries

of the XML document promote the use of SAX.

On the other hand, we have used the JAXB API

which maps Java objects to XML documents and

http://jcp.org/en/jsr/detail?id=63

http://jcp.org/en/jsr/detail?id=222

Data Integration between Objectiver and DB-Main: A Case Study of a Model-Driven Interoperability Bridge

481

vice versa. To build an injector, the unmarshall

tool provided in JAXB allows the loading of the

XML data into memory as Java objects. Then, a

Java program can analyze these objects and use

the EMF API to create a model that conforms to

the DB-Main metamodel.

• Using the generic XML injector provided by EMF.

As indicated above, EMF provides a generic in-

jector for XML documents. The models injected

conform to the XML Schema metamodel. An

additional M2M transformation that converts the

model injected into a DB-Main model would be

therefore necessary.

LUN ﬁles store the data and metadata of a DB-

Main project, in particular the database schema, the

history of the different schema versions, and the op-

erations applied in a data engineering process. Since

the LUN format is deﬁned by a grammar, DSL work-

benches and text-to-model transformations may be

used to automate the building of injectors. Therefore,

we have again contrasted an EMF-based manual so-

lution with the use of DSL workbenches, in partic-

ular EMFText, and the Gra2MoL language (see Fig-

ure 5(d)). However, the complexity and variability of

the LUN format makes it very difﬁcult to implement

the EMFText grammar as well as the Gra2MoL trans-

formation. For instance, the meaning of some data are

dependent of their position and type in the LUN ﬁle.

5.2 Strategies to Implement the

Extraction

As with injectors, we have experimented with sev-

eral strategies for each DB-Main interoperability op-

tion (see Figure 5). In the case of JIDBM (Fig-

ure 5(a)), the two strategies previously described for

the injectors are bidirectional because JIDBM also

includes methods for creating and updating the DB-

Main data. Therefore, the JIDBM and EMF APIs

could be used to create an extractor manually. How-

ever, this extractor could be automatically generated

by using API2MoL.

Using the XML schema, the strategies used for in-

jectors are bidirectional, so that they can again be ap-

plied to create extractors but in the opposite direction.

• The EMF API is used to traverse the DB-Main

pivot model, and a XML parser or the JAXB map-

per in order to create the XML document (Fig-

ure 5(b)). In this scenario, the DOM parser could

be more appropriate than the SAX parser due to

the fact it eases the creation of XML trees.

• The generic extractor available in EMF could

be used by previously writing an M2M transfor-

mation that converts the DB-Main model into a

model that conforms to the XML schema’s meta-

model. Then, the generic extractor could serial-

ize the XML model into a XML document (Fig-

ure 5(c)). It is worth remarking that a single M2M

transformation could be enough if a M2M trans-

formation language supporting bidirectionally is

used.

Finally, a LUN ﬁle could be generated from a DB-

Main model by using a M2T transformation (see Fig-

ure 5(d)). However, the complexity of the LUN gram-

mar makes it difﬁcult to implement this transforma-

tion and the effort required is much greater than for

the other implementation strategies.

5.3 Assessment of the Strategies

In the previous section, different strategies have been

proposed which implement the Objectiver/DB-Main

bridge for the EMF framework. Four main criteria

could be considered to choose the most appropriate

strategy:

• Automation Level. Instead of creating solutions

from scratch by means of GPLs and APIs, MDE

technology (tools and languages) can be used to

automate the creation process. In this way, the

effort involved in development is signiﬁcantly re-

duced.

• Bidirectionality. Which bidirectionality facilities

are provided should be taken into account. An

ideal solution would be to implement the injection

and extraction process at once.

• Ease of Learning. Learning the applied technolo-

gies involves an effort which must be taken into

consideration when evaluating the cost of devel-

oping a solution.

• Maturity Level of Tools. The lack of mature MDE

tools is hindering its industrial adoption. Many

tools stem from academic projects and they lack

the required standards of quality.

Table 1 summarizes the assessment of the applied

strategies regarding the considered criteria. With re-

gard to the level automation, the following marks are

used: 7 indicates that the solution is totally manual,

3 if the automation is achieved by writing model

transformations, 33 if an additional m2m transfor-

mation is required, and 333 when injectors and ex-

tractors are automatically generated. Bidirectionality

is supported if the injector/extractor can be generated

from an only speciﬁcation (or program). In assess-

ing easiness, we have considered that GPLs, involved

APIs, and BNF grammars are easy to use and learn.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

482

Table 1: Assessment of the strategies.

Strategy Automation Bidirectional Easiness Maturity

API JIDBM EMF 7 7 3 3

API2MoL 333 3 7 7

XML Document SAX/DOM or JAXB + EMF 7 7 3 3

EMF XML + m2m 33 3 3 3

LUN format manual parser/generator + EMF 7 7 3 3

Gra2MoL + m2t 3 7 7 7

DSL workbench 333 3 3 3

Finally, we have considered as mature tools those cre-

ated by companies or consortium that have provides

an stable support for several years.

The ideal strategy would be a strategy capable of

automatically creating a bidirectional solution (i.e. in-

jector and extractor are automatically generated), and

is based on mature technology which is easy to use

and learn. Next, we will analyze the MDE technol-

ogy involved in the outlined strategies.

API2MoL is shown as the best choice from a tech-

nical point of view, because it automatically gener-

ates a bidirectional solution. This tool also generates

the API metamodel (in this case, the JIDBM meta-

model), which could be adequate as a pivot meta-

model. An additional M2M bidirectional transforma-

tion would be needed if the API metamodel is not

the pivot metamodel, and developers should just write

a simple program that uses the API for building the

data objects to be injected. However, API2MoL is

an academic tool that has been discontinued. More-

over, lack of documentation makes learning it difﬁ-

cult. It is also worth noting that the metamodel gener-

ated by API2MoL may be incomplete, as discussed in

(Izquierdo et al., 2012). Developers should therefore

write an APi2MoL speciﬁcation in order to obtain the

complete metamodel, as well as the corresponding in-

jector and extractor. In our case, the metamodel gen-

erated by API2MoL was complete.

EMF also provides a bidirectional solution

through the generic injector and extractor available

for a XML Schema. As indicated above, an additional

M2M transformation is always needed to map the

XML schema metamodel and the pivot metamodel.

This mapping should be implemented by means of

a bidirectional transformation. Regarding API2MoL,

the use of these tools is simpler and the effort involved

in learning it is signiﬁcant lower.

With regard to the grammar format, DSL work-

benches allow the obtaining of a bidirectional so-

lution from a BNF-like grammar speciﬁcation. In

addition, T2M and M2T transformations may be

used to implement injectors and extractors, respec-

tively. To our knowledge, Gra2MoL is the only

available T2M transformation language, but this lan-

guage is specially tailored to inject models from GPL

code. A detailed comparison of Gra2MoL and DSL

workbenches is discussed in (C

anovas Izquierdo and

Garc

ıa Molina, 2014). On the other hand, M2T

transformation languages (e.g. Acceleo and Xpand)

are widely used to generate textual software artefacts

from models, and they are easy to learn and use. In

our case, these three strategies are the choice that in-

volve a larger development effort due to the complex-

ity of the LUN format.

6 SEMANTIC MAPPING

Once the syntactic mapping has been created, the se-

mantic mapping could be implemented. In our case,

a bidirectional mapping between the DB-Main pivot

metamodel shown in Figure 4 and the excerpt of the

Objectiver metamodel shown in Figure 3. A bidirec-

tional M2M transformation should be written to im-

plement such a mapping, instead of writing two uni-

directional M2M transformations. In this way, the

implementation and maintenance effort would be re-

duced. Among the most widely used M2M trans-

formation languages, QVT Relational is the only

one supporting bidirectionality. Although QVT was

proposed with the purpose of becoming a standard

language for M2M transformations, only a few im-

plementations are currently available and none have

achieved the desired level of maturity. ModelMorf

and Medini QVT

are the commonly used imple-

mentations. We have used Medini QVT ”due to its

greater visibility on the Web, Eclipse integration, de-

bugging facilities and other developer-friendly fea-

tures” (Stevens, 2013). Below, we describe the de-

ﬁned QVT transformation.

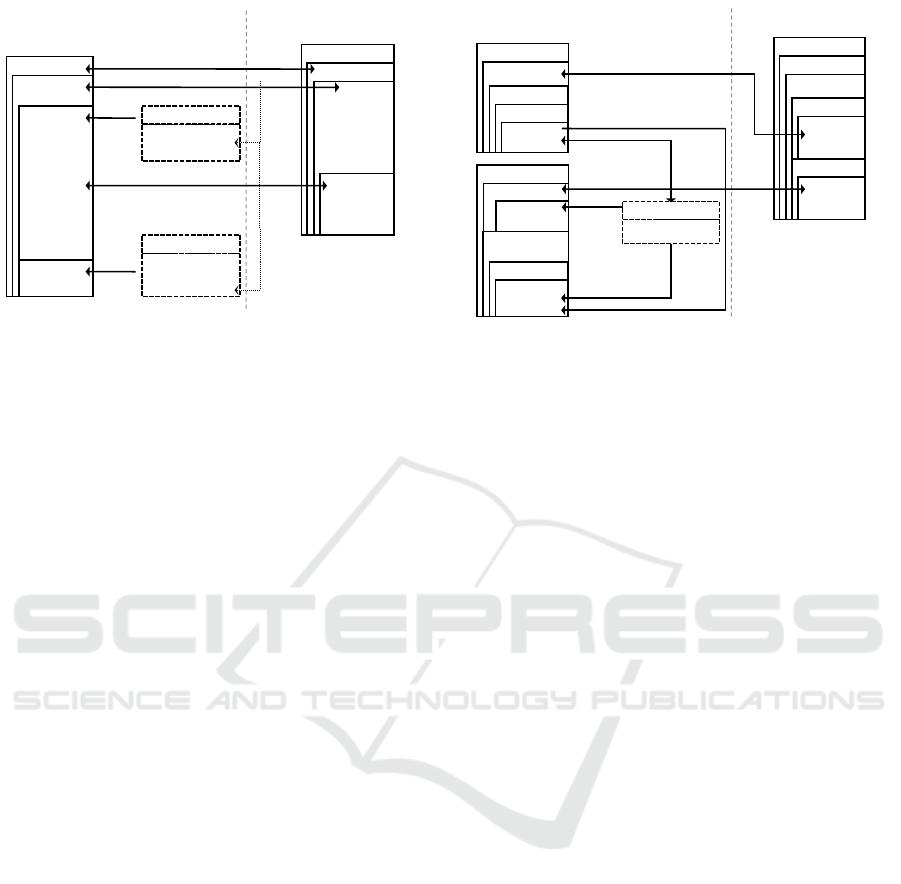

Figure 6 represents the mapping applied without

considering foreign keys (FK). The graphical nota-

tion depicts the metamodel’s classes as boxes and the

http://www.tcs-trddc.com

http://projects.ikv.de/qvt

Data Integration between Objectiver and DB-Main: A Case Study of a Model-Driven Interoperability Bridge

483

dbm: Schema

tables: Table

kaos: KModel

rootPackage: KPackage

entities: Entity

[isObjectModel = true]

name

id , name

columns: Column

identifiers: Identifier

new columnKey:: Column

id := new

name := ‘id’ + name

type := ‘INTEGER’

DB-Main Model Objectiver Model

new identifier:: Identifier

id:= new

isPrimary:= ‘true’

columns:=

OrderedSet { ‘id’ + name }

attributes: Attribute

name ,

colum_type == domain

Figure 6: Semantic mapping for tables ↔ entities.

semantic links between them as bidirectional arrows.

The arrows are labeled by the attributes mapped in

the link (== is used to denote the mapping but it is

omitted if the name is the same in both metamodels).

The reference and aggregation relationships between

classes are represented by means of nested boxes.

Figure 6 shows that a DB-Main schema (Schema)

maps to a root package (KPackage) of an Objectiver

model (KModel). The schema and the root package

will have the same name, and each table (Table) of

the schema maps to an entity object (Entity) of the

package. A table and its mapped entity will have the

same name and identiﬁer (id). Each column (Colum)

of a table maps to an attribute (Attribute) of an en-

tity. A column and its mapped attribute will have the

same name and the column type are given by the do-

main of the attribute. A new column for registering

the primary key is directly instantiated. Its type is

’INTEGER’ and its name is formed by concatenating

the table name to the preﬁx ’id’. It is worth noting that

the attributes of an entity do not have id but columns

and identiﬁers in the DB-Main model and require an

unique id. New ids for the elements of a DB-Main ta-

ble are created by systematically concatenating the id

of the container element to a sequential counter which

starts from zero for each container element. A new

identiﬁer is also instantiated. Its isPrimary attribute

is ’true’ and its columns attribute is the name of the

new column key added.

Figure 7 represents how FKs are mapped to

relationships. This mapping is similar to the

conversion between the Entity/Relationship model

and the Relational model (without considering op-

tional/mandatory relationships, i.e. not considering

multiplicity 0). The conversion implies that the table

having multiplicity 1 propagates the columns of its

primary key to the table with multiplicity N, where a

new FK comprising the propagated columns is added.

An Objectiver object model can include three kinds of

dbm: Schema

tables: Table

dbm: Schema

tables: Table

foreign_keys:

ForeignKey

columns: ColumnsFK

DB-Main Model Objectiver Model

kaos: KModel

rootPackage: KPackage

relationships:

Relationship

link1: Link

link2: Link

multiplicity = 1

linksTo: Entity

multiplicity = N

linksTo: Entity

source: Column

destination: Column

id , name

identifiers: Identifier

columns: Column

name

id , name

columns: Column

id , name

name

new columnFK:: Column

Figure 7: Semantic mapping for f oreign keys ↔

relationships.

relationships: 1:1, 1:N and N:N. A FK (ForeignKey)

of a table maps a relationship (Relationship) between

entities. A relationship has two links that represent

the multiplicities at each end. For relationships 1:1

and 1:N, each link maps a table, more speciﬁcally the

table mapped to the entity referenced by the link (ref-

erence linksTo). In accordance with the previously

explained conversion, the entity in the link with the

multiplicity 1 corresponds to the table that propagates

its primary column to the other table as the FK col-

umn. Note that the column propagation occurs only

in the DB-Main model. As we can see in Figure 7,

links are mapped to tables by the attribute linksTo.

Once we have identiﬁed both the tables in DB-Main

involved in the relationship of Objectiver, the propa-

gation of the new column in the DB-Main model is

simple. We should create a new column from the col-

umn that comprises the identiﬁer of a table in order to

represent the new columnFK in the other table. Both

columns, the new FK column of a table and the iden-

tiﬁer column of the other one are the source and des-

tination columns of the ColumnsFK element in the

DB-Main model, respectively. For N:N relationships

a new table is generated in the DB-Main model. It is

composed of the columns which comprise the primary

key of the two tables involved in the N:N relationship.

The two new 1:N relations between the new table and

the tables of the relationship are resolved by using the

previous 1:N mapping.

Once the semantic mapping of our bridge is de-

ﬁned, we shall illustrate how the mapping has been

implemented by means of Medini QVT. We shall

show only one pair of QVT relations due to space lim-

itations.

The next relation corresponds to the mapping be-

tween schemas and Objectiver models. It is only ap-

plied when the Objectiver model is an object model.

For this, the isObjectModel() helper checks if the

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

484

name of the Objectiver model contains the ”object”

string. The mapping establishes that entities and ta-

bles have the same name. Finally, the Table2Entity

relation that maps the tables of the schema and

the entities of the root package is resolved. The

TableKey2Entity relation that establishes a table iden-

tiﬁer for each entity is also resolved.

top relation SchemaToModel {

n : String;

idModel : String;

enforce domain dbmain dbm : dbmain::Schema {

name = n,

tables = tb : dbmain::Table {}

};

enforce domain objectiver obj:kaos::KModel {

rootPackage = root : kaos::KPackage {

subPackages = subs : kaos::KPackage {

name = n,

entities = en : kaos::Entity {}

}}

};

when { isObjectModel(n);}

where {

idModel = root.id.substringBefore(’:’);

TableKey2Entity(tb,en, idModel);

Table2Entity(tb,en, idModel);

}

The relation that maps to 1 : N relationships is

shown below. When this relation is applied the iden-

tiﬁers are mapped and the ColumnsFK2Links relation

is resolved in order to map the FK columns and the

two links of the relationship.

relation FK2Relation1N {

i : String;

idI : Integer;

lk1 : kaos::Link; lk2 : kaos::Link;

enforce domain dbmain fk :

dbmain::ForeignKey {id = idI };

enforce domain objectiver rel :

kaos::Relationship { id = i };

primitive domain idModel : String;

when {

idI = toIdInteger(i);

i = toIdString(idModel, fk.id);

}

where {

lk1.multiplicity = ’1’;

lk2.multiplicity = ’n’;

ColumnsFK2Links(cl,lk2, lk1);

}

7 APPLYING THE BRIDGE

We have taken an excerpt of the automated train con-

trol system example presented in (van Lamsweerde,

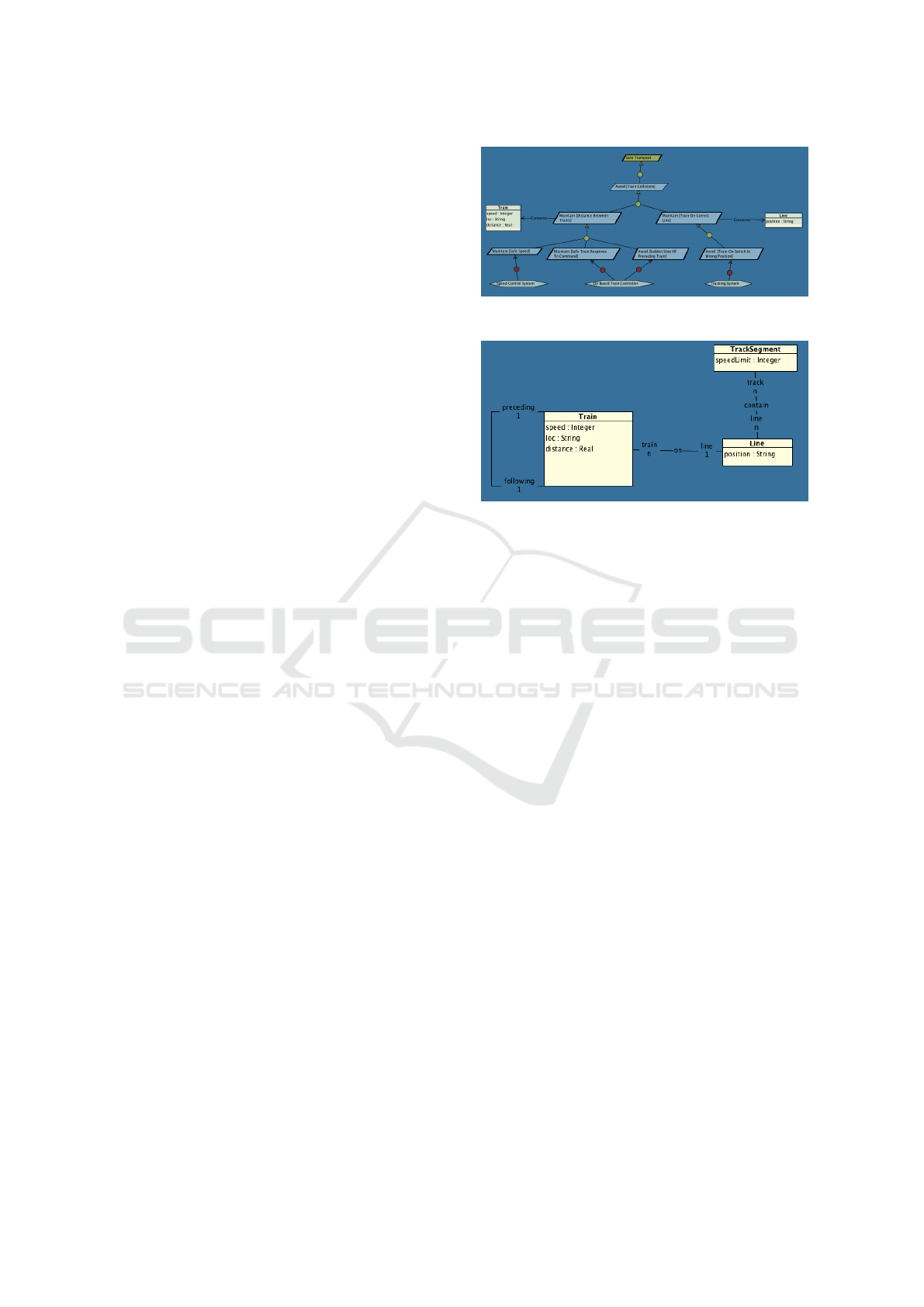

Figure 8: Goal model of the running example.

Figure 9: Object model of the running example.

2000) to illustrate the bridge between Objectiver

and DB-Main. This example shows how KAOS

can be used to model the requirements involved in

a train trafﬁc security system. The goal model is

shown in Figure 8 and deﬁnes an expectation (Safe

transport), a main goal to accomplish (Avoid

train collisions) and several reﬁnements by us-

ing simpler requirements. The agents involved in

the goals are: Speed control system, On board

train controller and Tracking system. The en-

tities managed by the goals are Train, Line and

TrackSegment.

The object model is shown in Figure 9. As can be

observed in this ﬁgure, the notation for these mod-

els complies with those used in UML for class di-

agrams. This model represents the entities (Train,

Line, and TrackSegment) and the relationships be-

tween entities, but agents are not included. Train

has its own association to be able to deﬁne the prece-

dence between trains. Line includes the position

attribute which refers to the position inside the track

segment (considering that each line has a position

in each track). Each Line contains one or more

TrackSegments and each TracSegment could be as-

signed to one or more Lines (contain association).

To apply our bridge to the previous example, we

must ﬁrstly export the Objectiver project to an Ecore

model, conforming to the Objectiver metamodel (see

Figure 10). We should then apply the previously pre-

sented QVT transformation to obtain the DB-Main

model (see Figure 11). Next, we have performed

the API2MoL extractor to generate the DB-Main

Data Integration between Objectiver and DB-Main: A Case Study of a Model-Driven Interoperability Bridge

485

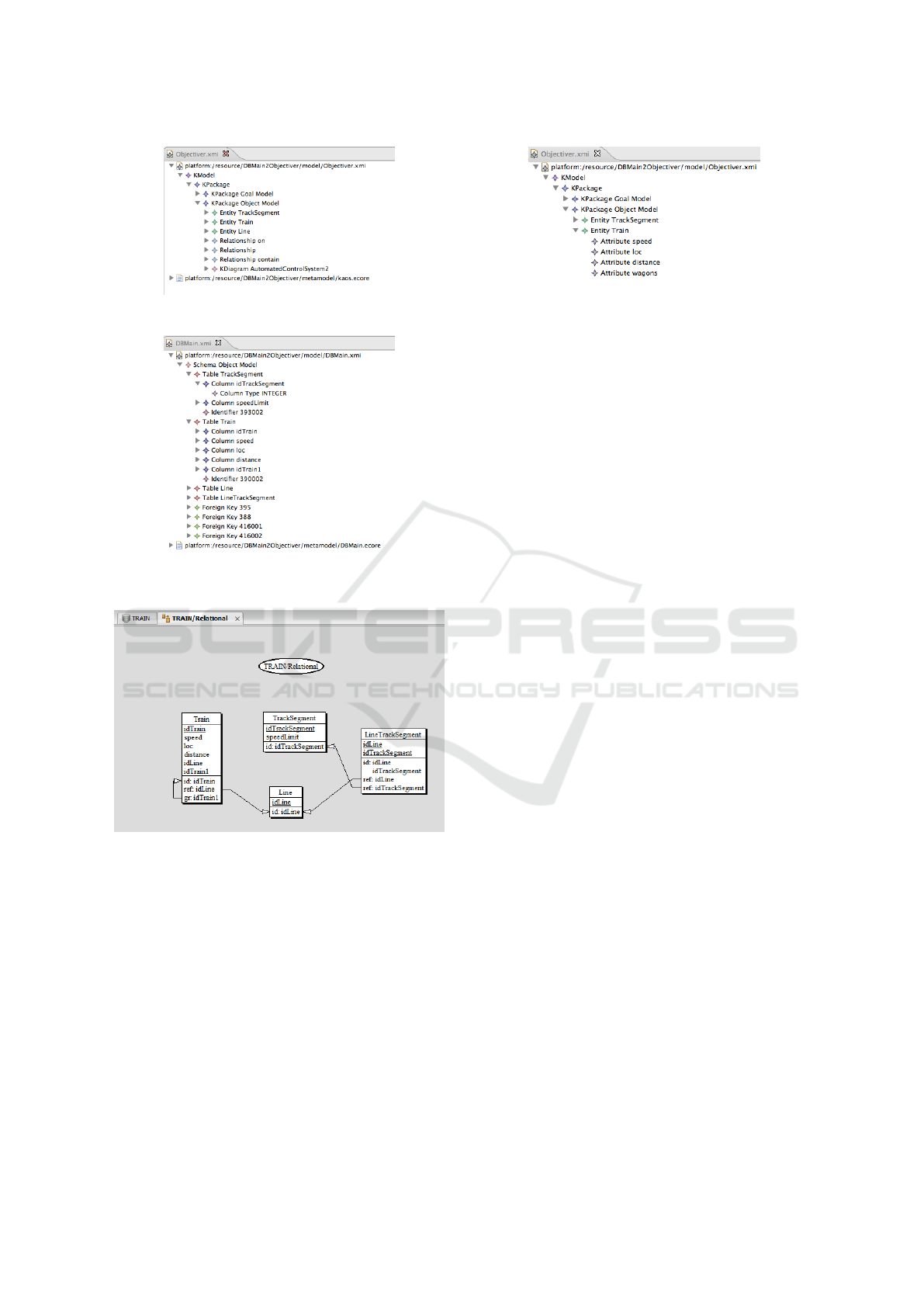

Figure 10: Ecore model of the Objectiver project.

Figure 11: Ecore model of DB-Main after the semantic

mapping.

Figure 12: DB-Main project extracted by the syntactic map-

ping.

database schema, which is shown in Figure 12. Each

relationship has been converted into a foreign key.

For the N:N relationship a new table has been created

(LineTrackSegment) along with its foreign keys.

Next, we applied some changes to the generated

schema and the object model in order to test the syn-

chronization. For instance, we added a new number

attribute to the Train table in the DB-Main schema

(wagons). After applying the injection process and

the semantic mapping, the new object model shown

in Figure 13 was generated.

Figure 13: Ecore model of the Objectiver project after the

modiﬁcation.

8 RELATED WORK

Tool integration has been a topic of great interest

from the early years of software engineering. In

(Thomas and Nejmeh, 1992), tool integration is an-

alyzed from several dimensions and more recently a

research agenda has been proposed in (Wicks and De-

war, 2007). According to the deﬁnitions proposed

in (Thomas and Nejmeh, 1992), our work is focused

on tool interoperability In the review of the literature

presented in (Wicks and Dewar, 2007), Model-driven

interoperability approaches are not considered since

MDE was then just emerging and XMI is shown only

as a novel format which exchanges data.

The injection and extraction processes needed in

a model-driven interoperability are an example of

bridging Modelware technology (i.e. MDE) and

other technologies (e.g. XML, Grammarware and

APIs). The concept of technical space was intro-

duced in (Kurtev et al., 2002) to deﬁne technologies

at a high-level of abstraction. This notion was used

in (B

ezivin and Kurtev, 2005) to establish bridges

between different technologies (e.g. Grammarware,

Modelware and Ontologies). Each technical space

is characterized by the pair of concepts data/format

and the formalism used to deﬁne the data formats,

e.g. code/grammar and EBNF for Grammarware, and

model/metamodel and metamodeling language for

Modelware. In this way, mapping between technolo-

gies can be established at three different levels: data,

format and formalism. Gra2MoL (C

anovas Izquierdo

and Garc

ıa Molina, 2014) and Api2MoL (Izquierdo

et al., 2012) are examples of tools created in order

to build bridges between Modelware and other tech-

nical spaces, in particular Grammarware and APIs,

respectively. Textual DSL workbenches also bridge

Modelware and Grammarware. Support in order to

bridge Modelware and XML technology is provided

by EMF (Steinberg et al., 2009). In the case of

the Objectiver/DB-Main bridge, Modelware can be

mapped to three different technical spaces: Grammar-

ware (LUN format), XML and APIs (JIDBM). There-

fore, we have considered the above mentioned tools.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

486

How MDE could be used in the tool interoper-

ability scenario was shown in (Fabro et al., ) for the

AMMA MDE framework. This work proposed to im-

plementing semantic mapping by means of a weaving

model created with the AWM (Atlas Weaver Model)

tool. The approach was illustrated by means of a

bidirectional bridge between two bug tracking tools.

A weaving model allows only express links between

model elements, and this can only be applied if the

mapping is very simple. Therefore, M2M transforma-

tions are normally used to implement MDI bridges. In

(Sun et al., ), another MDI approach is presented for

the AMMA framework, which uses an M2M transfor-

mation to implement a unidirectional semantic map-

ping for converting textual reports generated by a

clone detection tool into SVG ﬁles. AMMA provides

a DSL deﬁnition tool named TCS (Textual Concrete

Syntax), which is used to automatically generate the

injector for the clone detection reports. A similar ap-

proach to integrate tools is described in (Amelunxen

et al., 2008) for the MOFLON framework, which used

MOF as metamodeling language. In contrast to these

two approaches our work has tackled the building of

a bidirectional bridge for EMF that is the most widely

used MDE platform. Moreover, we have considered

different alternatives for implementing the injector

and extractor. A bridge for integrating models created

with different metamodeling languages, in particular

Ecore and metamodeling language used in some Mi-

crosoft modeling tools (e.g. DSL Tools) is proposed

in (Bruneliere et al., 2010). This approach could be

used in our work if a platform different to EMF is

used to integrate Objectiver to other tools.

Applying MDE techniques to automate tasks in

the area of requirement engineering has been widely

addressed in the literature. Great research effort has

been devoted to deﬁning MDE solutions that generate

software artefacts from requirement models. For in-

stance, conceptual multidimensional model for data

warehouses are generated from i* goal models in

(Maz

on and Trujillo, 2007), security software arti-

facts (e.g. rules implementing security policies or se-

curity code for a database from security models in

anchez et al., 2009), or KAOS goal models from

mind maps in (Wanderley and Ara

ujo, ). Note that

the work presented here is mainly focused on build-

ing MDI bridges, rather than addressing other topics

related to the model-driven requirement engineering.

However, it is worth remarking that our approach il-

lustrates an MDE application scenario to be explored

in this area, that is, how requirement tools may be in-

tegrated with other tools in building software systems,

and how software artefacts can be generated from re-

quirement models.

9 CONCLUSIONS

We have presented an MDI approach for a case study

based on the integration of Objectiver and DB-Main.

This integration have allowed us to experiment with

the majority of concerns involved in the construction

of an MDI bridge: (i) tools may export exchanged

data to models or not, (ii) tools can offer several forms

to allow access to its data; and (iii) the integration can

be unidirectional or bidirectional. In our case, Objec-

tiver provides support to export/import its models to

Ecore models, but DB-Main does not offer such sup-

port; DB-Main provides three interoperability forms

(API, XML and grammar format); and the integration

is bidirectional. Therefore, we have explored sev-

eral implementation strategies for creating injectors

and extractors for DB-Main data, as well as the use

of QVT Relational to write bidirectional transforma-

tions. Some of the main lessons learned in building

the Objectiver/DB-Main are the following:

• Automation provided by MDE tools can signiﬁ-

cantly reduce the implementation effort compared

to using GPLs (e.g. Java) and a metamodeling

API (e.g. EMF) to build the bridge from scratch.

The choice of MDE tool depends on the available

data formats, and the criteria introduced in Sec-

tion 5 for injectors and extractors.

• API2MoL and DSL workbenches provide a high

level of automation, since they can automati-

cally generate injectors and extractors. How-

ever, API2MoL is discontinued and lacks ade-

quate documentation.

• When XML is used, it is worth remarking that the

strategies using SAX/DOM or JAXB can be bidi-

rectional although completely manual, whereas

the use of the EMF parser/serializer only requires

writing one or two M2M transformations (de-

pending on the bidirectional supporting) only in

case of the metamodel generated by EMF was not

valid as pivot metamodel.

• DSL workbenches and EMF’s XML injec-

tor/extractor are mature tools which are easy to

use and learn. Injectors and extractors generated

by DSL workbenches that requires the pivot meta-

model as input are directly usable, while an addi-

tional M2M transformation is normally required

for EMF.

• Whenever a grammar format is used to ex-

port/import exchanged data, DSL workbench

would be the preferable solution if the grammar

is not too complicated. In our case, these tools

could not be used because the LUN grammar is

large and complex.

Data Integration between Objectiver and DB-Main: A Case Study of a Model-Driven Interoperability Bridge

487

• Considering the use of QVT, the implementa-

tion of a bidirectional mapping is more compli-

cated than a unidirectional one. Owing to the

fact that mapping declarations must be applied in

two ways, some restrictions have to be considered

(e.g. the right side of an assignment can not con-

tain complex runtime expression because it is also

the left side of the assignment when the transfor-

mation is applied in the opposite way). As writing

imperative code is commonly needed, the possi-

bility of deﬁning helper functions in Medini QVT

is very useful. The tool allow the combination of

imperative code and OCL-style declarative code.

Medini QVT provides a lot of useful functionality

but the debug support should be improved.

ACKNOWLEDGEMENTS

We gratefully acknowledge the support provided by

the Objectiver team from the Respect-IT company

through one professional license of the Objectiver

tool. We also would like acknowledge the Precise re-

search group from the University of Namur their as-

sistance in using DB-Main.

REFERENCES

Amelunxen, C., Klar, F., Konigs, A., Rotschke, T., and

Schurr, A. (2008). Metamodel-based tool integra-

tion with moﬂon. In Software Engineering, 2008.

ICSE ’08. ACM/IEEE 30th International Conference

on, pages 807–810.

Brambilla, M., Cabot, J., and Wimmer, M. (2012). Model-

Driven Software Engineering in Practice. Synthesis

Lectures on Software Engineering. Morgan & Clay-

pool Publishers.

Bruneliere, H., Cabot, J., Clasen, C., Jouault, F., and

ezivin, J. (2010). Towards model driven tool inter-

operability: Bridging eclipse and microsoft modeling

tools. In Modelling Foundations and Applications, 6th

European Conference, ECMFA 2010, Paris, France,

June 15-18, 2010. Proceedings, pages 32–47.

ezivin, J. and Kurtev, I. (2005). Model-based technology

integration with the technical space concept. In Procs.

of the Metainformatics Symposium. Springer-Verlag.

anovas Izquierdo, J. and Garc

ıa Molina, J. (2014). Ex-

tracting models from source code in software mod-

ernization. Software & Systems Modeling, 13(2):713–

734.

Dardenne, A., van Lamsweerde, A., and Fickas, S. (1993).

Goal-directed requirements acquisition. Science of

computer programming, 20(1-2):3–50.

Diallo, P. I., Champeau, J., and Lagadec, L. (2013). A

model-driven approach to enhance tool interoperabil-

ity using the theory of models of computation. In Soft-

ware Language Engineering - 6th International Con-

ference, SLE 2013, Indianapolis, IN, USA, October

26-28, 2013. Proceedings, pages 218–237.

Fabro, M. D. D., B

ezivin, J., and Valduriez, P. Model-driven

tool interoperability: An application in bug tracking.

In On the Move to Meaningful Internet Systems 2006:

CoopIS, DOA, GADA, and ODBASE, OTM Confeder-

ated International Conferences, Montpellier, France,

October 29 - November 3, 2006. Proceedings, Part I,

pages 863–881.

Geraci, A. (1991). IEEE Standard Computer Dictionary:

Compilation of IEEE Standard Computer Glossaries.

IEEE Press, Piscataway, NJ, USA.

Izquierdo, J. L. C., Jouault, F., Cabot, J., and Molina, J. G.

(2012). Api2mol: Automating the building of bridges

between apis and model-driven engineering. Informa-

tion & Software Technology, 54(3):257–273.

Kurtev, I., B

ezivin, J., and Aksit, M. (2002). Technological

spaces: An initial appraisal. In CoopIS, DOA’2002

Federated Conferences, Industrial track.

Maz

on, J.-N. and Trujillo, J. (2007). A model driven mod-

ernization approach for automatically deriving multi-

dimensional models in data warehouses. volume 4801

of LNCS, pages 56–71. Springer.

anchez, O., Molina, F., Garc

ıa-Molina, J., and Toval,

A. (2009). Modelsec: A generative architecture for

model-driven security. J.UCS, 15(15):2957.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF: Eclipse Modeling Framework.

Addison-Wesley, Boston, MA, 2. edition.

Stevens, P. (2013). A simple game-theoretic approach to

checkonly qvt relations. Software and System Model-

ing, 12(1):175–199.

Sun, Y., Demirezen, Z., Jouault, F., Tairas, R., and Gray, J.

A model engineering approach to tool interoperabil-

ity. In Software Language Engineering SLE, Toulouse,

France, September 29-30, 2008, pages 178–187.

Thomas, I. and Nejmeh, B. A. (1992). Deﬁnitions of tool in-

tegration for environments. IEEE Software, 9(2):29–

35.

van Lamsweerde, A. (2000). Requirements engineering in

the year 00: a research perspective. In International

Conference on Software Engineering, pages 5–19.

Wanderley, F. and Ara

ujo, J. Generating goal-oriented mod-

els from creative requirements using model driven en-

gineering. In International Workshop on MoDRE, Rio

de Janeiro, Brasil, July 15, 2013, pages 1–9.

Wicks, M. N. and Dewar, R. G. (2007). A new research

agenda for tool integration. Journal of Systems and

Software, 80(9):1569–1585.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

488
