Deriving Software Design Models from a Set of Business Processes

Estrela F. Cruz

1,2

, Ricardo J. Machado

and Maribel Y. Santos

Instituto Polit

ecnico de Viana do Castelo, Viana do Castelo, Portugal

Centro ALGORITMI, Escola de Engenharia,

Universidade do Minho, Guimar

aes, Portugal

Keywords:

Business Process Modeling, BPMN, Use Case Model, Data Model, UML.

Abstract:

Requirements elicitation is a crucial activity and one of the ﬁrst steps in software development process. A

popular way to capture and describe requirements is through UML use case models. Transforming require-

ment speciﬁcations into software design models is a complex and error prone software development activity.

Software design usually involves several models, each one representing a different perspective. One of those

perspectives is the data perspective which can be modeled using a data model. Although of the importance of

this model, few works has been done to derive a data model from use case model. The 4SRS (4-Step Rule Set)

method generates a logical architecture of a software-based system, based on a use case model. This paper

proposes an approach to adapt and extend the 4SRS method in order to generate a data model supporting the

generated logical architecture and the elicited requirements based in a set of business process models.

1 INTRODUCTION

In the software development process, one of the ﬁrst

activities is the identiﬁcation of the system scope and

the understanding of what the system is supposed to

do. Some software development teams base the entire

software development process on the list of require-

ments, identiﬁed in the ﬁrst stage of the development

process and modeled using use case models. Another

key point in software development is the transforma-

tion of the requirements speciﬁcation, modeled as use

cases, into software design models. This is mainly

because, at this stage, the problem speciﬁcation starts

to be transformed into a software product solution

(Braganc¸a and Machado, 2006). That is, in fact, the

main goal of the 4SRS (4 Step Rule Set) method. The

4SRS method produces a logical architecture from the

user requirements, represented as use cases (Santos

and Machado, 2010; Machado et al., 2006). It em-

ploys successive transformations of the software ar-

chitecture in order to satisfy the elicited requirements.

This method is especially useful to make the transi-

tion from requirements modeled as use cases, to the

architecture of large and complex software systems

(Ferreira et al., 2012), because in these cases the pos-

sibility to lose or forget some detail is high and it is

very complex to manage the use cases. The 4SRS

method enables us to prevent these problems, but to

do so it requires a use case model with a high detail

level. For this, the decomposition triangle approach,

presented in (Cruz et al., 2014c), may be used help-

ing in decomposing and reﬁning use cases to achieve

a high detail level.

In software development, different models are

usually used to represent different perspectives. The

data model is one of the most important design mod-

els for building software applications, representing

and organizing data, how it is stored and accessed,

and the relationships among different entities.

The business process management is being in-

creasingly used by organizations as a means to im-

prove their products quality and to improve their pro-

ductivity. With the aim of assuring the alignment be-

tween business processes and software requirements,

the approaches presented in (Cruz et al., 2014b; Cruz

et al., 2015) generate a use case model including use

case descriptions based on the information available

in a set of interrelated business process models. In

the approach being presented here, we intend to use

this generated use case model as input to the 4SRS

generating the logical architecture and corresponding

data model, thus supporting the set of business pro-

cess models. The approach presented in this paper

adapts and extends the 4SRS in order to generate the

data model. This way it will be possible to generate

the software system logical architecture and their sup-

porting data model.

The remainder of this paper is structured as fol-

Cruz, E., Machado, R. and Santos, M.

Deriving Software Design Models from a Set of Business Processes.

DOI: 10.5220/0005657204890496

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 489-496

ISBN: 978-989-758-168-7

489

lows. Next section summarizes the 4SRS method and

brieﬂy presents the language used to specify use case

descriptions. Section 3 presents the Nobel Prize ex-

ample which is used as a demonstration case. Sec-

tion 4 describes the proposed approach for data model

identiﬁcation. In section 5 some related work is pre-

sented. Finally, conclusions and some remarks to fu-

ture work are presented in section 6.

2 BACKGROUND

A software logical architecture represents the soft-

ware system main components and the relation be-

tween them, allowing to understand the organization

of the system. The 4SRS method ensures the tran-

sition from user requirements speciﬁed as use case

models into software logical architectures, objects

and class models. A complete description of the 4SRS

method can be found in (Machado et al., 2006).

Nowadays, use case models are one of the most

common models used in requirements modeling and

elicitation. A use case diagram is composed by ac-

tors and use cases. Each use case shall have an asso-

ciated description. There are some alternatives that

can be used to describe a use case, such as infor-

mal text, numbered steps or pseudo-code (Cockburn,

2001). The approach presented in (Cruz et al., 2014b)

proposes a template simplifying the Cockburn’s tem-

plate, for use cases description. To ﬁll out the use

case description template, a set of structured sen-

tences is created in Natural Language (NL). The tem-

plate and the set of sentences were originally designed

to support the automatic generation of the use case

model and corresponding descriptions based on the

existing information in a BPMN model (Cruz et al.,

2014b), or a set of BPMN models as described in

(Cruz et al., 2015). The set of sentences covers all

possible actions, ﬂows and graphical elements present

in a BPMN model. Files (or documents) produced or

received by an activity (“transported” by a data asso-

ciation or a message ﬂow) are attached to the corre-

sponding use case descriptions.

Sentences involving data and that, for that reason,

are relevant for deriving a data model, are listed next:

• Writes information on <data store name>.

• Reads information from <data store name>.

• Sends/Receives <document name>.

• Receives <message name> from <actor name>.

• Sends <message name> to <actor name>.

The complete set of sentences that can be used can

be found in (Cruz et al., 2014b). In this context, a

use case represents a business process activity (Cruz

et al., 2014b). Pre-conditions are used to constrain

the use cases execution order.

In this paper, the 4SRS method is adapted to deal

with use case models using a structured and con-

trolled language in use case descriptions and is ex-

tended to generate the data model (section 4).

3 NOBEL PRIZE EXAMPLE

In this section we present, as a demonstration case, a

well-known and small example of the Nobel Prize.

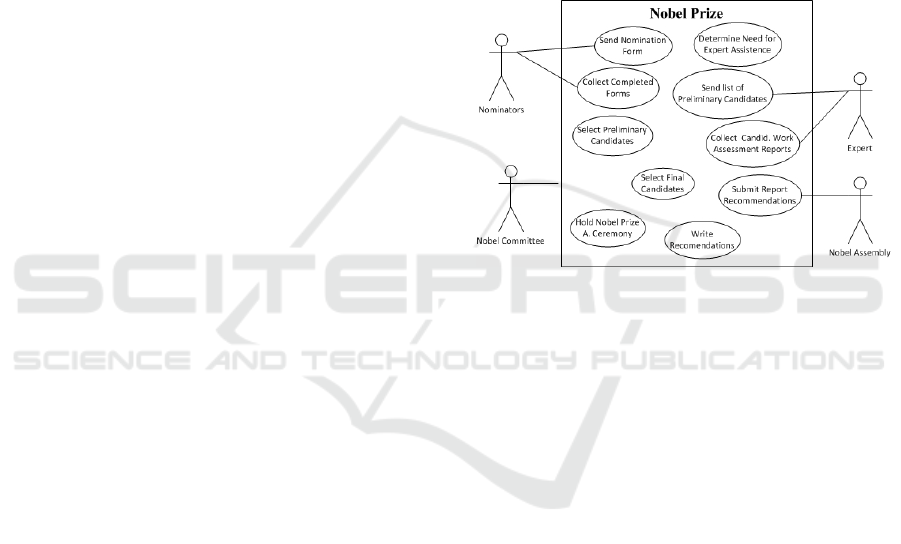

Figure 1: Nobel Prize use case diagram.

The use case diagram generated from the original

business process model, as described in (Cruz et al.,

2014c), is shown in Figure 1. The corresponding use

case descriptions are presented in Table 1. Due to lack

of space only the descriptions of use cases considered

most important are presented. All identiﬁed use cases

are numbered using the tag=value UML mechanism.

The next section describes the approach proposed

in this paper to obtain a data model by adapting and

extending the 4SRS method. This Nobel Prize exam-

ple is used throughout the next section as a running

example.

4 DERIVING A LOGICAL

ARCHITECTURE AND THE

SUPPORTING DATA MODEL

In the approach presented herein we intend to gener-

ate the data model based on the information available

in a use case model, where each use case description

is created using a set of structured NL sentences pre-

viously deﬁned (Cruz et al., 2014b).

The original 4SRS method is organized in 4 steps

transforming use-case models into architectural ele-

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

490

Table 1: The descriptions of the use cases using the deﬁned

template.

Use case

Name

Use case Description

{U1} Send

Nomination

Form

Actors: Nobel Committee, Nominator

Trigger: The time-date September is reached.

Scenario: Read information from

<Nominator>. Around 3000 invitations

conﬁdential nomination forms are sent to

selected Nominators. Sends the Nomination

Invitation to <Nominator>.

{U2}

Collect

Completed

forms

Actors: Nobel Committee, Nominator

Pre-condition: Send Nomination Form has

been completed.

Scenario: Receives nomination Form from

<Nominator>. Write information on

<Nominator>.

{U3} Select

Preliminary

Candidates

Actors: Nobel Committee

Pre-condition: Collect Completed forms have

been completed.

Scenario: Read information from

<Nominator>. Write information on

<Candidates>.

{U5}Send

List of

Preliminary

Candidates

Actors: Nobel Committee, Expert

Pre-condition: The Expert Assistance Re-

quired? is Yes.

Scenario: Read information from

<[Preliminary] Candidates>. Sends the

List of Candidates to be Assessed to

<Expert>.

{U6}Collect

assessment

Report

Actors: Nobel Committee, Expert

Pre-condition: Send List of Preliminary

Candidates has been completed.

Scenario: Receives assessments from

<Expert>. Write information on

<Assessment>.

{U7}Select

Final Can-

didates

Actors: Nobel Committee

Pre-condition: Collect assessment Report has

been completed.

Scenario: Read information from

<Assessment>.

{U8}Write

Recommen-

dations

Actors: Nobel Committee

Pre-condition: The Expert Assistance Re-

quired? is No OR Select Final Candidates

has been completed.

Scenario: Write information on

<Recommendations>.

{U9}Submit

Report Rec-

ommenda-

tions

Actors: Nobel Committee, Nobel Assembly

Pre-condition: Write Recommendations has

been completed.

Scenario: Read information from

<Recommendations>. Sends Recom-

mendations to <Nobel Assembly>.

ments (Machado et al., 2006). The 4SRS method ex-

ecutes a series of validations and adjustments to the

original use case model. In order to deal with struc-

tured sentences and allowing the generation of a data

model, the original 4SRS steps are slightly modiﬁed

as presented next:

• Step 1 - Architectural element creation: in this

step, the original 4SRS method proposes the cre-

ation of three types of objects for each use case:

one interface, one data and one control. However,

we are able to distinguish between persistent from

non-persistent data, as it happens in the BPMN

language (OMG, 2011). Following this idea, the

4SRS will be adapted to also distinguish persistent

data from non-persistent data, by creating two dif-

ferent types of elements involving data: persistent

data and volatile data. Each element is labeled

with the name of the use case followed by the ap-

propriate type: i (interface), c (control), dp (data

persistent) and dv (data volatile). This step can be

automated since it does not involve decisions.

• Step 2 - Architectural element elimination: based

on the textual description of each use case, it is

necessary to decide which of the four elements,

created in step 1, must be maintained. This step

allows detecting and eliminating redundancy in

requirements. This step is divided into seven

micro-steps:

– Step 2i - Use cases classiﬁcation: In this micro

step each use case is classiﬁed as interface, data

persistent, data volatile, control, or any combi-

nation of these. This classiﬁcation aims to facil-

itate the transformation of each use case in ar-

chitectural elements as it provides clues about

which categories of elements to use and how

they are related. Since we are dealing with a set

of structured sentences in use case descriptions,

it is possible to classify the use case following

the suggestions:

∗ When a use case exchanges information with

something or someone (usually an actor), the

i-interface type must be selected. One use

case represents the interaction with an exter-

nal participant (represented as an actor) us-

ing sentences like Receives <message name>

from <actor name> or Sends <message

name> to <actor name>.

∗ When information is stored or retrieved then

the type dp-data persistent must be selected.

Information is stored or retrieved when sen-

tences like Writes information on <data store

name> or Reads information from <data

store name> are part of the use case descrip-

Deriving Software Design Models from a Set of Business Processes

491

tion.

∗ When in a use case description we have sen-

tences like Receives <document name> or

Sends <document name>, this means that we

are dealing with non-persistent data, thus the

type dv-data volatile must be selected. It is

natural to ﬁnd non-persistent data transformed

in persistent data because in a business pro-

cess, most of the times, data received from a

participant is then stored in a data store.

∗ When a use case description has a trigger,

a pre-condition or a post-condition, then the

type c-control must be selected.

Taking as example the {U6}- Collect assess-

ment Report use case (from Table 1) we may

see that the use case is receiving non-persistent

data (assessments) from expert (Receives as-

sessments from Expert), meaning that it is in-

teracting with someone, so this is classiﬁed as

i-interface and as dv-data volatile. Reading the

use case descriptions we may also see that we

are dealing with persistent data because the use

case Writes information on <Assessment>, so

the use case is also classiﬁed as dp-data persis-

tent. The use case has also controlling activities

if Send List of Preliminary Candidates has been

completed. So, the use case is also classiﬁed as

c-control. Summarizing, this use case will be

classiﬁed as c, i, dv and dp.

– Step 2ii: Local elimination - the purpose of this

micro step is to check if each architectural el-

ement created in step 1 makes sense for the

problem domain. Those that do not make sense

should be eliminated.

– Step 2iii: Architectural element naming - Each

architectural element created, should receive a

name ﬁtting its original use case as well as the

role that it has in the system.

Taking as example the {06-dp}- Collect assess-

ment Report element created in {U6}- Collect

assessment Report use case, we may rename it

to {06-dp} - Write Assessment to better ﬁt the

element purpose.

– Step 2iv: Architectural element description -

Each architectural element that received a name

in previous micro-step should be described ac-

cording to the corresponding system require-

ments, in order to be included in the logic

model (depicted by objects diagram).

Taking as example the {06-dp} - Write Assess-

ment element created in {U6}- Collect assess-

ment Report use case, the corresponding de-

scription may be the sentence belonging to the

original description which leads to the element

classiﬁcation as dp-persistent data. The sen-

tence is Writes information on Assessment. The

other sentences will lead to the other types of

elements. This is a manual step, so the software

architect may complement the description with

other information every time it is necessary. At

this software development stage, the stakehold-

ers are still involved in the process so they can

provide useful information to complement the

information generated based on business pro-

cess models.

– Step 2v: Architectural element representation

- This micro-step, through an analysis of each

element, ensures the semantic consistency of

the logic model, detects and eliminates redun-

dancy, and enables the discovery of anomalies

in use case models, namely missing require-

ments.

Taking as example the {U1}-Send Nomination

Form and the {U3}- Select Preliminary Can-

didates use cases, we may see that both have

the same dp element (dp-Read Nominator) be-

cause both are reading information from <

Nominator>. As such, both elements can be

represented by the same dp architectural ele-

ment.

– Step 2vi: Global elimination - In this step

all micro architectural elements that are repre-

sented by other architectural elements are elim-

inated, since the requirements that correspond

to these architectural elements no longer belong

to them.

Continuing the example presented in previous

micro-step where we conclude that the {01.dp}

Read Nominator can be represented by {03.dp}

Read Nominator architectural elements or vice-

versa, one of them must be eliminated.

– Step 2vii: Architectural elements renaming -

This micro step aims to rename all the remain-

ing architectural elements.

Sometimes, when we have one architectural el-

ement, representing several architectural ele-

ments (micro-step 2v), the name of this element

may be renamed to better ﬁt its purpose.

• Step 3: Architectural elements aggregation and

packaging - the architectural elements that remain

after the elimination, and those in which it is pos-

sible and exist advantages in their uniﬁcation, are

aggregated; At this step, architectural elements

that have similar characteristics and can be treated

in an uniﬁed way are aggregated in the same pack-

age.

For example, architectural elements representing

persistent data manipulation can be package in

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

492

P3 - Database Control. Architectural elements

representing controlling actions are packaged in

P2 - Business rules and elements representing

user interface are packaged in P1 - User Inter-

face. The P1 - User Interface package may be di-

vided in several sub-packages representing inter-

actions with speciﬁc actors. As such, architectural

elements representing interactions with Nomina-

tor actor are packaged in P1.1 - UI Nominator.

Architectural elements representing interactions

with Expert actor are packaged in P1.1 - UI Ex-

pert and architectural elements representing inter-

actions with Nobel Assembly are packaged in P1.1

- UI Nobel Assembly (see Figure 2).

• Step 4: Architectural elements association - asso-

ciations must link the elements resulting from the

aggregation based on use cases textual descrip-

tions.

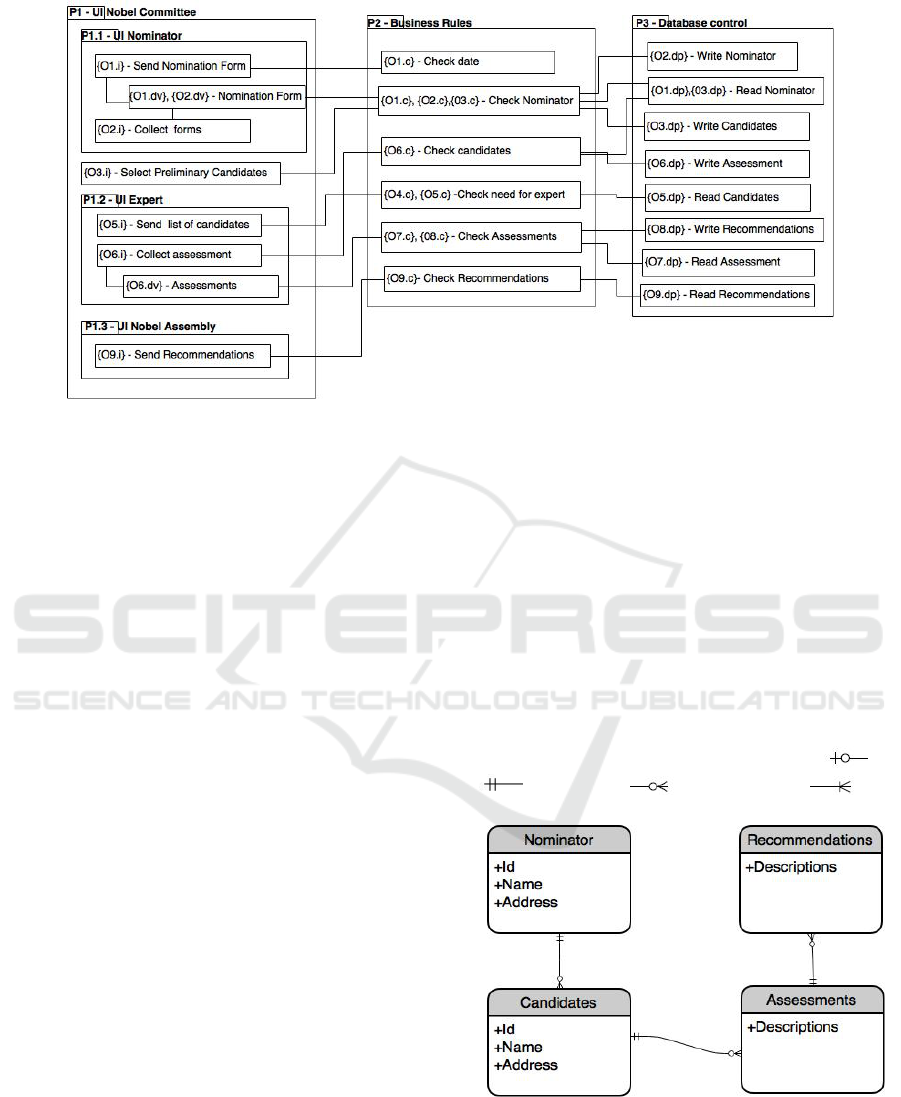

The logical architecture resulting from the appli-

cation of the 4SRS to the Nobel Prize example, is rep-

resented in Figure 2.

To deﬁne a persistent data model one needs to

identify the domain entities, their attributes, and the

relationships ((1 : n), (m : n) or (1 : 1)) between enti-

ties (Weske, 2012). Therefore, the 4SRS will be ex-

tended with three additional steps, which are:

• Step 5: Entities creation - in this step, the entities

involved in each use case are identiﬁed.

• Step 6: Relationships identiﬁcation - in this step,

the relationship between the entities identiﬁed in

step 5 are identiﬁed.

• Step 7: Entity attributes identiﬁcation - in this

step, the attributes belonging to each entity are

identiﬁed.

Each one of the newly added steps is explained

next.

Step 5 - Entities Creation

An entity is something identiﬁable, or a concept in the

real world that is important to the modeling purpose

(Weske, 2012). To identify the entities, this step is

divided into two micro-steps, explained next:

• Micro-step 5i: Entities identiﬁcation - Focusing

on the {-dp} - persistent data architectural ele-

ments remaining in the generated logical architec-

ture, each read, written or updated element gives

origin to an entity in the resulting data model.

Looking at the generated logical architecture from

the Nobel Prize example, represented in Figure 2,

we may see that we are reading and writing in-

formation in Nominator, Candidates, Assessment

and Recommendations thus, each one of these

gives origin to an entity in the data model.

• Micro-step 5ii: Entities representation - This step

produces the ﬁnal list of entities, by detecting and

removing the repeated entities. It is usual to ﬁnd

use cases reading information that is written (or

updated) by other use cases, especially when we

are working with a large number of use cases. As

such, it is very common to identify (in the pre-

vious micro-step) the same entity several times.

These duplicated entities are eliminated.

Backing to the Nobel Prize example and looking

to the generated logical architecture (represented

in Figure 2), in {O2.dp} - Write Nominator archi-

tectural element, the entity Nominator is identi-

ﬁed. The same entity is also identiﬁed in {O1.dp}

and {O3.dp} - Read Nominator architectural ele-

ment.

The Candidates entity may be identiﬁed in

{O3.dp} - Write Candidates and in {O5.dp} -

Read Candidates architecture elements. Both en-

tities are represented by the Candidates entity.

Similar reasoning may be used in Assessment and

Recommendations entities.

Step 6 - Relationships Identiﬁcation

A relationship between two entities is represented

through an association between those entities (Chen,

1976). The role of an entity in a relationship is the

function that it executes in that relationship. A rela-

tionship between two entities can be classiﬁed accord-

ing to two aspects, Cardinality and Optionality. Both

terms are used to denote the number of attributes in

a relation. Cardinality represents the maximum num-

ber of instances (one or many) of an entity in relation

to another entity. Relationship optionality represents

the minimum number of elements that exist on that

side of the relationship. It may be 1 (the relation is

mandatory) or 0 (the relation is not mandatory).

Focusing on the elements, remaining in the re-

sulting logical architecture, that store information (el-

ements with name starting by write or update), we

must verify in which conditions the information is

stored. When an {-dp} - persistent data element is re-

lated with a {-c} - control element that veriﬁes the in-

formation about another entity, we may conclude that

the information stored is related with the information

checked. Usually, this veriﬁcation is done by read-

ing information already stored. As a consequence,

the entity that represents the written information is re-

lated with the entity that represents the checked (and

read) information. The relationship is (1:n) from the

entity that represents the information checked (previ-

Deriving Software Design Models from a Set of Business Processes

493

Figure 2: The Nobel Prize resulting logical architecture.

ously written information) to the entity that represents

the written information because the same information

can be read several times and associated to different

written information items. On the other hand the in-

formation is stored only once.

By default the relationship is mandatory on the

side of the information checked (the information must

be veriﬁed) and is not mandatory on the side of the

written entity because the information may be writ-

ten, or not, depending on the veriﬁcation result.

Looking to the {06.dp} - Write Assessments ele-

ment we may see that it is related with {06.c} - Check

Candidates, so we may conclude the Assessments en-

tity is related with the Candidates entity. The same

happens between Candidates and Nominator and be-

tween Recommendations and Assessments. The rela-

tionship is (1:n) from the read to the written entity and

not mandatory from the side of the written entity.

Step 7 - Entity Attributes Identiﬁcation

The information, or the properties, about an entity

are expressed through a set of attributes (Weske,

2012). Since we are dealing with use cases which

descriptions are generated from business process

models, in some cases to prevent model complexity

the properties are not identiﬁed. Nevertheless, in

some cases, especially when information is stored

or retrieved, the use case description may have a

document in attachment (Cruz et al., 2014b) origi-

nated from attachments in BPMN data elements or

messages. The document may identify items stored

or retrieved. In that case, each item represents an

entity attribute. In cases where the properties are

not identiﬁed, the software architect may ask for

more detailed information, complementing this way

the information generated from the business process

models. In the 4SRS method, most of the steps

are manual and some of them require the software

architect expertise (Machado et al., 2006). At this

software development process phase, the stakehold-

ers are still involved and available to provide answers.

The resulting data model from the Nobel Prize

example is shown in Figure 3. In the resulting data

model, we are using the following syntax for each re-

lationship end. Focusing in one side of a relationship

type and considering the optionality and cardinality

together we have: 0 or 1 (represented as ), 1

( ), 0 to many ( ) and 1 to many ( ).

Figure 3: The Nobel Prize resulting data model.

Through micro-step 5i we are able to identify

the entities Nominator, Candidates, Assessments and

Recommendations representing data stored.

Applying step 6, we are able to identify relation-

ships between: Nominator and Candidates, Candi-

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

494

dates and Assessments, Assessments and Recommen-

dations. As previously explained, the relationships

are (1:n) from ﬁrst to the second entity and the rela-

tionship is mandatory on the side of the ﬁrst entity and

not mandatory on the other side.

5 RELATED WORK

In the software development process many models are

used to represent different points of view. Some mod-

els, like use case models, may have information that

can be used to generate other software models. Nev-

ertheless most of that information is in use case de-

scriptions, commonly speciﬁed in NL (Fantechi et al.,

2003; Cockburn, 2001). NL may be easy to under-

stand but, at the same time, can be ambiguous, re-

dundant and with omissions (Fantechi et al., 2003).

The approach presented herein is dealing with a set

of controlled sentences previously deﬁned in NL fa-

cilitating an automated analysis. The set of sentences

are deﬁned with the purpose of transforming business

process models (BPMN) into use case models (Cruz

et al., 2014b).

Model transformation is one of the basic princi-

ples of Model Driven Architecture (Yue et al., 2011).

Several authors propose approaches to derive soft-

ware models (data models and class models) from re-

quirements representations (use case models). Some

of the existing approaches are presented next.

Samarasinghe and Som propose an approach to

create a Domain model from a Use Case model

(Samarasinghe and Som

e, 2005). To describe use

cases the authors use a controlled NL.The authors

state that automatic processing of use cases described

in full NL is not possible so, they propose a restricted

form of NL grammar for use case descriptions (Sama-

rasinghe and Som

e, 2005).

In (Ilieva and Ormandjieva, 2006) the authors pro-

pose the generation of the domain model and UML

activity diagram from requirements speciﬁcation. The

authors consider unlimited NL, but they rewrite it in

a different format using a tabular presentation of the

text. They start with a syntactical analysis of the text,

and then build a tabular presentation and a semantic

network. The construction of models are conducted

in four stages: syntax categorization, tabular model-

ing of the text, semantic processing of the text, and

interpretation of the text for diagrammatic modeling

(Ilieva and Ormandjieva, 2006).

Yue et al. (Yue et al., 2009) to avoid NL am-

biguity, propose a set of restriction rules and a new

template to describe use cases. The authors aim is to

facilitate the textual analysis, allowing the automatic

extraction of the UML class model. The restriction

rules and the template are to be used during the re-

quirements elicitation phase.

All surveyed existing approaches try to restrict the

NL used in use case descriptions. The approach pre-

sented herein also uses a restricted NL but specially

designed to represent the information we have in busi-

ness process models. Therefore, the approach uses a

set of sentences previously deﬁned with the aim of

generating use cases from one or more Business pro-

cess models, modeled in BPMN. The generation of

the sentences is prepared to be automatic as well as

the construction of the 4SRS tabular transformation

and its ﬁrst step.

6 CONCLUSIONS AND FUTURE

WORK

The 4SRS is a method organized in four main steps,

that transforms UML use case models into system-

level object diagrams, representing the software logi-

cal architectures of the system (Machado et al., 2006).

The 4SRS method has already been used and tested in

several real and complex projects as reported in (Fer-

reira et al., 2012; AAL4ALL, 2012).

In this paper, the 4SRS is adapted and extended in

order to generate a data model supporting the result-

ing logical architecture. Herein, we start by distin-

guishing persistent data from non-persistent data al-

lowing to create three new 4SRS steps with the aim

of identifying entities, the relationships between enti-

ties and the entities’ attributes.

The 4SRS table and the 4SRS ﬁrst step (step 1)

can be automatically generated from a set business

process models, modeled in BPMN language, as pre-

sented in (Cruz et al., 2015). The use case descrip-

tions comprise a set of structured and controlled sen-

tences previously deﬁned in (Cruz et al., 2014b). The

generated use case descriptions can be complemented

with other information every time it is necessary.

Integrating the approach presented herein and the

approach proposed in (Cruz et al., 2015) it is possible

to generate the use case model, software logical archi-

tectures and the data model based in a set of business

process models. The derived software models can be

used as bases to the development of the software that

will support the business, helping to ensure the align-

ment between business process models and software

models (Cruz et al., 2014a).

In a BPMN model, a sub-process may be used to

describe the common part of different process models.

Thus, when we are grouping a set of interrelated busi-

ness process models, some use cases can appear more

Deriving Software Design Models from a Set of Business Processes

495

than once on the resulting use case model (Cruz et al.,

2015). The 4SRS method is prepared to detect and

eliminate duplicated use cases (Machado et al., 2006)

(step 3) making it suitable for dealing with complex-

ity. The generated models (use case model and data

model) are consistent with each other, meaning that

the data entities referred to in the use case model are

represented in the data model.

As future work, we intend to apply this approach

in a real industrial scenario which complexity and di-

mension will beneﬁt from a systematic approach to

the identiﬁcation of the data model.

ACKNOWLEDGEMENTS

This work has been supported by FCT - Fundac¸

para a Ci

encia e Tecnologia in the scope of the

project: PEst-UID/CEC/00319/2013.

REFERENCES

AAL4ALL (2012). http://www.aal4all.org.

Braganc¸a, A. and Machado, R. J. (2006). Extending UML

2.0 metamodel for complementary usages of the ex-

tend relationship within use case variability speciﬁ-

cation. In 10th International Software Product Line

Conference (SPLC’06).

Chen, P. P.-S. (1976). The entity-relationship model toward

a uniﬁed view of data. ACM Trans. Database Syst.,

1:9–36.

Cockburn, A. (2001). Writing Effective Use Cases. Addison

Wesley.

Cruz, E. F., Machado, R. J., and Santos, M. Y. (2014a).

Derivation of data-driven software models from busi-

ness process representations. In 9th International

Conference on the Quality of Information and Com-

munications Technology (QUATIC2014), pages 276–

281. IEEE-CS.

Cruz, E. F., Machado, R. J., and Santos, M. Y. (2014b).

From business process models to use case models: A

systematic approach. In Aveiro, D., Tribolet, J., and

Gouveia, D. (Eds.), Advances in Enterprise Engineer-

ing VIII, vol. 174 of Lecture Notes in Business Infor-

mation Processing, pages 167–181. Springer Interna-

tional Publishing.

Cruz, E. F., Machado, R. J., and Santos, M. Y. (2014c).

On the decomposition of use cases for the reﬁnement

of software requirements. In Computational Science

and Its Applications (ICCSA), 2014 14th International

Conference on, pages 237–240. IEEE-CS.

Cruz, E. F., Machado, R. J., and Santos, M. Y. (2015).

Bridging the gap between a set of interrelated business

process models and software models. In 17th Interna-

tional Conference on Enterprise Information Systems,

pages 338–345.

Fantechi, A., Gnesi, S., Lami, G., and Maccari, A. (2003).

Applications of linguistic techniques for use case

analysis. Requirements Engineering, 8(3):161–170.

Ferreira, N., Santos, N., Machado, R. J., and Gasevic, D.

(2012). Derivation of process-oriented logical archi-

tectures: An elicitation approach for cloud design. In

PROFES’2012, LNCS Series, Springer-Verlag, Berlin

Heidelberg, Germany.

Ilieva, M. G. and Ormandjieva, O. (2006). Models de-

rived from automatically analyzed textual user re-

quirements. In Software Engineering Research, Man-

agement and Applications.

Machado, R., Fernandes, J. a., Monteiro, P., and Rodrigues,

H. (2006). Reﬁnement of software architectures by re-

cursive model transformations. In Mnch, J. and Vier-

imaa, M. (Eds.), Product-Focused Software Process

Improvement, volume 4034 of LNCS, pages 422–428.

Springer Berlin Heidelberg.

OMG (2011). Business process model and notation

(BPMN), version 2.0. Technical report, Object Man-

agement Group.

Samarasinghe, N. and Som

e, S. S. (2005). Generating a

domain model from a use case model. In Intelligent

and adaptive systems and software eng..

Santos, M. Y. and Machado, R. J. (2010). On the derivation

of class diagrams from use cases and logical software

architectures. In 2010 5th Int’l Conf. on Software En-

gineering Advances.

Weske, M. (2012). Business Process Management Con-

cepts, Languages, Architectures. Springer Science &

Business Media.

Yue, T., Briand, L., and Labiche, Y. (2009). A use case

modeling approach to facilitate the transition towards

analysis models: Concepts and empirical evaluation.

In Schurr, A. and Selic, B., (Eds.) Model Driven En-

gineering Languages and Systems, volume 5795 of

LNCS, pages 484–498. Springer Berlin Heidelberg.

Yue, T., Briand, L., and Labiche, Y. (2011). A systematic

review of transformation approaches between user re-

quirements and analysis models. Requirements Engi-

neering, 16:75–99.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

496
