A Controlled Experiment for Evaluating the Comprehensibility of

UML Action Languages

Omar Badreddin

, Maged Elaasar

and Abdelwahab Hamou-Lhadj

Department of Electrical Engineering and Computer Science, Northern Arizona University, Flagstaff, Arizona, U.S.A

Department of Systems and Computer Engineering, Carleton University, Ottawa, Ontario, Canada

Department of Electrical and Computer Engineering, Concordia University, Montreal, Quebec, Canada

Keywords: UML, Model Driven Development, Alf, Object Orientation, Model Oriented Programming Languages.

Abstract: Action Languages represent an emerging paradigm where modeling abstractions are embedded in code to

bridge the gap with visual models, such as UML models. The paradigm is gaining momentum, evident by

the growing number of tools and standards that support this paradigm. In this paper, we report on a con-

trolled experiment to assess the comprehensibility of those languages and compare it to that of object-

oriented (OO) programming languages. We further report on the impact of also having access to the UML

notation on the comprehensibility of those languages. Results suggest that action languages are significantly

more comprehensible than traditional OO languages. Furthermore, there was not a significant improvement

in comprehensibility when the UML notation was used along with both OO and action language code. We

conclude that action languages are a promising alternative to traditional OO languages for specifying de-

tails, yet seem to be as comprehensible as high-level visual models.

1 INTRODUCTION

The UML lacks formal execution semantics for

many of its elements (Bernhard, 2014). For example,

UML use case modeling notation does not map di-

rectly to any executable semantics. Careful investi-

gation of many other modeling notations reveals

similar execution semantic gaps (Wladimir, 2013).

A UML action language gives unambiguous execu-

tion semantics to a subset of UML. An example of

such language is Alf, a textual action language for

Foundational UML (fUML) (OMG, 2015).

Action languages and UML share some

commonalities. Both of them are an attempt to deal

with the ever-increasing complexities of system

development through abstraction. UML provides a

visual notation that abstracts away the structure and

behaviour of the system. It also promises some level

of portability, as UML models can typically be used

to generate source code for multiple platforms.

Action languages, such as Alf, are designed to be

high-level executable languages. Like UML, they

allow the definition of the key abstractions of the

system, but they also provide mechanisms to specify

the system’s detailed behaviour similar to traditional

OO languages. For example, in an action language,

the developer can declaratively define the concepts

of a system with classes, their inter-relationships

with associations, and their behaviour with state

machines. The detailed activities performed in each

state can be specified imperatively with executable

code.

Action languages engage users in a familiar

textual and executable environment (without the

need for forward or reverse engineering processes

between model and code). They bare many

similarities with modern OO languages like Java and

C++, which provides significant value for rapid

system prototyping. While the comprehensibility of

the UML notation has been well investigated before

(Helen et al., 2001), to our knowledge, there is no

study that investigates the comprehensibility of

UML action languages compared to OO languages.

More particularly, we are interested in investigating

the following research question:

RQ1: How do the emerging UML action languages

compare to traditional OO languages in terms

of comprehensibility?

This question investigates whether or not there is

a significant difference in the way software

engineers understand action languages compared to

OO languages. In addition, we are interested in

Badreddin, O., Elaasar, M. and Hamou-Lhadj, W.

A Controlled Experiment for Evaluating the Comprehensibility of UML Action Languages.

DOI: 10.5220/0005657700520064

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 52-64

ISBN: 978-989-758-168-7

investigating if there is added value in combining

the UML visual notation along with action or OO

languages. For this, we ask the following research

question:

RQ2: What is the incremental impact on

comprehension when combining the visual

UML notation with action language or OO

languages?

To answer these questions, we designed a controlled

experiment where participants were given samples

of code expressed in action languages and OO

languages that were extracted from an open source

software project (Umple, 2015). The participants

were asked to complete a set of tasks, ranging from

answering simple comprehension questions, to

performing debugging activities. The experiment

used two action languages and two OO languages.

Also, relevant models in UML notation were also

made available to assess the added value on

comprehension.

Our findings show that action language code is

more comprehensible when compared with OO

code. Furthermore, the experiment did not show any

significant increase in the comprehension of either

OO or action code when coupled with UML models.

The remaining parts of the paper are organized as

follows. In Section II, we provide background on the

two action languages that are used in this

experiment. We present, in section III, the

experiment’s setup and design based on the

guidelines for reporting experiments in software

engineering proposed in (Jedlitschka et al., 2008). In

Section IV, we present the results and analyze them

quantitatively and qualitatively. We discuss threats

to validity in Section V. In section VI, we review

related work. Finally, we conclude and outline future

work in Section VII.

2 BACKGROUND ON ACTION

LANGUAGES

Action languages are typically textual and support

abstractions such as classes, associations, multiplici-

ties, and state machines. We believe there are two

main motivations behind the emergence of action

languages. First, action languages help bridge the

gap between less abstract object-oriented languages,

and more abstract modeling notations. For example,

in a UML model, one can define classes, their rela-

tionships (e.g., with associations) and their behav-

iour (e.g., with state machines). However, in a typi-

cal object-oriented programming language, such as

Java or C++, one is unable to directly manipulate

those abstractions. For example, one cannot express

associations between classes or the exact multiplici-

ties of collection properties. Also, while it is possi-

ble to specify state machines as the behaviour of

classes in UML, one cannot express the same level

of abstraction in the corresponding OO code. (Note

that the mapping of such modeling abstractions to

object-oriented languages varies from one approach

to the other.) The developer has to learn how such

abstractions are mapped to a programming language

to be able to manipulate them in the OO code. This

leads to a wide gap between programming and mod-

eling languages.

The second motivation for action languages is a

growing realization of the software developers’

preference to use familiar textual environments

(Lethbridge et al., 2010); (Badreddin et al., 2012).

Code, unlike models, has a serial nature and might

be easier to maintain with any text editors.

Developers do not need to worry about layout, as is

the case with visual notation. In addition, wide

adoption of code repositories (e.g., Git Repository)

means that code remains the main development

artifact (Lethbridge et al., 2010).

One can argue that the first trace of the

emergence of textual modeling language is Human-

Usable Textual Notation (HUTN) (Louis et al.,

2008). This effort was sponsored by OMG (Object

Management Group), but later lost momentum and

has been abandoned. More recently, in 2008, OMG

issued a Request For Proposal (RFP) for a concrete

syntax for a UML action language, which was

referred to, at that time, as UAL (OMG, 2012). The

RFP requirements included support for the

Foundation subset of UML (fUML). Two proposals

were submitted, one from IBM and one from Mentor

Graphics. The two proposals were later combined

and named Alf, Action Language for Foundational

UML (Planas et al., 2012).

In parallel, multiple industry and academic

efforts were investigating textual modeling, textual

representations for UML, and action languages. For

example, TextUML (Chaves, 2015) provides an

equivalent modeling capability where models are

represented textually. SOIL (Büttner and Gogolla,

2011) is a language that allows the embedding of

OCL-like statements into programming languages.

Another notable effort is Umple (Umple, 2015), a

language that embeds UML modeling abstractions

textually in object-oriented code.

In this work, we selected Alf and Umple as two

instances of action languages. Alf was selected

because it is sponsored by OMG, which has in

A Controlled Experiment for Evaluating the Comprehensibility of UML Action Languages

October 2013 published an updated standard for the

language (OMG, 2015), with promising and growing

tool support (Lazăr et al., 2015). Umple was selected

because it provides tooling for an executable action

language environment that is open sourced. Both

choices enabled us to setup our experiment’s

environment with necessary tools.

The following two subsections provide a brief

background on both Alf and Umple. The

background is only sufficient for the purpose of

introducing the experiment. The reader is

encouraged to refer to other publications on Alf

(Perseil, 2011) and Umple (Badreddin, 2010) for

more information.

To demonstrate how the two action languages

work, we reuse a subset of the example used in the

latest Alf published standard on page 379 (OMG,

2015), which itself is borrowed from a book named

Executable UML: A Foundation for Model Driven

Architecture (Mellor and Balcer, 2002). Our

example model consists of two classes, Order and

Customer (Figure 1). A customer may have one or

more orders, and an order may or may not be

associated with a customer.

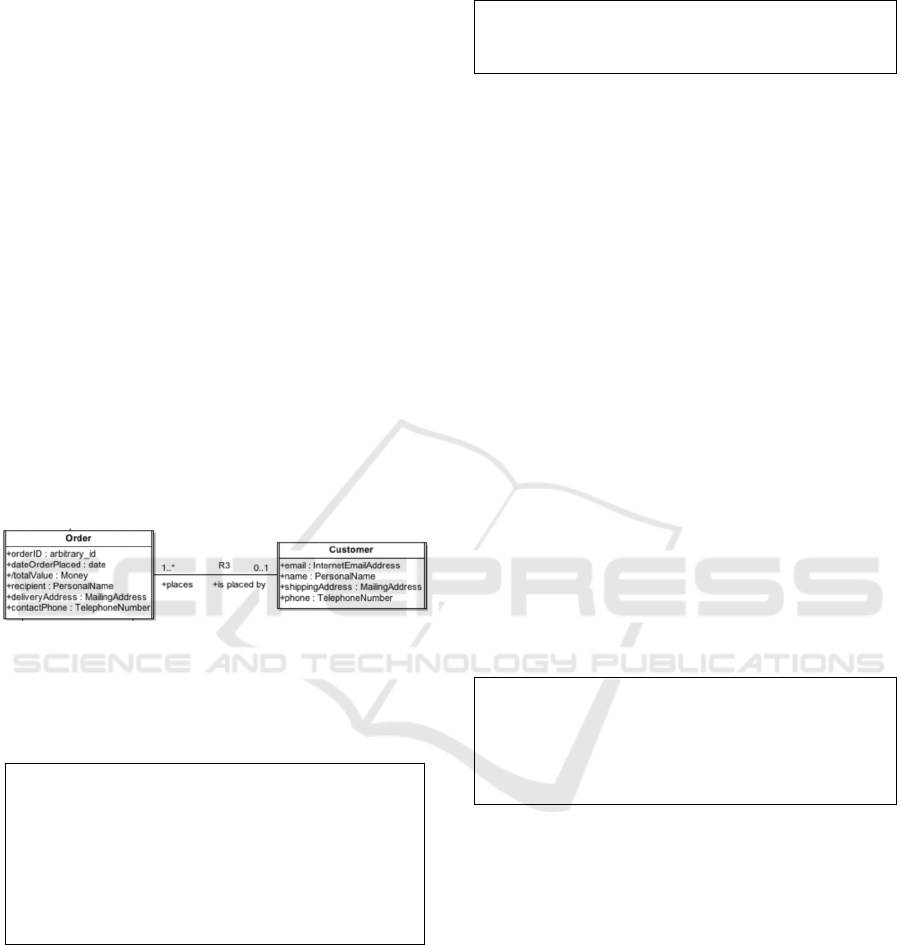

Figure 1: Example in UML Notation (OMG, 2015).

2.1 Alf Action Language

Alf represents the Order class as in

Figure 2

below.

active class Order {

public orderID: arbitrary_id;

public dateOrderPlaced: date;

public totalValue: Money;

public recipient: PersonalName;

public deliveryAddress:

MailingAddress;

public contactPhone:

TelephoneNumber;

Figure 2: Example Alf code.

The representation is very similar to Java and

C++. This is an intentional design objective of Alf

and is meant to enhance adoption by software

developers who are already familiar with OO

languages. What is new in Alf is that it supports the

representation and manipulation of modeling

abstractions. The Alf code snippet in Figure 3 shows

how the association between Order and Customer is

represented:

public assoc R3 {

public places: Order[1..*];

public 'is placed by':

Customer[0..1]; }

Figure 3: Example Alf association.

Typical object-oriented languages do not support

such explicit representation of associations. Alf, in

addition, provides syntax for manipulating state

machines. The class Order is an active class,

meaning that its behaviour is specified by a state

machine, which Alf also defines as part of its textual

syntax. The state machine is defined on page 380 of

the Alf published standard (OMG, 2015). The Alf

standard includes mechanism to specify imperative

statements in various places including the states’

entry/exit/doActivity actions. Such statements are

similar to those expressible with high-level

programming languages like Java and C++.

2.2 Umple Action Language

Umple’s syntax is similar to Alf and very similar to

object-oriented languages. The difference between

Alf and Umple is in the syntactic representation of

modeling abstractions and in the approach of bridg-

ing the gap between them and the code. Figure 4 is

Umple’s representation of the same class diagram in

Figure 1.

class Order

{

1..* -- 0..1 Customer;

int orderID;

date dateOrderPlaced;

recipient;

address deliveryAddress;

.. }

Figure 4: Example Umple code.

Notice that Umple, unlike Alf, allows the

definition of the association between Order and

Customer to be in either the Order class (Figure 4)

or the Customer class. Both Alf and Umple,

however, allow the definition of the association to be

separate of either class. Also, property types in

Umple can be implicit. For example, property

recipient has an implicit default type of String in

Figure 4. Also unlike Alf, Umple does not provide

its own expression syntax but uses that of modern

high level programming languages as-is.

The representation of state machines in the two

languages is different. Alf provides syntax for

specifying state machines and their various

expressions (e.g., the transitions’ guards and the

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

entry/exist/do behaviours) declaratively. Umple, on

the other hand, provides syntax for defining state

machines but relies on the embedding OO language

syntax to specify the various expressions. This

difference is significant, and this is the motivation

for utilizing two languages to represent action

languages. Nevertheless, the specifics of the

distinction between these two languages is not of

concern with respect to this experiment.

3 EXPERIMENT DESIGN

The goal of this experiment is to evaluate the com-

prehensibility of action languages in comparison to

traditional OO programming, and to evaluate the

added comprehension value of typical visual nota-

tions such UML. An important presumption here is

that an action or an OO language does not replace

the need or role of a visual UML notation for key

system components, relationships, and behaviour.

Therefore, part of this experiment is designed to

evaluate the comprehension added value of the UML

visual notation.

3.1 Experiment Artifacts

In this experiment, we use two systems specified in

two action languages (Alf and Umple), two OO

languages (Java, and C++), as well as UML. This

means we have 10 artifacts in total. We discussed

the rationale for using Alf and Umple in the previous

section. We selected Java and C++ because of their

popularity and wide use in practice. Also, these lan-

guages do not differ significantly in syntax or ab-

straction level, which helps keep our experiment

design balanced. UML is used as a reference nota-

tion for visual modeling.

The two systems used in this experiment are

extracted from the Umple's open source project

(Umple, 2015). The first one is a subset of the UML

class diagram metamodel and the second one is a

subset of the UML state machine metamodel. These

two systems are selected because they provide a

suitable mix of modeling abstractions (e.g., classes,

properties, etc.) and their implementations (e.g.,

constructors, getters, setters, etc.). The size of these

systems is suitable for the purpose of the experiment

as well. The systems can also be effectively

represented using the different notations being

evaluated in this experiment, i.e., Alf, Umple, Java,

C++, and UML.

We have opted to use a subset of the UML class

and state machine metamodels to keep the

experiments simple. Also, we focused on the

abstract syntax metamodels and not the visual

(concrete syntax) specifications.

The experiment artifacts were first examined by

three independent researchers who are not involved

in this study. The researchers checked the

experiment artifacts for consistency, i.e., made sure

that the artifacts are semantically equivalent. They

also checked the coding and modeling styles to

ensure that typical ones are used. The reviewers sent

their recommendations to us. We then evaluated

them and updated the artifacts as necessary. This

process was iterative until all three researchers

agreed that the models and code are consistent and

representable.

Table 1 summarizes the key properties of the

experiment artifacts. The table lists the number of

lines of code for Java, C++, Umple and Alf. For

UML, the number of modeling elements is listed.

Table 1: Number of lines for experiment artifacts, and

number of model elements for UML.

System Java C++ Umple Alf UML

Class diagram

metamodel

196 192 151 157 129

State machine

metamodel

172 180 140 142 117

The artifacts were presented to the participants as

follows: Both Java and C++ code snippets were

presented in an Eclipse IDE, showing the typical

code canvas, outline view, and problems view. Both

Umple and Alf were presented in a custom-designed

eclipse environment. The environment was

developed to match those of Java and C++. Alf and

Umple's environments contained code canvas with

typical highlighting of code, outline view, as well as

problem view. However, advanced editing and code-

assist features that are available to Java and C++

were not available to Alf and Umple. We are not

concerned about such limitations in the case of Alf

and Umple. First, the experiment duration is

relatively short, and our observations indicate that

participants do not get to use advanced editing

features in any significant manner. In addition, such

limitations do not affect our hypotheses, since any

bias will only make our conclusions stronger.

UML visual models were presented as images

only (i.e., not in a UML tool). The images were

approximately the same size as the code canvases

used. Two UML models were used that represent

subsets of the class and the state machine

metamodels. We arrived at those subsets by

A Controlled Experiment for Evaluating the Comprehensibility of UML Action Languages

removing what we judged to be ambiguous or less

familiar, elements. For example, we removed

elements that represent protocol state machines. In

addition to the modeling abstractions selected, the

experiment artifacts included implementation code.

For brevity, the UML models and implementation

code are not shown here. However, such models and

Java-version of the implementation code are

published as part of Umple’s open source project

(Umple, 2015).

Java and C++ implementations of both

metamodels were developed by us (the Java one was

in the context of the Umple project), and reviewed

by three independent researchers to ensure

consistency and reasonable implementation choices.

Each reviewer was asked to report inconsistencies

and implementation concerns to us. We either

implemented the change, or revaluated the

comments of the reviewer by involving a third

reviewer. Eventually, all three reviewers agreed that

the two representations were consistent and were

semantically equivalent to the corresponding subsets

of the UML metamodels.

The Alf implementation of the two systems was

more challenging for two reasons. Alf is an

emerging standard where the syntax is being

continuously revised. We adopted the syntax

published in the OMG standards as of October, 2013

(OMG, 2013) and stuck to it, even though we are

aware of other variations and proposals that are

underway. The second reason is because Alf is not

widely adopted yet, and it was not possible to look at

existing code to find out whether there is a

consensus on common coding patterns. We selected

what we found to be the most natural syntax

alternative and used it for both systems.

The effort to build Umple representations of the

two systems was relatively simpler for us. Umple's

code is published as an open source project (Umple,

2015) and contains an implementation for class and

state machine metamodels.

3.2 Participants

The experiment involved 32 participants that we

divided into two groups. All participants received

the same artifacts. The only difference was whether

the participants had the visual notation of the system

in UML or not. This way, we can evaluate the effec-

tiveness of the action languages as compared to the

OO languages, as well as assess the added value of

having UML notations in combination with the sys-

tem code (C++, Java, Umple and Alf).

We should note that we did not consider

assessing the comprehensibility of UML artifacts

alone. This decision was motivated by the following:

UML is not meant to replace the need for code,

whether this code is OO or Action Language; UML

is typically used in conjunction with code, which is

the paradigm used by most UML modeling tools,

such as IBM’s Rational Software Architect and

Papyrus. Instead, we were interested in answering

the question (RQ2) of whether UML notation adds

to the comprehensibility of textual languages. We

discuss this in the results section of this paper.

The participants were software engineering or

computer science students as well as software

engineering practitioners. In total, 32 participants

were recruited, out of which 14 had a PhD degree in

a related field, two had a Master degree, and the rest

had a Bachelor degree. We collected their

experience and background levels on a scale from 1

(beginner level) to 5 (expert level). Their average

knowledge of Java was the highest (3.3/5.0),

followed by C++ (3.1/5.0), followed by UML

(2.7/5.0), followed by Umple and Alf (1.7/5.0).

We analyzed the data using different participant

slices. One slice was based on education levels:

those with a PhD only, those with a Master degree

only, and those with a Bachelor degree only.

Another slice is based on the level of knowledge of

the languages under study. We found the results of

analyzing the data for these slices not significantly

different than the results for the entire population.

Participants were recruited randomly using

convenient sampling techniques. Recruitment was

announced on multiple news boards. Appointments

were scheduled based on participants’ availability.

Selection criteria included having a degree in

software engineering or a related field, having

familiarity with UML and action languages, and

having worked as a professional software engineer

for at least one year. Participation was both

anonymous and voluntary. The identity of

participants was never collected. Throughout the

study, we reminded the participants that they can

stop participation at any step. Participants were not

compensated for their participation. The experiment

is conducted after proper approvals had been

obtained.

3.3 Questions and Task Lists

We designed a total of eight questions and four tasks

that range from simple comprehension questions, to

performing tracing and debugging tasks. The ques-

tions were uniform across the different artifacts.

However, there were only minor variations in word-

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

ing of the questions and tasks between those posed

for C++ and Java and those posed for Alf and Um-

ple. The variations were minimal and we do not

expect such variations to affect the results of the

experiment. In fact, during the pilot study, our re-

viewers made comments that made us do such minor

wording changes.

The questions and tasks for the first system were

significantly different than the questions and tasks

for the second system. This is simply because the

two systems are significantly different. This

difference is by design and is intentional. However,

we maintained some level of relevance in the two

sets. We made sure that the number of questions and

tasks and their relative complexity are similar. This

enabled us to analyze the results for both systems

consistently. Table 3 shows an excerpt of the set of

questions and tasks used for the state machine

system.

Table 2: Exceprt of Questions for the State Machine

metamodel.

Question / Task

Q1 How many activities can a state have?

Q2 How many transitions can be associated with a state?

Can you create a transition from one state to multiple

states?

Create a state machine to represent the UML model in

figure 1.

Create a guard condition to resolve the ambiguity in

this model. Note you may first need to identify the

ambiguity in the model.

Is this model complete or incomplete? If it is

incomplete, suggest a way to complete the model and

implement the change.

Each participant attempted the questions and

tasks of the two systems (see next subsection). The

first system was the class diagram metamodel,

whereas the second system was the state machine

metamodel. We believe that the learning effect of

the first system had minimal impact on the second

system due to the different nature of the systems

(class diagram is for structural modeling vs. state

machine diagram is for behavioural modeling). Not

all participants were assigned all artifacts. Also, the

assignment of artifacts to participants was not left up

to the participants. Rather, it was controlled by us

with the intention to make the experiment design

balanced.

Participants were not given the question lists in

advance to minimize the risk they may look at other

questions while attempting to answer the current

question. Participants were given the choice between

a Windows laptop and a Mac laptop. Their

preference was always accommodated. This is

because we wanted to make sure that a familiar

environment is provided for each participant.

However, participants were not allowed to use their

own laptops. This was due to the effort required to

set up the environment, the experimental artifacts

and the recording software. The questioning sessions

were audio recorded. Time was measured starting

from the end of posing a question until the

participant finished answering the question. We also

recorded the laptop screen in video from the

beginning of the experiment and until the end.

At the onset of the experiment, participants were

asked a number of profiling questions about their

background, prior knowledge of C++, Java, Alf,

Umple and UML. We also collected information on

their software engineering courses and work

experience. The objective of this profiling

information is to analyze it along with the

experimental data and examine any bias caused by

the experiences of the participants. We disqualified

participants who did not meet the minimum

participation requirements.

We should mention that at the beginning of the

experiment, participants were shown three short

videos introducing UML, Alf, and Umple concepts.

However, we did not expect it would influence the

experiment results much in favour of those

languages.

3.4 Study Design

In this section, we state the research questions, vari-

ables, and analysis methods used in this experiment.

RQ1: How do the emerging UML action languages

(Umple and Alf) compare to traditional

object-oriented languages (Java and C++) in

terms of how easy to understand and use?

We state the following hypothesis:

: A system specified in Umple or Alf is more

comprehensible than an equivalent

specification of the system in Java or C++.

In other words, participants take on average less

time to answer questions when presented with a

version of a system implemented in an action

language as opposed to a Java or C++.

The corresponding null hypothesis is:

H1o: Action languages and object orientation do

not differ in comprehensibility.

H1 is a baseline. If we can reject the null

hypothesis then we can be confident that there is a

difference in comprehensibility.

A Controlled Experiment for Evaluating the Comprehensibility of UML Action Languages

Variables: The independent variables are the

notation of the two systems used in this study with

values: 'C++', 'Java', 'Alf', and 'Umple'. The focus

was on measuring the comprehensibility of the

languages. Comprehension was measured by eight

questions and four bug fixing tasks. The dependant

variables used to measure comprehension are:

 Time: The time taken to respond to a question or

provide a fix for the task, measured in seconds.

For the fixes, the participants continued to edit

the code until the correct answer is reached. This is

either when the participant recognizes that he or she

had accomplished the task, or when we recognized

that the bug is fixed and notified the participant.

 Quality: The quality of the answer or the fix,

which is a subjective measure. This is collected

for meta-analysis, and is assessed by two

independent reviewers. If the evaluation of the

two reviewers does not match, a third reviewer is

involved to make a decision based on his or her

judgement, as well as the evaluation of the two

previous reviewers.

Analysis: We use descriptive statistics to compare

the time it takes to answer the questions or perform

the fixes using C++/Java to the time it takes to do

the same in Umple/Alf. We also use a two-tailed t-

test to measure the statistical significance between

the average times it takes using both paradigms. As

confirmatory evidence (in case of significant

departure from the normality requirements of the t-

test), we apply the Mann-Whitney test (U-test).

RQ2: What is the added value of the visual UML

notation when used with action language or

OO languages?

We state the following hypothesis:

H2: UML visual notation enhances

comprehension when used with action or object-

oriented code.

The corresponding null hypothesis is:

H2o: UML notation does not enhance

comprehension when used with action or object-

oriented code.

Variables: Similar to the previous questions, we use

independent variables, which are the notations of the

two systems used in this study with values: 'C++',

'Java', 'Alf', and 'Umple'. We measure

comprehension the same way as before. The only

difference is that this time, we provide the UML

notation with the artifacts. We compare the answers

provided by participants that used UML notation

with those of the participants that did not use UML

notation (RQ1).

Analysis: We used descriptive statistics to compare

the time it takes to answer the questions and perform

the tasks using C++/Java/Umple/Alf with UML

notation to the time it takes to do that without UML

notation. Similar to the previous question, we also

used a two-tailed t-test to measure the statistical

significance between the average times with or

without UML. The Mann-Whitney test (U-test) was

used in case of significant departure from the

normality requirements of the t-test.

3.5 Design Validation – Pilot Study

In order to initially verify and validate the design of

the experiment as well as identify potential flaws in

the design, we conducted a pilot study. The pilot

study was conducted using eight other participants,

who were selected based on availability and soft-

ware engineering background. The pilot data was

excluded from the analysis.

This pilot study was very instrumental in refining

many aspects of the experiment. For example, we

found that some of the original wording of the

questions was not clear. It was also found that

participants tend to become less active by the end of

the experiment. The question wording was corrected

and reviewed independently again. The reduced

activity was mitigated by reducing the number of

questions and giving participants a break between

the two systems.

4 RESULTS AND ANALYSIS

In the course of the experiment, each participant was

given two rounds of questions and tasks correspond-

ing to the two systems. Each participant spent on

average 70 minutes. The shortest duration was 49

and the longest was 83 minutes, this included a 5-

minute break between each system (round) and the

time the participants took to read and sign the con-

sent documents.

Participants were given a laptop that guided them

through the experiment. An HTML application was

developed so that participants can click next when

they are finished with their answer. Video and audio

recording software was running in the background.

The audio is recorded to provide hints in case of

exceptional situations occurring. For example, the

audio was used in case the experiment operations

were interrupted by the request of the participant.

The video recorded the screen, and was used to

measure the time durations for each question. The

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

distribution of artifacts was balanced, so that equal

number of participants answered questions on equal

number of notations.

The overall average for answering the questions

and performing the bug fixing tasks was 47.1

seconds. This is in line with our pilot study, and is in

line with our design objectives, which is keeping the

questions and tasks relatively simple so they each

can be answered within 3-minute on average. The

standard deviation was 15.6 seconds. Figure 5

summarizes the experiment results.

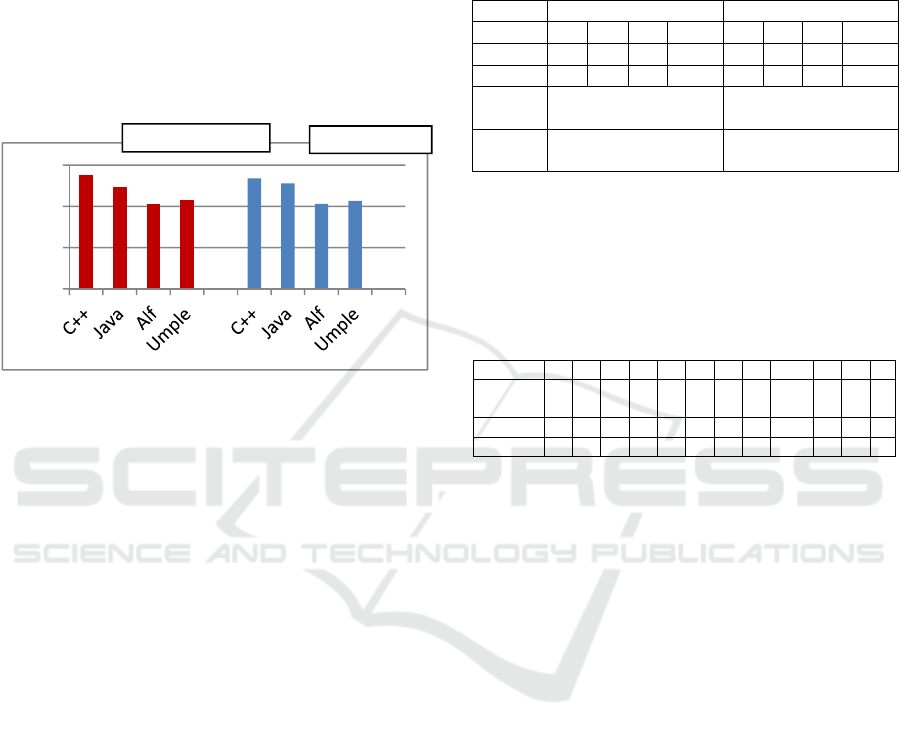

Figure 5: Overall experiment results.

From Figure 2, a few patterns immediately become

evident. First, the average results for both the 'With

UML' and 'Without UML' cases are almost identical

for both the action languages and the OO languages.

This suggests that having UML notation does not

improve comprehension, which is an unexpected

result. We discuss our interpretation of this result in

the discussion section of this paper.

Also evident from this quantitative analysis is

that Java seems to have slightly outperformed C++

(likely due to the experience of the participants).

Also both Alf and Umple have performed better than

the OO languages. This seems to suggest that being

at the model level provides comprehension and

usability benefits to action languages.

Furthermore, (as shown in Table 4), the standard

deviation (SD) for the OO languages (16.6 seconds)

was higher than the SD for the action languages

(12.1 seconds). This we believe is due to participants

having different levels of experience with those OO

languages, while almost similar experience with

actions languages. Also, the SD for both systems,

‘With UML’ and ‘Without UML’, is 15.6 seconds.

This implies that differences between the two sys-

tems were not significant, which is counter-intuitive.

We discuss our interpretation of this result in the

discussion section of this paper.

Table 5 shows the time averages of answering

the questions. One objective of the design of this

experiment is to keep the questions and tasks of

comparable complexity. The smallest average for a

question or task was 30.4 seconds, and the largest

was 65.5, with a SD of 10.1.

Table 3: Results summary.

Without UML With UML

C++ Java Alf Umple C++ Java Alf Umple

Average 55.4 49.3 40.9 42.9 53.6 51.5 41.2 42.7

SD 18.1 16.8 16.1 11.6 18.8 16.3 15.7 11.7

Overall

Average

47.1 47.1

Overall

15.6 15.6

The following sections examine subsets of the

data sets. We apply standard statistical tests to check

our hypotheses. For the following analysis, the entire

data is analyzed, including the 'With UML' and

'Without UML' data sets.

Table 4: Summary of Questions averages.

Q1 Q2 Q3 Q4 Q5 Q6 Q7 Q8 T1 T2 T3 T4

W/O

UML

41 43 29 30 39 53 54 56 40 48 66 69

W/ UML 45 55 32 35 40 53 41 47 50 68 40 62

AV 43 49 30 33 39 53 47 51 45 53 53 66

4.1 Examining Data for C++ and Java

The objective of this analysis is to test if there is a

statistically significant difference between the data

sets for both C++ and Java. This is important be-

cause if there is, then we should assume that the two

data sets come from distinct populations. If not, and

this is our hope, then both Java and C++ come from

the same population and we can confidently use

their data as representation for object- oriented tech-

nology.

Using a two-tailed t-test to measure the statistical

significance, there is no significant difference in the

data sets for the 'Without UML' set (p = 0.92) and

'With UML' data set (p = 0.88).

As confirmatory evidence (in case of significant

departure from the normality requirements of the t-

test), we also applied the Mann-Whitney test (U-

test). We received similar findings. We note here

that there is no reason not to assume normality in the

case of the data sets for C++ and Java. However,

other studies have recommended that normality

should be assumed only when the data set is large,

and the sample is representative of the entire

population (Jarque and Bera, 1980). Representations

assumptions have not been tested for our sample.

Our data sets are not large enough to justify

0,0

20,0

40,0

60,0

Without UML

With UML

A Controlled Experiment for Evaluating the Comprehensibility of UML Action Languages

normality assumption.

4.2 Examining Data for C++/Java and

Alf

Now that we have confirmed that both C++ and Java

data come from the same population, they can be

treated as a single data set. This significantly simpli-

fies the analysis. In this section, we analyze the data

sets for C++/Java and Alf.

We run a two-tailed t-test to measure the

statistical significance between the average of C++

and Java on one side, and Alf on the other side. The

test indicates that the data for Alf is significantly

lower than that of C++ and Java (p=1.5x10-8). This

means that participants took significantly less time

to respond to questions when the system is

represented using Alf notation.

Similarly, and as confirmatory evidence (in case

of significant departure from the normality

requirements of the t-test), we also applied the

Mann-Whitney test (U-test), Alf's data set is still

significantly lower than that of C++ and Java (p =

8.7x10-9) with a W value of 2722. So using this test

we also arrive at the same conclusion.

4.3 Examining Data for C++/Java and

Umple

We are not expecting to find significant difference in

the case of C++/Java and Umple data sets. The de-

scriptive analysis suggests that both Alf and Umple

performance were comparable, despite Umple being

a little worse that Alf (a standardized language).

Two-tailed t-test to measure the statistical

significance between the average of C++ /Java on

one side, and Umple, on the other side, indicate that

Umple's performance is better. The t-test indicates

that the data for Umple is significantly lower than

that of C++ and Java (p=1.1x10-8).

The Mann-Whitney test (U-test) indicate that

Umple's data set is still significantly lower than that

of C++ and Java (p = 9.2x10-7) with a W value of

2073. So using this test we also arrive at the same

conclusion.

Therefore, we can reject the null hypothesis, H01

and state that:

: A system written in Umple or Alf is more

comprehensible than an equivalent implementation

of the system in Java or C++.

4.4 Examining Data for Alf and Umple

Using a two-tailed t-test to measure the statistical

significance, Alf and Umple do not have significant-

ly different average times (p=0.9). This is true for

the 'With UML' and 'Without UML' data sets, and

for both sets combined. A Mann-Whitney test (U-

test) confirms the same findings (P = 0.07) and a W

value of 4612.2.

We have conducted additional tests on the data,

which did not conflict with any of our findings. For

example, we conducted standard deviation analysis

and sign tests analysis (Mohammad, 2011). The

standard deviation analysis classifies the data points

into two categories; one where the data falls within

the mean +/- the standard deviation, and the second

where the data points falls beyond this range. The

concept is that if the data were significantly different

than the mean, then a significant percentage would

fall beyond the specified range. Our objective was to

examine if there is any hidden evidence in the data,

especially between Alf and Umple. We also

conducted the same tests on subsets of the data. For

example, we divided the data based on whether it is

a comprehension question or bug fixing data. Our

tests and analysis did not suggest any significant

difference between Alf and Umple.

4.5 Examining Data for ‘with UML’

and ‘without UML’

To test the second hypotheses, we analyze the data

for ‘with UML’ and data for ‘Without UML’ for all

artifacts and all participants.

From the results shown in

Table 3, we do not find

any statistically significant difference. The two-

tailed t-test does not result in any statistical differ-

ence between the ‘with UML’ and ‘Without UML’

data sets (P=0.99).

Therefore, we can reject the second hypothesis,

and state that:

H2o: UML visual representation does not enhance

comprehension when used with action language or

object-oriented code.

4.6 Discussion

The main finding of this experiment is that action

languages have a significant comprehensibility bene-

fits when compared to OO systems. This is particu-

larly true for highly abstracted systems such as those

used in this experiment (i.e. metamodels). Another

finding is that the availability of UML models does

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

not seem to have an impact on the comprehension of

such systems. We interpret these two key findings as

follows.

The comprehension benefits of the action

languages code are both significant and consistent.

This is to be expected especially for such model-

intensive systems. In fact, one can argue that any

software system that is large enough will have

significant model-like abstractions. The abstractions

could be explicit, i.e. represented by UML or an

action language, or could be implicitly specified in

code.

The presence of UML artifacts did not have a

significant effect on the results. In the case of OO

languages, we attribute this to the fact that there is a

significant representational gap between the UML

notation, and its equivalent mapping in C++ and

Java. This made participants focus more on the code

in answering the questions. However, for the action

languages, the interpretation of this result is that

those model-based programming languages

successfully bridged the gap with UML; hence, the

UML notation did not offer much added

comprehensibility value.

5 THREATS TO VALIDITY

Threats to validity of the experiment and how we

tried to mitigate them are described in this section.

A. Presentation Format

It is possible that the experiment design sidelined

the value of the UML notation. We note that UML

models were presented as static images. Participants

could not interactively navigate the model. On the

other hand, participants were more engaged with the

code (object-oriented or action languages). This

different in presentation may have affected the par-

ticipants’ engagement with the UML models. We

tried to mitigate that by managing the complexity of

the systems, to reduce the need for interactivity. We

also kept the UML diagrams concise and legible.

5.1 Number of Participants

Thirty-two (32) participants is relatively a small

number. However, we used statistical analysis on the

data and that yielded strong evidence. We also did

not notice any significant difference when running

parametric (t-test) and non-parametric test (Mann-

Whitney test). However, it is still possible that a

larger, more representative sample may have yielded

different results.

5.2 Participant Experience

Our participants were relatively knowledgeable

about object oriented languages and UML. It is pos-

sible that their knowledge may have influenced the

results of this experiment. To mitigate this risk, we

collected profiling information and tested partici-

pants’ responses against their knowledge. We were

not able to find any evidence that more knowledgea-

ble participants answers were different statistically

from not-as-knowledgeable participants’ responses.

We analyzed the data for each of the 16 participants

independently and harmonized their results based on

their level of experience. We also looked for any

possible significant deviation from the entire exper-

iment averages but could not find any. We used the

t-test, Mann-Whitney test, as well as the sign test

and the standard deviation analysis (Mohammad,

2011).

Despite the participants were potentially more

knowledgeable about UML than the general

software engineering community, they had

comparably little background on Alf or Umple.

None of the participants reported that their previous

knowledge in Alf or Umple was higher than C++ or

Java. This means that if participants’ experiences

and knowledge had an effect on the experiment, it

would have been to the benefit of OO languages.

5.3 Non-Representative Systems

This is an external validity threat that our systems

are not representative of the real software artifacts.

We accept this threat, and in fact, our sample sys-

tems were more model-intensive than the typical

software artifact. Our samples are an incomplete

system, taken and modified from a real software

artefact (Umple code). We therefore concur with this

threat. One should be aware of this threat when gen-

eralizing the results of this experiment.

5.4 Non-Representative Complexity

It is also possible that the systems were not complex

enough to realize the comprehensibility value of the

UML graphical notation, nor the verboseness of the

textual notation. Unfortunately, it was hard to assess

the required complexity level in this experiment

upfront. We considered the UML metamodel that is

notoriously known to be complex to be representa-

tive. However, a variation of this experiment could

be designed with more complex systems.

A Controlled Experiment for Evaluating the Comprehensibility of UML Action Languages

5.5 Question and Tasks Interpretation

This is an internal validity threat for our experiment.

The threat is that participants may have interpreted

the questions in a way that affects the experiment

results. For example, a participant may have taken

more time to comprehend the question or a task,

rather than time to reflect on the problem using the

notation under the study,. This threat was mitigated

by randomly assigning the participants to the differ-

ent configurations. We also piloted the questions and

tasks, and also had three researchers review our

questions and tasks to minimize this threat.

5.6 Use of Pairwise Comparison

We used pairwise comparisons when analyzing our

data sets. For example, we separately compared pair

of data sets for all of our configurations. We under-

stand that the more we use this type of analysis, the

greater the chance of a Type I error (i.e. rejecting the

Null hypothesis when it is actually true). Multi-way

comparisons are more suitably tested using a test

such as ANOVA, especially when there is more than

one configuration. However, this approach is only

relevant when the P value is close to the significance

threshold, and this did not apply to our analysis. Our

P values were far from the significance threshold,

either being very low or very high. Therefore, we

did not see the need to run ANOVA tests.

6 RELATED WORK

In a prior work, we have investigated conceptional

and notational alternatives related to the design and

implementation of Action Languages (Badreddin et

al., 2014) (Burton-Jones, 2008). One key contribu-

tion of this work is a bottom-up Action Language

design approach to facilitate language adoption and

improve notation comprehension. In another prior

work, we have investigated the challenges for empir-

ical studies of software engineering tools and tech-

nologies at different stages of maturity (Badreddin,

2013). We find the most challenging studies are

those that attempt to evaluate tools, approaches, or

notations, prior to any wide adoption. The study

reported in this paper falls into this category. Action

languages are nowhere near consistent and wide

adoption by professionals.

The literature however has many works reported

on empirical evaluations of different notations

(Burton-Jones, 2006). Hendrix evaluated the

comprehension level of code control structures by

also measuring the time span the participants took to

answer comprehension questions (Hendrix et al.,

2002). This is similar to the approach adopted in our

experiment. Briand el al. (Briand et al., 1997)

evaluated two different ways of presenting

information. They found no evidence that “good

structured design is easier to understand than bad

structured design”. Gemino and Wand investigated

the use of mandatory subtypes versus optional

properties in entity-relationship model (ERM)

(Gemino and Wand, 2005). Similar to our study,

they created two equivalent models and measured

participants’ comprehension. They conclude that

mandatory relationships lead to improved

comprehensibility despite apparent increase in

model complexity.

Rather than focusing on comprehension,

usability studies focuses on the ease of manipulation

and interaction with a tool or a notation. Hornbæk

investigated current practices and challenges in

conducting usability studies (Hornbæk, 2006). David

Chin has investigated the usability of system models

and user models (Chin, 2001). In his study, he also

finds little empirical investigations of the usability of

models. In this work, he provides rules of thumb for

experimental design, useful tests for covariates, and

common threats to experimental validity. Chin also

proposed reporting standards including effect size

and power, which we have adopted to a large extent

in this experiment.

7 CONCLUSION AND FUTURE

WORK

In this work, we compared the newly emerging

UML action languages with the more established

object-oriented languages in terms of comprehensi-

bility. Through a controlled experiment, we found

the former to be much more comprehensible than the

latter, judged by the time it took participants to an-

swer comprehension and bug fixing questions on

two different software systems. We also assessed

whether having access to UML notation beside the

either object-oriented or action language would re-

sult in added benefits to comprehension. However,

we did not notice any significant impact in this ex-

periment. We explain this for action languages by

the fact that their code is already at the model level.

However, it was surprising for the object-oriented

code case. We offered insights into the results and

outlined possible threads to validity.

We further note that we did not analyze the

comprehension questions separately from the bug

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

fixing ones. In other words, we did not explore

whether there is any significant difference if the data

was sliced along the category of the question. We

leave this analysis to future work. We also did not

analyze how participants arrived at their answers.

We do not know whether participants have used the

UML models only, the code only, or both, to answer

questions. This particular analysis is also left to

future work.

REFERENCES

OMG (2015) Action Language for Foundational UML

(Alf), Concrete Syntax for a UML Action Language.

Available: http://www.omg.org/spec/ALF/

Mellor, Stephen J., et al. "An action language for UML:

proposal for a precise execution semantics." The Uni-

fied Modeling Language. «UML»’98: Beyond the No-

tation. Springer Berlin Heidelberg, 1999. 307-318.

Sunyé, Gerson, et al. "Using UML action semantics for

executable modeling and beyond." Advanced Infor-

mation Systems Engineering. Springer Berlin Heidel-

berg, 2001.

Purchase, Helen C., et al. "Graph drawing aesthetics and

the comprehension of UML class diagrams: an empiri-

cal study." Proceedings of the 2001 Asia-Pacific sym-

posium on Information visualisation-Volume 9. Aus-

tralian Computer Society, Inc., 2001.

Purchase, Helen C., et al. "UML class diagram syntax: an

empirical study of comprehension." Proceedings of the

2001 Asia-Pacific symposium on Information visuali-

sation-Volume 9. Australian Computer Society, Inc.,

2001.

Timothy C. Lethbridge, Andrew Forward, Omar Ba-

dreddin. Problems and Opportunities for Model-

Centric vs. Code-Centric Development: A Survey of

Software Professionals, in the proceedings of C2M:

EEMDD 2010.

Büttner, Fabian, and Martin Gogolla. "Modular embed-

ding of the object constraint language into a program-

ming language." Formal Methods, Foundations and

Applications. Springer Berlin Heidelberg, 2011. 124-

139.

Rose, Louis M., et al. "Constructing models with the hu-

man-usable textual notation." Model Driven Engineer-

ing Languages and Systems. Springer Berlin Heidel-

berg, 2008. 249-263.

Object Management Group (OMG). "Concrete Syntax for

a UML Action Language RFP", accessed 2012,

http://www.omg.org/cgi-bin/doc?ad/2008-9-9.

Planas, Elena, et al. "Alf-Verifier: an eclipse plugin for

verifying Alf/UML executable models." Advances in

Conceptual Modeling, 2012. Springer Berlin Heidel-

berg, 2012.378-382.

Chaves, R. "TextUML", accessed 2015,

http://abstratt.com/

Perseil, Isabelle. "ALF formal." Innovations in Systems

and Software Engineering 7.4 (2011): 325-326.

Badreddin, Omar. "Umple: a model-oriented programming

language." Software Engineering, 2010 ACM/IEEE

32nd International Conference on. Vol. 2. IEEE, 2010.

Object Management Group (OMG), Concrete Syntax For

A UML Action Language: Action Language For

Foundational UML (ALF), 2015. Available:

http://www.omg.org/spec/ALF/1.0.1.

Mellor, Stephen J., and Marc J. Balcer. Executable UML:

a foundation for model-driven architecture. Addison-

Wesley Professional, 2002.

Dzidek, Wojciech J., Erik Arisholm, and Lionel C. Briand.

"A realistic empirical evaluation of the costs and bene-

fits of UML in software maintenance." Software Engi-

neering, IEEE Transactions on 34.3 (2008): 407-432.

"Umple language online." accessed 2015,

www.try.umple.org.

Jarque, Carlos M., and Anil K. Bera. "Efficient tests for

normality, homoscedasticity and serial independence

of regression residuals." Economics Letters 6.3

(1980): 255-259.

S. Mohammad. "From once upon a time to happily ever

after: Tracking emotions in novels and fairy tales".

2011. ACL HLT 2011pp. 105.

D. Hendrix, J. H. Cross II and S. Maghsoodloo. "The

effectiveness of control structure diagrams in source

code comprehension activities". 2002. IEEE

Trans.Software Eng.pp. 463-477.

L. C. Briand, C. Bunse, J. W. Daly and C. Differding. "An

experimental comparison of the maintainability of ob-

ject-oriented and structured design documents". 1997.

Empirical Software Engineering vol 2, pp.291-312.

Friedenthal, Sanford, Alan Moore, and Rick Steiner. A

practical guide to SysML: the systems modeling lan-

guage. Access Online via Elsevier, 2011.

Badreddin, Omar. Model Orientation Experiment Specifi-

cation. Accessed 2014. Available:

http://obahy.files.wordpress.com/2014/02/experiment-

specification.docx.

Chin, David N. "Empirical evaluation of user models and

user-adapted systems." User modeling and user-

adapted interaction 11.1-2 (2001): 181-194.

Badreddin, Omar, and Timothy C. Lethbridge. "Model

oriented programming: Bridging the code-model di-

vide." Modeling in Software Engineering (MiSE),

2013 5th International Workshop on. IEEE, 2013.

Badreddin, Omar Bahy, Andrew Forward, and Timothy C.

Lethbridge. "Model oriented programming: an empiri-

cal study of comprehension." CASCON. 2012.

Badreddin, Omar. "Empirical evaluation of research proto-

types at variable stages of maturity." User Evaluations

for Software Engineering Researchers (USER), 2013

2nd International Workshop on. IEEE, 2013.

Rumpe, Bernhard. "Executable Modeling with UML. A

Vision or a Nightmare?." arXiv preprint

arXiv:1409.6597 (2014).

Schamai, Wladimir, Peter Fritzson, and Chris JJ Paredis.

"Translation of UML state machines to Modelica:

A Controlled Experiment for Evaluating the Comprehensibility of UML Action Languages

Handling semantic issues." Simulation (2013):

0037549712470296.

Planas, Elena, et al. "Alf-Verifier: an eclipse plugin for

verifying Alf/UML executable models." Advances in

Conceptual Modeling. Springer Berlin Heidelberg,

2012. 378-382.

Jedlitschka, Andreas, Marcus Ciolkowski, and Dietmar

Pfahl. "Reporting experiments in software engineer-

ing." Guide to advanced empirical software engineer-

ing. Springer London, 2008. 201-228.

Lazăr, C. L., I. Lazăr, B. Pârv, S. Motogna, and I. G.

Czibula. "Tool Support for fUML Models." Int. J. of

Computers, Communications & Control 5, no. 5

(2010): 775-782.

Gemino, Andrew, and Yair Wand. "Complexity and clari-

ty in conceptual modeling: comparison of mandatory

and optional properties." Data & Knowledge Engi-

neering 55.3 (2005): 301-326.

Hornbæk, Kasper. "Current practice in measuring usabil-

ity: Challenges to usability studies and re-

search." International journal of human-computer

studies64.2 (2006): 79-102.

Badreddin, Omar, Timothy C. Lethbridge, and Andrew

Forward. "Investigation and evaluation of UML Ac-

tion Languages." Model-Driven Engineering and

Software Development (MODELSWARD), 2014 2nd

International Conference on. IEEE, 2014.

Burton-Jones, Andrew, and Peter N. Meso. "Conceptualiz-

ing systems for understanding: an empirical test of de-

composition principles in object-oriented analysis." In-

formation Systems Research 17.1 (2006): 38-60.

Burton-Jones, Andrew, and Peter Meso. "The effects of

decomposition quality and multiple forms of infor-

mation on novices' understanding of a domain from a

conceptual model." Journal of the Association for In-

formation Systems 9.12 (2008): 1.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development
