Adding Model Constraints to CNN for Top View Hand Pose Recognition

in Range Images

Aditya Tewari

1,2

, Frederic Grandidier

, Bertram Taetz

and Didier Stricker

Augmented Vision, German Research Centre for Artiﬁcial Intelligence(DFKI), 67663, Kaiserslautern, Germany

IEE S.A., ZAE Weiergewan, L-5326, Contern, Luxembourg

Keywords:

CNN , Hand-Pose, Feature Transfer, Transfer Learning, Fine Tuning.

Abstract:

A new dataset for hand-pose is introduced. The dataset includes the top view images of the palm by Time of

Flight (ToF) camera. It is recorded in an experimental setting with twelve participants for six hand-poses. An

evaluation on the dataset is carried out with a dedicated Convolutional Neural Network (CNN) architecture

for Hand Pose Recognition (HPR). This architecture uses a model-layer. The small size model layer creates

a funnel shape network which adds a priori knowledge and constrains the network by modelling the degree

of freedom of the palm, such that it learns palm features. It is demonstrated that this network performs better

than a similar network without the prior added. A two-phase learning scheme which allows training the model

on full dataset even when the classiﬁcation problem is conﬁned to a subset of the classes is described. The

best model performs at an accuracy of 92%. Finally, we show the feature transfer capability of the network

and compare the extracted features from various networks and discuss usefulness for various applications.

1 INTRODUCTION

Hand-gesture is a simple sequence of hand or palm

shapes. Hand-gestures are natural often involuntary

actions. Hand Gesture Recognition (HGR) is popular

in tasks like navigation, selection and manipulation

in Human Computer Interactions (Buchmann et al.,

2004). Detailed work has been done on identifying

complex and precise hand movements for solutions in

applications like surgical simulation and training sys-

tems (Liu et al., 2003). In contrast, simpler gestures

have been used in computer controlled games, tele-

conferencing, robotics and augmented vision based

solutions (Hasan and Kareem, 2012).

Non-vision based solutions to HGR includes Wii

controllers, data gloves, 3D Accelerometer, elec-

tromyograph (EMG) (Schl

omer et al., 2008) (Zhang

et al., 2009). More recently the touchless vision based

technique for HGR is considered a preferred choice.

Finite State Machines (FSM) were one of the ear-

liest solutions for vision based HGR (Davis and Shah,

1994). Another branch of solution includes neu-

ral networks and Recurrent Neural Networks (RNN).

Most often, both the FSM and RNN strategies hand-

pose at each frame as important information (Chen

et al., 2007),(Gupta et al., 2002). Thus, researchers

have focused on the estimation of the hand-poses in

frames of a sequence to solve an HGR problem.

Recently deep architectures of neural networks

have been used for various computer vision problems

and have produced strong results. With the emergence

of CNN (LeCun et al., 1995) as a feasible learning al-

gorithm, many experiments for HPR and HGR have

been made with them. (Nagi et al., 2011) proposes a

max pooling network to classify static gesture, with

a classiﬁcation accuracy of 96% on 6 gesture classes.

The classical CNN has been employed on processed

images by (Lin et al., 2014) on a dataset of seven

gestures for seven persons achieving an accuracy of

95%. Similar network has been used for pose recov-

ery by (Tompson et al., 2014), which combines the

CNN with random forests.

Until recently one of the major challenges of pose

and gesture recognition was the absence of datasets

(Just and Marcel, 2009). Independently collected data

makes the comparison of the reported results hard.

Further, the solutions for HGR are often developed

with a focus on application, the datasets are very dis-

tinct from each other. Front facing RGBD image

datasets like the NYU (Tompson et al., ), (Xu and

Cheng, 2013) and ICL (Tang et al., 2014) dataset for

hand-pose and joint location are now available.

In applications with camera placed vertically

above the scene constraints of the front facing hand

170

Tewari, A., Grandidier, F., Taetz, B. and Stricker, D.

Adding Model Constraints to CNN for Top View Hand Pose Recognition in Range Images.

DOI: 10.5220/0005660301700177

In Proceedings of the 5th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2016), pages 170-177

ISBN: 978-989-758-173-1

may not work, in-car devices usually have a similar

set-up (Zobl et al., 2003). The poses and the ges-

tures in such cases are completed while palm points

vertically downwards thus are visually different from

the front facing depth images of the datasets identiﬁed

earlier.

We have recorded a large hand-pose dataset with

images captured with the Photonic Mixer device

(PMD) technology (Xu et al., 2008). The PMD de-

vices, unlike the more commonly used RGBD im-

ages have two channel image output. The dataset

are unique in being a large ToF based datasets with

a top-view recording. The dataset with more than

1000,000 samples allows experiments with convo-

lutional neural network architectures and possibility

of pre-training the network for feature transfer when

porting the application to a new yet similar environ-

ment.

We train CNN based networks for pose classiﬁca-

tion from scratch using different preprocessing on the

dataset with:

• Segmented raw images.

• Distance scaled images with amplitudes nor-

malised by distances.

• Distance scaled binary images.

It is demonstrated that the best performing network

has over 92% accuracy on the test set when the test

are done on the binary images. The scaled amplitude

images result in an accuracy of 84% and the raw im-

age network result in an accuracy of 82%.

We have demonstrated the similarity in the fea-

tures extracted by the convolutional layers of the net-

work trained by separately pre-processed data. This

observation is important because it allows the network

to be a starting point for various applications which

use input from such cameras for HPR or similar tasks.

The primary contributions are as listed:

1. Preparing a dataset for top-view hand-pose with a

ToF camera.

2. Solving the HPR by modelling a neural network

to learn a low dimensional representation of hand.

3. Comparison of the input-strategies for better pose

classiﬁcation.

4. Demonstrating the usefulness of transfer learning

for application based on depth data, where dataset

large enough to train a deep network may not be

available.

In section 2 we deﬁne the hand-poses. Further de-

tails of the recording set-up and dataset are shared in

the same section. In section 3 we describe the archi-

tecture of the trained networks. We detail the exper-

iments and results in section 4 and compare the per-

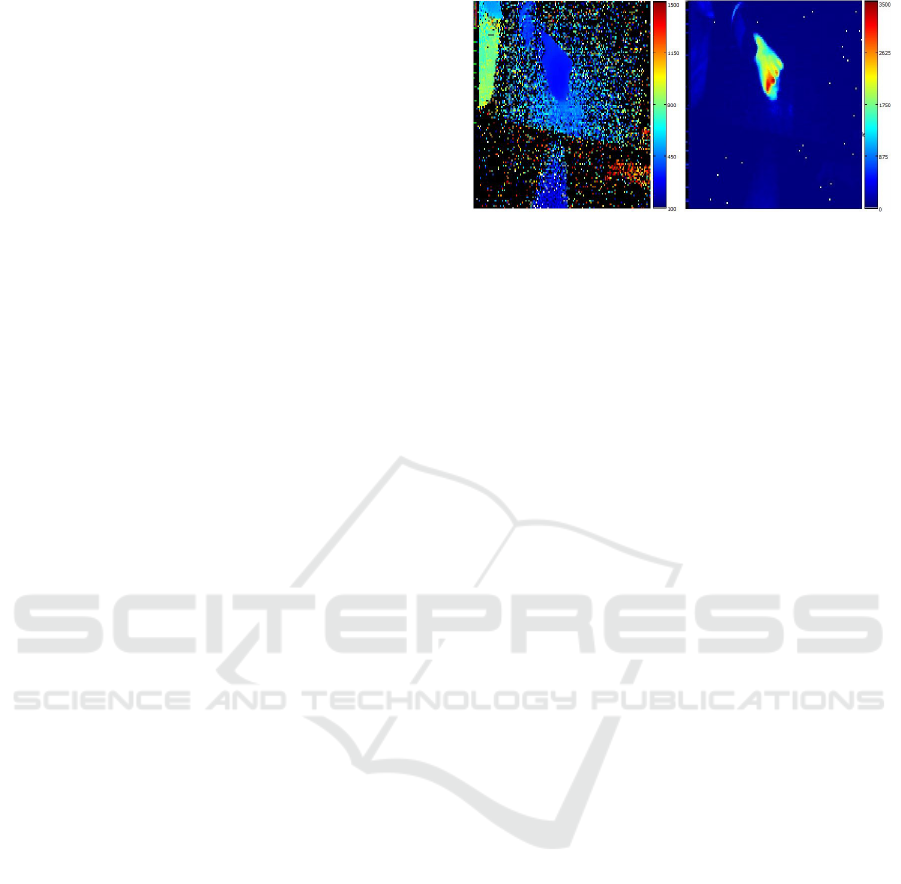

(a) Raw Distance Data. (b) Raw Amplitude Data.

Figure 1: The ToF Two-channel Output.

formance of a network without the model-information

discusses the performance of a larger network without

the model-information architecture. The section 5 es-

tablishes the feature transfer property of CNN on the

dataset. The work is concluded in 6.

2 HAND POSE DATASET

Wrist onwards the hand has high degree of freedom.

A hand can thus form various signs and symbols,

some of these pose are naturally used for communica-

tion. Of these possible symbols six poses are deﬁned

and recorded as the top view of the hand. Five of

the poses are ’Fist’, ’Flat’, ’Joined’, ’Pointing’, and

’Spread’. The ’Fist’ is a closed ﬁst hand with palm

facing downwards. Pose ’Flat’ is when the palm is

open with the four ﬁngers joined together. ’Joined’ is

when the hand is conically shaped and points down-

wards with all ﬁngers touching each other. ’Pointing’

is the index ﬁnger pointing forward. Finally ’Spread’

is an open palm with ﬁngers spread apart. Further, a

class of hand-pose in the places where the hand tran-

sitions from open to close are recorded. This class can

have different uses. It can be identiﬁed as class of un-

intended poses or one that helps describing transitions

of pose in a gesture.

2.1 Data Recording and Segmentation

We record a large dataset of hand-pose using 3D

Time-of-Flight (ToF) camera the ’pmd camboard

nano’. The datapoints are 16 bit two channel images

of dimension 120x165x2, Figure 1. The ﬁrst channels

of the matrix represent the amplitude of the reﬂected

ray received by the camera and the second channel are

the range values of the respective pixels, expressed in

millimetres.

Adding Model Constraints to CNN for Top View Hand Pose Recognition in Range Images

171

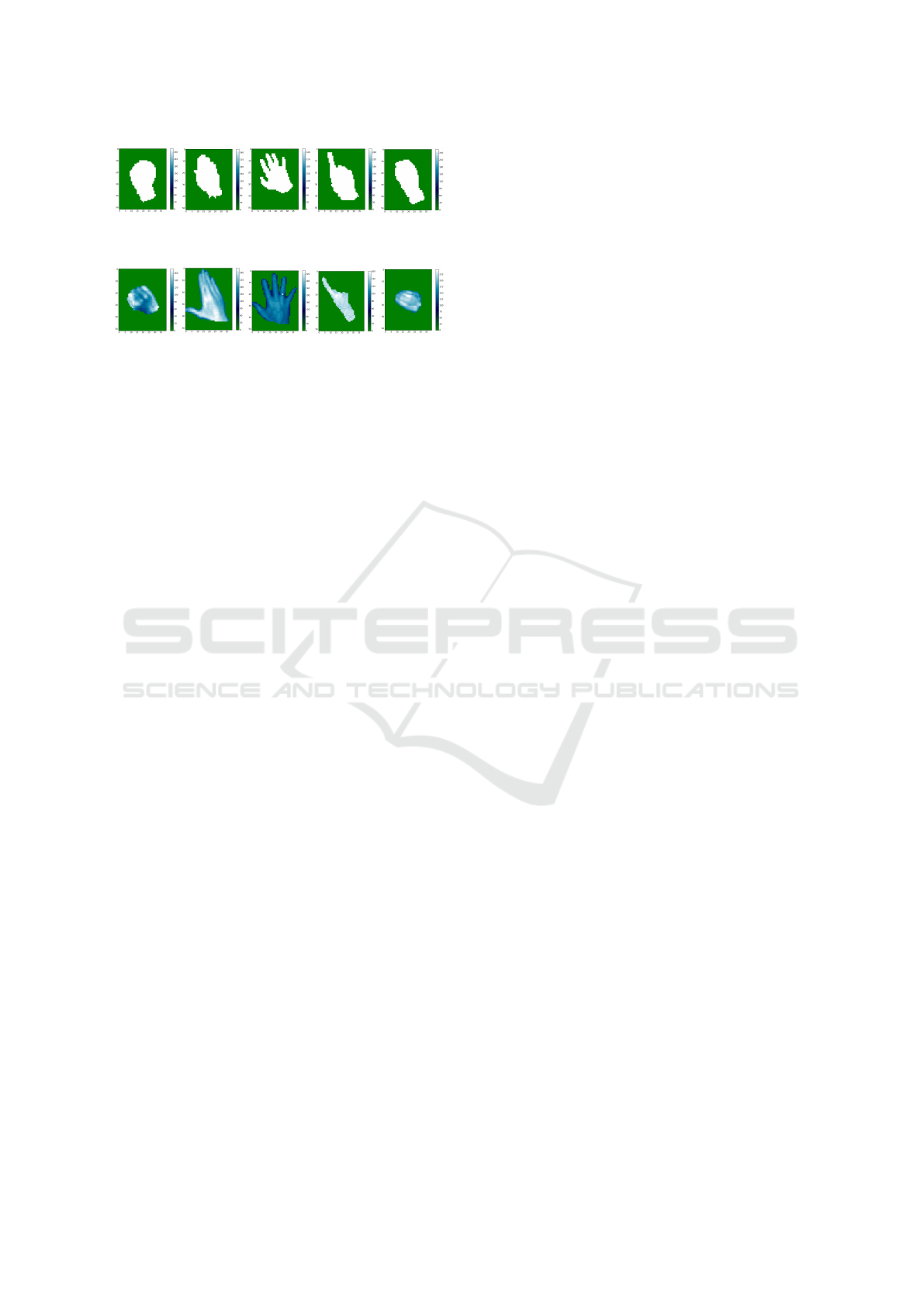

(a) Fist (b) Flat (c) Open (d) Point (e) Join

Figure 2: Sample of Binary Map of the Hand-poses.

(a) Fist (b) Flat (c) Open (d) Point (e) Join

Figure 3: Sample of Amplitude Normalised Map of the

Hand-poses.

2.1.1 Recording Setup

The data is recorded within a cuboidal space with

varying heights. The ToF camera is mounted verti-

cally above the recording region. The furthest vertical

range is marked by a table top. The height of the cam-

era from the table varies between 400 and 800 mm.

The closest vertical approach to the camera is marked

at 150mm from it. While recording the participants

were asked to wrap an absorbing cloth on their arms.

2.1.2 Recording

Twelve participants were recorded for pose and ges-

tures. Each participant keeps his palm as one of the

deﬁned poses, and randomly but not abruptly moves

the palm within the virtual cuboidal space. This is

recorded for two minutes, for all six poses. Such

recording of the data adds variances in depth and vari-

ances of hand orientation in the horizontal plane. The

participants are also asked to rotate their palms to add

the angular variances in the vertical plane.

The recorded participants have varying skin textures

and palm sizes, some of the participants are recorded

while wearing rings.

2.1.3 Segmentation

The absorbing cloth wrapped on the arms of the par-

ticipants assists in hand segmentation by thresholding

the amplitude channel of the image. The reﬂectance

constraint does not entirely remove the background

and thus the closest contour greater than a threshold

area is chosen as the palm region. The segmented

palm region is then converted into a binary image

which is used as a mask for both channels. The re-

sulting image is a two channel 16-bit image of the

palm isolated from the environment. After segmen-

tation The depth channel values for the background

are set to a ﬁxed maximum-depth and the amplitude

values are set to 0. The basic processing after seg-

mentation involves normalisation of the image.

The binary map and the normalised amplitude out-

put for the ﬁve poses discussed earlier are shown in

Figure 2 and Figure 3.

3 NETWORK AND TRAINING

The dataset is tested with various neural network ar-

chitectures. The network discussed further is the one

that provided the best results amongst various exper-

iments. The same network is trained with the three

pre-processing methods described later. Owing to the

uniqueness of the database, classiﬁcation networks

are trained from scratch.

3.1 Training and Test Data

The dataset is divided into test and train data with one

participant used as test and the remaining data used

as the training data. Data augmentation is further

achieved by horizontal-ﬂipping of the image. This

increases the data size and assists in better generali-

sation behaviour of the network. Of the six recorded

hand pose classes, we classify ﬁve. The sixth class

is recorded for identifying transitions while working

with gestures. The training data has 107,131 data-

points and the test data includes 11,800 data-points of

ﬁve classes. The data is not equally distributed over

the classes but the variation in data size amongst them

is not large.

3.2 The Network Architectures

The hand-pose classiﬁcation network is a sequential

neural network. The selected architecture has four

convolution layers followed by four fully connected

layers which perform inner product. Each layer is

connected to a ReLu (Rectiﬁed linear unit) which

adds non-linearity to the network.

A convolution layer is connected to the input data.

The output of the top three convolution layers is

pooled by max-pooling strategy. The second and third

pooling layers also sub-sample the output image of

convolution layer by a factor of two. This pooling

strategy allows different layers of the network to learn

features at different scales. The convolution layers of

the network are shown in the Figure 4. The fully con-

nected layers and the output probability module of the

network is shown in Figure 5.

The output layer for the network is a fully con-

nected layer followed by a softmax function. The

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

172

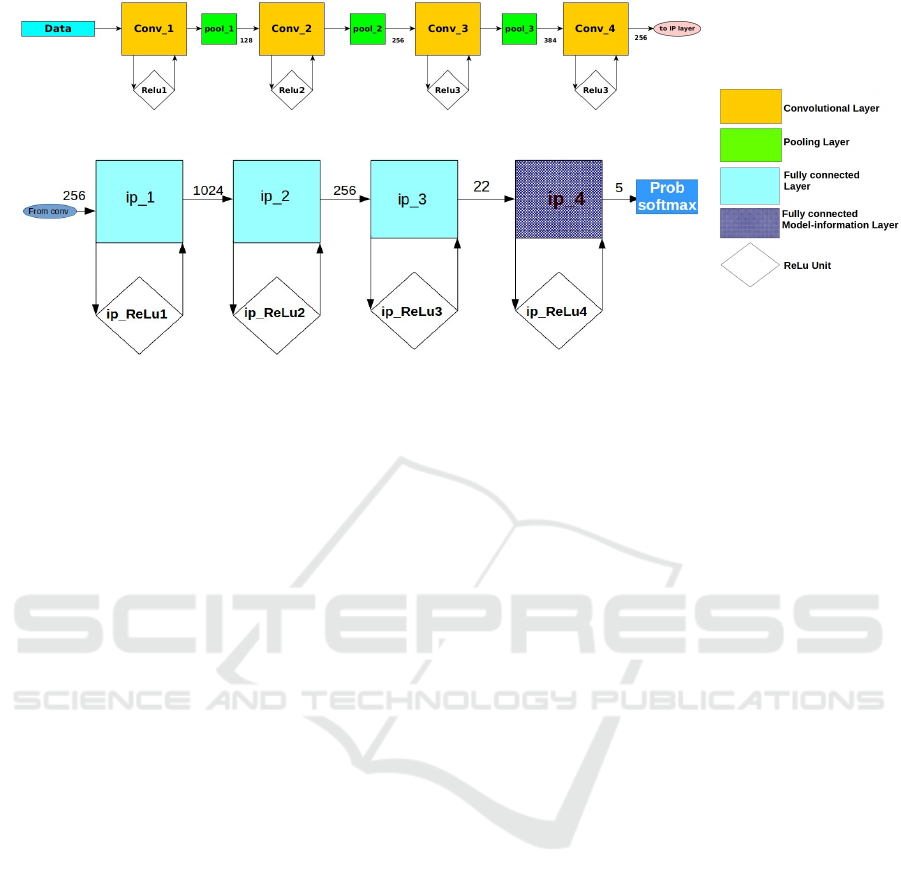

Figure 4: Input data and the Convolution layers.

Figure 5: Fully Connected layers and Output Probabilities.

output of the softmax function is a probability vector

associated to the ﬁve classes.

3.3 Model-information Into the

Network

During the gradient descent the back-propagated er-

ror signal decays as it propagates through the layers.

Weights of the layers which are closer to the output

are inﬂuenced strongly by the error signal. Also, we

know that the combined state of the locations which

coincide with degree of freedom of the hand can indi-

cate the pose. Robotic hand-wrist replacements have

often used a twenty-two degree of freedom (Weir

et al., 2008), we propose to add this information to

the network by adding a twenty-two node layer as the

penultimate layer of the network. This addition of

ﬁxed number derived from the hand shape before the

output layer adds some model information to the HPR

task. This creates a funnel shape in the network and

forces the network to learn from a small dimensional

representation of the input images.

3.4 Training Procedure

The network training is completed by propagating the

logistic loss backward through the layers and com-

pleting a gradient descent optimisation. We ﬁrst train

the network on data from all six poses and then use

the trained network for the initialisation of the ﬁve

class classiﬁcation. In the ﬁrst phase the networks are

initialised by xavier initialisation (Glorot and Ben-

gio, 2010). While doing the ﬁrst phase training we al-

low the data-points which where segmented improp-

erly, but during the training of network in the sec-

ond phase the improperly segmented data-points are

removed. This is done because in the ﬁrst training,

we try to learn the features in the layers closer to the

input. These layers are lesser affected by outlier in

the ground-truth data. The second training focuses on

modifying the fully connected layers which are closer

to the output layers. Both the phase are trained by the

stochastic gradient descent method of optimisation.

4 EXPERIMENTS AND RESULTS

The training of the neural network involves identify-

ing a mapping of I to P ∈ | S |. Where, set | S | is

the set of tested hand poses and I is the input im-

age. It is possible to modify I before identifying

the optimal network that provides the best mapping.

As mentioned earlier the classiﬁcation evaluation is

conducted over the set of ﬁve classes ’Point’, ’Join’,

’Open’, ’Fist’ and ’Flat’.

All the channels of the input image are normalised

over the dataset to [0,1]. This normalisation is done

by recording the maximum amplitude value for valid

pixels in the dataset. The maximum value for the

depth deﬁned during recording is used for depth chan-

nel normalisation. Normalisation is done while mask-

ing background pixels.

4.1 Normalised Raw Data

We conduct tests on the 2-channel image. The second

channel provides the depth information which assists

the network in assimilating the scale variations. The

pre-processing for this experiment are sub-sampling

the image by a factor of three using the mean approx-

imation while masking the background pixels and

mean subtraction for both channels independently.

Adding Model Constraints to CNN for Top View Hand Pose Recognition in Range Images

173

(a) (b)

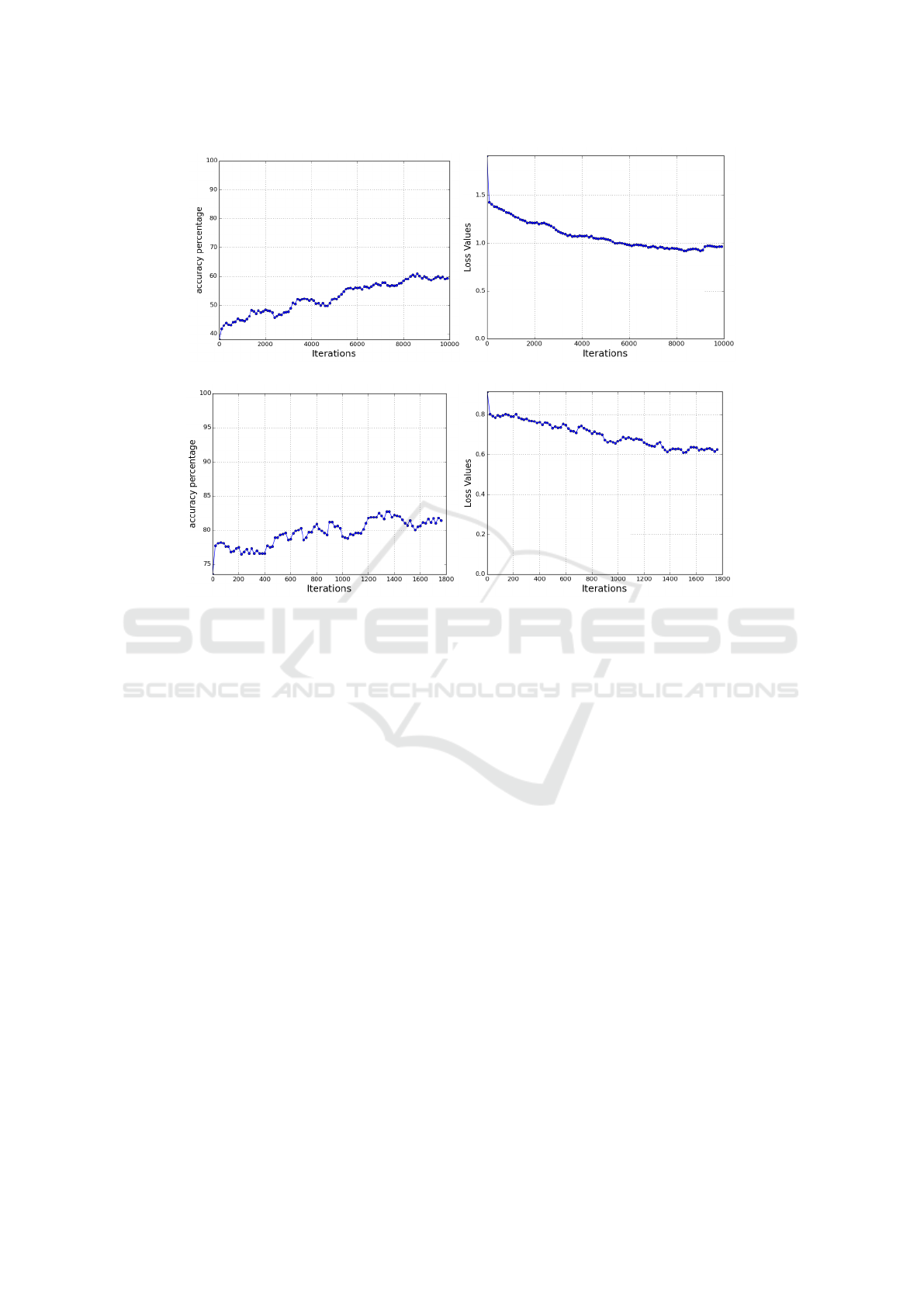

Figure 6: Training progression for training with two-channel images. 6(a): Accuracy stage 1. 6(b): Loss stage 1. 6(c):

Accuracy stage 2. 6(d): Loss stage 2.

The larger size of the input data and the absence of

explicit scaling makes model training complex. This

is reﬂected in the training time and accuracy values.

The training follows the two phase strategy described

in section 3.4. The training progression for the ﬁrst

phase is shown in Figure 6(a) and Figure 6(b). The

test accuracy during the second training phase re-

mains below 83%, Figure 6(c) and Figure 6(d).

4.2 Amplitude Normalised Images

To remove the scale factor from the data the image is

projected on a plane at a ﬁxed distance from the cam-

era. We then normalise the amplitude value by the

squared distance. This is done because apart from the

physical attributes of the scene the intensities of the

pixels in a ToF camera output are dependent on the

squared distance of the pixel from the camera. Af-

ter scaling the image with distance, the contribution

of distance to the intensity channel adds complexity

to the data without contributing additional informa-

tion for pose identiﬁcation. This forces invariance to

different distances on the learnt network. Further, we

calculate a mean amplitude image for the dataset and

subtract it from the input to the network both in the

test and train phase. The amplitude model is trained

in two stages as described earlier in section 3.4. Fig-

ure 7(a) and Figure 7(b) shows the test accuracy and

loss improvement in the second phase. It is noticeable

that because of the pre-training the initial test accu-

racy of the second phase training is over 70%. This

allows quick training of networks when the number

of classes or the environment in which data has been

acquired changes. We ﬁnd that after 6000 batch iter-

ations in the second phase the test accuracy remains

around 85%. The incorporation of scaling informa-

tion in the amplitude data improves the performance

of the network as well as reduces the training time for

the network to two-third as compared to the training

time for the two-channel unscaled images.

4.3 Binary Images

The experiments are also carried on the binary images

extracted from the same dataset. The pre-processing

steps in the experiment are identical to the amplitude

normalised images, the difference being that the pre-

processing output is binarised. The mean subtraction

step is skipped while training and testing the network

with the binary images.

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

174

(a)

(b)

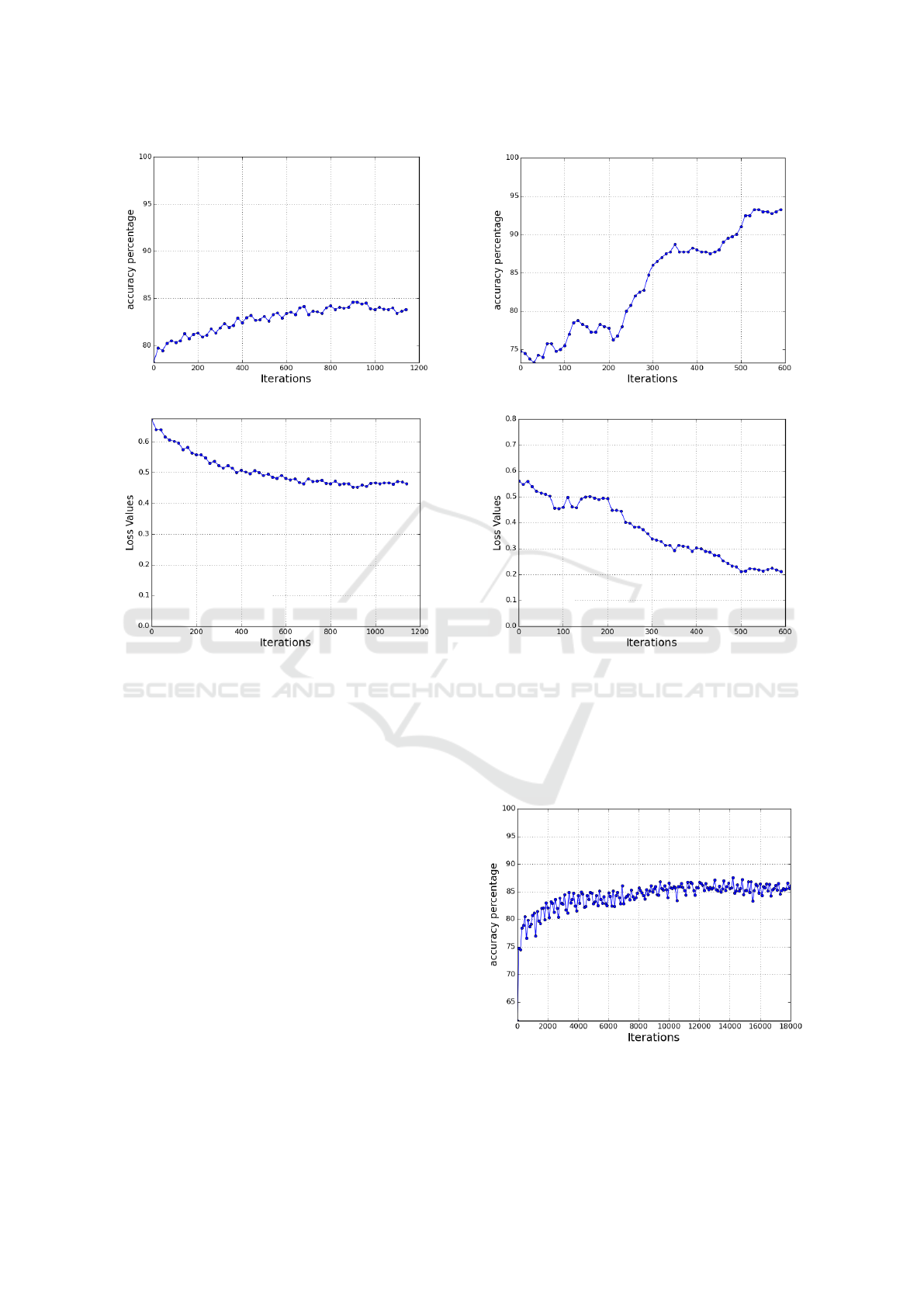

Figure 7: Training progression for training with amplitude

images. 7(a): Accuracy stage 2. 7(b): Loss stage 2.

The best classiﬁcation performance on the model

approached 92%. The better performance of the bi-

nary images can be attributed to the binary nature of

the data. The intensity values of the pixels of a ToF

camera depend on the reﬂectance of the surfaces and

the incidence angle of the active light. These factors

contribute ambiguous information to the amplitude

channel which could explain the better performance

of the binary data. It was also observed that the ’Fist’

and ’Join’ class were often misclassiﬁed, the similar-

ity in the captured masks of two classes explain this

observation. The training progression for the binary

data is shown in Figure 8(a) and Figure 8(b).

4.4 Without Model-information Layer

A network in which the 22-node layer is replaced with

a larger 256-node layer is trained on the binary im-

ages. It was observed that the loss progression of

the network was smoother then the network with the

model-information layer but after equal number of

batch-iterations the overall test accuracy was found

(a)

(b)

Figure 8: Training progression for training with binary im-

ages. 8(a): Accuracy stage 2. 8(b): Loss stage 2.

to be below 88%. Thus a smaller penultimate layer

which acts as a funnel to force constraints helps in

better classiﬁcation performance. Figure 9.

Figure 9: Accuracy progression for a network in which 22-

Node layer is replaced by a larger layer.

Adding Model Constraints to CNN for Top View Hand Pose Recognition in Range Images

175

5 FEATURE TRANSFER

The two stage learning uses the ability of a convolu-

tional neural network to transfer learnt features over

various problems. It is observed that this similar pro-

cedure can also be used with networks which were

trained on data with distinct pre-processing. A net-

work trained on a certain kind of data can be used to

initialise a training with a distinct data set. Transfer-

ring the weights from one network to the other in this

process assists in better initialisation of the network

parameters. The following experiments describes the

transfer learning process on the binary and amplitude

image dataset for hand-pose.

The output of the convolutional and pooling layer

are feature maps. These features are calculated by the

convolution ﬁlters learnt during training. As the data

moves through these layers the output feature maps

resemble features calculated on increasing scales.

The applicability of the feature transfer is demon-

strated by feeding the same amplitude normalised im-

age into the second stage networks trained in section

4.2 and 4.3. These networks were trained on the am-

plitude and binary images respectively. When the out-

puts of each layer from the networks were compared,

it was found that the mean difference calculated in

the euclidean sense for the ﬁrst pooling layer output

was of the order of 10

−6

, which increases to 10

−3

for

the second pooling layer and 10

−2

for the output con-

volution layer. The difference is considerably larger

for the fully connected layers which are closer to the

output. This indicates that the ﬁlter weights learnt

by the network for the ﬁrst cases are general and can

be reused for the training, thus reducing training time

and training data requirement.

The property of feature transfer was tested by em-

ploying the model trained with binary images ob-

tained in last section to directly test the amplitude nor-

malised dataset. In this experiment a test accuracy of

75.4% was achieved. When the same model is used

as an initialisation for the second phase training of the

amplitude normalised images the accuracy of the am-

plitude images cross 80% within 500 batch-iteration,

Figure. 10. During training the weights of the con-

nections closer to the network output change faster

than the weights closer to the input, because the back-

propogated gradient diminishes by the time it reaches

the layers away from the output. This can be inferred

from the observed changes in the outputs of convolu-

tion layers, which are closer to the input and the fully

connected layers closer to the output.

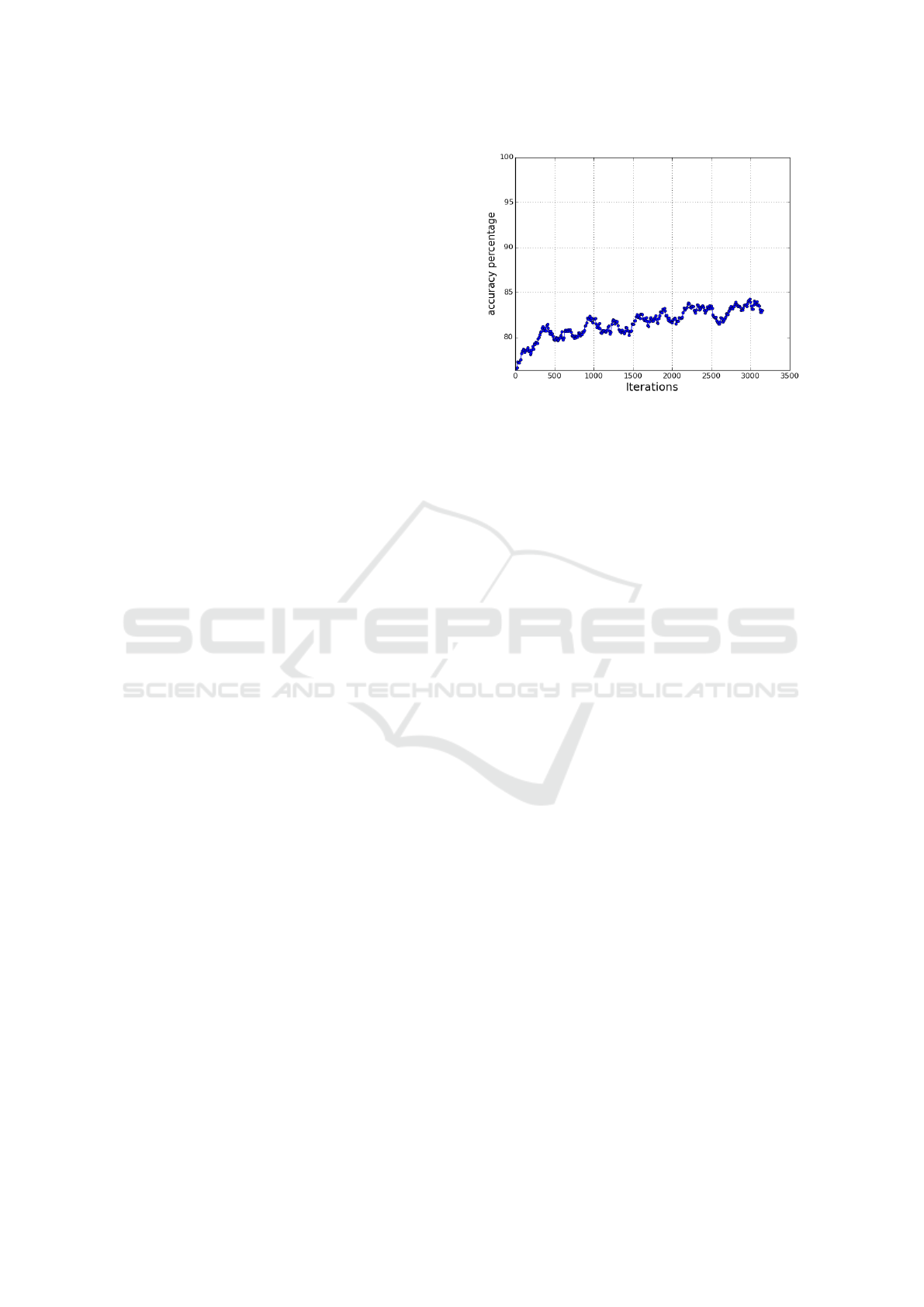

Figure 10: Model Learnt with Binary Image Fine Tuned

with Amplitude Images.

6 CONCLUSION

This work presented a new dataset for ToF images

of top view of hands collected for HPR. It includes

six different hand-poses. As the top view images

with palm pointing downwards are distinctly different

from front facing hands, a new architecture for CNN

is conceived.

The prior based CNN which forces the constraints

of hand shape for learning pose classiﬁcation is pro-

posed and evaluated. The network achieved a per-

formance of 92% classiﬁcation accuracy on a 5-class

classiﬁcation problem. This work uses a two phase

learning strategy which allows data uses from the en-

tire dataset while solving problem which is restricted

to a subset of the dataset. Feature transfer in dis-

tinct datasets and its utility in the present problem was

demonstrated by using a network with binary images

to train on the amplitude normalised images.

We test the network on three kinds of data ex-

tracted from the dataset. The normalised and scaled

amplitude data, the scaled binary mask and the un-

scaled, normalised two channel image. We found that

the pose identiﬁcation performance in case of the bi-

nary one channel images was by far the best. Al-

though, the CNN can capture the scale variances but

the distance scaling of the input images improves the

detection rate and also improves the speed of learning.

It is also observed that the model can be easily mod-

iﬁed when the classiﬁcation problem changes, it is

demonstrated that trained models can be used for sim-

ilar classiﬁcation problems. Important observation on

the similarity of the trained ﬁlter weights for the net-

work trained on data-set with diverse pre-processing

is demonstrated. This observation forms a basis for

deploying the model on problems where the nature of

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

176

the data-set changes because of the change in envi-

ronment.

The pose data-set will be further experimented

and evaluated. The features extracted from the trained

CNN shall be used for solving the HGR problem.

ACKNOWLEDGEMENT

This work is supported by the National Research

Fund, Luxembourg, under the AFR project 7019190.

REFERENCES

Buchmann, V., Violich, S., Billinghurst, M., and Cockburn,

A. (2004). Fingartips: gesture based direct manipula-

tion in augmented reality. In Proceedings of the 2nd

international conference on Computer graphics and

interactive techniques in Australasia and South East

Asia, pages 212–221. ACM.

Chen, Q., Georganas, N. D., and Petriu, E. M. (2007).

Real-time vision-based hand gesture recognition us-

ing haar-like features. In Instrumentation and Mea-

surement Technology Conference Proceedings, 2007.

IMTC 2007. IEEE, pages 1–6. IEEE.

Davis, J. and Shah, M. (1994). Recognizing hand ges-

tures. In Computer VisionECCV’94, pages 331–340.

Springer.

Glorot, X. and Bengio, Y. (2010). Understanding the difﬁ-

culty of training deep feedforward neural networks. In

International conference on artiﬁcial intelligence and

statistics, pages 249–256.

Gupta, N., Mittal, P., Roy, S. D., Chaudhury, S., and Baner-

jee, S. (2002). Developing a gesture-based interface.

Journal of the Institution of Electronics and Telecom-

munication Engineers, 48(3):237–244.

Hasan, H. S. and Kareem, S. A. (2012). Human computer

interaction for vision based hand gesture recognition:

A survey. In Advanced Computer Science Applica-

tions and Technologies (ACSAT), 2012 International

Conference on, pages 55–60. IEEE.

Just, A. and Marcel, S. (2009). A comparative study of

two state-of-the-art sequence processing techniques

for hand gesture recognition. Computer Vision and

Image Understanding, 113(4):532–543.

LeCun, Y., Jackel, L., Bottou, L., Cortes, C., Denker, J. S.,

Drucker, H., Guyon, I., Muller, U., Sackinger, E.,

Simard, P., et al. (1995). Learning algorithms for clas-

siﬁcation: A comparison on handwritten digit recog-

nition. Neural networks: the statistical mechanics

perspective, 261:276.

Lin, H.-I., Hsu, M.-H., and Chen, W.-K. (2014). Human

hand gesture recognition using a convolution neu-

ral network. In Automation Science and Engineer-

ing (CASE), 2014 IEEE International Conference on,

pages 1038–1043. IEEE.

Liu, A., Tendick, F., Cleary, K., and Kaufmann, C. (2003).

A survey of surgical simulation: applications, tech-

nology, and education. Presence: Teleoperators and

Virtual Environments, 12(6):599–614.

Nagi, J., Ducatelle, F., Di Caro, G., Cires¸an, D., Meier, U.,

Giusti, A., Nagi, F., Schmidhuber, J., Gambardella,

L. M., et al. (2011). Max-pooling convolutional neu-

ral networks for vision-based hand gesture recogni-

tion. In Signal and Image Processing Applications

(ICSIPA), 2011 IEEE International Conference on,

pages 342–347. IEEE.

Schl

omer, T., Poppinga, B., Henze, N., and Boll, S. (2008).

Gesture recognition with a wii controller. In Proceed-

ings of the 2nd international conference on Tangible

and embedded interaction, pages 11–14. ACM.

Tang, D., Chang, H. J., Tejani, A., and Kim, T.-K. (2014).

Latent regression forest: Structured estimation of 3d

articulated hand posture. In Computer Vision and Pat-

tern Recognition (CVPR), 2014 IEEE Conference on,

pages 3786–3793. IEEE.

Tompson, J., Stein, M., Lecun, Y., and Perlin, K. Real-

time continuous pose recovery of human hands using

convolutional networks, journal = ACM Transactions

on Graphics, year = 2014, month = August, volume =

33.

Tompson, J., Stein, M., Lecun, Y., and Perlin, K. (2014).

Real-time continuous pose recovery of human hands

using convolutional networks. ACM Trans. Graph.,

33(5):169:1–169:10.

Weir, R., Mitchell, M., Clark, S., Puchhammer, G.,

Haslinger, M., Grausenburger, R., Kumar, N., Hof-

bauer, R., Kushnigg, P., Cornelius, V., et al. (2008).

The intrinsic hand–a 22 degree-of-freedom artiﬁcial

hand-wrist replacement. Myoelectric Symposium.

Xu, C. and Cheng, L. (2013). Efﬁcient hand pose esti-

mation from a single depth image. In Computer Vi-

sion (ICCV), 2013 IEEE International Conference on,

pages 3456–3462. IEEE.

Xu, Z., M

oller, T., Kraft, H., Frey, J., and Albrecht, M.

(2008). Photonic mixer device. US Patent 7,361,883.

Zhang, X., Chen, X., Wang, W.-h., Yang, J.-h., Lantz, V.,

and Wang, K.-q. (2009). Hand gesture recognition

and virtual game control based on 3d accelerometer

and emg sensors. In Proceedings of the 14th Interna-

tional Conference on Intelligent User Interfaces, IUI

’09, pages 401–406, New York, NY, USA. ACM.

Zobl, M., Geiger, M., Schuller, B., Lang, M., and Rigoll,

G. (2003). A real-time system for hand gesture con-

trolled operation of in-car devices. In Multimedia

and Expo, 2003. ICME ’03. Proceedings. 2003 Inter-

national Conference on, volume 3, pages III–541–4

vol.3.

Adding Model Constraints to CNN for Top View Hand Pose Recognition in Range Images

177
