A Connexionist Model for Emotions in Digital Agents

Jean-Claude Heudin

Devinci Media Lab, Pôle Universitaire Léonard de Vinci, Paris – La Défense, France

Keywords: Emotion, Affect, Mood, Neural Network, Artificial Creature, Digital Agent.

Abstract: This paper introduces a bio-inspired model of affects for digital agents. This model provides three distinct

layers: emotions as short-term affect, moods as medium-term affect, and personality as a long-term affect. It

describes an implementation based on a connexionist architecture using a dedicated neural network

designed for the “Living Mona Lisa” research project.

1 INTRODUCTION

In this paper we introduce a bio-inspired model of

affects for digital agents. Modeling emotions is a

recurrent problem in the design of artificial

creatures, including virtual characters and robots.

When we ask to anyone what is the difference

between a machine and a human, emotion is always

the answer before any other aspect.

One of our long term projects is to design a

software architecture for believable conversational

agents. We have conducted experimentations in the

past showing that a “multi-personality” approach –

called “schizophrenic” – leads to believable and

complex characters (Heudin, 2011). However, we

have also concluded that an emotion engine is

required to balance between these different

“personalities” resulting in coherent and pertinent

behaviors.

There have been many artificial emotion models

proposed in the past. One of the most complete,

mixing short, medium and long-term aspects of

emotional behaviors, was designed by Gebhard with

ALMA (Gebhard, 2005). We have also proposed a

similar approach with the first version of EVA

(Heudin, 2004). Both approaches were based of the

PAD model (Pleasure, Arousal and Dominance)

proposed by Mehrabian (Mehrabian, 1996).

In this paper, we first describe a new model for

implementing a bio-inspired model of affects in

digital agents. This model is a layered neural

network architecture implementing three levels of

affects: short-term emotions, mi-term moods and

long-term personality.

In the second part of the paper, we describe the

implementation of this model in the “Living Mona

Lisa” research project. The aim of this project is to

design an interactive installation displaying an

animated, high-resolution, full-scale reproduction of

the famous painting of Leonardo da Vinci. This

project is conducted in the spirit of the “Living Art”

approach by a multidisciplinary team including

researchers, artists and students from the Institute of

Internet and Multimedia and Strate School of Design

in Paris. Living Art is a burgeoning field that uses

Artificial Intelligence to create interactive works of

art, bridging digital technologies and more

traditional art forms (Aziosmanoff, 2015).

The paper concludes by showing qualitative

results and discussing the future steps in our

research.

2 THE EMOTION MODEL

2.1 A Layered Model of Affects

We propose here a new layered model of affects

based on three main interacting forms of affects:

Emotion reflects a short-term affect, usually

bound to a specific event, action or object, which is

the cause of this emotion. After its elicitation

emotions usually decay and disappear from the

individual’s focus (Becker, 2001).

Mood reflects a medium-term affect, which is

generally not related with a concrete event, action or

object. Moods are longer lasting stable affective

states, which have a great influence on human’s

cognitive functions (Morris, 1989).

272

Heudin, J-C.

A Connexionist Model for Emotions in Digital Agents.

DOI: 10.5220/0005669202720279

In Proceedings of the 8th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2016) - Volume 2, pages 272-279

ISBN: 978-989-758-172-4

Personality reflects long-term affect. It shows

individual differences in mental characteristics

(McCrae, 1992).

2.1.1 Personality

This layer is based on the “Big Five” model of

personality (McCrae, 1992). It contains five main

variables with value varying from 0.0 (minimum

intensity) to 1.0 (maximum intensity). These values

specify the general affective behavior by the traits of

openness, conscientiousness, extraversion,

agreeableness and neuroticism.

Openness is a general appreciation for art,

emotion, adventure, unusual ideas, imagination,

curiosity, and variety of experience. The trait

distinguishes imaginative people from down-to-

earth, conventional people. People who are open to

experience are intellectually curious, appreciative of

art, and sensitive to beauty. They tend to be,

compared to closed people, more creative and more

aware of their feelings. They are more likely to hold

unconventional beliefs. People with low scores on

openness tend to have more conventional, traditional

interests. They prefer the plain, straightforward, and

obvious over the complex, ambiguous, and subtle.

They may regard the arts and sciences with

suspicion, regarding these endeavors as abstruse or

of no practical use. Closed people prefer familiarity

over novelty. They are conservative and resistant to

change.

Conscientiousness is a tendency to show self-

discipline, act dutifully, and aim for achievement.

The trait shows a preference for planned rather than

spontaneous behavior. It influences the way in

which we control, regulate, and direct our impulses.

The benefits of high conscientiousness are obvious.

Conscientious individuals avoid trouble and achieve

high levels of success through purposeful planning

and persistence. They are also positively regarded by

others as intelligent and reliable. On the negative

side, they can be compulsive perfectionists and

workaholics.

Extraversion is characterized by positive

emotions and the tendency to seek out stimulation

and the company of others. The trait is marked by

pronounced engagement with the external world.

Extraverts enjoy being with people, and are often

perceived as full of energy. They tend to be

enthusiastic, action-oriented. In groups they like to

talk, assert themselves, and draw attention to

themselves. Introverts lack the exuberance, energy,

and activity levels of extraverts. They tend to be

quiet, low-key, deliberate, and less involved in the

social world. Their lack of social involvement

should not be interpreted as shyness or depression.

Introverts simply need less stimulation than

extraverts and more time alone.

Agreeableness is a tendency to be

compassionate and cooperative rather than

suspicious and antagonistic towards others. The trait

reflects individual differences in concern with for

social harmony. They are generally considerate,

friendly, generous, helpful, and willing to

compromise their interests with others. Agreeable

people also have an optimistic view of human

nature. They believe people are basically honest,

decent, and trustworthy. Disagreeable individuals

place self-interest above getting along with others.

They are generally unconcerned with others’ well-

being, and are less likely to extend themselves for

other people. Sometimes their skepticism about

others motives causes them to be suspicious,

unfriendly, and uncooperative.

Neuroticism is the tendency to experience

negative emotions, such as anger, anxiety, or

depression. Those who score high in neuroticism are

emotionally reactive and vulnerable to stress. They

are more likely to interpret ordinary situations as

threatening, and minor frustrations as hopelessly

difficult. Their negative emotional reactions tend to

persist for unusually long periods of time, which

means they are often in a bad mood. At the other end

of the scale, individuals are less easily upset and are

less emotionally reactive. They tend to be calm,

emotionally stable, and free from persistent negative

feelings. Freedom from negative feelings does not

mean that low scorers experience a lot of positive

feelings. Frequency of positive emotions is a

component of the Extraversion domain.

2.1.2 Moods

We choose a bio-inspired approach which tries to

mimic the effects of three important monoamine

neurotransmitters involved in the Limbic system.

They are endogenous chemicals that transmit signals

across synapses from neurons to other neurons. The

three virtual neurotransmitters are:

Dopamine (D) is related to experiences of

pleasure and the reward-learning process. It is a

special neurotransmitter because it is considered to

be both excitatory and inhibitory.

Norepinephrine (N) helps moderate the mood

by controlling stress and anxiety. It is an excitatory

neurotransmitter that is responsible for stimulatory

processes.

A Connexionist Model for Emotions in Digital Agents

273

Serotonin (S) is associated with memory and

learning. An imbalance in serotonin levels results in

an increase in anger, anxiety, depression and panic.

It is an inhibitory neurotransmitter.

Let say that the values for these three virtual

neurotransmitters are between 0.0 (minimum value)

to 1.0 (maximum value). They form a three

dimensional mood space called the “Lövheim Cube”

of emotion (Lövheim, 2012). In this model, the three

monoamine neurotransmitters form the axes of a 3D

coordinate system, and the eight basic emotions,

labeled according to the Affect Theory of Silvan

Tomkins (Tomkins, 1991) are placed in the eight

corners (cf. figure 1).

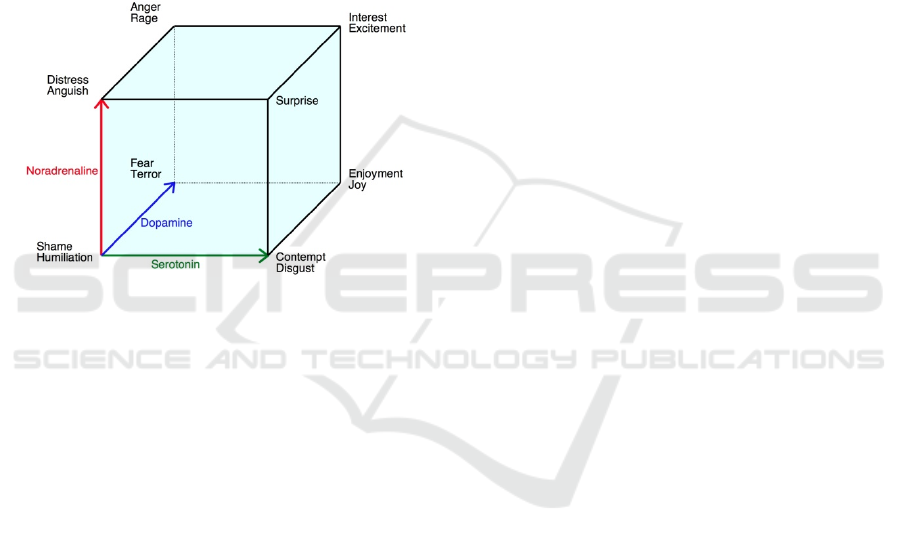

Figure 1: The Lövheim Cube.

This model attempts to organize affects into

discrete categories and connect each one with its

typical response. For example, the affect “joy” is

observed through the display of smiling. There are

eight basic affects (2 positives and 6 negatives)

listed with a low/high intensity label for each affect

and accompanied by its biological expression:

 Enjoyment/Joy: smiling lips wide and out.

 Interest/Excitement: eyebrows down, eyes

tracking, eyes looking, closer listening.

 Surprise/Startle: eyebrows up, eyes

blinking.

 Anger/Rage: frowning, a clenched jaw, a red

face.

 Contempt/Disgust: the lower lip raised and

protruded head forward and down.

 Distress/Anguish: crying, rhythmic sobbing,

arched eyebrows, mouth lowered.

 Fear/Terror: a frozen stare, a pale face,

coldness, sweat, erect hair.

 Shame/Humiliation: eyes lowered, head

down and averted, blushing.

2.1.3 Emotions

Emotions are very short term affects with relatively

high intensities. They are triggered by inducing

events, which suddenly increase one or more

neurotransmitters:

 D is both excitatory and inhibitory and

mainly involved in pleasure/rewards.

 N is excitatory and increase active vs. passive

feelings.

 S is inhibitory and increase positive vs.

negative feelings.

After a short time, neurotransmitter values decrease

due to a natural decay function. Most of the time, the

system tends to return toward an attractor, which is a

point in the system's phase space. This attractor is

the transposition in the Lövheim Cube of the

personality traits. This is not the neutral mood,

which is by definition in the center of the 3D space:

D = N = S = 0.5

2.1.4 Primordial Emotions

Craig and Denton include pain in a class of feelings

they name, respectively, “homeostatic” (Craig,

2003) or “primordial” emotions (Derek, 2006).

These are feelings such as hunger, thirst and fatigue,

evoked by internal body states, communicated to the

central nervous system by interoceptors, which

motivate behavior aimed at maintaining the internal

milieu at its ideal state. They distinguish these

feelings from the “classical emotions” such as joy,

fear and anger, which are elicited by environmental

stimuli. In our model, we choose to implement two

basic primary emotions:

Energy is the machine transposition of internal

feelings such as hunger, thirst and fatigue.

Pain measures the amplitude of unpleasant

feelings often caused by intense, noxious or

damaging stimuli.

2.2 Implementation

In this section, we describe an approach for

implementing the previous layered model of affects

using a connexionist neural-based architecture. The

resulting implementation is called an Emotion

Engine.

2.2.1 Anna

We choose to implement our own connexionist

javascript-based framework called ANNA:

ICAART 2016 - 8th International Conference on Agents and Artiﬁcial Intelligence

274

Algorithmic Neural Network Architecture. This

architecture can be described as a deep highly non-

linear neural network.

More precisely an application can include an

arbitrary number of interconnected networks, each of

them having its own interconnection pattern between

an arbitrary number of layers. Each layer is

composed of a set of neurons.

Each neuron has an arbitrary number of weighted

inputs, a single output, and an operator function that

computes the output given the inputs. This function

can be a classical and homogenous activation

function or any heterogeneous non-linear

programmed function. In other words, each neuron

can be programmed as a dedicated cell. Each

input’s weight can be learned using a machine

learning algorithm, or statically programmed, or

dynamically tuned by another network.

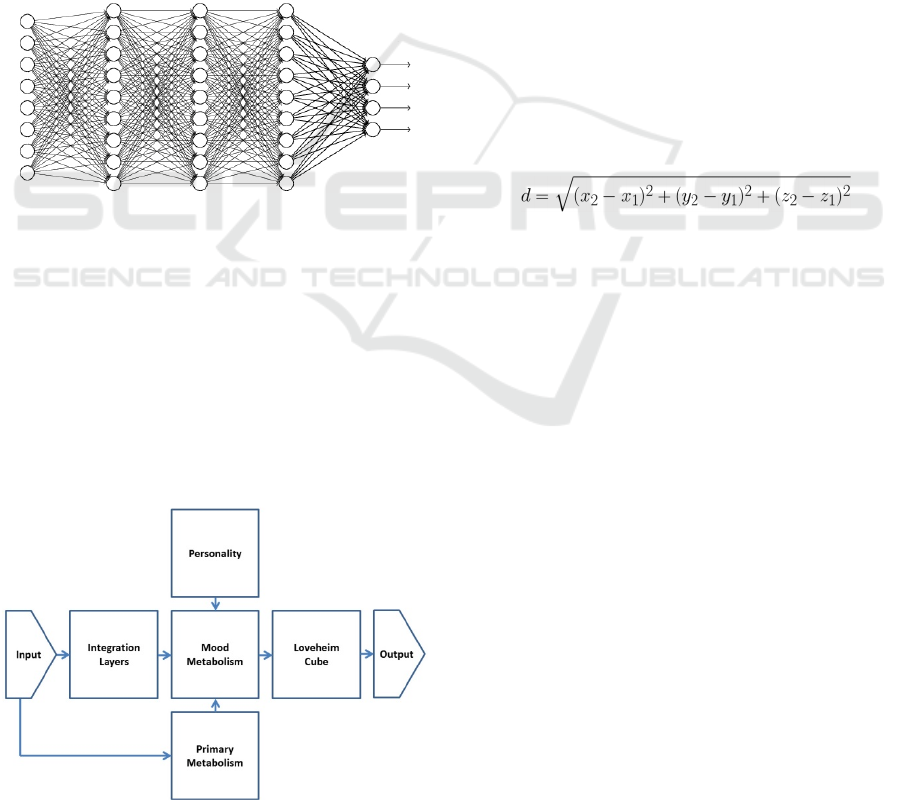

Figure 2: A typical ANNA deep feed-forward network

with a full connection pattern between layers.

This general-purpose architecture enables to

design any types of feed-forward, recurrent or

heterogeneous complex sets of networks.

2.2.2 Emotion Engine

The next figure gives a simplified diagram of the

Emotion Engine. Each square represents a small

network composed of one or more layers. There are

seven networks:

Figure 3: The Emotion Engine architecture.

Input: connect and convert external signals to

the internal representation.

Integration: computes the three DNS virtual

neurotransmitters spike values.

Personality: implements the personality layer

based on the big five traits.

Primary Metabolism: implements the Energy

and Pain system.

Mood Metabolism: computes the current DNS

mood values with a decay function.

Lövheim Cube: convert the DNS mood values

into the eight main affects using a distance

calculation.

Output: select the emerging mood and computes

its level.

Most of the networks use a feed-forward layers

or a simple layer. All neurons have dedicated

programmed operator functions with the exception

of the Integration network, which uses a classical

nonlinear weighted sum and a local supervised back-

propagation learning scheme.

As an example, the Lövheim Cube implements a

Euclidian distance function between the current

DNS mood values and each main affect, that is:

The Emotion Engine is updated by propagating

the inputs using a cyclic trigger called “lifepulse”.

The frequency of this signal ranges from a few

milliseconds to a few seconds depending on the

application.

3 THE LIVING MONA LISA

The first research prototype implementing the model

of affects is the “Living Mona Lisa” installation. The

aim of this project is to create an interactive and

animated reproduction of the famous painting from

Leonard da Vinci in the framework of the Living Art

approach (Aziosmanoff, 2015).

3.1 Architecture Overview

The Living Mona Lisa architecture is based on three

major and straightforward building blocks: the

Sensory Module, the Artificial Intelligence Module

and the Display Module. These three building blocks

are connected together and form with the user(s) an

interacting closed loop (cf. figure 4).

A Connexionist Model for Emotions in Digital Agents

275

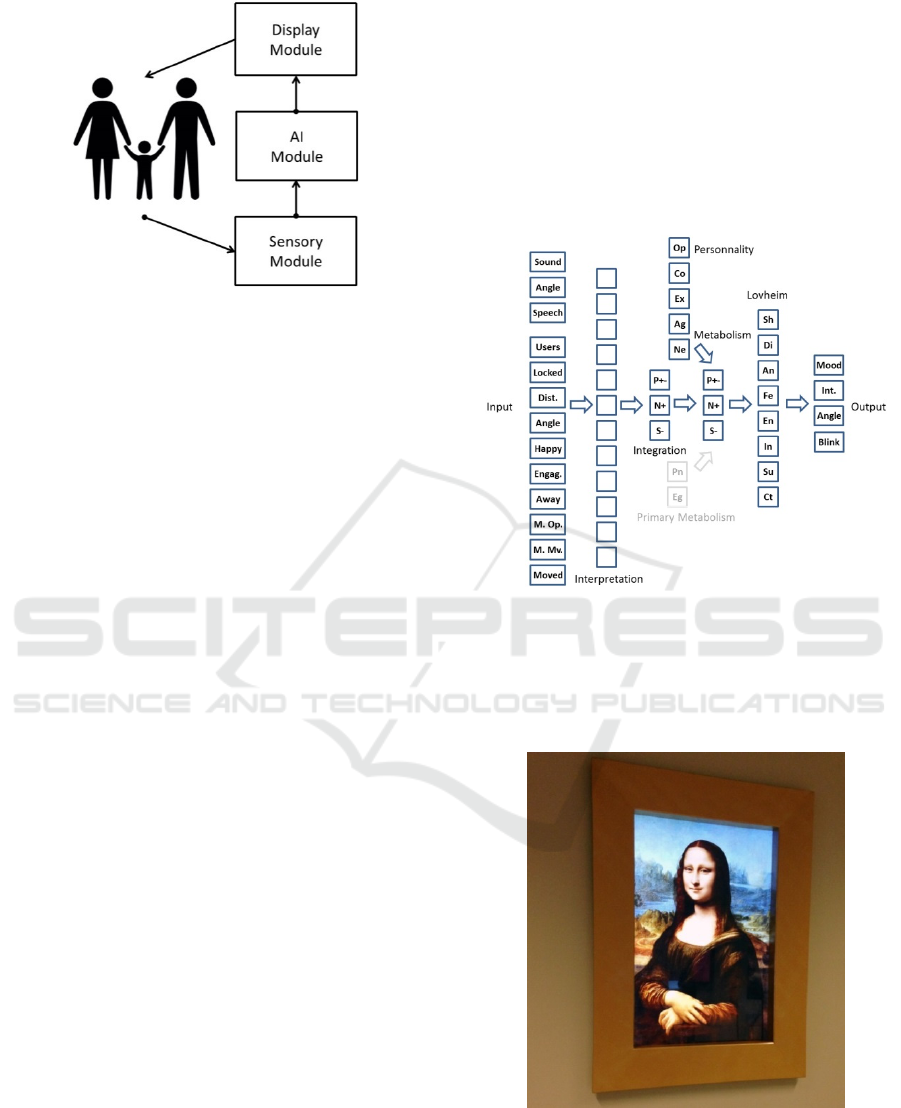

Figure 4: The Living Mona Lisa architecture. The sensory

module captures the behaviors of spectators, the AI

module computes Mona Lisa’s emotional state, and the

display module updates Mona Lisa’s emotional

expression.

3.2 Sensors

The sensory module is responsible for sensing the

environment and sending pertinent information to

the AI module. Typical information includes the

presence of one or more persons, their position, their

moves, facial expressions, recognition of some

keywords, noise, etc.

The sensory module is implemented using a

Microsoft Kinect 2 sensor system allowing the

detection of up to six people with advanced facial

tracking (Microsoft, 2014).

3.3 Emotion Engine

The AI module is the central part of the architecture,

implementing the Emotion Engine described in this

paper (cf. figure 5). The Primary Metabolism, that is

Energy and Pain, was not implemented in the first

version of the prototype.

The inputs of the Emotion Engine are connected

to a set of 13 variables coming from the Sensory

Module. The “lifepulse” update rate is set to 20

milliseconds. The “spike” value for each DNS signal

is 0.01.

Mona Lisa’s personality traits are Openness =

0.7; Conscientiousness = 0.8; Extraversion = 0.4;

Agreeableness = 0.6; Neuroticism = 0.1. The

Metabolism returns to this point in the DNS space at

the decay rate of 0.01 per cycle.

The outputs are the following:

 The selected emotional expression as a string:

“Neutral”, “Shame”, “Distress”, “Surprise”,

“Disgust”, “Fear”, “Anger”, “Interest”,

“Enjoyment”.

 The intensity of this emotion: a float value in

the range 0.0 to 1.0.

 The behavior of the eyes regarding the

position of the main user: “Follow”, “Avoid”,

“Fixed”, “Indefinite”. The face can move

with an angle in the range of -50° to +50°

left-right and up-down according to the

normal in the center of the face.

 A “blink” trigger for the eyes.

Figure 5: Diagram of the Emotion Engine’s layers.

3.4 Display

The display module embodies the autonomous Mona

Lisa character.

Figure 6: The Living Mona Lisa installation.

The display module is a reproduction of the painting

at its original scale (77 cm x 53 cm not including the

frame). The hardware uses an Ultra High Definition

55’ LCD screen in portrait mode. The image is

ICAART 2016 - 8th International Conference on Agents and Artiﬁcial Intelligence

276

composed of a 3D model made of over 500.000

polygons with advanced texturing techniques (cf.

figure 7). We use the Unity Pro 3D rendering engine

for real-time animation of this 3D model (Unity,

2015).

Figure 7: The Living Mona Lisa 3D model.

4 RESULTS

The next figures give some example views of the

final rendering showing different facial expressions.

Figure 8: A close-up to the Living Mona Lisa with a new

emotional expression compared to the genuine painting.

Figure 9/10: Living Mona Lisa showing its original

expression (top) and an “interest” expression combined

with face move and user follow behavior (down).

A Connexionist Model for Emotions in Digital Agents

277

Figure 11/12: Living Mona Lisa showing an “anger”

expression (top) and a “joy” expression combined with

face move and “indefinite” eyes behavior (down).

The Living Mona Lisa prototype was showed to

the public during Futur en Seine exhibition in Paris

organized by Cap Digital during June 2015. First

results were encouraging and show that the system

was successfully functioning in the respect of the

genuine masterpiece and known history of the real

Mona Lisa character. All people interacting with the

system were impressed by the “presence” of Mona

Lisa.

However, there are some limitations that we

must solve in the next version of the prototype. In

the current version, the emotional behaviors are

limited to the face of the character. Thus, we want to

extend the expression to the entire body. For

example the hands could have slightly moves

according to emotions.

In the current version, the Emotion Engine

selects one of the main emotions, one of the edges of

the Lövheim Cube, according to the distance with

the current DNS coordinates. A more realistic

approach could be to express more subtle

combinations of moods: for example one can be at

the same time sad and surprised.

5 CONCLUSIONS

In this paper we introduced a layered model of

affects for digital agents and an implementation as

an Emotion Engine using a connexionist bio-

inspired neuron-based architecture. The model

provides three distinct affects: emotions as short-

term affect, moods as medium-term affect, and

personality as a long-term affect.

The model was implemented in an interactive

installation called “Living Mona Lisa”.

In parallel with the design of a new version of

this “non-verbal” prototype, we also work for

implementing the model in a “multi-personality”

conversational agent in order to obtain a better

balance between the different behaviors according to

the context of the verbal interaction with a user.

ACKNOWLEDGEMENTS

The Living Mona Lisa project is partly funded by

the French Région Île-de-France. We want to thank

Le Louvre Museum and La Réunion des Musées

Nationaux (RMN) for their contribution.

For their participation at every phase of the

Living Mona Lisa project, I would like to thank

Florent Aziosmanoff (author) and Dominique

ICAART 2016 - 8th International Conference on Agents and Artiﬁcial Intelligence

278

Sciamma. Also, I would like to thank the Living

Mona Lisa team at the Institute of Internet and

Multimedia (IIM): Marc Bellan, Fabrice Houlné,

Emanuel Perotti, Frédéric Rolland-Porché and all the

students who have contributed to this project.

REFERENCES

Aziosmanoff, F., 2015. Living Art Fondations, CNRS

Editions, Paris.

Becker, P., 2001. Structural and Relational Analyses of

Emotion and Personality Traits. Zeitschrift für

Differentielle und Diagnostische, Psychologie, 22, 3,

155-172.

Craig, A.D., 2003. Interoception: The Sense of the

Physiological Condition of the Body. Current Opinion

in Neurobiology, 13(4), 500-505.

Derek, A.D., 2006. The Primordial Emotions: The

Dawning of Consciousness. Oxford University Press.

Gebhard, P., 2005. ALMA – A Layered Model of Affect.

Proceedings of the Fourth Int. Joint Conference on

Autonomous Agents and Multiagent Systems, 29-36.

Heudin, J.-C., 2004. Evolutionary Virtual Agent.

Proceedings of the Intelligent Agent Technology Int.

Conference (IAT 2004), IEEE/WIC/ACM, 93-98.

Heudin, J.-C., 2011. A Schizophrenic Approach for

Intelligent Conversational Agent, 3rd Int. ICAART

Conference on Agents and Artificial Intelligence.

Lövheim, H., 2012. A New Three-dimensional Model for

Emotions and Monoamine Neurotransmitters, Med

Hypotheses, 78, 341-348.

McCrae, R.R. and John, O.P., 1992. An Introduction to the

Five Factor Model and its Implications. Journal of

Personality, vol. 60, 171-215.

Mehrabian, A., 1996. Pleasure-Arousal-Dominance: A

General Framework for Describing and Measuring

Individual Differences in Temperament, Current

Psychology, vol. 14, 261-292.

Morris, W. N., 1989. Mood: The Frame of Mind. New

York: Springer-Verlag.

Microsoft, 2015. Kinect 2 Manual.

Tomkins, S.S., 1962-1991. Affect Imagery Consciousness,

vol. I-IV, London: Tavistock and New York: Springer.

Unity, 2015. www.unity3d.com.

A Connexionist Model for Emotions in Digital Agents

279
