A Multiresolution 3D Morphable Face Model and Fitting Framework

Patrik Huber

, Guosheng Hu

, Rafael Tena

1∗

, Pouria Mortazavian

, Willem P. Koppen

William Christmas

, Matthias R

atsch

and Josef Kittler

Centre for Vision, Speech & Signal Processing, University of Surrey, Guildford, U.K.

LEAR Group, INRIA Grenoble Rh

one-Alpes, Montbonnot, France

Samsung Electronics Research Institute, London, U.K.

Reutlingen University, Reutlingen, Germany

Keywords:

3D Morphable Face Model, 3D Face Reconstruction, Face Model Fitting, Pose Estimation, Shape Recon-

struction, Open Source Software.

Abstract:

3D Morphable Face Models are a powerful tool in computer vision. They consist of a PCA model of face

shape and colour information and allow to reconstruct a 3D face from a single 2D image. 3D Morphable

Face Models are used for 3D head pose estimation, face analysis, face recognition, and, more recently, facial

landmark detection and tracking. However, they are not as widely used as 2D methods - the process of building

and using a 3D model is much more involved.

In this paper, we present the Surrey Face Model, a multi-resolution 3D Morphable Model that we make

available to the public for non-commercial purposes. The model contains different mesh resolution levels

and landmark point annotations as well as metadata for texture remapping. Accompanying the model is a

lightweight open-source C++ library designed with simplicity and ease of integration as its foremost goals. In

addition to basic functionality, it contains pose estimation and face frontalisation algorithms. With the tools

presented in this paper, we aim to close two gaps. First, by offering different model resolution levels and fast

ﬁtting functionality, we enable the use of a 3D Morphable Model in time-critical applications like tracking.

Second, the software library makes it easy for the community to adopt the 3D Morphable Face Model in their

research, and it offers a public place for collaboration.

1 INTRODUCTION

3D face models and in particular 3D Morphable Mod-

els are a powerful tool for computer vision. They

have applications in 2D face processing such as track-

ing, face analysis, recognition, pose estimation and

pose normalisation. 3D Morphable Models (3DMM)

were proposed by Blanz and Vetter in 1999 (Blanz

and Vetter, 1999) and since then have been applied

to a variety of these tasks. However they are not as

widespread in use as their 2D counterparts (for exam-

ple Active Appearance Models (Cootes et al., 2001)),

yet they have certain distinct advantages over 2D

methods. In a 3D model, the pose of a face is clearly

separated from the shape. Its projection to 2D is mod-

eled by a physical camera model, such as a perspec-

tive or afﬁne camera model. Also, the use of a 3D face

model allows to model the light explicitly since 3D

surface normals, self-occlusion and depth information

are available. The illumination model separates light

from the face appearance and is not encoded in the

∗

now at Disney Research

texture parameters, as is for example the case in 2D

AAMs. The most prominent approaches to modelling

the environment or light sources in conjunction with

3DMMs are spherical harmonics (Aldrian and Smith,

2013; Zivanov et al., 2013) and the Phong illumina-

tion model (Romdhani and Vetter, 2005; Hu et al.,

2012).

Furthermore, a 3D Morphable Model can be used

in a generative way to create speciﬁc faces or to gen-

erate annotated training data for other algorithms that

e.g. covers a large variety of pose angles, including

more extreme poses like proﬁle views. For exam-

ple, R

atsch et al. (R

atsch et al., 2012) used 3DMM-

generated data to improve the performance of a 2D

pose regressor, while Feng et al. (Feng et al., 2015)

augment the training data of their facial landmark

detection with 3DMM data to make it more robust

on larger pose angles. Very recently, 3DMMs have

also been used directly with regression-based meth-

ods (Huber et al., 2015; Zhu et al., 2015) with aspira-

tions to provide a uniﬁed solution to landmark detec-

tion and 3D model ﬁtting.

Huber, P., Hu, G., Tena, R., Mortazavian, P., Koppen, W., Christmas, W., Rätsch, M. and Kittler, J.

A Multiresolution 3D Morphable Face Model and Fitting Framework.

DOI: 10.5220/0005669500790086

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 4: VISAPP, pages 79-86

ISBN: 978-989-758-175-5

On the other hand, a 3D Morphable Face Model

is comparatively hard to obtain and use. To train a

model, a number of good quality 3D scans are needed.

These scans then need to be brought into dense corre-

spondence with a mesh registration algorithm. After

building a model, a model-to-image ﬁtting algorithm

is required, and these ﬁtting algorithms are often very

complex, slow, and are easily trapped in local min-

ima. The non-trivial training and ﬁtting is in our opin-

ion one of the main reasons for the limited adoption

of 3D Morphable Face Models, and there is a lack of

readily available 3D face model ﬁtting frameworks.

In 2009, Vetter et al. published the Basel Face

Model (BFM, (Paysan et al., 2009)) to spur research

with Morphable Models. It surpassed existing mod-

els (Sarkar, 2005; Blanz and Vetter, 1999) by the

accuracy of the scanner used and the quality of the

registration algorithm, and their multi-segment face

model, along with ﬁtting results and various metadata,

can be obtained after signing a licence agreement.

While this led to some adoption by other research

groups (e.g. (van Rootseler et al., 2012; Aldrian and

Smith, 2013)), the adoption is still limited. Addition-

ally, while the BFM provides the model, they only

provide ﬁtting results for limited databases and do not

provide algorithms to apply the model to novel im-

ages. With the model and software framework pub-

lished in this paper, we aim to go one step further and

make our model available as well as a lightweight ﬁt-

ting framework promoting the use of the model.

This paper introduces the Surrey Face Model

(SFM), a multi-resolution 3D Morphable Face Model.

The model consists of three different resolution lev-

els of shape and colour, a pose-invariant image tex-

ture representation and metadata such as landmark

point information. The model is available freely for

non-commercial purposes. Alongside the model, we

present a library to interface with the model and per-

form basic pose and shape ﬁtting. The main focus

of the software is its ease of use and interoperability

with the popular OpenCV library. The library is open

source, available under Apache License, Version 2.0,

and actively developed on GitHub, creating a public

place for exchange and contributions. In addition to

the full 3DMM being available via the University, we

release a low-resolution shape-only model distributed

within the software. In contrast to the Basel Face

Model, we offer the models at lower resolutions as

well, which are much more practical for many appli-

cations. We focus on ease of use of the framework

for vision tasks such as face tracking, pose estimation

and face frontalisation, and hope to further pave the

way to make 3DMMs more widely adopted. Table 1

summarises how the different parts are available.

Table 1: Availability of the different components.

Component Availability & Licence

Software library GitHub, Apache License Version 2.0

Low-resolution

shape model

GitHub, free for non-commercial

purposes

†

Full Surrey Face

Model

After signing licence agreement, free

for non-commercial purposes

†

For commercial purposes, contact us via

http://cvssp.org/facemodel.

The contributions of this work are threefold. First,

we present the Surrey Face Model, a multi-resolution

3D Morphable Face Model that we make available to

the public for non-commercial purposes. Second, we

present a lightweight open-source Morphable Model

software framework written in modern C++ that is

designed with simplicity and ease of integration as

its primary goals. Lastly, we make a low resolution

shape model available together with the software to

allow an immediate start with the framework. With

this whole package, our aim is to make 3D Mor-

phable Models easily available and to encourage re-

search with 3D face models.

In the rest of this paper, we ﬁrst describe the acqui-

sition and the building process as well as the metadata

of the Surrey Face Model in detail (Section 2). We in-

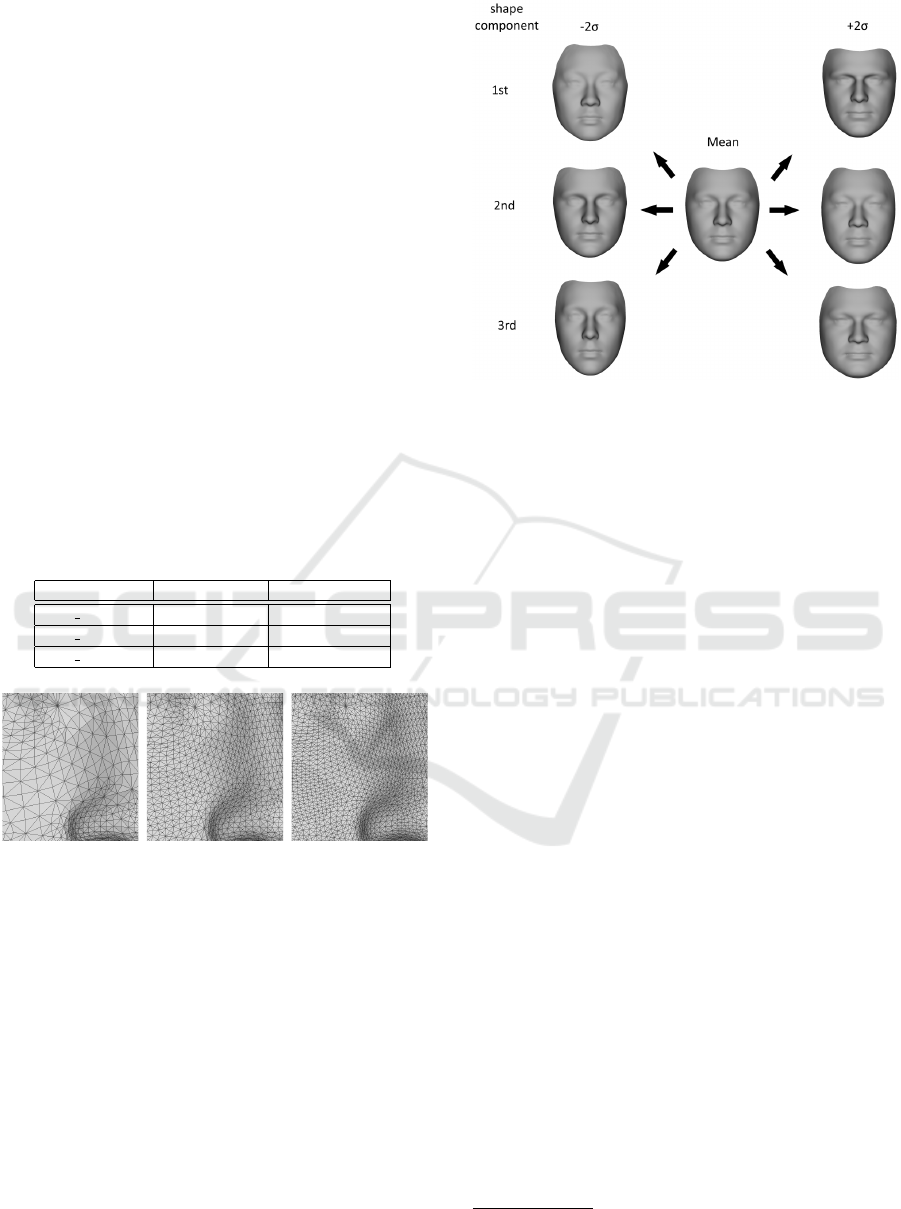

troduce the resolution levels and show visualisations

of the model and its PCA components. In Section 3,

we then present the accompanying software frame-

work and demonstrate its ease of use and ﬂexibility

by means of a 3D pose estimation and face frontalisa-

tion example. Section 4 concludes the paper.

2 THE SURREY FACE MODEL

The Surrey Face Model consists of a 3D Morphable

Model, that is, a PCA shape model and a PCA colour

model, each in different resolution levels, and accom-

panying metadata, like a 2D texture representation

and landmark annotations. The following sections

will describe each part in detail.

2.1 3D Morphable Models

A 3D Morphable Model is based on three dimensional

meshes of faces that have been registered to a refer-

ence mesh, i.e. are in dense correspondence. A face

is represented by a vector S ∈R

, containing the x, y

and z components of the shape, and a vector T ∈ R

containing the per-vertex RGB colour information. N

is the number of mesh vertices. The 3DMM consists

of two PCA models, one for the shape and one for the

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

colour information. Each PCA model

M := (

v, σ, V) (1)

consists of the components

v ∈ R

, which is the

mean of the example meshes, a set of principal com-

ponents V = [v

, . . . , v

n−1

] ∈ R

3N×n−1

, and the stan-

dard deviations σ ∈ R

n−1

. n is the number of scans

used to build the model. Novel faces can be gener-

ated by calculating

S =

v +

∑

(2)

for the shape, where M ≤ n − 1 is the number of

principal components and α ∈ R

are the 3D face

instance coordinates in the shape PCA space. The

same is calculated for the colour (or so-called albedo)

model.

2.2 3D Scan Data

The Surrey Face Model is built using a number of

high-resolution 3D scans that were acquired at our

lab. The scans were captured using a 3dMDface

camera system that consists of two structured light

projectors, 4 infrared cameras that capture the light

pattern and are used to reconstruct the 3D shape, and

two RGB cameras recording a high-resolution face

texture. Half the cameras record the face from the

left side, the other half from the right side, resulting

in a 180

◦

view of the face. The images are acquired

under uniform illumination to ensure that the model

texture is representative of face skin albedo only. The

3dMDface software reconstructs a textured 3D mesh

from this information.

These scans can then be brought into dense corre-

spondence using a 3D to 3D registration algorithm, in

our case the Iterative Multi-resolution Dense 3D Reg-

istration (IMDR) method (Tena et al., 2006). Figure 1

shows an example scan with the captured mesh on the

left, the RGB texture in the middle, and the scan after

registration to the 3D model. The registration process

is described in more detail in the next section together

with how we built the multi-resolution model.

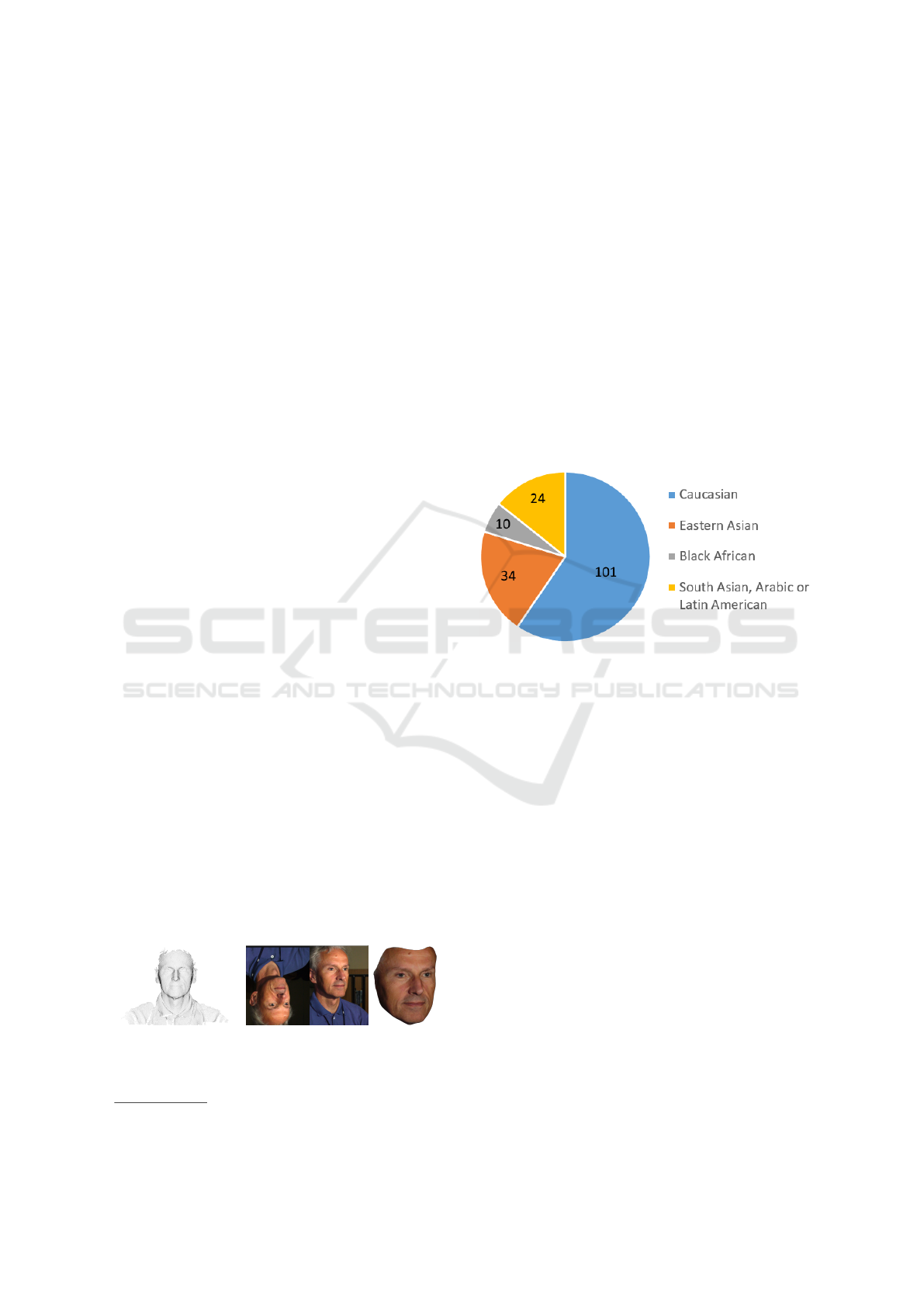

Figure 1: (left): Raw mesh output from the 3dMDface soft-

ware. (middle): Texture image from two angles captured

by the 3dMDface cameras. (right): The scan and texture

densely registered to the 3D model.

http://www.3dmd.com/

Our recorded subjects represent a diverse range of

skin tones and face shapes to well represent the mul-

ticultural make up of many modern societies. Fig-

ure 2 shows the perceived racial distribution of the

169 scans used to build the model. Non-Caucasian

people are well-represented and signiﬁcant numbers

of subjects from other races are included allowing

the model to generalise well to people from various

backgrounds. This is in stark contrast to the BFM,

which only contains a very insigniﬁcant number of

non-Caucasian people.

The age of the recorded people was categorised

into 5 groups. 9 are teens (age 0-19), 106 young

adults (20-29), 33 adults (30-44), 13 mature (45-59)

and 8 seniors (60+). Similar to the BFM, most peo-

ple are in the young-adult range, but the Surrey Face

Model contains more people in the 30+ groups.

Figure 2: Racial distribution of the 169 scans used to train

the Surrey Face Model. Our model is generated from a sig-

niﬁcant number of non-Caucasian people.

2.3 Multi-resolution Model Generation

The Surrey Face Model comes in three different res-

olution levels. After obtaining the full set of scans,

they are registered using the Iterative Multi-resolution

Dense 3D Registration (IMDR) algorithm. It uses a

deformable reference 3D face model and performs a

combination of global mapping, local matching and

energy-minimisation to establish dense correspon-

dence among all the scans at different resolution lev-

els. The generic reference face we used has 845 ver-

tices and 1610 triangles. The following is a high-level

overview of the process:

1. The target scan is denoised using Gaussian and

median ﬁltering if spikes and noise are present.

2. Perform a global mapping from the generic

model to the target scan using facial landmarks,

smoothly deforming the generic model.

3. Do a local matching on the current resolution

level based on the distances between reference

and target vertices. If a particular vertex cannot

A Multiresolution 3D Morphable Face Model and Fitting Framework

be matched, its mirrored counterpart is used (and

if that fails as well, the algorithm interpolates us-

ing the neighbouring matches).

4. The ﬁnal set of matches guides an energy min-

imisation process that conforms the model to the

target scan. Steps 3 and 4 are iterated.

5. The generic face model is subdivided using the 4-

8 mesh subdivision algorithm (Velho and Zorin,

2001).

6. Steps 3 to 5 are repeated until the desired highest

mesh resolution is achieved.

Table 2 shows the three constructed resolution lev-

els with their number of vertices and triangles. The

smallest model consists of 3448 vertices and the full

model consists of 29587 vertices. Figure 3 depicts the

three mesh resolutions with a close-up on the model’s

mesh. Note that the higher resolution meshes are built

upon the lower resolutions, and therefore each ver-

tex from a lower resolution mesh is also present in

all higher resolution meshes, and has the same vertex

index.

Table 2: The different model resolution levels.

Model name No. vertices No. triangles

sfm 29587 29587 59763

sfm 16759 16759 33211

sfm 3448 3448 6736

Figure 3: Close-up of the different mesh resolutions of the

Surrey Face Model. (left): The low-resolution model with

3448 vertices. (middle): Medium-resolution model (16759

vertices) (right): The full resolution model (29587 vertices).

2.4 Shape and Colour Model

The shape and colour PCA models are built using

aforementioned 169 registered scans. Of the result-

ing PCA basis matrix, we keep 63 shape eigenvectors

and 132 colour eigenvectors so that 99% of the origi-

nal variation of the data is preserved after reconstruc-

tion. To analyse the variations in the face model, we

can visualise the directions of largest variance in the

PCA space by taking the formula in Equation 2 and

setting a speciﬁc α

to a ﬁxed value while setting all

others to zero. The resulting face mesh S can then

be rendered. Figure 4 shows the mean of the model

Figure 4: The mean face and shape variation of the high-

resolution Surrey Face Model. The ﬁgure shows the ﬁrst

three PCA shape coefﬁcients at -2 and +2 standard devia-

tions.

and the ﬁrst three shape components set to ±2 stan-

dard deviations. The ﬁrst components mainly account

for global structure of the face, like global face shape

(more round or square, slim or chubby) and size of

the face. Later components model the ﬁner structures

of the face.

Figure 5 depicts the colour PCA model with the

colour coefﬁcients set to ±2 standard deviations.

Varying the ﬁrst component of the colour model re-

sults mainly in a change of global skin colour from

black to white, while the second component models

more diverse changes relating to the gender. The third

component encodes a mixture of skin colour and pos-

sibly gender.

Along with the model, we publish annotations of

the most commonly used facial landmark points for

all resolution levels. When using the model, it is use-

ful to have a standardised and known set of the loca-

tion (i.e. vertex index) of certain points like the eye

corners or the tip of the nose on the mesh. We pro-

vide such metadata with the model. Whenever pos-

sible, the points are deﬁned on the generic reference

face or in the lowest model resolution and valid on

all model levels. Some points are only deﬁned on the

higher mesh resolutions because the mesh resolution

at a lower level is too coarse and does not have a ver-

tex at the landmark location. Figure 6 shows a set of

manually selected landmark points on the mesh that

correspond to a subset of the popular ibug facial point

annotations

http://ibug.doc.ic.ac.uk/resources/

facial-point-annotations/

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

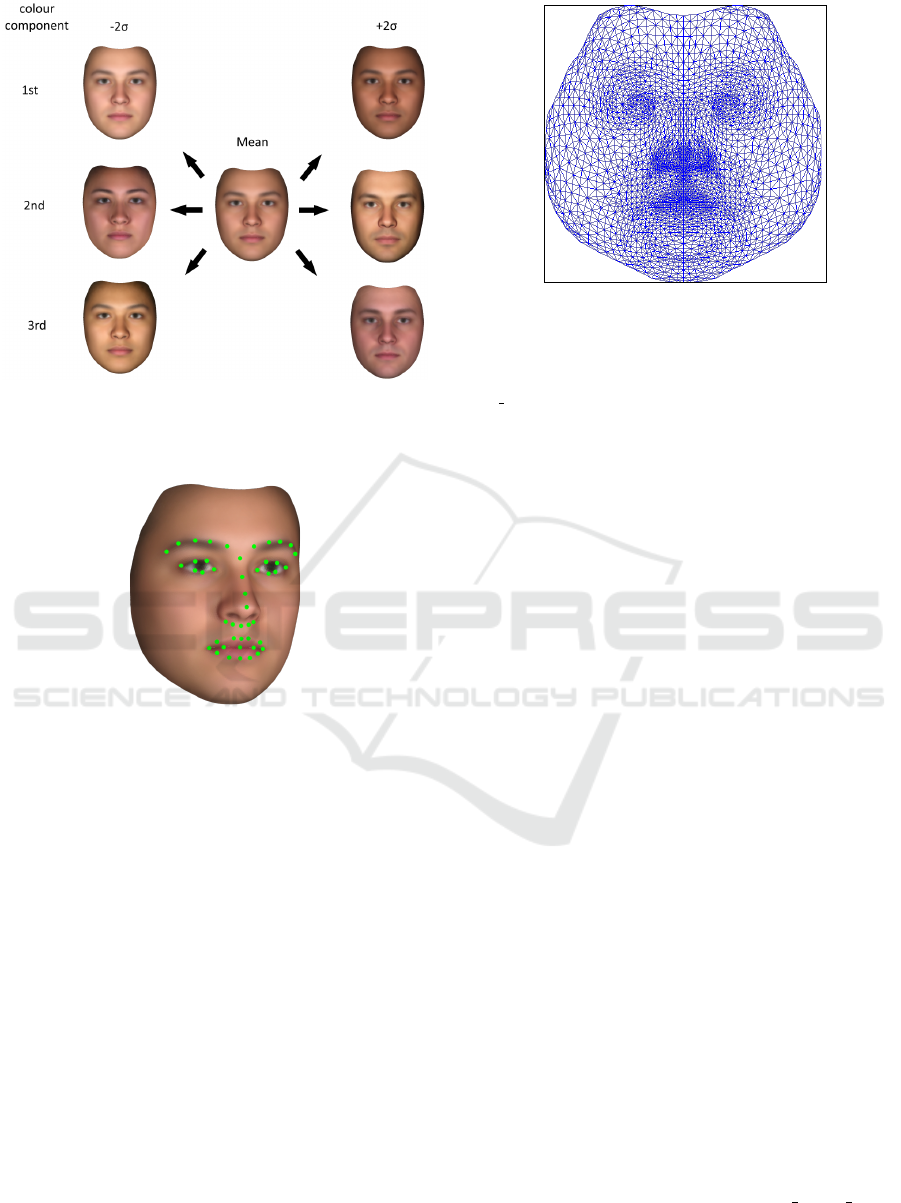

Figure 5: The mean face and colour variation of the high-

resolution Surrey Face Model. The ﬁgure shows the ﬁrst

three PCA colour coefﬁcients at -2 and +2 standard devia-

tions.

Figure 6: The facial landmark points that are annotated on

the mesh and available as metadata together with the model.

2.5 Texture Representation

The PCA colour model is a useful representation for

the appearance of a face, but in some cases it is desir-

able to use the pixel colour information (texture) from

the image or a combination of the two. The texture

from the input image remapped onto the mesh pre-

serves all details of a face’s appearance, while some

high-frequency information can be lost if a face is

only represented using the PCA colour model. An-

other reason to use the texture is to avoid a colour

and light model ﬁtting, for example in consideration

of run-time. Therefore, we would like a 2D represen-

tation of the whole face mesh that we can use to store

the remapped texture. We create such a generic rep-

resentation with the isomap algorithm (Tenenbaum

et al., 2000): it ﬁnds a projection from the 3D vertices

to a 2D plane that preserves the geodesic distance be-

tween the mesh vertices. Our mapping is computed

with the algorithm from Tena (Rodr

ıguez, 2007).

Figure 7: Texture representation in the form of an isomap.

The 3D mesh vertices are projected to 2D with an algo-

rithm that preserves the geodesic distance between ver-

tices, resulting in a pose-independent, detail-preserving tex-

tural representation of a face. Shown is the isomap of the

sfm 3448.

In contrast to other representations, like for exam-

ple cube mapping, this isomap has the advantage that

it can be stored as a single 2D image, and it has face-

like appearance, i.e. it can be easily used with ex-

isting face recognition and face analysis techniques.

The isomap coordinates are only generated once, that

is the isomaps of different people are in dense cor-

respondence with each other, meaning each location

in the map corresponds to the same physical point in

the face of every subject (for example, a hypothetical

point x = [100, 120] is always the center of the right

eye). This makes the isomap especially suitable for

processing with further algorithms.

Figure 7 shows the isomap of the low-resolution

model as a wireframe. The isomap captures the whole

face, while for example a rendering of the mesh would

always only show parts of the face.

We provide texture coordinates generated with the

isomap algorithm for each model resolution level.

3 SOFTWARE FRAMEWORK

The Surrey Face Model is accompanied by an

open source software framework that is available on

GitHub under Apache License, Version 2.0. It is

a lightweight and cross-platform header-only library

built using modern C++, which makes it very ﬂex-

ible, easy to use and simple to include into exist-

ing software. The library requires no other depen-

dency than applications developed using it linking

to OpenCV-core. The software framework includes

a low-resolution shape-only model (sfm shape 3448)

to facilitate immediate use.

This section will ﬁrst give a brief introduction

A Multiresolution 3D Morphable Face Model and Fitting Framework

about the core functionality of the framework and

then present the pose and landmark ﬁtting algorithms

included in the software and a basic use case example.

The library, low-resolution shape model, example ap-

plications and a complete documentation are available

at https://github.com/patrikhuber/eos.

3.1 Core Functionality

A 3D Morphable Model is represented using a thin

layer on top of OpenCV. A PcaModel class contains

a mean, the PCA basis vectors and eigenvalues, and

a MorphableModel class contains a shape and colour

PCA model and texture coordinates, along with the

functionality to retrieve a mesh that can be rendered.

Figure 8 shows an UML-like overview of this basic

functionality.

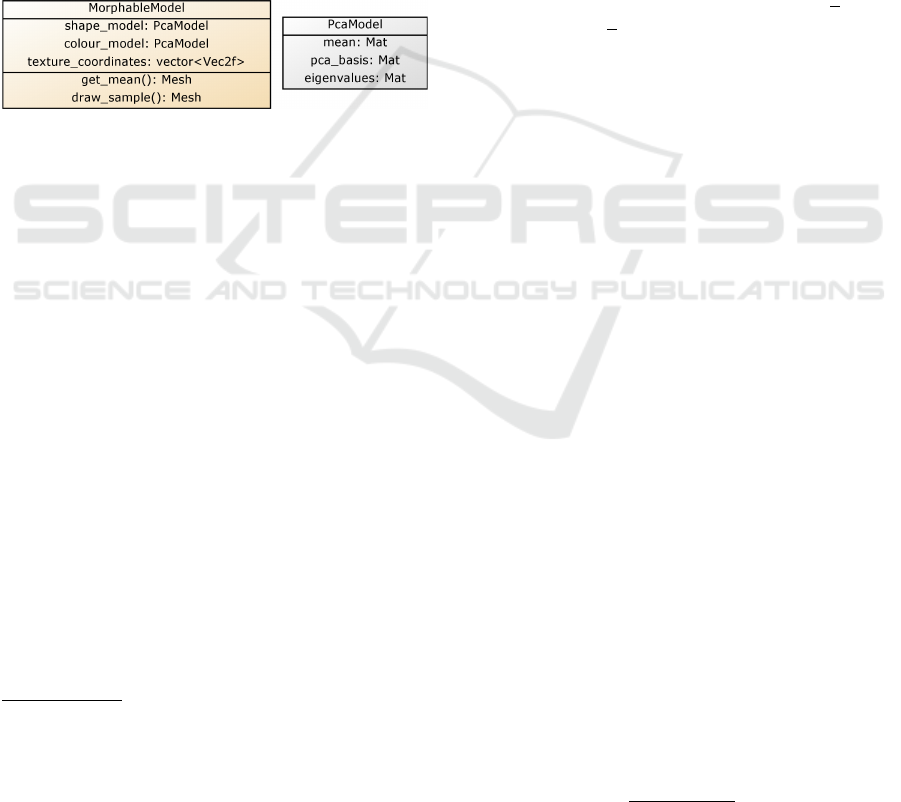

Figure 8: UML-like diagram of the MorphableModel and

PcaModel classes, which are simple wrappers for the un-

derlying PCA and model metadata (diagram slightly sim-

pliﬁed).

A model can be loaded as simple as:

MorphableModel model =

load_model("sfm_shape_3448.bin");→

The semantic landmark information (see end of

Section 2.4) is stored separately as it differs depend-

ing on the use-case and it can be accessed through

a LandmarkMapper class. In the following, we will

extend this code snippet and build a 3D face frontal-

isation example with the software framework in only

a few lines of code.

In addition to loading the Surrey Face Models, we

provide a script to convert and load the Basel Face

Model.

3.2 Landmark Fitting

The library includes methods to ﬁt the pose and shape

of a model and perform face frontalisation. This sec-

tion describes the individual components and how

they ﬁt together.

The functionality described in this paper is based on

v0.5.0. Naturally, software evolves, and certain parts might

be slightly different in future versions. We encourage users

to look at the example app of the most current version.

For the sake of brevity, we omit namespaces in the code

examples. Where not otherwise indicated, types and func-

tions are either in the std or our library’s namespace.

3.2.1 Pose Estimation

The ﬁrst component presented here is pose (camera)

ﬁtting. Given a set of 2D landmark locations and their

known correspondences in the 3D Morphable Model,

the goal is to estimate the pose of the face (or the po-

sition of the camera, which in this case is the identical

problem). We assume an afﬁne camera model and

implement the Gold Standard Algorithm of Hartley

& Zisserman (Hartley and Zisserman, 2004), which

ﬁnds a least squares approximation of a camera ma-

trix given a number of 2D - 3D point pairs.

First, the detected or labeled 2D landmark points

in the image x

∈R

and the corresponding 3D model

points X

∈ R

(both represented in homogeneous

coordinates) are normalised by similarity transforms

that translate the centroid of the image and model

points to the origin and scale them so that the Root-

Mean-Square distance from their origin is

√

2 for the

landmark and

√

3 for the model points respectively:

˜x

= Tx

with T ∈R

3×3

, and

= UX

with U ∈R

4×4

Using ≥ 4 landmark points, we then compute a nor-

malised camera matrix

C ∈R

3×4

using the Gold Stan-

dard Algorithm (Hartley and Zisserman, 2004) and

obtain the ﬁnal camera matrix after denormalising:

C = T

−1

CU.

Computing the camera matrix C involves solving

a linear system of equations - the algorithm calculates

the least squares solution, so any number of corre-

sponding points can be given. This process is also

very fast, taking only a few milliseconds to compute.

The function in our library can be run by simply

loading and deﬁning point correspondences and then

calling the algorithm:

vector<cv::Vec2f> image_points = ...;

vector<cv::Vec3f> model_points = ...;

Mat affine_camera =

estimate_affine_camera(image_points,

model_points);

→

which returns the estimated 3×4 afﬁne camera matrix

that can subsequently be used in the next steps.

3.2.2 Shape Fitting

The second component in our face frontalisation ex-

ample consists of reconstructing the 3D shape using

the estimated camera matrix. We implement a sim-

ple shape-to-landmarks ﬁtting similar to the algorithm

from Aldrian & Smith (Aldrian and Smith, 2013). We

ﬁnd the most likely vector of PCA shape coefﬁcients

α by minimising the following cost function:

E =

∑

i=1

m2D,i

−y

)

2σ

+ kαk

, (3)

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

where N is the number of landmarks, y are detected or

labelled 2D landmarks in homogeneous coordinates,

is an optional variance for these landmark points,

and y

m2D

is the projection of the 3D Morphable Model

shape to 2D using the estimated camera matrix. More

speciﬁcally, y

m2D,i

= P

·(

α +

v), where P

is the

i-th row of P and P is a matrix that has copies of the

camera matrix C on its diagonal, and

is a modi-

ﬁed PCA basis matrix that consists of a sub-selection

of the rows that correspond to the landmark points

that the shape is ﬁtted to. Additionally, a row of

zeros is inserted after every third row to accommo-

date for homogeneous coordinates, and the basis vec-

tors are multiplied with the square root of their re-

spective eigenvalue. The cost function in (3) can be

brought into a standard linear least squares formula-

tion. For details of the algorithm, we refer the reader

to (Aldrian and Smith, 2013).

This functionality is directly mapped into code.

The shape coefﬁcients can be estimated as:

vector<float> shape_coefficients =

fit_shape_to_landmarks_linear(model,

affine_camera, image_points,

vertex_indices, lambda);

→

The ﬁrst three parameters are given from the previ-

ous step. The vertex_indices are obtained with the

supplied landmark annotation metadata and the map-

ping facilities of the library - we refer to the online

material for the full documentation. lambda is an op-

tional regularisation parameter to constrain the opti-

misation to plausible shapes.

The pose estimation and shape ﬁtting steps can be

iterated if desired to reﬁne the estimates. The pose es-

timation can make use of the shape estimate (instead

of using the mean face) to reﬁne the face pose. The

shape estimate can in turn use the reﬁned camera ma-

trix to improve the shape ﬁtting. The shape estimation

is as fast as the pose estimation: each of them only in-

volves solving a small linear system of equations and

runs in the order of milliseconds.

3.2.3 Texture Representation

After obtaining the pose and shape coefﬁcients, there

is a dense correspondence between mesh vertices and

the face in the input image. We can then remap the

texture onto the model, and store it, and re-render it

in arbitrary poses, e.g. frontalise it. The texture can

be extracted and stored in the isomap introduced in

Section 2.5 with another simple call to the library:

Mesh model_instance =

model.draw_sample(shape_coefficients);→

Mat isomap = extract_texture(model_instance,

affine_camera, input_image);→

Note that, in addition to being used to remap the

texture or visualise the model, draw sample allows

drawing arbitrary samples from the model, for exam-

ple to generate artiﬁcial training data from the 3D face

model.

Figure 9 shows an example ﬁtting with the input

image, the resulting shape and camera model ﬁtting,

and the extracted face texture as an isomap. In the

ﬁgure, regions of self-occlusion are depicted as white

spots; however, in the isomap, they are identiﬁed by

the alpha channel.

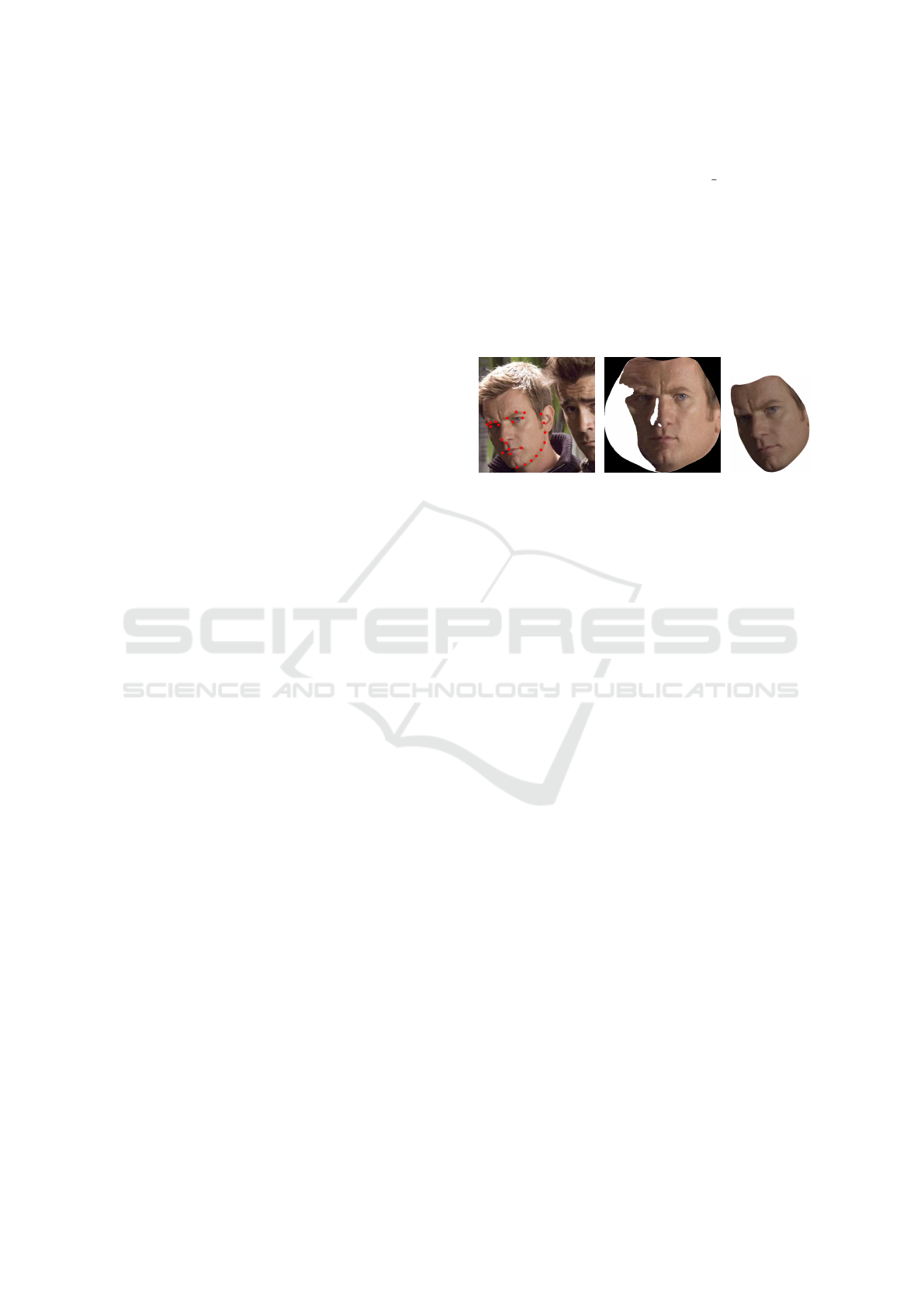

Figure 9: An example result of the landmark ﬁtting. (left):

Input image from LFPW. (middle): The extracted face tex-

ture as isomap. Regions of self-occlusion are depicted in

white. (right): Resulting shape and camera model ﬁtting.

This section presented how the proposed

lightweight library makes it possible to build a

real-time 3D pose estimation and face frontalisation

system with little effort. The example code snippets

from these sections can be combined into a fully

working application with not many more lines than

presented here. The pose estimation and landmark

ﬁtting run in a matter of milliseconds, while the

texture remapping is the slowest component taking

around 100 milliseconds (measured on an Intel Core

i7-4700MQ). That is, to reduce dependencies of the

framework and to make it run on any environment,

it is not using OpenGL or any other acceleration

technique. The main goals of the library are that it

is simple, easy to use, easy to integrate into existing

software and extensible. The full documentation,

which includes additional functionality not presented

here, as well as the complete and documented

example application from this section, are available

in the library repository.

4 CONCLUSIONS

We presented the Surrey Face Model, a multi-

resolution 3D Morphable Face Model that is pub-

licly available for non-commercial purposes. The

model is available in three different resolution lev-

els and accompanied by isomap coordinates and land-

mark metadata. We introduced a lightweight header-

only library written in modern C++ that accompanies

A Multiresolution 3D Morphable Face Model and Fitting Framework

the model and is actively developed on GitHub at

https://github.com/patrikhuber/eos. The software fea-

tures real-time shape model ﬁtting and face frontalisa-

tion functionality and interoperability with OpenCV.

In contrast to existing work, the Surrey Face

Model is available in multiple resolution levels and

is built from racially diverse scans. Furthermore,

a model-ﬁtting software is available alongside the

model to ﬁt the model to novel images and videos.

By designing the whole framework with simplicity

as its foremost goal and using a public place for de-

velopment and interaction, we hope to spur research

with 3D Morphable Face Models in the community

and encourage new parties to tackle their challenges

with 3D face models. In addition to the full 3DMM

being available via the University, we release a low-

resolution shape model distributed directly within the

public repository so that interested researchers can be

ready-to-go in a matter of minutes.

Instructions to acquire the full model are available

at http://cvssp.org/facemodel.

ACKNOWLEDGEMENTS

Partial support from the BEAT project (Euro-

pean Union’s Seventh Framework Programme, grant

agreement 284989) and the EPSRC Programme Grant

EP/N007743/1 is gratefully acknowledged.

REFERENCES

Aldrian, O. and Smith, W. A. P. (2013). Inverse rendering

of faces with a 3D Morphable Model. IEEE Trans-

actions on Pattern Analysis and Machine Intelligence,

35(5):1080–1093.

Blanz, V. and Vetter, T. (1999). A Morphable Model for the

synthesis of 3D faces. In Proceedings of the 26th An-

nual Conference on Computer Graphics and Interac-

tive Techniques (SIGGRAPH), pages 187–194. ACM

Press/Addison-Wesley Publishing Co.

Cootes, T., Edwards, G., and Taylor, C. (2001). Active ap-

pearance models. IEEE Transactions on Pattern Anal-

ysis and Machine Intelligence, 23(6):681 –685.

Feng, Z.-H., Huber, P., Kittler, J., Christmas, W., and Wu,

X.-J. (2015). Random cascaded-regression copse for

robust facial landmark detection. IEEE Signal Pro-

cessing Letters, 22(1):76–80.

Hartley, R. I. and Zisserman, A. (2004). Multiple View Ge-

ometry in Computer Vision. Cambridge University

Press, second edition.

Hu, G., Chan, C.-H., Kittler, J., and Christmas, W. (2012).

Resolution-aware 3D Morphable Model. In British

Machine Vision Conference (BMVC), pages 1–10.

Huber, P., Feng, Z., Christmas, W., Kittler, J., and R

atsch,

M. (2015). Fitting 3D Morphable Models using local

features. In IEEE International Conference on Image

Processing (ICIP).

Paysan, P., Knothe, R., Amberg, B., Romdhani, S., and Vet-

ter, T. (2009). A 3D face model for pose and illumi-

nation invariant face recognition. In Proceedings of

the 6th IEEE International Conference on Advanced

Video and Signal based Surveillance (AVSS).

atsch, M., Huber, P., Quick, P., Frank, T., and Vetter,

T. (2012). Wavelet reduced support vector regres-

sion for efﬁcient and robust head pose estimation. In

IEEE Ninth Conference on Computer and Robot Vi-

sion (CRV), pages 260–267.

Rodr

ıguez, J. R. T. (2007). 3D Face Modelling for 2D+3D

Face Recognition. PhD thesis, University of Surrey.

Romdhani, S. and Vetter, T. (2005). Estimating 3D shape

and texture using pixel intensity, edges, specular high-

lights, texture constraints and a prior. In IEEE Con-

ference on Computer Vision and Pattern Recognition

(CVPR), volume 2, pages 986–993. IEEE.

Sarkar, S. (2005). USF HumanID 3D face dataset.

Tena, J. R., Hamouz, M., Hilton, A., and Illingworth, J.

(2006). A validated method for dense non-rigid 3D

face registration. In Advanced Video and Signal Based

Surveillance, 2006 IEEE International Conference on

Video and Signal Based Surveillance (AVSS’06), 22-

24 November 2006, Sydney, Australia., page 81. IEEE

Computer Society.

Tenenbaum, J. B., de Silva, V., and Langford, J. C. (2000).

A global geometric framework for nonlinear dimen-

sionality reduction. Science, 290:2319–2323.

van Rootseler, R. T. A., Spreeuwers, L. J., and Veldhuis, R.

N. J. (2012). Using 3D Morphable Models for face

recognition in video. In Proceedings of the 33rd WIC

Symposium on Information Theory in the Benelux.

Velho, L. and Zorin, D. (2001). 4-8 subdivision. Computer

Aided Geometric Design, 18(5):397–427.

Zhu, X., Yan, J., Yi, D., Lei, Z., and Li, S. Z. (2015).

Discriminative 3D Morphable Model ﬁtting. In In-

ternational Conference on Automatic Face and Ges-

ture Recognition, FG 2015, 4-8 May, 2015, Ljubljana,

Slovenia. IEEE.

Zivanov, J., Forster, A., Sch

onborn, S., and Vetter, T.

(2013). Human face shape analysis under spherical

harmonics illumination considering self occlusion. In

International Conference on Biometrics, ICB 2013, 4-

7 June, 2013, Madrid, Spain, pages 1–8. IEEE.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications
