RSViewer: An Efficient Video Viewer for Racquet Sports Focusing on
Rally Scenes
Shunya Kawamura
1
, Tsukasa Fukusato
1
, Tatsunori Hirai
1
and Shigeo Morishima
2
1
Waseda University, Tokyo, Japan
2
Waseda Research Institute for Science and Engineering / JST CREST, Tokyo, Japan
K
eywords:
Video Summarization, Rally Shot Detection, Shot Evaluation, Fast-Forwarding, User Interface.
Abstract:
This paper presents RSViewer, a video browsing system specialized for racquet sports, which reflects users’
interests. Methods to support users in browsing racquet sports matches by summarizing video composed of
important rally shots have been discussed in a previous study. However, the method is not practical enough
because the auditory events should be manually annotated in advance to detect such scenes. Therefore, we
propose an automatic rally shot detection based on shot clustering method using white line detection. Our
system calculates the importance of rally shots based on audio features. As the result, the summarized video
can facilitate users find and review the information they need. The result of experiments shows that our
method is effective in an aspect of efficient video browsing experience. Furthermore, we propose a high-speed
playback method customized to racquet sports video and realize more efficient video browsing experience.
1 INTRODUCTION
Many people enjoy watching sports video on TV
or through the internet in their spare time. The
development of broadcasting system made it possi-
ble for people to watch video whenever they want.
However, watching a racquet sport video (RSV) is
time-consuming due to the following reason: many
games are held as a tournament and they are often
long matches (e.g., an average tennis match is over
two hour). As the result, viewers who do not have
enough time cannot watch several matches. More-
over, when they watch one match, frequent and unim-
portant scenes to understand the whole game, such
as change court and break time to play, make them
weary. Accordingly, a system that enables users to
efficiently watch RSV is necessary.
In this paper, we propose a RSV browsing system
employing unsupervised rally shot detection based
on visual features and rally-rank evaluation based on
subjective evaluation. A system overview of our im-
portant rally detection is shown in Figure 1. This pro-
cess is composed of the following two parts: (Step
1) rally shot detection is performed to generate the
summary composed of only rally scenes. Since rally
scenes can be detected by finding scenes which con-
tain white lines, our system detects clusters composed
of rally shots in an unsupervised manner. (Step 2)
Rally Length
PitchVolume
Step 1
Rally Shot Detection
Non-Rally
Rally
Non-Rally
Non-Rally
Step 2
Rally-Rank Evaluation
Step 3
Video Summarization
With white line
=
Without white line
=
Figure 1: System overview of our important rally detection.
All of the process is automatic without any pre-information
while state-of-the-art method needs manually labelled audio
information.
The importance of each detected rally shot is eval-
uated on the basis of audio- and content-based fea-
Kawamura, S., Fukusato, T., Hirai, T. and Morishima, S.
RSViewer: An Efficient Video Viewer for Racquet Sports Focusing on Rally Scenes.
DOI: 10.5220/0005670802470254
In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 2: IVAPP, pages 249-256
ISBN: 978-989-758-175-5
Copyright
c
2016 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved
249
tures. Given the results of rally-rank evaluation, users
can watch the resulting short video summary that is
composed of only important rally shots. Additionally,

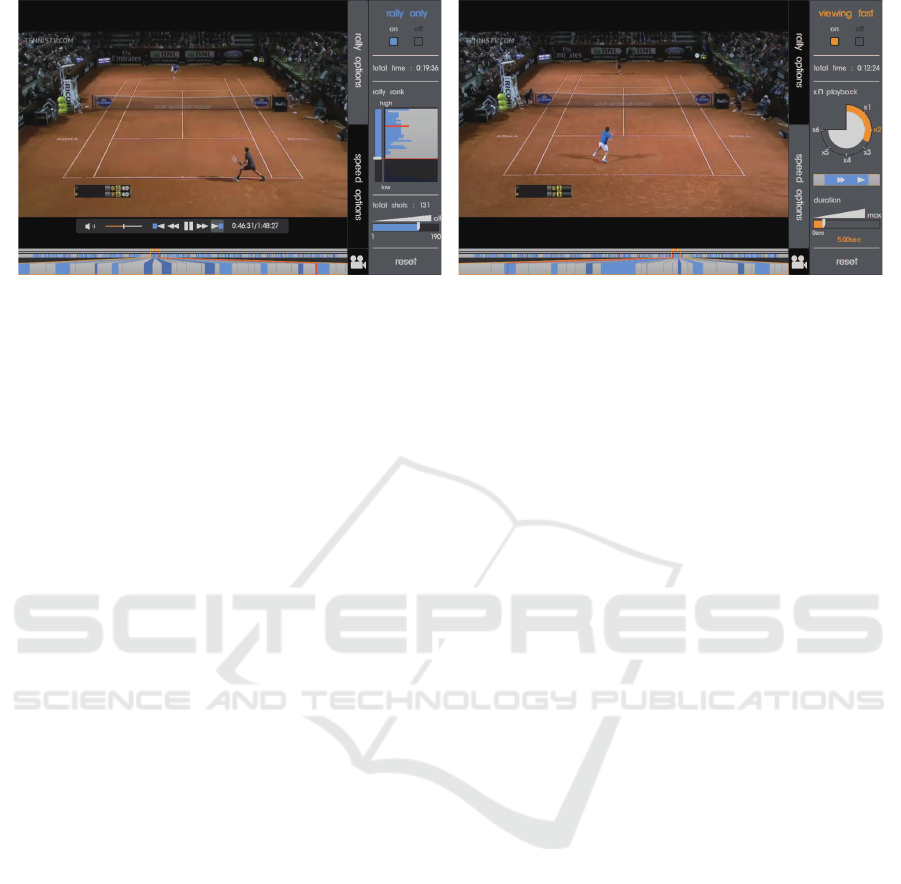

we present an efficient viewing system “RSViewer,”
a double meaning of “RSV viewer” and “Rally Scene
Viewer.” With its functions of important rally scene
playback and its fast-forwarding, users can gain their
satisfying experience to watch RSV focusing on rally
scenes.
2 RELATED WORK
There are two approaches to efficiently watch a video:
scene-based summarization and fast-forward view-
ing. Scene-based summarization aims to generate the
highlight video called “video summary” and is ap-
plied to various sports video (Liu et al., 2009), (Tjon-
dronegoro et al., 2004), (Zhao et al., 2012). Liu et
al. proposed a method for rally shot detection based
on unsupervised shot clustering and supervised au-
dio classification using Support Vector Machines (Liu
et al., 2009). This method can detect rally shots with
high accuracy. However, video editors must manu-
ally annotate labels of audio information for the first
30 minutes to create the summary. Tjondronegoro
et al. proposed a highlight scene detection for var-
ious sports video based on a cheer, whistle and text
information (Tjondronegoro et al., 2004). Zhao et
al. extracted the replay scene by searching logos that
located before and after replays (Zhao et al., 2012).
Highlights and replays can attract viewers and are
very important scene because they are selected by
skilled editors. Such scenes enable viewers to atten-
tively watch a specific motion, while it is difficult to
understand the tide of the game by the lack of infor-
mation such as scores. Hence, highlights and replays
are inadequate for the video summarization with the
understanding of the game.
Fast-forward viewing approach aims to let view-
ers watch all of the video in a short time without re-
moving any scene (Cheng et al., 2009), (Kurihara,
2012). Cheng et al. presented a system to watch a
video with positively or negatively accelerating the
playback speed (Cheng et al., 2009). Users can watch
their interested scenes on low speed playback and skip
their insensitive ones on high speed playback. How-
ever, this system has some limitation; for example,
if users do not understand the scene structure of the
video, to control the playback speed is difficult since
they cannot predict when their interested scenes start.
Kurihara proposed two-level fast-forwarding system
for movies based on subtitles (Kurihara, 2012). How-
ever, this method is not suited to RSV because usually
Table 1: Mainly representative scenes on broadcast RSV.
Period Scenes
broadcast start
commentator’s talk,
∼ before game start
player introduction,
practice, fan
rally, change court, fan,
game start ∼ game set replay, player’s zoom,
court maintenance
after game set commentator’s talk, fan,
∼ broadcast end interview, ceremony
there is no subtitle in RSV and fewer speech than in a
movie content.
As the related work of racquet sports recognition,
methods to detect events, such as services and net
play, have been proposed (Chang et al., 2012), (Chen
and Zhang, 2006), (Huang et al., 2012). While event
detection is helpful for evaluating rally importance,
it is inadequate for RSV summarization because con-
sidering lots of events makes the summarizing pro-
cess much complicated. To detect events in RSV,
rally scene detection is essential and has been dis-
cussed in previous studies (Kijak et al., 2003), (Liu
et al., 2009), (Zhong and Chang, 2001). However,
these methods require models which are adapted for
an input video. Our approach overcomes such prob-
lem and enables automatic detection and summariza-
tion of rally scenes only by video input.
Compared with the prior studies, our main con-
tributions are following two points: i) our method
is fully automatic while preserving the quality of the
video summary and ii) our system is the first work to
present an user interface specialized for RSV includ-
ing summarization and fast-forwarding functions.
3 RSV’S STRUCTURE
We will describe the structure of RSV treated in this
study. On our observation, the period of broadcast-
ing RSV is divided into three parts: “broadcast start
∼ before game start,” “game start ∼ game set,” “after
game set ∼ broadcast end.” Table 1 shows the scenes
mainly included in the three periods. In table 1, the
scenes that allow viewers to understand the racquet
sports match are “rally scene” and “replay scene.” In
rally scenes, a scoreboard is always displayed and
all of players’ ball hits are included, whereas replay
scenes have only a few ones without any scoreboard.
Therefore, we assume that the most important scene
for understanding the match is a rally scene, and aim
to generate the video summary composed of only im-
portant rally scenes.
IVAPP 2016 - International Conference on Information Visualization Theory and Applications
250
Rally scene Replay scene
White region Edge region
Rally
Player A Player B
Replay
Step 1
Shot Clustering
Step 2
Rally Cluster Decision
Mean image generation
A
B
White-line image generation
White line detection
C
Rally scene
White line image
Other scene
White line image

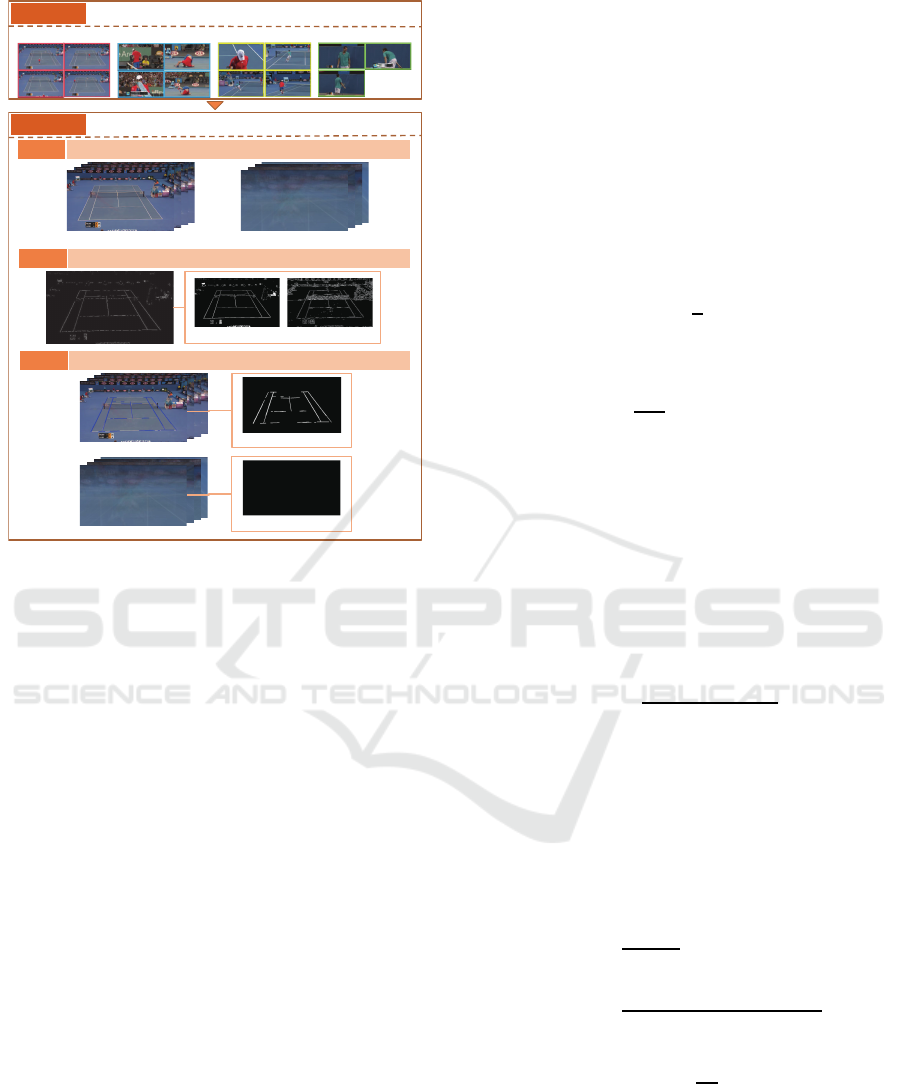

Figure 2: Overview of our rally shot detection. This method
is composed of two parts: shot clustering and rally cluster
decision. After the shot clustering, rally scenes are detected
on the basis of white line detection for mean images.
4 RALLY SHOT DETECTION
We assume that the rally scene is most important to
understand racquet sports matches. First of all, we
automatically detect rally shots for summarizing var-
ious RSV. Figure 2 shows the overview of our rally
shot detection.
4.1 Method
4.1.1 Shot Clustering
Outline. First, after the segmentation of the input
video into shots based on Lian’s technique (Lian
et al., 2010), we perform Liu’s unsupervised shot
clustering (Figure 2, Step 1) (Liu et al., 2009) .
This method enables to automatically decide the
number of clusters by the merging stop criterion
and is suitable for generating the video summary
without any pre-information. The main idea is the
repetition of the following three steps: (i) calculate
the distance (scene similarity) of every two shots (or
clusters) on the basis of HSV histogram. (ii) merge
the most similar two shots into one cluster. (iii)

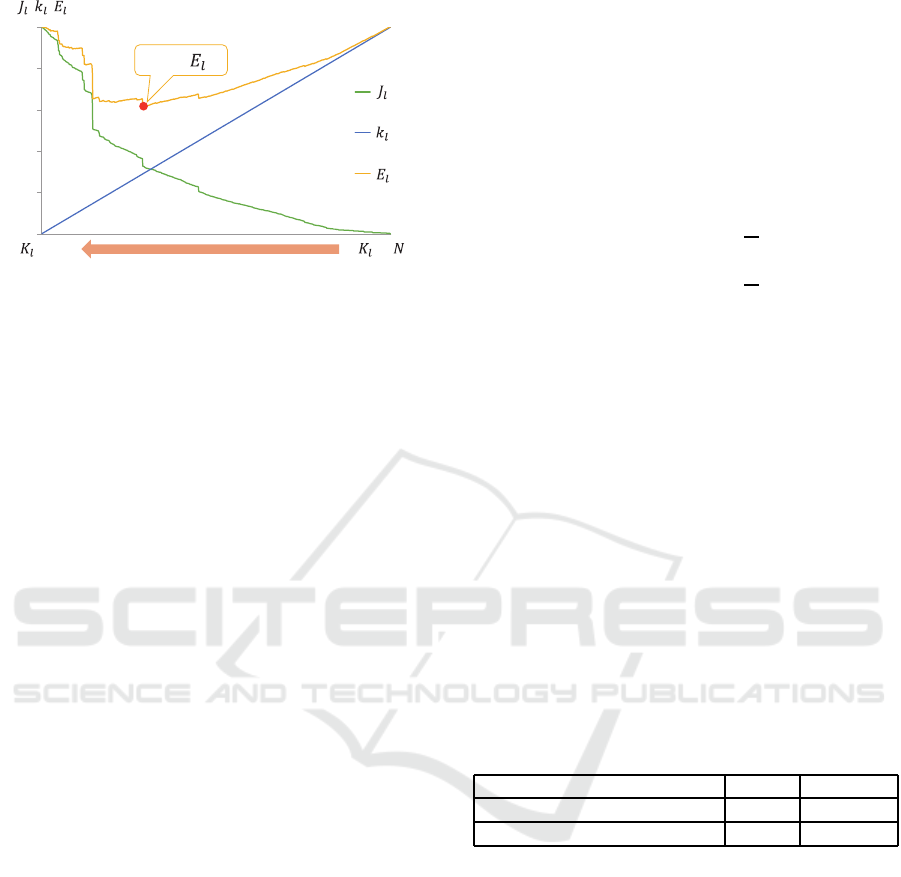

when the criterion, discussed in detail later, reaches
the minimum, the merging process is stopped and
the clusters composed of similar shots are generated
(otherwise, repeat these process from (i)).
Process. Firstly, key frames k
i
l
(l = {1,L}) are
extracted from the i-th shot at equal intervals (in this
paper, L = 5). From the key frames, HSV color his-
tograms are computed to evaluate the shot similarity,
quantized into 256 color bins (H*S*V = 16*4*4).
Using these features, the distance (scene similarity)
of every two shots (or clusters) is calculated as
follows.
SD(s
i
,s
j
) =
1
2
M +
ˆ
M
(1)
M = min
n
d
k
i
l
1
,k
j
l
2
o
(2)
d(k
i
l
1
,k
j
l
2
) =
1
256
Σ
256
b=1
|H
i
l
1
(b) − H
j
l
2
(b)| (3)
where s
i
, s
j
are respectively i-th shot and j-th one,
M and
ˆ
M are respectively the minimum and second
minimum values, d(k
i
l
1
,k
j
l
2
) is the HSV histogram dis-
tance between key frames k
i
l
1
and k
i
l
2
, H
i
l
is a color his-
togram value in k
i
l
, and b is a number in the 256 color
bins. The resulting closest pair of shots (or scenes) is
merged into one new scene cluster n. Then, to update
the key frames’ histograms of the cluster n, Equation
(4) is applied.
H
n
l
=
N
i
∗ H
i
l
+ N
j
∗ H
j
l
N
i
+ N
j
(4)
where N
i
and N
j
are the number of frames in i-th and
j-th shot, respectively. By the repetition of the above
process, we perform the shot clustering. Finally, the
number of repetition times are decided by calculating
the minimum of Equation (5).
E
n
= J
n
+ k
n
(5)
J
n
=
Σ
K
n
c=0
J
c
w
J
inter
=
Σ
K
n
c=0
Σ
N
c
i=0
kH
i
L/2
− H
c
mean
k
Σ
N
i=0
kH
i
init
L/2
− H
mean
k
(6)
k
n
=
K
n
N
(7)
where J
inter
is the total inter-cluster scatter before
clustering, J
c
w
is the intra-cluster scatter of scene clus-
ter c, N and N
c
are the total shot numbers before clus-
tering and of scene cluster c, respectively. k • k is the
Euclidean distance, H
i
init
L/2
and H
i
L/2
are the i-th shot
before clustering and in scene cluster c, respectively.
RSViewer: An Efficient Video Viewer for Racquet Sports Focusing on Rally Scenes
251
0
0.2
0.4
0.6
0.8
1
J_l
K_l
E_l
, ,
The number of clusters
= 0 =
min
䠄beginning䠅
Figure 3: Instances of the transition of evaluation functions
(E
l
, J
l
and k
l
) for the number of clusters. When E
l
is a
minimum value, the clustering process is stopped and the
number of clusters are decided.
H
mean
and H
c
mean
are the mean feature values of the
shots before clustering and in scene cluster c, respec-
tively. k
n
is the ratio of the scene number to the total
number of shots before clustering. Figure 3 shows the
transition of evaluation function (E
l
, J
l
and k
l
) for the
total number of clusters. Since the total number of
clusters get fewer, J
l
value increases and k
n
decreases
on the clustering process. With this tradeoff between
J
l
value and k
n
, we empirically try to find a stop point
of the clustering. When E
l
reaches a minimum value,
the clustering process is stopped and the number of
clusters are decided. The resulting clusters are com-
posed of shots which have similar color. In RSV, we
can generate scene clusters such as rallies, replays and
players’ zoom, as shown in Step 1 of Figure 2.
4.1.2 Rally Cluster Decision
We describe a method to detect rally clusters with-
out supervised learning. First, clusters composed of
only a few shots are considered as non-rally ones be-
cause the rate of rally shots in RSV is more than
10%. To determine rally clusters from the remain-
ing clusters, we focus on court lines which always
exist in rally scenes. In rally scenes, court lines are
continually projected on the same position since cam-
era position and direction are generally fixed. In
other scenes (non-rally scenes), court lines move on
the screen since camera position and direction of-
ten change. Therefore, by generating a mean image
from each shot, we can detect rally scenes because
white lines remain on the images only from rally shots
and are blurred from the others (Figure 2, Step 2.C).
White lines on the mean image are detected, and if the
rate of the number of shots with white lines to that of
shots in the cluster is high (over 60% in this paper),
all shots in the cluster are decided as rally ones.
4.2 Experiment and Result
We tested the performance of rally shot detection.
First, we detected rally scenes included in approxi-
mately two-hour tennis video (clay court) with our un-
supervised method and Liu’s supervised method (Liu
et al., 2009). In this experiments, we used criteria
called “Precision” and “Recall” rate. They are defined
as
Precision =
C
D
(8)
Recall =
C
T
(9)
where T is the actual number of rally shots, D is the
detected number of them, and C is the correctly de-
tected number of them. Table 2 shows the comparison
of the detection accuracy. Our method and Liu’s one
can detect the rally scene with same accuracy (pre-
cision and recall rate) because they detect the same
clusters as rally ones. Since we are able to automati-
cally detect rally shots using an unsupervised method,
our method is superior to Liu’s method. Furthermore,
Table 3 shows the performance for six RSV. While the
precision rate of table tennis video are lower because
lots of court-view shots such as practice in pre-match
and court-maintenance scenes are included, almost all
of the recall rate is high. Therefore, this detection
accuracy is sufficient for watching most of all rallies
when the video summary is generated.
Table 2: Comparison of the accuracy of rally shot detection
(Liu’s method and our system). The tested video includes
192 rallies in 962 shots.
Method Recall Precision
Liu et al., 2009 (supervised) 0.984 0.900
Our method (unsupervised) 0.984 0.900
5 RALLY-RANK EVALUATION
5.1 Method
We quantitatively calculate each rally’s importance
using the following three features: volume V, pitch
P and rally length L. We evaluate the cheer volume,
which becomes large value in case of the exciting
rally or the important point. Pitch means the voice
pitch, which gets higher when spectators are excited.
This value greatly varies whether a player scores or
not. In a tennis video, for example, P value is very
small when a player services a first fault. Moreover,
we consider rally shot length L, assuming that longer
IVAPP 2016 - International Conference on Information Visualization Theory and Applications
252
Table 3: Accuracy of our rally shot detection method for various RSV.
Number of shots
Input video Tournament
Rally Total
Recall Precision
Tennis [clay] Rome Semi-Final 2012 192 962 0.984 0.900
Tennis [hard] Indian Wells Semi-Final 2012 157 744 1.000 0.981
Badminton 1 Mumbai Masters 2013 94 408 1.000 0.949
Badminton 2 BWF Championships Final 2013 109 789 0.972 0.972
Table tennis 1 World Table Tennis Championships 2013 70 290 1.000 0.642
Table tennis 2 London Olympics Semi-Final 2012 88 629 1.000 0.688
Total – 710 3822 0.992 0.864
rallies are more interesting. Given the volume V
r
,
pitch P
r
, and rally length L
r
, each rally rank I
r
for
the r-th rally is calculated as
I
r
= αV
r
+ βP
r
+ γL
r
+ δ (10)
where pitch and volume are respectively calculated
by mean values (during 5 seconds) of the spectrum
centroids (i.e., pitch) and the maximum cheer volume
between the second half of a rally shot to 5 seconds
after its end. The weights (α, β, γ and δ) are deter-
mined by multiple regression analysis of the subjec-
tive experiment values. The subjective experimenta-
tion was performed for each type of racquet sports
and almost all of the participants had no experience
with racquet sports. More detail about the experiment
will be described in the following Section 5.2. The
video summary in a certain time is interactively gen-
erated by adjusting a threshold for the evaluated rally
importance.
5.2 Experiment and Result
5.2.1 Experiment
We performed the subjective investigation to calcu-
late the weights in Equation (10). In this experiment,
seven people (including two people with experience
in racquet sports) in their twenties participated. They
watched 120 rallies and subjectively answered each
rally’s excitement as integer values between 1 and 5
(higher scores mean more interest). Rallies that par-
ticipants watched were randomly chosen from two
badminton, two table tennis and two tennis matches
(20 rallies per video) without considering the progress
of matches. The weights of Equation (10) were calcu-
lated from mean values of the subjective evaluation.
As the result, the evaluation values among people
with non-experience and with experience in racquet
sports are similar. Hence, by using Equation (10), we
can generate the video summary regardless of experi-
ence in racquet sports.
0.805
0.676
0.592
0.738
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1
tneiciffeoc noitalerroC
0.680
0.478
0.047
0.579
0.767
0.288
0.310
0.752
Figure 4: Correlation coefficients between mean subjec-
tive value and evaluated values (importances of rally and
each feature’s value. Correlation coefficients of rally im-
portances which are calculated by our rally-rank evaluation
function are highest in all kind of racquet sports).
0
0.2
0.4
0.6
0.8
1
1 21 41 61 81 101 121 141 161 181
Rank :
(First rally)
th rally
(Match point)
1
st
service fault Other rally
Figure 5: Example of rally importance for our evaluation
function. A red point means a first service fault, and blue
one is other rally. There are two red points that are relatively
high because of spectators’ cheers by their misunderstand-
ing the faults as service ace.
5.2.2 Result
To verify that our rally-rank evaluation can reflect
viewers’ interest, we consider experimental results.
We calculated correlation coefficients between mean
subjective value and evaluated values, i.e. importance
of rally and each feature’s value (Figure 4). The result
shows that correlation coefficients between subjective
values and rally importance by our rally-rank evalua-
tion function are highest in all kind of racquet sports.
Therefore, the function evaluates rallies’ importance
on the basis of viewers’ interest. Additionally, the
subjective evaluation values among people with non-
experience and with experience in racquet sports are
similar. Hence, the resulting video summary is re-
RSViewer: An Efficient Video Viewer for Racquet Sports Focusing on Rally Scenes
253
(a) (b)
Figure 6: User Interface. The lower slider bar on the interface shows rally shots as blue bars. Right area is settings; (a) rally
options for rally importance and (b) speed options for fast-forwarding.
gardless of experience in racquet sports if our rally-
rank evaluation function can reflect viewers’ interest.
An example of the ranking result for an approx-
imately two-hour tennis video is shown in Figure 5.
This result shows that first service faults are evalu-
ated in lower importance (red points: 56 shots, in
Figure 5). Therefore, our evaluation function is ef-
fective to exclude unimportant rallies. Additionally,
for higher important rallies for Equation (10), essen-
tial rallies to understand the match result, i.e., game
points and match points, are also evaluated higher.
In brief, both essential rallies and exciting rallies are
evaluated as important ones by considering the ex-
citement in our evaluation function. However, this
function tends to calculate short and important scenes
(e.g., service aces) as low values. To correctly eval-
uate the importance of a specific scene, we will im-
prove our evaluation function, for example, by con-
sidering some image features such as player’s move-
ment.
6 SYSTEM IMPLEMENTATION
This section presents a system that allows users to ef-
ficiently watch RSV. This system has useful functions
based on rally-rank evaluation and fast-forward such
as “SmartPlayer” and “CinemaGazer” (Cheng et al.,
2009), (Kurihara, 2012).
6.1 Interface’s Functions
The user interface for RSV is shown in Figure 6.
This interface is more useful than major video players
such as QuickTime and Windows Media Player in the
following four points: i) users can easily seek rally
scenes by using rally skip buttons. ii) the slider bar
on this interface visualizes all rally shots in the RSV
(below on the interface, blue bars: rally shots). This
visualization is helpful for users who have watched
RSV to seek a specific game and set in a short time.
For example, if they want to watch a game point, they
should select the rally before a long non-rally period.
iii) by adjusting a threshold for the rally importance,
users can watch the video in time they want. iv) fast-
forwarding function enables users to watch the video
in shorter time. More detail is described in the fol-
lowing.
6.1.1 Fast-forwarding
On our observation of some RSV, we assume that
there are the following three factors to understand ral-
lies: ball trajectory, player’s movement, and point.
Ball trajectory means the viewer’s understanding of
ball speed and trajectory in a rally. Watching ball tra-
jectory can assist viewers to understand rally points.
Player’s movement means the viewer’s understanding
of player’s running after and hitting a ball in a rally.
This factor is a criteria that viewers assess player’s
superior or inferiority in a rally and a match. Point
means the viewer’s understanding of which a player
scores in a rally. This is an important factor that al-
lows viewers to understand the result of the match,
especially the winner. Thus, by investigating the re-
lationship between each factor and playback speed,
we can reveal the limit speed of playback with re-
taining the understanding level of the match. The
relationship between the understanding of rallies and
the playback speed is obtained by subjective evalua-
tion such as Kurihara’s experiment (Kurihara, 2012).
All of the participants answered the understanding
of the three factors as integer values between 1 to 5
(higher scores mean their well-understanding) when
they watched each 6 rallies randomly chosen from
IVAPP 2016 - International Conference on Information Visualization Theory and Applications
254
0
0.2
0.4
0.6
0.8
1
1 2 3 4 5 6 7 8 9 10
Playback speed
Point
Player
Ball
0
0.2
0.4
0.6
0.8
1
1 2 3 4 5 6 7 8 9 10
Playback speed
Point
Player
Ball
0
0.2
0.4
0.6
0.8
1
1 2 3 4 5 6 7 8 9 10
Playback speed
Point
Player
Ball
(a) tennis (c) table tennis(b) badminton
UnderstandingUnderstanding Understanding
Figure 7: Relationship between the playback speed and the understanding of ball trajectory, point, and player’s movement:
(a) tennis, (b) badminton, (c) table tennis. Faster playback speed equally decreases the all factors’ understanding regardless
of the kind of racquet sports.
one badminton, one table tennis and one tennis video.
Each rally scene was played from × 10.0 to × 1.0
in decrements of × 0.5. Figure 7 indicates the rela-
tionship between the playback speed and the under-
standing level (average) answered by all participants.
This result shows that faster playback speed equally
decreases the understanding of all factors regardless
of racquet sports. Therefore, we implement the three-
level playback speed according to the understanding
level (100%, 80% and 50%). In addition, with the
understanding of the last few hits in a rally, this sys-
tem plays at normal-speed for the last several period.
This system is based on the following two tenden-
cies in RSV: replay scenes contain only a few hits in
a rally because of their importance, and we can un-
derstand rallies even if the sound is inaudible during
high-speed playback.
6.2 User Experiment
Our interface has been used to watch the RSV sum-
mary, and was also evaluated by users who provided
individual feedback and comments. In this exper-
iment, participants watched some matches of bad-
minton, table tennis and tennis after they received the
explanation of our system. Participants performed the
following three tasks; to watch i) only rally scenes,
ii) high-ranked ones by adjusting a threshold to rally
rank, and iii) ones with fast-forwarding function.
First, we asked participants to watch only rally scenes
in a video. Some participants said “when I watched
RSV, I often became boring because of the long non-
rally period. However, this function is excellent be-
cause I can enjoy only rally scenes.” In other opin-
ion, while it is possible for some viewers, who want to
watch rally scenes focusing on the detail of player’s
movement, to need some replay scenes, the summary
composed of only rally scenes is enough for others
who want to watch only good rallies.
In the video summary, which is generated by their
operation for our summarization system using rally-
rank evaluation, our system can help users to gen-
erate the video summary by interactively adjusting a
threshold to rally rank. Especially, in tennis video,
users can watch the match without discomfort when
first service faults and lets are removed in the sum-
mary video. In future, we plan to add editing func-
tions for detected rally scenes. In our fast-forwarding
system, some users stated that this function was effec-
tive to emphasize the moment that a player scores.
We assumed that this function was for users who
wanted to watch the match in a short time since they
sensed the timing that a rally ended by shifting from
fast-forward to normal playback. In a negative opin-
ion, few people are uncomfortable when the playback
speed changes. In future, we need to consider how to
change the playback speed.
7 CONCLUSION AND FUTURE
WORK
We proposed “RSViewer,” a rally scene viewing sys-
tem for racquet sports. We presented rally shot detec-
tion that enabled to automatically detect rallies with
high accuracy without any annotation. However, it is
difficult to apply our method to other kind of sports
video since our system employed rally scenes’ fea-
ture that the camera position and direction is gener-
ally fixed. We constructed an interface to efficiently
watch a RSV based on rally-rank evaluation and fast-
forwarding. This evaluation metric made it possible
to exclude unimportant rallies from a video summary.
On the other hand, the scenes such as service aces,
RSViewer: An Efficient Video Viewer for Racquet Sports Focusing on Rally Scenes
255
that often attract viewer’s interest, are evaluated as
less important scene since the length is short. To over-
come such a problem, we will consider the players’
movement in rally and replay scene for generating
more informative video summary. Our user interface
enabled users to watch the video summary according
to their preference. Furthermore, by using our fast-
forwarding function, users can watch the video sum-
mary in much shorter time without losing the con-
tent understanding. In future, we will investigate the
perception-based features considering the difference
between people with experience and non-experience
in sports, thereby aiming to implement the system that
allows users to watch the video efficiently and suf-
ficiently. Moreover, we are planning to take users’
experience of the sports into account. In this way, in-
dividuality of perceiving the content of a video might
be considered. We will continue to implement our
system to realize a better user experience of watching
RSV.
ACKNOWLEDGEMENTS
This work was supported by OngaCREST, CREST,
JST.
REFERENCES
Chang, C., Fang, M., Kuo, C., and Yang, N. (2012). Event
detection for broadcast tennis videos based on tra-
jectory analysis. In Proc. of 2nd International Con-
ference on Communications and Networks (CECNet),
pages 1800–1803.
Chen, W. and Zhang, Y. (2006). Tracking ball and players
with applications to highlight ranking of broadcast-
ing table tennis video. In Proc. of IEEE International
Conference on Computational Engineering in Systems
Applications, volume 2, pages 1896–1903.
Cheng, K., Luo, S., Chen, B., and Chu, H. (2009). Smart-
player: user-centric video fast-forwarding. In Proc. of
SIGCHI Conference on Human Factors in Computing
Systems, pages 789–798.
Huang, Q., Cox, S., Zhou, X., and Xie, L. (2012). Detection
of ball hits in a tennis game using audio and visual
information. In Proc. of Asia-Pacific Signal and In-
formation Processing Association Annual Summit and
Conference, pages 1–10.
Kijak, E., Oisel, L., and Gros, P. (2003). Temporal struc-
ture analysis of broadcast tennis video using hidden
markov models. In Proc. of SPIE Storage and Re-
trieval for Media Databases, volume 5021, pages
289–299.
Kurihara, K. (2012). Cinemagazer: a system for watching
videos at very high speed. In Proc. of AVI’12, pages
108–115.
Lian, S., Dong, Y., and Wang, H. (2010). Efficient temporal
segmentation for sports programs with special cases.
In Proc. of the Advances in Multimedia Information
Processing – PCM 2010 PT I, volume 6297, pages
381–391.
Liu, C., Huang, Q., Jiang, S., Xing, L., Ye, Q., and Gao, W.
(2009). A framework for flexible summarization of
racquet sports video using multiple modalities. Com-
puter Vision and Image Understanding, 113(3):415–
424.
Tjondronegoro, D., Chen, Y., and B, P. (2004). Integrating
highlights for more complete sports video summariza-
tion. IEEE Trans on. Multimedia, 11(4):22–27.
Zhao, F., Dong, Y., Wei, Z., and Wang, H. (2012). Match-
ing logos for slow motion replay detection in broad-
cast sports video. In Proc. of IEEE International Con-
ference on Acoustics, Speech and Signal Processing,
pages 1409–1412.
Zhong, D. and Chang, S. (2001). Structure analysis of
sports video using domain models. In Proc. of IEEE
International Conference on Multimedia and Expo,
pages 713–716.
IVAPP 2016 - International Conference on Information Visualization Theory and Applications
256
