TraceMove: A Data-assisted Interface for Sketching 2D Character

Animation

Priyanka Patel, Heena Gupta and Parag Chaudhuri

Department of Computer Science and Engineering, Indian Institute of Technology Bombay, Mumbai, India

Keywords:

Hand-drawn Character Animation, Sketch-based System, Data-assisted.

Abstract:

In this paper we present TraceMove, a system to help novice animators create 2D, hand-drawn, character

animation. The system and interface assists not only in sketching the character properly but also in animating

it. A database of image frames, from recorded videos of humans performing various motions, is used to

provide pose silhouette suggestions as a static pose hint to the users as they draw the character. The user can

trace and draw over the generated suggestions to create the sketch of the pose. Then the sketch of the next

frame of the animation being drawn is automatically generated by the system as a moving pose hint. In order

to do this, the user marks the skeleton of the character in a single sketched pose, and a motion capture database

is used to predict the skeleton for the subsequent frame. The sketched pose is then deformed according to the

predicted skeleton pose. Furthermore, the sketch generated by the system for any frame can always be edited

by the animator. This lets novice artists and animators generate hand-drawn 2D animated characters with

minimal effort.

1 INTRODUCTION

Creating hand-drawn 2D character animation requires

a signiﬁcant amount of skill. Sketching a character to

convey a certain mood or idea is difﬁcult for novice

artists. An animation needs a series of such sketches

and is even more difﬁcult to create. It requires a lot

of skill and effort to create an illusion of life (Thomas

and Johnston, 1995) from sketches, which often de-

tracts and frustrates novice animators.

In this paper, we present TraceMove, a system

that provides hints to the animator as they draw the

sketch of the character for every frame of the ani-

mation, thereby making the creation of the animation

easier for novice animators. The hints provided are

of two kinds. The ﬁrst assists in the sketching of the

static pose and is provided as a background silhou-

ette image of the pose that the animator is trying to

sketch at the current frame. This is predicted by the

system based on the sketch strokes that the animator

has drawn on the frame so far and a database of im-

ages containing humans in various poses. The anima-

tor can choose to follow these hints as much or as lit-

tle as she wants. The second kind of hints are aimed

at assisting the animator in sketching the next pose,

once the current one is ﬁnished. Sketching characters

in motion requires a sense of timing and rhythm of the

movement (Williams, 2009), which is very hard to get

for novice artists. Our system takes the help of motion

capture data to predict the next sketched frame for the

animator. She can draw over this prediction, modify

it as she wishes and proceed. The two kinds of hints

can be interleaved and used as desired on the same

or different frames of the animation, thereby giving

the animator a lot of ﬂexibility and complete control

during the creation process.

We will start with a discussion of the current lit-

erature available in this area in Section 2. We will

follow this up with an overview of our system in Sec-

tion 3. After this we present a detailed discussion

of how we generate the static pose and moving pose

hints, in Sections 3 and 4. We present sketch se-

quences generated using our system in Section 5. We

conclude with a discussion of the limitations of the

system and directions for future work in Section 6

2 RELATED WORK

Sketching is an art form that is ubiquitous in anima-

tion, painting and design. There have been many

systems developed to make sketching accessible to

novice users. The iCanDraw interface (Dixon et al.,

2010) helps the user by providing step by step guid-

ance to draw the human face using a reference image

Patel, P., Gupta, H. and Chaudhuri, P.

TraceMove: A Data-assisted Interface for Sketching 2D Character Animation.

DOI: 10.5220/0005672501890197

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 1: GRAPP, pages 191-199

ISBN: 978-989-758-175-5

191

(a) (b) (c) (d) (e) (f) (g)

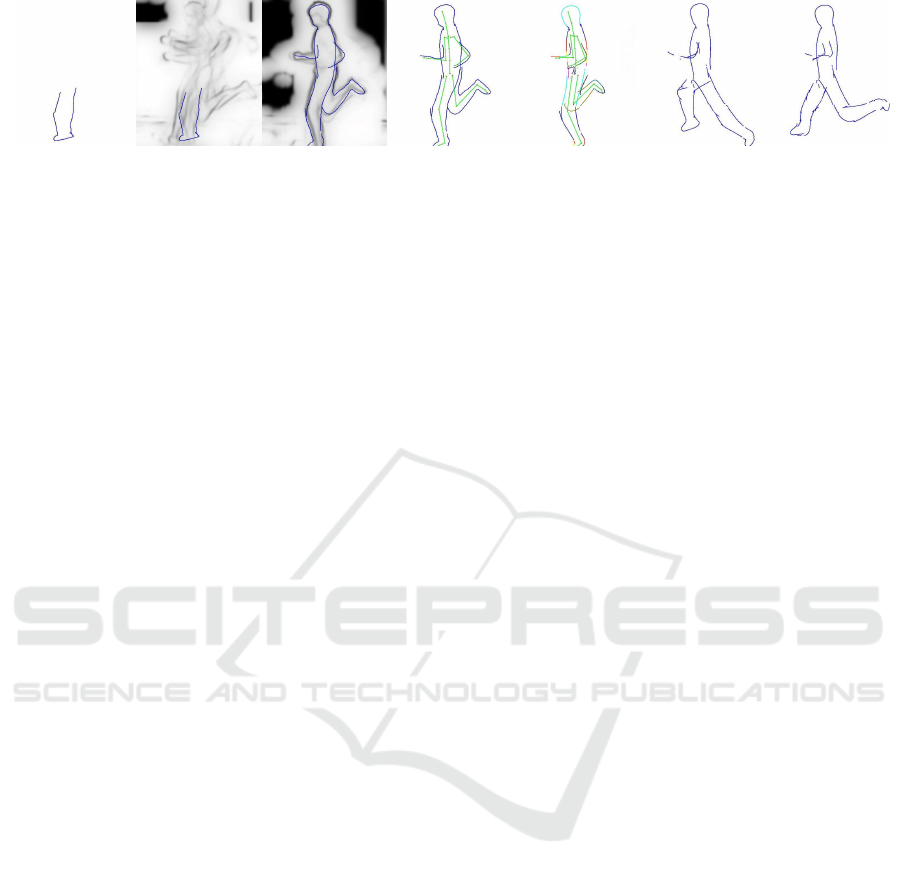

Figure 1: (a) The animator starts to sketch, (b) The static pose hint updates depending on the sketch, (c) The animator can

follow it to complete the sketch, (d)-(e) The moving pose hint predicts the next frame from the current drawn sketch, (f)-(g)

the animator can continue and easily complete the animation.

and written instruction. Other systems try to match

sketch strokes with images (Jacobs et al., 1995),(Chen

et al., 2009) and then these can be used to guide the

sketching. ShadowDraw (Lee et al., 2011) is a sketch-

ing system that presents a shadow image that is a

blend of matching object images from a database. The

user can use the shadow as a draw-over guide to create

a sketch of that object. A part of our system is based

on ShadowDraw, in which we generate the static pose

hint using methods from that paper. A gesture based

rapid 3D sketching system is presented in (Bae et al.,

2009) which allows novice users to sketch designs for

complex objects.

Sketch-based interfaces for modelling and anima-

tion are also an active topic of research in computer

graphics. Sketches have been used for modelling

3D objects from sketches by novice users (Igarashi

et al., 1999), from design sketches (Xu et al., 2014)

or for creating layered additions to exiting 3D mod-

els (De Paoli and Singh, 2015). Sketches have also

been used to pose 3D character models (

Oztireli et al.,

2013).

Sketches have also been used to drive 3D anima-

tion. The input to algorithm described in (Jain et al.,

2009) is a set of hand-drawn frames. The method uses

motion capture data to transfer the 2D animation to

3D, while maintaining the unique style of the input

animation. In an earlier work, (Davis et al., 2003)

takes user drawn stick ﬁgures as input, extracts best

matched 3D skeleton poses for the input ﬁgures and

generates a 3D animation. Inspired by traditional,

hand-drawn animation, silhouette curves are used to

stylize existing 3D animations by (Li et al., 2003).

Motion Doodles (Thorne et al., 2004) is a system that

takes a stick ﬁgure of character and a motion path as

input, and ﬁnally animates the ﬁgure on the path. The

LifeSketch system (Yang and W

unsche, 2010) also

outputs 3D animation of 2D sketch given as an in-

put by user. However, this work makes an assump-

tion that object is blobby and all the parts of objects

are visible. More recent work by (Levi and Gotsman,

2013) creates a 3D model of an articulated character

from multiple sketches and then allows animation of

the character in 3D.

In other prior work (Pan and Zhang, 2011) de-

scribe a skeleton driven 2d animation technique. The

system is provided with one image and then the user

sketches the skeleton for the subsequent frame. The

system deforms the character according to the new

position of the skeleton and creates animations auto-

matically. However, this is very cumbersome because

the user is required to draw the skeleton for all the

frames and no help is provided for sketching the ac-

tual poses. Thus, we ﬁnd that all prior work to our

knowledge, either requires the sketch as input for the

animation or provides no feedback assistance to the

novice animator in creating the animation.

In contrast, our TraceMove system tries to help

novice animators in sketching 2D animations. For

this we not only help in the static pose sketches at

individual frames but also predict sketched poses for

subsequent frames. These hints allow the animator to

create sketched 2D character animations very quickly.

3 SYSTEM OVERVIEW

An overview of the TraceMove system is shown

in Figure 2. We start by pre-processing an image

database of human poses at various stages of multi-

ple motions to edge descriptors (Figure 2(a)). This is

done only once for the entire database. Then the ani-

mator can start sketching and the static pose hint is up-

dated, as required, based on the current sketch avail-

able to the system and the processed image database.

The static pose hint is generated by blending the top

ten edge ﬁgures from database that best match the

sketched pose, in the edge descriptor space (Lee et al.,

2011). This is shown in Figure 2(b)-(c). Once the an-

imator is satisﬁed with the sketch (Figure 2(d)), it is

passed on to the moving pose hint generation module.

We have also pre-processed motion capture data

to obtain 2D projected motion capture data (Fig-

ure 2(e)). Now the animator draws a skeleton on

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

192

Static Pose Hint

Moving Pose Hint

Animation

(b)

(a)

(c)

(d)

(e)

(f)

(g)

(h)

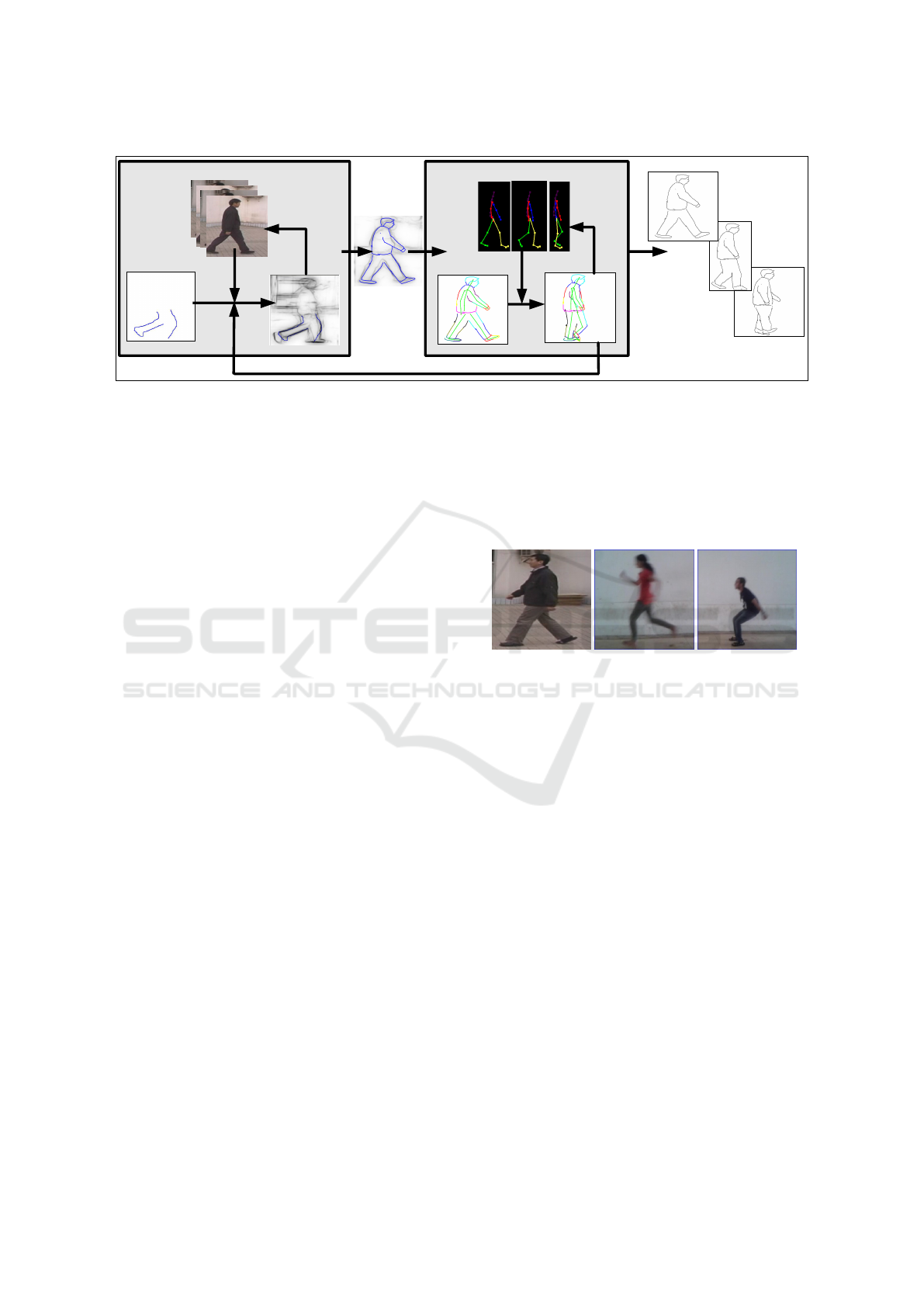

Figure 2: Overview of the TraceMove System.

the sketch by clicking joint positions on the sketch

(Figure 2(f)). This has to be done only for one pose

for the entire animation. The order of clicking is

shown to the animator and automatically establishes

joint correspondences to the skeleton hierarchy used

in the motion capture. The skeleton on the sketch is

used to identify a best matching pose from the mo-

tion capture data, and the subsequent poses to the best

matching pose, are used to ﬁnd corresponding sub-

sequent poses for the skeleton on the sketch, and by

consequence of the sketch itself (Figure 2(g)). At this

point, the animator can choose to manually edit the

predicted sketched pose, again with the help of the

static pose hint or without it. This process is repeated

to get sketches for all the frames of the animation.

It should be noted that the animator can choose to

ignore the static and moving pose hints completely at

any stage, or use them at any stage in the creation pro-

cess. So the system does not stiﬂe the freedom of the

animator, but provides enough help to the novice an-

imator to be able to create convincing sketched char-

acter animations.

The static pose hint generation module of our sys-

tem is based on ShadowDraw (Lee et al., 2011). Our

static pose hint is like the shadow image generated

in that work. We have implemented our system from

scratch and have made some changes to the original

ShadowDraw idea which improve the quality of the

generated hint.

The ﬁrst part of the static pose hint generation

module involves processing a database of ﬁgures of

human in various poses during a motion. For walk-

ing people, we used the CASIA Gait Database (Wang

et al., 2003). For other motions, we created our

own database by recording videos of various motions

on 6 different users. We used the frames of these

videos as ﬁgures in our database, In total the com-

bined database has 3052 frames for 6 different kinds

of motion. Example images from the database can

be seen in Figure 3. The database is processed of-

ﬂine, in a pre-processing step to generate a database

of patch-features from the edge ﬁgures of the ﬁgures

in the original database. These descriptors are then

used to generate the static pose hint while the user

sketches.

Figure 3: Example images from the image database.

3.1 Generating the Database of

Patch-features

The original ﬁgures in the database are converted to

edge ﬁgures, post cropping and size normalization.

We use (Dollr and Zitnick, 2013) to extract long edges

from the ﬁgures. This is important because it is found

that while sketching it is natural to draw the long

edges ﬁrst. So we need an algorithm that can prior-

itize long edges. ShadowDraw (Lee et al., 2011) uses

the work presented in (Bhat et al., 2010) for extract-

ing edges. Our implementation of the same gave ei-

ther faint or very thick edges, so we used the different

method mentioned above.

This is followed by dividing the edge image into

overlapping patches and computing a BICE descrip-

tor for each patch (Zitnick, 2010). We want to match

the user’s sketch to the ﬁgures in the database, in de-

scriptor space. However, computing a match directly

on the descriptor is expensive so it is converted to a

sequence of k values, each generated by applying k

different min-hash functions to the descriptor of the

patch. Each sequence of these k values is a patch-

feature. This is repeated n times, using a different

TraceMove: A Data-assisted Interface for Sketching 2D Character Animation

193

set k hash functions each time, to get n patch-features

for each patch descriptor. Therefore while match-

ing, a potential input patch has to match multiple in-

stances of the same descriptor to be considered a good

match. This reduces both false positives and false

negatives. We have used k = 3 and n = 20. We store

the patch-features with a reference to the original im-

age to which they belong, and the patch location co-

ordinates in the original image in another database.

Figure 4: First column shows the drawn sketch overlaid

on the static pose hint, second and third columns show the

static pose hint and the drawn sketch separately.

3.2 Generating the Static Pose Hint

As soon as the animator ﬁnishes sketching a stroke,

an image of the canvas is converted to patch-features

and only patches containing the strokes are matched

to the database created in the previous section. Top

10 ﬁgures from which maximum number of patch-

features match the patch-features from the input

sketch are aligned and blended. This blended im-

age is then multiplied with its own blurred version to

strengthen edges that match in position between them

and weaken others. This forms the static pose hint im-

age. It is displayed on the drawing area, underlying

the animator’s sketch, and can be updated in real-time

as the animator sketches. We have, however, found

this to be distracting during use. So we give the ani-

mator an option of updating and displaying the static

pose hint on the canvas at the push of a button, in-

stead of updating it continuously on sketching. The

last updated static pose hint is displayed on the side

in a smaller window so that the animator still has a

reference for the pose being sketched but the drawing

area is not obstructed by it. An example of the static

pose hint is shown in Figure 4

4 MOVING POSE HINT

After successfully drawing the character in a particu-

lar pose, the animator now wants to sketch the pose

in the next frame of the animation. The moving

pose hint is meant to help with this. We start with

a database of motion capture clips. This database cur-

rently has 6 different kinds of motions and a total of

625 frames. We project the 3D motion capture data

to 2D, using a camera that projects the root node of

the motion capture skeleton to the origin of the image

coordinate system. We ﬁx other camera parameters

to give us desired projections of the motions being

processed. It should be noted that we can only gen-

erate moving pose hints if the sketch of the character

is from the a viewpoint that is close to the camera

viewpoint used to generate the 2D projections of the

motion capture data. The creation of the 2D projected

motion capture database is a pre-processing step and

has to be performed only once.

4.1 Skeleton Matching

The animator marks the skeleton on the sketch of the

current pose by clicking the joint positions on the

sketch. The joints have to be clicked in a particular

order that is shown in the interface during the click-

ing (as shown in Figure 5(a)). This has to be done

only once for a single sketched pose of the entire an-

imation and is very simple to do. The ordered click-

ing automatically sets up correspondence between the

user marked skeleton and the motion capture skeleton.

(a) (b)

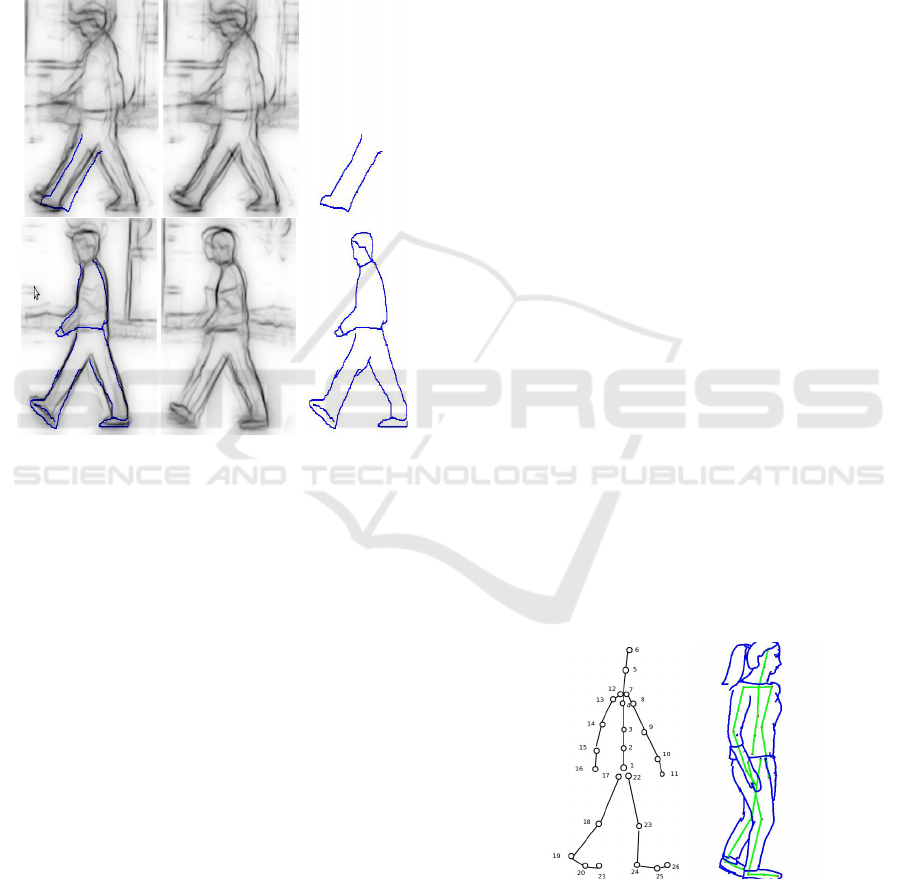

Figure 5: (a) Order in which the skeleton nodes have to

marked by the user, (b) Joint nodes for left arm have to

marked even when it is occluded.

The animator has to mark the entire skeleton even

if a part of the body is occluded in the current sketch.

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

194

For example, as shown in Figure 5(b), one arm of the

character may be occluded but all the skeleton nodes

for that limb have to marked approximately.

After the skeleton is marked on the sketch, its

bones are re-scaled to match the bone length of the

skeleton in the motion capture database. This is nec-

essary because the bone lengths of the motion capture

skeleton are ﬁxed, while bone lengths of the sketch

skeleton can vary with the sketch. Therefore, we

determine scale factors needed to scale the sketched

skeleton bones appropriately. If S

is the scale factor

for i

bone, L

sketch

and L

mocap

are bone lengths of i

bones of the skeleton on the sketch and in the motion

capture database, respectively.

mocap

sketch

(1)

This scale factor is applied to each bone of skele-

ton on the sketch. We also calculate the inverse scale

factor, IS

= 1/S

that is used later in our calculations.

After scaling the skeleton on the sketch, the sys-

tem searches for the best matching frame in the mo-

tion capture data such that the pose of the skeleton

in that frame best matches the sketched pose. This

is done by minimizing, over all frames, a distance

metric that sums the Euclidean distance between the

corresponding root-centred joint coordinates of the

sketch and motion capture skeleton joints.

= min

{

∑

dist(C

sketch

mocap

)} (2)

Here D

is the minimum value of distance metric,

sketch

is the coordinate of the k

joint of the sketched

skeleton with the root of the skeleton as the origin,

and the C

mocap

is the similar coordinate of the corre-

sponding joint of the skeleton in the motion capture

data and t iterates over all the frames of the database.

Now we can predict the next pose for the sketch from

the pose of the skeleton that follows the best matching

skeleton in the motion capture data. This predicted

sketch is the motion pose hint. But before we can do

that we need to be able to deform the sketched pose

using the skeleton. This requires us to rig the sketch

with the sketched skeleton.

4.2 Rigging

In order to facilitate rigging, every sketch stroke is in-

ternally converted to a B

ezier curve. Rigging is com-

puted automatically by the system on the basis of dis-

tance of the curve points from skeleton bones. Every

curve point is associated with at least one skeleton

bone. Curve points near a skeleton joint are associ-

ated to both bones at the joint. Weights are assigned

to the curve points by inverse weighting them by their

distance from the bone.

Due to ambiguity of 2D projection, there are cases

where automatic rigging incorrectly associates curves

with skeleton bones. This causes erroneous deforma-

tion of the sketch when the skeleton moves. In such

cases, animator can correct this simply by going to

manual rig mode and selecting the curve that need to

be re-associated and the bone with which it needs to

be associated by clicking on it. This will detach the

curve from its initial bone and re-associate it to the

new bone.

Figure 6(a) shows an incorrect automatic rigging

output. Curves associated with different skeleton

bones are of different colour. The curves of the torso

get wrongly associated to an arm and move back-

wards as the arm swings back in a subsequent frame

in Figure 6(b), as indicated by the red arrows. Fig-

ure 6(c)-6(d) shows the corrected rigging in the initial

frame and how it stays in position correctly in the gen-

erated sketch for the following frame, as indicated by

the green arrows.

(a) (b)

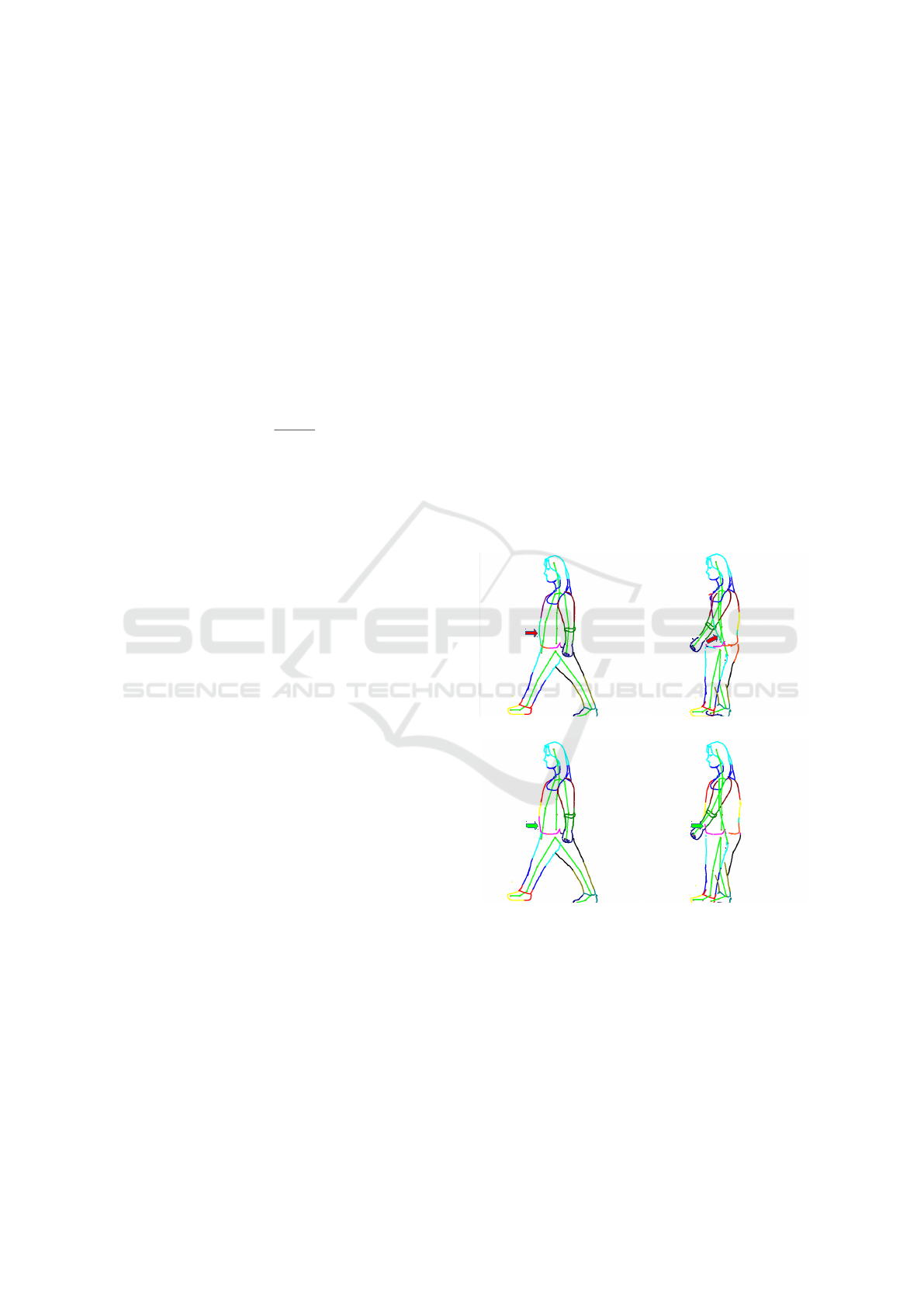

Figure 6: (a), (b) Automatic Rigging, (c), (d) Corrected Rig-

ging.

4.3 Binding Matrix Calculation

The curves are deﬁned in screen space and skeleton

joints are deﬁned in their own local frame. The curve

associated with a particular bone need to be deﬁned

in the same frame as that of the bone so that all the

transformation that are applied to joint, when applied

to curve will move the curve along with the bone. To

TraceMove: A Data-assisted Interface for Sketching 2D Character Animation

195

deﬁne the curve points in the joint space with which

they are associated we need to ﬁnd the binding ma-

trix for all the skeleton joints. This binding matrix,

B when multiplied to the curve points, transfer them

to the joint local coordinate frame, with Y -axis along

the bone, X- axis perpendicular to the bone and par-

ent node as the origin. The binding matrix for the k

joint is calculated as





cosθ −sin θ 0

sinθ cosθ 0

0 0 1









1 0 −J

0 1 −J

0 0 1





(3)

Here

k+1

= J

k+1

− J

D =

k+1

+ (L

k+1

cosθ = L

k+1

y/D

sinθ = L

k+1

x/D

k+1

is the coordinate of k + 1

joint and L

k+1

its coordinates with respect to its parent, i.e., k

joint.

Now, for curve associated with k

joint, the binding

matrix is the product of a rotation matrix and a trans-

lation matrix. First, the translation matrix is applied

to the curve which will bring the k

joint to the origin

and then rotation matrix is applied to align the bone

with the Y -axis as shown in Figure 7.

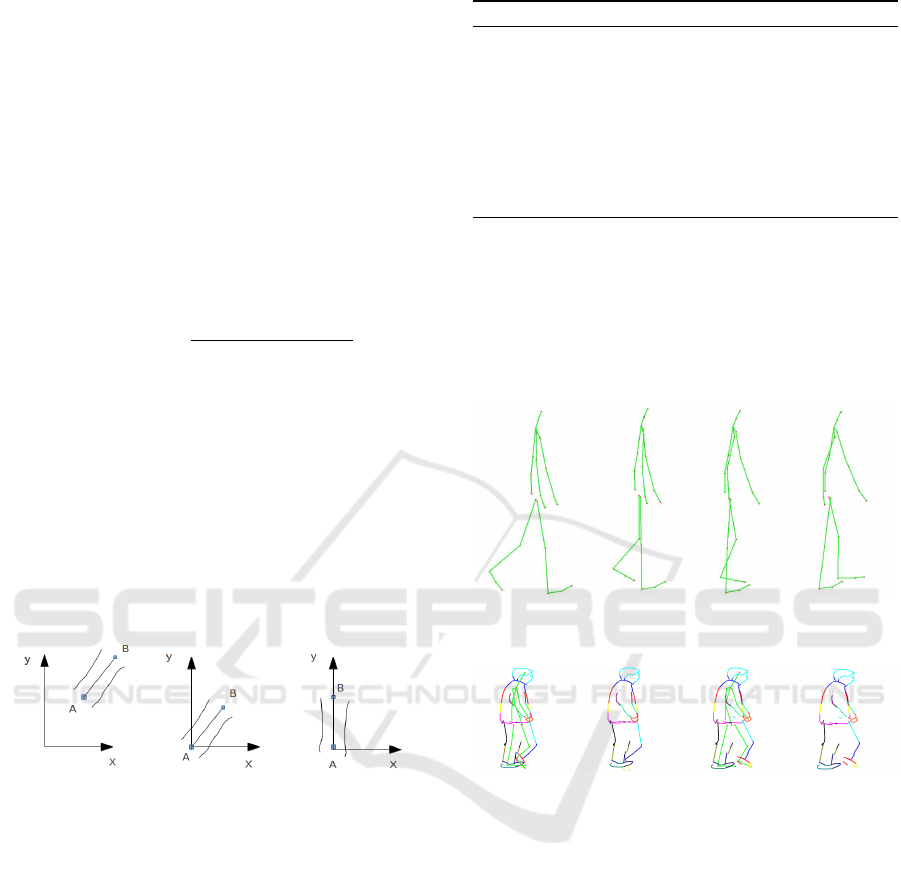

Figure 7: (a) A bone and the associated curve, (b) Trans-

lated to origin (c) Rotated so that bone lies along Y -axis.

4.4 Generating the Moving Pose Hint

We have found the frame from the motion capture

database that best matches the sketched skeleton. We

also know the pose of the skeleton in the frame that

follows the best frame in the motion capture data.

The system now ﬁnds the translation difference in

coordinates for these two frames in the motion cap-

ture database and applies that difference to the current

sketched skeleton, after inverse scaling it to drawn

skeleton. This is done using Algorithm 1.

Here T

is the translation difference for k

joint.

t+1

and J

are the 2D coordinates of k

joint for next

frame and current frame of the motion capture skele-

ton respectively. Note that the translation difference is

calculated by taking parent joint node as origin. Sim

ilarly in the subsequent step, when applying this dif-

Algorithm 1: Generate Next Sketch Skeleton.

1: for every joint k of the motion capture skeleton in

frames t and t + 1 do

2: T

= (G

t+1

k+1

− G

t+1

) − (G

k+1

− G

)

3: end for

4: for every bone i of the sketched skeleton between

joints J

k+1

and J

5: J

t+1

k+1

= (J

k+1

− J

) + IS

· T

+ J

t+1

6: end for

ference to sketched skeleton joint J

k+1

, its parent joint

is shifted to origin. After applying the difference

to the (k + 1)

joint, the k

joint is shifted back to

its new position that is calculated after applying the

translation difference to it. The coordinates given by

the J

t+1

’s are the new predicted position of the joints

of the sketched skeleton in the next frame.

Figure 8: First frame is the drawn skeleton, rest of the

frames are generated using Algorithm 1.

(a) (b) (c) (d)

Figure 9: (a) Current frame with skeleton,(b) Current frame

without skeleton, (c) Next Frame with skeleton, (d) Next

Frame without skeleton.

We ﬁnd the transformation matrix from the current

sketch skeleton to the next generated sketched skele-

ton for every skeleton joint. We apply this transfor-

mation matrix and the binding matrix to every curve

associated with a particular joint, to generate the mov-

ing pose hint. This is illustrated in Figure 9.

4.5 Depth Adjustment

Since a sketch is 2D, some of the curves that were

visible before may go behind the body and they will

still be visible. For correct occlusion handling, these

have to be erased via manual editing. While some new

curves that were occluded before may be visible in the

new frame. The animator will have to draw them. For

this purpose, she can take help of the static pose hint

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

196

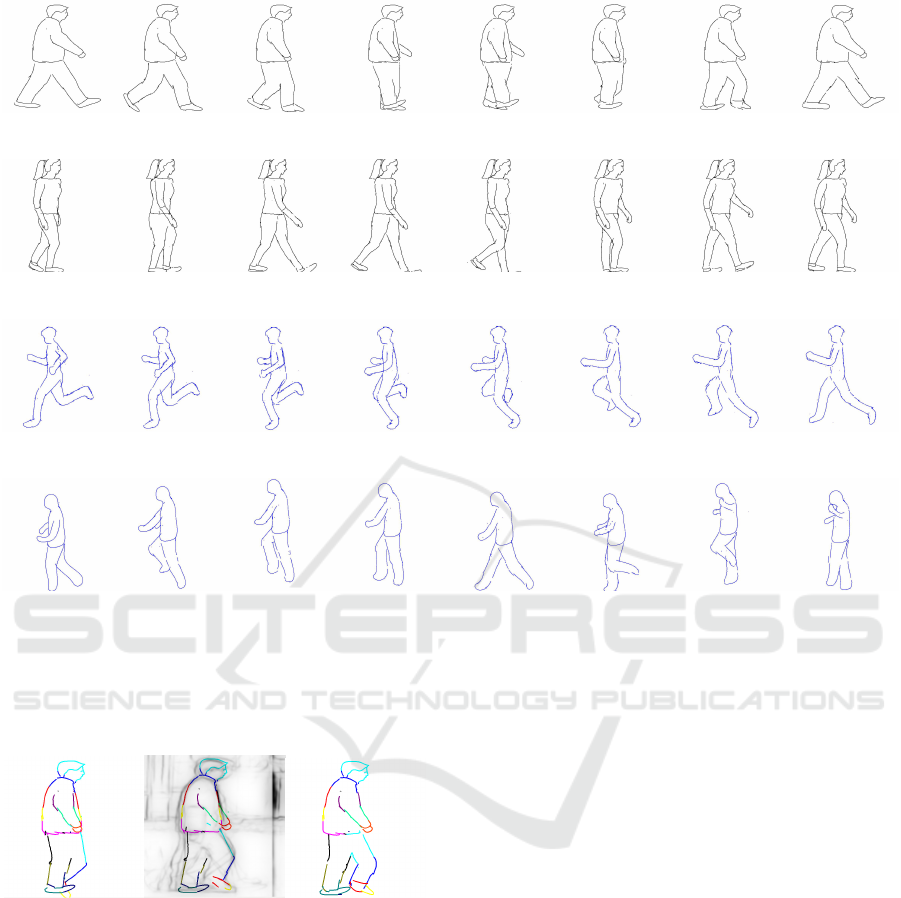

Figure 11: Frames from walk animation.

Figure 12: Frames from another walk animation with a different character.

Figure 13: Frames from a run animation.

Figure 14: Frames from a skipping animation.

again, if required. This is shown in Figure 10. The

newly drawn curves get automatically attached to the

skeleton via automatic rigging.

(a) (b) (c)

Figure 10: (a) First frame, (b) Next frame without depth

adjustment, (c) Next frame with depth adjustment.

5 RESULTS

We present examples of seven sketched animations

generated using our TraceMove system for various

kinds of motion. These were all created by two novice

animators who had no prior experience in hand-drawn

ﬁgure animation. The actual animations can be seen

in the supplementary video submitted with this paper.

6 CONCLUSION

We have presented a system to assist novice anima-

tors in sketching 2D character animations. The sys-

tem generates a static pose hint to help in the sketch-

ing of a particular pose of a character in a frame of the

animation and also generates a moving pose hint that

helps sketch the subsequent frame of the animation,

given the current frame. Both these hints are gener-

ated with the help of pre-processed, stored databases

of images and motion capture data.

The current system has certain limitations. The

sketches for which the moving hint can be generated

must be from a viewpoint that is close to the one

used in generating the 2D projected motion capture

database. This can be overcome by automatic view-

point detection on the sketch and then using the corre-

sponding view of the 3D motion capture data at run-

time. Also, during the entire sketch animation that

can be generated by the system, the camera orienta-

tion relative to the character cannot change much. The

hint generation modules cannot work across view-

point changes. A view-dependent hint generation

method can possibly be used to alleviate this problem.

We also want to test the system with more novice

TraceMove: A Data-assisted Interface for Sketching 2D Character Animation

197

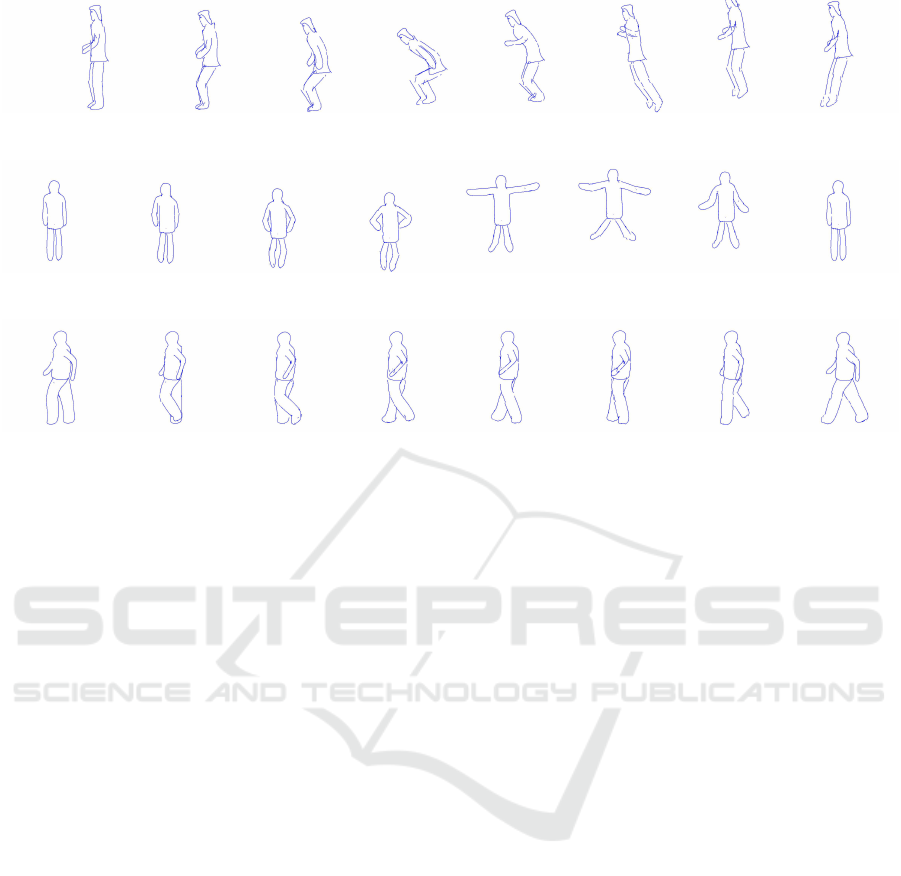

Figure 15: Frames from a jump animation.

Figure 16: Frames from a different jumping animation.

Figure 17: Frames from a backward walk animation.

animators and also, expert animators, to understand

the efﬁcacy of our interaction paradigms. This would

require a thorough user study. We currently have no

way to measure the aesthetic quality of the generated

animation, but the novice animators who have used

our system agree that it made the task of creating the

animation easier for them and gave them a handle on a

skill that they would have otherwise struggled to mas-

ter. We want to use this positive feedback to further

improve our system and make it more intuitive and

natural to use.

REFERENCES

Bae, S., Balakrishnan, R., and Singh, K. (2009). Every-

bodylovessketch: 3d sketching for a broader audience.

In Proceedings of ACM Symposium on User Interface

Software and Technology, pages 59–68.

Bhat, P., Zitnick, C. L., Cohen, M., and Curless, B.

(2010). Gradientshop: A gradient-domain optimiza-

tion framework for image and video ﬁltering. ACM

Transactions on Graphics, 29(2):10:1–10:14.

Chen, T., Cheng, M.-M., Tan, P., Shamir, A., and Hu, S.-M.

(2009). Sketch2photo: Internet image montage. ACM

Transactions on Graphics, 28(5):124:1–124:10.

Davis, J., Agrawala, M., Chuang, E., Popovi

c, Z., and

Salesin, D. (2003). A sketching interface for artic-

ulated ﬁgure animation. In Proceedings of the 2003

ACM SIGGRAPH/Eurographics Symposium on Com-

puter Animation, pages 320–328.

De Paoli, C. and Singh, K. (2015). Secondskin: Sketch-

based construction of layered 3d models. ACM Trans-

actions on Graphics, 34(4):126:1–126:10.

Dixon, D., Prasad, M., and Hammond, T. (2010). icandraw:

Using sketch recognition and corrective feedback to

assist a user in drawing human faces. In Proceedings

of the SIGCHI Conference on Human Factors in Com-

puting Systems, pages 897–906.

Dollr, P. and Zitnick, C. L. (2013). Structured forests for

fast edge detection. In Proceedings of the 2013 IEEE

International Conference on Computer Vision, ICCV

’13, pages 1841–1848. IEEE Computer Society.

Igarashi, T., Matsuoka, S., and Tanaka, H. (1999). Teddy:

A sketching interface for 3d freeform design. In Pro-

ceedings of the 26th Annual Conference on Computer

Graphics and Interactive Techniques, SIGGRAPH

’99, pages 409–416.

Jacobs, C. E., Finkelstein, A., and Salesin, D. H. (1995).

Fast multiresolution image querying. In Proceed-

ings of the 22nd Annual Conference on Computer

Graphics and Interactive Techniques, SIGGRAPH

’95, pages 277–286.

Jain, E., Sheikh, Y., and Hodgins, J. (2009). Leveraging the

talent of hand animators to create three-dimensional

animation. In Proceedings of the 2009 ACM SIG-

GRAPH/Eurographics Symposium on Computer An-

imation, pages 93–102.

Lee, Y. J., Zitnick, C. L., and Cohen, M. F. (2011). Shadow-

draw: Real-time user guidance for freehand drawing.

ACM Transactions on Graphics, 30(4):27:1–27:10.

Levi, Z. and Gotsman, C. (2013). ArtiSketch: A system

for articulated sketch modeling. Computer Graphics

Forum, 32(2):235–244.

Li, Y., Gleicher, M., Xu, Y.-Q., and Shum, H.-Y. (2003).

Stylizing motion with drawings. In Proceedings of

the 2003 ACM SIGGRAPH/Eurographics Symposium

on Computer Animation, SCA ’03, pages 309–319.

Oztireli, A. C., Baran, I., Popa, T., Dalstein, B., Sumner,

R. W., and Gross, M. (2013). Differential blending

for expressive sketch-based posing. In Proceedings of

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

198

the 12th ACM SIGGRAPH/Eurographics Symposium

on Computer Animation, pages 155–164.

Pan, J. and Zhang, J. J. (2011). Transactions on edutainment

VI. chapter Sketch-based Skeleton-driven 2D Anima-

tion and Motion Capture, pages 164–181.

Thomas, F. and Johnston, O. (1995). The Illusion of Life:

Disney Animation. Hyperion.

Thorne, M., Burke, D., and van de Panne, M. (2004). Mo-

tion doodles: An interface for sketching character mo-

tion. In Proceedings of ACM SIGGRAPH 2004, pages

424–431.

Wang, L., Tan, T., Ning, H., and Hu, W. (2003). Silhoutte

analysis based gait recognition for human identiﬁca-

tion. IEEE Transactions on Pattern Analysis and Ma-

chine Intelligence (PAMI), 25(12):1505–1518.

Williams, R. (2009). The Animator’s Survival Kit–Revised

Edition: A Manual of Methods, Principles and For-

mulas for Classical, Computer, Games, Stop Motion

and Internet Animators. Faber & Faber, Inc.

Xu, B., Chang, W., Sheffer, A., Bousseau, A., McCrae, J.,

and Singh, K. (2014). True2form: 3d curve networks

from 2d sketches via selective regularization. ACM

Transactions on Graphics, 33(4).

Yang, R. and W

unsche, B. C. (2010). Life-sketch: A frame-

work for sketch-based modelling and animation of 3d

objects. In Proceedings of the Eleventh Australasian

Conference on User Interface - Volume 106, pages 61–

70.

Zitnick, C. L. (2010). Binary coherent edge descriptors.

In Proceedings of the 11th European Conference on

Computer Vision (ECCV), pages 170–182.

TraceMove: A Data-assisted Interface for Sketching 2D Character Animation

199
