ShaderBase: A Processing Tool for Shaders in Computational Arts

and Design

Andrés Felipe Gómez

, Jean Pierre Charalambos

and Andrés Colubri

1,2

Departamento de Ingeniería de Sistemas, Universidad Nacional de Colombia, Bogotá, Colombia

Department of Organismic and Evolutionary Biology, Harvard University, Cambridge, U.S.A.

Keywords: Shader Programming, GLSL, Processing Language, Interactive Arts, Computational Design, Data

Visualization, Database, Git.

Abstract: We introduce a new software tool called ShaderBase that facilitates using, sharing, and curating GLSL

shaders in computational design, interactive arts, and data visualization. This tool is part of the Processing

programming environment, an open-source project widely used for teaching and production in the context

of media arts and design. Shaders are a crucial component in the development of large-scale data

visualizations, interactive installations, real-time rendering tools, videogames, virtual reality applications,

etc. However, their use requires advanced shader programming skills, and the creation of new shader-based

effects demands a deep understanding of the graphics pipeline in modern Graphics Processing Units

(GPUs). ShaderBase uniquely addresses these issues by allowing Processing users to easily upload and

share shaders via an underlying Git repository. ShaderBase operates in close integration with Processing’s

interface, so that users can incorporate shaders into their programs with minimal effort. Furthermore, the

shaders indexed in ShaderBase take advantage of Processing’s drawing API, and incentives the use of

shaders among artists and designers who might not be able to do so otherwise.

1 INTRODUCTION

The continued advances in graphics hardware,

together with the evolution of low-level shading

languages, have opened many possibilities for real-

time rendering across a wide range of platforms and

devices. Shader programming has become a

fundamental resource in today’s applications of

Computer Graphics (CG). Real-time rendering

benefits from the performance and flexibility offered

by custom shaders, and with the rise of

programmable pipelines, shader programming

turned into a fundamental skill.

In the context of computational design,

information visualization and interactive media, the

necessity of making CG more accessible has

motivated the creation of frameworks and APIs to

facilitate programming among artists and designers

(Orr, 2009). The Processing project (Processing

Foundation I) is a well-known example of such

initiatives to increase computer literacy within the

design and visual arts, and visual literacy within

technology and engineering. Processing, which in its

core consists of a Java-based programming language

together with a minimal development environment,

was initiated by Casey Reas and Ben Fry at the MIT

Media Lab back in 2001. Today, the project has

expanded substantially, thanks to its open source

nature and community involvement, and it is used

around the world as a teaching medium as well as a

production tool (Reas and Fry, 2014).

Processing’s simple API combined with an

unobtrusive development environment allows

beginners to obtain initial visual results quickly and

then to refine their programs by “sketching“

progressively more complex versions of the code.

The drawing API in Processing is comprised of

around 300 functions, inspired by several graphics

libraries, mainly Postscript, QuickDraw, OpenGL,

and Renderman (Processing Foundation II).

Although shaders are an essential part in the

development of graphical applications, they are not

as popular as they could be, particularly in the fields

of computational arts and design. One of the reasons

for this situation is the need of advanced

programming knowledge in shading languages.

Although there are some online shader libraries,

their usefulness as resources for beginners is limited:

Gomez, A., Charalambos, J. and Colubri, A.

ShaderBase: A Processing Tool for Shaders in Computational Arts and Design.

DOI: 10.5220/0005673201890194

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 2: IVAPP, pages 191-196

ISBN: 978-989-758-175-5

191

the NVIDIA shader library (NVIDIA, 2008) was last

updated in 2008, and Geeks3D shader library

(Geeks3D, 2015) is geared toward CG enthusiasts,

while GLSL sandbox (Cabello, 2015), ShaderToy

(Quilez, 2015), and VertexShaderArt (Tavares,

2015), are focused on WebGL. This limits

inexperienced users who wish to start experiment

with shaders through Processing’s shader API.

ShaderBase enables all Processing users -beginner

and advanced alike- to explore, interact, and take

advantage of this API by allowing them to

download, upload, and edit the shaders indexed into

a Git repository. Our approach to simplify shader

programming in Processing is unique in that it is

closely integrated with Processing’s environment

and uses Git as the underlying database. ShaderBase

lets users to re-use shaders within their own code

and share them with other members of the

Processing community, as well as to look for

specific shader effects with ShaderBase’s search

functionality. Even though the tool is specifically

geared towards Processing, it could be quickly re-

implemented for other interactive arts and design

frameworks, such as OpenFrameworks and Cinder,

and the shaders archived in the underlying Git

repository could be repurposed for other languages

and platforms (mobile, webGL) with minimal code

changes.

2 SHADERS IN PROCESSING

The shader API in Processing is based on a single

class called PShader that encapsulates a complete

shader program including a vertex and a fragment

stage. This class exposes methods to set the values

of the uniform variables declared in the GLSL code.

The code listing below shows a simple example

where a negative effect shader is loaded to render

the scene.

// Processing code

PShader neg;

PImage img;

void setup() {

size(800, 600, P2D);

img = loadImage("img.jpg");

neg = loadShader("fragment.glsl");

}

void draw() {

shader(neg);

image(img, 0, 0);

}

// fragment.glsl

uniform sampler2D texture;

varying vec4 vertColor;

varying vec4 vertTexCoord;

void main() {

vec4 col = texture2D(texture,

vertTexCoord.st);

gl_FragColor = vec4(1.0 –

col.rgb, 1) * vertColor;

}

A key consideration when incorporating shader

programming into pre-existing “creative coding”

frameworks such as Processing, which is specifically

geared towards less technical users such as

computational designers and artists, is how to blend

the new functionality with the existing API. Since

often times the typical Processing user is not able to

write his own shaders, Processing already

implements several rendering paths that cover

different usage scenarios: high-quality 2-D drawing

with antialiasing and accurate line strokes, 3-D

rendering with a Blinn–Phong, Gouraud lighting

model, where interactive performance is prioritized

over more accurate shading/texturing algorithms. All

of this functionality is implemented via default

GLSL shaders built into the OpenGL renderer in

Processing. Details are provided in (Colubri) and

(Gómez et al., 2016).

3 ShaderBase

Our main goal with ShaderBase was to create a

graphical interface and an underlying database to

allow any Processing user to easily share GLSL

shaders, facilitate the use of Processing’s shader

API, and promote the application of shading effects

particularly among practitioners of digital arts and

design. The user does not require advanced

programming knowledge in order to run and execute

the shaders indexed in the database. The tool simply

downloads the shader directly into the Processing

program (called a “sketch” in Processing’s

terminology), together with all the additional files

needed to run the shader. ShaderBase stores all the

shader information in the remote repository, and

when the user installs the tool in Processing this

information is retrieved into the tool. ShaderBase

also allows searching shaders with a specific tag.

The design of ShaderBase’s data model is discussed

in the section 3.1 and the user interface is described

in the section 3.2.

IVAPP 2016 - International Conference on Information Visualization Theory and Applications

192

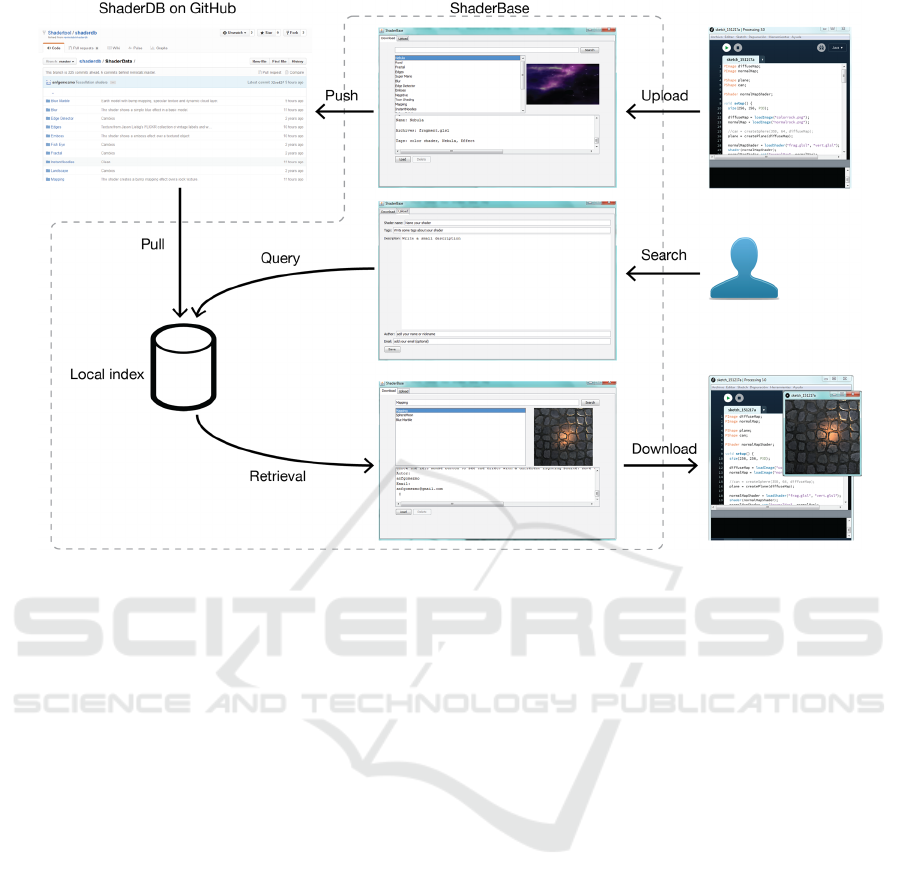

Figure 1: Data flow and user interface elements in ShaderBase.

3.1 ShaderBase Data Model

A basic requirement for ShaderBase is be able to

upload, modify, request, and download any shader

information at any time without losing it during the

transfer, or having any corruption in the saved data

that could affect the execution of the shader.

Another important future-proofing feature is the

possibility of porting the shader files into other

coding frameworks. There are some options that

could solve all these design needs, such as SQL

database, Object Oriented Database, and Mobile

Database (Foster and Godbole, 2014). However,

there are some limitations such as the language used

by Processing (Java) restricting the options for the

development of such database. Most SQL databases

created in Java require a JDBC driver that functions

as a wrapper between database and the application.

The JDBC driver asks user authentication every time

when the user logs into the database and modifies

the information in the tables, which would slow

down the response when the user selects, downloads,

and uploads a shader. In order to upload shaders, the

tool needs to be connected to the database to reflect

the changes with other users and update the tool, and

thus it would require a 24/7 SQL dedicated server

storing the information specifying all shaders. An

SQL database does not allow seeing the indexed

data directly without a SQL program, and a query is

required to access the data. Furthermore, an SQL

server does not record the changes done by other

users to the indexed files.

In the other hand, we found Git to be a better

solution for these limitations (Chacon and Straub,

2014). A user can commit changes into the database

at any time and they will be reflected after a push. It

is not needed to have a dedicated 24/7 server since

each user will have a clone of the data indexed and

they can work in a local environment. The

communication between Git and the tool is done

using a library (Jgit) that is faster than a JDBC

driver. All the information hosted in a Git repository

can be accessed at any time with a simple browser

without the need of querying it. Since Git

incorporates Version Control (VC), all the changes

done to the files are recorded so it is easy to recover

missing files or corrupted data, also the snapshot

done by Git prevents any unexpected change on the

files. The data flow is show in Figure 1.

In order to develop ShaderBase, we had to

identify the data required to completely define a

valid shader in Processing, where and how to store

that data, and how to send the data back and forth

between Processing and ShaderBase. Each shader

record comprises the following files:

▪ Sketch File: Processing source code where the

ShaderBase: A Processing Tool for Shaders in Computational Arts and Design

193

PShader object is declared and the shader file is

loaded.

▪ Shader File: fragment, vertex, geometry or

tessellation shader GLSL source code.

▪ Indexed File: File containing shader metadata

(such as tags and user information) used to query

the database.

▪ Shader Snapshot File

ShaderBase stores all the information in a local

clone of a master remote Git repository. All copies

of ShaderBase use ShaderDB to store data remotely,

future versions might allow to select a different

remote repository, so users can create independent

collections of shaders. ShaderDB stores each shader

using the following file structure:

`-- ShaderData/

`-- Shader1/

|-- Code/

| `-- Shader1.glsl

|-- Shader1.jpg

|-- Shader1.pde

|-- Shader1.txt

`-- Tabs/

`-- Tab_n.pde

The folder Code has all the extra data required to run

a shader, the minimal data saved in this folder would

be the GLSL code file. However, some shaders will

require extra files in order to run in Processing, in

such cases ShaderBase will download and import

those files automatically. The folder Tabs will only

appear when a shader requires multiple tabs in the

sketch. The index text file is created after filling a

small questionnaire when a user decides to upload a

shader no matter if it is going to be saved just in the

local machine or if it is going to be shared. This file

has all the information required to provide an

accurate search, including tags, name, author and

description for each shader.

Accessing Git from Java is a non-trivial task,

however there are several libraries that that can be

used for this purpose: JGit, JavaGit, Git Hub API for

Java, etc. All these libraries have strengths and

disadvantages. We selected JGit because it is the

library that implements most of the Git commands.

Our tests indicate that JGit is a slightly faster than

the other libraries and has fewer bugs. In addition to

that, it allows accessing the Git main file structure

[JGit API] through code to check the commits,

whicht helps preventing missing commits or

collision with commits from other users. JGit is

actively developed by the Eclipse EGit group, which

ensures that is kept updated to the last available Git

version.

The database management is performed by

means of the following Git commands:

• Clone: downloads all the information stored at

the remote repository only when the tool is run

for the first time.

• Commit: stores newly created shader records into

the local repository.

• Fetch: downloads new or modified records from

the remote repository.

• Merge: incorporates (fetched) changes into the

local repository.

• Pull: runs a fetch command followed by a merge

one.

• Push: updates the remote repository.

When the user uploads a shader, ShaderBase does a

commit to the local repository, and if the user shares

it and ShaderBase is up-to-date with the shaders

indexed in ShaderDB, then the shader is pushed to

the remote repository. In the case that ShaderBase is

not in sync with ShaderDB, and then the shaders

uploaded and shared by the user will be reflected in

ShaderDB after the next update performed when the

tool starts up. ShaderBase checks for updates by

doing a Git fetch; the tool checks what files are new

or which ones were changed and modifies the local

database. All these functions are totally transparent

to the user. The user will only select the shader she

wants to upload or download without worrying

about which one of these functions is being called.

ShaderBase can work offline after the first clone, but

an Internet connection is required to upload a shader

to the remote repository, to pull any changes, or

download new shaders.

After cloning and receiving the data stored in

ShaderDB, the tool gathers all the information of the

indexing text files saved for each shader, indexes the

documents and creates a main index. Each

ShaderBase copy will have an independent index

allowing the user to index their local shaders without

the need of sharing them. Each time a new shader is

added or if ShaderBase is updated the index is going

to be remade.

ShaderBase offers search functionality based on

Lucene, a Java scalable Information Retrieval (IR)

library (McCandless and Hatcher, 2010). The design

of the Lucene-based search functionality can be

appreciated in Figure 1.

ShaderBase enables the following features in

Lucene:

• Indexing with Standard Analyser. Just will index

the indexing text file for each shader

• Search by Phrase Relevance. The search can be

IVAPP 2016 - International Conference on Information Visualization Theory and Applications

194

fuzzy or weighted, but these options are disabled

until the number of the shaders increases.

The user only needs to add some words or a simple

phrase and ShaderBase will check which ones of

these words are indexed and will provide a result

with the shaders that have them in the indexing file.

This result will only show the shaders that could be

of the interest to the user. After searching and

downloading the shader into Processing the user

only needs to run the automatically generated sketch

holding this shader.

3.2 ShaderBase User Interface

The user interface in ShaderBase is divided in two

separate areas, Download and Upload, which can be

selected with the tabs located in the top left region of

the main window.

When the user selects a shader from the list of

available shaders, a preview image and a short

textual description will be displayed to help the user

deciding if that is the shader she wants. If the shader

is selected, ShaderBase will send it directly into

Processing’s editor, using all the information stored

in Git to build a new sketch that the user can run

immediately. If a sketch is already open, then

ShaderBase creates a new sketch with all the

required code and files. Again, all of these

operations take place transparently.

The tool provides a search function as explained

in Section 3.1. All the results are going to be

reflected in the list showing only the shaders

matching the search query. The upload process

requires that Processing sketch holds a valid shader.

Otherwise, ShaderBase will not allow uploading any

files to avoid the database being polluted with non-

shader code. When a user uploads a shader,

ShaderBase will ask to either share it with other

users, or to save it in the local repository. When the

latter option is selected, the shader is not sent to the

remote Git repository, and is only indexed for the

search in the local machine. In order to upload a

shader the user must fill the small template shown in

the section 3.1. The main purpose of the template is

to create an index file to ensure that the shader can

be found through the search queries.

Shaders can also be deleted from ShaderBase’s

interface; but this is allowed only if the shader is

saved in the local repository. The tool does not allow

deleting shaders indexed in ShaderDB. However the

user can modified those shaders, simply by

uploading them using the same name. ShaderBase

does not show the commit history of a shader stored

in ShaderDB, we considered this feature not

important for beginner users, while advanced users

will be able to access the commit history of shader

directly through GitHub.

4 CONCLUSIONS

Processing allows artists and designers working with

code to use GLSL shaders in a simpler way. It

makes the learning process more accessible to users

without formal training in CG, who can also benefit

from Processing’s portability and absence of extra

library configuration.

The availability of shaders provided by

ShaderBase in Processing should greatly enhance

the capabilities of the language, allowing for GPU-

accelerated rendering of complex models and

scenes. GLSL shaders already written for other

platforms and/or frameworks can be adapted to work

in Processing with minor code changes, thus helping

to share resources and knowledge between coding

communities. Furthermore ShaderBase will allow

sharing shader code and expertise over the web,

thanks to the widespread adoption of Processing as a

teaching and production tool in digital arts and

design. ShaderBase has recently released to the

community (Gómez, 2015a), with an initial selection

of shaders .(Gómez, 2015b)

From a technical standpoint, ShaderBase inherits

all the advantages of Git, which guarantees a robust

transfer and ensures that the information is not going

to be corrupted easily. Also, the tool does most all

the work in the local machine and thanks to the

search queries it allows users to find shaders very

quickly. All the shaders indexed in the machine can

be loaded directly into Processing’s editor. Sharing

new shader rendering effects does not involve any

extra work from the user.

Finally, ShaderBase provides access to shaders

created by a growing community of creative coders,

artists and designers. These shaders could be used

immediately from within Processing without any

previous setup or additional changes in the code. In

particular, this would enable users without previous

GLSL knowledge to start exploring the possibilities

offered by shader programming and Processing’s

shader API.

ACKNOWLEDGEMENTS

The authors would like to thank the contributions

over the years from all the members of the

ShaderBase: A Processing Tool for Shaders in Computational Arts and Design

195

Processing community.

REFERENCES

Cabello, R. 2015. GLSL Sandbox [Online]. Available:

http://glslsandbox.com/

Chacon, S. & Straub, B. 2014. Pro Git, Apress

Distributed to the book trade worldwide by Springer

Science+Business Media New York.

Colubri, A. PShader tutorial [Online]. Available:

https://www.processing.org/tutorials/pshader/

Foster, E. C. & Godbole, S. 2014. Database systems: a

pragmatic approach, Apress

Distributed to the book trade worldwide by Springer

Science and Business Media.

Geeks3D. 2015. Shader Library [Online]. Available:

http://www.geeks3d.com/shader-library/

Gómez, A. F. 2015a. ShaderBase [Online]. Available:

https://github.com/remixlab/shaderbase

Gómez, A. F. 2015b. ShaderDB [Online]. Available:

https://github.com/remixlab/shaderdb

Gómez, A. F., Colubri, A. & Charalambos, J. P. Shader

Programming for Computational Arts and Design: A

Comparison between Creative Coding Frameworks.

11th International Conference on Computer Graphics

Theory and Applications, 2016 Rome.

Mccandless, M. & Hatcher, E. 2010. Lucene in action,

Stamford, Conn., Manning Pub.

NVIDIA. 2008. NVIDIA shader library [Online].

Available:

http://developer.download.nvidia.com/shaderlibrary/w

ebpages/shader_library.html

Orr, G. 2009. Computational thinking through

programming and algorithmic art. SIGGRAPH 2009:

Talks. New Orleans, Louisiana: ACM.

Processing Foundation I. Processing project home page

[Online]. Available: https://processing.org/

Processing Foundation Ii. Processing Reference [Online].

Available: https://processing.org/reference/

Quilez, I. 2015. ShaderToy [Online]. Available:

http://shadertoy.com/

Reas, C. & Fry, B. 2014. Processing: A Programming

Handbook for Visual Designers and Artists (2nd

Edition), Cambridge.

Tavares, G. 2015. VertexShaderArt [Online]. Available:

http://www.vertexshaderart.com/

IVAPP 2016 - International Conference on Information Visualization Theory and Applications

196
