Using Motion Blur to Recognize Hand Gestures in Low-light Scenes
Daisuke Sugimura, Yusuke Yasukawa and Takayuki Hamamoto
Department of Electrical Engineering, Tokyo University of Science,
6-3-1 Niijuku, Katsushika-ku, 125-8585, Tokyo, Japan
Keywords:
Hand Gesture Recognition, Low-light Scenes, Motion Blur, Temporal Integration.
Abstract:
We propose a method for recognizing hand gestures in low-light scenes. In such scenes, hand gesture images
are significantly deteriorated because of heavy noise; therefore, previous methods may not work well. In
this study, we exploit a single color image constructed by temporally integrating a hand gesture sequence. In
general, the temporal integration of images improves the signal-to-noise (S/N) ratio; it enables us to capture
sufficient appearance information of the hand gesture sequence. The key idea of this study is to exploit a
motion blur, which is produced when integrating a hand gesture sequence temporally. The direction and the
magnitude of motion blur are discriminative characteristics that can be used for differentiating hand gestures.
In order to extract these features of motion blur, we analyze the gradient intensity and the color distributions
of a single motion-blurred image. In particular, we encode such image features to self-similarity maps, which
capture pairwise statistics of spatially localized features within a single image. The use of self-similarity maps
allows us to represent invariant characteristics to the individual variations in the same hand gestures. Using
self-similarity maps, we construct a classifier for hand gesture recognition. Our experiments demonstrate the
effectiveness of the proposed method.
1 INTRODUCTION
Techniques for hand gesture recognition have been
well studied and applied to various applications such
as human-computer interaction and interactive games
(Pavlovic et al., 1997; Freeman and Weissman, 1996;
Wachs et al., 2011; Weaver et al., 1998; Lian et al.,
2014). Early studies on hand gesture recognition used
hand groves (Iwai et al., 1996) or markers (J.Davis
and M, 1994; Cipolla et al., 1993) to measure the hand
motions of users. However, these approaches have a
limitation that the users’ hand motions are unlikely to
be natural because they have to wear certain specific
devices.
In recent years, the development of motion analy-
sis techniques using camera images has highly con-
tributed to the advances in the field of hand ges-
ture recognition. In fact, many methods have been
proposed to improve the performance of hand ges-
ture recognition (Pfister et al., 2014; Yamato et al.,
1992; Stamer and Pentland, 1995; Freeman and Roth,
1995; Shen et al., 2012; Ikizler-Cinbis and Sclaroff,
2010; Liu and Shao, 2013; Tang et al., 2014; Davis,
2001; Scocanner et al., 2007; Bregonzio et al., 2009;
Niebles et al., 2008). Early studies investigated ap-
proaches to recognize spatio-temporal hand gesture
motion modeling by using a hidden Markov model
(HMM) (Yamato et al., 1992; Stamer and Pentland,
1995). In contrast, recent techniques have exploited
local feature descriptors to represent hand gesture mo-
tions (Shen et al., 2012; Scocanner et al., 2007; Bre-
gonzio et al., 2009; Niebles et al., 2008). Shen et al.
proposed a spatio-temporal descriptor constructed by
analyzing the motion divergence fields of hand ges-
tures (Shen et al., 2012). Scocanner et al. extended a
SIFT descriptor to represent spatio-temporal motions
(Scocanner et al., 2007). Since these methods have
scale- and position-invariantcharacteristics, they have
enabled to achieve high recognition performance.
Liu et al. pointed out that the use of local im-
age descriptor representations cannot be used for eas-
ily modeling precise hand gesture motions because of
the loss of the structural relationships between the ex-
tracted local features (Liu and Shao, 2013). To ad-
dress this, they proposed a hand gesture recognition
system by automatically synthesizing spatio-temporal
descriptors using genetic programming.
On the other hand, with the developments in
the field of active sensors, three-dimensional (3D)
hand gesture recognition systems have been studied
as well. Tang et al. proposed a method for a 3D
hand posture estimation by using a single depth im-
308
Sugimura, D., Yasukawa, Y. and Hamamoto, T.
Using Motion Blur to Recognize Hand Gestures in Low-light Scenes.
DOI: 10.5220/0005673603080316
In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 4: VISAPP, pages 308-316
ISBN: 978-989-758-175-5
Copyright
c
 2016 by SCITEPRESS – Science and Technology Publications, Lda. All rights reserved

Figure 1: Examples of hand gestures in a low-light scene.
It is obviously difficult to extract the necessary appearance
information of a hand gesture. The objective of this study is
to recognize hand gestures in low-light scenes.
Figure 2: Examples of the temporal integration of the low-
light hand gesture sequence shown in Figure 1. We can see
that sufficient information is captured while the motion blur
is generated. Further, we can see that both the direction and
the magnitude of the motion blur represent discriminative
characteristics to differentiate hand gestures. The key idea
of this study is to exploit this motion blur for hand gesture
recognition.
age (Tang et al., 2014). Moreover, there are previous
studies using KINECT (Ren et al., 2013) or Leap Mo-
tion (Marin et al., 2014).
In these previous studies, however, the researchers
have implicitly assumed a bright lighting condition to
precisely capture the hand gestures. In other words,
hand gesture images should be taken at a high S/N
ratio. In low-light scenes, as illustrated in Figure 1,
the S/N ratio of the captured images degrades because
heavy noise is likely to be imposed on low-light im-
ages. In such case, previous methods are ineffective
at recognizing hand gestures.
In order to address such problems caused by low-
light scenes, we propose a novel hand gesture recog-
nition method by using a single color image that is
constructed by integrating a hand gesture sequence
temporally. In general, the temporal integration of
images improves the S/N ratio; thus, it enables us to
acquire sufficient appearance and motion information
of a hand gesture even in low-light scenes.
However, the temporal integration of a hand ges-
ture produces motion blur. In general, motion blur
has been widely considered to be one of the annoying
noises that degrade performance in various computer
vision or image processing techniques. In contrast, in
this study, we make effective use of motion blur to
recognize hand gestures. Figure 2 shows examples of
the integrated gesture image containing motion blur.
We consider that both the direction and the magnitude
of motion blur represent discriminativecharacteristics
that can be used for differentiating hand gestures.
In order to extract both the direction and the mag-
nitude of the motion blur of a hand gesture, we ana-
lyze the gradient intensity distributions of the image
as well as color distributions. In fact, an analysis of
the gradient intensity distribution of a motion-blurred
image plays an important role in the estimation of the
moving directions of objects, as reported in (Lin et al.,
2011). Furthermore, the color distribution of the in-
tegrated gesture image is considered to be helpful in-
formation for measuring the magnitude of the motion
blur. As shown in Figure 2, motion-blurred regions
can be viewed as a mixture of the hand and back-
ground components. The magnitude of the motion
blur is likely to be large when the skin color intensity
(hand motion region) is low, and vice versa. This im-
plies that the analysis of color distributions allows us
to estimate the magnitude of the motion blur.
By using both the gradient intensity and the color
distributions, we compute a self-similarity map (Walk
et al., 2010), which encodes pairwise statistics of spa-
tially localized features by a similarity within a single
image. Because a self-similarity map can represent
spatial relationships via a similarity, it can assign in-
variant characteristics to the individual variations in
gesture motions, such as differences in lighting con-
ditions and gesture speeds. We exploit the computed
self-similarity maps as training data for constructing
a hand gesture recognition system.
On the other hand, a single motion-blurred image
can also be obtained by taking the image with a long-
exposure time. However, it is hard to ensure that the
entire hand gesture can be observed within such ex-
posure time. In other words, it is difficult for cam-
eras to find the times when the hand gesture starts
and ends. In contrast, the temporal integration al-
lows us to estimate both the start and the end timings
of a hand gesture by analyzing the captured images.
Thus, we utilize the temporal integration scheme in-
stead of using a single motion-blurred image taken
with a long-exposure time. Although the temporal in-
tegration makes motion blur discretized as shown in
Figure 2, it is enough to obtain both the direction and
the magnitude of the motion blur of a hand gesture.
The main contribution of this study is as follows.
We exploit a single color image obtained by tempo-
rally integrating the hand gesture sequence to recog-
nize hand gestures in low-light scenes. In particular,
we make effective use of the motion blur included
in the integrated gesture image. To the best of our
knowledge, this study is the first to use motion blur
in the context of hand gesture recognition. Unlike
Using Motion Blur to Recognize Hand Gestures in Low-light Scenes
309

the previous studies that implicitly assumed a bright
lighting condition, the proposed method enables to
perform robust hand gesture recognition under low-
light conditions.
2 PROPOSED METHOD
The objective of this study is to construct a hand ges-
ture recognition system for low-light scenes where the
previous methods cannot easily process effectively.
The proposed method consists of three steps: tempo-
ral hand gesture integration, self-similarity map con-
struction, and classifier construction, as illustrated in
Figure 3.
2.1 Temporal Hand Gesture Integration
To acquire hand gesture motions with a high S/N ra-
tio in low-light scenes, we temporally integrate the
hand gesture sequence {I
t
}
t=1,...,T
, where I
t
denotes
the gesture image at t-th frame, into a single image.
We then exploit the motion blur included in the inte-
grated image to construct a hand gesture recognition
system.
In the proposed method, it is important to ensure
that the motion blur has consistent characteristics for
each hand gesture. However, the motion blur is likely
to vary because of the variations in the gesture speed
and timing. In order to compensate for such variations
in the motion blur, we estimate the temporal integra-
tion time (i.e., the start and the end times of a hand
gesture). We then integrate the hand gesture images
between the start and the end times.
2.1.1 Integration Time Estimation
In this step, we estimate the times when a gesture mo-
tion starts and ends, t
s
and t
e
, by using an amount of
movements of hand gesture.
We first divide an image into B local image
patches. In each patch, we compute a motion vector
u
i
t
(i denotes the patch index) by using a pyramidal
KLT method (Lucas and Kanade, 1981) for {I
t
}. By
using the sum of all the motion vectors in each frame,
i.e., v
t
=
∑
i
u
i
t
, we determine t
s
and t
e
as
t
s
= min
|v
t
|>δ |v
max
|
{1,...,T} , (1)
t
e
= max
|v
t
|>δ |v
max
|
{1,...,T} , (2)
where v
max
denotes the maximum value of a set V =
{v
t
}
t=1,...,T
and δ represents a control parameter.
2.1.2 Gesture Image Integration
We integrate a hand gesture sequence between t
s
and
t
e
. In general, motion blur is likely to be produced
when the gesture speed is high; thus, gesture frames
that have large movements are more important than
the others. On the basis of this fact, we incorporate a
weight ω
t
computed using V for each gesture frame
when integrating {I
t
}
t=t
s
,...,t
e
. We set a high weight
value for images with large movements and a low
weight for images with short movements. Therefore,
we represent the weight as ω
t
= |v
t
|/|v
max
|.
By using t
s
, t
e
, and ω
t
, we obtain a single inte-
grated image I
intg
by the following weighted integra-
tion:
I
intg
=
1
t
e
− t
s
t
e
∑
t=t
s
ω
t
I
t
. (3)
2.2 Self-similarity Map Construction
The direction and the magnitude of motion blur are
helpful characteristics for distinguishing various hand
gestures. In order to extract these features from a
motion-blurred image I
intg
, we analyze the gradient
intensity and the color distributions of I
intg
.
However, hand gesture motions are likely to vary
depending on the user’s individuality or the lighting
conditions, even though the same hand gestures are
performed. Thus, the direct use of the gradient in-
tensity and the color distributions of I
intg
leads to the
performance degradation of hand gesture recognition.
To address this problem, we construct self-
similarity maps (Walk et al., 2010) by using the gra-
dient intensity and the color distributions. A self-
similarity map captures the pairwise statistics of spa-
tially localized features within a single image. In par-
ticular, a self-similarity map encodes image features
via a similarity to represent invariant characteristics to
the variations in the same hand gestures. Therefore,
the use of a self-similarity map is effective for robust
hand gesture recognition. In the proposed method, we
construct two self-similarity maps on the basis of the
gradient intensity and the color distributions.
2.2.1 Self-similarity Map using Gradient
Intensity Distributions
A gradient intensity distribution is useful for esti-
mating the gesture motion direction from a motion-
blurred image as reported in (Lin et al., 2011). We
exploit the gradient intensity distribution via a self-
similarity map representation.
The steps for self-similarity map construction are
as follows. We divide I
intg
into B local image patches.
VISAPP 2016 - International Conference on Computer Vision Theory and Applications
310

Figure 3: Overview of the proposed method. (a) Temporal integration of a hand gesture sequence. We temporally integrate
a hand gesture sequence to acquire hand gesture motion with a high S/N ratio. We obtain a single gesture image containing
motion blur. (b) Self-similarity map construction. We analyze the direction and the magnitude of the motion blur on the basis
of the gradient intensity and the color distributions. We then construct self-similarity maps by using these image features. We
finally build a hand gesture classifier by using the computed self-similarity maps.
In each local image patch, we make an intensity his-
togram of the gradient image of I
intg
. We then obtain
the similarity s
m,n
grad
between patch m and patch n by
computing a Bhattacharyya distance of the normal-
ized gradient intensity histograms, g
m
and g
n
, as
s
m,n
grad
=
s
1−
K
∑
k=1
g
m
k
g
n
k
, (4)
where g
m
k
denotes the frequency in the k-th bin of g
m
,
and K represents the number of bins.
Finally, we obtain the self-similarity map of the
gradient intensity distribution S
grad
by computing
s
m,n
grad
for all the pairs of image patches:
S
grad
= [s
1,2
grad
,...,s
1,B
grad
,...,s
B−1,B
grad
] . (5)
Figure 4 shows an example of the computed s
m
′
,n
grad
(m
′
denotes the patch of interest).
2.2.2 Self-similarity Map using Color
Distributions
Analyzing color distributions of an image will be
helpful for measuring the intensity of motion blur. As
shown in Figure 2, a mixture of the hand and back-
ground components is captured in the motion-blurred
regions. This suggests that the intensity of the motion
blur is likely to be large when the skin color intensity
is low, and vice versa. On the basis of this concept,
we use the color distribution via a self-similarity map
representation.
We first perform an RGB to HSV color space con-
version of I
intg
. In the HS color space (the V channel
is not used because the influences of the changes in
lighting conditions need to be excluded), we create a
HS color histogram in each local image patch.
(a) (b)
Figure 4: Example of a self similarity map using gradient
intensity distributions. (a) Integrated gesture image I
intg
;
(b) Computed self-similarity s
m
′
,n
grad
. The white block in (a)
denotes the m
′
-th patch (the patch of interest).
As in the s
m,n
grad
computation, we obtain a similarity
s
m,n
col
between patch m and patch n by computing the
Bhattacharyya distance of the normalized HS color
histograms, c
m
and c
n
, as
s
m,n
col
=
s
1−
L
∑
l=1
c
m
l
c
n
l
, (6)
where c
m
l
denotes the frequency in the l-th bin of c
m
,
and L represents the number of bins.
Similarly, we construct the self-similarity map of
the HS color distribution S
col
as
S
col
= [s
1,2
col
,...,s
1,B
col
,...,s
B−1,B
col
] . (7)
Figure 5 shows an example of the computed s
m
′
,n
col
(m
′
denotes the patch of interest).
2.3 Classifier Construction
We finally construct a classifier for hand gesture
recognition. To train a classifier, we use a combina-
tion of the two self-similarity maps S
grad
and S
col
as
Using Motion Blur to Recognize Hand Gestures in Low-light Scenes
311

(a) (b)
Figure 5: Example of a self-similarity map using color dis-
tributions. (a) Integrated gesture image I
intg
; (b) Computed
self-similarity s
m
′
,n
col
. The white block in (a) denotes the m
′
-
th patch (the patch of interest).
a training sample. By using the trained classifier, we
perform hand gesture recognition.
3 EXPERIMENTAL RESULTS
In order to demonstrate the effectiveness of the pro-
posed method, we tested the proposed method us-
ing the Cambridge hand gesture dataset (Kim et al.,
2007). This dataset includes 5 illumination patterns,
9 motion (gesture) patterns, and 20 people; 900 se-
quences in total. We used a support vector machine
(SVM) for hand gesture classification. To find the op-
timal parameters of SVM, we performed a five-fold
cross validation. We empirically set the other param-
eters in the proposed system such that δ=0.45, B=400,
K=8 and L=3. We used the same parameters for all
the experiments. The experiments were run on a Win-
dows PC with Intel Core i7-3770K 3.50GHz for our
computation. Our classification cost 30 s in this com-
puting environment.
3.1 Results for Bright-lighting Scenes
We first tested the proposed method in bright-lighting
scenes. Although the Cambridge hand gesture dataset
has the variations in illuminations, we viewed that the
entire illumination level is sufficiently high among
this dataset; we thus regarded the Cambridge hand
gesture dataset as that taken in bright-lighting scenes.
In this experiment, we compared the proposed
method with the following competitive methods:
Liu’s method (Liu and Shao, 2013) and 3D SIFT de-
scriptor (Scocanner et al., 2007).
The confusion matrices obtainedby these methods
on the Cambridge hand gesture dataset are shown in
Tables 1, 2, and 3. In these confusion matrices, “0, ...,
8” indicate the index of each gesture pattern. In addi-
tion, each element in confusion matrix represents the
Table 1: Confusion matrix obtained using the proposed
method. Note that each element represents the recognition
rate (%) of the corresponding gesture. Further, “0, ..., 8”
indicate the index of each gesture pattern.
0 1 2 3 4 5 6 7 8
0 90 0 0 8 1 1 0 0 0
1 0 85 1 0 10 0 1 3 0
2 1 2 88 1 0 2 2 1 3
3 5 0 0 89 1 0 5 0 0
4 2 21 0 3 72 0 0 2 0
5 2 0 2 0 1 89 0 0 6
6 0 2 0 1 0 0 90 6 1
7 0 4 1 0 2 0 5 88 0
8 0 0 2 0 0 2 2 0 94
Table 2: Confusion matrix reported in (Liu and Shao, 2013).
0 1 2 3 4 5 6 7 8
0 96 0 0 3 0 0 1 0 0
1 0 97 0 0 2 0 0 1 0
2 3 1 82 0 0 10 0 0 4
3 2 0 0 95 0 0 3 0 0
4 0 12 0 0 85 0 0 3 0
5 0 0 3 4 0 92 0 0 1
6 5 0 0 12 0 0 83 0 0
7 1 19 0 2 5 0 1 72 0
8 1 0 10 0 0 19 0 0 70
Table 3: Confusion matrix obtained using the method (Sco-
canner et al., 2007).
0 1 2 3 4 5 6 7 8
0 96 0 0 1 0 0 2 0 1
1 0 90 1 0 6 0 0 3 0
2 0 0 97 0 0 0 0 0 3
3 2 0 0 95 0 0 3 0 0
4 0 7 0 0 92 0 0 1 0
5 0 0 1 0 0 94 0 1 4
6 1 0 0 0 0 0 97 0 2
7 0 0 1 0 1 0 0 98 0
8 0 0 2 0 0 1 0 0 97
Table 4: Comparison results in average recognition rate.
The results of Method 1 have been reported in (Liu and
Shao, 2013), whereas those of Method 2 have been reported
in (Scocanner et al., 2007).
Average recognition rate [%]
Proposed method Method 1 Method 2
87.2 85.8 95.1
recognition rate (%) of the corresponding gesture. Ta-
ble 4 shows the comparison results in average recog-
nition rate. We can see that the results obtained by
using the proposed method favorably compare with
those of the comparison methods.
3.2 Results for Low-light Scenes
In this experiment, we tested the proposed method on
a dataset simulating low-light scenes.
VISAPP 2016 - International Conference on Computer Vision Theory and Applications
312

(a) A=1 (b) A=0.5 (c) A=0.1 (d) A=0.05 (e) A=0.025
Figure 6: Examples of synthesized low-light hand gesture images.
3.2.1 Synthesis of Low-light Hand Gesture
Sequences
We synthesized hand gesture sequences simulating
those captured in low-light scenes. We first decreased
the brightness of the original gesture sequences from
the Cambridge hand gesture dataset. In particular, we
multiplied the intensity of original images by the scale
value A(≤ 1). We varied A=1 (same brightness level
as that of the original sequence), 0.5, 0.1, 0.05 and
0.025. Depending on the value of A, we added Gaus-
sian noise. In order to simulate the amount of noise
imposed from real low-light scenes, we analyzed a re-
lation between the brightness level and the amount of
noise to be added. In fact, the amount of noise dif-
fered for each sequence because of the difference of
the relation between the brightness level and the S/N
ratio of each image. Examples of the synthesized low-
light images are shown in Figure 6.
3.2.2 Results
In order to evaluate the recognition performance, we
comparedthe proposed method with the method using
3D SIFT descriptors (Scocanner et al., 2007) for each
brightness level.
Tables 5, 6, 7, 8, 9, 10, 11, and 12 show the
confusion matrices obtained by using these methods
on the synthesized low-light dataset for A = 0.5, 0.1,
0.05 and 0.025. We observed that our method outper-
formed the comparison method at each value of A.
Table 13 and Figure 7 show the average recog-
nition rate with respect to each value of A. We can
see that the recognition rate of the proposed method
is high when A is small. In contrast, the recogni-
tion performance in the comparison method signifi-
cantly decreases for low A. From these evaluations,
we conclude that the proposed method is effective in
low light-scenes.
Table 5: Confusion matrix obtained using the proposed
method (A = 0.5).
0 1 2 3 4 5 6 7 8
0 92 0 0 5 0 2 1 0 0
1 0 76 1 1 16 0 3 3 0
2 0 7 90 0 0 0 0 1 2
3 6 0 2 87 5 0 0 0 0
4 0 16 1 2 80 0 0 0 1
5 2 0 3 0 0 92 0 0 3
6 1 1 0 0 1 0 90 5 2
7 0 5 1 0 2 0 4 86 2
8 0 0 5 0 0 3 6 4 82
Table 6: Confusion matrix obtained using the method (Sco-
canner et al., 2007) (A = 0.5).
0 1 2 3 4 5 6 7 8
0 91 0 1 0 0 1 7 0 0
1 0 78 0 0 8 0 0 13 1
2 0 0 80 0 0 0 0 0 20
3 5 0 0 89 0 0 6 0 0
4 0 11 0 0 84 0 0 5 0
5 0 0 3 0 0 79 0 1 17
6 4 0 0 0 0 0 95 0 1
7 0 1 0 0 0 0 0 97 2
8 0 0 6 0 0 0 0 0 94
3.3 Limitation
In the experimental results, we observed the effec-
tiveness of the proposed method in low-light scenes.
However, the proposed method has a limitation.
As described in Section 2.1, the proposed method
temporally integrates the input hand gesture sequence
into a single color image. However, when the ges-
ture speed is quite high (or the video length is short),
the proposed system cannot obtain an image includ-
ing such gesture motion. Figure 8 shows an example
of I
intg
where the video length is quite short. We can
see that I
intg
was unable to capture the hand gesture.
In such a case, the proposed system would fail to rec-
ognize hand gestures.
4 CONCLUSIONS
We presented a method for recognizing hand gestures
in low-light scenes. In such scenes, hand gesture im-
Using Motion Blur to Recognize Hand Gestures in Low-light Scenes
313

Table 7: Confusion matrix obtained using the proposed
method (A = 0.1).
0 1 2 3 4 5 6 7 8
0 90 1 0 7 0 1 1 0 0
1 1 73 3 2 17 0 0 4 0
2 2 4 87 0 0 2 1 0 4
3 7 1 0 88 3 0 1 0 0
4 0 17 1 1 79 0 0 2 0
5 3 0 3 2 1 89 0 0 2
6 0 2 0 0 0 0 95 1 2
7 0 1 0 0 2 0 3 92 2
8 0 0 7 0 0 1 2 3 87
Table 8: Confusion matrix obtained using the method (Sco-
canner et al., 2007) (A = 0.1).
0 1 2 3 4 5 6 7 8
0 84 0 1 2 0 1 11 0 1
1 0 70 0 0 8 0 0 21 1
2 0 0 78 0 0 0 0 0 22
3 4 0 0 85 0 0 8 0 3
4 0 14 0 0 75 0 0 10 1
5 0 0 5 0 0 64 0 1 30
6 3 0 2 1 0 0 84 0 10
7 0 3 6 0 1 0 0 82 8
8 0 0 8 0 0 1 0 0 91
Table 9: Confusion matrix obtained using the proposed
method (A = 0.05).
0 1 2 3 4 5 6 7 8
0 80 1 2 14 0 1 1 1 0
1 3 70 2 1 20 0 0 3 1
2 1 2 84 1 0 5 1 3 3
3 15 2 1 79 2 0 1 0 0
4 0 24 1 8 63 0 0 4 0
5 4 1 6 3 0 82 1 0 3
6 2 1 1 1 0 0 88 5 2
7 0 4 1 0 2 0 5 86 2
8 0 0 7 0 0 1 4 4 84
Table 10: Confusion matrix obtained using the method
(Scocanner et al., 2007) (A = 0.05).
0 1 2 3 4 5 6 7 8
0 74 0 2 3 0 0 15 0 6
1 0 60 4 0 9 0 0 24 3
2 0 0 83 0 0 0 0 0 17
3 13 0 1 63 0 0 14 0 9
4 0 16 2 0 64 0 0 13 5
5 0 0 12 0 0 43 0 1 44
6 4 0 2 0 0 0 72 0 22
7 0 1 6 0 0 0 0 65 28
8 0 0 26 0 0 1 0 0 73
ages are significantly deteriorated because of heavy
noise, and the previous methods may not work well.
In order to address this problem, we used a single
color image that temporally integrates a hand gesture
sequence. In general, temporal integration of images
improves the S/N ratio; it can capture the necessary
Table 11: Confusion matrix obtained using the proposed
method (A = 0.025).
0 1 2 3 4 5 6 7 8
0 87 0 0 10 0 2 0 0 1
1 3 75 3 1 14 0 0 4 0
2 2 2 83 1 5 3 0 2 2
3 10 1 1 85 2 0 1 0 0
4 0 18 1 3 77 0 0 0 1
5 2 0 3 2 2 88 1 0 2
6 0 0 2 1 1 0 88 8 0
7 0 3 3 0 3 0 9 80 2
8 0 0 4 0 0 4 3 5 84
Table 12: Confusion matrix obtained using the method
(Scocanner et al., 2007) (A = 0.025).
0 1 2 3 4 5 6 7 8
0 56 0 14 3 0 0 10 0 17
1 0 55 14 0 7 1 0 8 15
2 0 0 83 0 0 0 0 0 17
3 12 0 10 49 0 2 11 0 16
4 0 22 18 0 42 1 0 8 9
5 0 0 23 0 0 32 0 0 45
6 1 0 16 0 0 0 39 0 44
7 0 1 29 0 0 0 0 23 47
8 0 0 36 0 0 0 0 0 64
Table 13: Average recognition rate. We compared the pro-
posed method with the method (Scocanner et al., 2007).
Average recognition rate [%]
A Proposed method Comparison method
0.025 83.0 49.2
0.05 79.6 66.3
0.1 86.7 79.2
0.5 86.1 87.4
1.0 87.2 95.1
appearance and motion information for hand gesture
recognition in low-light scenes. Temporal integration
of a hand gesture produces motion blur, which is con-
sidered to be one of the annoying noises that degrade
performance in various computer vision or image pro-
cessing techniques. In contrast, we effectively used
motion blur for recognizing hand gestures. We as-
sumed that the direction and the magnitude of the
motion blur represent discriminative characteristics
that can be used for differentiating various hand ges-
tures. In order to extract these features from a motion-
blurred image, we analyzed the gradient intensity dis-
tributions as well as the color distributions. We en-
coded both the gradient intensity and the color distri-
butions by using a self-similarity map to make them
invariant to the variations in the users’ gestures. By
using the self-similarity maps, we constructed a clas-
sifier for hand gesture recognition. Through the ex-
periments, we demonstrated that the proposed method
was more effective than the previous methods in the
case of low-light scenes. We finally discussed the
VISAPP 2016 - International Conference on Computer Vision Theory and Applications
314

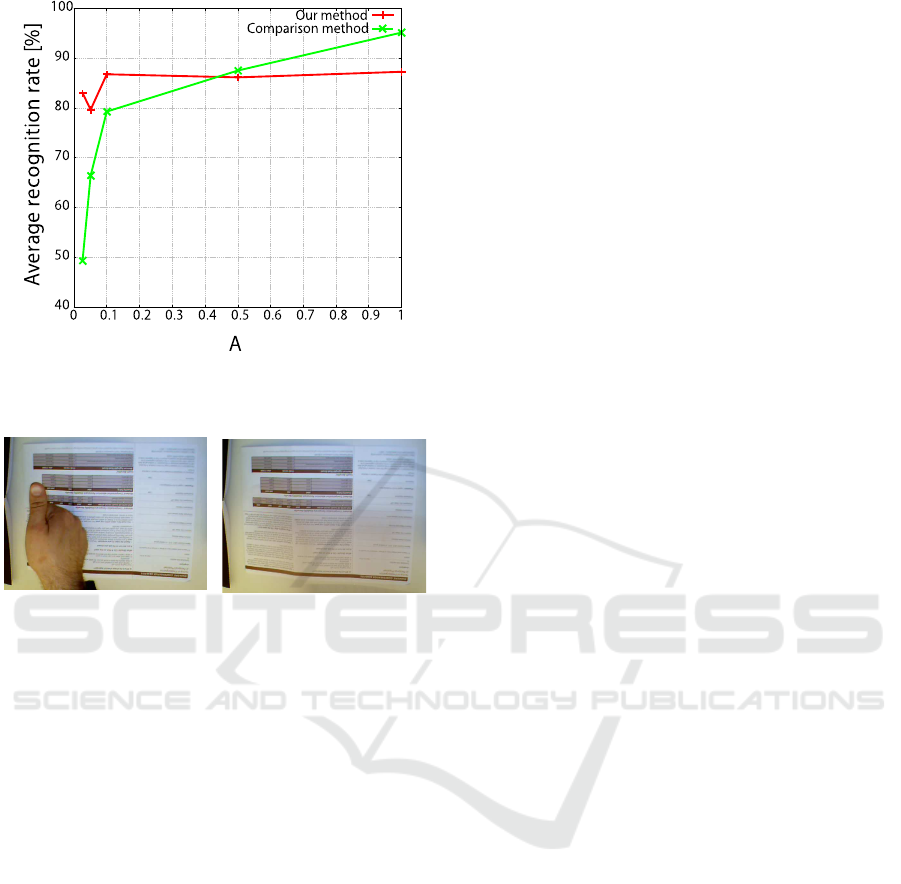

Figure 7: Average recognition rate. The red line denotes the
result obtained using the proposed method, and the green
line represents that obtained using (Scocanner et al., 2007).
(a) Original gesture (Shen
et al., 2012)
(b) Integrated image I
intg
Figure 8: Limitation of the proposed method. When the
gesture speed is considerably high, our temporal integration
cannot capture the gesture motion.
limitation of the proposed method. When the speed
of a hand gesture was considerably high, the proposed
gesture integration scheme could not capture the hand
gesture motion. We believe that the use of a high-
frame-rate camera would be effective in solving this
problem.
In the experiments shown in Section 3.2, we tested
the proposed method using the synthesized hand ges-
ture sequences. In general, however, it is hard to syn-
thesize real-world conditions reliably. In order to en-
sure the strengths of the proposed method even in real
low-light scenes, we will test the proposed method us-
ing gesture sequences taken in real low-light condi-
tions. We intend to focus on these points in our future
work.
REFERENCES
Bregonzio, M., Gong, S., and Xiang, T. (2009). Recog-
nizing action as clouds of space-time interest points.
In Proc. IEEE CS Conf. Computer Vision and Pattern
Recognition, pages 1948–1955.
Cipolla, R., Okamoto, Y., and Kuno, Y. (1993). Robust
structure from motion using motion parallax. In Proc.
IEEE Int. Conf. Computer Vision, pages 374–382.
Davis, J. W. (2001). Hierarchical motion history images for
recognizing human motion. In Proc. IEEE Workshop.
Detection and Recognition of Events in Video, pages
39–46.
Freeman, W. T. and Roth, M. (1995). Orientation his-
tograms for hand gesture recognition. In Proc. IEEE
Int. Workshop. Automated Face and Gesture Recogni-
tion, pages 296–301.
Freeman, W. T. and Weissman, C. D. (1996). Televi-
sion control by hand gestures. In Proc. IEEE Int.
Workshop. Automated Face and Gesture Recognition,
pages 179–183.
Ikizler-Cinbis, N. and Sclaroff, S. (2010). Object, scene
and actions: Combining multiple features for human
action recognition. InProc. European Conf. Computer
Vision, pages 494–507.
Iwai, Y., Watanabe, K., Yagi, Y., and Yachida, M. (1996).
Gesture recognition using colored gloves. In Proc. Int.
Conf. Pattern Recognition, pages 662–666.
J.Davis and M, S. (1994). Recognizing hand gestures. In
Proc. European Conf. Computer Vision, pages 331–
340.
Kim, T.-K., Wong, S.-F., and Cipolla, R. (2007). Tensor
canonical correlation analysis for action classification.
In Proc. IEEE CS Conf. Computer Vision and Pattern
Recognition, pages 1–8.
Lian, S., Hu, H. W., and Wang, K. (2014). Automatic user
state recognition for hand gesture based low-cost tele-
vision control system. IEEE Trans. Consumer Elec-
tronics, 60:107–115.
Lin, H. T., Tai, Y. W., and Brown, M. S. (2011). Mo-
tion regularization for matting motion blurred objects.
IEEE Trans. Pattern Analysis and Machine Intelli-
gence, 33:2329–2336.
Liu, L. and Shao, L. (2013). Synthesis of spatio-temporal
descriptors for dynamic hand gesture recognition us-
ing genetic programming. In Proc. IEEE Conf. Auto-
matic Face and Gesture Recognition, pages 1–7.
Lucas, B. and Kanade, T. (1981). An iterative image regis-
tration technique with an application in stereo vision.
In Proc. Int. Joint Conf. Artificial Intelligence, pages
674–679.
Marin, G., Dominio, F., and Zanuttigh, P. (2014). Hand
gesture recognition with leap motion and kinect de-
vices. In Proc. IEEE Int. Conf. Image Processing,
pages 1565–1569.
Niebles, J., Wang, H., and Fei-Fei, L. (2008). Unsu-
pervised learning of human action categories using
spatio-temporal words. Int. Journal of Computer Vi-
sion, 79:299–318.
Pavlovic, V. I., Sharma, R., and Huang, T. S. (1997). Visual
interpretation of hand gestures for human-computer
interaction: Review. IEEE Trans. Pattern Analysis
and Machine Intelligence, 19(7):677–695.
Pfister, T., Charles, J., and Zisserman, A. (2014). Domain-
adaptive discriminative one-shot learning of gestures.
In Proc. European Conf. Computer Vision, pages 814–
829.
Using Motion Blur to Recognize Hand Gestures in Low-light Scenes
315

Ren, Z., Yuan, J., Meng, J., and Zhang, Z. (2013). Robust
part based hand gesture recognition using kinect sen-
sor. IEEE Trans. Multimedia, 15:1110–1120.
Scocanner, P., Ali, S., and Shah, M. (2007). A 3-
dimensional sift descriptor and its application to ac-
tion recognition. In Proc. ACM Int. Conf. Multimedia,
pages 357–360.
Shen, X., Lin, Z., Brandt, J., and Wu, Y. (2012). Dy-
namic hand gesture recognition: An exemplar-based
approach from motion divergence fields. Image and
Vision Computing, 30:227–235.
Stamer, T. and Pentland, A. (1995). Real-time american
sign language recognition from video using hidden
markov models. Technical Report TR-375, Media
Lab., MIT.
Tang, D., Chang, H. J., Tejani, A., and Kim, T. K. (2014).
Latent regression forest: Structured estimation of 3d
articulated hand posture. In Proc. IEEE Conf. Com-
puter Vision and Pattern Recognition, pages 3786–
3793.
Wachs, J. P., Kolsch, M., Stern, H., and Edan, Y. (2011).
Vision-based hand-gesture applications. Communica-
tions of the ACM, 54:60–71.
Walk, S., Majer, N., Schindler, K., and Schiele, B. (2010).
New features and insights for pedestrian detection.
In Proc. IEEE Conf. Computer Vision and Pattern
Recognition, pages 1030–1037.
Weaver, J., Starner, T., and Pentland, A. (1998). Real-time
american sign language recognition using desk and
wearable computer based video. IEEE Trans. Pattern
Analysis and Machine Intelligence, 33:1371–1376.
Yamato, J., Ohya, J., and Ishii, K. (1992). Recognizing
human action in time-sequential images using hidden
markov model. In Proc. IEEE Conf. Computer Vision
and Pattern Recognition, pages 379–385.
VISAPP 2016 - International Conference on Computer Vision Theory and Applications
316
