The Challenges and Advantages with a Parallel Implementation of

Feature Matching

Anders Hast

and Andrea Marchetti

Department of Information Technology, Division of Visual Information and Interaction,

Uppsala University, Uppsala, Sweden

Istituto di Informatica e Telematica, Consiglio Nazionale delle Ricerche, Pisa, Italy

Keywords:

Feature Matching, RANSAC, Interest Points, Parallel Implementation.

Abstract:

The number of cores per cpu is predicted to double every second year. Therefore, the opportunity to parallelise

currently used algorithms in computer vision and image processing needs to be addressed sooner rather than

later. A parallel feature matching approach is proposed and evaluated in Matlab

. The key idea is to use

different interest point detectors so that each core can work on its own subset independently of the others.

However, since the image pairs are the same, the homography will be essentially the same and can therefore

be distributed by the process that ﬁrst ﬁnds a solution. Nevertheless, the speedup is not linear and reasons why

is discussed.

1 INTRODUCTION

An efﬁcient parallel implementation of feature match-

ing is proposed and discussed. Especially it will be

shown how the different steps of matching can be im-

plemented and that the problem itself, when solved in

parallel, not only can be computed faster, but in part

also becomes simpler.

Research in such areas as image processing, com-

puter vision and pattern recognition, still mainly fo-

cus on sequential algorithms even though parallelism

have been at hand for many years. Today, most lap-

tops have two or more cores and desktop computers

have even more. Not surprisingly, even some cell

phones have more than one core nowadays. More-

over, multithreading makes it possible to run more

than one program per core. It has been suggested that

the number of cores will double every two years (Va-

jda, 2011) and therefore the communities in the afore-

mentioned research areas have to, sooner rather than

later, deal with parallel implementations of the most

commonly used algorithms. Among these are cer-

tainly feature matching, including interest key point

detection, matching, outlier removal using some vari-

ant of Random sample consensus (RANSAC) (Fis-

chler and Bolles, 1981) and homography computa-

tion. Besides this, what is the fastest method for a

sequential approach may not necessarily be the fastest

in parallel and methods that were considered too slow

in the past might be used in the future when making

use of the multicore capacity.

It will be shown how feature matching can be im-

plemented to beneﬁt from the available parallelism

and it will be shown how different types of interest

points can be extracted in parallel together with the

respective matching. Moreover, a parallel implemen-

tation of RANSAC is presented that works on each

set of matches. Whenever, one of the processes ﬁnds

a good solution, it is shared among the other processes

so that the whole procedure will theoretically be just

as fast as the one ﬁnding the solution ﬁrst.

2 FEATURE MATCHING

Feature matching is important for applications like

image stitching (Szeliski, 2006) and registration (Zi-

tova and Flusser, 2003). The feature vector is usually

a visual descriptor of the area around key points in

the image. Many different descriptors have been pro-

posed in literature and severals overviews have been

published (Gauglitz et al., 2011). In the performed

tests a Fourier based descriptor was used (Hast, 2014).

However, the implementation discussed could use any

kind of descriptor. More importantly is the fact that

different different interest point detectors can be used

and not only one, as usually is the case. Some of them

will be mentioned in the following section as they will

be used for the parallel implementation.

Hast, A. and Marchetti, A.

The Challenges and Advantages with a Parallel Implementation of Feature Matching.

DOI: 10.5220/0005674501010106

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 4: VISAPP, pages 101-106

ISBN: 978-989-758-175-5

101

2.1 Interest Point Detectors

The detector proposed by Harris and Stephens (Harris

and Stephens, 1988) is based on the so called struc-

ture tensor, S of an image I , which is deﬁned as

S =

(1)

where I

and I

are image derivatives in the x and y

directions, respectively.

In order to detect corners it was proposed to com-

pute the response using the trace and determinant of

the matrix as

R = det(S)− k · tr

(S) (2)

where k is a constant, typically set to 0.04. However,

the formulation by Noble (Noble, 1989) will be used

herein since it has no such ad hoc constant and is

therefore, in some sense, more general. Noble pro-

posed to use

= det(S)/(tr(S)+ ε) (3)

where ε is a small constant used to avoid division by

zero.

A Gaussian window is generally used to compute

isotropic responses, i.e. each one of the elements

in the tensor in equation 1 are all ﬁltered separately

using a Gaussian kernel. This was an improvement

compared to the early detector by Moravec (Moravec,

1980), which used a square window, yielding non

isotropic responses. This Gaussian convolution is

omitted in the equations above for clarity.

Furthermore, the trace R

= tr(S ) can also be used

for interest point detection and will ﬁnd edges rather

than corners. The Hessian matrix used for SURF by

Bay et al. (Bay et al., 2008), on the other hand will

ﬁnd blobs and is deﬁned as

H =

(4)

They proposed to use the determinant of H

= det(H ) = I

− I

(5)

By changing the sign of R

so that R

−

= −R

a blob detector that will ﬁnd dark blobs instead of

bright blobs is obtained. Once again, the trace R

tr(H )can also be used for interest point detection.

Moreover, the inverted sign R

t−

= −R

can be used

for the Hessian. The trace of the structure tensor can-

not be inverted as the sign does not matter, since it

contains squares of derivatives.

Many other detectors have been proposed in liter-

ature (Smith and Brady, 1997; Obdrz

alek and Matas,

2006; Hast and Marchetti, 2014; Hast, 2015), as

discussed in the aforementioned overviews. How-

ever the six rather different detectors discussed above

−

t−

) will be used for the pro-

posed parallel implementation of feature matching.

2.2 Nearest Neighbour Search

By comparing the feature vectors extracted for key

points in image A with the points in image B, tenta-

tive correspondences are obtained. A distance mea-

sure is used to determine how similar these feature

vectors are and the pair of features having the smallest

distance is consequently considered as nearest neigh-

bours. If there are few points and the feature vectors

themselves are rather small, then an exhaustive search

can be applied where each of the features in one set is

compared to all of the features in the other set. This

is often a rather time consuming approach that can be

improved by some kind of partitioning method such

as kd-trees (Friedman et al., 1977) or k-means clus-

tering (Fukunage and Narendra, 1975) and a short

overview of such approximating approaches is given

by (Muja and Lowe, 2009). Nevertheless, a proof of

concept is given herein using the exhaustive search

and therefore the choice of approximate algorithms

are left to the reader.

2.3 RANSAC

RANSAC is one of the most used algorithms for out-

lier removal, i.e. removing false positives among

the tentative correspondeces, even though other ap-

proaches exist (Enqvist and Kahl, 2008). The main

idea is to generate a hypothesis from random samples

and then verifying it using all the data. In practice, it

ﬁrst starts by selecting the minimal number of points

required to determine the model parameters, i.e. ﬁnd-

ing the homography (Brown and Lowe, 2007), which

is the projective transformation between the images.

Then the set is rescored using this transformation, in

the way that the number of inliers that falls below

a certain predeﬁned tolerance ε, are counted. This

means that when transformed, these points are be-

ing close enough to its corresponding match and are

hence regarded as true inliers.

If the number of inliers is large enough or more

commonly when the probability of ﬁnding a bet-

ter model becomes lower than some threshold, then

the algorithm terminates, otherwise it starts all over

again. RANSAC generally treats all correspondences

equally and draws random samples uniformly from

the full set.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

102

2.4 Parallel RANSAC

MultiRANSAC (M. Zuliani and Manjunath, 2005) is

a parallel extension of the sequential RANSAC that

allows to deal simultaneously with multiple models,

which have the advantage of being able to cope with

a high percentage of outliers. Nevertheless, running

the algorithms on several cores is only proposed for

further research. GASAC (Rodehorst and Hellwich,

2006) is another parallel algorithm using a genetic

algorithm approach. Neither this approach is imple-

mented for several processors, instead it is parallel in

the sense that several evaluated solutions exists simul-

taneously.

There are very few attempts to parallelise

RANSAC in literature as noted by Hidalgo et al.

(Hidalgo-Paniagua et al., 2014), who make a com-

parative study of parallel versions using OpenMP and

CUDA. The algorithm starts by clustering points and

each thread is then working on a subset of the original

set. The overhead for this type of approach is there-

fore the clustering of these subsets. They refer to what

they claim to be the only other parallel implementa-

tion by Iser et al.(Iser et al., 2009). This approach

lets several threads be divided into two groups which

samples the two point sets, in each image, and up-

dates a hash table to establish correspondences. Nev-

ertheless, Fijany and Diotalevi (Fijany and Diotalevi,

2012) propose a variant of RANSAC that was imple-

mented on a many-core architecture and is based on

cooperative search, where a global broadcast is done,

if and when a better partial solution is found. In this

way the best solution is known to all processes that

draw samples from the whole dataset, which resides

in shared memory.

In conclusion, RANSAC is close to embarrass-

ingly parallel, as each process can work on the whole

data, drawing samples and scoring in parallel, and the

only thing needed is to distribute the best result to all

processors in order to keep track of the best homog-

raphy. Alternatively, it can work on a clustered sub-

set of the data, with the overhead of performing such

clustering.

3 PARALLELISATION OF

FEATURE MATCHING

In this paper a rather different approach is taken, even

if some details are similar, as parallelisation is pro-

posed not only for RANSAC, but also for interest

point extraction. The idea is to let several processes

extract interst points that by deﬁnition are different

and thus, to some extent, the clustering for near-

est neighbour search comes for free. This can be

achieved by using the previously explained interest

point detectors that generally ﬁnds different features,

such as corners, dark and white blobs, and lines (or

ridges). Another advantage is that only the strongest

responses (interest points with high contrast (Lowe,

2004)) are useful, as low contrast points often are

more sensitive to noise. This implies that it theoreti-

cally could be better to use the top n responses from

k number of detectors than m number of points from

any single detector, where m = n · k. Then each pro-

cess performs matching within its own set only. Es-

pecially, if an exhaustive search for true matches is

used for comparing feature point neighbourhoods, it

is an advantage to use several detectors (k) and fewer

points within them (n), than using one detector and

many points (m). Hence, the exhaustive search is de-

limited to be performed only on the points from each

detector and the matching will therefore be faster. The

number of comparisons will therefore be k ·n

instead

of m

= (n · k)

= k · (k · n

), which means that the to-

tal work done in the exhaustive search will be scaled

down with a factor of k.

Furthermore, since these different detectors gener-

ally ﬁnd different interest points, then RANSAC can

be run in parallel, where each thread or process com-

putes the homographies for each such set. If a true

homography is found for one set then it should also

be possible to use for the other sets. If this is the case,

then a true solution is found and all sets can be com-

bined to a single set and the homography can be com-

puted for the resulting set. The advantage is that the

sets the different processes are working on are smaller

(n < m) than what would be the case if only one detec-

tor was used. Hence, n points are evaluated using the

homography in each thread instead of m points. If, on

the other hand kd-trees or similar are used to speed up

the matching, the above reasoning must be changed

accordingly. However, the overhead of making such

trees might not be worth the extra work needed, as the

matching is divided into k sets anyway and are there-

fore smaller from the start.

Whenever a process i ﬁnds a transformation giv-

ing more inliers than the maximum so far, the homog-

raphy H

is broadcasted to all other processes. They,

in their turn probe for such messages and try out the

homography on their set of matches. In this way, if

some process ﬁnds a good homography it is shared

and the other processes will test how well the model

works on their data. One advantage is that if some

processes are having trouble ﬁnding a good homogra-

phy, they will automatically get help from those who

are more successful. The result will be a more con-

sistent result as they are helping each other. Another

The Challenges and Advantages with a Parallel Implementation of Feature Matching

103

advantage is that the total speed of the whole proce-

dure will in principle be just as fast as the process that

ﬁnds the best homography ﬁrst, with the added over-

head of distributing the homography and scoring it.

In this paper the RANSAC used (Hast et al., 2013)

for the suggested parallel implementation stops when

two identical sets are found after local optimisation,

re-estimation and pruning. Whenever this occurs, the

homography is broadcasted to all processes, which in

their turn scores their sets, computes the homography

and then terminates.

Pisa, The Duomo

Pisa, The Duomo and the city centre

Pisa, Fields north of the river Arno

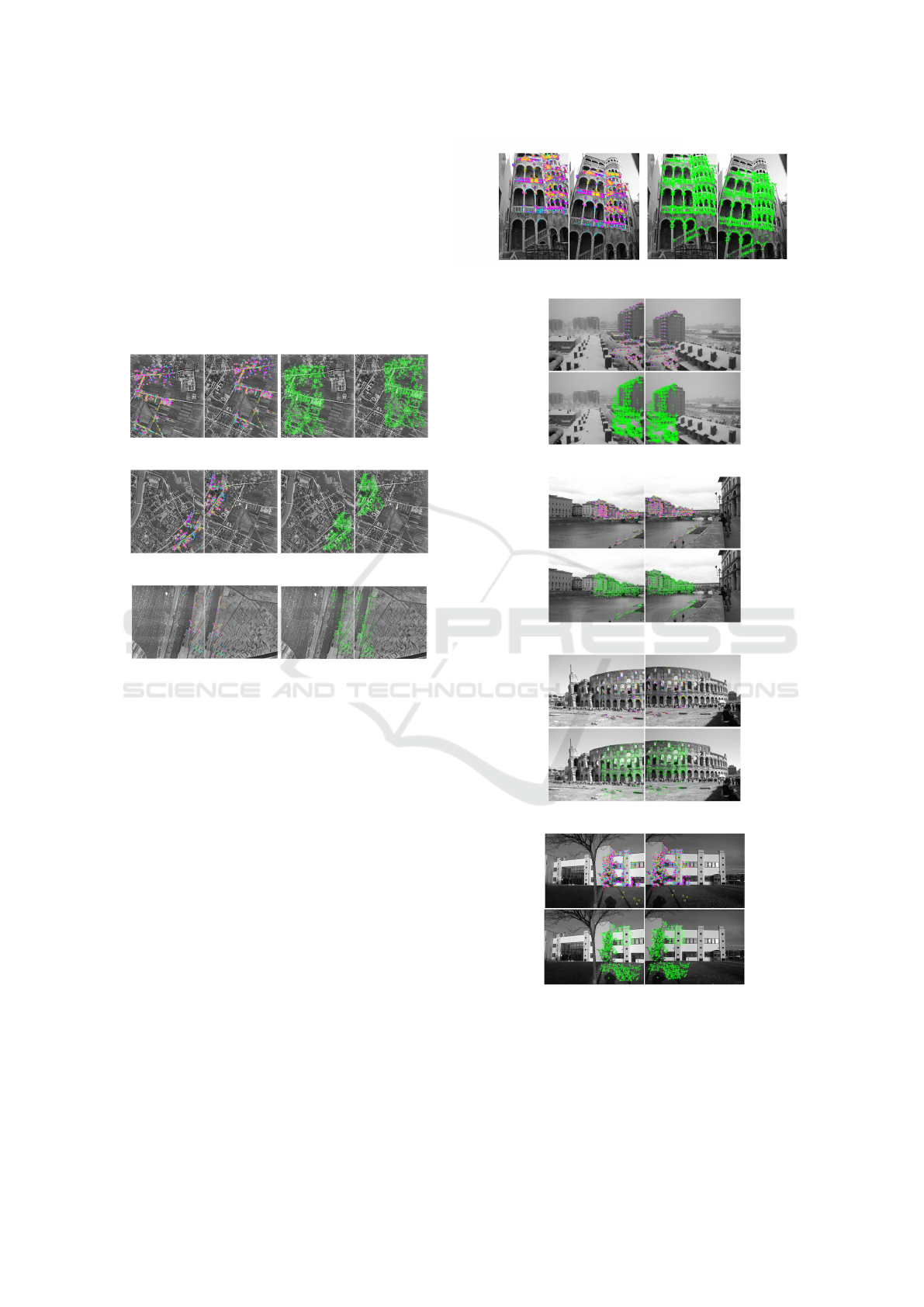

Figure 1: Illustration of corresponding pairs (inliers only)

for a set of images. The six different detectors are visualised

using individual colours and glyphs, while the case of one

detector (DoH) using 6 times more key points is depicted

using green ’+’.

MiBAC-ICCD, Aerofototeca Nazionale,

fondo RAF.

4 RESULTS

A proof of concept was performed on a set of images

shown in ﬁgure 1. Six cores were used to compute

the aforementioned interest points and matched us-

ing a simple invariant matching procedure (Hast and

Marchetti, 2013; Hast, 2014). A parallel version was

compared to a ordinary sequential version in 1000

test runs. The results are shown in ﬁgure 1 and 2.

In each pair of images, to the left, the resulting in-

liers are depicted using different glyphs in different

colours: R

(blue), R

(green), R

−

(red), R

(cyan),

t−

(magenta), R

(yellow). The top 500 points were

chosen from each detector, giving a total of 3000

points. When one detector only was used, depicted

in the right image pairs with green ’+’, the top 3000

were chosen using R

, just for comparison.

Venice, Palazzo Contarini del Bovolo

Bologna, Snowfall in Casalecchio di Reno

Florence, Ponte Vecchio

Rome, Colloseum

Pisa, CNR

Figure 2: Illustration of corresponding pairs (inliers only)

for a set of images. The six different detectors are visualised

using individual colours and glyphs, while the case of one

detector (DoH) using 6 times more key points is depicted

using green ’+’. All images

Anders Hast.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

104

Table 1: Comparison between a parallel and sequential implementation of feature matching, showing inliers after matching

and after RANSAC, as well as wall clock time and speedup (ratio).

image Inliers matching Inliers RANSAC Time Speedup

parallel sequential parallel sequential parallel sequential ratio

Pisa 1 613 509 443 352 1,99 5,24 2,64

Pisa 2 1046 1211 932 1146 2,08 6,29 3.03

Pisa 3 453 454 273 330 3,63 5,74 1,58

Venice 1835 2139 1728 2078 7,74 18,36 2,37

Bologna 1160 1048 1008 908 3,28 10,65 3,25

Florence 1443 1090 1365 1014 4,75 6,75 1,42

Rome 702 985 532 893 4,54 6,43 1,42

Pisa 1172 848 944 542 5,14 35,96 7,00

In table 1 the results are shown for each image

pair and the number of inliers, after matching and af-

ter RANSAC, measured wall clock time and speedup

is reported for both the parallel and sequential imple-

mentation.

5 DISCUSSION

The results in table 1 reveals that the speedup varies

noticeably for these few examples, when one could

expect close to six times speedup. The implementa-

tion in Matlab

seem to have a rather high overhead

when using the smpd command for launching the pro-

gram on several cores. Another reason for the results

might be that interest points are found in parallel and

then a barrier waits for all processes to return their

result. In the next step feature extraction and match-

ing is done followed by a barrier. Finally the paral-

lel RANSAC is called and the whole procedure ends

when all processes terminates. The reason for the bar-

riers is simply that different parallel functions were

made so that the user easily can change each one of

them. By incorporating all steps into one continuous

process, the time to ﬁnish would be decreased, but

the parallel program would be more complex. It is

of course not enough to use only eight image pairs to

draw decisive conclusions. However, the images are

from two different types of applications (aerial pho-

tography and outdoor scenes) and the idea is just to

give a proof of the concept. We strongly believe that

an entire implementation in OpenMP or MPI, using

C++ instead of Matlab would get better results. In

any case, the results obtained show that a parallel ap-

proach is possible and will always be faster than a

sequential approach.

In the performed test runs, six cores were avail-

able and used. However, there is nothing that pre-

vents from using fewer or more cores. For the latter

case more interest point detectors are necessary and

several have, as mentioned, been proposed in litera-

ture. Alternatively one could use different σ for the

gaussian in order to detect points of different sizes.

One advantage is that more cores means less points

to handle per core and only the strongest responses

are used, which prevents from using noisy data. This

is also clearly visible in the images as the different

detectors ﬁnds points only in interesting areas where

there are large changes in derivatives. It can be noted

that many points lie close to each other, but at least in

theory they are most of the time different. In any case

it is an advantage that they ﬁnd the strongest points

and points that are resulting from noise are therefore

reduced.

6 CONCLUSION AND FUTURE

WORK

The main idea proposed is to use different interest

point detectors for image matching and distributing

each set to different cores or processes. Moreover,

each core works on its own data and shares the ho-

mography to the other processes whenever a probable

transformation is found. In this way several things

can be done independently, such as obtaining inter-

est points, descriptor extraction, matching and ﬁnally

outlier removal. Another advantage is that the nearest

neighbour search is automatically clustered into indi-

vidual sets that are not dependent of each other, other

than that they share the same transformation, and this

will in itself reduce the computational cost with a fac-

tor corresponding to the number of cores. The draw-

back is that distributing data over several processes

and communicating between them has its own cost

and reduces the theoretical gain.

For future work it is proposed to incorporate all

steps necessary, from interest point detection and

matching to outlier removal, into one single proce-

dure without any barriers. Furthermore, the imple-

mentation should beneﬁt from using C++ together

with OpenMP or MPI. It should also be examined

The Challenges and Advantages with a Parallel Implementation of Feature Matching

105

how the parallel algorithm could be distributed over

more cores by using other kinds of interest point de-

tectors and feature descriptors than the ones used in

the experiments, such as SURF (Bay et al., 2008) and

SIFT (Lowe, 2004).

REFERENCES

Bay, H., Ess, A., Tuytelaars, T., and Gool, L. V. (2008).

Speeded-up robust features (surf). Comput. Vis. Image

Underst., 110(3):346–359.

Brown, M. and Lowe, D. G. (2007). Automatic panoramic

image stitching using invariant features. International

Journal of Computer Vision, 74(1):59–73.

Enqvist, O. and Kahl, F. (2008). Robust optimal pose esti-

mation. In ECCV.

Fijany, A. and Diotalevi, F. (2012). A cooperative search

algorithm for highly parallel implementation of ransac

for model estimation on tilera mimd architecture. In

Aerospace Conference, 2012 IEEE, pages 1–14.

Fischler, M. A. and Bolles, R. C. (1981). Random sample

consensus: A paradigm for model ﬁtting with appli-

cations to image analysis and automated cartography.

Communications of the ACM, 24:381–395.

Friedman, J. H., Bentley, J. L., and Finkel, R. A. (1977).

An algorithm for ﬁnding best matches in logarithmic

expected time. ACM Trans. Math. Softw., 3(3):209–

226.

Fukunage, K. and Narendra, P. M. (1975). A branch and

bound algorithm for computing k-nearest neighbors.

IEEE Trans. Comput., 24(7):750–753.

Gauglitz, S., H

ollerer, T., and Turk, M. (2011). Evaluation

of interest point detectors and feature descriptors for

visual tracking. Int. J. Comput. Vision, 94(3):335–360.

Harris, C. and Stephens, M. (1988). A combined corner

and edge detection. In Alvey Vision Conference, pages

147–151.

Hast, A. (2014). Robust and invariant phase based local fea-

ture matching. In ICPR 2014, pages 809–814. Poster

with Paper.

Hast, A. (2015). Interest point detection based on the ex-

tended structure tensor with a scale space parameter.

In VISAPP, pages 1–8. Short Paper.

Hast, A. and Marchetti, A. (2013). Rotation invariant fea-

ture matching - based on gaussian ﬁltered log polar

transform and phase correlation. In ISPA 2013, pages

100–105.

Hast, A. and Marchetti, A. (2014). Invariant interest point

detection based on variations of the spinor tensor. In

WSCG 2014, pages 49–56. Short Paper.

Hast, A., Nysj

o, J., and Marchetti, A. (2013). Optimal

ransac - towards a repeatable algorithm for ﬁnding the

optimal set. In WSCG, pages 21–30.

Hidalgo-Paniagua, A., Vega-Rodrguez, M., Pavn, N., and

Ferruz, J. (2014). A comparative study of parallel

ransac implementations in 3d space. International

Journal of Parallel Programming, pages 1–18.

Iser, R., Kubus, D., and Wahl, F. M. (2009). An ef-

ﬁcient parallel approach to random sample match-

ing (pransam). In Proceedings of the 2009 IEEE

International Conference on Robotics and Automa-

tion, ICRA’09, pages 655–662, Piscataway, NJ, USA.

IEEE Press.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International Journal of Com-

puter Vision, 60(2):91–110.

M. Zuliani, C. K. and Manjunath, B. (2005). The multi-

ransac algorithm and its application to detect planar

homographies. In The International Conference on

Image Processing (ICIP), volume 3, pages 153–156.

Moravec, H. P. (1980). Obstacle avoidance and navi-

gation in the real world by a seeing robot rover.

PhD thesis, Stanford University, Stanford, CA, USA.

AAI8024717.

Muja, M. and Lowe, D. G. (2009). Fast approximate near-

est neighbors with automatic algorithm conﬁguration.

In In VISAPP International Conference on Computer

Vision Theory and Applications, pages 331–340.

Noble, J. A. (1989). Descriptions of image surfaces. PhD

thesis, Oxford University, St Hugh’s College, Oxford,

GB. Ph. D. : Engineering sci. : April.

Obdrz

alek, S. and Matas, J. (2006). Object recognition us-

ing local afﬁne frames on maximally stable extremal

regions. In Ponce, J., Hebert, M., Schmid, C., and

Zisserman, A., editors, Toward Category-Level Object

Recognition, volume 4170 of Lecture Notes in Com-

puter Science, pages 83–104. Springer.

Rodehorst, V. and Hellwich, O. (2006). Genetic algorithm

sample consensus (gasac) - a parallel strategy for ro-

bust parameter estimation. In IEEE Computer Society

Conference on Computer Vision and Pattern Recogni-

tion Workshop (CVPRW), pages 1–8.

Smith, S. M. and Brady, J. M. (1997). Susan - a new ap-

proach to low level image processing. Int. J. Comput.

Vision, 23(1):45–78.

Szeliski, R. (2006). Image alignment and stitching: a tuto-

rial. Found. Trends. Comput. Graph. Vis., 2(1):1–104.

Vajda, A. (2011). Programming Many-Core Chips.

Springer.

Zitova, B. and Flusser, J. (2003). Image registration meth-

ods: a survey. Image and Vision Computing, 21:977–

1000.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

106
