A Methodology for Deriving Conceptual Data Models from Systems

Engineering Artefacts

Christian Hennig

, Harald Eisenmann

, Alexander Viehl

and Oliver Bringmann

Space Systems, Airbus Defence and Space, Friedrichshafen, Germany

Intelligent Systems and Production Engineering, FZI Research Center for Information Technology, Karlsruhe, Germany

Wilhelm-Schickard-Institute for Computer Science, Eberhard-Karls-University of Tübingen, Tübingen, Germany

Keywords: Model-based Systems Engineering, Conceptual Data Modeling, Modeling Methodology, FBM,

Model-based Development.

Abstract: This paper presents a novel methodology for deriving Conceptual Data Models in the scope of Model-based

Systems Engineering. Based on an assessment of currently employed methodologies, substantial limitations

of the state of the art are identified. Consequently, a new methodology, overcoming present shortcomings, is

elaborated, containing detailed and prescriptive guidelines for deriving conceptual data models used for rep-

resenting engineering data in a multi-disciplinary design process. For highlighting the applicability and ben-

efits of the approach, the derivation of a semantically strong conceptual data model in the context of Model-

based Space Systems Engineering is presented as a case study.

INTRODUCTION

1.1 The Practice of Systems

Engineering

In many industrial engineering projects today, a mul-

titude of disciplines is involved in building a product.

For space projects such as satellites, launch vehicles,

and re-supply spacecraft these disciplines involve,

only to name a few, mechanical engineering, electri-

cal engineering, thermal engineering, requirements

engineering, software engineering, verification engi-

neering, and their respective sub-disciplines. Each of

these disciplines specifies their designs and verifies

specific aspects of the system. In order to provide an

all-encompassing understanding of the system of in-

terest, the unique, yet complementary, views from

every involved discipline are combined. The science

and art of integrating different views on one system

towards system thinking is called Systems Engineer-

ing. As NASA (2007) elegantly puts it: “Systems en-

gineering is a holistic, integrative discipline, wherein

the contributions of structural engineers, electrical en-

gineers, mechanism designers, power engineers, hu-

man factors engineers, and many more disciplines are

evaluated and balanced, one against an-other, to pro-

duce a coherent whole that is not dominated by the

perspective of a single discipline.”

1.2 Employment of Models in Systems

Engineering

Many of the engineering activities performed inside

these domains are already well supported by com-

puter-based models. Mechanical design models built

with tools such as CATIA V5, mechanical analysis

models built with tools such as PATRAN and thermal

analysis models built with tools such as ESATAN-

TMS are well established in the space engineering

community today. Furthermore, requirements models

based on DOORS, software design models specified

in the Ecore language using the Eclipse Modeling

Framework, as well as mission design models speci-

fied in SysML (OMG, 2015) play important roles.

Furthermore, “traditional” tools such as Excel or Vi-

sio are used on a regular basis for specifying models.

These tools and the models they produce differ

significantly from each other. They are provided by

different vendors, rely on different implementation

technologies and are based on different formats

(Kogalovsky and Kalinichenko, 2009). Each model

and the associated design methodology follow their

own principles and paradigms and define their very

own semantics. As a result of this heterogeneity, these

models and tools are not yet comprehensively inte-

grated and interconnected with each other and with

the multi-domain systems engineering process

Hennig, C., Eisenmann, H., Viehl, A. and Bringmann, O.

A Methodology for Deriving Conceptual Data Models from Systems Engineering Artefacts.

DOI: 10.5220/0005676604970508

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 497-508

ISBN: 978-989-758-168-7

497

(INCOSE, 2014). For a truly multidisciplinary repre-

sentation of a system, relevant aspects from all in-

volved domains and their models need to be com-

bined on the model level (Eisenmann, 2012).

1.3 Describing System-wide Models

in MBSE

For overcoming these inhibitors, one approach that

can be pursued is the provision of a centralized sys-

tem database that defines a set of system-wide seman-

tics. In this architecture the system model acts as a

central hub into which discipline-specific models can

integrate information of system-wide relevance. For

defining the concepts that make up the system of in-

terest, a Conceptual Data Model (CDM) is employed.

It provides a common, resilient, and comprehensive

definition of engineering data, incorporating disci-

pline-specific as well as system-level aspects.

The approach of integrating these discipline-spe-

cific models towards a uniform system model is

called Model-based Systems Engineering (MBSE).

While the system model, or user model, repre-

sents the level where the end-user, i.e. the engineer

designing the system, performs his tasks, the CDM or

data model defines the concepts contained in the user

model and acts as the user model’s meta-model.

(Hong and Maryanski, 1990). It is worthy to note that

meta-model is a relative term. It describes concepts

one abstraction level above the model that is currently

the focus of interest. The CDM serves as an ontology

exactly defining the engineering data of interest,

plays an important role when communicating about

this data, and forms the entry-point for software engi-

neering activities that implement an engineering ap-

plication supporting the system design process. The

conceptual data model can be seen as the back-bone

of MBSE (ESA, 2011).

A variety of approaches exist for building such

models. On the one hand there are approaches

strongly driven by the implementation technologies

that are used for producing engineering applications,

relying on data models specified in UML or Ecore.

On the other hand there are techniques that are highly

focused on representing knowledge, such as the Web

Ontology Language OWL or Fact Based Modeling

FBM, but are not meant for describing pieces of soft-

ware.

The relation of discipline-specific models, system

mode, CDM, and data modeling language is visual-

ized in

Figure 1.

For producing CDMs in this context, the techno-

logical aspect is not the only point of concern. Meth-

odologies for developing software and models have

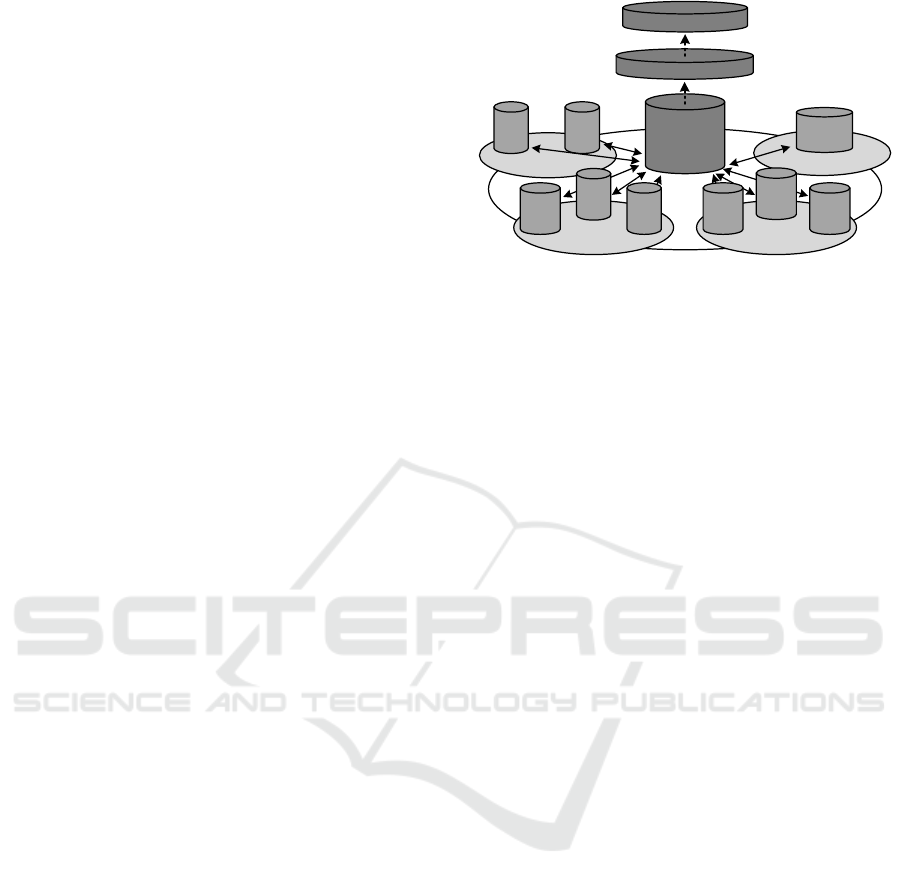

Figure 1: Relation of domain models, system model, CDM,

and data modeling language.

gained traction, with the aim of moving the develop-

ment from an art into an engineering discipline with

traceable, reproducible, and validatable results. For

the software-driven languages, methodologies exist

that help in developing the data model, e.g. by provid-

ing guidelines on how to structure the data model, or

how to validate it. For the knowledge-based ap-

proaches methodologies also exist that help in deriv-

ing a CDM for an intended use case. While each of

the existing methodologies has its characteristic mer-

its, currently no methodology is suited for producing

CDMs in the context of MBSE.

1.4 Paper Objective and Outline

Consequently a methodology is detailed that fits the

requirements arising in the scope of interdisciplinary

knowledge integration in MBSE. This methodology

uses an engineering process and its process artefacts

as a point of origin for deriving the CDM that is in-

tended to support engineering activities. By following

the procedures prescribed by the methodology, facts

are generated in order to explore all possible con-

straints and add them to the model if required. This

approach leads to a quasi-standardized, virtually ex-

haustive model, given the initially provided facts

were correct. After the model or parts of it have been

completed it is validated through the provision of

sample facts taken from the original source.

In the following sections industrial requirements

for a methodology suited for producing CDMs in

MBSE are identified. Consequently a brief examina-

tion regarding how well each of the analyzed meth-

odologies is able to cope with the requirements is

given. Based on this examination a novel methodol-

ogy is presented that brings together the advantageous

features of the existing approaches. For demonstrat-

ing the methodology’s utility a sample CDM is devel-

oped, demonstrating the CDM design cycle in gen-

eral, highlighting some of its aspects in detail.

System Model

Mechanical

Engineeri ng

Requirements Engineering

DOORS

Requirements

Rep ository

PATRAN

Analysis

Model

Mission Design

STK

Orbit

Model

SysML

Mission

Model

Simulator

Engineeri ng

MATLAB

Analysis

Model

Conceptual Data Model

Data Modeling Language

Cus tom

Simulato r

Model

Modelica

Analysis

Model

Excel

Mass

Bu dget

CATIA

CAD

Model

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

498

2 STATE OF THE ART

REGARDING

METHODOLOGIES

2.1 Methodologies Employed

for Developing CDMs

For producing CDMs, a variety of methodological ap-

proaches are applied in practice. These approaches

come from a variety of application domains.

2.1.1 Software-Driven Approaches

Established approaches and methodologies related to

classic software design, such as the Waterfall Model,

the V-Model, or the Spiral Model focus a lot on the

overall approach, and not on detailed design aspects

of the software to be developed. Approaches that em-

phasize on the detailed, structured, and guided design

of the conceptual data model underlying the software

are scarce and hardly applicable to the MBSE use

case. Consequently, the “classical” methodologies

from the software engineering domain have been ex-

cluded in the remainder of this paper.

2.1.2 Requirement-Driven Approaches

For software developments that rely heavily on pro-

ducing a sensible data model, the approach of exten-

sive data model specification and subsequent valida-

tion is pursued, for instance in the EGS-CC project

(ESA, 2013). In this approach requirements on the

CDM are formulated that exactly specify what con-

tents it shall have, how the contents relate, what func-

tionalities have to be provided, etc. After the CDM is

produced a mix between verification and validation is

performed by instantiating the CDM, producing sam-

ple populations, and checking if the data specified in

the requirements can be represented accurately and

completely.

2.1.3 Approaches from the Ontology World

In the domain of ontology engineering, emphasis is fre-

quently put on a methodological approach to designing

and maintaining an ontology, for transforming work-

ing on knowledge “from an art into an engineering

discipline.” (Studer, et al., 1998) A variety of meth-

odologies in this context have been proposed through

the years, such as METHONGOLOGY (Fernández,

et al., 1997), OTKM (Sure, et al., 2004), or the NeOn

Methodology (Suárez-Figueroa, 2010).

Many of these methodologies discuss aspects

such as ontology management activities, ontology de-

velopment activities, and ontology support activities.

However, in many cases, these aspects are only pro-

posed or outlined in the methodology, and not de-

scribed in detail (Gómez-Pérez, et al., 2004).

2.1.4 Approaches from Fact based Modeling

The field of Fact Based Modeling also relies heavily

on modeling methodologies. For producing data

models in Fact Based Modeling languages such as

ORM2 (Halpin and Morgan, 2008), methodologies

such as NIAM (Leung and Nijssen, 1998), CogNIAM

(CogNIAM.eu, 2015), or CSDP (Halpin and Morgan,

2008) are employed. These approaches all rely on the

formulation of elementary facts (Halpin and Morgan,

2008) and employ these for developing CDMs in a

bottom-up, example-driven scenario.

2.2 Requirements on a Methodology

for Designing CDMs in MBSE

In order to produce CDMs that can be employed effec-

tively in MBSE, several requirements have been iden-

tified for a modeling methodology. These requirements

are based upon extensive experience in projects that in-

corporate CDMs as central elements (ESA, 2013),

(ESA, 2012), (Fischer, et al., 2014). In the scope of this

paper only an overview of the needs for a conceptual

data modeling methodology can be given, highlighting

the most important points. These requirements have

been partitioned into four categories.

2.2.1 Support for CDM Specification

Activities

The methodology should offer guidelines for specify-

ing the CDM. This can include either a classic speci-

fication of the CDM to be designed through require-

ments, or an approach where the engineering process,

which the CDM will be designed for, together with its

process artefacts, is used as an entry point.

In the MBSE approach, a CDM bridges the gap

between the abstracted PDM world that is used to

manage the complexity and coordination of disci-

pline-specific engineering activities on the one hand,

and the detailed data that is being produced in the dis-

cipline-specific engineering activities on the other

hand (Hennig and Eisenmann, 2014). While the item

that is managed in the PDM world is of a very abstract

nature, the item may be handled by a number of do-

mains in entirely different representations. The pur-

pose of the CDM is to connect both worlds, assuring

A Methodology for Deriving Conceptual Data Models from Systems Engineering Artefacts

499

the correct mapping between detailed data and ab-

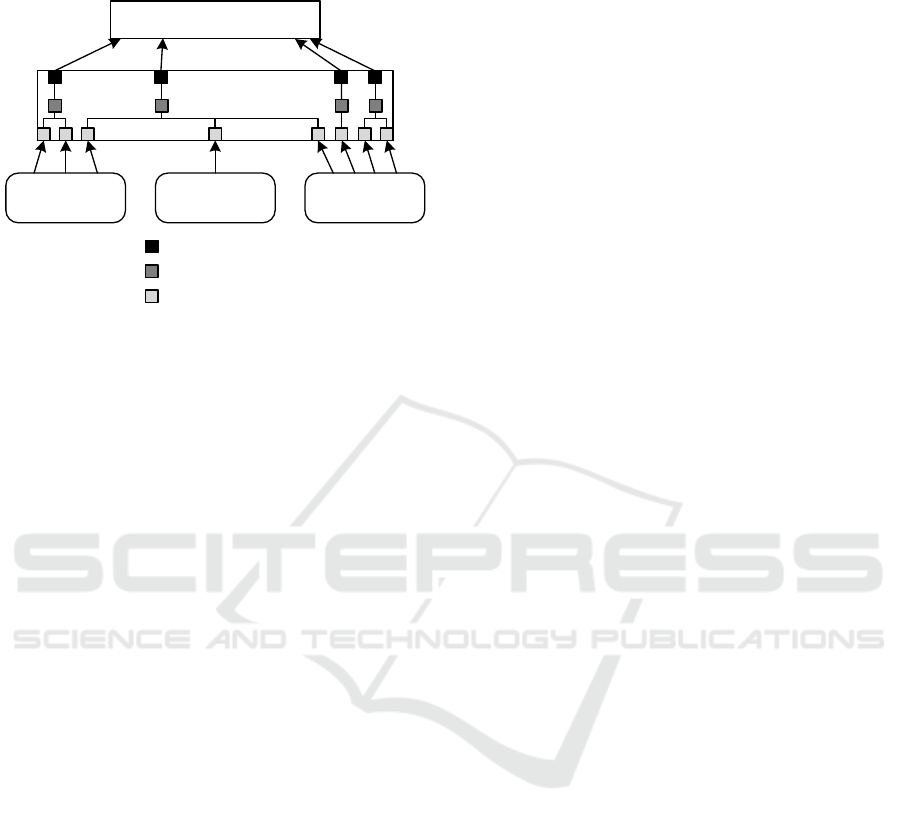

stracted artefacts. This is illustrated in Figure 2.

Figure 2: Relation of PDM, CDM, and Engineering

Domains.

For ensuring the CDM’s compatibility to do so, both

the PDM representation of artefacts and the detailed

specification of data has to be considered and serve as

the point of origin for deriving the CDM.

2.2.2 Support for CDM Design Activities

For pursuing the design of the CDM the initial step is

to acquire knowledge, e.g. from documentation, from

interviews with domain experts, or from combina-

tions of both. After knowledge is acquired, the

CDM’s data structures such as classes, attributes, ref-

erences, and data types can be derived from the pre-

viously acquired knowledge. Constraints can also be

derived from the acquired knowledge and are usually

modeled after the main structure of the CDM has been

designed. A methodology should include detailed in-

structions for all three activities.

2.2.3 Support for CDM Verification

and Validation Activities

In order to ensure that the CDM is built according to

its specifications and that it is able to fulfil its in-

tended purpose some kind of control mechanism has

to be in place. This implies, based on the design of the

methodology’s specification activities, that it should

support formal requirements verification, e.g. through

the definition of test cases, some kind of validation

through the provision of sample instances, or both. In

the latter, the CDM has to be instantiated for provid-

ing the means of entering data. The CDM is valid if

the data can be entered in a way identical or at least

very similar to the original source, i.e. the knowledge

acquired for deriving the CDM.

2.2.4 CDM Support Activities

Besides formal specification, design, and V&V activ-

ities, other aspects are also to be considered in a con-

ceptual data modeling methodology. For ensuring a

somehow standardized structure of models built ac-

cording to the methodology, the provision of naming

conventions is an important factor. Furthermore

guidelines of how to integrate different CDMs with

each other are an important asset. Another essential

part of any design activity is effective and efficient

configuration management, so guidelines for such ac-

tivities should also be included.

2.3 Evaluation of Conceptual Data

Modeling Methodologies

For more detailed evaluation several approaches are

selected from those outlined in 0. From the ontology

world the NeOn Methodology is chosen since it is one

of the more recent ones and can be seen as an ad-

vancement to methodologies like OTKM (Sure, et al.,

2004) or METHONTOLOGY (Fernández, et al.,

1997). The requirements-driven methodology from

the EGS-CC project (ESA, 2013) has been selected as

an analysis candidate because it is the most recent ap-

proach in this context. From the field of Fact Based

Modeling, CSDP (Halpin and Morgan, 2008) and the

CogNIAM Protocol (CogNIAM.eu, 2015) have been

selected. Although the latter are two distinct method-

ologies they rely on largely the same principles, albeit

with different nuances. While the CSDP is rather de-

scriptive, CogNIAM achieves similar goals in a very

prescriptive way.

2.3.1 Definition of Evaluation Scheme

A detailed evaluation of selected methodologies,

based upon weighted score evaluation according to

requirements that arise in the context of MBSE, has

been performed but is not elaborated due to length

constraints of this paper. Instead, the most important

results in terms of qualitative features are outlined in

the following sections.

2.3.2 Evaluation of the NeOn Methodology

The NeOn Methodology puts an emphasis on speci-

fying ontology requirements. Processes and process

artefacts are not considered in its scope. Regarding

design activities the methodology offers general

guidelines, but no specific instructions. This is also

true for the validation and verification activities. It

mentions naming conventions as an important aspect

but does not offer specific guidelines, the same is true

Product Data Management

CDM

Engineering

Domain

Engineering

Domain

Engineering

Domain

Process Artefact

Internal Representation

Ex te rnal Repre sentati on

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

500

for configuration management. The aspect of inte-

grating different ontologies is well considered how-

ever.

+ Ontology integration well elaborated

− No consideration of processes and process arte-

facts

− Insufficient consideration of design activities

− Insufficient consideration of V&V activities

2.3.3 Evaluation of Requirements-Driven

Methodology

The requirements-driven approach applied in EGS-

CC puts significant emphasis on a thorough specifi-

cation of the CDM. However, extensive design and

support activities are currently not part of the meth-

odology. For V&V activities a mix of formal require-

ments verification and validation through sample in-

stances is performed. Configuration management is

an essential part of the methodology, following a tra-

ditional approach of frequently producing revisions

that are then released at specific milestones.

+ Thorough emphasis on requirements modeling

+ Thorough emphasis on validation and verifica-

tion

+ Consideration of configuration management

− No consideration of other support activities

− No consideration of processes and process arte-

facts

− Virtually no consideration of design aspects

2.3.4 Evaluation of CSDP and CogNIAM

CSDP and CogNIAM do not consider specification

activities since the point of origin is acquiring

knowledge through the formulation of elementary

facts. However, data structure and constraint model-

ing are extremely well detailed in both methodolo-

gies, although with somehow different emphasis.

Validation is performed through the provision of sam-

ple instances. Naming conventions also play an inher-

ent role.

+ Knowledge acquisition integral part

+ Highly detailed modeling instructions given

− No consideration of other support activities

− No consideration of processes and process arte-

facts

2.3.5 Conclusion of Evaluation

The evaluation makes evident that there currently is

no methodology that caters to all requirements formu-

lated for producing CDMs in the context of MBSE.

Each of the methodologies exhibits shortcomings in

one of the main categories. Furthermore, the aspect of

incorporating an engineering process or process arte-

facts into the CDM development process is not ad-

dressed anywhere.

3 METHODOLOGY DESIGN

As a consequence of the analysis, a new methodology

is proposed that picks up on characteristic features of

the examined candidates. It is inspired by the

knowledge-acquisition and design activities of CSDP

(Halpin and Morgan, 2008) and CogNIAM

(CogNIAM.eu, 2015), while picking up on configu-

ration management and validation aspects from the

requirements-based approach and integration aspects

from the NeOn Methodology (Suárez-Figueroa,

2010). The consideration of processes and process ar-

tefacts has been developed from scratch.

3.1 General Methodology Principles

3.1.1 Engineering Processes as a Point

of Origin

The starting point for employing the methodology is

the engineering process that will have its data de-

scribed in the CDM. From a PLM point of view the

engineering process uses artefacts that serve as inputs

and outputs of activities. When detailed from the per-

spective of an actual engineering activity that details

the PLM-managed activity with engineering tasks, a

detailed description of the artefacts is required. This

detailed description is the actual, detailed engineering

data that is exchanged between different engineering

domains. This level makes visible what data is re-

quired by several engineering tasks, making it a mod-

eling candidate for the CDM that represents the Sys-

tem Model.

3.1.2 Using Elementary Facts about the UoD

for Acquiring Knowledge

Originating from the artefact used in the engineering

process the data model is derived. These knowledge

acquisition activities rely on deriving elementary

facts from the artefact documentation, using familiar

examples to drive the CDM.

Basically, an elementary fact is an assertion that

one object is playing one specific role (Halpin and

Morgan, 2008). The most basic elementary fact is that

one entity plays one independent role, such as “Grav-

itySat flies.” Most of the time relationships involve

A Methodology for Deriving Conceptual Data Models from Systems Engineering Artefacts

501

two roles, such as “GravitySat is launched by Ariane

5”. Basically an elementary fact “asserts that a partic-

ular object has a property, or that one or more objects

participate together in a relationship.” (Halpin and

Morgan, 2008). The word elementary indicates that

the fact cannot be split into smaller units of infor-

mation that collectively provide the same information

as the original.

Elementary facts usually do not use logical con-

nectives such as NOT, AND, OR, IF, or logical quan-

tities such as SOME or ALL. Elementary facts can be

made up of several building blocks:

 Entities are particular things, e.g. a particular

organization such as ESA, a particular object

such as Launch Pad, or a particular person,

such as Angela Merkel.

 Values are constants that provide some kind of

identification once the context is known. Val-

ues can be numbers, such as 3, 36 or 77, but

also character strings such as “Germany”,

“EU”, or “MODELSWARD”.

 Predicates connect entities with other entities

or values by putting them into a declarative

statement. Predicates can be unary (specifying

one entity), binary (two entities or an entity and

a value), ternary, and in theory n-ary. Predi-

cates may have two reading directions with dif-

ferent meaning, such as “GravitySat is

launched from Kourou” and “Kourou is launch

site for GravitySat”.

3.1.3 Language Support

for the Methodology

This kind of methodology for deriving CDMs from

example data formulated as elementary facts is suited

for producing models with Fact Based Modeling lan-

guages. The methodology has been developed in par-

allel to a conceptual data modeling language called

SCDML (Hennig, et al., 2016), currently being the

only solution that ensures full compatibility of lan-

guage and methodology. SCDML is a conceptual data

modeling language that is currently under develop-

ment and can be seen as the unification of a produc-

tion-oriented data modeling language (Ecore) with a

conceptual modeling language (ORM), with the addi-

tion of other extensions, such as elements for process

modeling.

3.1.4 Methodology Decomposition

The methodology is composed of several levels (Fig-

ure 3), similar to those described by Gómez-Pérez, et

al. (2004). It is composed of a variety of processes,

represented by those numbered 1 to 8 in

Figure 4.

These are decomposed of several activities. Some of

those activities are further decomposed into tasks,

which represent the methodology’s smallest kind of

step.

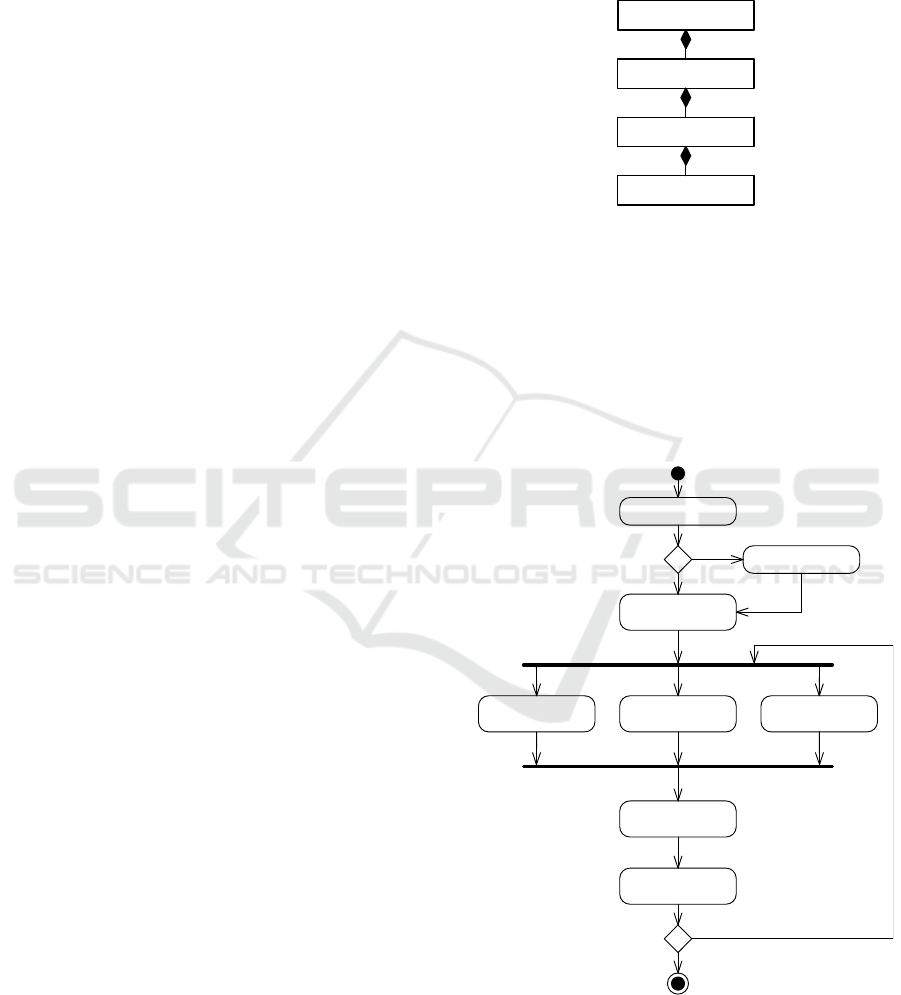

Figure 3: Decomposition of SCDML Methodology.

The methodology is based upon the principle that the

most important constraints should be derived first,

and less important constraints can be derived later on.

In general, the constraints that are treated first in the

methodology are the most important ones, such as in-

ternal uniqueness constraints and mandatory con-

straints, where the constraints considered in the

higher numbered activities are of less importance.

Figure 4: Top-level flow of processes in the SCDML

methodology.

The methodology consists of a number of steps that

contain instructions for developing a specific aspect

Process

Activities

Task

Met hodol ogy

1. Mode l Engi ne er ing

Process

2. Model Tasks

3. Classify Artefact

Representations

4. Mo de l Comple x

Representations

5. Mo de l Simple

Representations

6. Model Category

Representations

7. Specify Model Maturity

Aspects

8. Perform CDM

Verification and Validation

yes

Mo de li ng of ta sks r eq ui r ed?

All identified representations modeled?

Verification and validation successful?

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

502

of the CDM. It follows an iterative approach. While

the engineering process and its activities may be mod-

eled or imported in one step, each artefact requires an

analysis of its representations, and, depending on the

outcome of the analysis, an iteration through one of

the different modeling processes. This is to be iterated

over every artefact of relevance. Furthermore the

SCDML methodology contains guidelines regarding

naming conventions, configuration management and

integration of other sources of knowledge.

METHODOLOGY

APPLICATION

Instead of detailing the SCDML methodology in a

theoretical manner with a brief validation thereafter,

the detailed steps of the methodology will be ex-

plained via example. The example detailed in this sec-

tion demonstrates the utility of the methodology for

producing CDMs in the context of MBSE.

4.1 Modeling of ESA System

Engineering Process

As a sample process to be modeled the ESA System

Engineering Process as defined in ECSS-E-ST-10C

(ESA, 2009) is chosen. This document, among other

things, specifies what systems engineering artefacts

are required at specific points of time in the design

cycle of a spacecraft developed in the scope of an

ESA project.

Initially the methodology proposes the modeling

of the engineering process that the CDM is supposed

to support. As a first step the process itself is to be

specified, followed by the specification of activities

and control elements as a second step. As a third step

the input and output artefacts of the process activities

should be specified in the model. The methodology

refrains from detailing the activities with tasks, since

process modeling is already well established through

existing methodologies.

In case of ECSS-E-ST-10C the process descrip-

tion is rather high level. In essence, the ESA System

Engineering Process is decomposed of a number of

sub-processes that each represent one phase of the en-

gineering cycle with one review at the end of each

phase and at times further reviews inside one phase.

Reviews are normal process elements that can have

input and output artefacts. In the case of the process

in question all of the artefacts serve as input for one

or several reviews. One critical artefact in space

system engineering is the Product Tree (

Figure 6

). It

contains the decomposition of the spacecraft to be

developed, and will be detailed with a data model

later on.

4.2 Modeling of Tasks

The second methodology step of modeling the tasks

of the engineering activities is not pursued in the case

at hand. These activities are not detailed in the ECSS-

E-ST-10C standard and the step is specified as

optional.

4.3 Classification of Artefact

Representations

The next step of the methodology is to determine the

concrete nature of the artefact.

An external representation describes that data

about this artefact is defined somewhere in an engi-

neering tool other than the tool that currently is to be

developed. External representations of artefacts can

be mapped to one of the internal representations via a

model transformation, an import process, or a similar

data integration approach, enabling the application

implementing the CDM to serve as a central, integra-

tive hub for engineering data.

Simple representations are descriptions of process

artefacts that have to be visible somehow in the engi-

neering process, but do not have to be highly detailed.

Simple representations only consist of one Entity

Type with few Value Fact Types. Examples would be

specifications, reports, or manuals that have more

documental value than real value for systems engi-

neering. In general, simple representations should be

used for artefacts where the artefact is managed in the

systems engineering activities, but not the detailed

data underlying the artefact. Due to the reduced com-

plexity involved in modeling simple artefacts in com-

parison to complex artefacts, only the latter will be

detailed in this paper.

Complex artefacts are central elements of the sys-

tem engineering process where concrete access to the

underlying data is required. This includes require-

ments specifications where discrete access to the con-

tents of requirements and their traces is needed, spec-

ifications of electrical architectures, the functional ar-

chitecture of a system, etc.

The Product Tree is a complex artefact with four

external representations. It contains critical infor-

mation about the system decomposition, such as

names and abbreviations of system elements, system

element hierarchies, etc. that are of central relevance

to the system engineering process. Furthermore simi-

lar structures are defined in a PDM system, and in an

A Methodology for Deriving Conceptual Data Models from Systems Engineering Artefacts

503

Excel sheet, legacy from early project phases. SysML

is gaining a lot of traction as a specification tool for

early project phases and enables the specification of a

product tree using the block-stereotype. Furthermore

CAD tools such as CATIA also rely heavily on an in-

ternal product structure (

Figure 5

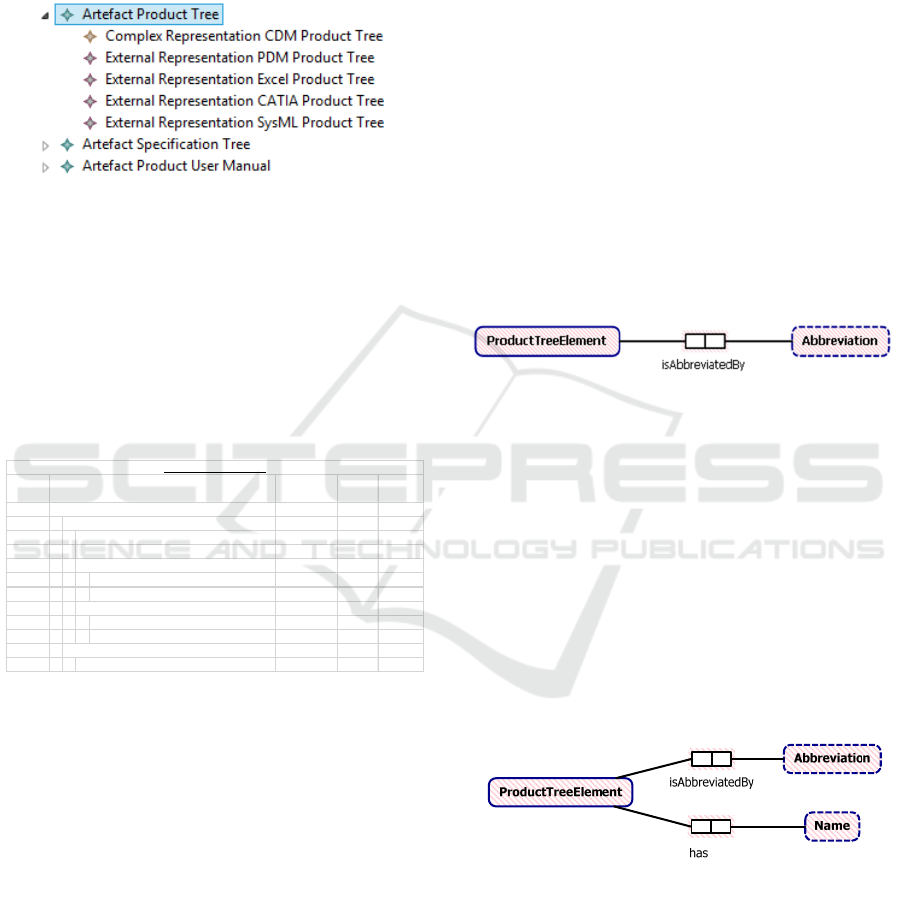

Figure 5: Representations of Product Tree artefact.

4.4 Modeling of Complex Artefacts

Now that the rough nature of the artefact has been

specfied, it needs to be modeled in detail. The first

step to begin modeling a complex artefact is to create

a package in which the artefact will be elaborated.

This will ensure that all Entity Types, Value Types

and Fact Types pertaining to the artefact will be

grouped together and easily traceable.

Figure 6: Excerpt from a product tree of a sample project.

A more detailed description definition of Entity

Types, Fact Types, etc. can be found at Halpin &

Morgan (2008). For the derivation of the data structure

of the artefact, an example is used. In this case the

example is the Excel Product Tree, as employed in

early project phases, outlined in Figure 6.

As an initial step for acquiring the required

knowledge some fact about the data at hand is formu-

lated. For cross-checking and for later modeling ac-

tivities, several facts are required.

The Battery is abbreviated by BAT.

The Data Handling System is abbreviated by DHS.

The On-Board Computer is abbreviated by OBC.

After acquiring a number of basic facts, the fact

structure can be determined. For this purpose the con-

stant and variable parts of the fact are identified.

The Battery is abbreviated by BAT.

The Data Handling System is abbreviated by DHS.

The On-Board Computer is abbreviated by OBC.

<variable part> <constant part> <variable

part>

Now the question of what the variable parts rep-

resent has to be answered. The objects on the left side

are all Product Tree Elements. The objects on the

right side are Abbreviations. Variable parts of facts

denote entities, more specifically they represent one

Entity Type. If the variable part is more of an addi-

tional information to an Entity Type, it is a Value

Type. The constant parts of a fact represent a predi-

cate. Consequently these facts can be abstracted to a

Binary Fact Type (because it is relating two Object

Types) that reads

Product Tree Element is abbreviated by Abbreviation.

This derived data structure can then be asserted to

the CDM using the ORM2 syntax (Halpin & Morgan,

2008) (

Figure 7

Figure 7: ProductTreeElement and Abbreviation.

Currently the Product Tree Element only has an

explicitly modeled Abbreviation, and not a name. The

name of the element is implicitly given in

Figure 6

and

is derived using the same algorithm as above (

Figure

). Each Entity Type, in this case the ProductTreeEl-

ement, requires a description that specifies what it

represents, such as “A Product Tree Element is the

description of a system element that describes the hi-

erarchical decomposition of a system. These elements

make up the product tree.”

Furthermore, Value Types need to have their data

type set. In this case, Abbreviation and Name are both

fields of text, so the data type of choice is String.

Figure 8: Addition of has Name fact type to CDM.

The next steps of the methodology are about the

derivation of model constraints. The most important

constraints to be derived are uniqueness constraints.

The fact types at hand are both binary fact types for

which an algorithm can be used in order to derive

their internal uniqueness constraints.

As a first step a reference fact (RF) is written

down. Second, another “artificial fact” is created

Config

Item No. Abbreviation

Abstract

No. of

Elements

0000 GravitySat GravitySat 0 1

1000 Ele ctrical Powe r System EPS 1 1

1100 Power Control and Distri bution Unit PCDU 0 1

1200 Battery BAT 0 1

1310 Solar Array +Y SAPY 1 1

1311 Sol ar Array +Y A ft Panel SAPYA 0 1

1312 Sol ar Array +Y Bow Pane l SAPYB 0 1

1320 Solar Array -Y SAMY 1 1

1321 Sol ar Array -Y Aft Panel SAMYA 0 1

1322 Sol ar Array -Y Bow Panel SAMYB 0 1

2000 Data Handling System DHS 1 1

2100 On-Board Computer OBC 0 1

GravitySat Product Tree

Product Tree Element

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

504

where the left variable part is changed (F1) and an-

other “artificial” fact is written down where the right

variable part is changed (F2).

RF: The On-Board Computer is abbreviated by OBC.

F1: The On-Board Computer is abbreviated by SA.

F2: The Solar Array is abbreviated by OBC.

By determining which facts can occur in the Uni-

verse of Discourse (UoD) at the same time, the unique

combinations of ProductTreeElements and Abbrevia-

tions can be derived. If RF and F2 were to occur at

the same time, that would mean that OBC can be an

Abbreviation for two distinct ProductTreeElements at

the same time. This is not to be allowed. If RF and F1

were to occur at the same time that would imply that

the On-Board Computer would have two Abbrevia-

tions at the same time, which is also to be explicitly

excluded. This means that uniqueness constraints

have to be added to the isAbbreviatedBy fact type.

Analysis of the has fact type yields the same results.

Furthermore, the Name will serve as the identification

scheme for any ProductTreeElement, which is

marked by the double uniqueness bar.

As a next step the mandatory constraints are to be

derived. For this purpose the question is asked if it is

mandatory that every ProductTreeElement has a

Name. If the answer to the question is yes, a manda-

tory constraint has to be introduced to the CDM,

which is the case in the example. The same question

is asked for the Abbreviation, yielding the same re-

sult. This yields constraints as shown in

Figure 9.

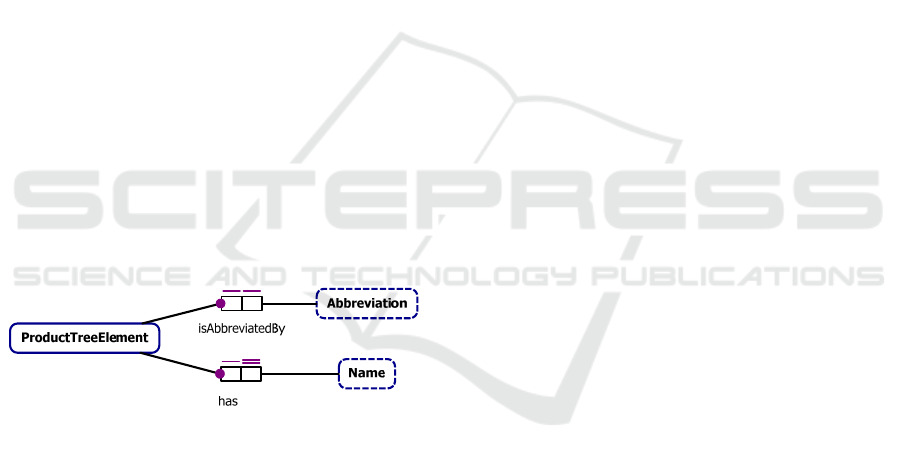

Figure 9: Derived constraints for the isAbbreviatedBy and

the hasName fact types.

On the side of the Value Types the mandatory

constraint is always implied and does not need to be

explicitly modeled.

For now no more constraints have to be derived.

Consequently, new kinds of facts can be formulated

for deriving further CDM elements.

Figure 6, among other things, an explicit hierar-

chy of ProductTreeElements can be observed. These

facts are analyzed in the already known manner.

The GravitySat contains the EPS.

The EPS contains the Battery.

The GravitySat contains the DHS.

ProductTreeElement contains ProductTreeElement.

After asserting this information to the model, the

question can be asked if the “inverse reading direc-

tion” is also of relevance to the UoD. This would

mean that, if the GravitySat contains the EPS, then

the EPS is contained by the GravitySat. In this case

this reading direction is identified as being in fact of

interest to engineering the system, so it is included in

the CDM.

For deriving the uniqueness constraint a reference

fact is written down and two variations are produced.

RF: The EPS contains the Battery.

F1: The EPS contains the PCDU.

F2: The DHS contains the Battery.

The reference fact is always true. RF and F1 mean

that the EPS can contain more than one Product-

TreeElement. This is also a valid constellation for the

UoD. RF together with F2 would mean that the Bat-

tery can be included by the EPS and DHS at the same

time. This is determined to be an invalid fact. Conse-

quently, a uniqueness constraint on the side of the is-

ContainedBy role is necessary, meaning it needs to be

unique.

A mandatory role constraint is not determined as

being applicable, since there might be a top-level ele-

ment that is not contained by another element, as well

as leaf elements that do not contain any other ele-

ments. Since the contains relationship denotes some

kind of hierarchy in the source document, the isCon-

tainment property is set, which states that the

ProductTreeElements connected via the contains role

form a hierarchy.

For this kind of predicate, called ring predicate,

ring constraints might also be applicable. Ring con-

straints are logical statements about what kinds of re-

lations may be possible between two entities. Consid-

ered ring constraint properties within scope of the

SCDML Methodology are reflexivity, irreflexivity,

symmetry, asymmetry, transitivity, intransitivity, and

acyclicity.

For determining the kind of ring constraint, start-

ing with a powerful one such as acyclicity is promis-

ing. Acyclicity in this case means that the contains

relation is not allowed to form any cycles. It means

that constructs such as The GravitySat contains the

EPS, the EPS contains the Battery and the Battery

contains the GravitySat are disallowed. Acyclicity al-

ready implies irreflexivity and asymmetry, which is

why these properties do not have to be considered if

the constraint is already known to be acyclic. How-

ever transitivity and intransitivity have to be evalu-

ated. Transitivity would mean that it would be al-

lowed to specify that if the GravitySat contains the

EPS and the EPS contains the Battery, then the Grav-

itySat also contains the Battery. Although this might

A Methodology for Deriving Conceptual Data Models from Systems Engineering Artefacts

505

make sense in some UoDs, in the UoD at hand this

behavior is not desired since an explicit hierarchy via

the contains role is envisioned. Consequently the ring

constraint is specified as acyclic and intransitive (

Fig-

ure 10).

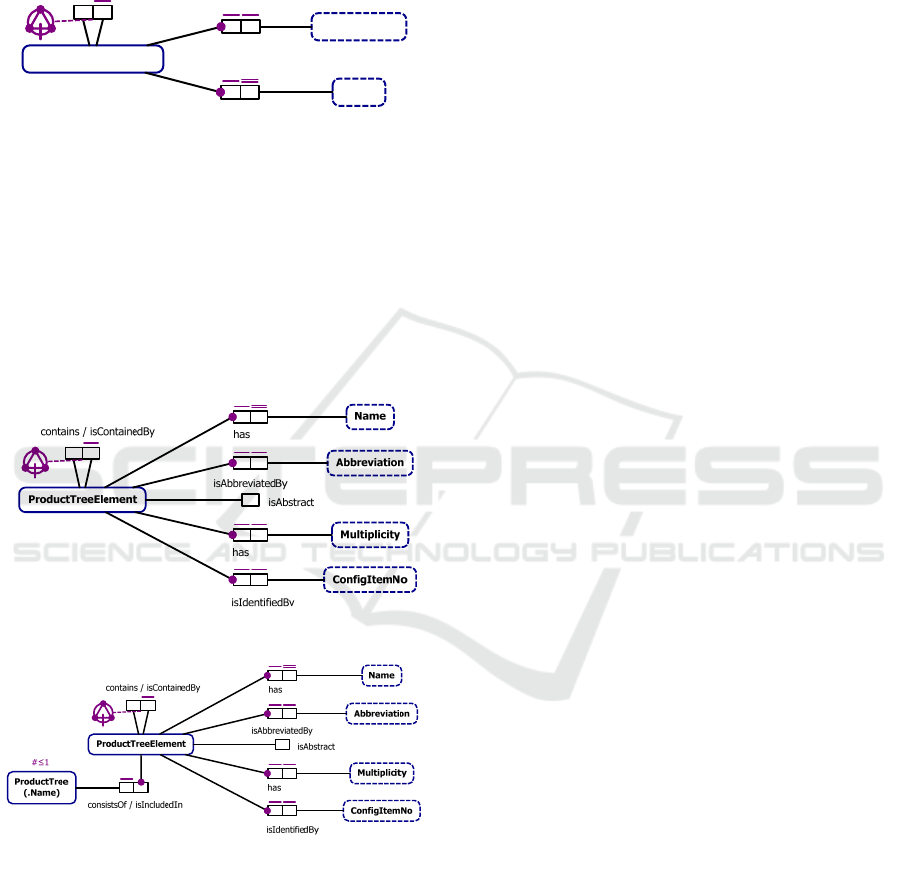

Figure 10: Addition of ring constraint to contains fact type.

Properties that have a boolean characteristic are

modeled as Unary Fact Types in ORM. This is the

case for the is abstract column in

Figure 6. Unary fact

types do not have any uniqueness, mandatory, or

other constraints. Once the Value Types and Fact

Types for the ConfigItemNo and the Multiplicity have

also been modeled, all knowledge found in the

original source document has been acquired and

derived into the CDM (

Figure 11).

Figure 11: Addition of further fact types.

Figure 12: Addition of Product Tree.

For acquiring knowledge about the UoD,

documentation is not the only source that can be used.

Validation and talks with experts also serve as a

valuable source. For instance an expert could provide

the information that there is something called

ProductTree that consist of ProductTreeElements, i.e.

the ProductTreeElements are included in the

ProductTree. Using the procedures for deriving

uniqueness and mandatory role constraints yields the

following model. For entity types a check for any

object cardinality constraints is also applicable. This

includes the question “Is it possible that there exists

more than one ProductTree?”. Since the UoD expert’s

answer is “no”, an object cardinality constraint of

0..1 is to be included for the ProductTree (

Figure 12).

4.5 CDM Verification and Validation

For assuring that the CDM can actually represent the

information required for describing the artefact, a

two-step approach is pursued.

A prerequisite for this is to have an initial appli-

cation running that implements the CDM, enabling its

instantiation. In the case of the SCDML language this

would imply that the application code has been gen-

erated from the CDM. The generated application can

then be used to specify a user model.

The first step is to perform the verification activ-

ity. In this activity, the “specification” of the CDM,

i.e. the verbalized facts that have been used in the der-

ivation activities, are entered into the application.

This includes facts that should be possible in the

UoD, as well as facts that should not be possible. The

latter should either be impossible to be asserted in the

system model, or get flagged during automated model

validation since they violate some constraint. The

verification activity serves as a first, rough control if

the model has been designed according to its specifi-

cation. If a fact that has been specified cannot be as-

serted to the user model, the according part of the

CDM has to be reviewed and redesigned. In this step,

the sample facts can be seen as a specification, i.e. re-

quirements on the CDM.

The second step is the validation activity. This ac-

tivity is meant to assure that the built CDM is not only

built according to its specification, as confirmed by

the verification activity, but that the specification was

indeed correct and the CDM can correctly represent

the information it is originally intended to contain. In

other words if the CDM can accurately represent the

information from the original artefact specification,

then it is validated. If this is not possible, an analysis

has to be performed in that determines the errors and

the CDM has to be fixed. In the example this means

that the CDM must be able to accurately represent the

information from the original product tree table dis-

played in

Figure 6.

4.6 Summary

For deriving the CDM as shown in Figure 12, a subset

of 18 facts has been picked up from the source docu-

ment, the GravitySat product tree, which includes in

ProductTreeElement

Abbreviation

Name

isAbbreviatedBy

contains / isContainedBy

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

506

total 314 elementary facts. Furthermore a single fact

has been provided by a discipline expert. A number

of 10 additional facts were generated by following the

proposed approach for deriving the CDM. The execu-

tion of 75 activities in total, many of which were per-

formed multiple times, resulted in the generation of

30 model elements in total (Table 1).

Table 1: Summary of pursued facts and derived data model

elements.

No. of facts stated in source document 314

No. of facts used for model derivation 18

No. of additional facts by discipline expert 1

No. of additional facts from model derivation 10

No. of activities performed 75

No. of derived fact types 7

No. of derived entity types 2

No. of derived value types 4

No. of derived constraints 17

5 CONCLUSION

Based on an analysis of existing methodologies for

conceptual data modeling and the formulation of re-

quirements, based on extensive experience with

MBSE, a new methodology has been developed. As

key points, this methodology encompasses

 Using an engineering processes as point of

origin for modeling the CDM, picking up on its

process artefacts, refining them

 Using a limited number of elementary facts for

acquiring knowledge about the artefact

 Following a guided, prescriptive approach for

deriving the CDM, exploring every possible

area, leading to a virtually exhaustive model

 Verifying the CDM through entering the de-

rived sample facts

 Validating the CDM through entering the orig-

inal information from the data source

 Establishing a connection between the ab-

stracted PDM process and detailed discipline-

specific engineering processes through the pro-

vision of an adequate CDM, taking into ac-

count different artefact representations

 Leading to a quasi-standardized CDM.

The SCDML Methodology picks up on character-

istic merits of existing methodologies, adding the

PDM and process characteristics as novel elements,

resulting in a comprehensive approach for developing

CDMs, enabling an efficient and effective integration

of multi-disciplinary data in the context of Model-

based Systems Engineering.

REFERENCES

CogNIAM.eu, 2015. CogNIAM.eu. [Online]

Available at: http://www.cogniam.eu/

Eisenmann, H., 2012. VSD Final Presentation. [Online]

Available at: http://www.vsd-project.org/download/

presentations/VSD_P2_FP_2012-05-15_v3.pdf/

ESA, 2009. Space engineering – System engineering

general requirements. ESA Standard ECSS-E-ST-10C.

s.l.:s.n.

ESA, 2011. Space engineering - Space system data

repository. ESA Technical Memorandum ECSS-E-TM-

10-23A. s.l.:s.n.

ESA, 2012. The Virtual Spacecraft Design Project.

[Online] Available at: http://vsd.esa.int/

ESA, 2013. EGS-CC - European Ground Systems -

Common Core. [Online]

Available at: http://www.egscc.esa.int/

Fernández, M., Gómez-Pérez, A. & Juristo, N., 1997.

METHONTOLOGY: From Ontological Art Towards

Ontological Engineering, AAAI Technical Report SS-

97-06, s.l.: s.n.

Fischer, P. M., Eisenmann, H. & Fuchs, J., 2014. Functional

Verification by Simulation based on Preliminary

System Design Data. 6th International Workshop on

Systems and Concurrent Engineering for Space

Applications (SECESA), 8-10 October.

Gómez-Pérez, A., Fernández-Lopez, M. & Corcho, O.,

2004. Ontological Engineering. London: Springer.

Halpin, T. & Morgan, T., 2008. Information Modeling and

Relational Databases. 2nd ed. Burlington: Morgan

Kaufmann.

Hennig, C. & Eisenmann, H., 2014. Applying Selected

Knowledge Management Technologies and Principles

for Enabling Model-based Management of Engineering

Data in MBSE. 6th International Workshop on Systems

and Concurrent Engineering for Space Applications

(SECESA), 8-10 October.

Hennig, C. et al., 2016. SCDML: A Language for

Conceptual Data Modeling in Modle-Based Systems

Engineering. 4th International Conference on Model-

Driven Engineering and Software Development, 19-21

February.

Hong, S. & Maryanski, F. J., 1990. Using a Meta Model to

Represent Object-Oriented Data Models. 6th

International Conference on Data Engineering, 5-9

Febuary, pp. 11-19.

INCOSE, 2014. Systems Engineering Vision 2025. [Online]

Available at: http://www.incose.org/docs/default-

source/aboutse/se-vision-2025.pdf?sfvrsn=4

Kogalovsky, M. R. & Kalinichenko, L. A., 2009.

Conceptual and Ontological Modeling in Information

Systems. Programming and Computer Software, 35(5),

pp. 241-256.

A Methodology for Deriving Conceptual Data Models from Systems Engineering Artefacts

507

Leung, C. M. R. & Nijssen, G. M., 1998. Relational

database design using the NIAM Conceptual Schema.

Information Systems, 13(2), pp. 219-227.

NASA, 2007. NASA Systems Engineering Handbook

(NASA-SP-2007-6105) Rev1, s.l.: s.n.

OMG, 2015. OMG Systems Modeling Language (OMG

SysML). s.l.:s.n.

Studer, R., Benjamins, V. R. & Fensel, D., 1998.

Knowledge Engineering: Principles and Methods. Data

& Knowledge Engineering, Band 25, pp. 161-197.

Suárez-Figueroa, M. C., 2010. NeOn Methodology for

Building Ontology Networks, Madrid: Universidad

Politécnica de Madrid.

Sure, Y., Staab, S. & Studer, R., 2004. On-To-Knowledge

Methodology (OTKM). Handbook on Ontologies, pp.

117-132.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

508
