Towards a Common Understanding of Business Process Instance Data

Nima Moghadam and Hye-young Paik

School of Computer Science and Engineering, University of New South Wale, Sydney, NSW 2052, Australia

Keywords:

Business Process Management, Process Instances Data, Data Models, Interoperability, BPMS Architectures.

Abstract:

In an organisation several Business Process Management System (BPMS) products can co-exist and work

alongside each other. Each one of these BPM tools has its own deﬁnition of process instances, creating a

heterogeneous environment. This reduces interoperability between business process management systems and

increases the effort involved in analysing the data. In this paper, we propose a common model for business

process instances, named Business Process Instance Model (BPIM), which provides a holistic view of business

process instances generated from multiple systems. BPIM consists of visual notations and their metadata

schema. It captures three dimensions of process instances: process execution paths, instance data provenance

and meta-data. BPIM aims to provide an abstract layer between the process instance repository and BPM

engines, leading to common understanding of business process instances.

1 INTRODUCTION

A business process is a collection of related activi-

ties performed together to fulﬁll a goal in an organ-

isation (Aguilar-Saven, 2004). A main function of a

BPM system is to turn a business process model into

an executable program so that the process described

in the model is enacted to assist business operations.

A process instance is a concrete running instance

of such a program containing (i) a subset of the activ-

ities appearing in the model that spawned the instance

and (ii) materialised data (e.g., Customer Name, Or-

der Number). For example, given a process model de-

scribing a car insurance claim process, a BPM system

would enact concrete instances of the model, each in-

stance representing an actual claim being processed

and the details of the data involved.

Although business process instances could be

short-lived, many process instances are in fact long

running, in that they could take hours and days from

start to ﬁnish. This is because a typical life-cycle of

a business process instance could spend most of its

life in wait mode (e.g., waiting for a reply from a

previous request). When a running process instance

reaches to the point that it needs to wait, the BPM sys-

tem maps the instance information directly to physi-

cal storage artefacts such as relational tables or XML

database and stores it. BPM systems also use a physi-

cal storage to store other information such as process

instance execution logs. Organisations can use this in-

formation to analyse and improve their business pro-

cesses (Grigori et al., 2004).

In modern enterprise environments, multiple BPM

systems and applications co-exist and work along side

each other. In this paper, we examine issues of busi-

ness process instance management in such an environ-

ment. Figure 1 depicts a scenario where a single ap-

plication (i.e., single process instance) is supported by

two sub-processes, each implemented with different

BPM solutions. Each BPM system has its own repre-

sentation of process instances and a proprietary pro-

cess instance repository, leading to a heterogeneous

environment.

The lack of common understanding about busi-

ness process instances amongst BPM systems could

prompt the following problems:

• Having to analyse multiple/heterogeneous

sources (e.g., Log Files, Data Tables) to extract

complete process instance information.

• Having not enough information to fully describe

a process instance. Some BPM systems do not

store important information about process in-

stance (e.g., which user or application started the

instance, snapshots of data during the execution)

and makes it impossible to understand the process

instance fully.

• Tight-coupling of a process instance model to a

physical storage model.

We believe the challenges in creating a process

instance model to induce the common understanding

Moghadam, N. and Paik, H-y.

Towards a Common Understanding of Business Process Instance Data.

DOI: 10.5220/0005678401930200

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 193-200

ISBN: 978-989-758-168-7

193

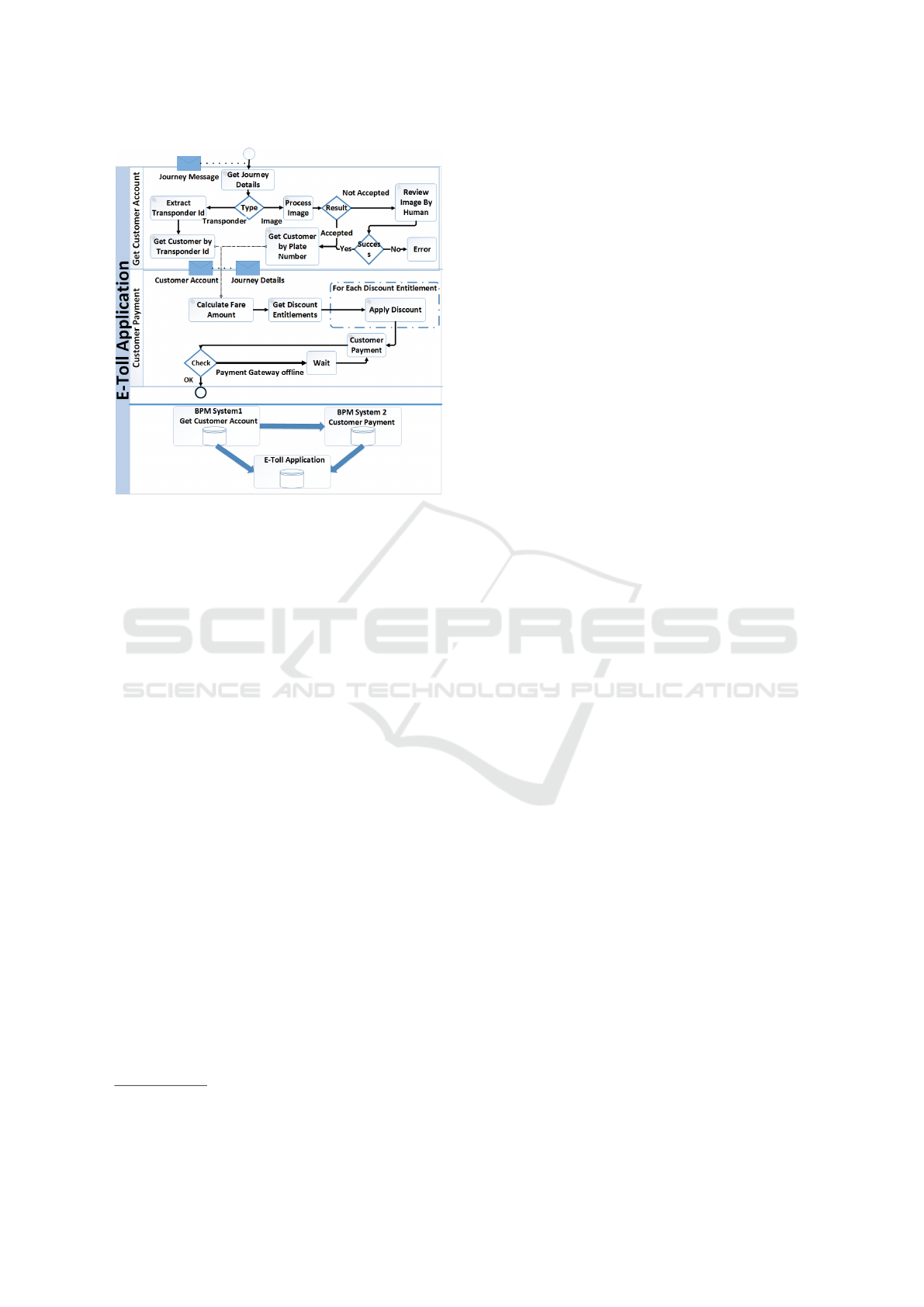

Figure 1: Customer Journey Process Implemented by Two

Sub-processes: Get Customer Account, Customer Payment.

are two folds. First, such a model should contain all

necessary information that a process execution engine

needs to enact, suspend and resume a process instance

effectively. Second, the model should be able to aid

in creation of an architectural framework that allows

decoupling of the business process instance manage-

ment from an individual BPM system.

Here, we propose BPIM (Business Process In-

stance Model) which provides a holistic view of a

business process instance by considering process exe-

cution paths, data provenance and relevant meta-data.

2 PROBLEM BACKGROUND

In this section, we examine the problem area in de-

tail through a motivating scenario, an E-Toll pro-

cessing application. The application is divided into

two: Get Customer Account sub-process imple-

mented by a third party solution using jBPM

, and

Customer Payment sub-process implemented using

an in-house solution with Riftsaw BPM

According to the model (Figure 1), the sub-

process Get Customer Account retrieves a cus-

tomer account and passes it to Customer Payment

which calculates the ﬁnal fare to be paid – considering

discounts that may apply, and processes the payment.

When required (e.g., a long wait), an instance

of the customer journey process would be stored in

jBPM, www.jbpm.org

RiftSaw Open Source BPEL,riftsaw.jboss.org

its respective BPM engine (i.e., jBPM (as part of

Get Customer Account sub-process) and Riftsaw

(as part of Customer Payment sub-process)). Note

that BPM products use different data structures (e.g.,

Data Table, RDF, XML) to model the business pro-

cess instance (Choi et al., 2007; Grigorova and Kame-

narov, 2012; Ma et al., 2007). The E-Toll Application

has its own private repository which contains subset

of the data from the two BPM systems. The develop-

ment teams have modiﬁed the services/BPM systems

to send the data to E-Toll Applications private reposi-

tory.

Let us explore the following scenarios to highlight

the issues in the current BPM systems.

1. Data Sharing: Although the two sub-processes

are interdependent, directly accessing and sharing

the data is difﬁcult because jBPM and Riftsaw are

using different schemas.

2. Failure and Error Diagnosis: If something goes

wrong, to investigate the root cause of the failure,

the operation team needs to perform complicated

tasks of going through the data in both systems.

3. Migrating Data: The stakeholders of E-Toll ap-

plication request a new business report show-

ing discount entitlements and payment details for

each customer journey completed. The develop-

ment team needs to modify the business processes

and the Web services involved in this process to

send the new information to the E-Toll application

database. However, migrating the information for

the existing process instances is hard due to the

differences between the process instance models

in the two BPM systems.

4. Rollback/Re-start: Managing a rollback or re-

start of a process instance is difﬁcult as differ-

ent systems provides different level of supports.

For example, jBPM lets you restart the process

instance execution from a speciﬁc activity, but it

does not roll back the changes which might have

happened to the data.

5. Data Inconsistency: The database system in E-

Toll application goes down for a while, but the

BPM systems continue to run. This leads to data

inconsistency between E-Toll and BPM system

databases.

6. Changing Process Instance Storage Technol-

ogy: Because the BPM systems are tightly cou-

pled with its storage mechanism, it is impossible

to replace the underlying technology (e.g., from

RDBMS to No SQL).

To mitigate these types of problems, we propose a

common model for representing business process in-

stances, which BPM systems may adopt and use. The

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

194

model, BPIM (Business Process Instance Model), de-

ﬁnes a framework for process instance information;

it deﬁnes three separate data aspects that can collec-

tively build a common view on process instances. In

doing so, BPIM aims to makes it easier to obtain a

holistic view of the process instance and help build an

abstract model that could de-couple the BPMS execu-

tion engine from a physical storage.

3 RELATED WORK

Most of the academic research work so far have

focused on business process modelling and process

model repositories (Yan et al., 2012; Choi et al., 2007;

Grigorova and Kamenarov, 2012). In-depth discus-

sions about models for business process instances

have been largely neglected. We discuss the most rel-

evant streams of academic work below.

Interoperability: The issue of interoperability be-

tween process instances in a distributed environment

is discussed in Zaplata et al. (Zaplata et al., 2010).

They have identiﬁed BPEL and XPDL as the most

popular execution languages and conducted a com-

prehensive study on the elements in these languages

to develop a model for process instances that is ﬂex-

ible enough to be used for both languages. Using

this model, a BPM execution engine (a source envi-

ronment) can transform its native process instance to

an interoperable instance and sends the information

to another BPMS execution engine (a target environ-

ment). However, much of the elements in the model

focuses on the migration aspects and does not provide

the holistic view a process instance.

Artefact Oriented BPM: Recently, a data-oriented

business process view has emerged. The approach

allows decoupling of the process instance data from

its execution engine. Sun et al. (Sun et al., 2014;

Sun et al., 2012) propose ‘Self-Guided Artefact’ as

a holistic view of process instance. Each self-guided

artefact (sg-artefact) contains process instance data

and its process model. A workﬂow system can under-

stand the sg-artefact and execute the process instance.

A data-oriented view of the process through artefacts

is certainly relevant to our topic. However, we see

major differences in that (i) a sg-artefact incorporates

a process model, as we mentioned before BPM sys-

tems can use different process modelling languages

and coupling the process instance to a speciﬁc mod-

elling language makes it less interoperable, (ii) A sg-

artefact does not cater for instance speciﬁc informa-

tion such as Execution Path and Meta-Data.

Process Mining: Finally, a process mining technique

is a possible method for building a holistic view of

process instances in a heterogeneous and distributed

environment. The ProM process mining framework

(Van Der Aalst et al., 2007) uses an XML format to

deﬁne a workﬂow log model. This model contains

information about the business process, process in-

stance and related data. This approach is useful when

we are dealing with business processes with no formal

process model to begin with. We see process min-

ing as a bottom up approach and they have to be cus-

tomized for each system. In many BPM systems, we

already have a model to generate instances with (as

described in our scenario in Customer Journey pro-

cess). Instead of logging the activities and trying to

analyse them later (a bottom-up approach), we are

proposing to store the instance related information in

a format that any BPM system can understand.

4 BUSINESS PROCESS

INSTANCE MODEL

In this section, we introduce the individual compo-

nents of Business Process Instance Model (BPIM).

It consists of three views (i.e., dimensions): Process

Instance Execution Path, Process Instance Data, and

Process Instance Meta Data.

We will ﬁrst present the visual notations of the

model and then the BPIM Meta Model that describes

the schema of BPIM elements.

4.1 Process Instance Execution Path

The Process Instance Execution Path, or Execution

Path for short, focuses on describing the exact exe-

cution path that activities took in an instance. Unlike

a process model, a Process Instance Execution Path

(a) Activities in Execution Paths

(b) Transitions in Execution Paths

Figure 2: BPIM Elements.

Towards a Common Understanding of Business Process Instance Data

195

contains just the activities that have been performed

during the process instance execution.

To be self-contained, we brieﬂy show the main el-

ements of Execution Paths. The design details of this

component are in our previous work (Moghadam and

Paik, 2015).

BPMN v2.0 (Object Management Group, 2011)

comes with an interchange standard. Instead of cre-

ating new notations and their semantic from scratch,

we use a subset of BPMN elements and added new

elements that are relevant to the runtime information.

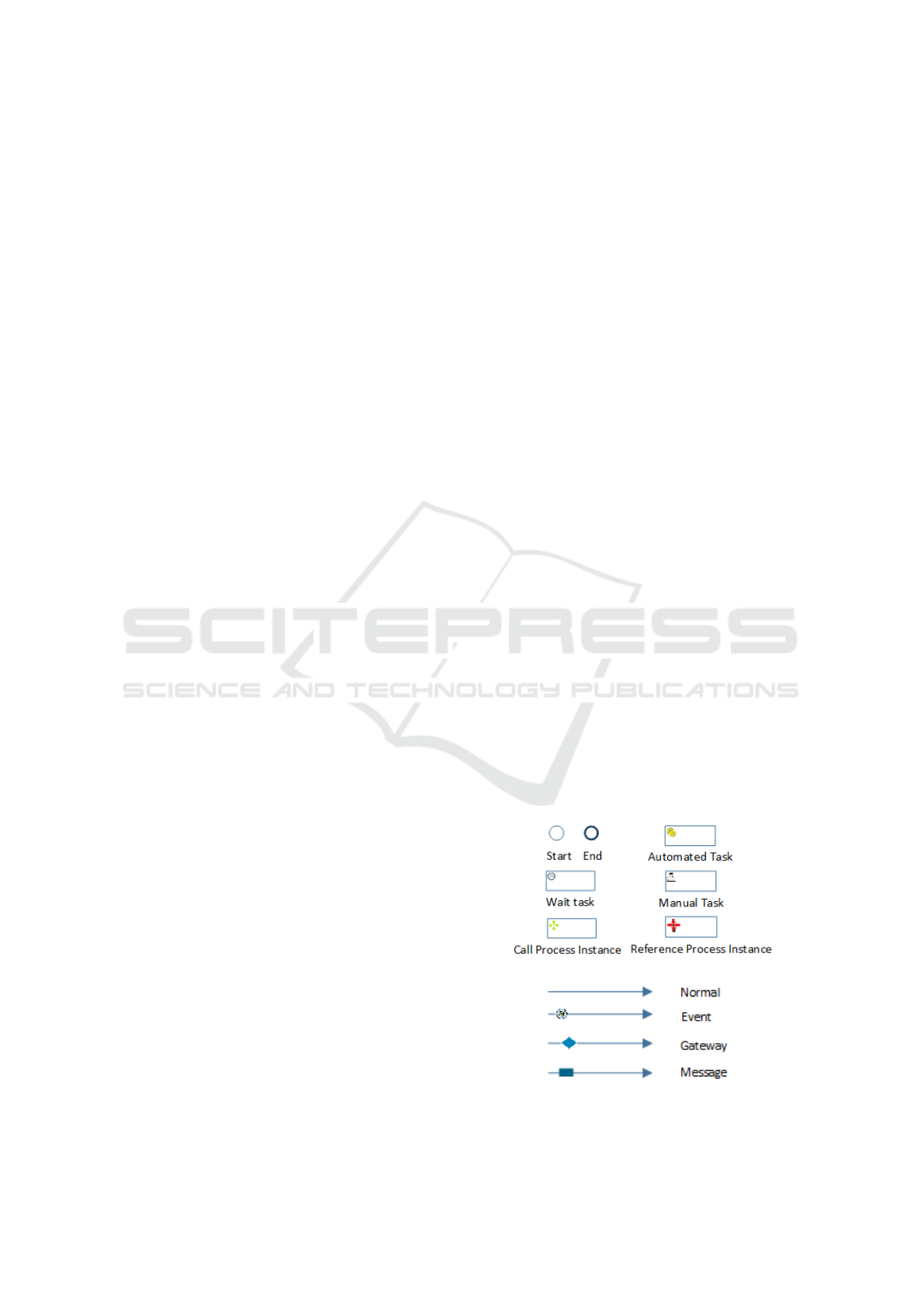

As shown in Figure 2a, besides the tasks, the Wait

element indicates that process instance execution is

suspended. Call Process Instance and Reference Pro-

cess Instance specify that during the current process

instance execution, a message or event has been sent

to/received from another process instance.

Figure 2b shows transition elements. Transition

connects two activities and shows the direction of the

process execution ﬂow. Transition also has another

responsibility in the Execution Path. It shows how

many times the execution engine has passed through

it during the execution.

4.2 Process Instance Data

Process instance data contains information relating

to the goal the corresponding instance aims to fulﬁl.

Here, we ﬁrst examine the data structure characteris-

tics of process instance data. Then, we introduce the

Process Instance Data Snapshot, or Data Snapshot

for short, Data Snapshot Graphs and Data Snapshot

Pools and their visual notations.

4.2.1 Data Elements in a Process Instance

Different types of data exist in a process instance.

These data types can be grouped into the following

categories:

• Basic Data Types: Each BPM system comes with

built in data types (e.g., byte, integer, character)

for deﬁning process instance variables (Qin and

Fahringer, 2012).

• Complex Data types: A complex data structure

is composed of basic data types as attributes and

builds a new data type (e.g., business entities, doc-

uments).

• Arrays: An array contains a collection of data

with the same or different data types (e.g., basic or

complex data item or another array ). For exam-

ple, in the Customer Payment process ‘Discount

Entitlements’ is an array.

During the process instance enactment, activities

in the Execution Path can introduce new data or mod-

ify the existing instance data. Each activity in the Ex-

ecution Path may deﬁne input or output data items.

Table 1 deﬁnes the input and output for the activ-

ities in the Execution Path. None of the transitions

in the Execution Path modify the data items, so they

do not have data input/output and they are not listed

here. Also, note that ‘End’ and ‘Wait’ activities do

not change the instance data, these activities have no

data input or output.

Table 1: Input/output for activities in the Execution Path.

Activity Name Input Output

Start 7 3

End 7 7

Automated Task 3 3

Manual Task 3 3

Wait 7 7

Call Process Instance 3 7

Reference Process Instance 7 3

Keeping track of the changes in the process in-

stance data before and after the execution of an activ-

ity can be valuable. Chebotko et al. (Chebotko et al.,

2010) states that data provenance management is an

essential component for interpreting the result, diag-

nosing errors and reproducing the same result in sci-

entiﬁc workﬂows. Although most of researches have

focused on the data provenance in the scientiﬁc work-

ﬂows, recently the same concepts are being applied

to industrial systems. Shamdasani et al. (Shamdasani

et al., 2014) discusses the usefulness of data prove-

nance in the BPM systems and proposes a workﬂow

system which can store provenance data.

BPIM, similar to scientiﬁc workﬂows, stores the

data provenance as Data Snapshots and Graphs and

Data Snapshot Pools. Each Data Snapshot of a pro-

cess instance represents the state of data items at a

speciﬁc point of execution (i.e., before or after execu-

tion of an activity in the Execution Path). Data Snap-

shot Graphs capture the transition of Data Snapshots

by the activities.

A Data Snapshot Pool is a repository of all Data

Snapshots and each snapshot is identiﬁed by a unique

id. Each node in a Data Snapshot Graph contains this

unique id which points to the actual instance of the

Data Snapshot. The Data Snapshot Pool helps the

Data Snapshot Graphs to share the same Data Snap-

shots across different nodes in the graph.

4.2.2 Data Snapshots and Graphs

We present the details of Data Snapshots and Graphs

along with their the visual notations. The Data Snap-

shot Graph is a directed graph and it shows:

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

196

1. The state of data before and after the execution of

each activity in the Execution Path

2. The ﬂow of data items between activities during

the process instance execution

3. Any errors and faults that occurred before or after

the execution of an activity

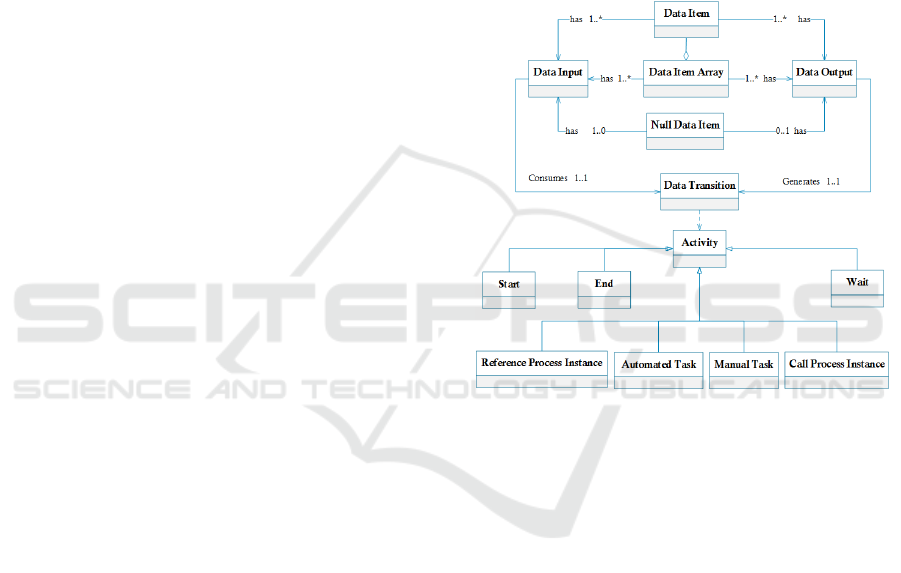

Figure 3 shows the visual notations. To explain:

Figure 3: Data Snapshot and Graphs.

Data Item: The basic and complex data types are

represented by data item notation. Data item dis-

plays a text and a number. The text is data item’s

name and number is data item’s version.

Data Item Array: This notation represents an array

of basic or complex data types. Data item array

similar to data item displays the data item array’s

name and version number.

Data Transition: Each activity in the Execution Path

maps to a transition in the data snapshot graph.

When an action changes the data during the exe-

cution, it creates a brand new version of data item

and connects the older version to the new version

with a directed edge in the graph.

Null Data Item: Null data item is used in cases

where the activity does not produce any output

data nor require input.

To create a snapshot, we use the following rules:

• Each data item has an identiﬁer.

• Each data item has a version number.

• When an activity in the Execution Path modiﬁes

the existing data item, it will create a brand new

instance of that object with the same identiﬁer and

different version.

• When an activity in the Execution Path creates a

new data item, it assigns an unique identiﬁer and

version to it.

• Initial version for all data items starts from 1.

• Data item identiﬁer is a unique id which can be

used to retrieved that object but there might be

more than one instance of that object with differ-

ent version number.

• Combination of item identiﬁer and version makes

an item unique.

4.3 Process Instance Metadata

BPIM also represents the information about the life-

cycle of a process instance (i.e., creation, enactment

and termination). Some of these information are

merely informational (e.g., creation date time) and

some of them are important for the execution engine

(e.g., process instance state) to enact the instance.

We describe the Process Instance Metadata as a

relation with the following tuple {id, name, mod-

elId, creationDateTime, endDateTime, creator, server,

state}, where modelId is the process model Id, cre-

ator is the name of the application or user created the

process instance, server is the host which created the

instance, state is the current state of the instance

4.4 BPIM Meta Model

Along with the visual notations, BPIM deﬁnes a meta

model using UML to formally describe the elements

of the model as well as the schema for the elements.

That is, the BPIM meta model is a model which de-

scribes all the elements in the Process Instance Exe-

cution Path and Data Snapshots and Pools.

4.4.1 Execution Path Meta Model

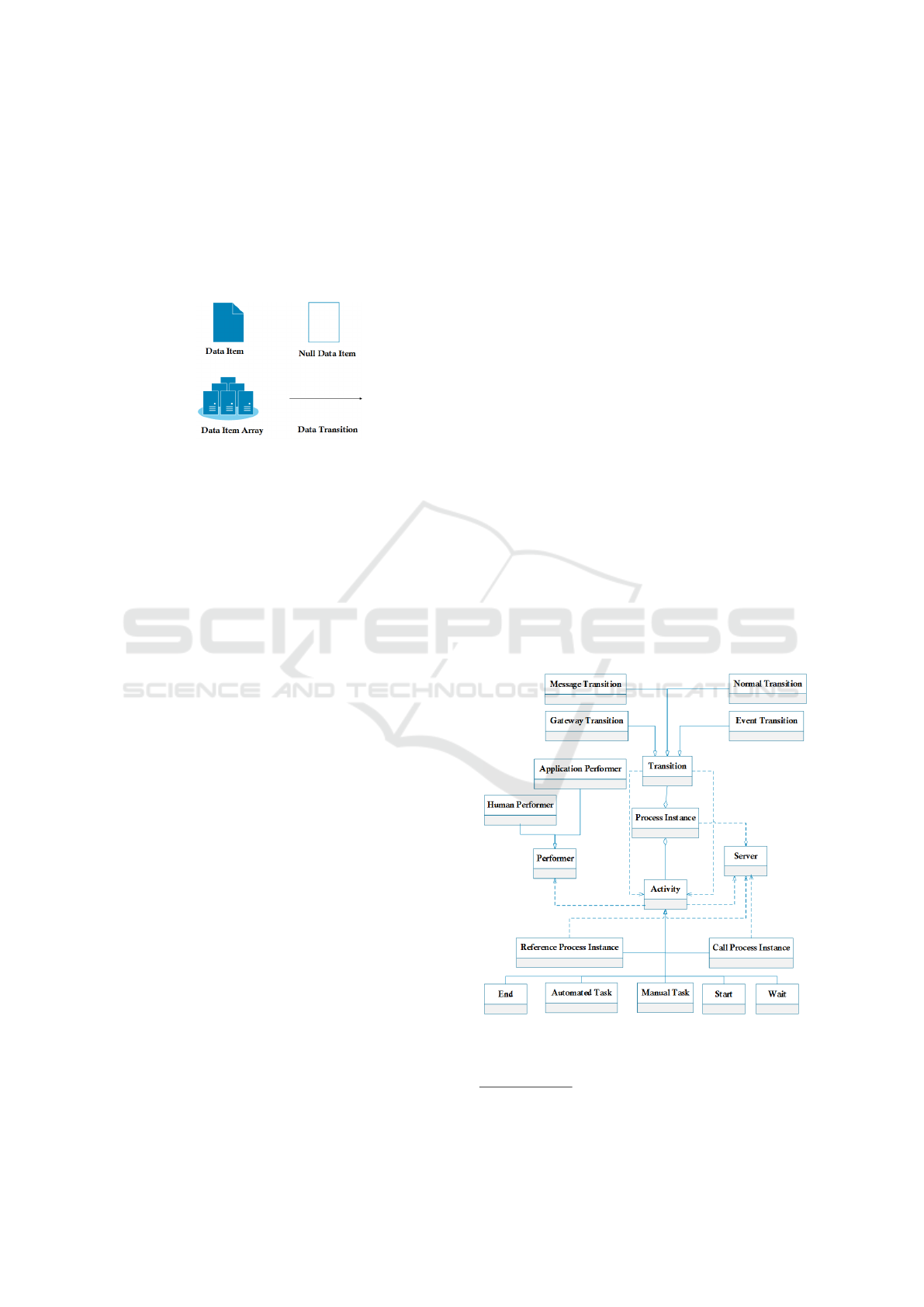

Figure 4 provides the meta model for the Execution

Path elements.

Figure 4: Process Instance Execution Path Meta Model.

In the following, we will closely look at the schema

information for the elements in the Execution Path.

From here on, we will skip descriptions of the attributes

whenever the names themselves are descriptive enough.

Towards a Common Understanding of Business Process Instance Data

197

Activities: All the activities in the BPIM Execu-

tion Path share some common attributes. We deﬁne

them as a relation with a tuple {id, name, startDate-

Time, endDateTime, performer, server, state, map-

pingCorrelationId}, where performer is the name of

the person/application executed the activity, server is

the host which executed the activity, mappingCorre-

lationId is the correlationId to identify the target el-

ement in the execution language during the mapping

process. The following tuple describe the additional

attributes for each activity type in the Execution Path:

• Automated Task: {serviceName, serviceURL,

serviceGroup, applicationName, applicationId},

where serviceName is the name of the service

which BPM system calls. A service refers to any

object which can process the instance data and

provide a response (e.g., Java Object, Web ser-

vice), applicationName and applicationId are the

details of the application which hosts the service,

• Manual Task: {userId, userName, role, com-

ments, description, organisation, department},

where userId, userName, role are the details of

the user who performs the task, extra comments

made and task descriptions are captured in com-

ments and descriptions respectively.

• Wait: {duration, expiryDateTime, interrupted},

where duration is the period of time which pro-

cess execution was suspended (ExpiryDateTime

should be empty), expiryDateTime speciﬁes the

date and time which process instance execution

can resume (Duration should be empty), inter-

rupted speciﬁes if Wait was interrupted

• Call Process Instance: {targetInstanceId, targe-

tActivityId, targetServer}, where the details of the

target process instance and activity are stored

• Reference Process Instance: {sourceInstanceId,

sourceActivityId, sourceServer}, where the details

of the source instance and activity are stored

Transitions: All the transitions in the Execution

Path have some common attributes. We deﬁne them

as a relation {id, name, from, to, mappingCorre-

lationId, traverseCounter}, where mappingCorrela-

tionId is the correlationId to identify the target ele-

ment in the execution language during the mapping

process, traverseCounter shows how many times ex-

ecution engine passed through this transition

In the following, the tuples describe the extra at-

tributes for each transition type in the Execution Path:

• Event Transition: {eventId, eventType, event-

Name}, where eventType refers to the type of the

event (e.g., Message, Timer)

• Message Transition: {messageId, message-

Name}, where the message Id and Name are mes-

sage details

• Gateway Transition: {gatewayId, gatewayType,

gatewayName}, where the gateway Id, Type and

Name are gateway details

4.4.2 Process Instance Data Meta Model

The process instance data meta model describes the

structure and schema of Data Snapshots and Graphs.

Figure 5 provides the meta model for the elements.

Figure 5: Process Instance Data Snapshots and Graphs

Meta Model.

As discussed in Section 4.2.1, the process instance

data elements can have basic or complex data types.

Depending on the complexity of the data type, it can

have different metadata (e.g., a document can have

author and size attribute, a Customer entity can have

name and address). In this section, we only list the

common attributes for these data types.

The following tuples describe the attributes for

each element in the Snapshots and Graphs:

• Data Item: {id, dataItemObject, version, cre-

ationDateTime, type}, where dataItemObject is a

reference to a data object.

• Data Item Array: {id, dataItemArrayOb-

jects, version, creationDateTime, size}, where

dataItemArrayObjects is a reference to an array

of data objects, size is the number of items it.

• Data Transition: {id, activityId, dataInput,

dataOutput}, where activityId refers to an activ-

ity in the Execution Path.

• Data Input: {id, dataElementIds}, where

dataElementIds speciﬁes the transition inputs.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

198

• Data Output: {id, dataElementIds}, where

dataElementIds speciﬁes the transition outputs.

5 APPLICATION OF BPIM

In this section, we present how BPIM is applied to the

customer journey process scenario.

5.1 The Customer Journey Process

We use the customer journey process presented in

Section 2 and create a process Execution Path, Data

Snapshots and Data Snapshot Pools. In doing so,

we assume that: (i) the BPM systems involved have

adopted the BPIM framework and implemented it, (ii)

they have added new functionality to support calling

a process instance which is hosted by the other tools.

We also assume that BPM systems share the same

process instance repository.

5.1.1 The Execution Paths

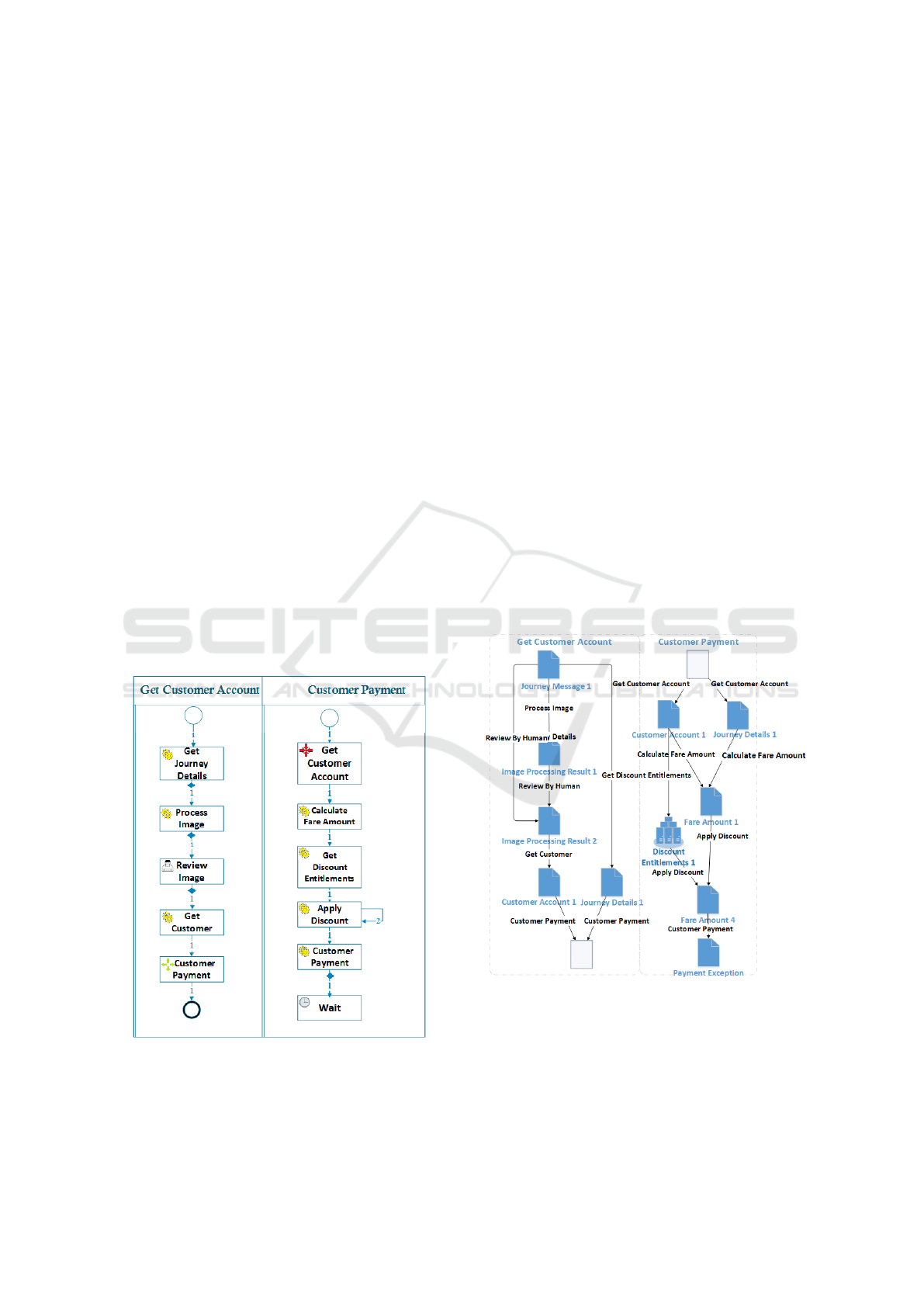

Figure 6 shows an Execution Path of a customer jour-

ney process instance, made up of two Execution Paths

from the sub processes: one from Get Customer

Account process instance in jBPM, the other from

Customer Payment process instance in Riftsaw.

Figure 6: An Execution Path of a customer journey in-

stance.

The Get Customer Account Execution Path dis-

plays all the steps taken to retrieve a customer ac-

count. After loading the customer account, jBPM ex-

ecution engine sends a message to Riftsaw to create a

new Customer Payment process instance and termi-

nates. The ‘Call Process Instance’ activity is a link be-

tween these two instances. The Customer Payment

Execution Path also has a corresponding ‘Reference

Process Instance’ activity which points to the Get

Customer Account process instance.

All the transitions in the Execution Path are

marked with a number. This number shows how many

times the execution engine has traversed that tran-

sition. In this example ‘Apply Discount’ node has

two input transitions which are marked with 1 and 2.

From there, we know that there are three discount en-

titlements applied for this journey. The example also

shows that the Customer Payment Execution Path

has no ‘End’ activity for this process instance. This

means this process is not ﬁnished yet and it is waiting

to try to call payment service again.

5.1.2 The Data Snapshots

Similar to the Execution Paths, we have two

Data Snapshots from Get Customer Account and

Customer Payment. Figure 7 displays these two side

by side.

Figure 7: Data Snapshots from a customer journey instance.

The number beside the description of each data

object is the version number. Having a version num-

ber helps to distinguish multiple versions of the same

object. For example there are three discount entitle-

ments for this customer and each one individually ap-

plies to the fair amount. As a result of that we end

Towards a Common Understanding of Business Process Instance Data

199

up with four versions of ‘Fair Amount’ entity. In or-

der to simplify the notations, if an activity (e.g. for

each loop) produces multiple versions of the same

data item we just display the latest version of that data

item. All the intermediary versions of the data item

exist in the Data Snapshot Pool.

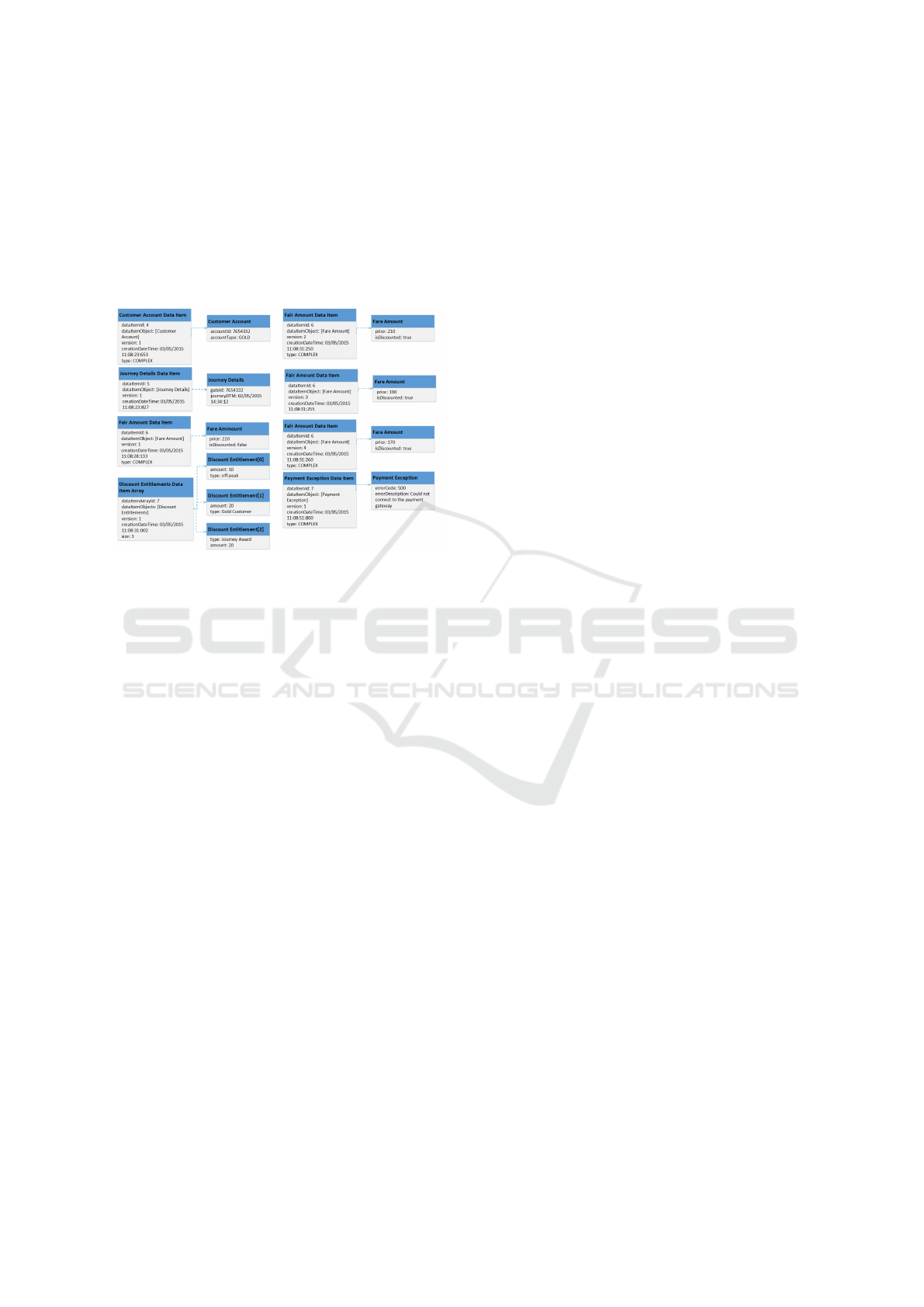

Figure 8 illustrates the Data Snapshot Pool for the

Customer Payment process instance.

Figure 8: Customer Payment Process Instance Data Snap-

shot Pool.

BPIM makes it possible for the BPM systems to

share the same schema and data. Using a standard

model for process instance, removes the need for E-

Toll application’s private database. It also makes it

easy to diagnose an error and because it keeps the data

snapshots, it is possible to rollback the changes and

restore the process instance to a speciﬁc point during

the execution.

6 CONCLUSION AND FUTURE

WORK

In this paper, we proposed an interoperable model

which provides a holistic view of process instances.

The model is designed to capture process execution

paths, instance data provenance and process context

metadata. This model may be adopted by BPM sys-

tems to work as an abstraction layer between execu-

tion engine and physical storage. This helps BPM

systems share their process instances with each other.

Currently, we are working to provide the full map-

ping between the elements in the BPMN and BPEL

to/from BPIM elements and realise a full transforma-

tion algorithm. A prototype will be developed to show

how all these components work together and build a

holistic view of process instance information.

REFERENCES

Aguilar-Saven, R. S. (2004). Business Process Modelling:

Review and Framework. International Journal of Pro-

duction Economics, 90(2):129–149.

Chebotko, A., Lu, S., Fei, X., and Fotouhi, F. (2010). Rdf-

prov: A relational rdf store for querying and managing

scientiﬁc workﬂow provenance. Data & Knowledge

Engineering, 69(8):836–865.

Choi, I., Kim, K., and Jang, M. (2007). An XML-based

Process Repository and Process Query Language for

Integrated Process Management. Knowledge and Pro-

cess Management, 14(4):303–316.

Grigori, D., Casati, F., Castellanos, M., Dayal, U., Sayal,

M., and Shan, M.-C. (2004). Business Process Intelli-

gence. Computers in Industry, 53(3):321–343.

Grigorova, K. and Kamenarov, I. (2012). Object Relational

Business Process Repository. In Proceedings of the

13th Int’l Conference on Computer Systems and Tech-

nologies, pages 72–78. ACM.

Ma, Z., Wetzstein, B., Anicic, D., Heymans, S., and Ley-

mann, F. (2007). Semantic Business Process Repos-

itory. In Proceedings of the Workshop on Semantic

Business Process and Product Lifecycle Management

SBPM 2007, held in conjunction with the 3rd Euro-

pean Semantic Web Conference (ESWC 2007).

Moghadam, N. and Paik, H.-y. (2015). Bpim: A multi-view

model for business process instances. In Proceed-

ings of the 11th Asia-Paciﬁc Conference on Concep-

tual Modelling (APCCM 2015), volume 27, page 30.

Object Management Group (2011). Business Pro-

cess Model And Notation (BPMN) Version 2.0.

http://www.omg.org/spec/BPMN/2.0/.

Qin, J. and Fahringer, T. (2012). Semantic-based scientiﬁc

workﬂow composition. In Scientiﬁc Workﬂows, pages

115–134. Springer.

Shamdasani, J., Branson, A., McClatchey, R., Blanc, C.,

Martin, F., Bornand, P., Massonnat, S., Gattaz, O., and

Emin, P. (2014). Cristal-ise: Provenance applied in

industry. arXiv preprint arXiv:1402.6742.

Sun, Y., Su, J., and Yang, J. (2014). Separating execution

and data management: a key to business-process-as-

a-service (bpaas). In Business Process Management,

pages 374–382. Springer.

Sun, Y., Xu, W., Su, J., and Yang, J. (2012). Sega: A me-

diator for artifact-centric business processes. In On

the Move to Meaningful Internet Systems: OTM 2012

Workshops, pages 658–661. Springer.

Van Der Aalst, W. M., Reijers, H. A., Weijters, A. J., van

Dongen, B. F., Alves de Medeiros, A., Song, M., and

Verbeek, H. (2007). Business Process Mining: An In-

dustrial Application. Information Systems, 32(5):713–

732.

Yan, Z., Dijkman, R., and Grefen, P. (2012). Business Pro-

cess Model Pepositories – Framework and Survey. In-

formation and Software Technology, 54(4):380–395.

Zaplata, S., Hamann, K., Kottke, K., and Lamersdorf,

W. (2010). Flexible Execution of Distributed Busi-

ness Processes Based On Process Instance Migration.

Journal of Systems Integration, 1(3):3–16.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

200
