Chinese Character Images Recognition and Its Application in Mobile

Platform

Gang Gu, Jiangqin Wu, Tianjiao Mao and Pengcheng Gao

Digital Media Computing and Design Lab (DCD), Zhejiang University, 38 Zhejiang University Road, Hangzhou, China

Keywords:

GIST-SIFT-SSC, Image Understanding, Chinese Characters Recognition, Mobile Platform.

Abstract:

Chinese characters are profound and polysemantic. Reading a Chinese character is a procedure of image un-

derstanding, if the Chinese character is captured as an image. Due to the complexity of structure and plenty

of Chinese characters, there always exist some unfamiliar characters when reading books, so it would be great

if a tool is provided to help users understand the meaning of unknown characters. We propose a method that

combines global and local features(i.e., GIST and SIFT features) to recognize the Chinese character images

captured from mobile camera. Three schemes are investigated based on practical considerations. Firstly,the

so-called GIST and SIFT descriptors extracted from Chinese character images are adopted purely as features.

Then ﬁlter the SIFT feature points of similar Chinese character images based on GIST feature. Finally, com-

press the storage of GIST and SIFT descriptors to accommodate mobile platform with Similarity Sensitive

Coding(SSC) algorithm. At the stage of recognition, the top 2k Chinese characters are ﬁrstly obtained by

hamming distance in GIST feature space, then reorder the selected characters as ﬁnal result by SIFT feature.

We build an Android app that implements the recognition algorithm. Experiment shows satisfying recognition

results of our proposed application compared to other Android apps.

1 INTRODUCTION

Chinese character is the basic unit of Chinese lan-

guage. Meanwhile, it is one of the ﬁnest Chinese art

forms and the most inseparable parts of Chinese his-

tory. Its delicate aesthetic effects are generally con-

sidered to be unique among all Chinese arts. How-

ever, the Chinese characters are complicated due to

its quantity and structure. Fig. 1 shows the different

typefaces of a Chinese character. Therefore, when

people, Chinese or foreigners, read Chinese books,

they may meet some unfamiliar characters. It will be

quite beneﬁcial to them for reading Chinese books, if

there exists a tool that could recognize Chinese char-

acter images.

Chinese character images recognition on mobile

platform is a valuable and challenging task in the

area of image understanding. It is quite convenient to

use the phone camera to capture images of unfamil-

iar Chinese characters and recognize them. Although

there are many mobile recognition applications, the

accuracy is not very high. There is still much more

space for further development. The recognition al-

gorithm applied in mobile platform still poses difﬁ-

cult challenges. The reasons are manifold: (a) The

structure of a Chinese character can be very compli-

cated. (b)The massive Chinese characters engenders

considerable computation and storage cost. (c) what

features to represent the character image and how to

compress the storage of features to accommodate the

mobile platform. In addition, the feature extraction

and the recognizing procedure are two important is-

sues to be considered.

For the feature extraction, there mainly exist two

categories of feature for image representation: global

feature and local feature. Zhuang et al. (Zhuang et al.,

2005) extracted shape feature from character images

Figure 1: The different typeface of a Chinese character.

Gu, G., Wu, J., Mao, T. and Gao, P.

Chinese Character Images Recognition and Its Application in Mobile Platform.

DOI: 10.5220/0005679703110318

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 3: VISAPP, pages 313-320

ISBN: 978-989-758-175-5

313

for content-based character retrievalbutthe dimension

of shape feature is not uniﬁed and it is too large for

mobile devices. One of the widely used global fea-

tures is GIST descriptor. GIST descriptor was initially

proposed in (Oliva and Torralba, 2001) and widely

used in content-based image retrieval (Barbu, 2009;

Pengcheng et al., 2014). It is proved that GIST de-

scriptor can describe an image by a set of low dimen-

sions, such as naturalness, openness, roughness, ex-

pansion, ruggedness, which are also very distinguish-

able when describing Chinese characters. Y. Lin et

al. used GIST descriptor to represent Chinese callig-

raphy characters in (Lin et al., 2013)to recognize large

scale Chinese calligraphic characters.

Beside the global features, local features are also

adopted in many applications. SIFT descriptor was

created by David Lowe in (Lowe, 2004) to represent

the image. which has been proved to be the one of the

best local feature descriptors (Mikolajczyk K, 2005).

It is widely used for object recognition (Rosenberg

and Dershowitz, 2012; Zhen-Yan, 2014). SIFT fea-

ture is also used in Chinese recogniton(Zhang Z,

2009; Jin et al., 2009). Chen et al. applied SIFT

to Chinese character recognition in license plate and

achieved great performance. Mao et al. used SIFT

feature to distinguish the style calligraphy words and

achieved high accuracy (Tianjiao et al., 2013). How-

ever, the number of SIFT keypoints in one character

image often varies from tens to hundreds. So the li-

brary of SIFT points is much larger and the recogni-

tion will cost much more computing power.

With regard to the recognizing procedure, Shak-

narovich and Darell (Shakhnarovich G, 2003) pro-

posed a Similarity Sensitive Coding(SSC) algorithm

extending Locality Sensitive Hashing (LSH), whose

key contribution is creating a new binary (+1 and −1)

feature space mapped by hash functions learned from

training set. To speed up matching and reduce mem-

ory consumption, Calonder M (Calonder M, 2010)

used binary (0 and 1) strings as a feature descriptor.

The descriptor similarity can be evaluated by using

the Hamming distance, which achieves great recog-

nition performance. The Hamming distance can be

computed very efﬁciently with a bitwise XOR opera-

tion followed by a bit count, so the high-dimensional

search is very fast. (Calonder M, 2010) also con-

ﬁrmed the trend (Shakhnarovich G, 2003) of mov-

ing from the Euclidean to the Hamming distance in

matching procedure.

The main contribution of this paper is to propose

a recognition algorithm for the Chinese character im-

ages captured from camera, which is based on GIST

and SIFT features. It ensures the high accuracy and

great performance on mobile platform. Meanwhile, it

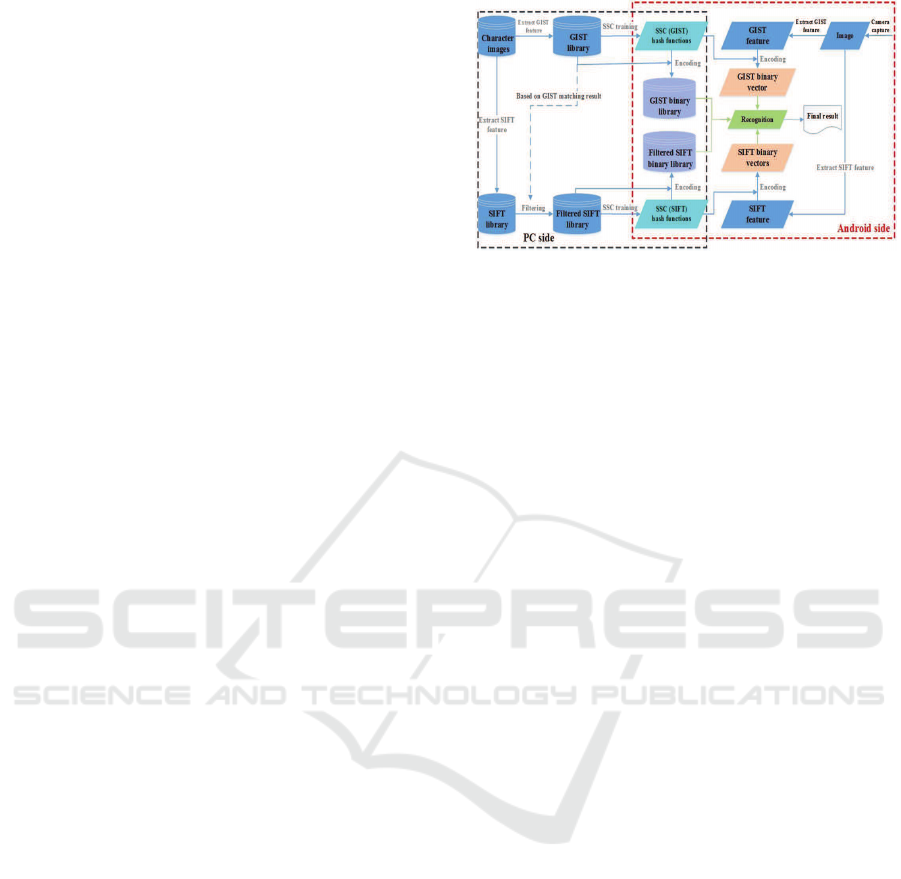

Figure 2: Overall development ﬂow and architecture.

compress the storage of feature vectors by SIFT key-

points ﬁltering and SSC encoding. The two methods

of compressing greatly reduce the computationalcost.

Moreover, the recognition algorithm decreases the er-

rors caused by SSC encoding, because the SIFT key-

points are ﬁltered before SSC encoding, and the pre-

ponderance of two features will make up for it.

The remainder of the paper is organized as fol-

lows. In Section 2, we give a system overview of our

proposed approach. Section 3 describes the methods

of image representation and recognition. Then sec-

tion 4 presents the system implementation and the ex-

perimental results. Finally we conclude the paper in

section 5.

2 SYSTEM OVERVIEW

An overall system development ﬂow and architecture

is illustrated in Fig. 2. For the mobile Chinese char-

acters recognition platform, we ﬁrst build the Chi-

nese character images library of Windows system in-

stalled Chinese font (Hei and Song typeface most

used in Chinese books), then extract GIST and SIFT

feature from the Chinese character images to create

GIST and SIFT feature library. After that, we ﬁl-

ter SIFT keypoints of similar character images to re-

duce the computational cost and compress the stor-

age of the SIFT library. During the training stage of

SSC, images of the same character are treated as pos-

itive pairs and otherwise as negative pairs for GIST

feature training, positive or negative keypoints mea-

sured by distance for SIFT feature training. Two hash

functions obtained from the training will map feature

vectors to binary codes respectively. After that, the

similarity of Chinese characters can be measured by

hamming-distance and the storage of feature library

can be extremely compressed. All the previous pro-

cesses can be done off-line on PC. At the recognition

stage, the feature vectors are ﬁrst extracted from the

unknown character image captured from the phone

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

314

camera, then encode GIST and SIFT vectors to bi-

nary codes by hash functions, The ﬁnal result will be

computed by recognition algorithm.

3 IMAGE REPRESENTATION

AND RECOGNITION

Three steps have to be done to implement the recog-

nition of images. Firstly, it is important to process

images collected by different ways and select some

proper images to build the dataset. Then extract the

image features from the dataset to create the feature

library, which is the basis of recognition algorithm.

The third step is to design an efﬁcient algorithm to

recognize images from the feature library. The fol-

lowing parts will unfold in this way.

3.1 GIST-SIFT based Image

Representation

In this section, we will discuss the method to build

images library and choose great features to represent

Chinese characters images. We use Windows system

installed Chinese font to build the images library of

Chinese characters, in which text segment technol-

ogy is applied to get each character image from PDF

ﬁles. There are two types of fonts frequently used in

printed Chinese materials, namely Song typeface and

Hei typeface. Each typeface contains 20780 Chinese

characters according to Xinhua dictionary, which is

the most popular dictionary in China. After building

images library, the next step is to select proper image

feature.

Representation of character images is signiﬁcant

in Chinese character recognition, because the differ-

ence between Chinese characters is so delicate. So the

image representation needs sophisticated descriptors.

In this paper, we use GIST descriptor to develop the

low dimensional representation of the Chinese char-

acters. GIST descriptor is computed by three steps:

• Convolve the image with 24 Gabor ﬁlters at 3

scales, 8 orientations, producing 24 feature maps

of the same size of the input image.

• Divide each feature map into 9 regions (by a 3× 3

grids instead of 4 × 4(Ni et al., 2008)), and then

average the feature values within each region.

• Concatenate the 16 averaged values of all 24 fea-

ture maps, resulting in a 3 × 8 × 9 = 216 GIST

descriptor.

Intuitively, GIST summarizes the gradient informa-

tion (scales and orientations) for different parts of an

4 * 4 grids

3 * 3 grids

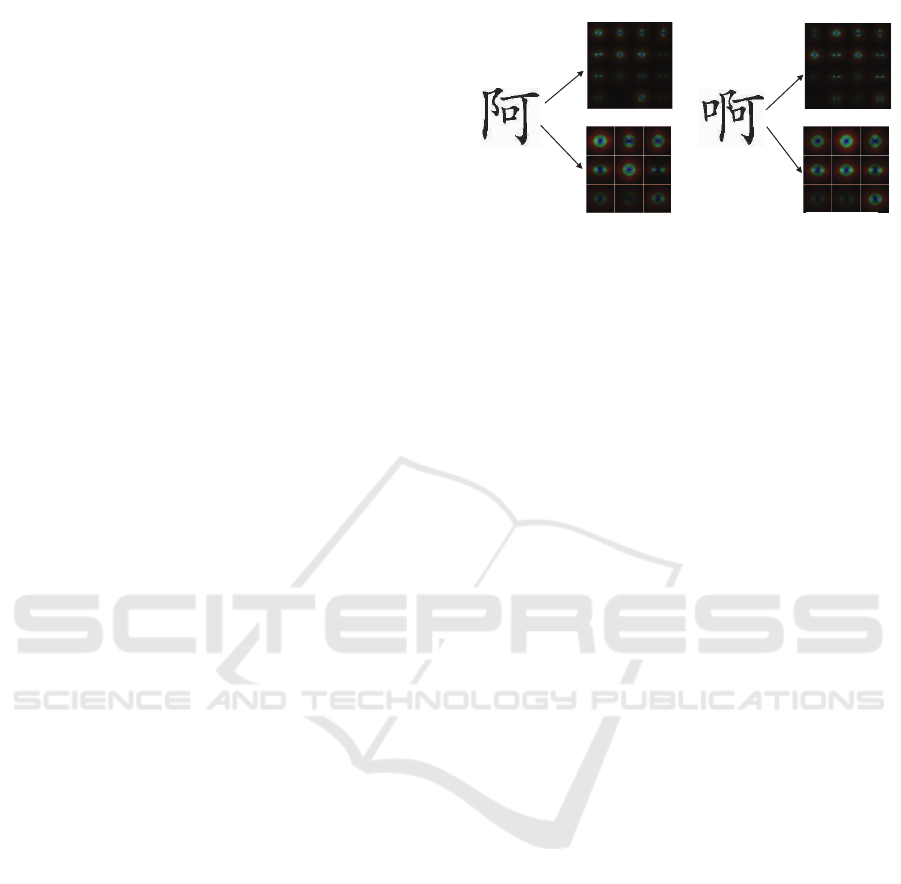

Figure 3: Chinese character images and their corresponding

GIST descriptors.

image, which provides a rough description (the gist)

of the scene. In our method, the image is ﬁrst com-

pressed to 32 × 32 pixels, because printed Chinese

characters have a relatively limited form, 32× 32 pix-

els is big enough for recognition. And also we divide

the images into 3×3 sub images instead of 4×4 grids

or more for the same reason. After this process, the

character image is represented by a 3 × 8 × 9 = 216

dimensional vector. Fig. 3 shows the gist descriptors

of Chinese character image under different girds. It

implies that 3× 3 grids of GIST feature is capable for

the unique feature of each Chinese character image.

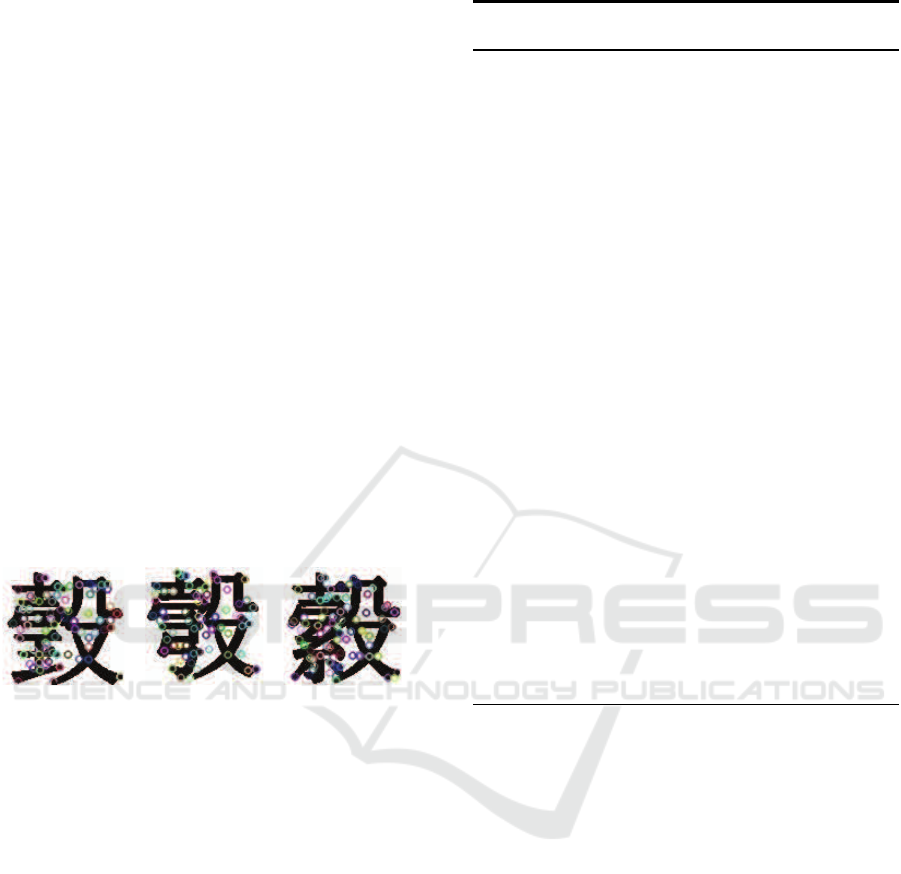

Meanwhile, we use SIFT feature to represent the

local feature of the characters images. SIFT descrip-

tor is based on the gradient distribution information

within the scale region of pre-detected keypoint, and

constructed from a 3D histogram (gradient locations

and orientation).It is a 128-dimension vector standing

for the bins of the oriented gradient histogram (Lowe,

2004). We use Scale Invariant Feature Transform

(SIFT) algorithm (Lowe, 2004) to extract SIFT fea-

ture from Chinese character images and get SIFT fea-

ture vectors of each character. A high level overview

of the extraction process of a single SIFT descriptor

is as follows:

• Given a center, the gradients and their magnitudes

are computed in an area around the center of the

descriptor, then the magnitudes are weighted by a

Gaussian window.

• The area around the descriptor is split into 4 × 4

spatial bins. The size of each spatial bin (in pixels)

is the scale of the descriptor.

• For each spatial bin, a histogram of 8 orientation

bins, weighted by the magnitudes is calculated.

The area that is taken into account is deﬁned by

the scale of the descriptor and a magniﬁcation fac-

tor. This results in a 4 × 4 × 8=128-dimensional

descriptor.

Finally, we extract GIST and SIFT feature of the

two typefaces images and build GIST and SIFT li-

Chinese Character Images Recognition and Its Application in Mobile Platform

315

brary. Further more, GIST vector is represented by

a ﬂoat vector, that means each GIST vector takes

4 × 216 = 864 bytes. The number of SIFT vectors

of each character image is from ten to hundreds, and

each SIFT vector being represented by a integer vec-

tor takes 4 × 128 = 512 bytes. After feature ex-

tracting, the GIST library will take 41560 × 864 =

35907840 bytes (34.24 MB) and SIFT feature needs

4320626 × 512 = 2212160512 bytes (2.06 GB) to

store, which is a much bigger memory and storage

cost for mobile devices. We used two methods to

make them smaller to accommodate the limitation of

mobile platform.

3.2 SIFT Keypoints Filtering

For SIFT feature, the similarity of Chinese characters

is measured by the number of feature points matched

between their images, so the similar feature points in

similar character images will cost the extra computa-

tional capacity(Fig. 4 shows the SIFT feature points

in similar character images). We will ﬁlter the sim-

ilar feature points and reserve unique points in each

character images. To remove similar feature points in

Figure 4: Samples of SIFT keypoints in similar characters

(these similar characters images obtained by GIST feature).

each image, we use KDTree-based ﬁltering method.

The main idea is that if the Euclid distance of SIFT

feature points between similar character images is less

than the threshold, these keypoints will be regarded as

similar SIFT feature points to be removed. For each

GIST vector in GIST library, ﬁnd its k nearest neigh-

bors as similar Chinese character images. A pseu-

docode description for the ﬁltering process is given in

Algorithm 1. As a result, the ﬁltered SIFT feature li-

brary takes 317.16 MB. However, the library is also

too large for mobile platform, we need to compress it.

3.3 SSC based Feature Vector Encoding

Firstly, we give a brief overview of Similarity Sen-

sitive Coding(SSC)(Shakhnarovich G, 2003), the tar-

get of that algorithm is to learn an similarity mapping

function, which is faithful to a task-speciﬁc similarity:

H : x → [α

(x),...,α

(x)] (1)

Algorithm 1: SIFTLibraryFilter( L

,k,threshold ): Fil-

ter similar keypoints in similar character images.

Input:

: The GIST feature library of the typeface.

: The SIFT feature library of the same type-

face, every feature Sift

in the library has SIFT

feature vectors v

,...,v

(m > 0), each vector

in which has responding valid value valid

de-

fault value is 1.

k : The number of nearest neighbors to search.

threshold : The max Euclid distance between a

pair of similar keypoints.

Output:

R :The ﬁltered SIFT feature library.

1: LetC = C

,...,C

be the Chinese characters in L

;

2: For each GIST feature vector T

(i = 1,2,...,n) in

;Let P

= {k similar Chinese characters with C

computed from nearest feature vectors of T

KDTree};

3: For each SIFT feature Sift

in L

4: For each v

in SIFT feature Sift

5: flag = 0;

6: For each v

in Sift

of C

in P

7: dist= Euclid distance between v

and v

;

8: If dist ≤ threshold:

9: Let valid

[ψ] = 0 and flag = 1;

10: If flag == 1:Let valid

[ j] = 0;

11: For each SIFT feature Sift

in L

12: For each v

in SIFT feature Sift

13: If valid

[ j] == 0:remove v

from Sift

;

where x is the original input, α

is weights,

each dimension m is produced by a function h

parametrized by a projection:

h(x; f, T) =

1 if f (x) ≤ T

0 if f (x) ≥ T

(2)

where T is a threshold(T ∈ R),f(x) is a mapping func-

tion, which will map x to a real number. The input of

the algorithm is a set of similar and dissimilar pairs

represented by GIST vectors. For the SSC training

of SIFT feature, the input is a set of similar and dis-

similar keypoints. In our training, similarity between

images or keypoints is explicitly speciﬁed by their se-

mantic meaning, and images of the same character or

keypoints less than the threshold are regarded as sim-

ilar training pairs. So it is very convenient to get the

training set.

To get the threshold T in equation. 2, we need to

traverse all the feasible thresholds in training pairs

and select the one that maximize the TP−FP gap,

where TP is the true positive rate and FP is the false

positive rate classiﬁed by the threshold. For each di-

mension of x, set the minimum gap of TP−FP, we can

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

316

get some thresholds T and corresponding h functions.

Two hash functions of GIST and SIFT feature we will

get from the training, which can be used to map the

GIST or SIFT vectors to binary codes.

This is the non-boost version of SSC

(Shakhnarovich G, 2003), it trains very fast and

works just well, but there are some limitations such

as constrained geometry of projection and ignoring

dependencies of dimensions. So we also use the boost

version of SSC to gain better recognition result. Here

is a brief overview of BoostSSC(Shakhnarovich G,

2003):

Each function h in equation. 1 naturally deﬁnes a

classiﬁer c: x → {±1} on pairs of examples. To learn

an ensemble classiﬁer:

H(x) = sgn(

∑

m=1

(x)) (3)

AdaBoost gives an iterative greedy algorithm that

adds weak classiﬁer c

with an appropriate vote α

one at a time. In our implementation, we set α

to be

a constant(0 or 1), so the distance between vectors can

be evaluated by hamming distance. Throughoutthe it-

erations, AdaBoost maintains a distribution W which

represents the weights of training pairs. In the training

process, the distribution is updated so that the exam-

ples classiﬁed correctly have their weight reduced and

those misclassiﬁed have their weight increased, here

is the updating rule of W:

m+1

(i) = W

(i)exp(− α

))/Z

(4)

where m is the iteration index, i is the example index,

= {±1} indicates the ground truth of similarity and

is the weak classiﬁer which gives the prediction.

is a normalization constant given by:

∑

i=1

(i)exp(− α

)) (5)

at each iteration m, select the weak classiﬁer c

function) to minimize the training error:

∑

i=1

(i)l

) (6)

After iteration, the hash functions will be obtained,

which can be used to map input vector into binary

codes.

At the training stage, the input of the SSC algo-

rithm is a set of similar and dissimilar image pairs

for GIST feature, in which similar and dissimilar key-

points are for SIFT feature. Similarity between im-

ages is explicitly speciﬁed by their semantic mean-

ing. SIFT keypoints less than the threshold are re-

garded as similar pairs. After training, we can get

GIST and SIFT hash functions, then we use the hash

functions to convert feature library to binary codes,

so the similarity of feature vectors can be measured

by their hamming distances.

The size of each GIST binary vector is 216 bits, so

it takes only 28 bytes. The GIST feature library has

41560 feature vectors, it will cost 1163680 bytes(1.11

MB). The length of the SIFT binary vectors in our im-

plementation includes two parts: 4 bytes (one integer)

used to store the number of SIFT vectors of each im-

age; 128 bits(16 bytes) saves each single SIFT vec-

tor. For the SIFT feature library, it has 649219 fea-

ture vectors and 41560 integer numbers, which costs

10553744 bytes(10.06 MB), which is suitable for mo-

bile platform. Table.1 shows the detailed information

about the storage of GIST and ﬁltered SIFT feature

library before or after SSC encoding.

Table 1: The storage of GIST and SIFT features library be-

fore and after SSC coding.

GIST SIFT(ﬁltered)

vector library vector library

(byte) (MB) (byte) (MB)

Before SSC

Encoding

816 34 512 317.16

After SSC

Encoding

28 1.1 16 10.06

Compressing

Ratio

96.73% 96.83%

3.4 Recognition

The recognition algorithm is the main part of our plat-

form. To increase the recognition accuracy, we pro-

vide a candidate list of the most similar Chinese char-

acters. In our method, we combine GIST and SIFT

feature to ensure the recognition accuracy. The main

idea is that we use SIFT feature to match these similar

characters obtained by GIST feature and analyse the

two matching procedure to give the ﬁnal recognition

result. So we ﬁrst use GIST feature to ﬁnd recognized

image’s 2k nearest neighbors (the same character has

two features because of two typefaces) in an order

as candidates. Then use SIFT feature to match them

again and get the same Chinese characters in a new

order by the number of feature points similar with the

target image. Three points should be concerned here:

(a) If the character in the ﬁrst ten characters of the

SIFT feature matching result is duplicate in all can-

didates. (b) If the distance of each character’s loca-

tion between GIST and SIFT matching result is more

than ξ, where ξ is a constant. (c) The location of left

Chinese characters in SIFT matching result will be as

weight added to the GIST feature matching result and

give them in a new order by weight. If a character

Chinese Character Images Recognition and Its Application in Mobile Platform

317

Table 2: Hardware conﬁguration of the test device.

Items Value

Phone Samsung SM-P600

OPeration System Android OS v4.4.2

CPU cores 4 cores + 4 cores

CPU Model Exynos5420

CPU Frequency 1.3GHz+1.9GHz

GPU Model ARM Mali-T628 MP6

Memory 16GB ROM + 3GB RAM

Camera Pixel 3264×2488

satisﬁes (a), it will be added to the head vector. If a

character satisﬁes (b), it will be put into middle vec-

tor. The recognition result will consist of head vector,

middle vector and (c)’s result. Finally, show the ﬁrst k

Chinese characters in that ﬁnal ordered list as recog-

nition result to users. A pseudocode description for

the recognition process is given in Algorithm 2.

Algorithm 2: Recognize(L

,binGist,binSi ft,k): recog-

nize Chinese character images by GIST and SIFT features.

Input:

: The GIST feature binary library.

: The ﬁltered SIFT feature binary library.

binGist : GIST binary vector of captured image.

binSift : SIFT binary vectors of captured image.

k : The number of characters as recognition result.

Output:

R : The string of recognition result.

1: Let C = C

,...,C

be the Chinese characters in L

;

2: Let P

= {search the 2k most similar Chinese

characters with binGist in L

, the characters are in

an order by the hamming-distance near binGist};

3: For each SIFT feature Sift

of C

in P:

4: Let MatchNum[i] = 0;

5: For each v

in Sift

6: For each v

in binSi ft:

7: dist= hamming-distance between v

, v

;

8: If dist ≤ threshold:

9: MatchNum[i] = MatchNum[i] + 1;

10: Let P

= {2k characters ordered by MatchNum

′

value};

11: Let P

head

= {the characters are duplicate and its

location is in the ﬁrst k characters of P

};

12: Let P

middle

= { the characters whose distance of its

location between P

and P

is more than ξ };

13: Let P

end

= {the left characters in an new order by

combing each character’s location in P

and P

};

14: Let P

final

= {the characters in an new order by

combing P

head

middle

and P

end

};

15: Let R = {the ﬁrst k Chinese characters in P

final

};

4 IMPLEMENTATION AND

EXPERIMENT

4.1 Implementation

In this section, we will give the implementation of

mobile Chinese character images recognition plat-

form and the corresponding experiment results. As

shown in Fig.1, there are two parts in the platform.

The ﬁrst part is implemented on PC, which includes

creating the feature library and training the SSC hash

functions. That stage is done off-line and need not be

taken care of once ﬁnished. The second part is the

Android application, which can recognize character

images captured by phone camera. For GIST feature

extraction, we use Java Native Interface (JNI) to im-

plement the GIST extraction module on Android to

make it faster. When the GIST vector is calculated,

we use the hash functions obtained at the SSC training

stage to encode the GIST vector to a binary vector.We

use the library of OpenCV-2.4.9-andriod-sdk to ex-

tract SIFT feature on Android application, then use

JNI to encode SIFT feature vectors to binary codes.

Finally, we use JNI to recognize characters and return

the result. Fig. 5 shows the screen capture of the An-

droid application.

4.2 Experiment

We do some experiments on testing the recognition

speed and accuracy of our platform on the test de-

vice(the hardware conﬁguration is shown in Table.2).

4.2.1 Recognition Speed

Two procedures mainly affect the recognition speed:

extracting GIST and SIFT features of a character im-

age; searching binary vectors in the binary feature li-

brary. In the feature extracting, the pixels of images

has great effect on the time consumption. We do some

experiments on the feature extracting under different

pixels shown in Fig. 6. When the image resolution is

small as 32×32 pixels, the GIST extracting procedure

costs only 78 milliseconds, and the feature matching

time can be even shorter.

In the system, we scale the captured image to

32 × 32 pixels, because that image size is proper

enough for the recognition, which has been proved

by our experiments. It also reduces the computing

complexity when extracting the GIST feature. The

GIST feature library built on PC contains more than

40000 binary feature vectors. For SIFT feature ex-

tracting, we scale the captured image to 109 × 109

pixels, which is consistent with the size of character

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

318

Figure 5: Screenshots of the Android recognition system.

140

210

289

383

100

150

200

250

300

350

400

450

16 * 16 24 * 24 32 * 32 40 * 40 48 * 48 56 * 56 64 * 64

Feature Eatracting Time (ms)

Image Resolution

Figure 6: GIST extracting time on several image resolu-

tions.

image in character images library. The time of SIFT

extracting is much shorter than GIST’s. Experimen-

tal results show that the total time for recognition is

just about 200 milliseconds, which will deliver user a

smooth experience.

4.2.2 Recognition Accuracy

For the Android apps of Chinese character images

recognition, the most important requirement is the

recognition accuracy. In order to increase the recog-

nition ratio, we provide a candidate list that shows the

most similar characters computed by our algorithm.

Then users can choose the best one from these char-

acters. Table.3 shows the recognition accuracy test for

400 Chinese characters randomly selected from Chi-

nese books.

Table 3: Results for recognition accuracy test.

Recognition Accuracy(%)

Top one 95

Top three 97.25

Top ﬁve 97.75

Top ten 98.25

Denial 1.75

We can see that most of the Chinese characters

can be recognized and ranked top 10 in the candidate

list. After recognition, users can select the right char-

acter and navigate to the paraphrase panel to see the

detailed information.

In order to prove the efﬁciency of our recogniz-

ing algorithm, we also do some experiments on Chi-

nese characters recognition compared to other An-

droid apps. Although there exists many Android

apps about Chinese character recognition, the accu-

racy is not very high. We installed Yun Mai, Daub-

Note, CamScanner, ABBYY TextGrabber four An-

droid apps, which are famous and widely used on An-

droid platform.

Four experiments are conducted to compare the

recognitionaccuracyof our application with four pop-

ular Android apps. The ﬁrst experiment is to rec-

ognize a short paragraph of the famous essay. Two

experiments are to recognize the 400 most common

simple Chinese characters. The fourth experiment is

about the recognition of traditional characters. The

samples of experiment are shown in Fig. 7. Table.4

shows the recognition accuracy for the experiment

and proves that our application is much better than

other four popular applications, especially for com-

plicated characters.

Table 4: Comparison with popular recognition applications.

a b c d

Proposed 100% 98% 98.5% 100%

YunMai 96% 94.5% 78% 53.5%

DaubNote 100% 96.5% 94% 67%

CamScanner 100% 96.5% 93% 73.8%

TextGrabber 80% 82% 76% 43.5%

5 CONCLUSION

In this work, we present an algorithm using GIST and

Chinese Character Images Recognition and Its Application in Mobile Platform

319

(a)

(b) (c) (d)

Figure 7: Samples of test set:(a):short para-

graph,(b):simple characters (stokes< 10),(c):simple

characters (stokes> 10),(d):complicated characters.

and SIFT feature to recognize Chinese character im-

ages. Before the recognition stage, we create the li-

brary by extracting feature from Windows installed

font images. The methods of SIFT keypoints ﬁltering

and SSC encoding speed up the recognizing process

and reduce the computational cost. Experiments show

that the recognizer achieves great performance, but

there is still space for improvement. Some compli-

cate Chinese characters can’t be recognized correctly

due to the instability of the phone camera and lim-

ited feature library. In the future, we will improve

the application by applying some image preprocess-

ing method to alleviate the inﬂuence of hands trem-

bling and adding more Chinese character feature vec-

tor to the feature library.

ACKNOWLEDGEMENTS

This work is supported by National Natural Science

Foundation of China(No.61379073) and the CADAL

Project and Research Center, Zhejiang University.

Thank all the reviewers for helping us to improve our

work.

REFERENCES

Barbu, T. (2009). Content-based image retrieval using ga-

bor ﬁltering. In Database and Expert Systems Appli-

cation, 2009. DEXA’09. 20th International Workshop

on, pages 236–240. IEEE.

Calonder M, Lepetit V, S. C. (2010). Brief: Binary robust

independent elementary features. In Computer Vi-

sionCECCV 2010. Springer Berlin Heidelberg, pages

778–792. Springer.

Jin, Z., Qi, K., Zhou, Y., Chen, K., Chen, J., and Guan,

H. (2009). Ssift: An improved sift descriptor for

chinese character recognition in complex images. In

Computer Network and Multimedia Technology, 2009.

CNMT 2009. International Symposium on, pages 1–5.

IEEE.

Lin, Y., Wu, J., Gao, P., Xia, Y., and Mao, T. (2013). Lsh-

based large scale chinese calligraphic character recog-

nition. In Proceedings of the 13th ACM/IEEE-CS

joint conference on Digital libraries, pages 323–330.

ACM.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International journal of computer

vision, 60(2):91–110.

Mikolajczyk K, S. C. (2005). A performance evaluation of

local descriptors. Pattern Analysis and Machine Intel-

ligence, IEEE Transactions on, 27(10):1615–1630.

Ni, K., Kannan, A., Criminisi, A., and Winn, J. (2008).

Epitomic location recognition. In Computer Vision

and Pattern Recognition, 2008. CVPR 2008. IEEE

Conference on, pages 1–8. IEEE.

Oliva, A. and Torralba, A. (2001). Modeling the shape

of the scene: A holistic representation of the spatial

envelope. International journal of computer vision,

42(3):145–175.

Pengcheng, G., Jiangqin, W., Yuan, L., Yang, X., and Tian-

jiao, M. (2014). Fast chinese calligraphic character

recognition with large-scale data. Multimedia Tools

and Applications, pages 1–18.

Rosenberg, A. and Dershowitz, N. (2012). Using SIFT De-

scriptors for OCR of Printed Arabic. PhD thesis, Cite-

seer.

Shakhnarovich G, Viola P, D. T. (2003). Fast pose estima-

tion with parameter-sensitive hashing. In Computer

Vision, 2003. Proceedings. Ninth IEEE International

Conference on, pages 750–757. IEEE.

Tianjiao, M., Jiangqin, W., Pengcheng, G., Yang, X., and

Yuan, L. (2013). Calligraphy word style recognition

by knn based feature library ﬁltering. In 3rd Interna-

tional Conference on Multimedia Technology (ICMT-

13). Atlantis Press.

Zhang Z, Jin L, D. K. (2009). Character-sift: a novel fea-

ture for ofﬂine handwritten chinese character recogni-

tion. In Document Analysis and Recognition, 2009.

ICDAR’09. 10th International Conference on, pages

763–767. IEEE.

Zhen-Yan, W. (2014). Chinese character recognition

method based on image processing and hidden

markov model. In Intelligent Systems Design and En-

gineering Applications (ISDEA), 2014 Fifth Interna-

tional Conference on, pages 276–279. IEEE.

Zhuang, Y., Zhang, X., Lu, W., and Wu, F. (2005). Web-

based chinese calligraphy retrieval and learning sys-

tem. In Advances in Web-Based Learning–ICWL

2005, pages 186–196. Springer.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

320
