Choreography Modelling in Embedded Systems Domain

Requirements and Implementation Technologies

Neboj

sa Tau

san, Jouni Markkula, Pasi Kuvaja and Markku Oivo

Department of Information Processing Science, University of Oulu, POBox 3000, Oulu, Finland

Keywords:

Choreography, Design Requirements, Design Science, Modelling Language, BPMN.

Abstract:

Software companies that develop embedded systems following the principles of service-oriented architecture

can anticipate various beneﬁts from choreography modelling. Current choreography modelling languages,

however, have a limited applicability in embedded systems development since they are not expressive enough

to capture all the choreography-relevant aspects that are typical in this domain. We tackled this problem by

analysing the needs of embedded systems for choreography modelling language. Our analysis was guided

by design science and relied on expert interviews, company-speciﬁc documents and the relevant literature.

The main results of the analysis presented in this paper are a) design requirements addressing the limitations

of choreography modelling languages for embedded systems development and b) proposals for modelling

language implementation technologies. The feasibility of these results is evaluated by redesigning an existing

choreography modelling language and by implementing a prototype editor for the redesigned language.

1 INTRODUCTION

The size and the complexity of today’s embedded

systems (ES) have led to the growing adoption of

model-driven engineering (MDE) (Liggesmeyer and

Trapp, 2009) and service-oriented architecture (SOA)

in their development (Cannata et al., 2008; Gilart-

Iglesias et al., 2007). MDE, as an overall engineer-

ing approach, relies on practices such as modelling,

model transformation and code generation to facil-

itate the software development practices (Schmidt,

2006). SOA relies on service interactions as a

means of achieving system goals in a ﬂexible manner

(Scholz et al., 2009). A speciﬁcation of service inter-

actions can therefore be seen as an important devel-

opment artefact which is commonly modelled form at

least two viewpoints – choreography and orchestra-

tion (Peltz, 2003; Dijkman and Dumas, 2004).

Choreography and orchestration models capture

different details relevant to the speciﬁcations of ser-

vice interactions. The choreography captures the in-

teractions between participants, which represent au-

tonomous management authorities whose services are

interacting to achieve a common goal (Barros et al.,

2005). The orchestration focuses on the service in-

teractions needed to achieve the goal of a single par-

ticipant (Dijkman and Dumas, 2004). These two

viewpoints can therefore be seen as complementary.

Several studies, however, suggest that the interest in

choreography will grow in the ES domain as the in-

formation it conveys contributes to greater scalabil-

ity and performance (Kaur et al., 2013; Starke et al.,

2013).

The choreography viewpoint is commonly spec-

iﬁed using Choreography Modelling Language

(CML), and once speciﬁed, it can address various

misalignments in the development process. Some of

these misalignments include duplication of work, de-

lays in the development and a loss of opportunity from

the parallelization of work (Tau

san et al., 2014). One

drawback is that currently used CMLs have limited

applicability in ES development since they are not

expressive enough to capture various choreography-

relevant development aspects that are typical in the

ES domain. This drawback is argued by presenting

a review of the CMLs used in model-driven ES de-

velopment alongside the development aspect they ad-

dress.

Scribble language is introduced in (Hu et al.,

2013) and used for the speciﬁcation of a choreog-

raphy protocol between concurrent software compo-

nents embedded in various instruments for ocean ob-

servation. The rigorousness and veriﬁability of the

protocol were seen as crucial aspects of these ESs. To

address them, Scribble syntax was designed based on

the multiparty session type theory.

Abstract Process Execution Language, or APEL,

represents a hybrid modelling language that merges

Taušan, N., Markkula, J., Kuvaja, P. and Oivo, M.

Choreography Modelling in Embedded Systems Domain - Requirements and Implementation Technologies.

DOI: 10.5220/0005686700750086

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 75-86

ISBN: 978-989-758-168-7

both choreography and orchestration viewpoints (Pe-

draza and Estublier, 2009). APEL speciﬁes interac-

tions in an orchestrated manner and uses annotations

to label model parts which will be deployed to various

participants. During the system execution, these parts

will interact in a choreographed manner. Besides par-

ticipants, APEL also allows the annotation of model

parts with other ES properties.

The management of long-running transactions is

seen as one of the crucial tasks in SOA-based sys-

tems (Ciancia et al., 2011). This task is partially ad-

dressed by expressing long-running transactions with

choreography and orchestration models. To ensure

their conformance, two models are founded on two

related formal calculus – network coordination policy

and signal calculus.

CHOREO is a choreography language designed

to address the requirements of the pervasive environ-

ments, such as fault tolerance and a varying number

of services and actors (Mostarda et al., 2010). To

address the fault tolerance, CHOREO’s semantics al-

lows monitoring of the incoming and outgoing mes-

sages. To address the varying number of services and

actors, CHOREO implemented a set-based invocation

allowing the invocation of a large number of services

offering the same operation.

Choreographed or peer-to-peer interactions in mo-

bile ad-hoc networks are enabled by extending the

Business Process Execution Language with additional

attributes (Zhang et al., 2008). These attributes cap-

ture information about the location of participants in

the choreography scenario and enabling peer-to-peer

or choreographed interaction between their services.

The presented studies reveal that the current

CMLs used in the ES domain relate their language

construct with distinct development aspects they aim

to support. The problem with this approach is that it

tightly couples CMLs to a particular area of applica-

tion where that development aspects is relevant. In

other application areas, which emphasize other devel-

opment aspects, the expressiveness of these CMLs is

reduced, which makes them only partially applicable.

To address the identiﬁed problem, the goal of

this study was to produce knowledge for the design

of a comprehensive CML capable of supporting the

choreography-relevant development aspects that are

typical in ES development. Based on this goal, the

following research question was derived:

RQ: How can the expressiveness of a CML be

increased to enable its applicability in the embedded

systems domain?

The answer to this RQ is formed of two parts. The

ﬁrst part consists of identifying the choreography-

relevant development aspects in the ES domain, their

articulation as design requirements, and the selection

of technologies for language implementation. The

second part consists of evaluating the feasibility of

the derived design requirements and implementation

technologies. The feasibility of the design require-

ments was evaluated by redesigning an existing CML

based on the derived requirements. The feasibility of

the selected technologies for language implementa-

tion was evaluated by implementing a prototype lan-

guage editor using those technologies. It should be

noted that in the rest of the text, the terms design and

redesign of the CML will be used interchangeably.

The research approach, sources and analysis

methods used in this study are presented in Section 2.

Results of the analysis consisting of design require-

ments and the implementation technology proposals

are presented in Section 3 and 4. Section 5 describes

the feasibility evaluation of the design requirements.

Section 6 concludes the study and presents the future

work.

2 RESEARCH METHOD

This study was part of a larger research endeavour

conducted during the AMALTHEA research project

(AMALTHEA, 2013), whose goal was to design

and empirically validate a CML that is applicable in

model-driven ES development. Since the design was

the focus of this research endeavour, a framework

for design science research (Hevner et al., 2004) was

selected to coordinate separate research efforts con-

ducted during the project and to guide them towards

their common goal. Research methods used in this

study and how they are related to the results of other

studies conducted in the AMALTHEA project will be

described with consideration to the selected frame-

work. Therefore, a short explanation of the frame-

work will be presented ﬁrst, while the details regard-

ing the knowledge sources and analysis methods will

follow.

2.1 Framework for Design Science

Research

The framework for design science research consists of

three major parts – the environment, knowledge base

and design research (Hevner et al., 2004). The en-

vironment deﬁnes the practical problem space where

the phenomenon of interest resides, and the knowl-

edge base provides existing theories, methods and

technologies which are used in the design research

where the artefact is built and evaluated. In Figure

1, these three parts of the framework are presented as

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

grey rectangles, while the knowledge sources, analy-

sis methods and results of this study are emphasized

with a black colour. The relation between the de-

sign science as an overall research framework and the

work in this study is described according to the three

research cycles – relevance, rigor and design cycle

(Hevner, 2007). These cycles reveal the underlying

logic of the framework and are therefore seen as suit-

able for guiding this description.

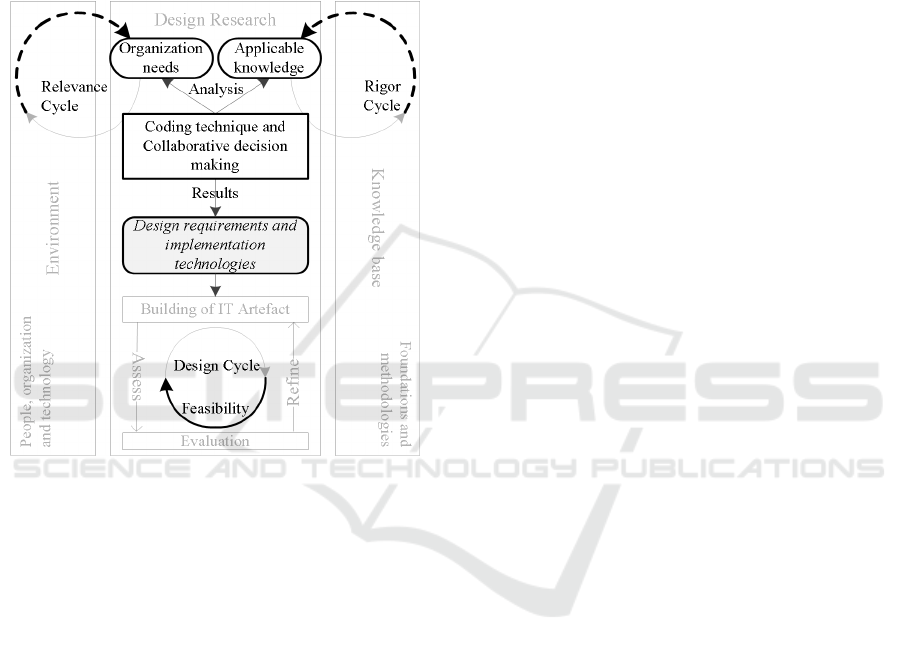

Figure 1: Design science research framework and the regu-

latory cycles (adopted from (Hevner, 2007)).

The relevance cycle: relates the practical prob-

lems identiﬁed in the environment with the design re-

search. The upper part of this cycle, represented as a

dashed arrow in Figure 1, represents the exploration

of the environment, which provides various needs re-

garding the phenomenon being addressed with the de-

sign. The lower part of this cycle denotes the evalua-

tion of the designed artefact in the environment.

The rigor cycle: relates the existing knowledge

base with the design research. The upper part of

this cycle, represented as a dashed arrow in Figure

1, represents the exploration of the knowledge base

which provides existing theories, methods, experi-

ences which are applicable during the design. The

lower part of this circle denotes the new knowledge

that is synthetized during the design and returned to

the knowledge base.

The design cycle: represents the core of the de-

sign science research framework since it iterates be-

tween building (upper part of the circle in Figure 1)

and evaluation (lower part of the circle in Figure 1)

activities, which are the two main activities where the

artefact is being developed. These activities, accord-

ing to (Hevner, 2007), rely on the design requirements

which are derived based on the knowledge sources

provided by the relevance and rigour cycles.

The derivation of design requirements for the

CML and proposals for the implementation technolo-

gies represent the main results of this study. These

results were provided by analysing the knowledge

sources provided by the relevance and rigor cycle. In

Figure 1, these knowledge sources are presented as

organization needs and applicable knowledge. The

analysis of these knowledge sources relied on two

analysis methods. The ﬁrst analysis method was the

coding which is the commonly used technique in

qualitative studies. The second method was collab-

orative decision making. In Figure 1, the analysis

methods and the results are presented with the rect-

angle and the highlighted rounded rectangle.

2.2 Knowledge Sources

Knowledge sources used during this study consisted

of data and results from two previously conducted

studies in the AMALTHEA research project (Tau

san

et al., 2014; Tau

san et al., ). The analysis conducted

in these studies resides in the upper parts of the rel-

evance and rigor circle and represents an exploration

of the environment and the knowledge base. The data

and the analysis results therefore represent the orga-

nization needs and the applicable knowledge that was

used in this study.

Organization needs were introduced to design re-

search from the relevance cycle, and represent the ex-

ploration of the environment. These needs consisted

of practical development challenges that can be ad-

dressed with choreography modelling and represent

the results of the separate study presented in (Tau

san

et al., 2014). The data analysed in this separate study

was collected by means of a) interviews and b) a

review of various company speciﬁc documents and

technical reports compiled during the AMALTHEA

research project. Since this data was also used for the

derivation of design requirements in this study, a con-

cise description of the data is presented.

The interviews were conducted during the ﬁrst

quarter of 2012. Interviewees were ﬁve software ar-

chitects who worked both in large, and small enter-

prises and who had between 10 and 26 years of ex-

perience in software development. Semi-structured

interviews were used to enable interviewees to thor-

oughly express their views on the topics that were

addressed in the questions. In addition to the inter-

view data, the company documents were analysed as

well. These documents included templates, process

Choreography Modelling in Embedded Systems Domain - Requirements and Implementation Technologies

and work descriptions, and requirements examples.

Finally, the technical reports from AMALTHEA rep-

resented a valuable source of information, especially

during the compilation of the proposals for the imple-

mentation technologies.

Applicable knowledge was introduced to design

research from the rigor cycle and represent the ex-

ploration of the knowledge base. This knowledge

source consisted of a) the results and analysis of the

published literature on choreography in the ES do-

main and b) the review of technologies for the imple-

mentation of modelling languages and the candidate

languages suitable for redesign. The collection and

analysis of the published literature were conducted in

a separate study (Tau

san et al., ) using the system-

atic literature review method. This study included

38 primary studies which focussed on choreogra-

phy in the ES domain, while their analysis resulted

in comprehensive characterizations of the choreog-

raphy utilization in the ES domain. These results

formed a solid theoretical base for deriving design re-

quirements by revealing various development aspects

alongside which the choreography was used, chore-

ography speciﬁcation types, the modelling languages

used for the speciﬁcations and development tools.

The review of potential implementation technologies

and existing languages were realized by consulting

the scientiﬁc literature known to researchers, explor-

ing websites of large technology vendors and by fol-

lowing the discussions on various online forums. The

results of this review were used during the selection

of the implementation technology and language that

is most suitable for the CML redesign.

2.3 Analysis Methods

The knowledge sources provided along the relevance

and rigor circles were analysed to produce the knowl-

edge necessary for the design of the CML which is

applicable in the ES domain. Two analysis methods

were used for this purpose – the coding technique and

the collaborative decision-making practice. The ap-

plication of these analyses methods were situated in

the design research part of the research framework

presented in Figure 1.

The coding technique was applied to the collected

knowledge sources, with the aim of deriving the de-

sign requirements. This technique is a qualitative

analysis technique in which pieces of text about the

phenomenon that is studied are assigned to a code

(Miles and Huberman, 1994). The code is commonly

named with two to three words that summarize what

is in the coded text, while the coded text represents

the information base for understanding the studied

phenomenon and for deriving interpretations. In this

study, the organization needs and applicable knowl-

edge represented the sources that were coded. These

codes aimed to capture which ES development as-

pects should be supported with CML language con-

structs. The analysis of the coded text revealed var-

ious commonalities which were expressed with the

new set of codes. Researchers then coded the knowl-

edge sources again using the new set of codes, anal-

ysed the coded text and derived the design require-

ments. The coding and the analysis tasks were facil-

itated with NVivo tool, which is specialized software

for qualitative analysis (QSR-International, 2014).

The practice of collaborative decision making was

applied to select the technology for modelling lan-

guage implementation and to select the existing CML

that is suitable for redesign. This practice denotes

joint discussions during which industry experts and

researchers use their personal expertise to reason and

to collaboratively decide which technology and which

modelling language is the most suitable for the re-

design of CML and the implementation of the CML

editor. During the decision-making process, experts

and researchers considered various viewpoints, such

as the availability of implementation technologies,

language acceptance and usability. Considering all

these aspects ensured the optimality of the decisions

which were made.

3 DESIGN REQUIREMENTS

The analysis of the data using the coding technique

resulted in a set of six design requirements for CML.

Each requirement focuses on a single ES development

aspect and clariﬁes its relation with the CML. The de-

scription of each design requirement is structured of

three parts – context, problem and knowledge. Con-

text describes the observed development aspect and

its environment. The problem part characterizes the

observed aspect in the ES domain and articulates the

identiﬁed misalignment as a design requirement. The

knowledge part introduces studies which focus on the

choreography use in the ES domain and which con-

tributed to the derivation of design requirements. This

structure emerged during the coding of knowledge

sources and represents the commonalities that were

identiﬁed.

3.1 Constraint-based Access

Context: Choreography participants are not necessar-

ily participating in all choreography scenarios, nor do

they need to interact with all other participants. For

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

interaction to happen, participants should be aware of

each other and be able to grant or to constrain the ac-

cess to their resources based on agreements. Problem:

Constraint can be described using different formats,

such as condition-action, event-condition-action or

decision tables. The information about the chosen

format should be visible in the CML, and constraints

expressed using that format should be related to the

corresponding participants. This aspect is addressed

with the following design requirement:

DR1: CML should capture the format of

participant’s access constraints in a structured way.

Knowledge: Constraining the access to partici-

pants’ services has been considered in several studies.

The software system is seen as a set of concurrently

interacting actors (or participants), each offering a set

of services in (Paech, 1997). In their view, the actor

or participant, as a service owner, should allow access

to its services only to participants with whom it must

interact and constrain others. In (Ferrari et al., 2006),

the access constraints is addressed by implementing

in/out rules into their CML. Finally, in (Niem

oller

et al., 2011), access constraints were implemented to

enable the dynamic telecommunication service selec-

tion.

3.2 Ad-Hoc Networks in the

Choreography Scenario

Context: Interacting participants in a choreography

scenario exchange messages through the network.

Participants can therefore be seen as network nodes

which are assumed to be always connected, available

and ready to process an incoming message. Problem:

The network formed from participants can often be

characterized as ad-hoc in an ES domain. This means

that participants (or nodes) in the scenario can con-

nect to or disconnect from the network at any point

of time, while the choreography scenario is being ex-

ecuted. To address the ad-hoc networking aspect, a

design requirement is derived:

DR2: CML should differentiate the participants

which express ad-hoc behaviour on the network.

Knowledge: Ad-hoc networking of participants

is addressed in (Sen et al., 2008). Participants here

are tied to mobile devices and, as such, can move in

and out of the area covered with the network. In the

healthcare domain, ad-hoc networking is considered

in (Dar et al., 2011). In this study, ad-hoc networking

of participants is seen as a consequence of the need for

the healthcare system to adapt to unforeseen changes,

such as changes in the patient’s condition.

3.3 Technical and Technological

Heterogeneity

Context: In the ES domain, participants’ services in-

volved in choreography scenarios are often executed

using heterogeneous technical and technological plat-

forms. This heterogeneity includes differences in de-

vice hardware, processing capability, implementation

technology, communication protocol, service inter-

face and message formats. Problem: Besides being

used as an analytical tool, in model-driven ES devel-

opment, the choreography speciﬁcation is also parsed

by tools and executed by middleware. Since techni-

cal and technological data is needed for the execution,

CML should be able to capture these details. Based

on this need, the following requirement is derived:

DR3: CML should capture participants’

heterogeneous technical and technological details.

Knowledge: The need to enable heterogeneous

participants to interact in common choreography sce-

narios is recognized in several studies. In (Sen et al.,

2008), for example, the communication protocol het-

erogeneity in mobile ad-hoc networks is addressed by

developing a hybrid protocol that combines publish-

subscribe, store-and-forward and content-based rout-

ing protocols. In (Ferrari et al., 2006; Niem

oller

et al., 2011), a similar solution that focuses on mid-

dleware is proposed. Both proposals use middleware

features as a mediator between heterogeneous partici-

pants and allow extensions of their middleware to ac-

commodate the upcoming novel technologies. What

differentiates these approaches is how the speciﬁed

participants interact through middleware. In (Ferrari

et al., 2006), strict naming of the participants’ ser-

vice allows middleware to resolve its implementation

technology and based on that to establish the inter-

actions. In (Niem

oller et al., 2011), heterogeneous

participants are speciﬁed using the technology agnos-

tic service skeleton, while execution agents mediate

the interactions and, if needed, conduct the necessary

translations. Finally, how different implementation

of middleware features can inﬂuence CML constructs

was revealed in (Tau

san et al., 2013).

3.4 Service Invocation Variants

Context: Participants in a choreography scenario are

exchanging messages by invoking each other’s ser-

vices. For invocation to occur, a requesting partici-

pant has to know the location of the providing partici-

pant. Problem: Technological heterogeneity has led

to various service invocation mechanisms, each re-

questing a speciﬁc set of data to resolve the location

Choreography Modelling in Embedded Systems Domain - Requirements and Implementation Technologies

of the providing participant. The set of data needed

for the invocation should therefore be visible in the

CML, and based on this need, the following design

requirement is derived:

DR4: CML should support the description of various

service invocation mechanisms.

Knowledge: Examples of literature sources that

were consulted during this work include four studies.

Two similar service invocation mechanisms which in-

clude the supplementation of the orchestration lan-

guage with attributes that hold the address of the

next participant in the choreography scenario were

proposed in (Pedraza and Estublier, 2009; Zhang

et al., 2008). This way, instead of routing the invo-

cation through an orchestration engine, each partic-

ipant knows the location of the next service and in-

vokes it in choreographed or peer-to-peer manner. A

different approach to service invocation is proposed

by (Niem

oller et al., 2011). Instead of capturing the

address of the next service, the language enables the

description of the constraints of the next service in the

interaction scenario. Using these constraints, the ex-

ecution environment resolves the location of the next

services and establishes the interaction. Finally, how

different implementations of middleware features in-

ﬂuence to invocations is studied in (Tau

san et al.,

2013).

3.5 Real-time Execution

Context: The execution of an ES is often dependant

on various real-time (RT) constraints. These con-

straints impose strict duration times (or deadlines) for

services or components to process their inputs and de-

liver output. Choreography scenarios, which focus on

interactions between participants’ services, are there-

fore often subject to RT constraints. Problem: Cur-

rent CMLs offer no or only partial support for cap-

turing RT constraints, which in those cases, are heav-

ily tailored for the particular area of application. A

generic way of capturing RT constraints for choreog-

raphy in the ES domain is needed, and accordingly,

the following design requirement is derived:

DR5: CML should capture the real-time information

needed for executing the choreography scenario in

the ES domain.

Knowledge: Three studies formed the theoreti-

cal base for studying RT requirements in CML. How

a speciﬁcation written in RT-UML can be translated

into Choreography Description Language containing

RT information is presented in (Cambronero et al.,

2006). RT information expressing the time during

which one participant use another’s resources is ex-

plicitly supported in Scribble, which is a CML pro-

posed in (Hu et al., 2013). Finally, (Bond et al., 2009)

emphasized the importance of RT requirements in the

telecommunication systems development domain.

3.6 Supplementary Information of

CML Constructs

Context: CML constructs that are used to specify

a choreography scenario often require additional de-

scriptions. In most cases, these descriptions are used

for documentation purposes, but they also provide ad-

ditional information during the speciﬁcation transfor-

mation and execution. Problem: In the ES domain,

additional descriptions of CML constructs are often

read by tools or execution environments. This is pos-

sible only if the construct is described using a struc-

ture known to the tools or engines. To address this

need, the following design requirement is derived:

DR6: CML should support a structured way of

describing its language construct.

Knowledge: A structured description of CML

constructs was motivated with the features of the

SCALE, which is a language for telecommunication

service interaction modelling (Joerg and Vandikas,

2010). SCALE implemented a set of rules and key-

value pairs as a structure for describing its language

constructs.

4 IMPLEMENTATION

TECHNOLOGIES FOR CML

At the beginning of the CML redesign, decisions

regarding the implementation technologies and the

modelling language suitable for the redesign were

made. These decisions were made during the collab-

orative decision-making practice which resulted with

the selection of the Eclipse Modelling Framework

(EMF) and Sirius as implementation technologies and

the Business Process Model and Notation (BPMN) as

the CML to be redesigned.

EMF is one of the major MDE initiatives devel-

oped as part of the Eclipse ecosystem and represents

a modelling and code generation facility for build-

ing tools on top of the structured data model (EMF,

2014). Selection of EMF over other MDE initiatives

such as (MDA, ; Kelly and Tolvanen, 2008), was in-

ﬂuenced by industry experts who preferred Eclipse-

based technology, but also by the ﬁnding from the lit-

erature which revealed that Eclipse is the preferred

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

technology in industries where the choreography is

used for ES development (Tau

san et al., ).

Sirius is the Eclipse technology based on EMF

that enables various ways of presenting (visualizing)

the structured data model (Sirius, 2014). Selection of

Sirius was motivated by the need to a) represent the

same structured (choreography) model using different

visual forms (such as tables, trees and ﬂow-charts) de-

pending on which stakeholder is using the model and

b) by the need to quickly develop a language and tool

prototype. Representations with different forms and

with different levels of detail are highly emphasized

by industry experts since the choreography models

are used by different roles in ES development, while

the quick prototyping enables shorter design and eval-

uation cycles.

BPMN is the standardized graphical modelling

notation for modelling business processes (BPMN,

2011). There are several reasons why BPMN was

selected as a suitable language for redesign. These

reasons include the following: a) BPMN is the most

commonly used language for process modelling (Chi-

nosi and Trombetta, 2012; Aagesen and Krogstie,

2010), b) a quality evaluation of BPMN revealed

that its language constructs are well suited for cap-

turing choreographies (Cortes-Cornax et al., 2011),

c) experts from companies that participated in the

AMALTHEA research project have experience with

BPMN and strongly support its selection, and d)

BPMN is independent of implementation technolo-

gies, capable of presenting both the choreography and

the orchestration point of view, and allows extensions

based on the needs of a vertical market. The redesign

of the existing language compared with the develop-

ment of new language is also expected to ensure its

quick adoption and its future use since the develop-

ers that are skilled in BPMN can easily master the

redesigned language.

5 FEASIBILITY EVALUATION

The feasibility of the study results was evaluated by

redesigning the proposed CML according to the de-

rived design requirements and by implementing a pro-

totype language editor using the selected technolo-

gies. This evaluation aims to a) show that the pro-

posed CML can be redesigned in a way to realize the

design requirements and b) to demonstrate the poten-

tial beneﬁts of the implementation technologies used

for the development of the language editor.

5.1 CML Redesign

BPMN, which is the selected CML, is redesigned by

changing its meta-model, which included the addition

of new classes and modiﬁcations to its existing classes

by adding new attributes. The redesign of the BPMN

consisted of the following four steps: a) inspection of

the BPMN meta-model, b) identiﬁcation of classes, c)

redesign and d) summarization.

Familiarization with the BPMN meta-model in-

cluded a thorough inspection of the BPMN’s classes,

their attributes and class relationships. The main

purpose of this step was to understand the model’s

speciﬁcs and how it can be modiﬁed to accommo-

date the design requirements. This inspection relied

on the BPMN speciﬁcation document (BPMN, 2011)

and the electronic version of the meta-model obtained

from the Eclipse git repository (Eclipse Git reposito-

ries, 2015).

Identiﬁcation of the classes included a joint exam-

ination of design requirements and the BPMN meta-

model. The main purpose of this step was to express

the design requirements as new classes and attributes

and to identify the suitable classes in the meta-model

that can be supplemented with the newly designed

classes and attributes. New classes and attributes to-

gether with the ones identiﬁed in the meta-model are

presented and described in Table 1.

Redesign denotes the actual changes to BPMN’s

meta-model, during which the newly identiﬁed

classes and attributes were integrated into the meta-

model. Table 1 consists of four columns in which the

newly identiﬁed classes, attributes, their description

and the classes from the meta-model which they sup-

plement were presented. The rows in Table 1 that con-

tain classes, attributes and their descriptions are lined

up in a way that they border the cells in the fourth

column in which the BPMN classes which they sup-

plement are described. This description also contains

a concise explanation of the relation and indicates the

design requirement it realizes. Note that some of the

identiﬁed attributes were ﬁrst encapsulated in a ded-

icated class and then related to an existing BPMN

class, while other attributes directly extend the exist-

ing BPMN classes. These attributes can be differen-

tiated based on whether there is a class name in the

corresponding cell in the column class.

Summarization included the documentation of the

work done during the redesign. The main purpose of

this step was to archive the data produced during the

redesign that will later be used for the derivation of

design knowledge.

Choreography Modelling in Embedded Systems Domain - Requirements and Implementation Technologies

Table 1: Mapping of newly proposed classes and attributes to BPMN language constructs.

Class Attribute Description of the class or attributes Supplemented BPMN classes

isAdHoc:

boolean

Whether the participant expresses ad-hoc behaviour Participant. Represents an au-

tonomous management authority

such as organization unit or differ-

ent company that is engaged in the

choreography scenario.

In cases when isAdhoc is set “true”,

Participant’s behaviour is charac-

terized with data grouped under the

Motion class. Together, isAdhoc

and Motion class, realize the R2

design requirement.

partConstraint attribute supplements

the Participant with attribute which

speciﬁes the constraint format and

realize the R1 design requirement.

The Participant’s capability is char-

acterized with Performance class

data. This class partially fulﬁls the

R3 design requirement.

ptCriterion:

Enum

Shows the criterion used to identify the participant (e.g. is

it a device, smartphone, or factory machine)

ptConstraint:

Enum

Reveals the format for deﬁning constraints for invoking the

participant’s roles (e.g. Condition-Action)

ptMonitor: string Location of a service for service interaction monitoring

Motion

Captures the participants’ movement in the ad-hoc network

motEnt: date/time Shows the time when the participant joined the network

motExi: date/time Shows the time when the participant left the network

motDuration: du-

ration

Shows the expected time, in minutes, during which the par-

ticipant will be connected on the network

Performance

Characterizes the hardware capability of devices where the

participant is executing

CPU: Enum Indicates the CPU unit type

coreNo: small Indicates the number of cores in CPU

RAM: double Indicates the amount of RAM memory (e.g. in MB)

netType: Enum Indicates the underlying network technology (e.g. CAN)

trRate: double Shows data transfer rate (e.g. Mbit/s)

Real-Time

Characterises the real-time constraints

FlowNode. Groups all elements that

can appear in the process ﬂow. This

class is related with a single RTime

class to enable real-time information

capture. RTime class realizes R5 de-

sign requirement.

rtStar: time stamp Start of the execution

rtEnd: time stamp End of execution

rtDur: duration Duration of execution

rtDelay: duration Indicates the delay the following action

roleIface: Enum Interface type (e.g. WSDL, CORBA IDL)

Interface. Deﬁnes a set of opera-

tions that are implemented by Partic-

ipant’s service. Proposed attributes

extend this constructs and enable the

speciﬁcation of communication re-

lated data. Attributes partially real-

izes the R3 design requirement.

roleProt: Enum Communication protocol (e.g. http, IIOP)

roleMsgForm: Message format used by the role (e.g. SOAP)

roleLoc: string

Location of the Participant or its Role on the network. (e.g.

URL, IP, role name)

isPushPull: Enum

Indicates is the invocation of participant’s services realized

using push or pull message invocation strategy.

MessageFlow. Show the ﬂow of the

message between two Participants.

isPushPull attribute speciﬁes

whether the participant receives

the message via “push” or “pull”

strategy. Attribute partially realizes

the R3 design requirement.

invocType extends the construct

to specify the invocation type.

Depending on selection, the tool

enforces the speciﬁcation of other

attributes relevant to the selected

type. The attribute realizes the R4

design requirement.

invocType: Enum

Indicates the type of service invocation. Each invocation

types groups a set of data the participant has to provide to

invoke the needed service.

Structured Description

Enables the structured description of process elements in

the scenario

TextAnnotations. A mean for a mod-

eller to provide additional informa-

tion for the reader of the speciﬁca-

tion. This class is related with one

or more StructDesc class to realize

the R6 design requirement.

Key: string Property of the element in the scenario

Value: string Value of the property

Desc: string

Additional, free form description of the element, property

and value

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

5.2 Prototype Language Editor

The prototype editor for the redesigned CML was im-

plemented in two phases. In the ﬁrst phase, the spec-

iﬁed supplements to BPMN’s meta-model were im-

plemented using the EMF technology. In the second

phase, the choreography language editor was imple-

mented on top of the redesigned meta-model using

the Sirius technology. To present the language and

editor, we adopted the scenario for a central lock-

ing system from the automotive use case presented

in (Kr

uger et al., 2004). Since this use case deﬁnes

the roles and their interaction needed to automatically

unlock the car door, it is seen as suitable for being

presented with the choreography. The central locking

system scenario, features of the language and editor,

and how they support the derived design requirements

are presented in Figure 2.

5.2.1 Central Locking System Scenario

The scenario to unlock the car doors starts when the

passenger presses the button on its remote car key. In

Figure 2, this is presented in the ﬁrst interaction step,

labelled as Unlock initiation, where the key sends a

message to the car’s central locking system for fur-

ther processing. Note that in choreography, instead of

displaying the actual participants’ names, their roles

in the scenario are displayed instead. The reason for

this is that a single participant can have multiple roles

which denote its contribution in that scenario. Also,

if needed, the editor can easily be customized to show

the participant names as well.

After the Unlock initiation step, the scenario con-

tinues on two parallel branches. Two interaction steps

on the upper branch in Figure 2 show the actual un-

locking of the car doors and the signalling to the pas-

senger that the doors are open using blinkers, sound

or car lights. The lower branch of the scenario shows

the Comfort adjustments. First, the system checks if

the passenger has predeﬁned comfort preferences. If

yes, the comfort manager interacts with comfort con-

trollers to adjust, for example, seat height, rear-view

mirrors, favourite radio stations or cabin temperature.

If there are no comfort preferences recorded, this in-

teraction step is skipped, and the two branches are

merged to complete the scenario.

5.2.2 Language Editor Features

The language editor is implemented as a visual mod-

elling editor, meaning that it enables visual (or graph-

ical) development and the representation of choreog-

raphy scenarios. This editor consists of three main

areas, and these areas are the main canvas, palette and

the properties area. The main canvas is the area in

which users specify a choreography scenario. This is

achieved by dragging and dropping choreography lan-

guage constructs from the palette and by setting var-

ious properties of these constructs through the prop-

erty area. In Figure 2, these areas are highlighted with

red rectangles.

The identiﬁed design requirements are realized by

redesigning BPMN; however, the features of the lan-

guage editor also contribute to their realization. One

such feature enables the speciﬁcation and representa-

tion of choreography scenarios with different levels

of details depending on the users’ role in ES devel-

opment. This is achieved using layers, which is the

Sirius technology’s way to relate subsets of language

constructs with a concrete role. The current version

of the editor implements layers for two roles —an-

alysts and implementers. The reason for these two

roles is that in the ES domain, choreography speciﬁ-

cations can be used both for analysis and implemen-

tation (see DR3) and therefore used by these roles. A

switch to navigate between the layer is highlighted in

the upper left corner of Figure 2 with a red rectangle.

Besides the mentioned feature, the language editor

also supports the developers work by: a) enabling a

hierarchical organization of the choreography scenar-

ios, b) preventing the relationships between language

constructs that should not be related, and c) allowing

quick customizations of language constructs visual-

ization. For example, in the scenario presented in Fig-

ure 2, DR4 and DR6 utilize the construct visualization

feature to differentiate their language construct based

on their property values.

5.2.3 Design Requirements Support

Six design requirements for CMLs were derived and

presented in this study. Based on these requirements,

BPMN’s meta-model was redesigned and the proto-

type editor was developed. How the design require-

ments are supported with the redesigned language and

editor is presented in Figure 2 and these requirements

are marked with DR1 to DR6 labels.

DR1: Constraint-based Access. This requirement

is implemented as part of the participant language

construct and allows users to record details about

constraint rule types. In the presented scenario, the

signal sent form the passenger’s key is ﬁrst authen-

ticated using authentication, authorization, and ac-

counting service (Aaa service), and if authenticated,

the condition-action rule that allows the advancement

of the scenario is executed.

DR2: Ad-Hoc Networks in Choreography Sce-

nario. This requirement allows users to record

whether the participant expresses ad-hoc behaviour.

Choreography Modelling in Embedded Systems Domain - Requirements and Implementation Technologies

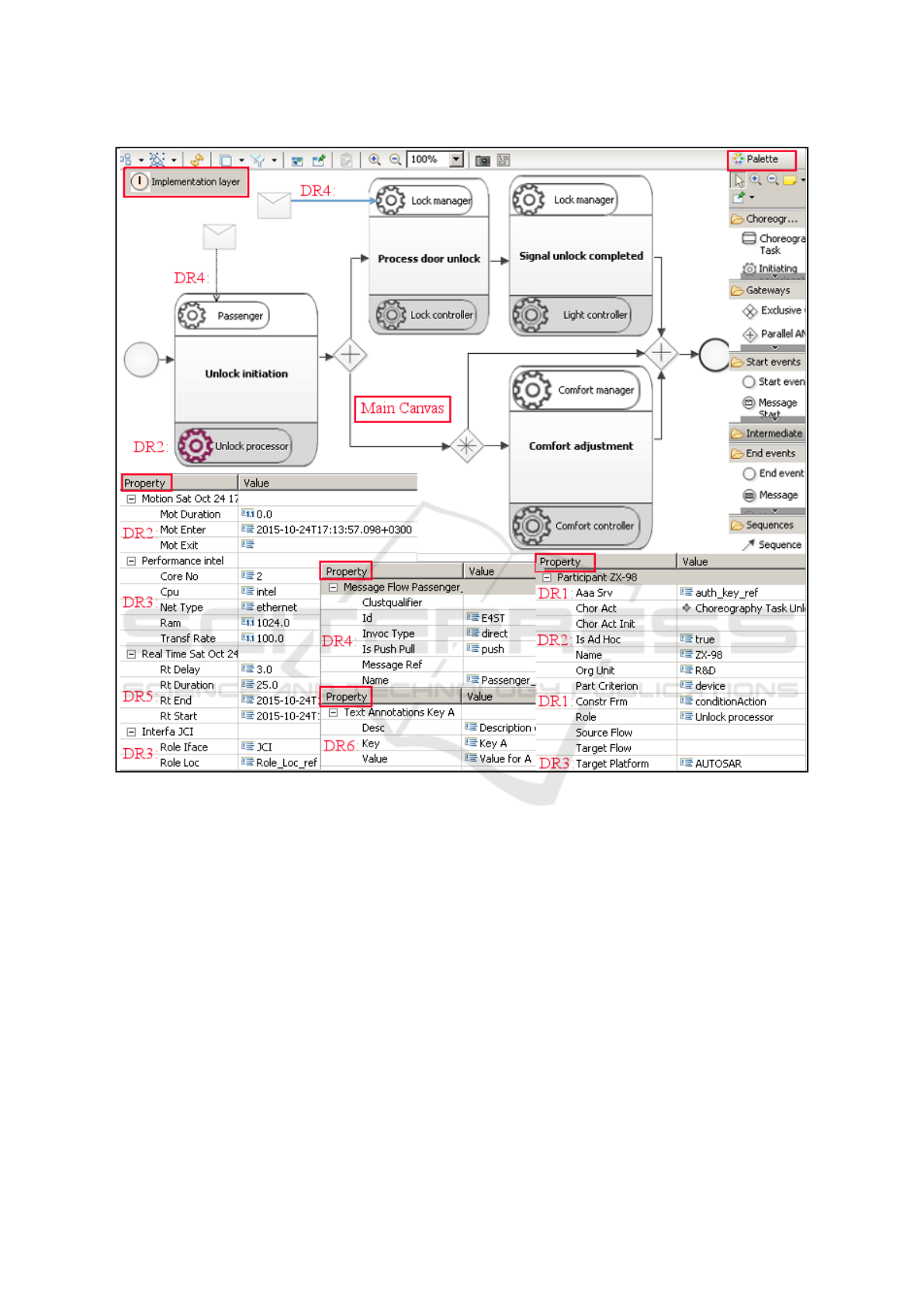

Figure 2: Central locking system scenario, language and editor features.

If yes, that participant is visually diversiﬁed in a di-

agram using different colour, and users can charac-

terize its motion by recording the motion details in

property ﬁelds. In the presented scenario, the Unlock

processor is marked to express the ad-hoc behaviour.

The reason for this behaviour is that the interaction

between the Passenger (signal sender) and car (signal

receiver) can be hampered due to the distance, inter-

fering objects or lack of power supply.

DR3: Technical and Technological Heterogeneity.

This requirement is implemented as part of the partic-

ipant language construct and allows users to record

the participant’s target platform and to characterise

its hardware. The performance is characterised by

recording details such as the CPU, numbers of CPU

cores, amount of random access memory and the tar-

get platform. As a demonstration, recorded technical

and technological details for the Unlock processor are

presented in Figure 2

DR4: Service Invocation Variants. This require-

ment is implemented as part of the message ﬂow lan-

guage construct which relates the participants and the

message being exchanged and enables visual differ-

entiation based on the service invocation variant. Two

variants and their visualization are presented in Figure

2. In the ﬁrst variant, the Passenger sends a message

by directly invoking the Unlock processor service. In

the second, the Lock manager invokes the Lock con-

troller using the platform’s messaging service.

DR5: Real-time Execution. This requirement is

implemented as part of the participant construct and

the message ﬂow constructs. In the case of partici-

pants, these properties show the time needed to pro-

cess the request, while in the case of message ﬂows,

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

the properties characterises the time elapsed between

message sending and receiving. In the presented sce-

nario, the duration of a participant’s processing time

is limited to 25 milliseconds.

DR6: Supplementary Information of Language

Constructs. This requirement is implemented as part

of each language construct and enables additional de-

scriptions of the construct. The selection of syntax for

expressing key-value pairs is up to the users’ prefer-

ences. The key and its value can be in the form of a

simple variable, and its score (as it is in the presented

example) can be regular expressions or involve more

complex syntax.

6 CONCLUSION AND FUTURE

WORK

The problem on which the study focused was the

limited expressiveness of CMLs caused by the tight

coupling of their language construct with distinct

development aspects. To increase the expressive-

ness of CMLs, a set of six design requirements

were introduced, and suitable language implementa-

tion technologies were suggested. The introduced de-

sign requirements represent the embodiment of dif-

ferent needs which are typical in ES development and

which can be addressed with the choreography mod-

elling. Language implementation technologies and

the BPMN, as the language selected for the redesign

are fully applicable in the MDE context and represent

our proposals for the implementation of CML in the

ES domain.

The feasibility of these results was evaluated by

redesigning the selected CML according to design re-

quirements and the implementation of the language

editor with the suggested technologies. The results of

this evaluation were promising, indicating that the de-

sign requirements can be implemented on top of the

selected CML and that they increase the expressive-

ness of that CML. This feasibility evaluation repre-

sents a step towards the implementation of a com-

prehensive CML that is fully applicable in the ES

domain, where choreography is increasingly used.

Besides the increase in expressiveness, redesigned

CML includes additional favourable properties, such

as its suitability for model-driven development (due to

the implementation based on the meta-model), easier

comprehension of the speciﬁcation (due to visual rep-

resentations in the language editor), and the adaptabil-

ity of the language according to the target middleware

platforms and the speciﬁc ES development context.

Future work will focus on evaluating the CML

wiht industry experts and further developing the lan-

guage and editor. Further development of the ed-

itor will focus on the automation of tasks, such

as code generation based on underlying middleware

platforms.

ACKNOWLEDGEMENTS

This study was part of the ITEA 2 AMALTHEA in-

ternational research project and it is supported by

TEKES. The authors are grateful for their support and

cooperation.

REFERENCES

Aagesen, G. and Krogstie, J. (2010). Analysis and de-

sign of business processes using BPMN. In Handbook

on Business Process Management 1, pages 213–235.

Springer.

AMALTHEA (2013). AMALTHEA.

Barros, A., Dumas, M., and Oaks, P. (2005). A critical

overview of the web services choreography descrip-

tion language. BPTrends Newsletter, 3:1–24.

Bond, G., Cheung, E., Fikouras, I., and Levenshteyn, R.

(2009). Uniﬁed telecom and web services composi-

tion: problem deﬁnition and future directions. In Pro-

ceedings of the 3rd International Conference on Prin-

ciples, Systems and Applications of IP Telecommuni-

cations, page 13. ACM.

BPMN (2011). Business Process Model and Notation Ver-

sion 2.0.

Cambronero, M.-E., Diaz, G., Pardo, J. J., Valero, V., and

Pelayo, F. L. (2006). RT-UML for modeling real-

time web services. In Services Computing Workshops,

2006. SCW’06. IEEE, pages 131–139. IEEE.

Cannata, A., Gerosa, M., and Taisch, M. (2008). A Technol-

ogy Roadmap on SOA for smart embedded devices:

Towards intelligent systems in manufacturing. Indus-

trial Engineering.

Chinosi, M. and Trombetta, A. (2012). BPMN: An intro-

duction to the standard. Computer Standards & Inter-

faces, 34(1):124–134.

Ciancia, V., Ferrari, G., Guanciale, R., Strollo, D., and

Tuosto, E. (2011). Model-driven development of

long running transactions. In Rigorous software engi-

neering for service-oriented systems, pages 326–348.

Springer.

Cortes-Cornax, M., Dupuy-Chessa, S., Rieu, D., and Du-

mas, M. (2011). Evaluating choreographies in bpmn

2.0 using an extended quality framework. In Busi-

ness Process Model and Notation, pages 103–117.

Springer.

Dar, K., Taherkordi, A., Rouvoy, R., and Eliassen, F. (2011).

Adaptable service composition for very-large-scale

internet of things systems. In Proceedings of the

8th Middleware Doctoral Symposium on - MDS ’11,

pages 1–6, New York, USA. ACM Press.

Choreography Modelling in Embedded Systems Domain - Requirements and Implementation Technologies

Dijkman, R. and Dumas, M. (2004). Service-oriented de-

sign: A multi-viewpoint approach. International jour-

nal of cooperative information systems, 13(04):337–

368.

Eclipse Git repositories (2015). org.eclipse.bpmn2.git -

MDT BPMN2 metamodel.

EMF (2014). Eclipse Modeling Framework Project.

Ferrari, G., Guanciale, R., and Strollo, D. (2006). Jscl:

A middleware for service coordination. In Formal

Techniques for Networked and Distributed Systems-

FORTE 2006, pages 46–60. Springer.

Gilart-Iglesias, V., Macia-Perez, F., Marcos-Jorquera, D.,

and Mora-Gimeno, F. J. (2007). Industrial Machines

as a Service: Modelling industrial machinery pro-

cesses. In 2007 5th IEEE International Conference

on Industrial Informatics, volume 2, pages 737–742.

IEEE.

Hevner, A. R. (2007). A Three Cycle View of Design Sci-

ence Research A Three Cycle View of Design Science

Research. Scandinavian journal of information sys-

tems, 19(2):87–92.

Hevner, A. R., March, S. T., Park, J., and Ram, S. (2004).

Design science in information systems research. MIS

quarterly, 28(1):75–105.

Hu, R., Neykova, R., Yoshida, N., Demangeon, R., and

Honda, K. (2013). Practical interruptible conver-

sations. In Runtime Veriﬁcation, pages 130–148.

Springer.

Joerg, N. and Vandikas, K. (2010). SCALE – A language

for dynamic composition of heterogeneous servicesle.

Kaur, N., McLeod, C. S., Jain, A., Harrison, R., Ahmad, B.,

Colombo, A. W., and Delsing, J. (2013). Design and

simulation of a SOA-based system of systems for au-

tomation in the residential sector. In Industrial Tech-

nology (ICIT), 2013 IEEE International Conference

on, pages 1976–1981. IEEE.

Kelly, S. and Tolvanen, J.-P. (2008). Domain-speciﬁc mod-

eling: enabling full code generation. John Wiley &

Sons.

uger, I. H., Gupta, D., Mathew, R., Moorthy, P., Phillips,

W., Rittmann, S., and Ahluwalia, J. (2004). Towards

a process and tool-chain for service-oriented automo-

tive software engineering. Architecture, 2:R2.

Liggesmeyer, P. and Trapp, M. (2009). Trends in embedded

software engineering. Software, IEEE, 26(3):19–25.

MDA. OMG Model Driven Architecture.

Miles, M. B. and Huberman, A. M. (1994). Qualitative data

analysis: An expanded sourcebook. Sage.

Mostarda, L., Marinovic, S., and Dulay, N. (2010). Dis-

tributed orchestration of pervasive services. In

Advanced Information Networking and Applications

(AINA), 2010 24th IEEE International Conference on,

pages 166–173. IEEE.

Niem

oller, J., Vandikas, K., Levenshteyn, R., Schleicher,

D., and Leymann, F. (2011). Towards a service com-

position language for heterogeneous service environ-

ments. In Intelligence in Next Generation Networks

(ICIN), 2011 15th International Conference on, pages

121–126. IEEE.

Paech, B. (1997). A framework for interaction description

with roles. Technical report, TECHNISCHE UNI-

VERSITAT MUNCHEN - INSTITUT FUR INFOR-

MATIK, Muncen.

Pedraza, G. and Estublier, J. (2009). Distributed orches-

tration versus choreography: The focas approach. In

Trustworthy Software Development Processes, pages

75–86. Springer.

Peltz, C. (2003). Web services orchestration and choreog-

raphy. Computer, 36(10):46–52.

QSR-International (2014). NVivo 10 research software for

analysis and insight.

Schmidt, D. C. (2006). Model-driven engineer-

ing. COMPUTER-IEEE COMPUTER SOCIETY-,

39(2):25 – 31.

Scholz, A., Gaponova, I., Sommer, S., Kemper, A., Knoll,

A., Buckl, C., Heuer, J., and Schmitt, A. (2009). ∈

SOA-Service Oriented Architectures adapted for em-

bedded networks. In 7th IEEE International Confer-

ence on Industrial Informatics, 2009. (INDIN), pages

599–605, Cardiff. IEEE.

Sen, R., Roman, G.-C., and Gill, C. (2008). Cian: A work-

ﬂow engine for manets. In Coordination Models and

Languages, pages 280–295. Springer.

Sirius (2014). Sirius - The easiest way to get your own

Modeling Tool.

Starke, G., Kunkel, T., and Hahn, D. (2013). Flexible col-

laboration and control of heterogeneous mechatronic

devices and systems by means of an event-driven,

SOA-based automation concept. In Industrial Tech-

nology (ICIT), 2013 IEEE International Conference

on, pages 1982–1987. IEEE.

Tau

san, N., Aaramaa, S., Lehto, J., Kuvaja, P., Markkula,

J., and Oivo, M. (2014). Customized Choreogra-

phy and Requirement Template Models as a Means

for Addressing Software Architects’ Challenges. In

ICSEA 2014, The Ninth International Conference on

Software Engineering Advances, pages 55–63, Nice,

France. IARIA XPS Press.

Tau

san, N., Lehto, J., Kuvaja, P., Markkula, J., and Oivo,

M. (2013). Comparative Inﬂuence Evaluation of Mid-

dleware Features on Choreography DSL. In ICSEA

2013, The Eighth International Conference on Soft-

ware Engineering Advances, pages 184–193. IARIA

XPS Press.

Tau

san, N., Markkula, J., Kuvaja, P., and Oivo, M. Chore-

ography in Embedded Systems Domain: A System-

atic Literature Review. Manuscript submitted for pub-

lication.

Zhang, Z., Sun, W., Chen, W., Mao, D., and Xu, Y.

(2008). An extended composite service choreography

language for decentralized execution in MANETs. In

Communication Technology, 2008. ICCT 2008. 11th

IEEE International Conference on, pages 592–595.

IEEE.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development
