Change Rule Execution Scheduling in Incremental Roundtrip

Engineering Chain: From Model-to-Code and Back

Van Cam Pham, Ansgar Radermacher, S

ebastien G

erard and Florian Noyrit

CEA, LIST, Laboratory of Model Driven Engineering for Embedded Systems, P.C. 174, Gif-sur-Yvette, 91191, France

Keywords:

Code Generation, Change Rules, Incremental, Model Transformation, Model Driven Engineering, EMF-

IncQuery, AST.

Abstract:

Model driven engineering allows many stakeholders to contribute their expertise to the system description.

This practice enables agility but implies consistency maintenance issues between different system models.

Incremental model transformations (IMT) are used to synchronize different artifacts contributed by the stake-

holders. IMTs detect changes on the source model and execute change rules to propagate updates to the target

model. However, the execution of change rules is not straightforward. A rule is only correctly executed if

its precondition is satisﬁed at execution time. The precondition checks the availability of certain source and

target elements involved in the rule. If a rule is executed when the precondition is false, either the execution

is blocked or stopped. Therefore, the produced target model becomes incorrect. This paper presents two ap-

proaches to the scheduling of change rule execution in incremental model transformations. These approaches

are also applied to the case of model and code synchronization and implemented in a tool named IncRoundtrip

that transforms and generates code for distributed systems. We also compare the runtime execution perfor-

mance of different incremental approaches with batch transformation and evaluate their correctness.

1 INTRODUCTION

The use of Model Driven Engineering (MDE) has in-

creased in industries to gain quality and productivity

(Mussbacher et al., 2014). In MDE, the process of de-

veloping a system most often relies on chaining trans-

formations from source models at high level abstrac-

tion to target models and ﬁnally to code. Those two

techniques are identiﬁed as model to model (M2M)

and model to code (M2C) transformations. However,

the development of complex system hardly follows a

purely linear development process. Indeed, in modern

developments many stakeholders contribute their ex-

pertise to the system description in an iterative way.

This practice enables agility but implies consistency

maintenance issues. In order to solve maintenance

issues, incremental model transformations (IMT) are

proposed.

IMTs consist of three phases: source model

change detection, impact analysis, and change prop-

agation (Kusel et al., 2013). The ﬁrst phase detects

which elements are added-to, modiﬁed-in or deleted-

from the source model. The impact analysis maps

these changes to change rules and the last phase exe-

cutes the change rules to update the target model.

Changes are often captured by mechanisms of the

modeling environment in transactions. In case many

changes are detected, many associated change rules

need to be executed to produce a correct target model.

However, change rules cannot simply be executed in

the same order as the associated modiﬁcations. The

execution of a rule usually uses not only changed

elements in the source model but also certain other

source and target elements. In on-demand transfor-

mation mode, the changed source elements and cer-

tain other source elements used by a rule are avail-

able in the source model but in runtime mode, the

source elements involved in the rule execution may

not appear at the change time and added later by other

model manipulations. Moreover, the target elements

involved in the execution of a rule might be missing

at the change time. If a rule is executed at the time the

involved elements have not appeared yet in the source

or the target model, either the execution is blocked or

stopped, thus the produced target model is not cor-

rect. In that way, a wrong change rule execution or-

der even leads the violation of correctness and con-

sistency of transformations. Therefore, the transfor-

mation engine must determine which rule to be ﬁred

ﬁrst.

Pham, V., Radermacher, A., Gérard, S. and Noyrit, F.

Change Rule Execution Scheduling in Incremental Roundtrip Engineering Chain: From Model-to-Code and Back.

DOI: 10.5220/0005687702250232

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 225-232

ISBN: 978-989-758-168-7

225

This paper presents two approaches named target-

independence and target-dependence, respectively,

dedicated to the scheduling of change rule execution

in incremental model transformations. In these ap-

proaches, we specify that a rule is successfully exe-

cuted if all its required elements are available. These

required elements can be in the source or target mod-

els. These elements play the role of a precondition

of a change rule. The precondition is explicitly ex-

pressed in change rules. Once the precondition is pro-

vided, it is veriﬁed at runtime before ﬁring the associ-

ated rule. These approaches are put in practice by im-

plementing a tool named IncRoundTrip that supports

incremental JAVA round-trip engineering and deploy-

ment from UML models. We compare the runtime ex-

ecution performances of the round-trip chain between

the two approaches and a batch transformation.

The remainder of the paper is structured as fol-

lows: Section 2 shows a motivating example. Section

3 presents works related to incremental model trans-

formation. Section 4 and 5 focus on our approaches

and round-trip engineering from models to code, re-

spectively. Section 6 tests the approaches by means

of a proof of concept implementation of a tool named

IncRoundtrip. We conclude and plan future works in

Section 7.

2 MOTIVATING EXAMPLE

Our motivating example transforms a UML connec-

tor into an interaction component (Radermacher et al.,

2009). This M2M transformation exists in the de-

ployment tool Qompass Designer (Qompass, 2015),

but is currently not implemented in an incremental

way. As in Figure 1, the transformation consists of

two rules of copying classes and properties from a

UML source model and reifying UML connector to

an interaction component, respectively. In a batch

transformation, the transformation engine orderly vis-

its System, client, server and eventually connector to

transform them to the target model.

In runtime incremental mode, the model evolution

process adds System, client, server and connector to

the source model. To propagate these changes, the

copying rule and the reiﬁcation rule are executed three

times and one, respectively. There are many order-

ing options to execute these rules. If the transforma-

tion engine chooses copying System ﬁrst, then client,

server, and ﬁnally reifying the connector, the target

model is correctly produced.

If the reiﬁcation rule is ﬁred ﬁrst instead, the run-

time execution of the rule will not ﬁnd the proper-

ties client and server in the target model. The engine

System

client: Client

clientPort: ICompute

server: Server

serverPort: ICompute

System

client: Client

clientPort: ICompute

server: Server

serverPort: ICompute

ic: IC

M2M

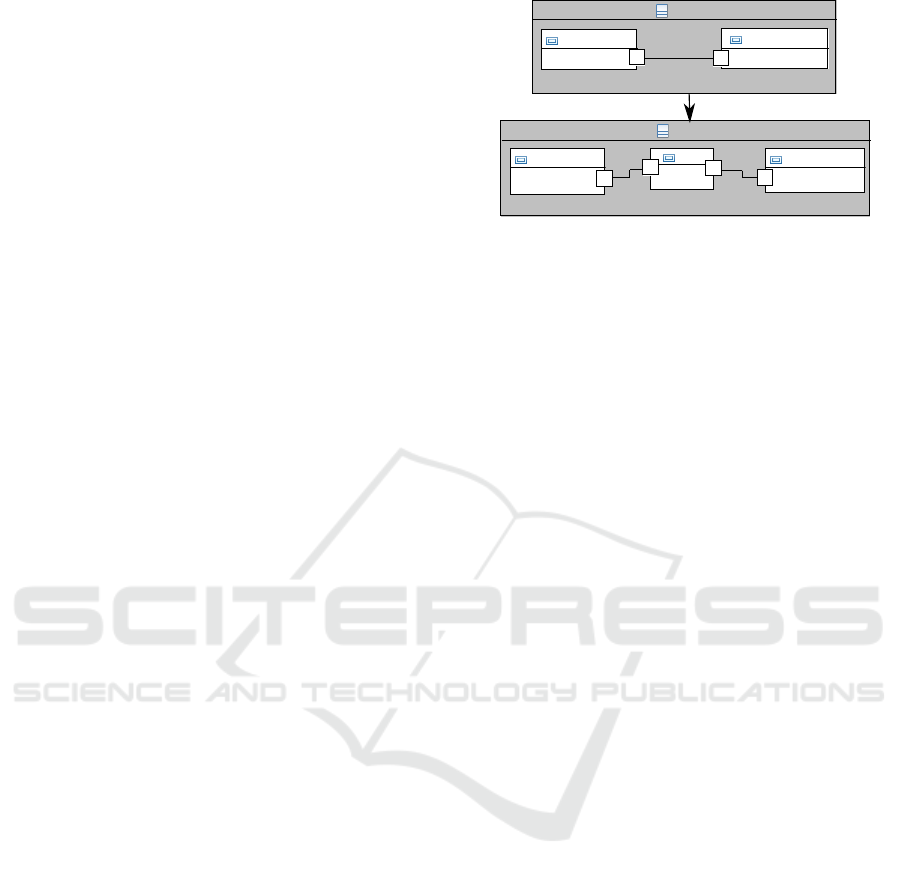

Figure 1: Transformation example from a UML Connector

into an interaction component.

therefore either stops or blocks the execution of the

rule. Thus the interaction component ic and the new

connectors are not created in the target model. In this

way, the resulting target model is not the same as that

of the batch transformation.

Optionally, the transformation engine can execute

change rules in the same order as the original mod-

iﬁcations. In this example, if System, client, server

and connector are orderly added to the source model,

the transformation engine copies the class and the two

parts before reifying the connector to produce the cor-

rect model. However, if the connector is added by

model manipulations before the two parts are added,

the reiﬁcation rule is ﬁred before. Therefore, the reiﬁ-

cation rule is not ﬁnished since the parts in the target

model involved in the execution are missing. This or-

der creates an incorrect target model.

3 RELATED WORK

This section presents different approaches related to

incremental model synchronizations and round-trip

engineering of models and code.

Triple graph grammar (TGG) (Kindler and Wag-

ner, 2007)(Giese and Wagner, 2006)(Hermann et al.,

2013) originates from graph theories. A graph trans-

formation rule consists of two sides: a left- and a

right-hand side. TGG performs local manipulations

on graph models by ﬁnding a match of its left hand

side graph pattern in the model and replacing it with

the right hand side graph. TGG can be used for bi-

directional transformations (Lauder et al., 2012) but

TGG assumes that relationships between source and

target model elements are bijective. Speciﬁcally, in

our case, a connector is transformed in two different

mappings.

QVT-R (OMG, 2008) standardized by OMG sup-

ports pre-conditions to schedule transformation rules.

However, up to now, there is no implementation that

supports full features of QVT-R.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

226

Change driven model transformation (Bergmann

et al., 2011) is the approach that we base on. Dif-

ferently from other approaches, this approach consid-

ers changes as ﬁrst-classes and part of transforma-

tion rules. In order to capture changes on a source

model, uncontrolled model changes caught by mech-

anisms of the modeling environment in transactions

are observed and evaluated. An incremental pattern

matching technique is used in the evaluation to de-

tect changes and send notiﬁcations to an event-driven

mechanism. The latter then maps changes to change

rules to propagate updates to the target model. Our

approach focuses on the change detection and impact

analysis phases which are parts of the model and code

synchronization mechanism. Moreover, we support

a batch transformation for the ﬁrst time (the target

model does not exist yet) since batch transformations

are faster than IMTs in deriving the non-existing tar-

get model. Further modiﬁcations of the source model

are transformed by IMTs. Traceability links created

by the batch transformation are interrogated and used

by IMTs.

Round-trip engineering of models and code is sup-

ported by several tools and approaches. RTET in

(Nagowah et al., 2013) generates a working version of

a tiered application with a JSP presentation, EJB man-

ager classes with functions in JAVA, with an appro-

priate database model and Model/View/Control Web

application. AndroMDA (AndroMDA, 2015) is a

code generation framework that follows the Model

Driven Architecture (MDA) paradigm. AndroMDA

can generate deployable Java EE applications from a

UML model using Hibernate, EJB, Spring and Structs

frameworks. However, AndroMDA does not support

reverse engineering. ArgoUML (Tigris, 2015) is an

open source modeling tool that supports code gen-

eration and reverse engineering for skeleton code of

C++ and JAVA. However, ArgoUML does not pro-

vide a round-trip engineering for C++/JAVA. Reverse

engineering approaches in (Tonella, 2005) and (Xin

and Xiaojie, 2007) do not provide the co-evolution

between source code and models.

Our IncRoundTrip implementation is an open

source tool. IncRoundTrip offers not only a (partially)

incremental round-trip generation of JAVA and C++

from UML but also instant incremental model syn-

chronization.

4 INCREMENTAL MODEL

TRANSFORMATION

This section describes our incremental model syn-

chronization that is a part of the round-trip engineer-

ing chain. Our incremental synchronization of mod-

els consists of forward and backward transformations.

As in the introduction section, an IMT consists of

three phases: change detection, impact analysis and

change propagation. Change detection is executed

by a mechanism that listens to and receives elemen-

tary notiﬁcations from source models. Changes on

the source model are usually not related to the tar-

get model but the changed elements are linked to

the associated target elements in the impact analysis

phase to check the availability of required elements

and order the change rule execution. We refer this ap-

proach as target-independence since the changes on

the source model are detected without considering the

target model. The second one as target-dependence

considers the traceability links between the changed

elements of the source model and the associated ele-

ments in the target model.

4.1 Target-independence

For the ﬁrst approach, as in Figure 2, a mecha-

nism as a query engine interrogates only the source

model separately from the target model. When the

source model changes, the mechanism receives these

changes and recognizes change pattern matches. The

query engine then sends a list of pattern matches to

the Analyzer which then maps these matches to cor-

responding change rules. A precondition is passed

along with a change rule in a form similar to ”when”

of QVT-R. It, as previously mentioned, consists of

one or several existing model elements required by its

corresponding change rule and is examined by the An-

alyzer. The Analyzer chooses one rule to analyze its

precondition. It retrieves target elements transformed

from source ones. If one of these target elements is

not available in the target model, the rule is sequen-

tially dependent on another rule and must be ﬁred af-

ter the other rule. The Analyzer then puts the rule in

a queue and continues with other rules. If all required

elements of the rule are available, the rule is ﬁred by

the Rule Executor. When the execution of a rule is

ﬁnished, the Analyzer reads a rule from the queue to

iterate the process. Algorithm 1 shows how the Ana-

lyzer works.

Algorithm 1 shows that the availability of all re-

quired elements must be veriﬁed before ﬁring a rule.

However, the veriﬁcation of the availability of re-

quired elements does not need to be done before the

activation of rules. Indeed, the veriﬁcation can be

placed in rule execution. Therefore, a rule can be

executed immediately after an associated change is

detected. When the execution of the rule needs to

retrieve a target element by a retrieving function, it

Change Rule Execution Scheduling in Incremental Roundtrip Engineering Chain: From Model-to-Code and Back

227

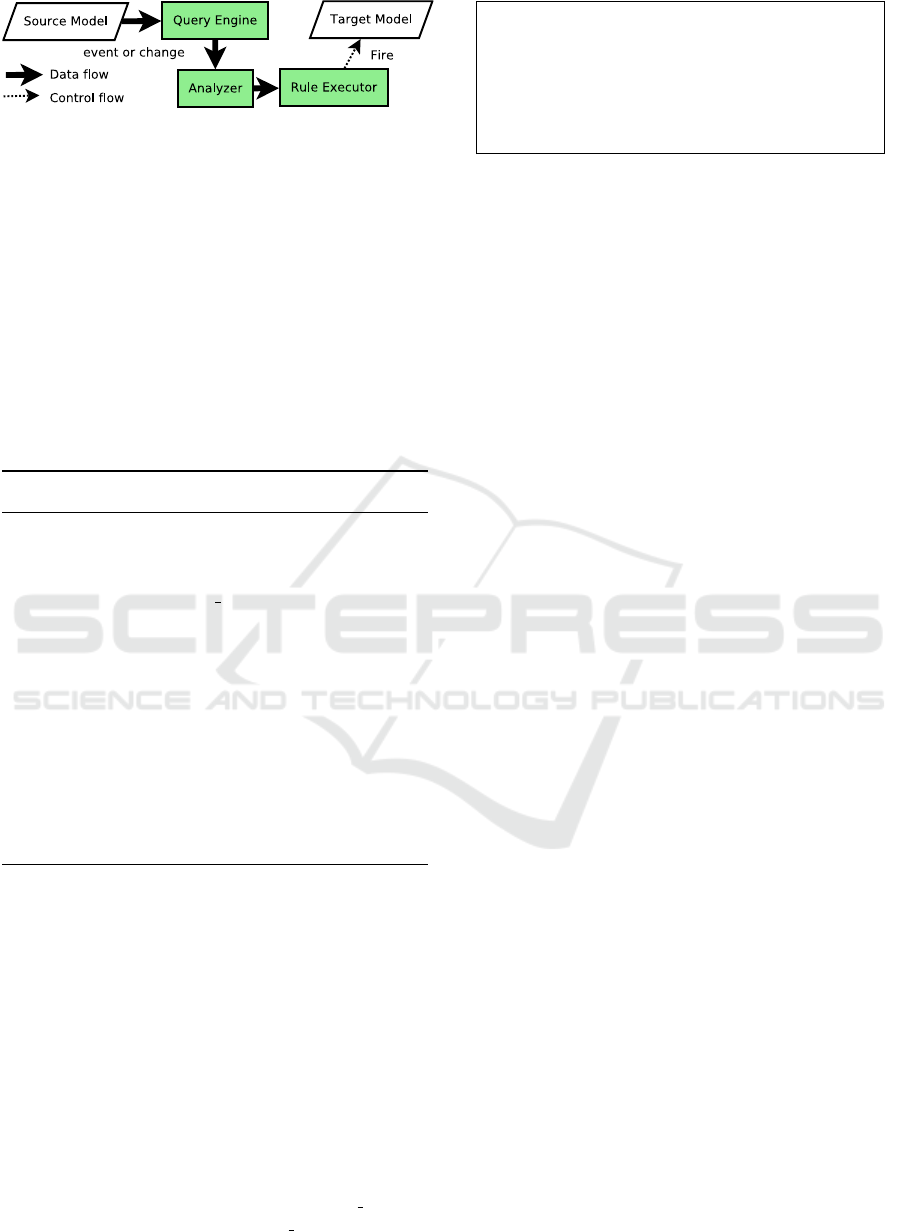

Figure 2: Target-independent change detection.

checks the availability of that element. If the element

is available, it continues. Otherwise, either the rule

is put into the queue or the execution waits in the re-

trieving function and the execution is resumed when

the missing element is created in the target model.

To do this, we deﬁne the retrieving function that ma-

nipulates traceability links between source and target

model elements created in rule execution to get asso-

ciated target elements from source elements. The re-

trieving function returns target elements or waits until

these target elements are available. However, this op-

tion may create temporary inconsistencies in the pro-

duced model.

Algorithm 1: Change rule ordering by checking precondi-

tions.

Precondition: Change rules (CRs) and their precon-

ditions

1: function ACTIVATE RULES(CRs)

2: RulesQueue ← getAllRules(CRs);

3: while RulesQueue.notEmpty do

4: r ← dequeue(RulesQueue)

5: isReady ← areRequiredsAvailable(r)

6: if isReady then

7: execute(r )

8: else

9: enqueue(RulesQueue, r)

10: end if

11: end while

12: end function

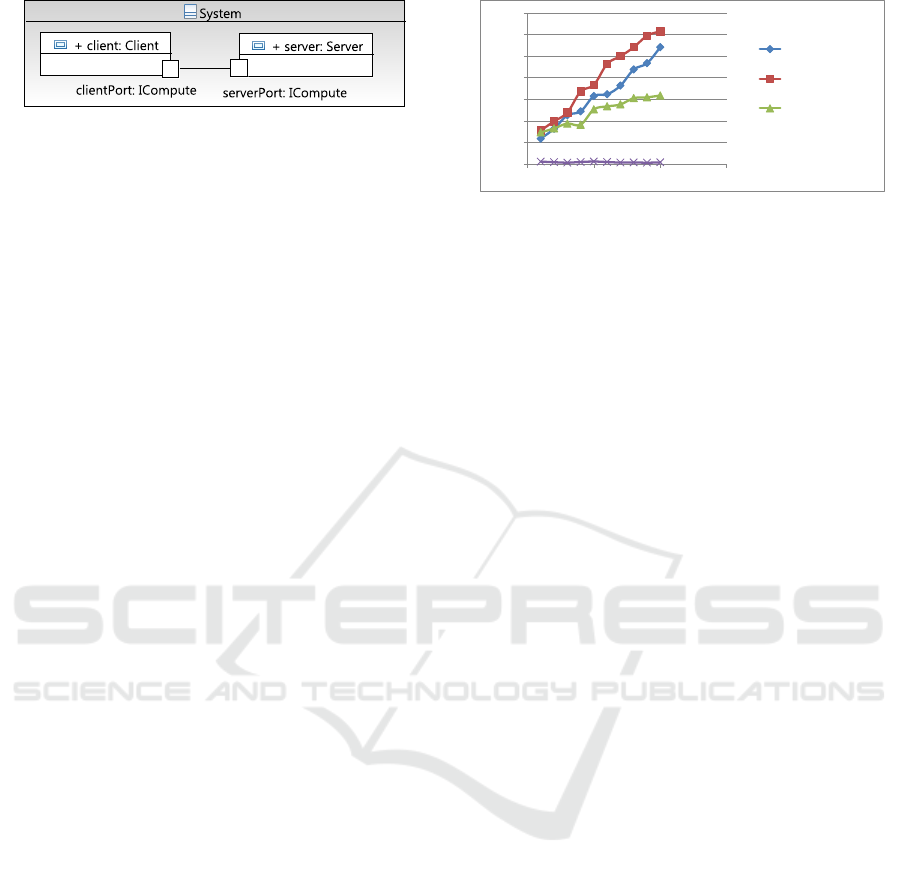

In the previous example, the precondition of the

copy rule is that the container of the copied element

is mapped. Therefore, the container is put into the

list of required elements in the precondition. The

query engine gets a notiﬁcation for each element

(System, client, server and connector) added to the

source model. Listing 1 (elements in blue are meta-

model elements of UML) shows the query rule writ-

ten in EMF-IncQuery (Ujhelyi et al., 2015) to rec-

ognize matches (the pattern matching is supported

by several approaches as in (Fan et al., 2013) and

(Bergmann et al., 2012)). A class, an attribute of

a class or a connector of a class Class(element) are

detected as added by Class.ownedAttribute(

clz, ele-

ment), and Class.ownedConnector( clz, element) re-

spectively. These matches are sent to the Analyzer

pa t t e r n add ed E l e m e n t ( ele ) {

Clas s ( e l e ) ;

} or {

Clas s . o w n e d A t t r i b u t e ( _clz , el e ) ;

} or {

Clas s . o w n e d C o n n e c t o r ( _clz , el e ) ;

}

Listing 1: EMF-IncQuery with the target-independent

approach.

as events. If the copying rule corresponding to the

added System is chosen ﬁrst by the Analyzer, the lat-

ter checks that the execution of this rule does not in-

volve other elements since System is the root element

of the source model and does not have a container.

The Analyzer therefore ﬁres the rule by transferring

the rule to the Rule Executor. The Analyzer then

checks other rules. However, if the reifying rule is

chosen before the copying rule, the Analyzer does not

ﬁnd the required elements System, client and server.

This rule is added to the queue to be processed af-

ter these required elements are created. Similarly, the

Analyzer then checks other rules and ﬁnds the copy-

ing rule for System. As a result, client and server

are copied to the target model. The reifying rule is

then executed with the availability of all required el-

ements. Consequently, the produced target model be-

comes correct in any way of choosing rules to be an-

alyzed.

4.2 Target-dependence

The target-dependent approach is based on the fol-

lowing principle: a change is only detected if all of

its required elements are available and the execution

of a rule directly triggers other rules. Required ele-

ments are veriﬁed in the change detection phase in-

stead of the impact analysis phase. These required el-

ements are expressed as constraints of patterns writ-

ten in query languages such as EMF-IncQuery. To

do it, the query engine must be able to interrogate

both of the source and target models. As in Figure

3, this approach uses a traceability model between

the source and target models. The traceability model

refers to one or more source and target models and

has explicit traces that refer to elements of the source

and target models. The traceability metamodel is ex-

pressed in Figure 4. The source, traceability and tar-

get model are considered as one model. The query

engine queries not only the source model but also

the target and the traceability models. The princi-

ple of detecting changes is somewhat similar to that

of Triple Graph Grammar. An element is detected as

added to a source model if it is found in the source

model but not in the traceability model. An element

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

228

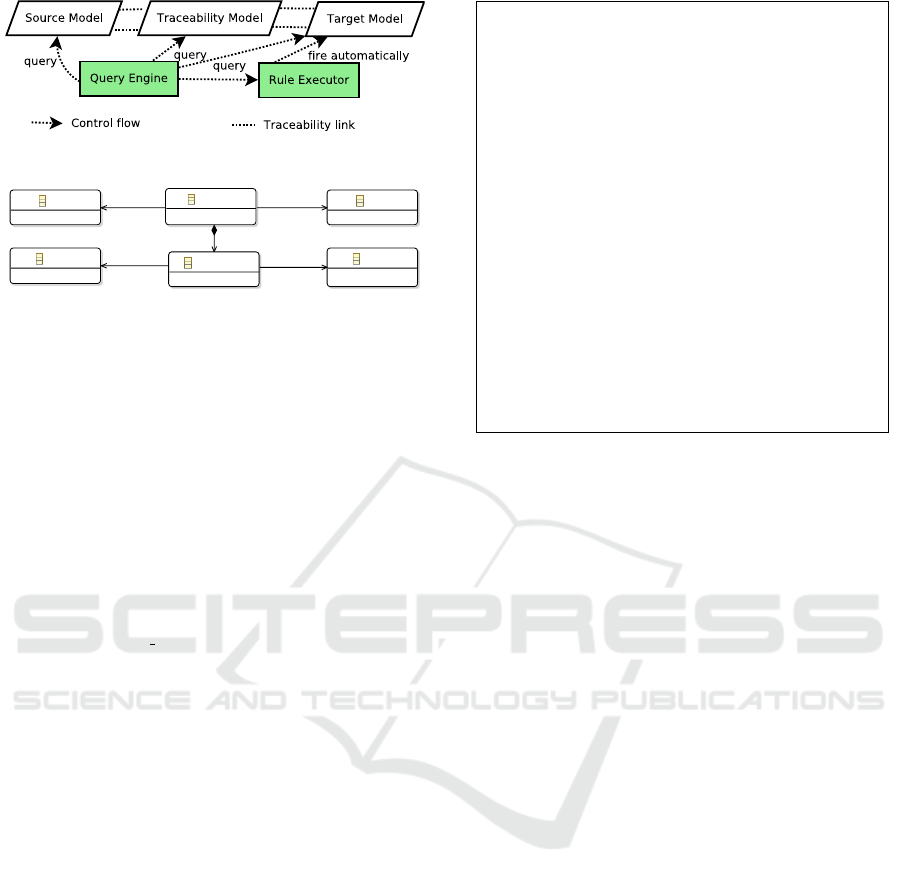

Figure 3: Target-dependent change detection.

TraceRoot

TraceElement

Model

Element

[0..*] modelTraces

[0..*] srcModel

[0..*] tgtModel

[0..*] tgtElements

[0..*] srcElements

Figure 4: Traceability metamodel.

is considered as removed from the source model if ei-

ther it is found in the traceability model but not in the

source model or there are target elements in the trace-

ability model but no corresponding source elements.

When the source model changes, the pattern matcher

of the query engine utilizes these links to collect all

required elements of the rule. The rules are hence

executed without referencing or checking any condi-

tions.

In the previous example, several query rules are

written as in Listing 2. ”neg” is a negative applica-

tion condition in graph pattern matching. neg ﬁnd

traceElement(ele, tgt) queries the traceability model

to detect that the element ele is not mapped or trans-

formed to the target model yet. When the four ele-

ments from the example are added, only System is

detected as added since the list of required elements

of the rule is empty (System is the root element). Af-

ter the execution of copying System is ﬁnished, client

and server are detected as added since the container

System of these parts as the precondition of the copy-

ing rules corresponding to these elements is available

in the target model. These rules can be simultane-

ously executed. The ﬁnishing of copying the three

previous elements prompts the query engine to detect

the added connector. The Rule Executor ﬁres then the

reifying rule to ﬁnish the propagation.

4.3 Discussion

The target-independent approach has the advantage of

simplicity and is useful for in-place transformations,

since the source model is (trivially) always up to date

and therefore required elements are always available.

Nevertheless, it implicitly wastes time in the impact

analysis within the Analyzer since many iterations of

verifying required elements for every rule are needed

before the activation of rules. These iterations even

increase the execution time if many change rules need

pa t t e r n tra ce E l e m e n t ( src , tgt ) {

Tr a ce R o o t . mo d e l Tr a c e s ( _root , tr ) ;

Tr a c e E l e m e n t . sr c E l e m en t s ( tr , src ) ;

Tr a c e E l e m e n t . tg t E l e m en t s ( tr , tgt ) ;

}

pa t t e r n un m a p p e d E l e m e n t ( ele ) {

Clas s ( el e me n t ) ;

neg f i n d tra c e E l e m e nt ( ele , _tgt ) ;

} or {

Clas s . o w n e d A t t r i b u t e ( clz , ele ) ;

find t ra ce E l e m e n t ( clz , _ t gt C lz ) ;

neg f i n d tra c e E l e m e nt ( ele , _tgt ) ;

} or {

Clas s . o w n e d C o n n e c t o r ( ele ) ;

find t ra ce E l e m e n t ( clz , _ t gt C lz ) ;

neg f i n d tra c e E l e m e nt ( ele , _tgt ) ;

Clas s . o w n e d A t t r i b u t e [0] ( clz , cli ) ;

Clas s . o w n e d A t t r i b u t e [1] ( clz , srv ) ;

find t ra ce E l e m e n t ( cli , _ ) ;

find t ra ce E l e m e n t ( srv , _ ) ;

}

Listing 2: EMF-IncQuery with the target-dependent

approach.

to be ﬁred (see Section 6 for the execution time com-

parison).

To improve execution time of the target-

independent approach, the Analyzer can set a prior-

ity for each rule. A higher value would be assigned

to the priority of the copying rule than that of the

reifying rule. The engine can activate the rule with

the highest priority without multiple iterations and the

performance would be better. However, the priority

assigning approach is not feasible since the priority

settings of rules are manually written by transforma-

tion writers. Moreover, in the example above, System

and its attributes are transformed by three instances

of the same rule (the copying rule). If the Analyzer

chooses an instance associated with one of the at-

tributes to transform ﬁrst, the execution of the rule

instance would not ﬁnd System in the target model.

To resolve this, a dynamic priority scheduling that

checks all rules to execute is necessary. In fact, this

dynamic scheduling is similar to the above target-

independence approach that checks all required ele-

ments of a rule to be executed.

In the target-dependent approach, two indepen-

dent rules with required elements can be detected and

executed in parallel mode. The impact analysis and

ﬁring of rules are effortless but the pattern match-

ing is more complicated. The matcher does not only

evaluate the source model (as the target-independent

approach does) but also the target and traceability

model.

By comparing the two approaches, there is a trade-

off between the change detection and impact analysis.

Change Rule Execution Scheduling in Incremental Roundtrip Engineering Chain: From Model-to-Code and Back

229

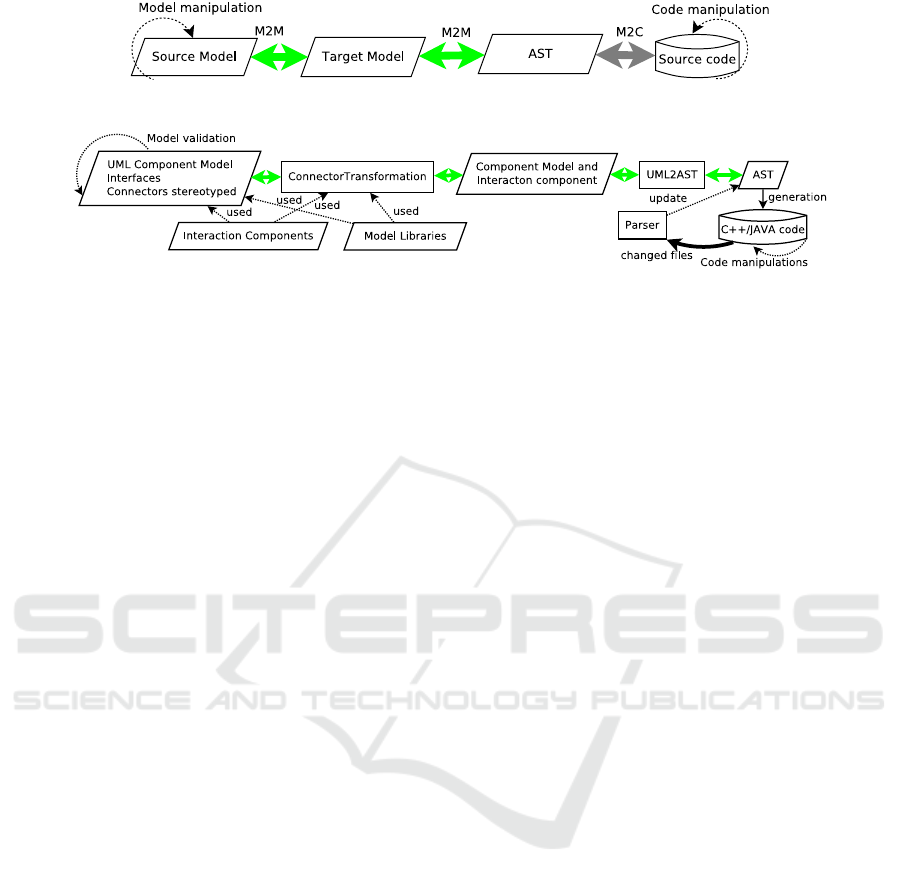

Figure 5: Incremental round-trip engineering chain with ASTs.

Figure 6: Model transformation chain in Qompass Designer.

If a smart pattern matching technique (such as EMF-

IncQuery in the Eclipse Modeling Framework) is sup-

ported by the development environment, the target-

dependent would be the choice. Contrarily, the target-

independent would be more suitable for tools with

poor graph techniques support. In the implementa-

tion, we compare the runtime execution performance

of both approaches.

5 TARGET MODELS AND CODE

SYNCHRONIZATION

This section presents a synchronization of code and

target models derived from the above transformations.

In order to reuse the transformation techniques dis-

cussed above, the models should be transformed into

an intermediate representation that reﬂects code. We

transform the models into an Abstract Syntax Tree

(AST). Code is generated from the AST by an unpars-

ing process. The synchronization from code to ASTs

is a parsing process supported by many development

environments. By this way, model synchronization

from target models to AST is needed (as shown in

Figure 5). Using an intermediate representation as

ASTs increases the modularity of the chain.

In the model evolution process, the incremental

transformation updates the corresponding AST nodes

from the changed model elements. The updated AST

nodes are used to deduce changed compilation units

that deﬁne a set of modeling elements used for mod-

eling source ﬁles. The code generator then uses tem-

plates, which deﬁne the generation of AST compila-

tion units to code, to re-generate the ﬁles associated

with the changed compilation units. In fact, the num-

ber of compilation units deduced from the updated

AST nodes might be high, as shown in the renam-

ing case below. In order to reduce it, we categorize

different cases in which a compilation unit should be

re-generated to its corresponding source ﬁle as fol-

lowings:

• If a model element is added, only its containing ﬁle

on the code level is generated; if one is updated,

two cases are distinguished: renaming and chang-

ing the element content.

• If an element is renamed, its corresponding com-

pilation unit and all other compilation units that

refer to (or use) it need to be re-generated since

references in code are name-based.

• If the content of an element has changed, only re-

generate its compilation unit; if one is deleted,

delete its compilation units and re-generate the

compilation units that refer to this element.

In fact, if a compilation unit refers to a deleted

element, it will require changes since re-generation

will not help resolve code errors (i.e., an attribute of

a class typed with a deleted class). Thus, developers

need to explicitly make changes to ﬁx core errors ei-

ther on the model level (re-type the attribute or delete

the attribute) or the code level.

In the backward direction of the round-trip, when

a code ﬁle is changed by developer operations such

as adding or renaming classes, functions/methods or

attributes, the ﬁle is parsed into an AST by an update

of existing ASTs. By updating ASTs, the backward

incremental transformation automatically propagates

changes from code to the target models and eventu-

ally to the source models. We implemented both of

the IMT approaches as presented above to propagate

changes from code to models in the backward direc-

tion.

6 PROOF OF CONCEPT

As previously mentioned, Qompass Designer cur-

rently executes the connector transformation among

other transformations in a batch mode. Qompass De-

signer also supports the deployment and generation

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

230

Figure 7: Application model for evaluation.

of C++ code for embedded distributed systems from

UML models. In order to do so, it needs the informa-

tion about which interaction components (IC) should

be used and this information is provided by a stereo-

type from the Flex-eware compoment model FCM

(Jan et al., 2012). To put our incremental approaches

in pratice, we implement a tool named IncRoundTrip

based on the existing batch transformation in Qom-

pass Designer. The tool transforms a source UML

model that contains FCM connectors to a target model

containing ICs. The target model is then transformed

into ASTs and eventually JAVA code. The implemen-

tation of an incremental C++ generator is in progress.

The incremental chain is shown in Figure 6. To de-

tect changes, we utilize the incremental graph pattern

matching language EMF-IncQuery.

A UML component model ﬁrstly consists of com-

ponents, interfaces, connectors and stereotypes ap-

plied to components used in the ConnectorTransfor-

mation phase. The component model can also im-

port other UML model libraries that contain different

data types or ICs (in model libraries as well). The se-

mantics of model libraries is similar to source code

libraries in traditional software development. There-

fore, ICs that are used in the transformation can be

deﬁned in other model libraries independently from

the application model. The ConnectorTransformation

principally transforms UML connectors into ICs. The

transformation is not trivial since ICs are adapted to

the types used by a connection (types of connected

ports). The details of the ConnectorTransformation

are shown in (Radermacher et al., 2009) but are not in

the scope of this paper. After transformation, code is

generated from components to object-oriented code.

The synchronization of ASTs and code is independent

from model transformations.

In order to test the IMTs in practice, we imple-

mented a batch transformation and the incremental

approaches, executed them and compared the result-

ing models and code in all cases. The resulting mod-

els and code are the same. We also evaluated the per-

formance of these implementations. We executed the

chain on models with the number of nodes ranging

from 2 to 20 nodes and the number of connectors with

different interfaces from 1 to 10. A small application

model is shown in Figure 7. We transform ICs for

distributed applications that use socket connections

10000

20000

30000

40000

50000

60000

70000

0 5 10 15

Target-

dependence

Target-

independence

Batch

Number of connectors

Figure 8: Performance comparison between the incremental

transformation approaches and batch transformation.

to communicate. The number of generated classes

ranges from 8 to 71. The performance comparison

of the two approaches and the batch transformation is

shown in Figure 8. As noted in the above sections, the

target-dependent approach runs faster than the target-

independent one. Moreover, the batch transformation

outperforms the two others for the ﬁrst time since the

batch does not need to detect and analyze the impact

of changes on the target model. The communication

between components is established by the connector

that connects through ports typing interfaces. After

the ﬁrst transformation, we add 5 UML classes (each

one has 5 operations and 5 attributes), the transforma-

tion time in the target-dependent approach dramati-

cally decreases as the Incremental line in Figure 8.

The time for processing (transforming to the target

model and eventually code) these 5 classes is 1s.

7 CONCLUSION

In the paper, we discussed two approaches of change

rules scheduling in incremental model transforma-

tions. One approach iterates to check the availability

of required elements of rules and the other one uses

triggers and query languages. In the later, a change

is only detected if its required elements are available.

We applied the approaches to a speciﬁc round-trip en-

gineering model transformation and code generation

tool named IncRoundtrip in model- and component-

based development. In the implementation, we detect

changes by the incrementality of the EMF-IncQuery

query language. We compared the runtime execu-

tion performance of both approaches and the batch

transformation. The target-dependent approach out-

performs the other one.

Models and code are synchronized in both direc-

tions. We used ASTs as intermediate models to reuse

model transformation techniques. We synchronized

the models and ASTs. The synchronization of ASTs

and code are executed by the help of parsers.

Change Rule Execution Scheduling in Incremental Roundtrip Engineering Chain: From Model-to-Code and Back

231

For the moment, the model synchronization is

done by two uni-directional transformations that are

difﬁcult to maintain and the synchronization from

code to models is not fully implemented. For fu-

ture works, we will apply the scheduling algorithms to

the deﬁnition of a transformation language. Queries

written in this language are then generated to EMF-

IncQuery and Xtend code to provide fully automati-

cally runtime incremental model synchronization. We

will also complete the round-trip chain for C++ and

JAVA.

ACKNOWLEDGEMENTS

The work presented in this paper is supported by

the European project SafeAdapt, grant agreement No.

608945, see http://www.SafeAdapt.eu. The project

deals with adaptive system with additional safety and

real time constraints. The adaptation and safety as-

pects are stored in different models in order to achieve

a separation of concerns. These models need to be

synchronized.

REFERENCES

AndroMDA (2015). http://www.andromda.org/ [Online;

accessed 01-Sept-2015].

Bergmann, G., Rth, I., Szab, T., Torrini, P., and Varr, D.

(2012). Incremental pattern matching for the efﬁcient

computation of transitive closure. Lecture Notes in

Computer Science, 7562 LNCS:386400.

Bergmann, G., Rth, I., Varr, G., and Varr, D. (2011).

Change-driven model transformations, volume 11.

Fan, W., Wang, X., and Wu, Y. (2013). Incremental graph

pattern matching, volume 38.

Giese, H. and Wagner, R. (2006). Incremental Model

Synchronization with Triple Graph Grammars, page

543557.

Hermann, F., Ehrig, H., Orejas, F., Czarnecki, K., Diskin,

Z., Xiong, Y., Gottmann, S., and Engel, T. (2013).

Model synchronization based on triple graph gram-

mars: correctness, completeness and invertibility.

Software and Systems Modeling, page 129.

Jan, M., Jouvray, C., Kordon, F., Kung, A., Lalande, J.,

Loiret, F., Navas, J., Pautet, L., Pulou, J., Raderma-

cher, A., and Seinturier, L. (2012). Flex-eWare: A

ﬂexible model driven solution for designing and im-

plementing embedded distributed systems. Software -

Practice and Experience, 42:1467–1494.

Kindler, E. and Wagner, R. (2007). Triple graph grammars:

Concepts, extensions, implementations, and applica-

tion scenarios. Techn. Ber. tr-ri-07-284, University of.

Kusel, A., Etzlstorfer, J., and Kapsammer, E. (2013). A sur-

vey on incremental model transformation approaches.

ME 2013 Models and Evolution Workshop, at MOD-

ELS’13.

Lauder, M., Anjorin, A., Varr, G., and Sch, A. (2012). Ef-

ﬁcient model synchronization with precedence triple

graph grammars.

Mussbacher, G., Amyot, D., Breu, R., Bruel, J.-m., Cheng,

B. H. C., Collet, P., Combemale, B., France, R. B.,

Heldal, R., Hill, J., Kienzle, J., and Sch

ottle, M.

(2014). The Relevance of Model-Driven Engineering

Thirty Years from Now. ACM/IEEE 17th MODELS,

pages 183–200.

Nagowah, L., Goolfee, Z., and Bergue, C. (2013). RTET -

A round trip engineering tool. In ICoICT 2013, pages

381–387.

OMG (2008). Meta Object Facility (MOF) 2.0 Query / View

/ Transformation Speciﬁcation.

Qompass (2015). https://wiki.eclipse.org/Papyrus Qompass.

[Online; accessed 01-Sept-2015].

Radermacher, A., Cuccuru, A., Gerard, S., and Ter-

rier, F. (2009). Generating execution infrastructures

for component-oriented speciﬁcations with a model

driven toolchain: A case study for marte’s gcm and

real-time annotations. SIGPLAN Not., 45(2):127–136.

Tigris (2015). Tigris. http://argouml.tigris.org/. [Online;

accessed 01-Sept-2015].

Tonella, P. (2005). Reverse engineering of object oriented

code. Proceedings. 27th International Conference on

Software Engineering, 2005. ICSE 2005.

Ujhelyi, Z., Bergmann, G., Heged

us, A., Horv

ath, A., Izs

B., R

ath, I., Szatm

ari, Z., and Varr

o, D. (2015). EMF-

IncQuery: An integrated development environment

for live model queries. Science of Computer Program-

ming, 98(2015):80–99.

Xin, W. and Xiaojie, Y. (2007). Towards an AST-based ap-

proach to reverse engineering. In Canadian Confer-

ence on Electrical and Computer Engineering, pages

422–425.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

232
