A Collaborative Analysis System for Cross-organization Cyber Incident

Handling

Giuseppe Settanni, Florian Skopik, Yegor Shovgenya and Roman Fiedler

Digital Safety and Security Department, AIT Austrian Institute of Technology, Donau-City-Strasse 1, 1220, Vienna, Austria

Keywords:

Cyber Incident Handling, Security Operation Center, Situational Awareness.

Abstract:

Information and Communication Technology (ICT) systems are predominant in today’s energy, ﬁnance, trans-

portation and telecommunications infrastructures. Protecting such Critical Infrastructures (CIs) against mod-

ern cyber threats and respond to sophisticated attacks is becoming as complex as essential. A synergistic

and coordinated effort between multiple organizations is required in order to tackle this kind of threats. Inci-

dents occurring in interconnected CIs can be effectively handled only if a cooperation plan between different

stakeholders is in place. Organizations need to cooperatively exchange security-relevant information in or-

der to obtain a broader knowledge on the current cyber situation of their infrastructures and timely react if

necessary. National cyber Security Operation Centers (SOCs), as proposed by the European NIS directive,

are being established worldwide to achieve this goal. CI providers are asked to report to the national SOCs

about security issues revealed in their networks. National SOCs correlate all the gathered data, analyze it and

eventually provide support and mitigation strategies to the afﬁliated organizations. Although most of these

tasks can be automated, human involvement is still necessary to enable SOCs to adequately take decisions on

occurring incidents and quickly implement counteractions. In this paper we therefore introduce and evalu-

ate a semi-automated analysis engine for cyber incident handling. The proposed approach, named CAESAIR

(Collaborative Analysis Engine for Situational Awareness and Incident Response), aims at supporting SOC

operators in collecting signiﬁcant security-relevant data from various sources, investigating on reported in-

cidents, correlating them and providing a possible interpretation of the security issues affecting concerned

infrastructures.

1 INTRODUCTION

Advanced multi-stage cyber campaigns are continu-

ously being put in place aiming at disrupting orga-

nizations’ business continuity, exﬁltrating sensitive

data, or disturbing critical services. Such elaborated

attacks intrude and leverage multiple systems and net-

works at the same time, therefore localized detection

and isolated reaction are no longer effective. A more

comprehensive and distributed approach is therefore

required (Tankard, 2011).

In fact, recently issued European directives such

as the NIS directive (European Commission, 2013),

explicitly demand for the establishment of collabora-

tion networks among the Member States, in order to

allow secure sharing of relevant incident information

and gain cyber situational awareness both on national

and international level. CI providers are requested

to report cyber security issues occurring on their net-

works to cyber SOCs. These centers are intended to

collect reports, gather intelligence and provide cyber

security support to the afﬁliated organizations while

preserving their privacy.

Our work is being carried out in the context of

a European funded research project named ECOS-

SIAN

(European Control System Security Incident

Analysis Network) that aims at improving the de-

tection and management of highly sophisticated cy-

ber security incidents and attacks against CIs by im-

plementing a pan-European early warning and situa-

tional awareness framework with command and con-

trol facilities (Kaufmann et al., 2014).

In a previous work (Settanni et al., 2015) we pre-

sented and shortly described a blueprint for our cyber

incident analysis system. The system’s objective is

twofold: i) to gain cyber situational awareness of na-

tional CIs by analyzing security intelligence obtained

from multiple sources, ii) to timely and securely dis-

tribute early warnings and advisories in the case of

www.ecossian.eu

Settanni, G., Skopik, F., Shovgenya, Y. and Fiedler, R.

A Collaborative Analysis System for Cross-organization Cyber Incident Handling.

DOI: 10.5220/0005688301050116

In Proceedings of the 2nd International Conference on Information Systems Security and Privacy (ICISSP 2016), pages 105-116

ISBN: 978-989-758-167-0

105

detected threats. Here we narrow down the focus

on the acquisition, aggregation and analysis compo-

nents outlined in that work by introducing a semi-

automated system for incident-data analysis. The pro-

posed system gathers security intelligence from mul-

tiple trusted sources, combines and correlates rele-

vant information with reported cyber incidents, and

derives possible conclusions on the occurring security

issues.

An assisted-learning function allows the system to

automatically determine similarities between reported

issues and every other signiﬁcant resource contained

in the knowledge base in order to ease the analysis

phase. Also, this learning process takes into account

and adapts itself to operator’s feedback. Operators

can train the system by accepting or denying every

automated association (or derived conclusion), scor-

ing their usefulness, and providing comments about

them.

We provide an illustrative scenario that points out

the need for a collaborative analysis system for inci-

dent handling. The main functional requirements for

our approach are derived from this scenario. We il-

lustrate the designed system components highlighting

their functionality; we give an overview on the cur-

rent status of our system prototype implementation,

and we evaluate our approach. We ﬁnally discuss how

security intelligence is handled by the introduced sys-

tem by demonstrating how it would address the chal-

lenges outlined in the presented scenario.

This paper is structured as follows. In Section II

we present the ECOSSIAN ecosystem. In Section III

a realistic scenario is described. In Section IV we

collect the main challenges and requirements derived

from the use-case. In Section V we introduce the for-

mal model and the architectural components of our in-

cident analysis system. Section VI reports the imple-

mentation details of the main system components. In

Section VII we evaluate the performance of our sys-

tem, while in Section VIII we highlight how our ap-

proach can be employed to address the issues raised in

the use-case Section, by providing collaborative cyber

incident handling. In Section IX we review the state

of the art of distributed analysis systems for cyber in-

cident handling. We conclude the paper in Section X

with outlook and future work.

2 THE ECOSSIAN ECOSYSTEM

In order to discover and properly handle modern so-

phisticated cyber threats, organizations need to coop-

erate and exchange cyber security information so to

gain knowledge of the current situation of their in-

O-SOC

N-SOC

O-SOC

N-SOC

O-SOC

N-SOC

E-SOC

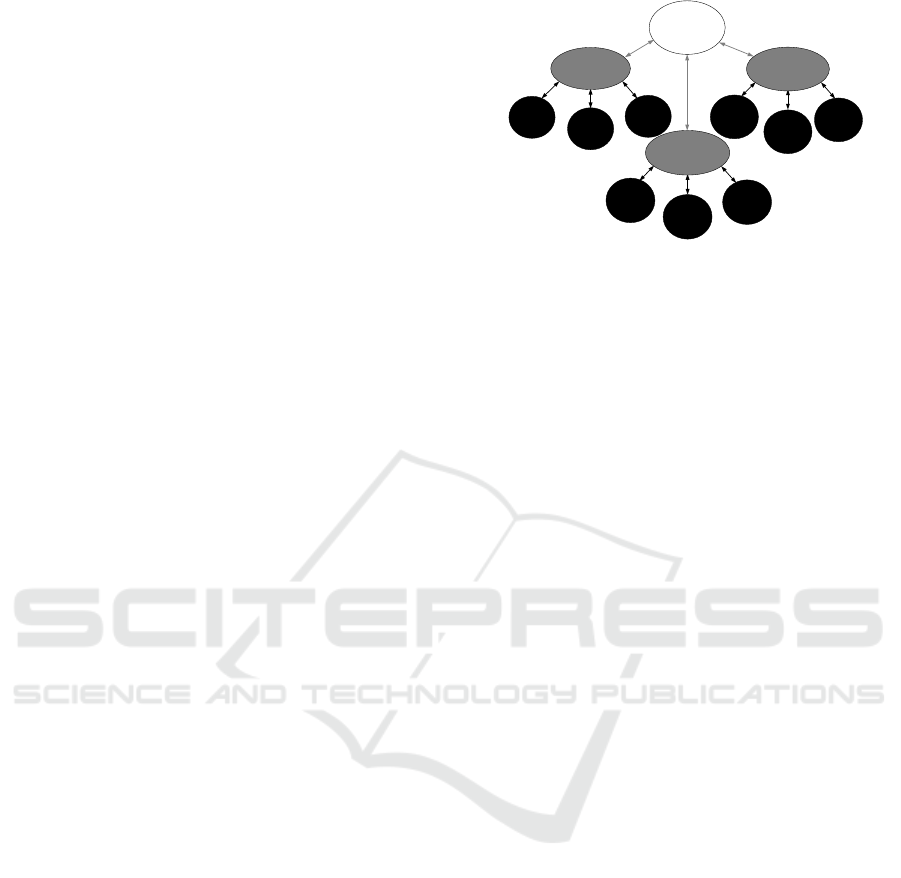

Figure 1: ECOSSIAN ecosystem.

frastructures (ENISA, 2013a).

Most organizations deploy in-house security pro-

cedures and tools aiming at detecting threats local-

ized within their infrastructures. However, there is a

signiﬁcant amount of cyber threats impossible to be

revealed without further information gathered from

sources external to the enterprise network. Moreover,

security information is most of the time also sensi-

tive information, therefore the sharing infrastructure

needs to employ mechanisms to protect the shared

data against leakage, misuse and loss of reputation.

Organizations tend to cooperate more between each

other if a trusted third party guarantees for privacy in

the communication (ENISA, 2013b).

To bridge this gap, SOCs such as (German Federal

Ofﬁce for Information Security, 2014), (National Cy-

ber Security Center - Ministry of Security and Justice

- Netherlands, 2014) and (Government of Canada -

Cyber Security, 2014), are recently being established.

SOCs collect security-relevant information generated

by a multitude of systems, correlate it and try to com-

prehend whether the monitored systems are encoun-

tering anomalies, or are under attack. Once a threat

is identiﬁed, a SOC also provides technical support

to mitigate the effects it might cause, and proposes

strategies for solving the issue.

In the ECOSSIAN project, we propose a Pan-

European three-layered approach (Kaufmann et al.,

2014) to protect CIs by detecting cyber incidents and

timely generating and distributing early warnings to

the monitored infrastructures. As depicted in Fig-

ure 1 we foresee three types of SOCs: Organization

SOC (O-SOC), National SOC (N-SOC), and Euro-

pean SOC (E-SOC). At O-SOC level organizations

deploy sensors and tools for threat detection, and re-

port to N-SOCs about incidents that might have cross-

organizational relevance. There are several differ-

ent types of information O-SOCs share with their

respective N-SOC. Data generated by sensors at O-

SOC level can be automatically forwarded to the N-

SOC acquisition module; security relevant informa-

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

106

tion (such as threats, vulnerabilities, observations,

etc.) obtained by analyzing locally detected anoma-

lies, can instead be manually reported by O-SOC op-

erators. N-SOCs are deployed by European Member

States joining the ECOSSIAN network, they are re-

sponsible for gaining cyber situational awareness on

the network on national CIs. Here cyber intelligence

is acquired by analyzing information gathered from

different data sources such as reporting O-SOCs, fed-

erated N-SOCs, publicly available sources, etc. Cyber

incident information aggregation, correlation, clus-

tering and analysis are the main functionalities pro-

vided at this level. Once the evaluation of the analy-

sis results is concluded, mitigation steps, advisories,

or early warnings are sent back to the reporting O-

SOCs. At the highest level an E-SOC performs anal-

ysis of strategic information shared by the different

N-SOCs and distributes advisories to targeted lower

level SOCs.

3 ILLUSTRATIVE SCENARIO

In this section we describe a ﬁctional but realistic sce-

nario of advanced cyber attacks in today’s setting. It

further demonstrates the need for SOCs and coopera-

tion.

WonderLight is the main energy provider in Coun-

tryX, one of the European Member States. The corpo-

rate is structured in ﬁve different departments located

in three different sites on the national territory. Three

power plants of different size produce electricity dis-

tributed to more than 40% of the population.

Each chief of department receives a well-crafted

email, apparently sent by the CEO asking the recipi-

ent to click on a link to get access to the last quarterly

ﬁnancial report. Two recipients (Dr. A and Dr. B)

click on the link and are directed to an empty web

page. Dr. A and Dr. B. close the web browser ig-

noring the effects of their clicks and keep carrying

out their activities. Mrs. C, who received the mes-

sage as well, suspects about the trustworthiness of the

email, but being uncertain of what to do, she deletes

the email from the mail client without clicking on the

link. The remaining two victims (Mrs. D and Dr.

E) are more familiar with cyber-security issues and

since they are aware that the ﬁnancial report would

not be ready before three weeks, they immediately re-

alize the email they just received is malicious. They

report the security event to the company’s IT depart-

ment in charge, among other tasks, of investigating

cyber-security issues.

The IT department examines the reported issue,

but due to lack of resources (personnel, time, tools)

for a deep inspection, and noticing that the web page

is not reachable anymore when clicking on the re-

ceived link, they simply alert all the company em-

ployees about the occurred phishing attempts and in-

struct them not to click on any link received in similar

emails.

Moreover, Dr. A and Dr. B, by clicking on

the link, inadvertently downloaded through their web

browser a sophisticated malware undetectable by the

antivirus solutions installed on their machines. The

malware exploits a Windows vulnerability, executes

a daemon performing port scanning and communi-

cating with the command and control server through

an encrypted connection. The malicious software de-

tects a list of open ports and hence allows the at-

tackers to gain remote privileged access to the in-

fected computers. The attackers remotely connect

to these machines and thanks to their privileges are

able to browse through the corporate network, explore

privacy-sensitive documents, and get access to the In-

dustrial Control Systems (ICSs) managing the energy

production at the power plants.

The attackers are skilled and motivated activists

aiming at boycotting and damaging WonderLight’s

and other European energy providers’ reputation be-

cause of their questionable environmental policy. Af-

ter three weeks of undetected intrusion, the attackers

have gained a good knowledge of WonderLight’s in-

frastructure. They start maneuvering numerous Pro-

grammable Logic Controllers (PLCs) employed in the

ICSs at the main power plant, and gradually decrease

the energy production until shutting down entire por-

tions of the electrical network. This causes hours of

blackouts in several regions of the country until the

business continuity plan of WonderLight is activated,

the intrusion is detected and the normal energy pro-

duction is restored. Such an event implies a consider-

able loss of revenue and reputation for WonderLight.

If similar APTs target at the same time every other

energy provider in the country, the effects of such dis-

tributed attack can be dramatic (Reichl et al., 2013).

Although modern European States rely on CIs

employing state-of-the art intrusion detection sys-

tems (IDs) and off-the-shelf industrial control sys-

tems, they are not able to prevent the described attack

scenario because they lack of dedicated organization

and especially national cyber SOCs, the CIs do not

cooperate with one another, and they rarely examine

cyber threat intelligence generated by third parties.

Starting from the presented scenario we derive

in the following section the main functional require-

ments for the analysis system, deployed at the N-SOC

in the ECOSSIAN ecosystem, to tackle the outlined

security challenges.

A Collaborative Analysis System for Cross-organization Cyber Incident Handling

107

4 FUNCTIONAL

REQUIREMENTS

Diverse aspects are to be considered when designing

an incident analysis system for a national SOC in the

ECOSSIAN ecosystem.

In order to have a comprehensive picture of the

cyber security situation of the CIs in a country, it is

necessary for the N-SOC to collect relevant informa-

tion from multiple sources.

Publicly available information should be collected

and taken into account to obtain a broad knowledge on

the most recent security events. Information such as

latest available updates and patches, discovered vul-

nerabilities, released security bulletins should be con-

sidered while handling cyber incidents on a national

level.

At organization’s level state-of-the-art intrusion,

threat and anomaly detection systems are required to

be in place aiming at revealing malfunctions, attacks

and deviations from the normal systems’ behavior.

The outcomes generated by such tools (alarms, alerts,

logs, etc.) are analyzed and processed by O-SOC op-

erators and if necessary forwarded to the N-SOC. In

ECOSSIAN we foresee two types of information to

be transmitted from O-SOCs to N-SOC. Manual re-

ports can be ﬁlled out by O-SOC operators describ-

ing observed security incident and then sent to the N-

SOC through a secure and privacy-preserving sharing

network; moreover data automatically generated by

sensors

deployed in the infrastructure (including IDS

alerts, ﬁrewall logs, SIEM alarms, and ECOSSIAN

sensor readings) can automatically be collected by the

N-SOC acquisition module (Settanni et al., 2015).

In order to regulate the information sharing pro-

cess between O-SOCs and the respective N-SOC, re-

porting policies must be in place. Source and destina-

tion entities, formats, timing, frequency, content and

every other detail of the sharing processes has to be

speciﬁed within these policies. Only adhering to this

commonly agreed set of rules different organizations

can cooperate effectively in a trusted manner.

Another crucial aspect to take into account is pri-

vacy. Organizations will be prone to cooperate with

one another and share security data only if conﬁden-

tiality is guaranteed. Data protection is fundamental

for the design of a secure incident sharing network

We assume here that EOCSSIAN sensors are deployed

at each organization’s infrastructure and are conﬁgured to

generate and periodically transmit (after approval) inter-

preted security data representing the health status of ser-

vices running at the speciﬁc infrastructure they monitor.

This data does not need to be further interpreted by the N-

SOC.

and the implementation of an efﬁcient incident anal-

ysis system. Access control, anonymization and en-

cryption functionalities must be therefore enabled.

The process of cyber incident handling can mas-

sively be supported by automated procedures and

software tools for aggregating, classifying and ana-

lyzing frequently generated and high volume incident

data. However, not all the analysis tasks can be car-

ried out without human involvement; complex issues

and manually reported incidents, received less fre-

quently than sensor readings, need to be thoroughly

examined by N-SOC security experts.

The cooperative analysis system we propose in

this paper has the purpose of facilitating the acqui-

sition of national cyber situational awareness, and as-

sisting the decision making process by bringing sig-

niﬁcant intelligence to the attention of N-SOC opera-

tors. To achieve this goal sophisticated visualization

tools demonstrating the current security situation of

the monitored national CIs are required.

5 COOPERATIVE ANALYSIS:

THE LINKING MODEL

In this section we introduce CAESAIR: a Cooperative

Analysis Engine for Situational Awareness & Incident

Response. First a theoretical description of the model

is given, then details on the architectural components

and their functionalities are provided.

5.1 Information Entities

In the following we deﬁne the main information en-

tities comprising the data that CAESAIR collects and

generates while processing reported security issues.

We deﬁne as Resource any relevant document col-

lected and stored in the system, such as an incident

report from an O-SOC, a security advisory, a forum

post or an email message. Resources are not changed

over the course of their processing at N-SOC. Both

operators and the analysis engine can attribute a Re-

source to clusters and classes of Resources. The set

of existing classes is deﬁned by the N-SOC person-

nel, while the clusters are discovered by the analysis

system during the knowledge base evaluation.

An Artifact identiﬁes a certain concept and an un-

limited number of its text representations (phrases or

regular expressions). The representations are used by

the system to detect the concept in free text, e.g. the

terms “Windows 7” and “ms-win7” identify the same

Artifact MS Windows 7. Two Artifacts may build mul-

tiple one-sided “is-a” relations, such as Linux distri-

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

108

bution to Operating system, or Fedora and Debian to

Linux distribution.

The frequency of Artifacts’ occurrences is one of

the basic metrics used for estimating similarity be-

tween Resources. The more concepts are reﬂected

as Artifacts, the more information is available about

each Resource.

A Tag is a text label that may be attached to a

Resource or Artifact, showing their connection to a

certain concept that is not explicitly mentioned in

them. For example, reports describing a highly tar-

geted spear phishing attack may be tagged by a N-

SOC operator as “suspected APT” and “social engi-

neering”, although the terms APT or social engineer-

ing do not occur in them. Tags also help the operators

to group Resources and Artifacts in an intuitive and

ﬂexible way.

5.2 Information Importing

Resources are added to CAESAIR either manually by

the O/N/E-SOC personnel or automatically via pre-

conﬁgured import interfaces, e.g. web crawlers or re-

mote database APIs.

When a new document is acquired by the analysis

system its text is ﬁrst indexed to the search engine;

then a Resource object is created in the system, refer-

encing the search index entry. The Resource’s text is

therefore scanned for occurrences of Artifacts known

to the system, or possible new Artifacts. Based on de-

tected Artifacts and the original text itself, the system

attempts to attribute the Resource to one of the known

classes and clusters. Finally, the new Resource is for-

warded for evaluation by an operator, who can con-

ﬁrm or reject the system’s suggestions.

Artifacts may be created by the system accord-

ing to predeﬁned rules, or manually by the O/N/E-

SOC operator. All stored Resources will be regularly

scanned for occurrences of newly added Artifacts; if

an Artifact is deleted, records of its occurrences are

also removed.

Furthermore, the system may create new Artifacts

if it discovers a phrase matching a certain rule deﬁned

by the operator, such as “two words beginning with

capital letters”. This behavior differs from detecting

representations of a single Artifact based on a regular

expression: in that case the text match was marked

as an occurrence of the existing artifact, and here we

create a new Artifact and set its ﬁrst representation

string equal to one that matched our rule.

5.3 Resource Linking Model Deﬁnition

CAESAIR’s analysis process aims at identifying all

R1: Vulnerability Report

A2: Linux

A7: Adobe Flash Player

A12: Sandbox escape exploit

A13: Chromium

R2: Vulnerability Confirmation

A3: Windows

A7: Adobe Flash Player

A14: Internet Explorer

R3: Security Advisory

A2: Linux

A3: Windows

A7: Adobe Flash Player

A10: CVE reference

A11: Exploit

R4: Security Advisory

A2: Linux

A12: Sandbox escape exploit

1,2

= score(A7)

R1,R2

1,3

= score(A2)

R1,R3

+ score(A7)

R1,R3

+ 0,5*score(A11)

R1,R3

2,3

=score(A3)

R2,R3

+ score(A7)

R2,R3

3,4

=score(A2)

R3,R4

1,4

= score(A2)

R1,R4

+ score(A12)

R1,R4

A1: Operating

System

A2: Linux A3: Windows

A6: Software

A7: Adobe

Flash Player

A8: Web

Browser

A10: CVE

reference

A11: Exploit

A12: Sandbox

escape exploit

A13: Chromium

A14: Internet

Explorer

A15:

Vulnerability

Figure 2: Top: Example of a Resource Linking Diagram.

Bottom: Example of an Artifact Relation Diagram.

existing Resources linked to the Resource under ex-

amination or to a given text, deriving possible corre-

lations between Resources, and revealing patterns in

distribution of Resources over time and locations.

The resource linking process is based on interrela-

tions between Resources, which represent documents

containing text, and Artifacts, which represent con-

cepts and their text representations.

If a Resource’s text contains at least one represen-

tation of a certain Artifact, this Artifact is considered

related to the Resource. Each such relation is further

referred to as Occurrence of an Artifact in a Resource.

A Resource may or may not have any arbitrary num-

ber of Occurrences of any Artifacts, as long as each

Occurrence has at least one unique representation in

the Resource’s text (it may be a phrase, word or even

a single character). Figure 2 depicts an example of

Artifacts included in different Resources (upper part

of the ﬁgure), and how Artifacts can be related to one-

another (lower part of the ﬁgure).

Given a certain Resource r

, containing the arti-

facts a

, a

and a

, the algorithm calculates its

linkage to the sample Resource r

as follows.

Let R be the set of all Resources, and R

the set

of Resources having at least one Artifact in common

with r

. Let us assume R

= {r

, r

}. Let A

0,1

be a set of Artifacts present both in r

and r

. Let us

assume it contains the Artifacts a

, a

and a

: A

0,1

, a

}

Now for each artifact a

in A

0,1

, we deﬁne the rat-

ing score as:

score

= f

(T FIDF(a

, r

, R

T FIDF(a

, r

, R

), f req(a

, R))

(1)

where:

A Collaborative Analysis System for Cross-organization Cyber Incident Handling

109

T FIDF(a, r, Rm) function determining the Term

Frequency-Inverse Document

Frequency weight of an Artifact

a in the resource r considering

the set of resources havinig

mutual artifacts R

f req(a, R) function returning the sum of

boolean frequencies of the Ar-

tifact a in the set R of all Re-

sources

customizable scoring function

We then determine the linkage between r

and r

the sum of scores for each Artifact in A

0,1

link

∑

i=0

score

+ f b (2)

where N is the number of Artifacts that occur in A

0,1

and f b is an optional value representing the operator’s

feedback on the goodness of the link (its value can be

grater or smaller than zero).

Figure 2 also shows how four Resources are linked

to one-another. The thickness of the lines connecting

the Resources indicates how signiﬁcant the Resources

are to one-another and is proportional to the calcu-

lated link.

5.4 Knowledge Base Querying

The knowledge base contains the full and up-to-date

information available at the N-SOC; search and ﬁlter-

ing functions make this information available to the

N-SOC personnel and authorized parties.

Two ways of searching are provided:

1. By text: to ﬁnd Resources containing the speci-

ﬁed text. In this case the results are rated by a

customizable combination of:

• number of matches in a single Resource;

• number of matches in Resource’s Tags or re-

lated Artifacts;

• proximity between the query and found

matches.

2. By Resource: to ﬁnd Resources that are linked to

the speciﬁed sample Resource. In this case the

search results (Resources) are rated by:

• text match criteria mentioned in the previous

paragraph;

• number of Artifacts that are present in both the

search match and the sample;

• cross-combinations of matching Artifacts in

other Resources: a Resource containing match-

ing Artifacts that do not appear in other Re-

sources may be rated higher;

• number of Artifacts that do not directly match

with those from the sample, but have a common

parent node in the is-a hierarchy.

Let us assume there are Artifacts represent-

ing some operating systems named MS Windows,

FreeBSD and Debian, whereby FreeBSD and Debian

have an “is-a” relation to an Artifact representing

UNIX-like operating systems. All of the artifacts also

have an “is-a” relation with the Artifact “Operating

system”. Now, if the Resource given as search sam-

ple contains the Artifact “Debian”, then a Resource

containing “MS Windows” will be rated lower than a

Resource having “FreeBSD”. A Resource that has no

common Artifacts with the sample will, as expected,

not receive any rating for this, but can still be rated

higher than others if it better satisﬁes the text match

criteria.

Filtering allows, instead, to select groups of Re-

sources that exactly satisfy given binary criteria such

as presence of speciﬁc Artifacts or words in the Re-

source’s text, or being part of a speciﬁc class or clus-

ter.

5.5 Statistical Analysis

The population of Resources in CAESAIR’s knowl-

edge base comprises all information the N-SOC has

about the current security situation. To keep track

of this situation, CAESAIR regularly evaluates the

knowledge base. First it computes statistics describ-

ing a predeﬁned set of Resources’ properties, such as

frequency of Windows software vulnerability reports,

top 100 incident reports sorted by damage level, as

submitted by the victim, etc. Moreover it determines

Resource clusters (based on quantitative properties of

Resources), and then it looks for patterns or anomalies

in relations between the Resources. For instance, an

unprecedented increase in attack reports submitted by

energy sector companies, which the N-SOC person-

nel noticed anyway, can appear correlated with phish-

ing campaigns recently reported by another federated

N-SOC.

6 CAESAIR: SYSTEM

COMPONENTS AND

IMPLEMENTATION

In this section we describe the CAESAIR system

components and provide details on their current soft-

ware implementation.

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

110

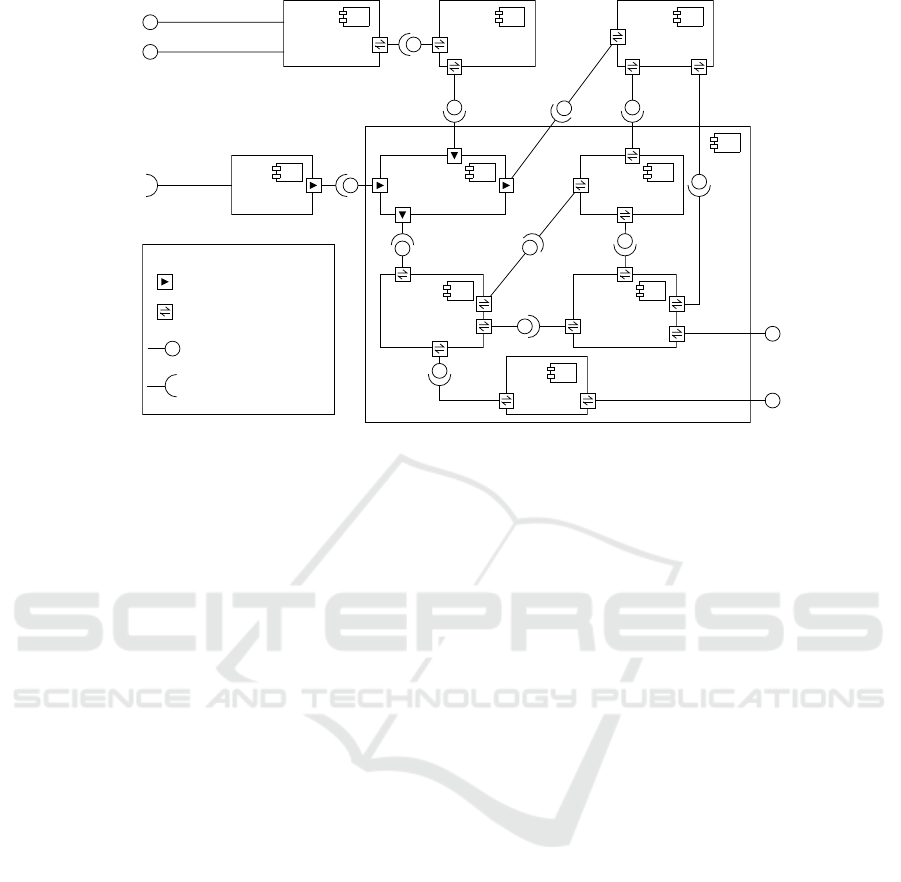

LEGEND

Information Flow direction

Bidirectional Information Flow

Provides Interface

Expects Interface

N-SOC

User

Dashboard

O-SOC

Intelligence

Importer

Admin

Dashboard

Analysis engine

Evaluator

Original

Resource

Storage

Metadata

Storage

Index

Input

Processor

OSINT

Importer

O-SOC

Automated Submission

N-SOC

GUI

O-SOC

GUI

N-SOC

Admin GUI

OSINT

sources access

Figure 3: CAESAIR system components.

6.1 System Components

As shown in Figure 3, CAESAIR consists of the fol-

lowing components:

• Importers for both open intelligence (OSINT) and

the data generated within ECOSSIAN;

• Original resource (document) storage;

• Search index;

• Analysis engine, comprising:

– Incoming data processor;

– Metadata storage;

– Evaluator;

– Dashboards for the N-SOC personnel.

CAESAIR operates based on incoming Re-

sources, the basic units of information for the sys-

tem. The importers of intelligence data acquire new

documents actively (e.g. by crawling given web re-

sources, databases) or passively from open sources

or O-SOCs through a dedicated interface provided by

importers, either graphical or non-graphical.

Importers validate, sanitize each document’s con-

tents and then forward it to the original resource

storage, where it will be kept with read-only access

for future reference.

A copy of each Resource is saved in the search in-

dex, from where it can be retrieved by Resource ID, or

via full-text search over all properties of a Resource.

The input processor collects Resources from the

original storage and checks them for occurrences of

known Artifacts, or for possible new Artifacts. All

detected occurrences and new Artifacts are saved to

the Metadata storage, whereas the new Resources

are forwarded to the search index.

Metadata storage holds all the data produced

within CAESAIR, such as: Artifacts known to the

system, relations between them and Resources, attri-

bution of Resources to clusters and classes, comments

that N-SOC operators add to Artifacts or Resources.

Evaluator is the core component that helps draw-

ing conclusions from the accumulated data: it peri-

odically, in conﬁgurable intervals, queries both the

Metadata storage and the search index to keep track of

interdependencies between Artifacts and Resources.

Using the resource linking model discussed in Section

V, it also estimates similarities between Resources,

attributes them to clusters and suggests classiﬁcation

for them. On request from an N-SOC user the Eval-

uator also answers the question: ”what Resources

known to the N-SOC are similar to the given one?”.

By running the Linking Model (see previous section)

the Evaluator identiﬁes and prioritizes the Resources

with highest pertinence to the Resource currently an-

alyzed.

The N-SOC dashboard is the primary way for N-

SOC personnel to use the system. It provides a graph-

ical and a programming interface for querying the

analysis system and giving feedback on the queries,

searching for Resources and monitoring patterns in

the accumulated data.

When an N-SOC operator is handling an incom-

ing incident report, the graphical interface will use the

Evaluator’s search and ﬁltering API to display the list

of Resources that seem to be relevant to the current

A Collaborative Analysis System for Cross-organization Cyber Incident Handling

111

context. The operator may narrow down the results

set by setting additional ﬁltering criteria (e.g. only

display the Resources added in March 2015 and from

two speciﬁc sources).

Finally, the administrator dashboard allows

manually tuning the system’s parameters and directly

accessing the Metadata storage. It is supposed to be

used for maintenance rather than normal work-ﬂow.

6.2 Implementation

CAESAIR’s storage components (Metadata and Orig-

inal Resource Storage) are based on PostgreSQL

database servers. For the search index we employ

Elasticsearch

, an open-source search engine that is

optimized for frequently updated dataset and offers a

ﬂexible API for querying and indexing data.

The logic components (Importers, Input Proces-

sor, Evaluator and Dashboards) run by the N-SOC,

are developed as Python modules.

O-SOC intelligence importer will function as a

service available to O-SOCs via an online ticketing

system (Request Tracker

) hosted at the N-SOC. The

service will also provide an API, allowing O-SOCs

to interact with CAESAIR using custom software.

The open source intelligence importer incorporates

Python modules for retrieving and parsing data in var-

ious formats from different sources (such as a web-

site, database, ﬁle system). It runs on-demand or per-

manently, pushing new data to the Analysis engine

as they appear in the targeted source. The Input Pro-

cessor is triggered by the Open Intelligence Importer

whenever new documents are available; it also ac-

tively checks the Original Resource Storage for up-

dates.

The Evaluator runs periodically to recalculate the

statistics (information on clusters, classes, patterns

detected in Resources and Artifacts) and save it to the

Metadata Storage.

The N-SOC user and administrator dashboards,

implemented as web applications with Python, serve

Javascript-powered client GUI and querying the

Metadata storage, the Search index and the Evalua-

tor. They also validate and forward user commands

and feedback to the Evaluator, and update the Meta-

data storage as needed.

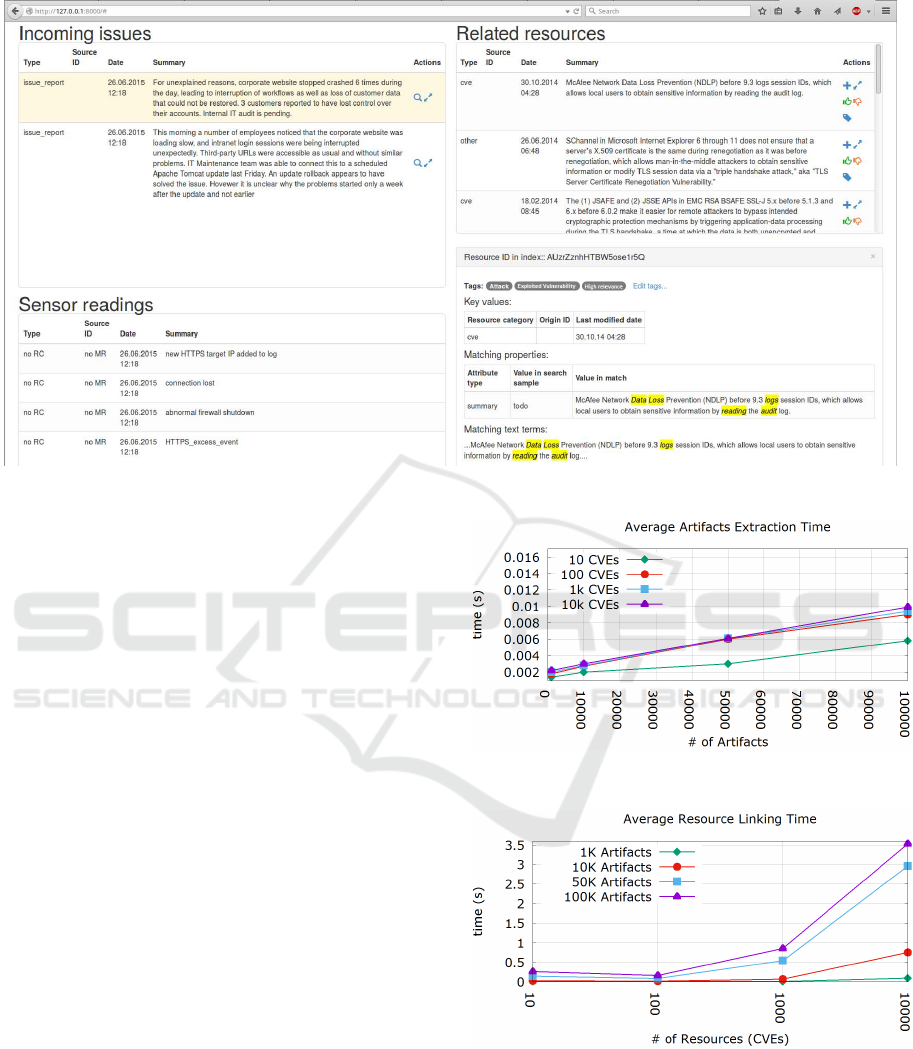

Figure 4 depicts a screen-shot of the main view of

the N-SOC user dashboard. The left panel lists the

Resources to be analyzed. On the right panel a set

of Resources, linked to the one currently selected, are

displayed.

http://www.postgresql.org/

https://www.elastic.co/

https://www.bestpractical.com/rt/

7 SYSTEM EVALUATION

In order to assess the performance and the soundness

of the implemented system we deﬁned relevant quan-

titative and qualitative metrics and we ran a number

of tests to extract measures under different functional

conditions. The evaluation setup, the deﬁned perfor-

mance metrics, the obtained measures and the derived

conclusions are reported in this section.

7.1 Evaluation Setup

All the tests have been executed on a machine with In-

tel(R) Xeon(R) CPU E5-1620 v2 at 3.70GHz 8 cores

and 16GB memory, running Ubuntu 12.04.5 LTS op-

erating system.

To our best knowledge no publicly available

repository of incident reports exists, hence to mea-

sure the performance of our system we imported in

the Resource knowledge base elements from Common

Vulnerabilities and Exposures (CVE)

database with

entries registered between 2013 and 2015, including

16 thousand elements.

For the sake of simplicity in this work we lim-

ited the Artifacts extraction to the identiﬁcation of

only product and platform names within the Re-

sources. We therefore imported the complete Com-

mon Platform Enumeration (CPE)

repository (count-

ing around 100 thousand entries), and generated an ar-

tifact (with its different representation) for each entry

of this archive.

7.2 Quantitative Evaluation

To quantitatively evaluate our system we observed its

scalability, in terms of resources required to perform

its operations, considering a variable number of exist-

ing resources and artifacts in the knowledge base. In

close cooperation with the ECOSSIAN partners we

speciﬁcally took care about a realistic setup. We fo-

cused on two main timing metrics:

• t

Aext

: average time required to extract Artifacts

(CPE entries) relevant to a Resource r

• t

Link

: average time to link a Resource r

to any

other relevant Resource r

in the set R

Two Resources having at least a common Artifact

are linked according to the method described in Sec-

tion 5.3. The scoring function f

adopted in our tests

https://cve.mitre.org/

https://cpe.mitre.org/

is the set of Resources having at least one Artifact

in common with r

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

112

Figure 4: Screenshot of one view of CAESAIR’s dashboard.

is the sum. We did not consider any operator’s feed-

back not to bias the evaluation of the automated link-

ing. Hence given an Artifact a

present in 2 resources

and r

score

i j

= T FIDF(a

, r

, R

)

+T FIDF(a

, r

, R

)

+ f req(a

, R)

(3)

and

link

i j

∑

x=0

score

i j

(4)

Where N is the number of Artifacts present both

in r

and in r

During our tests we imported into the system,

through the CAESAIR importing component, a vari-

able number of randomly selected CVE entries. We

also let the number of imported CPE entries variate,

so to determine how the number of existing Resources

and Artifacts inﬂuences the system’s performance.

Figure 5 shows how the average Artifacts extrac-

tion time t

Aext

changes when considering a variable

number of Artifacts (CPEs), and a variable number

of Resources (CVEs). Analyzing this graph we can

observe that the Artifacts extraction function scales

with the number of Artifacts present in the knowledge

base. In fact even considering 100 thousand CPEs the

average time required to extract all the Artifacts from

a Resource is around 10 milliseconds. We can notice

this is true for every number of Resources we consid-

ered.

Figure 5: Average Artifacts extraction time vs number of

CVE Resources vs number of Artifacts (CPE).

Figure 6: Average Linking time vs number of CVE Re-

sources vs number of Artifacts (CPE).

Figure 6 shows how the average Resource linking

time t

Link

changes when considering a variable num-

ber of Resources (CVEs), and a variable number of

Artifacts (CPEs). Observing this graph we can con-

clude that, as predicted, the linking method requires

longer time when the number of Resources to analyze

A Collaborative Analysis System for Cross-organization Cyber Incident Handling

113

grows. Moreover the average Resource linking time

grows with the number of existing Artifacts. This is

due to the fact that the more Artifacts and Resources

are present in the knowledge base, the more queries

the system has to execute to obtain the Resources re-

lated to the one under analysis. Looking at graph in

the case of 10 thousand Resources and 100 thousand

Artifacts, we can observe how, given a Resource, the

linking function needs around 3.5 seconds to obtain

all the Resources in the knowledge base having at

least one mutual Artifact. This is a relatively short

time considering that it corresponds to the time the

operator will need to wait after clicking on a Resource

to obtain all the related Resources. We foresee that

this time could get smaller if we would adopt a less

stringent linking method not based on perfect match-

ing of all the Artifacts Resources contain, but on a

fuzzy search of only the most relevant Artifacts of the

Resource.

7.3 Qualitative Evaluation

In order to perform a qualitative assessment of the de-

signed Resource linking method we adopted the Del-

phi method (Sackman, 1974). A group of 3 experts

with cyber security background and periodically in-

volved in cyber incident handling activities, have been

selected and asked to judge the results of our Re-

source linking method. Statistics on this manual as-

sessment allow a preliminary qualitative evaluation of

our approach.

We let the system extract Artifacts (from the 100

thousands imported CPEs) and generate links for a

set of 10 thousand Resources (CVEs). We consid-

ered a set of 25 different randomly selected linked

Resources (i.e., Resources with at least 1 link) and

assigned them to each expert. The experts graded the

relevance of all the links the system created for each

analyzed Resource, with a score S between 0 (not rel-

evant at all) and 5 (very relevant). The average

S and

the median

S of the scores obtained by each expert are

reported in Table1. The table reports small discrepan-

cies between the evaluation results of the 3 experts.

Indeed the average scores variate in a range between

2.8 and 3.28. Moreover, given the experts’ evalu-

Table 1: Average results of 3 experts’ qualitative evalua-

tion. Analysis based on the links obtained on 25 randomly

selected Resources.

Expert 1 2.96 3

Expert 2 3.28 4

Expert 3 2.8 3

Average 3.01 3.33

ation, we can derive from a preliminary and rough

analysis that the linking method provides quite accu-

rate matches between existing related Resources. The

qualitative assessment proposed here will be further

validated in the future by the design and the adoption

of an analytical evaluation approach.

8 ILLUSTRATIVE APPLICATION

In this section we validate the presented approach. We

focus on the advantages derived from its deployment

in the ECOSSIAN ecosystem to tackle the security

issues outlined in the scenario in Section 3.

Considering the scenario, if WonderLight (the tar-

geted company) would be part of ECOSSIAN and

it would therefore have a highly qualiﬁed O-SOC in

place (required to join the ECOSSIAN ecosystem),

the O-SOC operators would receive notiﬁcation by

the employees recognizing the suspicious mails, and

using the ECOSSIAN platform they would report a

security incident to the N-SOC including a copy of

the suspicious email.

Let us assume the attack was performed on inter-

national scale, and targeted many European small and

medium energy providers employing a particular se-

ries of PLCs produced by a speciﬁc vendor. In this

case the CountryX’s N-SOC receives security issues

not only from the WonderLight’s O-SOC, but also

from other affected energy organizations in Coun-

tryX. The N-SOC uses CAESAIR to optimally prior-

itize and analyze the acquired reports, and correlating

them it derives that a common threat is targeting lo-

cal energy providers. The N-SOC operators generate

hence a security alert and distributes it to all O-SOCs

belonging to the energy sector, asking to those which

didn’t report any issue yet, to inform the N-SOC if

they encountered any similar situation.

Some hours later, the CountryY’s N-SOC learns,

through open source intelligence feeds, about a zero-

day exploit that takes advantages of a newly discov-

ered shell vulnerability and gains privileged remote

access to a system. This N-SOC informs the E-SOC

which opportunely forwards this security information

to all the other N-SOCs.

In order to check if the suspicious emails were

connected to the newly discovered zero-day exploit,

the CountryX’s N-SOC asks the energy O-SOCs to

conﬁgure the ECOSSIAN sensors to provide informa-

tion about IP addresses and ports currently active in

their infrastructure. The N-SOC obtains automated

data from the ECOSSIAN sensors, and employing

CAESAIR is able to discover whether the attacker

gained already remote access to the different organi-

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

114

zations’ infrastructure. Affected organizations would

in fact have same suspicious ports and IP addresses in

use.

Our system provides a user-friendly graphical in-

terface that allows the operator to quickly browse

through relevant resources, conveniently ranked by

the analysis engine, and investigate on reported in-

cidents by querying the knowledge base. N-SOC op-

erators are therefore able to easily assess the cyber

security situation of the CountryX by analyzing the

derived intelligence, and will inform the affected or-

ganizations (by distributing tailored advisories to the

respective O-SOCs) on how to mitigate the detected

threat.

Indicators of Compromise (IoCs) will be gener-

ated by the CountryX’s N-SOC and they will be sent

(within an incident report informing about the de-

tected cyber threat) to the E-SOC. The E-SOC will

possibly receive multiple reports related to the same

issue from different affected N-SOCs. After acknowl-

edging the incident the E-SOC will distribute the re-

spective IoCs and inform interested N-SOCs about

it. Receiving N-SOCs will investigate through the O-

SOCs if any organization in their country was affected

by the security issue, and will give their feedback to

the E-SOC. The information collected at E-SOC will

be analysed and will allow to obtain cyber situational

awareness at European level.

This use-case demonstrates how the ECOSSIAN

ecosystem would efﬁciently address one of the pos-

sible security issues targeting multiple organizations

located in different European countries. By coopera-

tively employing CAESAIR’s outcomes the N-SOCs

operators are able to quickly assess the severity of dis-

tributed threats, contrive possible mitigation steps, al-

low operators to timely react to the security incident

and restrain its impact on their infrastructures.

9 RELATED WORK

Cyber incident handling is becoming a crucial task for

SOCs responsible for the protection of modern CIs.

Increasing amounts of data needs to be properly col-

lected, processed and analyzed to obtain knowledge

on the current security situation and derive proper

countermeasures in case of threats.

Regulatory bodies have recently started issuing

directives (European Commission, 2013), frame-

works (European Commission, 2009), and guidelines

(ENISA, 2013c), in order to raise the awareness on

cyber threats among CI organizations, regulate on the

establishment of required countermeasures, and de-

ﬁne roles and responsibilities of the entities involved

in handling cyber incidents on national and interna-

tional level.

Moreover, several solutions have been proposed

which aim at efﬁciently process and share threat in-

formation.

In (IBM, 2013) IBM presents X-Force, a system

for automated threat analysis based on dynamic Inter-

net data to gain insight and context in security inci-

dents.

FIDO, an open source system for automatically

analyzing security events and responding to security

incidents is introduced by NETFLIX in (NETFLIX,

2015). FIDO is an orchestration layer that automates

the incident response process by evaluating, assessing

and responding to malware and other detected threats.

A more sophisticated solution is proposed by Air-

bus Defence & Space in (AIRBUS, 2014); Cymerius

is a decision-making engine which operates within a

SOC and permits real-time management of IT sys-

tem security by taking into consideration the organi-

zational aspects of the monitored infrastructure.

ENISA, in cooperation with a group of four Eu-

ropean CERTs, is currently working on an Incident

Handling Automation Project (IHAP) (ENISA, 2015)

which aims at improving the incident handling pro-

cess by increasing automation and providing an easy-

to-set-up and deploy solution for incident response

process. In IHAP CERT teams use a uniﬁed Data

Harmonization Ontology to enhance the actionable

reporting and analysis of the collected abuse informa-

tion.

Since 2010 an open community is developing

CRITS (Collaborative Research Into Threats)

, an

open source malware and threat repository which

combines an analytic engine with a cyber threat

database. CRITS serves as a repository for attack data

and malware, and provides analysts with a platform

for conducting malware analysis and correlation of hi-

erarchically structured cyber threat information

All the aforementioned approaches and tools are

based on automated processing of incident data and

do not foresee any human involvement while handling

security incidents. The system we presented in this

paper differs by massively supporting SOCs’ analy-

sis tasks with automated information aggregation and

correlation, but at the same time involves security an-

alysts in the decision making phase. Since CAESAIR

is an assisted-learning system, it also allows analysts

to provide feedback on the soundness of the conclu-

sions derived, and therefore train the engine to dy-

namically adapt to evolving security issues.

https://crits.github.io/

Open source structured data exchange formats such as

STIX, CybOX and TAXII are used within CRITS.

A Collaborative Analysis System for Cross-organization Cyber Incident Handling

115

10 CONCLUSION AND FUTURE

WORK

In this paper we introduced CAESAIR, a model for

the analysis of cross-organizational cyber incidents

that aims at supporting National Security Operation

Centers in gaining cyber situational awareness and re-

sponding to detected security issues.

Thanks to its self-learning search engine, CAE-

SAIR improves its incident querying capabilities and

hence allows N-SOCs to achieve high incident han-

dling rates.

The system performance evaluation proved the

feasibility and the scalability of our approach by

demonstrating how the main functional tasks pro-

vided by CAESAIR can be implemented and exe-

cuted on real data at a high rate. We eventually

provided a preliminary qualitative assessment of the

CAESAIR Resource linking function adopting the

Delphi method.

Future work include the investigation of advanced

Resource linking procedures (e.g., based on Bayesian

and neural networks), the development and integra-

tion of functionalities for allowing assisted learning

through operator’s feedback, code optimization in or-

der to guarantee improved scalability, and the design

as well as the implementation of an analytical evalu-

ation method for the assessment of the different fore-

seen Resource linking procedures.

ACKNOWLEDGEMENTS

This work was partly funded by the European Union

through the FP7 project ECOSSIAN (607577) and the

Austrian FFG research program KIRAS in course of

the project CIIS (840842)

REFERENCES

AIRBUS (2014). CYMERIUS - Security Manage-

ment Tool. http://www.defenceandsecurity-

airbusds.com/web/guest/1299.

ENISA (2013a). Cybersecurity cooperation: Defending the

digital frontline.

ENISA (2013b). Detect, share, protect. Technical report,

EU Agency for Network and Information Security.

ENISA (2013c). Technical Guideline on Incident Report-

ing.

ENISA (2015). Incident Handling Automation Project.

European Commission (2009). Article 13a of the Regula-

tory Framework for Electronic Communications in the

European Union.

European Commission (2013). Commission proposal for a

directive concerning measures to ensure a high com-

mon level of network and information security across

the union.

German Federal Ofﬁce for Information Security

(2014). German it crisis management webpage.

https://www.bsi.bund.de/EN/Topics/IT-Crisis-

Management/itcrisismanagement node.html.

Government of Canada - Cyber Security (2014). Cana-

dian cyber incidents response center homepage.

http://www.publicsafety.gc.ca/cnt/ntnl-scrt/cbr-

scrt/ccirc-ccric-eng.aspx.

IBM (2013). Combat the latest security attacks with global

threat intelligence.

Kaufmann, H., Hutter, R., Skopik, F., and Mantere, M.

(2014). A structural design for a pan-european early

warning system for critical infrastructures”. In Elek-

trotechnik und Informationstechnik. Springer.

National Cyber Security Center - Ministry of Security and

Justice - Netherlands (2014). Dutch cyber security

center homepage. https://www.ncsc.nl/english/.

NETFLIX (2015). Introducing FIDO: Automated Security

Incident Response.

Reichl, J., Schmidthaler, M., and Schneider, F. (2013). The

value of supply security: The costs of power outages...

Energy Economics, 36:256–261.

Sackman, H. (1974). Delphi assessment: Expert opinion,

forecasting and group process. An Experiment in

Probabilistic Forecasting.

Settanni, G., Skopik, F., Fiedler, R., and Shovgenya, Y.

(2015). A blueprint for a pan-european cyber incident

analysis system”. In Proceedings of 3rd International

Symposium for ICS and SCADA Cyber Security Re-

search, pages 84–88.

Tankard, C. (2011). Advanced persistent threats and

how to monitor and deter them. Network Security,

2011(8):16–19.

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

116
