Multi-level Dynamic Instantiation for Resolving Node-edge

Dichotomy

Zoltan Theisz

and Gergely Mezei

Huawei Design Centre, Athlone, Ireland

Dept. of Automation and Applied Informatics, Budapest University of Technology and Economics, Budapest, Hungary

Keywords: Meta-modeling, Instantiation, Multi-level Modeling, Node-edge Dichotomy, ASM.

Abstract: The core idea of metamodel-based model construction is well established. However, there are different meta-

modeling approaches relying on various modeling structures and instantiation procedures. Although, in

general, these approaches offer similar features, they are sometimes incompatible with each other. Therefore,

a precise abstract definition of instantiation is needed. The paper describes an abstract modeling framework,

which is easily customizable in order to adapt it to different multi-level modeling techniques. The framework

consists of an abstract modeling structure, basic built-in constructs, and a dynamic instantiation procedure.

The paper demonstrate the flexibility of the approach by a specific bootstrap that is explicitly designed for the

rebalancing of the node-edge antagonism, which is mostly the origin of many reification patterns applied in

current meta-model designs. Although the proposed solution to the node-edge dichotomy is only an example

of our multi-level meta-modeling approach, it is per se a valuable achievement showing that it can be done in

a more elegant manner than it is usually expressed in other state-of-the art modeling frameworks.

1 INTRODUCTION

State-of-the-art telecom service management

operates on Cloud-based software components such

as Virtual Network Functions (VNF) (NFV, 2013).

The central piece of the service orchestrator is a

flexible modeling core that enables gradual

instantiation of meta-objects through various stages,

corresponding to different levels of detail set by the

individual stakeholders representing the collaborating

partners of a telecom service ecosystem.

Contemporary such solutions usually consist of ad-

hoc pattern-based multi-level meta-modeling

implementations, which are reliant on either

relational database techniques or XML technologies

to enable jumps between meta-levels via proprietary

domain specific promotion and demotion operations.

Therefore, the integration of these model-based

systems is ad-hoc as well.

Although multi-level meta-modeling is a well-

researched topic, its industry quality tool support has

not been validated or established yet. Moreover, most

of the current approaches address predominantly

design-time aspects of multi-level meta-modeling

and they also do so only from the particular point of

view of clabjects and the potency notion (Atkinson

and Kühne, 2003). However, in Cloud-based software

component management, both components and

connections must be treated equally: all concepts of

multi-level meta-modeling have to be applied

uniformly in order to facilitate automatic and

transparent reification of edges as nodes and vice

versa.

In this paper, we aim to illustrate how a novel

Abstract State Machine (ASM (Boerger and Stark,

2003)) based algebraic formalism for multi-level

meta-modeling can be applied to resolve the node-

edge dichotomy which is prevalent with many meta-

modeling techniques. The paper is structured as

follows: Section 2 introduces the technical

background; it covers both the modeling

requirements originating from state-of-the-art Cloud

software management and the most prominent

solutions of multi-level meta-modeling. Then, in

Section 3, we introduce our Dynamic Multi-Layer

Algebra (DLMA) approach in some detail. Next, in

Section 4, DMLA abstract syntax is applied to a

simplified modeling example to showcase the power

of this formalism to unify the handling of nodes and

edges on the same abstraction levels. Finally, Section

5 concludes the paper and also addresses some of our

future research goals.

274

Theisz, Z. and Mezei, G.

Multi-level Dynamic Instantiation for Resolving Node-edge Dichotomy.

DOI: 10.5220/0005690802740281

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 274-281

ISBN: 978-989-758-168-7

2 BACKGROUND

In this section, first, we shortly introduce the most

well-known management standard for Cloud-based

software components and also elaborate on its

modeling requirements. Then, the major instantiation

techniques and the most prevalent multi-level meta-

modeling approaches are summarized and discussed

from the perspective of the paper. Finally, the concept

of partial instantiation is described.

2.1 Cloud Base Software Systems

Cloud based software management experienced a

rapid change and a relatively quick consolidation

during the last couple of years. Currently its de-facto

standard model is called the Topology and

Orchestration Specification for Cloud Applications

(TOSCA (OASIS, 2013)). The main concepts of

TOSCA are depicted in Figure 1.

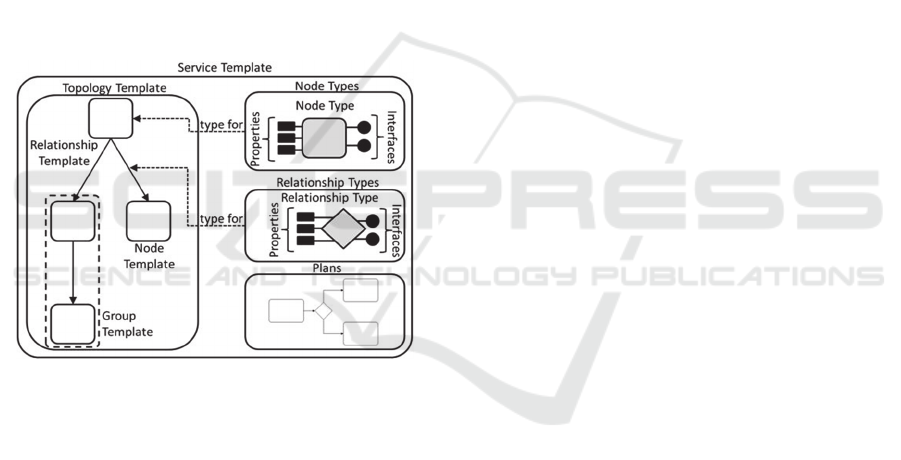

Figure 1: TOSCA structural elements of a service template

and their relations.

The TOSCA meta-model defines both the

structure of the service components and their

management interfaces. A Node Type specifies the

properties of a software component with the

operations which are available to manage it.

Similarly, a Relationship Type defines the semantics

and the properties of the relationship between or

among Node Types. A Topology Template consists

of a set of Node Templates and Relationship

Templates that together define the topology model of

a cloud based service in the form of a graph. The

nodes and edges are instances of Node Types and

Relationship Types.

A Node Template grants two features: 1) it

specifies the occurrence of a Node Type as a

component of a service, 2) it imposes usage

constraints, for example, the number of allowed

instances of that component which can occur there in

run-time. A Relationship Template specifies the

occurrence of a particular relationship between nodes

in a Topology Template, including the direction of the

relationship. Also, it may define further constraints

similarly to Node Templates. Hence, Node Template

and Relationship Template must be handled equally

from the perspective of their modeling role in the

Topology Template. Thus, it also means that

designers of a specification may have to model

similar features repeatedly for both node-related and

relationship-related items. Moreover, by analyzing

practical TOSCA examples, it may easily turn out that

solution architects prefer to reify relations as nodes

and connect them together by further “virtual”

relations due to the lack of proper multi-level meta-

modeling support. May this reification be to be

repeated on various abstraction levels, the topology

templates can become seriously entangled and it may

not be clear later if a particular node stands for itself

or its sole purpose of reification has been some other

relations supposed to be present by a meta-level

below. In other words, the modeling challenge is to

come up with a solid foundation that is able to

explicitly tackle these ad-hoc meta-level

promotion/demotion design decisions and thus to

consolidate them into simple design patterns. Also,

Node and Relationship Types must be handled

equally, that is, the node-edge dichotomy ought to be

tackled upfront by any serious meta-modeling

solution. On the practical side, that robust meta-

modeling framework is to be implemented in such a

way that it can operate on models both in design-time

and run-time via dynamic and partial instantiation of

modelled elements of Service Templates residing at

any particular modeling level.

2.2 Meta-modeling and Instantiation

Meta-modeling systems are based on instantiation,

that is, we create our models by instantiating meta-

models. Therefore, instantiation is the essence of any

meta-modeling discipline. Although the precise

definition of instantiation ought to be the keystone of

any viable modeling technique, it is usually taken for

granted that instantiation is a simple relation similar

to the well-known one between classes and objects.

The similarity looks obvious, but the two relations are

only similar on the surface.

Our approach is based on the common conceptual

foundation of multi-level instantiation techniques, so

firstly we summarize two of such state-of-the-art

multi-level approaches in order to position our work

correctly within this domain.

Multi-level Dynamic Instantiation for Resolving Node-edge Dichotomy

275

2.2.1 Linguistic vs Ontological Instantiation

Linguistic and ontological instantiation were

introduced in (Atkinson and Kühne, 2003). Linguistic

instantiation is the relationship between model

elements on different levels of a multi-level meta-

modeling hierarchy. Linguistic instantiation usually

describes meta-modeling relations between types and

objects. In contrast, ontological instantiation defines

the semantics of modeling constructs. Therefore, for

each modeling level, an additional ontological

instantiation relationship is defined that associates

model elements of that particular meta-level to each

other, according to a certain concern of the problem

domain. In the case of MOF, the model elements on

M1 are linguistic instances of their meta-elements on

M2, however, a particular M1 (or M2) model element

can also be an ontological instance of another element

of the same M1 (or M2) level Although the MOF

architecture does not facilitate both of these two

meta-modeling dimensions equally, it does provide a

mechanism for expressing ontological relationships

by its reliance on stereotypes and profiles. Namely,

stereotypes and profiles defined on M2 level express

ontological instantiation relationships that can be

flexibly used as extra annotation(s) on M1 model

elements.

Although this approach may be utilized to

allow an ontological unification of nodes and edges,

no practical solutions of this kind has been published

yet.

2.2.2 Multi-level Instantiation

Provided that only two modeling levels are available,

instantiation has to be interpreted between these two

levels only. However, in a multi-level meta-modeling

architecture, we may be able to use instantiation

across multiple levels. These techniques can

distinguish between two kinds of instantiation:

shallow instantiation means that the information is

defined on the n

modeling level and it is used on the

immediate instantiation (n+1)

level, while deep

instantiation allows defining the information on the

modeling level and use it on the (n+x)

(x > 0)

modeling level (Atkinson and Kühne, 2001).

Although multi-level modeling solutions are getting

more and more popular, these deep instantiation

methods are rarely utilized. For example, MOF

defines a four layer architecture, but it supports only

shallow instantiation. This results in rigid,

inconsistent relations between meta-types, types and

objects, which is one of the reasons why node-like

and edge-like elements are kept separate due to the

lack of enough meta-levels.

Having multi-level meta-modeling in mind, one

needs to safeguard that each meta-level should be

instantiable by some means of being able to add new

attributes and operations to the existing models.

There are two options available: one can either bring

the source of the information along all model levels

(and eventually use it wherever it may be needed) or

one can add the source of that information directly to

the model element where it is actually used. The

concept of potency notion and dual field notion

(Atkinson and Kühne, 2002) (Atkinson and Kühne,

2001) were introduced as solutions of the problem.

Here, elements within a model may not only be

instances of some element in the meta-model above,

but, at the same time, they may also serve as types to

some other elements in the meta-level below. In other

words, one assumes the existence of an unrestricted

meta-model building facility through clabjects which

is controlled only by the explicit definition of a

potency limit allowing a preset number of meta-levels

an element can be instantiated at. The only drawback

of this solution is that the modelled elements will be

forced to live until the attached non-negative numbers

have been decremented, by each instantiation, to zero.

Hence, the potency solution is both too liberal and too

restrictive at the same time: on one hand, it is too

liberal because at each meta-level the full potential of

meta-model building facilities is available, thus an

arbitrary number of new model elements can be

injected into the model at will and without any

potential restriction. It is definitely good so for

design-time modeling, however it may wreak havoc

in dynamic run-time instantiation if it is used in an

uncontrolled fashion. On the other hand, it is too

restrictive in its treatment of the number of meta-

levels a model element can be located at because the

modeler must know in advance at which levels the

information will be needed and set its potency value

accordingly. In other words, instead of explicitly

encoding the required nature of semantics vis-a-vis

the instantiation constraints within the model itself

and thus making the model agnostic to the artificial

division line set between design-time and run-time

modeling, potency notion simplifies it down to an

integer number and thus positions itself as a pure

design-time multi-level modeling approach.

Moreover, potency notion favors nodes against edges

due to its bias to clabject. Nevertheless, recent

techniques such as Dual Deep Instantiation (DDI)

(Neumayr et al., 2014) consistently extended the

potency notion to edges via its application to the end-

points. Unfortunately, some limitations still remain to

be overcome: firstly, since DDI defines edges by the

endpoints it is non-trivial to extend it by edge-owned

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

276

attributes, which may also have potency values

attached or may be connected to other attributes. In

other words, edges have not made equivalent to nodes

yet, but on the surface they may look equivalent in

particular cases of application domains. For example,

in order to cover TOSCA’s concept of Relationship

Types many more axioms will be needed than as

published in (Neumayr et al., 2014). Secondly, DDI

is still a clabject-based set theory solution. Hence, the

presence of an edge at a particular meta-level is fully

controlled by its related potency values. Therefore,

those potency values must be carefully set and

designed so that only those edges appear at meta-

levels that are really needed to be used there. This

challenge may invalidate DDI’s usage in practical

TOSCA-like modeling situations.

3 DYNAMIC MULTI-LAYER

ALGEBRA

In this section, we shortly introduce our Abstract

State Machine (ASM) (Boerger and Stark, 2003)

based multi-level instantiation technique. An ASM

formalism defines an abstract state machine and a

certain set of connected functions that specify the

transition logic between the states of that machine. In

more detail, a state represents an attribute

configuration, namely, a concrete set of parameter

set-value pairs for the functions of the algebra.

Dynamic Multi-Layer Algebra (DMLA) consists

of three major parts: The first part defines the

modeling structure and defines the ASM functions

operating on this structure. The second part is the

initial set of modeling constructs, built-in model

elements (e.g. built-in types) that are necessary to

make use of the modeling structure in practice. This

second part is also referred to as the bootstrap of the

algebra. Finally, the third part defines the

instantiation mechanism. We have decided to

separate the first two parts because the algebra itself

is structurally self-contained and it can also work with

different bootstraps. Moreover, a concrete bootstrap

selection seeds a particular set of meta-modeling

capability of the generic DMLA. In effect, the proper

selection of the bootstrap elements imposes explicit

restriction on the universality of DMLA's modeling

capability on the lower meta-levels.

3.1 Data Representation

In DMLA, the model is represented as a Labeled

Directed Graph. Each model element such as nodes

and edges can have labels. Attributes of the model

elements are represented by these labels. Since the

attribute structure of the edges follows the same rules

applied to nodes, the same labeling method is used for

both nodes and edges. For simplicity, we use a dual

field notation in labelling of Name/Value pairs. In the

following, we refer to a label with the name N of the

model item X as X

. We define the following labels:

 X

Name

: the name of the model element

 X

: a globally unique ID of the model element

 X

Meta

: the ID of the meta-model definition

 X

Cardinality

: the cardinality of the model element, it

is used during instantiation as a constraint. It

determines how many instances of the model

element may exist in the instance model.

 X

Value

: the value of the model element (used in

case of attributes only as described later)

 X

Attributes

: A list of attributes

In the following, we use the word entity exclusively

if we refer to an element which has the label structure

defined above. Let us now define the algebra itself.

Definition: The superuniverse



of a state of the

Multi-Layer Algebra consists of the following

universes:

 U

Bool

containing logical values {true/false}

 U

Number

containing rational numbers



ℚ



and a

special symbol ∞ representing infinity

 U

String

containing character sequences of finite

length

 U

containing all the possible entity IDs

 U

Basic

containing elements from {U

Bool

∪ U

Number

∪U

String

∪U

}

Additionally, all universes contain a special element,

undef, which refers to an undefined value. The labels

of the entities take their values from the following

universes:

 X

Name

: U

String

 X

: U

 X

Meta

: U

 X

Cardinality

: [U

Number ,

Number

]

 X

Value

: U

Basic

 X

Attrib

: U

[]

The label Attrib is an indexed list of IDs, which refers

to other entities. Now, let us have a simple example:

RouterID = 12, RouterMeta = 123,

RouterCardinality = [0, inf],

RouterValue = undef, RouterAttrib =[]

This definition formalizes the entity Router with its

ID being 12 and the ID of its meta-model being 123.

Multi-level Dynamic Instantiation for Resolving Node-edge Dichotomy

277

In the sequel, we will rely on a more compact

representation with equal semantics (NB: both tuples

and lists share the same square bracket notation):

{“Router”, 12, 123, [0, inf], undef,[]}

3.2 Functions

Functions are used to rule how one can change states

in the ASM. In DMLA, we rely on shared and derived

functions. The current attribute configuration of a

model item is represented using shared functions.

The values of these functions are modified either by

the algebra itself, or by the environment of the

algebra. Derived functions represent calculations

which cannot change the model; they are only used to

obtain and to restructure existing information. The

vocabulary ∑ of DMLA is assumed to contain the

following characteristic functions:









:

,∃:



∧





,









:





,∃,:



∧







,









:



,



,∃:



∧





,

,





,



:

,∃,:



∧













,

In these functions we suppose that the Attrib labels

return undef when the index is greater or equal to the

number of stored entities.









:

,∃:



∧





,









,





:

,∃,:







,



∧









∨







,





false

,









,





:

,∃,:







∧∃:









∧



⋁



,

, 

3.3 Bootstrap Mechanism

The ASM functions define the basic structure of our

algebra. The functions allow to query and change the

model. However, based only on these constructs, it is

hard to use the algebra due to the lack of basic, built-

in constructs. For example, entities are required to

represent the basic types, otherwise one cannot use

label Meta when it refers to a string since the label is

supposed to take its value from U

and not from

String

. We need to define those base constructs

somewhere inside or outside of the core algebra.

Obviously, there may be more than one “correct”

solution to define this initial set of information. In

order to focus on how to tackle the problem of node-

edge dichotomy, we will restrict the usage of basic

types to an absolute minimum. The bootstrap has two

main parts: basic types and principal entities.

3.3.1 Basic Types

The built-in types of the DMLA are the following:

Basic, Bool, Number, String, ID. All types refer to a

value in the corresponding universe. In the bootstrap,

we define an entity for each of these types, for

example we create an entity called Bool, which will

be used to represent Boolean type expressions. Types

Bool, Number, String and ID are inherited from Basic.

3.3.2 Principal Entities

Besides the basic types, we also define two principal

entities: Attribute and Base. They act as root meta

elements of attributes, node and edge meta-types,

respectively. Both principal entities refer to

themselves by meta definition. Thus, for example, the

meta of Attribute is the Attribute entity itself.

AttribType is used as a type constraint to validate the

value of the attribute in the instances. The Value label

of AttribType specifies the type to be used in the

instance of the referred attribute. Using AttribType

and setting its Value field is mandatory if the given

attribute is to be instantiated, otherwise AttribType

can be omitted. AttribType is only applied for

attributes. The principal entities of the node-edge

dichotomy resolution bootstrap are the following:

{“Attribute”, ID

Attribute

, ID

Attribute

[0,inf], undef,

[

{“Attributes”, ID

Attributes

, ID

Attribute

[0, inf], undef,[]}

]}

{“Base”, ID

Base

, ID

Base

[0, inf], undef,

[

{“Attributes”, ID

Attributes

, ID

Attribute

[0, inf], undef,[]}

{“Links”, ID

Link

, ID

Attribute

[0, inf], undef,[]}

]}

{“AttribType”, ID

AttribType

,ID

Attribute

[0,1],undef,

[

{“AType”, ID

AType

, ID

AttribType

[0,1],ID

,[]}

]}

{“Node”, ID

Node

, ID

Base

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

278

[0, 0], undef,

[

{“Attributes”, ID

Attributes

, ID

Attribute

[0, inf], undef,[]}

]}

{“Edge”, ID

Edge

, ID

Base

[0, inf], undef,

[

{“Attributes”, ID

Attributes

, ID

Attribute

[0, inf], undef,[]}

{“Links”, ID

Link

, ID

Attribute

[2, 2], undef,[]}

]}

The definition of Attribute describes that an attribute

can have zero or more attributes as children. The

definition of Base is very similar to Attribute, but it

also possesses links. The definition of AttribType is

an instantiation of Attribute and it also uses

AttribType to restrict its own type. Finally, both Edge

and Node are defined as instances of Base, however

Node must not have links and in the case of Edge we

set the number of links to 2. Obviously, that number

can have any non-negative value, so setting it to 2 has

the purpose to represent edges with two end-points.

3.4 Dynamic Instantiation

Based on the structure definition of the algebra and

the bootstrap, one can now represent models as states

of DMLA. During the instantiation, one may create

many different instances of the same type without

violating the constraints set by the meta definitions.

Most functions of the algebra are defined as shared,

which allows manipulation of their values also from

outside of the algebra. However, functions do not

validate these manipulations. Instead, we distinguish

between valid and invalid models, where validity

checking is based on formulae. We also assume that

whenever external actors change the state of the

algebra, the formulae must be evaluated. This

dynamic property of the ASM makes it possible that

DMLA can be applied both in design- and run-time

modeling.

All validation formulae (except φ

Meta

) take an

Instance entity and a MetaType entity, and then they

check if the Instance entity is a valid instance of the

MetaType entity. The formula φ

Meta

takes only one

parameter and validates if the given entity has enough

valid instances according to the cardinality label. In

the definitions I refers to the Instance to be validated,

while M refers to Meta, that is, the meta-type of I.

3.4.1 Helper Formulae

IsInstantiated

(C,I):∃m,i:m=Attrib(Meta(C),i)∧

 



(I,m)



InstCounter

(C,a

):

φ

IsInstantiated

(C,a

)∧φ

IsInstantiated

(C,a

)∧Meta(a

)

=Meta(a

)}∨{φ

IsInstantiated

(C,a

)∧

φ

IsInstantiated

(C,a

)∧Meta(Meta(a

))=Meta(a

)}∨

{φ

IsInstantiated

(C, a

)∧ φ

IsInstantiated

(C, a

)∧

Meta(Meta(a

))=Meta(a

)}∨{φ

IsInstantiated

(C,

)∧φ

IsInstantiated

(C,a

)∧Meta(a

)=Meta(a

)}



CardinalityCheck

(C,I):DeriveFrom(I,ID

Attribute

)∨

Card(Meta(I))[0]Count(a:∃i:a=Attrib(C,i)∧

φ

InstCounter

(I,a))Card(Meta(I))(Atkinson and

Kühne, 2001)

This first formula simply checks if I is instantiated in

container C. The second formula checks if two

attributes in the same container C are originated from

the same meta definition. Finally, the third formula

checks if an attribute I violates the cardinality

constraints in the specific container C. In the

definition, we use the function Count for the sake of

simplicity. This function counts the elements

fulfilling the given selector. In this particular case, we

count the number of attributes, which have the given

meta M. Note that we use the formula φ

InstCounter

count both copied and instantiated elements.

Typecheck

(T,v):(T=ID

Bool

∧v∈U

Bool

)∨(T=ID

Number



∧v∈U

Number

)∨(T=ID

String

∧v∈U

String

)∨(T=ID

∧

v∉{free(U

)})∨φ

IsValid

(v,T)

The fourth formula checks if a specific value v

violates the type constraint T. We apply function free

on the universe of IDs to retrieve the set of unused

IDs. The last part of the condition is used only if the

type itself refers to a non-basic type. In this case, the

value must be an instantiation of the referred type.

AttribCheck

(I,a):

IsValid

(a,Meta(a))∨∃j:Attrib(Meta(I),j)=a∨

{∃m,k:m=Attrib(Meta(I),k)∧Value(m)=Value(a)

∧Name(m)=Name(a)∧Meta(m)=Meta(a)∧

(∄i:Attrib(a,i)Attrib(m,i))}}

The fifth formula checks if an attribute a is a valid

instantiation, a copy, or a clone of a meta attribute of

the meta of the container I. If it is a clone, then the

same entity is used in the Instance as in the MetaType.

If it is a copy, then only the ID and Cardinality labels

can change.

3.4.2 Validation Formulae

LabelCheck

(I,M):Meta(I)=M

Multi-level Dynamic Instantiation for Resolving Node-edge Dichotomy

279

EntityIns

(I,M):{∃c,idx:Attrib(I,idx)=c∧

 φ

IsValid

(c,Meta(c))}∨Value(I)undef



AttribSrc

(I, M): ∄a, idx: Attrib(I, idx) = a ∧

{φ

CardinalityCheck

(I,a)∨φ

AttribCheck

(I,M,a))}

ValueCheck

(I,M):

DeriveFrom(I,ID

Attribute

)∨Value(I)=undef∨

DeriveFrom(I, ID

AttribType

)∧ φ

IsValid

(Value(I),

Value(M))}∨DeriveFrom(I, ID

AttribType

)∧∃t,

idx:t=Attrib(M,idx)∧DeriveFrom(t,ID

AttribType

)∧

Typecheck

(t,Value(I))}

The first formula checks the correct usage of Meta

label, the second checks if at least one of the attributes

is instantiated, or has its value set. The third formula

checks if there is an attribute violating the cardinality

constraint or not having a valid meta definition in the

meta of the entity. Finally, the fourth formula

validates AttribType definitions. It returns true if the

value is not set.

Link

(I, M): DeriveFrom(I, ID

Base

) ∨

Card(Meta(I))[0]=Count{∃j,i:DeriveFrom(j,

Link

)∧j=Attrib(I,i)}

The fifth formula checks if instances of Base have the

correct number of links. That formula ensures that

Node instances have zero links and Edge instances

have two links. Obviously, if also N-Edge had been

defined as follows

{“N-Edge”, ID

N-Edge

, ID

Base

[0, inf], undef,

[

{“Attributes”, ID

Attributes

, ID

Attribute

[0, inf], undef,[]}

{“Links”, ID

Link

, ID

Attribute

[N, N], undef,[]}

]}

The fifth formula would be also able to check if N-

Edge instances really possess N links as required.

Now, with all the formulae combined we get the

following:

IsValid

(I,M):φ

LabelCheck

(I,M)∧φ

AttribSrc

(I,M)∧

 φ

EntityIns

(I,M)∧φ

AttribType

(I,M)∧φ

Link

(I,M)

The validity of the new ASM state is checked to

evaluate the below formula for all meta-types:

Meta

(M):DeriveFrom(M,ID

Attribute

)∧

Card(M)[0] Count(i: φ

IsValid

(i, M)) Card(M)

(Atkinson and Kühne, 2001)

4 EXAMPLE

In order to showcase, by a concrete example, how to

tackle the node-edge dichotomy in DMLA a

simplified network management example will be

modelled. Let us assume that we create a model with

a generic concept of routers (RouterType), a

particular router type (SimpleRouter) and a router

instance (MyRouter).

{“RouterType”, ID

RouterType

, ID

Node

[0, inf], undef,

[

{“IPAddr”,ID

IPAddr

,ID

Attribute

[0,inf],undef,

[

{“IPType”,ID

IPType

,ID

AttribType

[0,inf], ID

String

,[]}

]

}]}

{“SimpleRouter”, ID

SimpleRouter

, ID

RouterType

[0, inf], undef,

[

{“IPAddr”,ID

IPAddr

,ID

Attribute

[2,2],undef,

[

{“IPType”,ID

IPType

,ID

AttribType

[0,inf], ID

String

,[]}

]

}]}

{“MyRouter”, ID

MyRouter

, ID

SimpleRouter

[0, inf], undef,

[

{“In”, ID

, ID

IPAddress

[1,1], “192.168.0.1”, []},

{“Out”, ID

Out

, ID

IPAddress

[1,1], “192.168.0.2”, []}

]}

The RouterType concept allows router types to have

any IP addresses, which SimpleRouter restricts to 2.

Finally, MyRouter sets the two IP address attributes

to their concrete values. Let us now further assume

that there is also a type called Company in the model

that represents entities which manage routers and may

also log those management activities. Management is

expressed via a relation and logging by an attribute of

Company that contains some of these management

relation instances. The meta entities are as follows:

{“Company”, ID

Company

, ID

Node

[0, inf], undef,

[

{“Log”,ID

Log

, ID

Attribute

[0,inf],undef,

[

{“LogType”,ID

LogType

, ID

AttribType

[0,inf], ID

Management

,[]}

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

280

]

}]}

{“Management”, ID

Management

, ID

Edge

[0,inf], undef,

[

{“Src”, ID

ManagementSrc

, ID

Link

[1,1], ID

Company

[

{“ESType”, ID

ESType

, ID

AttribType

[0,1], ID

Company

,[]}

]

{“ Trg”, ID

ManagementTrg

, ID

Link

[1,1], ID

RouterType

[

{“ETType”, ID

ETType

, ID

AttribType

[0,1], ID

RouterType

,[]}

]

}]}

The cardinality restrictions of Management ensure

that the Edge instances have only one source and one

target end-points. The types of the end-points are also

restricted to Company and RouterType. Finally, the

fully instantiated entities will be created by fully

instantiating all entity attributes:

{“MyManagement”, ID

MyManagement

, ID

Management

[0,inf], undef,

[

{“Src”, ID

MyManagementSrc

, ID

ManagementSrc

[1,1], ID

MyCompany

, []},

{“Trg”, ID

MyManagementTrg

, ID

MyManagementStr

[1,1], ID

MyRouter

, []}

]}

{“MyCompany”, ID

MyCompany

, ID

Company

[0, inf], undef,

[

{“Log1”, ID

Log1

, ID

Log

[1,1], ID

MyManagement

, []}

]}

The example clearly illustrates that there is no

difference in the handling of Nodes and Edges. Both

can have attributes, and both can be contained by

other entities independently of them being either

Nodes or Edges. Also, Edges can connect Nodes, or

even Edges, defined at arbitrary meta-levels.

5 CONCLUSION

In this paper, we have formally described a novel

multi-level modeling approach that consists of three

functional building blocks: a precise ASM based

structural algebraic representation, a generic

bootstrap mechanism of the initial structural entities,

and a dynamic instantiation process that is formalized

via validation formulae. The specific bootstrap

described in the paper was engineered to resolve the

node-edge dichotomy within the formalism. We have

demonstrated it by a simple modeling example.

Knowing that ASM based approaches are easily

implementable, our intention is now to establish a

practical, industry-ready software framework for

precise multi-level meta-modeling. Also, we aim to

reformulate the TOSCA standard in DMLA so that by

reaching these two goals a model based reference

implementation could be had for the management of

meta-model based Cloud service solutions.

ACKNOWLEDGEMENTS

This work was partially supported by the TÁMOP-

4.2.1.D-15/1/KONV-2015-0008 project.

REFERENCES

Atkinson, C. & Kühne, T., 2001. The Essence of Multilevel

Metamodeling. The Unified Modeling Language.

Modeling Languages, Concepts, and Tools, Volume

2185, pp. 19-33.

Atkinson, C. & Kühne, T., 2002. Rearchitecting the UML

infrastructure. ACM Transactions on Modeling and

Computer Simulation (TOMACS), 12(4), pp. 290-321.

Atkinson, C. & Kühne, T., 2003. Model-Driven

Development: A Metamodeling Foundation. IEEE

Software, 20(5), pp. 36-41.

Boerger, E. & Stark, R., 2003. Abstract State Machines: A

Method for High-Level System Design and Analysis.

s.l.: Springer-Verlag Berlin and Heidelberg GmbH &

Co. KG.

Neumayr, B., Jeusfeld, M. A., Schrefl, M. & Schütz, C.,

2014. Dual Deep Instantiation and Its ConceptBase

Implementation. s.l., s.n.

NFV, 2013. Network Functions Virtualisation (NFV);

Architectural Framewok. [Online] Available at:

http://www.etsi.org/deliver/etsi_gs/nfv/001_099/002/0

1.01.01_60/gs_nfv002v010101p.pdf"

OASIS, 2013. OASIS: Topology and Orchestration

Specification for Cloud Applications Version 1.0.

[Online] Available at: http://docs.oasis-

open.org/tosca/TOSCA/v1.0/os/TOSCA-v1.0-os.html

OMG, n.d. MDA - The Architecture of Choice For A

Changing World. [Online] Available at: http://www.

omg.org/mda/

OMG, n.d. MetaObject Facility. [Online] Available at:

http://www.omg.org/mof/

Multi-level Dynamic Instantiation for Resolving Node-edge Dichotomy

281
