GPU-accelerated Multi-sensor 3D Mapping for Remote Control of

Mobile Robots using Virtual Reality

Sebastian P. Kleinschmidt and Bernardo Wagner

Institute of Systems Engineering - Real Time Systems Group, Leibniz Universit

at Hannover,

Appelstr. 9A, D-30167, Hannover, Germany

Keywords:

Virtual Environments, Augumented Reality, Sensorfusion, GPU-acceleration.

Abstract:

In this paper, a new virtual reality (VR) control concept for operating robots in search and rescue (SAR) sce-

narios is introduced. The presented approach intuitively provides different sensor signals as RGB, thermal and

active infrared images by projecting them onto 3D structures generated by a Time of Flight (ToF)-based depth

camera. The multichannel 3D data are displayed using an Oculus Rift head-up-display providing additional

head tracking information. The usage of 3D structures can improve the perception of scale and depth by pro-

viding stereoscopic images which cannot be generated for stand-alone 2D images.

Besides the described operating concept, the main contributions of this paper are the introduction of an hy-

brid calibration pattern for multi-sensor calibration and a high performance 2D-to-3D mapping procedure. To

ensure low latencies, all steps of the algorithm are performed parallelly on a graphics processing unit (GPU)

which reduces the traditional processing time on a central processing unit (CPU) by 80.03%. Furthermore,

different input images are merged according to their importance for the operator to create a multi-sensor point

cloud.

1 INTRODUCTION

Mobile robots are increasingly used in situations,

where humans cannot operate without placing them-

selves in danger. In typical search and rescue (SAR)

scenarios, time is mission critical and can make the

difference between a victim’s life or death. There-

fore, it is important to work as time-efﬁcient as possi-

ble. At disaster sites, the immediate availability of

trained rescue forces cannot be guaranteed. Often,

skilled manpower arrives only hours or days after the

incident. In most cases, nearby but untrained or less

qualiﬁed people arrive at the disaster site ﬁrst.

This paper presents a robot operating concept,

which signiﬁcantly reduces the qualiﬁcation needed

to operate a robot at disaster sites by providing an in-

tuitive, three-dimensional virtual reality (VR)-based

interface. This interface merges two-dimensional sen-

sor data such as RGB, thermal and active infrared

images with three-dimensional information gener-

ated by a Time of Flight (ToF)-based depth sen-

sor. The merged information is used to generate a

three-dimensional, multichannel point cloud which is

then visualized via a head-mounted display includ-

ing head-tracking to ease the perception of depth and

scale. Thus, it is possible to get a better overview of

the disaster site. The operator can switch between the

different channels of the generated point cloud to dis-

play the information needed in the current situation

(e.g. thermal imaging for buried victims identiﬁca-

tion or active infrared based night vision for operat-

ing in darkness). By combining the different informa-

tion of RGB, IR and thermal imaging, it is possible to

get the necessary information according to the priority

task deﬁned (such as ﬁnding covert persons) without

manually switching between the channels. Figure 1

shows a victim highlighted based on the thermal im-

age which is mapped on a depth image.

High latency is the main reason for simulator sick-

ness (LaValle et al., 2014). Therefore, one major con-

tribution of this paper is the reduction of latency by

performing the whole mapping procedure on a graph-

ics processing unit (GPU). As a result, the approach

may help to reduce fatigue during operation thus ex-

tending the possible operation time a single operator

may achieve.

The rest of this paper is organized as follows: Sec-

tion 2 gives an overview of related scientiﬁc work

in the area of remote controlled robots and image-

to-depth projection. Then, the approach for multi-

sensor depth mapping is presented, including intrin-

sic and extrinsic calibration, ﬁltering techniques and

Kleinschmidt, S. and Wagner, B.

GPU-accelerated Multi-sensor 3D Mapping for Remote Control of Mobile Robots using Virtual Reality.

DOI: 10.5220/0005692200190029

In Proceedings of the 13th International Conference on Informatics in Control, Automation and Robotics (ICINCO 2016) - Volume 2, pages 19-29

ISBN: 978-989-758-198-4

Figure 1: Multi-sensor 3D mapping can help rescue forces

to get a better awareness of the situation.

the mathematical background for 2D-to-3D projec-

tion. Following, the full parallel implementation of

the algorithm is described. Section 4 provides a prac-

tical implementation of the described approach and

presents results of the mapping process. The paper

ends with an evaluation of the shown method fol-

lowed by a ﬁnal conclusion and an outlook on further

work.

2 RELATED WORK

Besides operating robots in SAR scenarios, teleoper-

ation is used in varying applications (Cui et al., 2003)

such as space (Stoll et al., 2009), undersea (Ridao

et al., 2007) or medical robotics. Simple teleoperat-

ing systems are based on monocular RGB cameras

displayed on two-dimensional screens (Hainsworth,

2001). The operated robot is usually equipped with

either a single camera or multiple ones (Hainsworth,

2001)(Okura et al., 2013) in order to increase the op-

erator’s ﬁeld of view. For this reason, omnidirec-

tional cameras are often used to enable the operator

to change the view without causing a delay because

the camera position has to be changed by actuators

(Saitoh et al., 2006). In most applications, additional

information such as sensor data are visualized in a

graphical user interface (GUI) as an overlay or on ad-

ditional displays (Hainsworth, 2001)(Nguyen et al.,

2001).

For humans, moving the head is the natural way

to explore the environment. The ﬁrst teleopera-

tion approaches using tracked head-mounted displays

(HMD) were based on omnidirectional cameras to

visualize 360

◦

images. Looking at an omnidirec-

tional camera image, the operator still gets only a

two-dimensional impression of the robot environment

with limited perception of depth and scale. Using

monocular cameras, this disadvantage can be com-

pensated by using structure from motion (SFM) tech-

niques as done in (Saitoh et al., 2006). Besides

the application of SFM, multi-camera systems (Yong

et al., 1998) or depth cameras (Okura et al., 2013) are

needed to provide full three-dimensional information

to allow the perception of scale and depth.

The work presented in (Okura et al., 2013) de-

scribes a teleoperation interface enabling an operator

to control a robot from freely conﬁgured viewpoints

visualized by a head-mounted display and a head-

tracker. For environmental perception, the robot is

equipped with four structured light (SL)-based depth

cameras. To avoid simulator sickness and to enable

the operator to react fast enough on occurring events,

all delays have to be kept as small as possible.

In contrast to the approach presented in this paper,

the existing virtual reality concepts only use RGB-

D information. Projecting two-dimensional infor-

mation onto three-dimensional structures is useful in

many areas such as entertainment, medical applica-

tions or the building sector. RGB-D mapping us-

ing depth cameras is state-of-the-art in robot appli-

cations as presented in (Henry et al., 2010), (Endres

et al., 2013) and (Izadi et al., 2011). The works pre-

sented in (Vidas et al., 2013), (Vidas and Moghadam,

2013) and (Moghadam and Vidas, 2014) describe a

hand-held device built out of a RGB-D and a ther-

mal camera. The device is used for thermal-to-3D

mapping which is helpful to monitor the energy ef-

ﬁciency of building structures. From the authors’ per-

spective, the device has neither been implemented on

a mobile robot, nor makes use of GPU-acceleration.

Besides, a GPU suited implementation of the map-

ping procedure is necessary to provide mapped, three-

dimensional structures to ensure low latency for vir-

tual reality applications as presented in this paper. In

contrast to existing approaches, the work presented in

this paper uses multi-sensor data to create a merged

point cloud, which selectively maps different image

sources according to their importance to one output

point cloud.

3 APPROACH

The following section describes the approach used in

this paper to project two-dimensional images from

different cameras onto three-dimensional structures

which are ﬁnally visualized by a head-mounted dis-

play. This procedure includes the following steps:

1. Preprocessing and Filtering: The quality of the

ﬁnal multi-channel point cloud depends on the

ICINCO 2016 - 13th International Conference on Informatics in Control, Automation and Robotics

quality of the depth image. Therefore, measure-

ment noise and errors have to be ﬁltered before

mapping and thus appropriate ﬁlters have to be

applied.

2. Hybrid Calibration: To perform mapping, it is

necessary to determine the camera parameters to

remove lens distortion. For the mapping pro-

cess, the homogeneous transformation between

the used sensor coordinate systems need to be

known. Consequently, corresponding points have

to be identiﬁed in the sensor images. As a result

of varying working principles of the sensors (e.g.

RGB and thermal), a special calibration pattern is

necessary to identify corresponding points.

3. Time Synchronization: To reduce the mapping

error based on time differences due to varying

measurement rates, messages are ﬁltered accord-

ing to their time stamp.

4. Parallel Mapping: The pixels of the ﬁltered and

intrinsic calibrated depth image are used to gen-

erate a set of three-dimensional points, the two-

dimensional images can be mapped on. Based

on the performed extrinsic calibration, the point

cloud is transformed into the coordinate system

of the two-dimensional camera as preparation for

the mapping. Then the image is projected onto

the point cloud. Parallely, the mapping procedure

is performed on the GPU.

5. Selective Mapping: The mapped point clouds are

then merged to a single one, in which the most

relevant information of all mapped input images

are visualized. This step includes the highlighting

of hidden persons by the thermal image and illu-

minating dark regions in the RGB image by the

active infrared image.

Sections 3.1 to 3.6 are structured according to the pre-

sented order of steps.

3.1 Preprocessing

To increase the quality of the mapped three-

dimensional model and to avoid mapping errors, it is

important to preprocess the depth image which is typ-

ically affected by measurement noise and errors.

To prevent an error prone projection caused by im-

age noise in the depth image, the depth image is ﬁl-

tered using a bilateral ﬁlter as described in (Tomasi

and Manduchi, 1998). In contrast of a box, bilinear

or Gaussian ﬁlter, by using a bilateral ﬁlter, the sur-

faces of the object are smoothed preserving edges at

the same time due to an additional range component.

To remove single measuring errors appearing as

outliers in the free space (therefore often referenced to

as ﬂying pixels), a threshold ﬁlter is applied based on

the average distance of the surrounding pixels which

are unequal to zero. The mean distance can be deter-

mined according to:

p(i, j) =

∑

l,m

|| f (i, j) − k(l, m)||

(1)

and

k(l, m) =



f (l, m), for f (l, m) 6= 0

f (i, j), else

, (2)

Where u is the number of surrounding pixels for that

k(l, m) is unequal to zero. With the threshold θ, the

ﬁnal value of the ﬁltered depth image depth(i, j) is

given through:

g(i, j) =



f (i, j), for p(i, j) < θ

0, else

. (3)

3.2 Hybrid Calibration

Like any other camera, depth, thermal or RGB cam-

eras are affected by lens distortion and inaccuracies

during production and therefore need to be intrinsi-

cally calibrated. Before sensor data can be projected,

the cameras need to be extrinsically calibrated also.

State-of-the-art calibration techniques for traditional

two-dimensional cameras are presented in (Brown,

1971), (Zhang, 1999) and (Zhang, 2000). Consider-

ing that typical two-dimensional calibration patterns

are unsuited for thermal and depth calibration, a hy-

brid calibration pattern is presented in this section,

which enables multi-sensor to depth calibration for a

variety of imaging techniques.

Regarding the different working principles of the

used sensors, the calibration pattern used for the cal-

ibration of a speciﬁc camera varies. For the intrinsic

calibration of a RGB camera, a typical printed black

and white chessboard provides points in the pattern

coordinate system which can be identiﬁed in the cam-

era image. By using a strong infrared light source,

the same pattern can be used to calibrate the active

infrared camera. Since the temperature of a printed

pattern is equally distributed over the pattern after all

balancing processes are completed, it is not possible

to identify the necessary amount of calibration points

in the thermal image using a printed pattern. To solve

this issue, heaters can be applied at dedicated po-

sitions in the calibration pattern coordinate systems

to identify corresponding points for calibration pur-

poses. In case of ToF cameras, the amplitude image

(active infrared) can be used for intrinsic calibration

GPU-accelerated Multi-sensor 3D Mapping for Remote Control of Mobile Robots using Virtual Reality

based on the working principle of ToF. Besides using

the infrared image, it is also possible to create a chess-

board, where every square of the chessboard varies in

height and thus providing points in the calibration pat-

tern that can be identiﬁed by depth.

If the same calibration pattern is visible in two dif-

ferent camera images at the same time, the transfor-

mation between each camera and the chessboard can

be used to compute the transformation between both

camera coordinate systems. This requires, that at least

N = 3 points of the pattern given in the chessboard co-

ordinate system can be identiﬁed in both images at the

same time.

According to this constraint, considering the dif-

ferent working principles of depth, IR, RGB and ther-

mal cameras, a typical black and white calibration

pattern is unsuited for an extrinsic calibration. For ex-

ample, in the image of the thermal camera, the printed

structure of the pattern would look uniform based on

the same temperature and material of the chessboard

and could not be identiﬁed. The remaining difference

in the thermal image based on the different emissiv-

ity of the black and the white color is not sufﬁciently

large for a calibration as needed for high accurate sen-

sor mapping. A similar issue takes effect for the depth

image, where corresponding points would look uni-

formly based on a similar depth.

To be able to identify at least three correspond-

ing points in the camera images, a hybrid chessboard

pattern needs to be designed, in which the black and

the white squares differ in material, temperature and

depth. If the depth camera can be calibrated using an

intensity image as described in this section, the pat-

tern does not need to vary regarding depth. For this

purpose, the pattern needs to be built out of different

materials as plastic and metal, whereas one color is

heated to a constant temperature difference. The the-

oretical setup for such a calibration is shown in Figure

Figure 2 shows a RGB and a thermal camera look-

ing at a hybrid calibration pattern where every square

of the chessboard distinguishes in color and tempera-

ture. The transitions between the chessboard squares

can be identiﬁed in the RGB image because of the

variation in color. In contrast, the transitions in the

thermal image can be identiﬁed based on the varia-

tion in temperature caused by the heat pads attached

to the background of the squares. To prevent the heat

to spread through the pattern, the squares have to vary

regarding their thermal conductivity to ensure clear

temperature transitions in the thermal image.

The computed transformation between two cam-

eras is limited in accuracy by the camera resolution

THERMAL-C

RGB-C

(CS)

RGB-C

(CS)

THERMAL-C

Figure 2: Heated calibration pattern for extrinsic calibration

of RGB and thermal camera.

Depth (30Hz)

RGB (30Hz)

IR (30 Hz)

Thermal (50Hz)

Time

Resulting Signal

Δt

Figure 3: Synchronization of cameras working at asyn-

chronous measurement rates.

and disturbance variables such as image noise. To de-

crease the error of the resulting transformation, the

transformation is computed for an array of coinci-

dent images. To ﬁnd the local minimum of the repro-

jection error for the transformation, the Levenberg-

Marquardt iterative algorithm is used for optimiza-

tion. The realization of the hybrid calibration pattern

is presented in Section 4.2.

3.3 Time Synchronization

Even if the sensors are synchronized regarding a

global system time, measurement updates are typi-

cally occurring at different measurement rates. To

reduce resulting mapping errors as they would occur

when depth images are registered to data from a dif-

ferent time, the time difference has to be kept as small

as possible.

Figure 3 shows four input signals at different mea-

surement rates of 30 Hz and 50 Hz.

The depth, RGB and IR camera are working time-

synchronized at f

= f

RGB

= f

= 30 Hz, the mea-

surement rate of the thermal camera differs with a

measurement rate of f

= 50 Hz. The maximum time

difference ∆t

max

between a depth, RGB or IR mea-

surement and a thermal measurement is deﬁned by the

faster measurement rate of the thermal camera f

∆t

max

2 f

= 10 ms. (4)

If ∆t between two succeeding measurements is less

or equal ∆t

max

, the messages are used for mapping.

If ∆t > ∆t

max

, the ﬁrst measurement is discarded and

ICINCO 2016 - 13th International Conference on Informatics in Control, Automation and Robotics

the time measurement is repeated for the second mea-

surement.

The resulting update rate for the synchronized sig-

nal f

varies according to Equation 5 and has an up-

per bound given by the measurement rate of the depth

camera f

≥ f

≥

2 f

. (5)

3.4 Mapping

The equation for projecting a point from the physi-

cal world into the camera image plane can be used

to reconstruct a three-dimensional point

(d)

given

)

, the associated point in the image plane in a

ﬁltered and intrinsic calibrated depth image (I

) (see

Section 3.1) by inverting M as shown in Equation 6.

(d)

−1

)

. (6)

The two dimensional point

)

is given as homoge-

neous vector where

(I)

and

(I)

are the screen coor-

dinates, starting in the upper left corner of the image.

)



)



, (7)

where

)

is given by the depth value in

the depth image according to

)

(d)

= d(

)

. (8)

The inverse

(d)

(−1)

can be computed as follows:

(d)

(−1)

(d)





(d)

0 −

(d)

−

(d)

0 0

(d)





(9)

In Equation 8, s

is the scale factor, which relates the

depth value in the depth image to

(d)

the depth in

the camera coordinate system of the depth camera.

Using Equations 6 to 8, the coordinates of a three-

dimensional point in the depth camera’s coordinate

system can be computed for every two-dimensional

point in screen coordinates of the depth image. By

upscaling the depth image and therefore the quantity

of pixels which can be registered to 3D points.

To perform a mapping between a calibrated two-

dimensional image of a camera c and the generated set

of three-dimensional points, every point given in the

point cloud

(d)

needs to be transformed into the co-

ordinate system of the camera c. This can be done us-

ing the extrinsic calibration described in Section 3.2:

(c)

(d)

. (10)

To complete the mapping of a point

(c)

given

in the corresponding coordinate system of a two-

dimensional camera, the point needs to be projected

onto the image plane of the camera c.

)

(c)

. (11)

The color of the three dimensional point is given by

the color of the image point

)

. After merging the

point cloud and the image source, the point cloud is

retransformed to the depth camera coordinate system:

(d)

(c)

. (12)

3.5 Parallelization

The parallelized mapping procedure is presented in

ﬁgure 4.

The mapping procedure is separated into code,

which is executed on the CPU (host) and code which

is executed in parallel on the GPU (device). There-

fore, the data necessary to perform the computations

for mapping need to be transferred between host and

device memory to be processed. Because host-to-

device and device-to-host copies are time consum-

ing and increase computation time (compared to CPU

based approaches, where all data already are on the

device they are processed on), it is necessary to keep

them to a minimal number.

For this reason, the extrinsic and intrinsic calibra-

tion parameters are transferred once during initializa-

tion and are kept in GPU memory. After time syn-

chronization, corresponding data are loaded in the

host memory. Before parallel processing, they are

transferred to the device memory, which has been al-

located during initialization. Because the resolution

of the depth, RGB, IR and thermal image is known a

priori, the size of the allocated memory is static. Dur-

ing runtime, multiple copies of the program can be

executed in parallel on GPU blocks. Because every

point of the point cloud can be independently com-

puted based on the ﬁltered depth image, the compu-

tation is performed in parallel on a ﬁxed number of

blocks given by the resolution of the depth image.

According to Section 3.4, after point cloud genera-

tion, the points are transformed according to the ex-

trinsic relation of the cameras and subsequently pro-

jected into the image plane. Because the amount of

computations in these steps is high but the involved

calculations are simple and are independent of each

other, these steps are also well suited to be performed

in parallel blocks on the GPU. After inverse transfor-

mation, the point cloud is written into the host mem-

ory for visualization. To optimize the mapping du-

ration further, the practical implementation deviates

GPU-accelerated Multi-sensor 3D Mapping for Remote Control of Mobile Robots using Virtual Reality

CPU (host)

GPU (device)

Depth Image

IR-Image

RGB-Image

Thermal-Image

Device Memory

Host Memory Host Memory Host Memory Host Memory

Intrinsic Calibration

Parameters

Extrinsic Calibration

Parameters

Device Memory

Host-to-Device copy

Device Memory

Parallel performed operation

...

Point Cloud

generation

...

Undistortion

...

Undistortion

...

Point Cloud

transformation

...

Projection

...

Projection

...

Projection

...

Point Cloud

transformation

...

Point Cloud

transformation

...

Point Cloud

transformation

Device Memory

Host Memory

Host-to-Device copy

...

Filtering

Figure 4: Overview of the software architecture.

from the procedure presented in ﬁgure 4 and is only

performed for the selected output point cloud. There-

fore, the number of host-to-device and device-to-host

copies during runtime is decreased from 7, which are

necessary to provide mapping for all point clouds, to

3. Excluded from this number are the host-to-device

copies of the extrinsic and intrinsic calibration param-

eters, which have only to be performed once on start.

3.6 Selective Mapping

If all point clouds are selected for mapping in the

previous step, a selective mapping procedure can be

performed, which generated a point cloud, in which

points are mapped according to their importance for

the operator. The algorithm is presented in pseudo-

code below.

To avoid dark regions in the RGB image, dark

points are replaced by the mapped IR points, if the

brightness is below a given threshold. Subsequently,

noticeable regions in the thermal image are mapped

with priority to the point cloud, if they exceed a pre-

deﬁned threshold to highlight buried persons or hot

regions which could be dangerous for the robot.

Algorithm 1: Selective Point Cloud Fusion.

Input: RGBD-, IRD-, THERMAL-Point Cloud

Output: Multi-Sensor Point Cloud

1: Initialize Output Point Cloud P

2: for each Point p in Point Cloud P do

3: if (

R+G+B

) < brightnessTresh then

4: P = IR

5: end if

6: if T HERMAL > thermalTresh then

7: P = THERMAL

8: end if

9: end for

10: return P

4 EXPERIMENTS

The following section describes the experimental

setup which is used to evaluate the results of Sec-

tion 3.

4.1 Experimental Setup

For evaluation purposes, a Pioneer 2 mobile robot

has been equipped with a FLIR A655sc thermal cam-

era (640 x 480 @ 50 f ps) and a Microsoft Kinect v2

depth-sensing camera providing RGB (1920 x 1080

ICINCO 2016 - 13th International Conference on Informatics in Control, Automation and Robotics

Figure 5: Pioneer 2 mobile robot equipped with a Microsoft

Kinect v2 depth-sensing camera and a FLIR A655sc ther-

mal camera.

@ 30 f ps), depth (512 x 424 @ 30 f ps) and active

IR images (512 x 424 @ 30 f ps). In contrast to the

Kinect 1, which is based on structured light to esti-

mate depth, the Kinect 2 collects depth information

based on ToF measurements. To enable extrinsic cal-

ibration, both cameras are rigidly mounted on the Pi-

oneer as shown in Figure 5.

The sensor data are prompted and compressed on-

board by a KTQM87 mITX board with an Intel quad

core i7 CPU and 16 GB RAM running Ubuntu 14.04

64-bit. To power the Pioneer 2 and the connected

sensors, the standard power supply is replaced with

a 12 V 50 Ah car battery.

The compressed information is then transmitted

via WiFi to a PC with an Intel quad core i5-4570 CPU,

16 GB RAM and a GeForce GTX 970 GPU. Sub-

sequently, the data are preprocessed and registered

according to Section 3. The resulting multi-channel

point cloud is visualized using RViz. To render the

stereo images for the Oculus Rift, the Oculus Rviz

Plugin has been used

. The data are displayed to the

operator using an Oculus Rift Developer Kit 2 by Ocu-

lus VR. The head movement is tracked by the Oculus

Rift and used to move the camera in Rviz. The oper-

ator can control the Pioneer 2 using a Logitech Cord-

less Rumble Pad 2.

Figure 6 gives an overview of the input and output

structure used for the evaluation.

Besides, the intrinsic and extrinsic calibration

which has only to be performed once, all parts of the

presented method are programmed to work in parallel

taking advantage of the GPU.

4.2 Intrinsic and Extrinsic Calibration

To be able to identify corresponding points for cal-

ibration in the RGB, IR, depth and in the thermal

https://github.com/ros-visualization/oculus rviz plugins,

June 2015

Microsoft Kinect v2

FLIR A655sc

RGB

DEPTHMAP

THERMAL

(MONO16)

(16UC1)

(RGB8)

OculusVR Oculus Rift Devkit 2

POINTCLOUD

FILTERING

POINTCLOUD

RGBD-

POINTCLOUD

IRD-

POINTCLOUD

TD-

POINTCLOUD

RGB-

MAPPING

IR-

MAPPING

THERMAL-

MAPPING

RGB-

FILTERING

IR-

FILTERING

THERMAL-

FILTERING

3D VISUALIZATION

Pioneer 2

Logitech Cordless RumblePad 2

Compare Figure 4

Figure 6: Overview of the input and output structure.

image as mentioned in Section 3.2, a hybrid chess-

board pattern has been designed for calibration, in

which the black and the white squares differ in color,

depth, material and temperature. For this purpose, the

black squares are made of metal, which is electrically

heated to a constant temperature, whereas the white

squares are made out of plastic. The pattern used for

calibration is shown in Figure 7.

Figure 7: A three-dimensional, heated calibration pattern

for thermo-depth calibration.

Besides the differences in temperature, the black

and white chessboard squares also differ in depth. Be-

cause the depth image also provides intensity images

(active IR), the depth differences were not used for

depth camera calibration. The size of one square is

100 mm x 100 mm with a depth difference between a

black and a white square of 40 mm.

4.3 Mapping

The results of the mapping process are shown in Fig-

ure 8(a) to 8(l).

The ﬁrst image of every row shows the raw, un-

registered point cloud which is generated according

to Section 3.4. The following ﬁgures are showing the

point cloud registered to RGB, active IR and thermal

GPU-accelerated Multi-sensor 3D Mapping for Remote Control of Mobile Robots using Virtual Reality

(a) Pure depth (b) RGB-D (c) IR-D (d) THERMAL-D

(e) Pure depth (f) RGB-D (g) IR-D (h) THERMAL-D

(i) Pure depth (j) RGB-D (k) IR-D (l) THERMAL-D

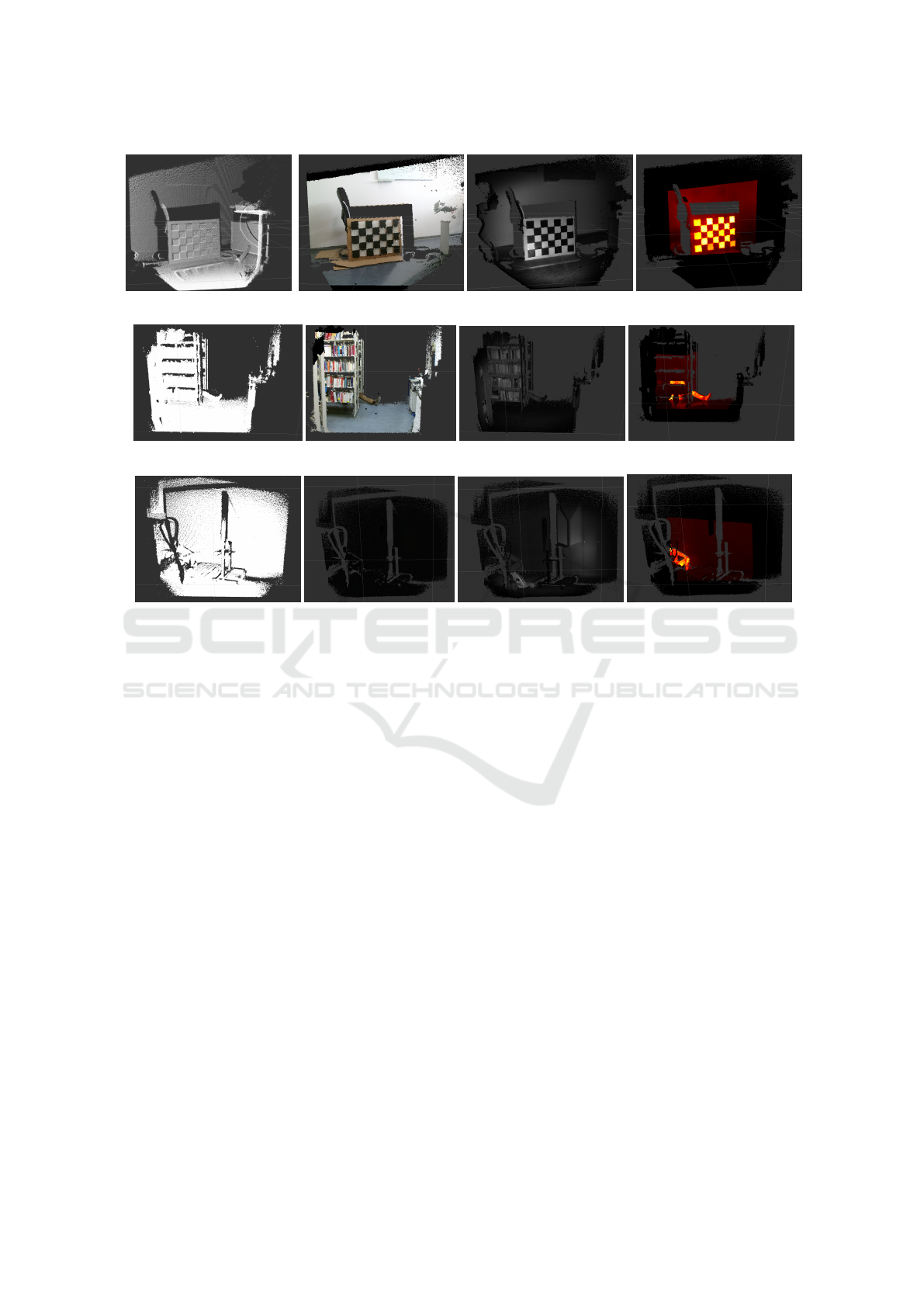

Figure 8: Final mapping results for different scenes: (a) to (d) Different image sources mapped onto the calibration pattern

(e) to (f) Person hidden behind a bookshelf, (g) to (h) Person lying in the edge of a dark storage room.

images. To illustrate the advantages of the different

sensors, each row shows a different scenario:

Figure 8(h) shows uncolored, black points in the

outer region of the point cloud caused by varying ﬁeld

of views of the depth and the thermal camera. Be-

cause the thermal camera has a smaller vertical and

horizontal ﬁeld of view, the thermal image provides

no information which could be mapped to the outer

points of the point cloud. Because of the high num-

ber of points, surfaces and small details can be recog-

nized.

5 RESULTS

The following section evaluates the results of the pre-

sented approach regarding calibration quality and pro-

cessing time.

5.1 Calibration

The cameras have been calibrated using the calibra-

tion pattern described in Section 4.2. For calibra-

tion, 40 images have been made from different poses

around the calibration pattern with every camera. The

results of the intrinsic calibrations are shown in Ta-

ble 1. The distortion parameters for lens distortion

removal are not listed in Table 1.

The quality of the calibration can be evaluated

based on the resulting root mean square reprojection

error (rms), which is calculated for the images made

after applying the intrinsic calibration. Based on the

total pattern size of 700 mm x 500 mm, the pattern

was unsuited to be placed in the near ﬁeld in front of

the camera depending on the camera’s ﬁeld of view

which affects the quality of the calibration.

The calibration of the IR camera got a higher rms

compared to the RGB calibration, probably because

the chessboard points could not be reliably detected

in the whole ﬁeld of view due to the limited IR light-

ning in the outer regions of the image. Additionally,

the IR image is stronger affected by image noise com-

pared to the RGB image. Furthermore, the resolution

of the IR camera is smaller than the resolution of the

RGB camera which reduces the accuracy of the de-

tected points.

The rms of the thermal camera is higher than the

ICINCO 2016 - 13th International Conference on Informatics in Control, Automation and Robotics

Table 1: Results of the intrinsic calibration (without distortion parameters).

Camera f

[px] f

[px] c

[px] rms

RGB 1.063e+03 1.066e+03 9.59e+02 5.541e+02 0.1734

IR and Depth 3.633e+02 3.631e+02 2.442e+02 2.030e+02 0.6856

Thermal 7.984e+02 7.997e+02 3.140e+02 2.371e+02 1.0351

rms of the RGB and the IR camera. This may be

caused by the ﬁxed focus which has been used for cal-

ibration, providing a lower range where objects are in

focus compared to the IR camera. This leads to blur

and consequently to inaccuracy detecting the chess-

board points. The results of the extrinsic calibration

regarding the rms are presented in Table 2.

Based on the results of the mapping, the rms of

the extrinsic calibration can be considered as sufﬁ-

cient for visualization.

5.2 Processing Time

To avoid simulator sickness and to enable the opera-

tor to react fast on occurring events, all delays have

to be kept as small as possible. Therefore, the pre-

sented algorithm has been implemented using Com-

pute Uniﬁed Device Architecture (CUDA) to operate

on a NVIDIA GTX 970 GPU with 1664 cores. The

CUDA-based GPU implementation is compared with

a single core CPU implementation. Table 3 gives an

overview of the average processing time of 10, 000

frames for the presented algorithm performed on the

CPU and the GPU. The processing time on the GPU

has been measured using the CUDA event API; the

processing time of the CPU version has been mea-

sured using clock ticks elapsed since the algorithm

has been started divided by the clocks per second.

The highest acceleration could be archived by im-

plementing the preprocessing step on the GPU (which

includes bilateral ﬁltering and ﬂying pixel detection

as described in Section 3.1). The preprocessing step

could be accelerated by 112, 43 ms which is an ac-

celeration of 85.37 % referred to the former duration

which makes 97.88 % of the total acceleration.

Using the GPU implementation, the complete

mapping process could be accelerated by 80.03 %

compared to the CPU implementation which is an ac-

celeration of 114.73 ms. While the processing rate

of the CPU implementation limits the possible frame

rate to 7 f ps, the GPU implementation allows a frame

rate of 35.59 f ps. Because the frame rate is limited to

30 f ps by the depth camera, the new processing time

of 28.84 ms can be considered to be sufﬁcient. To

perform the mapping on the GPU, all necessary data

need to be copied to the GPU memory for processing.

After processing has been completed, the data need

to be copied back to be accessible by the CPU. The

time needed for allocation, deallocation and copying

has been pooled as Memory Operations in Table 3.

5.3 Limitations

Like all ToF cameras, the Kinect v2 can be affected

by direct sunlight outshining the light emitted by the

ToF camera. To evaluate the performance of the pre-

sented approach, the setup has been tested indoor in a

controlled environment. For this reason the approach

presented in this paper is limited to applications with

no direct sunlight. There are, however, ToF cameras

available with additional light sources which are con-

ﬁrmed to be suited for outdoor application as the OI-

VS-1000 produced by ODOS Imaging.

6 CONCLUSION AND FURTHER

WORK

In this paper, a new VR control concept for oper-

ating robots in SAR scenarios has been introduced.

The presented approach intuitively visualizes differ-

ent sensor signals as RGB, thermal or infrared images

by merging them with 3D data generated by a ToF-

based depth camera. The three-dimensional point

cloud is then visualized on a tracked head-mounted

display to provide the additional information. The

approach has been evaluated under laboratory condi-

tions using a Pioneer 2 mobile robot equipped with a

depth, RGB, IR and thermal camera.

For intrinsic and extrinsic calibration, a new cal-

ibration pattern has been introduced. It has been

shown, that the presented calibration pattern is well

suited for multi-sensor calibration with acceptable

root mean square reprojection errors.

To avoid simulator sickness and decrease the re-

action time of the operator, the multi-sensor mapping

has been performed on a GPU. It has been shown, that

performing the mapping on the GPU can signiﬁcantly

decrease the processing time by about 80 % compared

to traditional CPU implementation consequently de-

creasing the delay. It must be taken into account, that

the GPU version had been compared against a single

threaded CPU implementation. The relative accelera-

GPU-accelerated Multi-sensor 3D Mapping for Remote Control of Mobile Robots using Virtual Reality

Table 2: Results of the extrinsic calibration.

Transformation rms

RGB - Depth 0.323

Thermal - Depth 1.019

Table 3: Comparison between the processing time performing the mapping for one image as CPU and GPU implementation.

Average value of 10,000 processing steps with a depth image resolution of 512x424.

Step Average

Time CPU

[ms]

Percentage

of Total

[%]

Average

Time GPU

[ms]

Percentage

of Total

[%]

Acceleration

[%]

Preprocessing 131.69 92.20 19.26 68.54 85.37

Point Cloud

Generation

4.07 2.8 3.16 8.89 22.36

Transformation 1.13 0.79 0.60 2.10 46.90

Image Plane

Projection

4.80 3.34 3.22 8.73 32.92

Inverse Trans-

formation

1.14 0.79 0.60 2.10 47.37

Memory Op-

erations

- - 1.26 4.5 -

Total 142.83 100 28.1 100 80.03

tion of the GPU implementation would decrease com-

pared against a fully optimized, multi-threaded CPU

version of the mapping procedure. To verify the ex-

pected reduction of simulator sickness and resultant

fatigue, additional experiments in real-life conditions

still need to be performed.

The presented approach has been evaluated in a

lab scenario. To prove the effectiveness of the new

control approach compared to traditional control con-

cepts, the system needs to be evaluated in real SAR

scenarios.

The overview of the surrounding structures can be

further improved by building an environmental map

registering the multichannel scans. For such appli-

cations, the multichannel point cloud can be used to

increase the robustness of correspondence identiﬁca-

tion for scan registration to avoid ambiguity in scan

images.

To increase the quality for the intrinsic and extrin-

sic calibration, the ﬁeld size of the calibration pattern

could be reduced to be able to calibrate the camera in

the near region. It should be examined, whether hap-

tic feedback would lead to a further improvement re-

garding the usability aspects for untrained operators.

Moreover, the mapped sensor data could be used to

improve information models as presented in (Gernert

et al., 2014) with additional information layers. The

mapping of thermal images onto three-dimensional

structures is useful for improved temperature estima-

tion as presented in (Zeise et al., 2015).

REFERENCES

Brown, D. C. (1971). Close-range camera calibration.

In Photogrammetric Engineering, volume 37, pages

855–866.

Cui, J., Tosunoglu, S., Roberts, R., Moore, C., and Rep-

perger, W. (2003). A review of teleoperation system

control. In Florida Conference on Recent Advances

in Robotics (FCRAR), pages 1–12, Boca Raton, FL,

USA.

Endres, F., Hess, J., Sturm, J., Cremers, D., and Burgard,

W. (2013). 3D mapping with an RGB-D camera. vol-

ume 30, pages 177–187.

Gernert, B., Schildt, S., L.Wolf, Zeise, B., Fritsche, P.,

Wagner, B., M.Fiosins, Manesh, R., and Mueller, J.

(2014). An interdisciplinary approach to autonomous

team-based exploration in disaster scenarios. In IEEE

International Symposium on Safety, Security, and Res-

cue Robotics (SSRR), pages 1–8, Hokkaido, Japan.

Hainsworth, D. W. (2001). Teleoperation user interfaces for

mining robotics. In Autonomous Robots, volume 11,

pages 19–28, Hingham, MA, USA.

Henry, P., Krainin, M., Herbst, E., Ren, X., and Fox, D.

(2010). RGB-D mapping: Using depth cameras for

dense 3d modeling of indoor environments. In RGB-

D: Advanced Reasoning with Depth Cameras Work-

shop in conjunction with RSS, Zaragoza, Spain.

Izadi, S., Kim, D., Hilliges, O., Molyneaux, D., Newcombe,

R., Kohli, P., Shotton, J., Hodges, S., Freeman, D.,

Davison, A., and Fitzgibbon, A. (2011). Kinectfu-

sion: Real-time 3d reconstruction and interaction us-

ing a moving depth camera. In ACM Symposium on

User Interface Software and Technology, pages 559–

268, Santa Barbara, CA, USA.

ICINCO 2016 - 13th International Conference on Informatics in Control, Automation and Robotics

LaValle, S. M., Yershova, A., Katsev, M., and Antonov, M.

(2014). Head tracking for the oculus rift. In IEEE

International Conference on Robotics and Automation

(ICRA), pages 187 – 194, Hong Kong, China.

Moghadam, P. and Vidas, S. (2014). Heatwave: The next

generation of thermography devices. In International

Society for Optical Engineering (SPIE), volume 9105,

page 91050.

Nguyen, L., Bualat, M., Edwards, L., Flueckiger, L., Neveu,

C., Schwehr, K., Wagner, M., and Zbinden, E. (2001).

Virtual reality interfaces for visualization and control

of remote vehicles. Autonomous Robots, 11(1):59–68.

Okura, F., Ueda, Y., Sato, T., and Yokoya, N. (2013). Tele-

operation of mobile robots by generating augmented

free-viewpoint images. In IEEE and RSJ International

Conference on Intelligent Robots and Systems (IROS),

pages 665–671, Tokyo, Japan.

Ridao, P., Carreras, M., Hernandez, E., and Palomeras,

N. (2007). Underwater telerobotics for collabora-

tive research. In Ferre, M., Buss, M., Aracil, R.,

Melchiorri, C., and Balaguer, C., editors, Advances

in Telerobotics, volume 31 of Springer Tracts in Ad-

vanced Robotics, pages 347–359. Springer Berlin Hei-

delberg.

Saitoh, K., Machida, T., Kiyokawa, K., and Takemura, H.

(2006). A 2D-3D integrated interface for mobile robot

control using omnidirectional images and 3d geomet-

ric models. In IEEE and ACM International Sym-

posium on Mixed and Augmented Reality (ISMAR),

pages 173–176, Washington, DC, USA.

Stoll, E., Wilde, M., and Pong, C. (2009). Using virtual

reality for human-assisted in-space robotic assembly.

In World Congress on Engineering and Computer Sci-

ence, volume 2, San Francisco, USA.

Tomasi, C. and Manduchi, R. (1998). Bilateral ﬁltering for

gray and color images. In IEEE International Con-

ference on Computer Vision (ICCV), pages 839–846,

Washington, DC, USA.

Vidas, S. and Moghadam, P. (2013). Heatwave: A hand-

held 3D thermography system for energy auditing. In

Energy and Buildings, volume 66, pages 445 – 460.

Vidas, S., Moghadam, P., and Bosse, M. (2013). 3D thermal

mapping of building interiors using an RGB-D and

thermal camera. In IEEE International Conference on

Robotics and Automation (ICRA), pages 2311–2318,

Karlsruhe, Germany.

Yong, L. S., Yang, W. H., and Jr, M. A. (1998). Robot task

execution with telepresence using virtual reality tech-

nology. In International Conference on Mechatronic

Technology, Hsinchu, Taiwan.

Zeise, B., Kleinschmidt, S. P., and B.Wagner (2015). Im-

proving the interpretation of thermal images with the

aid of emissivity’s angular dependency. In IEEE Inter-

national Symposium on Safety, Security, and Rescue

Robotics (SSRR), pages 1–8, West Lafayette, Indiana,

USA.

Zhang, Z. (1999). Flexible camera calibration by viewing

a plane from unknown orientations. In IEEE Inter-

national Conference on Computer Vision, volume 1,

pages 666–673, Kerkyra, Greece.

Zhang, Z. (2000). A ﬂexible new technique for camera cali-

bration. In IEEE Transactions on Pattern Analysis and

Machine Intelligence, volume 22, pages 1330–1334.

GPU-accelerated Multi-sensor 3D Mapping for Remote Control of Mobile Robots using Virtual Reality
