Foreground Segmentation for Moving Cameras under

Low Illumination Conditions

Wei Wang, Weili Li, Xiaoqing Yin, Yu Liu and Maojun Zhang

College of Information System and Management, National University of Defense Technology, Changsha, Hunan, China

Keywords:

Foreground Segmentation, Moving Cameras, Trajectory Classiﬁcation, Marker-controlled Watershed Seg-

mentation.

Abstract:

A foreground segmentation method, including image enhancement, trajectory classiﬁcation and object seg-

mentation, is proposed for moving cameras under low illumination conditions. Gradient-ﬁeld-based image

enhancement is designed to enhance low-contrast images. On the basis of the dense point trajectories ob-

tained in long frames sequences, a simple and effective clustering algorithm is designed to classify foreground

and background trajectories. By combining trajectory points and a marker-controlled watershed algorithm,

a new type of foreground labeling algorithm is proposed to effectively reduce computing costs and improve

edge-preserving performance. Experimental results demonstrate the promising performance of the proposed

approach compared with other competing methods.

1 INTRODUCTION

Foreground segmentation algorithms aim to identify

moving objects in the scene for subsequent analysis.

Effective methods for isolating these objects, such

as the background modeling approach, have been

achieved by using stationary cameras (Elqursh and

Elgammal, 2012; Brox and Malik, 2010). However,

the condition that a camera should be stationary lim-

its the application of the traditional background al-

gorithms in moving camera platforms such as mo-

bile phones and robots (Jiang et al., 2012; Lezama

et al., 2011; Liu et al., 2015a; Liu et al., 2015b).

Furthermore, moving cameras are increasingly be-

ing used to capture a large amount of video content.

Therefore, effective algorithms that can isolate mov-

ing objects in video sequences are urgently needed.

Recently, foreground detection methods in dynamic

scenes based on mixture of Gaussians modelling have

been proposed(Varadaraja et al., 2015a; Varadaraja

et al., 2015b).

Object detection has been studied rarely in low

illumination conditions. This topic has gradually

drawn the attention of researchers because of its wide

applications in all-weather real-time monitoring. Re-

sults of foreground segmentation can be improved by

enhancing the contrast of the images. Many effec-

tive contrast enhancement algorithms have been pro-

posd to improve the visual quality and used as a pre-

processing strategy for object detection. However,

most of the methods are time and memory consum-

ing in the application of the video enhancement re-

search on simpliﬁcation of the existing enhancement

algorithms should be conducted.

Many effective methods have been proposed to

handle the problem of trajectory classiﬁcation, in

which the foreground and background trajectories are

generated according to the shape and length of fea-

ture point trajectories(Sheikh et al., 2009; Ochs and

Brox, 2011; Ochs and Brox, 2012; Nonaka et al.,

2013). Sheikh (Sheikh et al., 2009) used RANSAC

to estimate the basis of 3D trajectory subspace by

the inliers and outliers of trajectories correspond-

ing to the background and foreground points, re-

spectively. Ochs (Ochs and Brox, 2012) proposed a

Spectral-clustering-based method, which uses infor-

mation around each point to build a similarity matrix

between pairs of points and implement segmentation

by applying spectral clustering. Although the effec-

tiveness of trajectory-based methods has been proven

by experiments on various datasets, certain problems

remain which affect video segmentation accuracy.

Various methods (Jeong et al., 2013; Zhou et al.,

2012; Gauch, 1999) have been applied to video seg-

mentation for moving cameras. Zhang (Zhang et al.,

2012) proposed a video object segmentation method

based on the watershed algorithm. However, the con-

ventional watershed algorithm fails to explicitly pre-

Wang, W., Li, W., Yin, X., Liu, Y. and Zhang, M.

Foreground Segmentation for Moving Cameras under Low Illumination Conditions.

DOI: 10.5220/0005695100650071

In Proceedings of the 5th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2016), pages 65-71

ISBN: 978-989-758-173-1

(a1) Low illumination image

(a2) Enhanced image (b1) Low illumination image

(b2) Enhanced image

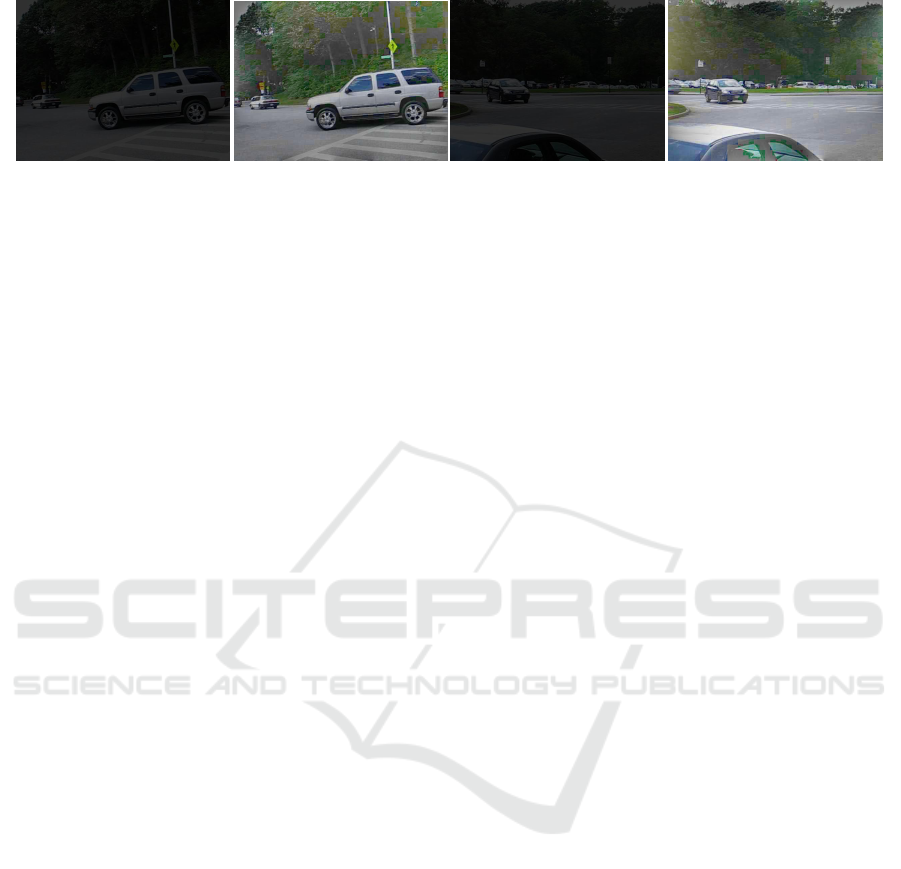

Figure 1: Results of image enhancement. (a1) (b1) are the original low illumination images. (a2) (b2) are the corresponding

enhanced images.

serve boundary fragments, thus leading to the defor-

mation of the shape and contour of detected moving

objects. Gauch (Gauch, 1999) proposed an efﬁcient

and unsupervised segmentation algorithm (Marker-

controlled watershed segmentation) that can suppress

the over-smooth problem and obtain accurate regions

boundaries. However, the marker-extraction step of

this algorithm is relatively complex because of the

difﬁculty in accurately extracting markers. Given that

foreground/background trajectory points can be con-

sidered markers, the combination of dense trajecto-

ries and watershed algorithm provides a new direction

for foreground segmentation on moving cameras. In

the trajectory-based segmentation algorithm proposed

by Yin (Yin et al., 2015), combination of trajectory

points and the original gradient minima of the images

is used as markers to guide the segmentation. Fore-

ground/background regions are segmented according

to the trajectory points contained. However, regions

without trajectory points should be processed by a

time-consuming label inference strategy, which affect

the real-time performance of the algorithm.

The paper is origanized as follows. In Section 2,

a gradient ﬁeld based image enhancement algorithm

is proposed to pre-process the video sequence. Based

on the point trajectory classiﬁcation results obtained

in Section 3, we combine marker-controlled segmen-

tation with trajectory points to propose a new object

segmentation algorithm in Section 4. Section 5 and

Section 6 are experiments and conclusion.

2 GRADIENT FIELD BASED

IMAGE ENHANCEMENT

Object segmentation in low illumination videos suf-

fers from inaccurate boundaries because of low con-

trast and weak edges. Therefore, image enhancement

is required as a pre-processing step of the low-contrast

video sequences. A gradient-ﬁeld-based image en-

hancement is designed to achieve high contrasts. The

original image is ﬁrst converted to the HSV for-

mat consisting of hue, saturation and value compo-

nents. Gradient-ﬁeld-based enhancement is then im-

plemented on the value component. Based on the

enhancement algorithm proposed by Zhu (Zhu et al.,

2007), the real-time performance of the enhancement

algorithm is further improved, while the visual quality

of image enhancement is maintained.

The value component is assumed a m×n matrix

V , and the gradient ﬁeld is expressed in the Possion’s

equation form:

D = L

V +VL

(1)

where L is denoted as the Laplacian operation matrix:

L =







2 −1

−1 2 −1

−1 2







(2)

and L

are the m×m and n×n Laplacian

operation matrix, respectively; D = div(G) is the

divergence of value component, where div is the

divergence function. Equation (1) is converted to the

following form by matrix transformation:

−1

V +VP

−1

= D (3)

where A

and A

are the diagonal matrices with

elements of L

and L

, with [λ

(1)

, λ

(1)

, . . . , λ

(1)

]

and [λ

(2)

, λ

(2)

, . . . , λ

(2)

] being the diagonal elements,

respectively. By multiplying P

and P

−1

on both

sides, Equation (3) is written as follows:

V P

−1

+ P

V P

−1

= P

−1

(4)

By using the Kronecker product, Equation (4) is

converted to the following form:

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods







(1)

+ λ

(1)

+ λ

(1)

+ λ

(1)

+ λ

(n)

(1)

+ λ

(n)













mn−m+1













mn−m+1







(5)

× A

+ A

× I

)v(P

V P

−1

) = v(P

−1

) (6)

where × is the Kronecker product operation and

v(·) is the vectorization operation. To reduce the

memory cost of the algorithm, we convert Equa-

tion (5) to a linear system, as shown in Equation

(6),where [x

, x

, . . . , x

]

and [y

, y

, . . . , y

]

Equation (6) are the vector form of P

V P

−1

and

V P

−1

, respectively. Assuming X is the matrix form

of [x

, x

, . . . , x

]

, the enhanced value component V

is obtained as follows:

= P

−1

(7)

Combined with the enhanced value component

with the former hue and saturation components, the

enhanced HSV images are generated. The enhanced

RGB images are then transformed from the HSV im-

ages and the results of enhancement are shown in Fig-

ure 1.

On the basis of the enhancement of contrast and

edges, the following segmentation in Section 4 gen-

erates continuous and accurate segmentation results

along the edges. The foreground/background bound-

aries are also precisely constructed.

3 POINT TRAJECTORY

CLASSIFICATION

In trajectory classiﬁcation, long-term trajectories are

obtained on the basis of the analysis of dense points

in long frame sequences and are used to accumulate

motion information over frames. Thereafter, the fore-

ground and background trajectories are distinguished

by applying the trajectory classiﬁcation approach.

Trajectory classiﬁcation is implemented by using

the cluster growing algorithm. The difference be-

tween trajectories T

and T

is measured by a shape

similarity descriptor, including a motion displacement

term and an Euclid difference term.

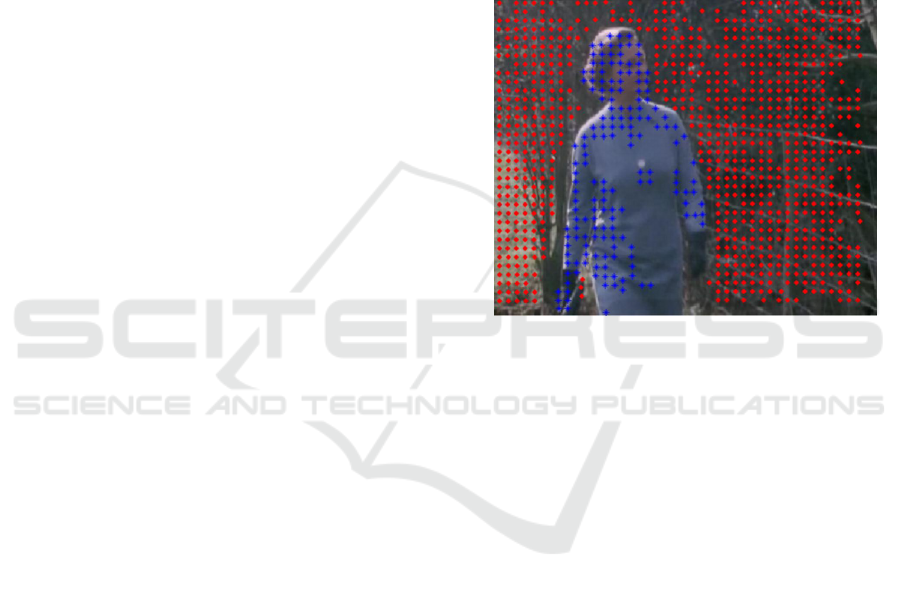

Figure 2: The results of trajectory classiﬁcation. The points

in red and blue represent the starting points of background

and foreground trajectories, respectively.

If a trajectory is given with the start position and

length, the motion displacement vector for the trajec-

tory is expressed as follows:

4T = [P

s+l−1

− P

] = [x

s+l−1

− x

, y

s+l−1

− y

] (8)

= [4x

( j)

, 4y

( j)

, . . . , 4x

( j)

, 4y

( j)

]

(9)

where j and N

denote the index number of trajec-

tories and number of frames in the video sequence,

respectively. The variations of the coordinates of cor-

responding trajectory points are as follows.

( j)

= x

( j)

i+1

− x

( j)

, 4y

( j)

= y

( j)

i+1

− y

( j)

(10)

||T

− T

|| is denoted as the Euclid distance be-

tween trajectories T

and T

. The shape similarity of

trajectories T

and T

is measured by overall displace-

ment and Euclid distance as follows:

S(T

, T

) = α

||T

− T

|| + α

|| 4 T

− 4T

|| (11)

where α

and α

are the coefﬁcients that determine

the relative importance of each term. The similar-

ity measurement is applied in the following cluster-

ing approach. Given the samples in the motionseg

Foreground Segmentation for Moving Cameras under Low Illumination Conditions

Foreground/ Background trajectory points are

extracted.

The modified gradient map is obtained by adding

trajectory points as new markers.

Original gradient minima is obtained.

Marker Extraction

Flooding begins with the regional minima of the

modified gradient image

Watershed lines are generated corresponding to

the edges between the markers

Watershed regions are labeled as foreground/

background regions according to the labels of

contained trajectory points.

Watershed Transform

Figure 3: The procedure of the proposed segmentation algorithm.

database (Elqursh and Elgammal, 2012), the trajecto-

ries of the foreground and background are clustered.

The representative trajectory classiﬁcation results in

the motionseg dataset (Elqursh and Elgammal, 2012)

are illustrated in Figure 2. The points in red and blue

represent the starting points of the background and

foreground trajectories, respectively.

On the basis of the point trajectories, which are

divided into foreground and background trajectories,

the movement of the objects is accurately represented.

This movement is then used in foreground construc-

tion.

4 OBJECT SEGMENTATION

USING

MARKER-CONTROLLED

SEGMENTATION

The watershed segmentation algorithm is an effective

segmentation algorithm with relatively low computa-

tional complexity, generates watershed regions with

boundaries closely related to edges of objects, and

reveals structure information in images. However,

the conventional watershed algorithm suffers from the

imprecise location of region boundaries. The struc-

tural information of contours and details in the video

sequences are affected by the inaccurate location of

region boundaries.

To overcome the problems discussed above, we

combine optical ﬂow trajectory with a marker-

controlled watershed algorithm (Gauch, 1999) to ad-

dress the background subtraction problem for moving

cameras. The procedure of the proposed segmenta-

tion algorithm is illustrated in Figure 3.

The original gradient minima of back-

ground/foreground parts, which are homogenous

regions with similar gray values, are chosen as the

initial markers. As useful prior knowledge for identi-

fying the foreground and the background, trajectory

points are considered components that mark the

smooth regions of an image. The approximate shape

and contour of the moving objects are represented

by trajectory points. Therefore, the estimation of

the segmentation should ﬁrst be obtained. The

sparsity of trajectory points also suppresses the over-

segmentation problem. Trajectory points are selected

as new markers to guide the generation of watershed

regions, such as seeds, in the region growing process.

Therefore, the problem of extracting markers is

solved.

For an example frame in the video sequence in the

motionseg dataset, the original gradient minima are

ﬁrst obtained (Figure 4a). Instead of using the com-

bination of former gradient minima and the trajectory

points as the gradient minima, which is proposed by

Yin (Yin et al., 2015), trajectory points shown in Fig-

ure 4(b) are taken as the only markers that guide wa-

tershed segmentation and imposed as minima of the

gradient function. This means that the markers are

more sparse and the over-segmentation problem is ef-

fectively suppressed. The input marker image for wa-

tershed segmentation is a binary image that consists

of marker points, where each marker corresponds to

a speciﬁc watershed region. Morphological mini-

mization operation (Soille, 1999) is applied to modify

the initial gradient image, which takes the trajectory

points as markers and adds them to the minima. The

modiﬁed gradient image is obtained as follows:

= Mmin(G|P

) (12)

where G is the original gradient minima and Mmin(·)

is the morphological minimization operation, with the

trajectory points P

being imposed as the gradient

minima to guide the watershed segmentation. After

the modiﬁed gradient image is obtained, watershed

transform (Gauch, 1999) is applied to ﬁnd the accu-

rate contour S

of the moving objects as follows:

= W

Seg(G

) (13)

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

(a) Original gradient minima

(b) Trajectory point image (c) Segmentation result

(d) Binary labeling based on segmentation

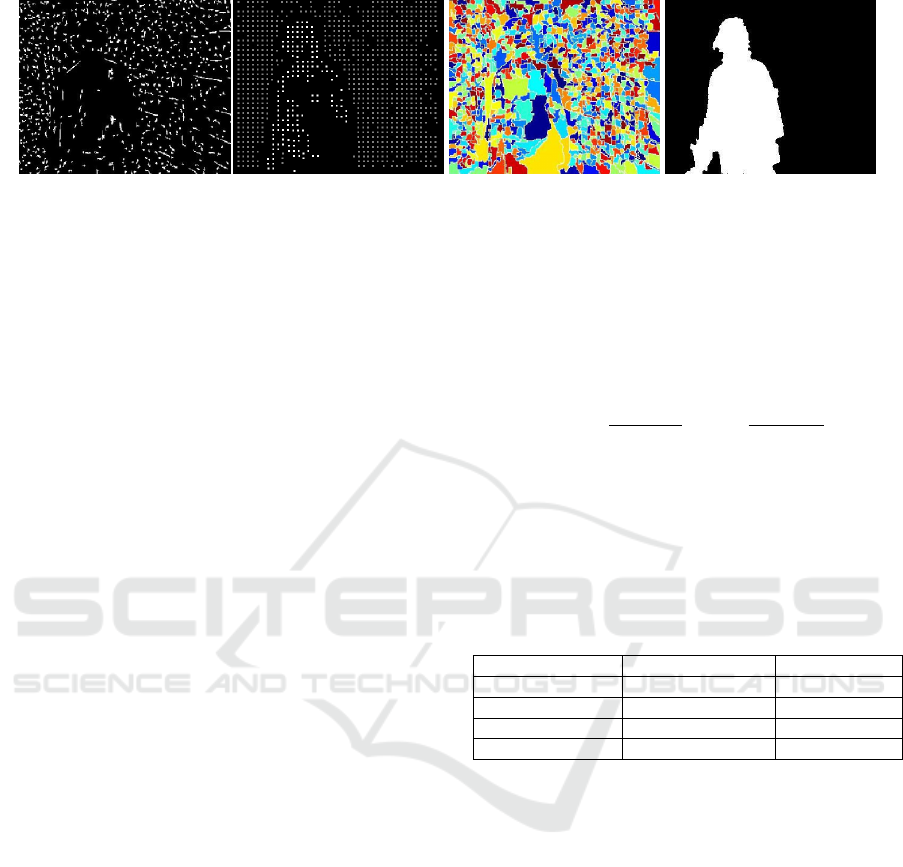

Figure 4: Illustration of the proposed segmentation algorithm. (a) Original gradient minima image. White regions represent

the regional minima. (b) Trajectory point image. White and grey points indicates the locations of foreground/background

trajectory points, respectively. (c) Segmentation result. All the regions are painted as different colors. (d) Fore-

ground/background labeling based on segmentation. The regions containing the foreground trajectory points are labeled

as foreground regions (white parts). Background regions are represented as black parts.

where G

is the modiﬁed gradient minima, and W

Seg

is the watershed segmentation operation.The subse-

quent label inference strategy is unnecessary because

the segmentation result is already satisfactory.

The segmentation result of watershed transform

is shown in Figure 4(c). On the basis of the

segmentation result, foreground/background label-

ing is performed for all regions. Watershed re-

gions containing trajectory points are labelled as fore-

ground/background regions according to the labels

of the corresponding trajectory points. As shown in

Figure 4(d), watershed regions with foreground and

background trajectory points are indicated in white

and black, respectively.

As shown in Figure 4(d), although most of the re-

gions have been identiﬁed as foreground/background

parts, the segmentation result for each frame still con-

tains a few unlabeled regions that impair the com-

pleteness of moving objects. To improve the accu-

racy of background subtraction, a label inference pro-

cedure conducts binary labeling for each unlabeled

pixel according to the probability belonging to the

foreground/background (Section 5).

5 EXPERIMENTS

We validate the performance of our method on the

motion segmentation dataset provided by Brox (Brox

and Malik, 2010), which consists of 26 video se-

quences. The moving objects in this dataset are

mainly people and cars. The PC for conducting the

experiments has 2 GB of RAM and a 1.60 GHz CPU.

For evaluation purpose, we take precision and re-

call as metrics, which has been used by Nonaka (Non-

aka et al., 2013). The numbers of true foreground

pixels, false foreground pixels, and false background

pixels are denoted as T P, FP, FN , respectively. The

precision and recall metrics can then be obtained by

Equation (14) as follows:

Prec =

T P

T P + FP

, Rec =

T P

T P + FN

(14)

The comparison of average precision and recall

metrics is shown in Table 1. Compared with the al-

gorithms of Sheikh (Sheikh et al., 2009) and Non-

aka (Nonaka et al., 2013), the proposed algorithm

achieves the highest precision and signiﬁcant recall,

thus indicating less false foreground/background pix-

els and accurate segmentation result.

Table 1: Comparison on Average Precision and Recall.

Average precision Average recall

Proposed method 0.8239 0.8713

Sheikh (2009) 0.6957 0.8903

Nonaka (2013) 0.6135 0.8058

Zhang (2012) 0.8191 0.8270

Figure 5 shows some representative results of

our method. The background parts are illustrated

in red and the foreground parts remain the color in

the enhanced images. As trajectory points are taken

as the only markers to guides watershed segmenta-

tion, the sparsity of the markers suppresses the over-

segmentation problem and improves the segmentation

results. Thus the label inference strategy used in some

papers (Sheikh et al., 2009; Nonaka et al., 2013; Yin

et al., 2015) is unnecessary. Due to the errors of the

optical ﬂow algorithm, errors may exist in the loca-

tions of the trajectory points, which may affect the

marker-controlled segmentation results and cause a

few inaccurate contours of the moving objects. Al-

though a few parts of the contours are slighted af-

fected by the errors of optical ﬂow, the proposed

method generates satisfying segmentation results, as

shown in Figure 5. In our experiment, the process-

ing speed on the dataset is measured by the number

of frames processed per second (fps). Compared with

Foreground Segmentation for Moving Cameras under Low Illumination Conditions

(a1)

(a2) (a3) (a4) (a5)

(b1)

(b2) (b3) (b4) (b5)

(c1)

(c2) (c3) (c4) (c5)

(d1)

(d2) (d3) (d4) (d5)

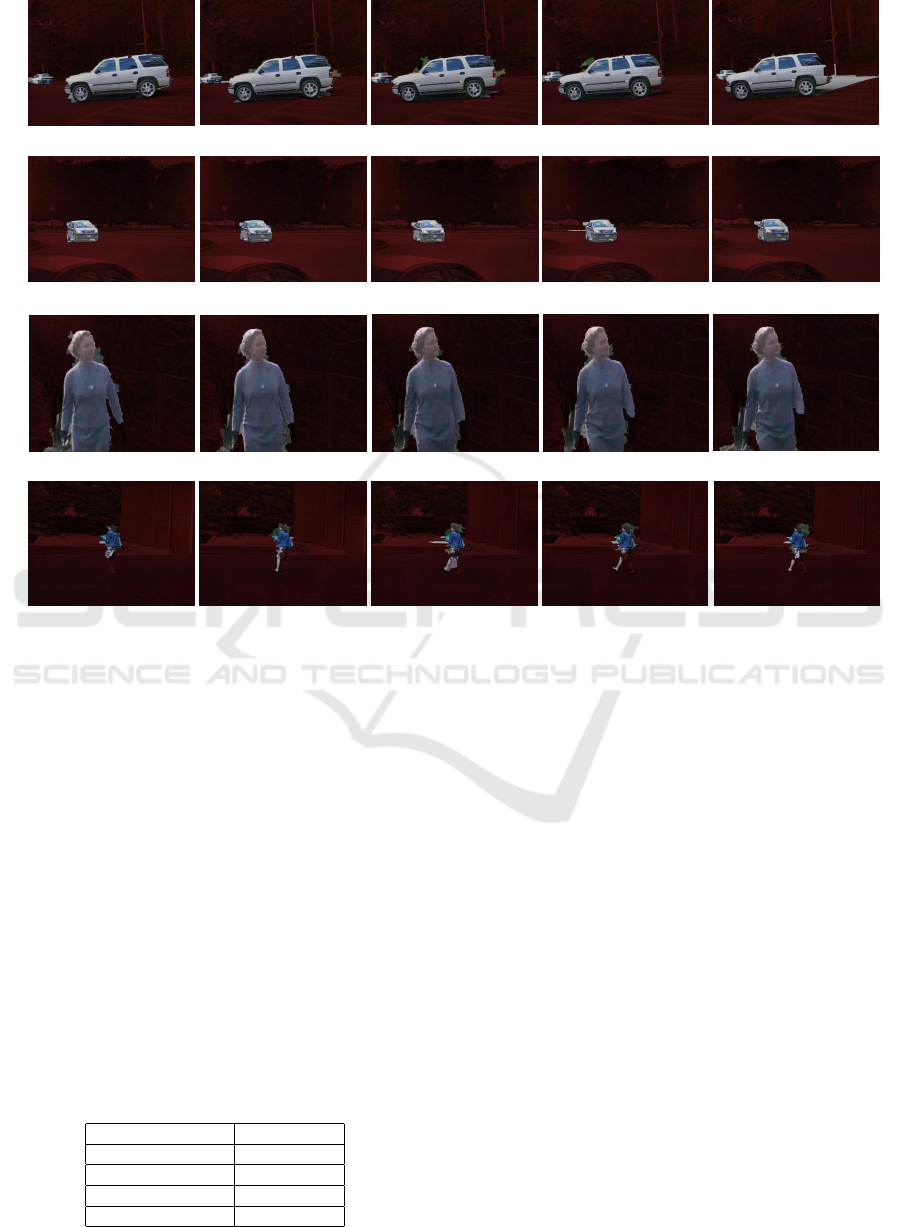

Figure 5: (a)(b)(c)(d) are 4 groups representative results on the sequences in motionseg dataset (Brox and Malik, 2010) using

our method. The background parts are illustrated in red and the foreground parts remain the color in the enhanced images.

algorithms like label inference (Sheikh et al., 2009;

Nonaka et al., 2013) and spectral clustering (Ochs

and Brox, 2011; Ochs and Brox, 2012), the trajec-

tory classﬁcation and the watershed-based segmen-

tation algorithm proposed in this paper show lower

computing complexity and signiﬁcant real-time per-

formance, which effectively reduces the computing

time of the proposed method. The comparison results

are shown in Table 2. Although the proposed method

performs slower than the algorithm of Nonaka (Non-

aka et al., 2013), the precision and recall results of

the proposed method outperforms their method. And

the proposed method outperforms the algorithms pro-

posed by Sheikh (Sheikh et al., 2009) and Zhang

(Zhang et al., 2012) in terms of processing speed and

Table 2: Comparison on average processing speed (fps) on

the motionseg dataset.

Algorithm Average fps

Proposed method 0.538

Sheikh (2009) 0.096

Nonaka (2013) 1.042

Zhang (2012) 0.263

segmentation results.

6 CONCLUSION

To cope with the problem of video segmentation on

moving cameras under low illumination conditions,

we present a new background subtraction method.

Our work includes image enhancement, trajectory

classiﬁcation and object segmentation. The satisfac-

tory performance of the proposed approach is shown

in the comparison experiments. The segmentation

consistency across the video sequences and algo-

rithms efﬁciency for hardware implementation are

considered the future research directions of this work.

REFERENCES

Brox, T. and Malik, J. (2010). Object segmentation by long

term analysis of point trajectories. In Proceedings of

the 11th European Conference on Computer Vision

(ECCV). Springer Berlin Heidelberg.

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

Elqursh, A. and Elgammal, A. (2012). Online moving

camera background subtraction. In Proceedings of

the 12th European Conference on Computer Vision

(ECCV). Springer Berlin Heidelberg.

Gauch, J. (1999). Image segmentation and analysis via mul-

tiscale gradient watershed hierarchies. IEEE Transac-

tions on Image Processing (TIP), pages 69–79.

Jeong, Y., Lim, C., Jeong, B., and Choi, H. (2013). Topic

masks for image segmentation. KSII Transactions on

Internet and Information Systems (TIIS), pages 3274–

3292.

Jiang, Y., Dai, Q., Xue, X., Liu, W., and Ngo, C. (2012).

Trajectory-based modeling of human actions with mo-

tion reference point. In Proceedings of the 12th IEEE

European Conference on Computer Vision (ECCV).

Firenze, Italy.

Lezama, J., Alahari, K., Sivic, J., and Lapte, I. (2011).

Track to the future: Spatio-temporal video segmen-

tation with long-range motion cues. In Proceedings

of the 24th IEEE International Conference on Com-

puter Vision and Pattern Recognition (CVPR). Col-

orado Springs.

Liu, Y., Xiao, H., Wang, W., and Zhang, M. (2015a). A

robust motion detection algorithm on noisy videos.

In IEEE 40th International Conference on Acoustics,

Speech and Signal Processing (ICASSP). Brisbane,

Australia.

Liu, Y., Xiao, H., Xu, W., M.Zhang, and J.Zhang (2015b).

Data separation of l1-minimization for real-time mo-

tion detection. In IEEE British 26th International

Conference on Machine Vision (BMVC). Swansea,

UK.

Nonaka, Y., Shimada, A., Nagahara, H., and Taniguchi,

R. (2013). Real-time foreground segmentation from

moving camera based on casebased trajectory classi-

cation. In IEEE International 2nd Asian Conference

Pattern Recognition (ACPR). Okinawa, Japan.

Ochs, P. and Brox, T. (2011). Object segmentation in video:

A hierarchical variational approach for turning point

trajectories into dense regions. In Proceedings of the

13th IEEE International Conference Computer Vision

(ICCV). Barcelona, Spain.

Ochs, P. and Brox, T. (2012). Higher order motion models

and spectral clustering. In Proceedings of the 25th

IEEE International Conference on Computer Vision

and Pattern Recognition (CVPR). Rhode Island.

Sheikh, Y., Javed, O., and T.Kanade (2009). Background

subtraction for freely moving cameras. In IEEE 12th

International Conference Computer Vision (ICCV).

Kyoto, Japan.

Soille, P. (1999). Morphological image analysis principles

and applications. Springer-verlag, Berlin, Germany.

Varadaraja, S., Hongbin, W., Miller, P., and Huiyu, Z.

(2015a). Fast convergence of regularised region-based

mixture of gaussians for dynamic background mod-

elling. Computer Vision and Image Understanding,

pages 45–58.

Varadaraja, S., Miller, P., and Huiyu, Z. (2015b). Region-

based mixture of gaussians modelling for foreground

detection in dynamic scenes. Pattern Recognition

(PR), pages 3488–3503.

Yin, X., Wang, B., Li, W., Liu, Y., and Zhang, M. (2015).

Background subtraction for moving cameras based on

trajectory classiﬁcation, image egmentation and label

inference. KSII Transactions on Internet and Informa-

tion Systems (TIIS).

Zhang, G., Yuan, Z., Chen, D., Liu, Y., and Zheng,

N. (2012). Video object segmentation by cluster-

ing region trajectories. In Proceedings of the 25th

IEEE International Conference on Pattern Recogni-

tion (CVPR). Rhode Island.

Zhou, J., Gao, S., and Jin, Z. (2012). A new connected co-

herence tree algorithm for image segmentation. KSII

Transactions on Internet and Information Systems

(TIIS), pages 547–565.

Zhu, L., Wang, P., and Xia, D. (2007). Image contrast

enhancement by gradient ﬁeld equalization. Journal

of Computer-Aided Design and Computer Graphics,

page 1546.

Foreground Segmentation for Moving Cameras under Low Illumination Conditions
