Data Based Color Constancy

Wei Xu, Huaxin Xiao, Yu Liu and Maojun Zhang

College of Information System and Management, National University of Defense Technology, Changsha, China

Keywords:

Color Constancy, Color Gamut, Canonical Illuminant, Data Driven, Kernel Method.

Abstract:

Color constancy is an important task in computer vision. By analyzing the image formation model, color

gamut data under one light source can be mapped to a hyperplane whose normal vector is only determined by

its light source. Thus, the canonical light source is represented through the kernel method, which trains the

color data. When an image is captured under an unknown illuminant, the image-corrected matrix is obtained

through optimization. After being mapped to the high-dimensional space, the corrected color data are best ﬁt

for the hyperplane of the canonical illuminant. The proposed unsupervised feature-mining kernel method only

depends on the color data without any other information. The experiments on the standard test datasets show

that the proposed method achieves comparable performance with other state-of-the-art methods.

1 INTRODUCTION

Under different color light sources, objects present

different colors. Human eyes can automatically adapt

to the light changes that retain the perception of ob-

ject color. This phenomenon is known as color con-

stancy. However, given the limitation of image sen-

sors, the image captured by digital imaging devices

does not have color constancy. Color is one of the

most important features of vision. Many computer

vision applications need color information, such as

image segment (Zhuang et al., 2012), object recog-

nition and tracking (Bousetouane et al., 2013), and

image retrieval (Stottinger et al., 2012). The object

color variation caused by a light source inﬂuences the

robustness of the above algorithms. Thus, the color

constancy algorithm is important in computer vision.

Many color constancy methods have been pro-

posed in the past decades. Some of these methods

directly set constraints or assumptions on the scene,

such as Grey World (Buchsbaum, 1980), White Patch

(Land, 1977), Shades of Grey (Finlayson and Trezzi,

2004), Grey Edge (van de Weijer et al., 2007), Grey

Block-Differencing (Lai et al., 2013), and Gamut

Mapping (Forsyth, 1990; Gijsenij et al., 2010). Other

methods seek light source-related prior information

by machine learning to predict the unknown illumi-

nant. Cardei et al. (Cardei et al., 2002) employed

the Neural Network method. Although this method

seems to be a reasonable solution, it lacks a detailed

description of the problem. In practice, its gener-

alization ability is poor. Bayesian statistical theory

(Brainard and Freeman, 1997; Finlayson et al., 2001;

Rosenberg et al., 2004; Gehler et al., 2008) is also

commonly used, which determines the speciﬁc prob-

ability distribution as prior knowledge. However, ac-

curately describing this distribution is difﬁcult. Funt

et al. (Funt and Xiong, 2004) used Support Vec-

tor Regression (SVR). Their training set consists of

the binarized chromaticity histograms of many im-

ages. Chakrabarti et al. (Chakrabarti et al., 2008;

Chakrabarti et al., 2012) attempted to develop a statis-

tical model for the spatial correlations between pixels.

In this study, we examine the color gamut data

from a new perspective. By analyzing the image for-

mation model, the color gamut data can be mapped

to a hyperplane whose normal vector is determined

by the light source. This hyperplane uniﬁes the dis-

orderly color gamut data. Thus, the color data cap-

tured under the canonical illuminant are trained to

implicitly obtain the features of the canonical light

source. The training method is an unsupervised fea-

ture mining kernel method, such as SVR, which is

a supervised method. Our algorithm uses the entire

color gamut during training, which is different from

the gamut mapping method (Finlayson et al., 1993)

that uses the data only on the convex hull. When cor-

recting an image under an unknown illuminant, the

corrected matrix is computed by optimization. The

color data of the corrected image can be best ﬁt for the

hyperplane of the canonical illuminant after mapping

to a high-dimensional space. Considering that this

method only depends on the color data without any

Xu, W., Xiao, H., Liu, Y. and Zhang, M.

Data Based Color Constancy.

DOI: 10.5220/0005698104310436

In Proceedings of the 5th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2016), pages 431-436

ISBN: 978-989-758-173-1

431

other information, it is called the data-driven color

constancy method in this study.

The rest of this paper is organized as follows.

Section 2 presents our algorithm, which consists of

analysing the image formation model. Section 3 tests

our method on the standard test datasets and discusses

the results. Finally, Section 4 summarizes this work

and discusses future research.

2 PROPOSED METHOD

2.1 Analysis of the Color Gamut Data

Similar to most color constancy algorithms, we as-

sume that the scene only has one light source and the

object reﬂection is diffusion, which conforms to the

ideal Lambertian model (Barnard, 1999). According

to the Lambertian reﬂection model, image formation

depends on three factors: the light source L(λ), sur-

face reﬂectance properties S(x,λ), and camera sensi-

tivity C(λ). Thus:

(x) =

S(x,λ)L(λ)C(λ)dλ, (1)

where x is the spatial coordinate of the image; λ is

the spectrum wavelength; ω is the visible wavelength

range; C(λ) = [C

(λ),C

(λ)]

is the spectrum

response function of the camera for the three color

bands (i.e., red, green, and blue); and ρ

(x) is the

RGB value at point x under the unknown illuminant,

namely, ρ

(x) = [ρ

(x),ρ

(x)]

The aim of color constancy is to adjust the image

obtained under an unknown illuminant to the canoni-

cal illuminant, as shown in the following equation:

(x) = Λ

µ,c

(x). (2)

where ρ

(x) is the image in the canonical illuminant

and Λ is a constant diagonal matrix (Finlayson et al.,

1993).

Based on a previous study (F.-H. Cheng and Chen,

1998), spectral power distribution can be expressed as

follows:

L(λ) =

∑

i=1

(λ), (3)

where E

(λ) is the basis function used to describe

the spectral power distributions of illuminants, e

the corresponding weight, and n is the number of ba-

sis functions. Substituting L(λ) in Equation (1) with

Equation (4) yields the following:

ρ(x) =

∑

i=1



(λ)S(x,λ)C(λ)dλ



. (4)

For each component of ρ

ρ(x), the following equa-

tion is derived:

1 =

∑

i=1



(λ)S(x,λ)C

(λ)

(x)

dλ



. (5)

where k = r,g,b.

Summing up the red, green, and blue components

yields the following:

−



∑

i=1



∑

k=r,g,b

(λ)S(x,λ)C

(λ)

3ρ

(x)

dλ





+1 = 0. (6)

It can be abbreviated in hyperplane form as fol-

lows:

< w,χ > +1 = 0, (7)

where < ·,· > is the inner product, w = [e

,· · · , e

and χ =

−



∑

k=r,g,b

(λ)S(x,λ)C

(λ)

3ρ

(x)

dλ



i=1

. The

function Φ that can map the color gamut data to the

n-dimensional space H is then deﬁned. If it satisﬁes:

Φ([ρ

(x),ρ

(x)]) =

−

∑

k=r,g,b

(λ)S(x,λ)C

(λ)

3ρ

(x)

dλ

i=1

,∀x, (8)

any pixel in the image can project to the hyperplane,

which is determined by the normal vector w. The nor-

mal vector w is only related to the illuminant parame-

ter e

, which represent the light source characteristics

2.2 Estimation of Illuminant

Parameters

Suppose the color gamut of the known canonical il-

luminant c is Ω

= {ρ

(i)}

i=1,2,···,P

, where P is the

number of data in the color gamut, and ρ

(i) is the

RGB value of some data i. After mapping the func-

tion Φ, the new data χ

= Φ(ρ

(i)) satisfy the corre-

sponding hyperplane Γ

of the light source. Thus:

:< w

,χ

> +1 = 0, (9)

where normal vector w

is the illuminant characteris-

tic.

The kernel function can denote the inner product

of the high-dimensional space in the original low-

dimensional space, i.e., K(a,b) =< Φ(a),Φ(b) >.

Thus, the kernel function is employed to approximate

Φ.

Similar to the derivation of SVR, the loss function

ξ = L(0,< w

,χ

> +1) is deﬁned. The target is to

minimize the total loss as follows:

= argmin

∑

i=1

(10)

s.t. ξ

= L(0,< w

,χ

> +1).

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

432

The ε-insensitive loss function is used to deal with

the noise in the observed data as follows:

L(0,< w

,χ

> +1) =

< w

,χ

> +1

. (11)

In general, the observed data contain noise. Reg-

ularization is utilized in controlling the capacity of

the function cluster to avoid over-ﬁtting. In particu-

lar, the magnitude of

is restricted, where

is a 2-norm operator, and the variable η is used as

the weight to leverage the capacity and errors. The

problem is then transformed to solve the minimiza-

tion problem of the optimization objective function as

follows:

= argmin

+ η

∑

i=1

(ξ

) (12)

s.t. < w

,χ

> +1 ≤ ε + ξ

< w

,χ

> +1 ≥ −ε −

≥ 0,i = 1,2,· · · ,P

where ξ

and

are relaxation factors, and the constant

η > 0 indicates the punishment for the excess of the

error ε .

By Lagrange duality theory and the introduction

of the kernel function, Eq.(12) can be converted to

the following quadratic programming problems:

(

α,α) =

argmin

α,α

∑

i=1

∑

j=1

(

− α

)(

− α

)K(ρ

(i),ρ

( j))

+ε(

∑

i=1

(

+ α

) +

∑

i=1

(

− α

)) (13)

s.t.0 ≤

≤ η

0 ≤ α

≤ η

where K(·,·) is the kernel function. The Gaus-

sian radial basis kernel function K(a,b) =

exp(−

a − b

/2(σ

)) is selected in our method.

From the derivation of Eq.(13), the illuminant

characteristic can be obtained as follows:

∑

i=1

(

− α

)Φ(ρ

(i)). (14)

The illuminant can be implicitly expressed by the

parameters

and α

. Although w

still relates to the

mapping of Φ(ρ

(i), the next section discusses that

the corrected matrix can be obtained only if

and α

are known.

According to the feature of the support vectors,

the obtained w

is sparse because of the use of

the insensitive loss function. Although w

is P -

dimensional (i.e., P is the number of data in the color

gamut), many zeros exist in w

. The number of non-

zeros is exactly the number of support vectors.

During training, given the large amount of color

gamut data (i.e., hundreds of thousands of points),

the memory consumption is very large. Thus, we de-

signed an iterative algorithm. In Step 1, 1000 points

are uniformly chosen as the subset for training, and

their hyperplane is obtained. In Step 2, 150 points

that have the maximum distance to the hyperplane are

selected and added to the subset to train a new hyper-

plane. Step 2 is repeated several times to obtain the

best hyperplane.

2.3 Estimation of the Corrected Matrix

Given an image ρ

(x) under an unknown illuminant

µ, the correction employs the diagonal matrix Λ

µ,c

diag(f) according to Eq.2. After the correction, the

image color gamut in high-dimensional space can be

best ﬁt for the canonical illuminant hyperplane Γ

This optimization problem is as follows:

µ,c

argmin

µ,c

∑

j=1

(< w

,Φ(Λ

µ,c

( j)) > +1)

, (15)

where ρ

( j) is the RGB value at point j in the un-

known illuminant color gamut, and Q is the number

of data in the color gamut. When Λ

µ,c

= 0, Eq.15 is

clearly degenerated and constantly established. Thus,

the constraint is required. In our method, the con-

straint is [Λ

µ,c

]

µ,c

≥ 3. Its physical meaning is ob-

tained after the correction, and the image brightness

remains high. Λ

µ,c

= 0 indicates that the image turns

black after the correction. Given that w

can be ex-

pressed as Eq.14 and

is a constant, as shown

in the previous section, Eq.15 can be rewritten as fol-

lows:

µ,c

= argmin

µ,c

∑

j=1



∑

i=1



− α





µ,c

( j), ρ

(i)



+ 1



s.t. [Λ

µ,c

]

µ,c

≥ 3 (16)

Eq.16 is a nonlinear optimization problem.

The damped Gauss−Newton method (Subramanian,

1993; Pan and Chen, 2009) is used to solve this prob-

lem, whose convergence is fast and accurate. Approx-

imately 10 iterations are sufﬁcient in our application.

More importantly, the global unique solution can be

obtained.

Data Based Color Constancy

433

3 EXPERIMENTS AND ANALYSIS

Figure 1: Camera used for the SFU Grey-ball dataset col-

lection.

The performance of the proposed algorithm is tested

in this section. We primarily performed the experi-

ment on the SFU Grey-ball dataset proposed by Funt

et al. (Ciurea and Funt, 2003). This dataset consists

of 11,346 consecutive images captured with a video

camera. The video contains various indoor and out-

door scenes under different illuminant. The ground

truth is captured using a grey sphere mounted on the

bottom of the camera (Fig.1), so it is always visible

inside the images. Some sample images are shown in

Fig.2. The ground truth illuminant of each image and

test results of some state-of-the-art methods for the

full set are published on the color constancy research

website (Gijsenij and Gevers, ).

Figure 2: Sample images in the SFU Grey-ball dataset.

The angular error between the estimated illumi-

nant vector e

and the ground truth vector e

is em-

ployed to provide quantitative quality evaluations as

follows:

arg

= cos

−1

(

· e

) (17)

Suppose the corrected matrix Λ

µ,c

= diag(l,m, n).

The estimated illuminant vector e

is computed as

= (m/l,1,m/n). Here the quotiety of green compo-

nent is set to 1. The mean and median angular errors

are selected for performance evaluation.

3.1 Experiment Details

We randomly selected 50 images from the training

dataset of the canonical illuminant. These images in-

clude various scenes under different light sources cor-

rected by the ground truth before training. Based on

these images, the color gamut (approximately 40,000

points) of the canonical illuminant can be drawn

(Fig.3).

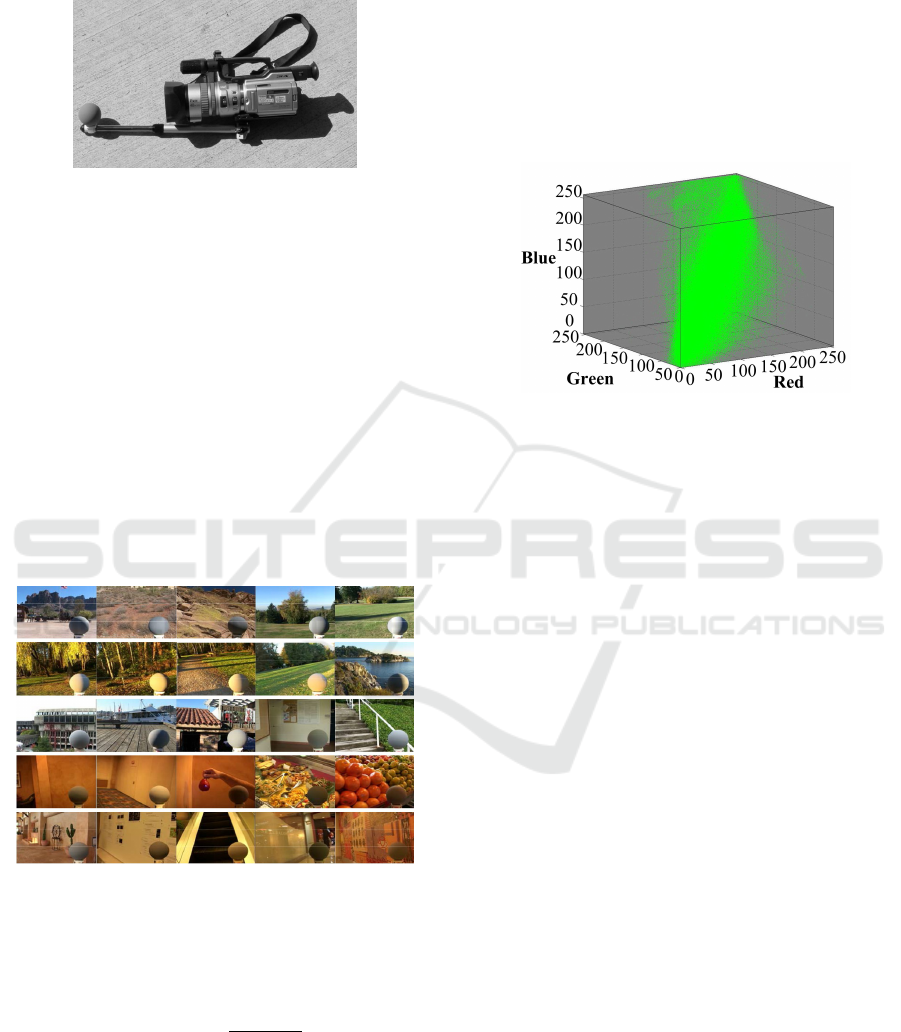

Figure 3: Color gamut of the canonical illuminant.

Three parameters (i.e., λ, ε, and σ) exist in the

training process (Eq.(13)). They are empirically set

according to their meanings. ε, which is the degree of

the tolerance to noise, is set at ε = 0.0001. λ, which is

the degree of the punishment for the excess of error ε,

is set at λ = 1. σ, which is the parameter of the Gaus-

sian radial basis kernel, is set at σ = 25. The run-time

of the training takes 20-30 min on our PC (CPU: 3.10

GHZ, OS: Windows 7 64-bit, RAM: 6 GB). Once the

illuminant characteristic w

is obtained, it can be used

for the correction of all images.

3.2 Experiment Results

We uniformly selected approximately 1000 images

(except the training images) from the dataset to act as

the estimation set. The corrected matrix was obtained

by the optimization of Eq.(16). Given that the grey

ball in the image is used to record the actual illumi-

nant, it needs to be masked to avoid its inﬂuence. We

uniformly selected 25% of the color gamut data un-

der an unknown illuminant for the optimization of the

corrected matrix to decrease the computation time. In

this case, the run-time of the optimization requires 3-5

min.

Several typical color constancy methods were se-

lected as the comparison methods, namely, the Grey

world (Buchsbaum, 1980), Shades of Grey (Finlayson

and Trezzi, 2004), second-order Grey Edge (van de

Weijer et al., 2007), SVR (Funt and Xiong, 2004),

Generalized Gamut Mapping (Gijsenij et al., 2010),

and Spatial Correlations (Chakrabarti et al., 2012).

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

434

Here some methods are use training set too. We

set the training conditions according to the authors

recommendation in the paper. As for SVR (Funt

and Xiong, 2004), 3D data (chromaticity plus inten-

sity) histogram is used. The radial basis kernel func-

tion is also chosen with the insensitivity parameter

ε = 0.00001, punishment value η = 0.1, and shape pa-

rameter γ = 0.025. A training set of 45000 histograms

from 6000 images is employed. As for Generalized

Gamut Mapping (Gijsenij et al., 2010), the 1st-order

data (i.e. edges) is used. The training set also has

6000 images from 15 different typical scenes. The

standard deviation of the Gaussian smoothing ﬁlter

is 3. As for Spatial Correlations (Chakrabarti et al.,

2012), the maximum likelihood estimator is engaged.

The training set also has 6000 images like that of Gen-

eralized Gamut Mapping.

Table 1: Angular errors for different color constancy meth-

ods on the SFU Grey-ball dataset.

Method Mean Median

Grey World 8.7

◦

8.4

◦

Shades of Grey 6.9

◦

6.4

◦

Second-order Grey Edge 6.3

◦

5.6

◦

SVR 7.0

◦

6.0

◦

Generalized Gamut Mapping 6.0

◦

4.7

◦

Spatial Correlations 5.4

◦

4.1

◦

Proposed Method 5.2

◦

3.3

◦

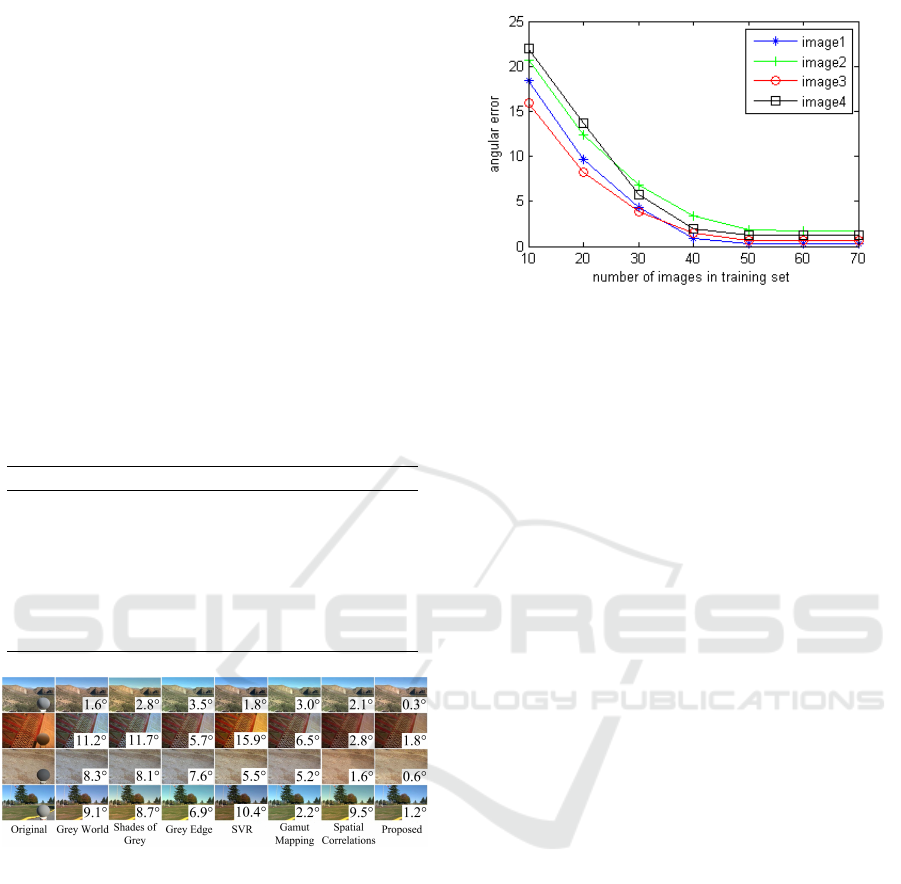

Figure 4: Sample comparison results of the SFU Grey-ball

dataset. The angular error is listed on the grey ball.

Table 1 shows a comparison of the results. It indi-

cates that our method is superior to the other methods.

Some sample comparison results are shown in Fig. 4.

Take the images in Fig. 4 for example, the inﬂuence

of the number of images in training set is shown in

Fig. 5. The correction performance enhances with

more training images. About ﬁfty images are required

to obtain stable results.

4 CONCLUSIONS

We used the unsupervised kernel method, which is

similar to the supervised learning method of SVR. For

the image under an unknown illuminant, the corrected

Figure 5: The angular error curve of the number of images

in training set in ﬁg. 4.

matrix is obtained by the optimization method. The

optimized objective is that the corrected color data

can satisfy the hyperplane of the canonical illuminant

after being mapped to a high-dimensional space. Af-

ter the correction, the sum of the distance from each

point to the hyperplane has a minimum value. The

test results on the SFU Grey-ball dataset show the ef-

fectiveness of the proposed method. The superiority

of the proposed method is also supported by the anal-

ysis. The slice chart of the distance from the points in

the RGB space to the hyperplane of the canonical il-

luminant shows that the method meets the grey world

assumption. However, the proposed method differs

from strong constraint methods, such as Grey World,

which does not add these types of constraints to each

scene. Therefore, better accuracy is achieved by this

model, and a large area of monochromatic objects can

be handled better.

The future work mainly focuses on two aspects.

One is the computational efﬁciency. The run-time of

the corrected matrix estimation requires several min-

utes. It limits the real-time application for digital

imaging devices. Moreover, the training is also time

consumed. The other aspect is the management of

complex illumination environment. The ideal Lam-

bertian model only deals with diffuse reﬂection. Al-

though it is the most common cases, the specular re-

ﬂection unavoidably appears in many scenes. An-

other complex illumination environment is multiple

light source scenes. The effectiveness of the proposed

approach could be inﬂuenced by these complex illu-

mination, since its assumption is only the Lambertian

model. The extension to the complex cases is another

difﬁcult but signiﬁcant work.

Data Based Color Constancy

435

ACKNOWLEDGEMENTS

This research was partially supported by National

Natural Science Foundation (NSFC) of China under

project No. 61403403 and First Class General Finan-

cal Grant of Chian Postdoctoral Science Foundation

under project No.2015M52707.

REFERENCES

Barnard, K. (1999). Dr. Thesis, Practical Color Constancy.

Simon Fraser University, Vancouver.

Bousetouane, F., Dib, L., and Snoussi, H. (2013). Improved

mean shift integrating texture and color features for

robust real time object tracking. The Visual Computer,

29(3):155–170.

Brainard, D. H. and Freeman, W. T. (1997). Bayesian color

constancy. Journal of the Optical Society of American

A: Optics and Image Science, and Vision, 14(7):1393–

1411.

Buchsbaum, G. (1980). A spatial processor model for ob-

ject color perception. Journal of the Franklin Institute,

310(1):337–350.

Cardei, V., Funt, B., and Barnard, K. (2002). Estimating

the scene illumination chromaticity using a neural net-

work. Journal of the Optical Society of American A:

Optics and Image Science, and Vision, 19(12):2374–

2386.

Chakrabarti, A., Hirakawa, K., and Zickler, T. (2008). Color

constancy beyond bags of pixels. In Computer Vision

and Pattern Recognition. IEEE.

Chakrabarti, A., Hirakawa, K., and Zickler, T. (2012). Color

constancy with spatio-spectral statistics. Pattern Anal-

ysis and Machine Intelligence, IEEE Transaction on,

34(8):1509–1519.

Ciurea, F. and Funt, B. (2003). A large images database

for color constancy research. In 11th Color Imaging

Conference, pages 160–164.

F.-H. Cheng, W.-H. H. and Chen, T.-W. (1998). Recovering

colors in an image with chromatic illuminant. Image

Processing, IEEE Transactions on, 7(11):1524–1533.

Finlayson, G., Drew, M., and Funt, B. (1993). Diagonal

transforms sufﬁce for color constancy. In Int. Conf.

Computer Vision. IEEE.

Finlayson, G. and Trezzi, E. (2004). Shades of grey and

color constancy. In 12th Color Imaging Conference,

pages :37–41.

Finlayson, G. D., Hordley, S. D., and Hubel, P. M. (2001).

Color by correlation: A simple, unifying framework

for color constancy. Pattern Analysis and Machine In-

telligence, IEEE Transaction on, 23(11):1209–1221.

Forsyth, D. A. (1990). A novel algorithm for color con-

stancy. Int. J. Computer Vision, 5:5–36.

Funt, B. and Xiong, W. (2004). Estimating illumination

chromaticity via support vector regression. In 12th

Color and Imaging Conference ﬁnal program and

Proceedings, pages 47–52.

Gehler, P. V., Rother, C., Blake, A., Minka, T., and Sharp, T.

(2008). Bayesian color constancy revisited. In Com-

puter Vision and Pattern Recognition. IEEE.

Gijsenij, A. and Gevers, T. Color constancy research

website on illumination estimation. http:// colorcon-

stancy.com.

Gijsenij, A., Gevers, T., and Weijer, V. D. (2010). General-

ized gamut mapping using image derivative structures

for color constancy. Int. J. Computer Vision, 86(2-

3):127–139.

Lai, S., Tan, X., Liu, Y., Wang, B., and Zhang, M. (2013).

Fast and robust color constancy algorithm based on

grey block-differencing hypothesis. Optical review,

20(4):341–347.

Land, E. (1977). The retinex theory of color vision. Scien-

tiﬁc American, 237(6):108–128.

Pan, S. and Chen, J.-S. (2009). A damped gauss-newton

method for the second-order cone complementarity

problem. Applied Mathematics and Optimization, 59.

Rosenberg, C., Minka, T., and Ladsariya, A. (2004).

Bayesian color constancy with non-gaussian models.

In In Advances in Neural Information Processing Sys-

tems (NIPS). Cambridge MA, MIT Press.

Stottinger, J., Hanbury, A., Sebe, N., and Gevers, T. (2012).

Sparse color interest points for image retrieval and ob-

ject categorization. Image Processing, IEEE Transac-

tions on, 21(5):2681–2692.

Subramanian, P. K. (1993). Gauss-newton methods for the

complementarity problem. J. Optimization theory and

applications, 77(3).

van de Weijer, J., Gevers, T., and Gijsenij, A. (2007).

Edge based color constancy. Image Processing, IEEE

Transactions on, 16(9):2207–2214.

Zhuang, H., Low, K., and Yau, W. (2012). Multichannel

pulse-coupled-neural-network-based color image seg-

mentation for object detection. Industrial electronics,

IEEE Transactons on, 59(8):3299–3308.

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

436
