Hybrid SSVEP/P300 BCI Keyboard

Controlled by Visual Evoked Potential

Felipe Alberto Capati, Rodrigo Prior Bechelli and Maria Claudia F. Castro

Centro Universit

ario da FEI, Av. Humberto de A. C. Branco, 3972, 09850-901, S

ao Bernardo do Campo, S

ao Paulo, Brazil

Keywords:

BCI, SSVEP, P300, Evoked Potential, Visual Stimulus, LDA, SVM, FFT.

Abstract:

This paper presents a two stage Brain Computer Interface (BCI) keyboard system that consumes Electroen-

cephalography (EEG) signals based on two evoked potential detection methods: P300 and Steady-State Visual

Evoked Potential (SSVEP). In order to develop a practical daily use EEG system, signals were captured with

a standard low cost Emotiv-EPOC system and processed using OpenViBE platform. Fast Fourier Transform

(FFT) and sample average were used as feature extraction methods while Linear Discriminant Analysis (LDA)

and Support Vector Machine (SVM) were used as classiﬁers.

1 INTRODUCTION

A system based on Brain Computer Interface (BCI)

acquire signals from brain functioning in order to use

this information to actuate on computer and it’s pe-

ripherals. This work rely on Electroencephalogram

(EEG).

As a clinical method, EEG is used to mea-

sure electrical potentials from electrode positioned at

scalp. Several waves, originated from excited and

inhibited alternate potentials, produces an extracel-

lular current ﬂow at cortex brain, at certain levels

that it is possible to detect with superﬁcial electrodes

(Costanzo, 2014).

Using an specialized acquisition software it is pos-

sible to store these signals to determine special as-

pects, classify and relate to a mental state. One spe-

cial aspect deﬁned by these signals and detected under

a certain circumstances is the Evoked Potential (EP).

The EP is a physiological brain response determined

by an external visual, electrical or auditive stimulus.

As described by Chaves et al. (2009), different recep-

tors may be excited and the acquired signal is a sum

of different EP.

The P300 is a positive visual EP with a latency

time of approximately 300 ms. However, there is an

experimental variation with respect to time latency of

250 ms to 600 ms depending on cognitive effort in-

vested by the user attention to the visual event, pa-

tients with neurological diseases and possible neu-

rodegeneration (Majaranta, 2011).

The evoked potential signal amplitude depends

on the stimulus frequency, as pointed by Majaranta

(2011): less frequent stimulus presents larger ampli-

tudes; more frequent stimulus produces lower ampli-

tudes.

Steady-State Visual Evoked Potentials are concen-

trated in the visual cortex located in the occipital lobe

and are induced by ﬂash light at a predetermined fre-

quency. The SSVEP’s are formed by a number of

components whose frequencies are harmonics of the

frequency of stimuli (Majaranta, 2011).

The evoked potential communication between the

operator and the computer is binary in the sense of

having just two operating states. For example, a de-

vice is on or off, move left or right providing a discrete

controller (Middendorf et al., 2000).

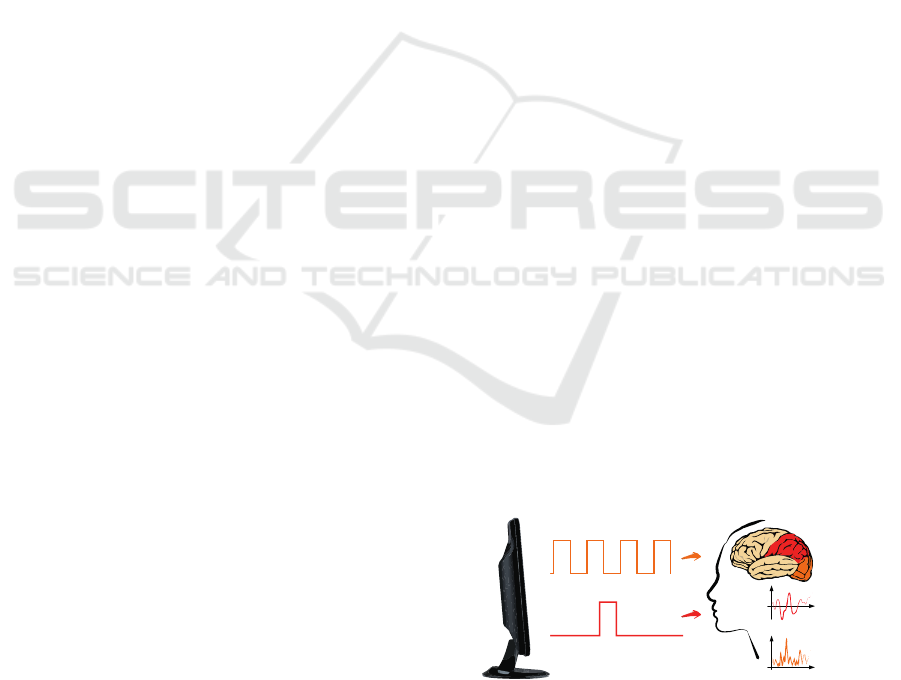

Figure 1 illustrates system operation in SSVEP or

P300 and the expected response in the brain regions

activated by each stimulus.

SSVEP

P300

Parietal Lobe

Occipital Lobe

Figure 1: System Illustration.

The classical model for a virtual keyboard adopt-

ing P300 was introduced by Farwell and Donchin

(1988), known as ”Row, Column” (RC), consists in a

6 by 6 matrix that contains the alphabet and the Arabic

numerals. The rows and columns of this matrix ﬂash

214

Capati, F., Bechelli, R. and Castro, M.

Hybrid SSVEP/P300 BCI Keyboard - Controlled by Visual Evoked Potential.

DOI: 10.5220/0005705202140218

In Proceedings of the 9th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2016) - Volume 4: BIOSIGNALS, pages 214-218

ISBN: 978-989-758-170-0

randomly in order to provide an evoked potential, in

that way, you can know which row and column the

user is looking, corresponding to their choice (Amiri

et al., 2013).

The RC model has a serious problem due to prox-

imity of the keys. Theoretically, one light pulse near

the chosen region should not generate an EP that can

be classiﬁed as the target letter. But this is not true

when analyzing the event in practice. The ”Region

Based” model (RB) proposed in Fazel and Abhari

(2009) signiﬁcantly reduces this problem due the way

it is structured.

The RB model is composed of two steps, the ﬁrst

step identiﬁes one of keyboard seven regions by light

pulses delimited by a circumference that groups the

chosen region. After identifying the region, the sec-

ond step identiﬁes the target letter by independent

light pulses generated by each letter in the chosen re-

gion.

In order to compare a pure BCI (P300 only) with

hybrid BCI (P300 and SSVEP) virtual keyboard in

a RC conﬁguration, Townsend et al. (2010) demon-

strate that a pure BCI setup had a RC bit rate of 19.85

bits/min with RC accuracy of 77,34% and Yin et al.

(2014) presented for a hybrid BCI a RC bit rate of

53.06 bits/min with RC accuracy superior of 95%.

Result rates are considerably higher in a hybrid BCI

setup.

It is possible to create a hybrid system that in-

tegrates multiple BCI techniques working sequen-

tially or simultaneously but not limited to only

two techniques as discussed here. For example,

Slow Cortical Potentials (SCP), Event Related De-

synchronization (ERD) or Event Related Synchro-

nization (ERS) (Amiri et al., 2013) can be used for the

development of hybrid systems that will try, as possi-

ble, maximize positive point and minimize negative

point of each technique.

The proposed interface model and design resem-

bles the hybrid system described by Yin et al. (2014)

that deﬁnes an analysis combining hybrid systems

using the ”Row, Column” (RC) model and ”Region

Based” (RB) processing techniques.

This paper propose a keyboard layout with a fo-

cus on usability employing a standard QWERTY key-

board that can be used by people who already used a

keyboard, those who never used and those that can

not use such device. As a probabilistic model, this

interface is well suited for all users.

2 MATERIAL AND METHODS

The development of this BCI system is based on a se-

quential hybrid system. The ﬁrst protocol of acquisi-

tion is deﬁned by SSVEP method and second by P300

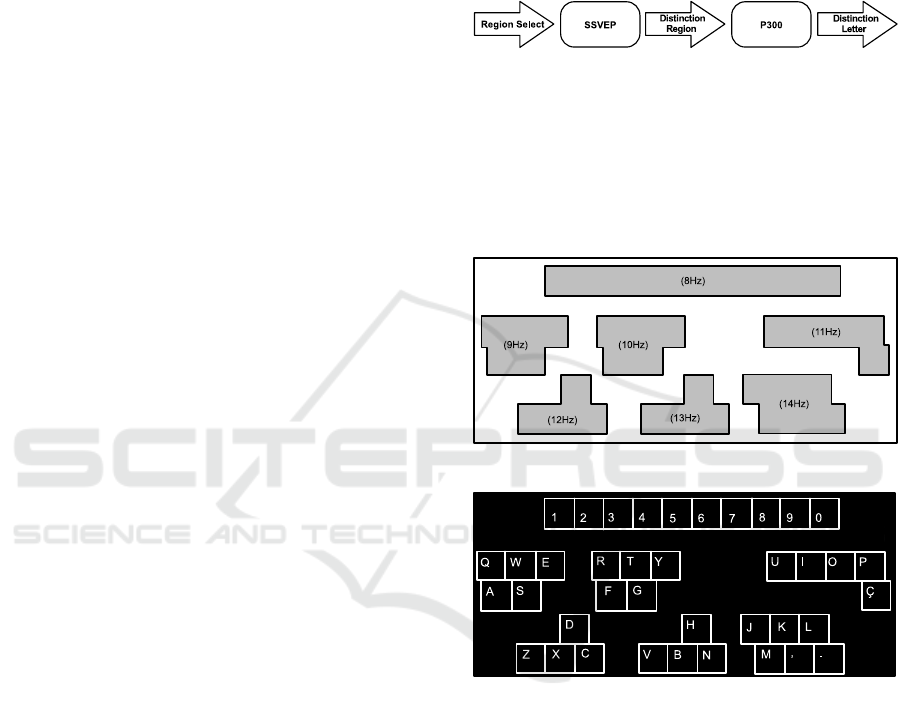

as presented in Figure 2.

Figure 2: Hybrid System Sequence Application.

The ﬁrst step is deﬁned by the use of SSVEP to

identify a single target among seven distinct regions

in the keyboard detailed in Figure 3. Once the region

is identiﬁed, the second step is speciﬁed via P300; a

single key within the deﬁned region as presented in

Figure 4.

Figure 3: Frequency Map Region for SSVEP.

Figure 4: Virtual Keyboard Layout.

The purpose is to optimize and to reduce the issues

experienced with the exclusive use of P300, due to

the proximity of the virtual keys on the keyboard that

generate undesirable EP signals, SSVEP was used to

build the system interface based on regions proposed

in Fazel and Abhari (2009).

The SSVEP is commonly designed for applica-

tions that require a high number of input variables.

Difference between the minimum frequency which

can be detected is 0.2 Hz, the ﬁeld of application is

usually in the range between 5 Hz to 50 Hz. (Amiri

et al., 2013).

There is a dependency between the frequency of

stimulation and amplitude of SSVEP. In Amiri et al.

(2013), the authors demonstrate the relationship of

frequencies and amplitudes. This relation is not linear

Hybrid SSVEP/P300 BCI Keyboard - Controlled by Visual Evoked Potential

215

and the greatest amplitudes occur between 12 and 15

Hz. Amiri et al. (2013) also describe that it is possi-

ble to choose the frequency band based on the signal

amplitude: the greater the amplitude, easier to capture

and interpret the signal.

Apart from signal amplitude aspect, there are two

other variables to be considered. The ﬁrst, describe

the frequency range between 15 Hz and 25 Hz with

good signal reading, but there is a higher risk for pa-

tients having photo- induced seizures. The second

is directly related to the Visual Flickering Limit Fre-

quency with regard to the image luminance modula-

tion frequency noticed by the user. The frequency

ranges from 15 Hz to 100 Hz and depends on the

lighting conditions, the vision (peripheral or central)

ﬁeld, the apparent angle of the object and the individ-

ual characteristics (Stolﬁ, 2008).

Stolﬁ (2008) also described that for the lumines-

cence levels found in computer monitors, the Visual

Flickering Limit Frequency is near 70 Hz and that

there is a greater chance to occur visual fatigue to

the user as higher as the difference between maxi-

mum and operation ﬂickering frequency (Amiri et al.,

2013).

Amiri et al. (2013), cite that the best frequencies to

work are the lowest. These frequencies provide larger

amplitudes that may offer better performance during

the classiﬁcation step. However, lower frequencies

also can cause some discomfort to the user. In Figure

3 is indicated the operating frequencies for each of the

regions.

The Emotiv EPOC (Emotiv, 2011) is used to cap-

ture EEG signals. The entire interface was built us-

ing OpenViBE (Renard et al., 2010) platform and

customized with Python (Oliphant, 2007; P

erez and

Granger, 2007) program language. The process ﬂow

is:

1. User choose a letter and it should look closely at

it;

2. acquisition of EP signals;

3. preprocessing (FFT is used for SSVEP and aver-

age for P300);

4. classiﬁcation and recognition of EP (SVM is used

for SSVEP and LDA for P300);

5. feedback process at the touch of previously cho-

sen key;

6. EEG signal is ﬁltered from 1 Hz to 20 Hz in order

to prepare data for classiﬁcation.

The keyboard was developed in Python and con-

nected to an OpenViBE box that send control data

to ”Data interface” ﬁle. The preprocessing, classi-

ﬁcation and recognition of EP was developed using

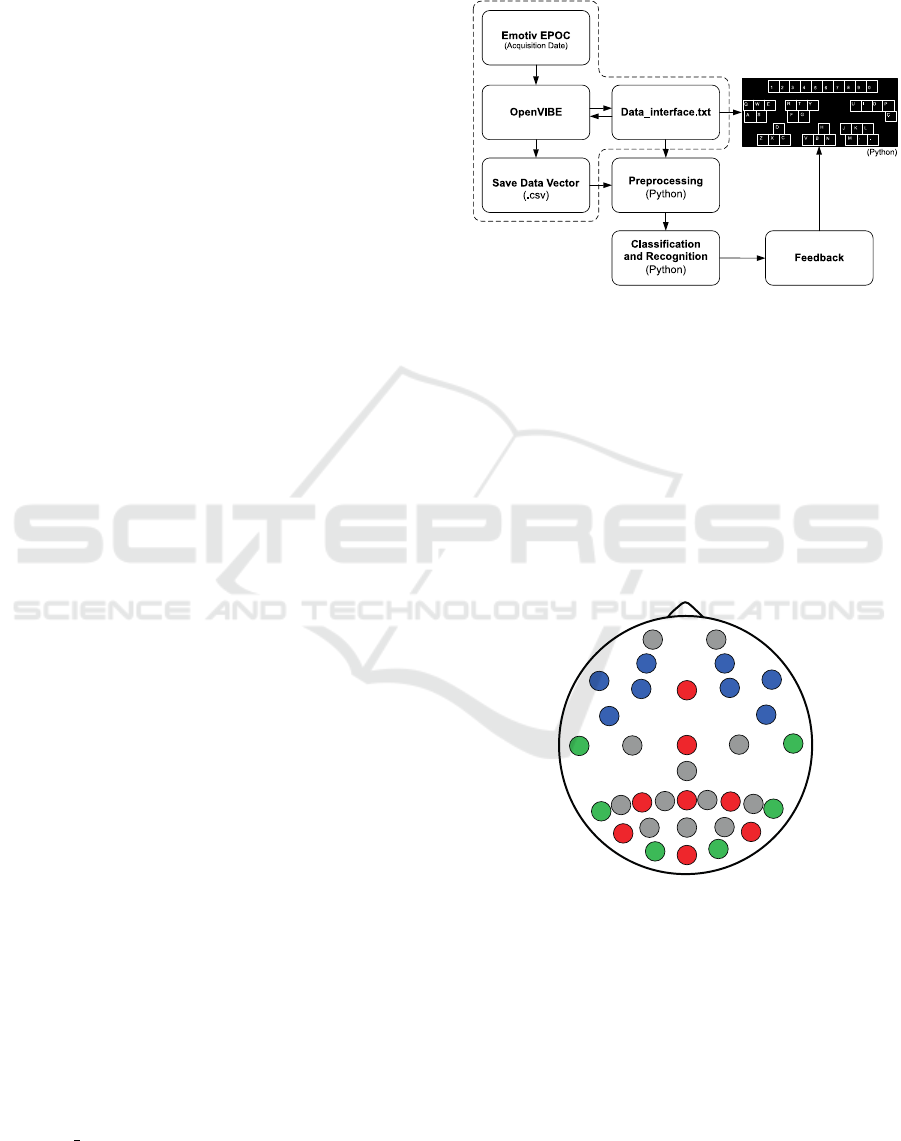

Python as well. All sequence processing is detailed in

ﬁgure 5 (the dotted region was made with OpenViBE

and the other was made in Python).

Figure 5: Project Model.

As a more accessible equipment, with respect to

cost, Emotiv EPOC has only 14 electrodes located at

speciﬁc regions. For the analysis of P300 there is the

recommendation to use an occipital electrode in the

mid-line, 5 cm above the inion, and occipital elec-

trodes right and left, each 5 cm lateral to the mid- line

electrode (Duffy et al., 1999). Figure 6 is a map that

contains electrodes that are usually used to capture

the P300 in red, and in green the Emotiv EPOC elec-

trodes closer to this positions, and in blue other EPOC

electrodes.

PO8

Cpz

Fp1 Fp2

PO7

PO3

POz

PO4

FC5

FC6

AF3 AF4

Figure 6: EEG Electrode Map Position.

The Emotiv EPOC was previously used for P300

acquisition as described in Ekanayake (2010), where

the author concludes that the Emotiv EPOC can in-

deed capture signals from the P300 for scientiﬁc pur-

poses and also certify the ability of this device to cap-

ture signals from the SSVEP.

All tests were developed with Matlab, Python

and OpenViBE. Experimental data for the analysis of

P300 were:

• Flash duration: 0.1 s

BIOSIGNALS 2016 - 9th International Conference on Bio-inspired Systems and Signal Processing

216

• Standby time without ﬂash: 0.5 s

• Number of samples: 10

• Number of repetitions: 1

• Filter 1 to 20Hz

After specify this settings, it was used the average

calculus described in Equation 1 for the ﬁrst analysis.

In Equation 1: “X” is the data matrix; “a” is the

number of samples “b” is the window analysis; “M” is

the average matrix; “y” is the average vector position

to y ≤ b:

1,y

a,b

) =

∑

i=0

i,y

(1)

For SSVEP analysis it was used a frequency of 10

Hz and a ﬁlter with a 1 Hz to 20 Hz and 1 second time

window for the FFT.

A normal volunteer participate in 10 experimental

sessions to train and validate acquired data in separate

P300 and SSEVP acquisition.

3 RESULTS AND DISCUSSION

Making a comprehensive analysis of Figure 7, the

electrodes that better detect a P300 signal are O1, O2

and P7 positions with a window time ranging from

250 ms to 450 ms showing responses very close to

the expected P300 curve.

Also the electrodes P7 and O2 (mainly P7) contain

a signal range that is similar to the P300, but contain a

lot of noise. Figure 7 conﬁrms the fact of being able to

capture good signals from the P300 (low noise) using

the O1 electrode Emotiv EPOC.

P300 Analysis

Time (t) [s]

Voltage (V) [uV]

0.1 0.2 0.3 0.4 0.5 0.6

-20

-15

-10

-5

Figure 7: P300 Analysis.

The noise retrieved from the electrode P7 and O2

are residual background activities that can be atten-

uated using averaging technique (Equation 1) which

enhances EP and reduces the noise from the number

of repetitions of the stimulus.

Brain residual activity can be considered random

compared to the EP; the averaging enhances P300 sig-

nal compared to the residual activity, that have a vari-

able pattern.

Table 1: Evoked Activity Enhancement (adapted of (Duffy

et al., 1999)).

Stimulus Signal/Noise

Repetition Intensiﬁcation

10 3.16:1

25 5:1

49 7:1

81 9:1

100 10:1

200 14.14:1

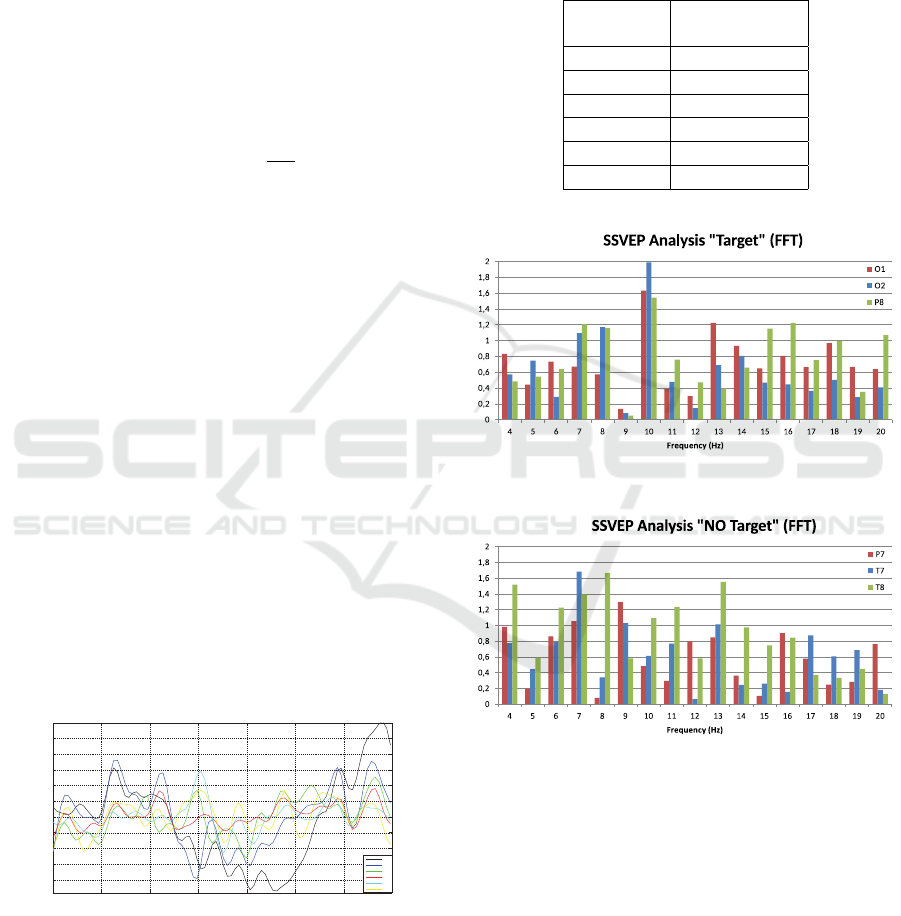

Figure 8: SSVEP Analysis Target.

Figure 9: SSVEP Analysis No Target.

The experimental analysis for 10 Hz SSVEP is

presented in Figures 8 and 9. Figure 8 shows the elec-

trodes O1, O2 and P8 peaked at 10 Hz proving the

capacity of the Emotiv EPOC to capture signals from

the SSVEP. However, Figure 9 shows other electrodes

(P7, T7, T8) that display noise.

The P300 is usually captured by electrodes in the

parietal lobe CPZ and PO7 (Majaranta, 2011) or Fz,

Cz, Pz, Oz, PO7, P3, P4 and PO8 (Amiri et al., 2013)

not available in Emotiv EPOC device. It was exper-

imentally proven that the electrodes O1, O2 and P7

(for P300) and O1, O2 and P8 (for SSVEP) have use-

ful EP with Matlab post processing.

Hybrid SSVEP/P300 BCI Keyboard - Controlled by Visual Evoked Potential

217

4 CONCLUSION

The P300 is used when there are many different vari-

ables in the system. However, the inﬂuence of a pulse

near the point of choice creates an undesirable EP and

affect the proper functioning of the classiﬁer. The

proposed interface reduced processing time and in-

creased hit rates as previously reported in Yin et al.

(2014).

The combination of the two EP techniques re-

duces processing time when the user has picked the

letter as discussed in Yin et al. (2014). With the lay-

out shown in Figure 4 the letter select time is reduced

with the usability of a standard QWERTY keyboard

and the time to write of a word with the system is also

reduced.

A future experiment is in development to include

healthy and disabled subjects in a single P300 and

SSEVP sessions.

ACKNOWLEDGEMENTS

This study was produced with FEI, CAPES and

FAPESP funding.

REFERENCES

Amiri, S., Rabbi, A., Azinfar, L., Fazel-Rezai, R., and

Asadpour, V. (2013). A Review of P300, SSVEP,

and Hybrid P300 / SSVEP Brain- Computer Interface

Systems. Brain-Computer Interface Systems - Recent

Progress and Future Prospects, 2013:1–8.

Chaves, M. L. F., Finkelsztejn, A., and Stefani, M. A.

(2009). Rotinas em neurologia e neurocirurgia.

Artmed Editora.

Costanzo, L. (2014). Fisiologia. Elsevier Brazil, 5 edition.

Duffy, F. H., Iyer, V. G., and Surwillo, W. W. (1999).

Eletroencefalograﬁa Cl

ınica e Mapeamento Cerebral

Topogr

aﬁco: Tecnologia e Pr

atica. Revinter Ltda, 1

edition.

Ekanayake, H. (2010). P300 and Emotiv EPOC: Does

Emotiv EPOC capture real EEG? Web publication

http://neurofeedback. visaduma. info/ . . . , page 16.

Emotiv, S. (2011). EMOTIV EPOC: Brain Computer Inter-

face & Scientiﬁc Contextual EEG.

Farwell, L. a. and Donchin, E. (1988). Talking Off the Top

of Your Head. electroencephalography and clinical

Neurophysiology, 70(6):510–523.

Fazel, R. and Abhari, K. (2009). A region-based

P300 speller for brain-computer interface. Cana-

dian Journal of Electrical and Computer Engineering,

34(3):81–85.

Majaranta, P. (2011). Gaze Interaction and Applications

of Eye Tracking: Advances in Assistive Technologies:

Advances in Assistive Technologies. Premier reference

source. Medical Information Science Reference.

Middendorf, M., McMillan, G., Calhoun, G., and Jones,

K. S. (2000). Brain-computer interfaces based on the

steady-state visual-evoked response. IEEE Transac-

tions on Rehabilitation Engineering, 8(2):211–214.

Oliphant, T. E. (2007). SciPy: Open source scientiﬁc tools

for Python. Computing in Science and Engineering,

9:10–20.

erez, F. and Granger, B. E. (2007). IPython: A system for

interactive scientiﬁc computing. Computing in Sci-

ence and Engineering, 9(3):21–29.

Renard, Y., Lotte, F., Gibert, G., Congedo, M., Maby, E.,

Delannoy, V., Bertrand, O., and L

ecuyer, A. (2010).

OpenViBE: An Open-Source Software Platform to

Design, Test, and Use Brain–Computer Interfaces in

Real and Virtual Environments.

Stolﬁ, G. (2008). Percepc¸

ao Visual Humana. Apostila 2 –

Televis

ao Digital. pages 1–13.

Townsend, G., LaPallo, B., Boulay, C., Krusienski, D.,

Frye, G., Hauser, C., Schwartz, N., Vaughan, T.,

Wolpaw, J., and Sellers, E. (2010). A novel P300-

based brain–computer interface stimulus presentation

paradigm: Moving beyond rows and columns. Clini-

cal Neurophysiology, 121(7):1109–1120.

Yin, E., Zhou, Z., Jiang, J., Chen, F., Liu, Y., and Hu,

D. (2014). A speedy hybrid BCI spelling approach

combining P300 and SSVEP. IEEE Transactions on

Biomedical Engineering, 61(2):473–483.

BIOSIGNALS 2016 - 9th International Conference on Bio-inspired Systems and Signal Processing

218
