Scalable Distributed Sensor Network for Contact-less Gait Analysis

A Marker-less, Sensor-based System for Steering Rehabilitation Measures

Heinz-Josef Eikerling, Michael Uelschen and Florian Lutterbeck

University of Applied Sciences Osnabrueck, Faculty for Engineering and Computer Science, Barbarastr. 16,

D-49076 Osnabrück, Germany

Keywords: Sensor Network, Distributed System, Wireless Transmission, Gait Analysis, Motion Capturing,

Synchronisation.

Abstract: We describe the steps taken to evolve a system which enables gait analysis of persons recovering from

illnesses affecting gait. The starting point is a centralized system which is turned into a fully distributed

environment. The upgraded system is evaluated in terms of accuracy of the generated data by comparing it

with the initial system and a marker-based reference system. Elementary gait metrics are used for these

comparisons. Regarding the reference system the deviation (hence error) was found to be below 2%.

1 INTRODUCTION

We describe the steps taken to evolve a system

supporting gait analysis of persons recovering from

illnesses affecting gait from a centralized to a fully

distributed environment.

Through prior work (Uelschen and Eikerling,

2015) it was shown that the initial version of the

ETRICS

system is capable of monitoring the

progress of rehabilitation measures being applied to

persons recovering from surgical treatments in terms

of general viability, setup and calibration of the

sensor system and the precision of the derived gait

characteristics: speed, step number and stride length,

cadence and center of mass (CoM) displacement.

The D

ETRICS

system consists of a chain of

adjacent sensors for recording and analysing human

gait. In addition to the elementary temporal-spatial

parameters the system recognize all 8 phases of gait

according to the RLANC notion (Perry and

Burnfield, 2010). This information allows the

physician or the physiotherapist to tune the post-

operative treatment in order to improve the overall

rehabilitation process.

The general applicability of the system was

demonstrated through a clinical trial with 54 patients

being treated by the orthopaedic department of a

rehabilitation centre. Figure 1 illustrates the gait

pattern of a 74-year-old female patient with a nail

fixation of the right femur. The outcome of

ETRICS

reveals a shift of the center of mass to

the contralateral leg in order to relieve the operated

leg.

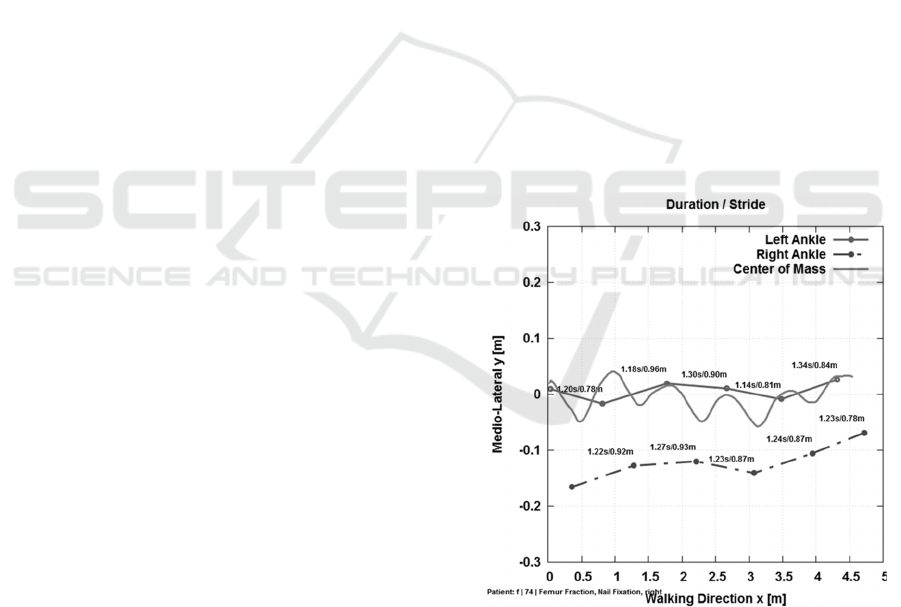

Figure 1: Gait Pattern of Rehabilitation Patient.

2 BACKGROUND

ETRICS

features a set of low-cost but

nevertheless performant MS Kinect (version 1)

sensors and as such constitutes a mobile and marker-

less tracking system. However, the initial version of

Eikerling, H-J., Uelschen, M. and Lutterbeck, F.

Scalable Distributed Sensor Network for Contact-less Gait Analysis - A Marker-less, Sensor-based System for Steering Rehabilitation Measures.

DOI: 10.5220/0005707801950202

In Proceedings of the 9th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2016) - Volume 1: BIODEVICES, pages 195-202

ISBN: 978-989-758-170-0

195

the system had some shortcomings which to a

certain extent have to be attributed to the Kinect v1:

 The range of Kinect v1 is limited.

 Precision of the sensor is lower when

compared to Kinect v2.

 The v1 sensor is susceptible to interference

with sun light or light originating from other IR

sources.

 The latter applies to the sensor itself: the IR

fields of two different Kinect v1 sensors

interfere. Hence skeleton tracking can be

significantly marred. This also limits the

options to set up tracking environments

comprising more than 1 sensor. According to

own experimentation reported in (Uelschen and

Eikerling, 2015) the line-up of sensors each

twisted by a 42 degree angle ( +/- 3 degrees)

with respect to the walking trajectory works

best.

 Scalability is reduced since a maximum of 4

sensors can be connected to a single machine.

 Certain hardware components (e.g., motor to

adjust the inclination) lack robustness.

A decision was made to upgrade the initial

system which was built on top of the Kinect v1

sensor to Kinect v2.

3 SYSTEM ARCHITECTURE

3.1 Prerequisites & Hardware

A comparison of Kinect v1 & v2 regarding the key

features is shown in the table below:

Table 1: Comparison Kinect v1 & v2 features.

Feature Kinect v1 Kinect v2

RGB camera

640 x 480

30fps

1920 x 1080

30 fps

Depth camera

320 x 240 512 x 424

Nominal range

0.4m

–

0.5m

–

4,5

Real range

0.8m

–

3.5

–

Tracked

oints 20 25

Max. no. tracked

skeletons

2 6

Hand tracking

o Yes

Face tracking

[Yes] Yes

USB 2.0 3.0

Tilt moto

Yes

Max. #Kinects

per host computer

4 1

Supported OS Win 7, Win

8 / 8.1

Win 8 / 8.1

(64-Bit)

The sensor version upgrade requires major

design modifications and imposes several

challenges:

 Kinect v2 implicates much higher computing

and networking resources which can hardly be

matched with a single machine. According to

the table above, a 64 Bit system is mandatory

(M1).

 Thus a fully distributed approach to capturing

the sensor feeds has to be implemented (M2).

 Since the sensors have to be deployed to one

machine each, for gathering the produced data

synchronisation issues have to be resolved

(M3).

 Due to the reduced interference of Kinect v2

new geometric arrangements of the sensor

network are thinkable which on the other side

require to modify system calibration /

configuration procedures (M4).

With respect to M1, a host machine with a 64 Bit

quad core processor and 8 GB of main memory

running Windows 8 is recommended by Microsoft.

The Kinect SDK makes heavily use of parallel

computations which is done on a graphics board

supporting at least DirectX v11. The official

requirements concerning the computing

requirements are a bit fuzzy, since tasks are swapped

between CPU and GPU and vice versa. According to

own experimentation a dual core system with 4 GB

of memory was found to serve the purpose.

Factually an Intel i5 CPU @ 2.0…3.0 GHz

processor with on-board HD 4600 graphics

constitutes somewhat a lower bound. The distance

between sensor and host machine is limited by the

USB 3 connection, i.e. 11m.

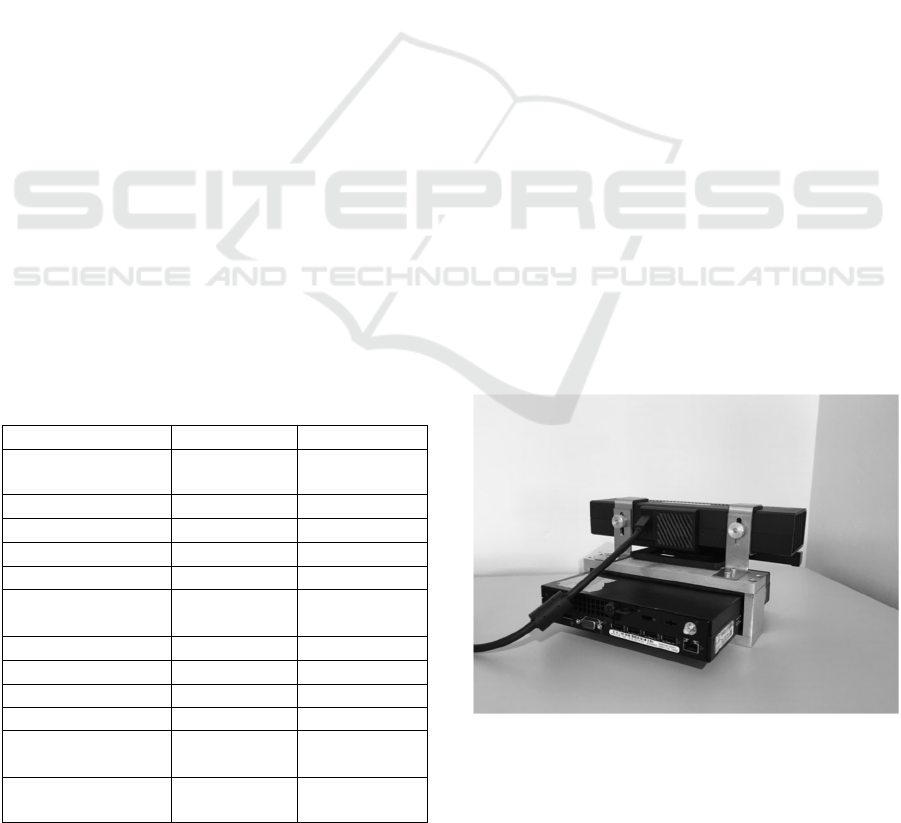

Figure 2: Sensor mounted on mini PC via clamp.

In a feasibility study we checked the CPU load

(min., max., mean) of the sensor nodes and the

BIODEVICES 2016 - 9th International Conference on Biomedical Electronics and Devices

196

server for the configuration described above. As can

be seen in Table 2, performance can be fulfilled by

the proposed configuration.

Table 2: CPU load for v2 server and sensor nodes.

CPU load Server Node

Node

Minimum

0.7% 10.0% 7.3% 10.5%

Maximum

29.0% 0.5% 33.0% 25.1%

Average

3.2% 14.6% 12.8% 15.3%

3.2 Design

In order to implement modifications M1 and M2 we

configured a sensor node comprising the Kinect v2

and the host machine consisting of a mini PC

running the raw data processing. In order to keep the

effort for wiring the components as low as possible,

the nodes transmit the collected tracking via wireless

links, thus realising a Wireless Sensor Network.

The node as shown in Figure 3 can be mounted

on a tripod via a special fixation (see Figure 2)

incorporating a metal clamp to alleviate effects of

shock (e.g., caused by unintentionally dragging the

cables attached to the sensor). This fixation also

eases the accurate alignment of the sensors with

respect to the horizontal and frontal plane. For the

latter it is needed to painstakingly control the tilt

angle.

Figure 3: Fixation of Kinect v2 on top of mini PC.

Since the central approach (i.e., all sensors

directly connected to one central hub) in

ETRICS

v1 is not feasible any more, different

topologies for connecting the nodes have to be

studied. Aside from the prevalent models (tree,

chain, cluster, flat) we are in favour of a simple star

topology in which one dedicated node (concentrator

node) is responsible for collecting and storing the

data being generated by the sensor nodes. The

transmitted data consists of the position of the joints

according to the sensor space (x/y/z coordinates).

The concentrator node stores the collected data

and serves it to applications for processing,

analysing and for visualising the recorded or live

data. Within the analysis the sensor data fusion is

done. We follow a central-level (Klein, 2012),

cooperative (Brooks and Iyengar, 1998) approach in

which the data originating from a pair of adjacent

sensors is used to compute the position of a body

joint pertinent to the global coordinate space. The

implemented procedure is an adaptation of

Umeyama’s algorithm (Umeyama, 1991).

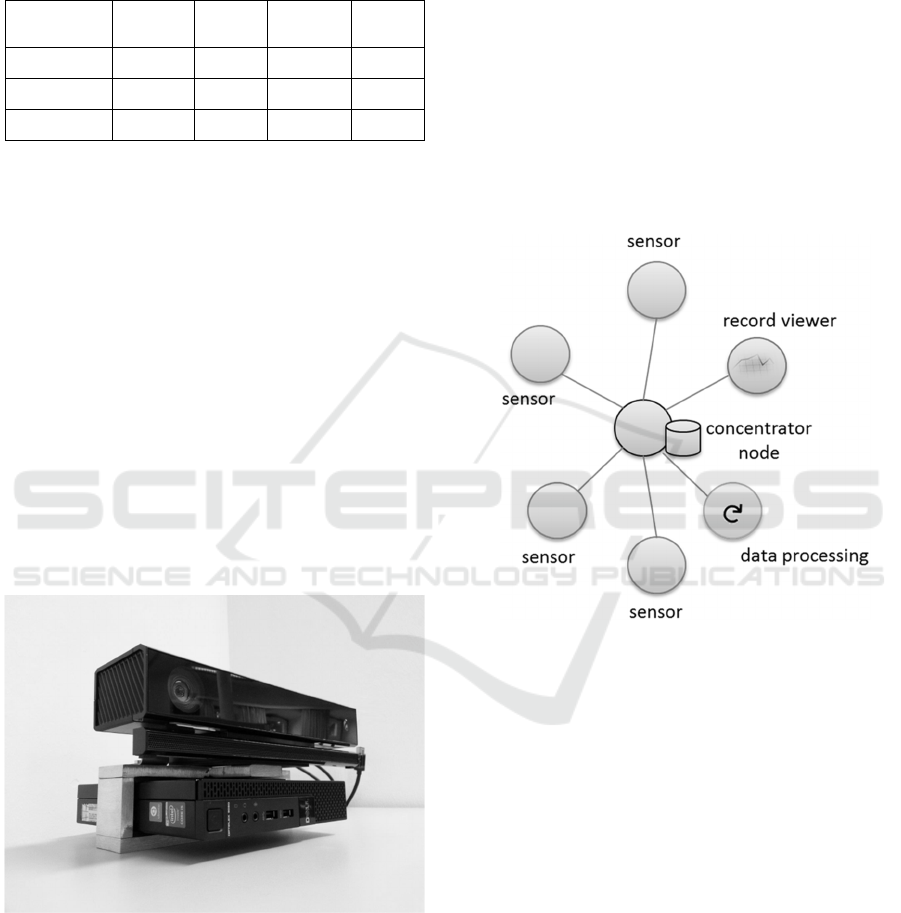

Figure 4: Topology of D

ETRICS

v2 sensor network.

3.3 System Interfaces

Assuming sensor and concentrator node to reside in

the same network, a simple client / server interface

for registering sensor nodes and for collecting the

tracking data was designed. Moreover, through a

proprietary protocol implemented in a lean

management layer, client software updates can be

deployed to the sensor nodes as follows:

1. The concentrator broadcasts a port under

which the server software expects the

tracking data to be delivered.

2. The sensor node as client connects to the

server.

3. Through transmitting the checksum of the

installed client software package the need for

an update can be detected. The package can

be replaced if necessary.

4. The server then asks for the ID of the client

Scalable Distributed Sensor Network for Contact-less Gait Analysis - A Marker-less, Sensor-based System for Steering Rehabilitation

Measures

197

and retrieves locally stored configuration file

of that client / sensor node. Subsequently the

configuration commands are sent to the

client.

5. Afterwards the sensor transmits tracking data

as time-stamped records to the server.

The records are delivered in a binary format of

fixed size (b

= 392 Byte). For a rate of f = 30

captures / s this results in a transmission rate of w’

min

= b

· f = 12 kByte/s per sensor. The overall

bandwidth requirement in a setup with n sensors is

therefore w

min

(n) = n · w’

min

, e.g. w

min

(4) = 48

kByte/s. A time-stamp t

(i) marking the arrival of a

record i at the concentrator is stored along with it.

Additional to the tracking data, images (low

resolution, approx. 328 kByte per image) are

captured by the sensor node at a configurable rate

(default: 7 images / s). These images are tentatively

stored in the sensor node during tracking. They can

be used to check the plausibility of the data and

rectify artefacts being detected particularly during

the off-line data analysis. Once the recording is

stopped, the images are offloaded from the clients to

the server. This is done in order to as much as

possible discharge the communication channel

during the recording. The local time-stamp of the

capture precedes the transmitted image.

4 IMPLEMENTATION ISSUES

4.1 Software Modifications

For implementing the above concepts, several

modifications had to be applied to the D

ETRICS

v1 software package. In the Kinect SDK 2.0 the

tracking data is stored in the body object instead of

the skeleton in previous releases. Also the changes

(naming and virtual placement on the body) with

respect to the sensed joints were implemented. In

order to keep the previous version with Kinect v1

sensors functional, the new release of the

ETRICS

software contains a switch to toggle

between a Kinect v1 and v2 mode.

4.2 Wireless Connectivity

The transmission of recorded data between sensor

and concentrator node is done via WLAN. Hence we

had to deal with the intricacies of wireless

communication, i.e. reduced bandwidth plus

increased instability of the connection and higher

latency.

Special attention had to be paid to the latter.

Whereas in an Ethernet LAN the latency is and

rather constantly below 5 ms, according values in a

WLAN range between 8 and 40 ms. Additionally the

Jitter (i.e., the fluctuation of the latency) is much

higher. This can deteriorate the precision of the

measurements since at a rate of 30 captures / s

(capture interval approx. 33 ms) the capture time

interval is below the latency. Since otherwise the

order of events can become wrong, the sensor time-

stamp t

(i) for record i received by the concentrator

node is analyzed and a new correction value (=

skew)

(i) is computed and applied to the sensor-

generated time-stamp t

(i), thus yielding a corrected

time-stamp t’

(i). This value is also contained in the

record stored at the concentrator node.

In the current setup we feature the 802.11 ac

standard running in the 5 GHz band for minimizing

interference with other wireless networks.

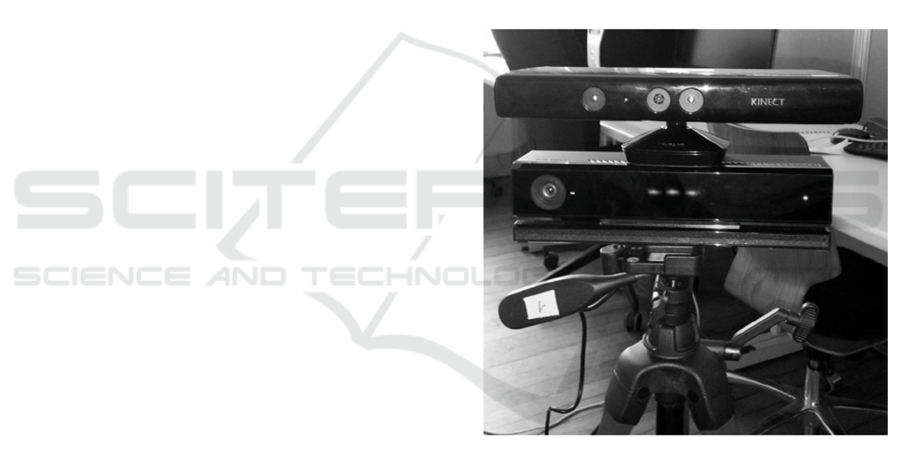

Figure 5: Setup for comparison v1 & v2.

4.3 Time Stamping & Control

For keeping the timing skew between the sensor and

concentrator node clocks within certain boundaries,

a mechanism for controlling the clocks is required. It

has to be remarked that the drift of the local clock

ranges between 25….50 ms / h. We aim at a

maximum deviation of 10 ms which is well below

the capture time interval.

In order to achieve this we could not use

standard time synchronization mechanisms (e.g.,

NTP) since the time needed for synchronization

varies and be up to 2

s ≈ 2 h. Instead we worked

out a proprietary mechanism: the concentrator node

BIODEVICES 2016 - 9th International Conference on Biomedical Electronics and Devices

198

hosts a time server which is continuously accessed

by the sensor nodes with a refresh interval of 5s. The

client computes the clock skew

(i) at the i-th

interval between contractor node and reference node.

The update interval is set to 5s. If for two subsequent

skew values |

(i) -

(i-1)| > 10 ms applies, an error

message is thrown and the tracking data of the

current recording is discarded. The local clock of the

sensor node is not corrected since the latency at the

time of propagation is not known.

We tested the fault rates for different network

configurations. The fault rate for a 1 Gbit Ethernet is

0,035% / h. For 802.11 n (2.4 GHz) and 802.11 ac (5

GHz) WLANs the values are 0,5% / h and 0,06% / h

respectively. The latter is the value for the preferred

network configuration and appears to be acceptable.

5 VA L I D AT I O N

5.1 Comparison System V1 Vs. V2

In order to judge the accuracy of the modified

system a comparative measurement of the two

sensor systems was organized. Both systems were

run in parallel by stacking the v1 sensor on top of v2

as shown in Figure 5. The joint positions of the

tracked skeletons will later on be corrected with

respect to the constant vertical offset. The

measurement was done for 3 test subjects. In Table 3

the essential statistics are shown. Due to the higher

sensing range the duration and hence the number of

the tracked skeletons is noticeably higher for the v2

recordings.

Table 3: DYNMETRICS v1 & v2 tracking statistics.

Person ID 1 2 3

Kinect

Version

v1 v2 v1 v2 v1 v2

Time

interval

7009

7473

6287

6737

6736

7075

# Skeletons

300 322 294 318 336 355

Skeletons /

second

42.8 43.1 46.8 47.2 49.9 50.1

Afterwards the recorded raw data delivered by

the sensors is fused and processed by the gait

analysis software. Table 4 accounts for the

computed essential metrics: number of detected

steps, cadence, average stride (= 2 steps) length,

average stride difference. Taking the v1 values as

the reference, the deviation (yielding the assumed

error for the v2 measurements) ranges between

0.66% and 6.23%. The differences in length were

not taken into account here since those values come

close to the overall precision of the Kinect sensor

which is approx. +/-2% for the stride length

measurement as reported in (Uelschen and

Eikerling, 2015). Hence the average deviation / error

is 2.8%.

Table 4: Kinect v1 & v2 gait metrics.

Person ID

1 2 3

Kinect

Version

v1 v2 v1 v2 v1 v2

# Steps

5 6 6 6 5 5

Cadence

75 76 85 84 67 65

∅ stride

length

1.37 m 1.36 m 1.27 m 1.28 m 1.47 m 1.45 m

∅ stride

difference

0.11 m 0.06 m 0.05 m 0.10 m 0.11 m 0.07 m

Deviation /

error

6.23% 0.66% 1.49%

Aside from comparing the accuracy with respect

to gait metrics we also accounted for the different

sensing ranges of v1 and v2 installations. According

to prior experimentation a distance of 1.4 m of the

sensor nodes was found to be optimal for v1.

Starting with a value of 2.30 m for v2 sensor node

distances this value was incrementally decreased in

10 cm steps so as to find the maximum distance

permitting a faultless tracking. This optimal value

was determined to be 2.00 m, thus outperforming the

range of v1 by 42%.

5.2 Comparison DYNMETRICS V2 Vs.

QualiSys

As mentioned in the introduction, conceptually the

precision of the marker-less tracking systems is

lower than that of marker-based systems. The

advantage of marker-based systems comes with the

drawback of a much higher setup time for starting a

measurement which is needed to tag the subject (10

– 15 min per person). Figure 6 shows the markers

used for comparing the D

YNMETRICS v2 with the

QualiSys tracking system.

For the comparison 4 subjects were examined

and for each subject 5 to 7 runs were recorded (see

Table 5). As can be seen in the table the range of

YNMETRICS (DM) as indicated by the average

number of detected steps is higher when compared

Scalable Distributed Sensor Network for Contact-less Gait Analysis - A Marker-less, Sensor-based System for Steering Rehabilitation

Measures

199

to QualiSys (QS).

Table 5: D

ETRICS

vs. QualiSys test configurations.

# Records

# Steps

DM QS

Person 1 7 7,7 4,9

Person 2 5 7,0 2,6

Person 3 5 6,4 4,2

Person 4 5 6,6 4,4

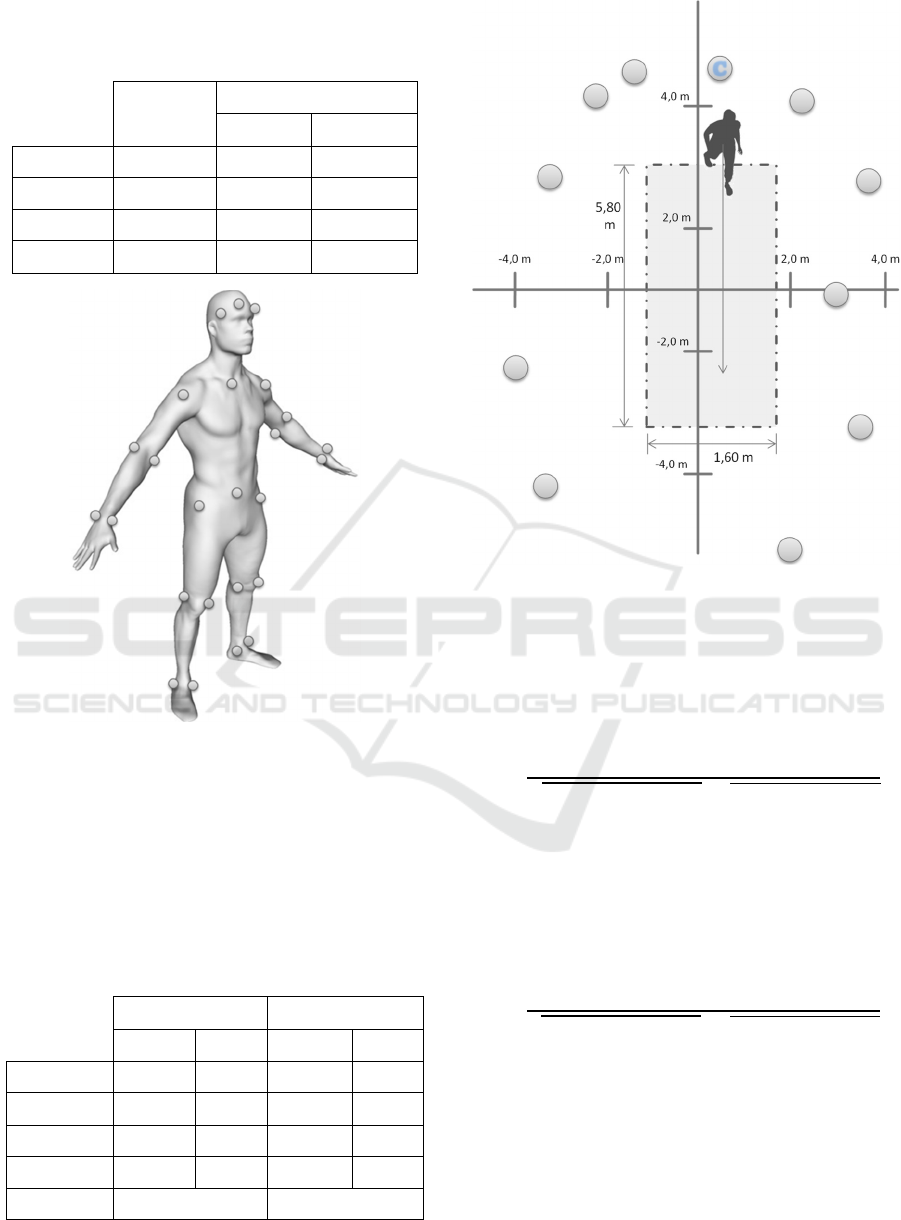

Figure 6: Markers used for QualiSys tracking.

Table 6 compares the computed essential gait

metrics cadence and stride length as mean values for

ETRICS

and QualiSys. As can be derived from

the values, the average difference for stride length

and cadence is 1.94% and 3.16% respectively. The

latter can be mainly attributed to the calculated

cadence of person 2 measured via QualiSys.

Table 6: D

ETRICS

vs. QualiSys computed metrics.

∅ Cadence ∅ Stride

DM QS DM QS

Person 1 104.4 107.4 1.34 1.36

Person 2 99.0 103.7 1.57 1.63

Person 3 93.4 97.1 1.38 1.41

Person 4 104.9 106.0 1.38 1.38

∅ Deviation

3.16% 1.94%

Figure 7: Placement of QualiSys sensors. Dedicated

camera for taking control images (c) is marked.

Assuming a linear correlation between DM and

QS concerning the examined metrics, we can also

compute the Pearson product-moment correlation

coefficient (Samuels, 2015):







∑



,







∙

,















∑



,















∙



∑



,

















, where 





and 





are the mean values for the

cadence for all subjects and 

,

and 

,

are the

recorded average cadence values for person  w.r.t.

to the D

ETRICS

and QualiSys measurements.

Similarly, we can compute the correlation

coefficient for stride:







∑



,







∙

,















∑



,















∙



∑



,

















As a result, we get the values for





0.968

and





 0.991

5.3 Discussion

As can be seen in the previous chapter, the deviation

of the elementary metrics determined by the

upgraded system is below 4% for all metrics

BIODEVICES 2016 - 9th International Conference on Biomedical Electronics and Devices

200

averaging 2.5% when compared to the v1 system

and the QualiSys system. Through extensive testing

reported in earlier work, the accuracy of

ETRICS

v1 was found to be +/-2%. Therefore

the deviation roughly equals the error of the

reference systems.

The determined correlation coefficients show

that there is a close and linear correlation between

ETRICS

v2 and QualiSys measurements.

Aside from these accuracy considerations there

are other differences. As pointed out above, the

nominal path length of v2 is approx. 42% longer (2.0

m vs. 1.4 m per sensor) when compared to v1. For

the comparison with the QualiSys tracking system

the length after cropping was determined to be 7.05

m for D

ETRICS

v2 (see Figure 8) whereas the

according value for QualiSys was found to be 5.80

m (see Figure 7). For achieving these lengths 4 and

11 sensors respectively were required.

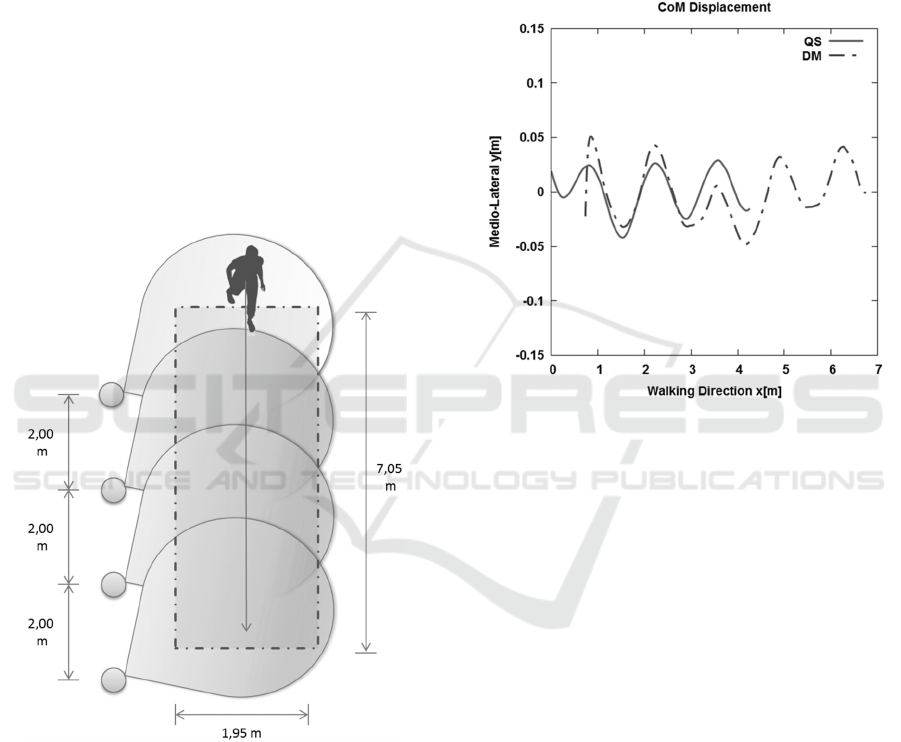

Figure 8: Setup for D

ETRICS

measurement.

During the comparison of D

ETRICS

v2 and

QualiSys we also accounted for the time needed to

prepare the 4 test subjects for a tracking by means of

QualiSys. The time for this individual preparation

ranged between 10 to 15 min whereas D

ETRICS

does not require a per-patient preparation time.

Beyond the basic gait metrics we also examined

the derived advanced metrics. Figure 9 compares the

computed CoM displacement of D

ETRICS

and QualiSys for a data sample. Both periods of the

recorded walking pattern are rather identical. The

amplitude varies slightly due to the fact that the

positions of the joints recognized by the Kinect

sensor differ from the respective marker positions

utilized by the QualiSys system. This particularly

applies to the upper limb joints.

As a result of this the calculations of the center

of mass for the two systems deviate from each other.

This is also caused by our amendable setup in which

Figure 9: Comparison of CoM displacements.

the D

ETRICS

v2 system stretches a significantly

longer tracking area. In an improved configuration

the QualiSys tracking area would be prolonged by at

least 2 meters and the overlapping area would be 6

meters in order to gain meaningful data.

6 SUMMARY

Though similar systems using Kinect v1 were

described elsewhere, see e.g. (Gabel et al., 2012),

(Saiyi Li et al., 2014) & (Qiu, J. W. et al., 2014),

through this work we wanted to answer two pending

questions pertaining to the use of marker-less sensor

systems for gait analysis: (i) are such marker-less

systems (D

ETRICS

and alike) in general

applicable? and (ii) what precision can be achieved?

The results presented in this paper give rise to

affirm the statement in the first question. With the

applied modifications the robustness and the

scalability could be increased without deteriorating

precision. In response to the second question we

found that the error with respect to a marker-based

system can be assumed to be 2% concerning basic

Scalable Distributed Sensor Network for Contact-less Gait Analysis - A Marker-less, Sensor-based System for Steering Rehabilitation

Measures

201

gait metrics. This is at least outweighed by the

downside of marker-based systems regarding the

overhead for setup and handling.

7 OUTLOOK

Though we have shown the general feasibility of our

implementation of a marker-less tracking system, we

also pointed to its limitation concerning precision

and accuracy which to our mind is intrinsic can

hardly be changed.

Future work will focus on including other

metrics (partly derived out of the basic ones

presented here) as described in (Perry and Burnfield,

2010) and the consideration of other bother parts

impacting and characterizing gait.

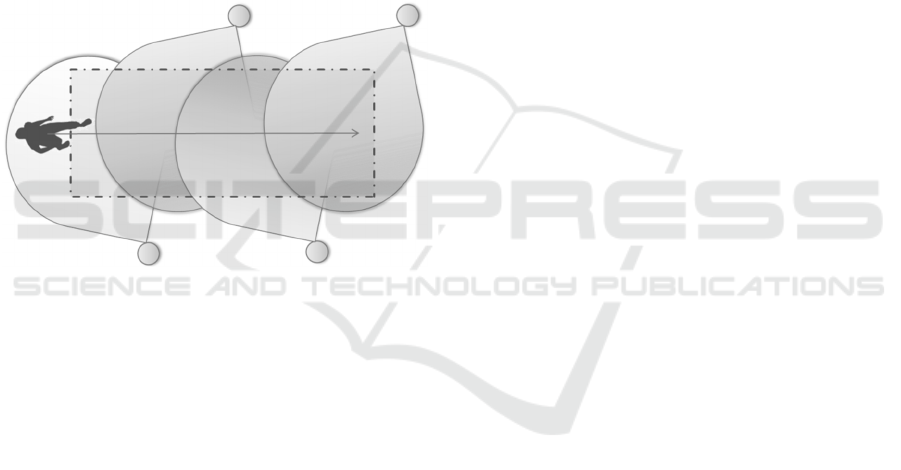

Figure 10: Alternative setup for full body tracking.

For instance arm swinging is rather symptomatic

for a person (Meyns et al., 2013). However,

determining the exact positioning of the arms using

a marker-less tracking system is rather challenging.

It has to be particularly ensured that all segments of

the arm are visible to the sensor system during the

recording. Hence the geometrical arrangement needs

to be revised such that sensors are deployed on both

sides of the walking trajectory (see Figure 10). Due

to interferences this turned out to be impossible with

the Kinect v1.

With the new sensor release and the concepts

presented in this paper new opportunities in this

regard are looming, although essential parts of the

software will have to revised: since the arms and

legs of the tracked person may occasionally not

visible to one particular sensor, the lacking data will

have to be provided by one of the sensors in

juxtaposition. Hence a revised fusion algorithm is

demanded.

ACKNOWLEDGEMENTS

This work was supported by a grant of University of

Applied Sciences Osnabrück.

REFERENCES

Brooks, R.R. and Iyengar, S.S. (1998), Multi-sensor

fusion: Fundamentals and applications with software,

Prentice Hall, Upper Saddle River, NJ.

Gabel, M., Gilad-Bachrach, R., Renshaw, E. and Schuster,

A. (2012), “Full body gait analysis with Kinect”,

Conference proceedings … Annual International

Conference of the IEEE Engineering in Medicine and

Biology Society. IEEE Engineering in Medicine and

Biology Society. Annual Conference, Vol. 2012, pp.

1964–1967.

Klein, L.A. (2012), Sensor and Data Fusion: A Tool for

Information Assessment and Decision Making, 2nd

ed., Society of Photo-Optical Instrumentation

Engineers (SPIE), Bellingham.

Meyns, P., Bruijn, S.M. and Duysens, J. (2013), “The how

and why of arm swing during human walking”, Gait &

Posture, Vol. 38 No. 4, pp. 555–562.

Perry, J. and Burnfield, J.M. (2010), Gait analysis:

Normal and pathological function, 2. ed., SLACK,

Thorofare, NJ.

Qiu, J. W. et al. (2014), “Continuous Human Location and

Posture Tracking by Multiple Depth Sensors”, IEEE

International Conference on, and Green Computing

and Communications (GreenCom),, pp. 155–160.

Saiyi Li, Pathirana, P.N. and Caelli, T. (2014), “Multi-

kinect skeleton fusion for physical rehabilitation

monitoring”, Conference proceedings … Annual

International Conference of the IEEE Engineering in

Medicine and Biology Society. IEEE Engineering in

Medicine and Biology Society. Annual Conference,

Vol. 2014, pp. 5060–5063.

Samuels, M.L. (2015), Statistics for the life sciences,

global edition, 5th edition, Pearson Education Limited,

[Place of publication not identified].

Uelschen, M. and Eikerling, H.-J. (2015), “A Mobile

Sensor System for Gait Analysis supporting the

Assessment of Rehabilitation Measures”, September

9–12, 2015, Atlanta, GA, USA.

Umeyama, S. (1991), “Least-squares estimation of

transformation parameters between two point

patterns”, IEEE Transactions on Pattern Analysis and

Machine Intelligence, Vol. 13 No. 4, pp. 376–380.

BIODEVICES 2016 - 9th International Conference on Biomedical Electronics and Devices

202
