A Formal Approach to Anomaly Detection

Andr´e Eriksson and Hedvig Kjellstr¨om

Computer Vision and Active Perception Lab, KTH Royal Institute of Technology, Stockholm, Sweden

Keywords:

Anomaly Detection, Formal Methods, Model Selection.

Abstract:

While many advances towards effective anomaly detection techniques targeting speciﬁc applications have been

made in recent years, little work has been done to develop application-agnostic approaches to the subject. In

this article, we present such an approach, in which anomaly detection methods are treated as formal, structured

objects. We consider a general class of methods, with an emphasis on methods that utilize structural properties

of the data they operate on. For this class of methods, we develop a decomposition into sub-methods—simple,

restricted objects, which may be reasoned about independently and combined to form methods. As we show,

this formalism enables the construction of software that facilitates formulating, implementing, evaluating, as

well as algorithmically ﬁnding and calibrating anomaly detection methods.

1 INTRODUCTION

Anomaly detection tasks are encountered in many

areas of science, technology, and business, and au-

tomated anomaly detection methods are indispens-

able in many applications, such as intrusion detec-

tion and fraud detection (Lazarevic et al., 2003; Phua

et al., 2010). As manual analysis of the ever growing

datasets encounteredin many application domains be-

comes increasingly difﬁcult, the need for such meth-

ods can be expected to grow.

For this need to be effectively met, approaches

that enable researchers and organizations to effec-

tively develop and implement appropriate methods

are required.

While there are excellent tools available for cer-

tain applications (Twitter, 2015; Etsy, 2015), there is

a notable lack of application-agnostic tools and ap-

proaches.

Considering the disparate nature of data encoun-

tered in applications, and the often subjective notion

of what constitutes an anomaly, it seems unlikely that

speciﬁc methods that work well across a majority of

applications can be found. A more viable approach

might be to instead focus on developing application-

agnostic tools that facilitate formulating, implement-

ing, evaluating, or calibrating methods.

We believe that taking a formal, high-level ap-

proach to the subject—where the focus is on what can

be said about anomaly detection methods in general,

rather than in the context of any speciﬁc application

or task—is a vital step towards this goal.

The aim of this article is to present a particular

such approach—where methods are treated as formal

objects, which map datasets to solutions (i.e. a col-

lection of anomaly scores, or a set of ‘most anoma-

lous’ items), and which may be decomposed into

sub-methods that may in turn be recombined into

methods—and to demonstrate the utility of this ap-

proach in reaching the goals outlined above.

We target a general class of methods—with a fo-

cus on methods that utilize the structure of the dataset

to ﬁnd contextual or collective anomalies—for which

we develop a formalism for decomposing methods

into a collection of such sub-methods, amenable to

being shared between applications involving similar

types of data.

This enables an approach to developing methods

where the principal consideration is the collection of

applicable sub-methods (as constrained by the tar-

geted task). These sub-methods may then be com-

bined to form methods (either manually or algorith-

mically) until one that accurately solves the task at

hand is found.

To demonstrate the utility of this approach, we ap-

ply it to a number of tasks involving sequences, as

well as to ﬁnding and calibrating methods for such

tasks (given a collection of sub-methods and labeled

testing data).

2 RELATED WORK

Throughout the years, many anomaly detection

Eriksson, A. and Kjellström, H.

A Formal Approach to Anomaly Detection.

DOI: 10.5220/0005710803170326

In Proceedings of the 5th International Conference on Pattern Recognition Applications and Methods (ICPRAM 2016), pages 317-326

ISBN: 978-989-758-173-1

317

methods and applications has been studied. Plenty of

surveys and books which discuss these in detail have

been published (Hodge and Austin, 2004; Agyemang

et al., 2006; Chandola et al., 2009; Fu, 2011).

To our knowledge, the formal, method-centric ap-

proach we take to anomaly detection is unique. How-

ever, there have been a few attempts to provide a gen-

eral treatment of anomaly detection in relation to spe-

ciﬁc applications. For instance, in (Chandola, 2009),

a high-level, formal discussion of common anomaly

detection problems for sequences is presented. We

build on this approach, taking it further and general-

izing it to other types of tasks and data.

Our discussion of anomaly detection in sequences

shows how diverse applications and methods related

to sequences can be reconciled (Chandola et al., 2012;

Chandola, 2009; Fu, 2011) and treated coherently.

We discuss a few speciﬁc tasks, including the de-

tection of point anomalies (individual anomalous ele-

ments, also referred to as outliers) (Fox, 1972; Abra-

ham and Chuang, 1989; Abraham and Box, 1979;

Galeano et al., 2006; Tsay et al., 2000), novelties

(previously unseen elements) (Markou and Singh,

2003a; Markou and Singh, 2003b; Ma and Perkins,

2003), elements anomalous with regard to nearby el-

ements (Basu and Meckesheimer, 2007) and anoma-

lous subsequences (Keogh et al., 2005; Keogh et al.,

2007; Fu et al., 2006).

3 GENERALITY

When attempting to provide a formal basis for a con-

cept as broad as anomaly detection methods, it is vital

that care is taken to ensure that the breadth of the con-

cept is captured by the resulting formalism.

In a widely cited survey of the subject, Chandola

et al. (Chandola et al., 2009) discuss a few key aspects

of anomaly detection tasks: the nature of the data and

the types of anomalies involved, the expected solution

format, and the type of supervision employed. Our

aim is to provide a formalism which captures or gen-

eralizes these three aspects.

First, we formulate our formalism in a data- and

solution-agnostic manner, so its applicability is inde-

pendent of the nature of data and solutions.

Second, we target a general type of anomalies.

Most methods are focused on detecting point anoma-

lies—individual elements anomalous compared to the

rest of the rest of the data. Such methods are appropri-

ate for unstructured data (i.e. data in which individual

elements are not related). However, the datasets en-

countered in applications (e.g. sequences, graphs, and

spatial data) often have structure that can be exploited

to better detect anomalies.

Chandola et al. discuss two other categories of

anomalies: contextual anomalies—elements anoma-

lous compared to a context (some subset of the data;

typically ‘nearby’ elements)—and collective anoma-

lies—collections of elements anomalous compared to

the rest of the data. These can both be seen as gener-

alizations of the concept of point anomalies.

Our formalism targets a fourth such category:

collective contextual anomalies—collections of ele-

ments anomalous compared to a context—which nat-

urally generalizes the other three

An illustration of these four anomaly types is

shown in Figure 1.

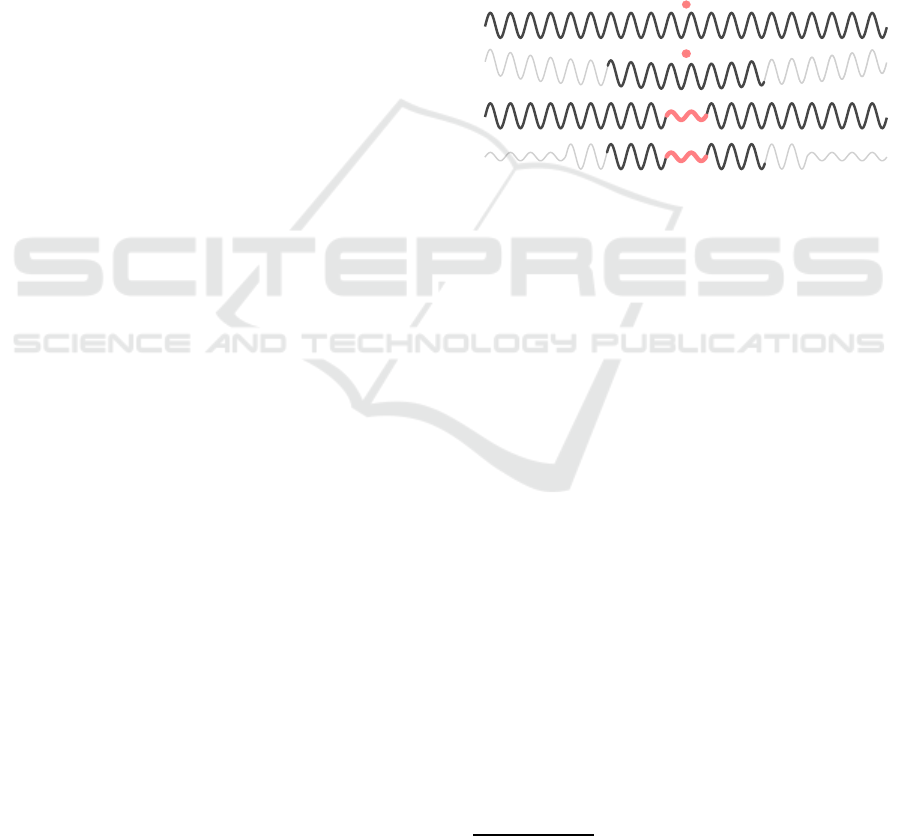

Figure 1: Examples of a point anomaly (top), a contextual

anomaly (above center), a collective anomaly (below cen-

ter), and a collective contextual anomaly (bottom) in uni-

variate real-valued sequences. Anomalies are shown in light

red; appropriate contexts in black.

Third, Chandola et al. classify methods as un-

supervised, semi-supervised, or supervised based on

whether they incorporate zero, one, or two classes of

labeled training data. We formalize methods as maps

from datasets to solutions; an approach naturally

suited to expressing unsupervised methods. However,

semi-supervised and supervised methods may also be

expressed by replacing the input dataset with the dis-

joint union of the evaluation data and one or two sets

of training data.

4 SUB-METHODS

Formally, an anomaly detection method may be

treated as a mapping m : D → S, that associates with

each potential input dataset d ∈ D a solution s ∈ S,

where:

• D is an application-dependent set of well-formed

datasets (e.g. all real-valued sequences, or all po-

tential sets of users of a social network). We will

Contextual and point anomalies correspond to single-

element collections; for collective and point anomalies, the

context is the entire dataset.

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

318

Figure 2: A dataset (center right) in D = P (C × B) = P (N

× R), constructed by linearly combining periodic data (far left)

and data containing an anomaly (center left). We use the pattern on the far right to indicate contextual data.

assume that any dataset d is a set of items in some

application-speciﬁc set X, so

D ⊆ P (X).

• S is a corresponding application-dependent set

of potential solutions (e.g. all sequences of real-

valued anomaly scores, or all potential sets of

anomalous clusters of users in a social network).

For any given application, the set M = D → S cor-

responds to all potential methods.

When designing a method targeting point anoma-

lies, there are two aspects to consider: what anomaly

measure should be used to compare each item to the

rest of the data, and how the results of these compar-

isons should be aggregated to form a solution.

Targeting collective anomalies means an addi-

tional aspect must be considered: how the set of can-

didate anomalies should be selected.

When targeting contextual anomalies, one must

instead consider how a context should be associated

with each candidate anomaly.

Since our formalism targets collective contextual

anomalies, it must capture all four of these aspects.

This may be achieved by decomposing any m ∈ M

into four sub-methods, each responsible for one as-

pect. We will encode these as functions:

• The selection of candidate anomalies may be en-

coded as a function

α : D → P (D),

which maps any dataset to a set of candidate

anomalies

(subsets of that data; i.e. ∀x,∀y ∈

f(x) : y ⊂ x). For methods targeting point and

contextual anomalies, α produces singleton sets;

i.e. α(d) = {{x}|x ∈ d}.

• The selection of contexts may be encoded as a

function

β : D× D → D,

which maps any dataset and one of its candi-

date anomalies to the context of that candidate

We denote the power set of a set X by P (X).

Here, and in the remainder of this section, we assume

that information about the ‘original’ position of data items

in the dataset is implicitly preserved when the data is rear-

ranged or transformed. This issue is resolved in Section 5

through the requirement that the contextual data of each

item is unique.

anomaly (a subset of the dataset, disjoint with the

candidate anomaly; i.e. ∀x,∀y ⊂ x : β(x,y) ⊆ x\y).

For methods targeting point and collectiveanoma-

lies, β(x,y) = x\ y.

• The comparison of candidate anomalies and con-

texts may be encoded as a function

γ : D× D → A,

which assigns a dissimilarity score a ∈ A (where

A is some method-speciﬁc set) to any candidate

anomaly-context pair.

• The aggregation of anomaly scores may be en-

coded as a function

δ : P (D× A) → S,

which maps any collection of candidate anomaly-

dissimilarity score pairs to a solution.

Any tuple (α,β,γ, δ) (for given S, D, and A) may

be combined

to form an m ∈ M. Conversely, any m ∈

M may be deﬁned

as a tuple m = (D,S,A,α, β,γ,δ).

For any given application, appropriate methods

may be designed by reasoning about which choices

of these sub-methods are applicable.

As an illustration of this approach, consider an

application involving grids of real-valued data con-

taining collective contextual anomalies (regions of the

grid, anomalous with regard to their surroundings), as

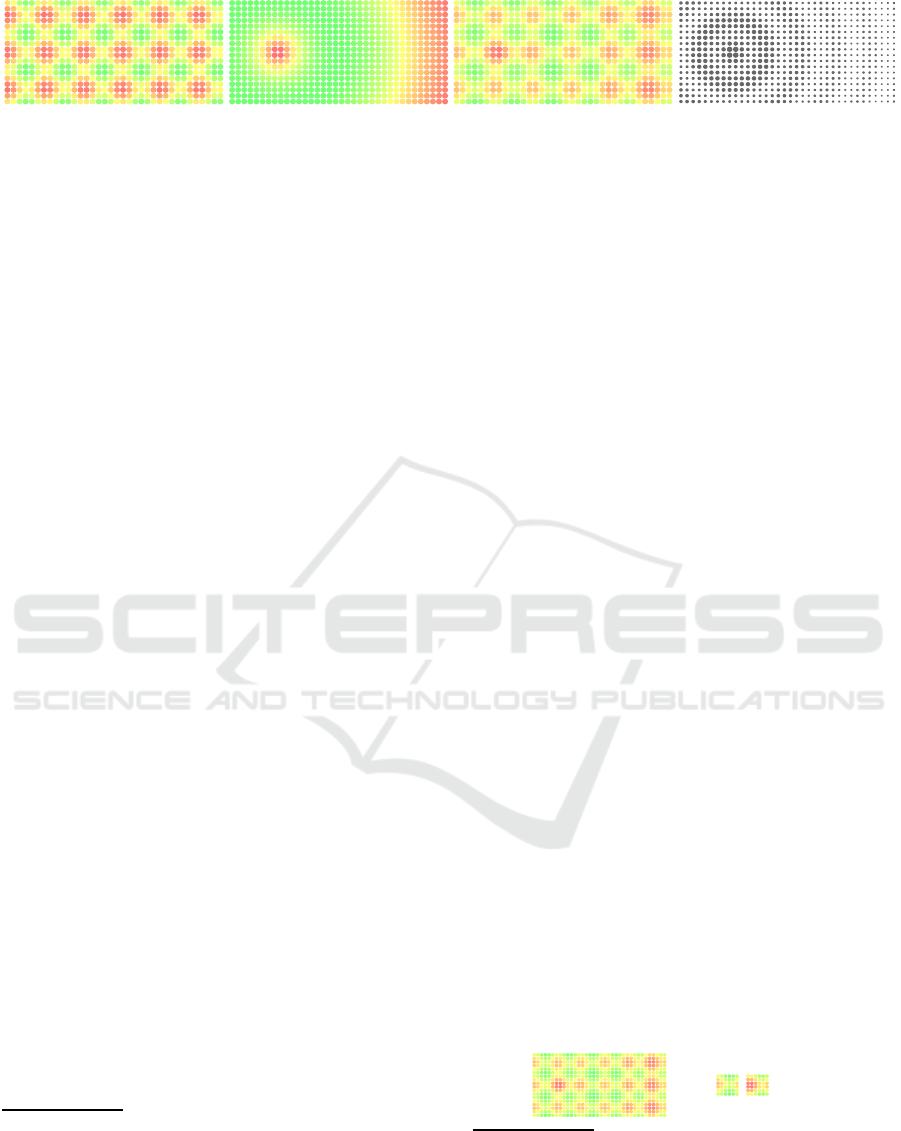

illustrated in Figure 2. Assume that the desired so-

lution format is a grid of real-valued anomaly scores;

i.e. S = D. What choices of sub-methods might be

suitable?

First, α should produce candidate anomalies

roughly on the scale of the anomalies we wish to

capture. For instance, an α that produces non-

overlapping square regions of size 6-by-6 may be em-

ployed:

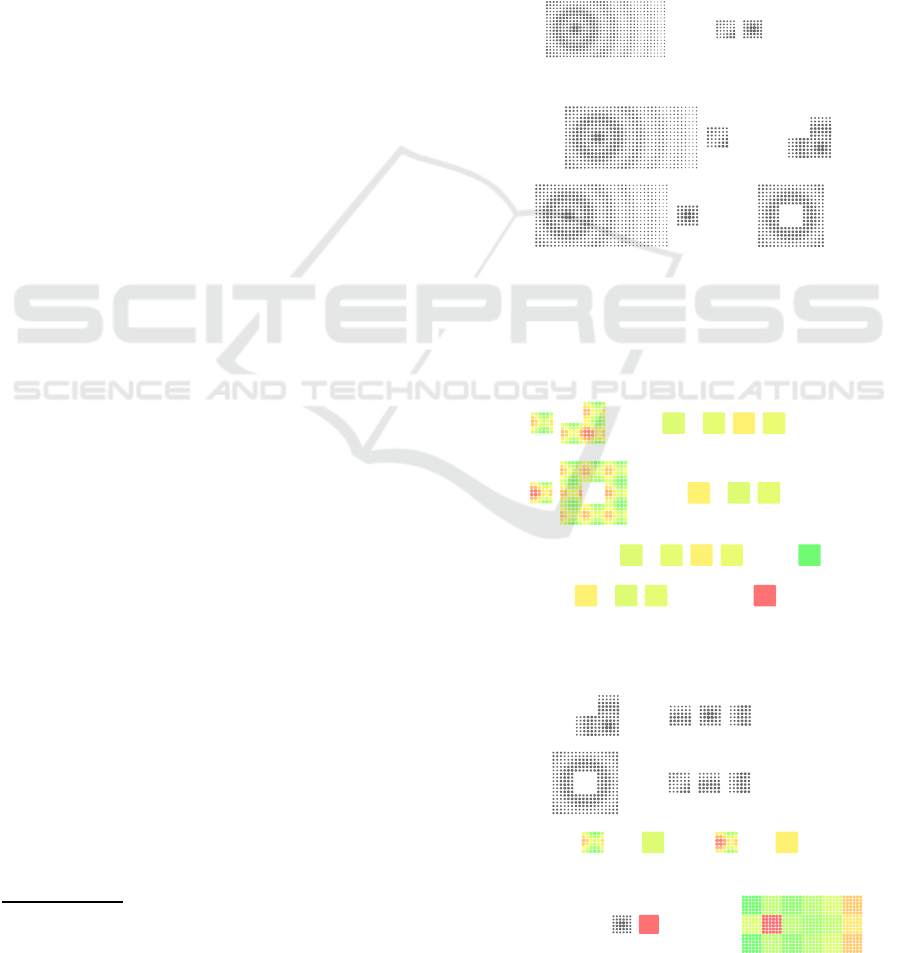

D ∋

7−→ {

, ,... } ∈ P (D)

Speciﬁcally by—for d ∈ D—letting X = α(d),

Y = {(x, β(x, d)) | x ∈ X}, Z = {(x,γ(x,y)) | (x,y) ∈ Y}, and

m(d) = δ(Z).

Note that this implies no loss of generality; any

m : D → S may be encoded by e.g. letting A = S, α(d) =

{d}, γ(d,y) = m(d), and δ({s}) = s.

A Formal Approach to Anomaly Detection

319

Second, β should produce as context some appro-

priately sized neighborhoodof the candidate anomaly,

such as the union of all adjacent such square regions:

D× D ∋

7−→

∈ D,

7−→

,.. .

Third, γ may be selected to compute the mean

value of the items in the candidate anomaly, and the

mean values in each 6-by-6 region of the context, and

produce as anomaly score the mean absolute differ-

ence between the former and the latter (this means

that A = R)

D× D ∋





7−→

∈ A,

7−→

,.. .

Finally, δ should be selected to associate with each

element the anomaly score of the candidate anomaly

to which it belongs:

P (D× A) ∋ {(

, ),... }

7−→ ∈ S

It would be an easy task to construct software that

takes implementations of α, β, γ, and δ and combines

them into a corresponding method implementation.

Such software might be useful in constructing, cali-

brating, or evaluating methods.

However, its utility would be limited by the fact

that α, β, γ, and δ are all formulated in terms of D,

and would thus have to be implemented anew for each

new application.

If the sub-methods could be deﬁned such that

implementations could be shared between applica-

tions with similar (rather than identical) data, soft-

ware could then be coupled with a library of imple-

mented sub-methods, drastically increasing its utility.

5 CONTEXTUAL AND

BEHAVIORAL ATTRIBUTES

To accomplish this, we may instead deﬁne our sub-

methods to operate on either behavioral or contextual

attributes of the data.

We illustrate values in R as colored squares. To im-

prove the clarity of the presentation, we normalize anomaly

scores so that the most and least anomalous values of our

example are colored red and green, respectively.

By contextual attributes, we mean attributes

which identify and relate individualitems of a dataset,

such as the position in spatial data, the index in se-

quential data, or the vertex in graph data. These may

be thought of as ‘tags’ for each item in a dataset,

and must be unique. Behavioral attributes, are any

other attributes. These are ideally relevant only to the

anomaly measure.

Accordingly, we will henceforth assume that D

may be decomposed as D = P (C × B), where C and

B are (application-speciﬁc) sets of contextual and be-

havioral data, respectively. In our example applica-

tion, these may be represented as C = N

(capturing

the two-dimensional nature of the data) and B = R.

The sub-methodsmay then be replaced as follows:

• Behavioral data should be irrelevant when select-

ing candidate anomalies, so α may be replaced by

′

: P (C) → P (P (C)),

which operates on contextual data rather than on

the full dataset.

• Similarly, β may be replaced by

′

: P (C) × P (C) → P (C).

• When targeting point or contextual anomalies, γ

may be replaced with a function

′

: B× P (B) → A,

that maps behavioral attributes of the candidate

item and the context to an anomaly score.

When targeting collective or collective contextual

anomalies, however, both contextual and behav-

ioral aspects are likely to be relevant when com-

puting the anomaly measure. Thus, replacing γ

with sub-methods operating on either C or B is

not feasible.

A better approach would be to break γ apart into

smaller sub-methods, isolating the relation of con-

textual and behavioural considerations to a single,

constrained sub-method.

Many anomaly measures compare one feature to

a set of similar features, and are not formulated to

operate on contextual data. For these, γ may be

seen as encoding two responsibilities: extracting

features from candidate anomalies and contexts,

and comparing these to form anomaly scores.

These responsibilities may be encoded as (where

F is some method-speciﬁc set of features)

ε : D× D → F × P (F), and

ζ : F × P (F) → A.

Note that the anomaly measure ζ is not coupled to

either C or B, so it is independent of D (as long as

the features it operated on can be extracted).

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

320

In turn, ε may be seen as encoding two respon-

sibilities: breaking the context up into a set of

items, and extracting a single feature from each

such item.

These responsibilities may be encoded separately

η : P (C) → P (P (C))

(note the similarity to α

′

), and

θ : D → F.

• Behavioral data should be irrelevant when aggre-

gating anomaly scores, so δ may be replaced by

′

: P (P (C) × A) → S.

If S is known, δ

′

may in turn be replaced further.

Reasonably, any S should involve assigning labels

or scores either to individual items or to subsets

of the data, so we may assume that S = P (G× L),

where either G = C or G = P (C), and L is some

set of labels.

When S = P (C × L), and all candidate candidate

anomalies are singleton sets (i.e. when point or

contextual anomalies are targeted) δ

′

may be set

′

({({c

},a

),... }) = {(c

,ι(a

)),... }

for some function ι : A → L.

Typically, either A = L = R, in which case ι may

be set as the identity function, or A = R and L =

{0,1}, in which case ι may be set as a threshold

function.

Analogously, when S = P (P (C) × L), δ

′

may be

set to

′

({(C

),... }) = {(C

,ι(a

)),... }.

Finally, when S = P (C × L) and there are non-

singleton candidate anomalies, δ

′

may be set to

′

({(C

),... }) =

,κ(A

)) | c

∈

[

where A

= {a

| c

∈ C

}, i.e. for each data item,

the anomaly scores for all candidate anomalies

to which it belongs are aggregated through some

function κ : P (A) → L.

The above sub-methods allow for decompos-

ing methods to various degrees; i.e. a method

may be speciﬁed as (D,S,A,α

′

,β

′

,γ

′

,δ

′

), or

(D,S, F,A,α

′

,β

′

,η,θ,ζ, δ

′

), et cetera. Crucially,

it is an easy task to write software that constructs a

corresponding method for any such combination

In the interest of saving space, we elide a precise for-

mulation of how the sub-methods would be composed.

and by extension, software that can algorithmically

ﬁnd appropriate methods given a set of potentially

applicable sub-methods.

For a given choice of C, the number of interest-

ing sub-methods can be rather limited (as we will see

in Section 8). Thus, implementations of a few sub-

methods may be used to handle a wide range of tasks.

As an illustration of the sub-methods proposed

above, we may consider how they may be used to re-

place the α, β, γ, and δ we applied to our example

data. To indicate contextual data, we will use the pat-

tern to the far right in Figure 2.

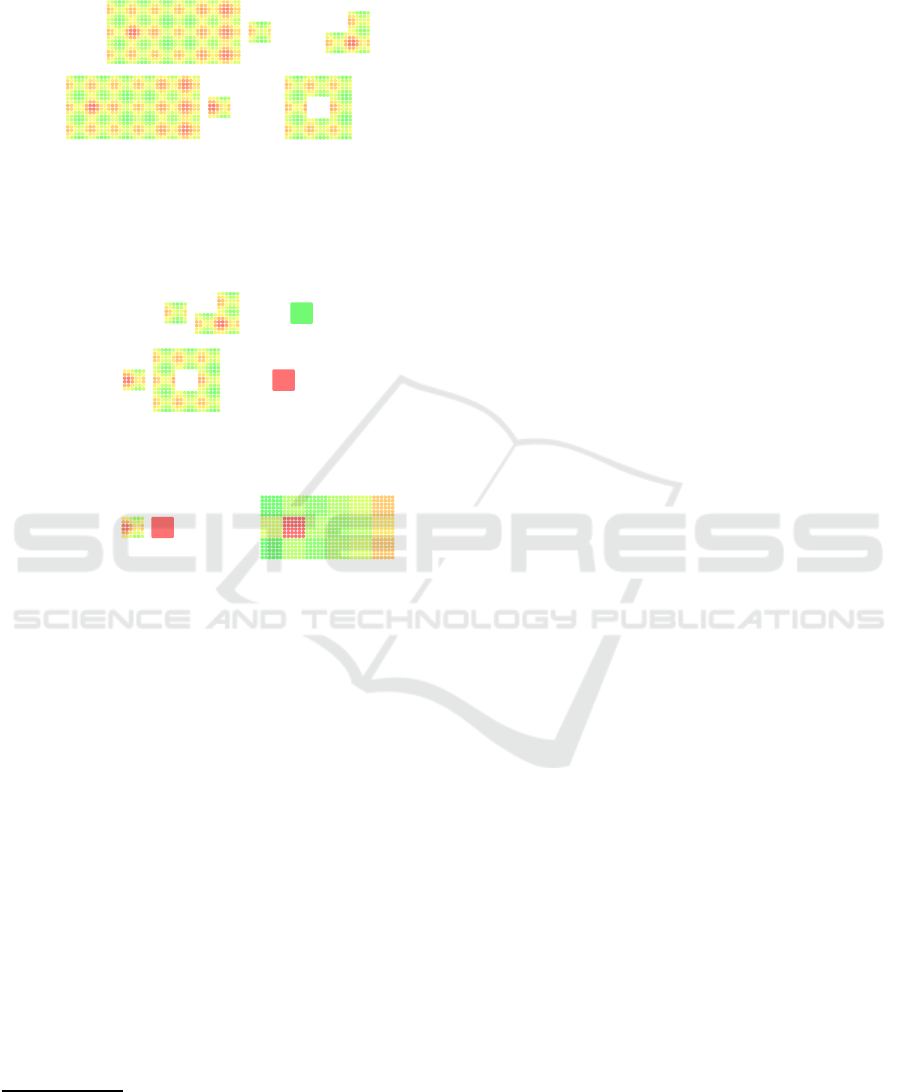

Our choice of α corresponds to an analogous α

′

P (C) ∋

′

7−−→ {

, ,...} ∈ P (P (C))

The same goes for our choice of β:

P (C)

∋

′

7−−→

∈ P (C)

′

7−−→

,.. .

Our choice of γ corresponds to an ε that produces

as features the mean value of each 6-by-6 region (so

F = R), and a ζ that computes the mean absolute dif-

ference between the feature extracted from the candi-

date anomaly and the features extracted from the con-

text:

∋





7−→ (

,{ , , }) ∈ F ×P (F)

7−→ (

,{ , ,. .. }),.. .

F × P (F) ∋ (

,{ , , })

7−→ ∈ A,

(

,{ , ,. .. })

7−→ ,.. .

In turn, this ε corresponds to an η that extracts

disjoint such square regions, and a θ that computes

the mean value of its inputs:

P (C) ∋

7−→ {

, , } ∈ P (P (C)),

7−→ {

, , ,. .. },.. .

D ∋

7−→

∈ F,

7−→

,.. .

Our δ may be replaced with an analogous δ

′

P (P (C) × A) ∋ {(

, ),...}

′

7−−→

∈ S

A Formal Approach to Anomaly Detection

321

Finally, since the solution format is S = P (C× L)

for L = A = R, and we are dealing with collective con-

textual anomalies, we may utilize κ. The candidate

anomalies are disjoint, so κ should produce the single

elements of the sets it receives:

P (A) ∋ {

}

7−→ ∈ L, { }

7−→ ,...

6 PARAMETRIC SUB-METHODS

Assuming that D = P (C × B) and S = P (G× L), the

construction of a m ∈ M = D → S from e.g. some α

′

, γ

′

, and δ

′

may be seen as the application of a func-

tion

f(α

′

,β

′

,γ

′

,δ

′

) : A

′

× B

′

× Γ

′

C,B,A

× ∆

′

C,A,G,L

→ M,

where A

′

= P (C) → P (P (C)), et cetera.

Likewise, the construction of e.g. a γ

′

from some

ε and ζ may be seen as the application of a function

g(ε,ζ) : E

C,B,F

× Z

F,A

→ Γ

′

C,B,A

Taking this approach one step further, we may

consider parametric sub-methods—functions that

take some tuple of parameters and produce a sub-

method.

For instance, our choice of an α

′

that produces re-

gions of size 6-by-6 may be seen as a special case of

a parametric sub-method

′

rect

(w,h) : N × N → (P (N

) → P (P (N

))) = A

′

that produces regions of width w and height h.

As we will see in Sections 8 and 9, parametric sub-

methods naturally arise in applications, and are very

helpful when formulating methods as well as when

heuristically searching for appropriate methods.

7 HIGHER ORDER METHODS

Similarly, we may consider higher order methods,

which map methods to methods.

For instance, consider the function

τ : T

′

,C,B

× M

C,B,G,L

× T

G,L,G

′

→ M

′

deﬁned by

τ(t

,m,t

) = t

◦ m ◦ t

which takes an input transform

∈ T

′

,C,B

= P (C

′

× B

′

) → P (C × B),

for some C

′

, B

′

, a method

m ∈ M

C,B,G,L

= P (C× B) → P (G× L),

and an output transform

∈ T

G,L,G

′

= P (G× L) → P (G

′

× L

′

for some G

′

, L

′

, and produces a method

′

∈ P (C

′

× B

′

) → P (G

′

× L

′

Many methods found in the literature involve a

pre-analysis transformation of the data into some for-

mat more amenable to analysis, either through dimen-

sionality reduction (Ding et al., 2008) or a change of

data representation (i.e. of C or B) (Lin et al., 2007).

Such methods may be accommodated through the use

of τ together with appropriate t

and t

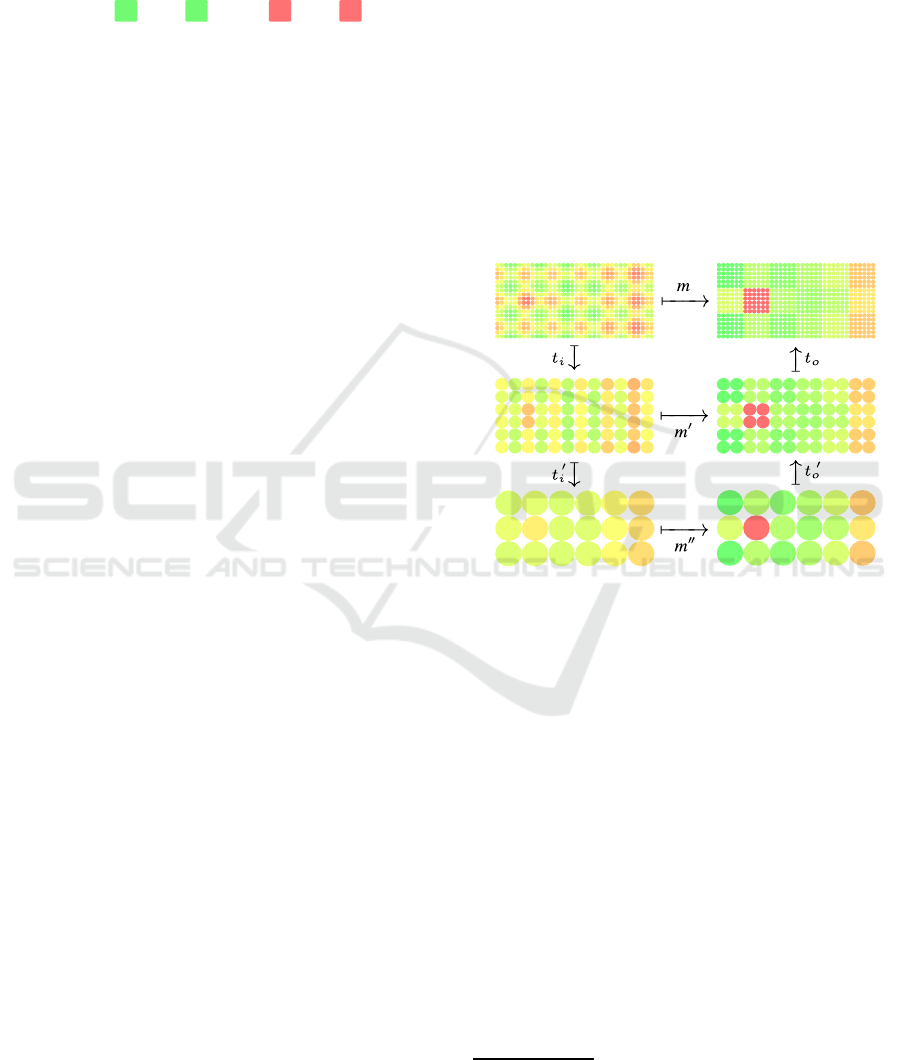

For instance, dimensionality reducing transforma-

tions may be applied to our example method to ob-

tain equivalent methods that operate on a lower di-

mensionality:

Here, t

′

∈ T

,R,Z

and

m = τ(t

′

) = τ(t

,τ(t

′

′′

′

),t

Another interesting higher order method, which

may be used to combine methods into ensembles, is

µ : P (M

C,B,G,L

) ×U

G,L

→ M

C,B,G,L

, given by

µ(m,u)(d) = u({m

(d) | m

∈ m}),

where u ∈ U

G,L

= P (P (G× L)) → P (G× L) is some

function that combines solutions.

Crucially, t

, t

and u may be used analogously to

sub-methods to construct methods, either manually or

algorithmically.

8 AN APPLICATION TO

SEQUENCES

Anomaly detection tasks involving sequences

are

commonly encountered in applications, and have

We here consider only regular sequences, as opposed

to irregular time series, for whichC = R, and which may be

considered a type of one-dimensional spatial data.

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

322

been extensively studied. For sequences, we may let

C = N.

We will now illustrate how our approach may be

used to formulate methods through an application to

sequences. In the interest of saving space, we will

restrict our attention to S = P (G × L) = P (N × R)

(solutions which consist of real-valued per-element

anomaly scores).

First, consider the following real-valued sequence

(in D = P (N × R)):

This sequence consists of a sinusoid with added

noise, and two abnormalities: two extrema (in its lat-

ter half) and a trend of stray elements (beginning near

its middle). Either abnormality may be considered an

anomaly with regard to the (hypothetical) underlying

application, so detecting either or both might be valu-

able.

To detect the extrema, methods targeting point

anomalies may be employed. As previously dis-

cussed, when point anomalies are targeted, and G =

C, it sufﬁces to specify γ

′

(an anomaly measure) and

ι (a method of aggregating anomaly scores). We will

restrict our consideration to A = L = R, and may thus

let ι(x) = x.

A common choice of anomaly measures are k-

nearest neighbor-basedmeasures, which for any given

candidate anomaly compute the mean distance to its k

nearest elements (for some distance measure d). We

may capture such measures through a parametric sub-

method

′

kNN

(k,d) : N × (R × R → R) → (R × P (R) → R),

where γ

′

kNN

(k,d)(x,y) produces the mean of the k

smallest values in {d(x,y

) | y

∈ y}.

Applying γ

′

kNN

(3,d

) (for d

(x,y) = |x − y|) to

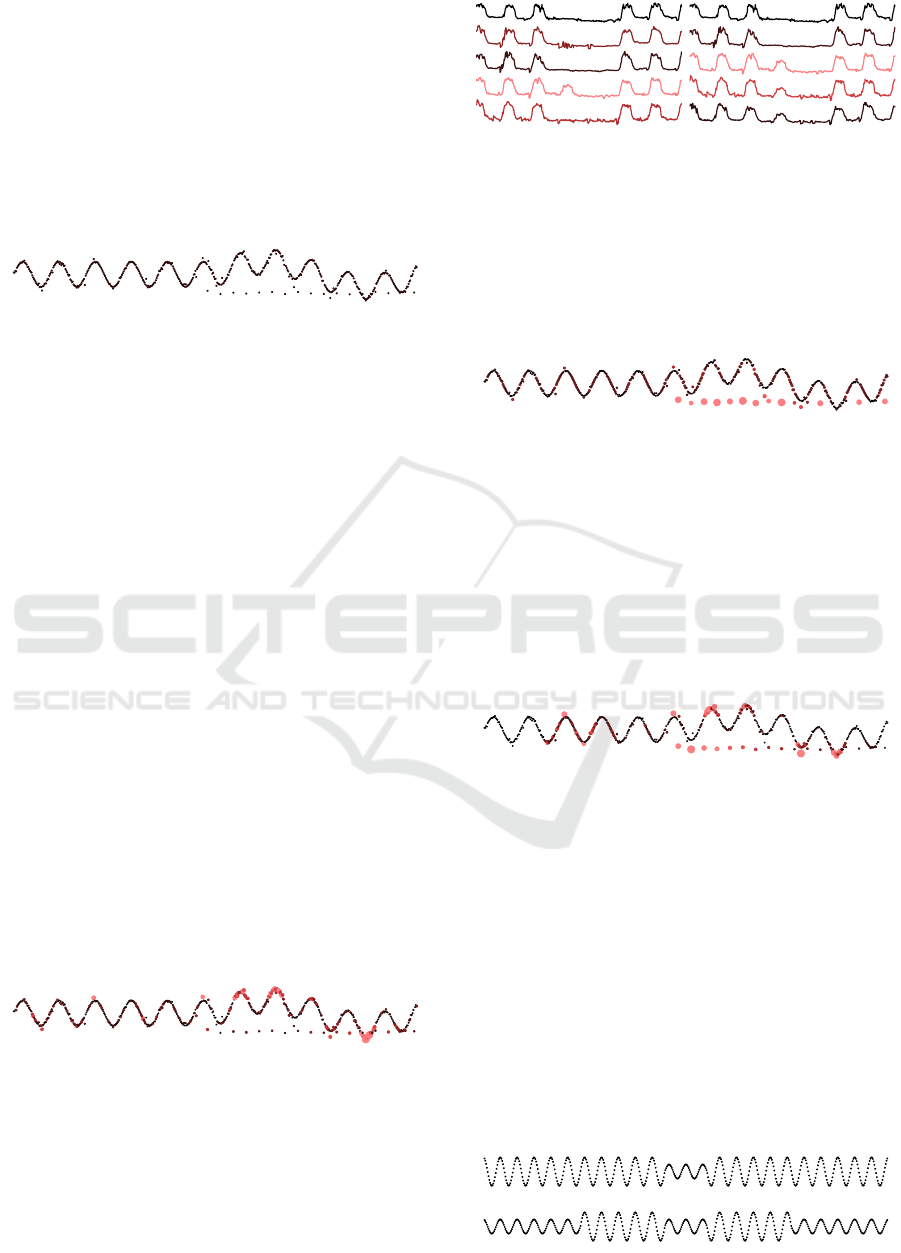

our sequence gives the following result (the anomaly

score is indicated through color and point size; large,

bright points indicate anomalous items):

As expected, it captures the extrema but not the

trend of stray elements. The elements of this trend

are contextual anomalies with regard to a local con-

text, which consists of all elements within some dis-

tance m of a candidate anomaly (with respect to the

sequence ordering). This may be captured through an

appropriate β

′

local

(m) ∈ Z → (P (N) × P (N) → P (N)).

Figure 3: Left: results obtained by applying γ

′

kNN

(3,d

DTW

)

to the UCR power usage dataset (Chen et al., 2014). Right:

results obtained by applying γ

′

kNN

(3,d

DTW

) and β

′

novelty

a variant of the same data, where at a certain point, an ar-

tiﬁcial anomaly has been superimposed on subsequent se-

quences.

Applying β

′

local

(10) together with γ

′

kNN

(3,d

) to

the sequence gives the following result:

Capturing the entirety of this trend might not be

desirable; in some applications, novelties—such as

the onset of such trends—are more interesting.

Novelties can be captured through a novelty con-

text

′

novelty

: P (N) × P (N) → P (N),

where β

′

novelty

(d,c) produces all elements in d that

come before the elements of c (with respect to the se-

quence ordering).

Replacing β

′

local

(10) with β

′

novelty

gives the follow-

ing result:

It should be noted that β

′

local

and β

′

novelty

are both

special cases of a more general parametric β

′

asym

(b,a),

which produces as contextthe b and a elements before

and after the candidate anomaly.

The sub-methods illustrated above may just as

well be applied to sequences of other types of ele-

ments. For instance, consider an application involv-

ing sequences of real-valued vectors of some ﬁxed

length (i.e. D = P (N × R

)), as illustrated in Fig-

ure 3. Here, point and contextual anomalies may be

captured through e.g. γ

′

kNN

(3,e

DTW

), where

DTW

: R

× R

→ R

is the dynamic time warp distance (Berndt and Clif-

ford, 1994).

Now consider the following three sequences:

A Formal Approach to Anomaly Detection

323

Here, the top sequence contains a collective

anomaly (at its center), the middle sequence con-

tains a (local) contextual collective anomaly (also at

its center), and the bottom sequence contains a few

change points (which may be considered contextual

collective anomalies with respect to a novelty con-

text).

For these anomalies to be detectable, the candi-

date anomalies under consideration should be subse-

quences of the original sequence. To this end, we may

employ an appropriate α

′

, e.g.

′

win

(w,s) : N × N → (P (N) → P (P (N)))

where α

′

win

(w,s) selects every sth subsequence of

width w:

′

win

(w,s)({c

,.. .}) = {{c

,.. ., c

},{c

1+s

,.. .} ... }.

To form an appropriate anomaly measure, we may

employ

win

(w,s) : N × N → (P (N) → P (P (N))),

deﬁned identically to α

′

win

, together with

vec

(n) : N → (P (N × R ) → R

)

deﬁned by θ

vec

(n)({(i,x

),... }) = [x

,.. ., x

i+n−1

and

kNN

(k,d) : N×(R

×R

→ R) → (R

×P (R

) → R)

deﬁned analogously with γ

′

kNN

(k,d).

Finally, since S = P (N × R), some κ must be em-

ployed, e.g. κ

mean

(x) =

∑

/|x|.

Applying e.g. α

′

win

(40,5), η

win

(40,5), θ

vec

(40),

kNN

(3,e

DTW

), and κ

mean

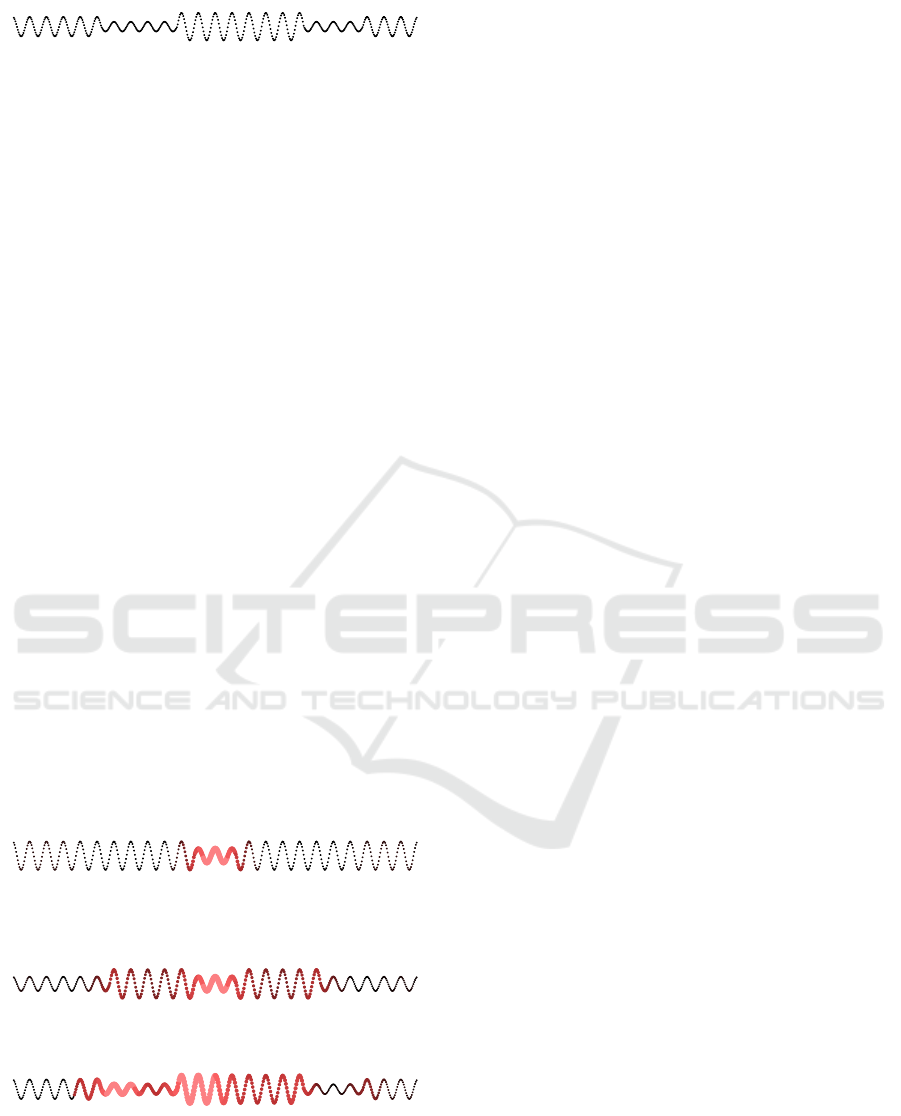

to our ﬁrst sequence gives

the following result:

Combining the above sub-method choices with

′

local

(75) results in a method that captures the

anomaly in the middle sequence:

Finally, using β

′

novelty

gives a method that captures

novel change points in the last sequence:

While there are countless potentially interesting

anomaly measures (i.e. γ

′

or ζ) to apply to sequences,

the choices of other sub-methods are rather limited.

For methods that involves contiguous sub-

sequences and contexts (likely a vast majority of in-

teresting methods) it seems that the only reasonable

approach would be to employ α

′

win

, β

′

asym

and η

win

(when applicable).

While θ

vec

handles behavioral data, and is thus

technically dependent on B, its results are not affected

by the individual behavioral values, and it could be

extracted into a more portable sub-method, indepen-

dent of C. This would likely be involved in most in-

teresting methods involving sequences.

Finally, there are only a few interesting choices of

κ (e.g. it could produce the mean, median, maximum,

minimum of its input values).

Thus, these sub-methods may be considered to

fairly exhaustively cover anomaly detection tasks in

sequences (with the exemption of γ

′

/ζ, transforms,

and ensemble methods). It should further be noted

that since γ

′

and ζ are formulated independently of C,

the same implementation of γ

′

or η may be used for

sequences, grids, graphs, et cetera, as long as an ap-

propriate θ is provided.

9 OPTIMIZATION

The application-agnostic and modular nature of our

formalism enables the construction of software that

heuristically searches for appropriate methods. Given

any collection of sub-method implementations, to-

gether with some means of assessing its associated

methods—e.g. a function e : M → R—we may ﬁnd

optimal methods by iteratively constructing and eval-

uating sub-method combinations.

One way to construct such an e is to employ a set

T ⊂ D×S of labeled training data, together with some

dissimilarity measure for solutions e

′

: S× S → R, to

form

e(m) =

∑

)∈T

′

(m(d

),s

This function provides us with a convenient means

of evaluating methods. Software that implements e

can be used to easily evaluate and compare methods

(especially if bundled with a collection of sub-method

implementations) for novel applications.

Furthermore, it gives rise to a supervised,

application-agnostic optimization problem—

minimizing e given a set of (potentially parametric)

sub-methods. If some means of efﬁciently solving

this problem could be found, the task of ﬁnding

appropriate methods for any given application could

be reduced to selecting appropriate sets of candidate

sub-methods and training data.

To illustrate this approach, we implemented a

rudimentary solver for the optimization problem.

This solver takes a collection of parametric sub-

methods (with an ordered or unordered set of candi-

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

324

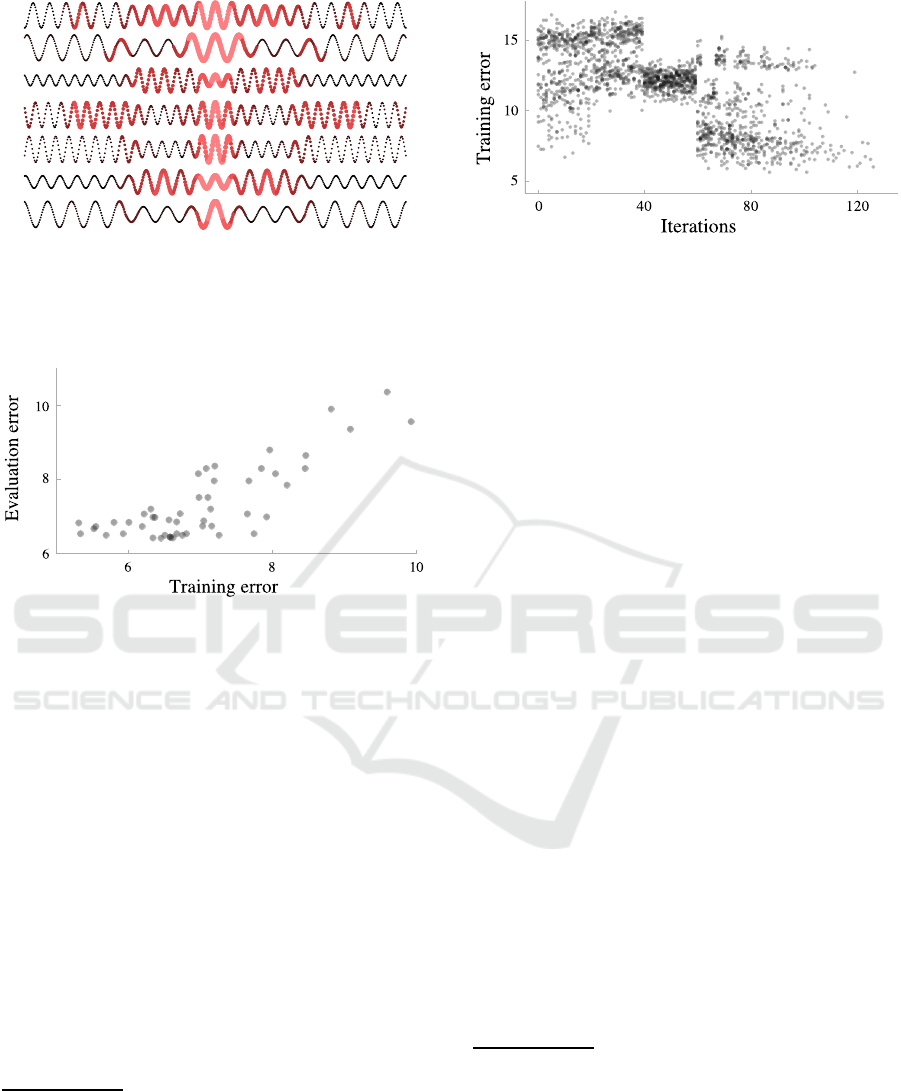

Figure 4: A few sample sequences from the evaluation

data, with anomaly scores taken from a method with a

low evaluation error (6.4), corresponding to α

′

win

(30,10),

′

local

(100), η

win

(30,5), θ

vec

(30), ζ

kNN

(δ

DTW

,1), and

mean

Figure 5: Average training vs evaluation error for 50 solver

runs, with 10 training items and 100 and evaluation items.

date values for each parameter) and a set T ⊂ P (C×

[0,1]) of training data. It uses the Euclidean distance

(with a prior rescaling of the anomaly scores to [0,1])

as e

′

The solver employs a na¨ıve, two-phase optimiza-

tion heuristic: In the ﬁrst phase, the solver evalu-

ates all valid combinations of sub-methods. For each

such combination, it randomly samples the parameter

space (the product of the sets of sub-method param-

eter values) a ﬁxed number of times, and evaluates

each resulting method on the training data.

In the second phase, the solver uses hill climb-

ing to calibrate the sub-method combination that pro-

duced the lowest error in the ﬁrst phase

We applied this solver to a procedurally generated

data set consisting of real-valued sequences with col-

lective contextual anomalies

, as illustrated in Fig-

Speciﬁcally, by starting at the point (out of those sam-

pled) with the smallest error, and iteratively—until a (local)

minimum is found—evaluating all adjacent points (chang-

ing one parameter at a time) and moving to the one with the

lowest error.

Speciﬁcally: 500-element, sinusoidal real-valued se-

quences with an angular frequency ω ∈ U(1,2) and two dis-

tinct amplitudes a

(where a

= 1, and a

is U(1.3,1.7)

Figure 6: The training error at each iteration for a set of

solver executions. Each sub-method combination is sam-

pled 20 times before the solver switches to hill climbing.

ure 4.

We used the sub-methods presented in the previ-

ous section

and a set of 20 randomly sampled train-

ing items, let the solver take 20 random samples of

each valid sub-method combination, and repeated the

experiment 50 times. The resulting methods were

then evaluated on a set of 100 items.

As seen in Figure 5, a large share of the result-

ing methods seem to perform close to optimally. The

solver occasionally gets stuck in local minima, pro-

ducing poorly performing methods. Considering the

simplistic nature of the solver, this is hardly surpris-

ing, and it is likely that a more sophisticated solver

would have performed better. The per-iteration train-

ing data error for 20 experiments is shown in Figure 6,

and a few solutions produced by one method with a

low evaluation error is shown in Figure 4.

10 CONCLUSIONS

We have introduced an application-agnostic approach

to anomaly detection, in which anomaly detection

methods are treated as formal objects that may be de-

composed and recombined.

We have applied this formalism to sequences,

showing that it may be used to easily express a wide

range of anomaly detection tasks for this type of data.

Finally, we have demonstrated that our approach

may be used to construct application-agnostic soft-

with probability 0.5 and U(0.3,0.7) with probability 0.5),

arranged in a a-b-c-b-a pattern, where the width of the c re-

gion is U(15,30) (rounded so that the amplitude transition

happens at the nearest sign change), and the width of the b

regions is U(80,100) (also rounded).The labels were set to

1 in the anomalous regions and 0 elsewhere.

Speciﬁcally, α

′

win

(w,s), β

′

local

(m), β

′

novelty

, the trivial

′

used for collective anomalies, η

win

(w,s

′

), θ

vec

(w), and

kNN

(d, k), for s, s

′

in{5,10,. . . , 25}, w ∈ {30,35,. . . , 60},

k ∈ {1,2,. . . ,5}, m ∈ {80,90,... ,130}, d ∈ {d

DTW

}

A Formal Approach to Anomaly Detection

325

ware that facilitates implementing and evaluating

methods, and that can be used to automatically ﬁnd

appropriate methods (given labeled training data and

a set of candidate sub-methods).

Future Work. We foresee several venues for future

work.

First, there are plenty of interesting sub-methods,

transforms, ensemble methods, and non-sequence

types of data (e.g. graphs, spatial data) to which our

formalism could be extended. There is work to be

done both in terms of studying these and in terms of

creating ﬂexible and efﬁcient implementations.

There is also work to be done on efﬁciently solv-

ing the optimization problem outlined in Section 9;

we have demonstrated that it may solved for simple

tasks, but it remains to be seen if it can be effectively

solved for real-world tasks.

Finally, modifying or extending our formalism

could be valuable. For instance, associating addi-

tional information with sub-methods could enable al-

gorithms that can optimize or approximate the result-

ing methods.

REFERENCES

Abraham, B. and Box, G. E. (1979). Bayesian analysis

of some outlier problems in time series. Biometrika,

66(2):229–236.

Abraham, B. and Chuang, A. (1989). Outlier detection and

time series modeling. Technometrics, 31(2):241–248.

Agyemang, M., Barker, K., and Alhajj, R. (2006). A

comprehensive survey of numeric and symbolic out-

lier mining techniques. Intelligent Data Analysis,

10(6):521–538.

Basu, S. and Meckesheimer, M. (2007). Automatic outlier

detection for time series: an application to sensor data.

Knowledge and Information Systems, 11(2):137–154.

Berndt, D. J. and Clifford, J. (1994). Using dynamic time

warping to ﬁnd patterns in time series. In KDD work-

shop, volume 10, pages 359–370.

Chandola, V. (2009). Anomaly detection for symbolic se-

quences and time series data. PhD thesis, University

of Minnesota.

Chandola, V., Banerjee, A., and Kumar, V. (2009).

Anomaly detection: A survey. ACM Computing Sur-

veys (CSUR), 41(3):15.

Chandola, V., Banerjee, A., and Kumar, V. (2012).

Anomaly detection for discrete sequences: A survey.

Knowledge and Data Engineering, IEEE Transactions

on, 24(5):823–839.

Chen, Y., Keogh, E., Hu, B., Begum, N., Bag-

nall, A., Mueen, A., and Batista, G. (2014).

The ucr time series classiﬁcation archive.

www.cs.ucr.edu/˜eamonn/time

series data/. Accessed:

2014-09-13.

Ding, H., Trajcevski, G., Scheuermann, P., Wang, X., and

Keogh, E. (2008). Querying and mining of time series

data: experimental comparison of representations and

distance measures. Proceedings of the VLDB Endow-

ment, 1(2):1542–1552.

Etsy (2015). Etsy Skyline. github.com/etsy/skyline. Ac-

cessed: 2015-02-10.

Fox, A. J. (1972). Outliers in time series. Journal of the

Royal Statistical Society. Series B (Methodological),

pages 350–363.

Fu, A. W.-C., Leung, O. T.-W., Keogh, E., and Lin, J.

(2006). Finding time series discords based on Haar

transform. In Advanced Data Mining and Applica-

tions, pages 31–41. Springer.

Fu, T.-c. (2011). A review on time series data min-

ing. Engineering Applications of Artiﬁcial Intelli-

gence, 24(1):164–181.

Galeano, P., Pe˜na, D., and Tsay, R. S. (2006). Outlier de-

tection in multivariate time series by projection pur-

suit. Journal of the American Statistical Association,

101(474):654–669.

Hodge, V. J. and Austin, J. (2004). A survey of outlier de-

tection methodologies. Artiﬁcial Intelligence Review,

22(2):85–126.

Keogh, E., Lin, J., and Fu, A. (2005). Hot sax: Efﬁciently

ﬁnding the most unusual time series subsequence. In

Data mining, ﬁfth IEEE international conference on.

Keogh, E., Lin, J., Lee, S.-H., and Van Herle, H. (2007).

Finding the most unusual time series subsequence: al-

gorithms and applications. Knowledge and Informa-

tion Systems, 11(1):1–27.

Lazarevic, A., Ert¨oz, L., Kumar, V., Ozgur, A., and Sri-

vastava, J. (2003). A comparative study of anomaly

detection schemes in network intrusion detection. In

SDM, pages 25–36.

Lin, J., Keogh, E., Wei, L., and Lonardi, S. (2007). Ex-

periencing sax: a novel symbolic representation of

time series. Data Mining and Knowledge Discovery,

15(2):107–144.

Ma, J. and Perkins, S. (2003). Online novelty detection on

temporal sequences. In Proceedings of the ninth ACM

SIGKDD international conference on Knowledge dis-

covery and data mining, pages 613–618.

Markou, M. and Singh, S. (2003a). Novelty detection: a re-

view, part 1: statistical approaches. Signal processing,

83(12):2481–2497.

Markou, M. and Singh, S. (2003b). Novelty detection: a re-

view—part 2:: neural network based approaches. Sig-

nal processing, 83(12):2499–2521.

Phua, C., Lee, V., Smith, K., and Gayler, R. (2010). A

comprehensive survey of data mining-based fraud de-

tection research. arXiv preprint arXiv:1009.6119.

Tsay, R. S., Pe˜na, D., and Pankratz, A. E. (2000). Outliers in

multivariate time series. Biometrika, 87(4):789–804.

Twitter (2015). AnomalyDetection R Package.

github.com/twitter/anomalydetection. Accessed:

2015-02-10.

ICPRAM 2016 - International Conference on Pattern Recognition Applications and Methods

326
