Inside - Outside Model Viewing

A Low-cost Hybrid Approach to Visualization and Demonstration of 3D Models

Ivan A. Nikolov

Research Assistant, Department of Architecture, Design and Media Technology,

Aalborg University, Rendsburggade 14, 9000 Aalborg, Denmark

Keywords:

Virtual Reality, Augmented Reality, Real-time Rendering, Head Mounted Displays.

Abstract:

Visualization of large scale 3D models has become an important part of the development cycle in many ﬁelds

like building design, machine design, construction and many more. Whether for design communication or

demonstration, it is necessary for the viewers to fully understand the different components of the model, their

proportions compared to each other and the overall design. A variety of augmented reality(AR) applications

have been created for overall visualization of large scale models. For tours inside 3D renderings of models

many immersive virtual reality (VR) applications exist. Both types of applications have their limitation, omit-

ting either important details in the AR case or the full picture in the case of VR. This paper presents a low-cost

way to demonstrate models using a hybrid virtual environment system (HVE), combining virtual reality and

augmented reality visualization. The solution is built using a fully occlusive head mounted display(HMD),

together with off-the-shelf web cameras and a game controller for interaction. A proof of concept is created us-

ing a commercial game engine, which is used in a subsequent case study. Based on this study, we demonstrate

the validity of our proposed system.

1 INTRODUCTION

Virtual Reality (VR) technology has started to gather

a lot of follower in recent years, thanks to both the

push of large companies and the emerging of the new

low-cost, easy to use, lightweight and high resolution

Head-Mounted Displays (HMD).And with the devel-

opment of faster mobile and camera solutions and

more robust tracking algorithms AR has also been on

the rise. These solutions make it possible for devel-

opers to build real-time mixed reality (MR) applica-

tions. A problem that arises with the development

of virtual reality systems is the one of visualization

and proper interaction with the objects in the envi-

ronment. To achieve a proper experience of immer-

sion and interaction with the environment different

methods are explored. The most recent state of the

art research methods concerning tablet-based interac-

tion (Krum et al., 2014), as well as gesture-based ones

(Shen et al., 2014).

Another possibility for helping the user to prop-

erly interact with the virtual environment is by provid-

ing a better and more diverse outlook on it. This can

be achieved by implementing a virtual reality system,

that uses a combination of multiple points of view and

interaction possibilities. Such systems are demon-

strated in (Wang and Lindeman, 2014) and (Wang and

Lindeman, 2015), where multiple points of view and

methods of interaction ensure a smooth workﬂow and

interactions for users.

This paper introduces a novel approach based

on this type of hybrid virtual environment system,

which uses a mixed reality visualization. We focus

on a low-cost hardware system using an Oculus Rift

DK2, as a HMD, together with two web cameras for

passthrough. For interaction an Xbox360 controller is

chosen for its relative simplicity and versatility. Two

visual points are implemented - a ﬁrst person view

and a bird’s eye view. The bird’s eye view of the

models is rendered as an augmented reality visualiza-

tion on a marker connected to the controller. The ﬁrst

person view employs a virtual reality approach to go

up close to different parts of the 3D model and get

a better understanding of their proportions. In addi-

tion the starting position of the ﬁrst person view can

be changed by users, providing a more customizable

experience. A user study was conducted to validate

the approach and demonstrate its positive effects on

an user’s workﬂow. Furthermore, the mixed reality

approach reduced cyber sickness.

292

Nikolov, I.

Inside - Outside Model Viewing - A Low-cost Hybrid Approach to Visualization and Demonstration of 3D Models.

DOI: 10.5220/0005715502900295

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 1: GRAPP, pages 292-297

ISBN: 978-989-758-175-5

2 RELATED WORK

2.1 Immersive Virtual Reality

Applications

Immersive virtual reality applications have become

a commonplace in number of different ﬁelds, that

require visualization of designs in work or ﬁnished

products without the need of a physical product.

Such ﬁelds are architecture, engineering, and con-

struction. Efforts have been made to implement this

kind of interactive visualizations into the pipeline of

CAD/CAM production, such as the work of (Stark

et al., 2010) and integrating it as part of a product

lifecycle management, as in the work of (Mahdjoub

et al., 2010). Additionally, such immersive virtual re-

ality applications are becoming more and more easy

and natural to work with, removing inherent limita-

tions such as user fatigue, uncomfortable controls and

disorientation. The research of (Mine et al., 2014)

works around these limitations to achieve an applica-

tion that can be used for longer periods of time. It

is also shown that immersive virtual reality applica-

tion can be a vital part of the demonstration process,

giving more information to users, which could not be

shown as directly in any other way. The research of

(Marks et al., 2014) demonstrates the validity of this

for the ship construction industry, while the work of

(Bednarz et al., 2015) shows the positive effects of

immersive virtual reality applications on the mining

industry.

2.2 Augmented Reality Applications

Augmented and mixed reality applications have

become regular substitutes for bulkier and harder to

move and assemble models and miniatures. These

applications are commonly used for building visual-

izations, machine and parts demonstrations. Other

strengths include the expanded degrees of interaction

and user involvement, as well as the comfort of using

a wide array of platforms to work with. Fast access to

vital information throughout the design and construc-

tion phases of buildings is a necessity and the work of

(Zollmann et al., 2014) shows that augmented reality

visualization can give this kind of information. A

combination between 2D schematics and 3D aug-

mented reality visualization gives all necessary data,

without interrupting the workﬂow, as shown by (C

et al., 2014). The acceleration of decision making

in construction using AR is further demonstrated

by (Wang et al., 2014). (Figueiredo et al., 2014)

show that visualizing 3D models for demonstration

and training purposes using an augmented real-

ity approach also gives a better outlook on them.

3 METHODOLOGY

3.1 Visualization Rig

The visualization rig consists of a number of major

components, that work together to achieve both the

ﬁrst person and the bird’s eye views of the models.

The components are as follows - a consumer grade

VR headset, two identical off the shelf web cameras

ﬁxed in stereoscopic view on a custom mount, two

smart phone ﬁsh-eye lenses for extending the ﬁeld

of view of the cameras, an augmented reality target

tracking system and a rendering engine.

The VR headset in use is a Oculus Rift DK2,

which offers marker based tracking of linear head mo-

tion using infrared LEDs on the headset and a sin-

gle infrared sensitive camera. The headset can also

track rotational head movements thanks to the build-

in accelerometers. Because the proposed system does

not require free physical movement, these out of the

box capabilities are enough for a proper visualization.

As the headset provides a fully-occluded virtual re-

ality visualization and the mixed reality approach of

the solution requires passthrough capabilities, a cus-

tom solution needs to be build. Two identical Canyon

CNE-CWC3 web cameras, together with iPhone ﬁsh-

eye lenses are chosen for the project, as they pro-

vide an inexpensive solution with 1080p resolution,

45 fps and wide ﬁeld of view and thus minimize the

symptoms of cyber sickness described by (LaViola Jr,

2000) and (Sharples et al., 2008). Both cameras are

mounted onto Oculus Rift so they can form a comfort-

able stereoscopic view with eye distance of 6.35cm.

As the aim of the project is to create a low-cost, easily

replicated, mixed reality viewing solution for our ap-

proach, we voted against using professional machine-

vision cameras.

3.2 Augmented Reality Solution

For visualization of the 3D models onto the

passthrough video feed, a augmented reality target

positioning solution needs to be chosen. Going again

with our goal to make reimplementation and subse-

quent experimentation easier, we chose a free track-

ing solution. A second requirement to our solution

is that it would be able to work properly with both

desktop and mobile systems alike. The third require-

ment is that the solution needs to be compatible with

the Unity game engine. Taking in consideration these

Inside - Outside Model Viewing - A Low-cost Hybrid Approach to Visualization and Demonstration of 3D Models

293

requirements we chose the free, easily convertible

implementation of ARToolKit, called NyARToolKit.

More information on the library can be seen in (NyA,

2015).

As virtual interactions are done through the use

of a Xbox360 controller and the user would be en-

gaged in holding the controller, a solution is offered

for physically interacting with the marker for track-

ing, without letting go of the controller. The target

marker is mounted on top of the controller, giving the

user the comfort to rotate and move the marker, while

interacting with the 3D model rendered on top of it,

through button and stick manipulation. The ﬁnal pro-

totype rig and the controller-marker rig can be seen in

Figure 1.

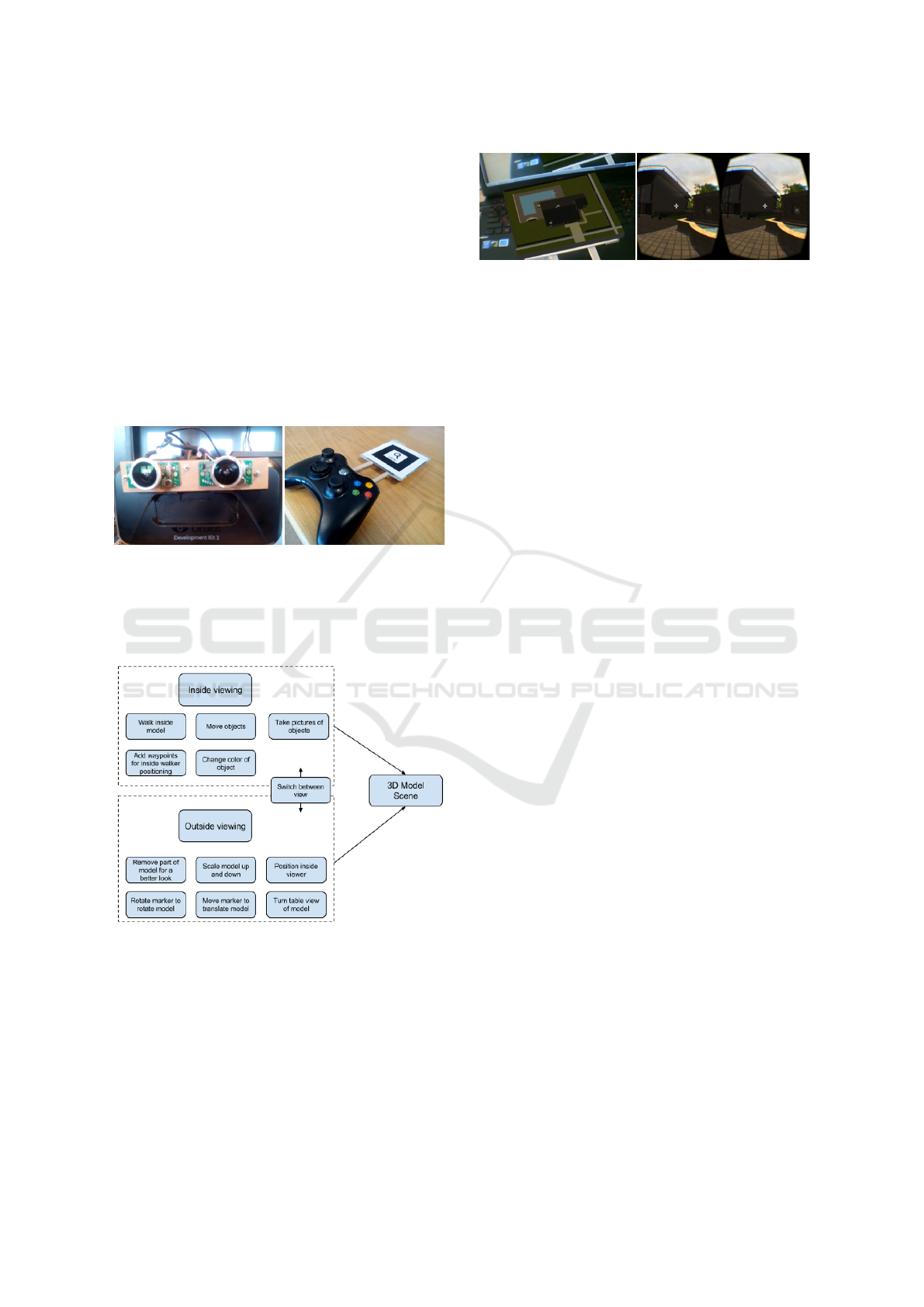

Figure 1: Left - the hardware rig consisting of an Oculus

Rift DK2, dual web cameras and ﬁsh-eye lenses. Right

- the marker-controller rig with custom made marker. By

combining the two, both physical and virtual interaction can

be achieved at the same time, while in the bird’s eye aug-

mented reality view.

Figure 2: Implemented interaction for the prototype. Di-

vided in inside and outside interactions, depending on

which view they suit best. The selected interactions are the

ones most widely used in the state of the art research.

3.3 Proof of Concept Application

As part of demonstrating the capabilities of the sug-

gested approach, we build a proof of concept applica-

tion using the Unity 4.6 engine. A number of inter-

action possibilities are implemented into the applica-

Figure 3: Overview of the two views implemented in the

prototype - outside bird’s eye augmented reality view and

inside ﬁrst person virtual reality view.

tion. These interactions are chosen in such a way that

they may be used to test user’s experience, while ma-

nipulating parts of the application. Additionally these

interactions are the most widely used in the state of

the art research of immersive virtual and augmented

reality interactive systems like the ones described by

(Steptoe et al., 2014), (Wang and Lindeman, 2014)

and (Wang and Lindeman, 2015). These interactions

are divided into inside and outside interactions, de-

pending on which view they suit - the ﬁrst person one

or the bird’s eye one. The selected interactions and

the view to which they are allocated can be seen in

Figure 2.

A free model of a villa is selected, as to offer di-

verse interior and exterior objects and wider spaces

for easier testing. The model is rendered differently

for the outside and the inside views. For the out-

side view the 3D objects are rendered with only ba-

sic lighting and shadows and without any advanced

screen effects or animations. This is done to make

the model as lightweight as possible and to help the

user focus on the model itself without any additional

distractions. The inside view model is is much more

detailed, to compliment the immersive nature of the

view. A skybox, realistic water, particle effects, trees

and surrounding terrain are added. Visualization of

both view can be seen in Figure 3.

The switch between the two views is achieved by a

combination of two effects - a smooth transition of the

camera from one position to the other, combined with

a fade to black effect, to prevent the disorientation of

the user.

Another idea that we implement and which is pos-

sible by the combination of virtual and augmented re-

ality visualization is a passthrough ”window”, to the

real world, when a user is in the virtual reality ﬁrst

person view. This is implemented to lower the pos-

sibility of disorientation or cyber sickness. The pos-

itive effect of giving the user the possibility to view

his or her body and the real world is demonstrated

by (Buchmann et al., 2005) and (Bruder et al., 2009).

Thus, a user can orientated himself/herself better, as

well as get a fast look on the outside view without

breaking the immersion of the inside viewing of the

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

294

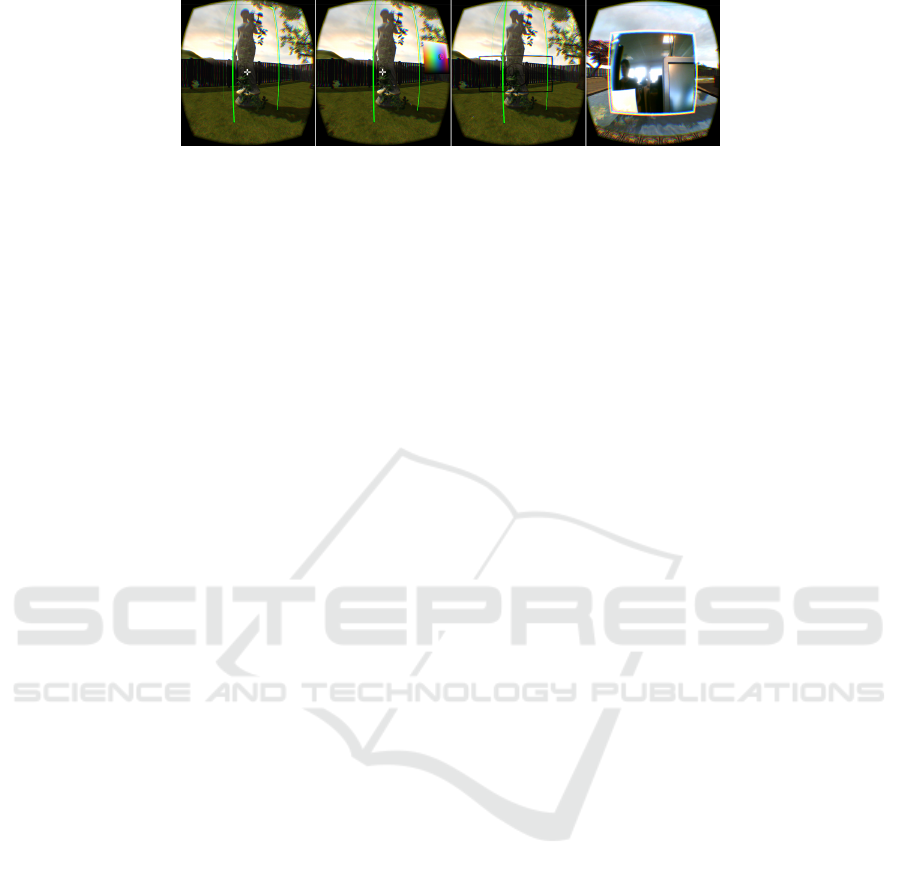

Figure 4: Examples of the interactions in the inside virtual reality ﬁrst person view. From left to right - interact with selected

object, change color of selected object and take a photo of what the user is seeing plus creation of waypoint for later return to

that point in the 3D model. Final image demonstrates the passthrough ”window” to the real world.

model. Some examples of the possible interactions

are given in Figure 4.

4 EVALUATION

4.1 Usability Study Overview

The prototype inside-outside model viewer is tested

in a preliminary user study with a number of partici-

pants with various work and study backgrounds. The

participants are chosen from both genders and from

different age groups. In total 12 participants are fea-

tured in the study, from which 4 female and 8 male.

The users are roughly divided into categories depend-

ing on their background and computer knowledge.

The ﬁrst group of 7 participants has high degree

of computer knowledge and have used or observed

the use of a HMD in relation to their academic back-

ground, as well as those who have mixed skillsets in

design and have worked with modelling and CAD ap-

plications. The second group of 5 contains partici-

pants from a background in humanitarian sciences -

tourism, economics, marketing and management and

have a lower degree of computer knowledge.

The study determines the feasibility of our pro-

posed system, by giving users the possibility to inter-

act both with the bird’s eye and ﬁrst person views.

Additionally, to avoid biased results towards users

who are well versed in working with modelling pro-

grams or have experience with virtual reality, the test-

ing is also conducted on users which have little or no

such experience. The study consists of an initial cal-

ibration and a number of testing scenarios. A free-

ﬂowing, think-aloud method with a relaxed approach

is used for conducting the study, similar to the one

used by (Zhao and McDonald, 2010). This helps the

researcher to get an intimate look into the experience

and thought process of the participants. A seven point

system is chosen over the normal ﬁve point one, as it

is shown to receive less neutral answers, with lower

measurement error and higher precision by the re-

search conducted by (Munshi, 2014).

4.2 Results

When we asked about the degree to which the combi-

nation of the two views would help for the overall un-

derstanding of the model, participants were polarised

in their responses dependent on their skill set. Seventy

ﬁve percent of the users with non technical skill sets,

as well as ten percent of users with technical skills felt

a detached between the outside and inside views. An-

swers like - ”...for me the two views were too different

so I could not even match them in my head. For me

they gave me a lot of information but I could not con-

nect it.” and ”No, because you had to focus a lot on

that one (outside view) ﬁrst. You could see everything

on the model, but the moment you go down you lose

the sense where you are...But maybe it was because I

did not zoom out that much.”, demonstrate the prob-

lems, which the users were facing. The sheer amount

of information that the users get from the setup can be

overwhelming and requires a certain time to get used

to, by inexperienced users. Figure 5 demonstrates the

difference between the conclusions of users from the

demographics. Both the inside and the outside views

were positively accepted, with all users appreciating

both the model in hand approach of the augmented re-

ality, as well as the hands on experience of the virtual

environment

On the other hand most of the participants with

technical and design background were positive that

the hybrid setup helped them. The selection where a

user can place the inside walker was considered also

a feature which helped orient the users. This is indi-

cated by comments like - ”The two views help. I can

go and look at the whole thing and then select where

I want to be. Less walking around and it’s more in-

teresting”. Furthermore, all participants also easily

got into the workﬂow of using the two views, switch-

ing between them after interacting with parts of the

models and searching for new ones to interact with or

looking how they look like in the bird’s eye view.

In addition even though most participants felt that

the transition from outside to inside view is smooth

and gave them a deeper feeling of being there once

in the inside view, the same was not considered for

Inside - Outside Model Viewing - A Low-cost Hybrid Approach to Visualization and Demonstration of 3D Models

295

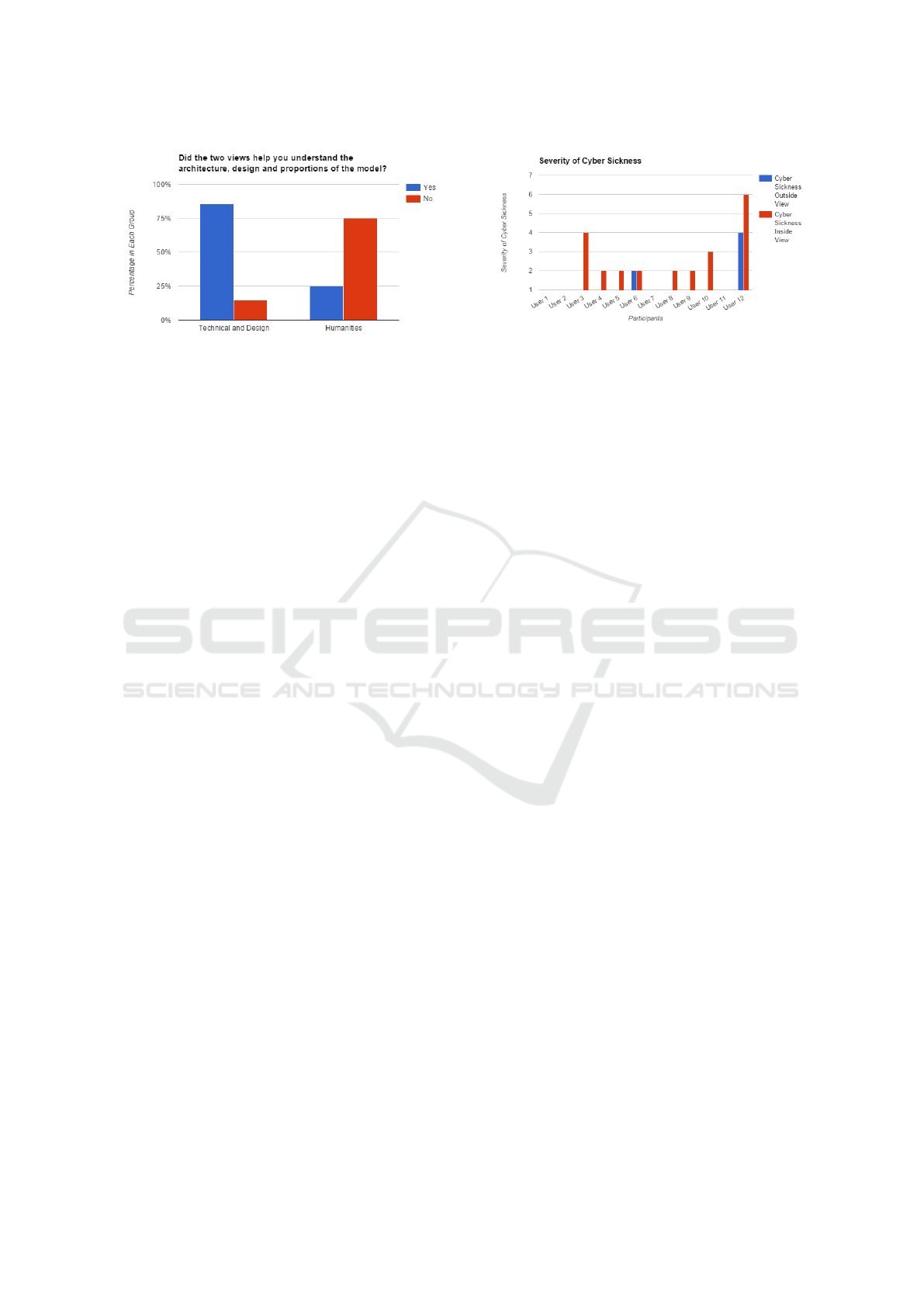

Figure 5: How the users found this paper’s approach helpful

for viewing and understanding the overall proportions and

size of the 3D model and its parts.

the reverse transition. Users generally felt disoriented

and dizzy once coming back to the outside view. This

presents a problem, as constant switches between the

two views are required for normal work with the pro-

totype. A suggestion for alleviating this problem is

making the switch to outside view much slower as

well as giving information to the user, how he or she

is oriented in the real world before the transition is

done.

Another aspect that is taken into account in the

user study is the degree to which participants devel-

oped symptoms of cyber sickness, as our proposed

setup was also directed at alleviating nausea, dizzi-

ness and disorientation. This is why we asked users if

they experienced any symptoms. The answers show

that more than half of the participants experienced

varying levels of discomfort and disorientation. It is

also seen that most of the symptoms were experienced

in the inside view, where the users are subjected to a

full virtual reality. The results are visualized in Fig-

ure 6. Most users indicated that the switch between

the two views was very helpful with removing most

of the effects from the inside view, as well as helping

them orient themselves in the real world after longer

use. The outside view ”window” was also helpful

with that, as well as with making communication with

people in the ”real world” easier.

5 CONCLUSION AND FUTURE

WORK

The paper outlines our suggested ﬂexible and low-

cost approach for combining virtual and augmented

reality visualization for a more comprehensive 3D

model demonstration. The approach centres around

a two-view system - an inside ﬁrst person virtual real-

ity view and an outside bird’s eye augmented reality

view. A uniﬁed control scheme makes interactions in

Figure 6: Degree of occurrence of symptoms of cyber sick-

ness in participants in the study for both the augmented and

virtual reality views. Everything above 5 was considered a

basis for stopping the experiment.

both views intuitive and shortens the learning curve.

Furthermore a smooth transition between the views

ensures ease of work in extended periods of time. We

also take full advantage of the passthrough capabili-

ties by introducing a ”window” to the ”real world”,

while in the ﬁrst person virtual reality view, which

helps to alleviate cyber sickness, disorientation and

dizziness.

We also present a user study on the built proof

of concept prototype for demonstrating its feasibil-

ity, which focuses on the experience of users and

demonstrates the positive impact of the system on the

demonstration of 3D models to people with different

degrees of understanding of the technology. Addi-

tionally the combination of the two views helps users

navigate the models and better judge the scale of dif-

ferent parts. The overall opinion of the users is that

the prototype is easy to use and with a lower learn-

ing curve. A comparison of our proposed system to

the state of the art is planned for the future to further

verify the positive impacts of our work and also to

ﬁnd the weak points. There are a number of places

where the system can be improved. A hand tracking

system would offer much deeper sense of immersion,

as well as a high level of precision. One such solution

is the Sixense STEM VR. Together with a more ro-

bust set of interaction options this scheme can elevate

the usefulness of our system. This can be further im-

proved by also introducing position tracking and ex-

panding the ”window” idea, to include visualization

of the user’s hands.

REFERENCES

Nyartoolkit. http://nyatla.jp/nyartoolkit/wp/. Accessed:

2015-04-23.

Bednarz, T., James, C., Widzyk-Capehart, E., Caris, C., and

Alem, L. (2015). Distributed collaborative immersive

virtual reality framework for the mining industry. In

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

296

Machine Vision and Mechatronics in Practice, pages

39–48. Springer.

Bruder, G., Steinicke, F., Rothaus, K., and Hinrichs, K.

(2009). Enhancing presence in head-mounted display

environments by visual body feedback using head-

mounted cameras. In CyberWorlds, 2009. CW’09. In-

ternational Conference on, pages 43–50. IEEE.

Buchmann, V., Nilsen, T., and Billinghurst, M. (2005). In-

teraction with partially transparent hands and objects.

In Proceedings of the Sixth Australasian conference

on User interface-Volume 40, pages 17–20. Australian

Computer Society, Inc.

e, S., Beauvais, M., Girard-Vall

ee, A., and Snyder, R.

(2014). A live augmented reality tool for facilitating

interpretation of 2d construction drawings. In Aug-

mented and Virtual Reality, pages 421–427. Springer.

Figueiredo, M. J., Cardoso, P. J., Goncalves, C. D., and Ro-

drigues, J. M. (2014). Augmented reality and holo-

grams for the visualization of mechanical engineering

parts. In Information Visualisation (IV), 2014 18th In-

ternational Conference on, pages 368–373. IEEE.

Krum, D. M., Phan, T., Cairco Dukes, L., Wang, P., and Bo-

las, M. (2014). A demonstration of tablet-based inter-

action panels for immersive environments. In Virtual

Reality (VR), 2014 iEEE, pages 175–176. IEEE.

LaViola Jr, J. J. (2000). A discussion of cybersickness

in virtual environments. ACM SIGCHI Bulletin,

32(1):47–56.

Mahdjoub, M., Monticolo, D., Gomes, S., and Sagot, J.-C.

(2010). A collaborative design for usability approach

supported by virtual reality and a multi-agent system

embedded in a plm environment. Computer-Aided De-

sign, 42(5):402–413.

Marks, S., Estevez, J. E., and Connor, A. M. (2014). To-

wards the holodeck: fully immersive virtual reality

visualisation of scientiﬁc and engineering data. In

Proceedings of the 29th International Conference on

Image and Vision Computing New Zealand, page 42.

ACM.

Mine, M., Yoganandan, A., and Coffey, D. (2014). Mak-

ing vr work: Building a real-world immersive model-

ing application in the virtual world. In Proceedings of

the 2Nd ACM Symposium on Spatial User Interaction,

SUI ’14, pages 80–89, New York, NY, USA. ACM.

Munshi, J. (2014). A method for constructing likert scales.

Available at SSRN 2419366.

Sharples, S., Cobb, S., Moody, A., and Wilson, J. R. (2008).

Virtual reality induced symptoms and effects (vrise):

Comparison of head mounted display (hmd), desktop

and projection display systems. Displays, 29(2):58–

69.

Shen, J., Luo, Y., Wang, X., Wu, Z., and Zhou, M. (2014).

Gpu-based realtime hand gesture interaction and ren-

dering for volume datasets using leap motion. In Cy-

berworlds (CW), 2014 International Conference on,

pages 85–92. IEEE.

Stark, R., Israel, J., and W

ohler, T. (2010). Towards

hybrid modelling environmentsmerging desktop-cad

and virtual reality-technologies. CIRP Annals-

Manufacturing Technology, 59(1):179–182.

Steptoe, W., Julier, S., and Steed, A. (2014). Presence and

discernability in conventional and non-photorealistic

immersive augmented reality. In Mixed and Aug-

mented Reality (ISMAR), 2014 IEEE International

Symposium on, pages 213–218. IEEE.

Wang, J. and Lindeman, R. (2014). Coordinated 3d inter-

action in tablet-and hmd-based hybrid virtual environ-

ments. In Proceedings of the 2nd ACM symposium on

Spatial user interaction, pages 70–79. ACM.

Wang, J. and Lindeman, R. (2015). Coordinated hybrid

virtual environments: Seamless interaction contexts

for effective virtual reality. Computers & Graphics,

48:71–83.

Wang, X., Truijens, M., Hou, L., Wang, Y., and Zhou, Y.

(2014). Integrating augmented reality with building

information modeling: Onsite construction process

controlling for liqueﬁed natural gas industry. Automa-

tion in Construction, 40:96–105.

Zhao, T. and McDonald, S. (2010). Keep talking: an anal-

ysis of participant utterances gathered using two con-

current think-aloud methods. In Proceedings of the

6th Nordic Conference on Human-Computer Interac-

tion: Extending Boundaries, pages 581–590. ACM.

Zollmann, S., Hoppe, C., Kluckner, S., Poglitsch, C.,

Bischof, H., and Reitmayr, G. (2014). Augmented re-

ality for construction site monitoring and documenta-

tion. Proceedings of the IEEE, 102(2):137–154.

Inside - Outside Model Viewing - A Low-cost Hybrid Approach to Visualization and Demonstration of 3D Models

297
