Direct Stereo Visual Odometry based on Lines

Thomas Holzmann, Friedrich Fraundorfer and Horst Bischof

Institute for Computer Graphics and Vision, Graz University of Technology, Graz, Austria

Keywords:

Visual Odometry, Pose Estimation, Simultaneous Localisation and Mapping.

Abstract:

We propose a novel stereo visual odometry approach, which is especially suited for poorly textured environ-

ments. We introduce a novel, fast line segment detector and matcher, which detects vertical lines supported

by an IMU. The patches around lines are then used to directly estimate the pose of consecutive cameras

by minimizing the photometric error. Our algorithm outperforms state-of-the-art approaches in challenging

environments. Our implementation runs in real-time and is therefore well suited for various robotics and

augmented reality applications.

1 INTRODUCTION

In the last years, Simultaneous Localization and Map-

ping (SLAM) and Visual Odometry (VO) became an

increasingly popular ﬁeld of research. In comparison

to Structure from Motion (SfM), which is not con-

strained to run in realtime, SLAM and VO methods

should be able to run in realtime even on lightweight

mobile computing solutions.

Visual localization and mapping approaches are

often used for small robotics devices (e.g. Micro

Aerial Vehicles (MAVs)), where it is not possible to

use heavier and more energy-consuming sensors like

laser scanners. However, most of these devices are

equipped with an Inertial Measurement Unit (IMU),

which can be used in conjunction with vision meth-

ods to improve the results.

There exist widely used monocular SLAM/VO

methods, which just use one camera as the only in-

formation source and therefore can be used on many

different mobile devices. In contrast to monocular

approaches, stereo VO methods using a stereo setup

with a ﬁxed baseline have some beneﬁts, especially

when used for Robotics: (1) Monocular approaches

cannot correctly determine the metric scale of a scene,

while stereo approaches do have a correct scale as

the baseline of the camera setup is ﬁxed. Addition-

ally, monocular approaches also have a drift in scale.

(2) Monocular approaches do have problems with

pure rotations as no new 3D scene information can

be computed from images without translational move-

ment. Contrary, stereo approaches do not have this

problems, as a stereo rig already contains translation-

ally moved cameras to triangulate scene information

regardless of the motion of the cameras.

Based on the observation that man-made scenes

usually contain strong line structures, like, e.g, doors

or windows on white walls, we especially want to

use these structures in our approach. Current feature-

point based methods (e.g. (Geiger et al., 2011)) have

problems in these scenes, as the lack of texture leads

to a low number of detected feature points. Direct

pose estimation methods (e.g. (Engel et al., 2014))

directly use the image information to align consecu-

tive frames and do not use explicitly detected feature

point correspondences to estimate the camera pose.

Therefore, direct methods perform better in poorly

textured environments, as they use more image infor-

mation and do not rely on detected feature points in

the scene.

In this paper, we present a pose estimation

method speciﬁcally targeted at poorly textured indoor

scenes where other methods deliver poor results. We

estimate the pose of a camera by minimizing the pho-

tometric error of patches around lines. We introduce

a fast line detector which detects vertical lines aided

by an inertial measurement unit (IMU). In case too

few lines could be detected, we additionally detect

point features and use patches around the detected

points for direct pose estimation. In our experiments

we show that our method outperforms state-of-the-art

monocular and stereo approaches in poorly textured

indoor scenes and delivers comparable results on

well textured outdoor scenes.

476

Holzmann, T., Fraundorfer, F. and Bischof, H.

Direct Stereo Visual Odometry based on Lines.

DOI: 10.5220/0005715604740485

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 3: VISAPP, pages 476-487

ISBN: 978-989-758-175-5

To summarize, our main contributions are:

• A direct stereo VO method using lines running in

real-time.

• A novel efﬁcient line detection algorithm aided by

an IMU, that detects vertical lines.

• A fast line matching technique using a lightweight

line descriptor.

2 RELATED WORK

A widely used approach to estimate the pose of a

camera using the image data only is to use feature

points in images. Feature points are detected and

matched between subsequent images and used to es-

timate the pose of the camera. A popular monocu-

lar point-based SLAM-approach is PTAM (Klein and

Murray, 2007). It runs in real-time and is speciﬁcally

designed to track a hand-held camera in a small aug-

mented reality workspace. However, there also exist

adoptions tailored at large-scale environments ((Mei

et al., 2010), (Weiss et al., 2013)). As it needs to de-

tect and match feature points, the environment has to

contain sufﬁcient texture suited for the feature point

detection algorithm. Additionally, as it is a monocular

approach, it has difﬁculties in handling pure rotations

and cannot estimate a correct scale of the scene. A

feature-based approach, which uses a stereo camera

as input and therefore does not have this problems is

Libviso (Geiger et al., 2011). However, as it also uses

explicitly detected feature points, the texture needs to

be adequate for the detection algorithm. Additionally,

as it is not a SLAM method like PTAM but just a VO

method, it does not compute a global map of the en-

vironment but just computes the relative pose from

frame to frame.

Instead of using points, also lines can be detected

and matched in order to compute the pose of a cam-

era. In (Elqursh and Elgammal, 2011), Elqursh et al.

propose to estimate the relative pose of two cameras

by using three lines having a special primitive conﬁg-

uration. This has the advantage that no texture at all

needs to be present, but just a special line conﬁgura-

tion has to exist. However, as explicit line detection

is relatively slow, this approach cannot be used on a

low-end onboard computer.

Recently, direct pose estimation algorithms be-

came popular. In comparison to feature point-based

approaches, direct approaches do not explicitly detect

and match features and compute the pose using the

feature matches, but compute the new pose by mini-

mizing the photometric error over the whole or over

big parts of the image. For example, DTAM (New-

combe et al., 2011) tracks the pose of a monocular

camera given a dense model of the scene, by minimiz-

ing the photometric error of the current image accord-

ing to the whole model. As this is a computational

expensive task, a high-performance GPU is necessary

to compute the pose in real-time. Similarly, LSD-

SLAM (Engel et al., 2014) computes the pose by min-

imizing the photometric error. However, to reduce

computational cost, it just uses areas in the image

where the image gradient is sufﬁciently high. There-

fore, it runs in real-time even on hand-held devices

like smartphones. Also an extension of LSD-SLAM

to a stereo setup has been proposed recently (Engel

et al., 2015). In (Forster et al., 2014), an approach

is proposed which uses both explicit feature point

matching and direct alignment and is therefore called

semi-direct visual odometry (SVO). It detects feature

points at keyframes and computes the poses of im-

ages between keyframes by minimizing the photomet-

ric error of patches around the feature points. It runs

very fast even on onboard computers and is specif-

ically designed for a downwards looking camera of

a micro aerial vehicle. In summary, direct methods

perform direct image alignment to estimate the pose

of a new frame with respect to previously computed

3D information by optimizing the pose parameters di-

rectly and by minimizing a photometric error. This is

in contrast to feature-based methods, where features

are detected and matched to compute the fundamen-

tal matrix, and optimization is just optionally used to

reﬁne the computed poses by using the reprojection

error.

Our method is a direct method, but utilizes a stereo

camera rig instead of a monocular camera. In contrast

to all previous related work, we detect lines and esti-

mate the pose by minimizing the photometric error

of patches around the lines. Using our line detector,

it is possible to detect lines very fast in constrained

images. As in man-made environments most of the

structure consists of lines, using patches around lines

is usually sufﬁcient to directly align consecutive im-

ages.

3 DIRECT VISUAL ODOMETRY

BASED ON VERTICAL LINES

In our approach, we explicitly use the structures

contained in man-made environments to introduce a

novel visual odometry approach.

Instead of directly aligning the whole image or

explicitly detecting and matching feature points, we

estimate the camera pose by aligning patches just

around detected lines by minimizing the photometric

error. In case no lines can be detected, feature points

Direct Stereo Visual Odometry based on Lines

477

Input:

Stereo Images

IMU Measurements

Triangulate New

3D Information

Gravity Alignment

Direct

Pose Estimation

Propagate 3D Map

To Current View

Feature Detection

(Lines / Points)

Keyframe

Output:

Camera Pose

Local

Map

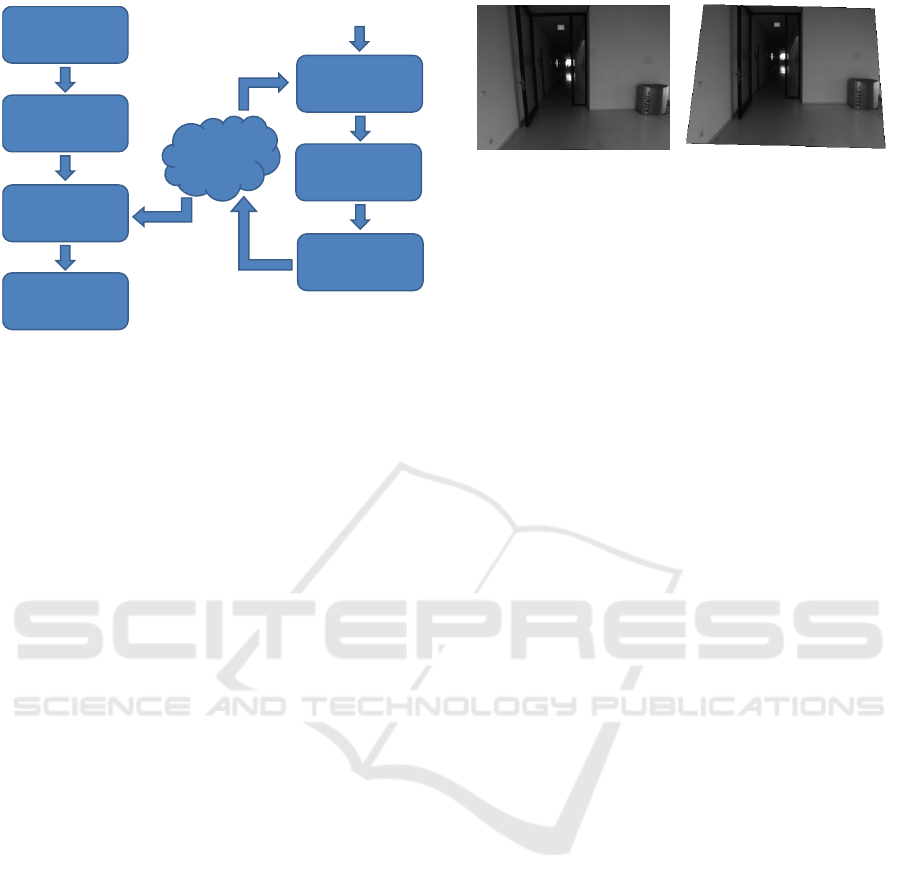

Figure 1: Overview of the processing pipeline. Our algo-

rithm directly estimates the pose of the camera by minimiz-

ing the photometric error of patches around vertical lines.

For every keyframe, the 3D information from the previous

keyframe gets projected into the current one, new lines and

optionally points get detected and new 3D information is

triangulated within the stereo setup.

are detected and patches around the points are used

for image alignment.

3.1 System Overview

Our approach is a keyframe-based stereo approach,

which takes rectiﬁed stereo images and optionally

synchronized IMU values as input. As preprocess-

ing, we align the images according to the gravity di-

rection using the IMU measurements. Without IMU

measurements, our approach also works on images

acquired with roughly gravity aligned cameras.

For every keyframe, we detect and match lines us-

ing gravity-aligned stereo images. If not enough lines

can be matched, we additionally detect and match

point features. We triangulate this information to get

a mapping of the visible information in 3D. A new

keyframe is selected when the photometric proper-

ties of the images changed too much or the movement

w.r.t the last keyframe is too big.

For every image, the pose gets estimated by direct

image alignment: We project all triangulated informa-

tion of the previous keyframe into the current image

and estimate the pose by minimizing the photometric

error of patches around the lines and points.

Additionally, for every consecutive keyframe, we

project lines and points from the previous one into the

current one to reuse already computed 3D information

if the same lines or points are detected.

In Fig. 1, one can see a schematic overview of our

processing pipeline.

Figure 2: Image alignment according to the gravity direc-

tion. Left: An unaligned image from a forwards looking

camera Right: Image aligned using the IMU. As one can

see, having an image aligned according to the gravity direc-

tion, straight, vertical lines in the 3D scene are mapped to

straight, vertical lines in the image.

3.2 Fast Line Detection and Matching

Areas around lines contain high gradient values which

is an important property for direct image alignment.

Therefore, we introduce a fast line detection and

matching method, where the area around lines is used

for direct image alignment afterwards. We compute

the depth of the lines by computing the disparity of

the lines using the stereo image pair.

3.2.1 Line Detection

Usually, line detection (like, e.g. (Grompone et al.,

2010)) is too slow for real-time applications (Hofer

et al., 2014). To make the problem feasible, we focus

on the detection of vertical lines, which can be done

much faster. Man-made environments usually contain

many vertical lines. Especially indoors, where the

texture available very often mainly consists of lines,

it is crucial for a visual odometry approach to use

also this information. We introduce a detection al-

gorithm aided by IMU information to make this chal-

lenging line detection step feasible: Having cameras

with arbitrary poses and synchronized IMU informa-

tion as input, the images can be aligned with the grav-

ity direction using the simultaneously acquired IMU

data (see Fig. 2). As the angular accuracy of IMUs is

quite high (e.g., evaluation of the IMU of the Pixhawk

autopilot (Cortinovis, 2010)) and most of the mobile

computing devices already contain built-in IMUs, this

preprocessing step can be done with many available

mobile computing devices.

Even if the alignment is not completely perfect,

it does not inﬂuence the pose estimation step, as the

lines are not directly used for pose estimation but in-

stead the patches around them. Errors in the align-

ment just result in a poorer line detection performance

which can lead to shorter detected lines.

Assuming gravity aligned images as input, the

task of detecting vertical lines gets easier as real-

world vertical lines are now projected to vertical lines

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

478

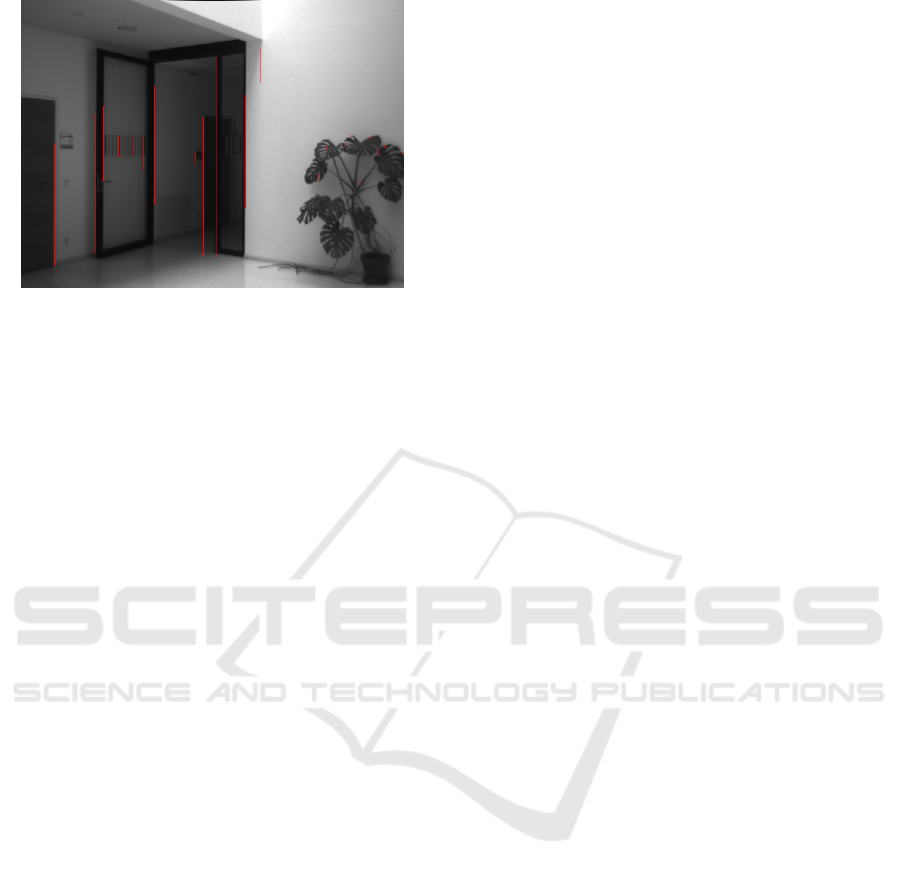

Figure 3: Vertical lines detected with our line detection al-

gorithm. One can see that the lines are not detected over

the whole length all the time. This is due to slight gravity

misalignment of the images or due to changing light condi-

tions.

in the image. Using this assumption, our algorithm

ﬁrst computes the image gradient in horizontal direc-

tion by convolving the image with the Sobel operator.

Next, for every column of the image, a histogram of

the gradient values is created. When a histogram bin

associated with sufﬁciently high gradient values con-

tains enough elements, a line is detected in this col-

umn.

As the lines are detected with pixel accuracy and,

therefore, the number of lines is limited by the num-

ber of columns, we have a small and limited number

of lines which increases the speed of the following

line matching step.

After the detection of lines, we apply a simple

non-maxima suppression: Lines get accepted, if their

corresponding gradient histogram bin contains more

elements than every gradient histogram bin corre-

sponding to nearby lines.

Finally, the start and end point of the line is de-

tected. In the gradient image, we search along the

associated column for the ﬁrst pixel belonging to the

same bin as the corresponding line bin. This deﬁnes

the start point of the line. Next, we search for a pixel

belonging to a different bin. This deﬁnes the end point

of the line. In order to be robust against noise and

short discontinuities of the line, pixels with a similar

histogram bin and discontinuities of a few pixels are

also assigned to the line. Fig. 3 shows a result of the

line detection.

3.2.2 Line Matching

We iterate over all lines in the left image and try to

ﬁnd corresponding lines in the right image. Between

a predeﬁned minimum and maximum disparity, we

store all lines as potential matches which were de-

tected having a similar gradient histogram bin as the

left line. Then, we compute the Sum of Absolute Dif-

ferences (SAD) of a patch around the line in the left

image and the potential line matches in the right im-

age.

For this, we need a equally-sized patch around the

line in the left and right image. However, as the epipo-

lar constraints do not hold anymore for the gravity

aligned images (the images have been rotated after

rectiﬁcation), it is not possible to use just the max-

imum and minimum y-positions of the lines, as it

would be possible in the original, not gravity-aligned,

rectiﬁed left and right image. Instead, we ﬁrst have

to project the line start and end points back to the un-

aligned images, select the maximum and minimum

line start and end point and project the points back to

compute a correct equally-sized patch for both lines.

Having computed the SAD for all potential

matches, the line with the lowest SAD value in the

right image is accepted as correct match for the line

in the left image, if the SAD value is lower than a

threshold.

We assume that the detected vertical lines are pro-

jections of vertical lines in the 3D scene to the im-

age. Therefore, to compute the depth of the line, we

just have to compute one disparity value for the whole

line. However, as the epipolar constraints do not hold

for the aligned image, we again project the lines into

the unaligned images to compute the line disparity.

3.3 Supporting Points

When lines exist in the scene, they deliver a good tex-

ture for direct image alignment. However, also in

man-made environments consisting mainly of lines,

there are areas where no or just a few lines exist.

Therefore we need a fall-back solution for the direct

image alignment for images where not many or no

lines can be detected. We selected to use patches

around feature points in this case.

3.3.1 Feature Point Detection

If no sufﬁcient area of the image is covered by de-

tected lines, we detect point features in areas of the

image which are not covered by line features. To de-

termine the coverage of features over the image, the

image is partitioned into a 5x5 grid of equally sized

cells. Every cell which contains a line or parts of a

line is marked as covered, all other cells are marked as

uncovered. If less than 20 of the 25 cells are marked

as covered, point detection is applied. However, as

in cells marked as covered already information from

Direct Stereo Visual Odometry based on Lines

479

lines exist, we just extract feature points in the uncov-

ered cells.

For every uncovered cell, we detect FAST cor-

ners (Rosten and Drummond, 2005) using an adaptive

threshold. If the number of detected corners falls un-

der 10, we decrease the corner threshold, while if the

number of detected corners exceeds 20, we increase

the threshold. Then, we store the determined thresh-

olds for each cell for the next image to be processed.

3.3.2 Feature Point Matching

Having corresponding feature points in two images

and a calibrated stereo setup, one can triangulate a 3D

point. Therefore, we need to ﬁnd points in the right

image corresponding to points in the left image.

To ﬁnd point matches, we proceed as follows: For

every detected feature point in the left image, we

search for detected feature points in the right image

lying on the corresponding epipolar line. Therefore,

the points have to be projected back into the original

unaligned image, as the epipolar constraint does not

hold anymore for the aligned images.

We search for points between a minimum and

maximum disparity value to ignore too far and too

near points. Having found some potential matches,

we compare the point from the left image with the

potential matching points in the right image by com-

puting the SAD for a patch around the point. The

corresponding point with the lowest SAD is detected

as match, if the SAD value is under a ﬁxed threshold.

3.4 Pose Estimation by Direct Image

Alignment

Given 3D lines and points from the previous

keyframe, our pose estimation algorithm estimates the

pose by aligning the patches around the lines and

points in the keyframe with the patches around the

lines and points projected into the current frame (see

Fig. 4). Alignment is done by non-linear least squares

optimization on the intensity image.

3.4.1 Deﬁnitions and Notation

In this section, we state some deﬁnitions and nota-

tion conventions which are used in the following al-

gorithm description.

In terms of notation, we denote matrices by bold

capital letters (e.g., T ) and vectors by bold lower-case

letters (e.g., ξ).

A rigid body transformation T ∈ S E(3) is deﬁned

T =



R t

0 1



with R ∈ SO(3) and t ∈ R

. (1)

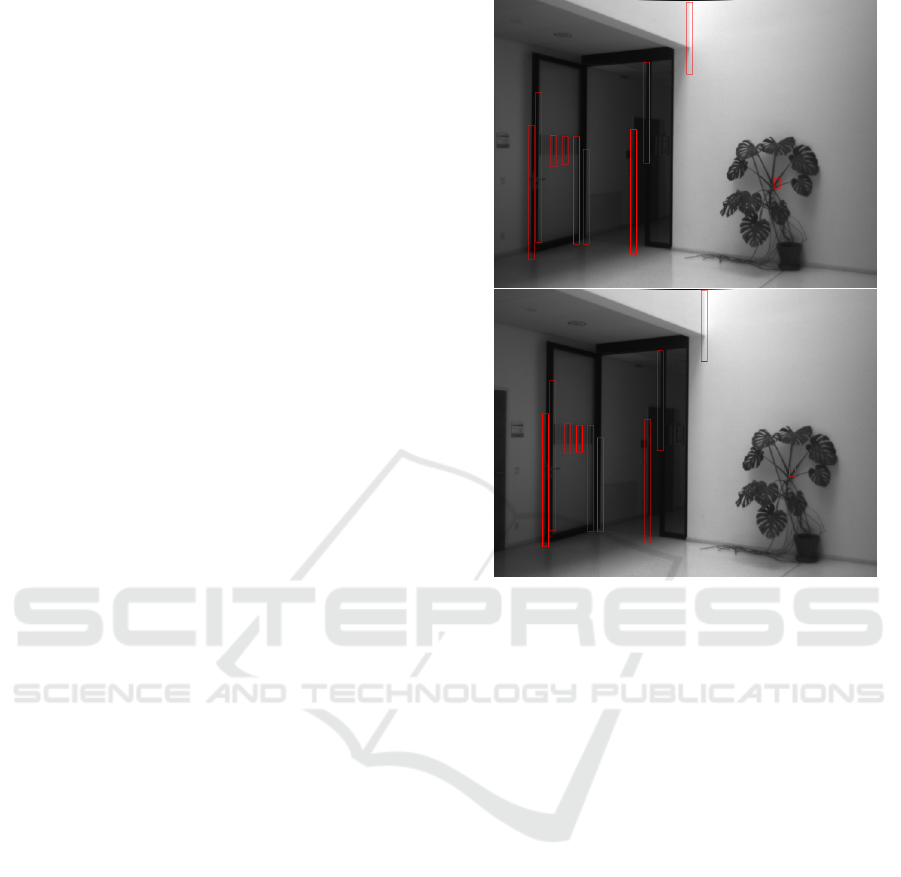

Figure 4: Direct image alignment using patches around

lines. Left: Keyframe, where lines are detected and patches

around lines (red boxes) are extracted. Right: Image to

align. Red boxes are shifted according to the proposed new

pose until a minimal photometric error is reached.

Having a transformation T

0,i

which transforms the

origin 0 into camera i and maps points from the co-

ordinate frame of i to the origin 0, the same trans-

formation can be assembled having a transformation

0,i−1

from a previous camera i − 1 and a transfor-

mation T

i−1,i

describing the transformation from the

camera i − 1 to camera i:

0,i

= T

0,i−1

· T

i−1,i

. (2)

For the optimization, we need a minimal descrip-

tion of transformations. Therefore, we use the Lie

algebra se(3), which is the tangent space of the ma-

trix group SE(3) at the identity, and its elements are

denoted as twist coordinates

ξ =





∈ R

, (3)

where ω deﬁnes the rotation and υ deﬁnes the transla-

tion. As stated in (Ma et al., 2003), twist coordinates

can be mapped onto SE(3) by using the exponential

map:

T (ξ) = exp(ξ). (4)

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

480

3.4.2 Non-Linear Least Squares Optimization

on Image Intensities

To estimate the 6 DoF pose of a new image frame

given the image patches around lines and points from

the previous keyframe, we minimize the photomet-

ric error for the twist ξ by applying non-linear least

squares optimization. We keep the 3D lines and points

ﬁxed in the optimization step, as we assume to have

already accurately triangulated 3D information from

using the calibrated stereo setup.

The quadratic photometric error is deﬁned as fol-

lows:

E(ξ) =

∑

i=1

k f

)−I(π(p

, d

k f

), ξ)))

∑

i=1

(ξ),

(5)

where I

k f

) is the intensity value of position p

in the keyframe to align to, π(p

, d

k f

), ξ) denotes

the warping function which warps point p

of the

keyframe into the current image and I is the current

intensity image. This function computes all n resid-

ual values r

(ξ) for every pixel i.

In order to decrease the inﬂuence of outliers, i.e.

patches with very high residual values, we use a

Cauchy Loss function to down-weight high residuals.

For performance reasons, we do not warp all pix-

els of the patches in image I

k f

to image I but just

the central top and bottom points of the patches.

For residual computation we then compare patches

around the warped points in I with the patches from

k f

. This simpliﬁcation is valid for small patches and

small motion between frames and also similarly used

by others (e.g. (Forster et al., 2014)).

For all of the image patches, we seek to ﬁnd a so-

lution for ξ which minimizes the total squared photo-

metric error

ξ = arg min

E(ξ). (6)

The minimum value of ξ occurs when the gradient is

zero:

∂E

∂ξ

= 2

∑

i=1

∂r

∂ξ

= 0, ( j = 1, ..., 6) (7)

As Eq. 6 is non-linear, we iteratively solve the

problem. In every iteration, we linearize around the

current state in order to determine a correction ∆ξ to

the vector ξ:

E(ξ + ∆ξ) ≈ E(ξ) + J(ξ)∆ξ, (8)

where J(ξ) is the Jacobian matrix of E(ξ). It has a

size of n x 6 with n as the number of residual values

and is given by:

i, j

(ξ) =

∂E

(ξ)

∂ξ

. (9)

Using this linearization, the problem can be stated as

a linear least squares problem:

∆ξ = arg min

∆ξ

(J(ξ)∆ξ + E(ξ)). (10)

In our approach, we use the Levenberg-Marquardt

algorithm (Levenberg, 1944) (Marquardt, 1963) to

solve the linear least squares problem stated in Eq. 10.

By rearrangement and plugging Eq. 8 and Eq. 9

into Eq. 7, we obtain the following normal equations:

J(ξ)

J(ξ)∆ξ = −J(ξ)

E(ξ). (11)

We solve this equation system by using QR decompo-

sition.

Having computed the twist ξ, we can use Eq. 2

and Eq. 4 to compute an updated camera pose

0,i

= T

0,k f

· T (ξ), (12)

where T

0,i

is the current pose, T

0,k f

is the pose of the

last keyframe and T (ξ) is the movement from the last

keyframe to the current frame.

If the IMU measurements used for the gravity

alignment of the images were exact all the time, the

problem would be reducible to 4DoF, as then roll and

pitch would be constantly 0. However, as the IMU

measurements contain errors, also roll and pitch can

vary. Therefore, we don’t ﬁx roll and pitch but just

allow small rotations.

Even though patches around lines do not contain a

lot horizontal structure, the horizontal structure con-

tained in the patches is enough to align the images

correctly also in vertical direction.

3.5 Keyframe Selection and Map

Extension

After a certain amount of motion, a new keyframe has

to be selected and consecutively new lines and possi-

bly points have to be matched and triangulated.

We use a simple measure for keyframe selection,

which proved to work well in our experiments: Af-

ter the pose estimation step, we compute the average

photometric error per pixel. If this error exceeds a

certain threshold, the current frame is selected as new

keyframe. Additionally, if the translation and rotation

w.r.t. the last keyframe exceeds a threshold, the cur-

rent frame is selected as new keyframe.

For every keyframe, new lines and points are de-

tected. However, before triangulating new lines or

points, the already triangulated lines and points of

the previous keyframe get projected into the current

keyframe. If they are near a detected line/point in

the current keyframe, the already computed depth

value gets assigned to the lines/points in the current

Direct Stereo Visual Odometry based on Lines

481

keyframe. All remaining detected lines get matched

and triangulates as described in Sec. 3.2 and addi-

tional points are used if necessary as described in

Sec. 3.3.

4 EXPERIMENTS AND RESULTS

In this section, we ﬁrst describe our implementa-

tion used for the experiments in more detail and

then evaluate our method on our own challenging

indoor dataset acquired with a ﬂying MAV, on the

publicly available Rawseeds dataset (Bonarini et al.,

2006) (Ceriani et al., 2009) and on a subset of the

KITTI dataset (Geiger et al., 2012). We show that

our approach outperforms state-of-the-art methods on

the ﬁrst two challenging indoor datasets and delivers

comparable results on the last dataset.

4.1 Implementation Details

We implemented our algorithm in C++ using

OpenCV as image processing library and Ceres

Solver (Agarwal et al., ) for the optimization tasks.

In our evaluation, we used the images in full size,

as downsampled images with a small stereo setup

baseline signiﬁcantly decreased the quality of the tri-

angulated 3D information.

For line detection, we set the gradient histogram

bin size to 20 which has shown to deliver good detec-

tion results. In the non-maximum suppression step,

we take into account lines with a distance not farther

than 1.5% of the image width. For the matching, a

line is matched with another one if their gradient his-

togram bins do not differ by more than 2. Then, a

match is accepted if the photometric error of the patch

around the line has a smaller average photometric er-

ror per pixel than 15.

In the optimization step, we initialize the pose es-

timation of a new frame with the pose of the last

frame. In order to avoid random jumps and rotations

when too few or erroneous measurements are used

in the optimization, we set upper and lower bounds

for maximum rotational and translational movements

w.r.t. the last keyframe: The maximum translational

movement is set to 1 m and the maximum rotational

movement is set 35 deg. These thresholds multiplied

by 0.9 are also used for keyframe selection. In patch

alignment, bilinear image interpolation is used to de-

termine the interpolated image intensity and gradient

values. For lines, we use a patch width of 21 pixels

and height according to the line length. For points we

use a patch size of 21x21 pixels.

4.2 Evaluation Setup

We evaluated our algorithm on a desktop PC which

is an Intel Core i7-4820K CPU having 4 cores with

3.7 GHz, up to 8 threads and 16 GB of RAM. How-

ever, our algorithm just used 4 threads for computa-

tion.

We compared our approach against Lib-

viso (Geiger et al., 2011), which is a sparse

feature-point based stereo visual odometry approach.

We used it with subpixel reﬁnement, set bucket

height and width to 100px, maximum features per

bucket to 10 and match radius to 50, as these settings

have shown to deliver good results on our MAV

dataset and the Rawseeds dataset. For one test

sequence, we also compared with LSD-Slam (Engel

et al., 2014), which is a direct monocular SLAM

approach. However, we didn’t use LSD-SLAM in

the other experiments, as the sequences are not suited

for a monocular approach, which cannot handle

pure rotations and has problems with pure forward

motion. We disabled loop closure and global map

optimization in LSD-SLAM by setting the doSLAM

option to f alse, as these trajectory improvement

techniques are also not used in our approach.

4.3 Own Test Sequences

To evaluate the performance of our algorithm in

challenging indoor environments where just few tex-

ture is available, we captured an image sequence

by ﬂying with an MAV in a room containing few

texture elements. As capturing system, we used

an Asctec Pelican equipped with two forward and

slightly downwards looking Matrix Vision BlueFox-

MLC202b cameras with a baseline of approximately

13.5cm (see Fig. 5). In this setup, each camera has

a horizontal ﬁeld of view of 81.2 deg and acquires

images with 20 frames per second (FPS) at a resolu-

tion of 640x480 pixels. In order to capture synchro-

nized images and IMU measurements, we externally

trigger the cameras with the Asctec Autopilot. Simul-

taneously to the trigger signal, the Asctec Autopilot

captures a timestamped IMU measurement. Both, the

images and the IMU measurements are then stored on

the Odroid XU3 Lite computation board onboard the

MAV. We calibrated both the stereo camera setup and

the rotation from IMU to camera with the Kalibr tool-

box (Furgale et al., 2013).

The sequence is captured while ﬂying with the

MAV in front of a wall in a broad hallway. The trajec-

tory is similar to a rectangle, while both cameras are

looking in the direction of the wall all the time. The

start and end points are nearly identical, therefore the

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

482

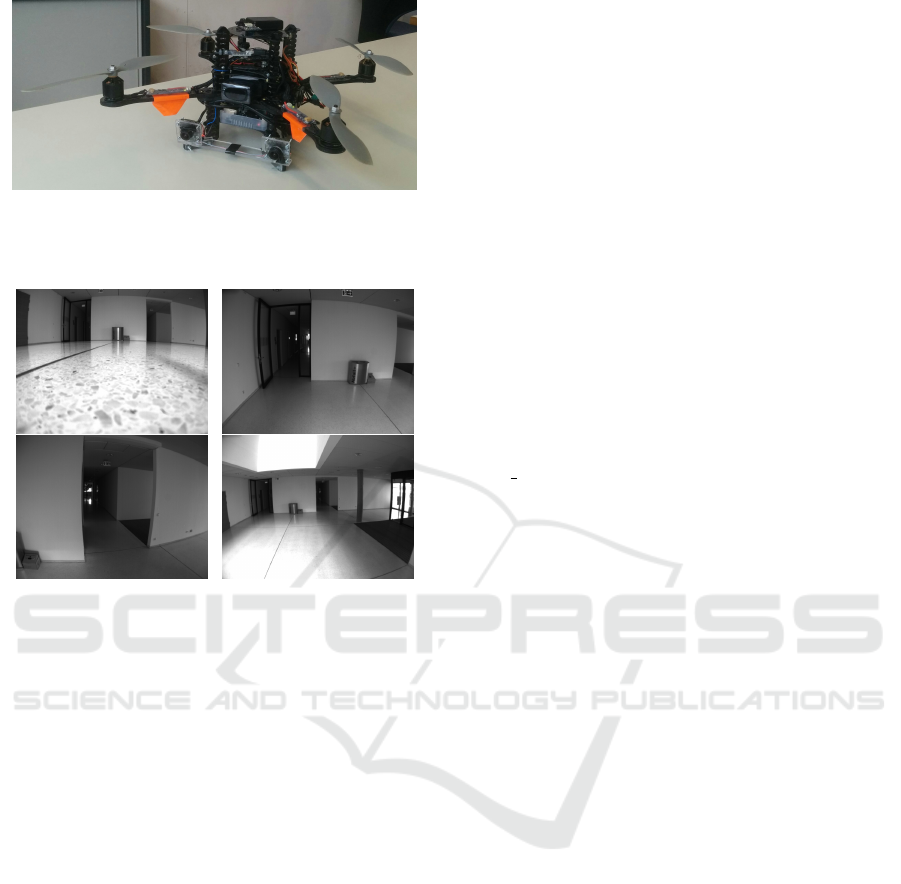

Figure 5: The Asctec Pelican used to acquire our own test

dataset. It is equipped with an IMU (included in the autopi-

lot), a stereo camera and an Odroid XU3 Lite processing

board.

Figure 6: Images of the sequence acquired with the ﬂying

MAV. As can be seen, the scene mostly consists of white

walls with little texture.

absolute trajectory error can be observed. This sce-

nario is similar to an augmented reality application,

where, for example, an MAV equipped with a laser

projector should project something onto the wall.

As can be seen in the input images in Fig. 6,

the scene mostly consists of white, untextured walls.

Only few structure elements are visible (doors, recy-

cle bin).

We compare this sequence with Libviso (Geiger

et al., 2011) and LSD-SLAM (Engel et al., 2014). As

LSD-SLAM is a monocular approach and therefore

does not provide a metric scale, we manually aligned

the trajectory scale with the stereo approaches. How-

ever, generally this trajectory should be well suited for

a monocular approach, as there are no pure rotations

and no forward movement in the initialization phase.

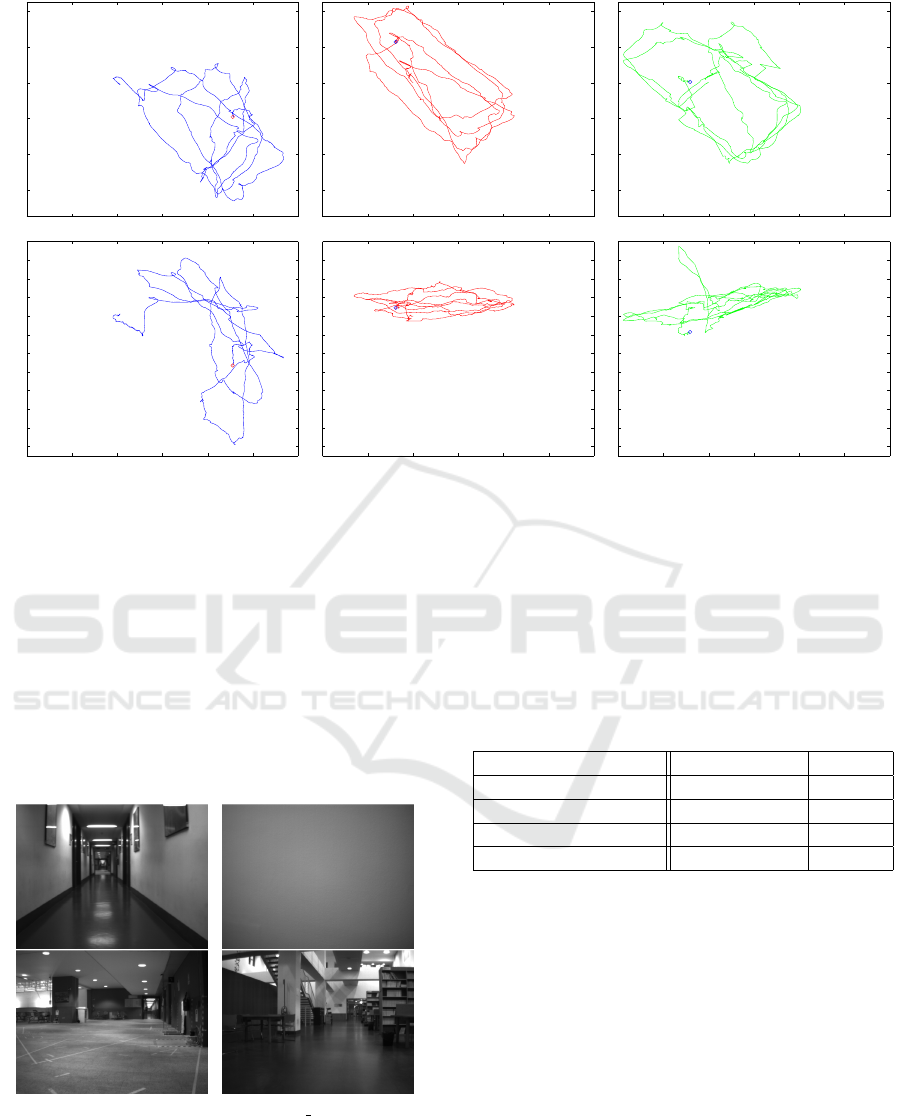

The computed trajectories are plotted in Fig. 7. In

comparison to Libviso (blue), our approach (red) does

not have a big drift. The start/end point difference

of our approach is approximately 2.5 m while Lib-

viso has a difference of approximately 7 m. Libviso

has already a big translational drift when the MAV

is standing still on the ﬂoor at the beginning of the

trajectory. While ﬂying, Libviso accumulates a big

rotational drift, which leads to big changes in the z-

dimension. Contrary, LSD-SLAM estimates parts of

the trajectory quite well. However, some random pose

jumps happen in the estimation, which yields to a tra-

jectory which is partly far away from the correct so-

lution. In total, our approach performs best compared

to the others, as it does not have a big drift and no big

outliers.

4.4 Rawseeds

The Rawseeds datasets (Bonarini et al., 2006) (Ceri-

ani et al., 2009) are publicly available indoor and out-

door datasets captured with a ground robot equipped

with multiple sensors. Additionally, ground truth data

was captured for some parts of the trajectories with an

external tracking system.

In our experiments, we chose to use the Bic-

occa 2009-02-27a dataset, which is an indoor dataset

captured in a static environment with mixed natural

and artiﬁcial lightning. Note that this is a really large-

scale dataset, as the total trajectory length is 967.18

m. We used the left and right images of the trinocular

forward-looking camera for our experiments, which

have a resolution of 640x480 pixels each, a baseline

of 18 cm and were captured with 15 FPS. As the im-

ages were acquired roughly aligned with the grav-

ity direction, no IMU measurements are needed for

our algorithm. Example input images can be seen in

Fig. 8.

As the ground truth computed with an external

tracking system does not cover the whole trajectory,

we use the (publicly available) extended ground truth

in our experiments. This ground truth also includes

trajectory parts estimated with data of an onboard

laser scanner.

In the experiments for this dataset, we compare

our approach with Libviso. In Tab. 1 one can see

the relative pose errors as proposed in (Sturm et al.,

2012). Our approach gives better results for all com-

puted relative pose errors. However, due to the dif-

ﬁculty of the sequence, which also contains images

with no texture at all (see Fig. 8), the error is also rel-

atively high when using our algorithm. Additionally,

the framerate should be higher for our approach. As

this dataset is just captured with 15 FPS, sometimes

the scene just moves too fast in front of the camera

and the camera pose cannot be tracked exactly. How-

ever, in the parts of the sequences where there exist

some vertical line structure (e.g. doors, windows or

shelves), our approach works better and therefore the

errors are lower.

Direct Stereo Visual Odometry based on Lines

483

−4 −2 0 2 4 6 8

−6

−4

−2

y (meters)

x (meters)

−4 −2 0 2 4 6 8

−6

−4

−2

y (meters)

x (meters)

−4 −2 0 2 4 6 8

−6

−4

−2

y (meters)

x (meters)

−4 −2 0 2 4 6 8

−7

−6

−5

−4

−3

−2

−1

z (meters)

x (meters)

Libviso

−4 −2 0 2 4 6 8

−7

−6

−5

−4

−3

−2

−1

z (meters)

x (meters)

Our Approach

−4 −2 0 2 4 6 8

−7

−6

−5

−4

−3

−2

−1

z (meters)

x (meters)

LSD-SLAM

Figure 7: Estimated trajectories of Libviso (left, blue), our approach (middle, red) and LSD-SLAM (right, green) of the test

sequence captured with an MAV. Top row: x- and y-axes (top view). Bottom row: x- and z-axes (side view). The start point

is at (0,0,0) and the trajectory end point, which should be near the start point is indicated with a circle. Even though our

approach (red) has a slight drift (start point is not identical with end point), Libviso (blue) has a much higher rotational drift.

LSD-SLAM works well for some parts of the sequence. However, occasionally it does some random jumps and moves far

away from the desired trajectory.

4.5 KITTI

The KITTI dataset (Geiger et al., 2012) is currently a

popular dataset for visual odometry evaluation. It is

acquired with a stereo camera mounted on a car which

Figure 8: Images of the Rawseeds Bicocca 2009-02-27a se-

quence. Top left: A big part of the images look similar to

this, where the robot moves through a narrow corridor. Top

right: At some corridor intersections, where nearly pure ro-

tations are performed, just the white wall is captured with

the cameras, which is extremely difﬁcult for a VO algorithm

Bottom row: Also parts with better input data for VO exist,

e.g., wider hallways and a library.

Table 1: Relative translational and rotational error of the

Rawseeds sequence as deﬁned in (Sturm et al., 2012) per

seconds of movement of our approach and Libviso. In all

metrics, our approach performs better.

Our Approach Libviso

Transl. RMSE (m/s) 0.665 0.753

Transl. Median (m/s) 0.577 0.68

Rot. RMSE (deg/s) 10.892 12.229

Rot. Median (deg/s) 0.018 0.033

drives on public streets, mostly through cities. We

compare our algorithm against Libviso (Geiger et al.,

2011) on a subset of the dataset (sequence 07).

The images have a resolution of 1241x376 pixels

and a framerate of 10 FPS. As the images are roughly

aligned with the gravity direction, there is no need to

incorporate IMU measurements. Due to the low cap-

ture framerate and the relatively fast movement of the

car, the image content can change quite rapidly. This

is a problem for direct VO methods which deliver

good results when having small inter-frame motions.

Additionally, it contains enough texture for feature-

based methods to work properly. However, we want

to show that our approach works also well on datasets

for which it is not speciﬁcally designed for.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

484

Table 2: Relative translational and rotational error of the

KITTI sequence 07 computed with the KITTI vision bench-

mark suite (Geiger et al., 2012) as mean over all possible

subsequences of length (100,...,800) meters.

Our Approach Libviso

Transl. error (%) 8.0558 2.3676

Rot. error (deg/m) 0.000744 0.000321

To overcome the low framerate, we had to change

the patch size of the patches around lines and points

used in the optimization from 21 to 31. Additionally,

we had to increase the maximal translational move-

ment for the optimization step. Using this settings

we get results comparable to state-of-the-art methods

with the drawback of higher runtimes compared to the

other datasets used in our evaluation. Additionally, as

more reliable points can be detected in this scene, we

decreased the line matching threshold so that more

points are used.

Also for Libviso, we changed the parameter set-

tings: We used it with default settings and subpixel

reﬁnement.

In Fig. 10 the computed trajectories of Libviso and

our approach are plotted. As one can see, the abso-

lute trajectory error is slightly worse in our approach.

Also the rotational and translational errors as deﬁned

in the KITTI vision benchmark suite are worse than

Libviso (see Tab. 2). However, our algorithm still

works acceptable on a dataset like this one for which

it is not designed for.

4.6 Runtime

The mean computation time per frame for the ﬁrst

two datasets is 49.3 ms, which is a framerate of 20.3

FPS. With this computation speed, both the Rawseeds

Figure 9: Images of the KITTI visual odometry dataset (se-

quence 07). In this sequence, there are some lines detectable

in some parts (e.g. in top image). In these parts, the detected

lines are beneﬁcial for the VO algorithm. However, in some

images there exist no lines (e.g. image bottom) and our al-

gorithm also depends on the detected feature points.

−200 −150 −100 −50 0 50

−100

−50

100

150

x (meters)

y (meters)

Ground Truth

Libviso

Our approach

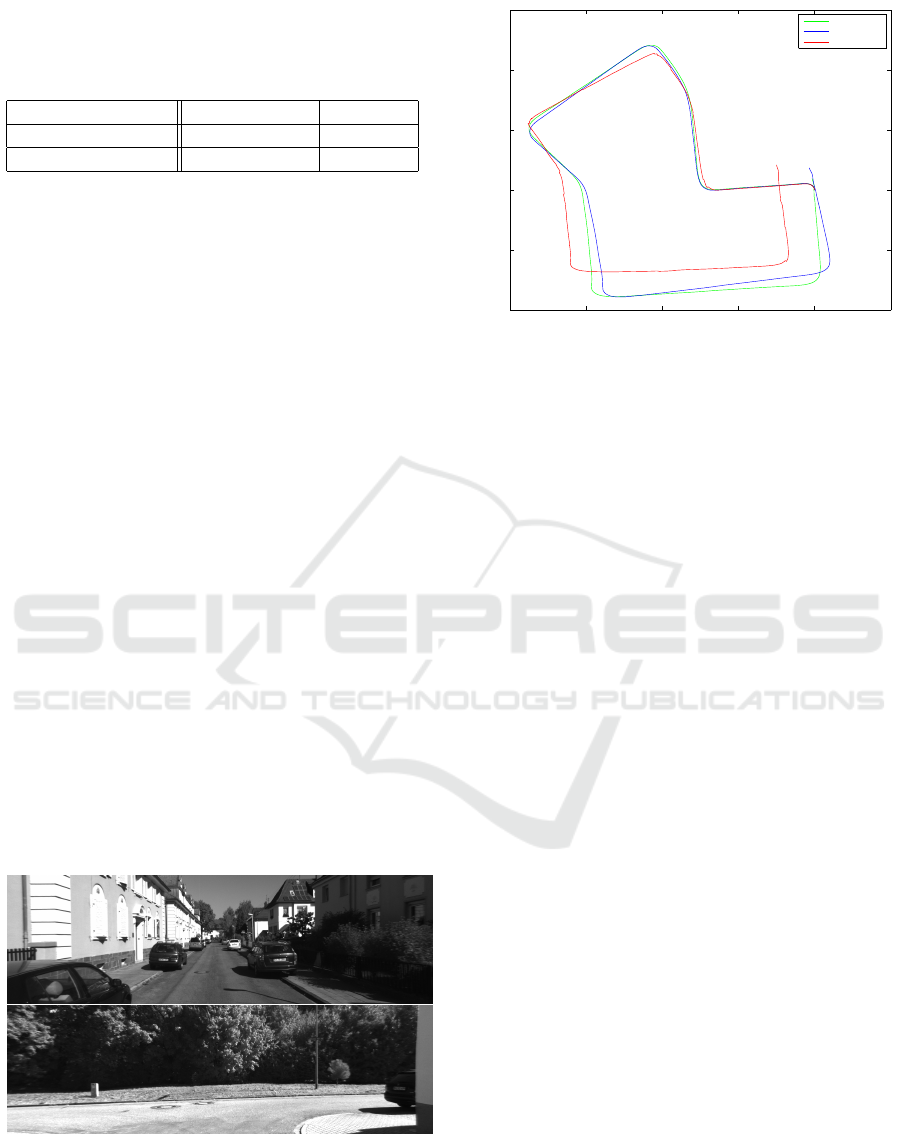

Figure 10: Evolving trajectory of the KITTI sequence. One

can observe that our approach (red) performs comparable to

Libviso (blue).

dataset and our own MAV dataset can be processed in

real-time. Due to changed parameters for the KITTI

dataset, the computation speed for the KITTI dataset

is much slower and needs approximately 3 times the

processing time of the other datasets.

Most of the processing time is needed for the

pose estimation step, which could be optimized by a

multi-scale approach, using SIMD instructions (SSE,

NEON) or writing an own optimizer to overcome the

overhead of Ceres.

5 CONCLUSION

We have presented a direct stereo visual odometry

method, which detects and matches lines at every

keyframe using our novel fast line detection algorithm

and estimates the pose of consecutive frames by direct

pose estimation methods using patches around verti-

cal lines. These patches have proven to be a good

selection for indoor environments, which are poorly

textured, but where a lot of vertical structure exists.

In our experiments, we have shown that our algorithm

delivers better results than state-of-the-art methods in

challenging indoor environments and comparable re-

sults in well textured outdoor environments. As our

implementation runs in real-time, it is suitable for

various robotics and augmented reality applications.

Future work will include subpixel reﬁnement of the

line detection step, global map optimization to mini-

mize drift errors and to evolve it to a complete SLAM

system, a multi-scale approach for the pose estima-

tion step to deliver better accuracy for large inter-

frame movements and improve computation speed,

and further speed improvements (e.g., using SSE and

Direct Stereo Visual Odometry based on Lines

485

NEON instructions) to make it real-time capable also

on small robotic platforms.

ACKNOWLEDGEMENTS

This project has been supported by the Austrian Sci-

ence Fund (FWF) in the project V-MAV (I-1537).

REFERENCES

Agarwal, S., Mierle, K., and Others. Ceres solver.

http://ceres-solver.org.

Bonarini, A., Burgard, W., Fontana, G., Matteucci, M., Sor-

renti, D. G., and Tardos, J. D. (2006). Rawseeds:

Robotics advancement through web-publishing of

sensorial and elaborated extensive data sets. In In-

ternational Conference on Intelligent Robots and Sys-

tems.

Ceriani, S., Fontana, G., Giusti, A., Marzorati, D., Mat-

teucci, M., Migliore, D., Rizzi, D., Sorrenti, D. G.,

and Taddei, P. (2009). Rawseeds ground truth collec-

tion systems for indoor self-localization and mapping.

Autonomous Robots, 27(4):353–371.

Cortinovis, A. (2010). Pixhawk - attitude and position

estimation from vision and imu measurements for

quadrotor control. Technical report, Computer Vision

and Geometry Lab, Swiss Federal Institute of Tech-

nology (ETH) Zurich.

Elqursh, A. and Elgammal, A. M. (2011). Line-based rel-

ative pose estimation. In Proceedings IEEE Confer-

ence Computer Vision and Pattern Recognition, pages

3049–3056. IEEE Computer Society.

Engel, J., Sch

ops, T., and Cremers, D. (2014). Lsd-slam:

Large-scale direct monocular slam. In Proceedings

European Conference on Computer Vision.

Engel, J., St

uckler, J., and Cremers, D. (2015). Large-scale

direct slam with stereo cameras. In International Con-

ference on Intelligent Robots and Systems.

Forster, C., Pizzoli, M., and Scaramuzza, D. (2014). Svo:

Fast semi-direct monocular visual odometry. In Inter-

national Conference on Robotics and Automation.

Furgale, P., Rehder, J., and Siegwart, R. (2013). Uni-

ﬁed temporal and spatial calibration for multi-sensor

systems. In International Conference on Intelligent

Robots and Systems.

Geiger, A., Lenz, P., and Urtasun, R. (2012). Are we ready

for autonomous driving? the kitti vision benchmark

suite. In Proceedings IEEE Conference Computer Vi-

sion and Pattern Recognition.

Geiger, A., Ziegler, J., and Stiller, C. (2011). Stereoscan:

Dense 3d reconstruction in real-time. In IEEE Intelli-

gent Vehicles Symposion.

Grompone, R., Jakubowicz, J., Morel, J. M., and Randall,

G. (2010). Lsd: A fast line segment detector with a

false detection control. IEEE Transactions on Pattern

Analysis and Machine Intelligence, 32(4):722–732.

Hofer, M., Maurer, M., and Bischof, H. (2014). Improving

sparse 3d models for man-made environments using

line-based 3d reconstruction. In International Confer-

ence on 3D Vision.

Klein, G. and Murray, D. (2007). Parallel tracking and map-

ping for small ar workspaces. In Proceedings Interna-

tional Symposium on Mixed and Augmented Reality.

Levenberg, K. (1944). A method for the solution of certain

non-linear problems in least squares. In Quarterly of

Applied Mathematics 2, pages 164–168.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

486

Ma, Y., Soatto, S., Kosecka, J., and Sastry, S. S. (2003). An

Invitation to 3-D Vision: From Images to Geometric

Models. Springer Verlag.

Marquardt, D. (1963). An algorithm for least-squares esti-

mation of nonlinear parameters. In SIAM Journal on

Applied Mathematics 11(2), pages 431–441.

Mei, C., Sibley, G., Cummins, M., Newman, P., and Reid, I.

(2010). Rslam: A system for large-scale mapping in

constant-time using stereo. In International Journal

of Computer Vision.

Newcombe, R. A., Lovegrove, S. J., and Davison, A. J.

(2011). Dtam: Dense tracking and mapping in real-

time. In Proceedings International Conference on

Computer Vision, pages 2320–2327.

Rosten, E. and Drummond, T. (2005). Fusing points and

lines for high performance tracking. In Proceedings

International Conference on Computer Vision.

Sturm, J., Engelhard, N., Endres, F., Burgard, W., and Cre-

mers, D. (2012). A benchmark for the evaluation of

RGB-D SLAM systems. In International Conference

on Intelligent Robots and Systems, pages 573–580.

Weiss, S., Achtelik, M. W., Lynen, S., Achtelik, M. C.,

Kneip, L., Chli, M., and Siegwart, R. (2013). Monoc-

ular vision for long-term micro aerial vehicle state es-

timation: A compendium. Journal of Field Robotics,

30(5):803–831.

Direct Stereo Visual Odometry based on Lines

487
