HBD: Hexagon-Based Binary Descriptors

Yuan Liu and J. Paul Siebert

School of Computing Science, University of Glasgow, Glasgow, U.K.

Keywords:

Binary Descriptor, Hexagonal Structure, Hierarchical Grouping, Local Feature Matching, Pose Estimate.

Abstract:

In this paper, two new rotationally invariant hexagon-based binary descriptors (HBD), i.e., HexIDB and

HexLDB, are proposed in order to obtain better feature discriminability while encoding less redundant in-

formation. Our new descriptors are generated based on a hexagonal grouping structure that improves upon the

HexBinary descriptor we reported previously. The third level descriptors of HexIDB and HexLDB have 270

bits and 99 bits respectively fewer than that of SHexBinary, due to sampling ∼61% fewer ﬁelds. Using learned

parameters, HBD demonstrates better performance when matching the majority of the images in Mikolajczyk

and Scmidt’s standard benchmark dataset, as compared to existing benchmark descriptors. Moreover, HBD

also achieves promising level of performance when applied to pose estimation using the ALOI dataset, achiev-

ing ∼ 0.5 pixels mean pose error, only slightly inferior to ﬁxed-scale SIFT, but around 1.5 pixels better than

standard SIFT.

1 INTRODUCTION

Local feature descriptors are deemed to be one of the

most signiﬁcant research topics in computer vision,

since they are required to facilitate computer vision

tasks. Approaches to formulating local feature de-

scriptors have been intensively researched and can be

divided into two categories: ﬂoating-point descrip-

tors and binary descriptors. Floating-point descrip-

tors usually represent the distribution of local gra-

dient information, and the most widely-reported of

these is SIFT (Lowe, 2004). Variants of SIFT, have

been reported, which aims to improve overall com-

putational efﬁciency for descriptors, such as PCA-

SIFT (Ke and Sukthankar, 2004) and SURF (Bay

et al., 2006). However, new algorithms are needed to

generate highly efﬁcient feature descriptors in terms

of computational and storage requirements because

of the increasing demands of real-time applications.

BRIEF (Calonder et al., 2010) is such a descrip-

tor having been designed to improve computational

efﬁciency by generating binary bit-strings that en-

code local pixel intensity comparisons. The perfor-

mance attained by BRIEF when matching local fea-

tures has resulted in binary descriptors being inves-

tigated intensely. BRISK (Leutenegger et al., 2011)

and FREAK (Alahi et al., 2012) are two examples of

the binary descriptors also computed by comparing

pixel intensity values for different sampling structure

conﬁgurations.

HexBinary (Liu et al., 2014) is a hierarchical bi-

nary descriptor that is based on the hexagonal group-

ing structure that was ﬁrst employed by the HexHoG

(Liu and Siebert, 2014) descriptor. The HexBinary

descriptor employs a hierarchical grouping mecha-

nism which includes combining vectors representing

overlapping image regions to improve the feature’s

discriminability. However, this approach can result in

repeated overlapping of the same local image area to

produce excessive redundancy, thereby degrading the

descriptor’s performance. Therefore, the main con-

tribution in this paper is a new hexagonal grouping

structure that results in less redundant information, re-

duced computation and better feature distinctiveness

due to it sampling ∼61% fewer ﬁelds for the third

level descriptor. This new grouping structure has lead

us to formulate two new Hexagon-based Binary De-

scriptors (HBD): Hexagon-based Intensity Difference

Binary (HexIDB) and Hexagon-Based Local Differ-

ence Binary (HexLDB). In addition, the parameters

used to compute HBD are learned by training on a

well-known image dataset proposed by (Mikolajczyk

and Schmid, 2005). Descriptor variants of the HBD

that we have formulated outperform the variants of

the FREAK and SIFT descriptors we have used in

our local feature matching performance comparisons.

Moreover, HBD has been evaluated for use in pose

estimation using the ALOI (Geusebroek et al., 2005)

image dataset and exhibits competitive performance

when compared to ﬁxed-scale SIFT (US-SIFT), and

Liu, Y. and Sieber t, J.

HBD: Hexagon-Based Binary Descriptors.

DOI: 10.5220/0005720401750182

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 4: VISAPP, pages 175-182

ISBN: 978-989-758-175-5

175

much better performance than the standard SIFT in

terms of mean pose error.

2 RELATED WORK

In general, real-time applications necessitate descrip-

tors which are inexpensive in terms of computation

and storage requirements. BRIEF (Calonder et al.,

2010) is such a robust binary string descriptor, which

achieves a substantially improved efﬁciency in terms

of computation, matching and storage compared to

SURF and U-SURF (Bay et al., 2006). The BRIEF

descriptor encodes pairwise intensity comparisons,

each sampled over Gaussian weighted image regions;

as only the sign of the comparison is stored as a

binary bit, such a feature can be represented as a

binary string. The similarity between such binary-

string descriptors can be efﬁciently computed using

the Hamming distance, rather than L

norm distance.

ORB(Rublee et al., 2011) is a scale and rotation in-

variant version of BRIEF. In BRISK (Leutenegger

et al., 2011), its support region is sampled in a ro-

tationally symmetric manner, similar to that of the

DAISY (Tola et al., 2010) descriptor. Based on the

feature detection approach of BRISK, FREAK (Alahi

et al., 2012) approximates a retinal sampling pattern

whereby the sampling Gaussian kernel size increases

exponentially as a function of distance from the fea-

ture’s centre. This complex conﬁguration has been

reported to generate highly discriminative features.

In contrast to the binary descriptors introduced

above, Local Difference Binary (LDB) (Yang and

Cheng, 2012) descriptors compute the binary bit not

only from intensity comparisons, but also from gra-

dient comparisons. The average intensity and gra-

dient in the x and y directions are compared be-

tween each of two grids to generate a 3 bit vector.

HexBinary (Liu et al., 2014) is a hierarchical descrip-

tor generated recursively from a hexagonal group-

ing structure. The binary bit is computed by com-

paring the pixel pairs sampled in a hexagonal struc-

ture. HexBinary is different to other lightweight de-

scriptors in that it achieves rotation invariance without

rotating the local sampling patch, but through util-

ising the inherent rotational symmetry of hexagonal

sampling. HexBinary’s hierarchy is constructed by

grouping new hexagons within in a hexagonal struc-

ture. This produces multiple or ”overlapping” encod-

ings of the same image region, and has been adopted

since this approach been reported to improve feature

discrimination performance (Dalal and Triggs, 2005).

However, repeated overlapping of the same image

area can produce excessive redundancy. In this paper,

we introduce a new hexagonal grouping structure that

has been designed to reduce the overlap frequency of

each sampling area. In addition, our new descriptor

encodes both the intensity and gradient comparison

information to generate the binary bits of a binary-

string feature representation. We employ the same

approach to compare Gaussian weighted image re-

gions as utilised within the second-order HexBinary

descriptor SHexBinary. Two new HBD are introduced

here: HexIDB and HexLDB, and their matching per-

formance is validated for pose estimation where the

descriptor’s parameters have been learned.

3 APPROACH

In this section, we give the details of how we construct

the hexagonal grouping structure to generate new hi-

erarchical binary descriptors: HexIDB and HexLDB.

Since the structure is based on that of the HexBinary

descriptor, we now brieﬂy describe the HexBinary

structure below.

3.1 Sampling Structure

The sampling structure used to compute the second

level HexBinary descriptor is illustrated in Figure 1

(a). The red ? indicates the feature point position,

and the descriptor for this feature point is computed

from the neighbouring region in the hexagonal struc-

ture. The validation of the HexBinary descriptor has

demonstrated that this hierarchy, up to the third level,

is a good trade off between descriptor matching ef-

fectiveness and efﬁciency. Therefore, in this paper,

the hierarchy is also only considered up to the third

level.

The sampling structure used to construct three lev-

els of HexBinary descriptors is summarised as fol-

lows: a hexagon of deﬁned size is constructed cen-

tred on the feature point p, so in total 7 points are

sampled at: the 6 vertexes and the central location of

the descriptor (p). For the ﬁrst level HexBinary de-

scriptor termed as HexBinary1 of p, the binary bits

are computed from the 7 sampling points in this sin-

gle hexagon; For the second level descriptor HexBi-

nary2, the 7 sampling positions of the hexagon are

treated as 7 feature points. The HexBinary1 descrip-

tors comprising 7 feature points are similarly com-

puted, and are then concatenated together to form

the second level descriptor p; Similarly, the third

level descriptor HexBinary3 of p is generated by con-

catenating the HexBinary2 descriptors of the 7 fea-

ture points likewise computed, as described above.

Therefore, as the grouping level of the descriptor

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

176

(a) (b)

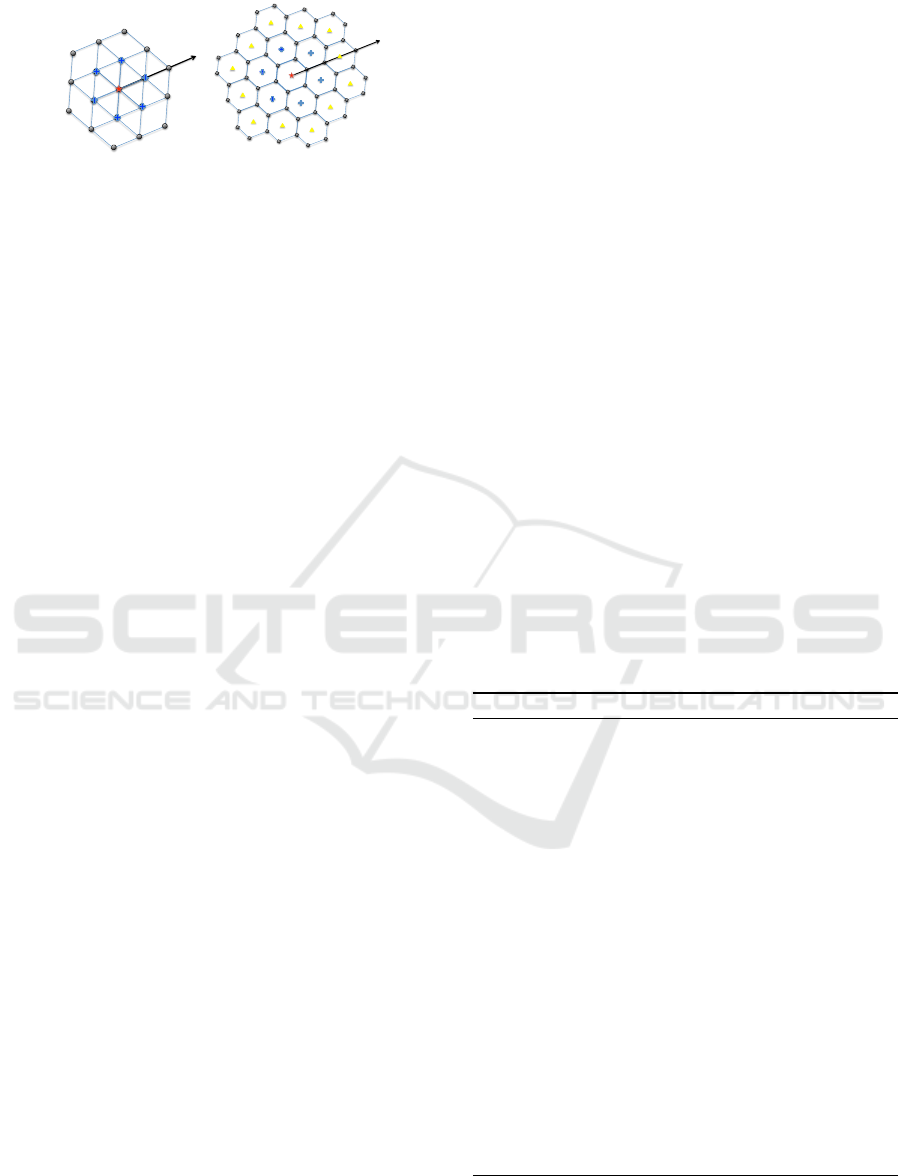

Figure 1: (a) is the second level structure of generating

HexBinary. (b) is the new proposed structure of the third

level hexagonal descriptor. The red star point represents

the key-point position where to sample the local descrip-

tor. The arrow illustrates the dominant orientation of the

local region around the key-point. The ﬁrst level hexago-

nal grouping structure comprises the basic hexagon centred

at the red ?, and the sampling positions for comparison are

taken from the hexagon centre and the vertexes. The sec-

ond level hexagonal structure now covers more image area

around the key-point since six more hexagon centres are

sampled as shown in blue +, according to the difference

between (a) and (b) structure boundaries. For the third level

descriptor, another 12 more hexagon centres as shown in

yellow 4 in (b) are computed together with the previous 7

hexagon centres around the key-point, while in (a), 7 second

level structure will be constructed centred on the red ? and

blue +. All the black points indicate the sampling positions

according to the corresponding hexagonal centre positions.

increases, the information around the 7 sampling

positions will be repeatedly overlapped. Although

overlapped-sampling can improve the stability of a

local descriptor, repeated overlapping will eventu-

ally result in excessively redundant information be-

ing accumulated, which decreases the discriminabil-

ity of the feature descriptor. To address the issue of

redundant information when generating higher level

descriptors, the new proposed hexagonal structure is

constructed as in Figure 1 (b). The details of how to

compute a three level hierarchy are now presented in

the following steps:

1. Localise the key-point position, and compute the

dominant orientation of the local area around this

key-point.

2. According to the dominant orientation and the

given edge length of the hexagon, the sampling

positions of the basic hexagon vertexes are de-

ﬁned. Then the ﬁrst level hexagonal descriptor

could be computed according to the binary de-

scriptor generation method described in the fol-

lowing subsection, which is used by SHexBinary.

3. Sample another 6 positions to be the new hexagon

centres as the blue + shown in Figure 1 (b).

These new hexagon centres are not the same 6

vertexes comprising the basic hexagon generated

in ﬁrst level, which is the main difference from

the HexBinary structure in Figure 1 (a). Each new

hexagon shares an edge with the basic hexagon

centred at the key-point.

4. The second level hexagonal descriptor is gener-

ated by concatenating the 7 ﬁrst level hexago-

nal descriptors extracted centred on the 7 basic

hexagons.

5. Sample 12 more positions to be the new hexagon

centres as the yellow 4 in Figure 1 (b). This is a

similar process to that of step 3, which also differs

from the HexBinary structure.

6. Concatenate these ﬁrst level descriptors extracted

centred on the 19 basic hexagons to generate the

third level hierarchical descriptor.

Throughout the above steps, the higher level de-

scriptors are generated by extending the feature area

without repeatedly overlapping the central area, while

in the HexBinary hierarchical structure, the overlap

frequency of the central area is increased as the group-

ing level of the hierarchy increases. For instance, the

blue + areas in Figure 1 (a) will be repeatedly over-

lapped by 7 times for constructing the second level

descriptor and 49 times for the third level descriptor,

while the same positions in Figure 1 (b) will be only

overlapped 3 times for all the higher level descriptors

over the ﬁrst level. The pseudocode to generate the

new hierarchical HBD is presented in Algorithm 1.

Algorithm 1: Hierarchical HBD Descriptor Generation.

(x,y): Feature Point

: Local Dominant Orientation Centred at p

L : Deﬁned Edge Length of the Basic Hexagon

(x,y)(i ← 1,2...6): Vertex Positions of the Basic Hexagon

ts ← pi/3

for i ← 1 : 6 do

tv ← (i − 1)ts + θ

(x) ← L × cos(tv)

(y) ← L × sin(tv)

end for

Compute the First Level Descriptor HBD1

for Feature point p

for i ← 1 : 6 do

tv ← (i − 1)ts + θ

+ pi/6

(x) ← 2L × cos(pi/6) × cos(tv)

(y) ← 2L × cos(pi/6) × sin(tv)

end for

Compute the First Level Descriptor HBD1

for p

(i ← 1, 2...6)

Generate the Second Level Descriptor HBD2

for Feature point p

HBD2

← HBD1

HBD1

,...,HBD1

for i ← 7 : 12 do

tv ← (i − 7)ts + θ

(x) ← 3L × cos(tv)

(y) ← 3L × sin(tv)

end for

for i ← 13 : 18 do

tv ← (i − 12)ts + θ

+ pi/6

(x) ← 4L × cos(pi/6) × cos(tv)

(y) ← 4L × cos(pi/6) × sin(tv)

end for

Compute the First Level Descriptor HBD1

for p

(i ← 7, 8...18)

Generate the Third Level Descriptor HBD3

for Feature point p

HBD3

← HBD1

HBD1

,...,HBD1

HBD: Hexagon-Based Binary Descriptors

177

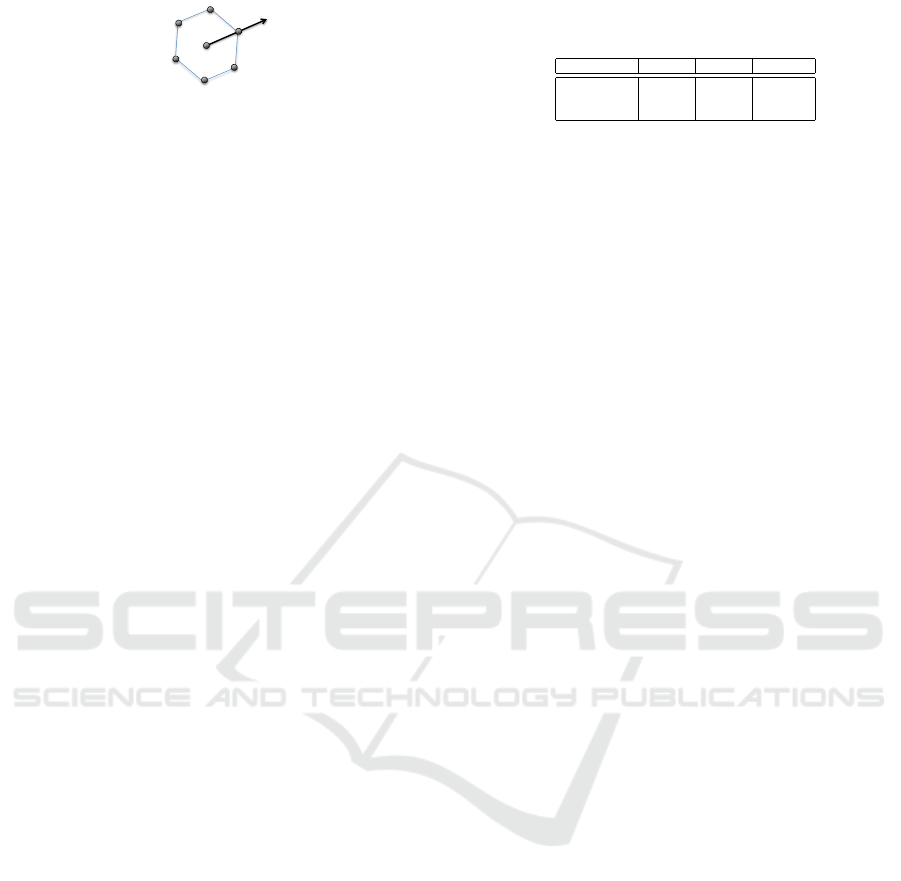

Figure 2: The ﬁrst level structure. The arrow indicates the

local dominant orientation.

3.2 Descriptor Construction

To afford the descriptor with rotation invariance, the

local dominant orientation is computed as introduced

in (Liu et al., 2014). The ﬁrst level structure is de-

ﬁned according to the dominant orientation as shown

in Figure 2. The image is ﬁrst ﬁltered by a Gaussian

kernel of standard deviation σ, and the smoothed in-

tensity values sampled at the hexagon centre and ver-

texes are denoted by: I

(i=0,1,...6). The ﬁrst level de-

scriptor is then computed by comparing the intensity

differences. The binary bit τ of the descriptor is cor-

responding to :

τ (D; i, j) =



1 if D

< D

0 otherwise.

(1)

where(D

) is a spatially adjacent pair of inten-

sity difference, e.g., (D

= I

− I

= I

− I

= I

− I

). The 9 pairs of (D

) in the

hexagon are then selected to generate a 9 bit binary

string as the ﬁrst level descriptor. When construct-

ing the next higher level descriptor, each newly con-

structed hexagon in the structure will generate a ﬁrst

level descriptor, and these are concatenated together

to form the higher level descriptor. This new hexago-

nally structured hierarchical descriptor is termed Hex-

IDB (Hexagon-based Intensity Difference Binary).

Similarly, another new descriptor HexLDB

(Hexagon-based Local Difference Binary) is pro-

posed by not only encoding intensity differences, but

also by encoding gradient differences. This is similar

to but slightly different to the LDB descriptor. LDB

generates a 3 bit vector by comparing the differences

of the local average intensity, gradients in x and y di-

rections between the pair of grids, respectively. Here

the gradient information is also considered but with-

out being divided into x and y directions. A gradient

map is computed, then the comparison pair (D

)

in Function 1 could be the gradient difference pair,

e.g., (D

= G

− G

= G

− G

). G

(i=0,1,...6)

represents the gradient value of the sampling posi-

tion. Therefore, for each pair comparison, a 2-bit vec-

tor is generated, and in each level of the Hierarchy,

HexLDB will have double length of the vector than

HexIDB. The descriptor lengths and the number of

sampling ﬁelds of SHexBinary and the new proposed

HBD are illustrated in Table 1.

Table 1: The descriptor length (L) and the number of sam-

pling ﬁelds (N).

L|N Level1 Level2 Level3

HexIDB 9|7 63|49 171|133

HexLDB 18 |7 126|49 342|133

SHexBinary 9|7 63|49 441|343

4 PARAMETER LEARNING

Good feature descriptors always rely on the good

collaboration amongst their critical parameters. For

HBD, which we refer to as HexIDB and HexLDB

in this paper, the essential parameters are: the edge

length of the basic hexagon and the standard devia-

tion, σ, and support size of the Gaussian sampling

kernel. These parameters are learned through local

feature matching experiments. We determine the de-

scriptor’s matching performance for a speciﬁc param-

eter conﬁguration by measuring the RecognitionRate

for nearest neighbour (NN) matching, as introduced

in (Calonder et al., 2010): RecognitionRate is com-

puted as follows:

Firstly, N key-points are detected in the reference

image, and N corresponding Key-points are inferred

in the test image according to the ground-truth geo-

metric relation between the two images; Secondly, we

compute the 2N key-point descriptors by the method

under consideration, and for each descriptor in the ref-

erence image, ﬁnd its NN in the test image. There-

after, the RecognitionRate is given by C

/N, where

is the number of correct matches.

Any local feature detector could be employed to

indicate where to extract the HBD. FAST (Rosten

et al., 2010) is an efﬁcient and widely used detector

which is employed in this paper. The HexBinary de-

scriptor reported in (Liu et al., 2014) is parameterised

with a hexagon edge length of 3 pixels, and the sup-

port size of the Gaussian sampling kernel is 9×9 pix-

els with σ = 2 pixels. We apply the same range of

numeric values here for HBD to learn the best param-

eters for the image dataset being matched. When one

of the parameters is under test, all the remaining pa-

rameters must be ﬁxed. For instance, when learning

the σ of the Gaussian sampling kernel, the edge length

is set to 3, and the Gaussian kernel support size is set

to 9 × 9.

4.1 Dataset

The experiment is performed on the well-known and

publicly available image dataset by (Mikolajczyk and

Schmid, 2005) as shown in Figure 3. The images

contained in this dataset include typical image distur-

bances occurring in real-world scenarios, such as:

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

178

Graﬃ%&

Wall&

Bikes&

Trees&

Light&

Jpg&

Figure 3: Image sequences: each sequence has 6 images,

and only the ﬁrst and the last images are illustrated here.

From the second to the sixth image, the difﬁculty in match-

ing to the ﬁrst image increases progressively.

• viewpoint changes: Grafﬁti and Wall;

• image blur: Bikes and Trees;

• compression artefacts: Jpg

• illumination changes: Light

For each sequence, the test is designed to match the

ﬁrst image to the remaining 5 images to get 5 pairs of

matching cases sorted in order of ascending difﬁculty.

Therefore, pair 1|6 is much harder to match than pair

1|2 for each sequence.

4.2 Learning Parameters

The Gaussian standard deviation Sigma is tested in

the range of [0.2,4.2] pixels. Only the performance of

the third level descriptor is presented here because the

third level descriptor always performs better than the

lower level descriptors. The RecognitionRate perfor-

mance according to different values of σ has been in-

vestigated and it was discovered that for each match-

ing pair, the RecognitionRate gradually improves as

σ increases, but it declines as the difﬁculty of match-

ing increases, due to the increasing dissimilarity be-

tween compared pairs of images. For both of these de-

scriptors, their performance becomes relatively con-

stant when σ reaches between [3, 4.2] pixels, for all

of the matching pairs. Therefore, a σ of 3.4 pixels was

chosen as a good compromise value to reduce sensi-

tivity to noise while retaining a distinctive structure

to achieve stable descriptors. Based on the above σ

value, an appropriately sized Gaussian kernel support

size has been selected comprising 17 × 17 pixels (we

evaluated different kernel support sizes in the range

13 × 13 to 23 × 23).

Having ﬁxed the σ value of the Gaussian sampling

kernel and its associated support size, the experiments

for learning the hexagon edge length were then con-

ducted and we discovered: there is no signiﬁcant dif-

ference in performance when the edge length varies

between 3 to 8 pixels for most images. In the cases

of the two blurred images, Bikes and Trees, the larger

edge length performs better than smaller edge length,

particularly when the image pair is harder to match

using more deeply blurred sequences. This may be

because the deeply blurred images loose more high

frequency information which makes the local point

indistinct within a small area. For all the later ex-

periments, an edge length of 3 pixels is employed to

construct the hexagonal structure for our local binary

descriptors.

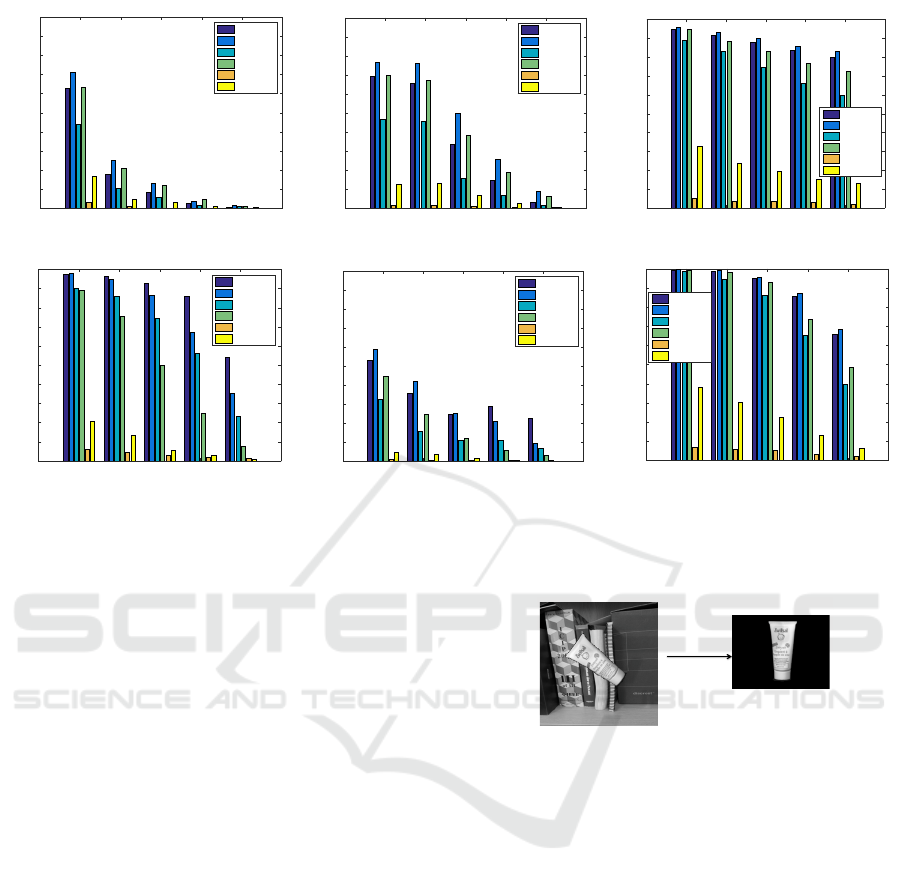

Based on the above learned parameters , the

matching performance for 3 different grouping lev-

els of HexIDB and HexLDB are given in Figure 4. It

is clearly evident that higher grouping levels always

outperform the lower grouping levels because of their

extended area of image coverage, thereby including

more diagnostic image information. For the Grafﬁti,

Wall, Light and Jpg sequences, HexLDB performs

better than HexIDB. However, the two sequences with

blurring issues: Bikes and Trees, give different re-

sults. As the descriptor level increases, HexLDB

gradually loses its advantage of including gradient

comparison information and when the matching pair

comprises more dissimilar image pairs, such as Bikes

1|6, the gradient comparison information appears to

disadvantage the HexLDB descriptor. This indicates

that the gradient information in the image is be-

ing greatly reduced when the image is signiﬁcantly

blurred, which results in gradient signals with a poor

SNR.

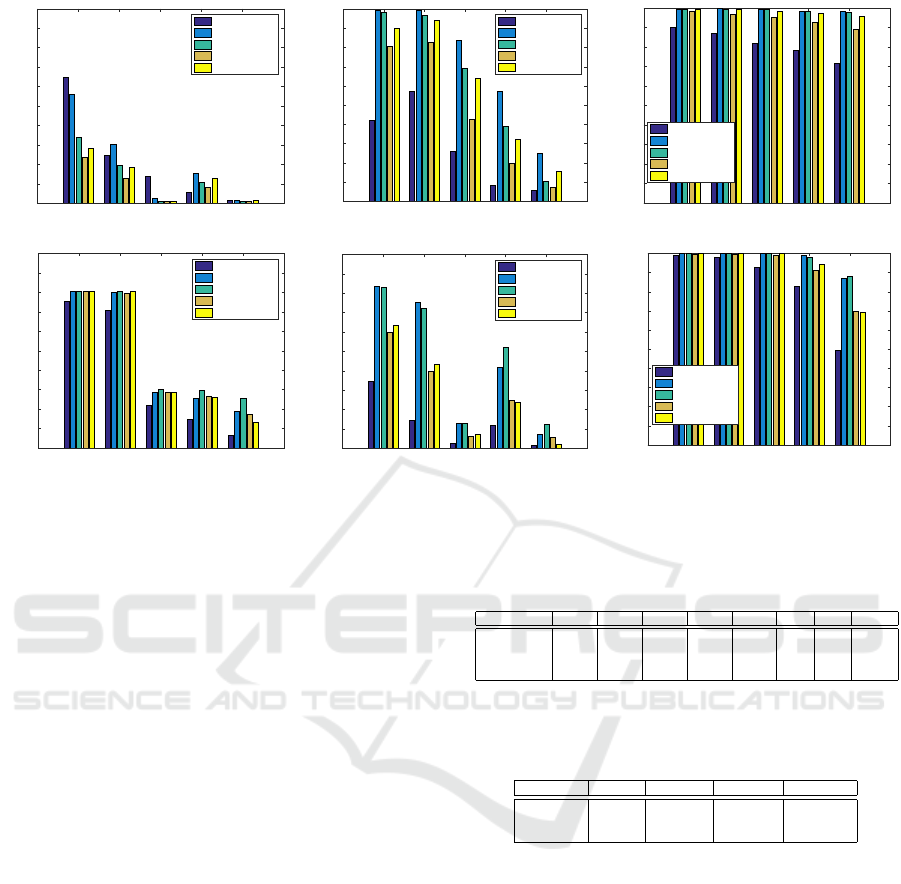

4.3 Performance Evaluation

In order to evaluate the new descriptors with the

learned parameters, the local feature True Positive

matching rate for the third level grouping of the

HBD (including SHexBinary3 (Liu et al., 2014), Hex-

IDB3, HexLDB3 ) is compared to the performance

obtained using state-of-the-art descriptors, FREAK

(Alahi et al., 2012) and SIFT (Lowe, 2004). HBDs are

claimed to have rotation invariance by directly con-

structing the sampling structure according to the local

dominant orientation. There is no need to pre-rotate

the local patch to align with the local dominant ori-

entation, which is the conventional standard way to

achieve rotation invariance. In order to have a fair

comparison, no scale and no orientation is considered

in this test. Both FREAK, SIFT and HBD have been

HBD: Hexagon-Based Binary Descriptors

179

Recognition Rate

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Performance with sigma=3.4, kernel size=17x17, edge lenth=3

HexIDB3

HexLDB3

HexIDB2

HexLDB2

HexIDB1

HexLDB1

(a)

Recognition Rate

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Performance with sigma=3.4, kernel size=17x17, edge lenth=3

HexIDB3

HexLDB3

HexIDB2

HexLDB2

HexIDB1

HexLDB1

(b)

Recognition Rate

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Performance with sigma=3.4, kernel size=17x17, edge lenth=3

HexIDB3

HexLDB3

HexIDB2

HexLDB2

HexIDB1

HexLDB1

(c)

Recognition Rate

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Performance with sigma=3.4, kernel size=17x17, edge lenth=3

HexIDB3

HexLDB3

HexIDB2

HexLDB2

HexIDB1

HexLDB1

(d)

Recognition Rate

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Performance with sigma=3.4, kernel size=17x17, edge lenth=3

HexIDB3

HexLDB3

HexIDB2

HexLDB2

HexIDB1

HexLDB1

(e)

Jpg1|2 Jpg1|3 Jpg1|4 Jpg1|5 Jpg1|6

Recognition Rate

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

Performance with sigma=3.4, kernel size=17x17, edge lenth=3

HexIDB3

HexLDB3

HexIDB2

HexLDB2

HexIDB1

HexLDB1

(f)

Figure 4: RecognitionRate (True Positive descriptor matching rate) performance obtained for Gaussian sigma=3.4, kernel

size=17 × 17, hexagon edge length=3. For each image pair, the matching performance obtained for each of the 3 grouping

levels used in the HexIDB and HexLDB descriptors is illustrated.

coupled to the FAST detector for single scale exper-

iments and termed as U-descriptor, which indicates

that they do not normalise the descriptor orientation.

Since SIFT is a multi-scale detected feature, for clar-

ity, SIFT without rotation and scale invariant property

is termed as USO-SIFT.

Figure 6 illustrates the matching performance of

each image pair with different descriptors. It is ob-

served that on all the image sequence pairs except

Grafﬁti, U-HBD and USO-SIFT both perform better

than U-FREAK. U-HexLDB3 always outperforms U-

HexIDB3 on image sequences of Grafﬁti and Wall.

They achieve quite similar results on Light and Jpg

image pairs, and also the ﬁrst three image pairs of

Bikes and Trees sequence. For the harder-to-match

pairs of Bikes and Trees, U-HexLDB3 loses its ad-

vantage of utilising gradient comparison information.

U-SHexBinary3 is inferior to U-HexLDB3 and U-

HexIDB3 for almost all the image pairs, which con-

ﬁrms the improvement of distinctiveness for the new

proposed hierarchical hexagon structure. USO-SIFT

achieves similar performance to U-HexLDB3 and U-

HexIDB3 for most matching pairs comprising Light,

Bikes, and Jpg sequences. For the remainder of the

sequences, its performance is always inferior to that

of U-HexLDB3.

Figure 5: Pose estimate: each test image is only matched to

the corresponding reference image for detection and pose

estimate.

5 POSE ESTIMATION

We have also evaluated the new descriptors for pose

estimation and employed the same pose estimation

system and the same test dataset from Amsterdam Li-

brary of Object Images (ALOI) (Geusebroek et al.,

2005), as we presented in (Liu et al., 2014). Because

we are focusing on pose estimation, rather than ob-

ject detection, each test image contains the object of

interest set within a cluttered background and this is

directly matched to the corresponding reference im-

age, where the target object in set against a pure black

background, as shown in Figure 5. Therefore, one-to-

one image matching is implemented to detect the ob-

ject via the Generalised Hough Transform (GHT) and

we obtain a pose estimate by means of the RANSAC

algorithm.

We evaluate the pose estimation performance of

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

180

Recognition Rate

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

U-FREAK

U-HexLDB3

U-HexIDB3

U-SHexBinary3

USO-SIFT

(a)

Recognition Rate

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

U-FREAK

U-HexLDB3

U-HexIDB3

U-SHexBinary3

USO-SIFT

(b)

Recognition Rate

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

U-FREAK

U-HexLDB3

U-HexIDB3

U-SHexBinary3

USO-SIFT

(c)

Recognition Rate

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

U-FREAK

U-HexLDB3

U-HexIDB3

U-SHexBinary3

USO-SIFT

(d)

Recognition Rate

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

U-FREAK

U-HexLDB3

U-HexIDB3

U-SHexBinary3

USO-SIFT

(e)

Jpg1|2 Jpg1|3 Jpg1|4 Jpg1|5 Jpg1|6

Recognition Rate

0.1

0.2

0.3

0.4

0.5

0.6

0.7

0.8

0.9

U-FREAK

U-HexLDB3

U-HexIDB3

U-SHexBinary3

USO-SIFT

(f)

Figure 6: RecognitionRate performance with different descriptors.

our system by computing the mean and standard de-

viation of the pose errors of all the detected objects.

The precise location of the edge contours of the refer-

ence object in the test image can be obtained accord-

ing to the recorded ground-truth information, which

speciﬁes the rotation and translation used to embed

the reference object pixels into a background image.

Similarly, according to the recovered pose estimation

using the system, the estimated object edge positions

could be labelled by projecting the reference edge po-

sitions into the test image. The Euclidean distance

between the estimated position and the ground-truth

position of each reference edge point is computed to

yield a pose estimate error for each matched edge lo-

cation.

Four different features are tested: standard SIFT

(SIFT), SIFT without scale invariance (US-SIFT),

HexIDB3 and HexLDB3. Except SIFT, which em-

ploys its own feature detector to afford scale invariant

matching, all the other features we examined are sam-

pled at locations deﬁned by key-points detected by the

FAST detector at a single scale. Each reference im-

age has 5 different corresponding test images with dif-

ferent backgrounds, but without scale changes. 5000

synthetic images are tested and matched to their cor-

responding 1000 reference images. Our object detec-

tion and the pose estimation results are given in Table

2 and Table.3.

In Table 2, The number of detected images having

the corresponding pose error is accumulated in differ-

ent error ranges for each descriptor. Most of the de-

Table 2: Numeric distribution of images detected within a

given pose error range (pixels) and the corresponding error

ranges.

Error Range 0-0.5 0.5-1 1-1.5 1.5-2 2-3 3-4 4-5 5-Inf

SIFT 270 355 350 359 1348 108 44 146

US − SIFT 2787 387 165 179 69 40 22 132

HexIDB3 2401 471 176 92 88 51 38 1036

HexLDB3 2570 465 175 84 113 50 33 607

Table 3: Number of images successfully detected with a

pose error of less than 5 pixels, and their corresponding pose

error Mean (Mean) and standard deviation (SDV) in pixels.

Descriptor SIFT US-SIFT HexIDB3 HexLDB3

Number 2834 3549 3317 3490

Mean 1.9241 0.4209 0.5295 0.5207

SDV 0.9560 0.6541 0.7489 0.7375

tected images have a pose error of less than 5 pixels

for all the descriptors examined. Since there is always

a one-to-one image match, to better compare the per-

formance of different descriptors, each detected im-

age having pose error bigger than 5 pixels is deﬁned

as a failed detection. The Number of successfully de-

tected images in Table 3 only accounts the images

with pose error smaller than 5 pixels, based on which,

the Mean and SDV of the pose error through the im-

ages are computed for each descriptor, respectively.

It is clearly shown in the results tables that, US-

SIFT achieves the best performance in terms of the

mean pose error. It has the biggest number of images

having pose error less than half pixel, while SIFT has

the least number of images successfully detected with

the mean pose error close to 2 pixels. The test im-

ages do not have scale changes from the reference im-

HBD: Hexagon-Based Binary Descriptors

181

ages, which might be the reason for SIFT exhibiting

inferior results to all of the other descriptors. Due to

multi-scale detection being applied in this case, the

associated Hough parameter space needs one more

dimension to be able to detect objects, compared to

the hough space generated for the other single scale

descriptors, which leads to lower pose estimate ac-

curacy. HexLDB3 works a little better than HexIDB3

due to the extra comparison information from the gra-

dient map. In summary, except SIFT, all of the other

descriptors gave close results in terms of pose estima-

tion, exhibiting an error of approximately half a pixel.

6 CONCLUSION

In this paper, we present two new HBD: HexIDB

and HexLDB descriptors. The new sampling struc-

ture of HBD reduces redundant information being en-

coded by decreasing the frequency of the same image

area being sampled, and produces shorter feature de-

scriptors for the third level of the feature hierarchy,

as compared to HexBinary descriptors. Moreover, a

gradient map is also employed to generate the binary

bits in the same way as the intensity map is encoded.

However, it is not a wise choice to use the gradient

map when the gradient information representing im-

age features has a low SNR. The HBD outperforms

SHexBinary and achieves very promising results com-

pared to ﬁxed-scale U-FREAK and USO-SIFT de-

scriptors (no orientation normalisation). HBD is also

compared to the standard SIFT and a ﬁxed-scale ex-

tracted descriptor US-SIFT within an object pose esti-

mation application. Although the parameters used in

this application are not learned from the training data,

HBD still produces much better performance than the

standard SIFT and shows competitive performance

compared to US-SIFT. In future work, we would like

to investigate dimensionality reduction methods for

HBD to decrease feature storage requirements and

improve its discriminability. We would also like to in-

vestigate the relationship between such hand-crafted

descriptors and those derived through learning tech-

niques, such as Deep Convolutional Neural Networks.

REFERENCES

Alahi, A., Ortiz, R., and Vandergheynst, P. (2012). Freak:

Fast retina keypoint. In Computer Vision and Pat-

tern Recognition (CVPR), 2012 IEEE Conference on,

pages 510–517. IEEE.

Bay, H., Tuytelaars, T., and Van Gool, L. (2006). Surf:

Speeded up robust features. In Computer Vision–

ECCV 2006, pages 404–417. Springer.

Calonder, M., Lepetit, V., Strecha, C., and Fua, P. (2010).

Brief: binary robust independent elementary features.

In Computer Vision–ECCV 2010, pages 778–792.

Springer.

Dalal, N. and Triggs, B. (2005). Histograms of oriented gra-

dients for human detection. In Computer Vision and

Pattern Recognition, 2005. CVPR 2005. IEEE Com-

puter Society Conference on, volume 1, pages 886–

893. IEEE.

Geusebroek, J.-M., Burghouts, G. J., and Smeulders, A. W.

(2005). The amsterdam library of object images. In-

ternational Journal of Computer Vision, 61(1):103–

112.

Ke, Y. and Sukthankar, R. (2004). Pca-sift: A more

distinctive representation for local image descriptors.

In Computer Vision and Pattern Recognition, 2004.

CVPR 2004. Proceedings of the 2004 IEEE Computer

Society Conference on, volume 2, pages II–506. IEEE.

Leutenegger, S., Chli, M., and Siegwart, R. Y. (2011).

Brisk: Binary robust invariant scalable keypoints. In

Computer Vision (ICCV), 2011 IEEE International

Conference on, pages 2548–2555. IEEE.

Liu, Y., Aragon-Camarasa, G., and Siebert, J. P. (2014).

Object edge contour localisation based on hexbinary

feature matching. In 2014 IEEE International Con-

ference on Robotics and Biomimetics (ROBIO), pages

99–106.

Liu, Y. and Siebert, J. P. (2014). Contour localization based

on matching dense hexhog descriptors. In Interna-

tional Conference on Computer Vision Theory and

Applications (VISAPP 2014), pages 656–666.

Lowe, D. G. (2004). Distinctive image features from scale-

invariant keypoints. International journal of computer

vision, 60(2):91–110.

Mikolajczyk, K. and Schmid, C. (2005). A perfor-

mance evaluation of local descriptors. Pattern Analy-

sis and Machine Intelligence, IEEE Transactions on,

27(10):1615–1630.

Rosten, E., Porter, R., and Drummond, T. (2010). Faster and

better: A machine learning approach to corner detec-

tion. Pattern Analysis and Machine Intelligence, IEEE

Transactions on, 32(1):105–119.

Rublee, E., Rabaud, V., Konolige, K., and Bradski, G.

(2011). Orb: an efﬁcient alternative to sift or surf.

In Computer Vision (ICCV), 2011 IEEE International

Conference on, pages 2564–2571. IEEE.

Tola, E., Lepetit, V., and Fua, P. (2010). Daisy: An efﬁcient

dense descriptor applied to wide-baseline stereo. Pat-

tern Analysis and Machine Intelligence, IEEE Trans-

actions on, 32(5):815–830.

Yang, X. and Cheng, K.-T. (2012). Ldb: An ultra-fast fea-

ture for scalable augmented reality on mobile devices.

In Mixed and Augmented Reality (ISMAR), 2012 IEEE

International Symposium on, pages 49–57. IEEE.

VISAPP 2016 - International Conference on Computer Vision Theory and Applications

182
