Review Analysis of Properties for an Ideal Secure Biometric

Template Scheme

Phiwa Mzila

Modelling and Digital Sciences, Information Security, CSIR, Meiring Naude, Pretoria, South Africa

Keywords: Biometric Templates Protection, Privacy, Security, Performance, Accuracy, Cancellable Cryptosystem.

Abstract: With new advances in technologies, biometrics is becoming emerging technology for verification and

authentication of individuals. However, the storage of biometric templates still needs necessary attention since

it poses major threats to user privacy and system security. To mitigate this problem, various biometric

protection techniques have been proposed. Most of these schemes aim to satisfy diversity, revocability,

security and performance properties, as requirements for ideal secured biometric template storage.

Conventionally, priority is given to robustness of biometric system in terms of its accuracy, and high

performance with regards to matching and recognition rate. Little attention is payed to user privacy and system

security. In this paper, existing work in biometric template protection schemes are reviewed, analysed, and

compared with reference to properties of an ideal biometric secured template system. The question of

properties needed for a complete and ideal biometric secured template system is beyond the scope of this

research.

1 INTRODUCTION

Biometric systems are adopted in many applications

to fight crime such as illegitimate access to

information, fraud, and attacks on computerized

systems. As biometric technology advances, so does

hacking technology. In most cases, hackers aim to

exploit weaknesses in biometric systems. One of the

areas that is vulnerable to such an attack is the

biometric templates database. This challenge has

enticed developers and researchers to study and

propose different techniques, approaches, and

schemes to ensure a secure storage of biometrics

templates.

Four properties are essential for every biometric

template protection system: (Breebaart et al., 2009):

 Diversity: the protected template should by no

means allow cross matching in the databases. This

is to ensure that user’s privacy is not

compromised.

 Revocability:it should be possible to revoke a

template when it is compromised by the hackers

and reissue a different one based on the biometric

information.

 Performance: the template protection techniques

should not reduce the performance of the system.

 Security: it should be computationally difficult to

recover the original biometric template from the

stored template. This will go a long way to ensure

that hackers do not fabricate a physical spoof of

the biometric trait from the stolen template.

Application of these properties involves a repeated

distortion of biometric signals or features using

noninvertible transforms. This approach is intended

to reduce attacks on stored templates by replacing an

original biometric traits with one that has been

transformed (Feng et al., 2008). This technique is

very useful when each person is enrolled with more

than one application or system.

The focus of biometrics research has been on

accuracy, speed, cost, and robustness challenges.

However, more attention has been given to security

and privacy issues of biometric systems in recent

research. This means that the acceptancy of modern

biometric systems should rely more on the ability of

the system providing a direct answer to questions

such as “What happens when the biometric template

is compromised or stolen”, “Can my template,

registered for voting purposes, still be used by the

vetting system somewhere else?”.

Biometric template protection schemes which

address the properties of an ideal system are normally

categorized as biometric cryptosystems and feature

Mzila, P.

Review Analysis of Properties for an Ideal Secure Biometric Template Scheme.

DOI: 10.5220/0005727303330339

In Proceedings of the 2nd International Conference on Information Systems Security and Privacy (ICISSP 2016), pages 333-339

ISBN: 978-989-758-167-0

333

transformation (Jain et al., 2008). Biometric

cryptosystems generate a digital key from a biometric

trait and securely bind it to a biometric. This offers a

solution to biometric-dependent key-release and

biometric template protection (Uludag et al., 2004).

Feature transformation biometrics consist of

intentional and repeatable distortions of biometric

signals based on transforms that provide a

comparison of biometric templates in the transformed

domain (Ratha et al., 2011). Both technologies are

designed to meet two major requirements of

biometric information protection, (Rathgeb and Uhl,

2011) which are:

 Irreversibility: it should be computationally

expensive to reconstruct the original biometric

template from the stored reference data, while it

should be easy to generate the protected biometric

template;

 Unlinkability: different versions of protected

biometric templates can be generated based on the

same biometric data, while protected templates

should not allow cross-matching.

Security and privacy play an important role in user

acceptancy of biometric systems. Threats to both

these properties are imperative and counter-measures

need to be considered for ideal biometric template

protection scheme. Security, in the context of

biometrics, refers to the difficulty level to obtain false

acceptance. Privacy refers to the protection level of

the system against an unintended use of biometric

data (other than the verification work). Privacy

threats in a biometric system are defined as the ability

to get the data and cross match it with other systems

for benefits (Turk and Pentland, 1991).

In this review, existing work (on both biometric

systems and template protection schemes) are

reviewed, analyzed, and compared with reference to

the degree to which they address user privacy, system

security, performance, and accuracy in developing

ideal biometric secured template system. The

question of properties needed for a complete and ideal

biometric secured template system is beyond the

scope of this research.

The rest of the paper is structured as follows:

Section 2 presents problem definition, in section 3 its

literature review, biometric template protection

scheme requirements are analysed in section 4 , in

section 5 major advantage of cancellable aproach is

presented, section 6 we discuss challenges facing

biometric template protection shemes and finally its

our conclusion.

2 PROBLEM DEFINITION

There are seven basic criteria or properties for a

biometric system: uniqueness, universality,

permanence, collectability, performance,

acceptability, and circumvention (Rahultech, 2010).

On the other hand, there are four properties for

biometric template protection scheme: revocability,

diversity, performance and security (Radha, 2011). A

well-developed traditional biometric system, can be

measured its free error matching ability, with high

accuracy and performance. In a basic biometric

system performance vs. accuracy approach is

employed, however this approach overlooks the very

critical aspect and requirement of modern biometric

systems, which is user privacy and system security.

For such a system to be accepted by users, it should

be sufficiently robust against fraudulent methods and

attacks to the system, thus providing sufficient

privacy.

In attempting to address these concerns, various

biometric template protection schemes have been

proposed. The fundamental purpose of these schemes

is to provide counter measures against most

potentially damaging attacks on biometric templates

stored in the system database, by adopting security vs.

privacy approach. Figure 1 shows a relationship

between performance vs. accuracy and security vs.

privacy, projecting an ideal robust secure biometric

template system.

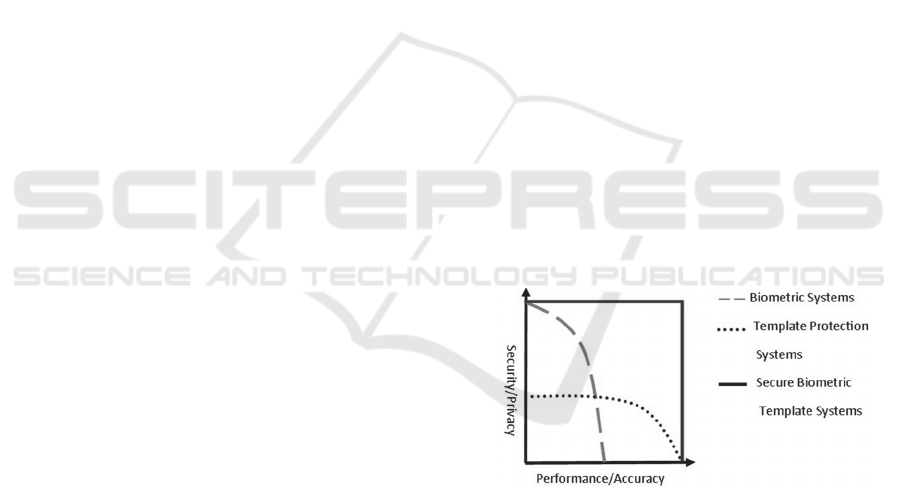

Figure 1: Security/Privacy vs. Performance/Accuracy.

Normally, in a biometric system a user claims an

identity and provides a biometric sample from the

sensor. After feature extraction, features are

compared with existing biometric templates stored in

a database and if the new biometric matches the one

in the database, the user is verified to be a genuine

user of the system or denied access as shown in figure

Any compromise of the biometric template

database can lead to the following vulnerabilities:

 A biometric template can be substituted by an

impostor’s template for future unauthorized ac-

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

334

access;

 An imposter can create a physical spoof from the

stored template to gain unauthorized access to the

system, and cross match other systems which use

the same biometric trait;

 The stolen template can be replayed to the

matcher to gain unauthorized access.

A prospective act of abuse to biometric system is

cross-matching, where the biometric traits are used

for purposes other than the intended purpose. This can

be a case where a fingerprint template that has been

stolen from a financial institution’s database (such as

a bank) is used to search a vetting system’s database

or crosslink to a person’s health records.

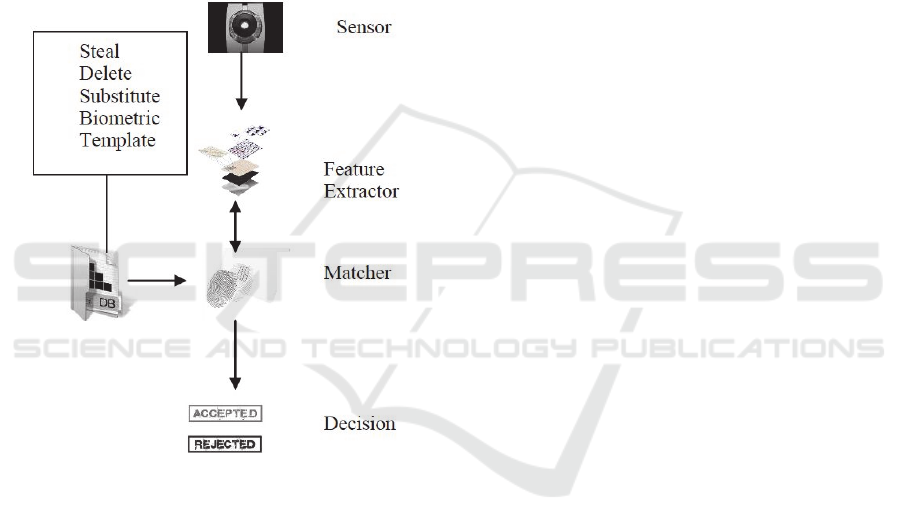

Figure 2: Overview of Biometric Authentication System.

Revocability is one requirement out of the other

four that draws much interest in this paper. Based on

the biometric template protection scheme metrics in

Table 1, hybrid approach and modern cryptosystems

perform better with revocability and diversity. The

main reason for that (mostly for hybrid schemes) is

the employment of user chosen key/password as one

of the techniques to form a hybrid scheme. Every time

a transformed template is compromised, it can be

revoked and a new template can be generated from

new user password/key. But when a template

transformation is based on a key released or key

generated from the minutiae, it means even if a

compromised template is revoked it can be

regenerated from the same fingerprint (minutia points

location). This means that an attack such as brute

force attack has the ability hand to crack that

particular hybrid scheme hence compromising the

whole security feature. It is the same reason why key

binding and key generation score is low for

revocability and diversity.

3 LITERATURE REVIEW

In the literature, properties of an ideal biometric

template protection scheme are found in cancellable

techniques. Attacks against biometric templates

stored in database are potential security threats. As a

result, cancellable approaches have been proposed to

provide security and user privacy against such attacks

(Ratha et al., 2011).

A cancellable approach implements cancelability

by designing methods to transform the true signal and

create alternatives for matching. This type of method

can be divided into two categories. One that tries to

mask original patterns by mixing artificial texture or

noise (Connell et al., 2010). The other that uses some

non-invertible transformations to distort the original

biometric patterns (Ratha et al., 2007).

Transformation functions are non-invertible because

of their one-way orientation. This is easy to calculate

but difficult to change (in polynomial time) even if

the attacker steals a transformed template and/or

transformation key. The transformation parameters

are determined using external added pseudo-

randomness, (such as a user pin or token). The

transformed patterns can be changed (or

revoked/reissued) by altering the user pin or token. As

a result, this method achieves cancelability.

Compared to other template protection methods,

cancellable biometrics can preserve the biometric

representation. Traditional cancellable approaches

often reduce recognition accuracy (Ratha et al.,

2007).

Teoh et al., 2006, and Kanade et al., 2009

proposed applying cryptographic methods to

biometrics in order to deal with privacy and security.

These methods require extracting non-changing

patterns from biometric data, which is often

challenging. Among them, one widely used method is

biometric biohashing (Lumini and Nanni, 2007). In

this scheme, the template is mixed with user specific

random information, yielding a new representation.

An error-tolerant discretization method is used to

quantize the feature description and reduce

uncertainty. The projection acts as a linear

transformation of the biometric pattern. It can protect

the true template and ensure high-security, since the

user specific random information can be generated

with different keys, ensuring the revocability of the

Review Analysis of Properties for an Ideal Secure Biometric Template Scheme

335

Table 1: Biometric template protection scheme metrics.

Diversity Revocability Security Performance

Biohashing high high low medium

Salting high high low low

Cancellable high high high low

Key binding low low high low

Key generation low low high low

Hybrid high high medium medium

Modern Systems high high medium medium

templates.

Moreover, the introduction of user keys can

further increase the discriminability of the templates.

However, external randomness needs to be stored in

a smart card or a token, making it inconvenient in

large scale applications. If the key is compromised,

the scheme is insecure since the projection process is

invertible.

Chang et al., 2004 and Sutcu et al., 2007 presented

another scheme called key-generation. In contrast

with the key-binding method discussed below, the

helper data of the key-generation scheme is only

derived from the biometric traits. The cryptographic

key is directly generated from the help data. The idea

of secure sketch and fuzzy extractor (Dodis et al.,

2008) is an example design of key-generation

cryptosystem. The secure sketch is the helper data

extracted from the original biometric patterns which

leaks limited information of the biometric data while

the fuzzy extractor can generate cryptographic a key

from biometric features. This scheme also suffers

from privacy issues. In addition, the stability and

diversity of the generated key is difficult to achieve

simultaneously (Jain et al., 2008).

A popular scheme in cryptosystems is key-

binding (Hao et al., 2006) and (Uludag and Jain,

2006). It is designed to protect the security of both

biometric templates and cryptographic keys. This

method depends on storing a helper data obtained by

binding a key with the biometric template (Jain et al.,

2008). This scheme is non-invertible since it is

computationally infeasible to decode the key or

biometric template without knowing the biometric

data. One typical design of key-binding system is the

fuzzy vault. It was proposed by (Juels and Sudan,

2006). The fuzzy vault incorporates error correction

code (ECC) with local biometric features to tolerate

the within-class variance. The method has proved to

be effective in tolerating biometric data variations.

ECC based fuzzy schemes were first designed for a

cryptosystem, but are particularly suited to biometric

data and biometric template protection. Therefore, it

is often used in conjunction with other template

protection methods, such as biometric hardening, to

achieve cancelability.

However, (Simoens et al., 2009) show that attacks

on the fuzzy template protection scheme is possible.

In particular, it is possible for an attacker to determine

whether two documents are encrypted using the same

biometric data. Even if this does not mean that the

biometric templates are compromised, it is still a

potential threat to user privacy.

4 BIOMETRIC TEMPLATE

PROTECTION SCHEME

REQUIREMENTS

The major challenge in the biometric template

protection schemes is to design an approach to

template protection, which meets all four

requirements (diversity, revocability, security and

performance) without compromising either of them,

or the accuracy of the system. The need for trusted

biometric systems that protect against security and

privacy vulnerabilities while maintaining high

performance and accuracy is absolute.

Table 1 depicts the relationship between

biometric template protection schemes and properties

defining an ideal secure biometric template system.

The measurement criteria are high, medium and low

for each of the schemes, where high indicates that a

requirement is met fully, medium indicates that a

requirement is met partially and low indicates that a

requirement is least met or not met at all. These

schemes are described briefly below.

Biohashing is a biometric template protection

approach in which features from a biometric template

are transformed, using a transformation function

defined by a password or a key known only to the user

(Mwele and Kiman, 2015). This key or password

needs to be securely stored and remembered by the

user for authentication. The major drawback of

biohashing, when compared to cancellable

biometrics, is its reduced performance when a

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

336

legitimate token is retrieved and presented by an

adversary purporting to be a legitimate user.

In a salting based scheme, biometric features are

transformed using an invertible function defined by a

user-specific key or password, which must be kept

secret. The introduction of a secret key ensures

revocability. In fact, in case a template is

compromised, it is easy to revoke and replace it with

a new template generated by a different user-specific

key.

If the user-specific key is compromised, the

template is no longer secure, because the

transformation is invertible (Das et al., 2012).

A hybrid scheme (Malhotra and Verma, 2013) is

a multimodal biometric system that utilizes more than

one physiological or behavioural characteristic for

enrolment, verification, or identification. In this

work, they combined one physical and one

behavioural approach for identification or

verification to uniquely identify a person. The

approach takes two different biometric traits. One

being a fingerprint as a physiological, and the other is

an online signature (as behavioural biometric trait).

Both are sensed by a sensor, features are extracted

by feature extractor modules, matcher modules match

the traits with stored templates, and each decision

module decides the perfect matches. Finally,

decisions are combined in a fusion unit using a simple

“AND” operator and the decision is taken whether the

individual is an intruder or not.

Biometric cryptosystems can be classified into

two main categories: key binding schemes, and key

generation schemes (Maltoni et al., 2009). In the key

binding approach, a cryptographic and an unprotected

fingerprint template are bonded together within a

cryptographic framework, to generate the helper data.

It is computationally difficult to decode the key or the

template from the helper data without the knowledge

of the user’s fingerprint data. The helper data is

obtained by combining the enrolment template with

cipher-text obtained from an error correcting code

using the key as the message. A cipher-text recovered

from a feature set (that is similar but not identical to

the template) is affected by a certain amount of error

correction code. The exact key is recovered from the

cipher-text that contains some error. If the correct key

is recovered, it means that the feature set and the

protected template resulted in a match. In the key

generation approach, a key is derived directly from

the biometric signal. The advantage of this approach

is that there is no need for user-specific keys or tokens

as required by a biometric salting approach. A

problem with this approach is that is very hard to

generate a key with high stability and entropy.

Modern cryptography systems have emerged in

recent years, and a number of papers have been

published on biometric systems in which biometrics

and homomorphic encryption work together, for

either authentication or identification purposes. These

systems have cryptographic protocols based on

secure multiparty computation and most of them use

the superior properties of homomorphic encryption

schemes to overcome security and privacy threats.

5 MAJOR ADVANTAGES OF

CANCELLABLE APPROACH

IN BIOMETRIC TEMPLATE

PROTECTION

Cancellable biometrics offer several advantages over

generic biometric systems (Rathgeb and Busch,

2013):

 Privacy: within biometric cryptosystems and

cancellable biometrics the original biometric

template is obscured such that a reconstruction is

unfeasible

 Secure key release: biometric cryptosystems

provide keys release mechanisms based on

biometrics

 Pseudonymous authentication: authentication is

performed in the encrypted domain and thus the

biometrics reference is a pseudonymous

identifier.

 Revocability and renewable of templates: several

instances of secured templates can be generated.

 Increased security: biometric cryptosystems and

cancellable biometrics are prevented from several

traditional attacks against biometric systems.

With respect to the design goals, biometric

cryptosystems and cancellable biometrics offer

significant advantages to enhance the privacy and

security of biometric systems, providing reliable

biometric authentication at a high-security level.

Several new issues and challenges arise by deploying

these technologies (Cavoukian and Stoianov, 2009).

6 CHALLENGES FACING

BIOMETRIC TEMPLATE

PROTECTION SCHEMES

One challenging aspect regarding biometric template

protection is the issue of alignment, since template

protection technologies tend to obscure original

Review Analysis of Properties for an Ideal Secure Biometric Template Scheme

337

biometric signals in an irreversible manner. The

majority of published approaches to template

protection schemes indicated a significant decrease in

recognition accuracy (Rathgeb and Uhl, 2011).

When considering biometric template protection

technologies, it is not actually clear which biometric

characteristics to apply in which type of application.

In fact, it has been shown that even the iris may not

exhibit enough reliable information to bind or extract

sufficiently long keys, to providing acceptable trade-

offs between accuracy and security. Stability of

biometric features is required to limit information

leakage of stored helper data. In addition, feature

adaption schemes that preserve accuracy must be

utilized in order to obtain common representations of

arbitrary biometric characteristics. Several

approaches to address such impediments in biometric

template protection schemes have been developed.

Extracting fixed-length binary fingerprint templates

(Bringer and Despiegel, 2010) and (Xu and Veldhuis,

2010) are an example.

7 CONCLUSIONS

In this paper we have reviewed the properties for a

generic biometric system and biometric template

protection schemes. These requirements were

analysed and measured against different approaches

proposed in the literature to define an ideal biometric

template protection schemes, which provides high

performance vs. accuracy and security vs. privacy. In

the future we would like to develop a more secure

hybrid scheme that will use password hardening

technique with one or more of the well-known

schemes such as surface folding and fuzzy vault

without compromising performance to improve the

revocability aspect of the scheme.

REFERENCES

Breebaart, J., Yang, B., Dulman, B., Busch, C., 2009.

Biometric Template Protection: The need for open

standards. Privacy and Data Security Journal.

Bringer J., Despiegel, V., 2010. Binary Feature Vector

Fingerprint Representation from Minutiae Vicinities. In

Proc. of the 4th IEEE Int. Conf. on Biometrics: Theory,

applications and systems (BTAS’10), pp. 1–6.

Cavoukian, A., Stoianov, A., 2009. Biometric Encryption:

The New Breed of Untraceable Biometrics. In

Biometrics: fundamentals, theory, and systems. Wiley.

Chang, Y., Zhang, W., and Chen, T., 2004. Biometrics-

Based Cryptographic Key Generation. Multimedia and

Expo, ICME’04, IEEE Imternational Conference on,

Taipei, pp. 2203-2206.

Connell, J. H., Ratha, N. K., and Zuo,J., 2010. Salting

System and Method for Cancelable Iris Biometrics. US

Patent, No. 0046808.

Das, P., Karthik, K., and Garai, B. C., 2012. A Robust

Alignment-free Fingerprint Hashing Algorithm Based

on Minimum Distance Graphs. Pattern Recognition,

45(9), 3373-3388.

Dodis, Y., Ostrovsky, R., L. Reyzin and Smith, A., 2008.

Fuzzy Extractors: How to Generate Strong Keys from

Biometrics and Other Noisy Data. International

Conference on the Theory and Applications of

Cryptographic Techniques: Advances in Cryptology

(EUROCRYPT ’04), Interlaken, Switzerland, pp. 523-

540.

Feng, Y. C., Yuen, P. C. and Jain, A. K., 2008. A Hybrid

Approach for Face Template Protection. SPIE Defense

and Security Symposium, Vol. 102, No. 2, pp. 169-177.

Hao, F., Anderson, R and Daugman, J., 2006. Combining

Crypto with Biometrics Effectively. IEEE Transactions

on Computers, pp. 1081-1088.

Jain, A., Nandakumar, K., Nagar, A., 2008. Biometric

Template Security. Journal on Advances in Signal

Processing, pp. 1-17. doi:10.1155/2008/579416.

Juels, A., Sudan, M., 2006. A Fuzzy Vault Scheme.

Designs, Codes and Cryptography, Vol. 38, No. 2, pp.

237- 257. doi:10.1007/s10623-005-6343-z.

Kanade, S., Petrovska-Delacretaz, D., and Dorizzi, B.,

2009. Cancelable Iris Biometrics and Using Error

Correcting Codes to Reduce Variability in Biometric

Data. Computer Vision and Pattern Recognition,

CVPR, IEEE Conference, Miami, pp. 120-127.

Kerschbaum, F., Atallah, M. J., M’Raïhi, D., Rice, J. R.,

2004. Private Fingerprint Verification without Local

Storage. In ICBA. (Hong Kong, China), pp. 87–394.

Lumini, A., Nanni, A., 2007. An Improved BioHashing for

Human Authentication. Pattern Recognition, Vol. 40,

No. 3, pp. 1057-1065. doi:10.1016/j.patcog.2006.05.

030.

Malhotra S., Verma, C., 2013. A Hybrid Approach for

Securing Biometric Template. International Journal of

Engineering and Advanced Technology (IJEAT) ISSN:

2249 – 8958, Vol. 2, No. 5.

Maltoni, D., Maio, D., Jain, A. and Prabhakar, S., 2009.

HandBook of Fingerprint Recongnition. Springer, 2

Edition.

Mwele, J., Kiman, S., 2015. A Simple Review of Biometric

Template Protection Schemes Used in Preventing

Adversary Attacks on Biometric Fingerprint

Templates. International Journal of Computer Trends

and Technology, 20(1), pp. 12-18.

Radha, N., Karthikeyan, S., 2011. An Evaluation of

Fingerprint Security Using Non-invertible Biohash.

International Journal of Network Security & Its

Applications (IJNSA), 3(4).

Rahultech, 2010, IT trends-latest/recent trends in

information technology http://rtmnuittrends.blogspot.

com/2010/09/biometrics.html

Ratha, N., Chikkerur, S., and Connell, J., 2007. Generating

ICISSP 2016 - 2nd International Conference on Information Systems Security and Privacy

338

Cancelable Fingerprint Templates. IEEE Transactions

on Pattern Analysis and Machine Intelligence, Vol. 29,

No. 4, pp. 561-572. doi:10.1109/TPAMI.2007.1004.

Ratha, N. K., Connell J. H., Bolle, R. M., 2011. Enhancing

Security and Privacy in Biometrics-based

Authentication Systems. IBM Syst J 40: 614-634.

Rathgeb, C., Busch, C., 2013. Multi-Biometric Template

Protection: Issues and Challenges. In New Trends and

Developments in Biometrics, chapter 8, pp. 173-190.

Rathgeb, C., and Uhl, A., 2011. A Survey on Biometric

Cryptosystems and Cancelable Biometrics, EURASIP

JIS, vol. 3, pp. 1–25.

Simoens, K., Tuyls, P., and Preneel, B., 2009. Privacy

Weaknesses in Biometric Sketches. Security and

Privacy, 2009 30th IEEE Symposium, pp. 188-203.

Sutcu, Y., Li, Q., and Memon, N., 2007. Protecting

Biometric Templates with Sketch: Theory and Practice.

Information Forensics and Security, IEEE

Transactions on, Vol. 2, No. 3, pp. 503-512.

doi:10.1109/TIFS.2007.902022.

Teoh, A., Goh, A., Ngo, D., 2006. Random Multispace

Quantization as an Analytic Mechanism for Biohashing

of Biometric and Random Identity Inputs. IEEE

Transactions on Pattern Analysis and Machine

Intelligence, Vol. 28, No. 12, pp. 1892-1901.

doi:10.1109/TPAMI.2006.250

Turk, M. A., Pentland, A. P., 1991. Face recognition using

eigenfaces. In Proc. IEEE Conference on Computer

Vision and Pattern Recognition (CVPR), pp. 586–591.

Uludag, U., Jain, A., 2006. Securing Fingerprint Template:

Fuzzy Vault with Helper Data. Proceedings of the

Conference on Computer Vision and Pattern

Recognition Workshops, New York, p. 163.

Uludag, U., Pankanti, S., Jain, A., 2004. Biometric

cryptosystems: Issues and Challenges, pp. 948–960. In

Proceedings of the IEEE.

Xu, H., Veldhuis, R. N., 2010. Binary Representations of

Fingerprint Spectral Minutiae Feature. In Proc. of the

20th Int. Conf. on Pattern Recognition (ICPR’10), pp.

1212–1216.

Review Analysis of Properties for an Ideal Secure Biometric Template Scheme

339
