Extensible Immersive Virtual Environments for Large Tiled Video Walls

Lorenz Cuno Klopfenstein

, Brendan D. Paolini

, Gioele Luchetti

and Alessandro Bogliolo

DiSBeF, Universit

a di Urbino “Carlo Bo”, Urbino, Italy

DII, Universit

a Politecnica delle Marche, Ancona, Italy

Keywords:

SAGE, IVE, Immersive Environment, Immersive Scenario, Virtual Environment.

Abstract:

The intent of the work is to present an Immersive Virtual Environment (IVE) as a new abstracted manage-

ment layer on top of the Scalable Adaptive Graphics Environment (SAGE) system, allowing the simpliﬁed

management and linear scaling of multiple SAGE-driven video walls, and the creation and control of simple

interactive scenarios. The framework exposes evolved Application Programming Interfaces (APIs) that are de-

tached from the underlying system and can be used by mobile clients as well. Primitives offered to developers

and content creators allow the deﬁnition of immersive cinematographic experiences using basic commands,

which are synchronized on the whole IVE environment. A complete implementation of the system is described

and then evaluated with the speciﬁc case of one physical installation.

1 INTRODUCTION

High resolution immersive displays are becoming in-

creasingly common, for large scale interactive enter-

tainment, for “situation-room” displays, and for mas-

sive data visualization, where ultra-large images with

several millions of pixels are visualized on a single

coherent surface, including walls or monitor arrays.

Typical use-case scenarios include local and re-

mote groups of people working together on dis-

tributed and heterogeneous data, obtaining the ability

to control, manipulate, share, and visualize informa-

tion. Collaborative work on ultra-high-resolution dis-

plays with massive data has been found to be crucial

for several kinds of research and analysis (Renambot

et al., 2004).

As envisioned in different existing projects (Smarr

et al., 2003; Klosowski et al., 2002), large-scale visu-

alizations can neither be adapted to traditional desk-

top displays, nor to standard projection techniques.

Instead they usually require special setups with a

combination of very speciﬁc software and hardware.

For instance, when large scale visualizations are

not feasible with a single wide-Field Of View (FOV)

projector, with very expensive optics and hardware

(Zobel Jr et al., 1998), they are achieved using tiled

displays. That is, splitting the high-resolution im-

age into multiple separate regions, on different dis-

plays. This has been successfully adopted by using

non-overlapping projections (DeFanti et al., 2011),

side-by-side projections with precisely aligned over-

laps, or tiled LCD panels (Ni et al., 2006). Quite of-

ten, these installations are very expensive and difﬁcult

to replicate.

A secondary issue of such large-scale visualiza-

tion systems, which can aggregate inputs from dif-

ferent sources and heterogeneous video data, is that

applications have to be re-designed or re-adapted in

order to be effectively used on that particular graphi-

cal environment, and they rarely take advantage of the

full graphical capabilities of a dedicated large visual-

ization system.

Most solutions in this ﬁeld do not provide uni-

ﬁed control of both input and output of the system.

The lack of higher abstraction interfaces for input

and output also entails a higher difﬁculty adapting

the setup to speciﬁc needs, which usually necessitates

very challenging integration work.

Some existing solutions, like LOTUS (Cho et al.,

2012), do indeed support predeﬁned scenarios and

high-level input interfaces, but do not support mul-

tiple visualizations and dynamic reconﬁguration.

The solution proposed by this paper is tailored for

multi-room entertainment systems or immersive inter-

active housing (i.e. multiple independent large-scale

visualizations that require central supervision). The

system is able to manage multiple concurrent visual-

izations, which are part of one overarching scenario,

and to reconﬁgure them dynamically.

Klopfenstein, L., Paolini, B., Luchetti, G. and Bogliolo, A.

Extensible Immersive Virtual Environments for Large Tiled Video Walls.

DOI: 10.5220/0005727803210328

In Proceedings of the 11th Joint Conference on Computer Vision, Imaging and Computer Graphics Theory and Applications (VISIGRAPP 2016) - Volume 1: GRAPP, pages 323-330

ISBN: 978-989-758-175-5

323

2 SAGE

The Scalable Adaptive Graphics Environment

(SAGE) is a cross-platform open-source middleware,

that was developed as a ﬂexible graphics streaming

system. It enables users to compose multiple hetero-

geneous visualization applications seamlessly and

in real-time, on a very large display. Its decoupled

architecture allows rendering applications to take ad-

vantage of the processing power of the platform they

were developed for, without having to be constrained

or re-designed for SAGE’s graphic environment. At

the same time, compatibility with a large number of

data sources in a variety of resolutions and formats is

ensured (Renambot et al., 2004).

The primary aim of this software system is to

let local or distributed groups of users access, dis-

play and collaborate with ease on large datasets, in

a variety of resolutions and formats, which require

a big-scale visualization. Data may be generated by

high-performance storage and rendering clusters and

streamed over a high-bandwidth network in order to

be displayed on collaborative graphical end-points,

which may range widely in both surface area, reso-

lution and type of display (for instance a single high

resolution screen, a large tiled display or an array of

projectors). End-points provide means to efﬁciently

visualize data from multiple sources and to interact

with it.

SAGE has been put in use successfully in sev-

eral installations, including the CAVE (DeFanti et al.,

2011) and LambdaVision at the Electronic Visual-

ization Laboratory at the University of Illinois at

Chicago (EVL-UCI) (Renambot et al., 2005).

2.1 Architecture

SAGE is designed following a ﬂexible and scalable

architecture, allowing multiple applications and video

sources to be streamed to a variety of displays, with-

out requiring any special hardware.

The system supports a single “scalable virtual

frame buffer” (a rectangular pixel matrix of almost

arbitrary size), which is tiled logically according to

the system’s conﬁguration, matching the actual sys-

tem’s topology. One or more tiles, which make up a

contiguous screen area, are managed by a SAGE Re-

ceiver. It can receive a certain number of inbound

pixel streams, compose them and then push them to

the screens for display, as shown in Figure 1.

The Free Space Manager (FSM) acts as a window

manager for SAGE and collects and maintains the

information about receivers and other components.

The FSM orchestrates the conﬁguration of the system

through a message passing protocol, directly com-

municating with other components and dinamically

reconﬁguring the system when needed (Jeong et al.,

2006).

Pixel streams are generated by SAGE Applica-

tions. These are generic multi-purpose programs that

may run on any server of the system and make use

of the SAGE Application Interface Library (SAIL) to

provide image data to the SAGE Receivers.

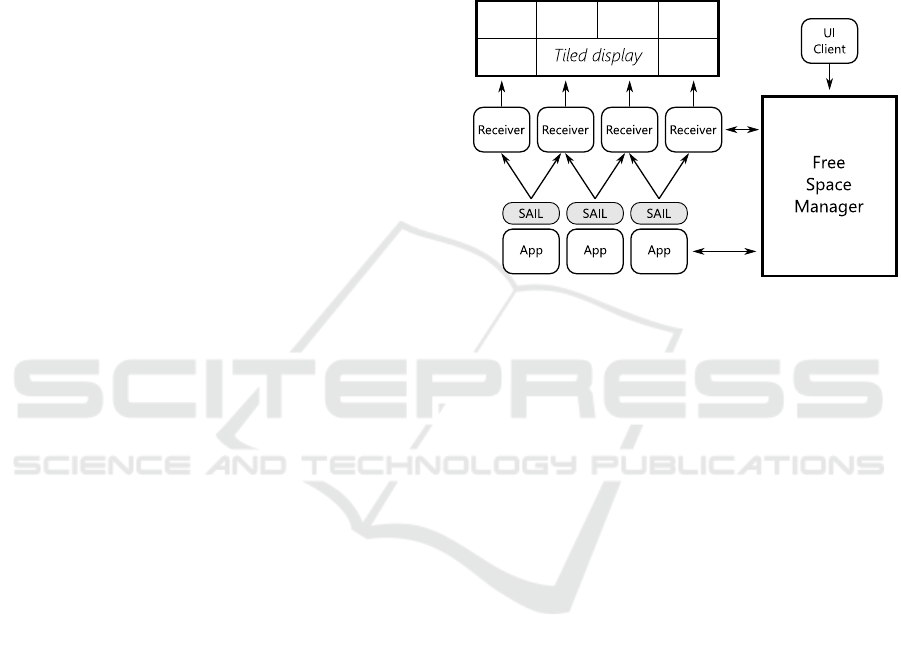

Figure 1: SAGE architecture overview.

This distributed architecture allows the receivers

to be logically separated from the applications actu-

ally generating pixel data. Applications can run on

the same device of the target receiver, on a differ-

ent machine, or even on a remote machine connected

through a wide-area network.

Each single application thus contributes to the

tiled frame buffer, possibly pushing data through a

high-bandwidth network that bridges the computers

composing the SAGE system.

The FSM controls the pixel stream conﬁguration

between applications and receivers: each application

is assigned to a speciﬁc region of the frame buffer

to draw to, which may change as applications are

started, terminated, moved across the frame buffer

and scaled in size. The FSM makes sure that each

application streams pixel data to the correct receivers

and that the pixels are thus drawn to the exact output

region on the frame buffer.

2.1.1 Applications and SAIL

The SAGE Application Interface Library (SAIL) pro-

vides a facility for programs to work as a SAGE Appli-

cation, by interacting with the FSM and by generating

pixel data to be shown on the frame buffer.

Data streamed through SAIL is encoded and trans-

mitted as raw pixels, usually in 24-bit RGB format or

using the lightweight lossless DXT compression for-

mat. Transmission occurs without any additional con-

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

324

version and without incurring in the cost and qual-

ity penalty of compression. While this also ensures

that the protocol has no strong platform dependency,

it makes it subject to very high bandwidth require-

ments.

SAIL represents a very thin layer between appli-

cation and network, that allows application develop-

ers to generate output pixels and transparently stream

them. The programming interface is built around a

very simple buffer-swapping mechanism: the applica-

tion generates raw pixel buffers and swaps them out

for SAIL to push them to the receivers. If necessary—

for instance when a SAGE Application’s output region

spans across multiple output tiles—SAIL takes care

of splitting the pixel data and streaming it to the cor-

rect SAGE Receivers, according to the system’s con-

ﬁguration.

Existing programs, for most platforms and pro-

gramming languages, can easily be adapted to take

advantage of the large visualization capabilities of

SAGE thanks to this simpliﬁed streaming model. In

fact, SAGE by default provides a modiﬁed version of

MPlayer that is capable of working as a SAGE Appli-

cation by using a custom output video module.

2.2 Interoperating with SAGE

The SAGE FSM exposes a developer-facing inter-

face, called “Event Communication Layer”, that al-

lows SAGE UI modules and third-party controllers to

interact with the system.

Clients can send user messages to control the FSM

and the applications managed by it, for instance set-

ting up a new application, moving it from one location

of the frame buffer to another or resizing its output re-

gion. In return, clients obtain SAGE event messages

informing them about the current state of the system

and its running applications.

The layer is based on a low-level text message

exchange protocol on top of a TCP socket between

client and FSM. It supports high rates of message ex-

changes, but the messages use a basic format and are

limited to very simple information (see section 3.3).

2.3 Requirements

Large-scale collaborative visualization environments

intrinsically have very high requirements, for both

software and hardware.

In a SAGE-based system, when a SAGE Receiver

and an application using SAIL are not located on the

same machine, the amount of video data that must be

streamed through the network can be substantial. This

puts a very high performance requirement on the net-

work between nodes, which calls for high-grade mul-

tiple gigabit network equipment to be used.

Especially when reaching 4K resolutions or

higher, transmitting and handling video in real-time

puts a very high strain both on processing components

and the network. This can be exarcebated by the need

to handle different resolutions or encodings, and to

synchronize playback (Singh et al., 2004).

Finally, SAGE Receivers that individually drive

several displays require a custom multi-monitor setup

which usually also requires expensive video hard-

ware.

3 IMMERSIVE VIRTUAL

ENVIRONMENT

In the following section the Immersive Virtual Envi-

ronment (IVE) system will be presented. The system

is built on top of SAGE and presents a more extensible

way to coordinate immersive multisensorial scenarios

on one or more high resolution displays.

IVE is designed to control a multimedia interac-

tive scenario, taking place on multiple video outputs

and a variety of other sensorial actuators, like sur-

round audio systems, odor diffusers, etc.

As described in section 2.1, the SAGE system has

no higher abstraction understanding of the lifetime of

applications that draw on its frame buffer, nor of how

these applications interact with each other and other

components. IVE tackles this issue by wrapping one

or more SAGE instances and implementing a high

level API on top of them, thus enabling any client ap-

plication to describe, program and control complex

multimedia scenarios.

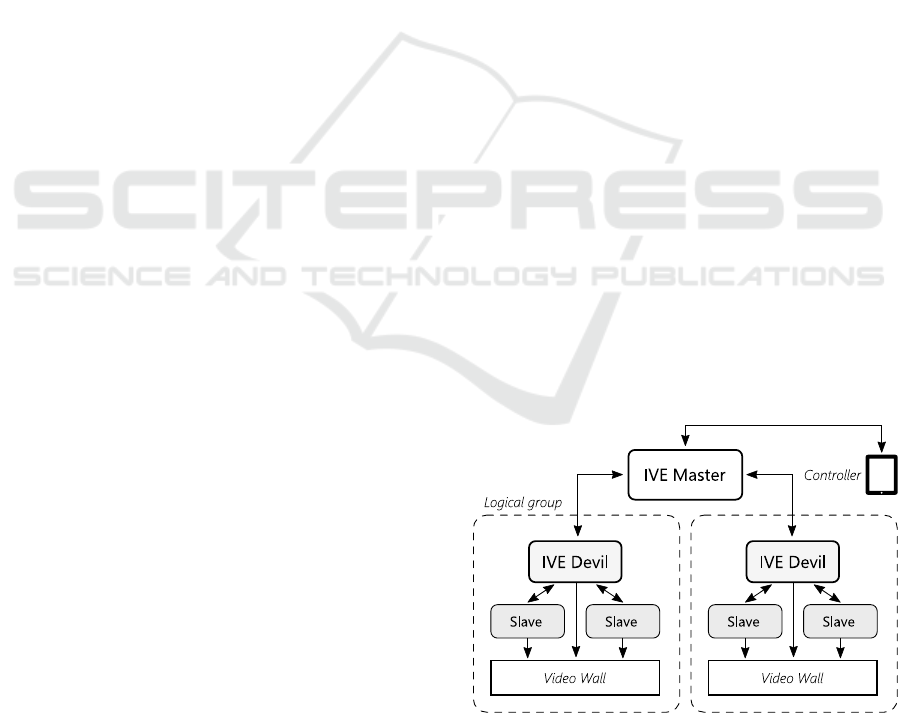

Figure 2: IVE architecture overview.

Extensible Immersive Virtual Environments for Large Tiled Video Walls

325

3.1 Architecture

The Immersive Virtual Environment (IVE) system is

designed to support multiple independent video walls.

IVE installations are split in logical groups, each one

of which is bound to a display surface that has no in-

tersections with surfaces of any other group.

IVE is structured in a centralized master/slave

topology as depicted in Figure 2: the whole system is

managed by a single supervising IVE Master, while

each independent display region (i.e., a logical group)

is controlled by an IVE Devil server. On its turn, each

Devil may control any given number of IVE Slave

servers, whose activities and interactions are still or-

chestrated by the master server.

Components of an IVE system are the following:

• IVE Master: is a lightweight standalone server

implemented in Java, exposing a high-level com-

munication protocol. It manages the system state,

controls communication channels to the clients

and to groups of slave servers.

• IVE Devil: overviews a single logical IVE group,

dedicated to an independent display surface. The

server receives commands and communicates

events back to the Master, thus keeping the sys-

tem’s state in sync. A Devil server internally

also runs a SAGE Free Space Manager instance

and controls it through its “Event Communication

Layer” (see 2.2), thus controlling the output to the

video wall.

• IVE Slave: is a passive worker of a logical IVE

group. There may be multiple instances inside the

same group, each running a SAGE Receiver pro-

cess internally. A Slave also has the ability to run

any number of SAGE Applications. Local and re-

mote applications can stream video data to their

SAGE Receiver and thus contribute to the video

output.

Generally, each component of IVE owns and controls

one or more SAGE components internally. Every IVE

logical group contains one Devil and any number of

Slave instances, which on their turn respectively man-

age the SAGE FSM (conﬁgured to work on the logical

group’s display), the Receivers and any Application

instance.

Which and how many instances of SAGE com-

ponents are handled by what IVE component is de-

scribed in Table 1.

On a large system, components will normally be

located on multiple machines in order to split the

load and to accomodate for physical distance between

components: a Devil node will control a certain num-

ber of Slaves installed on separate machines, depend-

Table 1: Relationship between IVE and SAGE components.

IVE SAGE

Master —

Devil

Free Space Manager (1)

Receiver (0-1)

Slave

Receiver (1)

Application (0+)

ing on the requirements of the installation. The total

number of machines needed mainly depends on the

size of the video wall and the covered surface’s ge-

ometry.

The SAGE Receiver instance running on an IVE

Slave node can drive a number of displays (and cor-

responding tiles on the video wall) that is limited

only by its graphical hardware and, possibly, by soft-

ware limitations. Off-the-shelf consumer hardware

and software usually cannot run more than four dis-

plays at a time from a single workstation. These con-

straints aside, the whole output surface of a logical

group can be managed by a single SAGE Receiver in-

stance.

In fact, on small-scale systems all components can

in principle run on the same physical machine. Both

the role of the Devil and the Slave can be taken over

by the same node, which will also manage all SAGE

components required (the FSM, the Receiver and all

applications generating video data). Moreover, the

IVE Master itself can be run on the same machine as

well, in order to handle communication with client

controllers.

3.2 IVE Management

All IVE components, Master, Devil and Slave, are

implemented in Java and run as standalone headless

processes running on a standard Java Virtual Machine

(JVM) instance.

Underneath the IVE software layer, IVE Devil and

Slave nodes will manage their respective SAGE pro-

cesses following the commands issued by the Master

node. All SAGE components run as standalone pro-

cesses, started and monitored by the IVE software:

this includes the FSM (managing the whole frame

buffer directly mapped onto the display surface of

that particular IVE group), SAGE Receivers (manag-

ing tiles of the frame buffer) and all applications gen-

erating the output video data.

When the IVE Master detects a new node coming

online (according to the procedure in section 3.4) it

opens a new bidirectional communication using TCP

sockets. Additionally, controller clients that manage

the IVE installation open a TCP communication chan-

nel to the Master node.

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

326

Communication between the IVE Master and

other parties occurs through a simple message ex-

changing protocol. Messages sent by the Master or by

a Controller client are called Commands, while those

sent in the opposite direction are called Events, up-

dating the Master or a Controller about a state change

occuring at a lower level.

IVE nodes support a variety of commands and

events, including:

• Starting or stopping SAGE instances, shutting

down the system.

• Starting, moving, resizing, rotating, terminating

or setting the transparency of applications. Video

players can start playback, pause or seek inside a

video ﬁle.

• Notiﬁcations about a change of application state.

Messages are encoded as simple JSON objects. Each

message contains at least a “type” member with a

string value, describing the kind of command or event

it represents. Additional data is encoded as further

members of the message JSON object.

For instance, the command to resize an application

running on an IVE Slave is formatted as follows on the

wire:

{

type: "SAGE_CMD_RESIZE_W",

appId: <SAGE APP ID>,

left: 0, right: 100,

top: 0, bottom: 100,

isFullscreen: false

}

In this case, the command sent by a Controller is

forwarded by the IVE Master to the IVE Devil man-

aging the application with a SAGE ID matching the

‘appId’ parameter. The IVE Devil then manipulates

the SAGE FSM to comply with the resize command,

as further described in section 3.3.

In addition to commands to start or manipulate ap-

plications, the IVE protocol also exposes a rich set of

APIs that allow Controller clients to query the state

of the system and present a coherent user interface

to the end-user. Any device capable of connecting to

the network and exchanging JSON messages through

TCP can be used to control the system.

By relying on the same Java code base of the IVE

servers, an Android application was developed, al-

lowing the user to easily and interactively control the

scenario using a tablet.

The message exchange protocol between IVE

nodes is very lightweight, requiring only the transmis-

sion of simple text messages, thus IVE nodes do not

need to be connected by a high-bandwidth network.

3.3 Interoperating with SAGE

A SAGE installation is composed by several indepen-

dent processes, that cannot easily be managed through

a single interface.

As described before, SAGE provides a simple

SAIL interface for applications to stream video data

to the output display (through a SAGE Receiver), but

this interface provides no coherent way to manage the

application itself or to interact with it. In fact, other

extensions to SAGE have been proposed in order to

overcome this limitation and to let users control ap-

plications (Fujiwara et al., 2011).

The default “Event Communication Layer” pro-

vided by the SAGE FSM exposes a simple text-based

interface to broadcast updates, in the form of strings

separated by newlines, and taking commands in a

similar form. The layer allows high communication

rates with low overhead. However the barebones for-

mat of the messaging protocol make the task of keep-

ing track of the system’s status burdensome.

SAGE messages have 4 ﬁxed-size data ﬁelds and

1 payload ﬁeld, all separated by null characters, fol-

lowing the layout seen in Table 2.

Table 2: Layout of a SAGE message.

Distance 8 bytes

Code 8 bytes

App code 8 bytes

Size 8 bytes

Payload —

The Distance and App code parameters appear

to be generally unused. Message Codes are de-

ﬁned by the SAGE documentation: commands are

in the 1000–1100 range, while event codes start from

40000. Payloads are expressed as a string of parame-

ters separated by ASCII spaces (Jeong et al., 2005).

For instance, the same resizing command gener-

ated by the IVE Master seen before will generate a

SAGE command on the IVE Devil running the appli-

cation as seen in Figure 3. The ‘1004’ value repre-

sents the command code for resizing. Inside the pay-

load, the ‘ID’ value will be replaced by the actual

SAGE application ID of the target application.

Application IDs are unique for each SAGE Ap-

plication in the context of a single FSM server. When

a new application process is spawned by a command

by the Master, the IVE Devil registers the applica-

tion to its FSM instance using a SAGE command with

code ‘1001’.

In order to keep the association between running

processes and application registrations up to date, all

IVE Devil instances also listen to application updates

Extensible Immersive Virtual Environments for Large Tiled Video Walls

327

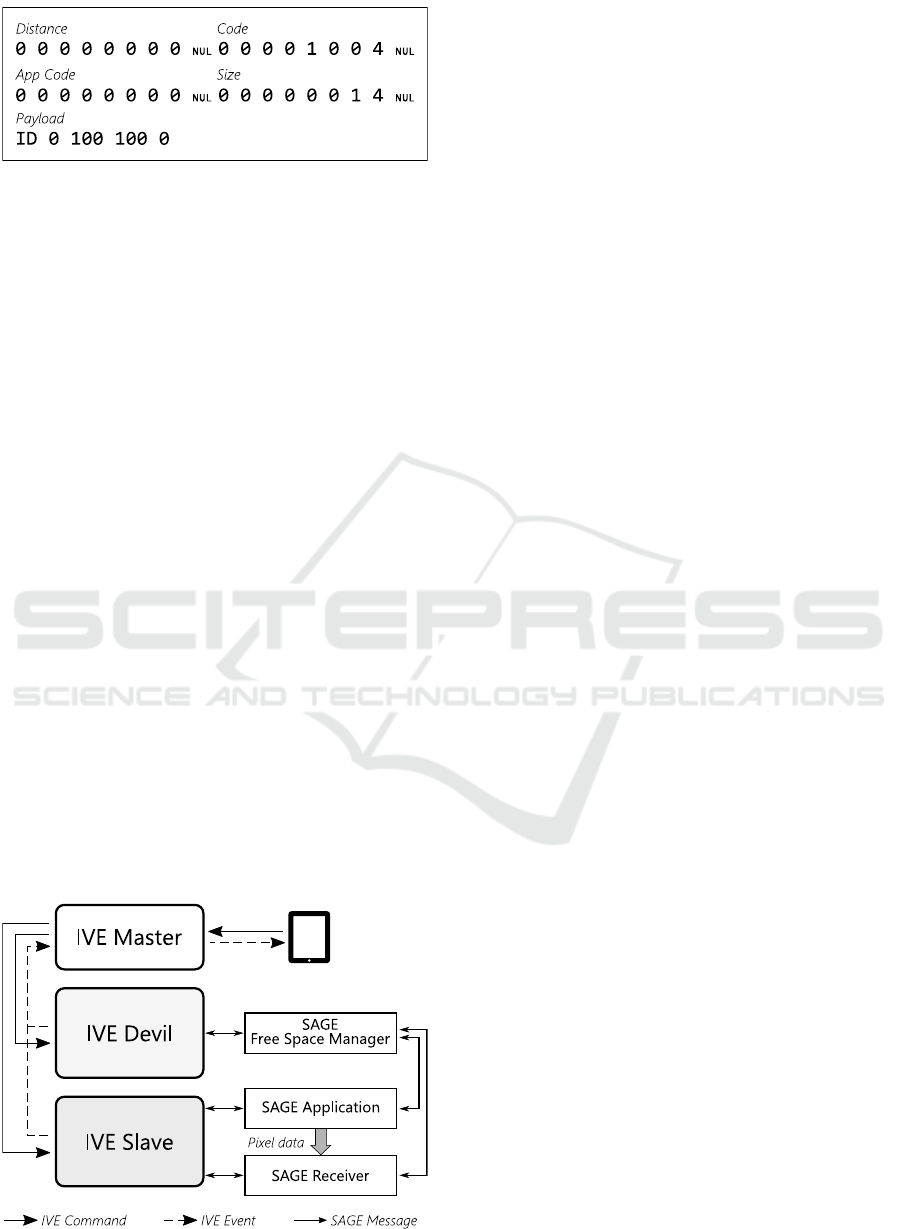

Figure 3: Sample SAGE message of a resize command.

from the FSM process, which appear as SAGE mes-

sages with code ‘40001’. Any update to the applica-

tion’s state are surfaced through these event messages

and intercepted by the IVE process. These updates

contain information such as the unique ID assigned to

a newly registered application and its current position,

size and z-axis ordering.

At the same time, updates are also forwarded to

the IVE Master server, in the form of an IVE event

that contains a reference to the application, a refer-

ence to the IVE Devil, and the ID generated by the

FSM instance owning the application (i.e., control-

ling the frame buffer the application is contributing

to and where it is registered at). The Master server

keeps an updated map of all running applications and

their metadata, in order to uniquely identify running

processes and to track their activity.

How SAGE and IVE components exchange mes-

sages, commands and events is represented in Fig-

ure 4.

The server attempts to keep a coherent and com-

plete vision of the entire system, which goes be-

yond the limited vision that a SAGE server has about

its environment and the Application running therein.

For instance, the IVE Master can keep track of

whether a video player application is playing, paused

or stopped—based on its last control interaction—

and is able to provide a full snapshot of the system’s

Figure 4: Message routing.

state through its APIs. Commands, events and status

queries exposed by IVE enable a much more power-

ful and rich message exchange between the system

and its client controllers.

3.4 Auto Discovery

Being intended to work on dedicated installations,

SAGE mostly relies on static conﬁguration ﬁles for

its setup. Instead, IVE is designed to work in an en-

vironment where subsets of the system may not be

available or may be intentionally turned off. More-

over, all components of an IVE installation are meant

to be located on the same network. Thus, IVE can

rely on an auto discovery process in order to detect

the available components as they come online.

System start-up works as follows:

1. IVE Master and Devil processes start as soon as

the boot phase of the systems where they respec-

tively reside is completed.

2. IVE Devil nodes announce their presence with pe-

riodical UDP broadcast messages on the network.

3. The IVE Master will detect newly started Devils,

nel. Devils are setup by the Master according to

the conﬁguration deﬁned by the user during the

initial installation.

4. IVE Devils start their SAGE processes, including

the FSM and the Receiver. These SAGE conﬁgu-

rations are highly tailored to their hardware setup

and depend on preset local conﬁguration ﬁles.

5. The Master node will then load the preconﬁgured

scenario, starting applications by sending com-

mands to the Slaves, and begin receiving events

from them in order to maintain track of the sys-

tem’s state.

3.5 Load Balancing

A SAGE Application can be drawn on any region of

the video wall, sometimes overlapping two or more

tiles which are controlled by different SAGE Re-

ceivers. When the application and the receiver are lo-

cated on different physical machines, some part of the

video data generated by the application must be trans-

ferred through the network in order to reach the video

wall. Since SAGE mostly transfers raw video data,

this may put a very high strain on the network, quickly

reaching gigabit-per-second bandwidths (Singh et al.,

2004).

IVE is designed to keep a high level overview of

where applications run and where they are displayed.

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

328

Thus, the IVE Master node takes into account the tar-

get region where an application will be shown and,

when starting a new SAGE Application process to

generate video data, will spawn the process on the

nearest machine to the Receiver (ideally on the very

same machine).

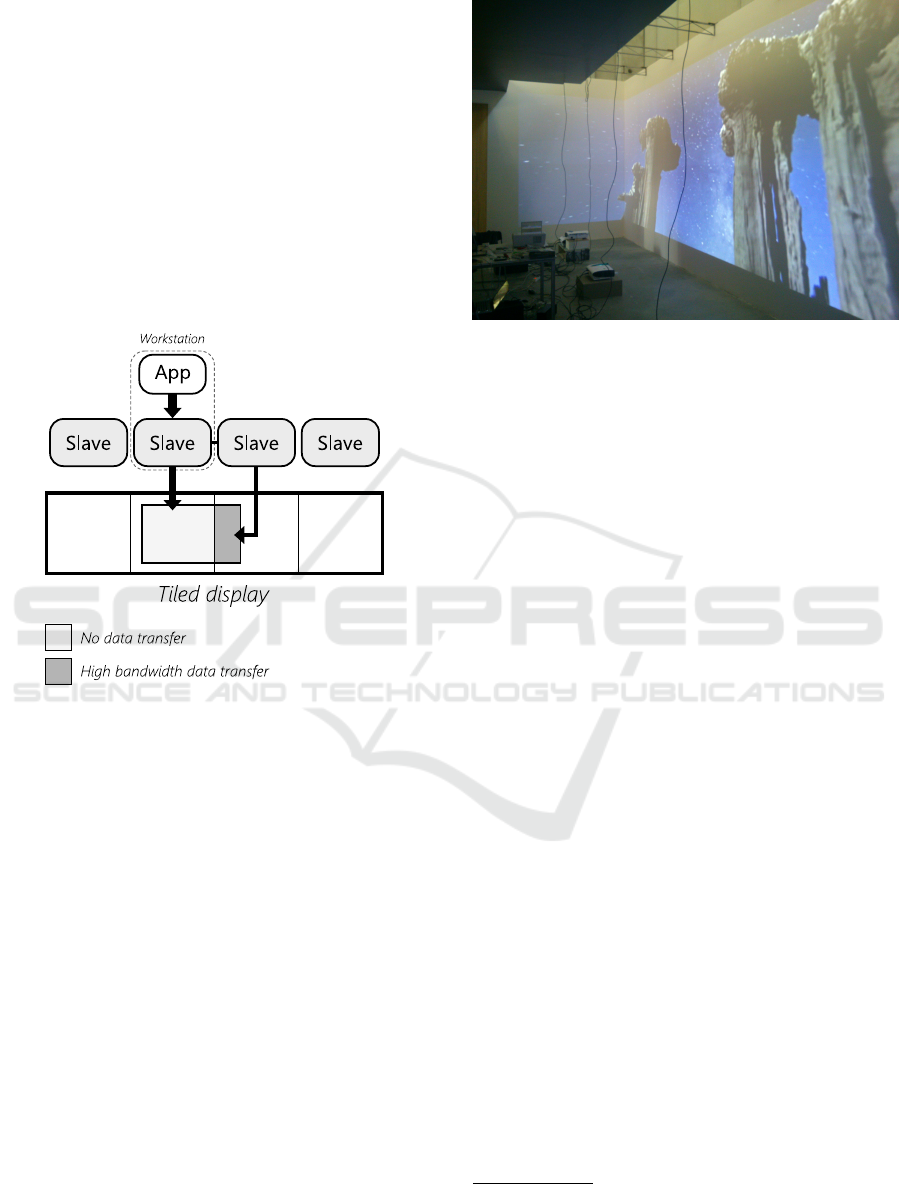

As seen in Figure 5, when an application is run-

ning on the same IVE Slave as its receiver, all data

transfer through the network can be avoided. When a

part of the target region, albeit small, overlaps on an-

other tile of the video wall, the video data must be

streamed from the application to the corresponding

receiver, which requires a high-bandwidth data trans-

fer.

Figure 5: Application load balancing.

At the moment, the IVE Master only takes into

account the initial starting region where an applica-

tion will be drawn when selecting a machine to spawn

the process. If an application is moved or scaled, its

draw region may move to another tile. In this case,

relocating an application process from one machine

to another is possible for simple, static applications

(e.g., image viewers), but still poses a challenging

problem for applications like videos or rendered out-

puts, which would need to transfer their state and re-

sume seamlessly on another machine.

4 HARDWARE SETUP

A prototypal installation of the IVE system has been

realized in a dedicated room for demonstration and

testing purposes, shown in Figure 6. The main wall of

the room measures about 11 × 3 m, while secondary

side walls measure 2 × 3 m.

The setup is intended to entirely cover the main

surface and the lateral walls of the room with a sin-

Figure 6: IVE installation running an immersive scenario.

gle complex visualization. To this purpose, 8 BenQ

LW61ST projectors where used for the main surface

and 2 identical projectors for each side wall, totaling

12 projectors to cover the entire surface. The overall

projected frame buffer accounts for 7680 × 1440 total

pixels (roughly 11 mega pixels).

The surface is split in three logical regions, each

managed by a single IVE Slave node. The workstation

managing the main screen also runs the IVE Master

and a Slave server at the same time. (The adopted

setup makes IVE run as a standalone system, as a sin-

gle logical group, however the IVE Master may in fact

be located outside the room or even remotely, while

also managing other IVE Devils at the same time.)

All IVE nodes are connected by a high-

performance 10 gigabit network

, which supports

high-bitrate raw frame buffer data passing from one

server to another. The network makes use of one Net-

gear Prosafe XS708E gigabit ethernet switch and

workstations are equipped with Intel X540-T1 net-

work cards.

The central workstation running the Master and

the main Devil instance has the more onerous work-

load, having to drive 8 projectors while also con-

trolling the other two machines. The workstation

is equipped with two NVIDIA Quadro K5000 video

cards (each sporting 2 DVI and 2 Displayport video

outputs) and an NVIDIA Quadro Sync card. The

two secondary computers driving the 4 projectors on

the side rooms are equipped with single NVIDIA

GTX670 video cards (providing 2 video outputs

each). Both kinds of workstation are also equipped

with Intel i7 3770 processors, SSDs and respectively

8 and 4 GB of RAM.

This kind of high-bandwidth network was found to be

necessary for the playback of 4K videos. For lower resolu-

tion video sources, a 1 gigabit network would sufﬁce.

Extensible Immersive Virtual Environments for Large Tiled Video Walls

329

Each machine runs Ubuntu 12.04 LTS, using the

Compiz desktop manager and the LightTwist plug-in

for projection deformation correction and alignment.

5 CONCLUSIONS

The proposed IVE system provides an extensible

management solution for complex video installations,

composed of one or more large-scale video walls

driven by SAGE.

The IVE system is capable of managing multiple

SAGE instances, hiding the complexity inherent in

managing and interacting with SAGE processes and

applications through a coherent front-end that keeps

track of the underlying system’s state. All of IVE’s

features are accessible through high-level APIs that

can be used by any software client, including mobile

applications.

IVE also provides several extension points, pos-

sibly including interfaces for other systems and pro-

tocols (including KNX for domotic devices, lighting,

odor diffusers, etc). Interactive or passive scenarios

can be implemented through the programmable APIs.

5.1 Future Work

In the near future, the adoption of multimedia instal-

lations made possible by IVE will expand beyond the

usage in academic institutions and art installations,

eventually reaching ofﬁces and private homes. Such

large-scale visualizations will not only be limited to

collaborative work, but also include immersive enter-

tainment, multisensorial experiences and even more

passive uses, like digital wallpapers.

Such scenarios shall be explored, providing new

use-cases for the adoption of IVE other than large data

visualization and entertainment. In fact, the prototype

used to test IVE has been adapted and will be tested

in a interactive multisensorial housing installation.

Furthermore, since IVE relies on a large number

of distributed components, the possibility of running

the whole system or parts of it on low-power embed-

ded systems will be explored. In particular, machines

running speciﬁc applications or the SAGE FSM could

be replaced by a cluster of embedded devices that can

be efﬁciently managed by the supervising IVE Master

server.

REFERENCES

Cho, Y., Kim, M., and Park, K. S. (2012). Lotus: compos-

ing a multi-user interactive tiled display virtual envi-

ronment. The Visual Computer, 28(1):99–109.

DeFanti, T. A., Acevedo, D., Ainsworth, R. A., Brown,

M. D., Cutchin, S., Dawe, G., Doerr, K.-U., Johnson,

A., Knox, C., Kooima, R., et al. (2011). The future of

the CAVE. Central European Journal of Engineering,

1(1):16–37.

Fujiwara, Y., Ichikawa, K., Takemura, H., et al. (2011).

A multi-application controller for SAGE-enabled tiled

display wall in wide-area distributed computing envi-

ronments. Journal of Information Processing Systems,

7(4):581–594.

Jeong, B., Jagodic, R., Spale, A., Renambot, L., Aguilera,

J., and Goldman, G. (2005). SAGE documentation.

https://www.evl.uic.edu/cavern/sage/documentation/

SAGEdoc.htm. Accessed: 2015-09-28.

Jeong, B., Renambot, L., Jagodic, R., Singh, R., Aguil-

era, J., Johnson, A., and Leigh, J. (2006). High-

performance dynamic graphics streaming for scalable

adaptive graphics environment. In SC 2006 Confer-

ence, Proceedings of the ACM/IEEE, pages 24–24.

IEEE.

Klosowski, J. T., Kirchner, P. D., Valuyeva, J., Abram, G.,

Morris, C. J., Wolfe, R. H., and Jackman, T. (2002).

Deep view: high-resolution reality. Computer Graph-

ics and Applications, IEEE, 22(3):12–15.

Ni, T., Schmidt, G. S., Staadt, O. G., Livingston, M., Ball,

R., May, R., et al. (2006). A survey of large high-

resolution display technologies, techniques, and ap-

plications. In Virtual Reality Conference, 2006, pages

223–236. IEEE.

Renambot, L., Johnson, A., and Leigh, J. (2005). Lamb-

daVision: Building a 100 megapixel display. In

NSF CISE/CNS Infrastructure Experience Workshop,

Champaign, IL.

Renambot, L., Rao, A., Singh, R., Jeong, B., Krishnaprasad,

N., Vishwanath, V., Chandrasekhar, V., Schwarz, N.,

Spale, A., Zhang, C., et al. (2004). SAGE: the scal-

able adaptive graphics environment. In Proceedings

of WACE, volume 9, pages 2004–09. Citeseer.

Singh, R., Jeong, B., Renambot, L., Johnson, A., and

Leigh, J. (2004). Teravision: a distributed, scalable,

high resolution graphics streaming system. In Cluster

Computing, 2004 IEEE International Conference on,

pages 391–400. IEEE.

Smarr, L. L., Chien, A. A., DeFanti, T., Leigh, J., and Pa-

padopoulos, P. M. (2003). The OptiPuter. Communi-

cations of the ACM, 46(11):58–67.

Zobel Jr, R. W., Bennett, D. T., Idaszak, R. L., and Ko-

vach, D. (1998). Multi-pieced, portable projection

dome and method of assembling the same. US Patent

5,724,775.

GRAPP 2016 - International Conference on Computer Graphics Theory and Applications

330
