Semantic Multi-sensor Data Processing for Smart Environments

Fano Ramparany

Orange Labs, 28 chemin du Vieux Chene, 38243 Meylan, France

Keywords:

Semantic Web, Internet of Things, Smart Home, Smart Sensors.

Abstract:

One salient feature of data produced by the IoT is its heterogeneity. Despite this heterogeneity, future IoT

applications including Smart Home, Smart City, Smart Energy services, will require that all data be easily

compared, correlated and merged, and that interpretation of this resulting aggregate into higher level context

better matches people needs and requirements. In this paper we propose a framework based on semantic

technologies for aggregating IoT data. Our approach has been assessed in the domain of the Smart Home

with real data provided by Orange Homelive solution. We show that our approach enables simple reasoning

mechanisms to be conducted on the aggregated data, so that contexts such as the presence, activities of people

as well as abnormal situations requiring corrective actions, be inferred.

1 INTRODUCTION

An IDC study (idc, 2015) predicts that the number

of connected objects is approaching 200 billion today

with 7% (14 billion) already connected to the internet.

Most of these objects automatically record, report and

receive data. Although the volume of these IoT data

currently represents only 2% of the world’s data, the

same study report that by 2020 it will increase up to

10%.

This data has been characterized by IBM data sci-

entists along four dimensions: volume, variety, veloc-

ity and veracity.

In this paper we mainly address the Variety issue,

which further refer to incompatible data formats, non-

aligned data structures and inconsistent data seman-

tics.

IoT data is heterogeneous both semantically (the

temperature in my bedroom doesn’t have much to

do with the positioning of my fridge in the kitchen)

and syntactically (a temperature is a ﬂoating point

number expressed in celsius degrees, whereas a posi-

tion is a coordinates pair expressed in meters with re-

spect to some deﬁned reference origin). Despite this

heteogenity, future IoT applications including Smart

Home, Smart City, Smart Energy services, will re-

quire that all data be easily compared, correlated and

merged and that interpretation of the resulting aggre-

gate into higher level context better matches people

needs and requirements, bringing user experience at

the next level. In this paper we propose a framework

based on semantic technologies to aggregate IoT data.

Our approach has been assessed in the domain of

the Smart Home with real data provided by Orange

Homelive solution. We show that our approach en-

ables simple reasoning mechanisms to be conducted

on the aggregated data, so that contexts such as the

presence, activities ofpeople as well as abnormal situ-

ations requiring corrective actions, can be recognized

and properly handled.

In the next section we state the problems and draw

the related state of the art. We then introduce the ex-

perimental platform that we used, to develop and as-

sess our solution approach. This will enable us to il-

lustrate the technical and scientiﬁc challenges that we

face with a real Smart Home setting. We then de-

velop our semantic modeling approach and elaborate

on the beneﬁt of this approach in terms of reasoning

and high level interpration that this model allows. We

ﬁnally discuss our approach with its short terms per-

spectives and will unveil a ﬁrst repertoire of use-cases

exploiting our approach that will improve the experi-

ence of Smart Home occupants.

2 PROBLEM STATEMENT

In a previous study we already pointed out this issue

and named it “aggregation of heterogeneous pieces

of information” (Ramparany et al., 2014). We men-

tioned this recommendation use case: Suppose that

we could gather in the same model, the weather fore-

Ramparany, F.

Semantic Multi-sensor Data Processing for Smart Environments.

DOI: 10.5220/0005729601990206

In Proceedings of the 5th International Confererence on Sensor Networks (SENSORNETS 2016), pages 199-206

ISBN: 978-989-758-169-4

199

cast for the next 4 hours, a person geographical loca-

tion, her/his preferences/proﬁle/activities and the list

of public swimming pools in the area. Having these

multiple information in a single place makes it easy

to reason upon and for instance to produce person-

nalized recommendation such as enjoying a dip in the

nearest swimming pool if the person is available and

enclined to do so.

Some work has been conducted in analyzing the

beneﬁt of semantic modeling in the domain of per-

vasive computing ((Ramparany et al., 2007), (Sorici

et al., 2015), (Ye et al., 2015)), but to our knowledge

none have pushed to the point of implementing and

evaluating it on real life data.

The value of semantic technologies has been rec-

ognized for sometimes now for integrating database

schema, data modeling and processing.

2.1 Semantic Data Integration

Data integration research has been focused in

database schema integration approaches and the

use of ontologies and related semantic technologies

to provide data consistency among heterogeneous

database schemas. The theoretical foundations of

this Ontology-Based Data Access (OBDA) (Lenz-

erini, 2011) have been thoroughly investigated. Pro-

totypical implementations have been also conducted

such as Quest (Rodriguez-Muro et al., 2012) or MAS-

TRO (Calvanese et al., 2011). As a matter of fact,

internally, ontologies will be based on DL-Lite logic

which essentially captures standard conceptual mod-

elling formalisms, such as UML Class Diagrams and

Entity-Relationship Schemas, and are at the basis of

OWL 2, the current W3C standard language for on-

tologies (W3C, ).

The Web since its origins has been a vehicle of

data interchange. However, automatic discovery and

integration of Web data has been impractical until

the availability of the RDF framework and RDF data

sources. The ﬂagship initiative on this area, Linked-

Data (Berners-Lee, 2006) has fostered both the size

of the structured Web data and its exploitation (Bizer

et al., 2009). One of the pillars of this idea is the

possibility of retrieving speciﬁc data in the web of

data; this task is performed by SPARQL (Hartig et al.,

2009), a SQL-like language that enables querying a

RDF store. Also, the Web currently explores other

approaches based on embedded JSON information or

microformats, using the tag facilities for HTML. In

particular, a speciﬁc syntax for using JSON called

JSON-LD has ben recently introduced to serialize

LinkedData with the motivation to reduce the size

of RDF documents compared to the size yielded by

XML serialization.

2.2 Semantic Data Modeling

One major beneﬁt of expressing data representation

with semantic langage relates to its ability to provide

high level and expressive abstractions. For instance,

in the IoT, data abstraction is concerned with the ways

that the physical world is perceived and managed.

In this domain, a Semantic Sensor Network ontol-

ogy (Compton et al., 2012) has been developped and

proposed at the W3C for standardization.

This vision of introducing abstraction based on a

semantic approach, i.e. on ontologies shared by the

IoT community is being pushed forward within sev-

eral Standard Deﬁning Organisations such as ETSI

M2M and OneM2M. One motivation of semantic

abstraction resides in interacting with higher level

entities rather than with sensors and actuators and

thus making it possible to understand data without

prior knowledge about their sources (device, web ser-

vice,...)

2.3 Semantic Data Processing

Semantic web technologies allow logical reasoning so

that new information or knowledge can be inferred

from existing assertions and rules. IoT applications

will require reasoning for various purposes such as

resource discovery, data abstraction and knowledge

extraction. To this purpose, speciﬁc algorithms are

usually implemented within dedicated reasoners (e.g.

Pellet, FACT++ and Jena) so developers do not need

to be concerned with the complexities of the reason-

ing process itself. Examples of IoT resource discov-

ery in the linked data can be found in (Pschorr et al.,

2010).

We aim at applying this approach to integrating

IoT Data and to experiment this approach in a real

operational setting.

3 EXPERIMENTAL SETTING

As we have set high the ambition of assessing our ap-

proach in today’s home, we have based our experi-

mental platform on an off the shelf home automation

solution called Homelive (hom, ). Homelive allows

people to manage their home appliances remotely.

The Homelive pack offers a range of intelligent sen-

sors and connected devices, broughtby Orange’s part-

ners: weather monitors, thermostats, light switches,

sound and movement detectors, water leak and smoke

detectors, to name a few. We have thus instrumented

SENSORNETS 2016 - 5th International Conference on Sensor Networks

200

a space in our building with Homelive connected de-

vices. It is worth noting that this space was already

used by people for lunch around noon, coffee breaks

in the morning, tea breaks in the afternoon, and for

short breaks throughout the day during which people

could engage in informal discussions or simply get

some rest. Deploying Homelive in this space didn’t

have any impact on the way it was used. More specif-

ically, we have installed 5 move detectors (entrance,

kitchen, living and dining areas), 4 door state sen-

sors (main entrance, fridge, freezer, medecine cabi-

net, drawer below the sink), 5 luminosity sensors (in-

tegrated in the move detectors), 5 thermometers (in-

tegrated in the move detectors) and 5 smart plugs

(fridge, 2 coffee machines, boiler, TV set)

Each of these device is associated to a physical ob-

ject to which it has been attached or into which it has

been placed. For example, each electrical appliance

including the fridge, the two coffee machine, a boiler

and the TV set has been plugged into a smartplug,

which itself is plugged onto the wall power socket.

The number of some devices seem overdone, such as

thermometers or the luminosity sensors, but actually,

these sensors are integrated into the move detector de-

vice. Such devices are thus qualiﬁed as 3-in-1 which

simply means that these physical device embed 3 dif-

ferent sensors.

Each device is assigned a name which makes ex-

plicit its type. Thus smart plugs have been named

MLPlug1

MLPlug2

MLPlug3

MLPlug4

and

MLPlug5

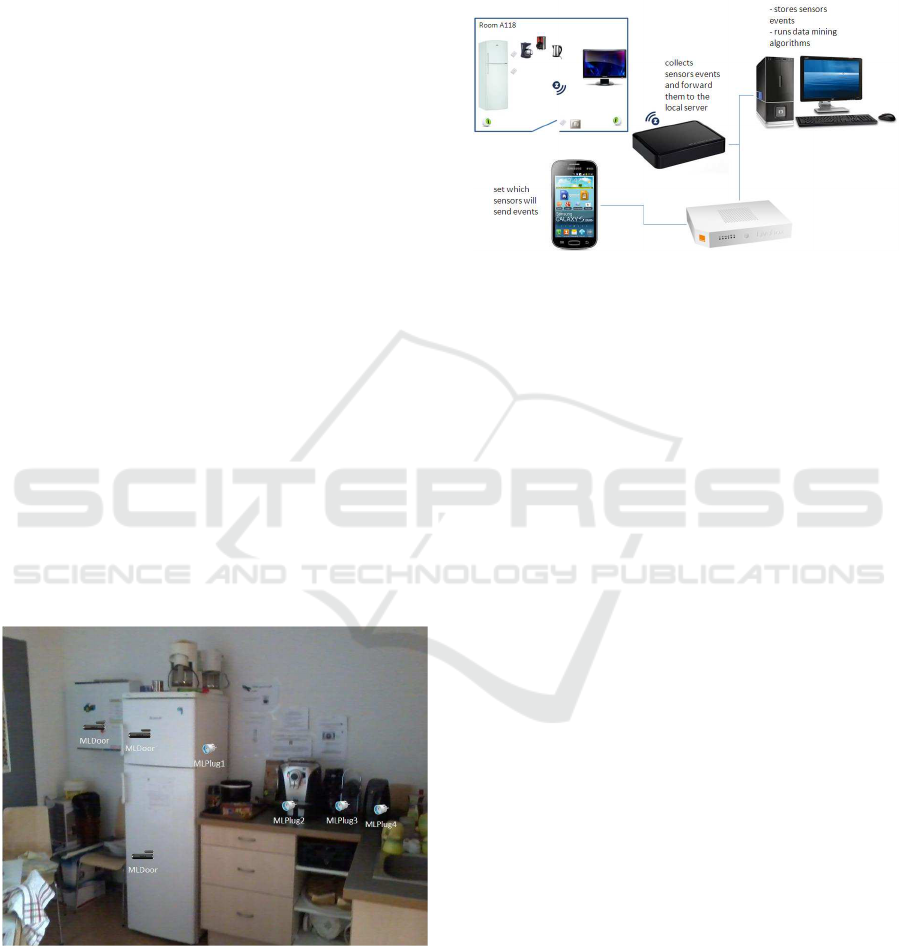

The picture displayed in Fig. 1 details where each

device has been placed.

Figure 1: Devices deployment.

All these devices are connected through the wire-

less communication technology Z-Wave (zwa, ). A

Home Automation Box (HAB) is a dedicated gateway

which makes it possible to access these devices from

the IP world as depicted in Fig. 2, and make them

part of the HAN (Home Area Network). In order to

further extend their reachability from the HAN to the

WAN (Wide Area Network), this HAB has to be con-

nected to another gateway, such as the white box at

the bottom of the ﬁgure. In our case it was an Orange

Livebox.

Figure 2: Experimental setup.

In our experimental setup, the HAB collects all

devices events and forwards them to a local server

which will handle the aggregation and interpretation

task.

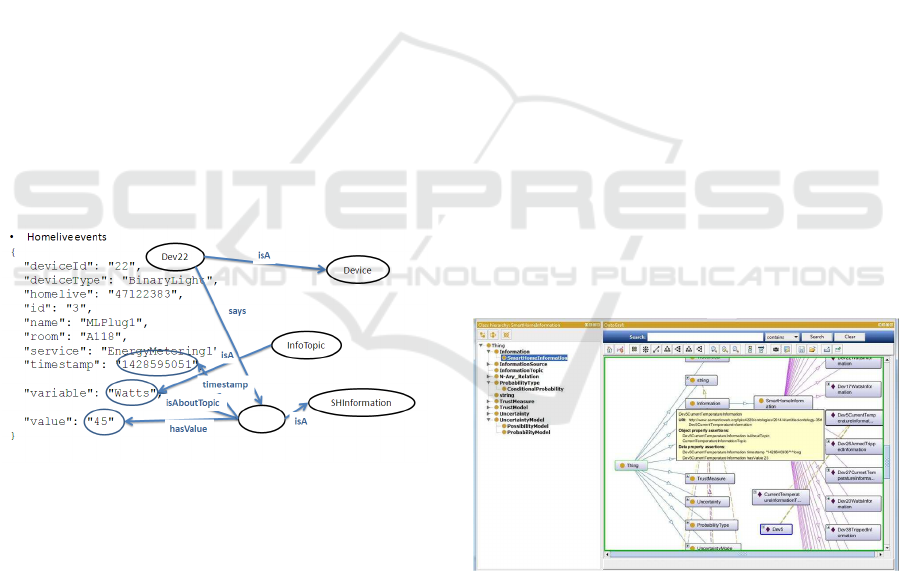

Such device events are formatted in json, follow-

ing a ﬁxed “key-value” schema. An example of such

an event emitted by smartplug

MLPlug1

is as shown

in Fig. 3

From this comprehensiveevent description, which

consists of 10 key-value pairs, we will mainly keep

the following four:

timestamp

is the date the event was received

by the HAB. It is expressed as the number of sec-

onds elapsed since jan. 1

rst

, 1970 at 1:00AM.

name

is the name of the device. As mentioned earlier

we made is so that the type of the sensor could be

identiﬁed from its name. For instance, we know

from the name

MLPlug1

that the event has been

emitted by a smartplug.

variable

is the physical parameter that the

event is about. In the event sample above, this pa-

rameter is the current electrical power consumed

by the appliance it supplies.

{ "deviceId": "22",

"deviceType": "BinaryLight",

"homelive": "47122383",

"id": "3",

"name": "MLPlug1",

"room": "A118",

"service": "EnergyMetering1",

"timestamp": "1428595051",

"variable": "Watts",

"value": "45" }

Figure 3: Event Description in JSON.

Semantic Multi-sensor Data Processing for Smart Environments

201

value

is the current value of this physical parame-

ter.

As you can notice, the above deﬁnitions of the keys

are necessary for the reader to understand what the

values associated to these keys mean, although the

name of the keys have been chosen in a way that the

reader would have ﬁgured out these deﬁnitions eas-

ily by himself. For an information processing system

to correctly interpret an event, the meaning should be

made explicit and even be embedded in the represen-

tation. In the section 4 we explain how we make this

possible. But before that, in the following section we

elaborate on why, remaining at the basic event de-

scription is too low a level to expect any interesting

interpretation of the information it conveys.

4 SEMANTIC HOME DATA

IoT sensors are usually very talkative and versatile.

For instance, in our Homelive platform, the smart-

plugs regularly delivers dense streams of power mea-

surements that amount to up to 10 measures per min-

utes, although these smartplugs have been conﬁg-

ured so that a new measurement is issued only if the

current power consummed differs from the previous

measure sent, by more than 10Watts. More generally

Homelive devices send an event whenever a signiﬁ-

cant change in the data it measures occurs.

Such an abundance of information is superﬂuous

to the inhabitants as well as to most smart home appli-

cations. These cumbersome data could be synthesized

by applying one or more of the following policies:

• compute a mean value over a time slice of say

10mn

• compute a general trend from which strong in-

creases and decreases could be easily detected

• or check compliancy to predetermined thresholds.

such abstraction of raw data will uplift the level of

information and will place it closer to the home occu-

pants’concerns.

The main idea is that we want to bridge the gap

between low level raw data and high level informa-

tion, so that the step that remains to be done to make

a decision or to engage an action will be straightfor-

ward.

One positive side effect not to be underrated is that

through this abstraction process, we reduce the size of

the information and thus reduce the trafﬁc. The gain

in trafﬁc size is particularly high if the this abstrac-

tion process is carried out close to the source of the

information, i.e. close to the sensor. Having this pro-

cess handled by the HAB or at least in the HAN is

technically a reasonable solution.

In order for a computer system to be able to pro-

cess this low level data, it is necessary to reformat this

data into a representation that incorporates the seman-

tics of the data as well as the data itself. Applied to

the data produced by our homelive devices, this will

result into a semantic model the SmartHome data. In

the next section we explain this reformating process.

We ﬁrst introduce the architecture of our system

so that we get an overall perspective on where the raw

data comes from, where the target semantic model

will be stored and how it will be further exploited for

high level interpretation and reasoning. This architec-

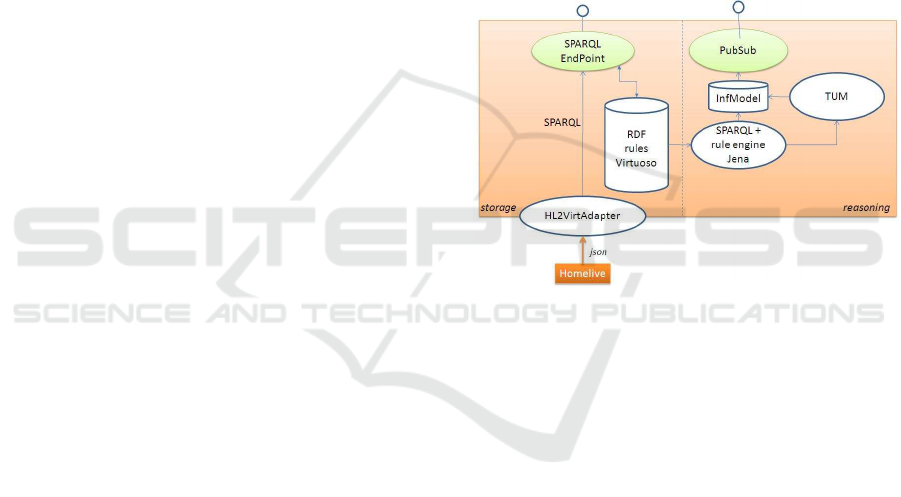

ture is depicted on Fig. 4

Figure 4: System architecture.

Input low level data is provided in a

push/asynchronous mode by the Homelive HAB,

that we have represented as a rectangular box on

the lower left part of the diagram. As explained in

section 3, this data consists of a ﬂow of independent

events emitted by each Homelive device. The HAB

acts as a pass-through proxy which collects events

from each device and forwards them right away to

the local server, which has subscribed to receive such

events as mentioned before. Events are described in

json as shown in Fig. 3

Because we use the semantic web framework and

its associated modeling languages RDF/OWL, our

ﬁrst task is to interpret the data conveyed in the event

description in terms of elements of these languages.

An event is a piece of information that is produced

by an IoT device. Thus we create a concept represent-

ing this piece of information and one representing this

device. As this event is possibly not the ﬁrst one pro-

duced by this device, the concept representing this de-

vice might already exists. In which case, we don’t cre-

ate it but will refer to the existing one instead, as will

be shown later. Each key-value pair in this description

SENSORNETS 2016 - 5th International Conference on Sensor Networks

202

has to be properly annotated. Although those pairs

are syntactically similar to each other, each of them

express quite different things. For instance:

"variable": "Watts"

means that the event reports about a physical phe-

nomenon which is related to the rate at with elec-

trical energy is consumed. This phenomenon is

not speciﬁc to the event nor to the device that has

produced this event. Thus we need to relate the in-

formation conveyed by this event to a concept that

models this phenomenon. So, if this concept al-

ready exists we link the concept representing this

information to the concept representing the phe-

nomenon. If it doesn’t exist we will simply create

it. We call such concepts topics and create them

as instances of a class called

InformationTopic

The name of the link between Information in-

stances and InformationTopic instances is called

isAboutTopic

The rate of electrical energy con-

sumption is a quantitative characteristic of this

phenomenon, which in the OWL modeling lan-

guage we model as a datatype property link.

"value": "45"

means that the target of this datatype property link

should equate to the litteral value

The process of semantically annotating the event

description is illustrated in Fig. 5.

Figure 5: Homelive data semantic annotation.

As you see, some key-value pairs correspond to

links between existing concepts, some refer to con-

cepts that already exist or eventually that have to be

created, some refer to litteral values to be assigned to

concepts through links that already exist or eventually

that have to be created.

Such analysis can be only conducted by one or a

team of domain experts which collectively know the

domain ontology, i.e. the catalog of concepts classes

necessary to describe the application domain, the po-

tential links between instances of these classes, and

axioms that constrain the use of these links. An ex-

ample of such an axiom is that the arity of the re-

lation

hasValue

is 1, which means that a piece of

information can only has one value and not more.

Such axioms are necessary for the system to decide

on the policy to adopt upon reception of new events

from a device, which has already sent events about the

same topic in the past. Note that this is generally the

case, because once a device has been freshly provi-

sionned and sent its ﬁrst event to report about a phys-

ical phenomenon, its job is to update this report by

sending other events. If the involved relations, such

hasValue

is of arity 1 (or “is a functional relation”

in the OWL terminology), the current target node in

the model should be removed and replaced by the new

node created by the event abstraction process.

The result of annotating one event description

is a graph fragment consisting of a set of concepts

which are classes of the ontology or instances of

these classes, interrelated by relations of the ontolo-

gies. Some of these concepts are common to differ-

ent events. Which means that assembling these frag-

ments together will result into a larger graph which

will aggregate and relate the information conveyed by

the different event to each other. This graph gives an

overall account of the state of the physical environ-

nement as seen by the pool of devices collectively.

We call this state the situation. Then this graph con-

stitutes a semantic model of the situation.

A userfriendly way to visualize this aggregated

graph and more generally any RDF model, and to

navigate along its edges is to use the Prot´eg´e edi-

tor (pro, ). Using this editor, the semantic model of

our SmartHome data can be displayed as shown in

Fig. 6.

Figure 6: Browsing the model using Prot´eg´e editor.

The concepts classes of the ontology are displayed

as a hierarchical tree on the left part of the screen.

On the right part, concepts, links are displayed as a

graph. Instances are displayed on the right. Hovering

the mouse over nodes will popup datatype properties

revealing the name of the datatype link and its litteral

value. Hovering the mouse over links will reveal the

name of the link.

In the following section we show how this situa-

Semantic Multi-sensor Data Processing for Smart Environments

203

tion semantic model can be easily exploited to infer

higher level information, which can be directly pro-

cessed to improve the home occupants experience.

5 DATA INTERPRETATION

Several inferences can be drawn on the basis of this

semantic model. To give a glimpse of the variety

we can mention the following three which have been

identiﬁed has highly expected by endusers through

dedicated focus groups conducted by the marketing

department.

• Being informed that somebody has just entered

the roomA118, can optimise your personnal pro-

ductivity in case you have set up an appointement

with a colleague for meeting at roomA118 and

you don’t want to wait unecessarily for her/his ar-

rival.

• Infering that nobody’sin the roomA118is a useful

information for those seeking quiet spots to shut

themselves away and relax.

• Detecting that the fridge has being opened for

more than one minute strongly suggest to have

a look and close it if somebody has inadvertedly

forgotten to close it. This will prevent damaging

stored food and unecessary energy loss.

Let’s now elaborate on how this inferences can be

drawn. It would take too much space to detail the

mechanism for all these inferences, so lets take the

ﬁrst inference “somebody has just entered” and elab-

orate this particular case.

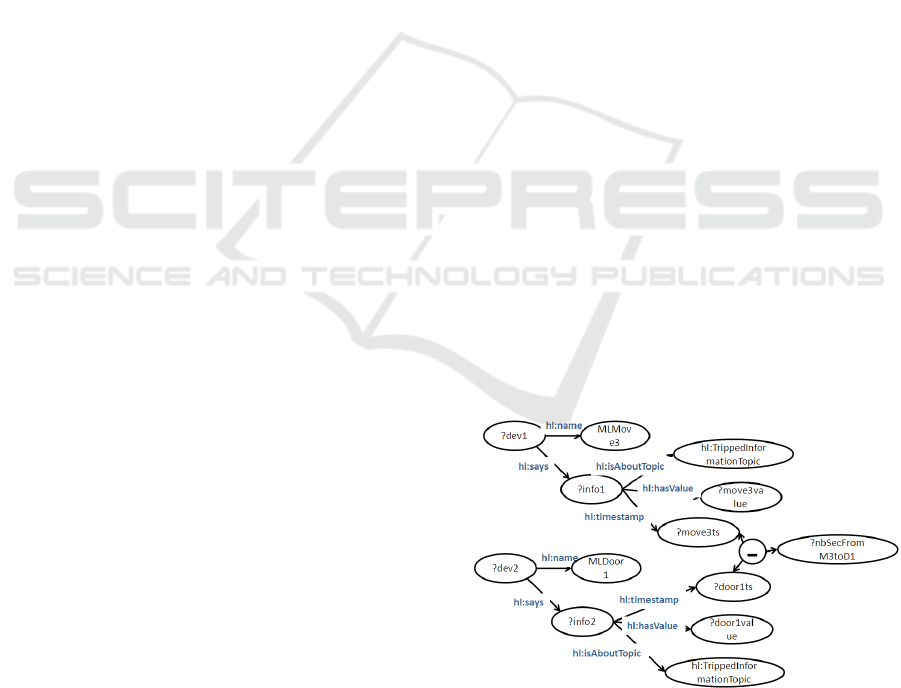

Here is the basic reasoning: As shown in Fig. 1

a move detector

MLMove3

has been placed behind the

door, and the door itself is equipped with a door open-

ing detector

MLDoor1

. If a move has been detected by

MLMove3

after

MLDoor1

has detected that the door has

been opened, for sure somebody has entered.

In order to check if the statement S:“

MLMove3

has

detected a move after

MLDoor1

has been opened”, we

have to search the situation model for some fragment

which describes this statement. Searching in a RDF

model amounts to query it using SPARQL query lan-

guage. A sparql query is a graph pattern, i.e. a

subgraph deﬁned using the same ontology elements

(concepts and relations) than the complete graph but

where some of the nodes, resp. some of the links,

may be deﬁned as variables, i.e. can match any node,

resp. any link, in the graph. Before elaborating the

SPARQL query, lets ﬁrst deﬁne the graph pattern that

describe statement S.

Whenever

MLMove3

detects a move it sends an

event which as we have seen in section 4 up-

dates a piece of information which captures infor-

mation about movement within

MLMove3

detection

zone. Information about mouvement is an instance

of the class

TrippedInformationTopic

. We then

have to search for a node which is an instance of

TrippedInformationTopic

and which is linked to

the node that models

MLMove3

device with the rela-

tion

says

, as according to our ontology, this relation

says

links

Information

to its

InformationSource

From this node we should search its value along the

relation

hasValue

and its timestamp along the rela-

tion

timestamp

. This preliminary graph fragment,

that describes this part of the search corresponds to

the 6 nodes and corresponding links, on the upper part

of the Fig. 7. Nodes which are searched are named

with a preﬁx “

”. For instance, the node represent-

ing the move information has been named

?info1

This is also the case for

?move3ts

which represent

the timestamp of the

?info1

information. We have

to do the same for searching the status of the door in-

formed by

MLDoor1

detector. This additional part of

our search corresponds to the 6 nodes and correspond-

ing links on the lower part of the ﬁgure.

Now that we’ve introduced the two timestamps

?move3ts

and

?door1ts

, our ﬁnal question is “is

?move3ts

greater than

?door1ts

. If the answer is

yes, then we can conclude that statement S is true. To

complete our graph fragment, and thus add this last

question to our SPARQL query, we will use a speciﬁc

mechanism that the SPARQL language provides, for

combining several variables and for deﬁning “virtual”

nodes, i.e. nodes which are deﬁned in terms of other

nodes of the graph fragment. In our particular case,

we introduce the “virtual” node

?nbSecFromM3ToD1

which is computed by subtracting

?door1ts

’ from

?move3ts

Figure 7: Has somebody moved in since the door has been

closed?

Now that we’ve visualized the graph pattern that

represents our query it is straightforward to format it

using the SPARQL language. Fig. 8 shows how the

SENSORNETS 2016 - 5th International Conference on Sensor Networks

204

PREFIX hl:<http://www.orange.com/ontologies/shd#>

WITH GRAPH <http://fiwarelod.orange-labs.fr>

SELECT ?m3val ?m3ts ?d1val ?d1ts ?nbSecFromM3toD1

WHERE {

?dev1 hl:says ?info1 . ?dev1 hl:name "MLMove3" .

?info1 hl:isAboutTopic hl:TrippedInformationTopic .

?info1 hl:hasValue ?m3val .

?info1 hl:timestamp ?m3ts .

?dev2 hl:says ?info2 . ?dev2 hl:name "MLDoor1" .

?info2 hl:isAboutTopic hl:TrippedInformationTopic .

?info2 hl:hasValue ?d1val .

?info2 hl:timestamp ?d1ts .

BIND((?d1ts - ?m3ts) AS ?nbSecFromM3toD1)}

Figure 8: SPARQL query.

query looks like.

Basically, each line in the

WHERE

section corre-

sponds to an edge in the graph representation of the

query as displayed in Fig. 7. Each line represents an

edge as a triplet. For instance the line:

?dev1 hl:says ?info1 .

represents an edge where the source of the link

has the identiﬁer

?dev1

, the link has the identiﬁer

hl:says

and the target of the link has the identiﬁer

?info1

This work is ongoing. We have obtained good re-

sults on few experiments which show that inferences

that we make with our approach are sound. However

we plan to conduct an extensive testing campain that

conﬁrm the robustness of our system.

A wider perspective and discussion on these ﬁrst

results are developed in the next section.

6 CONCLUSION

Adopting semantic modeling technologies opens up

an avenue of user experience improvements. For in-

stance, one use case we’ve brieﬂy evoked in our pa-

per (Ramparany et al., 2014) but haven’t tested with

real data yet is to take into account information about

devices location, such as rooms where the devices are

located and devices functionality, such as the nature

of data the device measures and reports in case it is a

sensor. Aggregating devices information into the pic-

ture makes it possible for occupants to converse with

their home with questions such as “what is the tem-

perature in the kitchen?”. This query would be de-

composed into looking up all devices located in the

kitchen (device location), then identifying which of

those devices is a thermometer (device function) and

ﬁnally retrieving the current temperature measured by

this device. The answer to these 3 sub-query can be

found in the aggregated RDF graph.

Widening the range of information sources be-

yond the IoT domain would even make possible

fancier use cases. For example, if we don’t limit our-

selves to the restricted scope of smart home data, as

we did in the work reported here, but aggregate data

from the Open Data world, we could for example ﬁnd

out which IKEA cupboard would ﬁt best in kitchen,

in the space between the oven and the wall. For this,

we simply need the dimensions of our kitchen and

its appliances (our Smart Home data) and the dimen-

sions of IKEA products. The laters could be found on

the IKEA online catalog if this catalog is available as

open data. Once aggregated on the common semantic

model, the respective dimensions could be compared.

To this view of having IoT system access open

data sources, there’s of course the dual view point, of

inserting the IoT in the realm of the semantic web and

consider our home, our car, the city as new contribu-

tors to the semantic web by having them publish real-

time information about themselves, their states, their

moods, etc... By the end of the day, the philosophy

would be the same: an aggregation of data originat-

ing from the IoT and the one side and of data from the

public Web on the other side, to form a consolidated

model, and reason upon this consolidated model. The

main difference is about where the aggregation takes

place and who performs the reasoning, an IoT appli-

cation or a Web service? Who cares? the technology

to implement these processes would probably be the

same, and as attested by our experiments this technol-

ogy is there and mature enough to be applied.

REFERENCES

Homelive: Confort et domotique, maison connect´ee. http://

homelive.orange.fr.

Prot´eg´e: A free, open-source ontology editor and frame-

work for building intelligent systems. http://protege.

stanford.edu/.

Z-Wave: Home control. http://www.z-wave.com.

(2015). http://www.computerweekly.com/news/

2240217788/Data-set-to-grow-10-fold-by-2020-

as-internet-of-things-takes-off.

Berners-Lee, T. (2006). ”linked data”. In International

Journal on Semantic Web and Information Systems,

volume 4. W3C.

Bizer, C., T., H., and Berners-Lee, T. (2009). ”linked data -

the story so far”. In International Journal on Semantic

Web and Information Systems, volume 5.

Calvanese, D., Giacomo, G. D., et al. (2011). The mastro

system for ontology-based data access. In Semantic

Web Journal.

Compton, M., Barnaghi, P., et al. (2012). The ssn ontology

of the w3c semantic sensor network incubator group.

Semantic Multi-sensor Data Processing for Smart Environments

205

Web Semantics: Science, Services and Agents on the

World Wide Web, 17:25–32.

Hartig, O., Bizer, C., et al. (2009). Executing sparql queries

over the web of linked data. In The Semantic Web-

ISWC, pages 293–309. Springer Berlin Heidelberg,

W3C Working Group.

Lenzerini, M. (2011). Ontology-based data management.

In Proc. of CIKM 2011, pages 5–6.

Pschorr, J., Henson, C., et al. (2010). Sensor discovery on

linked data. Proceedings of the 7th Extended Semantic

Web Conference, ESWC2010, Heraklion, Greece, 30.

Ramparany, F., Marquez, F. G., et al. (2014). ”handling

smart environment devices, data and services at the

semantic level with the ﬁ-ware core platform”. In

Proceeding of the 1st Workshop on Semantics for Big

Data on the Internet of Things (SemBIoT 2014), pages

14–20. IEEE International Conference on Big Data.

Ramparany, F., Poortinga, R., et al. (2007). An open

Context Information Management Infrastructure - the

IST-Amigo Project. In of Engineering, I. I. and

Technology, editors, Proceedings of the 3rd IET In-

ternational Conference on Intelligent Environments

(IE’07), pages 398–403, Germany. University of Ulm.

Rodriguez-Muro, M., Hardi, J., et al. (2012). Quest: Efﬁ-

cient sparql-to-sql for rdf and ow. In Proc. of the 12th

Int. Semantic Web Conference (ISWC 2012).

Sorici, A., Picard, G., et al. (April 2015). CONSERT: Ap-

plying semantic web technologies to context modeling

in ambient intelligence. In Computers & Electrical

Engineering, number 44.

W3C. Web ontology language. Technical report, W3C,

http://www.w3.org/TR/owl2-overview.

Ye, J., Dasiopoulou, S., et al. (2015). Semantic web tech-

nologies in pervasive computing: A survey and re-

search roadmap. Pervasive and Mobile Computing,

23:1 – 25.

SENSORNETS 2016 - 5th International Conference on Sensor Networks

206
