EXE-SPEM: Towards Cloud-based Executable Software Process Models

Sami Alajrami

, Barbara Gallina

and Alexander Romanovsky

School of Computing Science, Newcastle University, Newcastle upon Tyne, U.K.

alardalen University, V

aster

as, Sweden

Keywords:

Process Modelling, Process Enactment, Cloud-based Software Development, Cloud Computing.

Abstract:

Executing software processes in the cloud can bring several beneﬁts to software development. In this paper,

we discuss the beneﬁts and considerations of cloud-based software processes. EXE-SPEM is our extension

of the Software and Systems Process Engineering (SPEM2.0) Meta-model to support creating cloud-based

executable software process models. Since SPEM2.0 is a visual modelling language, we introduce an XML

notation meta-model and mapping rules from EXE-SPEM to this notation which can be executed in a workﬂow

engine. We demonstrate our approach by modelling an example software process using EXE-SPEM and

mapping it to the XML notation.

1 INTRODUCTION

The Model Driven Engineering (MDE) vision is

based on putting higher emphasis on models to in-

crease both abstraction level and automation. This

brings several beneﬁts such as: reduced development

cost, increased quality and reduction of maintenance

costs. In the context of software processes, modelling

software processes have been inﬂuenced by two ma-

jor groups: a) a group of tool developers interested

in process automation (focusing on models for ma-

chines). And b) a group that is interested in mod-

elling software processes to understand and improve

them (focusing on models for humans) (Mnch et al.,

2012).

The Software and Systems Process Engineering

Meta-model (SPEM2.0) (OMG, 2008) became an

Object Management Group (OMG) standard for soft-

ware process modelling. However, SPEM2.0 lacks

support for model execution and ﬁts in the “mod-

els for humans” category. Such languages have been

made for process documentation and exchange (Ben-

draou et al., 2006).

Today, machine-executable models are crucial as

companies are seeking increased automation in their

software processes. Increased automation means

faster development and less cost.

The rise of cloud computing has changed the way

software is consumed and delivered. It is also chang-

ing the way software is developed with development

tools and environments moving to the cloud (e.g. Co-

denvy

, Jazz

). As a result, gradually -but surely- the

entire software development process will be taking

place in the cloud in a “as a Service” fashion (e.g.

(Schmidberger and Schmidberger, 2012)). Executing

software processes in the cloud will bring several ben-

eﬁts such as saving resources (money, time and ef-

fort) and increasing the development speed. However,

there are issues that need to be considered such as

conﬁdentiality and privacy of artefacts and processes,

and utilization of elastic cloud resources.

To support software process models execution in

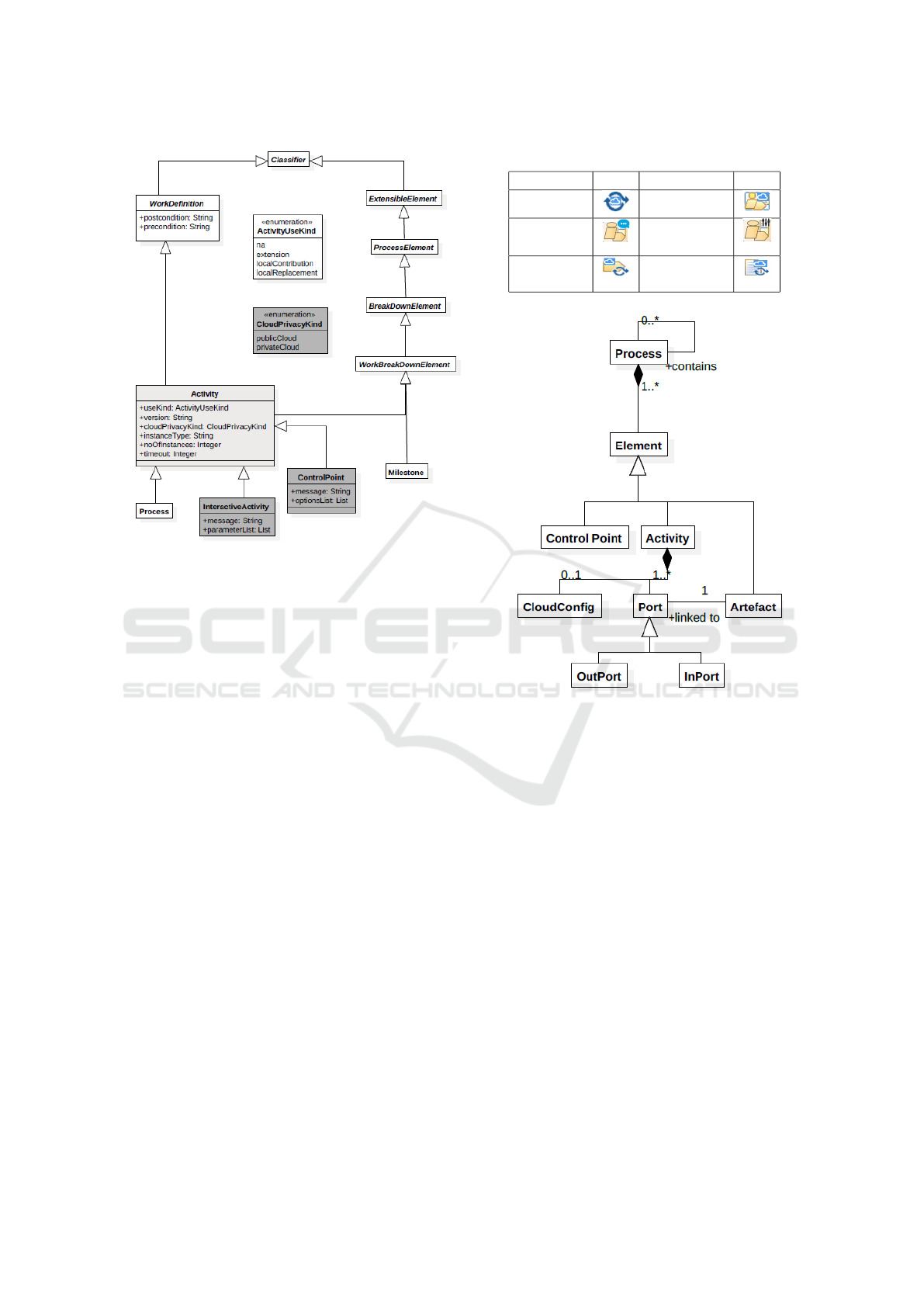

the cloud, we introduce EXE-SPEM which is an ex-

tension of the SPEM2.0 meta-model to enable captur-

ing the information needed for cloud-based software

process execution. Since SPEM2.0 is a visual (non-

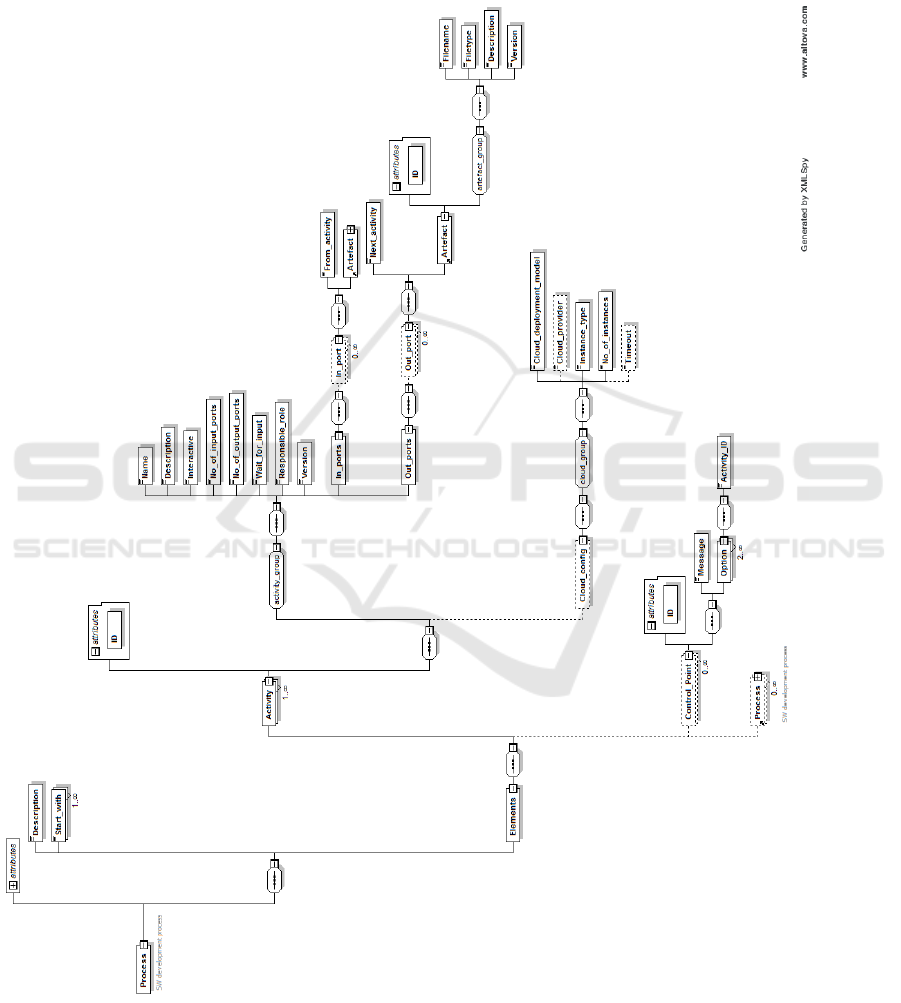

executable) language, we also introduce an executable

XML notation that can be executed in a workﬂow en-

gine. We deﬁne the rules for model transformation

between EXE-SPEM and the executable XML nota-

tion.

This paper is structured as follows, Section 2 pro-

vides a brief background on model driven engineer-

ing, cloud and SPEM2.0 enactment. Section 3 dis-

cusses the potential of having cloud-based executable

software process models. A set of required features

for cloud-based software process models is estab-

lished in Section 4. Section 5 introduces EXE-SPEM

and Section 6 introduces the XML notation. Sec-

https://codenvy.com/

https://jazz.net/

Alajrami, S., Gallina, B. and Romanovsky, A.

EXE-SPEM: Towards Cloud-based Executable Software Process Models.

DOI: 10.5220/0005740605170526

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 517-526

ISBN: 978-989-758-168-7

517

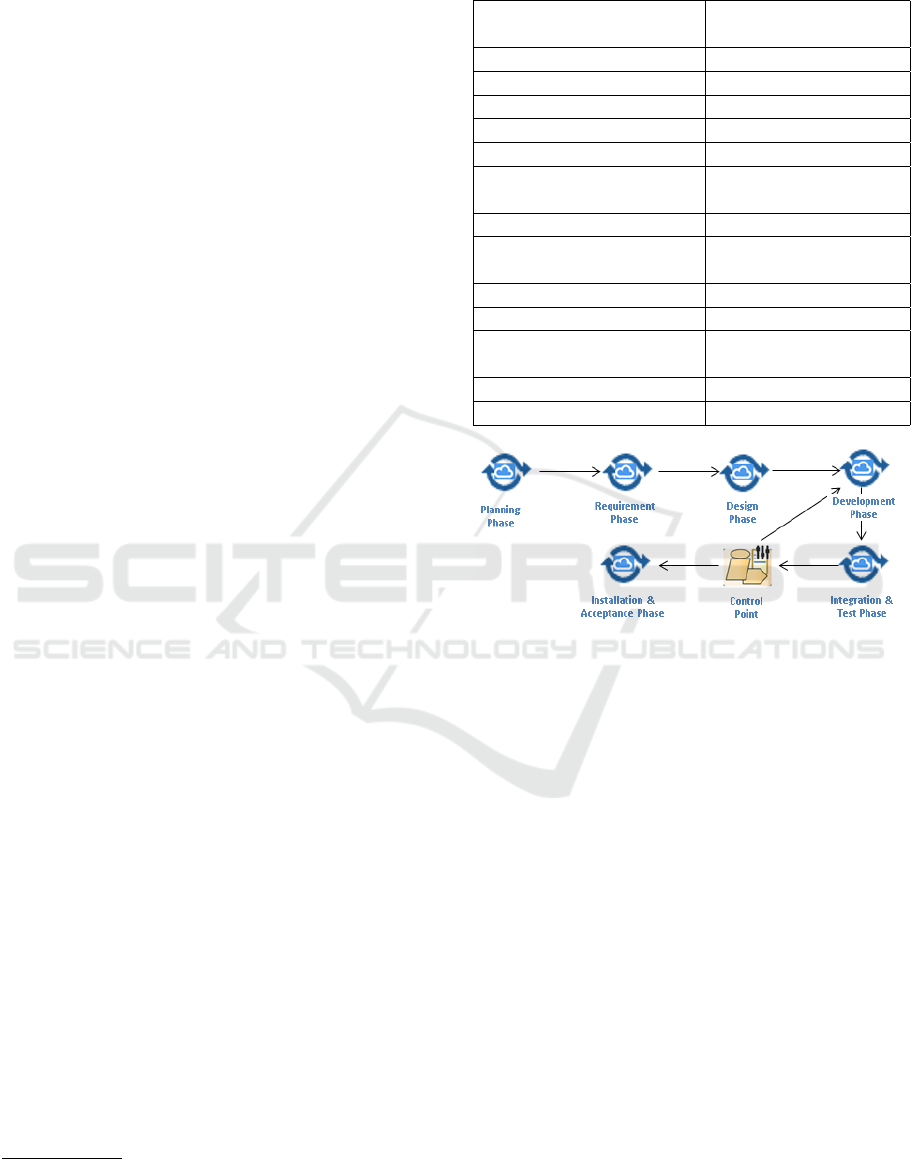

tion 7 provides a demonstrating example of a soft-

ware development process modelled in EXE-SPEM

and mapped to an executable XML model. Finally,

conclusions are discussed in Section 8.

2 BACKGROUND

In this section, we present background information

and discussion about the potentials and challenges of

Model Driven Engineering (Section 2.1). The con-

cepts of Software and Systems Process Engineering

Meta-model (SPEM2.0) are brieﬂy presented (Sec-

tion 2.2). Related work on SPEM2.0 enactment is

reviewed (Section 2.3). Finally, cloud computing and

its service and deployment models are described (Sec-

tion 2.4).

2.1 Model Driven Engineering (MDE)

Today, software systems are more complex than ever.

They consist of large number of subsystems or com-

ponents possibly written in several programming lan-

guages and run on different platforms. Over the years,

the complexity of software systems kept growing and

the development paradigms kept evolving to address

this continuous growth of complexity. However, as

Fred Brooks put it (Brooks, 1987): “There is no silver

bullet” as he argues that all what new methods can do

is to eliminate accidental difﬁculties in software de-

velopment but essential difﬁculties are inherent and

will continue to exist.

The evolution of development paradigms has fo-

cused on increasing the level of abstraction and au-

tomation in software development to enable develop-

ers to focus on the core business logic. And this is the

aim of Model Driven Engineering (MDE). The con-

cept of MDE is to use models for abstraction of pro-

gram speciﬁcation. These models can then be trans-

formed into an executable format which leads to au-

tomation. MDE is centred around two enabling tech-

nologies (Schmidt, 2006):

• Domain Speciﬁc Languages (DSLs): which are

modelling languages deﬁned to capture models

for a particular domain such as: avionics or ﬁnan-

cial services. DSLs are better than general pur-

pose languages as the latter fail to capture the es-

sential details of all domains.

• Model Transformation and Code Generation:

models can be transformed between different

modelling languages in order to provide platform

independence and interoperability. In addition,

code for a speciﬁc platform can be generated from

the models which reduces the cost and time-to-

market and increases the quality of the overall sys-

tem (Azoff, 2008). The generated code ideally

should be of good quality and conform to the best

practice of the target platform (depending on the

quality of the code generator).

One of the popular MDE approaches is the Object

Management Group (OMG) standard: Model Driven

Architecture (MDA) (OMG, 2003). MDA was driven

by the diversity of systems and programming lan-

guages and frameworks which led to various compat-

ibility and interoperability issues (Haan, 2008b). As

the standard document states: “We have to agree to

coexist by translation, by agreeing on models and how

to translate between them” (OMG, 2003).

As a result of the increased automation and ab-

straction, MDE brings in several beneﬁts including:

faster development cycles, more ﬂexibility towards

platform and staff changes, reduced development and

maintenance costs and increased quality. However,

MDE still faces some challenges which restrict its

wide industrial adoption. Tooling support for MDE

approaches is weak compared to the tooling support

of current programming languages. This is because

the big vendors are not backing MDE tools (Azoff,

2008). In addition, developers tend to like coding

more than modelling and this hinders their accep-

tance of MDE approaches. Furthermore, undertak-

ing MDE projects comes with several risks. Us-

ing a general purpose language or having too many

domain speciﬁc languages for modelling is one of

the main risks as it may lead to badly formed mod-

els (Haan, 2008a). Some MDE approaches like

MDA form just a part of the development life-cycle

which means companies would need to spare extra

effort/cost to support the rest of the life-cycle (Azoff,

2008). In the context of software processes, several

software process modelling approaches existed (e.g.

Rule-based (Peuschel and Sch

afer, 1992), Petri-net

based (Emmerich and Gruhn, 1996) and Program-

ming language-based (Conradi et al., 1992)). Today,

there are standards for modelling software processes

such as: SPEM2.0 (OMG, 2008), Essence (OMG,

2014) and ISO/IEC 24744 (ISO, 2014).

2.2 SPEM2.0

SPEM2.0 was developed by the Object Management

Group (OMG) for deﬁning software and system de-

velopment processes and their components. With the

aim of accommodating large range of development

methods and processes, SPEM2.0 was designed to be

generic without adding domain-speciﬁc elements to

its core structure. SPEM2.0 is deﬁned as an MOF-

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

518

based meta-model and a UML 2 proﬁle (OMG, 2008).

It is based on the concept of interaction between Roles

that perform Activities which consume (and produce)

Work Products (Combemale et al., 2006). SPEM2.0

is structured into seven meta-model packages which

contain its modelling elements.

2.3 SPEM2.0 Enactment

One of the problems with SPEM2.0 is its lack of ex-

plicit enactment support. In section 16 of its stan-

dard (OMG, 2008), it is stated that there are two com-

mon ways for enacting SPEM2.0 process: a) mapping

the process model into project plans and enact them

using project planning tools. And b) mapping the pro-

cess model to a business ﬂow or execution language

then enact it in a workﬂow engine.

As a result of the lack of enactment sup-

port, several researchers have proposed different ap-

proaches and extensions to support process enact-

ment. In (Yuan et al., 2006), the authors propose

mapping rules to map SPEM2.0 models into XML

Process Description Language (XPDL) which then

can be enacted in XPDL-based engines. In (Portela

et al., 2012), authors propose xSPIDER ML (a soft-

ware process enactment language based on SPEM 2.0

concepts). Although xSPIDER ML is supported with

a modelling tool and an enactment environment, the

notion of enactment is limited to process monitoring

since developers are supposed to perform their tasks

off-line and report their progress to the enactment en-

vironment. The authors in (Ellner et al., 2010) in-

troduce eSPEM which is a SPEM extension to allow

describing ﬁne-grained behaviour models that facili-

tate process enactment. They implement a distributed

process execution environment (Ellner et al., 2011)

based on the Foundational subset for Executable

UML Models (FUML

) standard with emphasis on

supporting the ability to share process state on dif-

ferent nodes, suspend and resume process execution,

interact with humans, and adapt to different organi-

zations. However, the notion of process enactment in

that execution environment also assumes that devel-

opers carry out their tasks outside the execution envi-

ronment and return control back to it once they ﬁnish.

There are SPEM2.0 extensions which address speciﬁc

domains’ needs. For instance, S-TunExSPEM (Gal-

lina et al., 2014) is allow modelling, simulation and

execution of safety-oriented processes based on safety

standards (e.g. DO-178B). To support executabil-

ity, the authors deﬁne mapping rules between S-

TunExSPEM and XPDL2.2 (WFMC, 2012).

http://www.omg.org/spec/FUML/

In general, we found that all those extensions have

one or more of the following weaknesses:

• They did not have any available tool support.

• Their notion of enactment is limited to monitoring

the process while the process itself is performed

completely outside the enactment environment.

• They did not have explicit support for cloud-based

enactment.

The question about enacting SPEM2.0 processes

is yet to be answered (possibly in the next ver-

sion(s) of the standard). However, to the best of our

knowledge, the concept of cloud-based enactment of

SPEM2.0 models has not been mentioned in the liter-

ature.

2.4 Cloud Computing

Cloud computing is deﬁned as “a model for enabling

ubiquitous, convenient, on-demand network access to

a shared pool of conﬁgurable computing resources

(e.g., networks, servers, storage, applications, and

services) that can be rapidly provisioned and released

with minimal management effort or service provider

interaction” (Mell and Grance, 2011). There are three

cloud service models:

• Infrastructure as a Service (IaaS): computing in-

frastructure (hardware and network) is provided

as a service. This model gives the greatest ﬂex-

ibility to customers as they control the OS, soft-

ware stacks and some limited networking conﬁgu-

rations. On the other hand, this means more main-

tenance effort from the customer side.

• Platform as a Service (PaaS): this model gives

less control and requires less effort from the cus-

tomer’s side. The computing infrastructure, OS

and the software stack is managed by the cloud

provider. Customers can only deploy applications

created using the libraries, tools and programming

languages supported by the provider and may not

be able to deploy the same application on another

PaaS provider.

• Software as a Service (SaaS): providers offer soft-

ware applications to customers as a service and

take control of all the application and software

stack as well as the underlying infrastructure. The

customer’s control in this model is very limited

and cannot exceed some speciﬁc application set-

tings.

Depending on who has control on the cloud re-

sources, deployment models can be categorized into

four types (Mell and Grance, 2011): public, private,

hybrid and community clouds. Cloud gained vast

EXE-SPEM: Towards Cloud-based Executable Software Process Models

519

popularity due to the beneﬁts it brings. It reduces

capital expenditure, operational costs and up-front in-

vestments needed by companies to get into the mar-

ket. Cloud also offer elastic resources that can be

scaled up and down on demand. In addition, cloud

services are offered on pay-as-you-go model which

means customers pay only for what they use.

However, there are also risks associated with

cloud computing. The main risk comes from multi-

tenancy -where computing resources are shared be-

tween multiple tenants-. Multi-tenancy is a core char-

acteristic of cloud which allows for efﬁcient use of

resources. But it also impose security risks from po-

tential adversary cloud neighbours. As a result of the

security risks, lack of trust and control in the cloud

has been one of the main risks for cloud adopters.

3 MOTIVATION

Cloud computing is changing the way software sys-

tems are delivered as we are entering the POST-PC

era (Maximilien and Campos, 2012; Lawler, 2014).

This change is taking place due to the compelling

characteristics of the cloud such as: accessibility,

availability, elasticity and the pay-as-you-go pricing

model. MDE can beneﬁt from these characteristics.

Bruneliere et al (Bruneli

ere et al., 2010) proposed the

term Modelling as a Service (MaaS) where they high-

lighted the potential for integrating the MDE and the

cloud domains. They argue that cloud’s availability

would facilitate model execution and evolution by al-

lowing designers to rely on the cloud for infrastruc-

ture and deployment. They also argue that model

transformation engines and MDE tools’ bridges can

be made available as an on-demand services in the

cloud which would ease interoperability problems. In

addition, the cloud accessibility makes it easier to col-

laborate and have distributed models repository.

Models are the core artefact in MDE. The longer

a software artefact remains of value, the greater the

return from creating it (Haan, 2008a). Therefore,

having an executable model that remains of value

throughout the development cycle will have higher

return on productivity and quality than modelling for

the purpose of documentation or communication only.

And with software development moving to the cloud

(e.g. project Eclipse Orion

-the cloud-based coun-

terpart of the Eclipse IDE-), software process models

should be executable in the cloud. For a model to

be executable, it means that the model can be passed

(either directly or after being transformed) to a pro-

https://orionhub.org/

cess enactment engine which can execute it. Exe-

cution in the cloud requires the model to incorporate

cloud-speciﬁc execution requirements as well as con-

trol ﬂow information to guide the execution. These

requirements are discussed in Section 4.

In this paper, we reuse a subset of the SPEM2.0

meta-model and extend it to meet the requirements

established in Section 4. We follow a different

approach from our previous work (Alajrami et al.,

2014) where we deﬁned a custom domain speciﬁc

language for modelling cloud-based software pro-

cesses. Researchers have proposed various extensions

to SPEM2.0 to support domain speciﬁc features (e.g.

(Gallina et al., 2014; Ellner et al., 2010)). However,

non of those extensions support cloud-based execu-

tion of software processes. Reusing the existing pro-

cess elements from SPEM2.0 saves us from reinvent-

ing the wheel. To support executablility, we map the

software process models to an XML model. Other

executable languages such as: XML Process Deﬁni-

tion Language (XPDL) (WFMC, 2012) or Business

Process Execution Language (BPEL) (OASIS, 2007)

were not used as they do not capture ﬁne grained ex-

ecution details of individual activities within a pro-

cess. In addition, the available workﬂow engines for

those languages are not cloud-based and do not pro-

vide ﬁne-grained execution control. Providing ﬁne

grained executability controls in the software process

model allows for facing the cloud risks. For instance,

a sensitive activity in a process can be conﬁgured to

run on a private infrastructure.

4 REQUIREMENTS FOR

CLOUD-BASED SOFTWARE

PROCESS MODELS

In this section, we deﬁne what information a cloud-

based software process model should contain to en-

able cloud-based model execution. The following re-

quirements are not satisﬁed by SPEM2.0 speciﬁca-

tion. Therefore, we extend SPEM2.0 to satisfy these

requirements in Section 5. The requirements are:

• R1- Allow Deﬁning the Required Cloud Re-

sources for an Activity.

Software process activities are diverse and they

use different tooling support. While some ac-

tivities in a process might be as simple as edit-

ing a textual ﬁle, other activities could involve

more complex computational tasks (e.g. testing

or model checking). Such computing intensive

tasks need to be allocated appropriate computing

resources. With the elasticity of cloud computing,

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

520

it is possible to allocate an initial set of resources

and scale it up and down as needed. A cloud-

based software process model needs to capture

the initial set of resources needed to start model

execution. It also needs to capture the resource

scaling mechanism if needed. To cater for differ-

ent activities’ needs, the model should allow hav-

ing different execution settings/conﬁgurations for

each activity.

• R2- Allow Deﬁning Security and Privacy Mea-

sures.

Security has been the main concern for using

cloud computing. Many enterprises and ofﬁcials

are sceptical about using public clouds based on

their fear of data loss or leakage. Although cloud

computing relieves enterprises from infrastructure

management and maintenance, this comes with

the disadvantage of cloud’s opacity. Users do

not know where their data is actually located and

which other users may have access to it. Private

clouds came to address those concerns by giving

full control of the infrastructure to the user. In a

software process model, some artefacts or activi-

ties may use conﬁdential or sensitive data. There-

fore, process designers should be able to deﬁne

whether an activity (and its artefacts) should be

undertaken in a private cloud (for security rea-

sons) or in a public cloud.

• R3- Deﬁne Basic Human-machine Runtime In-

teractions.

Software process are very complex and involve

many stakeholders (e.g. designers, developers,

project managers, business analysts, customers).

While in some cases the process activities can

be repetitive and automated (with no or little hu-

man interactions), many activities would require

human interactions during the process execution.

We envision to support two types of basic human-

machine interactions:

– Decision Making: where a human would guide

the executing process at runtime by specifying

a particular branch the execution should follow,

or by deciding to repeat a particular activity

with different settings. This kind of interaction

should be deﬁned in the process model in order

to be supported at runtime.

– Parameter Passing: in some cases, it might be

difﬁcult to set some execution parameters for an

activity at the modelling stage. In such cases, a

simple interaction is needed to pass those pa-

rameters at runtime. This allows activities to

have a simple interaction with users in the form

of questions (asking for parameters) and an-

swers (passing parameters by users).

• R4- Allow Deﬁning Control-ﬂow Semantics.

Software processes are control-ﬂow processes.

Software process models need the ﬂexibility of

expressing control ﬂow semantics such as: loops,

forks and joins. SPEM2.0 does not provide ex-

plicit control ﬂow elements.

• R5- Allow Deﬁning the Required Tool Support.

Activities in software processes are usually sup-

ported by some tools. In this context, the execu-

tion of software process models means orchestrat-

ing the supporting tools for process activities in

a workﬂow style. Therefore, the model need to

incorporate the tool details such as: version and

compatible inputs and outputs.

5 EXE-SPEM

As described in Section 2.3, SPEM2.0 does not have

explicit support for process execution. We extend the

SPEM2.0 meta-model to address the requirements es-

tablished in Section 4. The extended model is called

EXE-SPEM.

Out of the seven SPEM2.0 meta-model packages,

the Process Structure meta-model contains the struc-

tural elements for process deﬁnition. EXE-SPEM ex-

tends Process Structure meta-model with two new

meta-classes, one enumeration and added attributes

to existing meta-classes. Figure 1 illustrates the

extended meta-model where classes with dark grey

background are new and classes with light grey back-

ground have new attributes. To keep the ﬁgure clear,

some classes (not affected by the extension) have been

omitted.

The extension is summarized in the following

points:

• The CloudPrivacyKind enumeration is added to

deﬁne types of cloud deployment where an activ-

ity will be executed. It is used as an attribute in

the Activity meta-class.

• The Activity meta-class is extended with attributes

that will be used to guide execution in the cloud.

The added attributes specify the version of the ac-

tivity (the supporting tool) to be used, the type of

cloud deployment (private or public) and the type

and number of machines and a time out for ex-

ecuting the activity in the cloud. This meets the

requirements R1 and R5. The use of CloudPriva-

cyKind here satisﬁes requirement R2.

• Two subtypes of Activity are introduced to provide

control ﬂow semantics:

EXE-SPEM: Towards Cloud-based Executable Software Process Models

521

Figure 1: The meta-model of the extended SPEM 2.0 pro-

cess structure.

– The Control Point provides the semantics of

control ﬂow in the process model. Control

points in the process model give the user ex-

ecuting the process control on deciding which

branch the execution should follow next. A

branch can be: a loop (referring to the same

activity), a fork or a join. The control point in-

teraction is simply done by providing options

(pre-deﬁned in the model) and asking the user

to make a decision on which option to follow.

This meets requirement R4 and the decision

making interaction part of requirement R3.

– Interactive Activity which can be used to model

an activity that involves simple interactions

with stakeholders. This meets the parameter

passing type of interactions in requirement R3.

Icons for the EXE-SPEM elements are provided

in Table 1. It is worth noting that EXE-SPEM reuses

some of the SPEM2.0 elements (Role Use, Guidance,

Process Parameter and Work Sequence) with the same

icons. Furthermore, the difference between a Task and

Activity in EXE-SPEM is that the task is not supported

by a tool while the activity is.

Table 1: Graphical Icons of EXE-SPEM elements.

Element Icon Element Icon

Process Activity

Interactive

Activity

Control

Activity

Task Use

Work

Product Use

Figure 2: The meta-model of the XML schema.

6 XML NOTATION

In order to enact the EXE-SPEM model, we map it

to an executable XML format following the XML

schema in the Appendix. The meta-model of the

schema is described in Figure 2. The XML schema

captures a process consisting of the following ele-

ments:

• Process: this is the software development cycle.

A process is usually created by an actor but might

be performed by multiple actors.

• Actor: a person who is involved in the process

such as: process managers, software engineers,

testers, etc. A process will involve one or more

actors. Although a team of actors might collabo-

rate off-line on performing an activity, the activity

will be assigned to a single actor who takes the

responsibility for this activity.

• Artefacts: items produced or needed by the ac-

tivities of the software development process (e.g.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

522

code, executables, models, documents, etc.).

• Activities: Activities represent the smallest unit

of execution. They represent the different steps

in a software production life cycle. Those steps

usually involve the use of tools and/or actor inter-

action to be completed. Activities can be:

– Concrete Activities: are executable blocks of

code. This type of activities is the tool sup-

port that is used for process execution. For in-

stance, a veriﬁcation activity will be supported

by a veriﬁcation tool (e.g. a model checker)

which will be executed.

– Control Points: a type of activities which al-

lows actors to guide the execution of the pro-

cess in one of multiple deﬁned directions. This

allows for supporting loops, if conditions, and

forks.

• Cloud Conﬁguration: represents cloud-related

conﬁgurations such as: cloud deployment type,

machine type, machine image, number of ma-

chines to be used, etc.

• Ports: Each activity can have zero or more input

ports and zero or more output ports. Ports pro-

vide the means to connect activities and direct the

process execution ﬂow. They deﬁne both the con-

sumed and produced artefacts by an activity. In

addition, input ports act as preconditions that need

to be satisﬁed so that the activity can start execut-

ing.

Table 2 shows the rules to map an EXE-SPEM

model into the XML format described above. The

mapping include some SPEM2.0 elements which are

reused in EXE-SPEM. These elements are denoted

with *.

7 EXAMPLE PROCESS

In this section, we model parts of the software

process documentation example adopted from Shell

Method process repository

. Shell Method is an inte-

grated software development methodology designed

for business and operations-oriented database systems

that must pass audit. The example describes in detail

the life-cycle of an order entry and shipping opera-

tions database application project

We modelled the high level stages of the project as

shown in Figure 3. In this model, a Control Point is

introduced after the Integration and Testing phase to

provide control ﬂow in the process. Figure 4 shows

http://www.shellmethod.com/

http://shellmethod.com/refs/SDLC.pdf

Table 2: Mapping rules between EXE-SPEM and our XML

notation.

EXE-SPEM

cloud-speciﬁc process

XML Process

Process Process

Phase (Sub) Process

Activity Activity

Control Point

Interactive Activity Interactive Activity

Activity (execution

-related) attributes

Cloud Conﬁguration

(of an activity)

Task (supported by a tool) Activity

Task (Not supported

by a tool)

Activity description

attribute

Work Product Use Artefact

Role Use* Activity actor attribute

Guidance*

Activity description

attribute

Process Parameter* Port

Work Sequence* Port attributes

Figure 3: High level life-cycle process model in EXE-

SPEM.

the Integration and Testing stage of the life-cycle

modelled in EXE-SPEM. This process uses an Inter-

active Activity to allow the user to provide parameters

to run the integration tests. The Integration and Test-

ing activity takes four artefacts as an input (generated

from the Development stage) and produces six out-

come artefacts.

The life-cycle process model is mapped to an

XML model following the mapping rules in Table 2.

The following is a snippet of the XML model :

......

<Name>Integration</Name>

Integration and Testing stage

</Description>

<No_of_input_ports>4</No_of_input_ports>

<No_of_output_ports>6</No_of_output_ports>

<Wait_for_input>false</Wait_for_input>

EXE-SPEM: Towards Cloud-based Executable Software Process Models

523

<Responsible_role>

Integration Engineer

</Responsible_role>

<In_ports>

<In_port>

<From_activity>560d33bbe4b02110e7</From_activity>

......

</Artefact>

</In_port>

<In_port>

<From_activity>560d33bbe4b02110e8</From_activity>

......

</Artefact>

</In_port>

......

</In_ports>

<Out_ports>

<Out_port>

<Next_activity>560d33bbe4b02110e8</Next_activity>

......

</Artefact>

</Out_port>

......

</Out_ports>

<Cloud_config>

<Cloud_deployment_model>public

</Cloud_deployment_model>

<Cloud_provider>AWS</Cloud_provider>

<Instance_type>m3.xlarge</Instance_type>

<No_of_instances>2</No_of_instances>

</Cloud_config>

</Activity>

</Elements>

</Process>

<Control_Point ID="560d33bbe4b02110e8jm2n16">

<Message>Choose the next branch.</Message>

</Option>

</Option>

</Options>

</Control_Point>

</Elements>

</Process>

In contrast to SPEM2.0, using EXE-SPEM in the

above model has allowed to model interaction and

control ﬂow semantics. In addition, the textual model

(XML) contains conﬁgurations that will used for en-

actment.

Figure 4: Integration and Testing process model in EXE-

SPEM.

8 CONCLUSIONS

Cloud computing is becoming the norm for comput-

ing resources delivery. However, its potential for soft-

ware processes has not been fully harnessed yet. In

this paper, we highlighted the potentials and concerns

of moving software processes to the cloud. We argued

that executable cloud-based software process models

can help with further adoption of the MDE approach

for software development. This will leverage the ben-

eﬁts of both the cloud and MDE for software devel-

opment.

We introduced EXE-SPEM which is an extension

of the SPEM2.0 meta-model to capture cloud-based

execution information in software process models. To

demonstrate the use of EXE-SPEM, we used it to

model an example software process for database ap-

plication development. Currently, we are working on

developing a cloud-based enactment platform to ex-

ecute EXE-SPEM models. The new platform will

support integrating tools as services and execution of

software process models on a hybrid cloud. In addi-

tion, algorithms to automate the mapping between the

EXE-SPEM and the XML notation.

ACKNOWLEDGEMENTS

Alexander Romanovsky has been supported by the

EPSRC/UK TrAmS-2 platform grant on Trustwor-

thy Ambient Systems: Resource-constrained Ambi-

ence. Barbara Gallina has been supported by by

the Swedish Foundation for Strategic Research (SSF)

project SYNOPSIS.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

524

REFERENCES

Alajrami, S., Romanovsky, A., Watson, P., and Roth, A.

(2014). Towards cloud-based software process mod-

elling and enactment. CloudMDE, page 6.

Azoff, M. (2008). White paper: The beneﬁts of model

driven development. mdd in modern web based sys-

tems. Technical report, Butler Direct Limited, Hull,

East Yorkshire, UK.

Bendraou, R., Gervais, M.-P., and Blanc, X. (2006).

Uml4spm: An executable software process model-

ing language providing high-level abstractions. In

Enterprise Distributed Object Computing Conference,

2006. EDOC ’06. 10th IEEE International, pages

297–306.

Brooks, F. P. (1987). No silver bullet: Essence and accidents

of software engineering. IEEE Computer, 20:10–19.

Bruneli

ere, H., Cabot, J., and Jouault, F. (2010). Combining

Model-Driven Engineering and Cloud Computing. In

Modeling, Design, and Analysis for the Service Cloud

- MDA4ServiceCloud’10: Workshop’s 4th edition (co-

located with the 6th European Conference on Mod-

elling Foundations and Applications - ECMFA 2010).

Combemale, B., Cr

egut, X., Caplain, A., and Coulette, B.

(2006). Towards a rigorous process modeling with

SPEM. In ICEIS 2006 - Proceedings of the Eighth

International Conference on Enterprise Information

Systems: Databases and Information Systems Integra-

tion, Paphos, Cyprus, May 23-27, 2006, pages 530–

533.

Conradi, R., Jaccheri, M. L., Mazzi, C., Nguyen, M. N., and

Aarsten, A. (1992). Design, use and implementation

of spell, a language for software process modelling

and evolution. In Proceedings of the Second European

Workshop on Software Process Technology, EWSPT

’92, pages 167–177.

Ellner, R., Al-Hilank, S., Drexler, J., Jung, M., Kips, D., and

Philippsen, M. (2010). espem - a spem extension for

enactable behavior modeling. In Modelling Founda-

tions and Applications, volume 6138 of Lecture Notes

in Computer Science, pages 116–131.

Ellner, R., Al-Hilank, S., Drexler, J., Jung, M., Kips, D., and

Philippsen, M. (2011). A fuml-based distributed exe-

cution machine for enacting software process models.

In Modelling Foundations and Applications, volume

6698 of Lecture Notes in Computer Science, pages

19–34. Springer.

Emmerich, W. and Gruhn, V. (1996). Funsoft nets: A petri-

net based software process modeling language. In In

Proceedings of The Sixth International Workshop on

Software Speciﬁcation and Design. 1991, IEEE Com-

puter Society, pages 175–184. IEEE Computer Soci-

ety Press.

Gallina, B., Pitchai, K., and Lundqvist, K. (2014). S-

tunexspem: Towards an extension of spem 2.0 to

model and exchange tunable safety-oriented pro-

cesses. In Lee, R., editor, Software Engineering Re-

search, Management and Applications, volume 496

of Studies in Computational Intelligence, pages 215–

230. Springer International Publishing.

Haan, J. D. (2008a). 8 reasons why model-

driven approaches (will) fail. Available at

www.infoq.com/articles/8-reasons-why-MDE-fails,

accessed on: 2015-10-16.

Haan, J. D. (2008b). Mda, model driven ar-

chitecture, basic concepts. Available at

www.theenterprisearchitect.eu/blog/2008/01/16/mda-

model-driven-architecture-basic-concepts/, accessed

on: 2015-10-16.

ISO (2014). ISO/IEC 24744:2014. ISO Standard, Interna-

tional Organization for Standardization (ISO).

Lawler, R. (2014). Microsoft ceo satya nadella says

we have entered the post-post-pc era. Available

at www.techcrunch.com/2014/05/27/microsoft-ceo-

satya-nadella-says-weve-entered-the-post-post-pc-

era/, accessed on: 2015-10-16.

Maximilien, E. M. and Campos, P. (2012). Facts, trends

and challenges in modern software development. Int.

J. Agil. Extrem. Softw. Dev., 1(1):1–5.

Mell, P. M. and Grance, T. (2011). Sp 800-145. the nist

deﬁnition of cloud computing. Technical report, Na-

tional Institute of Standards & Technology, Gaithers-

burg, MD, United States.

Mnch, J., Armbrust, O., Kowalczyk, M., and Soto, M.

(2012). Software Process Deﬁnition and Manage-

ment. Springer Publishing Company, Incorporated.

OASIS (2007). Web Service Business Process Execution

Langugae Version 2.0. OASIS Standard, OASIS.

OMG (2003). MDA Guide, version 1.0.1. OMG Standard,

Object Management Group (OMG).

OMG (2008). Software and Systems Process Engineering

Meta-Model Speciﬁcation, V2.0. OMG Standard, Ob-

ject Management Group (OMG).

OMG (2014). Kernel And Language For Software Engi-

neering Methods (Essence), V1.0. OMG Standard,

Object Management Group (OMG).

Peuschel, B. and Sch

afer, W. (1992). Concepts and imple-

mentation of a rule-based process engine. In Proceed-

ings of the 14th International Conference on Software

Engineering, ICSE ’92, pages 262–279. ACM.

Portela, C., Vasconcelos, A., Silva, A., Silva, E., Gomes,

M., Ronny, M., Lira, W., and Oliveira, S. (2012). xspi-

der

ml: Proposal of a software processes enactment

language compliant with spem 2.0. Journal of Soft-

ware Engineering and Applications, 5(6):375 – 384.

Schmidberger, M. and Schmidberger, M. (2012). Software

engineering as a service for hpc. In Parallel and Dis-

tributed Computing (ISPDC), 2012 11th International

Symposium on, pages 34–39.

Schmidt, D. C. (2006). Guest editor’s introduction: Model-

driven engineering. Computer, 39(2):25–31.

WFMC (2012). XML Process Deﬁnition Language 2.2.

WFMC Standard, Workﬂow Management Coaliation.

Yuan, F., Li, M., and Wan, Z. (2006). SEM2XPDL: to-

wards SPEM model enactment. In Proceedings of

the International Conference on Software Engineer-

ing Research and Practice & Conference on Program-

ming Languages and Compilers, SERP 2006, Las Ve-

gas, Nevada, USA, June 26-29, 2006, Volume 1, pages

240–245.

EXE-SPEM: Towards Cloud-based Executable Software Process Models

525

APPENDIX

XML Schema for Executable Software

Process Models

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

526
