Automated Quality Analysis of Software Engineering Method Models

Masud Fazal-Baqaie and Frank Kluthe

s-lab – Software Quality Lab, University of Paderborn, Zukunftsmeile 1, Paderborn, Germany

Keywords:

Process Model Quality, Situational Method Engineering, Method Pattern, Static Analysis, OCL.

Abstract:

Using a suitable software engineering method (SEM) for a speciﬁc project and following it properly is im-

portant for the resulting software quality. However, SEMs described in natural language are often ambiguous

and lack automated guidance for the team members, causing impediments for the project. The model-based

approach Method Engineering with Method Services and Method Patterns (MESP) allows to model enactable

SEM models by composing pre-deﬁned building blocks. Up to now, the quality of MESP models had to be

checked manually which was tedious and error-prone at times. In this paper, we present an automated design-

time quality analysis for MESP SEM models. In particular, our analysis allows to automatically evaluate

generic quality characteristics relevant for all SEM models as well as speciﬁc quality requirements speciﬁed

using MESP method patterns. We integrated the quality analysis framework into the MESP Workbench and

our evaluation shows that the analysis is fast enough to provide timely feedback even for large SEM models.

1 INTRODUCTION

Using a suitable software engineering method (SEM)

is important for the resulting software quality

(Fitzgerald et al., 2003), hence SEMs need to be cus-

tomized to the speciﬁc project, e.g., to the level of

risk (Cockburn, 2000). In addition, their representa-

tion needs to be unambiguous and descriptive enough

to be followed properly. For example, SEMs in nat-

ural language tend to be ambiguous, thus misunder-

standings can lead to coordination overhead. In con-

trast, models created with formal process description

languages describe the ﬂow of activities in an unam-

biguous manner allowing for automation.

Method Engineering with Method Services and

Method Patterns (MESP) (Fazal-Baqaie and Engels,

2016) is a situational method engineering approach

(Henderson-Sellers et al., 2014) that supports the cre-

ation of such formal SEM models based on the spe-

ciﬁc project characteristics. Following the assembly-

based paradigm (Brinkkemper, 1996), SEM models

are composed based on pre-deﬁned method services

and method patterns. These models can be enacted

with a workﬂow engine that supports the project team

in applying the SEM. In addition, MESP introduces

the notion of method patterns that describe quality re-

quirements for a SEM model, e.g., that tasks with spe-

ciﬁc output have to be part of it.

As SEMs can comprise hundreds of tasks and

work products (e.g. RUP (Kruchten, 1999)), models

can become quite large. Thus, automated feedback

about the quality of SEM models is desirable. This

paper presents an automated quality analysis frame-

work for the MESP approach. It makes the follow-

ing contributions: (i) introduction of a set of general

quality characteristics for MESP models, which are

formally speciﬁed using the Object Constraint Lan-

guage (OCL), (ii) translation of quality requirements

speciﬁed with MESP method patterns into OCL, (iii)

a framework to automatically analyze the quality of

MESP models and its implementation and integration

into the MESP workbench, and (iv) a performance

evaluation of the analysis.

This paper is structured as follows: Section 2 ex-

plains the MESP approach and the structure of SEM

models. Section 3 presents our automated quality

analysis framework. Section 4 describes the results

of our performance analysis. Section 5 discusses re-

lated work. Finally, Section 6 concludes the paper.

2 BACKGROUND

In the following, we provide a brief overview of the

MESP approach and explain which part is supported

by our quality analysis. Subsequently, we explain

how SEM models are modeled and especially the use

of method patterns.

Fazal-Baqaie, M. and Kluthe, F.

Automated Quality Analysis of Software Engineering Method Models.

DOI: 10.5220/0005743205270534

In Proceedings of the 4th International Conference on Model-Driven Engineer ing and Software Development (MODELSWARD 2016), pages 527-534

ISBN: 978-989-758-168-7

527

2.1 Overview of the MESP Approach

As illustrated in Figure 1, MESP differentiates three

roles that are responsible for different tasks:

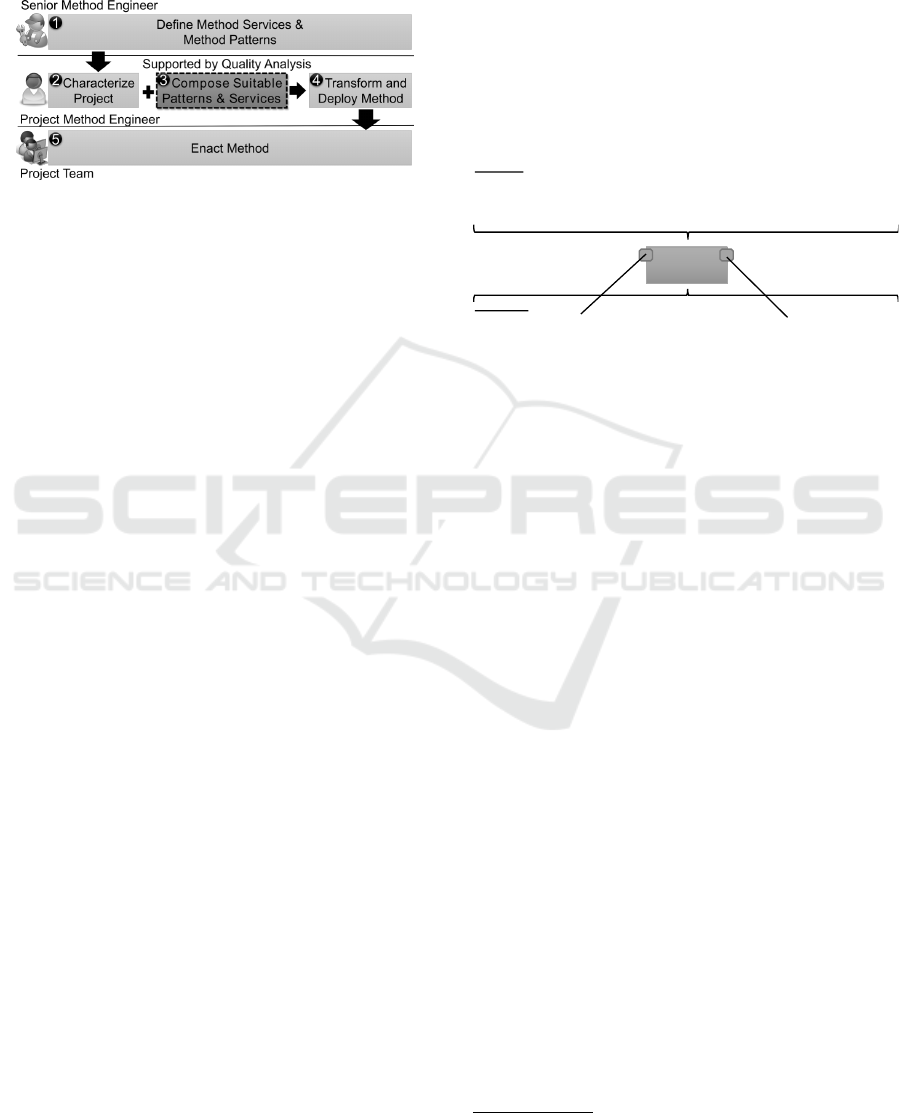

Figure 1: Overview of MESP, highlighting the task sup-

ported by the quality analysis.

The senior method engineer is responsible for

formalizing reusable SEM model building blocks by

deﬁning method services and method patterns. The

building blocks are stored in a repository and can be

reused in arbitrary many SEM models.

The project method engineer is responsible for

composing a customized SEM model with respect to

a speciﬁc project. Based on the characterization of

a project (Ë), suitable method services and method

patterns are retrieved from the repository and com-

posed by specifying control and data ﬂow between

them (Ì). Thereby, method services must not vio-

late the chosen method patterns (Fazal-Baqaie et al.,

2013). The automated quality analysis, which is in-

troduced in Section 3, is performed during the high-

lighted task (Ì). When the method composition is

completed, the project method engineer invokes a

transformation into a mainstream process description

language and deploys the method model into a work-

ﬂow engine (Fazal-Baqaie et al., 2014) (Í).

The project team is guided by the workﬂow en-

gine, which enacts the SEM model (Î). It creates

tasks and assigns them to the team and thereby en-

sures that the team follows the SEM model.

2.2 Running Example

In this section, we illustrate the building blocks of

SEM models and their composition to a SEM model,

in order to show how MESP methods are formalized.

We also brieﬂy discuss examples for quality issues

and method pattern violations.

2.2.1 Deﬁning Method Services and Method

Patterns

The senior method engineer creates method ser-

vices and method patterns and maintains them in the

method repository. Figure 2 shows an example for a

method service that we derived from tasks in the prac-

tices library of the Eclipse Process Framework

. On

the top, it shows the textual description of the task

that is used by the project team during enactment. On

the bottom, it shows further information as part of the

interface that is used to identify suitable method ser-

vices and to compose them correctly. Here, the senior

method engineer describes the relation to work prod-

ucts and roles, for which project context the method

service is suitable (situational factors), and what kind

of task it describes (categories).

Refine The

Architecture

Input: Architecture Notebook

Output: Architecture Notebook

Content Description: ”This task builds upon the outlined architecture and makes con-

crete and unambiguous architectural decisions to support development. It takes into...”

Name: „Refine the Architecture“

Role: Architect

Situational Factors: Agility Medium;

System Criticality Medium – High;

Categories: Plan-Driven; Development; Design

Content

Interface

Figure 2: Illustration of an exemplary method service.

Method patterns are used as context-speciﬁc qual-

ity requirements for the SEM model contents (Fazal-

Baqaie et al., 2013). To illustrate this, we use a

sprint loop as an example. A sprint loop is a com-

mon construct in agile methodologies, e.g., Scrum

(Schwaber and Sutherland, 2013). It prescribes a

repetitive loop of ﬁxed length, where planning activi-

ties are followed by implementation activities, which

in turn are followed by reviewing activities. Fig-

ure 3 shows a partially composed method using a

“Sprint Loop” method pattern. The ﬁgure also shows

a sequence and three method services, which are not

part of the method pattern and which we ignore for

the moment. The method pattern contains three so

called constrained scopes, denoted by dotted rectan-

gles. Constrained scopes are connected by control

ﬂow, e.g., sequential or parallel ﬂow, or, like in this

case, an iteration (loop). Each constrained scope

contains a constraint in the lower half (grey back-

ground) that needs to be fulﬁlled by the upper half

(white background), which potentially hosts method

services.

Constraints are formulated with a specialized

domain-speciﬁc language that is part of the MESP

meta-model. In this paper, we describe how these

constraints are translated to OCL as part of our qual-

ity analysis in order to evaluate them automatically.

For example, the constraint of the constrained scope

in the center of Figure 3 describes that all method ser-

vices (All MS) need to be of category “Development”

http://epf.eclipse.org/wikis/epfpractices/index.htm

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

528

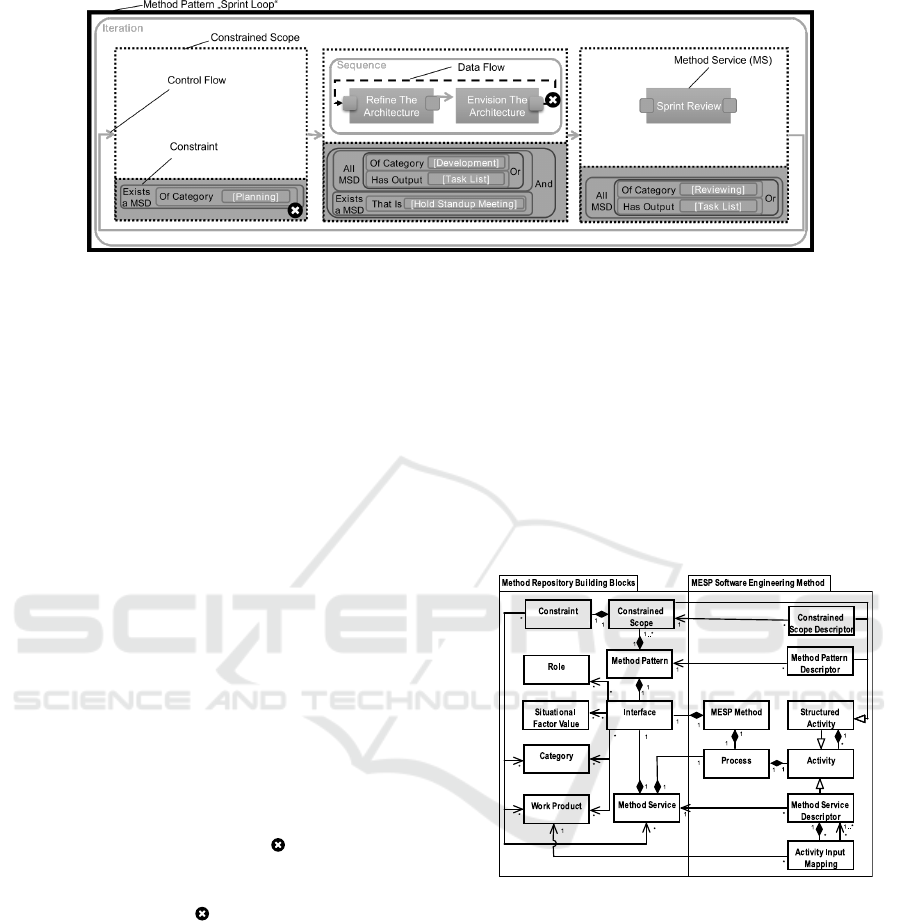

Figure 3: Partly composed MESP method with issues highlighted by our quality analysis.

(Of Category) or alternatively (Or) produce the out-

put work product “Task List” (Has Output). Addi-

tionally (And), at least one method service (Exists a

MS) must be “Hold Standup Meeting”.

2.2.2 Composing Suitable Patterns and Services

The project method engineer chooses suitable method

patterns and method services and composes the SEM

model for his project. Figure 3 shows a partially com-

posed SEM model. It contains a method pattern and

three method services. Also, the control ﬂow was

reﬁned with a “Sequence” element that denotes that

“Envision the Architecture” is executed after “Reﬁne

the Architecture”. These two method services were

also connected with data ﬂow (dotted arrow) that de-

notes that the output of “Envision the Architecture” is

used by “Reﬁne the Architecture”.

To ensure that the method is enactable, control and

data ﬂow must be consistent. In addition, all con-

straints of the used method patterns have to be ful-

ﬁlled. Looking at the example in Figure 3, as the ﬁrst

constrained scope is empty, the respective constraint

is not fulﬁlled as denoted by an . In addition, the

control and data ﬂow between “Envision the Archi-

tecture” and “Reﬁne the Architecture” is contradict-

ing and marked with an .

2.3 Overview of the MESP Meta-Model

While the meta-model is hidden to the users of MESP,

our quality analysis is build on top of it, because

OCL constraints are formulated with respect to meta-

models. Figure 4 shows an excerpt of the main classes

of the MESP meta-model. The left side shows classes

that are created and maintained by the senior method

engineer and stored in the method repository. As il-

lustrated, Method Patterns and Method Service

contain a deﬁned Interface that references Role,

Situational Factor Value, etc. to characterize

the pattern or service (cf. Figure 2).

The right shows classes that are part of a com-

posed MESP SEM model and which are thus used

by the project method engineer. A SEM model con-

tains a Process that contains Activity elements.

These can be control ﬂow elements like sequences

and parallel ﬂows (classes not depicted), references

to method services (Method Service Descriptor),

or references to method patterns (Method Pattern

Descriptor). The data ﬂow between Method

Service Descriptor elements is modeled using

Activity Input Mappings elements.

Figure 4: An overview of relevant MESP meta-model

classes.

3 AUTOMATED QUALITY

ANALYSIS

In this section, we present our automated quality anal-

ysis that can be used by the method engineer during

the composition. We ﬁrst discuss the requirements

for an automated quality analysis framework. Then

we provide an overview of how the analysis frame-

work evaluates constraints on a SEM model. Af-

terward, we describe the general quality characteris-

tics and their formalization with OCL. Thereafter, we

explain the on-the-ﬂy translation of method pattern

Automated Quality Analysis of Software Engineering Method Models

529

constraints into OCL constraints.

3.1 Requirements for the Analysis

The overall goal of the automated quality analysis is

to support the project method engineer to “Compose

Suitable Patterns & Services” (cf. Section 2.1) by re-

porting quality issues and method pattern violations.

More speciﬁcally, we have identiﬁed the following re-

quirements for an automated quality analysis frame-

work:

R1 Partial Analysis of Models: In order to provide

early feedback, the analysis shall be applicable to

incomplete SEM models and restrictable to single

regions of the model.

R2 Traceability of Issues: In order to help in ﬁxing

quality issues, the elements of a SEM model that

cause quality issues shall be reported.

R3 Categorization of Issues: In order to help in as-

sessing quality issues, the analysis shall classify

quality issues. Most importantly, critical (prevent-

ing prevent SEM models from being enacted) and

non-critical issues shall be distinguished.

R4 Extensibility of the Analysis Framework: In

order to implement further quality checks easily,

the analysis framework shall be extensible.

R5 High Performance of the Analysis: In order to

be used frequently throughout the composition of

a SEM model, the analysis shall not take longer

than a couple of seconds.

3.2 Overview of the Quality Analysis

Framework

We have created a quality analysis framework to

implement the quality analysis. We integrated this

framework into the existing MESP workbench of

the MESP approach (Fazal-Baqaie and Engels, 2016;

Fazal-Baqaie et al., 2014). It is based on the Eclipse

Modeling Framework (Steinberg et al., 2009) that al-

lows to automatically check conformance of models

with their meta-models. This allows to ensure that all

elements referenced from the method repository exist,

a quality characteristic we call “Reference Complete-

ness” (see Section 3.3). However, other quality char-

acteristics and the fulﬁllment of constraints described

in method patterns cannot be checked out of the box.

Figure 5 provides an overview of our extensible

quality analysis framework that is based on the Object

Constraint Language (OCL) (OMG, 2014). The anal-

ysis consists of two parts. First, the SEM model is

evaluated against generic quality constraints derived

from general quality characteristics (1.). This will be

explained in the following Section 3.3. Second, the

SEM model is evaluated against MESP method pat-

tern constraints that are extracted from the model and

transformed into equivalent OCL expressions (2.).

This will be explained in Section 3.4. For the eval-

uation of OCL constraints, our framework reuses the

Eclipse OCL Component. Together with the respon-

sible model elements, the detected issues and pat-

tern violations are passed to the Eclipse Problems

View component and then are presented to the project

method engineer.

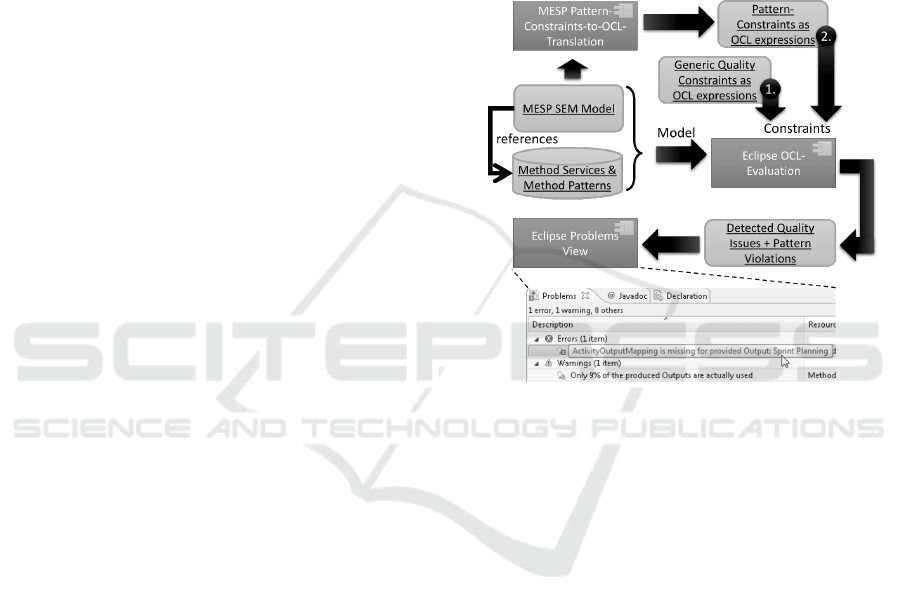

Figure 5: Quality analysis framework of MESP.

3.3 Formalization and Analysis of

General Quality Characteristics

We deﬁned several quality characteristics for MESP-

based SEM models based on the categories proposed

in (Harmsen, 1997) and considering additional litera-

ture from the method engineering and process model

domains. As shown in Table 1, we have currently im-

plemented a basic set of 4 critical and 2 non-critical

quality characteristics (cf. requirement R3) to demon-

strate the approach and the extensibility of the frame-

work (cf. requirement R4). While our deﬁned char-

acteristics cover all essential aspects to ensure the en-

actment of SEM models, providing a “complete” set

of quality characteristics is not in scope of this pa-

per. Instead, we focused on creating a quality analy-

sis framework, which makes the integration of further

quality characteristics fairly easy.

For each of the quality characteristics we derived

an OCL constraint. Every time the user invokes the

analysis, the SEM model is checked against all of

these general quality constraints (see 1. in Figure 5)

and the quality issues are reported. In this section,

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

530

Table 1: Implemented Quality Characteristics.

Critical Quality Characteristics

Reference

Completeness

All referenced elements exist in the

method repository.

Input/Output

Completeness

For all required input work products

of method service descriptors the

necessary data ﬂow is speciﬁed.

Flow

Consistency

The control ﬂow order of method

service descriptors does not contradict

the speciﬁed data ﬂow.

Input/Output

Consistency

The speciﬁed data ﬂow is consistent

to the referenced method services.

Non-Critical Quality Characteristics

Work Product

Efﬁciency

The percentage of produced, but

unused outputs of service descriptors.

Structural

Soundness

The percentage of empty, thus un-

necessary control ﬂow constructs.

we use “Flow Consistency” as an example to exem-

plify the derivation of OCL constraints. The MESP

SEM model illustrated in Figure 3 violates the quality

characteristic, because the method service descriptor

“Reﬁne the Architecture” needs an input work prod-

uct from “Envision the Architecture”, which is ex-

ecuted afterward. In other words, it is required to

check whether an input of a method service descrip-

tor X (here “Reﬁne the Architecture”) is created by

another method service descriptor Y (here “Envision

the Architecture”), where Y is not a predecessor of

X. This would signify a contradiction between the

control ﬂow order (X before Y) and the data ﬂow (X

needs input from Y).

3.4 Formalization and Analysis of

Method Pattern Constraints

As explained in Section 2.2, constraints in method

patterns are formulated using a structured language

that is designed to be used by senior and project

method engineers and which is part of the MESP

approach. Translating method pattern constraints to

OCL allows to reuse the existing Eclipse OCL Com-

ponent to evaluate constraints against the SEM model.

The translation works as follows (see Figure 5):

Based on the pattern references in the SEM model,

the corresponding constraints from method repository

are extracted and translated into equivalent OCL con-

straints. Then these are checked against the SEM

model. While the general quality constraints pre-

sented in the previous section are deﬁned statically,

these pattern-related constraints are created on-the-ﬂy

during each run of the analysis. In addition, pattern-

related constraints are evaluated only against the re-

spective constrained scope descriptor, while general

quality constraints are evaluated against all elements

in the scope of the analysis, so usually the whole SEM

model.

We illustrate the translation of method pattern

constraints using the constraint depicted in the mid-

dle constrained scope of Figure 3. The internal re-

presentation of this constraint is shown in Figure 6.

Underneath each object the corresponding concrete

syntax element is presented. As depicted, some in-

formation is stored as attributes of the objects, e.g.,

whether negation was used. As part of the analy-

sis, the Pattern-Constraint-to-OCL-Translation com-

ponent translates the presented pattern constraint into

the two OCL constraints in Figure 7. We marked

the constraint language constructs of MESP in Fig-

ure 6 and the corresponding OCL statements in Fig-

ure 7 with the same number. As shown, based on

the quantiﬁer of the statement, i.e., OrStatement or

AtomicStatement, a “forAll” or “exists” con-

struct is used in OCL (1., 6.). The body of this

construct then depends on the type of the term,

i.e., CategoryTerm (2.), WorkProductTerm (4.), or

IdentityTerm (7.). If a term was negated, “exist”

would be replaced by “not exist” (2.,4.,6.). From

the referenced Category (3.), Work Product (5.),

and Method Service (8.) the “Name” attribute is

used to create the respective search expressions.

The two OCL constraints are evaluated against

the respective constrained scope descriptors us-

ing the Eclipse OCL Component. The result

of the overall constraint consisting of the two

ConjunctivePartialConstraint is then computed

using a Java “AND”-Statement. The evaluation of our

example, the pattern-related constraint of the middle

constraint scope in Figure 3 would evaluate to false:

With the assumption that both referenced method ser-

vices have the “Development” category, the upper

conjunctive partial constraint would be fulﬁlled, how-

ever, as there is no “Hold Standup Meeting” method

service referenced in the constrained scope, the lower

conjunctive partial constraint B is not fulﬁlled. Thus,

the overall evaluation result is also negative. Simi-

lar to the discussed example, all possible method pat-

tern constraints can be translated to OCL and conse-

quently evaluated with our quality analysis.

3.5 Fulﬁllment of Stated Requirements

After we explained the quality analysis, we revisit

the requirements described in Section 3.1 and discuss

their fulﬁllment.

R1: The analysis is accessible via the Eclipse Val-

idation menu and can be invoked on the whole

Process, but also on single Activities (cf. Fig-

ure 4). It runs also on SEM models that are only

partially completed. Thus, R1 is fulﬁlled.

Automated Quality Analysis of Software Engineering Method Models

531

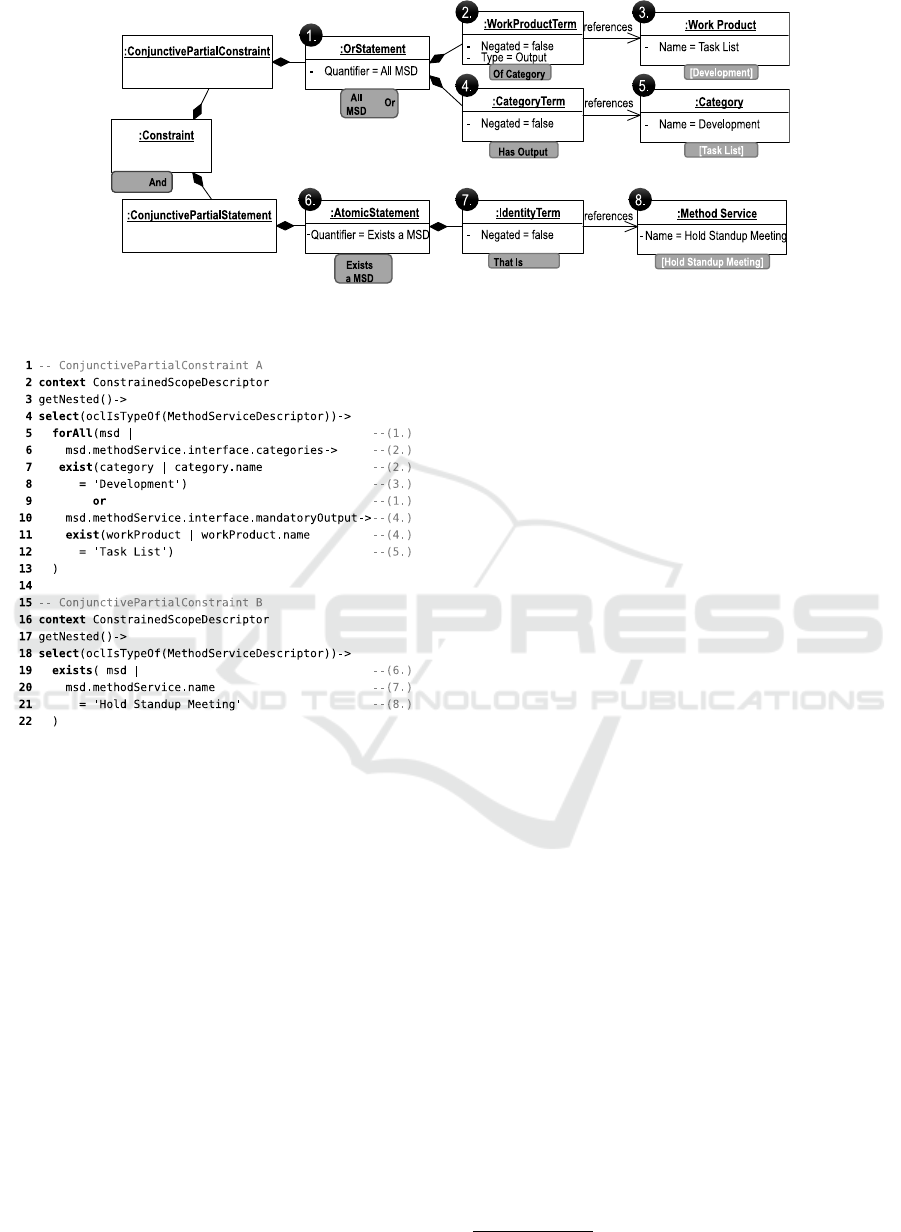

Figure 6: The object model representation of a MESP Constraint.

Figure 7: Generated Method Pattern Constraints.

R2: In our analysis quality issues are presented to the

user in the Eclipse Problems View (cf. Figure 5).

If the user double-clicks on an issue in the Prob-

lems View, he jumps to the causing element. In

addition, the elements that cause quality issues are

highlighted in the modeling editors. Thus, R2 is

fulﬁlled.

R3: In the Problems View, critical issues are pre-

sented as errors and non-critical issues as warn-

ings (cf. Figure 5). Thus R3 is fulﬁlled.

R4: The quality analysis framework is not limited to

a speciﬁc set of quality characteristics, because

additional quality characteristics can always be

added by extending the OCL quality constraints.

In Section 3.3, we explained the basic set of qual-

ity constraints that we have already provided us-

ing this mechanism. Thus, R4 is fulﬁlled.

R5: As shown in the evaluation (see Section 4), the

analysis is fast enough for realistically sized SEM

models, thus R5 is fulﬁlled.

4 PERFORMANCE EVALUATION

We fully implemented and integrated the quality anal-

ysis into the existing MESP workbench. In this sec-

tion, we discuss the runtime performance based on the

implementation of realistically sized SEM models in

order to determine the fulﬁllment of requirement R5.

4.1 Evaluation Approach

For the evaluation, we composed SEM models from a

method repository derived from the practices library

of the Eclipse Process Framework

. We prepared

SEM models focusing on the parameters that impact

the runtime of the analysis (see Table 2). For exam-

ple, the number of detected issues has no noticeable

effect on the runtime and thus was omitted.

We created three sets of models. We created a set

“A” of SEM models to investigate the analysis of gen-

eral quality characteristics that is inﬂuenced mainly

by the number of method service descriptors and in-

put mappings (data ﬂow speciﬁcations). In addition,

we created a set “B” of models to investigate the in-

ﬂuence of the method pattern analysis on the runtime

(cf. Section 3.4). Here, the inﬂuencing parameters are

the number of constrained scopes, the number of par-

tial constraints (that are evaluated individually by the

OCL Component), and the number of method service

descriptors per constrained scope. Both sets exceed

the complexity of big well-known SEMs like RUP

and represent an upper bound for realistically sized

SEM models. Set “C” of SEM models contains mod-

els that are unrealistically big and aims primarily at

investigating the boundaries of the analysis.

http://epf.eclipse.org/wikis/epfpractices/index.htm

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

532

4.2 Results and Interpretation

Table 2 shows an excerpt of the results of our runtime

evaluation. For each model, we took the average of

10 runs, although the measurements deviated only in

fractions of a second. The evaluation shows that real-

istically sized models (sets A and B) are analyzed in

a few seconds. Thereby, the analysis of method pat-

tern constraints seems to have a minor inﬂuence on

the runtime compared to the evaluation of the gen-

eral quality characteristics (cf. A3 to B2/B3 and C1

to C2). The analysis of the unrealistically big SEM

models (set C), which are about 4 times bigger, takes

about 30 seconds (cf. C1/C2).

Table 2: Results of the runtime evaluation of the analysis

framework.

ID SDs IMs CSs PCs D/S t

A1 500 - - - - 0.1

A2 500 1000 - - - 2.0

A3 500 2000 - - - 3.4

B2 500 2000 5 15 100 3.9

B3 500 2000 20 60 25 4.0

C1 2000 4000 - - - 31

C2 2000 4000 20 60 100 34

SDs: Service Descriptors IMs: Input Mappings CSs: Constrained

Scopes PCs: Partial Constraints D/S: Descriptors per Scope

t: Runtime (sec)

The evaluation shows that the runtime perfor-

mance of the analysis fulﬁlls the requirement R5 and

allows its continuous use during method composition.

For the evaluation, we considered the runtime of the

analysis of complete SEM models. However, the user

has the choice to run the analysis on parts of the model

to get speciﬁc results that are computed more quickly.

Regarding threats to validity, there is the risk that

the SEM models that we created are not representa-

tive. However, we do not consider this to be very

likely, because of the variety of characteristics we in-

vestigated in our experiments.

5 RELATED WORK

There are two directions of related work: Firstly,

approaches to use enactable process description lan-

guages to represent software engineering methods.

Models of these approaches can be enacted with

workﬂow engines that support the project team in fol-

lowing the SEM. Secondly, approaches for situational

method engineering that focus on the modeling of

SEMs with respect to project characteristics.

5.1 Process Description Languages

BPMN (OMG, 2011) and BPEL (OASIS, 2007) are

established languages to modeling processes for busi-

ness workﬂow management (Aalst and Hee, 2002).

For the domain of SEMs, there is no such estab-

lished enactable process description language (Ben-

draou et al., 2010).

Formalizing and automatically checking quality

characteristics has been done for various other lan-

guages, e.g. Little-JIL (Chen et al., 2008) or UML

acitivity diagrams (Khaluf et al., 2011). Yet, these

languages do not support assembly-based method en-

gineering and the method patterns of MESP.

The de facto standard description language for

SEMs is SPEM (OMG, 2008). It offers some limited

method engineering capability (Rougemaille et al.,

2009), but SPEM models are not enactable. Bendraou

et al. (Bendraou et al., 2007) and Ellner et al. (Ellner

et al., 2012) propose extensions to SPEM and tool-

ing to model and enact their models. However, they

offer at most basic quality assurance support and do

not support a notion similar to method patterns, while

their evaluation is one of our main goals.

5.2 Situational Method Engineering

There is a broad range of situational method engineer-

ing approaches (Henderson-Sellers et al., 2014), we

focus on approaches with formal modeling languages

and tool support here. Until the beginning of the

last decade, several tool-supported method engineer-

ing approaches were proposed, but did not gain accep-

tance and are not available for current software plat-

forms. Brinkkemper et al. proposed the method en-

gineering tool Demacrone (Brinkkemper et al., 1998;

Harmsen, 1997) that used a set-based formalism and

offered method model consistency rules formalized in

ﬁrst order predicate logic. They deﬁned ﬁve quality

categories that we re-use for our quality characteris-

tics.

To the best of our knowledge there is only one

approach that was proposed lately. The assembly-

based approach is build with a Eclipse-based model-

ing platform called MOSKitt (Cervera et al., 2011)

and speciﬁcally focuses on deriving a suitable CASE

environment to use with the SEM. Similar to our ap-

proach, method fragments are deﬁned and annotated

with meta-information that can be facilitated during

method assembly to ﬁnd suitable fragments. How-

ever, a notion similar to method patterns is not sup-

ported and quality analysis is not described as part of

their approach.

Automated Quality Analysis of Software Engineering Method Models

533

6 CONCLUSIONS

In this paper, we presented an automated quality anal-

ysis for models composed with the approach Method

Engineering with Method Services and Method Pat-

terns (MESP). The composed models are formal rep-

resentations of software engineering methods (SEMs)

used by a project team to create software in the con-

text of a speciﬁc project. Our extensible approach al-

lows to check MESP SEM models against statically

deﬁned quality characteristics formalized with the

Object Constraint Language (OCL) and we demon-

strate that by offering a basic set of these constraints.

In addition, based on an on-the-ﬂy translation to OCL,

it supports the analysis against method pattern con-

straints, a notion to deﬁne quality requirements intro-

duced by the MESP approach. Our analysis runs on

partial models and it traces quality issues back to their

cause. We provide a quality analysis framework that

is integrated into the MESP workbench and our per-

formance evaluation shows that the quality analysis

runs fast enough to be used in practice.

In the future, we want to formalize further quality

constraints, e.g., the degree to which method patterns

are used in a SEM model.

REFERENCES

Aalst, W. M. P. and Hee, K. M. (2002). Workﬂow manage-

ment: Models, methods, and systems. MIT Press.

Bendraou, R. et al. (2007). Deﬁnition of an Executable

SPEM 2.0. In 14th Asia-Paciﬁc Softw. Eng. Conf.,

pages 390–397. IEEE.

Bendraou, R. et al. (2010). A Comparison of Six UML-

Based Languages for Software Process Modeling.

IEEE Trans. on Soft. Eng., 36(5):662–675.

Brinkkemper, S. (1996). Method engineering: engineer-

ing of information systems development methods and

tools. Information & Softw. Technology, 38(4):275–

280.

Brinkkemper, S., Saeki, M., and Harmsen, A. F. (1998). As-

sembly Techniques for Method Engineering. In Per-

nici, B. and Thanos, C., editors, Proc. of the 10th Int.

Conf. on Advanced information systems engineering,

volume 1413 of LNCS, pages 381–400. Springer.

Cervera, M. et al. (2011). Turning Method Engineering

Support into Reality. In Ralyt

e, J., Mirbel, I., and

Deneck

ere, R., editors, IFIP Advances in Information

and Communication Technology, volume 351, pages

138–152. Springer.

Chen, B. et al. (2008). Analyzing medical processes. In

Proceedings of the 30th Int. Conf. on Software Engi-

neering, pages 623–632. ACM.

Cockburn, A. (2000). Selecting a project’s methodology.

IEEE Software, 17(4):64–71.

Ellner, R. et al. (2012). An Integrated Tool Chain for Soft-

ware Process Modeling and Execution. In St

orrle

et al., editors, Joint Proc. of the 8th European Conf. on

Modelling Foundations and Applications, pages 73–

82. Technical University of Denmark.

Fazal-Baqaie, M. and Engels, G. (to appear in 2016). Man-

aging Software Processes Evolution by Assembly-

Based Method Engineering with MESP. In Kuhrmann

et al., editors, Managing Software Process Evolution.

Springer.

Fazal-Baqaie, M., Gerth, C., and Engels, G. (2014). Breath-

ing life into situational software engineering methods.

In Jedlitschka et al., editors, Proc. of the 15th Int.

Conf. of Product Focused Software Process Improve-

ment, volume 8892, pages 281–284. Springer.

Fazal-Baqaie, M., Luckey, M., and Engels, G. (2013).

Assembly-Based Method Engineering with Method

Patterns. In Wagner, S. and Lichter, H., editors, Proc.

of the Software Engineering 2013, volume 215 of LNI,

pages 435–444. GI.

Fitzgerald, B., Russo, N. L., and O’Kane, T. (2003).

Software development method tailoring at Motorola.

Communications of the ACM, 46(4):64–70.

Harmsen, A. F. (1997). Situational method engineering.

Moret Ernst & Young.

Henderson-Sellers, B. et al. (2014). Situational Method En-

gineering. Springer.

Khaluf, L., Gerth, C., and Engels, G. (2011). Pattern-based

modeling and formalizing of business process quality

constraints. In Mouratidis, H. and Rolland, C., edi-

tors, 23rd Int. Conf. on Advanced Information Systems

Engineering, volume 6741 of LNCS, pages 521–535.

Springer.

Kruchten, P. (1999). The rational uniﬁed process: An intro-

duction. Object technology series. Addison-Wesley.

OASIS (2007). Web Services Business Process Execution

Language.

OMG (2008). Software & Systems Process Engineering

Metamodel Speciﬁcation (SPEM).

OMG (2011). Business Process Model and Notation.

OMG (2014). Object Constraint Language.

Rougemaille, S. et al. (2009). Methodology Fragments Def-

inition in SPEM for Designing Adaptive Methodol-

ogy: A First Step. In Luck, M. and Gomez-Sanz,

J. J., editors, Proc. of the 9th int. workshop on Agent-

oriented software engineering, volume 5386 of LNCS,

pages 74–85. Springer.

Schwaber, K. and Sutherland, J. (2013). The Scrum Guide.

Steinberg, D. et al. (2009). EMF: Eclipse Modeling Frame-

work. Addison-Wesley.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

534
