Abstracting Data and Image Processing Systems using a

Component-based Domain Speciﬁc Language

Thomas Hoegg, Christian Koehler and Andreas Kolb

Computer Graphics and Multimedia Systems Group, University of Siegen, Hoelderlinstr. 3, 57076 Siegen, Germany

Keywords:

Modeling, Components, Domain-speciﬁc Languages, Image Processing.

Abstract:

This work proposes a textual and graphical domain-speciﬁc language (DSL) designed especially for modeling

and writing data and image processing algorithms. Since reusing algorithms and other functionality leads to

higher program quality and mostly shorter development time, this approach introduces a novel component-

based language design. Special diagrams and structures, such as components, component-diagrams and

component-instance-diagrams are introduced. The new language constructs allow an abstract and object-

oriented description of data and image processing tasks. Additionally, a compatible graphical design interface

is proposed, giving modelers and architects the opportunity to decide which kind of modeling they prefer

(graphical or textual, including round-trip engineering).

1 INTRODUCTION

The requirements on software systems were rising

dramatically during the last years. Especially the

usage of complex software architectures for techni-

cal applications, such as image processing or sim-

ilar (sensor-) data processing tasks, has heavily in-

creased due to cheaper and more powerful hardware.

While system requirements become more and more

complex, the time to market should be shortened and

the software quality should be improved at the same

time. Setting up new data and image processing sys-

tems is an always recurring task. Having predeﬁned

domain-speciﬁc languages (DSLs) and tested generic

default runtime architectures, supporting functional-

ity as Graphical-User-Interface (GUI) and algorithm

interaction can catalyze development. As an add-

on on top of a data processing runtime, component-

based software engineering (CBSE) can help sepa-

rating data processing problems and algorithms into

packed, reusable software components. After design-

ing such a component, engineers and developers are

able to instantiate it and connect it to other compo-

nents using predeﬁned interfaces. However, one of

the biggest drawbacks in the domain of data and im-

age processing is that no real standard architecture has

been established yet.

During the past years, several techniques have

been established in software engineering but are

rarely used for image processing. The two most im-

portant approaches are graphical modeling and DSLs.

Graphical modeling gives modelers the possibility to

create a relatively simple, high-level, iterative graph-

ical architecture design, where all relevant parties

(programmers and non-programmers as e.g. project

leaders) can have an abstract but graphical view on

the system in development. This can help with iden-

tifying and solving problems at an early stage. DSLs

are the second important approach. While the con-

cept of DSLs has been known for a long time, they

have gained much importance in the last years due

to tools simplifying the language development, e.g.

Xtext (Efftinge et al., 2015). DSLs are divided into

two types: internal and external DSLs (Fowler, 2010).

Internal DSLs use the existing infrastructure of host

programming languages. Examples for such DSLs

are OpenCL or OpenGL. Both languages are a C di-

alect, extending C to their requirements. External

DSLs however are designed from scratch after a full

analysis of the problem description. Using special

keywords, abstractions and control structures, they

are able to illustrate complex problems mostly in sim-

pler and more compressed forms. A big drawback is

that the whole infrastructure such as parsers, lexers

and compilers has to be built. Well-known examples

are the Unix shell scripts or SQL.

Both kinds of approaches, graphical modeling and

also external DSLs, are unfortunately hardly used in

the domain of image processing and computer vision.

Developers mainly want to concentrate on algorithm

292

Hoegg, T., Koehler, C. and Kolb, A.

Abstracting Data and Image Processing Systems using a Component-based Domain Speciﬁc Language.

DOI: 10.5220/0005743502920300

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 292-300

ISBN: 978-989-758-168-7

development and not on software design issues. This

is why we propose GU-DSL, an external data and im-

age processing related language, combining graphical

and textual modeling to reduce architecture and sys-

tem design times. For this purpose we contribute the

following novel main features:

• A language concept and implementation of com-

ponents using ports and interfaces based on Xtext

• Class-, component- and novel component-

instance-diagrams for component and system

design

• A textual and graphical tool infrastructure using

Eclipse Xtext and GMF

The remainder of this paper is organized as fol-

lows: Sec. 2 explains the newly proposed language

and software architecture concept. In Sec. 3, we show

our novel DSL features. Sec. 4 exhibits an image pro-

cessing modeling example. In Sec. 5, the related work

to this paper is discussed. Sec. 6 concludes this paper.

2 SYSTEM CONCEPT AND

OVERVIEW

GU-DSL is a diagram based, object oriented mod-

eling language supporting structural- and behavior-

modeling in a textual and graphical, model driven

way. Using a Java and C# like syntax, it is easy to

learn and offers an abstract way for textual modeling

of especially data and image processing tasks. Apart

from using class- and activity-diagrams to model ob-

jects and system behaviors, it gives architects the pos-

sibility for sequential behavior coding using an em-

bedded expression language. The DSL’s activity-

diagrams and the expression language are just men-

tioned for completeness and are not part of this paper.

The paper proposes a novel component-based

language in a textual and graphical form. For

component-oriented modeling, we pick up the basic

concepts speciﬁed in literature as interfaces, classes,

components, ports and interface connections and in-

tegrate them in a novel way into our DSL. Hence,

we add special novel keywords, structures, compo-

nent implementations and communication concepts

that we will show in the following sections.

Fig. 1 shows the principle setup of the frame-

work. The contributed parts with this paper are high-

lighted in green. Three collaborating system parts

are comprised: modeling, code-generation and the

framework runtime. The basis of our system is built

in Eclipse in combination with some modeling plug-

ins such as Xtext (a DSL generation language) and

Eclipse Xtext/GMF/Java

Basic-GU-DSL

(Xtext-DSL)

C/C++/OpenCL-Code Generator

GMF-Editors

OpenGL-GUI-Framework

Heteregenous Computing

Framework

Real-World-Problem

Description/Algorithm

Modeling

Optional: Generation

Runtime

Optional: Framework Runtime

Component-

based GU-DSL

C++ CBSE Framwork

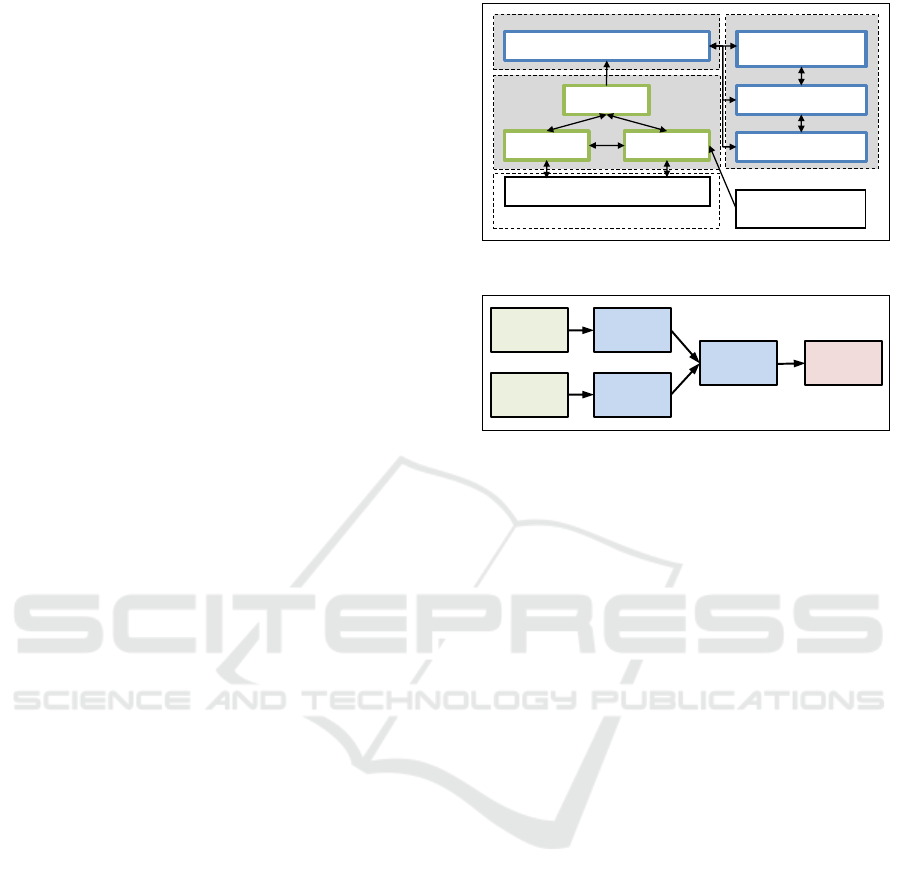

Figure 1: The principle schema of the modeling framework.

Camera

(Source)

Camera

(Source)

Mean

(Filter)

Viewer

(Sink)

Mean

(Filter)

Merge

(Filter)

Figure 2: An image processing example using several com-

ponents.

GMF (Graphical Modeling Framework). On top

of Eclipse, there is our DSL-modeling environment.

It contains three interacting parts: the basic DSL

(class- and activity-diagrams, expression language),

the component-based language parts and the GMF ed-

itors allowing for graphical modeling. By using the

modeling part, the system architect can easily abstract

real-world problems and algorithm descriptions and

use the model as input for the future code generator.

Data and image processing tasks can rapidly grow

in complexity. The abstraction towards reusable com-

ponents helps handling this. Having a look on such a

processing system (see our example in Fig. 2) shows,

that we generally have a pipeline system starting with

a source (often a camera, sensor or a database), con-

tinuing with ﬁlters (e.g. noise reduction or data eval-

uation) and ﬁnishing with sinks (e.g. showing or stor-

ing data). In software-engineering, this problem de-

scription can be mapped by the pipe and ﬁlter ar-

chitectural pattern, allowing pipeline based data pro-

cessing. It serves as a basis for our novel language

concept as we will show in the next sections. A de-

tailed description of the particular DSL parts can be

found in Sec. 3.

Components form the basis of our system. In-

terfaces, known e.g. from UML and SysML, allow

communication between components. The direction

depends on the interface deﬁnition and can be either

uni- or bi-directional. The DSL is deﬁned with the

following restrictions:

• Sources: Outgoing communications (uni-

directional)

Abstracting Data and Image Processing Systems using a Component-based Domain Speciﬁc Language

293

• Filters: Incoming and outgoing communications

(bi-directional)

• Sinks: Incoming communications (uni-

directional)

Ports are used as ﬂexible input and output points

of components by providing required interfaces. Ev-

ery port is uniquely assigned to a component and can

be connected to other valid ports, allowing a prede-

ﬁned, direct communication as we will see in the later

sections.

3 THE COMPONENT BASED

ENGINEERING LANGUAGE

GU-DSL is a language especially designed for object-

oriented modeling of data and image processing prob-

lems. Different to other languages in this domain, it

is designed in a way that model driven problem so-

lutions, both textual and graphical, are the main fo-

cus. Other languages often concentrate on the com-

pression and simpliﬁcation of code only.

This section shows all the features required for

understanding our concept and novel ideas. Com-

ponents are a well established concept in software

engineering, however, the novel contribution of this

approach is the way how all the different diagrams

(class-, activity- and component-diagrams) and lan-

guage features interact to reduce future errors and

to speed up development. Especially the way how

components interact with classes, types and meth-

ods using behavior-diagrams or sequential coding are

unique in this domain and will be shown in the fol-

lowing section. Additionally, the proposed compo-

nent approach can be used standalone for architectural

design and modeling in the sense of Architecture De-

scription Languages (ADL).

To better support reusable components, we split

our system into two main parts:

1. Component-diagrams

2. Component-instance-diagrams

As typical for ADLs, this gives architects the op-

portunity of splitting a system into an architectural

modeling layer (component-diagrams, where the ba-

sic system setup can be deﬁned) and an instantiation

layer (component-instance-diagrams, where compo-

nents can be instantiated). This can be partly com-

pared to the OMG Meta-Object-Facility (MOF, a four

layer modeling architecture (OMG, 2015c)).

The following sections will introduce all neces-

sary new language features.

3.1 Interface Deﬁnitions

A central role in our language is played by inter-

faces. GU-DSL supports standard interfaces (known

e.g. from UML), but for our novel component ex-

tension, they are not sufﬁcient. To make the system

type- and communication-safe, we introduce two spe-

cial keywords: processor and provider. As shown

in Listing 1, the new keywords can directly be ap-

plied to either deﬁning an output-interface (provider)

or an input-interface (processor). The keywords clas-

sify the new interface types to be usable with compo-

nent ports, as will be shown in Sec. 3.3.

1 I n t e r f a c e :

2 v i s i b i l i t y = ( ’ p u b l i c ’ | ’ p r o t e c t e d ’ | ’

p r i v a t e ’ ) ? ’ i n t e r f a c e ’

3 ( ’ p r o v i d e r ’ | ’ p r o c e s s o r ’ ) ? name=ID

4 ’{ ’ ( method s +=Method ) ∗ ’ } ’

Listing 1: Component interface deﬁnitions.

An automatic communication specialization has

been added in a way, that a provider-interface can talk

to a corresponding processor-interface only. For this

purpose, there is a restriction that a provide-method-

signature needs a corresponding process-method-

signature as can be seen in our example in Listing 8.

It simpliﬁes the usage, makes automatic code genera-

tion easier and allows for complete model validation.

Which processor and which provider interface corre-

sponds to each other can be deﬁned in the component-

diagram by connecting ports (see Sec. 3.3).

3.2 Component Deﬁnitions

Components and their simple (re-)usage are the cen-

tral new contribution of our paper. In our approach,

they are directly interconnected with the class-system

known from UML class diagrams and are the base of

our system architecture deﬁnition.

Therefore, an important novel idea is introduced

with our class diagrams. The keywords source, ﬁlter

and sink can be used in a similar way as the standard

class-keyword (see Listing 2). Stemming from the

domain of data and image processing, these special

keywords characterize the components as speciﬁed in

Sec. 2.

Once having a component-class deﬁned, it is

used as basis for the ﬁnal component. Designing

components this way gives architects the possibil-

ity to split the deﬁnition (component-diagram) from

the concrete implementation (class-diagram, activity-

diagram). Components are designed in the newly

introduced component-diagrams (Listing 3). As for

class-diagrams, there are also the three main types

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

294

(source, ﬁlter, sink) available. To support generic

components that cannot be mapped to these three

types, the class-keyword is usable. The component

deﬁnition syntax (see Listing 3) itself is quite simple:

it is the previously deﬁned fully qualiﬁed name (Fqn)

used in the class-diagram (see Listing 2). As class-

and activity-diagrams, component-diagrams support

nesting of additional components in arbitrary depth

as can be seen in Listing 3.

2 C l a s s D i a g r a m :

3 ’ Clas s D ia g r a m ’ name=ID

4 ’{ ’

5 c l a s s e s += B a s e C l a s s ∗

6 ’ } ’ ;

8 B a s e C l a s s :

9 v i s i b i l i t y =( ’ p u b l i c ’ | ’ p r o t e c t e d ’ | ’ p r i v a t e ’ ) ?

10 ( ’ c l a s s ’ | ’ so u r c e ’ | ’ f i l t e r ’ | ’ s i n k ’ ) name=ID

11 ’{ ’

12 ( f i e l d s += F i e l d ) ∗

13 ( methods +=Method ) ∗

14 ’} ’

Listing 2 : Class-diagram and class deﬁnitions.

For embedded components, the same design prin-

ciples are applicable as for all other components.

That means the underlying classes have to be deﬁned

ﬁrst and ports have to be used in the same way (see

Sec. 3.3).

1 Comp o n e ntDiagr a m :

2 ’ C omp one ntD iag ram ’ name=ID

3 ’{ ’

4 ( comp o n e nts += Component ) ∗

5 ’ } ’ ;

7 Component :

Fqn ]

9 ’{ ’

10 ( comp o n e nts += Component ) ∗

11 ( p o r t s += P o r t ) ∗

12 ( c o n n e c t i o n s += C o n n e c t i o n ) ∗

13 ’ } ’ ;

Listing 3: Component-diagram and component deﬁni-

tions.

3.2.1 Component Interfaces

Components require interfaces to be able to commu-

nicate. Hence, two types of component interface im-

plementations are provided:

1. Interfaces by inheritance

2. Anonymous interfaces

Interfaces by Inheritance. are the default inter-

faces that should be used during the component def-

inition. In this case, the component classes inherit

from the necessary interfaces and provide all the

methods that can later be used by ports and during the

component functionality implementation. An impor-

tant feature is that in this case, the interfaces meth-

ods have to be implemented only, if they require a

special implementation. Otherwise, they are automat-

ically available assuming a default implementation.

This has the advantage of interface methods being di-

rectly accessible and usable without any additional

code. However, if a special kind of implementation

is required, the interface methods can also be imple-

mented using our DSL.

Anonymous Interfaces. are a special version of in-

terface implementations. In this case, the component

class does not have to implement the interface, but the

interface method can still be called directly, e.g. in the

DSL’s sequential expression language. Therefore we

have added a new kind of interface call (Listing 4).

1 I n t e r f a c e C a l l :

2 ( ’ c a l l ’ ( ’ i n t e r f a c e ’ ) ? ) ? i n t e r f a c e N a m e =Fqn ’ . ’

methodName=ID

3 ’ ( ’ p a r a m e t e r V a l u e s += P a r a m e t e r V a l u e

4 ( ’ , ’ p a r a m e t e r V a l u e s += P a r a m e t e r V a l u e ) ∗ ’ ) ’

Listing 4: Anonymous interface calls.

Anonymous interfaces are completely loose and

the full interface deﬁnitions do not have to be avail-

able during design time. This gives designers the pos-

sibility to model components without having the full

interface code. It can also be used to call interface

methods from arbitrary places during component ex-

ecution.

3.3 Port Deﬁnitions and Connections

Ports are the door to the outer and inner world of com-

ponents. Allowing data exchange between compo-

nents and nested components, ports provide the abil-

ity to deﬁne interfaces that handle how data can be

transferred to and from a component. Therefore the

previously deﬁned interfaces (see Listing 1) can be

chosen. The port deﬁnition within a component has a

simple syntax (see Listing 5).

1 P o r t :

2 ( ’ asy n c ’ ( ’ b u f f e r e d ’ ) ? ) ? ’ p o r t ’ name=Fqn

3 ’ ( ’ c o n n e c t o r s += C o n n e c t o r

4 ( ’ , ’ c o n n e c t o r s += C o n n e c t o r ) ∗ ’ ) ’

6 C o n n e c t o r :

7 ’ p r o c e s s o r | ’ p r o v i d e r ’ name=Fqn ’ : ’ i n t e r f a c e r e f =[

I n t e r f a c e | Fqn ] ;

9 C o n n e c t i o n :

10 ’ [ ’ name=ID ’ s o u r c e ’ s o u r c e p o r t =[ C o n n e c t o r | Fqn ] ’==>’

’ t a r g e t ’ t a r g e t p o r t =[ C o n n e c t o r | Fqn ] ’ ] ’ ;

Listing 5: Port and Connection deﬁnitions.

The special preceded keyword async characterizes

the port to be asynchronous, which means commu-

nication is forced to be non-blocking. Compared to

standard blocking ports, a called interface method di-

rectly returns to the component and its sequential ex-

ecution. A special variant of asynchronous ports are

Abstracting Data and Image Processing Systems using a Component-based Domain Speciﬁc Language

295

buffered ports. Incoming data can be buffered and is

forwarded to the component if needed.

The detailed usage of components in combination

with interfaces and ports can be found in our example

in Sec. 4.

Ports play an important role when designing the

system. By connecting two ports (source ==¿ tar-

get), we deﬁne which interfaces and which interface

methods can be connected in the component-instance-

diagram (see Sec. 3.4).

Once all components, interfaces, ports and con-

nections are deﬁned, the architecture deﬁnition is

completed and the instantiation phase can begin as we

will show in the next sections.

3.4 Component Instance Deﬁnitions

Once components have been designed and interface/-

port wiring is completed, the architectural deﬁnition

can be used in the component-instance-diagram. The

component-instance-diagram is an important new fea-

ture we have added to be able to reuse components

and to guarantee a type- and interface-safe compo-

nent wiring. The diagram can be compared to the

object-diagram known from UML, but it is specially

designed for component based engineering. Splitting

the instantiation from the deﬁnition of types and ob-

jects is a well-known practice in software engineer-

ing, but is not fully established for component based

ADL approaches (or also UML) in this form.

The separation of deﬁnition and instantiation en-

sures two things:

1. Deﬁned components can simply be reused and

parametrized

2. Interface connections can be checked for validity

during design

Using the component and port deﬁnitions of the

component-diagram, the component instantiation can

be realized as shown in Listing 6.

While the component deﬁnition just deﬁnes ﬁelds

and methods in the class declaration, the instantiation

step assigns a unique instance name and initialization

values to a component and its ﬁelds. Three points are

necessary to completely instantiate a component. The

ﬁrst one is a unique name. As second point, the com-

ponent type has to be assigned using the fully quali-

ﬁed name of a component deﬁned in the component-

diagram. The third important point is the assignment

of new initialization values. They can directly be as-

signed within two parentheses after the type speciﬁ-

cation by a name-value combination.

1 C o m p o n e n t I n s t a n c e D i a g r a m :

2 ’ C o mp o n e n t In s t an c e D i a gr a m ’ name=ID

3 ’{ ’

4 c o m p i n s t a n c e s += C o m p o n e n t I n s t a n c e ∗

5 ’ } ’ ;

7 C o m p o n e n t I n s t a n c e :

8 name=ID ’ i n s t a n t i a t e s ’ co mponentT y p e =[ B a s e C l a s s | Fqn ]

9 ’ ( ’ ( fi e l d N a m e +=ID ’= ’ f i e l d V a l u e = F i e l d V a l u e

10 ( ’ , ’ f i e l d N a m e +=ID ’= ’ f i e l d V a l u e = F i e l d V a l u e )

∗) ? ’) ’

11 ’{ ’

12 ( p o r t s += C ID P or t ) ∗

13 ( ( b i n d i n g s += B i n d i n g ) ∗)

14 ( c o m p i n s t += C o m p o n e n t I n s t a n c e ∗ ) ?

15 ’ } ’ ;

Listing 6: Component instance deﬁnitions.

Besides the component instantiation, the other im-

portant step is having connections allowing the com-

munication and data-exchange between components.

For this purpose, instances of ports are created ﬁrst.

Newly instantiated ports can then be wired. This syn-

tax can be seen in Listing 7.

1 C I D P o r t :

2 name=ID ’ : ’ ty p e =ID

3 ’ ( ’ c o n n e c t o r s += CI D C o n n e c to r ( ’ , ’ c o n n e c t o r s +=

CI D C o nn e c to r ) ∗ ’ ) ’ ’ ; ’ ;

5 C I D C on n e c t o r :

6 ’ p r o c e s s o r ’ | ’ p r o v i d e r ’ name=ID ’= ’

p r o c e s s o r I n t e r f a c e T y p e =Fqn

7 ’ ( ’ ( fi e l d N a m e +=ID ’= ’ f i e l d V a l u e = F i e l d V a l u e ( ’ , ’

f i e l d N a m e +=ID ’= ’ f i e l d V a l u e = F i e l d V a l u e ) ∗) ? ’ ) ’ ;

9 B i n d i n g :

10 ( ’ [ ’ ’ s o u r c e ’ s o u r c e p o r t = [ CI D C o n n e c to r | Fqn ] ’==>’

’ t a r g e t ’ t a r g e t p o r t =[ CI D C o nn e c to r | Fqn ] ’ ] ’ ) ;

Listing 7: Component connection deﬁnitions.

Connections are possible between processor and

provider ports only. This is guaranteed by the

architecture deﬁnition speciﬁed in the component-

diagram. Validity checks can be applied by an OCL

(Object Constraint Language, see (OMG, 2015d))

model validator (used in our approach) or any other

kind of validator. Depending on the ﬁnal kind of code

generation and how ports are implemented on the tar-

get platform, it is also possible to initialize and assign

values to port instances. This can e.g. be necessary

for buffered ports shown in Listing 5, giving the op-

portunity to deﬁne the buffer size and so forth.

The connections are created between instantiated

ports. Only port instances are used as source or target.

The direction is unidirectional and it does not matter

if the source is a provider and the target a processor

or vice versa.

3.5 Component Initialization and

Execution

While the previous sections have shown how compo-

nents can be deﬁned in general, this section shows

how they can be implemented. Hence, three meth-

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

296

ods are automatically available. The ﬁrst one is re-

sponsible for initialization (init()) and it is assumed to

be called during the instance initialization, while the

second method is called during the component exe-

cution process(). The third important method is the

cleanup() and is responsible to release e.g. memory

or other resources. It is important to know that we

assume, that the process()-method is executed in a

thread. But this depends on the code-generator and

the underlying CBSE framework. The implementa-

tion of all three methods is performed in the corre-

sponding component class, either by using activity-

diagrams or sequential code as we show in our exam-

ple in Sec. 4.

3.6 Graphical Design Assistance

Besides the textual new features, we have also added

special graphical editors allowing full graphical mod-

eling in the sense of model driven development. Us-

ing graphical editors, system architects proﬁt from the

higher level of abstraction. Multiple lines of code can

be added by drag and drop operations from a toolbox,

placing e.g. complete components on a component-

diagram. Also, connections can intuitively and in-

teractively be added by simply selecting source and

target ports. Sequential coding of method implemen-

tations is added using in-place editors supporting the

full language speciﬁcation, especially the expressions

language. This gives architects the possibility to de-

cide on their own, if they prefer either textual, graph-

ical or mixed design. Since textual and graphical

representations are fully compatible (round-trip engi-

neering), the designer starts e.g. with textual model-

ing and can go over to graphical modeling and vice

versa. This can facilitate the entry to this new kind of

programming language and the component based en-

gineering. An example of the graphical design system

can be seen in Sec. 4.

3.7 Summary

The previous sections have introduced our novel

textual and graphical language contributions as

provider and processor interfaces, components,

ports, component-instances and also component- and

component-instance-diagrams. We have shown how

components can be designed and how they can be

connected using ports and interfaces.

Once the system architecture is speciﬁed in the

class- and component-diagrams, component, port and

connection instances have to be created in the novel

component-instance-diagram. The separation of deﬁ-

nition and instantiation in this case has the big advan-

tage of giving two clear points of view onto the system

implementation. Furthermore, the new component-

instance-diagrams give the opportunity to uniquely

name and initialize the component and port instances.

By the usage of e.g. OCL validators, it is guaranteed

that names and ﬁeld-value assignments are unique

and that instantiated component connections are ap-

plicable (provider to processor only).

All the previously introduced novel language fea-

tures allow for a complete architectural system speci-

ﬁcation and instantiation. An example system can be

found in Sec. 4.

4 A COMPONENT BASED

MODELING EXAMPLE

In the next sections, we will show a small image pro-

cessing example scenario to evaluate and demonstrate

the simplicity and ﬂexibility of our new modeling lan-

guage (see also Fig. 2). A Camera-component (e.g. a

color camera) acquires an image, which is mean-value

ﬁltered in the MeanFilter-component. At the end, the

image is shown in the Viewer-component. We start

with the deﬁnition of the necessary classes and inter-

faces in Listing 8.

Until now, we have deﬁned the three main com-

ponent classes and the corresponding image proces-

sor and image provider interfaces. The classes imple-

ment their required interfaces as shown in Sec. 3.2.

Furthermore, they implement the required compo-

nent process-method by calling the responsible ac-

tivity diagrams (not part of this example). List-

ing 9 shows the usage of the classes as basis for

components. The components themselves deﬁne all

valid ports (CameraImageProviderPort, MeanImage-

ProcessorPort, MeanImageProviderPort, ViewerIm-

ageProcessorPort) and connections (CameraToFilter,

FilterToViewer) describing the ﬁnal software archi-

tecture. As stated in Sec. 3, this means that we deﬁne

which components are connectable. In this example,

we allow the connection between a Camera and a pro-

cessing MeanFilter and also the connection between

a MeanFilter and a Viewer.

As can be seen, the basic architecture deﬁnition

is quite simple. While Listing 9 shows the required

component deﬁnitions and thus the developed archi-

tectural deﬁnition, Listing 10 instantiates the ﬁnal

system using a component-instance-diagram (Com-

ponentInstanceExampleDiagram). It creates two

Camera instances (Camera1, Camera2), a MeanFilter

(MeanFilter1) and also a Viewer (Viewer1). Property

values are also assigned during creation.

Abstracting Data and Image Processing Systems using a Component-based Domain Speciﬁc Language

297

1 C la s s D i a g r a m C o m p o n e n t C l a s s D e f i n i t i o n s

2 {

3 p u b l i c i n t e r f a c e p r o v i d e r II m a g e P r o v i d e r

4 { / / se e a l s o t h e c o r r e s p o n d i n g p r o c e s s I m a g e

s i g n a t u r e

5 p u b l i c vo i d pr o v i d e I m a g e ( r e f Im age i m a g e ) ;

6 }

8 p u b l i c i n t e r f a c e p r o c e s s o r I I m a g e P r o c e s s o r

9 { / / se e a l s o t h e c o r r e s p o n d i n g p r o v i d e I m a g e

s i g n a t u r e

10 p u b l i c vo i d p r o c e s s I m a g e ( r e f Image im a ge ) ;

11 }

13 p u b l i c s o u r c e Camera im p l e m e n t s I I m a g e P r o v i d e r

14 {

15 p u b l i c i n t wi d t h ;

16 p u b l i c i n t h e i g h t ;

18 p u b l i c bo o l p r o c e s s ( C o n s t I O b j e c t P a r a m e t e r s P t r

p a r a m e t e r s )

19 { / / C a l l t h e a c t i v i t y −d i a g r a m r e s p o n s i b l e f o r

20 / / image a c q u i s i t i o n

21 c a l l b e h a v i o r Ad A c q u i r e I m a g e ;

22 r e t u r n t r u e ;

23 }

24 }

26 p u b l i c f i l t e r M e a n F i l t e r im p l e m e n t s I I m a g e P r o v i d e r ,

I I m a g e P r o c e s s o r

27 {

28 p u b l i c bo o l p r o c e s s ( C o n s t I O b j e c t P a r a m e t e r s P t r

p a r a m e t e r s )

29 { / / C a l l t h e mean f i l t e r a c t i v i t y −d i a g r a m

30 c a l l b e h a v i o r A d F i l t e r M e a n ;

31 r e t u r n t r u e ;

32 }

33 }

35 p u b l i c f i l t e r Viewe r im p l e m e n t s I I m a g e P r o c e s s o r

36 {

37 p u b l i c bo o l p r o c e s s ( C o n s t I O b j e c t P a r a m e t e r s P t r

p a r a m e t e r s )

38 { / / C a l l t h e a c t i v i t y −d i a g r a m t o show a new imag e

39 c a l l b e h a v i o r AdShowImage ;

40 r e t u r n t r u e ;

41 }

42 }

43 }

Listing 8: Component class example diagram.

Furthermore, all required port instances (Cam-

era1ProviderPort, Camera2ProviderPort, MeanPro-

cessorPort, MeanProviderPort, ViewerProcessor-

Port) are created. Finally, the ports are connected. As

already mentioned, the instantiation of ports and also

the connections are restricted to the ﬁxed deﬁnitions

in Listing 9.

As stated in Sec. 3.6, besides the textual DSL, we

also propose graphical editors with this approach. It

rounds off the new component system approach as

can be seen in Fig. 3. The textual class-, component-

and component-instance-diagrams are shown in their

graphical version. While the textual form grows up

relatively fast, the graphical representations are more

compressed and much simpler to understand, which

can simplify design.

The listings and ﬁgures in this section show a

representative small example of the newly proposed

DSL component features. Starting with the class-

and interface-deﬁnitions (Listing 8), continuing with

the component design (Listing 9) and ﬁnishing with

the component instance deﬁnitions (Listing 10), the

example creates a small image processing pipeline

(Two cameras -¿ mean-ﬁlter -¿ viewer) in a textual

and graphical form.

By using e.g. a code generator, the example can be

transformed into compilable code. A reference imple-

mentation of a corresponding C++ CBSE system can

be found in (Hoegg et al., 2015).

5 RELATED WORK

This paper presents a novel DSL designed for textual

and graphical, component based modeling. The next

sections will have a look at some related work.

Several related languages and software engineer-

ing frameworks have been developed during the last

years. Architecture Description Languages (ADLs)

play an important role for this development, allowing

description of hardware as well as software architec-

tures. We exemplary compare our DSL and its infras-

tructure with the most important of them.

A very early approach of formal architecture def-

initions is Wright (Allen and Garlan, 1997). It was

introduced by R. Allen et. al in 1997, proposing ways

how components can be interconnected.

In (Magee et al., 1993), Magee et al. have intro-

duced Darwin, a conﬁguration language that allows

for grouping process instances (an early kind of mod-

ern components) communicating by message passing.

Another standardized example of an ADL is

AADL (Feiler et al., 2005). It was developed es-

pecially for automotive embedded hard- and soft-

ware real-time systems, supporting several different

types as devices, buses, processors (hardware-side)

and threading or data processing (software-side). Fur-

thermore, it can encapsulate visible functionality into

connectable components.

UML (OMG, 2015e) and SysML (OMG, 2015f)

are standardized, ADL like languages supporting

structural, sequential and behavioral graphical mod-

eling of real world problems. They are proposed to be

generic applicable system and architecture languages,

giving architects the possibility of graphically design-

ing and solving problem descriptions.

Besides ADLs, also other related component

based approaches and frameworks have been installed

in several domains of software engineering in the past

two decades.

An early example of a component based robotic

controlling framework is SmartSoft (Schlegel and

Wrz, 1999) on basis of CORBA (Common Object Re-

quest Broker Architecture (OMG, 2015a)).

Examples and additional material: http://www.gu-

dsl.org

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

298

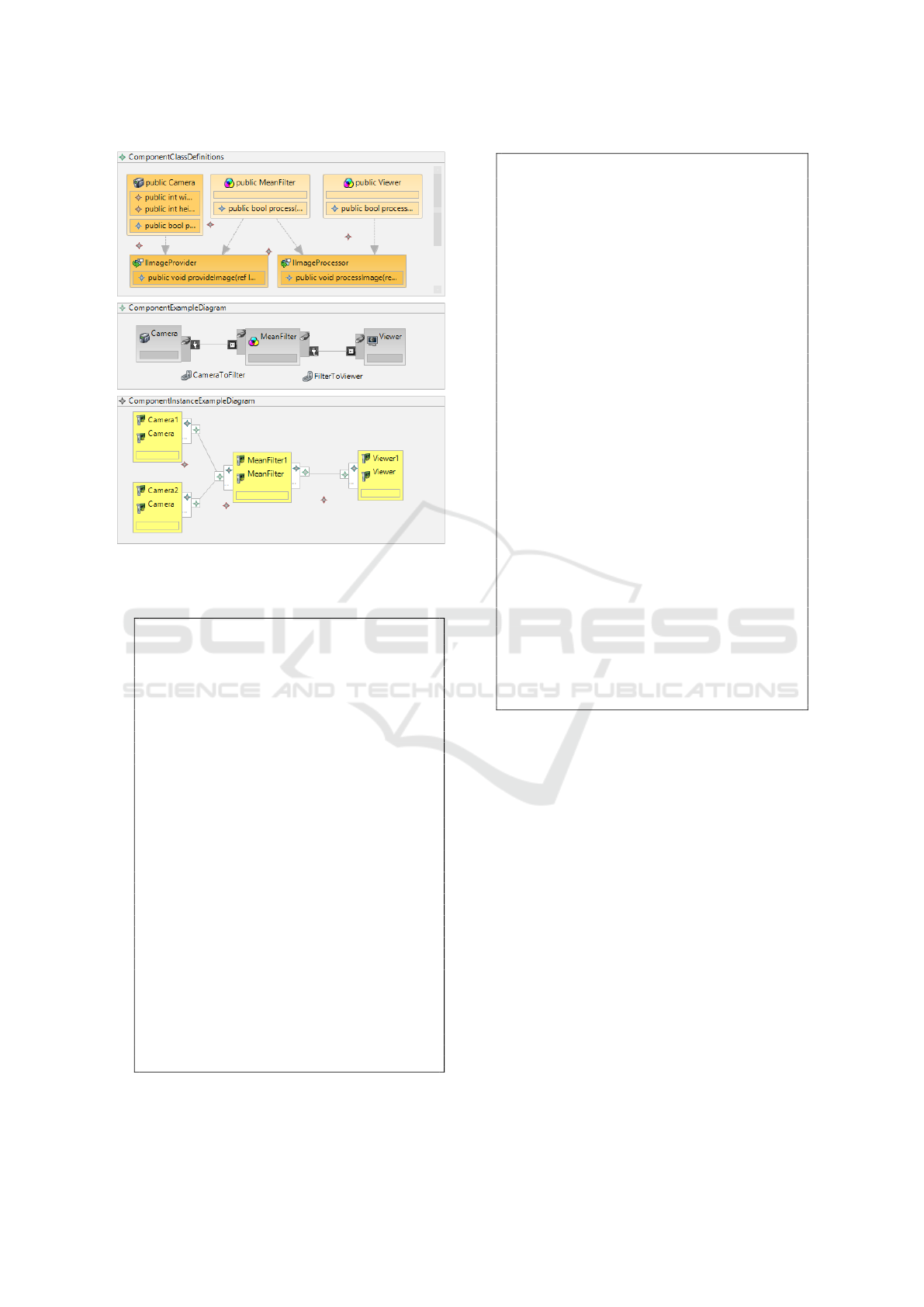

Figure 3: The graphical CBSE example. Top: The class

diagram; Middle: The component-diagram; Bottom: The

component-instance-diagram.

1 C ompo nent Diag ram C o mpon entEx ample Diag r am

2 {

3 s o u r c e C o m p o n e n t C l a s s D e f i n i t i o n s . Camera

4 { / / D e f i n e t h e o u t p u t p o r t

5 p o r t C a m e r a I m a g e P r o v i d e r P o r t ( p r o v i d e r

C a m e r a I m a g e P r o v i d e r P o r t :

6 C o m p o n e n t C l a s s D e f i n i t i o n s .

I I m a g e P r o v i d e r ) ;

7 / / De f i n e t h e p o r t

8 [ C a m e r a T o F i l t e r s o u r c e C a m e r a I m a g e P r o v i d e r P o r t .

C a m e r a I m a g e P r o v i d e r P o r t ==>

9 t a r g e t M e a n I m a g e P r o c e s s o r P o r t .

F i l t e r I m a g e P r o c e s s o r P o r t ]

10 }

12 f i l t e r C o m p o n e n t C l a s s D e f i n i t i o n s . M e a n F i l t e r

13 { / / D e f i n e t h e i n p u t and o u t p u t p o r t s

14 p o r t M e a n I m a g e P r o c e s s o r P o r t ( p r o c e s s o r

F i l t e r I m a g e P r o c e s s o r P o r t :

15 C o m p o n e n t C l a s s D e f i n i t i o n s .

I I m a g e P r o c e s s o r ) ;

16 p o r t M e a n I m a g e P r o v i d e r P o r t ( p r o v i d e r

F i l t e r I m a g e P r o v i d e r P o r t :

17 C o m p o n e n t C l a s s D e f i n i t i o n s .

I I m a g e P r o v i d e r ) ;

19 / / De f i n e t h e p o r t

20 [ F i l t e r T o V i e w e r s o u r c e M e a n I m a g e P r o v i d e r P o r t .

F i l t e r I m a g e P r o v i d e r P o r t ==>

21 t a r g e t V i e w e r I m a g e P r o c e s s o r P o r t .

V i e w e r I m a g e P r o c e s s o r P o r t ]

22 }

24 s i n k C o m p o n e n t C l a s s D e f i n i t i o n s . Viewer

25 { / / D e f i n e t h e i n p u t p o r t

26 p o r t V i e w e r I m a g e P r o c e s s o r P o r t ( p r o c e s s o r

V i e w e r I m a g e P r o c e s s o r P o r t :

27 C o m p o n e n t C l a s s D e f i n i t i o n s .

I I m a g e P r o c e s s o r ) ;

28 }

29 }

Listing 9: Component example diagram.

2 C o m p on e n t I n s t a n ce D i a g r a m

Co m p on e n t I n s t a n ce E x am p l eD i a gr a m

3 {

4 Camera1 i n s t a n t i a t e s C o m p o n e n t C l a s s D e f i n i t i o n s .

Camera

5 ( w i d t h = 6 4 0 , h e i g h t = 4 8 0 )

6 {

7 C a m e r a 1 P r o v i d e r P o r t : C a m e r a I m a g e P r o v i d e r P o r t (

8 p r o v i d e r C a m e r a I m a g e P r o v i d e r P o r t =

I I m a g e P r o v i d e r ( ) ) ;

10 [ s o u r c e C a m e r a 1 P r o v i d e r P o r t .

C a m e r a I m a g e P r o v i d e r P o r t ==> t a r g e t

11 M e a n F i l t e r 1 . M e a n P r o c e s s o r P o r t .

M e a n I m a g e P r o c e s s o r P o r t ]

12 }

14 Camer a2 i n s t a n t i a t e s C o m p o n e n t C l a s s D e f i n i t i o n s .

Camera ( )

15 {

16 C a m e r a 2 P r o v i d e r P o r t : C a m e r a I m a g e P r o v i d e r P o r t (

17 p r o v i d e r Ca m e r a I m a g e P r o v i d e r P o r t = I I m a g e P r o v i d e r

( ) ) ;

19 [ s o u r c e C a m e r a 2 P r o v i d e r P o r t .

C a m e r a I m a g e P r o v i d e r P o r t ==> t a r g e t

20 M e a n F i l t e r 1 . Me a n P r o c e s s o r P o r t .

M e a n I m a g e P r o c e s s o r P o r t ]

21 }

23 M e a n F i l t e r 1 i n s t a n t i a t e s C o m p o n e n t C l a s s D e f i n i t i o n s .

M e a n F i l t e r ( )

24 {

25 M e a n P r o c e s s o r P o r t : Me a n I m a g e P r o c e s s o r P o r t (

26 p r o v i d e r Me a n I m a g e P r o c e s s o r P o r t = I I m a g e P r o c e s s o r

( ) ) ;

28 M e a n P r o v i d e r P o r t : M e a n I m a g e P r o v i d e r P o r t (

29 p r o v i d e r Me a n I m a g e P r o v i d e r P o r t = I I m a g e P r o c e s s o r

( ) ) ;

31 [ s o u r c e M e a n P r o v i d e r P o r t . M e a n I m a g e P r o v i d e r P o r t ==>

t a r g e t

32 Viewe r 1 . V i e w e r P r o c e s s o r P o r t .

V i e w e r I m a g e P r o c e s s o r P o r t ]

33 }

35 Viewer1 i n s t a n t i a t e s C o m p o n e n t C l a s s D e f i n i t i o n s .

Viewe r ( )

36 {

37 V i e w e r P r o c e s s o r P o r t : V i e w e r I m a g e P r o c e s s o r P o r t (

38 p r o v i d e r V i e w e r I m a g e P r o c e s s o r P o r t =

I I m a g e P r o v i d e r ( ) ) ;

39 }

40 }

Listing 10: Component instance example diagram.

They propose concepts and patterns how elec-

tronic and software components of a robot can inter-

act and how they can be designed in a reusable way.

Furthermore, they introduce concepts of event driven

communication and also model driven approaches

(Schlegel et al., 2009).

In 2002, the CORBA Component Model (CCM)

(OMG, 2015b), based on CORBA 3.0, has been re-

leased supporting component based distributed archi-

tectures and services.

Another widely spread approach of component

based architectures is Microsoft’s Component Object

Model (COM) and its distributed version (DCOM)

(Microsoft, 2015). It is mostly language independent

using instantiable interfaces for an abstract view of

distributed components.

(Hoegg et al., 2015) introduce an image process-

ing C++ CBSE system. Using a code generator, GU-

DSL can be translated into this kind of component

framework.

In contrast to the mentioned languages and com-

Abstracting Data and Image Processing Systems using a Component-based Domain Speciﬁc Language

299

ponent systems, GU-DSL and its infrastructure pro-

vides the full functionality necessary for developing

interactive image processing pipelines. Furthermore,

the DSL supports the concept of round-trip engineer-

ing necessary for arbitrary switching between graphi-

cal and textual modeling. It specially focuses on ob-

ject oriented textual and graphical modeling in the

sense of model driven engineering. Starting with ob-

ject abstractions (from object to class to component)

up to the ﬁnal system generation in the future, the full

development process can be assisted.

Besides the presented ADLs, frameworks and

concepts, many other systems exist, e.g. LabView

(Instruments, 2015) with its dataﬂow visual program-

ming language. But as far as we know, no language

exists which is comparable to the proposed one in the

domain of data and image processing.

6 CONCLUSION

In this paper we presented GU-DSL, a component

based textual and graphical language. GU-DSL uses

some well known design principles as classes, inter-

faces and components. These principles are adapted

and improved to ﬁt into the domain of data and im-

age processing. We discussed all the novel fea-

tures and concepts (provider and processor inter-

faces, components, ports, component-instances and

also component- and component-instance-diagrams)

allowing the architecture deﬁnition and instantiation.

Furthermore, we have demonstrated their usage in an

image processing example.

A big advantage of the proposed work, compared

to other concepts (such as UML), is the combination

between graphical and textual modeling and the sup-

ported round-trip engineering. This means that both

kinds of modeling are always synchronized in both

directions. Starting with textual modeling does not

prevent developers from switching over to graphical

modeling and also back. So it is up to the modeler’s

and programmer’s preferences which kind of tech-

nique is used. Experienced programmers can decide

for textual programming, enjoying the full feature set

necessary for component-based engineering with the

advantage of much better guidance and support than

generic programming languages provide.

For the future, we plan to extend the graphical ed-

itors by a better and more complete toolbox (required

for graphical object creation). Also, the usability has

to be improved. Furthermore, the support of operat-

ing systems other than Windows is planned for the

language infrastructure and a code generator for C++

CBSE system has to be developed.

ACKNOWLEDGEMENTS

This work was supported by the German Research

Foundation (DFG) as part of the research training

group GRK 1564 ’Imaging New Modalities’.

REFERENCES

Allen, R. and Garlan, D. (1997). A formal basis for architec-

tural connection. ACM Trans. Softw. Eng. Methodol.,

6(3):213–249.

Efftinge, S., Eysholdt, M., Khnlein, J., Zarnekow, S., and

Contributors. (2015). Xtext 2.5 documentation.

Feiler, P. H., Lewis, B., Vestal, S., and Colbert, E. (2005).

An overview of the sae architecture analysis & design

language (aadl) standard: A basis for model-based

architecture-driven embedded systems engineering.

In Architecture Description Languages, volume 176,

pages 3–15. Springer US.

Fowler, M. (2010). Domain Speciﬁc Languages. Addison-

Wesley Professional, 1st edition.

Hoegg, T., Koehler, C., and Kolb, A. (2015). Component

based data and image processing systems - a concep-

tual and practical approach. In Software Engineering

and Service Science (ICSESS), 2015 6th IEEE Inter-

national Conference on, pages 66–69.

Instruments, N. (2015). Ni labview. Available at

http://www.ni.com/labview/.

Magee, J., Dulay, N., and Kramer, J. (1993). Structuring

parallel and distributed programs. Software Engineer-

ing Journal, 8:73–82.

Microsoft (2015). Component object model (com). Avail-

able at https://msdn.microsoft.com.

OMG (2015a). Corba. Available at http://www.corba.org/.

OMG (2015b). Corba component model. Available at

http://www.omg.org/spec/CCM.

OMG (2015c). Metaobject facility (mof). Available at

http://www.omg.org/mof/.

OMG (2015d). Ocl. Available at

http://www.omg.org/spec/OCL/.

OMG (2015e). Uml. Available at http://www.uml.org/.

OMG (2015f). Uml. Available at

http://www.omgsysml.org/.

Schlegel, C., Hassler, T., Lotz, A., and Steck, A. (2009).

Robotic software systems: From code-driven to

model-driven designs. In Advanced Robotics, 2009.

ICAR 2009. International Conference on, pages 1–8.

Schlegel, C. and Wrz, R. (1999). Interfacing different lay-

ers of a multilayer architecture for sensorimotor sys-

tems using the object-oriented framework smartsoft.

In Advanced Mobile Robots, 1999. (Eurobot ’99) 1999

Third European Workshop on, pages 195–202.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

300
