An EMF-like UML Generator for C++

Sven J

ager, Ralph Maschotta, Tino Jungebloud, Alexander Wichmann and Armin Zimmermann

Systems and Software Engineering Group, Computer Science and Automation Department,

Technische Universit

at Ilmenau, Ilmenau, Germany

Keywords:

Model based Software Development, Code Generation, Meta Modeling, C++, UML, MOF, Ecore.

Abstract:

Model-driven architecture is a well-known approach for the development of complex software systems. The

most famous tool chain is provided by Eclipse with the tools of the Eclipse modeling project. Like Eclipse

itself, these tools are based on Java. However, there are numerous legacy software packages written in C++,

which often use only an implicit meta-model. A real C++ implementation of this meta-model would be

necessary instead to be used at run time. This paper presents a generator for C++ to create the classes,

meta-model packages, and factories to realize modeling, transformation, validation, and comparison of UML

models. It gives an overview of its workﬂow and major challenges. Moreover, a comparison between Java and

C++ implementations is given, considering different benchmarks.

1 INTRODUCTION

The Model Driven Architecture (MDA) approach as

deﬁned by the Object Management Group (OMG)

is a well-known family of standards which uniﬁes

every step of the development of an application

from Platform-Independent Model (PIM) through

Platform-Speciﬁc Models (PSM) to generated code

and a deployable application (OMG, 2014). The

common Eclipse Modeling Project (EMP) supports

this approach by providing a uniﬁed set of model-

ing frameworks, tool support, and standard imple-

mentations based on the Eclipse Modeling Frame-

work (EMF) (Steinberg et al., 2009; Gronback, 2009).

It uses Ecore, a meta meta-model which is similar

to the essential meta object facility (EMOF) for de-

scribing a meta-model. The EMF framework with its

code generation facility can be used to build tools and

other applications based on a structured data model,

like complete editors for Ecore-based domain speciﬁc

meta-models. It produces Java classes for the model

and other necessary utilities to create and edit such

a model. Therefore, the MDA approach is well inte-

grated with the Java programming language, but it is

weakly supported for other programming languages

such as C++.

C++ is one of the most commonly used program-

ming languages (TIOBE Software BV, 2015). Nu-

merous legacy software packages are written in C++

and use often only an implicit meta-model. To use a

real meta-model at runtime, an implementation of the

meta-model in C++ would be necessary (Jungebloud

et al., 2013). Such a C++ meta-model could be

used, for instance, to conﬁgure dialog properties at

runtime, to realize a runtime Object Constraint Lan-

guage (OCL) (OMG, 2012) for the checking of model

elements, or to execute a behavior which is described

by activity diagrams.

There are mainly two possibilities to create such

meta-model representations. The obvious one is

to write code and implement every class manually.

When the number of elements in a model increases,

however, the best way to overcome the implementa-

tion is to use a generator. A big advantage of a gen-

erator (besides saving implementation time) is the de-

terministic result of the transformation. Each model

element is transformed in the same way and produces

similar code blocks. By using guidelines like the

MISRA C++ (MISRA, 2008) for the generator, the

resulting code can be used in safety-critical software.

EMF4CPP (Gonz

alez et al., 2010) is an avail-

able implementation of a C++ Ecore meta-model and

comes with a generator for Ecore to C++ transfor-

mation. Preliminary results show that “. . . memory

consumption and efﬁciency is usually better in

EMF4CPP than in Java. . . ” (EMF4Cpp, 2015). Un-

fortunately, the last visible development activities in

this project date back to the year 2011.

Moreover, this generator only provides the possi-

bility to transform Ecore models to C++ code. The

transformation of the more expressive UML (uniﬁed

modeling language) (OMG, 2015b) is not considered.

A native generator for C++ is necessary to use all

capabilities of UML in describing the structure and

Jäger, S., Maschotta, R., Jungebloud, T., Wichmann, A. and Zimmermann, A.

An EMF-like UML Generator for C++.

DOI: 10.5220/0005744803090316

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 309-316

ISBN: 978-989-758-168-7

309

model.uml

UML2CPP

ecore.dll

uml.ecore

ecore.ecore

Ecore2CPP

uml.dll

model.dll

ecore.cpp

ecorePackage.

cpp

ecore.cpp

UMLPackage.

cpp

ecore.cpp

ModelPackage

.cpp

main()

Application

<<load>>

a:Object

myModel

.xmi

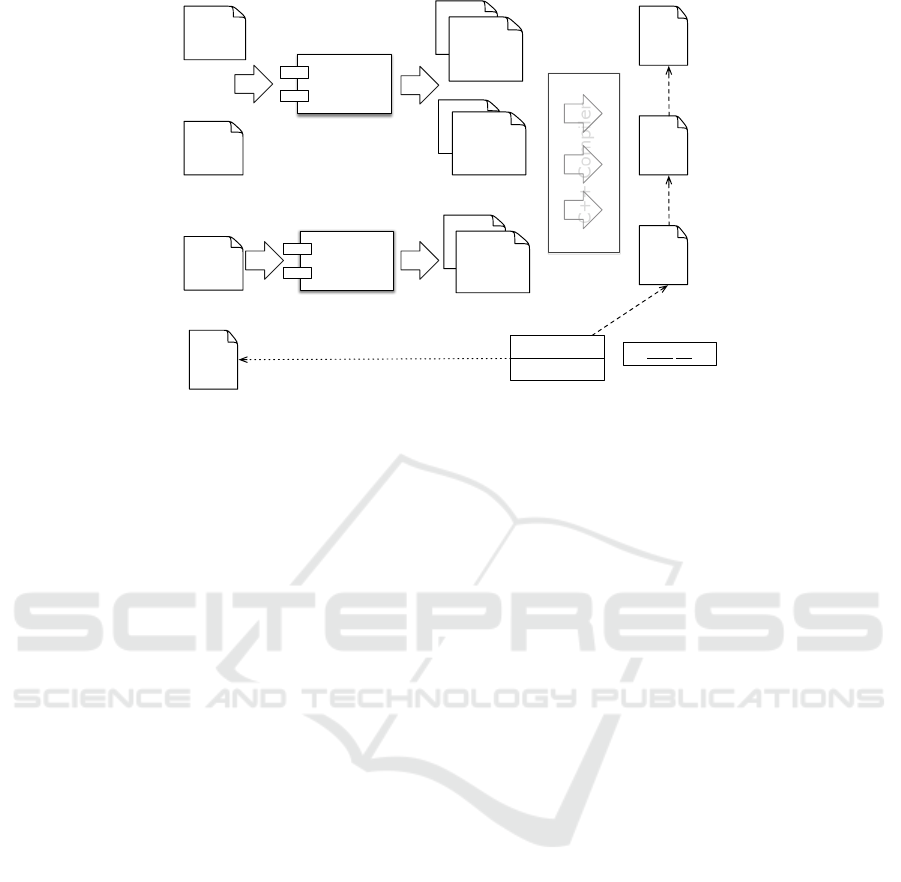

C++ Compiler

Figure 1: Structure of the generator environment.

behavior of a system, and to use the extension mecha-

nism of UML by deﬁning proﬁles with custom stereo-

types. Such a C++ generator has to create the classes,

meta-model packages, and factories to realize mod-

eling, transformation, validation, and comparison of

UML models.

This paper presents an EMF-like UML Genera-

tor for C++ (UML4CPP) aiming at a workﬂow and

structure similar to the EMF for C++ targets. Like

the EMF4CPP generator we use the Eclipse Modeling

Project to formally describe the transformation with

Acceleo (Eclipse, 2014). Acceleo is a generator tool

which uses OMG’s model-to-text transformation lan-

guage (OMG, 2008). Section 2 presents the workﬂow

and the structure of the UML4CPP Generator. Se-

lected challenges and implementation details are pre-

sented in Section 3. The results of a comparison be-

tween the Java and C++ implementation is given and

discussed in Section 4. Finally, ongoing and further

work is summarized in the conclusion.

2 WORKFLOW

This section sketches the different steps which are

necessary to achieve a UML-compliant C++ repre-

sentation of a model. It is not enough to just convert

the classes to C++ code. For a full-featured imple-

mentation, the upper levels of the model hierarchy are

needed as well.

Figure 1 depicts the structure and dependencies of

the elements which are necessary.

It shows the four-layered meta-model architecture

of the UML. Starting with the topmost level, the meta

meta-model is in our case the Ecore model. The Ecore

model is transformed to C++ source code with the

help of an Ecore-to-C++ generator written in Acceleo.

Ecore’s expressiveness is much lower than UML.

Therefore, it only can describe the structure of a

software system but not the behavior. The genera-

tor needs additional information concerning the se-

mantics of the model to generate proper source code.

Therefore, both the ecore.ecore and uml.ecore models

are enhanced with annotations. This is a usual method

for extending Ecore models with additional informa-

tions.

Annotations are used to specify the following as-

pects:

• Method implementation

• Visibility of methods

• Getter/setter renaming

• Union

• Subsets

• Ignore

• C++ includes

By using the same meta meta-model and meta-

model as the Eclipse modeling project, the EMP tools

can be used to model, transform, and validate the in-

put for our generator.

The Ecore-to-C++ generator creates C++ classes,

the model factory, as well as the model package. This

code is compiled to a library and can be used by the

lower model levels (see Figure 1).

To create source code out of UML models, a sec-

ond generator is needed. It is loosely based on the

Acceleo generator for Ecore, but does not need addi-

tional information except for the includes.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

310

Model Class

M3 / Ecore

M2 / Uml

M1 / Model

MOF::Reﬂection

eClass():EObject

eGet():EObject

EObject

get():Object

MOF::Object

Ecore UML

EModelElement

getMetaclass(): Class

MOF::Element

UML::ClassEClass

Model

<<instanceOf>>

Figure 2: Excerpt of the OMG layer model, with meta meta-model, meta-model, and model layer.

Until now, the supported features of our

UML4CPP generator are:

• Class creation + Attributes

• Operation implementation by using UML

OpaqueBehavior

• Reﬂection Package + Factory

• Proﬁles with Stereotypes

• Constraints

• Activities and Actions

With these generated libraries an application now

can load an xmi representation of a model. This is

used to create M0 instances of the model elements,

which can be queried for properties of the upper lay-

ers depicted in Figure 2.

The UML meta-model in the M2 layer has a spe-

cial property: Because it was described with the

Ecore meta meta-model on the one hand, and pro-

vides MOF-based reﬂection for the lower levels on

the other hand, the UML library has elements for the

reﬂection of both meta meta-models. Because each

model element includes the methods of the reﬂection

from the upper layer, they can access the description

of their own type. In the M1 layer of Figure 2 the

Model Class can access the M2 layer by using the

method getMetaclass(). In the M2 layer Class has to

use the ecore reﬂection by using the method eClass()

to access the M3 layer and gain the type information

of itself. The mechanism of reﬂection is an essential

aspect when using generated code of meta models in

generic software. By using reﬂection, the program do

not need to know the structure of an object. Instead

the parts can be queried via the meta layer during run-

time.

Figure 3 depicts the reﬂection as it is deﬁned in

OMGs MOF standard (OMG, 2015a). It consists of

tree classes, Object, Element and Factory. The Ob-

ject is the base Class for every Element in the Meta-

model. It provides the methods to access features of

an object like properties or methods. The Element

extends the Element metaclass of the UML. It pro-

vides the capability to access the upper meta level

of an meta model. That means, when we create an

instance of a class we can access the description of

the Class via the getmetaclass method of the instance.

Therefore we can query the description to gain ac-

cess, discover and manipulate properties and methods

of the instance. The Factory is the creator class for

the metamodel. By merging the UML package to the

MOF reﬂection package, the new elements are inte-

grated into the resulting package and the exiting once

are combined with the new elements. In the end ex-

cerpt of the UML is extend by the aspect of reﬂection.

Why is it necessary to have an additional gener-

ator, when it is also possible to use a transformation

from UML to ecore and then use the emf4cpp genera-

tor, like eclipse does in their workﬂow?

Our goal is to describe the structure and the be-

havior of a software system with a domain speciﬁc

language. When converting a model from UML to

ecore or MOF the model is mapped to the elements

An EMF-like UML Generator for C++

311

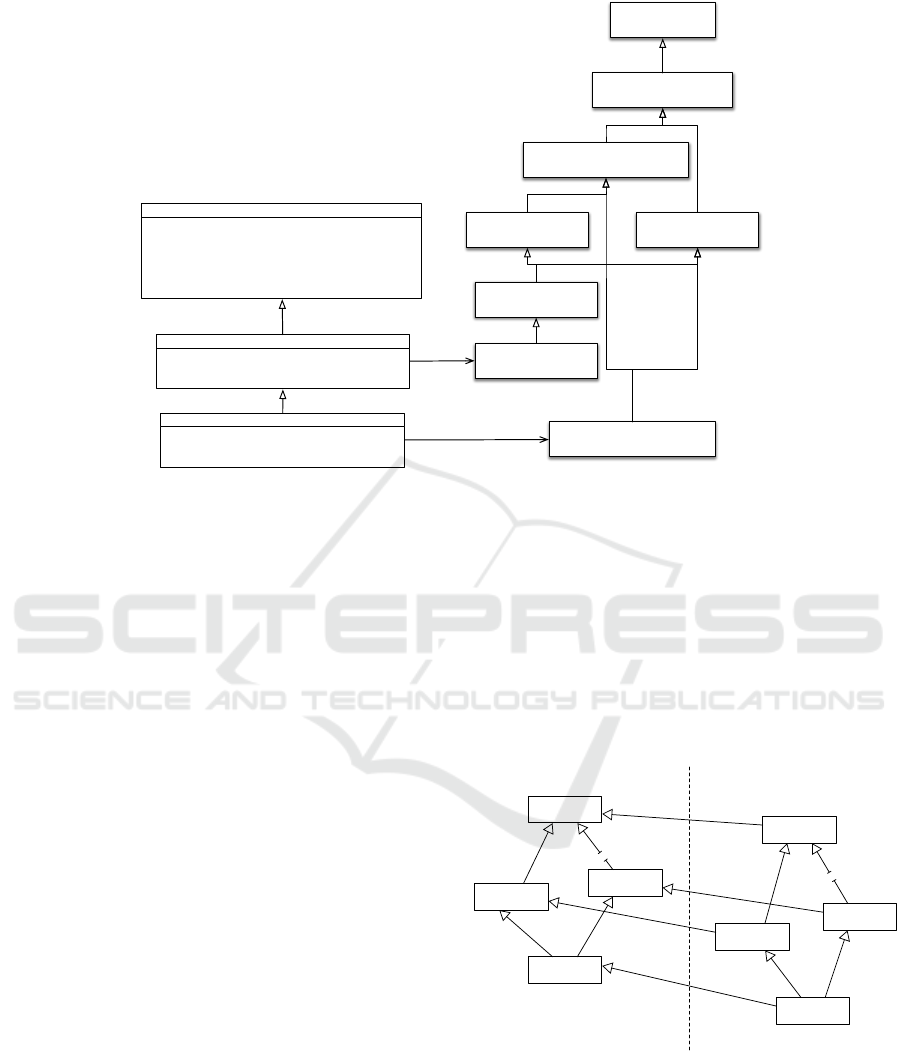

+get(property:Property):Object

+equals(element : Object):Boolean

+set(property:Property,value:Object)

+isSet(property:Property): Boolean

+unset(property:Property)

+invoke(op:Operation,arguments:Argument):Object

MOF::Reﬂection::Object

MOF::Refelction::Element

+getMetaClass():Class

+container():Element

+isInstanceOfType(:Class, :Boolean):Boolean

+create(metaclass:Class):Element

+createFromString(:DataType,:String):Object

+convertToString(:DataType,:Object):String

MOF::Reﬂection::Factory

UML::Element

UML::NamedElement

UML::PackageableElement

UML::Namespace

UML::Package

UML::Classiﬁer

UML::Class

UML::Type

+/metaclass

+package

Figure 3: Overview of the elements which provides the reﬂection capability of the MOF.

of the meta meta model. Because there are no equiv-

alent elements in the meta meta models for each ele-

ment of the UML the amount of elements is cut. Our

generator does not map the elmenets to the meta meta

model. Instead it uses the whole UML meta model

for the generation. The output of the C++ model rep-

resentation is equal to an output of the emf4cpp gen-

erator when converting the UML model to ecore be-

fore the generation. The difference lies in the meta

model package, which in addition to the ecore model,

also has the description of behaviors, constraints and

stereotypes.

3 CHALLENGES

The UML meta-model uses multiple inheritance ex-

tensively. To reduce the amount of duplicated code,

which accrues when implementing multiple inheri-

tance with single inheritance, it is advantageous to

use a programming language which supports the use

of multiple inheritance such as C++ instead of Java.

Figure 4 depicts an excerpt of our inheritance hierar-

chy.

The Figure shows the strict separation between in-

terface deﬁnition and speciﬁc implementation of the

meta-model elements. This has the main advantage

to provide a public API to be used easily in other

projects. It provides an encapsulation and increases

the loose coupling. Otherwise, a compilation of the

whole meta-model would be necessary, which may

take signiﬁcant time.

The separation of interfaces and implementation

leads to a double diamond structure of the inheritance

hierarchy. The virtual inheritance has to be used in

C++ for this reason. This requires the use of dy-

namic casts to go up and down in the hierarchy. Other

casts like static or reinterpret casts are illegal or lead

to an invalid behavior caused by different pointer ad-

dresses. As a result, the computation time for nec-

essary dynamic casts is much higher in a multilevel

inheritance hierarchy (Didriksen, 2010).

Element

Releationship

Association

Public API (Interfaces)

Classiﬁer

ElementImpl

ReleationshipI

mpl

AssociationIm

ClassiﬁerImpl

Impl

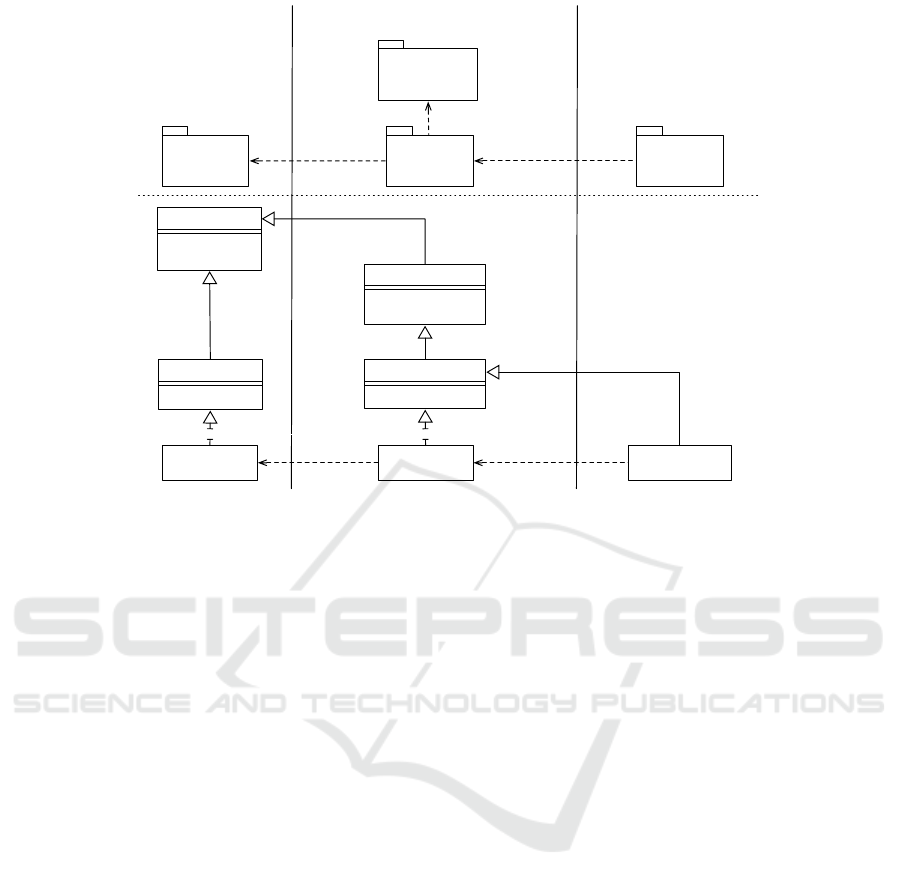

Figure 4: Double diamond model structure in the inheri-

tance hierarchy.

The C++ 11 standard provides many new syntax

features to simplify programming. One of the main

features is the lambda expression. These expressions

are type-safe nameless functors used to simplify the

implementation of Factories, Feature getters, and set-

ters (see Listing 1). Moreover, they allow to use a

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

312

similar syntax as the OMG speciﬁcation.

Figure 5 presents an example UML model, repre-

senting an overview model of a so-called simulation-

based application for planning and simulating wire-

less sensor networks in aircrafts ( (J

ager et al., 2014),

ager et al., 2015) ) as an example.

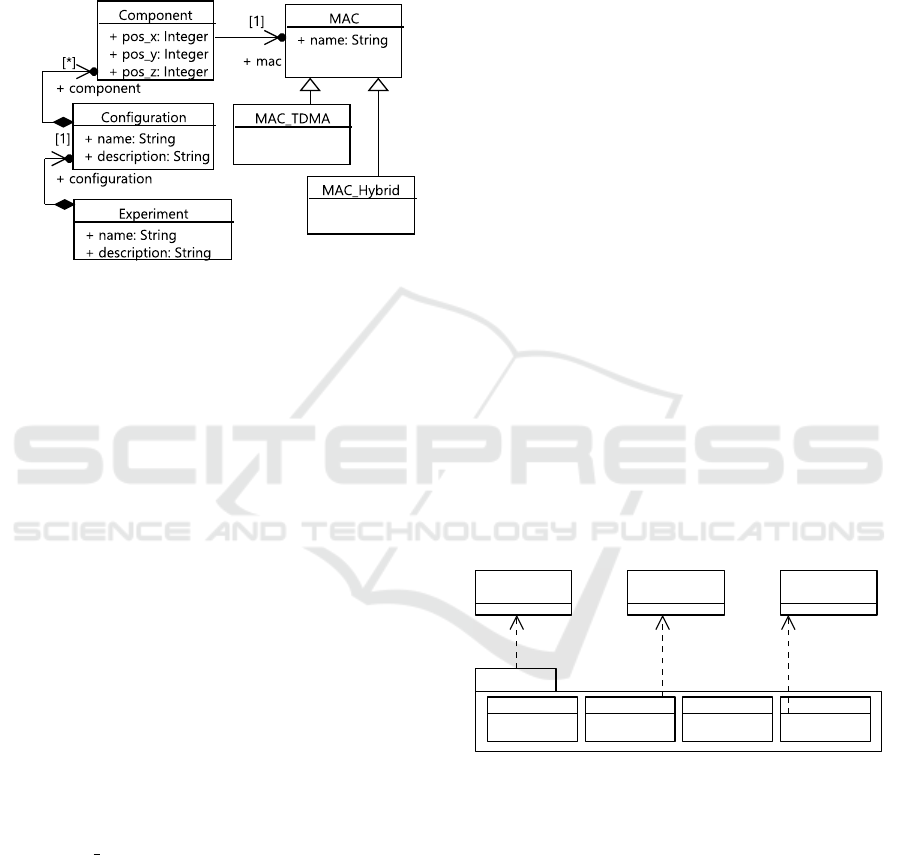

Figure 5: Excerpt of the model of a simulation based appli-

cation for planning and simulating wireless sensor networks

in aircrafts.

The corresponding factory source code, which

was generated by the UML4CPP generator, is shown

in Listing 1.

A similar method was used to implement the get(),

set(), and invoke() functions for the class Object of

the MOF::Reﬂection package. Because C++ does not

have a base type like the Object in Java, these op-

erations need a special return or parameter type for

allowing both values or pointers as arguments. For

this task the boost library provides an any data type,

which can store any kind of type. The main disadvan-

tage is the obvious lack of built-in polymorphism for

this type.

Due to the lack of polymorphic containers, a spe-

cial list container is needed, which allows the cast of

its contents. Until now it is necessary to know the

exact datatype. This issue will be changed in further

progress of the development by introducing a poly-

morphic container.

Memory management is a considerable con-

cern for large models. To avoid memory leaks,

std::shared ptr are a good solution because they auto-

matically free memory when nobody is using an ob-

ject any more. A special case is the return of a self

reference, which is not applicable in every situation

where self references are needed and thus could cause

failures. Moreover, the overhead of reference count-

ing leads to an increasing computation time compared

to raw pointers. Thus the UML model provides the

needed information for the responsibility of the in-

stantiated elements, making it is easy to generate a

safe memory management (Gonz

alez et al., 2010).

The UML4CPP generator thus only creates source

code with raw pointer. By considering the composite

feature of a property, the generator creates a correct

memory management as it is modeled.

4 BENCHMARK

This section presents results of a comparison between

Java and C++ meta-models generated by EMF and

UML4CPP. Several important properties inﬂuencing

the performance of practical application are com-

pared, including

• Creation time of model elements

• Time effort to move model elements

• Comparison of model elements

• Amount of memory used

4.1 General Settings

A standard windows PC (Intel Core i5-2520M,

2.50GHz, 8 GB RAM) is used to run the benchmarks.

The Java benchmark is running on a separate Java vir-

tual machine. It is conﬁgured in a way that only one

kernel is used, because current C++ implementation

dont use multi-kernel functionality. The added start-

up time and size of the virtual machine itself is not

considered in the following benchmarks.

Benchmark

-a1

Class1

-a2

Class2

-a

Class...

-aN

ClassN

<<metaclass>>

uml::Class

<<metaclass>>

uml::Property

<<metaclass>>

uml::Package

<<instance of>>

Figure 6: Simple model for the benchmarks.

The benchmarks use instances of a UML test class

which includes one attribute (see Figure 6). The name

of the class and attribute is set. Different benchmarks

use different amounts of instances of this test class.

4.2 Creation Benchmark

The ﬁrst benchmark compares the creation time and

the memory use of Java and C++ meta-model imple-

mentations. Therefore, instances of the described test

class are created in a loop, varying between 10.000

and 100.000 instances. To analyze the inﬂuence of

An EMF-like UML Generator for C++

313

M o d e l F a c t o r y I m p l : : M o d e l F a c t o r y I m p l ( )

{

m c r eatorMa p . i n s e r t ( ” model : : MAC Hybrid ” , [ t h i s ] ( ) { r e t u r n t h i s −>cre a t e MA C Hy br id ( ) ; } ) ;

m c r ea t o r Ma p . i n s e r t ( ” model : : C o n f i g u r a t i o n ” , [ t h i s ] ( ) { r e t u r n t h i s −>c r e a t e C o n f i g u r a t i o n ( ) ; } ) ;

m c r ea t o r Ma p . i n s e r t ( ” model : : Component ” , [ t h i s ] ( ) { r e t u r n t h i s −>c r e a t e C o m p o n e n t ( ) ; } ) ;

m c r ea t o r Ma p . i n s e r t ( ” model : : E x p e r i m e nt ” , [ t h i s ] ( ) { r e t u r n t h i s −>c r e a t e E x p e r i m e n t ( ) ; } ) ;

m c r ea t o r Ma p . i n s e r t ( ” model : :MAC TDMA” , [ t h i s ] ( ) { r e t u r n t h i s −>createMAC TDMA ( ) ; } ) ;

m c r ea t o r Ma p . i n s e r t ( ” model : :MAC” , [ t h i s ] ( ) { r e t u r n t h is −>createMAC ( ) ; } ) ;

}

Listing 1: Generated factory code with lambda expressions for the model in Figure 5.

the Java garbage collection, the results of Java stan-

dard behavior and the results of a forced garbage col-

lection are compared additionally. The calculation is

averaged over ten runs, to average over the huge vari-

ation of computation times for the Java meta-model

implementation. Figure 7 depicts the results of the

ﬁrst benchmark.

-600

-400

-200

200

400

600

800

1.000

1.200

1.400

10000 20000 30000 40 000 50000 60000 70 000 80000 90000 100000

creation time

Java force GC

C++

Java with GC

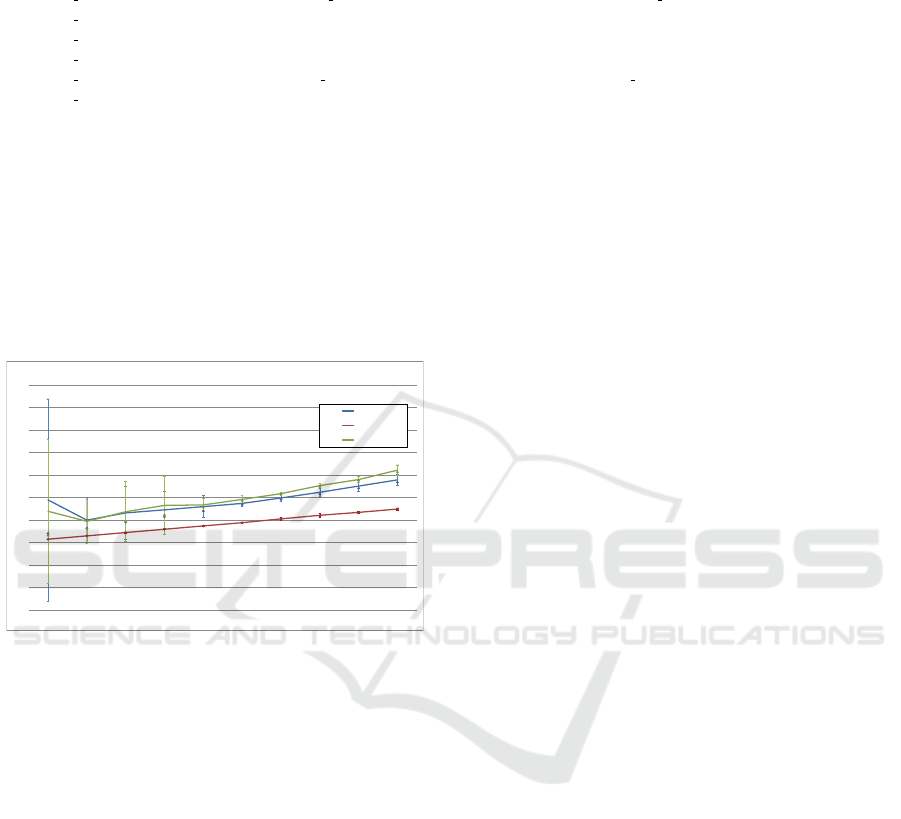

Figure 7: The graph depicts the results of the creation

benchmark for C++, Java, and Java with forced garbage col-

lection. The error bars displays standard deviation values

and the markers (diamond-shape) represents median values.

The Java implementation (green and blue lines in

Figure 7) need more creation time than the C++ im-

plementation (red line). Moreover, the standard devi-

ation of the creation time for the Java implementation

is signiﬁcantly greater than for the C++ implementa-

tion. Especially the ﬁrst result of the ﬁrst run is sig-

niﬁcant greater than the other creation times, which

could be seen in the huge standard deviation of the

ﬁrst creation time. This is caused by the ﬁrst mem-

ory allocation of the Java virtual machine and the fact

that it reuses the already allocated, but not needed

memory for the next runs. The inﬂuence of a forced

garbage collection (blue line) is less signiﬁcant than

expected. The creation time of the C++ implementa-

tion is nearly linear and has a small standard devia-

tion.

The memory clean-up of the Java implementa-

tion is faster than the C++ implementation for a huge

amount of elements, because C++ deallocates the

memory completely in contrast to Java.

4.3 Model Change and Undo

Benchmark

To compare the performance of Java and C++ meta-

model implementation regarding model changes, the

movement of model elements are analyzed. There-

fore, 100.000 instances of the described test class are

created. All attributes are moved to one class. These

operations are repeated ten times again to calculate an

average effort for the movement and undo operation.

The time effort for traversing the model are ana-

lyzed by using a model comparison as well. For this

purpose, 1.000 instances of the test class are created

in two packages. All instances of the test class of one

package are searched in the other package. This oper-

ation is also repeated ten times to calculate the mean

time effort.

Table 1 shows the results of these benchmarks. It

becomes clear that the Java implementation is much

faster than the C++ implementation. The movement

operation is almost four times faster and the model

comparison is up to 100 times faster than the actual

C++ implementation. The standard deviation of the

Java implementation, however, is relatively high.

This unexpected result can be explained by the

above-mentioned need of dynamic casts by using

this multilevel inheritance hierarchy. The proﬁler

conﬁrmed the already known behavior of dynamic

casts (Didriksen, 2010). With a higher inheritance hi-

erarchy, more time is needed for dynamic cast opera-

tions. Possible changes of the C++ implementation to

improve this situation are discussed in Section 5.

4.4 Memory Footprint

The hard disk memory use of the implementations are

compared in Table 1. The C++ implementation needs

nearly three times more hard disk memory than the

Java implementation. The reason for this behavior is

probably the linking with several libraries including

qt and boost. On the other hand, the value of the Java

implementation does not contain the memory which

is needed by the Java virtual machine.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

314

Table 1: Results of benchmarks;

∗

- without Java virtual machine (152 MB).

Benchmark Java C++

Mean Std Mean Std

Move 375.2 ms 130.2 1405.7 ms 107.2

Compare 64.2 ms 62.5 6644.3 ms 58.9

Memory HDD 5.06 MB

∗

14.6 MB

Memory RAM 201.5 MB 115.3 MB

The RAM use is measured by executing the

benchmark of Section 4.2. The maximum required

memory is captured. As a result, the Java implemen-

tation requires approximately twice as much RAM as

the C++ implementation.

5 DISCUSSION

In summary, the comparison of the generated Java and

C++ implementation of the test class by using several

benchmarks has shown divergent results: On the one

hand, the C++ implementation requires less memory

than the Java implementation and is slightly faster in

creating new instances. On the other hand, the current

C++ implementation needs up to 100 times more time

by using the model. This is caused by the need of dy-

namic casts in the multilevel inheritance hierarchy. To

solve this issue, the dynamic cast should be avoided

by using interface realizations instead of multiple in-

heritance. The implementation of base classes has to

be generated several times into the implementation of

the derived classes then. This could be realized by

changing the UML4CPP generator accordingly. This

demonstrates one of the advantages of a model-based

generative software development.

After additional optimization steps to reduce time

and memory consumption of the generated imple-

mentation, model-based applications for systems with

reduced computing and storage capacities such as em-

bedded systems could be realized.

6 APPLICATION

As already mentioned in Section 1, the generated C++

UML meta-model could be used in several use cases.

It is the base for the development of an C++ based

meta modeling tool family.

By using our approach it is possible to deﬁne do-

main speciﬁc languages for legacy software systems

which do not have a explicit meta model right now.

After adapting the legacy software to generated meta

model it is now easy to optimize and extend the lan-

guage. Moreover, because the meta models are based

on a standard meta metamodel it is easy to transform

it to another metamodel. In addition it is possibile to

read and write models using XMI which is the stan-

dard description of UML.

Theoretically, it is possible to build a modeling

toolchain based on C++ similar to the Eclipse Model-

ing Project which has components for transformation,

generation and visualization.

As an example we use the generation of a UML

model to deﬁne visualization properties for attributes

of a software system shown in Figure 5 (Mambally

Das, 2015). The stereotypes for visualization prop-

erties are deﬁned via a proﬁle diagram and are gen-

erated with the generator as well as the metamodel

where the stereotypes are applied to the classes. Dur-

ing runtime a component analyse the classes and vi-

sualize the attribute values in a proper way. More

over, it is possible to deﬁne constraints by using the

standard Object Constraint Language (OCL). By us-

ing the generated information of the constraints in the

meta model package, it is possible to check the values

of the attributes against the deﬁned constraints during

runtime.

Another use case of C++ UML meta model is the

model based deﬁniton and execution of behavior, for

instance by using activity diagrams (Chandrasekaran,

2015). The OMG specify a subset of the UML for exe-

cuting activity diagrams which is called fUML (OMG,

2013). It also contains a model based description of

the execution engine. Based on these model the gen-

erator can create the execution engine (Ramyashree,

2015). During runtime the execution engine use the

meta model package to retrive the behavior elements

and runs the activities.

7 CONCLUSIONS

This paper presented an EMF-like UML Generator

for C++ (UML4CPP). The workﬂow, structure and

some implementation challenges of the UML4CPP

generator are presented. Examples have proven the

practical usability of the resulting C++ implementa-

tions. The comparison of generated Java and C++ im-

plementations of models by using several benchmarks

An EMF-like UML Generator for C++

315

w.r.t. resource use has shown diverging results.

The presented UML4CPP generator can be used

to create C++ code representations of the Ecore meta

meta-model, the UML meta-model, and models based

on these meta-models. This provides the basis for

creating C++-based execution engines, transforma-

tion engines, OCL validation tools, and other model-

based applications which are subject of future devel-

opments.

Because the generator is a frist prototype, it

still needs some further development. Features like

the notiﬁcation framework, proxies and references

to other metamodels are partly implemented or still

missing.

ACKNOWLEDGEMENTS

The work has been supported by the Federal Ministry

of Economic Affairs and Energy of Germany under

grant FKZ:20K1306D.

REFERENCES

Chandrasekaran, A. (2015). Model Driven Development of

Design and Optimization of UML based Simulation

Processes. Master’s thesis, Technische Universit

at Il-

menau.

Didriksen, T. (2010). C++ dynamic cast perfor-

mance. http://tinodidriksen.com/2010/04/14/cpp-

dynamic-cast-performance.

Eclipse (2014). Acceleo. http://wiki.eclipse.org/Acceleo.

EMF4Cpp (2015). What is EMF4CPP?

https://code.google.com/p/emf4cpp/.

Gonz

alez, A. S., Ruiz, D. S., and Perez, G. M. (2010).

EMF4CPP: a C++ Ecore Implementation. In DSDM

2010 - Desarrollo de Software Dirigido por Modelos,

Jornadas de Ingenieria del Software y Bases de Datos

(JISBD 2010), Valencia, Spain.

Gronback, R. C. (2009). Eclipse Modeling Project: A

Domain-Speciﬁc Language (DSL) Toolkit. Addison-

Wesley Professional, 1 edition.

ager, S., Jungebloud, T., Maschotta, R., and Zimmermann,

A. (2014). Model-based QoS evaluation and valida-

tion for embedded wireless sensor networks. Systems

Journal, IEEE, PP(99):1–12. forthcoming.

ager, S., Maschotta, R., Jungebloud, T., Wichmann, A.,

and Zimmermann, A. (2015). Model driven develop-

ment of simulation-based system design tools. sub-

mitted for publication.

Jungebloud, T., Jager, S., Maschotta, R., and Zimmermann,

A. (2013). MOF Compliant Fundamentals for Multi-

Domain System Modeling and Simulation. In Systems

Conference (SysCon), 2013 IEEE International, pages

191–194. IEEE.

Mambally Das, R. (2015). OCL based Constraint Validator

for Model-Drivern Development of Simulation based

Application. Master’s thesis, Technische Universit

Ilmenau.

MISRA (2008). MISRA C++. Technical report.

http://www.misra.org.uk/.

OMG (2008). MOF Model to Text Transformation Lan-

guage 1.0. Technical report, Object Management

Group.

OMG (2012). Object Constraint Language (OCL). Version

2.3.1. Technical report, Object Management Group.

OMG (2013). Semantics of a Foundational Subset for Exe-

cutable UML Models (FUML) 1.1.

OMG (2014). Model driven architecture (mda) mda guide

rev. 2.0. Technical report, Object Management Group.

OMG (2015a). Meta object facility (mof) 2.5 core speciﬁ-

cation. Technical report, Object Management Group.

OMG (2015b). Uniﬁed Modeling Language TM (OMG

UML), Version 2.5. Technical report, Object Man-

agement Group.

Ramyashree (2015). Model Driven Development of fUML

based Execution Engine. Master’s thesis, Technische

Universit

at Ilmenau.

Steinberg, D., Budinsky, F., Paternostro, M., and Merks,

E. (2009). EMF: Eclipse Modeling Framework 2.0.

Addison-Wesley Professional, 2nd edition.

TIOBE Software BV (2015). Tiobe index.

http://www.tiobe.com.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

316
