XIS-CMS: Towards a Model-Driven Approach for Developing

Platform-Independent CMS-Specific Modules

Paulo Filipe, André Ribeiro and Alberto Rodrigues da Silva

INESC-ID, Instituto Superior Técnico, Universidade de Lisboa, Lisbon, Portugal

Keywords: Content Management Systems, Model-Driven Development, Platform-Independent Models, Modeling

Languages.

Abstract: Content Management Systems (CMS) are popular web application platforms used in multiple domains.

CMS allow non-technical users to manage the content and features of websites with web modules that

abstract functionality without requiring particular software programming background. However, without the

development of specific web modules, a CMS usually cannot support complex scenarios or specific

business needs. In those situations, developers have to build custom modules using the CMS-specific

language, which implies that they must master the corresponding programming and other technical skills.

This paper proposes a model-driven approach, named XIS-CMS, which aims to increase the productivity

and portability of developing these modules in a more abstract and platform-independent way. XIS-CMS

approach includes a domain-specific modeling language, defined as a UML profile, and a companion

framework defined on top of Sparx Systems Enterprise Architect and Eclipse Modeling Framework

technologies. This paper introduces the XIS-CMS approach, its corresponding language and framework, and

compares it with related work.

1 INTRODUCTION

Content Management Systems (CMSs) are a popular

class of software framework that abstracts the

technical features concerning the development and

management of web applications. CMS-based

applications are defined as the orchestration of

multiple web pages with multiple contents presented

and managed by particular use of web modules, such

as HTML, Image, and List of Links. A web module

consists in a collection of code and resource files

organized in a library that allows to extend a CMS

framework with specific features and can be

instantiated in multiple pages of a website or web

application (Suh et al., 2002; Boiko, 2001).

A website is mainly composed of static content

that needs to be maintained by a developer or

webmaster. On the other hand, a web application

provides a dynamic experience to the user focusing

on his interaction to determine the content that is

displayed. A CMS platform supports web

applications development and management, because

it provides several features to manage the structure,

content and presentation of these applications. CMS

provide a ready-to-use editor for managing and

creating new pages and menus, and for applying user

interface layouts and visual templates. They also

offer several out-of-the-box modules with basic

functionality, such as HTML editor, images, list of

links and news or file management (Souer et al.,

2008). However, custom modules must be

implemented whenever more complex functionality

or more specific business requirements are needed.

This kind of customer modules requires an

additional analysis and development by software

developers (Souer and Kupers, 2009).

CMSs show important features and properties

such as modularity, extensibility and integration

with other services through toolkits of modules.

CMSs also promote the separation between the

presentation and the content through the application

skins, page templates and module views. CMSs offer

great adaptability to define and manage the structure

of web applications, but do not provide a high-level

view of the data that is being used and/or

manipulated. Thus, an approach that closes this gap

would be an important contribution, by allowing

developers and non-technical stakeholders to easily

discuss strategic changes or business requirements.

This would result in a shorter time-to-market and an

Filipe, P., Ribeiro, A. and Silva, A.

XIS-CMS: Towards a Model-Driven Approach for Developing Platform-Independent CMS-Speciﬁc Modules.

DOI: 10.5220/0005745805350543

In Proceedings of the 4th International Conference on Model-Driven Engineering and Software Development (MODELSWARD 2016), pages 535-543

ISBN: 978-989-758-168-7

535

easier maintainability of this class of applications.

With the emergence and evolution of many

CMSs frameworks (see for example, the popular

CMS Matrix website: http://www.cmsmatrix.org),

the adoption of a development approach that can

keep the core development portable and easy to

apply to new CMS would be also a great advantage.

For this reason, such an approach should be as much

cross-platform as possible, meaning it should be

independent of any CMS framework.

Model-Driven Development (MDD) is an

approach that tries to mitigate the above problems in

multiple application domains (Schmidt, 2006);

(Selic, 2008); (Hutchinson et al., 2014). MDD is a

software development paradigm that combines

domain-specific languages (DSLs) with

transformation engines and generators. DSLs are

textual or graphical languages used to specify an

application domain, the requirements and

functionalities (Deursen, 2000); (da Silva, 2015).

DSLs might be described by metamodels that define

the domain concepts and associations established

between them. Additionally, transformations engines

are tools that process a model (defined in a DSL)

and generate other models, through Model-to-Model

(M2M) transformations, or textual artifacts such as

source code, through Model-to-Text (M2T)

transformations (Hermans et al., 2009).

This paper proposes the XIS-CMS approach for

the development of CMS-specific modules by

defining platform-independent domain models with

simple or medium complexity, and then to generate

the corresponding source code automatically. This

approach includes the XIS-CMS language and the

XIS-CMS framework that is its companion

supporting tool. The XIS-CMS language is a DSL,

defined as a UML profile, organized in multiple

views that describe several aspects of a set of CMS

modules, such as domain model, types of users and

permissions. In turn, the XIS-CMS framework

supports that language by offering features like

design, validation and model transformations.

The outline of this paper is as follows. Section 2

describes the context in which the XIS-CMS

approach is based. Section 3 presents the definition

of the XIS-CMS language, describing each view and

illustrating their use with a very simple case study.

Section 4 describes the XIS-CMS framework and

the tools used to support the applicability of the XIS-

CMS language. Section 5 presents the results of the

evaluation of XIS-CMS. Section 6 refers and

discusses the related work. Finally, Section 7

presents the conclusion and issues for future work.

2 BACKGROUND

XIS-CMS derives from previous work, namely from

the XIS and XIS-Mobile UML profiles. XIS is

focused on the design of interactive systems at a

Platform-Independent Model (PIM) level following

a MDD approach. XIS (Silva et al., 2007) comprises

three major sets of views: Entities, Use-Cases and

User-Interfaces. First, the Entity view is composed

of the Domain and BusinessEntities views. The

Domain view represents the relevant classes to the

problem domain, their attributes and the

relationships among them. In turn, the

BusinessEntities view defines higher-level entities,

known as business entities, that aggregate entities of

the Domain view or other business entities that can

be more easily manipulated in the context of a given

use case. Second, the Use-Cases view contains the

Actors and the UseCases views. The Actors view

defines the entities that interact with the system

under study. The UseCases view specifies the

operations that the actors can perform over the

business entities, when interacting with the system.

Third, the User-Interfaces view comprises the

NavigationSpace and InteractionSpace views. The

NavigationSpace view defines the navigation flow

between the several screens of the system

(designated by interaction spaces) with which the

user interacts. In turn, the InteractionSpace view

represents the elements of the graphical interface

contained in each interaction space and can also

specify the access control of the actors to these

elements.

XIS also proposes two modeling approaches: the

smart approach and the dummy approach (Silva et

al., 2007). When using the smart approach, the

designer only needs to define the Domain,

BusinessEntities, Actors and UseCases views. Then,

the User-Interfaces views are automatically

generated through M2M transformations (based on

the models defined in the Domain and UseCases

views). After that, it is possible to refine these

generated UI models through direct authoring or

design. On the other hand, in the dummy approach,

the designer needs to define manually the entire

Domain, Actors, NavigationSpace and

InteractionSpace views. XIS was originally defined

to develop desktop or web interactive applications

and to generate code for software frameworks, such

as Windows Forms.NET and Microsoft ASP.NET,

while XIS-CMS is specifically focused on CMS

modules applications, particularly in CMS module

development.

More recently, XIS-Mobile, an extension of XIS,

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

536

was defined with the focus on developing cross-

platform mobile applications (Ribeiro and da Silva,

2014a); (Ribeiro and da Silva, 2014b). XIS-Mobile

is a DSL that reuses some of the best concepts

proposed on XIS, namely its multi-view

organization and design approaches. Additionally, it

introduces new concepts (e.g. new types of widgets,

internet connection, localization and gesture

support) in order to be more appropriate to design

mobile applications scenarios. Thus, the XIS-Mobile

language is organized in six views: Domain,

BusinessEntities, UseCases, InteractionSpace,

NavigationSpace and Architectural. While the first

four views share the same goals as in XIS (however

with different stereotypes and adjustments), the

latter is totally new and represents the interactions

between the mobile application and external entities

(e.g. web servers or providers). XIS-Mobile is

supported by a framework that allows designing and

validating models described in the XIS-Mobile

language, generating other models from them

(through M2M transformations) and ultimately

generating native source code for multiple mobile

platforms (Android, iOS and Windows Phone),

through M2T transformations (Ribeiro & da Silva,

2014a).

3 XIS-CMS LANGUAGE

There are few languages that attempt to design the

whole structure and management of a web

application (i.e., including menus, pages, modules

and page deployment), such as CMS-ML (Saraiva,

2013) and JooMDD (http://icampus.thm.de/joomdd).

Unlike these languages, the XIS-CMS language is

focused on the design and development of toolkits of

CMS modules, with the respective features for data

and modules management. The XIS-CMS language

adopts some concepts defined in the XIS language,

but introduces new views and an appropriate multi-

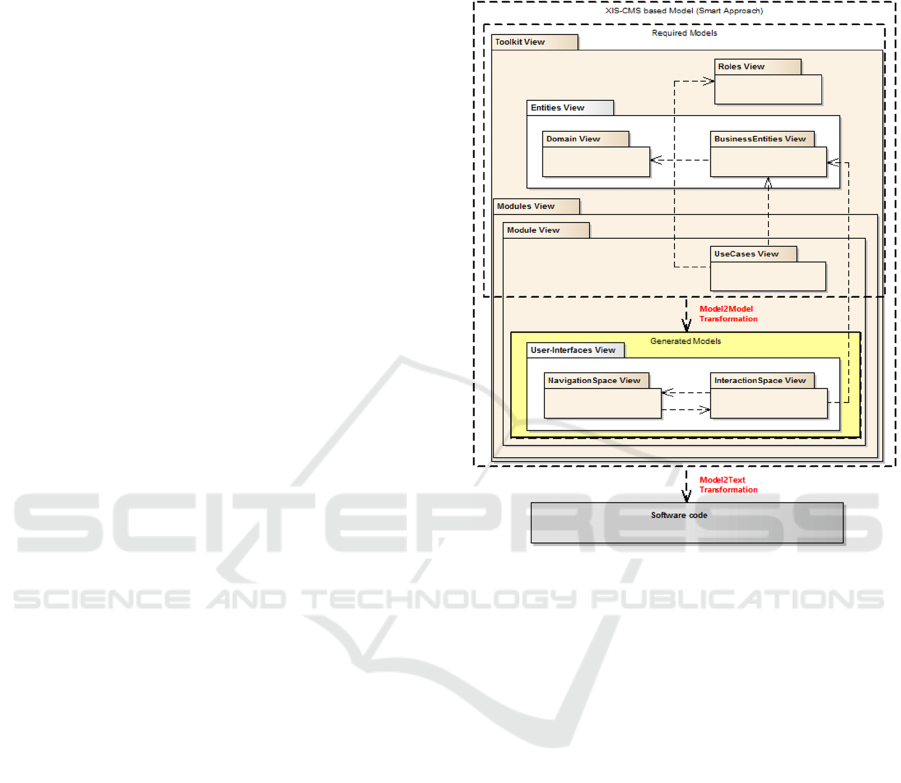

view organization. As depicted in Figure 1, XIS-

CMS models are organized in a Toolkit view that

includes three major views: Entities, Modules and

Roles views. In turn, the Entities view contains two

sub-views: Domain and BusinessEntities views. The

Modules view contains two sub-views: UseCases

and User-Interfaces views. At last, the User-

Interfaces view comprises the NavigationSpace and

the InteractionSpace views.

XIS-CMS proposes two modeling approaches:

the smart approach and the dummy approach. While

in the dummy approach all views must be manually

defined, in the smart approach, the NavigationSpace

and the InteractionSpace views are automatically

generated, through M2M transformations, from the

Domain, BusinessEntities, Roles and UseCases

views.

Figure 1: The multi-view organization of XIS-CMS.

For the sake of better understand the XIS-CMS

language, we introduce a simple case study:

«The MySuppliers web application allows

managing the products and the suppliers of a generic

store. A supplier is defined by his personal

information (name, registration date, address and

city) and can supply several products until a

configured maximum value (defined by the module

setting). Each product has a name, width and height.

The products are managed by a Product Manager,

while the suppliers are managed by a Supplier

Manager. The Supplier Manager can also view, but

not edit, the products. For this purpose, it is

necessary to define a toolkit with two modules: one

for the product management and another for the

supplier management. This toolkit can be deployed

on multiple CMS platforms.»

3.1 Toolkit View

The Toolkit view includes all the other views and

represents the logical aggregation of shared business

concepts and modules. It also provides configuration

through the use of tagged values. The Toolkit view

XIS-CMS: Towards a Model-Driven Approach for Developing Platform-Independent CMS-Speciﬁc Modules

537

has tagged values to identify the owner of the

toolkit, the type of repository data and the

connection information to access the repository.

3.2 Entities View

The Entities view contains the Domain and the

BusinessEntities views, and describes the domain

and business entities and their relationships at

different abstraction levels.

Domain View. The Domain view defines the

problem domain entities commonly captured from a

domain analysis. It is possible to specify the

attributes of the domain entities and the relationships

among them using associations, aggregations or

inheritances. Each domain entity is represented by a

XisEntity stereotype, which in turn contains one or

more attributes, defined as XisAttributes stereotypes.

Both stereotypes are used, instead of just simple

UML Classes or Attributes, to provide useful

information to the M2T transformations.

Regarding this case study, the MySuppliers

application only manages two domain entities:

Product and Supplier, as shown in Figure 2. The

Supplier entity has a n-ary association with the

Product entity.

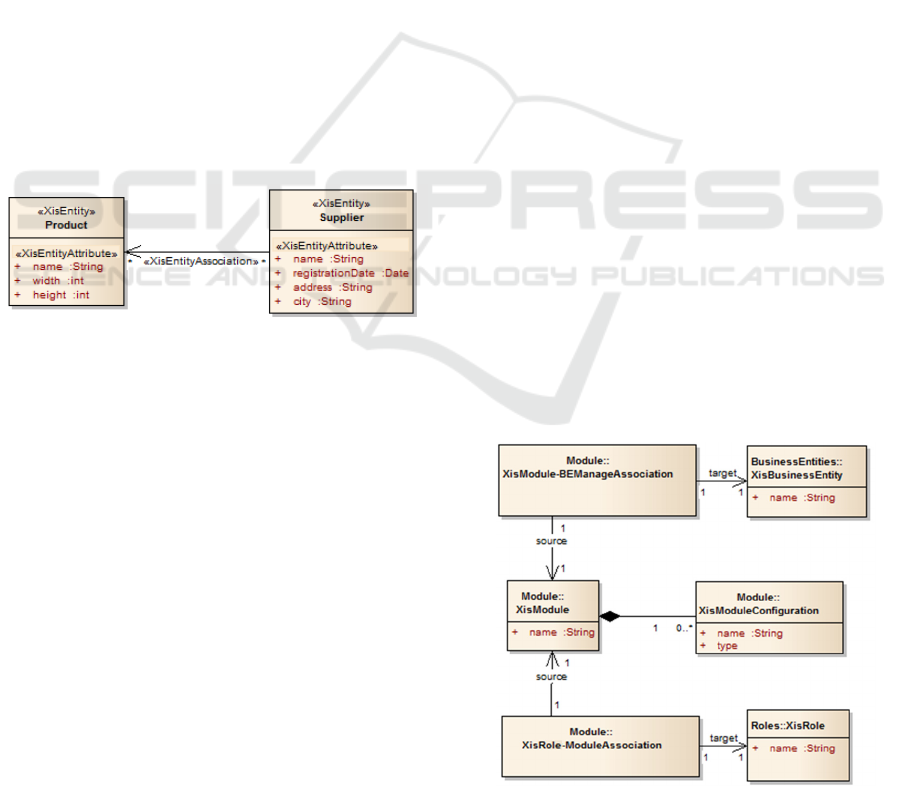

Figure 2: Domain view of the MySuppliers.

Business Entities View. The BusinessEntities view

defines high-level entities called business entities.

Each business entity is defined as a

XisBusinessEntity that aggregates XisEntities. The

goal of these business entities is to provide context

to the use cases and interaction spaces, which will be

useful during the model transformation stages. A

XisBusinessEntity defines a master entity (from the

Domain View) through a XisMasterAssociation and

can also define detail and reference entities through

XisDetailAssociations and XisReferenceAssociation

respectively. Both association types contain a tagged

value named “filter” that allows the restriction of the

entity’s attributes that can be used in the context of

the respective XisBusinessEntity. The definition of a

master entity restricts the set of detail and reference

entities that can be used by a XisBusinessEntity.

Both detail and reference entities must be associated

to the master entity in the Domain View,

respectively through aggregations and associations.

There are two business entities in the

MySuppliers application: ProductBE and

SupplierBE. The ProductBE defines the Product as

master entity, whereas the SupplierBE defines the

Supplier as master entity and the Product as a

reference entity.

3.3 Roles View

The Roles view defines the actors or roles that

interact with the system and that are specific to the

defined toolkit. Each role is defined with the

XisRole stereotype and can be organized in a

hierarchy of sub-roles. These roles will be

instantiated in the CMS roles list, but during the

M2T transformation the system may detect that

some CMS standard roles already exist (e.g.

Administrators, Registered users) and will just add

the corresponding permissions to these roles.

3.4 Modules View

The Modules view defines the intended web

modules. Each module contains a UseCases and a

User-Interfaces views, which define its management

operations over a business entity and its module

interface elements, respectively.

UseCases View. The UseCases view describes the

operations that each role is allowed to perform

regarding a specific business entity. A CMS module

is represented as a XisModule, which may contain

XisModuleConfigurations, represented as attributes

and operations. Permissions to the operations are

defined by the XisRole-ModuleAssociation

established between a XisRole and a XisModule.

Figure 3: Metamodel of the UseCases view.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

538

Figure 3 shows these stereotypes and their

relationships. The UseCases view provides the

higher-level information of a CMS module, namely:

which data is manipulated; the operations that can be

performed; and who can perform which operation.

The MySuppliers application is composed of two

modules: Product and Supplier. Figure 4 illustrates

the UseCases view for the Product module, where

the Product Manager role can perform all available

operations (view, create, edit and delete) while the

Supplier Manager role can only view information.

Figure 4: UseCases view of the MySuppliers.

User-Interfaces View. The User-Interfaces view

comprises the InteractionSpace and the

NavigationSpace views, which define the UI screens

of each module and the flows between them.

InteractionSpace View. The InteractionSpace view

defines each screen (or “interaction space”) detailing

all UI elements and associated events. Each screen is

defined as a XisInteractionSpace associated to a

XisModule through a XisIS-ModuleAssociation and

aggregates one or more XisWidgets. A

XisInteractionSpace is defined by the “isEntry” and

“isDefault” tagged values. Only one

XisInteractionSpace per module can have the

“isDefault” value set to true, causing the CMS to

initiate the module in this screen. But more than one

XisInteractionSpace can be defined as an entry

screen (if “isEntry” is set to true), allowing the CMS

to define multiple views of the same module. The

XisWidget represents a web control or UI element

and is refined in two groups: XisSimpleWidgets

(e.g. button, label or input field) and

XisCompositeWidgets (e.g. controls that group other

widgets like a grid or a panel). XisWidgets can have

actions associated with them, which trigger events or

navigation flows. This view is the most labor-

intensive view of the XIS-CMS language, because it

represents all of the UI elements and their layout and

allows the aggregation of multiple UI elements.

Thus it is recommended to use the smart approach to

generate this view, leveraging the M2M

transformations. After that, the designer can

customize and refine directly the generated views if

they do not fulfill the desired requirements.

Considering the MySuppliers application, the

SupplierIndex is the entry screen of the Supplier

module. It contains a XisGrid widget that describes a

grid with columns for each supplier’s attributes:

name, registrationDate, address and city. The

XisGrid has a context menu associated with the

actions “View” and “Edit”. The “View” action

causes the navigation to the SupplierView screen

and the “Edit” action to the SupplierEdit screen in

edit mode. The SupplierIndex also contains a

XisButton with the “Create” action that allows

navigating to the SupplierEdit screen in create mode.

Figure 5: NavigationSpace view of the MySuppliers.

NavigationSpace View. The NavigationSpace view

defines the navigation flow between the several

screens accessible to the end-user when interacting

with a module. The navigation flows between the

XisInteractionsSpaces are defined by

XisInteractionSpaceAssociations. Such associations

have the “actionName” tagged value to identify the

action that triggers the navigation. This view also

provides an overview of the structure of a module

and its interactions, which is useful both to technical

and non-technical stakeholders.

Regarding the MySuppliers application, the

Supplier module’s NavigationSpace view is

composed of eight XisInteractionSpaceAssociations

and four XisInteractionSpaces (see Figure 5): (1)

SupplierIndex shows all the suppliers; (2)

SupplierView shows a read-only screen with the

information of the selected supplier; (3) SupplierEdit

allows the creation/edition of a supplier; and (4)

SupplierSettings represents a custom settings screen

to configure the maximum number of products.

Table 1 summarizes the main stereotypes

defined in each view of the XIS-CMS language and

the stereotypes used from other views. For example,

XIS-CMS: Towards a Model-Driven Approach for Developing Platform-Independent CMS-Speciﬁc Modules

539

the UseCases view uses stereotypes defined in the

BusinessEntities and the Roles views in order to

define which entities are managed and the

corresponding access permissions.

Table 1: XIS-CMS views and stereotypes.

View Stereotypes Uses

Domain

XisEntity

XisEntityAttribute

XisEntityAssociation

BusinessEntiti

XisBusinessEntity XisEntity

XisMasterAssociation

XisDetailAssociation

XisReferenceAssociation

Roles XisRole

UseCases

XisModule

XisBusiness

Entity

XisModuleConfigurations XisRole

XisModule-

BEManageAssociation

XisActor-

ModuleAssociation

InteractionSpa

XisInteractionSpace XisModule

XisIS-ModuleAssociation

XisWidgets

XisSimpleWidget

XisCompositeWidget

XisForm

XisField

…

NavigationSpa

XisInteractionSpaceAssociat

ion

XisInteractio

nSpace

4 XIS-CMS FRAMEWORK

XIS-CMS approach only becomes relevant when

combines the language with a support MDD-based

framework. The XIS-CMS framework is

implemented using the Model Driven Generation

(MDG) Technologies provided by Sparx Systems

Enterprise Architect (EA) along with the EMF

(Eclipse Modeling Framework). XIS-CMS suggests

a development process comprising the following

steps: (1) the definition of the required XIS-CMS

views using the Visual Editor; (2) the validation of

those views through the Model Validator; (3) the

generation of the User-Interfaces views using the

Model Generator; and (4) the generation of the

application’s source code for the target CMS

platform through the Code Generator. If the models

generated after step (3) do not meet all the

designer’s requirements, the process should return to

step (1) for a new iteration where the designer

performs his corrections. With the exception of step

(1), which is manual, the other three steps are

automatic, only requiring the designer to trigger

their execution.

The XIS-CMS framework is composed of four

modules: Visual Editor, Model Validator, Model

Generator, and Code Generator. First, the Visual

Editor is implemented on top of EA through the

development of an MDG Technology plug-in. This

plug-in allows the definition of the XIS-CMS

language as a UML profile fully compliant with the

OMG specification for UML2. Additionally, it also

allowed the creation of toolboxes, diagram types and

diagram templates customized to the XIS-CMS

language. Second, the Model Validator is

implemented as a plug-in leveraging EA’s Model

Validation API. This solution allowed to

programmatically define validation constraints,

assigning severity levels (error or warning) to them,

and in runtime to navigate directly to the error-

causing element. Despite that, it is not an OMG

standard, like OCL. The Model Validator plays a

decisive role in the XIS-CMS approach, namely

detecting errors produced by the designer at an early

stage of development, enforcing the quality of the

models and, consequently the quality of the

generated models and code. Third, the Model

Generator is also implemented using EA’s

environment, namely through EA’s Automation

Interface. It allows accessing the repository

containing the created models, as well as creating

new ones. The Model Generator is the responsible

for performing the M2M transformations, using the

information of the Domain, BusinessEntities, Roles

and UseCases views. Fourth, the Code Generator is

based on Acceleo, a template-based code generator

framework available as an Eclipse plug-in. Acceleo

implements the MOF Model to Text Language

standard and allows defining code templates for any

kind of model compatible with EMF. The code

templates are composed of regular text (static part of

the template) and annotations (dynamic part of the

template) which are replaced by values of the model

during generation time. For now, the XIS-CMS

framework supports the generation of CMS modules

applications for the DotNetNuke (DNN) platform. It

is important to emphasize that whenever the

designer requires the support of other CMS

platforms, he only needs to define the corresponding

code templates using Acceleo. Figure 6 shows the

generated toolkit modules of the MySuppliers

application and a sample of the Product module.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

540

Figure 6: Modules generated by XIS-CMS.

5 EVALUATION

XIS-CMS has been subject to a two-fold evaluation.

The first evaluation consisted in the development

and analysis of case studies using XIS-CMS, and

their comparison with manually programmed

modules. This phase produced successful results.

However, the development of these case studies

focused on CRUD operations and gave minimum

support to custom operations.

The second phase involved the realization of

user test sessions to evaluate XIS-CMS from the

perspective of users not involved in this work. The

tests session occurred in laboratory sessions and

involved a total of ten users with at least a Bachelor

degree and ages between 22 and 48 years old. Six

participants had previous experience in the

development of CMS applications, namely in

module development, and eight had professional

experience in the IT field. The test session was

composed of a short presentation introducing XIS-

CMS, followed by a simple demonstration. Then

each user received a document with the installation

instructions and how to implement a case study

regarding managing appointments in a medical

clinic. In the end, the users were asked to fill an

online questionnaire to provide their opinion. The

questionnaire was divided in three sections

concerning the assessment of the following aspects

of XIS-CMS: Language, Framework and Approach,

and the results were promising, namely 3,87

(Language), 4,55 (Framework) and 4,2 (Approach),

in a scale from 1 (Very Low) to 5 (Very Good).

Although the sample of participants was small, the

results were relevant and provided enough feedback

to detect flaws, especially considering that it was an

evaluation of the first version of XIS-CMS.

6 RELATED WORK

Although the idea of using MDD approaches to

develop web applications is not new, it is not widely

applied to the domain of CMS and therefore is still

not fully explored and challenged.

JooMDD (http://icampus.thm.de/joomdd) applies

a reverse-engineering method to obtain the model

for the Joomla CMS platform. It has two

components: one for developing extensions and

another for managing the web application structure.

Despite it achieved some success (Priefer, 2014), it

is a platform-specific approach and not satisfying

our goal of platform independence.

The CM Data Architect and the Web Application

Architect are tools developed by IBM resulting from

the attempt to implement a MDD approach to the

IBM Content Management System (Deshpande et

al., 2005). These tools separate the views from the

architect (to manage the entities involved and the

relationships between these entities) and the user

interface designer (to create and manage the UI

artifacts). Although it performs M2T

transformations to accelerate the generation of

source code, it does not use M2M transformations to

generate the user interface view. Thus, the user

interface designer must manually develop it.

The Web Specific Language (WSL), developed

in the University of Oxford, adopts MDD to

generate web applications from models with a focus

on the data and workflows (based on workflows

engines). WSL is a textual language that uses

syntax-to-metamodel and M2T transformations

engines to create the artifacts needed to run the

application. These engines were implemented using

the EMF. Although WSL is an easy and

comprehensive language due to its closeness to

natural language, it lacks the visual modeling

environment. Furthermore, despite adopting a

platform-independence approach, it is more oriented

to applications focused on integration and automatic

services than on web applications with user

interaction (Svansson and Lopez-Herrejon, 2014).

Similarly to XIS-CMS, CMS-ML (de Sousa

Saraiva and da Silva, 2009) is a graphical language

and is organized in multiple views. However, CMS-

ML has a wider scope than XIS-CMS in the sense

that it allows specifying website templates and how

toolkits will be deployed in a given website. In turn,

XIS-CMS targets the development on a toolkit level

assuming that the user has to manually load each

toolkit and manage its configurations. Extending

XIS-CMS to support the definition of website

templates and multi-tenancy is an interesting future

XIS-CMS: Towards a Model-Driven Approach for Developing Platform-Independent CMS-Speciﬁc Modules

541

work that we intend to research. XIS-CMS shares

some concepts with the Toolkit View of CMS-ML.

Namely, both languages have Domain and Roles

views; CMS-ML’s WebPage and WebComponent

concepts are equivalent to XIS-CMS’s

XisInteractionSpace and XisWidget, respectively

(Saraiva, 2013). Additionally, comparing to CMS-

IL, XIS-CMS is in a higher level of abstraction and

does not provide concepts that allow specifying too

technical features. Also, XIS-CMS is supported by a

technological framework, while CMS-ML and

CMS-IL do not.

XIS-CMS does not aim to replace the role of the

software developer, but creates the structure of the

modules and accelerates the production of common

and boilerplate code, which is a considerable portion

of the final application’s source code. Then, the

developer can customize the source code to better

refine and implement the application requirements.

7 CONCLUSIONS

In this paper we presented the XIS-CMS approach,

which includes both a domain-specific language and

a framework, as a solution to model and develop

cross-CMS modules. XIS-CMS intends to allow

both technical and non-technical stakeholders to

understand and eventually define these modules and

respective applications. XIS-CMS follows a MDD

approach, using M2M and M2T transformations, in

order to increase the productivity by automatically

generating models but also other artifacts, such as

source code, simplifying the development and

maintenance of these applications. XIS-CMS

promotes a cross-platform solution through its

platform-independent modeling language, in order to

increase the portability of its models regardless of

the CMS platform used. The XIS-CMS language is a

UML profile that applies the “separation of

concerns” principle by defining multiple views to

represent each aspect of the CMS modules. Namely,

it comprises three main views: Entities (including

the sub-views Domain and BusinessEntities), Roles

and Modules (including the sub-views Use-Cases

and User Interfaces) views. On the other hand, the

XIS-CMS framework is based on EA MDG

technologies and EMF, and provides features like a

Visual Editor, a Model Validator and applies M2M

and M2T transformations to generate respectively

more complex models and source code ready to use

in the targeted CMS.

As future work, we intend to apply XIS-CMS in

more complex and real-world domains, which

represent opportunities to better employ and

evaluate all the concepts that XIS-CMS provides and

further explore its requirements. Also, research has

to be developed in order to extend XIS-CMS so that

it would support the modeling and implementation

of a complete CMS web application structure

including, for example, the deployment and

management of its menus, pages and containers.

ACKNOWLEDGEMENTS

This work was partially supported by national funds

through FCT, under the projects

POSC/EIA/57642/2004, CMUP-EPB/TIC/0053/

2013, UID/CEC/50021/2013 and DataStorm

Research Line of Excellency funding (EXCL/EEI-

ESS/0257/2012).

REFERENCES

Boiko, B., 2005. Content Management Bible. John Wiley

& Sons, Inc.

Da Silva, A.R., 2015. Model-Driven Engineering: A

Survey Supported by a Unified Conceptual Model.

Computer Languages, Systems & Structures, 43.

Deshpande, P. et al., 2005. Model Driven Development of

Content Management Applications. COMAD.

De Sousa Saraiva, J., & da Silva, A.R., 2009. CMS-based

Web-Application Development Using Model-Driven

Languages. Proc. of ICSEA, IEEE.

Deursen, A., 2000. Domain-specific languages: an

annotated bibliography. ACM SIGPLAN Notices,

35(6).

Hermans, F., Pinzger, M. & Van Deursen, A., 2009.

Domain-specific languages in practice: A user study

on the success factors. Model Driven Engineering

Languages and Systems, LNCS 5795.

Hutchinson, J., Whittle, J. & Rouncefield, M., 2014.

Model-driven engineering practices in industry:

Social, organizational and managerial factors that lead

to success or failure. Science of Computer

Programming, 89.

Priefer, D., 2014. Model-Driven Development of Content

Management Systems based on Joomla. Proc. of

ACM/IEEE ASE.

Ribeiro, A. & da Silva, A.R., 2014. Evaluation of XIS-

Mobile, a Domain Specific Language for Mobile

Application Development. Journal of Software

Engineering and Applications, 7(11), Scientific

Research Publishing.

Ribeiro, A. & da Silva, A., 2014. XIS-Mobile: A DSL for

Mobile Applications. Proc. of SAC, ACM.

Saraiva, J., 2013. Development of CMS-based Web

Applications with a Multi-Language Model-Driven

Approach (PhD Thesis), Universidade de Lisboa.

MODELSWARD 2016 - 4th International Conference on Model-Driven Engineering and Software Development

542

Schmidt, D., 2006. Guest Editor's Introduction: Model-

Driven Engineering. IEEE Computer, 39(2).

Selic, B., 2008. Personal reflections on automation,

programming culture, and model-based software

engineering. Automated Software Engineering, 15(3-

4).

Silva, A., Saraiva, J., Silva, R. & Martins, C., 2007. XIS-

UML Profile for eXtreme Modeling Interactive

Systems. MOMPES, IEEE.

Souer, J., Honders, P., Versendaal, J. & Brinkkemper, S.,

2008. A framework for web content management

system operation and maintenance. Journal of Digital

Information Management, 6(4).

Souer, J. & Kupers, T., 2009. Towards a Pragmatic Model

Driven Engineering Approach for the Development of

CMS-based Web Applications. Proc. of MDWE, .

Suh, P., Ellis, J. & Thiemecke, D., 2002. Content

Management Systems. Peer Information.

Svansson, V. & Lopez-Herrejon, R., 2014. A Web Specific

Language for Content Management Systems.

OOPSLA Workshop on Domain-Specific Modeling.

XIS-CMS: Towards a Model-Driven Approach for Developing Platform-Independent CMS-Speciﬁc Modules

543
