Direct Speech Generation for a Silent Speech Interface based on

Permanent Magnet Articulography

Jose A. Gonzalez

, Lam A. Cheah

, James M. Gilbert

, Jie Bai

, Stephen R. Ell

, Phil D. Green

and Roger K. Moore

Department of Computer Science, University of Shefﬁeld, Shefﬁeld, U.K.

School of Engineering, University of Hull, Kingston upon Hull, U.K.

Hull and East Yorkshire Hospitals Trust, Castle Hill Hospital, Cottingham, U.K.

Keywords:

Silent Speech Interfaces, Speech Rehabilitation, Speech Synthesis and Permanent Magnet Articulography.

Abstract:

Patients with larynx cancer often lose their voice following total laryngectomy. Current methods for post-

laryngectomy voice restoration are all unsatisfactory due to different reasons: requires frequent replacement

due to bioﬁlm growth (tracheo-oesoephageal valve), speech sounds gruff and masculine (oesophageal speech)

or robotic (electro-larynx) and, in general, are difﬁcult to master (oesophageal speech and electro-larynx). In

this work we investigate an alternative approach for voice restoration in which speech articulator movement is

converted into audible speech using a speaker-dependent transformation learned from simultaneous recordings

of articulatory and audio signals. To capture articulator movement, small magnets are attached to the speech

articulators and the magnetic ﬁeld generated while the user ‘mouths’ words is captured by a set of sensors.

Parallel data comprising articulatory and acoustic signals recorded before laryngectomy are used to learn

the mapping between the articulatory and acoustic domains, which is represented in this work as a mixture

of factor analysers. After laryngectomy, the learned transformation is used to restore the patient’s voice by

transforming the captured articulator movement into an audible speech signal. Results reported for normal

speakers show that the proposed system is very promising.

1 INTRODUCTION

Every year thousands of people worldwide have their

larynx surgically removed because of throat cancer,

trauma or destructive throat infection (Fagan et al.,

2008; Wang et al., 2012). As speech is seen as a vital

part of human communication, post-laryngectomy pa-

tients who have lost their voices often ﬁnd themselves

struggling with their daily communication, which can

lead to social isolation, feelings of loss of identity

and depression (Byrne et al., 1993; Braz et al., 2005;

Danker et al., 2010). Unfortunately, the quality of

voice generated by conventional post-laryngectomy

restoration methods, such as oesophageal speech,

tracheo-oesoephageal speech or the electro-larynx, is

poor and often these methods are difﬁcult to master

(Fagan et al., 2008; Hueber et al., 2010). Augmen-

tative and alternative communication (AAC) devices,

on the other hand, are also limited by their slow man-

ual text input.

The use of silent speech interfaces (SSIs) (Denby

et al., 2010) provides an alternative solution to the

conventional methods by enabling oral communica-

tion in the absence of audible speech by exploiting

other non-audible signals generated during speech,

such as electrical activity in the brain (Herff et al.,

2015) or in the articulator muscles (Jou et al., 2006;

Schultz and Wand, 2010; Wand et al., 2014) or

the movement of the speech articulators themselves

(Petajan, 1984; Toda et al., 2008; Denby et al., 2010;

Hueber et al., 2010; Gilbert et al., 2010; Freitas et al.,

2011; Hofe et al., 2013). Because of this unique

feature, SSIs can be suitable for applications other

than post-laryngectomy voice rehabilitation, such as

communication in noisy environments or in situations

where privacy/conﬁdentiality is important.

The present work makes use of permanent mag-

net articulography (PMA) (Fagan et al., 2008; Gilbert

et al., 2010), which is a sensing technique for artic-

ulator motion capture. In PMA a set of magnets are

attached to the intact articulators and the variations of

the resultant magnetic ﬁeld generated while the user

‘mouths’ words are captured by a number of sensors

located around the mouth. In previous work (Fagan

Gonzalez, J., Cheah, L., Gilbert, J., Bai, J., Ell, S., Green, P. and Moore, R.

Direct Speech Generation for a Silent Speech Interface based on Permanent Magnet Articulography.

DOI: 10.5220/0005754100960105

In Proceedings of the 9th International Joint Conference on Biomedical Engineering Systems and Technologies (BIOSTEC 2016) - Volume 4: BIOSIGNALS, pages 96-105

ISBN: 978-989-758-170-0

et al., 2008; Gilbert et al., 2010; Hofe et al., 2013;

Cheah et al., 2015) it has been shown that generation

of audible speech from PMA data can be achieved

by ﬁrst decoding the acquired articulatory data us-

ing an automatic speech recognition (ASR) system

trained on PMA data and then synthesising the recog-

nised text using a text-to-speech (TTS) synthesiser.

This approach, however, has limitations that may af-

fect the user’s willingness to engage in social in-

teractions: speech articulation and its corresponding

auditory feedback are disconnected due to the vari-

able delay introduced by ASR and TTS and the sys-

tem is constrained to the language and vocabulary of

the ASR system being used. Furthermore, the non-

linguistic information embedded in the articulatory

signal, such as emotion or speaker identity, is nor-

mally lost after ASR.

To address the shortcomings of the recognise-

then-synthesise approach, an alternative approach is

investigated in this paper: direct conversion of the

PMA data stream into an audible speech signal with-

out an intermediate recognition step. In this approach,

which will be referred to as the direct speech synthe-

sis approach, a transformation is applied to the ac-

quired PMA data to obtain a sequence of speech pa-

rameter vectors from which an acoustic signal is syn-

thesised. To enable this method, we adopt a statistical

approach in which simultaneous recordings of PMA

and audio data are used to learn the mapping between

the articulatory and acoustic domains. These paral-

lel recordings are used during an initial training phase

to estimate the joint distribution of PMA and speech

parameter vectors. Then, in the conversion phase, the

speech-parameter posterior distribution given the sen-

sor data is computed so that an acoustic signal can be

recovered from the captured PMA data. Because the

PMA-to-acoustic transformation is learned using the

patient’s own voice, the proposed method has the po-

tential to synthesise speech that sounds as the original

voice. Furthermore, if the conversion can be done in

near real-time, the synthesised voice will also sound

spontaneous and natural and will allow the patient to

receive real-time auditory feedback of her/his articu-

latory gestures.

Although this is the ﬁrst work reported which

implements a PMA-based SSI using the direct syn-

thesis approach, other authors have also addressed

in the past similar problems using different sensing

technologies. For example, Toda et al. proposed in

(Toda et al., 2008; Toda et al., 2007) a related tech-

nique to our proposal for both articulatory-to-acoustic

and acoustic-to-articulatory conversion using Gaus-

sian mixture models (GMMs), where the articulatory

data was captured using electromagnetic articulog-

raphy (EMA). More recently, Toda’s technique has

been also applied to other sensing technologies: non-

audible murmur (NAM) (Toda et al., 2012), video

and ultrasound (Hueber et al., 2011) and radar (Toth

et al., 2010). A different approach for generating

speech from articulatory data is that of (Zahner et al.,

2014), in which a concatenative, unit-selection ap-

proach is employed to generate speech from surface

electromiography (sEMG) data. Recently, deep neu-

ral networks (DNNs) have also been applied to both

acoustic-to-articulatory (Uria et al., 2011) and voice

conversion (Chen et al., 2014) problems with very

promising results.

The rest of this paper is organised as follows.

First, in Section 2, the PMA technique is brieﬂy out-

lined. Then, in Section 3, the proposed technique

for speech generation from PMA data is described.

Section 4 discusses some practical implementation is-

sues. In Section 5, direct synthesis is evaluated on

parallel databases containing PMA and acoustic data.

Finally, we summarise this paper and outline future

work in Section 6.

2 PERMANENT MAGNET

ARTICULOGRAPHY

PMA is a technique for capturing speech articulator

motion by attaching a set of magnets to the artic-

ulators (typically the lips and tongue) and measur-

ing the resultant magnetic ﬁeld changes with sensors

close to the articulators (see Fig. 1). The variations

of the magnetic ﬁeld may then be used to determine

the speech which the user wishes to produce, either

by performing ASR on the PMA data (Gilbert et al.,

2010; Hofe et al., 2013) or by transforming the ar-

ticulatory data to an acoustic signal as we do in this

paper. It should be noted that contrary to other mech-

anisms for articulator motion capture, PMA does not

provide the exact position of the individual magnets

as the magnetic ﬁeld detected by each sensor is a com-

posite of the ﬁelds generated by all the magnets.

As shown in Fig. 1, six magnets are used in the

current PMA device prototype for detecting the move-

ment of the articulators: four on the lips with dimen-

sions 1 mm (diameter) × 5 mm (height), one on the

tongue tip (2 mm × 4 mm), and one on the middle of

the tongue (5 mm × 1 mm). The magnetic ﬁeld gen-

erated by the magnets when the user ‘speaks’ is then

recorded by four triaxial magnetic sensors mounted

on a rigid frame, each one providing three channels

of data for the (x, y, z) spatial components of the mag-

netic ﬁeld at the sensor location. Only the three sen-

sors that are closest to the mouth are actually used for

Direct Speech Generation for a Silent Speech Interface based on Permanent Magnet Articulography

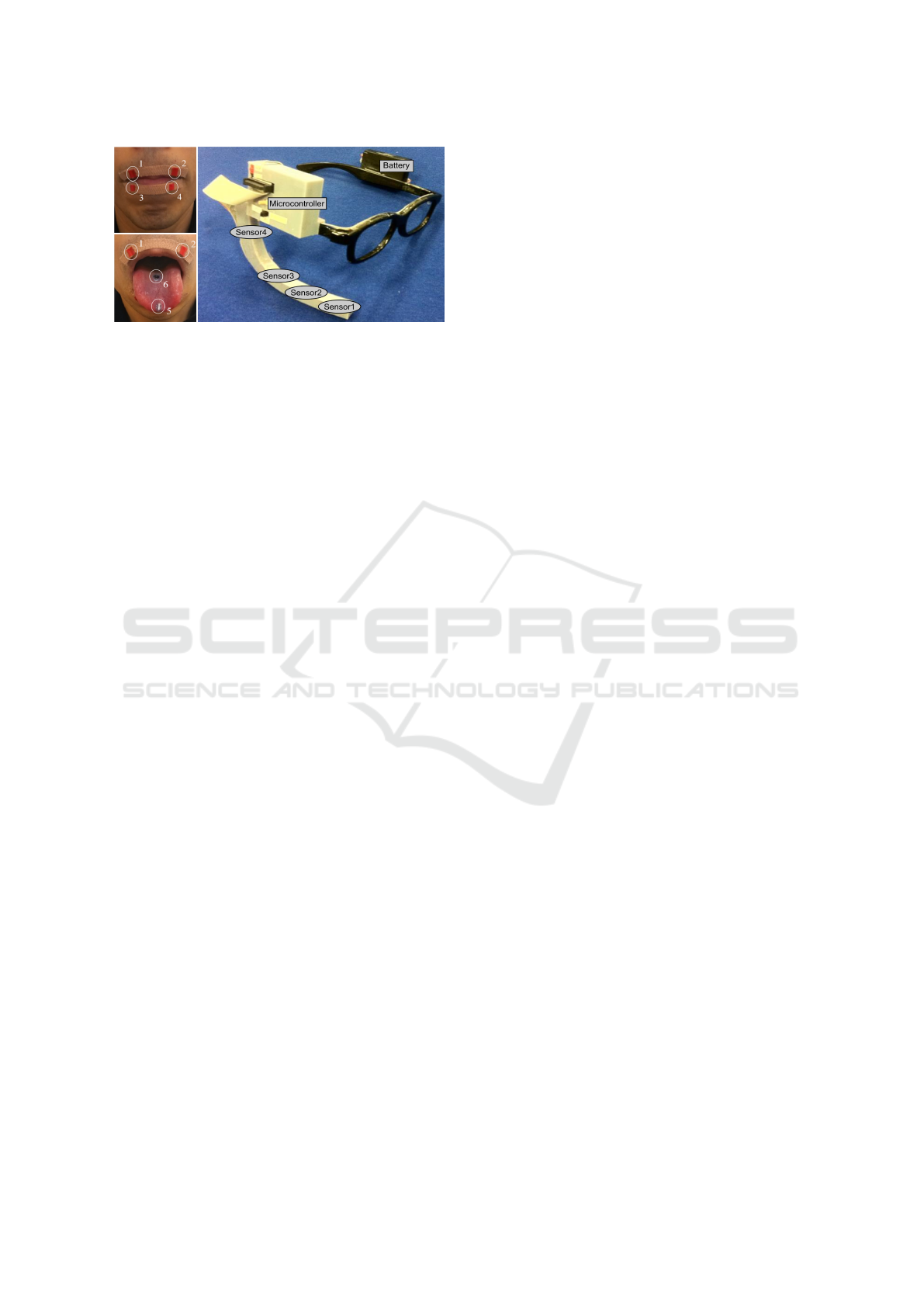

Figure 1: Upper-left and lower-left: magnet positioning

in the current PMA device. Right: components of the PMA

headset: microcontroller, battery and magnetic sensors used

to detect the variations of the magnetic ﬁeld generated by

the magnets.

capturing articulatory data, while Sensor4 in Fig. 1

is used for cancelling the effects of Earth’s magnetic

ﬁeld in the articulatory data.

3 SPEECH GENERATION FROM

PMA DATA

In this section we present the details of the PMA-

to-acoustic conversion technique. Let us denote by

and y

the PMA and speech parameter vectors at

frame t, respectively. In this work the source vectors

are derived from the signal captured by the PMA

device, whereas the target vectors y

correspond to

a parametric representation of the audio signal (e.g.

Mel-frequency cepstral coefﬁcients). From these def-

initions, the aim of the proposed technique is to model

the mapping y

= f(x

). Here, we employ a statis-

tical approach in which the parameters of the map-

ping are learned from parallel recordings of PMA

and acoustic data. The parallel data is used during

an initial training phase to learn the joint distribu-

tion p(x, y), which is modelled as a mixture of fac-

tor analysers (MFA) (Ghahramani and Hinton, 1996).

Then, in the conversion phase, the learned transfor-

mation is used to convert PMA parameter vectors into

speech parameter ones. As we show below, this in-

volves ﬁnding the conditional distribution p(y|x

The training and conversion phases are described in

more detail below.

3.1 Training Phase

Instead of trying to directly model the mapping func-

tion y

= f(x

), we assume that x

and y

are the

outputs of a stochastic process whose state v

is not

directly observable. We also assume that the dimen-

sionality of v

is much less than that of x

and y

, such

that the latent space offers a more compact representa-

tion of the observable data. Under these assumptions,

we have the following model,

= f

) + 

, (1)

= f

) + 

, (2)

where 

and 

are Gaussian-distributed noise pro-

cesses with zero mean and diagonal covariances Ψ

and Ψ

, respectively.

In general, f

and f

will be non-linear and,

hence, difﬁcult to model. To represent them, a piece-

wise linear regression approach is adopted in which

the functions are approximated by a mixture of K lo-

cal factor analysis models, each of which has the fol-

lowing form,

= W

(k)

+ µ

(k)

+ 

(k)

, (3)

= W

(k)

+ µ

(k)

+ 

(k)

, (4)

where k = 1, . . . , K is the model index, W

(k)

and

(k)

are the factor loadings matrices, and µ

(k)

and

(k)

are bias vectors that allow the data to have a non-

zero mean. This model can be written in a compact

form as,

= W

(k)

+ µ

(k)

+ 

(k)

, (5)

where z

= [x

, y

]

, W

(k)

= [W

(k)

]

(k)

= [µ

(k)

, µ

(k)

]

, and 

(k)

∼ N (0, Ψ

(k)

), with

(k)

being the following diagonal covariance matrix,

(k)

0 Ψ

(k)

. (6)

From (5) we see that the conditional distribution

of the observed variables given the latent ones is

p(z|v, k) = N (z;W

(k)

v + µ

(k)

, Ψ

(k)

). By assuming

that the latent variables are independent and Gaus-

sian with zero mean and unit variance (i.e. p(v|k) =

N (0, I)), the k-th component marginal distribution of

the observed variables, i.e.

p(z|k) =

p(z|v, k)p(v|k)dv, (7)

also becomes normally distributed as p(z|k) =

N (z; µ

(k)

, Σ

(k)

), where Σ

(k)

= Ψ

(k)

the reduced-rank covariance matrix.

The generative model is completed by adding

mixture weights π

(k)

for each mixture component k =

1, . . . , K. Then, the joint distribution p(z) ≡ p(x, y)

ﬁnally becomes the following mixture model,

p(z) =

∑

k=1

(k)

p(z|k). (8)

BIOSIGNALS 2016 - 9th International Conference on Bio-inspired Systems and Signal Processing

Finally, the expectation-maximization (EM) algo-

rithm proposed in (Ghahramani and Hinton, 1996) is

used in this paper to estimate the parameters of the

MFA model {hπ

(k)

, µ

(k)

, W

(k)

, Ψ

(k)

i, k = 1, . . . , K}

from a training dataset consisting of pairs of source

and target vectors



= [x

, y

]

, i = 1, . . . , N



3.2 Conversion Phase

In the conversion phase the joint distribution p(x, y)

is used to estimate the sequence of speech parame-

ter vectors associated with the articulatory data cap-

tured by the PMA device. Then, the ﬁnal time-

domain acoustic signal is synthesised from the esti-

mated speech parameters by using the corresponding

vocoder. Here, a frame-by-frame procedure based on

the well-known minimum mean square error (MMSE)

estimator is used to represent the mapping:

ˆy

= E[y|x

] =

yp(y|x

)dy. (9)

From the expression of p(x, y) in (8), it can be de-

duced that the posterior distribution p(y|x

) is given

by,

p(y|x

) =

∑

k=1

P(k|x

)p(y|x

, k), (10)

where

P(k|x

) =

(k)



;µ

(k)

, Σ

(k)



∑

)



;µ

)

, Σ

)



, (11)

p(y|x

, k) = N



y; µ

(k)

y|x

, Σ

(k)

y|x



. (12)

The parameters of the k-th component conditional

distribution p(y|x

, k) are derived from those of the

joint pdf p(x, y|k) in (7). As already mentioned, the

latter distribution is Gaussian with mean µ

(k)

and co-

variance matrix Σ

(k)

. Then, using the standard prop-

erties of the joint Gaussian distribution, we can derive

the parameters of the conditional distribution as fol-

lows,

(k)

y|x

= µ

(k)

+ Σ

(k)

−1



− µ

(k)



, (13)

(k)

y|x

= Σ

(k)

+ Σ

(k)

−1

(k)

, (14)

where the marginal means µ

(k)

, µ

(k)

and covariance

matrices Σ

(k)

, Σ

(k)

, Σ

(k)

are obtained by partitioning

(k)

and Σ

(k)

into their x and y components.

Finally, by substituting the expression of the con-

ditional distribution p(y|x

) in (10) into (9), we reach

the following expression for the MMSE estimation of

the speech parameter vectors,

ˆy

∑

k=1

P(k|x

)

yp(y|x

, k)dy

∑

k=1

P(k|x

)



(k)

+ b

(k)



, (15)

with A

(k)

= Σ

(k)

−1

and b

(k)

= µ

(k)

− A

(k)

can be deduced from (13).

4 PRACTICAL

IMPLEMENTATION

The underlying principle of the proposed technique

for direct speech synthesis is that the patient should

attend a recording session soon after it has been

agreed that a laryngectomy will be performed. Dur-

ing the session, the patient’s voice and correspond-

ing PMA data will be recorded using adhesively at-

tached magnets. In addition, the information on the

location of the glued magnets during the session will

be documented, so that they can then be later surgi-

cally implanted accordingly. From the collected data

the PMA-to-acoustic mapping is then estimated, so it

can be readily available to be used by the patient soon

after the laryngectomy.

In certain conditions, however, the above training

procedure might fail. For example, it is highly un-

likely that the exact magnet positions can be repli-

cated during surgical implantation. Any misplace-

ment of the magnets will inevitably lead to mis-

matches with respect to the data used for training the

MFA model, thus leading to degradation in the qual-

ity of synthesised speech. Furthermore, variations of

the relative positions of the magnets with respect the

head-frame used to hold the magnetic sensors (see

Figure 1) will also lead to mismatches. Therefore,

in most of the practical cases it would be necessary

to re-calibrate the system in order to compensate for

any magnet misplacement with respect to their origi-

nal positions used for acquiring the training data. In

the following we propose a feature-space compensa-

tion approach to this end.

We will assume that the positions of the magnets

pre- (magnets glued) and post-operation (magnets im-

planted) only vary slightly, so that the mismatch be-

tween the articulatory data captured for the same ar-

ticulatory gesture pre- and post-operation can be mod-

elled as,

= h( ˜x

), (16)

Direct Speech Generation for a Silent Speech Interface based on Permanent Magnet Articulography

where x

and ˜x

denote the PMA data obtained using

the pre-operation and post-operation magnet arrange-

ment, respectively, and h is the mismatch function.

To estimate h, the following procedure is applied.

First, after magnet implantation, the patient has to

attend another recording session in which he or she

is asked to mouth along to some of the utterances

recorded during the ﬁrst recording session. In this

case, however, only PMA data is acquired since the

patient has already lost their voice. Furthermore, only

a small fraction of the data recorded during the ﬁrst

session needs to be recorded during the second ses-

sion, as the aim of it is not to estimate the full PMA-

to-acoustic mapping (as in the ﬁrst recording session),

but to learn the mismatch produced by the magnet

misplacement. Next, the PMA data for both record-

ing sessions are aligned using dynamic time warping

(DTW) and used to estimate the mismatch function.

Two different alternative methods are proposed in this

paper for modelling this function. First, a simple lin-

ear mapping is used to model the mismatch, i.e.

= A ˜x

+ b, (17)

with A and b being estimated by least squares regres-

sion from the aligned data.

Alternatively, a multilayer perceptron (MLP) is

used to model x

= h( ˜x

). The input to the MLP are

the PMA vectors ˜x

and it tries to predict the corre-

sponding PMA vectors x

used for training the MFA

model. More details about the MLP architecture and

its training are given in Section 5.6.

After h is estimated (either as a linear operator

or a neural network), it is used in a second round of

the adaptation procedure to improve the alignment of

the PMA data captured in both sessions. Thus, the

adaptation data is ﬁrst compensated using the esti-

mated transformation and then DTW-aligned with the

original data. Next, the alignments obtained for the

compensated data are used to estimate a more accu-

rate transformation between the PMA data captured

in both sessions. This procedure is repeated several

times until convergence.

5 EXPERIMENTAL EVALUATION

The proposed direct synthesis technique is evaluated

here only for normal speakers. Despite the fact that

our ultimate goal is to use this technique for voice

restoration after laryngectomy, we believe that at this

initial stage of the development our priority is to as-

sess voice reconstruction accuracy for normal speak-

ers and then, once the system is robust, it can be

tested with those whose voice has been altered by dis-

ease. More details about the evaluation framework are

given in the following.

5.1 Vocabulary and Data Recording

To evaluate the proposed PMA-to-acoustic conver-

sion technique, two parallel databases with differ-

ent phonetic coverage were recorded. The ﬁrst one

is based on the TIDigits speech database (Leonard,

1984) and consists of sequences of up to seven con-

nected English digits. The vocabulary is made up

of eleven words: the digits from ‘one’ to ‘nine’ plus

‘zero’ and ‘oh’. The second database consists of utter-

ances selected at random from the CMU Arctic cor-

pus of phonetically balanced sentences (Kominek and

Black, 2004). Parallel data was then recorded for the

two databases by adult speakers with normal speaking

ability. For the TIDigits database, four male speak-

ers (M1 to M4) and a female speaker (F1) recorded

308 sentences (385 sentences for M2) comprising 7.2,

10.5, 8.0, 9.7 and 8.5 minutes of data, respectively.

Speaker M1 also recorded a second dataset with 308

sentences (7.4 minutes of data) in a different record-

ing session (different day) with the aim of evaluat-

ing the recalibration procedure proposed in Section 4.

The magnet arrangement used during the ﬁrst record-

ing session was documented and replicated in the sec-

ond session. Despite this, as will be discussed be-

low, small variations in the magnet positions and/or

orientations unintentionally occurred. For the Arc-

tic database, 420 utterances were recorded by speaker

M1 making a total of 22 minutes of data.

The audio and 9-channel PMA signals were

recorded simultaneously at sampling frequencies of

16 kHz and 100 Hz, respectively, using an AKG

C1000S condenser microphone and the PMA device

shown in Figure 1. Background cancellation was later

applied to the PMA signals in order to mitigate the

effect of the Earth’s magnetic ﬁeld on the articula-

tory data. Finally, all data were endpointed in the au-

dio domain using an energy-based algorithm to pre-

vent modelling silence parts, as the speech articula-

tors may adopt any position during the silence parts.

5.2 Signal Processing

In the proposed technique source x

and target y

pa-

rameter vectors are computed as follows. For PMA,

the PMA signals are ﬁrstly segmented into overlap-

ping frames using a 20 ms analysis window with 10

ms overlap. Next, sequences of ω consecutive frames,

with a single-frame displacement, are concatenated

together in order to better capture contextual phonetic

BIOSIGNALS 2016 - 9th International Conference on Bio-inspired Systems and Signal Processing

100

information. Due to the high dimensionality of the

resultant windows of frames, the partial least squares

(PLS) technique (De Jong, 1993) is applied to reduce

the dimensionality and obtaining the ﬁnal PMA pa-

rameter vectors used by the proposed conversion tech-

nique. The audio signals are represented in this work

as 25 Mel-frequency cepstral coefﬁcients (MFCCs)

(Fukada et al., 1992) obtained at the same frame rate

as that for PMA. Neither F

nor voicing information

are extracted from the audio signals because of the

limited ability of PMA to model this aspect of speech

articulation (Gonzalez et al., 2014). Rather, the audio

signals are re-synthesised as whispered speech. Fi-

nally, the PMA and speech parameter vectors are con-

verted to z-scores with zero mean and unit variance to

improve statistical training.

5.3 Evaluation of the Conversion

Accuracy

To objectively evaluate the accuracy of speech recon-

struction we use the well-known Mel-cepstral distor-

tion (MCD) measure (Kubichek, 1993). The MCD

measure is computed between the MFCCs extracted

from the original audio signals, c, and the ones pre-

dicted from PMA data, ˆc, with smaller values indicat-

ing better results:

MCD[dB] =

ln10

∑

d=1

− ˆc

)

. (18)

Subjective evaluation of resynthesised speech via

listening tests, although also useful, is not reported

here due to the preliminarily nature of this work. This

is left for future work.

For estimating the performance of direct synthe-

sis, a 10-fold cross-validation scheme is used. Hence,

the available data for each speaker is randomly di-

vided into ten sets and, in each round, 9 sets are used

for training and the remaining one for testing. The

MCD results reported in the following sections corre-

spond to the average MCD result for the 10 rounds.

5.4 TIDigits Results

Fig. 2 shows a contour plot with the average MCD

results obtained for all the speakers as a function of

the number of mixture components used in the MFA

model and the length of the sliding window used to

extract the PMA parameter vectors. As expected,

the more mixture components are used in the MFA

model, the more accurately the non-linear PMA-to-

acoustic mapping is represented and, hence, better

MCD results are obtained. Moreover, increasing the

1 2 4 8 16 32 64 128

Number of mixture components

140

200

260

PMA-frame window length [ms]

7.37.3

7.07.0

6.76.7

6.46.4

6.16.1

5.85.8

5.55.5

5.25.2

4.94.9

1 2 4 8 16 32 64 128

Number of mixture components

140

200

260

PMA-frame window length [ms]

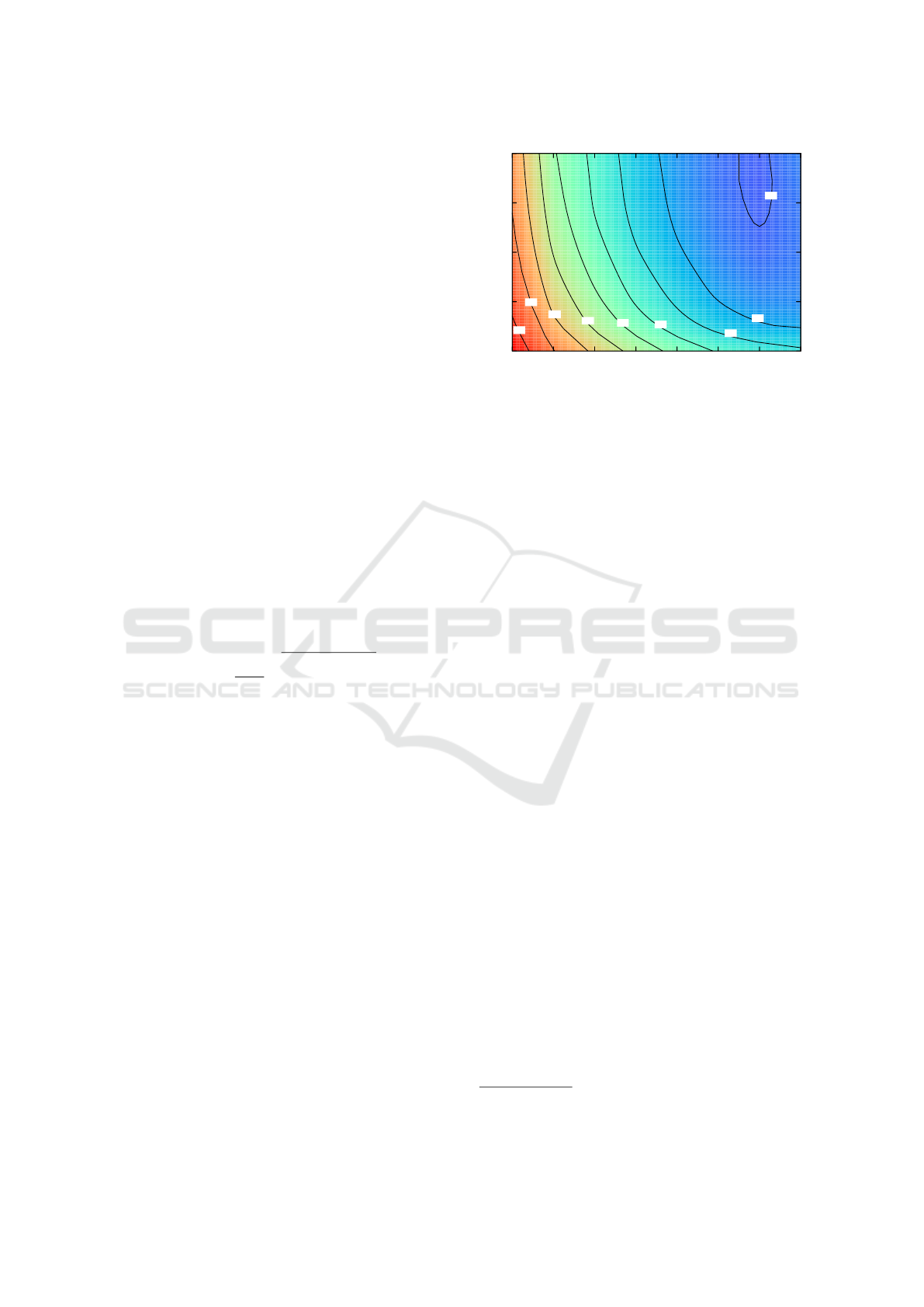

Figure 2: Average MCD results obtained for all the speak-

ers in the TIDigits datasets as a function of the number of

mixture components used in the MFA model and the length

of the PMA-frame window.

length of the sliding-window used to extract the PMA

feature vectors also helps, as this reduces the uncer-

tainty of the mapping by taking into account more

contextual information. In terms of speech intelli-

gibility, informal listening of the resynthesised sam-

ples show that speech is intelligible and the speaker’s

voice is clearly identiﬁable

The performance of direct synthesis for each

speaker is shown in Fig. 3. A 64-component MFA

model, which is the model providing better overall

results in Fig. 2, is chosen now. It can be seen

that the results for all the speakers follow a similar

trend and by increasing the length of the PMA-frame

window better results are achieved. For example,

the relative improvements of using a window span-

ning 25 frames (260 ms) in comparison with just a

single frame (20 ms) are 10.88%, 17.49%, 10.49%,

12.64% and 14.76% for speakers speakers M1-M4

and F1, respectively. In terms of reconstruction accu-

racy, the better results are obtained for speakers M1

and M4, whereas M2 and F1 are the worst speakers

in this sense. We also see that the absolute difference

between the results for M4 and F1 (best and worst

speaker, respectively) is approximately 0.6 dB, which

more or less correspond to the performance difference

between using a window of 20 ms and a window of

260 ms for speaker M4. The differences in perfor-

mance among speakers can be mainly attributed to

two factors: the user’s experience in using the PMA

device and how well the device ﬁts her/his anatomy.

In regard of the ﬁrst reason, it must be pointed out

that M1, M3 and M4 were proﬁcient in the use of the

PMA device, while for M2 and F1 the data record-

ing session was also the ﬁrst time they used the PMA

Several speech samples are available in the Demos sec-

tion of http://www.hull.ac.uk/speech/disarm

Direct Speech Generation for a Silent Speech Interface based on Permanent Magnet Articulography

101

4.4

4.6

4.8

5.2

5.4

5.6

5.8

6.2

20 80 140 200 260

Mel-cepstral distortion [dB]

PMA-frame window length [ms]

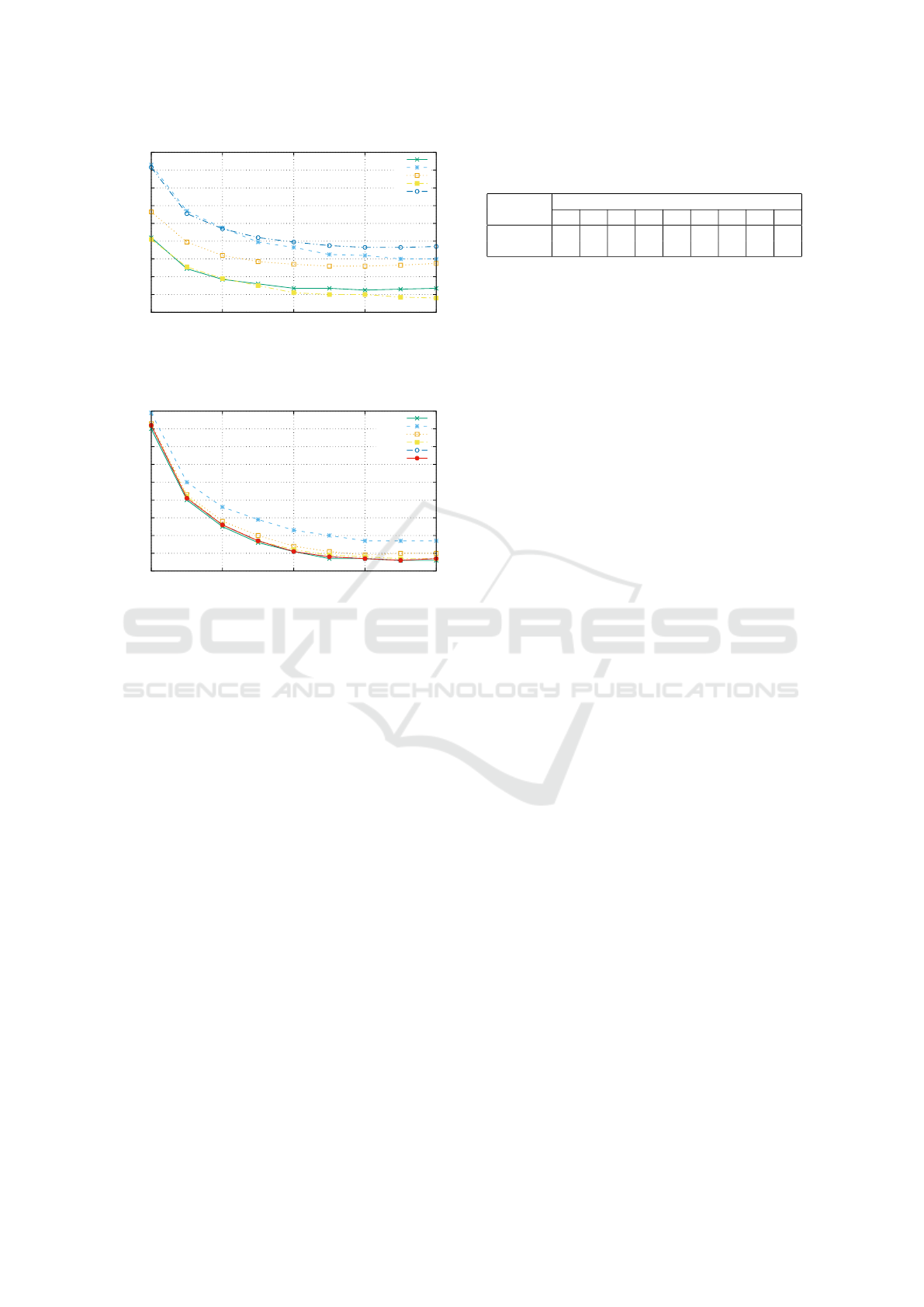

Figure 3: Performance of direct synthesis (in terms of Mel-

Cepstral distortion) for different speakers in the TIDigits

database.

4.8

4.9

5.1

5.2

5.3

5.4

5.5

5.6

5.7

20 80 140 200 260

Mel-cepstral distortion [dB]

PMA-frame window length [ms]

GMM

MFA-5

MFA-10

MFA-15

MFA-20

MFA-25

Figure 4: Comparison between the proposed approach for

articulatory-to-acoustic conversion using MFAs and Toda’s

et al. approach using GMMs (Toda et al., 2008). For

our proposal, the conversion accuracy using different latent

space dimensions (i.e. 5, 10, 15, 20, and 25) for v

in (5) is

evaluated.

device. With respect to the latter reason, the current

PMA device prototype was speciﬁcally designed for

M1’s anatomy, so it is reasonable to think that artic-

ulatory data is more accurately captured for him than

for the other speakers.

We now compare the quality of the resynthesised

voices obtained by our technique with the voices ob-

tained by the well-known GMM-based conversion

technique proposed by Toda et al. in (Toda et al.,

2008; Toda et al., 2007). For a fairer comparison, both

methods are evaluated using the MMSE-based map-

ping algorithm. Furthermore, we evaluate our pro-

posal using different dimensions for the latent space

variable v

in (5). The dimensions are 5, 10, 15,

20, and 25, the latter being the dimensionality of

the MFCC parameter vectors. Results are shown in

Fig. 4. As can be seen, both methods perform al-

most equally except when the dimensionality of the

latent space in the MFA-based conversion system is

very small (i.e. 5 or 10). In this case, the quality of

synthetic speech is slightly degraded due to the in-

ability of properly capturing the correlations between

the acoustic and PMA spaces in such latent spaces.

Table 1: MCD results (in dB) obtained for the Arctic

database. Two conversion systems are compared: oracle

and non oracle (see the text for details).

PMA frame window length (ms)

20 50 80 110 140 170 200 230 260

Oracle 4.75 4.81 4.88 4.90 4.92 4.94 4.95 4.98 5.00

Non oracle 6.39 6.28 6.17 6.14 6.11 6.10 6.08 6.08 6.07

For dimensions greater than 15, we see that both ap-

proaches (GMM and MFA) report more or less the

same results, with the beneﬁt that our proposed ap-

proach is more computationally efﬁcient because of

the savings of carrying out the computations in the

reduced-dimension space.

5.5 Arctic Results

Table 1 presents the MCD results obtained for the

Arctic database when a 64-component MFA model

is employed (the dimensionality of the latent space

is 25). Two systems are compared. The non-oracle

system corresponds to the PMA-to-acoustic conver-

sion procedure described in Section 3. In the oracle

system, on the other hand, the posterior probabilities

P(k|x

) used by the MMSE estimator in (15) are com-

puted using both x

and y

, where y

are the speech

parameters extracted from the original audio signals

(i.e. we are cheating). The rationale behind the ora-

cle system is to evaluate the conversion performance

when less uncertainty is involved in the mapping by

simulating that we know in advance the dominant

mixture component in each frame. As can be seen,

there is a big drop between the results for the TIDigits

database in Figure 2 and those presented here for the

non-oracle system. The reason is the greater phonetic

variability of the Arctic sentences. Thus, the PMA-

to-acoustic mapping is more difﬁcult to model for the

Arctic sentences due to the greater uncertainty of the

one-to-many conversion. Nevertheless, we see from

the results obtained by the oracle system that better

results can be obtained by reducing the uncertainty as-

sociated with the mapping. An example of the speech

spectrograms obtained by the oracle and non-oracle

conversion systems is shown in Figure 5. Perception

of re-synthesised Arctic sentences is highly variable:

some phrases are captured well, while others are in-

coherent.

Figure 6 shows a box plot with the detailed MCD

results obtained by the non-oracle conversion system

for different phone categories. When considering the

manner of articulation, we can see that the nasals and

plosives tend to be synthesised less accurately than

other sound classes. For nasals, this is due to the

current PMA prototype not modelling the velum area,

whereas for the plosives the problem is the difﬁculty

BIOSIGNALS 2016 - 9th International Conference on Bio-inspired Systems and Signal Processing

102

hh iy w ah l sp f aa l ow ah s s uw n

Freq. (Khz)

Time (s)

0.25 0.5 0.75 1

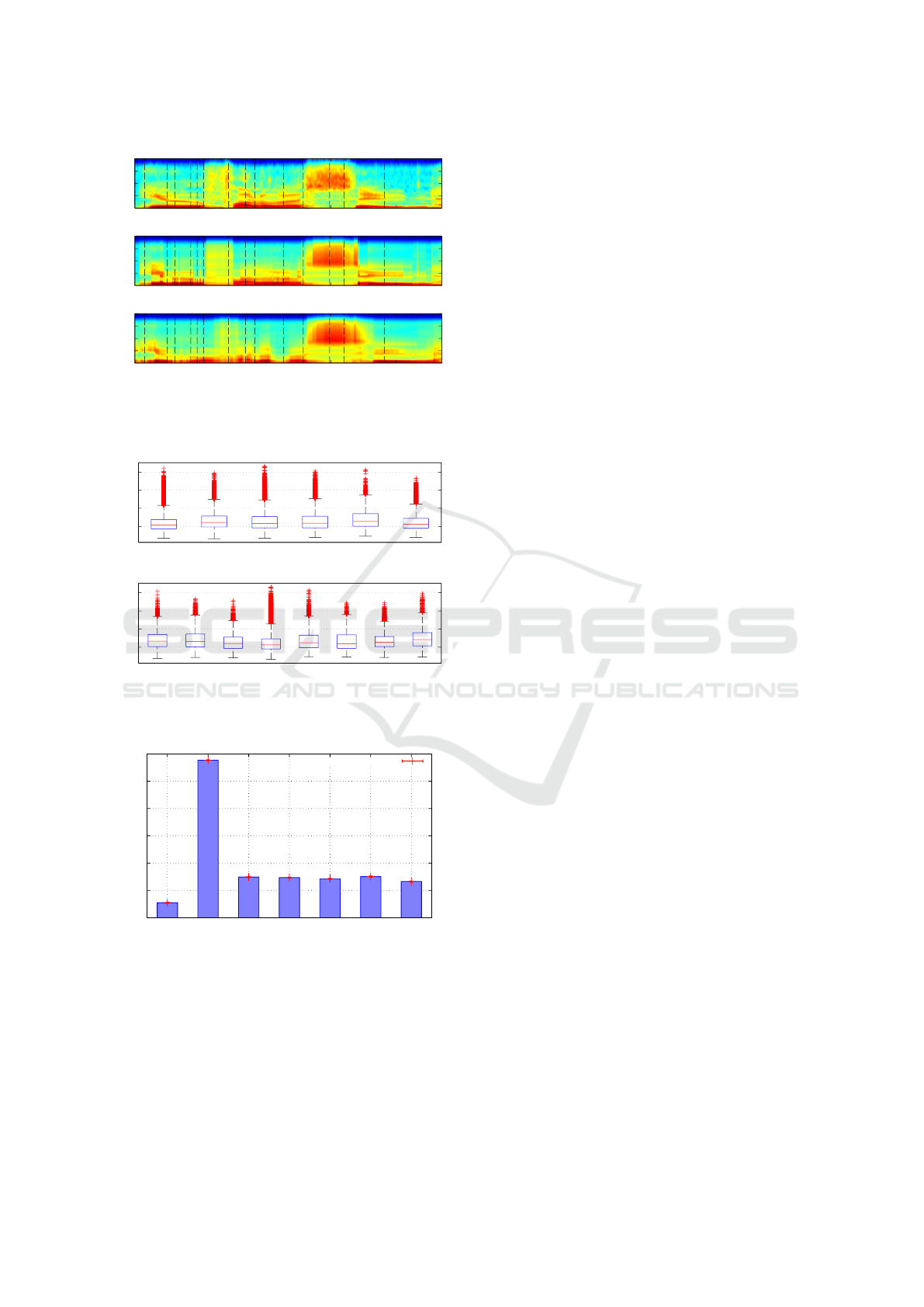

Figure 5: Examples of spectrograms of natural speech

(top), oracle PMA-to-acoustic conversion (middle), and

non-oracle conversion (bottom) for the utterance “He will

Vowel Plosive Nasal Fricative Affricate Approximant

MCD [dB]

Bilabial Labiodental Dental Alveolar Postalveolar Palatal Velar Glottal

MCD [dB]

Figure 6: Detailed MCD results on the Arctic database for

different speech sounds considering their manner (top) and

place of articulation (bottom).

Ideal NoAdapt LIN MLP-10 MLP-15 MLP-20 MLP-25

Mel-cepstral distortion [dB]

95% confidence intervals

Figure 7: Cross-session synthesis results: MCD results ob-

tained when synthesising PMA data from Session 2 in the

TIDigits database using a MFA model trained on the Ses-

sion 1 dataset.

in modelling their dynamics. When considering the

place of articulation, it is difﬁcult to extract any mean-

ingful conclusions but we can see that many errors

are made for the sounds articulated in the back of the

mouth, which the current PMA prototype is not cap-

turing well.

5.6 Cross-session Synthesis Results

So far it has been assumed that there is no mismatch

between the data used for training and that used for

testing. However, as already discussed in Section 4,

this is not always true. Variations in the positions

of the magnets pre- and post- implantation as well

as variations in the relative position of magnets with

respect to the head-frame used to hold the magnetic

sensors (see Figure 1), will inevitably lead to mis-

matches that will degrade the quality of speech syn-

thesised from sensor data. In this section, we evaluate

the performance of the direct synthesis technique in

one scenario which introduces such mismatch: speech

is synthesised from PMA data recorded by the speaker

M1 in his second recording session (Session 2) using

a MFA model trained on parallel data from his ﬁrst

session (Session 1).

Figure 7 shows the MCD results obtained for the

above experiment when a 64-component MFA model

and a PMA-frame window of 200 ms are used. In the

ﬁgure, Ideal refers to the ideal case in which there is

no mismatch between training and testing (i.e. paral-

lel data from Session 2 is used for training and test-

ing within the cross-validation scheme), the NoAdapt

system directly convert the sensor data from Session

2 using the model trained on data from Session 1 with

no compensation, and the remaining results are for the

compensation technique proposed in Section 4: LIN

models the mismatch function as a linear transforma-

tion, while MLP uses a multilayer perceptron with 10,

15, 20 and 25 sigmoid units in the hidden layer.

As can be seen, the best results are obtained in the

Ideal case where there is no mismatch between train-

ing and testing. Even though magnet placement was

documented to avoid misplacement between sessions,

we see from the NoAdapt results that even small

changes between sessions are catastrophic in terms of

the synthesised speech quality. This is greatly alle-

viated, however, by the proposed compensation tech-

nique. In this case, the results are only slightly worse

than the result obtained in the ideal case. Regarding

the different approaches for mismatch compensation,

it can be seen that the best results are obtained us-

ing a MLP with 25 hidden units due to the greater

modelling ﬂexibility allowed by this model. Nev-

ertheless, a simple linear transformation (LIN) also

achieves very similar results to MLP-25 with the ben-

eﬁt of LIN being more computationally efﬁcient.

6 CONCLUSIONS

In this paper we have introduced a system for synthe-

sising audible speech from speech articulator move-

Direct Speech Generation for a Silent Speech Interface based on Permanent Magnet Articulography

103

ment captured from the lips and tongue using perma-

nent magnet articulography. Preliminary evaluation

of the system via objective metrics show that the pro-

posed system is able to generate speech of sufﬁcient

quality for some vocabularies. However, problems

still remain to scale up the system to work consis-

tently for phonetically rich tasks. It has also been re-

ported that one of the current limitations of PMA, that

is, the differences between the articulatory data cap-

tured in different sessions, can be greatly reduced by

applying a pre-processing technique to the sensor data

before the conversion. This result brings us closer to

being able to apply the direct synthesis method in a

realistic treatment scenario. These results encourage

us in pursuing our goal of developing a SSI that will

ultimately allow laryngectomised patients to recover

their voice. In order to reach this point, a number

of questions will need to addressed in future research

such as making better use of temporal context, im-

proving the conversion accuracy for a large vocab-

ulary, ways of recovering the prosodic information

(i.e. voicing information and stress), and extending

the technique to speech impaired speakers.

ACKNOWLEDGEMENTS

This is a summary of independent research funded by

the National Institute for Health Research (NIHR)’s

Invention for Innovation Programme. The views ex-

pressed are those of the authors and not necessarily

those of the NHS, the NIHR or the Department of

Health.

REFERENCES

Braz, D. S. A., Ribas, M. M., Dedivitis, R. A., Nishimoto,

I. N., and Barros, A. P. B. (2005). Quality of life and

depression in patients undergoing total and partial la-

ryngectomy. Clinics, 60(2):135–142.

Byrne, A., Walsh, M., Farrelly, M., and O’Driscoll, K.

(1993). Depression following laryngectomy. A pilot

study. The British Journal of Psychiatry, 163(2):173–

176.

Cheah, L. A., Bai, J., Gonzalez, J. A., Ell, S. R., Gilbert,

J. M., Moore, R. K., and Green, P. D. (2015). A user-

centric design of permanent magnetic articulography

based assistive speech technology. In Proc. BioSig-

nals, pages 109–116.

Chen, L.-H., Ling, Z.-H., Liu, L.-J., and Dai, L.-R. (2014).

Voice conversion using deep neural networks with

layer-wise generative training. IEEE/ACM Trans. Au-

dio Speech Lang. Process., 22(12):1859–1872.

Danker, H., Wollbr

uck, D., Singer, S., Fuchs, M., Br

ahler,

E., and Meyer, A. (2010). Social withdrawal af-

ter laryngectomy. European Archives of Oto-Rhino-

Laryngology, 267(4):593–600.

De Jong, S. (1993). SIMPLS: an alternative approach to

partial least squares regression. Chemometrics Intell.

Lab. Syst., 18(3):251–263.

Denby, B., Schultz, T., Honda, K., Hueber, T., Gilbert, J.,

and Brumberg, J. (2010). Silent speech interfaces.

Speech Commun., 52(4):270–287.

Fagan, M. J., Ell, S. R., Gilbert, J. M., Sarrazin, E.,

and Chapman, P. M. (2008). Development of a

(silent) speech recognition system for patients follow-

ing laryngectomy. Medical engineering & physics,

30(4):419–425.

Freitas, J., Teixeira, A., Bastos, C., and Dias, M. (2011).

Speech Technologies, volume 10, chapter Towards a

multimodal silent speech interface for European Por-

tuguese, pages 125–150. InTech.

Fukada, T., Tokuda, K., Kobayashi, T., and Imai, S. (1992).

An adaptive algorithm for Mel-cepstral analysis of

speech. In Proc. ICASSP, pages 137–140.

Ghahramani, Z. and Hinton, G. E. (1996). The EM algo-

rithm for mixtures of factor analyzers. Technical Re-

port CRG-TR-96-1, University of Toronto.

Gilbert, J. M., Rybchenko, S. I., Hofe, R., Ell, S. R., Fagan,

M. J., Moore, R. K., and Green, P. (2010). Isolated

word recognition of silent speech using magnetic im-

plants and sensors. Medical engineering & physics,

32(10):1189–1197.

Gonzalez, J. A., Cheah, L. A., Bai, J., Ell, S. R., Gilbert,

J. M., 1, R. K. M., and Green, P. D. (2014). Anal-

ysis of phonetic similarity in a silent speech interface

based on permanent magnetic articulography. In Proc.

Interspeech, pages 1018–1022.

Herff, C., Heger, D., de Pesters, A., Telaar, D., Brunner,

P., Schalk, G., and Schultz, T. (2015). Brain-to-text:

decoding spoken phrases from phone representations

in the brain. Frontiers in Neuroscience, 9(217).

Hofe, R., Ell, S. R., Fagan, M. J., Gilbert, J. M., Green,

P. D., Moore, R. K., and Rybchenko, S. I. (2013).

Small-vocabulary speech recognition using a silent

speech interface based on magnetic sensing. Speech

Commun., 55(1):22–32.

Hueber, T., Benaroya, E.-L., Chollet, G., Denby, B., Drey-

fus, G., and Stone, M. (2010). Development of a

silent speech interface driven by ultrasound and op-

tical images of the tongue and lips. Speech Commun.,

52(4):288–300.

Hueber, T., Benaroya, E.-L., Denby, B., and Chollet, G.

(2011). Statistical mapping between articulatory and

acoustic data for an ultrasound-based silent speech in-

terface. In Proc. Interspeech, pages 593–596.

Jou, S.-C., Schultz, T., Walliczek, M., Kraft, F., and Waibel,

A. (2006). Towards continuous speech recognition us-

ing surface electromyography. In Proc. Interspeech,

pages 573–576.

Kominek, J. and Black, A. W. (2004). The CMU Arctic

speech databases. In Fifth ISCA Workshop on Speech

Synthesis, pages 223–224.

Kubichek, R. (1993). Mel-cepstral distance measure for ob-

jective speech quality assessment. In Proc. IEEE Pa-

BIOSIGNALS 2016 - 9th International Conference on Bio-inspired Systems and Signal Processing

104

ciﬁc Rim Conference on Communications, Computers

and Signal Processing, pages 125–128.

Leonard, R. (1984). A database for speaker-independent

digit recognition. In Proc. ICASSP, pages 328–331.

Petajan, E. D. (1984). Automatic lipreading to enhance

speech recognition (speech reading). PhD thesis, Uni-

versity of Illinois at Urbana-Champaign.

Schultz, T. and Wand, M. (2010). Modeling coarticulation

in EMG-based continuous speech recognition. Speech

Commun., 52(4):341–353.

Toda, T., Black, A. W., and Tokuda, K. (2007). Voice

conversion based on maximum-likelihood estimation

of spectral parameter trajectory. IEEE Trans. Audio

Speech Lang. Process., 15(8):2222–2235.

Toda, T., Black, A. W., and Tokuda, K. (2008). Statistical

mapping between articulatory movements and acous-

tic spectrum using a Gaussian mixture model. Speech

Commun., 50(3):215–227.

Toda, T., Nakagiri, M., and Shikano, K. (2012). Statisti-

cal voice conversion techniques for body-conducted

unvoiced speech enhancement. IEEE Trans. Audio

Speech Lang. Process., 20(9):2505–2517.

Toth, A. R., Kalgaonkar, K., Raj, B., and Ezzat, T. (2010).

Synthesizing speech from Doppler signals. In Proc.

ICASSP, pages 4638–4641.

Uria, B., Renals, S., and Richmond, K. (2011). A deep neu-

ral network for acoustic-articulatory speech inversion.

In Proc. NIPS 2011 Workshop on Deep Learning and

Unsupervised Feature Learning.

Wand, M., Janke, M., and Schultz, T. (2014). Tackling

speaking mode varieties in EMG-based speech recog-

nition. IEEE Trans. Bio-Med. Eng., 61(10):2515–

2526.

Wang, J., Samal, A., Green, J. R., and Rudzicz, F. (2012).

Sentence recognition from articulatory movements for

silent speech interfaces. In Proc. ICASSP, pages

4985–4988.

Zahner, M., Janke, M., Wand, M., and Schultz, T. (2014).

Conversion from facial myoelectric signals to speech:

a unit selection approach. In Proc. Interspeech, pages

1184–1188.

Direct Speech Generation for a Silent Speech Interface based on Permanent Magnet Articulography

105
