SDfR - Service Discovery for Robots

Stefan-Gabriel Chitic

, Julien Ponge

and Olivier Simonin

Universit

e de Lyon, INSA-Lyon, INRIA, CITI, F-69621, Villeurbanne, France

Universit

e de Lyon, INSA-Lyon, CITI, F-69621, Villeurbanne, France

Keywords:

Robotic Fleet, Service Discovery, Service Oriented Architecture.

Abstract:

Multi-robots systems require dedicated tools and models for their design and the deployment. Our approach

proposes service-oriented architecture that can simplify the development and deployment. In order to solve

the problem of neighbors and service discovery in an ad-hoc network, the ﬂeet robot needs a protocol that

is able to constantly discover new robots in its coverage area. To this end we propose a robotic middleware,

SDfR, that is able to provide service discovery. This protocol is an extension of the Simple Service Discovery

Protocol (SSDP) used in Universal Plug and Play (UPnP) to dynamic networks generated by the mobility of

the robots. Even if SDfR is platform independent, we propose a ROS (ROS, 2014) integration in order to

facilitate the usage. We evaluate a series of overhead benchmarking across static and dynamic scenarios. We

also present some use-cases where our proposal was successfully tested.

1 INTRODUCTION

Nowadays more and more robotic systems tend to be

composed of several robots moving and cooperating,

generally called ﬂeets of robots. They are able to per-

form one or multiple tasks together and to share in-

formation about complex missions.

One of the problems in developing multi-robot ap-

plications is the communication inside the ﬂeet. The

robots need to know the reachable peers in any type

of communication infrastructure. In an ad-hoc net-

work, this problem becomes challenging because the

robots are highly mobile. A ﬂeet can easily partition

or merge with another ﬂeet. Also single robots can

become isolated or join an existing ﬂeet.

There is a great need of having a suitable middle-

ware that can abstract the neighbor and service dis-

covery layer and offer high-level application inter-

faces (APIs) to robotic applications. The challenge

is to provide an adapted system that can offer a suit-

able mechanism for network conﬁguration. Second,

this mechanism needs to maintain a list of connected

peers and their services in a highly mobile scenario.

In this paper we propose a new service discov-

ery middleware, called SDfR (Service Discovery for

Robots), an extension of the Simple Service Discov-

ery Protocol (SSDP) used in Universal Plug and Play

(UPnP). SDfR is able to make an auto-conﬁguration

for the connectivity to the ﬂeet ad-hoc network, dis-

cover reachable neighbors and their services. We also

provide a ROS integration node, simplifying the us-

age of SDfR.

The paper is structured as follows: Section 2

presents the background of service orientated archi-

tecture and discovery in multi-robot systems, Sec-

tion 3 discusses the service discovery approaches in

middleware for robotics, Section 4 presents our pro-

posal for service discovery in a ﬂeet context, Section

5 presents the arhitecture and the implementation of

SDfR, Section 6 presents the main results of over-

head benchmarking and Section 7 describes a couple

of use-cases. Section 8 concludes the paper.

2 MOTIVATION

One problem of robotic ﬂeets is how functionalities

can be applied to make the collaboration between

peers easier. Robots in ﬂeet system that perform

a mission together need to communicate with other

peers. The communication can be done using a cen-

tralized node or directly using an ad-hoc network.

Robotic Applications as Services. In our vision,

robots need to advertise their functionalities as ser-

vices in order to allow other members of the ﬂeet to

interact with them. In network based applications,

236

Chitic, S-G., Ponge, J. and Simonin, O.

SDfR - Service Discovery for Robots.

DOI: 10.5220/0005755202360243

In Proceedings of the 8th International Conference on Agents and Artiﬁcial Intelligence (ICAART 2016) - Volume 1, pages 236-243

ISBN: 978-989-758-172-4

service-oriented programming is now a largely ac-

cepted principle (Issarny et al., 2011).

Service-oriented architecture greatly simpliﬁes

the implementation of highly-adaptive, constantly-

evolving applications (Fr

enot et al., 2010). It also re-

duces the process of developing and deploying new

robotic applications. This architecture is very suit-

able to quickly cope with new developing models and

requirements.

In order to increase the mobility of the robots and

to distribute the communication without having a cen-

tral node, there is a need for the communication to be

decentralized using ad-hoc networks. In this case, the

robots do not have any image of their neighbors. Fur-

thermore, the communication across peers is suscep-

tible to route change and different peers can be used

to relay a data package. The ad-hoc network becomes

the sum of peer to peer network with 2 robots at least.

Fleet Service Discovery. In order to solve the prob-

lem of neighbors and service discovery in an ad-hoc

network, a ﬂeet robot needs a protocol that is able to

constantly discover new robots in its coverage area,

while maintaining a neighbor connectivity quality in-

dicator. Since there is not any central node that can

manage IP address allocation, the protocol should be

able to negotiate an IP address inside the network

and to have a conﬂict management tool in case of

an IP collision. Our work focuses on ad-hoc multi-

robot systems communication, especially on a family

of middleware that accelerates the development and

the deployment of new robotic applications.

3 RELATED WORK

In this section we present some of the major middle-

wares in robotics as well as some of existing service

discovery protocols used in the ﬁeld.

3.1 Middleware for Robotics

All aspects of communication, application deploy-

ment and conﬁguration can be facilitated using a

proper middleware. The biggest difference between

a classical middleware that runs in a cloud central-

ized infrastructure and a robotic one, is the mobility

of the ﬂeet and the decentralization of its components.

An exhaustive survey of the existing middlewares for

robot contexts is clearly impossible because of the

large number of existing middleware and frequent re-

leases of new ones. A detailed survey can be found

in (Chitic et al., 2014). Most of the middlewares are

designed for mono-robot with little applicability in

multi-robot systems.

One of the ﬁrst middleware that emerged for

robotics is Player/Stage (Kranz et al., 2006) project

which is designed to provide an infrastructure, drivers

and a collection of dynamically loaded device-shared

libraries for robotic applications. It neither offers a

service orientated architecture, nor a discovery for

neighbors services system.

Another highly used middleware for robotics is

ROS (Robot operating system). It is a recent ﬂexi-

ble middleware for robot applications (Quigley et al.,

2009; Cousins et al., 2010; ROS, 2014). It is a col-

lection of tools, libraries, and conventions that aim to

simplify the task of creating complex and robust robot

behavior across a wide variety of robotic platforms. It

provides hardware abstraction, device drivers, visual-

izers, message-passing, package management.

ROS (ROS, 2014) seems to be the emerging mid-

dleware for mono-robot with the most potential to

become the most used framework for robotic ﬂeets.

However, it has no multi-robot coordination system

and no automated testing environment, but it has al-

ready the advantage of having a large community that

develops new packages for it.

To the best of our knowledge, none of the existing

middleware for robots provides a service discovery

mechanism. ROS internal repository is represented

as an internal node designed for internal service dis-

covery, but it does not support neighbors discovery.

3.2 Service Discovery and Robotics

Classical protocols and middlewares for service dis-

covery in distributed environments like data-grids,

clouds or even smart environments have a central-

ized or decentralized registry that manages service

description. Decentralized systems (e.g UPnP (Ahn

et al., 2005), Jini (Pereira et al., 2011) or SLP

(Romero et al., 2010)) can be a purely distributed so-

lution where each node stores its own service repos-

itories or a hybrid solution that includes super-nodes

that aggregate information from other peers.

Another way to see a ﬂeet of robots is like a

service-oriented multi-agent system. Such environ-

ments like Peer-to-Peer (P2P), Multi-Agent Systems

(MAS) or Service-Oriented Environments (SOE) tend

to approach the problem of service discovery in a cen-

tralized, distributed or decentralized way. Central-

ized mechanisms like super-peers (Gummadi et al.,

2002), middle-agents (Klusch et al., 2006) or cen-

tral registries (Rompothong and Senivongse, 2003)

are limited in number of agents in the system and

in terms of the number of requests. They also use

SDfR - Service Discovery for Robots

237

a centralized node which can have serious impact if

the central point becomes unreachable. Distributed

approaches such as Distributed Hash Tables (DHT)

(Maymounkov and Mazieres, 2002) offer more scal-

ability and robustness by having multiple speciﬁc

nodes that can manage the resources. Decentralized

systems consider all the nodes to be equal. This ap-

proach provides more ﬂexibility, but it has its down-

sides, since each node has only a partial view of the

entire system. As mentioned in (del Val et al., 2014),

an interesting way to discover service inside a decen-

tralized and self-organized multi-agent system is to

use homogeneity between agents.

In the robotic world, an approach for service dis-

covery in centralized networks is to use classical Uni-

versal Plug and Play (UPnP) protocol. Since the con-

cept of having the robotic tasks and processes as ser-

vices is not mature yet, the main focus of research on

service discovery in robotics is oriented towards the

integration with the environment, like smart homes or

smart cities. Reference (Borja et al., 2013) provides a

case study of integration of service robots and smart-

homes via UPnP. In these cases, the authors are not

referring to a robot as part of a speciﬁc ﬂeet, but as

part of an environment, in which the robot is consid-

ered as an entity that can offer services.

The solutions presented above have their down-

sides when applied to ad-hoc multi-robot systems.

Firstly, due to the mobility of the robots, the network

connection is highly instable and robots can discon-

nect and reconnect very often. Existing protocols do

not perform the same way in a highly dynamic en-

vironment and in a static one. As mentioned in (Is-

sarny et al., 2011), the challenge is to set the trade-off

between physical mobility and scalability. Secondly,

existing protocols are not very adaptive. The discov-

ery protocol should be ready to be used at any time

and track its usage and failures. Existing protocols

like UPnP, have a limited memory factor and when the

connection is timed-out, the discovery process reini-

tializes itself at reconnection.

Next sections present our extension of SDP used

in UPnP in order to overcome the limitation of exist-

ing service discovery approaches.

4 SERVICE DISCOVERY FOR

ROBOTICS

Our main goal is to propose a mechanism that allows

highly mobile robots to keep track of the reachable

peers inside a ﬂeet while using an ad-hoc infrastruc-

ture. This mechanism should also be able to provide a

list of services available on each peer. Another objec-

tive is to propose a network conﬁguration negotiation

protocol. Due to the mobility of robots, classical peer

to peer network conﬁguration techniques are not suit-

able.

In this section we present the general description

of our service discovery protocol for robotic applica-

tions, called SDfR (Service Discovery for Robots).

4.1 SDfR vs SSDP

We propose a protocol that does not ﬂood the net-

work and provides an already seen memory feature

built-in. SDfR protocol aims to be a dynamic, adap-

tive and scalable protocol. For this purpose we based

our approach on Simple Service Discovery Proto-

col (Goland et al., ) (SSDP) from UPnP. SDfR also

aims to provide service discovery with the smart-

environment in which the robots are being deployed.

In order to limit the network usage for the service

discovery process, SDfR sends most of the internal

messages in multicast, avoiding the overhead gener-

ated by unicast transmission in order to propagate the

same message. In addition, to avoid failure in case

of a disconnection due to the movement of the robots

outside the coverage area, all the communications are

done using UDP (User Datagram Protocol). Further-

more, to limit the network ﬂooding when the protocol

needs information from just one robot, a second trans-

mission is enabled in unicast mode. SDfR does not

need to reinitialize the entire discovery protocol when

the connection is lost, because it disposes of a history

map of all the already seen robots and their services.

In order to avoid services that are out of reach

(e.g. service of robots that are present in the history

map but are not present in the covered communica-

tion area), a connection indicator is computed for each

robot represented by the success rate of pinging the

connected peers.

The main similarities between SSDP and SDfR are:

Multicast Transmissions. In order to avoid the over-

head of retransmitting the same unicast message,

most of the internal messages are multicast.

HTTP-style Messages. The messages that are being

sent use an HTTP-style structure composed of

headers and a body.

The main differences between SSDP and SDfR are:

Limited Multicast Transmissions. To avoid failure

in case of a disconnection due to the movement of

the robots outside the coverage area, all the com-

munications in SDfR are done using UDP (User

Datagram Protocol) and only in request model.

Unicast Transmissions. To limit the network ﬂood-

ing when the protocol needs information from just

ICAART 2016 - 8th International Conference on Agents and Artiﬁcial Intelligence

238

one robot, a second transmission mechanism is

enabled in unicast mode in SDfR.

History Map. SDfR does not need to reinitialize the

entire discovery protocol when the connection is

lost, because it disposes of a history map of all the

already seen robots and their services. In order to

avoid services that are out of reach (e.g service of

robots that are present in the history map but are

not present in the covered communication area), a

connection indicator is computed for each robot.

4.2 Protocol Description

We designed our protocol as a ﬁnite state timed au-

tomaton. A detailed description of the design process

and the model validation is out of the scope of this

paper.

Each protocol method has at least one type of mes-

sage that resides inside the request payload. A sample

execution of the communications is illustrated in Fig-

ure 1. Two methods representing the desired action

of a request are used in SDfR : M-SEARCH and NO-

TIFY.

The M-SEARCH method is used for discovery re-

quests to get the list of near by members and their ser-

vices. The message type associated with this method

is Discovery.

The other method, NOTIFY is used to respond

to a Discovery request or to inform the others about

changes in the current state of the robot. The message

types associated with this method are: Update, Alive

and Byebye.

• The Update message is sent as a response to a Dis-

covery request or when the current services or ca-

pacities of the robot change.

• The Alive message is sent recurrently, as a beacon,

in order to inform the others about the presence

of the robot. The beacon sending rate can be set

depending on the services need. The default value

is at 10s.

• The Byebye message is sent when the robot stops

gracefully, in order to inform the others about its

disappearance.

5 ARCHITECTURE OF SDFR

In this section we zoom in on the architecture and fea-

tures embedded in SDfR by presenting its implemen-

tation as a service.

5.1 SDfR Architecture

Service Discovery for Robots is developed as a ser-

vice itself. The service-oriented architecture ap-

proach for robotic software development is not very

widely used in the robotic community. The practice

in this community is to develop built-in libraries in

order to extend software features.

R1 R2 Rn

…

Discovery

Update

Alive

Byebye

……

………

Figure 1: Sample execution of SDfR communications.

The main advantage of having a service-oriented

architecture is the compatibility with other robotic

services developed in different programming lan-

guages and running over different operating systems.

This is a critical feature for a heterogeneous robotic

ﬂeet.

Furthermore, SDfR service can run separately of

the other processes on the robot and all the messages

are consumed by instances of the service on multiple

robots. If it fails, it would not affect the other services

running on the robot. This sand-boxing also ensures

that the information sent by the protocol is not cor-

rupted by any other third-parties.

SDfR service is composed of two layers as shown

in Figure 2: an API layer that communicates with

other services and a Discovery Protocol layer. Each

layer has an independent life-cycle and communi-

cates internally via a shared memory. The API layer

responds to requests independently from the lower

layer, using the information from the shared mem-

ory. The lower discovery protocol layer is in charge of

communication with the other SDfR nodes on an elas-

tic number of robots in order to discover the reachable

peers and their services.

RESTful Communication API. A Representa-

tional State Transfer (Fielding, 2000) (RESTful) web-

service was chosen for the API. It lets other services

communicate with SDfR service because it is based

on normal HTTP requests which enables intent to

be inferred from the type of request being made and

is completely stateless. All the responses are JSON

messages.

SDfR - Service Discovery for Robots

239

API

Discovery protocol

Internal data

Applications

Other SDfR nodes on an

elastic number of robots

Independent lifecycles

n robotic services

m peers

Figure 2: SDfR service architecture.

Ad-hoc Conﬁguration Management. Since the

ﬂeet is operating in an ad-hoc infrastructure, the peers

need to be able to negotiate and auto-conﬁgure their

network conﬁguration. A robotic ﬂeet ad-hoc net-

work is different from a classic ad-hoc hot-spot be-

cause the robots are highly dynamic and the network

can be partitioned or merged. The mobility of the

peers needs to be taken into consideration in the ne-

gotiation protocol of the conﬁguration. SDfR service,

based on a simple conﬁguration ﬁle, is able to au-

tomatically connect to an ad-hoc network. The se-

cured WiFi SSID network is composed using the ﬂeet

id. This mechanism allows to have multiple ﬂeets

of robots in the same network space. Moreover, the

robots can auto assign IP addresses. The standard net-

work space is 10.<ﬂeet id>.<x>.<y>, where x and

y are computed by each robot from its internal MAC

address in order to avoid IP conﬂict (Thomson et al.,

2007). Furthermore, if an IP conﬂict happens, the ser-

vice has a mechanism to trigger an IP change on the

robots. This mechanism is available all the time since

an IP conﬂict can be triggered by a merge of 2 sub-

networks.

5.2 ROS Integration

In order to make SDfR service user friendly, we have

created a ROS node that communicates with SDfR

service and can be used by other nodes via topics and

services. When the node starts, it launches a instance

of SDfR if it is not running and then it provides sup-

port for other ROS nodes to publish or unpublish their

services and their capacities. Furthermore, our ROS

node provides the neighbors list of services and is ca-

pable of allowing other ROS applications to search for

a speciﬁc service with a speciﬁc conﬁguration.

A producer node can publish its services or capac-

ities in an asynchronous way using ROS topics be-

cause we consider that the registration is not highly

bound to time. The same concept applies for the un-

publish commands and for getting the list of neigh-

bors. On the other hand, the search command for a

speciﬁc neighbor and their services needs to be done

in synchronous way using ROS services because the

behaviors of the consumer node is depending on it.

6 EVALUATION

In the evaluation we want to measure what is the over-

load generated by the usage of SDfR in a robotic ﬂeet

context. Another objective is to see the impact of us-

ing text-plain protocol in the upper and the lower layer

of the SDfR service. In this section we present the

main results of resource overhead for SDfR.

Figure 3: Turtlebots in the experimentation hall of CITI-

Lab.

SDfR was benchmarked in two types of contexts:

• a static scenario where the robots do not move to

evaluate the overhead in an ideal Wi-Fi communi-

cation scheme

• a real dynamic scenario (see Figure 3) where

robots are moving and transmission can drop.

In both scenarios all peers should discover their

neighbors and in the the second one, the neighbors

discovery depends on the distance between peers.

The benchmarks were performed on Turtlebot 2

robots equipped with an Intel Core 2 Duo, 2.1 GHz

CPU, 4Gb of Ram PC running on Ubuntu 13.04

Each test run was given 5 minutes to collect the

data. In our test runs we used simulated services that

try to register/subscribe into SDfR. We simulate three

type of actions:

1. Publish. We simulate new service providers that

try to publish with a delay time of 10 seconds. In

order to simulate publishers, we used an Apache

server on each robot that responds to the auto-

discovery URL of each publisher.

2. Unpublish. Each of the already published service

providers could be unpublished with a random de-

lay between 5 seconds.

3. Subscribe. We generate separated threads for

each consumer. Each thread will constantly re-

ICAART 2016 - 8th International Conference on Agents and Artiﬁcial Intelligence

240

quest the table of neighbors from SDfR, in order

to stress at maximum our protocol.

In the static scenario we considered different num-

bers of robots: 2, 4, 6. Each robot had a total number

of service providers and service consumers equal to

100 simulated services. For each number of robots

we used different ratios between providers and con-

sumers: 30%, 50% and 70% publishers.

In the dynamic test-case we used for each variant

of SDfR 6 robots with a number of 100 simulated ser-

vices per robot. 70% of the services on each robot

were publishers. The robots moved randomly in a

200 square meters room with poles and other obsta-

cles. The room (see Figure 3) was exposed to Wi-Fi

interferences from other networks that occupy all of

the 2.4Ghz channels.

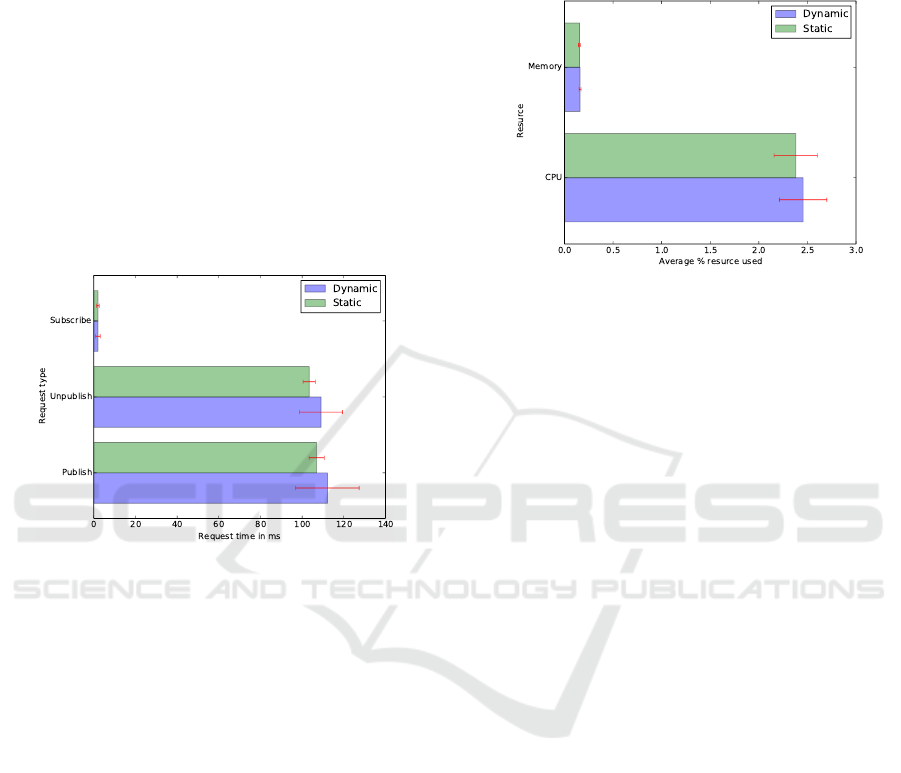

Figure 4: Average request time in SDfR.

6.1 Overhead Evaluation

A robotic application that provides a service for the

ﬂeet needs to register with SDfR. This must be done

as fast as possible in order to avoid blocking the ser-

vice when it starts. Another important overhead mea-

sure is the time of unregister request. This happens

whenever a producer wants to remove itself from the

SDfR registry. One of the most important metric for

robotics application from a latency point of view is

the time to request the list of neighbors and their ser-

vices. In a real scenario, a producer registers once for

its life-time cycle, but a consumer may request multi-

ple times the list of reachable neighbors and services.

The subscription response time can have a impact on

the time to complete a ﬂeet task.

Figure 4 reveals the resulting time consumed by a

service to publish or unpublish its service or get the

neighbors services in the static and dynamic scenar-

ios. In the dynamic scenario (Figure 4), the latency

is higher but the difference from the static scenario is

less than 30%. This can be explained by the increase

in computation load on robots generated by the mo-

bility of the ﬂeet. All the request times remain in a

certain variation interval even if the number of robots

increases. The publish request takes from 95ms to

130ms, the unpublish request varies between 98ms to

122ms and the subscribe request is less than 5ms.

Figure 5: CPU and Memory usage.

6.2 CPU and Memory Usage Evaluation

In robotic applications, the computation power is crit-

ical. Fleet of robots are heterogeneous and can in-

clude different types of robots with different compu-

tational factor. Having a low CPU consumption dis-

covery service, beneﬁts the other processes involved

in performing the ﬂeet mission. Besides the CPU us-

age, another critical resource in ﬂeets of robots is the

memory. As an example, robotic ﬂeets may include

visual sensors like 3D cameras which are in high de-

mand of memory. A service discovery protocol needs

to have a low usage of the robot memory.

Figure 5 presents our results for % of CPU and

Memory used. CPU consumption varies between

2.2% to 2.8% of CPU usage. We observe that the CPU

usage is higher for the dynamic scenario because the

CPU time is consumed by the mobility management

and the number of CPU slots is less for other pro-

cesses. We can also say that the CPU usage increases

with the number of robots in the ﬂeet with a rate of

maximum 1% per robot. The memory usage is less

than 0.3% (out of 4GB) and seems to remain constant

even if the number of robots increases.

6.3 Latency Evaluation

In a ﬂeet context the communication between peers in

ad-hoc network are very sensitive. The transmissions

can be unreliable due to the mobility of the robots.

This is why the network overhead needs to be as lim-

ited as possible in order to allow services to exchange

information. Our measurements include the average

of transmitted and received bytes per robot in a test

run of 5 minutes. To increase the quality of our mea-

SDfR - Service Discovery for Robots

241

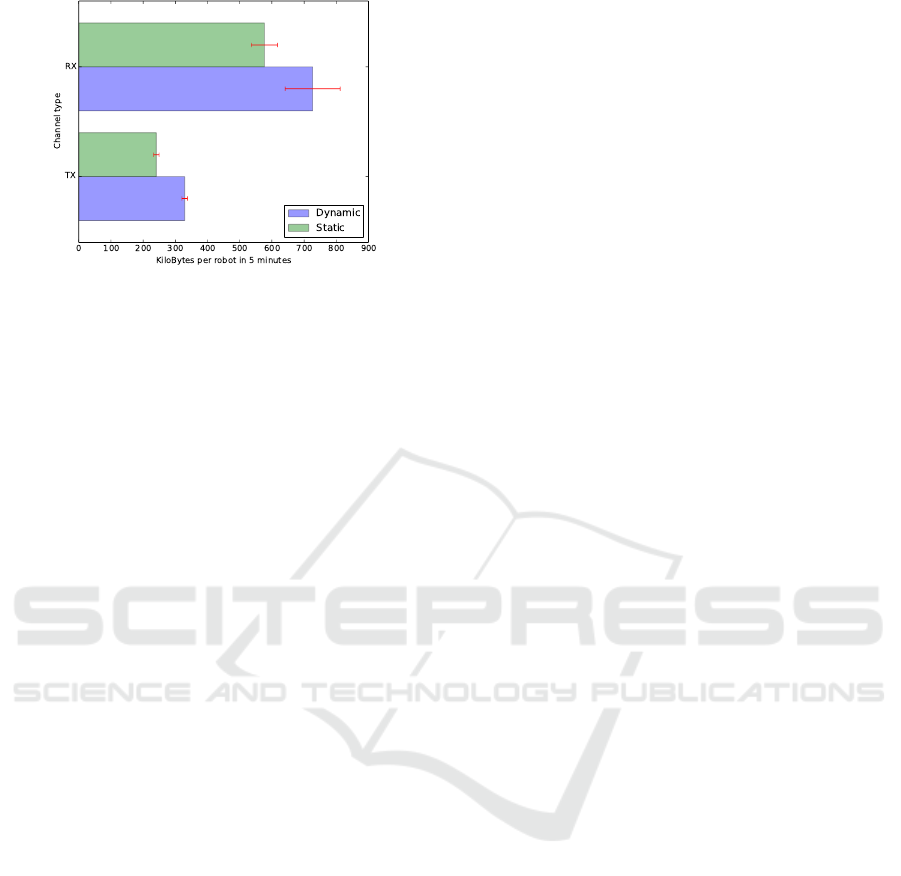

Figure 6: Transmitted and Received bytes per robot in 5

min.

surements we use intermediary check-points for each

metric at each 10 seconds.

Figure 6 presents the quantity of transmitted (TX)

and received (RX) kilobytes per robot. The number

of bytes varies from 220 kilobytes to 320 kilobytes

for the transmitted bytes and from 540 kilobytes to

850 kilobytes for received bytes. This remains very

limited considering the time of 5 minutes.

Conclusion. Our results show that SDfR is low la-

tency brick, with a small overhead on CPU and mem-

ory that has a low network consumption. Moreover,

the increase in number of robots in a ﬂeet do not

have a big impact on SDfR overhead. Being inte-

grated with ROS makes SDfR a good asset in man-

aging neighbors and service in multi-robot context.

7 USE-CASES

This section presents use-cases where SDfR and ser-

vice oriented architecture were applied. These two

use-cases are being studied in an ongoing project:

‘CROME - Multi-view multi-robot scene understand-

ing and ﬂeet coordination’ (Matignon et al., 2014).

But the applicability of SoA and SDfR is larger than

the examples presented below.

In general, we can use services in any robotic ap-

plication that need to perform one or multiple tasks at

once by having multiple nodes that manage different

pars of hardware layers. In multi-robot context, SDfR

can be used to simply discover the peers in our com-

munication zone and avoid overloading the network

with broadcasts or messages for unreachable robots.

Furthermore SDfR provides a list of available services

on each peer, thus a robot can decide if it can relay on

a peer to perform together a task.

7.1 Peer-to-Peer Monitoring in a Fleet

This scenario consists in having a ﬂeet of robots per-

forming a mission in a decentralized network. The

environment is big enough to make direct communi-

cation between all peers impossible.

In these condition, a monitor station cannot have

a global image of what is happening in the ﬂeet. In

order to provide the monitor with information about

each robot status, status messages and alerts need to

be routed in a peer to peer context to the monitoring

station.

In this case, on each robot inside the ﬂeet, ser-

vices are represented by the nodes that manage the

hardware elements of each robot and that expose their

status. In addition, a peer to peer monitoring service

is present. It collects the data from other nodes and

analyzes it in order to trigger alarms if necessary.

SDfR is used for all the hardware nodes to register

in order to be discovered by the monitoring service.

The monitoring service ﬁrst registers itself into SDfR

and then it gets constantly the lists of available service

on the robot. In addition, this service uses SDfR to

discover the peers that are in the communication area.

The peer-to-peer monitoring service searches for

the neighbors with an instance of this same service.

If it ﬁnds one, it routes in a state-less connection all

the data from its nodes to the neighbor. It also tries

to build a communication route for alert to get in a

state-full environment to the monitoring station.

7.2 Complex Scene Observation by

Robotic Fleet

This scenario consists in having a ﬂeet of robots ob-

serving a complex scene using multiple sensors in or-

der to have a better observation. Combing the percep-

tion of each robot, the ﬂeet has a better vision of the

scene. The robots need to move in order to maximize

the observation of the scene. In a particular case, the

ﬂeet observe the pose of a human and his joints.

In this case, on each robot we have a node that

gets the sensor perception, a node that manages the

movement of the robot and a upper AI layer service

that decides if the robot needs to move in order to

maximize the vision.

SDfR is used by the AI layer to discover the move-

ment node and the perception node. Furthermore,

SDfR is used to search for the other reachable peers

in the ﬂeet. Using SDfR allows an elastic number of

robots to participate in the ﬂeet in this type of mission.

ICAART 2016 - 8th International Conference on Agents and Artiﬁcial Intelligence

242

8 CONCLUSION

In this paper we presented the challenges to make a

service discovery protocol for robot ﬂeet systems. We

discussed the limited applicability of existing service

discovery protocols in the context of robot ﬂeets and

then, we proposed a new protocol called SDfR that

is suitable for service discovery inside an ad-hoc net-

worked ﬂeet.

The evaluation results shows that SDfR API gen-

erates a small latency and the SDfR service has a

small impact on the CPU and memory used. Further-

more, SDfR has a low bandwidth consumption in both

static and dynamic scenarios. Base on our bench-

marking, we believe that SDfR can provide neigh-

bor and service discovery for multi-robot applications

without stressing the system. ROS integration and ad-

hoc network auto-connect features facilitate the usage

of SDfR.

We intend to further use SDfR in our current

approach of improving the families of middleware

to facilitate the development of multi-robot systems.

SDfR can be used as part of bigger systems like re-

mote application deployment environment in ad-hoc

robotic network where robots can be dynamically pro-

visioned with new applications while remaining in

operation environment. SDfR can also be used to

monitor the running services on each robot. We are

also interested in opportunities for SDfR not just for

robotics but also in other ﬁelds like mobile wireless

sensor networks.

REFERENCES

Ahn, S. C., Kim, J. H., Lim, K., Ko, H., Kwon, Y.-M., and

Kim, H.-G. (2005). Upnp approach for robot middle-

ware. In Robotics and Automation, 2005. ICRA 2005.

Proceedings of the 2005 IEEE International Confer-

ence on, pages 1959–1963. IEEE.

Borja, R., de la Pinta, J.,

Alvarez, A., and Maestre, J.

(2013). Integration of service robots in the smart home

by means of UPnP: A surveillance robot case study.

Robotics and Autonomous Systems, 61(2):153 – 160.

Chitic, S., Ponge, J., and Simonin, O. (2014). Are middle-

wares ready for multi-robots systems? In Simulation,

Modeling, and Programming for Autonomous Robots

- 4th International Conference, SIMPAR 2014, Berg-

amo, Italy, October 20-23, 2014, pages 279–290.

Cousins, S., Gerkey, B., Conley, K., and Garage, W. (2010).

Sharing software with ros [ros topics]. Robotics &

Automation Magazine, IEEE, 17(2):12–14.

del Val, E., Rebollo, M., and Botti, V. (2014). Enhanc-

ing decentralized service discovery in open service-

oriented multi-agent systems. Autonomous Agents and

Multi-Agent Systems, 28(1):1–30.

Fielding, R. (2000). Representational state transfer. Ar-

chitectural Styles and the Design of Netowork-based

Software Architecture, pages 76–85.

enot, S., Le Mou

el, F., Ponge, J., and Salagnac, G. (2010).

Various Extensions for the Ambient OSGi framework.

In Adamus Workshop in ICPS, Berlin, Allemagne.

Goland, Y. Y., Cai, T., Leach, P., and Albright, S. Simple

service discovery protocol. RFC 2026.

Gummadi, P. K., Saroiu, S., and Gribble, S. D. (2002). A

measurement study of napster and gnutella as exam-

ples of peer-to-peer ﬁle sharing systems. ACM SIG-

COMM Computer Communication Review, 32(1):82–

82.

Issarny, V., Georgantas, N., Hachem, S., Zarras, A., Vas-

siliadist, P., Autili, M., Gerosa, M. A., and Hamida,

A. B. (2011). Service-oriented middleware for the

future internet: state of the art and research direc-

tions. Journal of Internet Services and Applications,

2(1):23–45.

Klusch, M., Fries, B., and Sycara, K. (2006). Automated

semantic web service discovery with owls-mx. In

Proc. of the ﬁfth international joint conference on Au-

tonomous agents and multiagent systems, pages 915–

922. ACM.

Kranz, M., Rusu, R. B., Maldonado, A., Beetz, M.,

and Schmidt, A. (2006). A player/stage system for

context-aware intelligent environments.

Matignon, L., Chitic, S., and Simonin, O. (2014). Cooperat-

ing in a group of mobile robots to identify the human

skeleton model. http://youtu.be/5kmxIgLEerQ.

Maymounkov, P. and Mazieres, D. (2002). Kademlia: A

peer-to-peer information system based on the xor met-

ric. In Peer-to-Peer Systems, pages 53–65. Springer.

Pereira, A., Costa, N., and Ser

odio, C. (2011). Peer-to-peer

Jini for truly service-oriented WSNs. International

Journal of Distributed Sensor Networks, 2011.

Quigley, M., Conley, K., Gerkey, B., Faust, J., Foote, T.,

Leibs, J., Wheeler, R., and Ng, A. Y. (2009). Ros: an

open-source robot operating system. In ICRA work-

shop on open source software, volume 3.

Romero, D., Rouvoy, R., Seinturier, L., and Carton, P.

(2010). Service discovery in ubiquitous feedback con-

trol loops. In Distributed Applications and Interoper-

able Systems, pages 112–125. Springer.

Rompothong, P. and Senivongse, T. (2003). A query fed-

eration of uddi registries. In Proc. 1st international

symposium on Information and communication tech-

nologies, pages 561–566. Trinity College Dublin.

ROS (2014). Robot operating system. http://www.ros.org/.

Thomson, S., Narten, T., and Jinmei, T. (2007). Ipv6 state-

less address autoconﬁguration. RFC 4862.

SDfR - Service Discovery for Robots

243
